Vehicle specifications
Volkswagen Transporter (T6.1, facelift 2019) Kombi
Compare all 42 engine versions of the Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Volkswagen Transporter (T6.1, facelift 2019) Kombi? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Volkswagen Transporter (T6.1, facelift 2019) Kombi?
See the places on a 3D model →- VIN number
- Firewall (bulkhead), right side

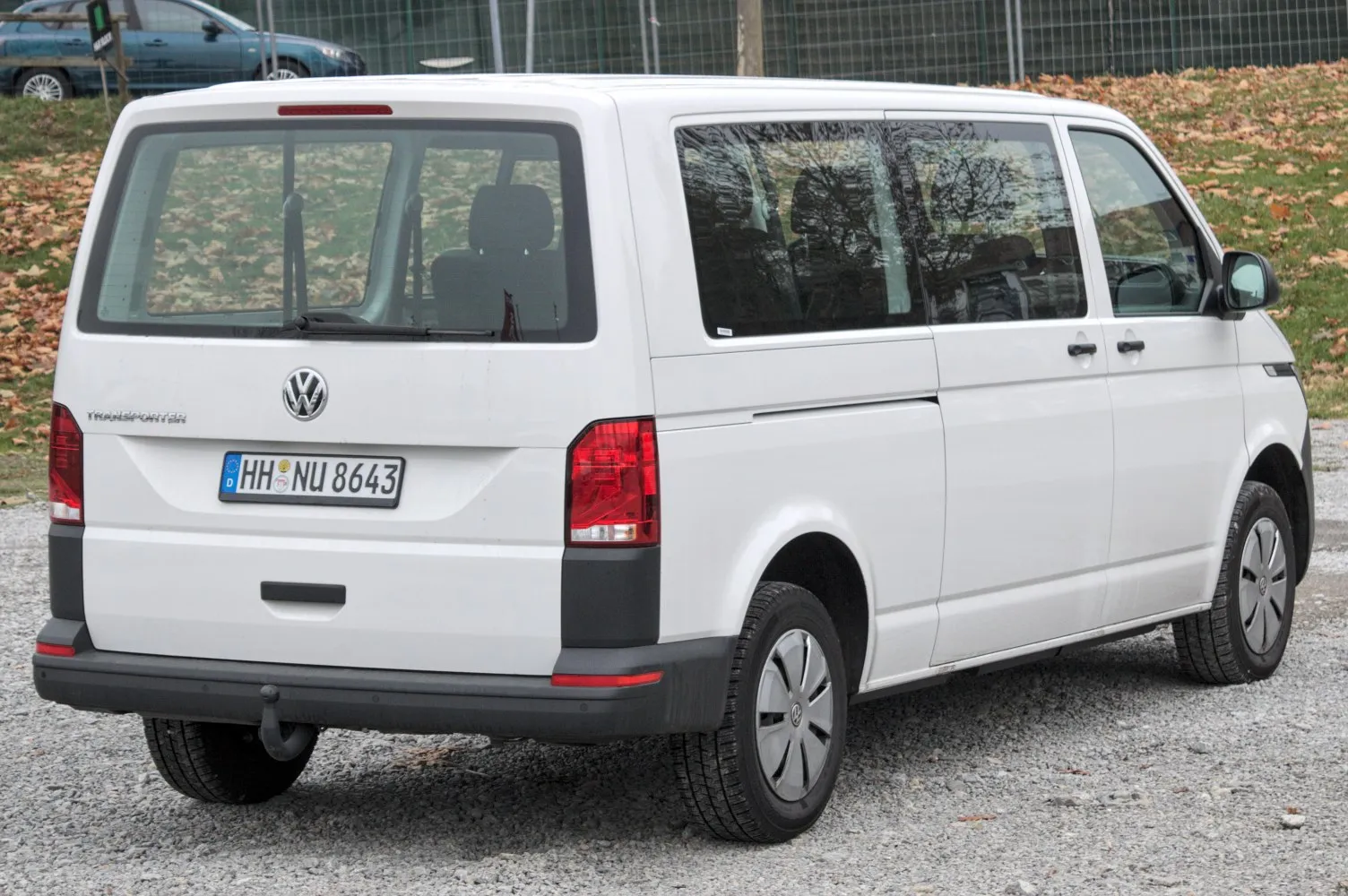

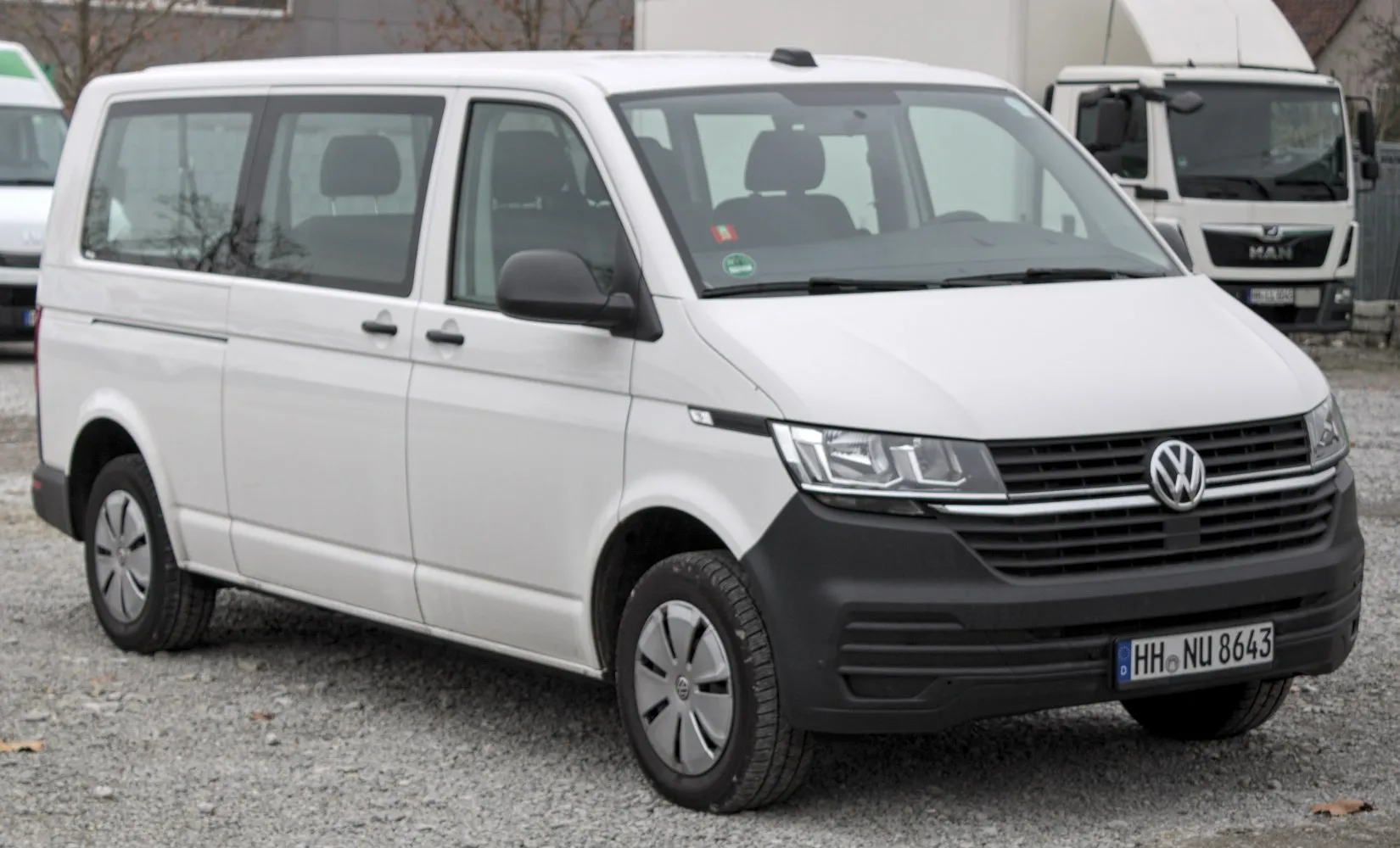

Vehicle photos
1 of 2
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
42 versions · 42 Diesel fuel
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
2.0 TDI (199 KM) 4MOTION DSG L1H1
Diesel fuel · 2019–2021
- Engine power
- 199 KM
- Torque
- 450 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.8 s
- Maximum speed
- 198 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (199 KM) 4MOTION DSG L1H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2021
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 198 km/h
- Acceleration 0-100 km/h
- 9.8 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 8.2-9.1 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.3-7.3 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 7-7.9 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 184-208 g/km
Engine
- Engine model / code
- EA288/CXEC
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 199 KM @ 3800-4000 obr./min
- Torque
- 450 Nm @ 1400-2400 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 5800 l
- Curb weight
- 2015-2274 kg
- Gross weight
- 3000-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 4904 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3000 mm
- Ground clearance
- 201 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 13.7 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 340 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/60 R17; 235/55 R17; 255/45 R18
- Rim size
- 7J x 17; 8J x 18
- ABS
- yes
Selected engine version
2.0 TDI (110 KM) L1H1
Diesel fuel · 2020–2023
- Engine power
- 110 KM
- Torque
- 250 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 15.5 s
- Maximum speed
- 164 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (110 KM) L1H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2020
- End of production
- 2023
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 164 km/h
- Acceleration 0-100 km/h
- 15.5 s
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Urban cycle
- 7.3-8.3 l/100 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Extra-urban cycle
- 6.6-7.6 l/100 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 6.7-7.7 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- WLTP
- CO2 emissions
- 176-202 g/km
Engine
- Engine model / code
- EA288MAR/DNAB
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 110 KM @ 3100-4250 obr./min
- Torque
- 250 Nm @ 1350-3100 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 5800 l
- Curb weight
- 1833-2199 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2200 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 4904 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3000 mm
- Ground clearance
- 201 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 13.7 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) L1H1
Diesel fuel · 2020–2023
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.9 s
- Maximum speed
- 183 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) L1H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2020
- End of production
- 2023
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 183 km/h
- Acceleration 0-100 km/h
- 11.9 s
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Urban cycle
- 7.9-8.7 l/100 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Extra-urban cycle
- 6.7-7.6 l/100 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 6.9-7.8 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- WLTP
- CO2 emissions
- 180-204 g/km
Engine
- Engine model / code
- EA288MAR/DNAA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 5800 l
- Curb weight
- 1863-2199 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 4904 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3000 mm
- Ground clearance
- 201 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 13.7 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) 4MOTION DSG L1H1
Diesel fuel · 2019–2020
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.5 s
- Maximum speed
- 179 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) 4MOTION DSG L1H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2020
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 179 km/h
- Acceleration 0-100 km/h
- 12.5 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.9-8.4 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.2-7.1 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.8-7.6 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 180-200 g/km
Engine
- Engine model / code
- EA288/CXFA, CXHA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 5800 l
- Curb weight
- 1976-2274 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 4904 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3000 mm
- Ground clearance
- 201 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 13.7 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (199 KM) DSG L1H1
Diesel fuel · 2019–2021
- Engine power
- 199 KM
- Torque
- 450 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.3 s
- Maximum speed
- 201 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (199 KM) DSG L1H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2021
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 201 km/h
- Acceleration 0-100 km/h
- 9.3 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.1-8.2 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 5.5-6.4 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.1-7.1 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 160-186 g/km
Engine
- Engine model / code
- EA288/CXEC
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 199 KM @ 3800-4000 obr./min
- Torque
- 450 Nm @ 1400-2400 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 5800 l
- Curb weight
- 1924-2274 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 4904 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3000 mm
- Ground clearance
- 201 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 13.7 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 340 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/60 R17; 235/55 R17; 255/45 R18
- Rim size
- 7J x 17; 8J x 18
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) 4MOTION L1H1
Diesel fuel · 2020–2021
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.2 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) 4MOTION L1H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2020
- End of production
- 2021
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 12.2 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 8.2-8.8 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.4-7 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 7-7.7 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 186-202 g/km
Engine
- Engine model / code
- EA288/CXFA, CXHA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 5800 l
- Curb weight
- 1961-2274 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 4904 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3000 mm
- Ground clearance
- 201 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 13.7 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (110 KM) L1H1
Diesel fuel · 2019–2020
- Engine power
- 110 KM
- Torque
- 250 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 15.5 s
- Maximum speed
- 164 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (110 KM) L1H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2020
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 164 km/h
- Acceleration 0-100 km/h
- 15.5 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.4-8 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 5.6-6.5 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.2-7.1 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 164-187 g/km
Engine
- Engine model / code
- EA288/CXHC
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 110 KM @ 3200-4250 obr./min
- Torque
- 250 Nm @ 1250-3100 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 5800 l
- Curb weight
- 1809-2199 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2200 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 4904 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3000 mm
- Ground clearance
- 201 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 13.7 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) L1H1
Diesel fuel · 2019–2020
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.9 s
- Maximum speed
- 183 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) L1H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2020
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 183 km/h
- Acceleration 0-100 km/h
- 11.9 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.6-8.2 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 5.6-6.5 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.3-7.2 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 167-189 g/km
Engine
- Engine model / code
- EA288/CXFA, CXHA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 5800 l
- Curb weight
- 1839-2199 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 4904 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3000 mm
- Ground clearance
- 201 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 13.7 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) DSG L1H1
Diesel fuel · 2019–2020
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12 s
- Maximum speed
- 182 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) DSG L1H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2020
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 182 km/h
- Acceleration 0-100 km/h
- 12 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 6.5-7.7 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 5.4-6.3 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 5.8-6.8 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 152-179 g/km
Engine
- Engine model / code
- EA288/CXFA, CXHA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 5800 l
- Curb weight
- 1859-2199 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 4904 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3000 mm
- Ground clearance
- 201 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 13.7 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (204 KM) 4MOTION DSG L2H3
Diesel fuel · 2021–2022
- Engine power
- 204 KM
- Torque
- 450 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10 s
- Maximum speed
- 189 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (204 KM) 4MOTION DSG L2H3
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2021
- End of production
- 2022
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 189 km/h
- Acceleration 0-100 km/h
- 10 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.9-8.5 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.7-7.2 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 7.2-7.7 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 188-203 g/km
Engine
- Engine model / code
- EA288MAR/DMZA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 204 KM @ 4000 obr./min
- Torque
- 450 Nm @ 1400-2250 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 9300 l
- Curb weight
- 2152-2399 kg
- Gross weight
- 3000-3200 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 2477 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 340 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/60 R17; 235/55 R17; 255/45 R18
- Rim size
- 7J x 17; 8J x 18
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) 4MOTION DSG L2H3
Diesel fuel · 2019–2020
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.5 s
- Maximum speed
- 179 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) 4MOTION DSG L2H3
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2020
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 179 km/h
- Acceleration 0-100 km/h
- 12.5 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 8.1-8.7 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.8-7.5 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 7.3-7.9 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 192-207 g/km
Engine
- Engine model / code
- EA288/CXFA, CXHA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 9300 l
- Curb weight
- 2088-2399 kg
- Gross weight
- 3000-3200 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 2477 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) 4MOTION DSG L2H3
Diesel fuel · 2020–2022
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 13 s
- Maximum speed
- 169 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) 4MOTION DSG L2H3
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2020
- End of production
- 2022
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 169 km/h
- Acceleration 0-100 km/h
- 13 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.6-8.7 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.6-7.5 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 7-7.9 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 185-207 g/km
Engine
- Engine model / code
- EA288MAR/DNAA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 9300 l
- Curb weight
- 2113-2399 kg
- Gross weight
- 3000-3200 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 2477 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (199 KM) DSG L2H3
Diesel fuel · 2019–2021
- Engine power
- 199 KM
- Torque
- 450 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.3 s
- Maximum speed
- 201 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (199 KM) DSG L2H3
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2021
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 201 km/h
- Acceleration 0-100 km/h
- 9.3 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.4-8.4 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6-6.8 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.5-7.4 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 172-194 g/km
Engine
- Engine model / code
- EA288/CXEC
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 199 KM @ 3800-4000 obr./min
- Torque
- 450 Nm @ 1400-2400 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 9300 l
- Curb weight
- 2018-2274 kg
- Gross weight
- 2800-3200 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 2477 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 340 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/60 R17; 235/55 R17; 255/45 R18
- Rim size
- 7J x 17; 8J x 18
- ABS
- yes
Selected engine version
2.0 TDI (199 KM) 4MOTION DSG L2H3
Diesel fuel · 2019–2021
- Engine power
- 199 KM
- Torque
- 450 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.8 s
- Maximum speed
- 198 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (199 KM) 4MOTION DSG L2H3
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2021
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 198 km/h
- Acceleration 0-100 km/h
- 9.8 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 8.4-9.2 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.8-7.6 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 7.4-8.2 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 194-215 g/km
Engine
- Engine model / code
- EA288/CXEC
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 199 KM @ 3800-4000 obr./min
- Torque
- 450 Nm @ 1400-2400 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 9300 l
- Curb weight
- 2128-2399 kg
- Gross weight
- 3000-3200 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 2477 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 340 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/60 R17; 235/55 R17; 255/45 R18
- Rim size
- 7J x 17; 8J x 18
- ABS
- yes
Selected engine version
2.0 TDI (204 KM) DSG L2H3
Diesel fuel · 2021–2022
- Engine power
- 204 KM
- Torque
- 450 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.5 s
- Maximum speed
- 192 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (204 KM) DSG L2H3
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2021
- End of production
- 2022
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 192 km/h
- Acceleration 0-100 km/h
- 9.5 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.5-8 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.1-6.5 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.6-7 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 175-185 g/km
Engine
- Engine model / code
- EA288MAR/DMZA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 204 KM @ 4000 obr./min
- Torque
- 450 Nm @ 1400-2250 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 9300 l
- Curb weight
- 2047-2274 kg
- Gross weight
- 2800-3200 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 2477 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 340 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/60 R17; 235/55 R17; 255/45 R18
- Rim size
- 7J x 17; 8J x 18
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) 4MOTION L2H3
Diesel fuel · 2020–2021
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.2 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) 4MOTION L2H3
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2020
- End of production
- 2021
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 12.2 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 8.4-8.9 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.8-7.4 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 7.4-8 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 195-209 g/km
Engine
- Engine model / code
- EA288/CXFA, CXHA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 9300 l
- Curb weight
- 2073-2399 kg
- Gross weight
- 3000-3200 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 2477 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) 4MOTION L2H3
Diesel fuel · 2021–2022
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.7 s
- Maximum speed
- 170 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) 4MOTION L2H3
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2021
- End of production
- 2022
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 170 km/h
- Acceleration 0-100 km/h
- 12.7 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 8.2-8.4 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.4-6.7 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 7.1-7.3 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 187-192 g/km
Engine
- Engine model / code
- EA288MAR/DNAA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 9300 l
- Curb weight
- 2098-2399 kg
- Gross weight
- 3000-3200 kg
- Braked trailer load (12% slope start)
- 2300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 2477 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) L2H3
Diesel fuel · 2020–2022
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.2 s
- Maximum speed
- 173 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) L2H3
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2020
- End of production
- 2022
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 173 km/h
- Acceleration 0-100 km/h
- 12.2 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.4-8.3 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 5.6-6.8 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.3-7.4 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 165-194 g/km
Engine
- Engine model / code
- EA288MAR/DNAA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 9300 l
- Curb weight
- 1976-2274 kg
- Gross weight
- 2800-3200 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 2477 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) DSG L2H3
Diesel fuel · 2019–2020
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12 s
- Maximum speed
- 182 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) DSG L2H3
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2020
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 182 km/h
- Acceleration 0-100 km/h
- 12 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 6.9-7.8 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 5.9-6.7 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.3-7.1 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 166-188 g/km
Engine
- Engine model / code
- EA288/CXFA, CXHA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 9300 l
- Curb weight
- 1971-2274 kg
- Gross weight
- 2800-3200 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 2477 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) DSG L2H3
Diesel fuel · 2020–2022
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.3 s
- Maximum speed
- 172 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) DSG L2H3
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2020
- End of production
- 2022
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 172 km/h
- Acceleration 0-100 km/h
- 12.3 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 6.6-7.8 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 5.9-6.7 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.1-7.1 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 162-188 g/km
Engine
- Engine model / code
- EA288MAR/DNAA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 9300 l
- Curb weight
- 1996-2274 kg
- Gross weight
- 2800-3200 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 2477 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) L2H3
Diesel fuel · 2019–2020
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.9 s
- Maximum speed
- 183 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) L2H3
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2020
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 183 km/h
- Acceleration 0-100 km/h
- 11.9 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.8-8.3 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.1-6.8 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.7-7.4 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 177-194 g/km
Engine
- Engine model / code
- EA288/CXFA, CXHA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 9300 l
- Curb weight
- 1951-2274 kg
- Gross weight
- 2800-3200 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 2477 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (110 KM) L2H3
Diesel fuel · 2020–2022
- Engine power
- 110 KM
- Torque
- 250 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 15.8 s
- Maximum speed
- 155 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (110 KM) L2H3
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2020
- End of production
- 2022
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 155 km/h
- Acceleration 0-100 km/h
- 15.8 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.2-8.1 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 5.6-6.9 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.2-7.4 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 163-194 g/km
Engine
- Engine model / code
- EA288MAR/DNAB
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 110 KM @ 3100-4250 obr./min
- Torque
- 250 Nm @ 1350-3100 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 9300 l
- Curb weight
- 1946-2274 kg
- Gross weight
- 2800-3200 kg
- Braked trailer load (12% slope start)
- 2200 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 2477 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (110 KM) L2H3
Diesel fuel · 2019–2020
- Engine power
- 110 KM
- Torque
- 250 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 15.5 s
- Maximum speed
- 164 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (110 KM) L2H3
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2020
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 164 km/h
- Acceleration 0-100 km/h
- 15.5 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.5-8.1 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6-6.9 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.6-7.4 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 173-194 g/km
Engine
- Engine model / code
- EA288/CXHC
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 110 KM @ 3200-4250 obr./min
- Torque
- 250 Nm @ 1250-3100 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 9300 l
- Curb weight
- 1924-2274 kg
- Gross weight
- 2800-3200 kg
- Braked trailer load (12% slope start)
- 2200 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 2477 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (204 KM) 4MOTION DSG L2H1
Diesel fuel · 2021–2022
- Engine power
- 204 KM
- Torque
- 450 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.6 s
- Maximum speed
- 199 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (204 KM) 4MOTION DSG L2H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2021
- End of production
- 2022
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 199 km/h
- Acceleration 0-100 km/h
- 9.6 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.9-8.5 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.3-7.2 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.9-7.7 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 183-203 g/km
Engine
- Engine model / code
- EA288MAR/DMZA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 204 KM @ 4000 obr./min
- Torque
- 450 Nm @ 1400-2250 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 6700 l
- Curb weight
- 2005-2274 kg
- Gross weight
- 3000-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 340 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/60 R17; 235/55 R17; 255/45 R18
- Rim size
- 7J x 17; 8J x 18
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) DSG L1H1
Diesel fuel · 2020–2023
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12 s
- Maximum speed
- 182 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) DSG L1H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2020
- End of production
- 2023
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 182 km/h
- Acceleration 0-100 km/h
- 12 s
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Urban cycle
- 8.9-9.9 l/100 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Extra-urban cycle
- 6.9-7.9 l/100 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 7.1-8.2 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- WLTP
- CO2 emissions
- 188-214 g/km
Engine
- Engine model / code
- EA288MAR/DNAA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 5800 l
- Curb weight
- 1863-2199 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 4904 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3000 mm
- Ground clearance
- 201 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 13.7 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) 4MOTION L1H1
Diesel fuel · 2021–2022
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.2 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) 4MOTION L1H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2021
- End of production
- 2022
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 12.2 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 8.1-8.3 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 5.9-6.3 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.8-7.1 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 178-186 g/km
Engine
- Engine model / code
- EA288MAR/DNAA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 5800 l
- Curb weight
- 1985-2274 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 4904 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3000 mm
- Ground clearance
- 201 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 13.7 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) 4MOTION DSG L1H1
Diesel fuel · 2020–2022
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.5 s
- Maximum speed
- 179 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) 4MOTION DSG L1H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2020
- End of production
- 2022
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 179 km/h
- Acceleration 0-100 km/h
- 12.5 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.4-8.4 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.2-7.1 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.7-7.6 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 177-200 g/km
Engine
- Engine model / code
- EA288MAR/DNAA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 5800 l
- Curb weight
- 2000-2274 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 4904 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3000 mm
- Ground clearance
- 201 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 13.7 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (204 KM) DSG L1H1
Diesel fuel · 2021–2022
- Engine power
- 204 KM
- Torque
- 450 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.1 s
- Maximum speed
- 203 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (204 KM) DSG L1H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2021
- End of production
- 2022
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 203 km/h
- Acceleration 0-100 km/h
- 9.1 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.3-7.9 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 5.7-6.2 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.3-6.8 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 166-179 g/km
Engine
- Engine model / code
- EA288MAR/DMZA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 204 KM @ 4000 obr./min
- Torque
- 450 Nm @ 1400-2250 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 5800 l
- Curb weight
- 1929-2274 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 4904 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3000 mm
- Ground clearance
- 201 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 13.7 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 340 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/60 R17; 235/55 R17; 255/45 R18
- Rim size
- 7J x 17; 8J x 18
- ABS
- yes
Selected engine version
2.0 TDI (204 KM) 4MOTION DSG L1H1
Diesel fuel · 2021–2022
- Engine power
- 204 KM
- Torque
- 450 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.6 s
- Maximum speed
- 199 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (204 KM) 4MOTION DSG L1H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2021
- End of production
- 2022
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 199 km/h
- Acceleration 0-100 km/h
- 9.6 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.9-8.4 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.2-6.9 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.9-7.5 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 180-197 g/km
Engine
- Engine model / code
- EA288MAR/DMZA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 204 KM @ 4000 obr./min
- Torque
- 450 Nm @ 1400-2250 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 5800 l
- Curb weight
- 2039-2274 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 4904 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3000 mm
- Ground clearance
- 201 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 13.7 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 340 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/60 R17; 235/55 R17; 255/45 R18
- Rim size
- 7J x 17; 8J x 18
- ABS
- yes
Selected engine version
2.0 TDI (110 KM) L2H1
Diesel fuel · 2019–2020
- Engine power
- 110 KM
- Torque
- 250 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 15.5 s
- Maximum speed
- 164 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (110 KM) L2H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2020
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 164 km/h
- Acceleration 0-100 km/h
- 15.5 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.5-8.1 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 5.7-6.9 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.3-7.4 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 167-194 g/km
Engine
- Engine model / code
- EA288/CXHC
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 110 KM @ 3200-4250 obr./min
- Torque
- 250 Nm @ 1250-3100 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 6700 l
- Curb weight
- 1924-2274 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2200 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (110 KM) L2H1
Diesel fuel · 2020–2023
- Engine power
- 110 KM
- Torque
- 250 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 15.5 s
- Maximum speed
- 164 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (110 KM) L2H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2020
- End of production
- 2023
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 164 km/h
- Acceleration 0-100 km/h
- 15.5 s
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Urban cycle
- 7.4-8.5 l/100 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Extra-urban cycle
- 6.7-8.2 l/100 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 6.8-8.1 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- WLTP
- CO2 emissions
- 179-213 g/km
Engine
- Engine model / code
- EA288MAR/DNAB
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 110 KM @ 3100-4250 obr./min
- Torque
- 250 Nm @ 1350-3100 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 6700 l
- Curb weight
- 1909-2274 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2200 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) L2H1
Diesel fuel · 2019–2020
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.9 s
- Maximum speed
- 183 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) L2H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2020
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 183 km/h
- Acceleration 0-100 km/h
- 11.9 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.8-8.3 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 5.7-6.8 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.5-7.4 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 171-194 g/km
Engine
- Engine model / code
- EA288/CXFA, CXHA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 6700 l
- Curb weight
- 1924-2274 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) L2H1
Diesel fuel · 2020–2023
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.9 s
- Maximum speed
- 183 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) L2H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2020
- End of production
- 2023
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 183 km/h
- Acceleration 0-100 km/h
- 11.9 s
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Urban cycle
- 7.9-8.8 l/100 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Extra-urban cycle
- 6.6-8.3 l/100 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 6.9-8.3 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- WLTP
- CO2 emissions
- 181-217 g/km
Engine
- Engine model / code
- EA288MAR/DNAA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 6700 l
- Curb weight
- 1909-2274 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) DSG L2H1
Diesel fuel · 2019–2020
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12 s
- Maximum speed
- 182 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) DSG L2H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2020
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 182 km/h
- Acceleration 0-100 km/h
- 12 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.2-7.8 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 5.4-6.3 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 5.8-6.8 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 152-179 g/km
Engine
- Engine model / code
- EA288/CXFA, CXHA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 6700 l
- Curb weight
- 1934-2274 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) DSG L2H1
Diesel fuel · 2020–2023
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12 s
- Maximum speed
- 182 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) DSG L2H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2020
- End of production
- 2023
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 182 km/h
- Acceleration 0-100 km/h
- 12 s
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Urban cycle
- 8.9-10.1 l/100 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Extra-urban cycle
- 7-8.4 l/100 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 7.3-8.6 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- WLTP
- CO2 emissions
- 190-226 g/km
Engine
- Engine model / code
- EA288MAR/DNAA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 6700 l
- Curb weight
- 2034-2274 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) 4MOTION L2H1
Diesel fuel · 2020–2021
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.2 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) 4MOTION L2H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2020
- End of production
- 2021
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 12.2 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 8.3-8.9 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.5-7.4 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 7.1-8 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 188-209 g/km
Engine
- Engine model / code
- EA288/CXFA, CXHA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 6700 l
- Curb weight
- 2036-2399 kg
- Gross weight
- 3000-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) 4MOTION L2H1
Diesel fuel · 2021–2022
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.2 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) 4MOTION L2H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2021
- End of production
- 2022
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 12.2 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 8.1-8.4 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6-6.7 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.8-7.3 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 158-176 g/km
Engine
- Engine model / code
- EA288MAR/DNAA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 6700 l
- Curb weight
- 2061-2399 kg
- Gross weight
- 3000-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) 4MOTION DSG L2H1
Diesel fuel · 2019–2020
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.5 s
- Maximum speed
- 179 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) 4MOTION DSG L2H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2020
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 179 km/h
- Acceleration 0-100 km/h
- 12.5 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 8-8.7 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.3-7.5 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.9-7.9 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 183-207 g/km
Engine
- Engine model / code
- EA288/CXFA, CXHA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 6700 l
- Curb weight
- 2051-2399 kg
- Gross weight
- 3000-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (150 KM) 4MOTION DSG L2H1
Diesel fuel · 2020–2022
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.5 s
- Maximum speed
- 179 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (150 KM) 4MOTION DSG L2H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2020
- End of production
- 2022
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 179 km/h
- Acceleration 0-100 km/h
- 12.5 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.6-8.7 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.2-7.5 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.7-7.9 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 177-207 g/km
Engine
- Engine model / code
- EA288MAR/DNAA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 150 KM @ 3250-3750 obr./min
- Torque
- 340 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 6700 l
- Curb weight
- 2076-2399 kg
- Gross weight
- 3000-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 308 mm
- Front brake disc thickness
- 29 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/65 R16; 215/65 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 TDI (199 KM) DSG L2H1
Diesel fuel · 2019–2021
- Engine power
- 199 KM
- Torque
- 450 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.3 s
- Maximum speed
- 201 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (199 KM) DSG L2H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2021
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 201 km/h
- Acceleration 0-100 km/h
- 9.3 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.1-8.4 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 5.5-6.8 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.1-7.4 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 161-191 g/km
Engine
- Engine model / code
- EA288/CXEC
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 199 KM @ 3800-4000 obr./min
- Torque
- 450 Nm @ 1400-2400 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 6700 l
- Curb weight
- 1981-2274 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 340 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/60 R17; 235/55 R17; 255/45 R18
- Rim size
- 7J x 17; 8J x 18
- ABS
- yes
Selected engine version
2.0 TDI (199 KM) 4MOTION DSG L2H1
Diesel fuel · 2019–2021
- Engine power
- 199 KM
- Torque
- 450 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.8 s
- Maximum speed
- 198 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (199 KM) 4MOTION DSG L2H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2019
- End of production
- 2021
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 198 km/h
- Acceleration 0-100 km/h
- 9.8 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 8.2-9.2 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 6.4-7.6 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 7.1-8.2 l/100 km
- Emission standard
- Euro 6d TEMP-EVAP-ISC
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 187-215 g/km
Engine
- Engine model / code
- EA288/CXEC
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 199 KM @ 3800-4000 obr./min
- Torque
- 450 Nm @ 1400-2400 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 13 l
- Maximum trunk capacity
- 6700 l
- Curb weight
- 2091-2399 kg
- Gross weight
- 3000-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 340 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/60 R17; 235/55 R17; 255/45 R18
- Rim size
- 7J x 17; 8J x 18
- ABS
- yes
Selected engine version
2.0 TDI (204 KM) DSG L2H1
Diesel fuel · 2021–2022
- Engine power
- 204 KM
- Torque
- 450 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.1 s
- Maximum speed
- 203 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T6.1, facelift 2019) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T6.1, facelift 2019) Kombi
- Engine
- 2.0 TDI (204 KM) DSG L2H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 2021
- End of production
- 2022
- Body type
- Awangarda
- Number of seats
- 4-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 203 km/h
- Acceleration 0-100 km/h
- 9.1 s
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Urban cycle
- 7.4-8 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Extra-urban cycle
- 5.8-6.5 l/100 km
- Fuel consumption measurement standard
- NEDC, WLTP equivalent
- Fuel consumption - Combined cycle
- 6.4-7 l/100 km
- Emission standard
- Euro 6d-ISC-FCM
- CO2 measurement standard
- NEDC, WLTP equivalent
- CO2 emissions
- 168-185 g/km
Engine
- Engine model / code
- EA288MAR/DMZA
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 15.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Power
- 204 KM @ 4000 obr./min
- Torque
- 450 Nm @ 1400-2250 obr./min
Volume and weight
- Fuel tank
- 70 l
- AdBlue tank
- 22 l
- Maximum trunk capacity
- 6700 l
- Curb weight
- 2005-2274 kg
- Gross weight
- 2800-3200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5304 mm
- Width
- 1904 mm
- Width with unfolded mirrors
- 2297 mm
- Height
- 1990 mm
- Wheelbase
- 3400 mm
- Ground clearance
- 202 mm
- Approach angle
- 21.2 °
- Departure angle
- 16.2 °
- Ramp angle
- 12.2 °
- Front overhang
- 906 mm
- Rear overhang
- 998 mm
- Turning circle
- 13.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent coil spring suspension, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 340 mm
- Front brake disc thickness
- 32 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 294 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/60 R17; 235/55 R17; 255/45 R18
- Rim size
- 7J x 17; 8J x 18
- ABS
- yes
