Hyundai Tucson III

Compare all 17 engine versions of the Hyundai Tucson Tucson III, then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Hyundai Tucson III? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?
1 of 28

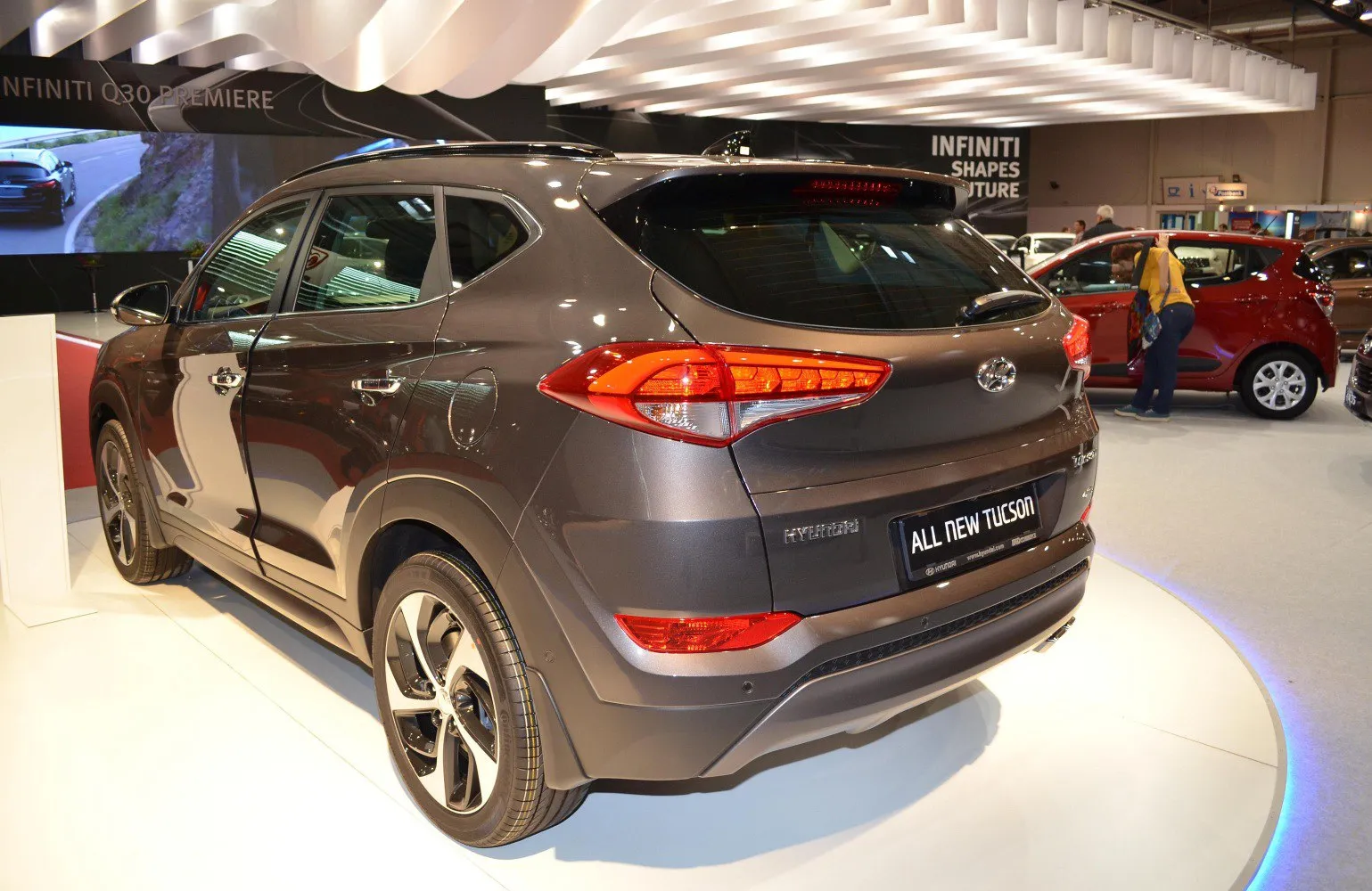

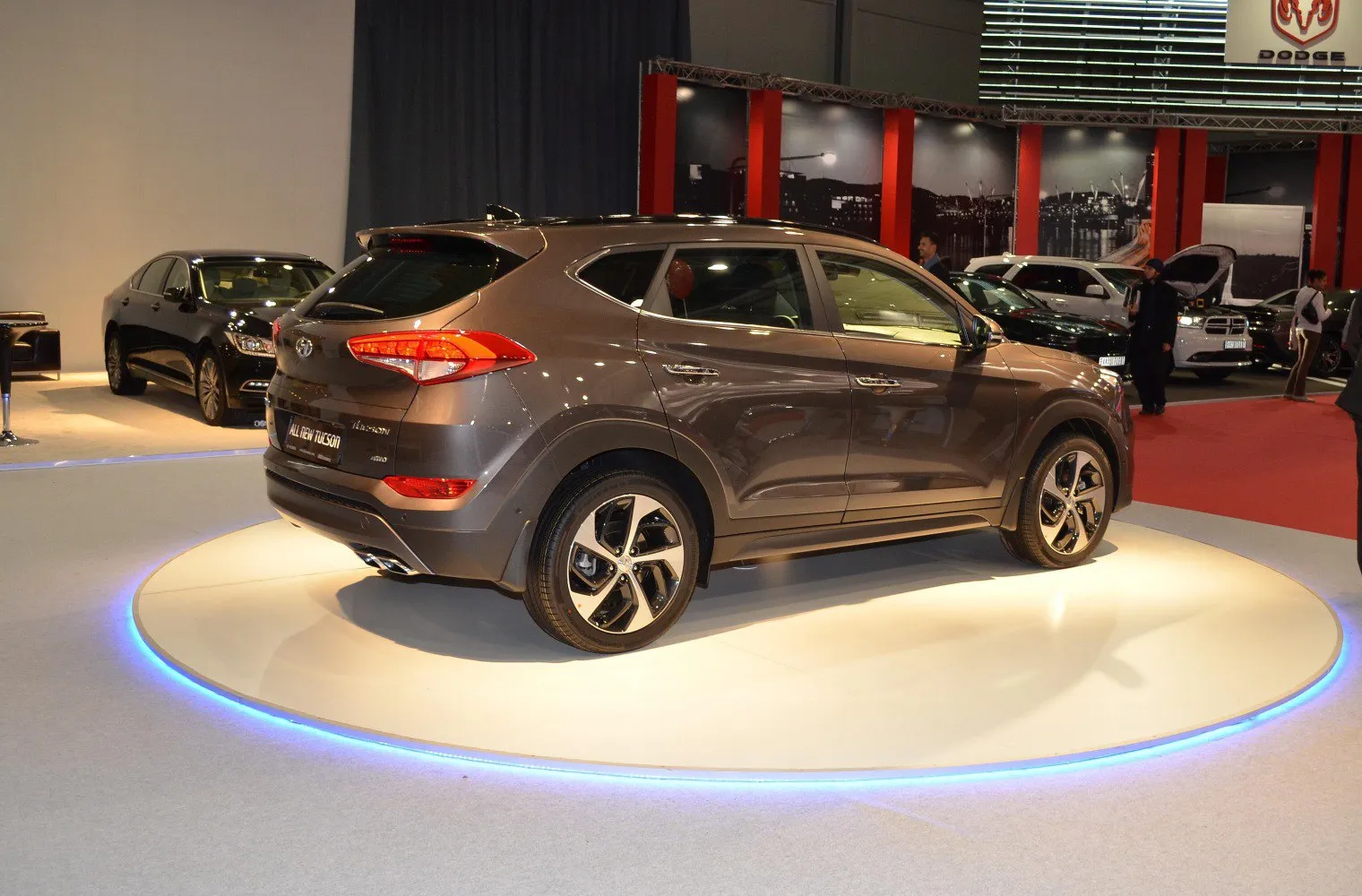

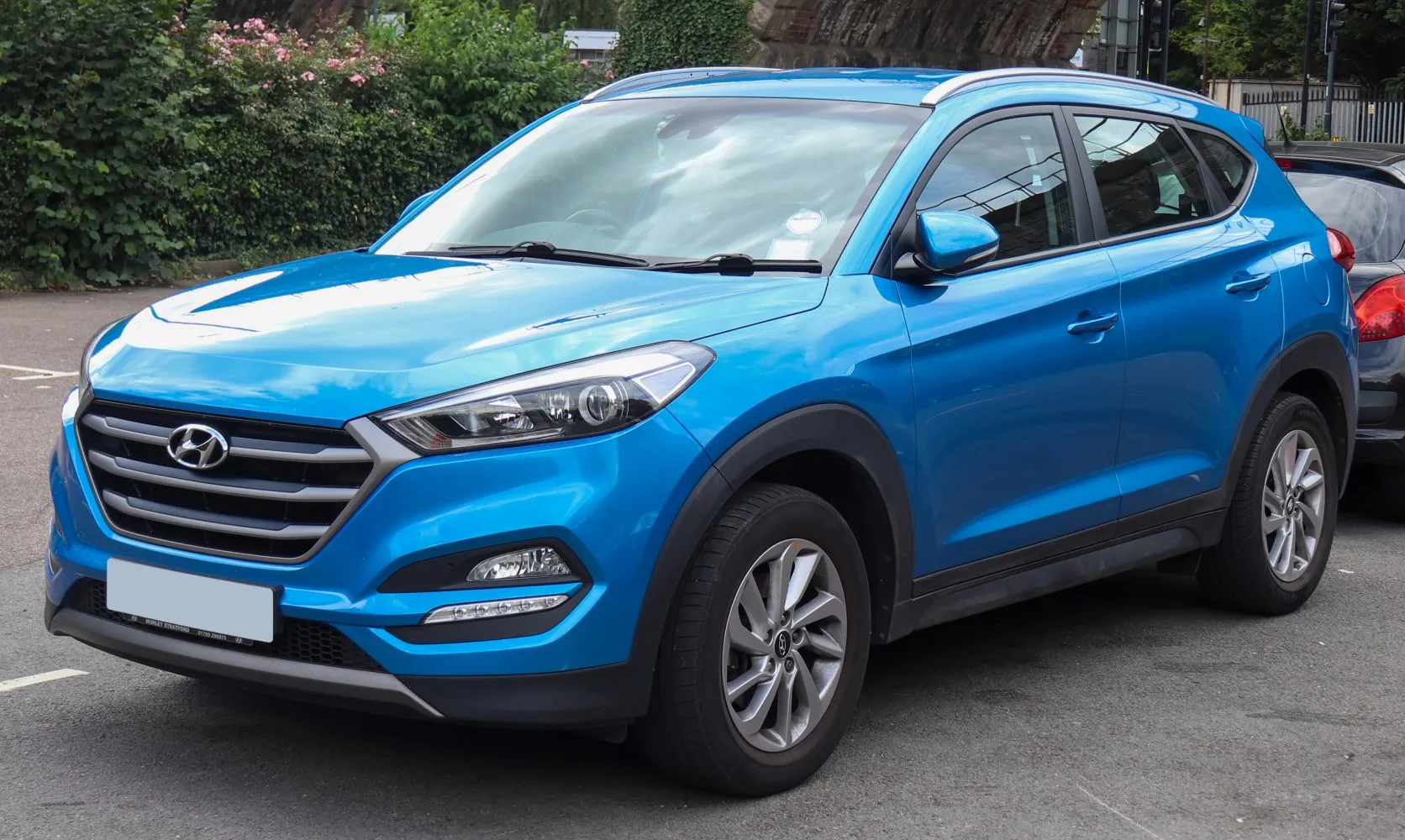

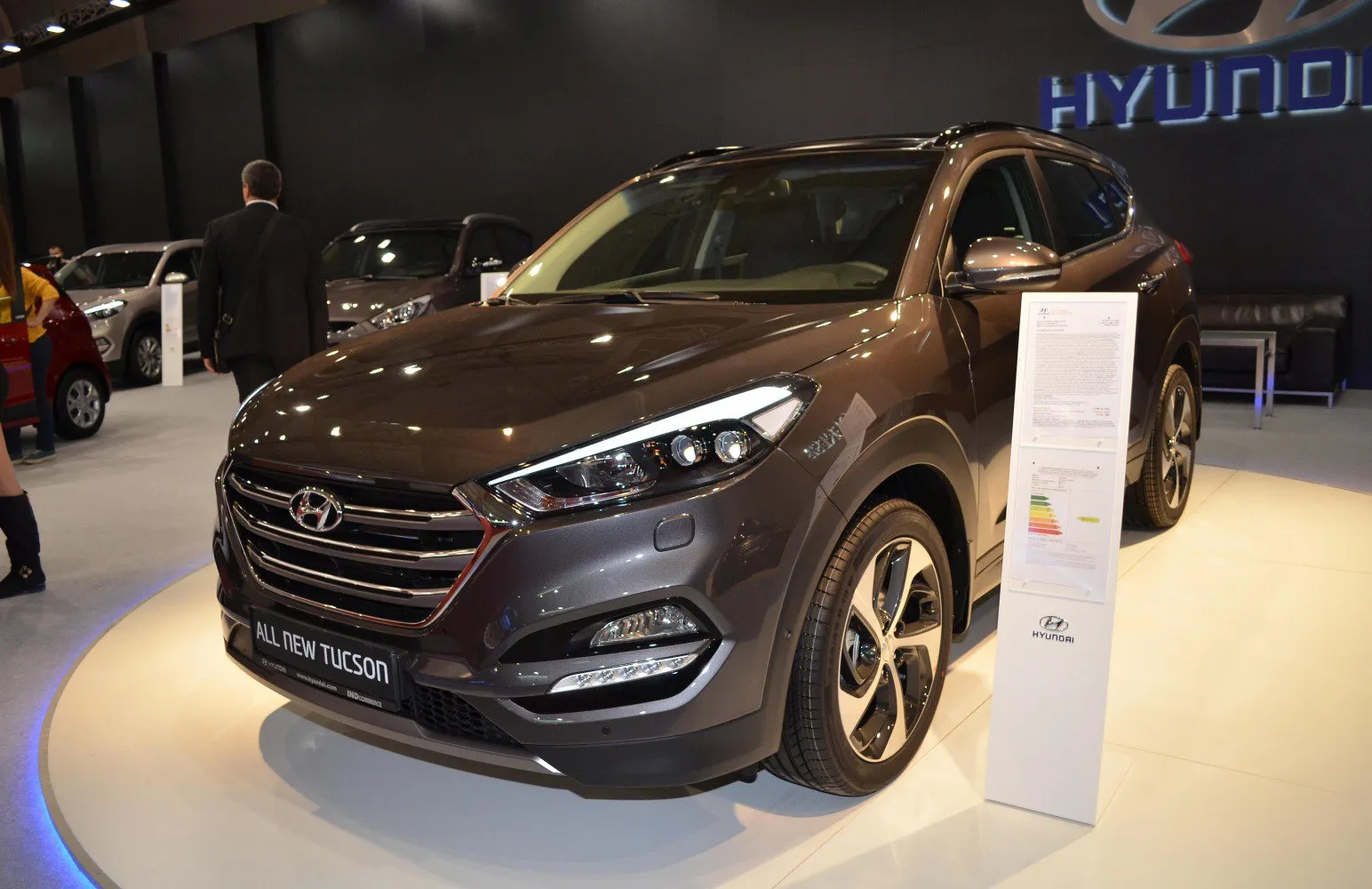

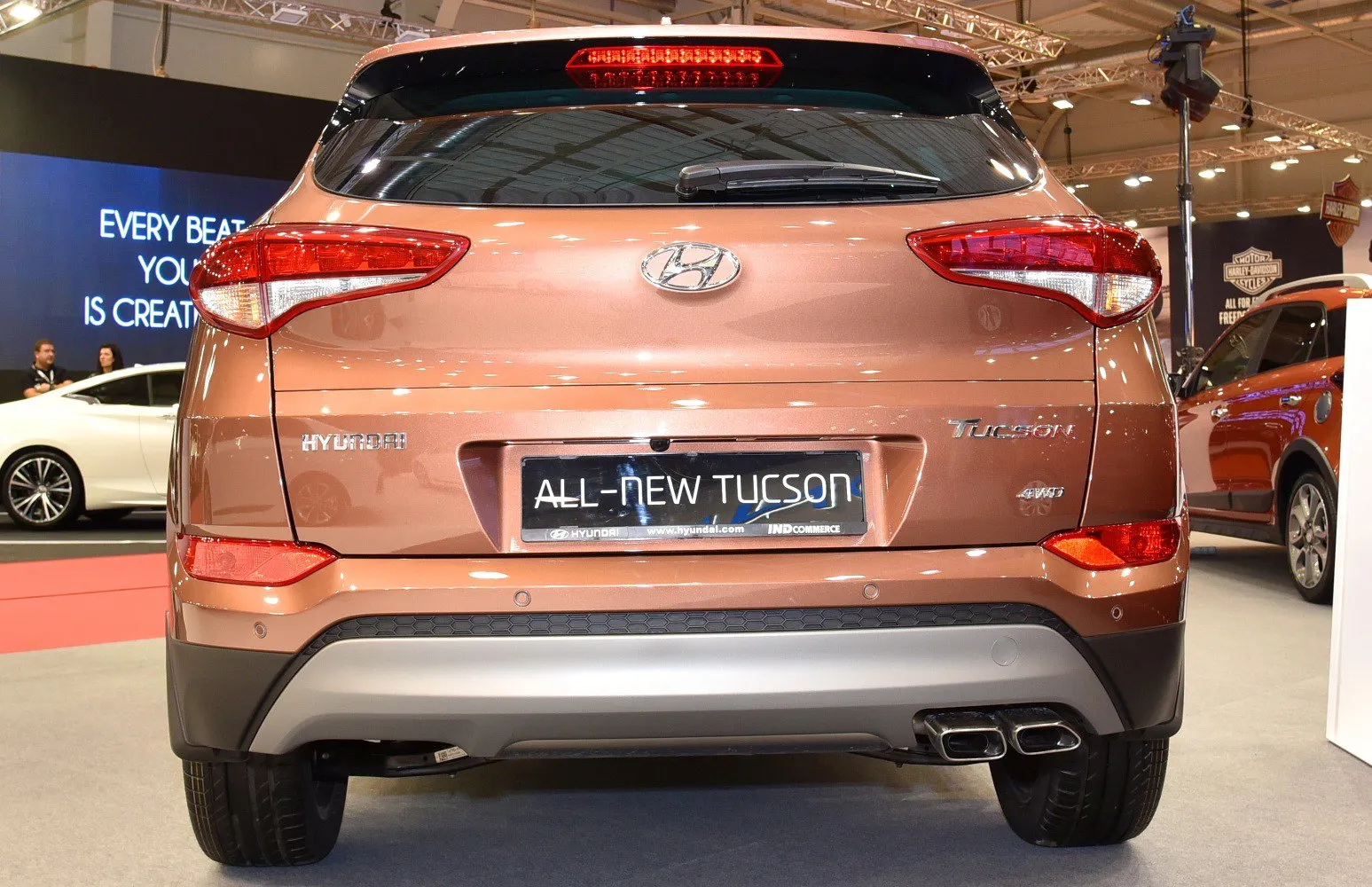

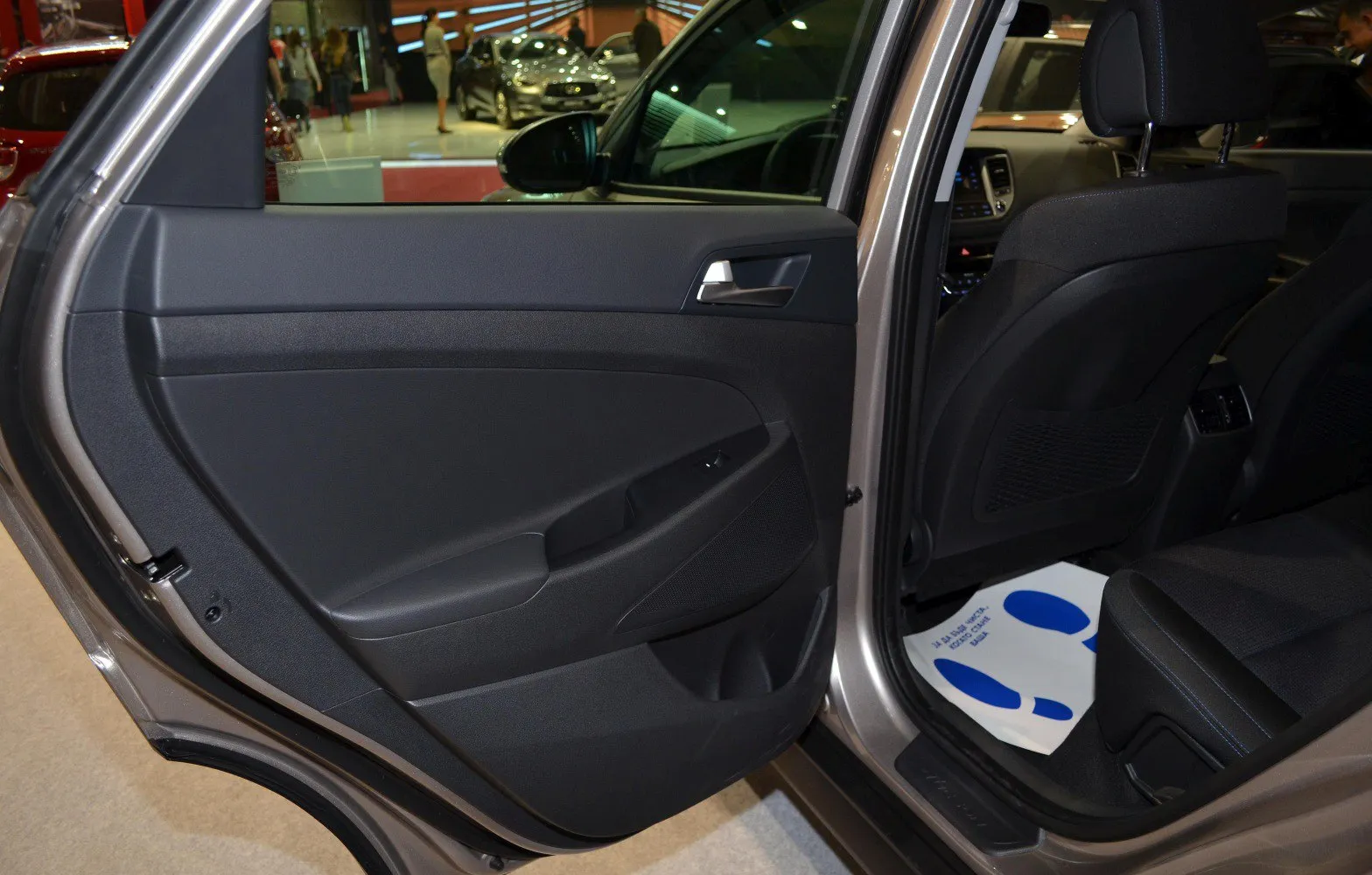

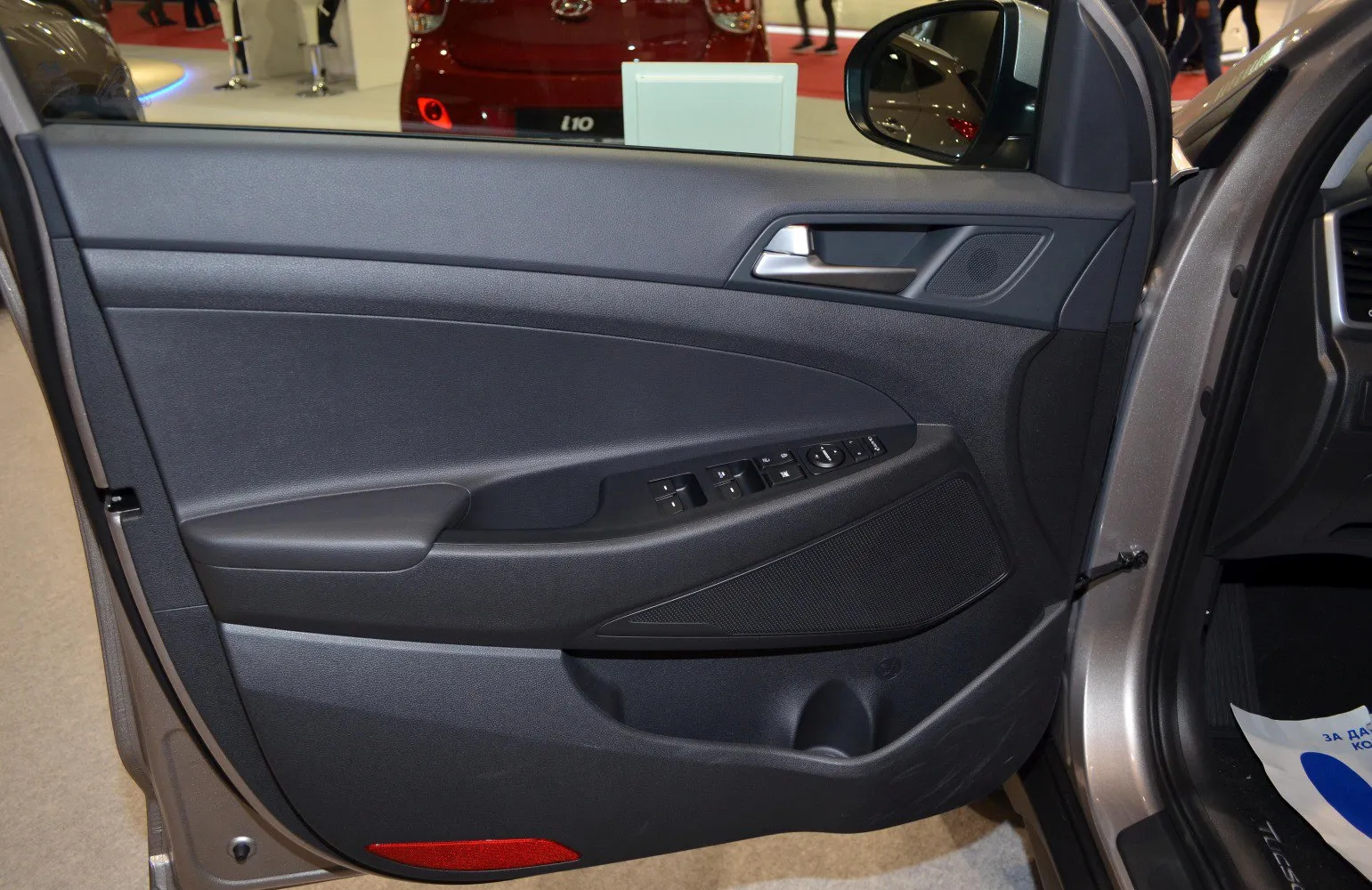

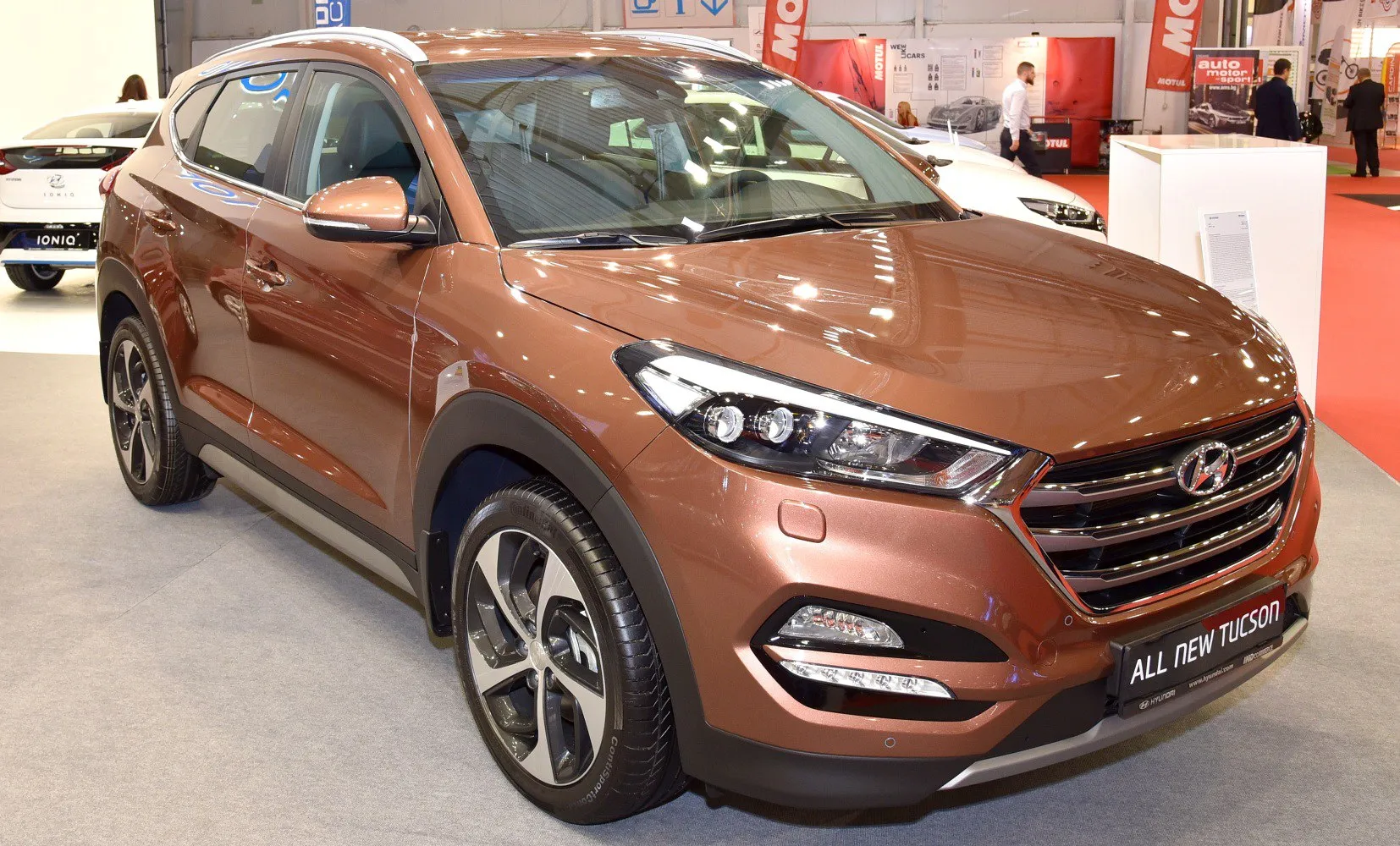

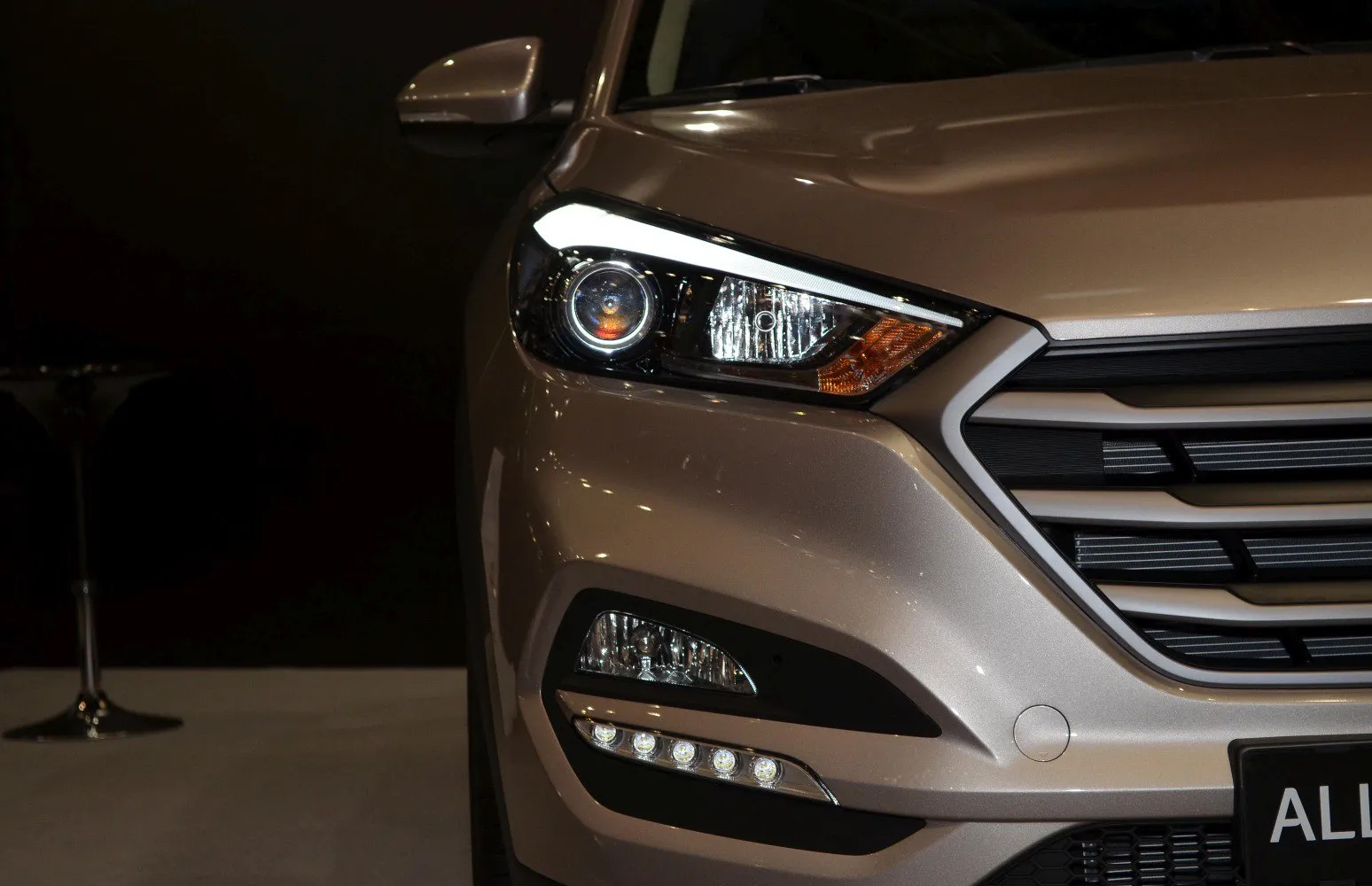

Hyundai Tucson Tucson III View larger
Photo: © www.Auto-Data.net

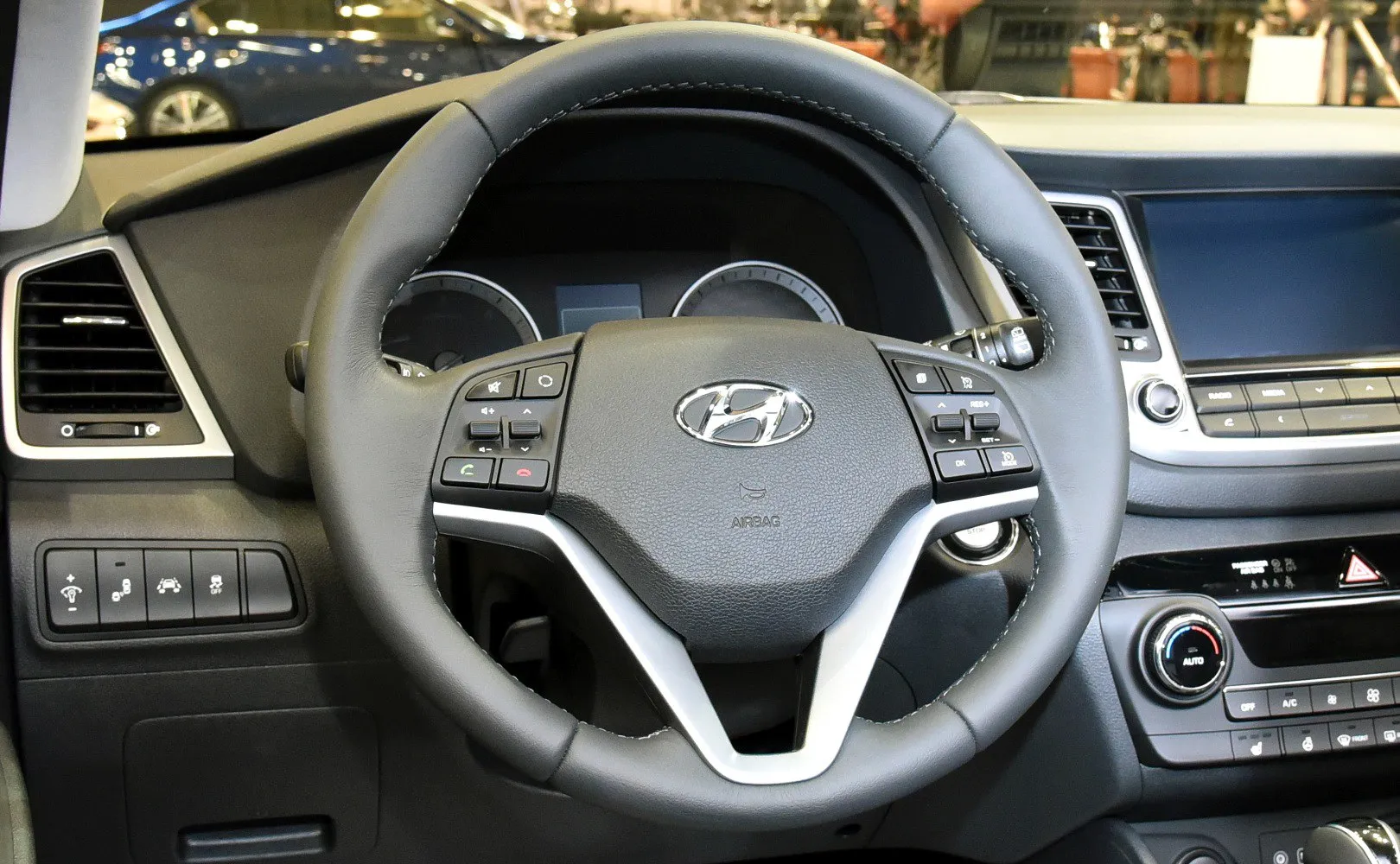

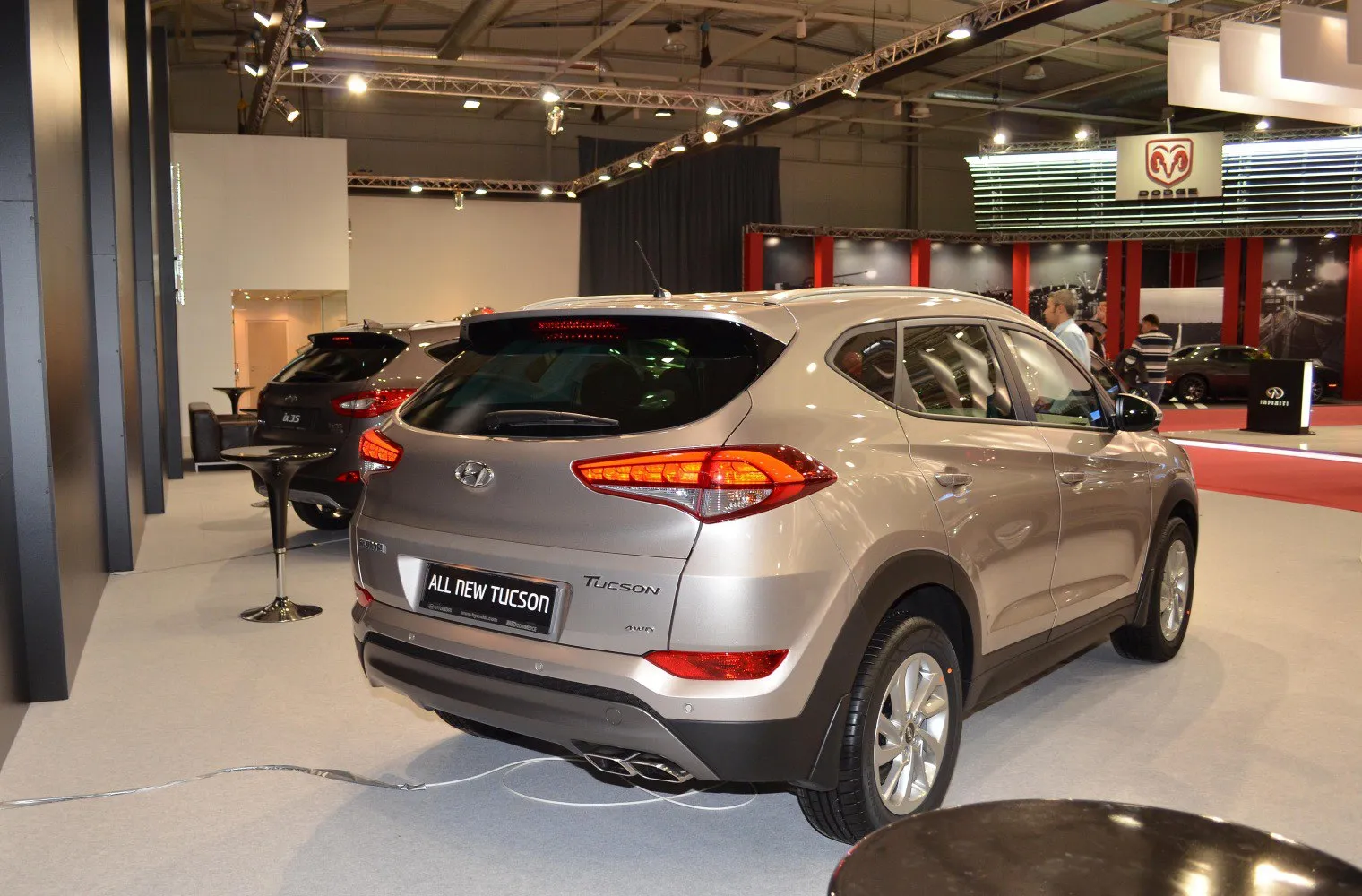

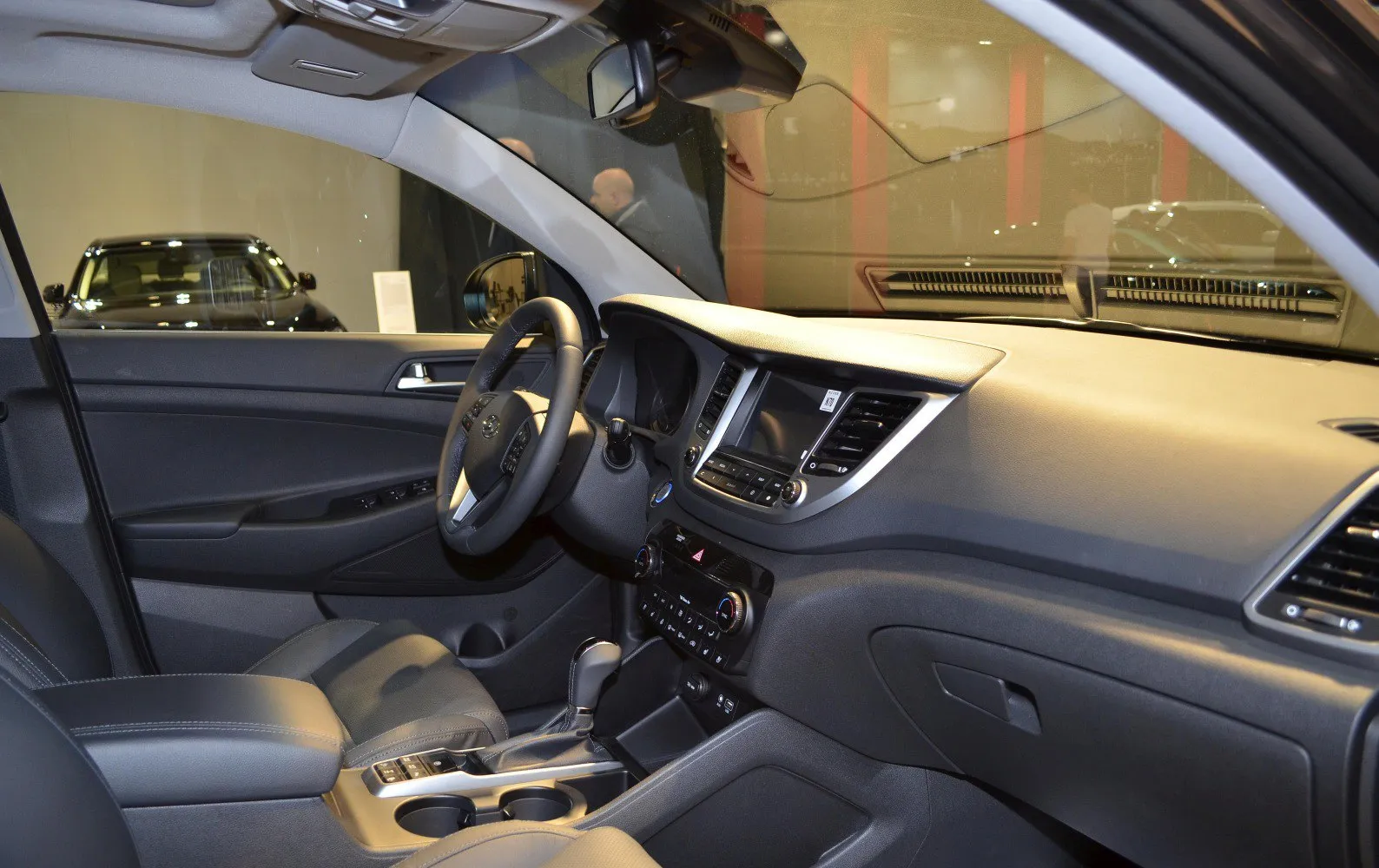

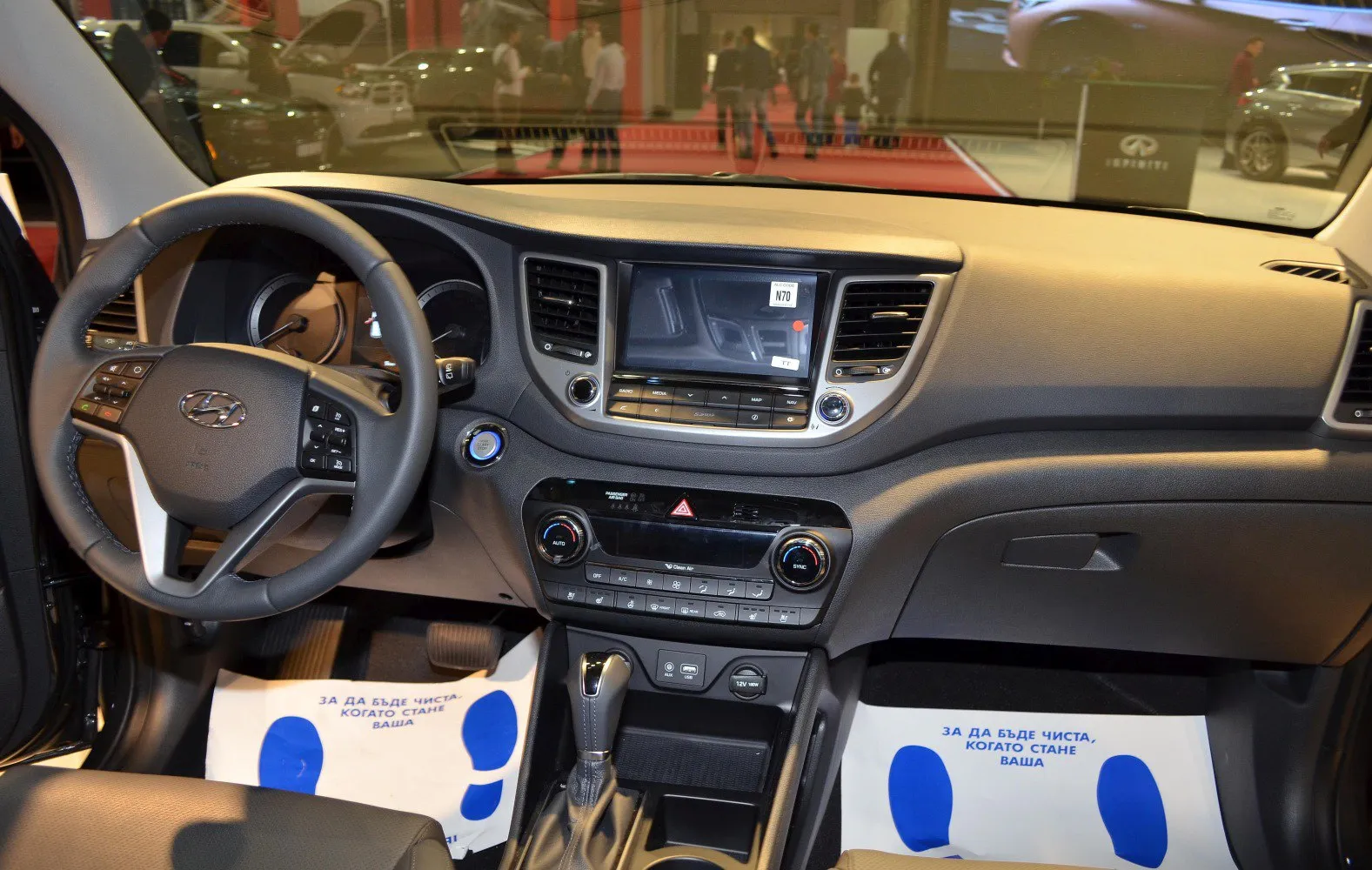

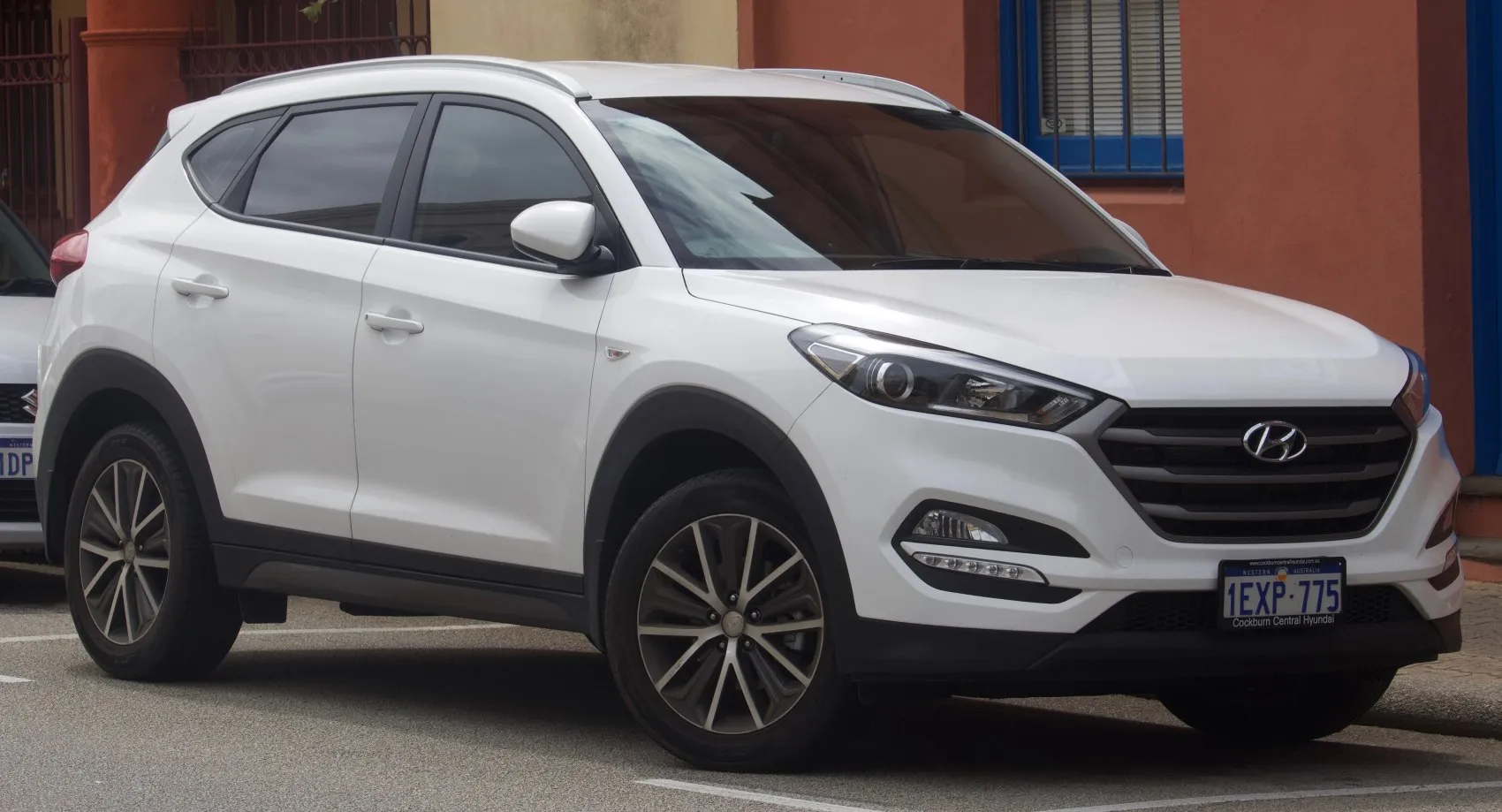

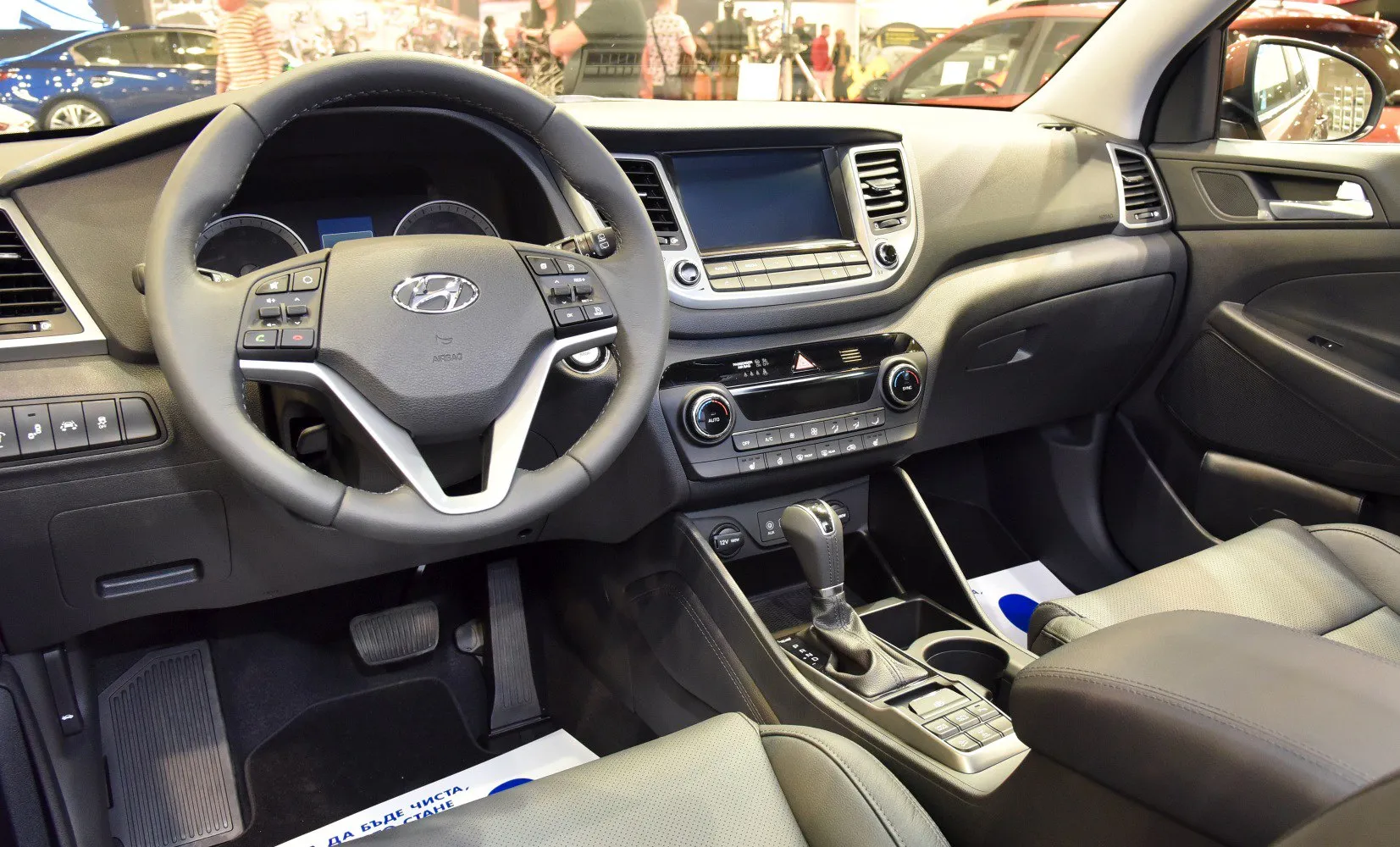

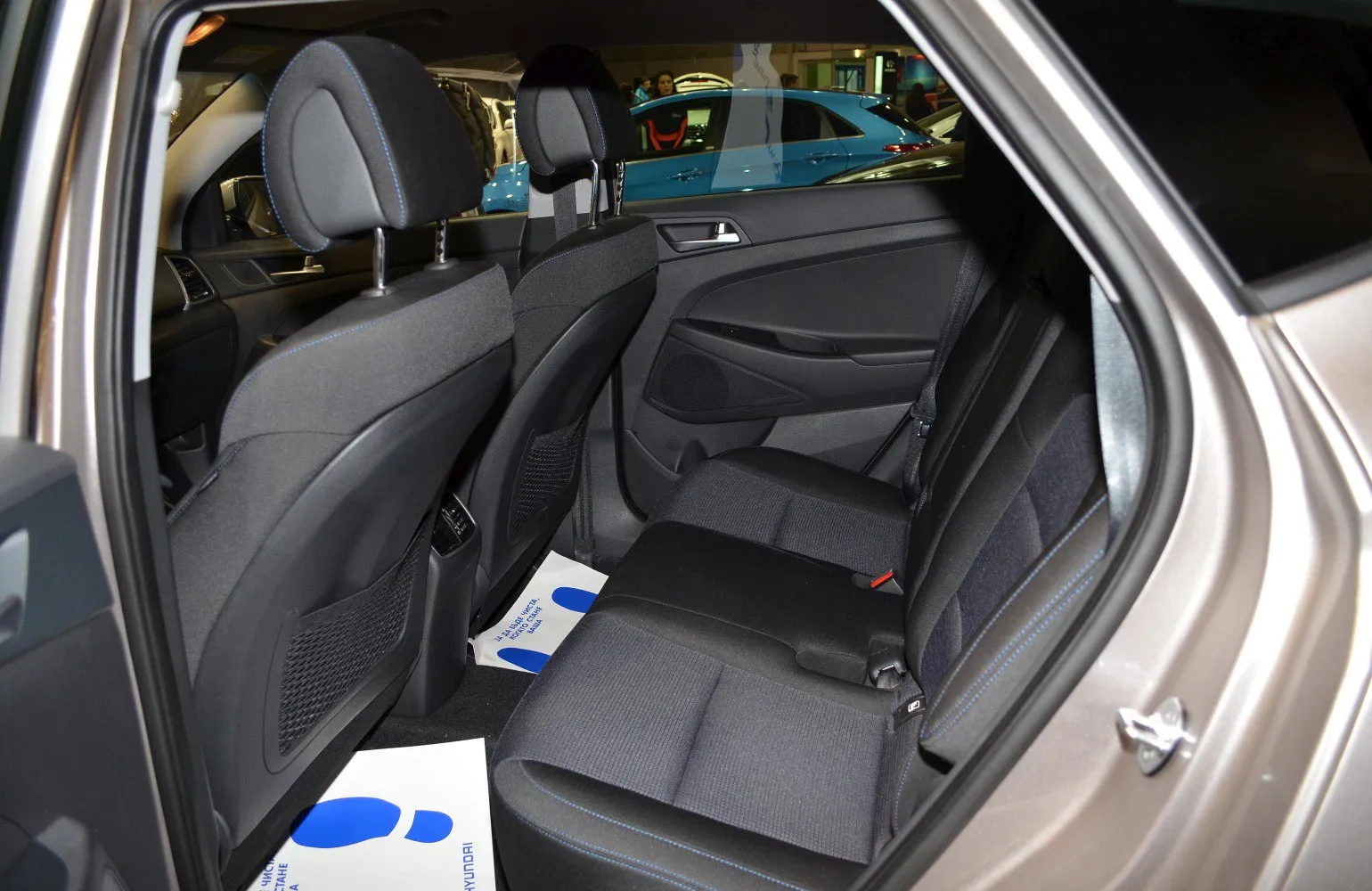

Vehicle gallery

Hyundai Tucson Tucson III

Photo: © www.Auto-Data.net

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

17 versions · 9 Gasoline · 7 Diesel fuel · 1 Hydrogen

Engine Fuel Power Production
1.6 GDI (132 KM) Selected Gasoline 132 KM 2015–2018
1.6 T-GDI (177 KM) 4WD Selected Gasoline 177 KM 2015–2018
2.0 CRDI (136 KM) 4WD Selected Diesel fuel 136 KM 2015–2018
1.6 GDI (132 KM) Automatic Selected Gasoline 132 KM 2015–2018
1.6 T-GDI (177 KM) 4WD Automatic Selected Gasoline 177 KM 2015–2018
1.7 CRDI (116 KM) Selected Diesel fuel 116 KM 2015–2018
2.0 CRDI (136 KM) 4WD Automatic Selected Diesel fuel 136 KM 2015–2018
2.0 CRDI (185 KM) 4WD Selected Diesel fuel 185 KM 2015–2018
2.0 CRDI (185 KM) 4WD Automatic Selected Diesel fuel 185 KM 2015–2018
1.7 CRDI (141 KM) DCT Selected Diesel fuel 141 KM 2016–2018
1.6 T-GDI (177 KM) Selected Gasoline 177 KM 2015–2018
2.0 CRDI (136 KM) Selected Diesel fuel 136 KM 2015–2018
0.95 kWh (134 KM) Fuel Cell Selected Hydrogen 2015–2018
2.0 GDI (164 KM) SHIFTRONIC Selected Gasoline 164 KM 2015–2018
2.0 GDI (164 KM) AWD SHIFTRONIC Selected Gasoline 164 KM 2015–2018
2.0 MPI (153 KM) SHIFTRONIC Selected Gasoline 153 KM 2015–2018
2.0 MPI (153 KM) Selected Gasoline 153 KM 2015–2018

Selected engine version

1.6 GDI (132 KM)

Gasoline · 2015–2018

Engine power
132 KM
Torque
161 Nm
Engine displacement
1,591 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
11.5 s
Maximum speed
182 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
Tucson
Version
Tucson III
Engine
1.6 GDI (132 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
SUV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
182 km/h
Acceleration 0-100 km/h
11.5 s
Fuel consumption - Urban cycle
8.6 l/100 km
Fuel consumption - Extra-urban cycle
5.6 l/100 km
Fuel consumption - Combined cycle
6.7 l/100 km
Emission standard
Euro 6
CO2 emissions
156 g/km

Engine

Engine model / code
G4FD
Engine position
Front, Transverse
Engine displacement
1591 cm³
Fuel injection system
Direct injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
77 mm
Piston stroke
85.44 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
3.6 l
Coolant capacity
7.7 l
Power
132 KM @ 6300 obr./min
Torque
161 Nm @ 4850 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
513 l
Maximum trunk capacity
1503 l
Curb weight
1379 kg
Gross weight
1895 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1400 kg
Trailer load without brakes
650 kg

Vehicle dimensions

Length
4475 mm
Width
1850 mm
Height
1655 mm
Wheelbase
2670 mm
Front track
1604-1608 mm
Rear track
1615-1620 mm
Ground clearance
172 mm
Turning circle
10.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
215/70 R16; 225/60 R17; 245/45 R19
Rim size
6.5J x 16; 7.0J x 17; 7.5J x 19
ABS
yes

Selected engine version

1.6 T-GDI (177 KM) 4WD

Gasoline · 2015–2018

Engine power
177 KM
Torque
265 Nm
Engine displacement
1,591 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.2 s
Maximum speed
203 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
Tucson
Version
Tucson III
Engine
1.6 T-GDI (177 KM) 4WD
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
SUV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
203 km/h
Acceleration 0-100 km/h
9.2 s
Fuel consumption - Urban cycle
10 l/100 km
Fuel consumption - Extra-urban cycle
6.2 l/100 km
Fuel consumption - Combined cycle
7.6 l/100 km
Emission standard
Euro 6
CO2 emissions
177 g/km

Engine

Engine model / code
GammaII/G4FJ
Engine position
Front, Transverse
Engine displacement
1591 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
77 mm
Piston stroke
85.44 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
7.5 l
Power
177 KM @ 5500 obr./min
Torque
265 Nm @ 1500-4250 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
513 l
Maximum trunk capacity
1503 l
Curb weight
1508 kg
Gross weight
2170 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1400 kg
Trailer load without brakes
650 kg

Vehicle dimensions

Length
4475 mm
Width
1850 mm
Height
1655 mm
Wheelbase
2670 mm
Front track
1604-1608 mm
Rear track
1615-1620 mm
Ground clearance
172 mm
Turning circle
10.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
215/70 R16; 225/60 R17; 245/45 R19
Rim size
6.5J x 16; 7.0J x 17; 7.5J x 19
ABS
yes

Selected engine version

2.0 CRDI (136 KM) 4WD

Diesel fuel · 2015–2018

Engine power
136 KM
Torque
373 Nm
Engine displacement
1,995 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.9 s
Maximum speed
184 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
Tucson
Version
Tucson III
Engine
2.0 CRDI (136 KM) 4WD
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
SUV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
184 km/h
Acceleration 0-100 km/h
10.9 s
Fuel consumption - Urban cycle
6 l/100 km
Fuel consumption - Extra-urban cycle
4.8 l/100 km
Fuel consumption - Combined cycle
5.2 l/100 km
Emission standard
Euro 6
CO2 emissions
139 g/km

Engine

Engine model / code
D4HA
Engine position
Front, Transverse
Engine displacement
1995 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
7.6 l
Coolant capacity
8.8 l
Power
136 KM @ 2750-4000 obr./min
Torque
373 Nm @ 1500-2500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
513 l
Maximum trunk capacity
1503 l
Curb weight
1587 kg
Gross weight
2250 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2200 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4475 mm
Width
1850 mm
Height
1655 mm
Wheelbase
2670 mm
Front track
1604-1608 mm
Rear track
1615-1620 mm
Ground clearance
172 mm
Turning circle
10.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
215/70 R16; 225/60 R17; 245/45 R19
Rim size
6.5J x 16; 7.0J x 17; 7.5J x 19
ABS
yes

Selected engine version

1.6 GDI (132 KM) Automatic

Gasoline · 2015–2018

Engine power
132 KM
Torque
161 Nm
Engine displacement
1,591 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
12.1 s
Maximum speed
170 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
Tucson
Version
Tucson III
Engine
1.6 GDI (132 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
SUV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
170 km/h
Acceleration 0-100 km/h
12.1 s
Fuel consumption - Urban cycle
9.8 l/100 km
Fuel consumption - Extra-urban cycle
6 l/100 km
Fuel consumption - Combined cycle
7.4 l/100 km
Emission standard
Euro 6
CO2 emissions
174 g/km

Engine

Engine model / code
G4FD
Engine position
Front, Transverse
Engine displacement
1591 cm³
Fuel injection system
Direct injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
77 mm
Piston stroke
85.44 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
3.6 l
Coolant capacity
7.5 l
Power
132 KM @ 6300 obr./min
Torque
161 Nm @ 4850 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
513 l
Maximum trunk capacity
1503 l
Curb weight
1409 kg
Gross weight
2050 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2000 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4475 mm
Width
1850 mm
Height
1655 mm
Wheelbase
2670 mm
Front track
1604-1608 mm
Rear track
1615-1620 mm
Ground clearance
172 mm
Turning circle
10.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
215/70 R16; 225/60 R17; 245/45 R19
Rim size
6.5J x 16; 7.0J x 17; 7.5J x 19
ABS
yes

Selected engine version

1.6 T-GDI (177 KM) 4WD Automatic

Gasoline · 2015–2018

Engine power
177 KM
Torque
265 Nm
Engine displacement
1,591 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.5 s
Maximum speed
201 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
Tucson
Version
Tucson III
Engine
1.6 T-GDI (177 KM) 4WD Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
SUV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
201 km/h
Acceleration 0-100 km/h
9.5 s
Fuel consumption - Urban cycle
9.2 l/100 km
Fuel consumption - Extra-urban cycle
6.5 l/100 km
Fuel consumption - Combined cycle
7.5 l/100 km
Emission standard
Euro 6
CO2 emissions
175 g/km

Engine

Engine model / code
GammaII/G4FJ
Engine position
Front, Transverse
Engine displacement
1591 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
77 mm
Piston stroke
85.44 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
7.5 l
Power
177 KM @ 5500 obr./min
Torque
265 Nm @ 1500-4250 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
513 l
Maximum trunk capacity
1503 l
Curb weight
1534 kg
Gross weight
2190 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2000 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4475 mm
Width
1850 mm
Height
1655 mm
Wheelbase
2670 mm
Front track
1604-1608 mm
Rear track
1615-1620 mm
Ground clearance
172 mm
Turning circle
10.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
7
Front suspension
Independent McPherson type
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
215/70 R16; 225/60 R17; 245/45 R19
Rim size
6.5J x 16; 7.0J x 17; 7.5J x 19
ABS
yes

Selected engine version

1.7 CRDI (116 KM)

Diesel fuel · 2015–2018

Engine power
116 KM
Torque
280 Nm
Engine displacement
1,685 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
13.7 s
Maximum speed
176 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
Tucson
Version
Tucson III
Engine
1.7 CRDI (116 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
SUV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
176 km/h
Acceleration 0-100 km/h
13.7 s
Fuel consumption - Urban cycle
5.7 l/100 km
Fuel consumption - Extra-urban cycle
4.2 l/100 km
Fuel consumption - Combined cycle
4.7 l/100 km
Emission standard
Euro 6
CO2 emissions
124 g/km

Engine

Engine model / code
UII/D4FD
Engine position
Front, Transverse
Engine displacement
1685 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
77.2 mm
Piston stroke
90 mm
Compression ratio
15.7
Number of valves per cylinder
4
Engine oil capacity
5.3 l
Coolant capacity
6.8 l
Power
116 KM @ 4000 obr./min
Torque
280 Nm @ 1250-2750 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
513 l
Maximum trunk capacity
1503 l
Curb weight
1425 kg
Gross weight
2000 kg
Roof load
100 kg
Braked trailer load (8% slope start)
2200 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4475 mm
Width
1850 mm
Height
1655 mm
Wheelbase
2670 mm
Front track
1604-1608 mm
Rear track
1615-1620 mm
Ground clearance
172 mm
Turning circle
10.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
215/70 R16; 225/60 R17; 245/45 R19
Rim size
6.5J x 16; 7.0J x 17; 7.5J x 19
ABS
yes

Selected engine version

2.0 CRDI (136 KM) 4WD Automatic

Diesel fuel · 2015–2018

Engine power
136 KM
Torque
373 Nm
Engine displacement
1,995 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
12 s
Maximum speed
184 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
Tucson
Version
Tucson III
Engine
2.0 CRDI (136 KM) 4WD Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
SUV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
184 km/h
Acceleration 0-100 km/h
12 s
Fuel consumption - Urban cycle
7.4 l/100 km
Fuel consumption - Extra-urban cycle
5.4 l/100 km
Fuel consumption - Combined cycle
6.1 l/100 km
Emission standard
Euro 6
CO2 emissions
160 g/km

Engine

Engine model / code
D4HA
Engine position
Front, Transverse
Engine displacement
1995 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
7.6 l
Coolant capacity
8.8 l
Power
136 KM @ 2750-4000 obr./min
Torque
373 Nm @ 1500-2500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
513 l
Maximum trunk capacity
1503 l
Curb weight
1615 kg
Gross weight
2250 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1900 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4475 mm
Width
1850 mm
Height
1655 mm
Wheelbase
2670 mm
Front track
1604-1608 mm
Rear track
1615-1620 mm
Ground clearance
172 mm
Turning circle
10.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
215/70 R16; 225/60 R17; 245/45 R19
Rim size
6.5J x 16; 7.0J x 17; 7.5J x 19
ABS
yes

Selected engine version

2.0 CRDI (185 KM) 4WD

Diesel fuel · 2015–2018

Engine power
185 KM
Torque
400 Nm
Engine displacement
1,995 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.9 s
Maximum speed
201 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
Tucson
Version
Tucson III
Engine
2.0 CRDI (185 KM) 4WD
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
SUV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
201 km/h
Acceleration 0-100 km/h
9.9 s
Fuel consumption - Urban cycle
7.1 l/100 km
Fuel consumption - Extra-urban cycle
5.2 l/100 km
Fuel consumption - Combined cycle
5.9 l/100 km
Emission standard
Euro 6
CO2 emissions
154 g/km

Engine

Engine model / code
D4HA
Engine position
Front, Transverse
Engine displacement
1995 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
7.6 l
Coolant capacity
8.8 l
Power
185 KM @ 4000 obr./min
Torque
400 Nm @ 1750-2750 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
513 l
Maximum trunk capacity
1503 l
Curb weight
1587 kg
Gross weight
2250 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2200 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4475 mm
Width
1850 mm
Height
1655 mm
Wheelbase
2670 mm
Front track
1604-1608 mm
Rear track
1615-1620 mm
Ground clearance
172 mm
Turning circle
10.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
215/70 R16; 225/60 R17; 245/45 R19
Rim size
6.5J x 16; 7.0J x 17; 7.5J x 19
ABS
yes

Selected engine version

2.0 CRDI (185 KM) 4WD Automatic

Diesel fuel · 2015–2018

Engine power
185 KM
Torque
400 Nm
Engine displacement
1,995 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.5 s
Maximum speed
201 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
Tucson
Version
Tucson III
Engine
2.0 CRDI (185 KM) 4WD Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
SUV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
201 km/h
Acceleration 0-100 km/h
9.5 s
Fuel consumption - Urban cycle
8 l/100 km
Fuel consumption - Extra-urban cycle
5.6 l/100 km
Fuel consumption - Combined cycle
6.5 l/100 km
Emission standard
Euro 6
CO2 emissions
170 g/km

Engine

Engine model / code
D4HA
Engine position
Front, Transverse
Engine displacement
1995 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
7.6 l
Coolant capacity
8.8 l
Power
185 KM @ 4000 obr./min
Torque
400 Nm @ 1750-2750 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
513 l
Maximum trunk capacity
1503 l
Curb weight
1615 kg
Gross weight
2250 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1900 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4475 mm
Width
1850 mm
Height
1655 mm
Wheelbase
2670 mm
Front track
1604-1608 mm
Rear track
1615-1620 mm
Ground clearance
172 mm
Turning circle
10.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
215/70 R16; 225/60 R17; 245/45 R19
Rim size
6.5J x 16; 7.0J x 17; 7.5J x 19
ABS
yes

Selected engine version

1.7 CRDI (141 KM) DCT

Diesel fuel · 2016–2018

Engine power
141 KM
Torque
340 Nm
Engine displacement
1,685 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.5 s
Maximum speed
185 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
Tucson
Version
Tucson III
Engine
1.7 CRDI (141 KM) DCT
Engine type
Combustion engine
Number of doors
5
Start of production
2016
End of production
2018
Body type
SUV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
185 km/h
Acceleration 0-100 km/h
11.5 s
Fuel consumption - Urban cycle
5.4 l/100 km
Fuel consumption - Extra-urban cycle
4.7 l/100 km
Fuel consumption - Combined cycle
4.9 l/100 km
Emission standard
Euro 6
CO2 emissions
129 g/km

Engine

Engine model / code
UII/D4FD
Engine position
Front, Transverse
Engine displacement
1685 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
77.2 mm
Piston stroke
90 mm
Compression ratio
15.7
Number of valves per cylinder
4
Engine oil capacity
5.3 l
Coolant capacity
6.8 l
Power
141 KM @ 4000 obr./min
Torque
340 Nm @ 1750-2500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
513 l
Maximum trunk capacity
1503 l
Curb weight
1470 kg
Gross weight
2085 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4475 mm
Width
1850 mm
Height
1655 mm
Wheelbase
2670 mm
Front track
1604-1608 mm
Rear track
1615-1620 mm
Ground clearance
172 mm
Turning circle
10.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
DCT
Front suspension
Independent McPherson type
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/70 R16; 225/60 R17; 245/45 R19
Rim size
6.5J x 16; 7.0J x 17; 7.5J x 19
ABS
yes

Selected engine version

1.6 T-GDI (177 KM)

Gasoline · 2015–2018

Engine power
177 KM
Torque
265 Nm
Engine displacement
1,591 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.2 s
Maximum speed
205 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
Tucson
Version
Tucson III
Engine
1.6 T-GDI (177 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
SUV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
205 km/h
Acceleration 0-100 km/h
9.2 s
Fuel consumption - Urban cycle
9.8 l/100 km
Fuel consumption - Extra-urban cycle
7.3 l/100 km
Fuel consumption - Combined cycle
7.6 l/100 km
Emission standard
Euro 6
CO2 emissions
169 g/km

Engine

Engine model / code
GammaII/G4FJ
Engine position
Front, Transverse
Engine displacement
1591 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
77 mm
Piston stroke
85.44 mm
Compression ratio
10
Number of valves per cylinder
4
Engine oil capacity
4.5 l
Coolant capacity
7.5 l
Power
177 KM @ 5500 obr./min
Torque
265 Nm @ 1500-4500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
513 l
Maximum trunk capacity
1503 l
Curb weight
1449-1613 kg
Gross weight
2120 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1900 kg
Trailer load without brakes
750 kg
Trailer nose weight
100 kg

Vehicle dimensions

Length
4475 mm
Width
1850 mm
Height
1655 mm
Wheelbase
2670 mm
Front track
1604-1608 mm
Rear track
1615-1620 mm
Ground clearance
172 mm
Turning circle
10.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/70 R16; 225/60 R17; 245/45 R19
Rim size
6.5 J x 16; 7.0J x 17; 7.5J x 19
ABS
yes

Selected engine version

2.0 CRDI (136 KM)

Diesel fuel · 2015–2018

Engine power
136 KM
Torque
373 Nm
Engine displacement
1,995 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.6 s
Maximum speed
186 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
Tucson
Version
Tucson III
Engine
2.0 CRDI (136 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
SUV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
186 km/h
Acceleration 0-100 km/h
10.6 s
Fuel consumption - Urban cycle
5.6 l/100 km
Fuel consumption - Extra-urban cycle
4.4 l/100 km
Fuel consumption - Combined cycle
4.8 l/100 km
Emission standard
Euro 6
CO2 emissions
127 g/km

Engine

Engine model / code
D4HA
Engine position
Front, Transverse
Engine displacement
1995 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
7.6 l
Coolant capacity
8.8 l
Power
136 KM @ 2750-4000 obr./min
Torque
373 Nm @ 1500-2500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
513 l
Maximum trunk capacity
1503 l
Curb weight
1529-1695 kg
Gross weight
2235 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2200 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4475 mm
Width
1850 mm
Height
1655 mm
Wheelbase
2670 mm
Front track
1604-1608 mm
Rear track
1615-1620 mm
Ground clearance
172 mm
Turning circle
10.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/70 R16; 225/60 R17; 245/45 R19
Rim size
6.5 J x 16; 7.0J x 17; 7.5J x 19
ABS
yes

Selected engine version

0.95 kWh (134 KM) Fuel Cell

Hydrogen · 2015–2018

Fuel type
Hydrogen
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
Tucson
Version
Tucson III
Engine
0.95 kWh (134 KM) Fuel Cell
Engine type
FCEV (Fuel Cell Electric Vehicle)
Number of doors
5
Start of production
2015
End of production
2018
Body type
SUV
Number of seats
5
Fuel type
Hydrogen

Performance

Battery gross capacity
0.95 kWh

Engine

Max electric motor power
134 KM @ 5000 obr./min
Electric motor torque
300 Nm @ 1000 obr./min
System power
134 KM @ 5000 obr./min

Volume and weight

Aerodynamic drag coefficient (Cx)
0.35
Minimum trunk capacity
674 l
Maximum trunk capacity
1523 l
Curb weight
1860 kg
Gross weight
2250 kg

Vehicle dimensions

Length
4410 mm
Width
1821 mm
Height
1656 mm
Wheelbase
2639 mm
Front track
1584 mm
Rear track
1595 mm
Ground clearance
165 mm
Turning circle
10.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
1
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Steer
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
ABS
yes

Selected engine version

2.0 GDI (164 KM) SHIFTRONIC

Gasoline · 2015–2018

Engine power
164 KM
Torque
205 Nm
Engine displacement
1,999 cm³
Fuel type
Gasoline
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
Tucson
Version
Tucson III
Engine
2.0 GDI (164 KM) SHIFTRONIC
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
SUV
Number of seats
5
Fuel type
Gasoline

Performance

Fuel consumption measurement standard
EPA
Fuel consumption - Urban cycle
10.1 l/100 km
Fuel consumption measurement standard
EPA
Fuel consumption - Extra-urban cycle
7.6 l/100 km
Fuel consumption measurement standard
EPA
Fuel consumption - Combined cycle
9 l/100 km

Engine

Engine model / code
Nu/G4NC
Engine position
Front, Transverse
Engine displacement
1999 cm³
Fuel injection system
Direct injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC, D-CVVT
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
97 mm
Compression ratio
11.5
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
7.9 l
Power
164 KM @ 6200 obr./min
Torque
205 Nm @ 4000 obr./min

Volume and weight

Fuel tank
62 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
877 l
Maximum trunk capacity
1754 l
Curb weight
1508-1560 kg
Gross weight
2080 kg
Roof load
100 kg
Braked trailer load (12% slope start)
680 kg
Trailer load without brakes
454 kg

Vehicle dimensions

Length
4475 mm
Width
1850 mm
Height
1650 mm
Wheelbase
2670 mm
Front track
1608 mm
Rear track
1620 mm
Ground clearance
162 mm
Approach angle
17.2 °
Departure angle
23.9 °
Front overhang
910 mm
Rear overhang
895 mm
Turning circle
10.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Type of automatic gearbox
SHIFTRONIC
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Front brake disc/drum diameter
305 mm
Front brake disc thickness
25 mm
Rear brakes
Disc
Rear brake disc/drum diameter
302 mm
Rear brake disc thickness
10 mm
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/60 R17
Rim size
7J x 17
ABS
yes

Selected engine version

2.0 GDI (164 KM) AWD SHIFTRONIC

Gasoline · 2015–2018

Engine power
164 KM
Torque
205 Nm
Engine displacement
1,999 cm³
Fuel type
Gasoline
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
Tucson
Version
Tucson III
Engine
2.0 GDI (164 KM) AWD SHIFTRONIC
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
SUV
Number of seats
5
Fuel type
Gasoline

Performance

Fuel consumption measurement standard
EPA
Fuel consumption - Urban cycle
11 l/100 km
Fuel consumption measurement standard
EPA
Fuel consumption - Extra-urban cycle
9 l/100 km
Fuel consumption measurement standard
EPA
Fuel consumption - Combined cycle
10.1 l/100 km

Engine

Engine model / code
Nu/G4NC
Engine position
Front, Transverse
Engine displacement
1999 cm³
Fuel injection system
Direct injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC, D-CVVT
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
97 mm
Compression ratio
11.5
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
7.9 l
Power
164 KM @ 6200 obr./min
Torque
205 Nm @ 4000 obr./min

Volume and weight

Fuel tank
62 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
877 l
Maximum trunk capacity
1754 l
Curb weight
1583-1634 kg
Gross weight
2150 kg
Roof load
100 kg
Braked trailer load (12% slope start)
680 kg
Trailer load without brakes
454 kg

Vehicle dimensions

Length
4475 mm
Width
1850 mm
Height
1650 mm
Wheelbase
2670 mm
Front track
1608 mm
Rear track
1620 mm
Ground clearance
162 mm
Approach angle
17.2 °
Departure angle
23.9 °
Front overhang
910 mm
Rear overhang
895 mm
Turning circle
10.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Type of automatic gearbox
SHIFTRONIC
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Front brake disc/drum diameter
305 mm
Front brake disc thickness
25 mm
Rear brakes
Disc
Rear brake disc/drum diameter
302 mm
Rear brake disc thickness
10 mm
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/60 R17
Rim size
7J x 17
ABS
yes

Selected engine version

2.0 MPI (153 KM) SHIFTRONIC

Gasoline · 2015–2018

Engine power
153 KM
Torque
192 Nm
Engine displacement
1,999 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
11.1 s
Maximum speed
181 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
Tucson
Version
Tucson III
Engine
2.0 MPI (153 KM) SHIFTRONIC
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
SUV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
181 km/h
Acceleration 0-100 km/h
11.1 s
Fuel consumption - Urban cycle
10.9-11.5 l/100 km
Fuel consumption - Extra-urban cycle
6.1-6.3 l/100 km
Fuel consumption - Combined cycle
7.9-8.2 l/100 km
CO2 emissions
182-190 g/km

Engine

Engine model / code
Nu/G4NA
Engine position
Front, Transverse
Engine displacement
1999 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC, D-CVVT
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
97 mm
Compression ratio
10.3
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
7.3 l
Power
153 KM @ 6200 obr./min
Torque
192 Nm @ 4000 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
488 l
Maximum trunk capacity
1478 l
Curb weight
1426-1588 kg
Gross weight
2090 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
750 kg
Trailer nose weight
120 kg

Vehicle dimensions

Length
4475 mm
Width
1850 mm
Height
1660 mm
Wheelbase
2670 mm
Front track
1608 mm
Rear track
1620 mm
Ground clearance
172 mm
Approach angle
17.9 °
Departure angle
24.5 °
Ramp angle
19.5 °
Turning circle
10.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Type of automatic gearbox
SHIFTRONIC
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Front brake disc/drum diameter
305 mm
Front brake disc thickness
25 mm
Rear brakes
Disc
Rear brake disc/drum diameter
302 mm
Rear brake disc thickness
10 mm
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/60 R17; 225/55 R18; 245/45 R19
Rim size
7J x 17; 7J x 18; 7.5J x 19
ABS
yes

Selected engine version

2.0 MPI (153 KM)

Gasoline · 2015–2018

Engine power
153 KM
Torque
192 Nm
Engine displacement
1,999 cm³
Fuel type
Gasoline
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
Tucson
Version
Tucson III
Engine
2.0 MPI (153 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2015
End of production
2018
Body type
SUV
Number of seats
5
Fuel type
Gasoline

Performance

Fuel consumption - Urban cycle
10.7 l/100 km
Fuel consumption - Extra-urban cycle
6.3 l/100 km
Fuel consumption - Combined cycle
7.9 l/100 km
CO2 emissions
184 g/km

Engine

Engine model / code
Nu/G4NA
Engine position
Front, Transverse
Engine displacement
1999 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC, D-CVVT
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
97 mm
Compression ratio
10.3
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
7.4 l
Power
153 KM @ 6200 obr./min
Torque
192 Nm @ 4000 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
488 l
Maximum trunk capacity
1478 l
Curb weight
1410-1572 kg
Gross weight
2070 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
750 kg
Trailer nose weight
120 kg

Vehicle dimensions

Length
4475 mm
Width
1850 mm
Height
1660 mm
Wheelbase
2670 mm
Front track
1608 mm
Rear track
1620 mm
Ground clearance
172 mm
Approach angle
17.9 °
Departure angle
24.5 °
Ramp angle
19.5 °
Turning circle
10.6 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Front brake disc/drum diameter
305 mm
Front brake disc thickness
25 mm
Rear brakes
Disc
Rear brake disc/drum diameter
302 mm
Rear brake disc thickness
10 mm
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/60 R17; 225/55 R18
Rim size
7J x 17; 7J x 18
ABS
yes

About Hyundai Tucson Tucson III

The Hyundai Tucson III, produced between 2015 and 2018, is a compact SUV designed to combine elegance and functionality. Its modern design, with distinctive body lines and a bold front, attracts attention. The five-door body provides comfortable space for five passengers and sufficient trunk capacity, making it an ideal choice for families and those leading an active lifestyle. The Tucson III's style emphasizes its modernity and practicality, meeting the expectations of a wide range of drivers.

This model offers a variety of engine options that allow for adaptation to the needs of each driver. Available are gasoline engines such as the 1.6 T-GDI with a power output of 177 HP, and diesels like the 2.0 CRDI with a maximum power of 185 HP. For those seeking a more environmentally friendly solution, there is also a hydrogen-powered version available. The transmission options include both manual and automatic versions, making it easier to select the ideal configuration for the preferred driving style. The combination of power and fuel efficiency ensures balanced performance on any route.

The Hyundai Tucson III is equipped with options for front-wheel drive and all-wheel drive (4x4), allowing it to perform well both in the city and on more challenging roads. This provides stability and good traction, especially in difficult weather conditions. Driving comfort is enhanced by numerous assistance systems, such as parking assist, lane-keeping assist, and an advanced multimedia system, making every journey comfortable and safe.

Like any model, the Tucson III has its drawbacks that are worth noting. There are known cases of issues with electronics and multimedia systems that may require servicing. Some units may also experience faster wear of suspension components, which in the long run could lead to higher operating costs. Additionally, service costs for the 4x4 versions and more complex drive systems may be somewhat higher.

In summary, the Hyundai Tucson III is a versatile SUV that offers modern design, various drive options, and comfortable equipment. Its adaptability to different road conditions and numerous advanced technologies make it stand out from the competition. For many drivers, it can be an attractive option due to the combination of practicality with modern solutions that make it an ideal companion for everyday use.
