Vehicle specifications
Hyundai Tucson II
Compare all 3 engine versions of the Hyundai Tucson Tucson II, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Hyundai Tucson II? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

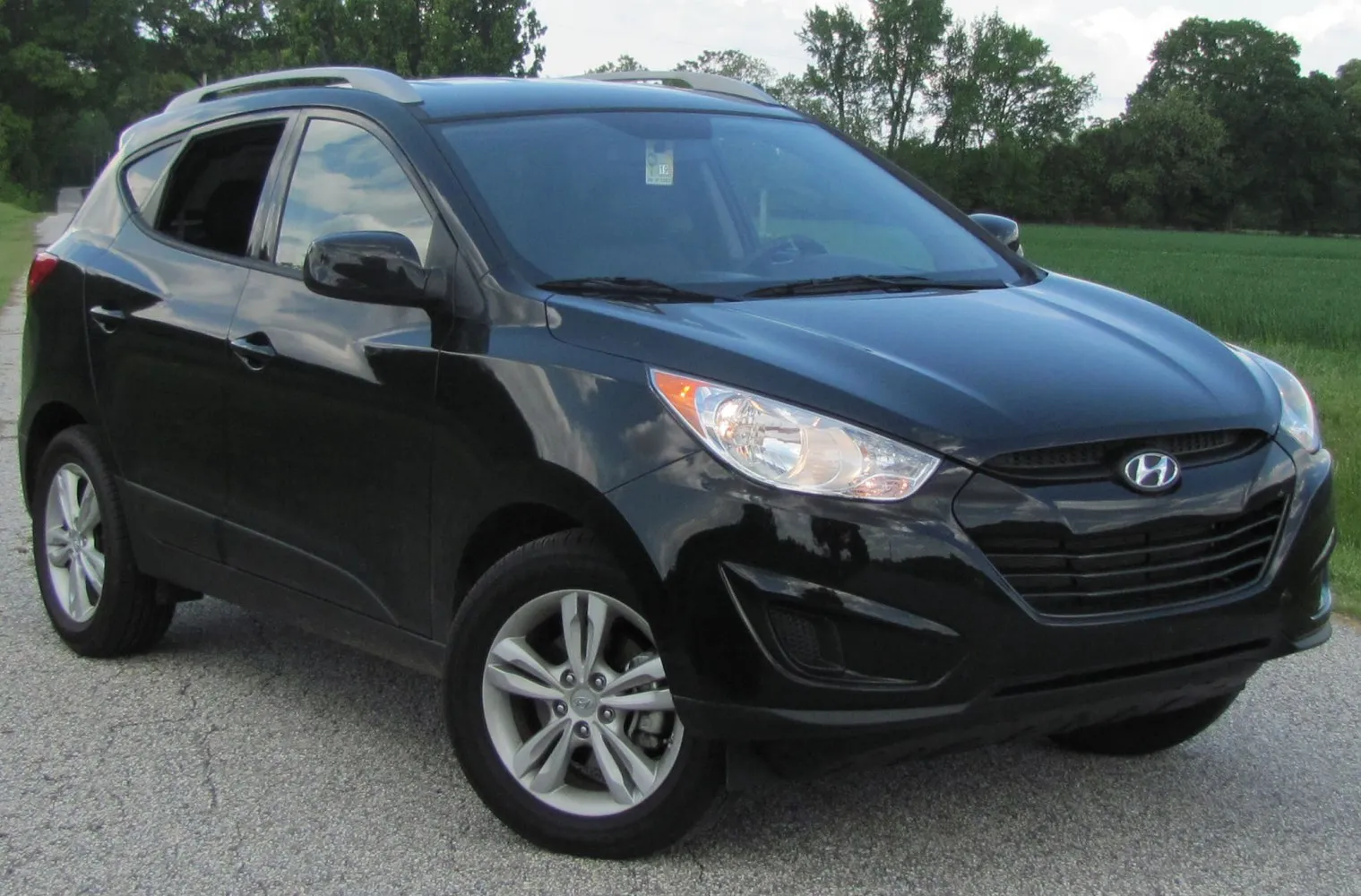

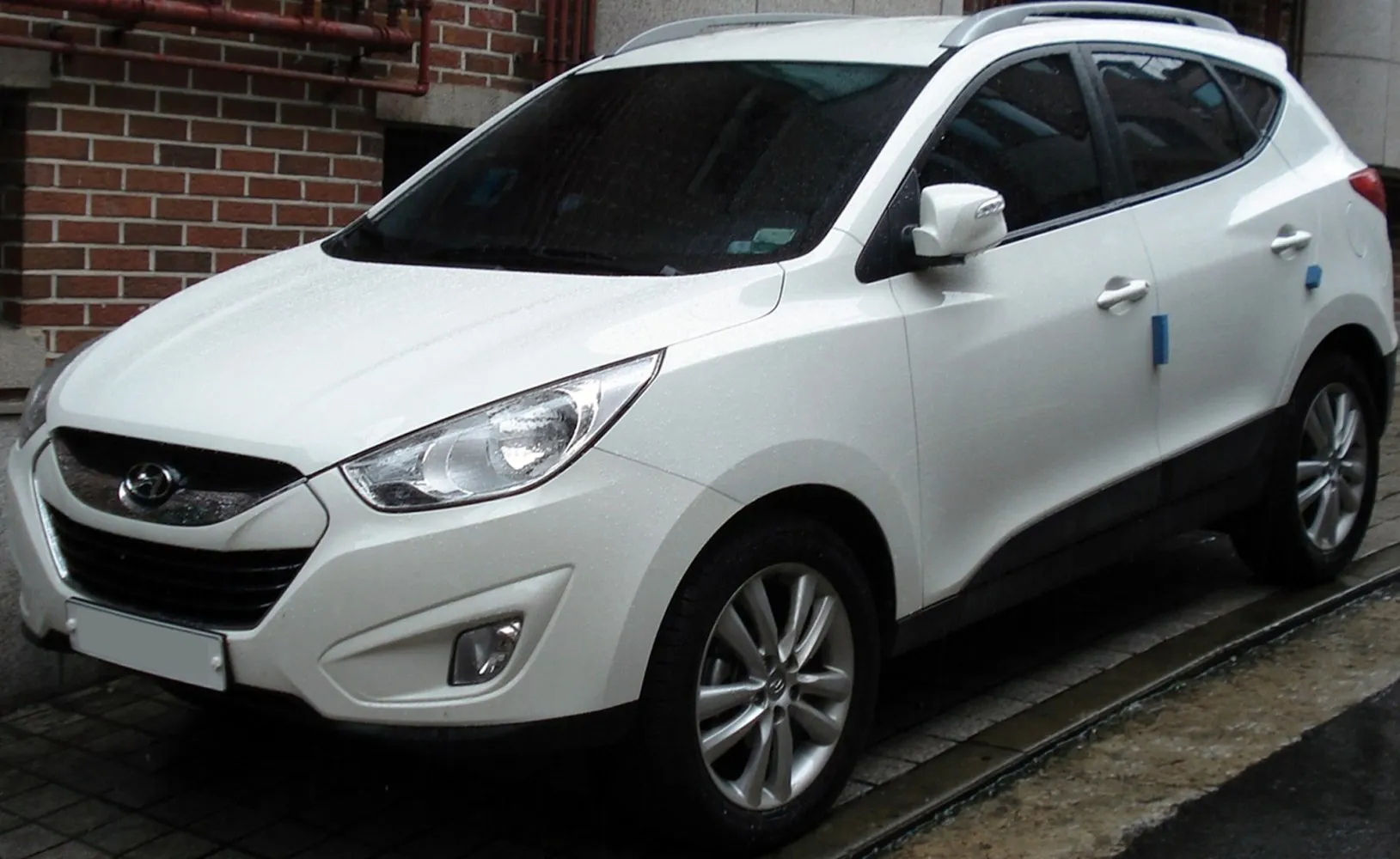

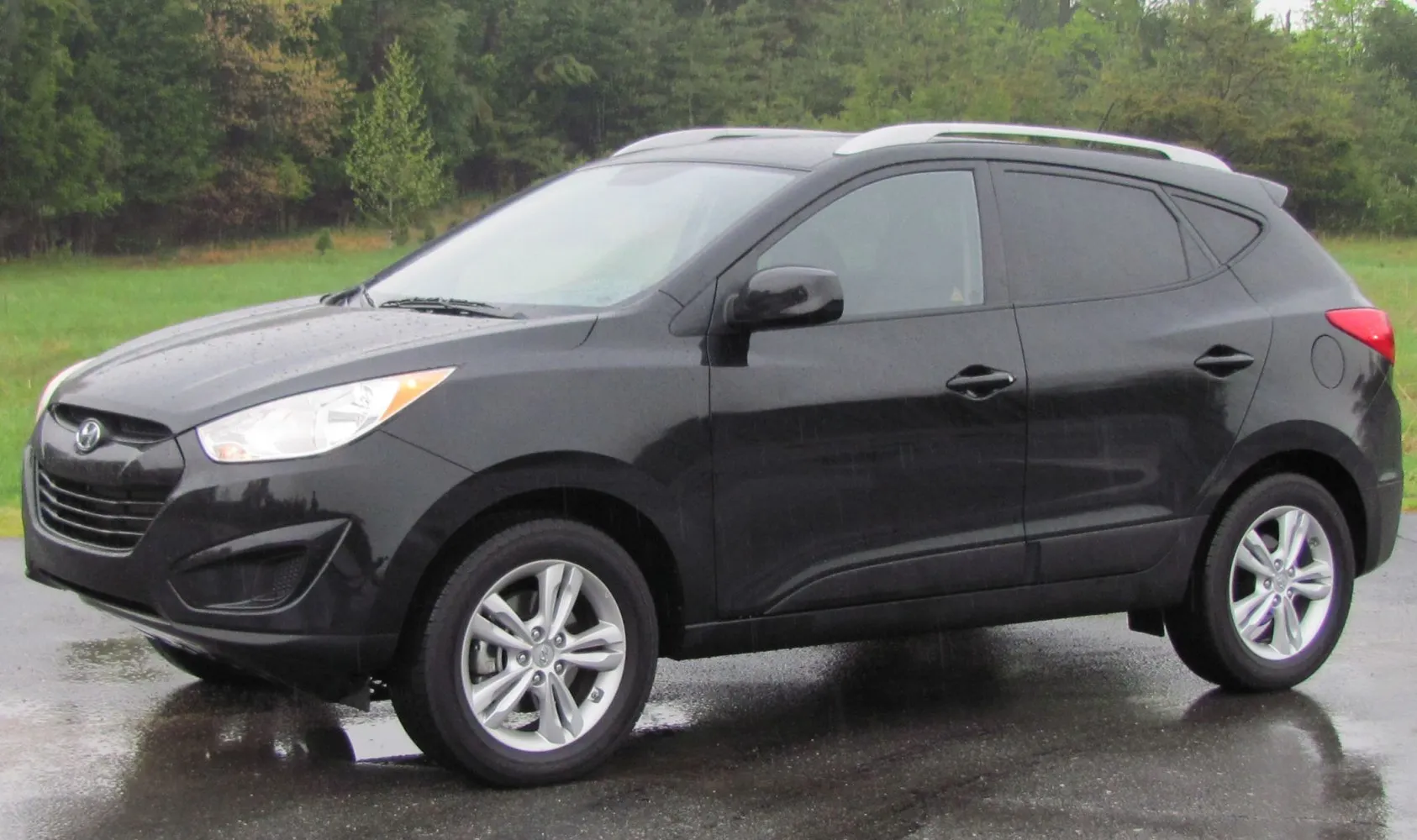

Vehicle photos
1 of 8
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
3 versions · 3 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 2.4 (176 KM) Selected | Gasoline | 176 KM | 2009–2013 |
| 2.4 (176 KM) SHIFTRONIC Selected | Gasoline | 176 KM | 2009–2013 |
| 2.4 (176 KM) AWD SHIFTRONIC Selected | Gasoline | 176 KM | 2009–2013 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
2.4 (176 KM)
Gasoline · 2009–2013
- Engine power
- 176 KM
- Torque
- 228 Nm
- Engine displacement
- 2,359 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Hyundai Tucson Tucson II- Brand
- Hyundai
- Model
- Tucson
- Version
- Tucson II
- Engine
- 2.4 (176 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2013
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 10.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.8 l/100 km
- Fuel consumption - Combined cycle
- 9.4 l/100 km
- Emission standard
- ULEV
Engine
- Engine model / code
- G4KE
- Engine position
- Front, Transverse
- Engine displacement
- 2359 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC, CVVT
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 88 mm
- Piston stroke
- 97 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.6 l
- Coolant capacity
- 6.8 l
- Power
- 176 KM @ 6000 obr./min
- Torque
- 228 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.37
- Minimum trunk capacity
- 728 l
- Maximum trunk capacity
- 1580 l
- Curb weight
- kg
Vehicle dimensions
- Length
- 4399 mm
- Width
- 1821 mm
- Height
- 1656 mm
- Wheelbase
- 2639 mm
- Front track
- 1585 mm
- Rear track
- 1585 mm
- Front overhang
- 871 mm
- Rear overhang
- 889 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/60 R17
- Rim size
- 6.5J x 17
- ABS
- yes
Selected engine version
2.4 (176 KM) SHIFTRONIC
Gasoline · 2009–2013
- Engine power
- 176 KM
- Torque
- 228 Nm
- Engine displacement
- 2,359 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Hyundai Tucson Tucson II- Brand
- Hyundai
- Model
- Tucson
- Version
- Tucson II
- Engine
- 2.4 (176 KM) SHIFTRONIC
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2013
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 10.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.6 l/100 km
- Fuel consumption - Combined cycle
- 9 l/100 km
- Emission standard
- ULEV
Engine
- Engine model / code
- G4KE
- Engine position
- Front, Transverse
- Engine displacement
- 2359 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC, CVVT
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 88 mm
- Piston stroke
- 97 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.6 l
- Coolant capacity
- 6.8 l
- Power
- 176 KM @ 6000 obr./min
- Torque
- 228 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.37
- Minimum trunk capacity
- 728 l
- Maximum trunk capacity
- 1580 l
- Curb weight
- kg
Vehicle dimensions
- Length
- 4399 mm
- Width
- 1821 mm
- Height
- 1656 mm
- Wheelbase
- 2639 mm
- Front track
- 1585 mm
- Rear track
- 1585 mm
- Front overhang
- 871 mm
- Rear overhang
- 889 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- Shiftronic
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/60 R17; 225/55 R18
- Rim size
- 6.5J x 17; 6.5J x 18
- ABS
- yes
Selected engine version
2.4 (176 KM) AWD SHIFTRONIC
Gasoline · 2009–2013
- Engine power
- 176 KM
- Torque
- 228 Nm
- Engine displacement
- 2,359 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Hyundai Tucson Tucson II- Brand
- Hyundai
- Model
- Tucson
- Version
- Tucson II
- Engine
- 2.4 (176 KM) AWD SHIFTRONIC
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2013
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 11.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.4 l/100 km
- Fuel consumption - Combined cycle
- 9.8 l/100 km
- Emission standard
- ULEV
Engine
- Engine model / code
- G4KE
- Engine position
- Front, Transverse
- Engine displacement
- 2359 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC, CVVT
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 88 mm
- Piston stroke
- 97 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.6 l
- Coolant capacity
- 6.8 l
- Power
- 176 KM @ 6000 obr./min
- Torque
- 228 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.37
- Minimum trunk capacity
- 728 l
- Maximum trunk capacity
- 1580 l
- Curb weight
- kg
Vehicle dimensions
- Length
- 4399 mm
- Width
- 1821 mm
- Height
- 1656 mm
- Wheelbase
- 2639 mm
- Front track
- 1585 mm
- Rear track
- 1585 mm
- Front overhang
- 871 mm
- Rear overhang
- 889 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Type of automatic gearbox
- Shiftronic
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/60 R17; 225/55 R18
- Rim size
- 6.5J x 17; 6.5J x 18
- ABS
- yes
