Vehicle specifications
Hyundai Palisade II
Compare all 5 engine versions of the Hyundai Palisade Palisade II, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Hyundai Palisade II? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

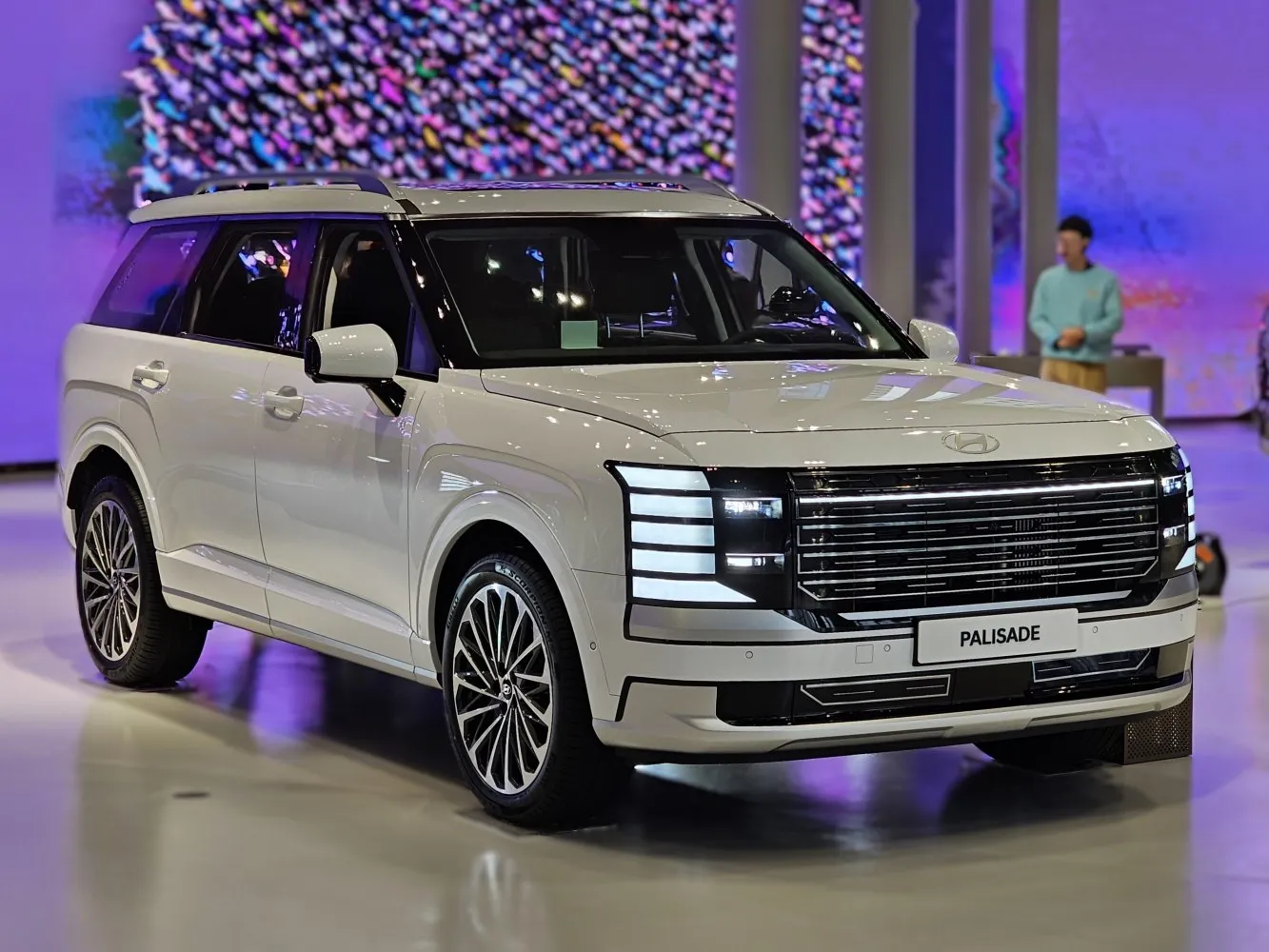

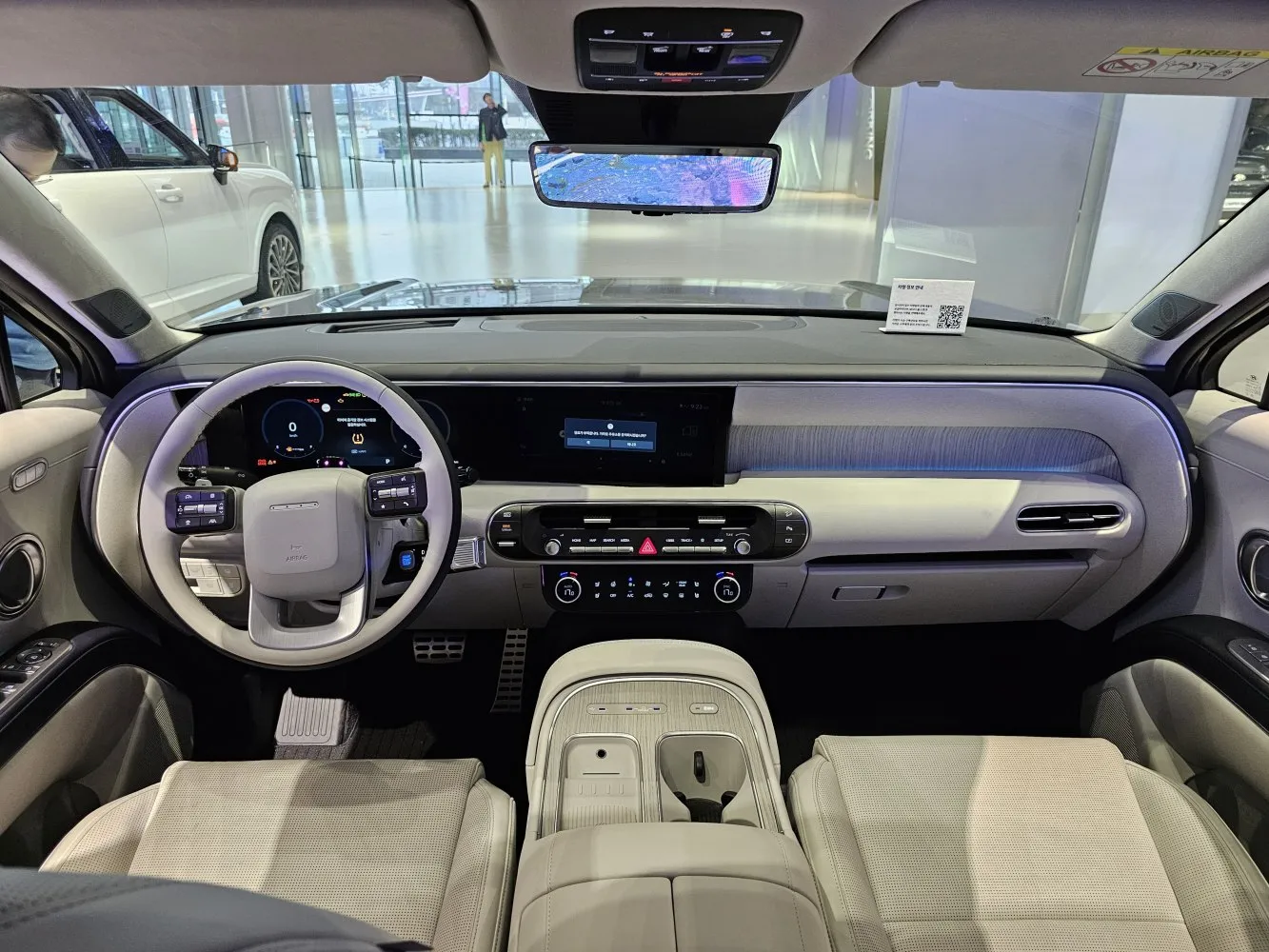

Vehicle photos
1 of 3
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
5 versions · 5 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 2.5T (329 KM) Full Hybrid HTRAC AWD Automatic Selected | Gasoline | 258 KM | 2025–present |
| 2.5T (329 KM) Full Hybrid Automatic Selected | Gasoline | 258 KM | 2025–present |
| XRT Pro 3.5 V6 (287 KM) HTRAC AWD Automatic Selected | Gasoline | 287 KM | 2025–present |
| 3.5 V6 (287 KM) HTRAC AWD Automatic Selected | Gasoline | 287 KM | 2025–present |
| 3.5 V6 (287 KM) Automatic Selected | Gasoline | 287 KM | 2025–present |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
2.5T (329 KM) Full Hybrid HTRAC AWD Automatic
Gasoline · 2025–present
- Engine power
- 258 KM
- Torque
- 353 Nm
- Engine displacement
- 2,497 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Hyundai Palisade Palisade II- Brand
- Hyundai
- Model
- Palisade
- Version
- Palisade II
- Engine
- 2.5T (329 KM) Full Hybrid HTRAC AWD Automatic
- Engine type
- FHEF (Full Hybrid Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2025
- Body type
- SUV, Crossover
- Number of seats
- 7
- Fuel type
- Gasoline
Performance
- Battery gross capacity
- 1.65 kWh
Engine
- Max electric motor power
- 17 KM @ 1300-2500 obr./min
- 2nd electric motor max power
- 72 KM @ 2000-3000 obr./min
- Electric motor torque
- 102 Nm @ 1200 obr./min
- 2nd electric motor torque
- 264 Nm @ 1900 obr./min
- Electric motor position
- Integrated with the transmission
- 2nd electric motor position
- Integrated with the transmission
- System power
- 329 KM
- System torque
- 460 Nm
- Engine model / code
- Smartstream
- Engine position
- Front, Transverse
- Engine displacement
- 2497 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 88.5 mm
- Piston stroke
- 101.5 mm
- Compression ratio
- 12
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6.8 l
- Power
- 258 KM @ 5800 obr./min
- Torque
- 353 Nm @ 1800-4500 obr./min
Volume and weight
- Fuel tank
- 69 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 541 l
- Maximum trunk capacity
- 2455 l
- Curb weight
- kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1814 kg
- Trailer load without brakes
- 748 kg
Vehicle dimensions
- Length
- 5060 mm
- Width
- 1981 mm
- Height
- 1765 mm
- Wheelbase
- 2969 mm
- Front track
- 1709-1720 mm
- Rear track
- 1720-1732 mm
- Ground clearance
- 188 mm
- Approach angle
- 18.6 °
- Departure angle
- 21.1 °
- Ramp angle
- 15.5 °
- Front overhang
- 925 mm
- Rear overhang
- 1166 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 345 mm
- Front brake disc thickness
- 30 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 325 mm
- Rear brake disc thickness
- 20 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 235/65 R18 106H; 255/50 R20 109V XL; 265/45 R21 108V XL
- Rim size
- 8.0J x 18; 8.0J x 20; 8.5J x 21
- ABS
- yes
Selected engine version
2.5T (329 KM) Full Hybrid Automatic
Gasoline · 2025–present
- Engine power
- 258 KM
- Torque
- 353 Nm
- Engine displacement
- 2,497 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Hyundai Palisade Palisade II- Brand
- Hyundai
- Model
- Palisade
- Version
- Palisade II
- Engine
- 2.5T (329 KM) Full Hybrid Automatic
- Engine type
- FHEF (Full Hybrid Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2025
- Body type
- SUV, Crossover
- Number of seats
- 7
- Fuel type
- Gasoline
Performance
- Battery gross capacity
- 1.65 kWh
Engine
- Max electric motor power
- 17 KM @ 1300-2500 obr./min
- 2nd electric motor max power
- 72 KM @ 2000-3000 obr./min
- Electric motor torque
- 102 Nm @ 1200 obr./min
- 2nd electric motor torque
- 264 Nm @ 1900 obr./min
- Electric motor position
- Integrated with the transmission
- 2nd electric motor position
- Integrated with the transmission
- System power
- 329 KM
- System torque
- 460 Nm
- Engine model / code
- Smartstream
- Engine position
- Front, Transverse
- Engine displacement
- 2497 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 88.5 mm
- Piston stroke
- 101.5 mm
- Compression ratio
- 12
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6.8 l
- Power
- 258 KM @ 5800 obr./min
- Torque
- 353 Nm @ 1800-4500 obr./min
Volume and weight
- Fuel tank
- 69 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 541 l
- Maximum trunk capacity
- 2455 l
- Curb weight
- kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1814 kg
- Trailer load without brakes
- 748 kg
Vehicle dimensions
- Length
- 5060 mm
- Width
- 1981 mm
- Height
- 1765 mm
- Wheelbase
- 2969 mm
- Front track
- 1709-1720 mm
- Rear track
- 1720-1732 mm
- Ground clearance
- 188 mm
- Approach angle
- 18.6 °
- Departure angle
- 21.1 °
- Ramp angle
- 15.5 °
- Front overhang
- 925 mm
- Rear overhang
- 1166 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 345 mm
- Front brake disc thickness
- 30 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 325 mm
- Rear brake disc thickness
- 20 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 235/65 R18 106H; 255/50 R20 109V XL; 265/45 R21 108V XL
- Rim size
- 8.0J x 18; 8.0J x 20; 8.5J x 21
- ABS
- yes
Selected engine version
XRT Pro 3.5 V6 (287 KM) HTRAC AWD Automatic
Gasoline · 2025–present
- Engine power
- 287 KM
- Torque
- 353 Nm
- Engine displacement
- 3,470 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Hyundai Palisade Palisade II- Brand
- Hyundai
- Model
- Palisade
- Version
- Palisade II
- Engine
- XRT Pro 3.5 V6 (287 KM) HTRAC AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2025
- Body type
- SUV, Crossover
- Number of seats
- 7
- Fuel type
- Gasoline
Engine
- Engine model / code
- Smartstream
- Engine position
- Front, Longitudinal
- Engine displacement
- 3470 cm³
- Fuel injection system
- Wtrysk bezpośredni i Wtrysk wielopunktowy
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 92 mm
- Piston stroke
- 87 mm
- Compression ratio
- 12.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6.6 l
- Power
- 287 KM @ 6400 obr./min
- Torque
- 353 Nm @ 5000 obr./min
Volume and weight
- Fuel tank
- 72 l
- Aerodynamic drag coefficient (Cx)
- 0.35
- Minimum trunk capacity
- 541 l
- Maximum trunk capacity
- 2455 l
- Curb weight
- kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2268 kg
- Trailer load without brakes
- 748 kg
Vehicle dimensions
- Length
- 5090 mm
- Width
- 1981 mm
- Height
- 1765 mm
- Wheelbase
- 2969 mm
- Front track
- 1715 mm
- Rear track
- 1732 mm
- Ground clearance
- 213 mm
- Approach angle
- 20.5 °
- Departure angle
- 22.4 °
- Ramp angle
- 18.3 °
- Front overhang
- 955 mm
- Rear overhang
- 1166 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 8
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 345 mm
- Front brake disc thickness
- 30 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 325 mm
- Rear brake disc thickness
- 20 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 255/60 R18 108H
- Rim size
- 7.5J x 18
- ABS
- yes
Selected engine version
3.5 V6 (287 KM) HTRAC AWD Automatic
Gasoline · 2025–present
- Engine power
- 287 KM
- Torque
- 353 Nm
- Engine displacement
- 3,470 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Hyundai Palisade Palisade II- Brand
- Hyundai
- Model
- Palisade
- Version
- Palisade II
- Engine
- 3.5 V6 (287 KM) HTRAC AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2025
- Body type
- SUV, Crossover
- Number of seats
- 7-8
- Fuel type
- Gasoline
Engine
- Engine model / code
- Smartstream
- Engine position
- Front, Longitudinal
- Engine displacement
- 3470 cm³
- Fuel injection system
- Wtrysk bezpośredni i Wtrysk wielopunktowy
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 92 mm
- Piston stroke
- 87 mm
- Compression ratio
- 12.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6.6 l
- Power
- 287 KM @ 6400 obr./min
- Torque
- 353 Nm @ 5000 obr./min
Volume and weight
- Fuel tank
- 72 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 541 l
- Maximum trunk capacity
- 2455 l
- Curb weight
- kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2268 kg
- Trailer load without brakes
- 748 kg
Vehicle dimensions
- Length
- 5060 mm
- Width
- 1981 mm
- Height
- 1765 mm
- Wheelbase
- 2969 mm
- Front track
- 1720 mm
- Rear track
- 1732 mm
- Ground clearance
- 188 mm
- Approach angle
- 18.6 °
- Departure angle
- 21.1 °
- Ramp angle
- 16.3 °
- Front overhang
- 925 mm
- Rear overhang
- 1166 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 8
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 345 mm
- Front brake disc thickness
- 30 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 325 mm
- Rear brake disc thickness
- 20 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 235/65 R18 106H
- Rim size
- 8.0J x 18
- ABS
- yes
Selected engine version
3.5 V6 (287 KM) Automatic
Gasoline · 2025–present
- Engine power
- 287 KM
- Torque
- 353 Nm
- Engine displacement
- 3,470 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Hyundai Palisade Palisade II- Brand
- Hyundai
- Model
- Palisade
- Version
- Palisade II
- Engine
- 3.5 V6 (287 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2025
- Body type
- SUV, Crossover
- Number of seats
- 7-8
- Fuel type
- Gasoline
Engine
- Engine model / code
- Smartstream
- Engine position
- Front, Longitudinal
- Engine displacement
- 3470 cm³
- Fuel injection system
- Wtrysk bezpośredni i Wtrysk wielopunktowy
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 92 mm
- Piston stroke
- 87 mm
- Compression ratio
- 12.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6.6 l
- Power
- 287 KM @ 6400 obr./min
- Torque
- 353 Nm @ 5000 obr./min
Volume and weight
- Fuel tank
- 72 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 541 l
- Maximum trunk capacity
- 2455 l
- Curb weight
- kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2268 kg
- Trailer load without brakes
- 748 kg
Vehicle dimensions
- Length
- 5060 mm
- Width
- 1981 mm
- Height
- 1765 mm
- Wheelbase
- 2969 mm
- Front track
- 1720 mm
- Rear track
- 1732 mm
- Ground clearance
- 188 mm
- Approach angle
- 18.6 °
- Departure angle
- 21.1 °
- Ramp angle
- 16.3 °
- Front overhang
- 925 mm
- Rear overhang
- 1166 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 8
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 345 mm
- Front brake disc thickness
- 30 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 325 mm
- Rear brake disc thickness
- 20 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 235/65 R18 106H
- Rim size
- 8.0J x 18
- ABS
- yes
