Vehicle specifications

Hyundai i40 Sedan

Compare all 6 engine versions of the Hyundai i40 i40 Sedan, then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Hyundai i40 Sedan? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?
1 of 8

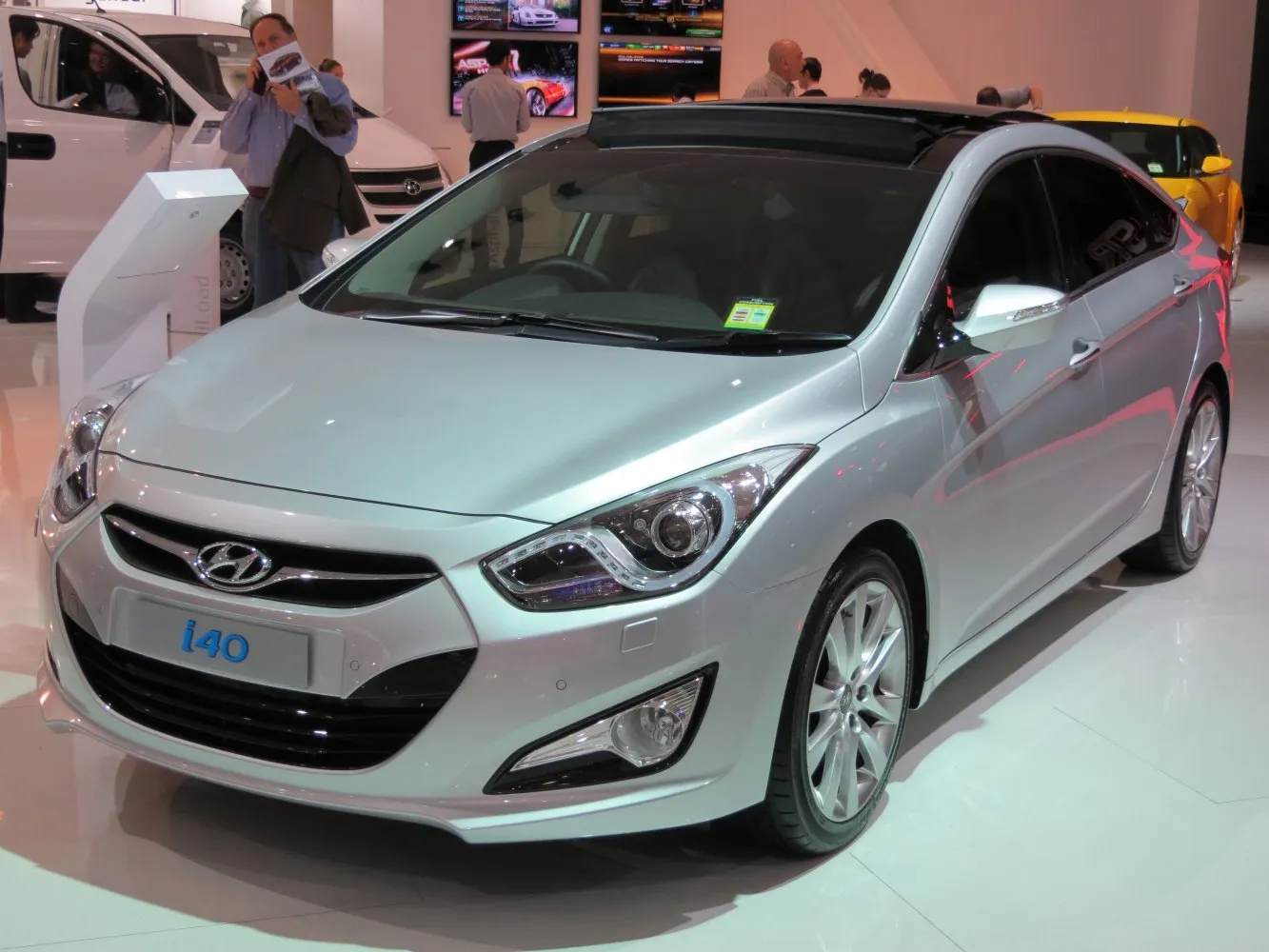

Hyundai i40 i40 Sedan View larger
Photo: OSX, Public domain, via Wikimedia Commons

Vehicle gallery

Hyundai i40 i40 Sedan

Photo: OSX, Public domain, via Wikimedia Commons

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

6 versions · 3 Gasoline · 3 Diesel fuel

Engine Fuel Power Production
1.6 GDI (135 KM) Selected Gasoline 135 KM 2011–2015
2.0 GDI (177 KM) Selected Gasoline 177 KM 2011–2015
2.0 GDI (177 KM) Automatic Selected Gasoline 177 KM 2011–2015
1.7 CRDi (116 KM) Selected Diesel fuel 116 KM 2011–2015
1.7 CRDi (136 KM) Selected Diesel fuel 136 KM 2011–2015
1.7 CRDi (136 KM) Automatic Selected Diesel fuel 136 KM 2011–2015

Selected engine version

1.6 GDI (135 KM)

Gasoline · 2011–2015

Engine power
135 KM
Torque
164 Nm
Engine displacement
1,591 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
11.3 s
Maximum speed
197 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
i40
Version
i40 Sedan
Engine
1.6 GDI (135 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
2011
End of production
2015
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
197 km/h
Acceleration 0-100 km/h
11.3 s
Fuel consumption - Urban cycle
8 l/100 km
Fuel consumption - Extra-urban cycle
5.4 l/100 km
Fuel consumption - Combined cycle
6.4 l/100 km
Emission standard
Euro 5

Engine

Engine model / code
G4FD
Engine position
Front, Transverse
Engine displacement
1591 cm³
Fuel injection system
Direct injection
Engine type
Naturally aspirated engine
Valvetrain
D-CVVT
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
77 mm
Piston stroke
85.44 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
3.6 l
Coolant capacity
6.8 l
Power
135 KM @ 6300 obr./min
Torque
164 Nm @ 3850 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
525 l
Maximum trunk capacity
1672 l
Curb weight
1395 kg
Gross weight
2030 kg

Vehicle dimensions

Length
4770 mm
Width
1815 mm
Height
1470 mm
Wheelbase
2770 mm
Front track
1591 mm
Rear track
1597 mm
Turning circle
10.94 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Independent coil spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16; 215/50 R17; 225/45 R18
Rim size
7.0J x 16; 7.5J x 17; 8.0J x 18
ABS
yes

Selected engine version

2.0 GDI (177 KM)

Gasoline · 2011–2015

Engine power
177 KM
Torque
213 Nm
Engine displacement
1,999 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.5 s
Maximum speed
212 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
i40
Version
i40 Sedan
Engine
2.0 GDI (177 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
2011
End of production
2015
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
212 km/h
Acceleration 0-100 km/h
9.5 s
Fuel consumption - Urban cycle
9 l/100 km
Fuel consumption - Extra-urban cycle
5.6 l/100 km
Fuel consumption - Combined cycle
6.8 l/100 km
Emission standard
Euro 5

Engine

Engine model / code
G4NC
Engine position
Front, Transverse
Engine displacement
1999 cm³
Fuel injection system
Direct injection
Engine type
Naturally aspirated engine
Valvetrain
D-CVVT
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
97 mm
Compression ratio
11.5
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
7.1 l
Power
177 KM @ 6500 obr./min
Torque
213 Nm @ 4700 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
525 l
Maximum trunk capacity
1672 l
Curb weight
1420 kg
Gross weight
2050 kg

Vehicle dimensions

Length
4770 mm
Width
1815 mm
Height
1470 mm
Wheelbase
2770 mm
Front track
1591 mm
Rear track
1597 mm
Turning circle
10.94 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Independent coil spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16; 215/50 R17; 225/45 R18
Rim size
7.0J x 16; 7.5J x 17; 8.0J x 18
ABS
yes

Selected engine version

2.0 GDI (177 KM) Automatic

Gasoline · 2011–2015

Engine power
177 KM
Torque
213 Nm
Engine displacement
1,999 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
10 s
Maximum speed
209 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
i40
Version
i40 Sedan
Engine
2.0 GDI (177 KM) Automatic
Engine type
Combustion engine
Number of doors
4
Start of production
2011
End of production
2015
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
209 km/h
Acceleration 0-100 km/h
10 s
Fuel consumption - Urban cycle
10.4 l/100 km
Fuel consumption - Extra-urban cycle
5.9 l/100 km
Fuel consumption - Combined cycle
7.5 l/100 km
Emission standard
Euro 5

Engine

Engine model / code
G4NC
Engine position
Front, Transverse
Engine displacement
1999 cm³
Fuel injection system
Direct injection
Engine type
Naturally aspirated engine
Valvetrain
D-CVVT
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
97 mm
Compression ratio
11.5
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
6.8 l
Power
177 KM @ 6500 obr./min
Torque
213 Nm @ 4700 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
525 l
Maximum trunk capacity
1672 l
Curb weight
1441 kg
Gross weight
2080 kg

Vehicle dimensions

Length
4770 mm
Width
1815 mm
Height
1470 mm
Wheelbase
2770 mm
Front track
1591 mm
Rear track
1597 mm
Turning circle
10.94 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Independent coil spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16; 215/50 R17; 225/45 R18
Rim size
7.0J x 16; 7.5J x 17; 8.0J x 18
ABS
yes

Selected engine version

1.7 CRDi (116 KM)

Diesel fuel · 2011–2015

Engine power
116 KM
Torque
260 Nm
Engine displacement
1,685 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
12.3 s
Maximum speed
192 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
i40
Version
i40 Sedan
Engine
1.7 CRDi (116 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
2011
End of production
2015
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
192 km/h
Acceleration 0-100 km/h
12.3 s
Fuel consumption - Urban cycle
6 l/100 km
Fuel consumption - Extra-urban cycle
5.4 l/100 km
Fuel consumption - Combined cycle
5 l/100 km
Emission standard
Euro 5

Engine

Engine model / code
UII/D4FD
Engine position
Front, Transverse
Engine displacement
1685 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
77.2 mm
Piston stroke
90 mm
Compression ratio
17
Number of valves per cylinder
4
Engine oil capacity
5.3 l
Coolant capacity
6.9 l
Power
116 KM @ 4000 obr./min
Torque
260 Nm @ 1250-2750 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
525 l
Maximum trunk capacity
1672 l
Curb weight
1485 kg
Gross weight
2120 kg

Vehicle dimensions

Length
4770 mm
Width
1815 mm
Height
1470 mm
Wheelbase
2770 mm
Front track
1591 mm
Rear track
1597 mm
Turning circle
10.94 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Independent coil spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16; 215/50 R17; 225/45 R18
Rim size
7.0J x 16; 7.5J x 17; 8.0J x 18
ABS
yes

Selected engine version

1.7 CRDi (136 KM)

Diesel fuel · 2011–2015

Engine power
136 KM
Torque
325 Nm
Engine displacement
1,685 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.3 s
Maximum speed
201 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
i40
Version
i40 Sedan
Engine
1.7 CRDi (136 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
2011
End of production
2015
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
201 km/h
Acceleration 0-100 km/h
10.3 s
Fuel consumption - Urban cycle
5.9 l/100 km
Fuel consumption - Extra-urban cycle
4.6 l/100 km
Fuel consumption - Combined cycle
5.1 l/100 km
Emission standard
Euro 5

Engine

Engine model / code
UII/D4FD
Engine position
Front, Transverse
Engine displacement
1685 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
77.2 mm
Piston stroke
90 mm
Compression ratio
17
Number of valves per cylinder
4
Engine oil capacity
5.3 l
Coolant capacity
6.9 l
Power
136 KM @ 4000 obr./min
Torque
325 Nm @ 2000-2500 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
525 l
Maximum trunk capacity
1672 l
Curb weight
1495 kg
Gross weight
2120 kg

Vehicle dimensions

Length
4770 mm
Width
1815 mm
Height
1470 mm
Wheelbase
2770 mm
Front track
1591 mm
Rear track
1597 mm
Turning circle
10.94 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Independent coil spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16; 215/50 R17; 225/45 R18
Rim size
7.0J x 16; 7.5J x 17; 8.0J x 18
ABS
yes

Selected engine version

1.7 CRDi (136 KM) Automatic

Diesel fuel · 2011–2015

Engine power
136 KM
Torque
325 Nm
Engine displacement
1,685 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.6 s
Maximum speed
197 km/h
On this page
Check vehicle history

Basic version information

Brand
Hyundai
Model
i40
Version
i40 Sedan
Engine
1.7 CRDi (136 KM) Automatic
Engine type
Combustion engine
Number of doors
4
Start of production
2011
End of production
2015
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
197 km/h
Acceleration 0-100 km/h
11.6 s
Fuel consumption - Urban cycle
7.6 l/100 km
Fuel consumption - Extra-urban cycle
5.1 l/100 km
Fuel consumption - Combined cycle
6 l/100 km
Emission standard
Euro 5

Engine

Engine model / code
UII/D4FD
Engine position
Front, Transverse
Engine displacement
1685 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
77.2 mm
Piston stroke
90 mm
Compression ratio
17
Number of valves per cylinder
4
Engine oil capacity
5.3 l
Coolant capacity
6.9 l
Power
136 KM @ 4000 obr./min
Torque
325 Nm @ 2000-2500 obr./min

Volume and weight

Fuel tank
70 l
Minimum trunk capacity
525 l
Maximum trunk capacity
1672 l
Curb weight
1514 kg
Gross weight
2150 kg

Vehicle dimensions

Length
4770 mm
Width
1815 mm
Height
1470 mm
Wheelbase
2770 mm
Front track
1591 mm
Rear track
1597 mm
Turning circle
10.94 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Rear suspension
Independent coil spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/60 R16; 215/50 R17; 225/45 R18
Rim size
7.0J x 16; 7.5J x 17; 8.0J x 18
ABS
yes

About Hyundai i40 i40 Sedan

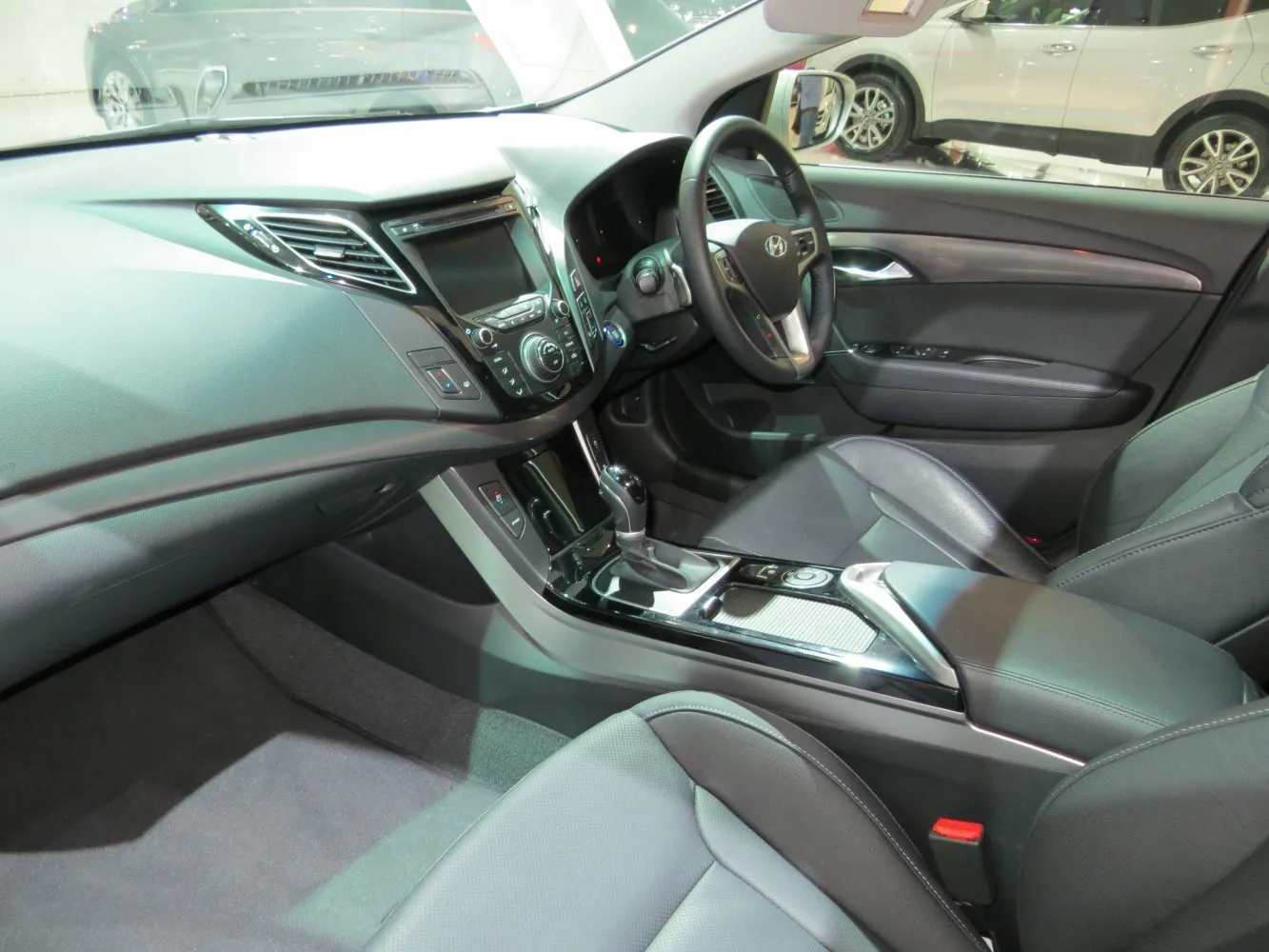

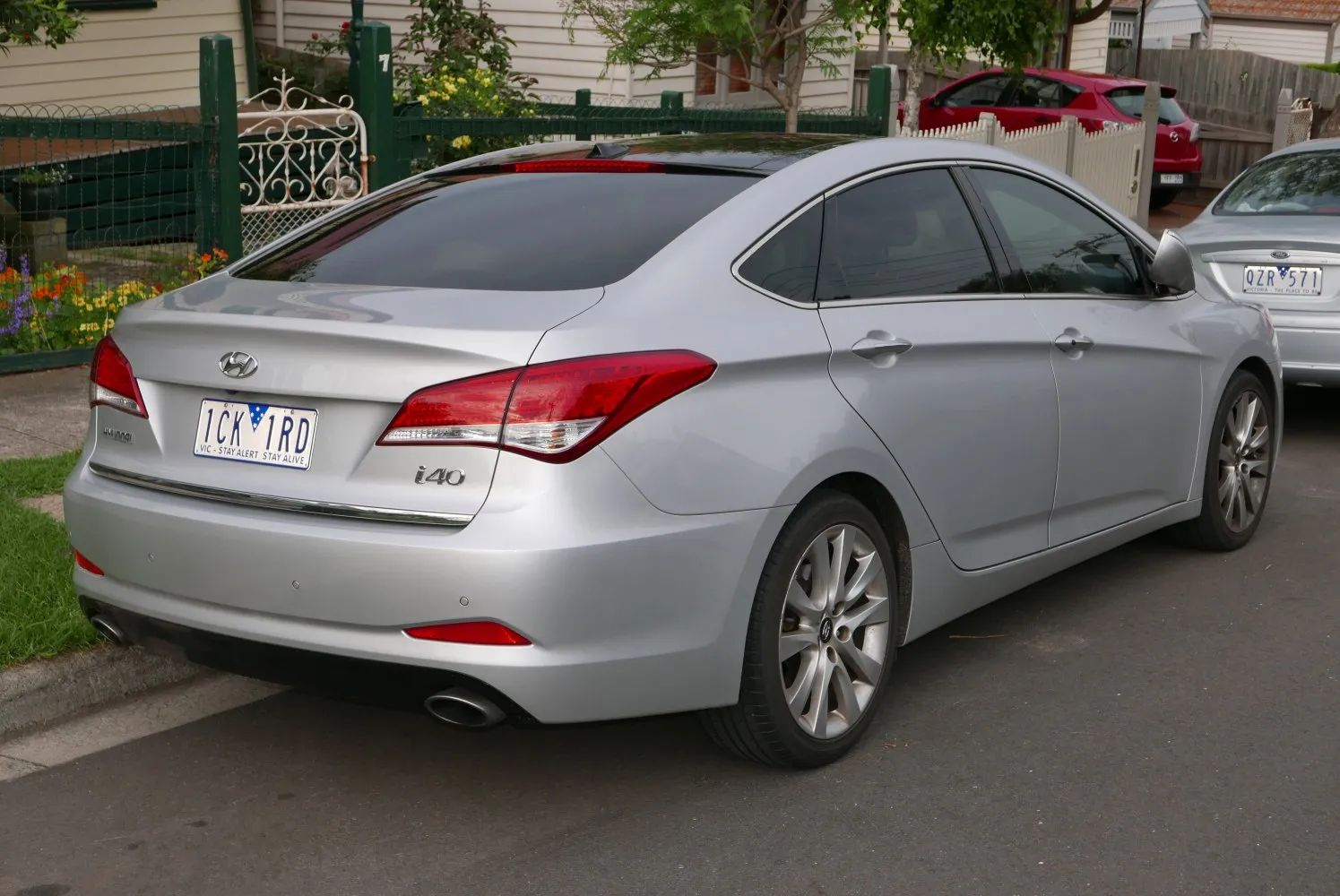

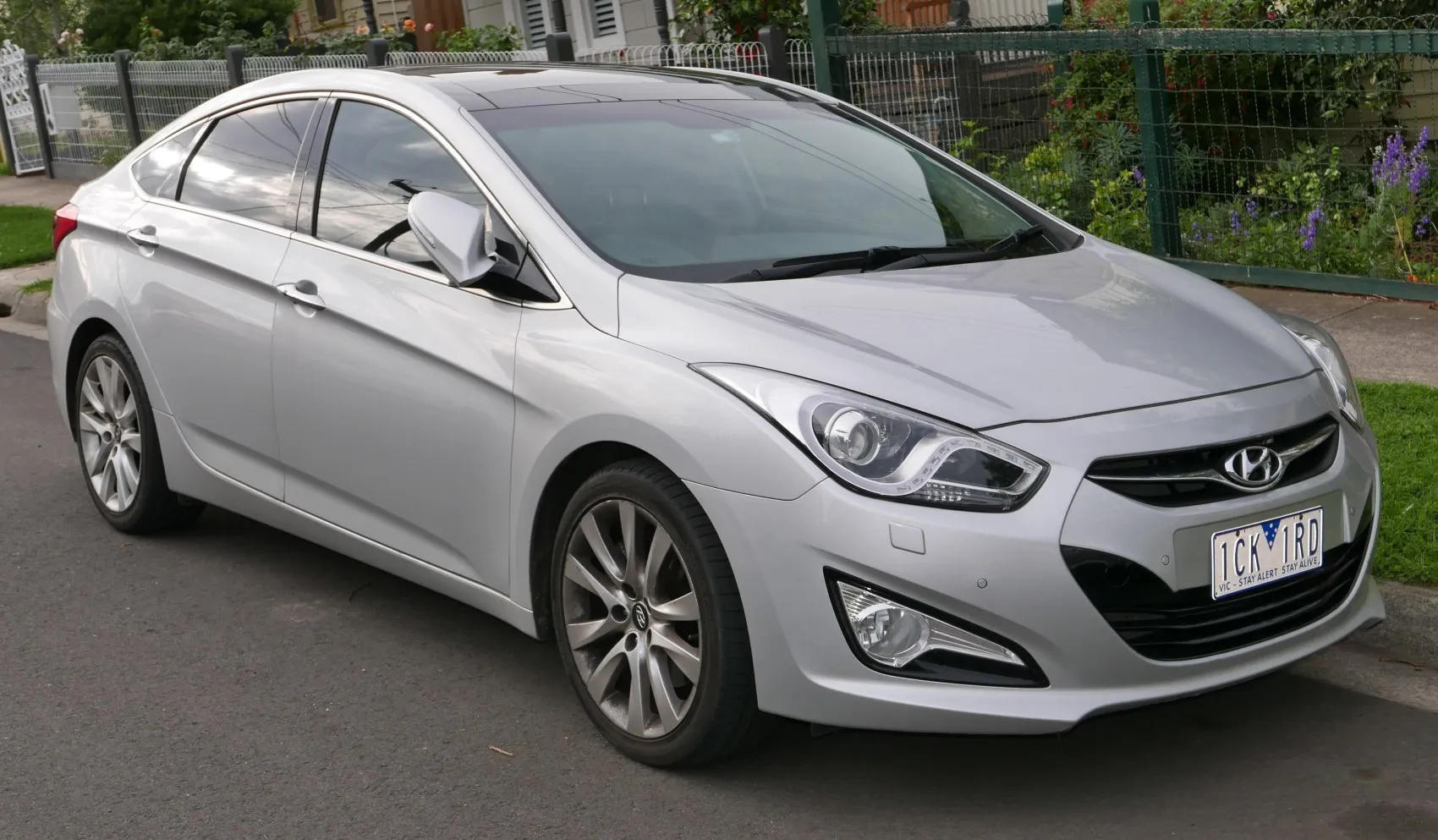

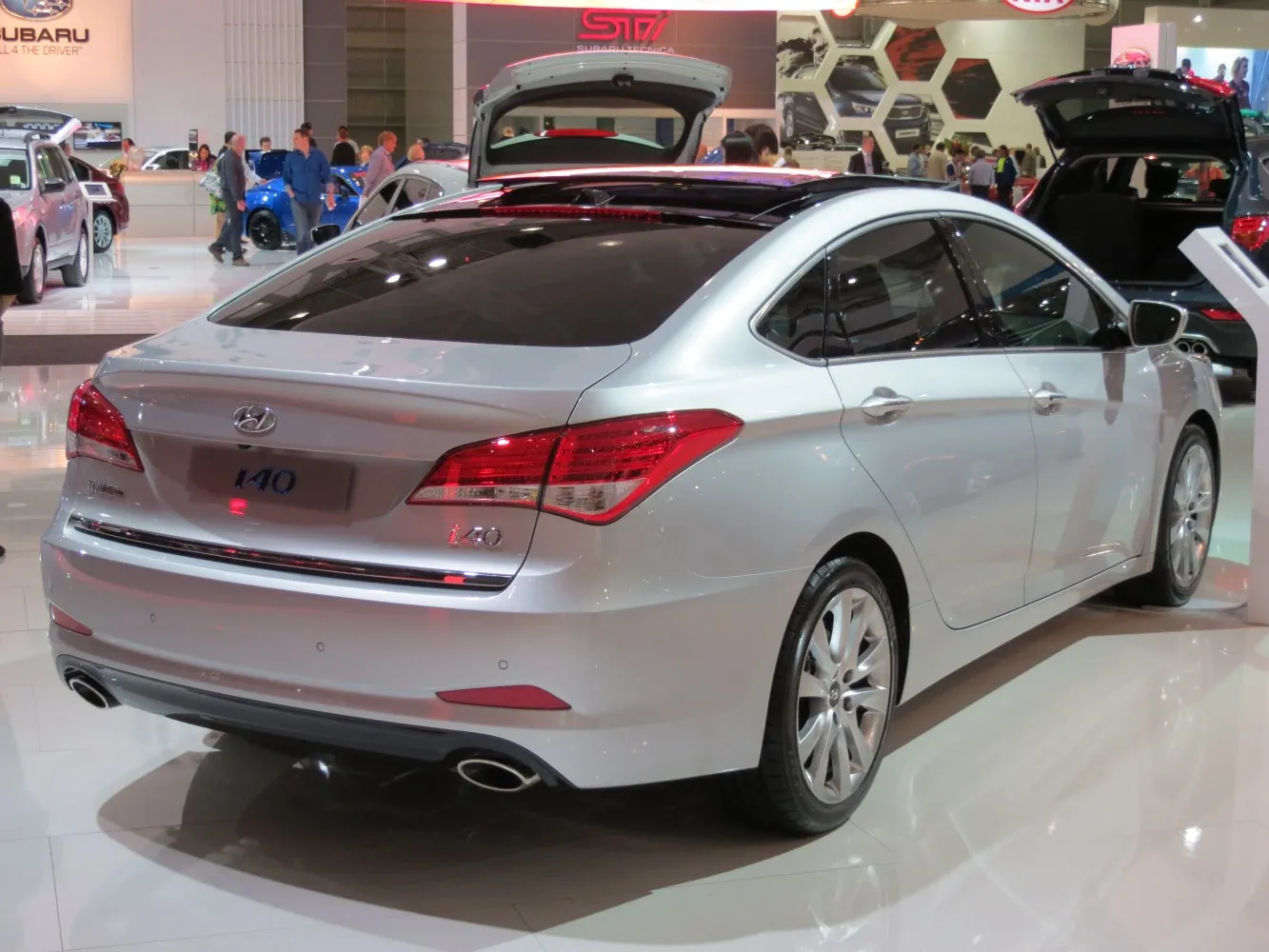

The Hyundai i40 Sedan, produced from 2011 to 2015, is an elegant mid-size car aimed at customers seeking a blend of comfort and style in their daily driving. As a four-door sedan providing space for five passengers, it features a modern design with distinctive body lines. With its spaciousness and refined interior, the i40 is an ideal choice for both families and individuals who value a high level of comfort during long journeys.

The Hyundai i40 offers a wide range of engines, including both gasoline and diesel options, with power outputs ranging from 116 to 177 hp. Engine versions include the 2.0 GDI (177 hp) and several variants of the 1.7 CRDi with power outputs between 116 and 136 hp, allowing for a choice between manual and automatic transmissions. These units provide a varied driving dynamics and fuel efficiency, enabling drivers to choose the option that best suits their needs between economy and performance.

The car is equipped with front-wheel drive, ensuring solid traction and stability in handling. The Hyundai i40 performs well both in the city, offering agility and maneuverability, and on longer trips, where it provides comfort and confidence in driving. The vehicle is equipped with various modern technologies that assist drivers, such as multimedia systems and advanced safety features, which significantly enhance travel comfort.

Among the potential drawbacks of the Hyundai i40 are electronic issues that may manifest in multimedia and navigation systems. Additionally, while servicing costs are generally competitive, versions with automatic transmissions may incur higher repair and maintenance expenses. Fuel consumption in gasoline engine variants can also be higher than the average for this segment, which is worth considering when making a purchase decision.

The Hyundai i40 Sedan stands out in the market thanks to its modern design and high level of comfort. Its versatility and elegant interior make it an attractive option for those seeking a car that offers both style and functionality. Against the backdrop of mid-size competitors, the i40 provides solid driving dynamics and modern equipment, making it a unique choice for a wide range of drivers.
