Vehicle specifications
Hyundai i30 III
Compare all 14 engine versions of the Hyundai i30 i30 III, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Hyundai i30 III? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

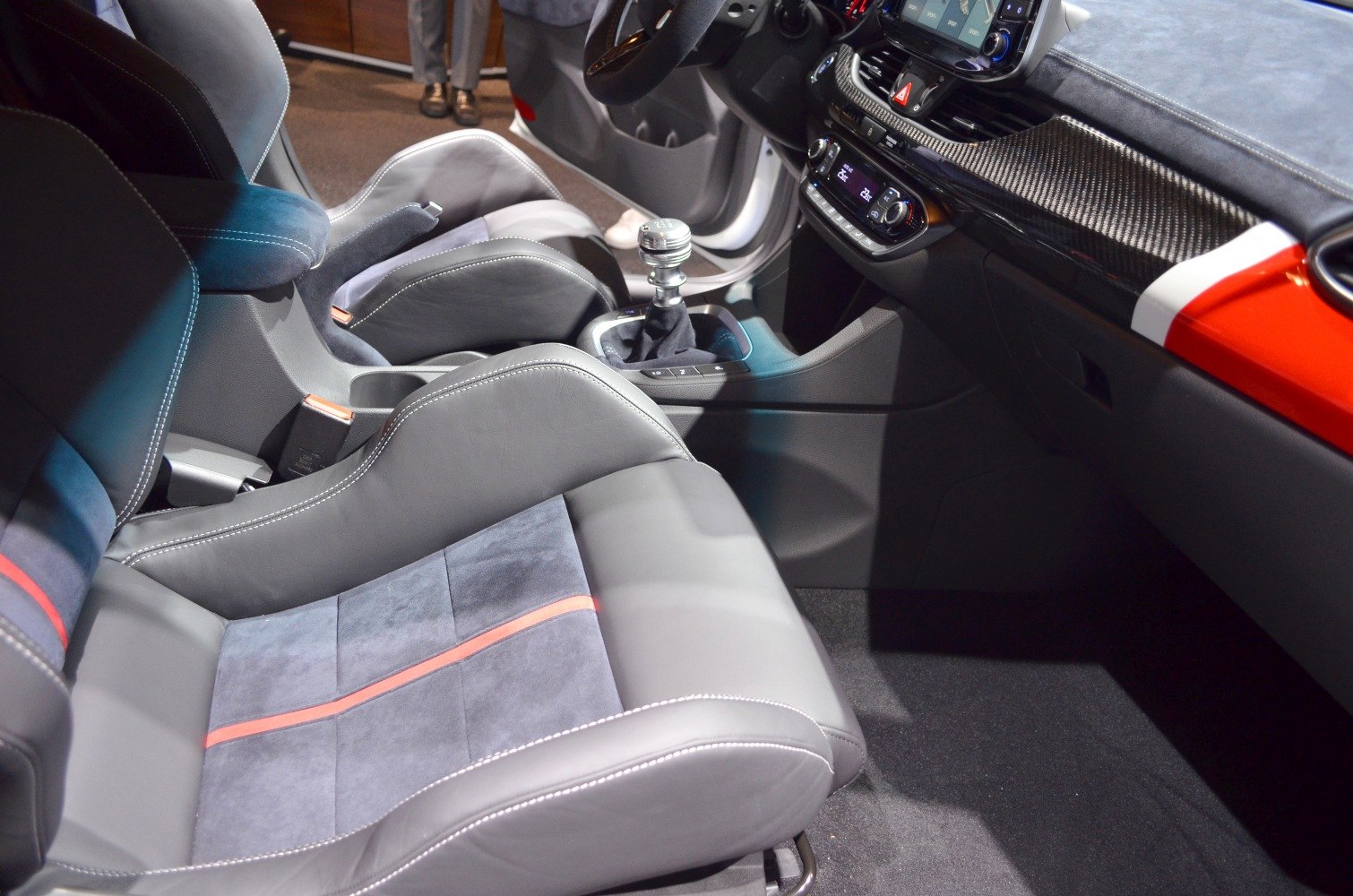

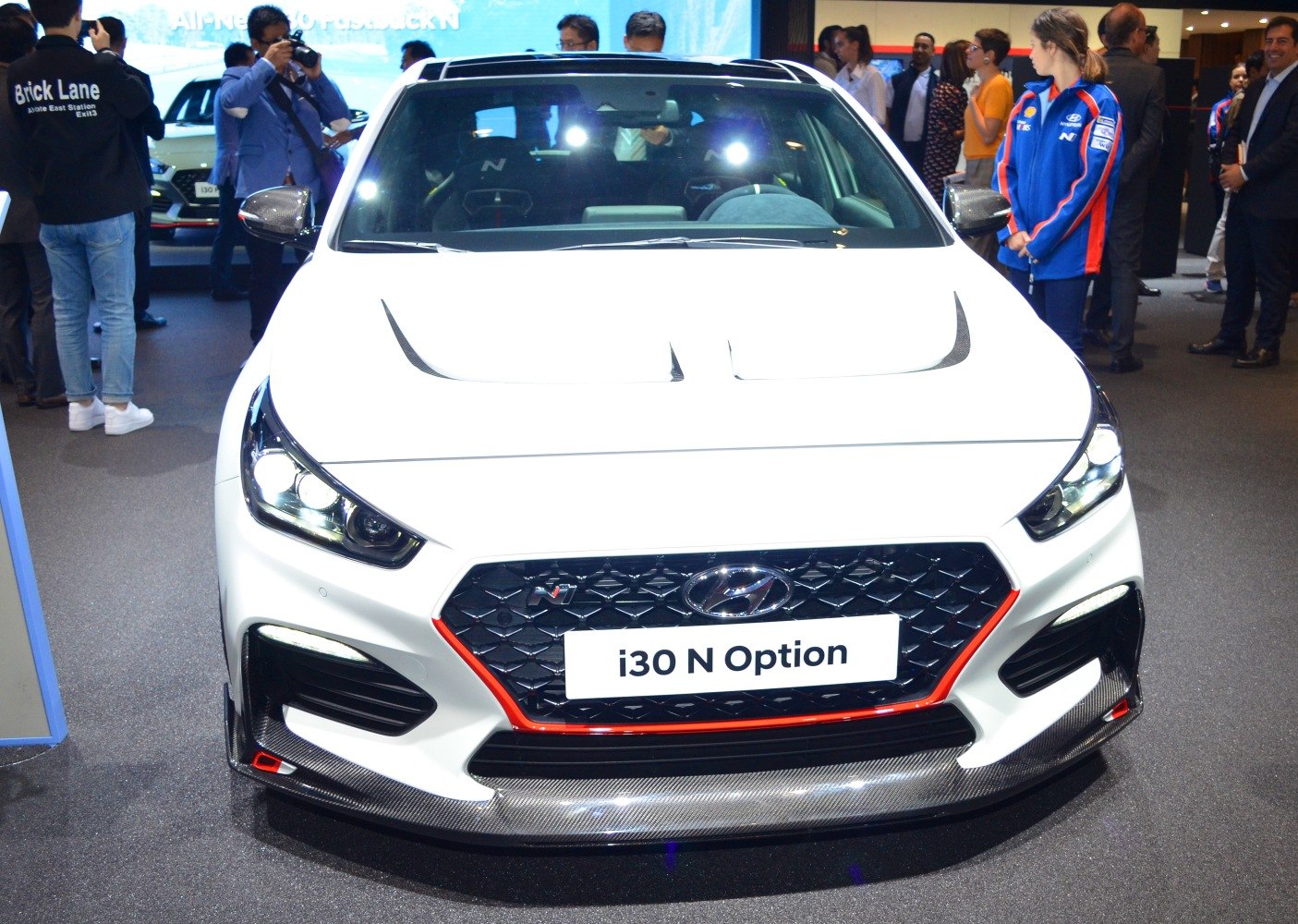

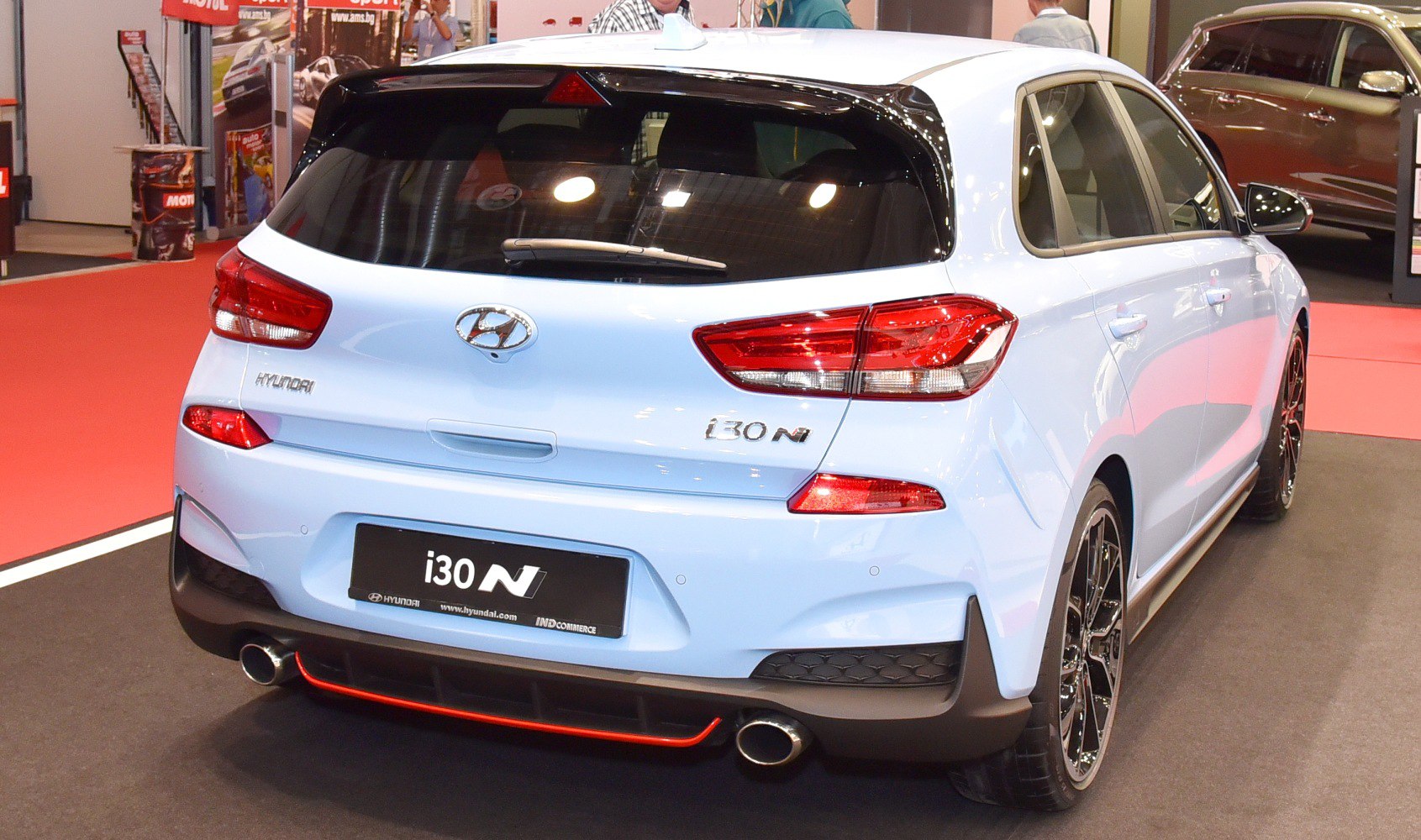

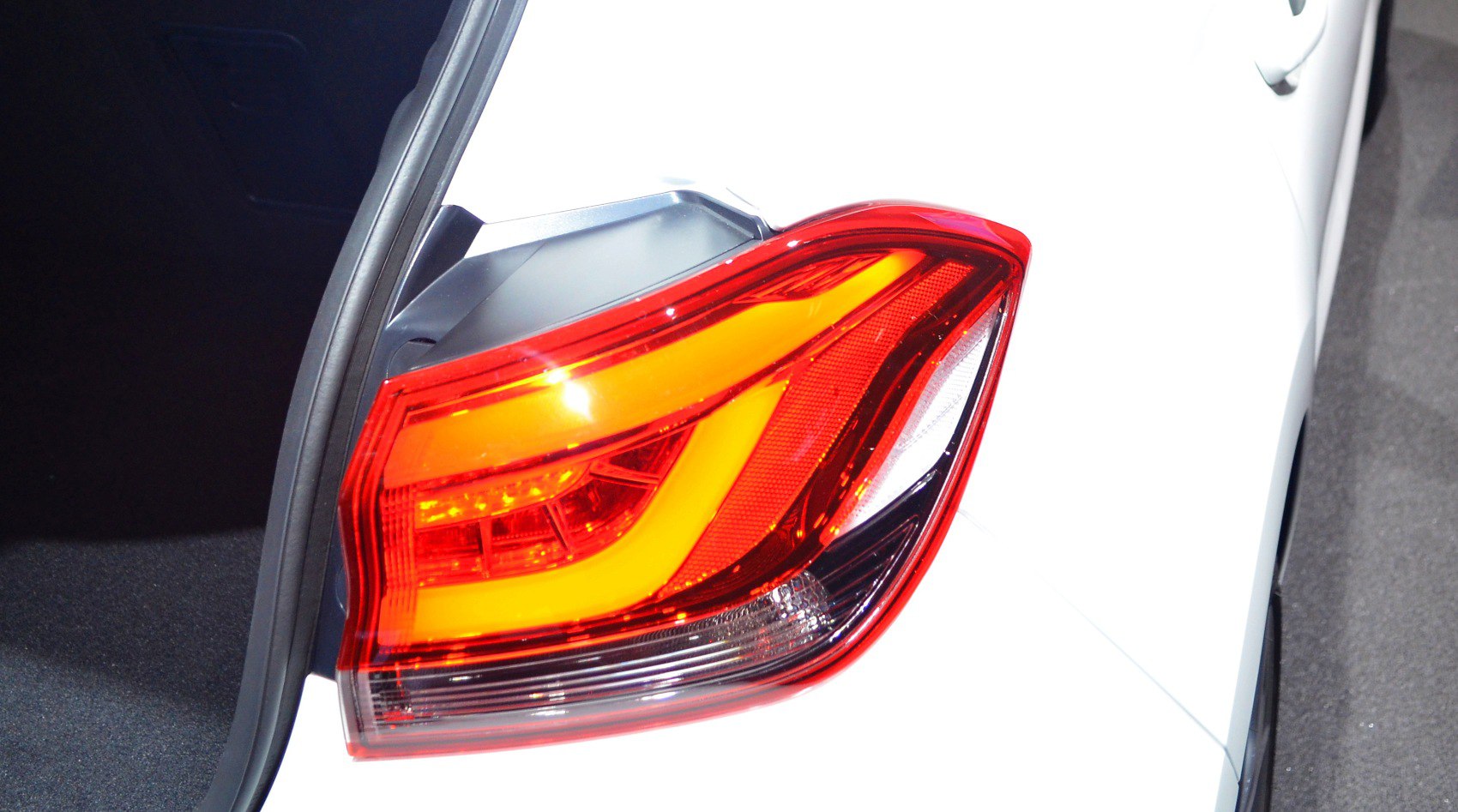

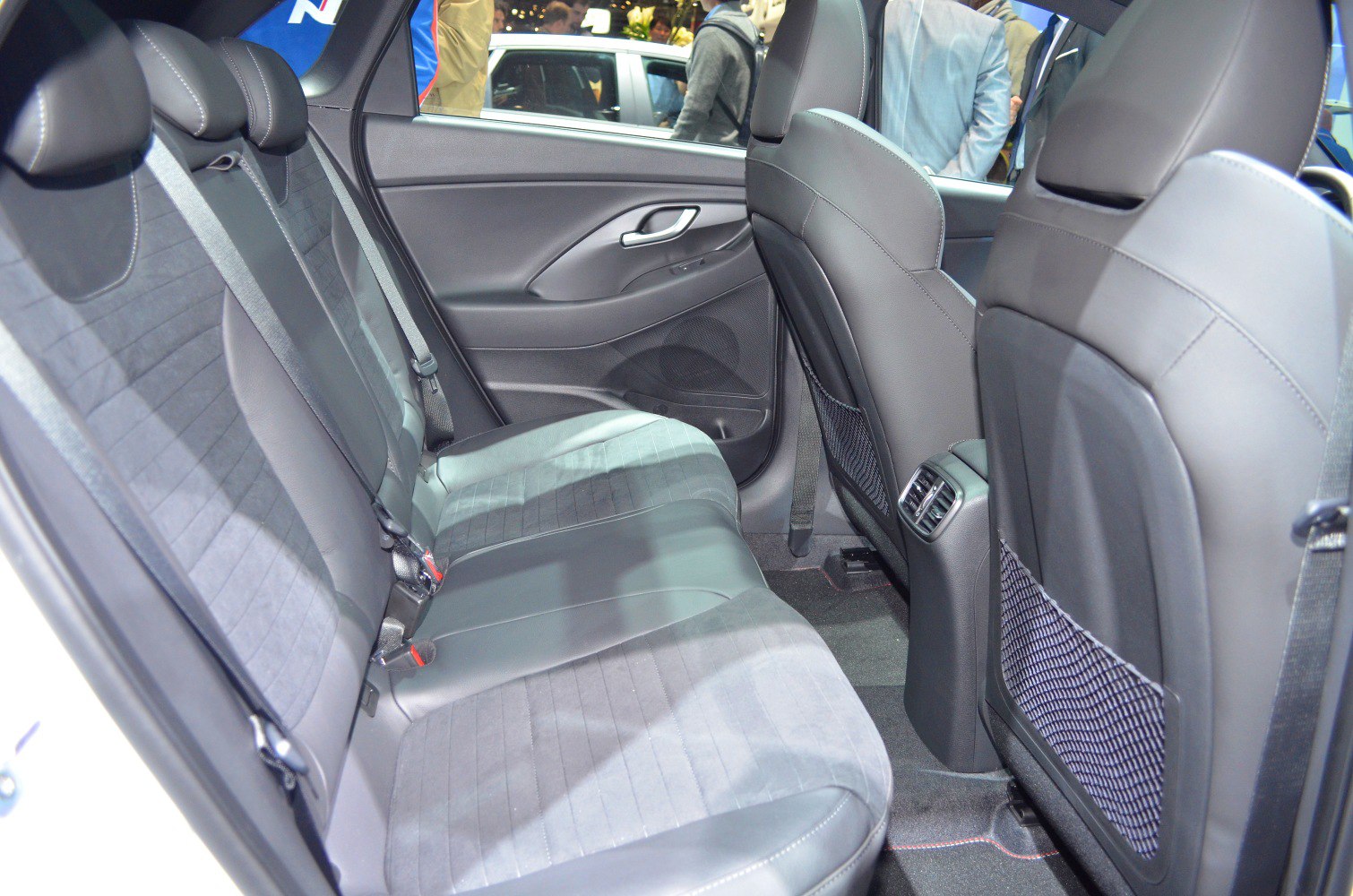

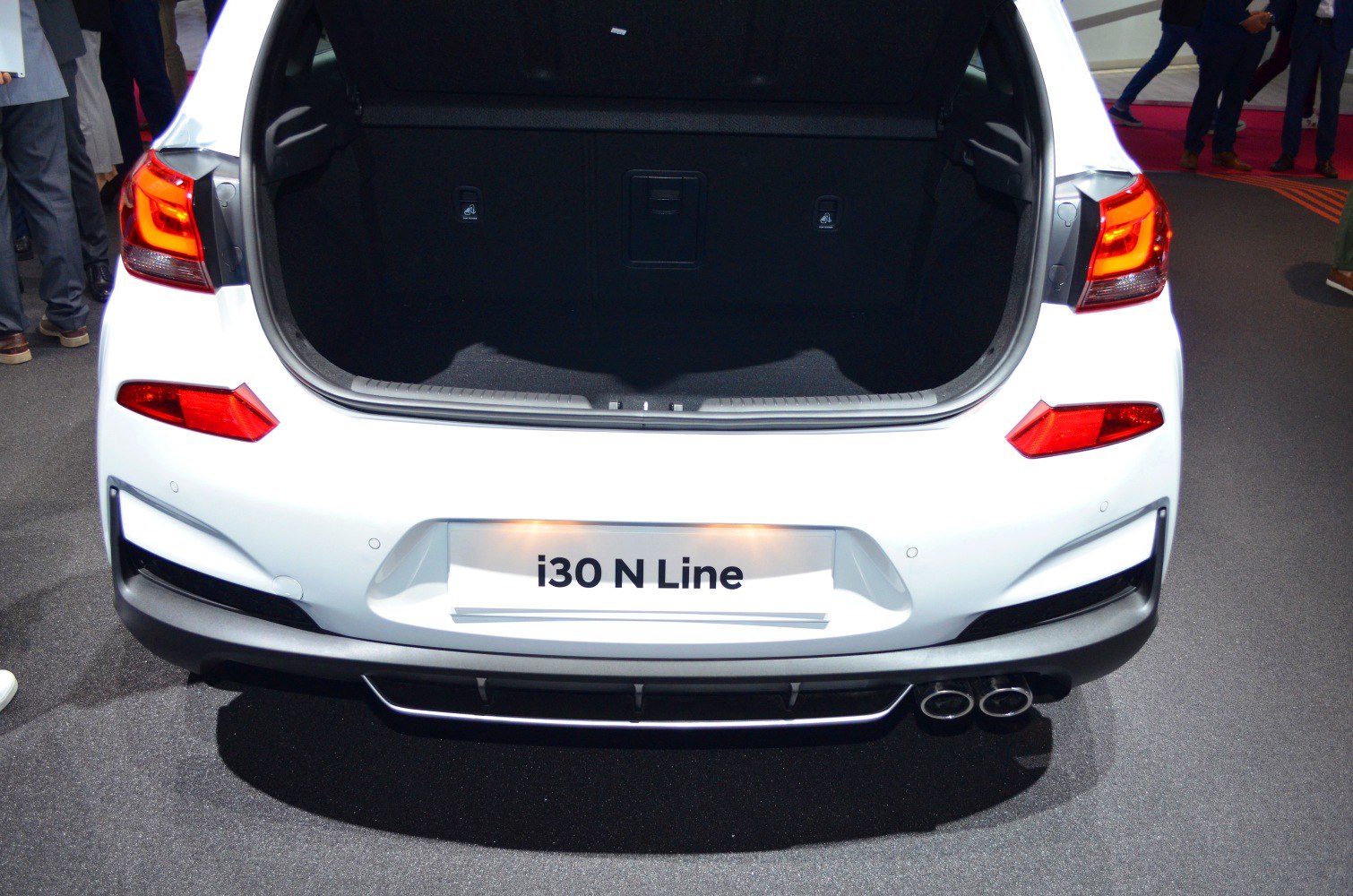

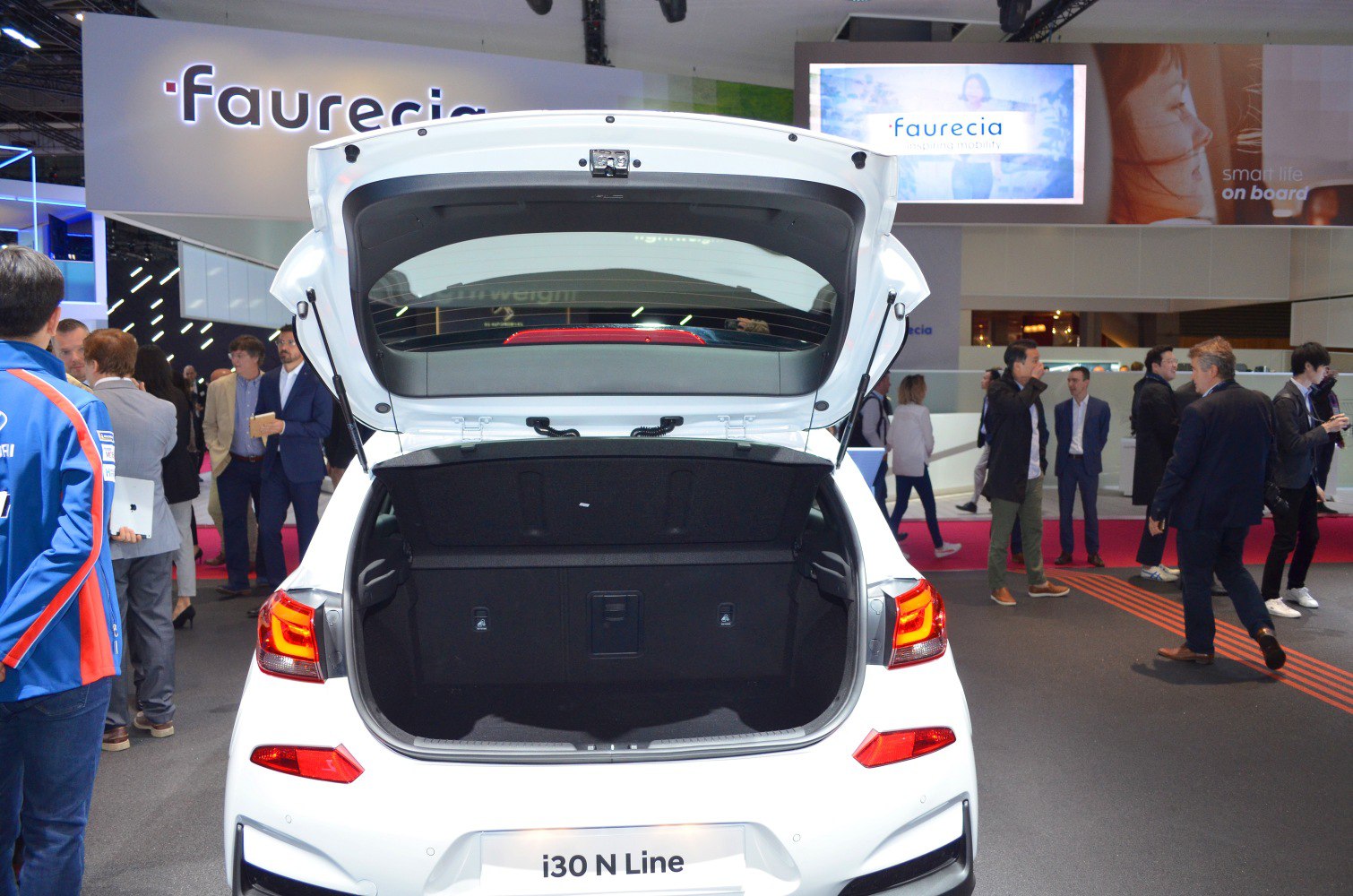

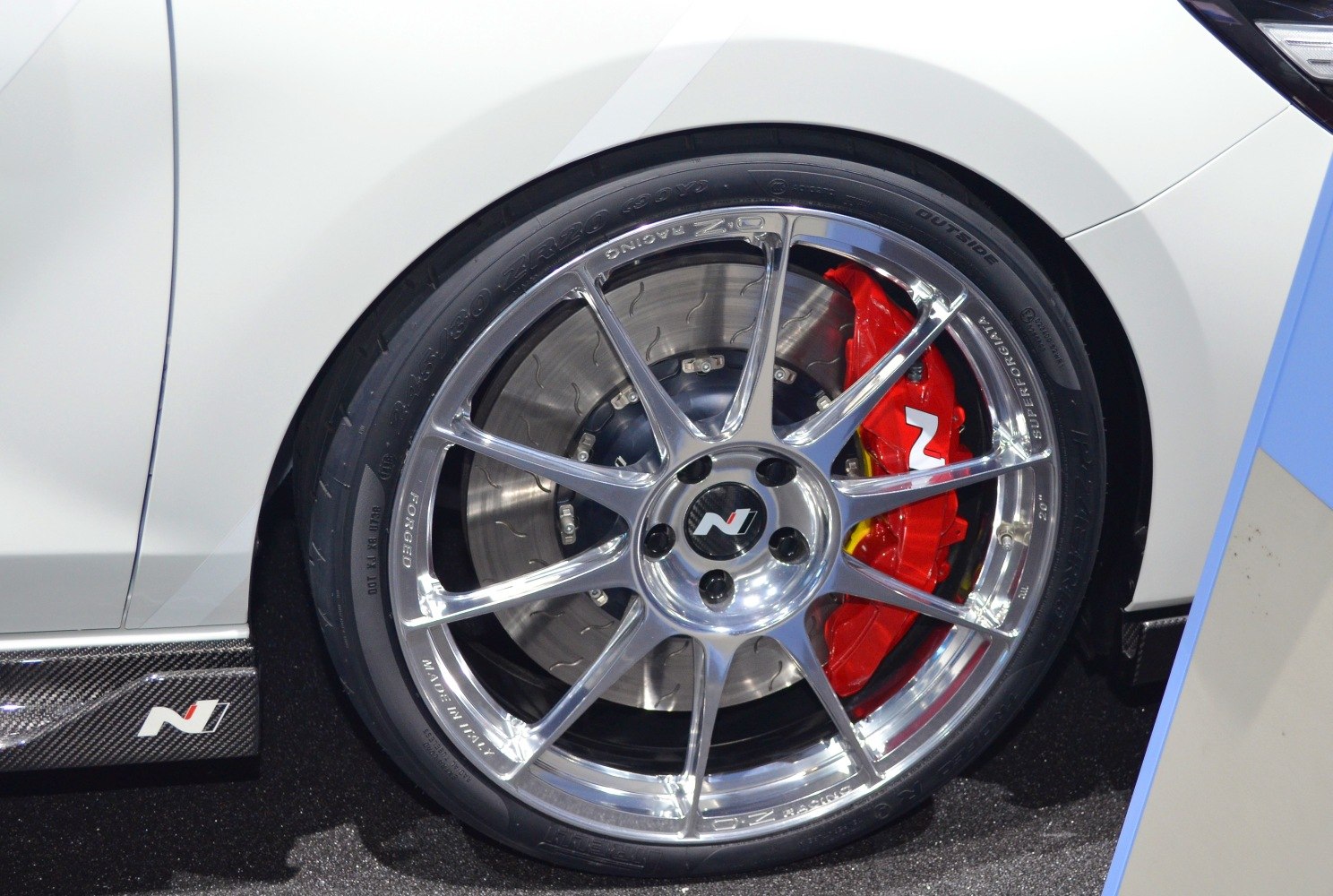

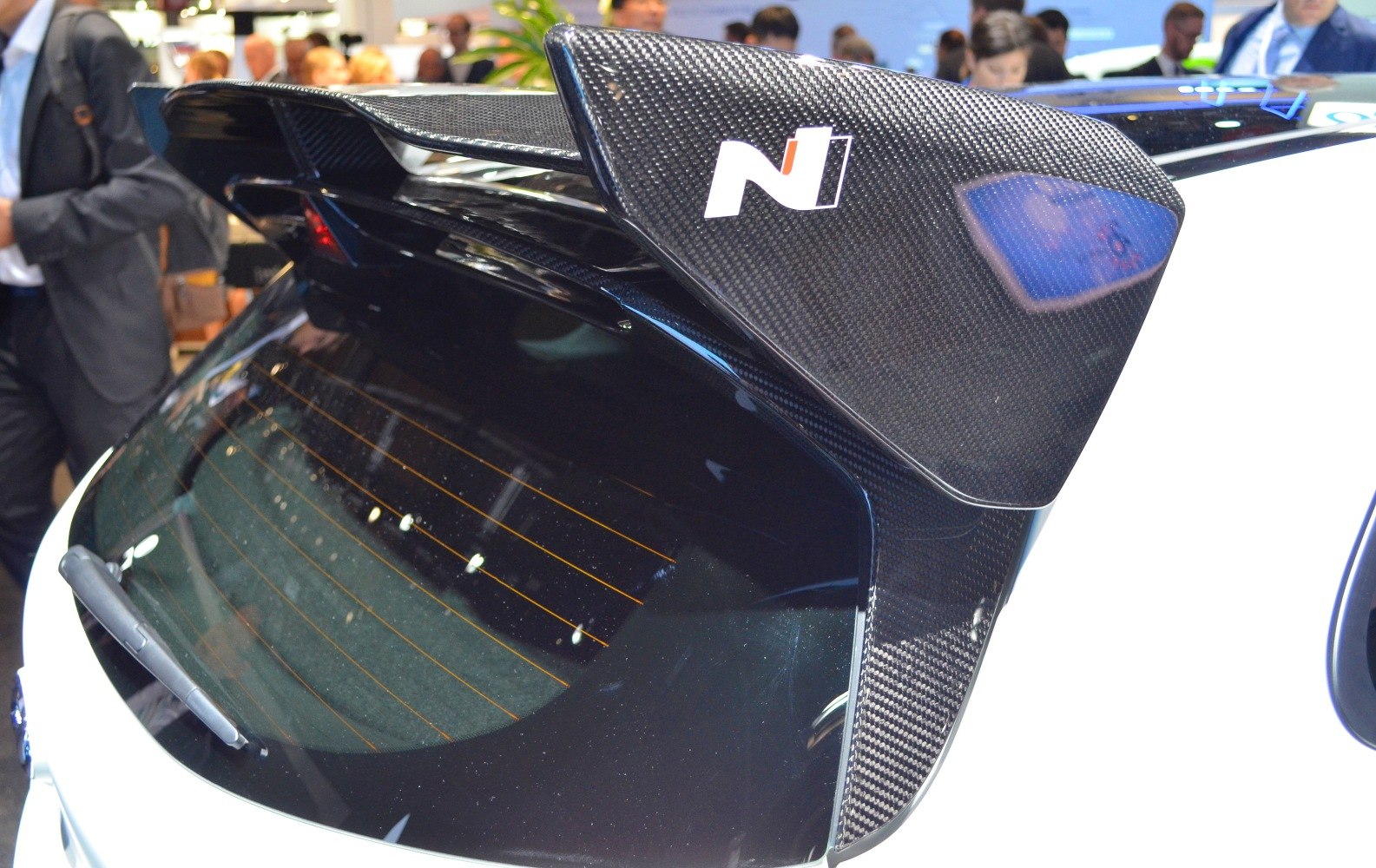

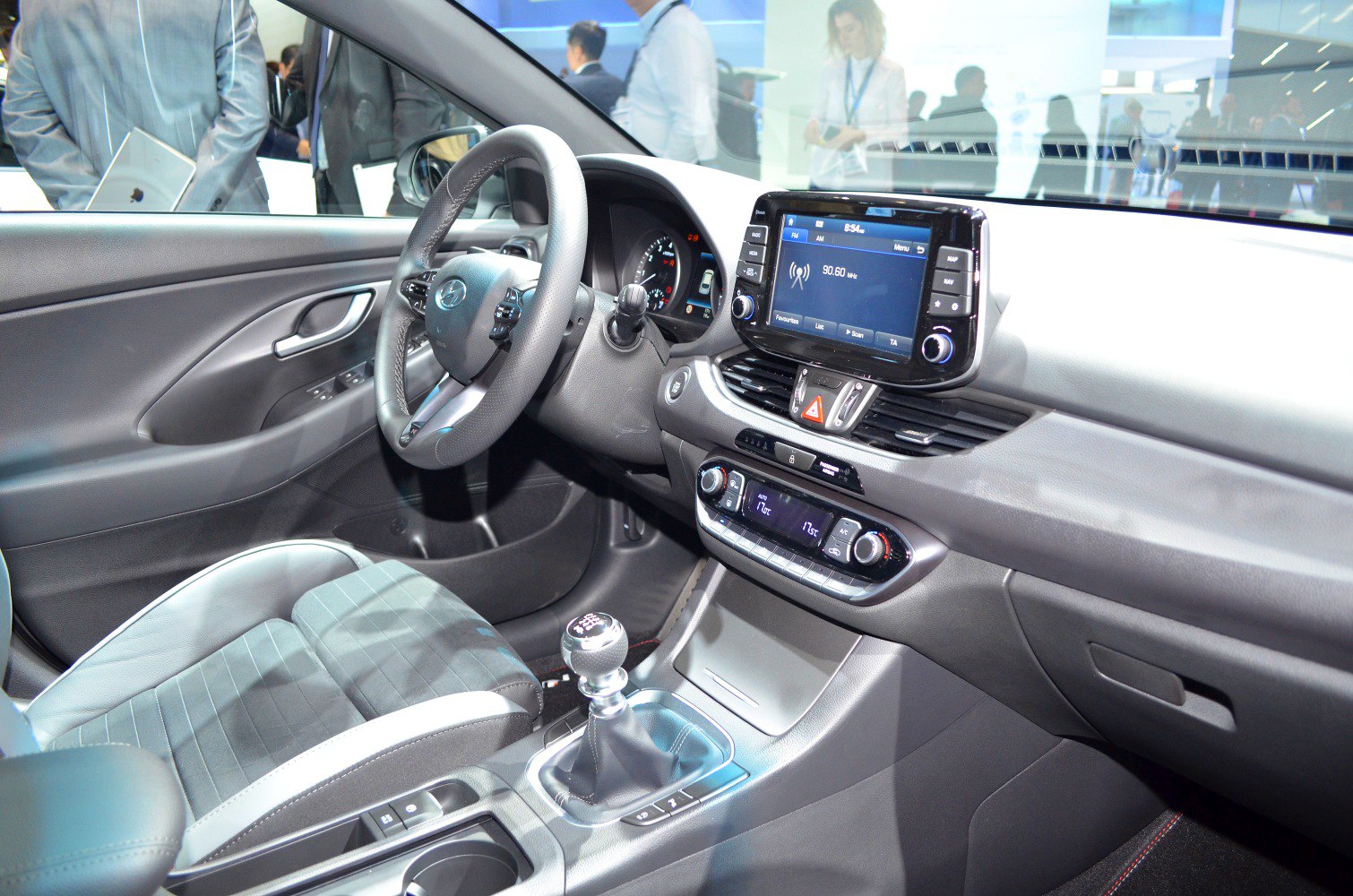

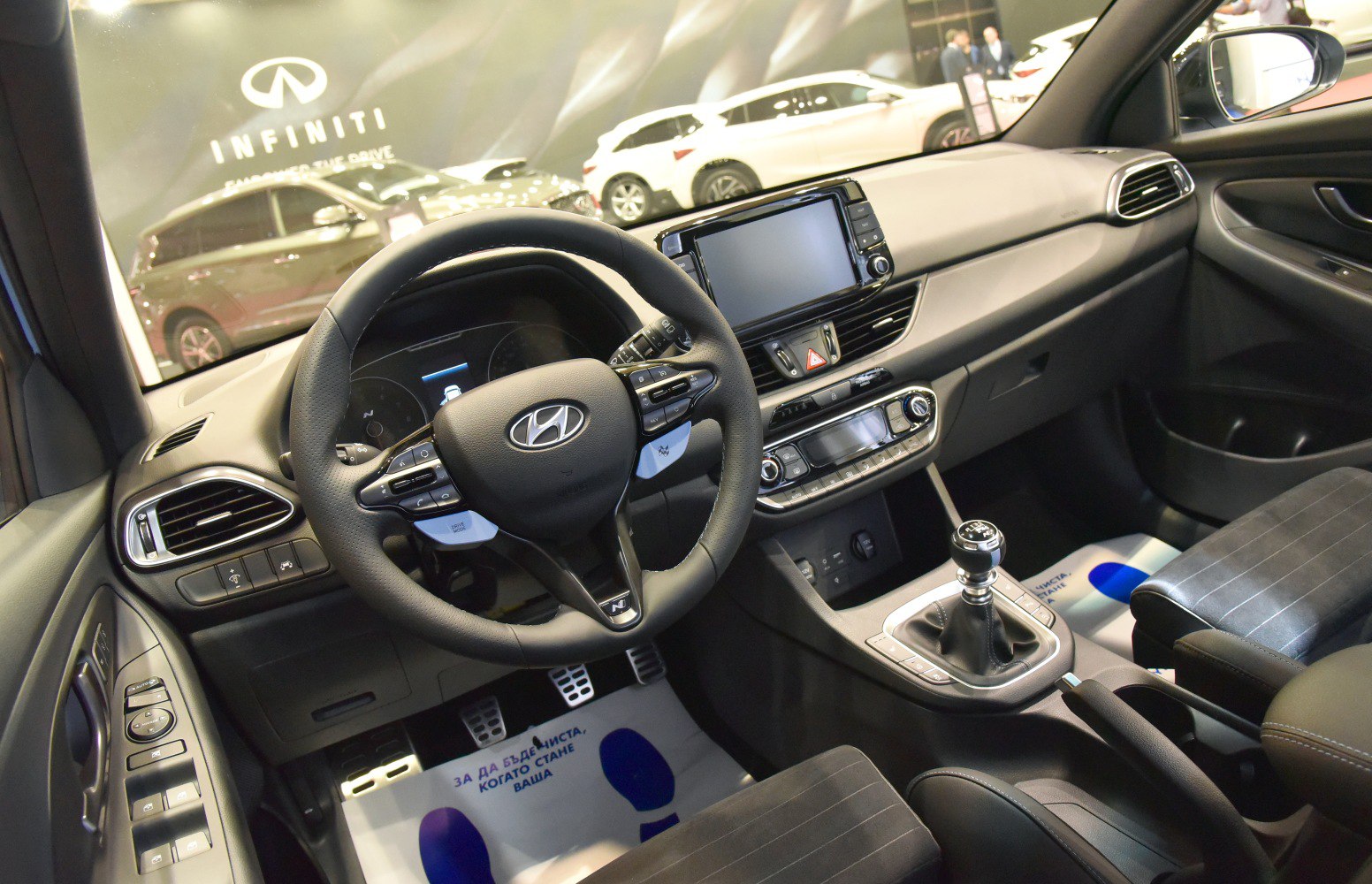

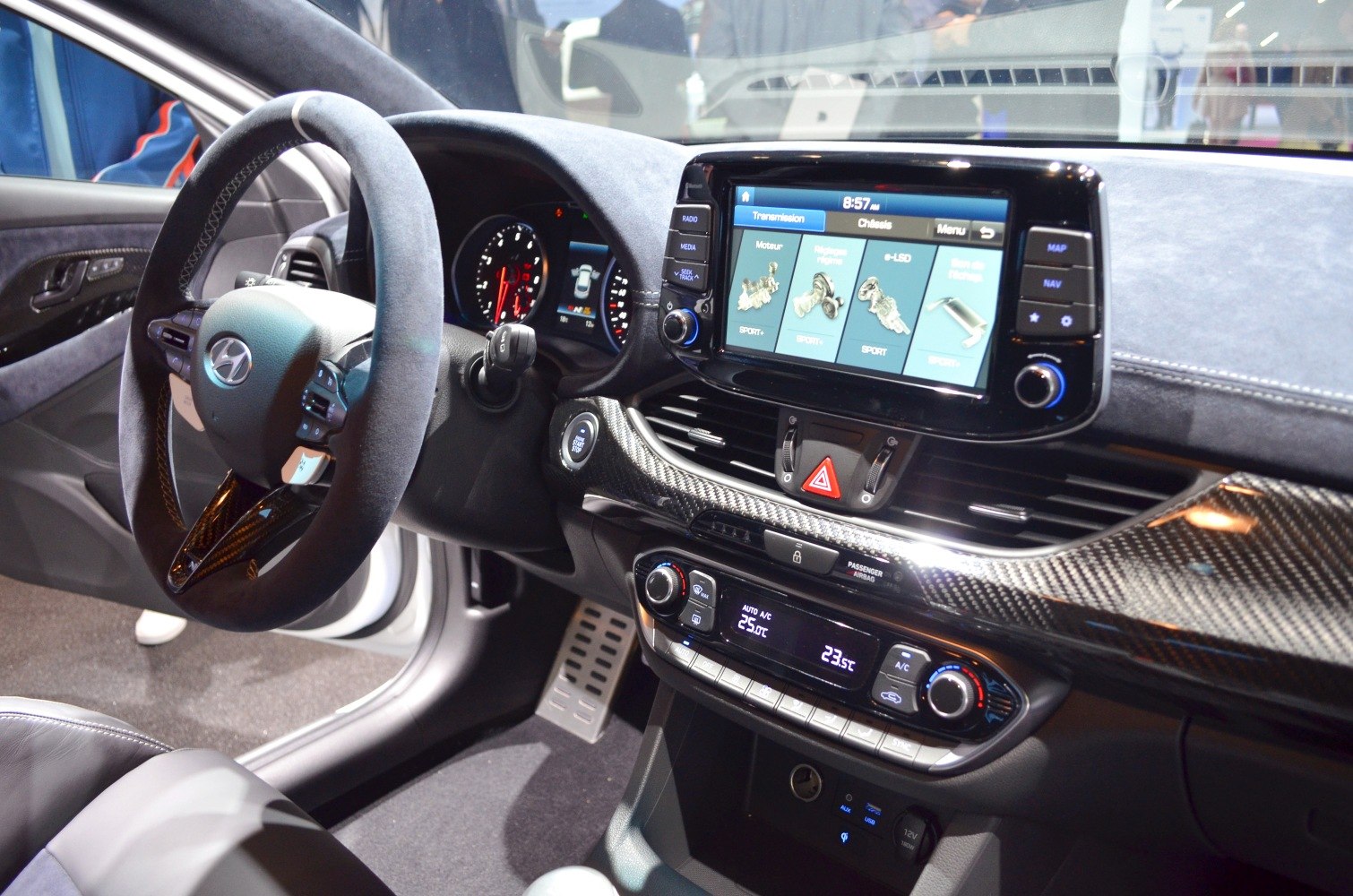

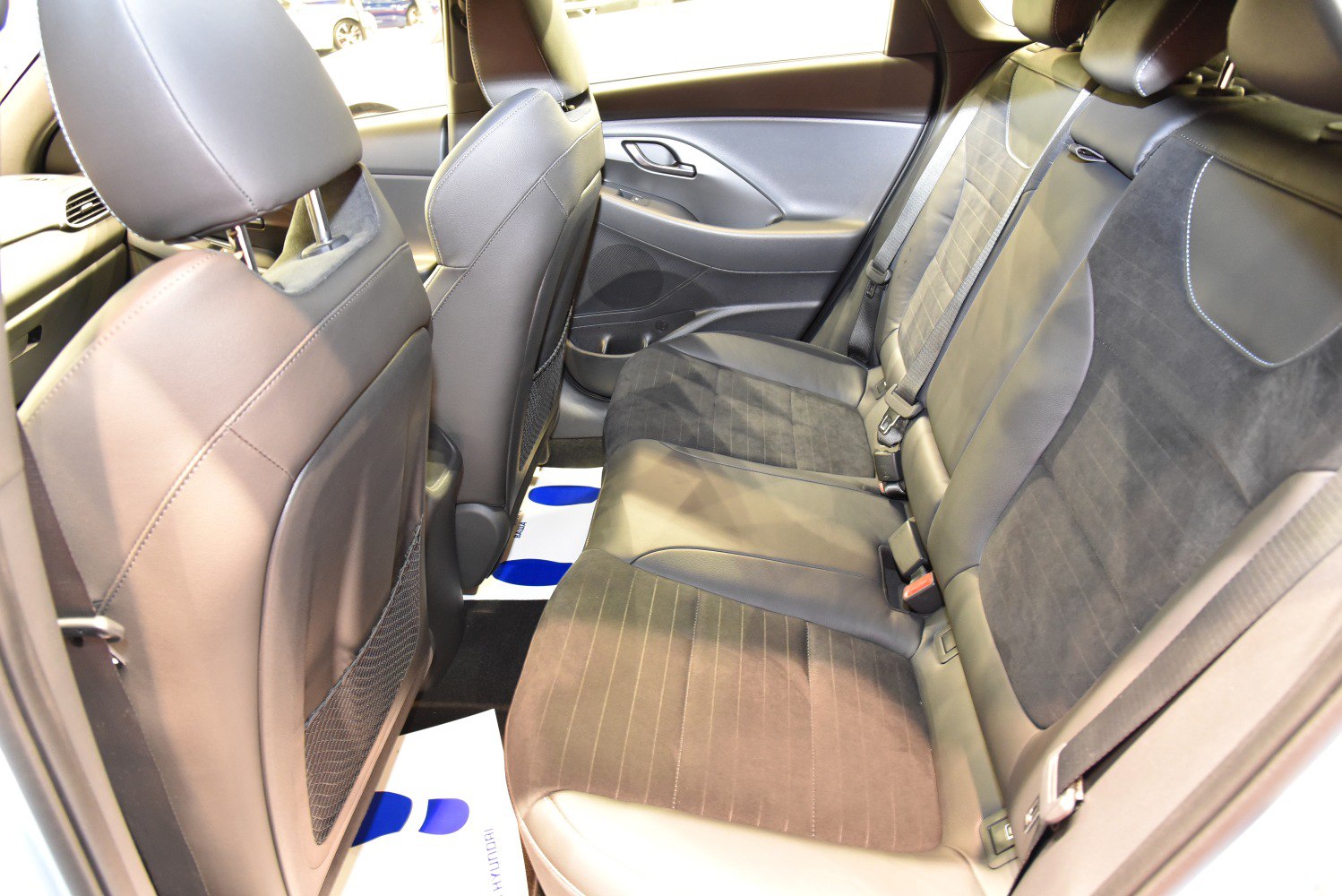

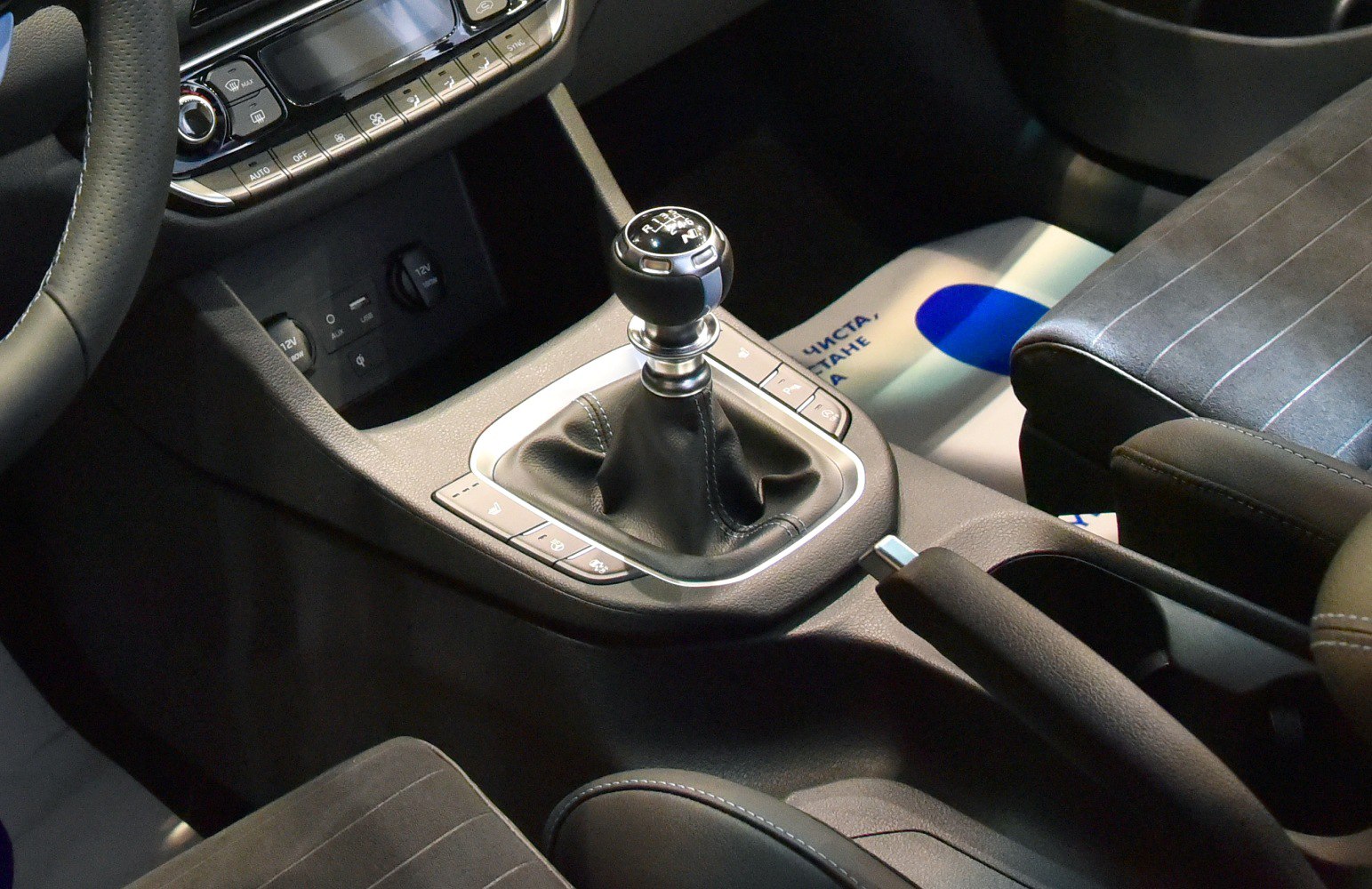

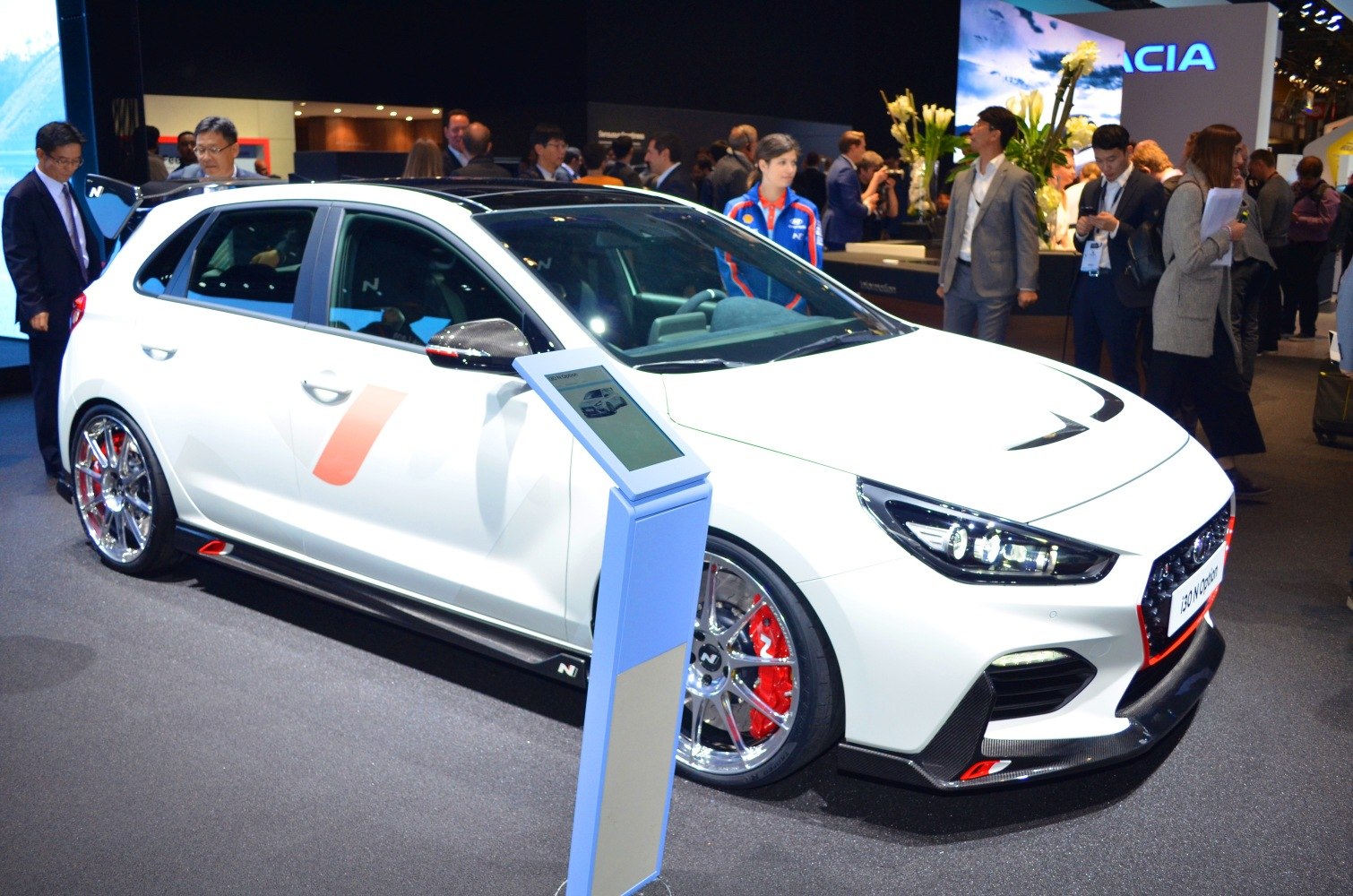

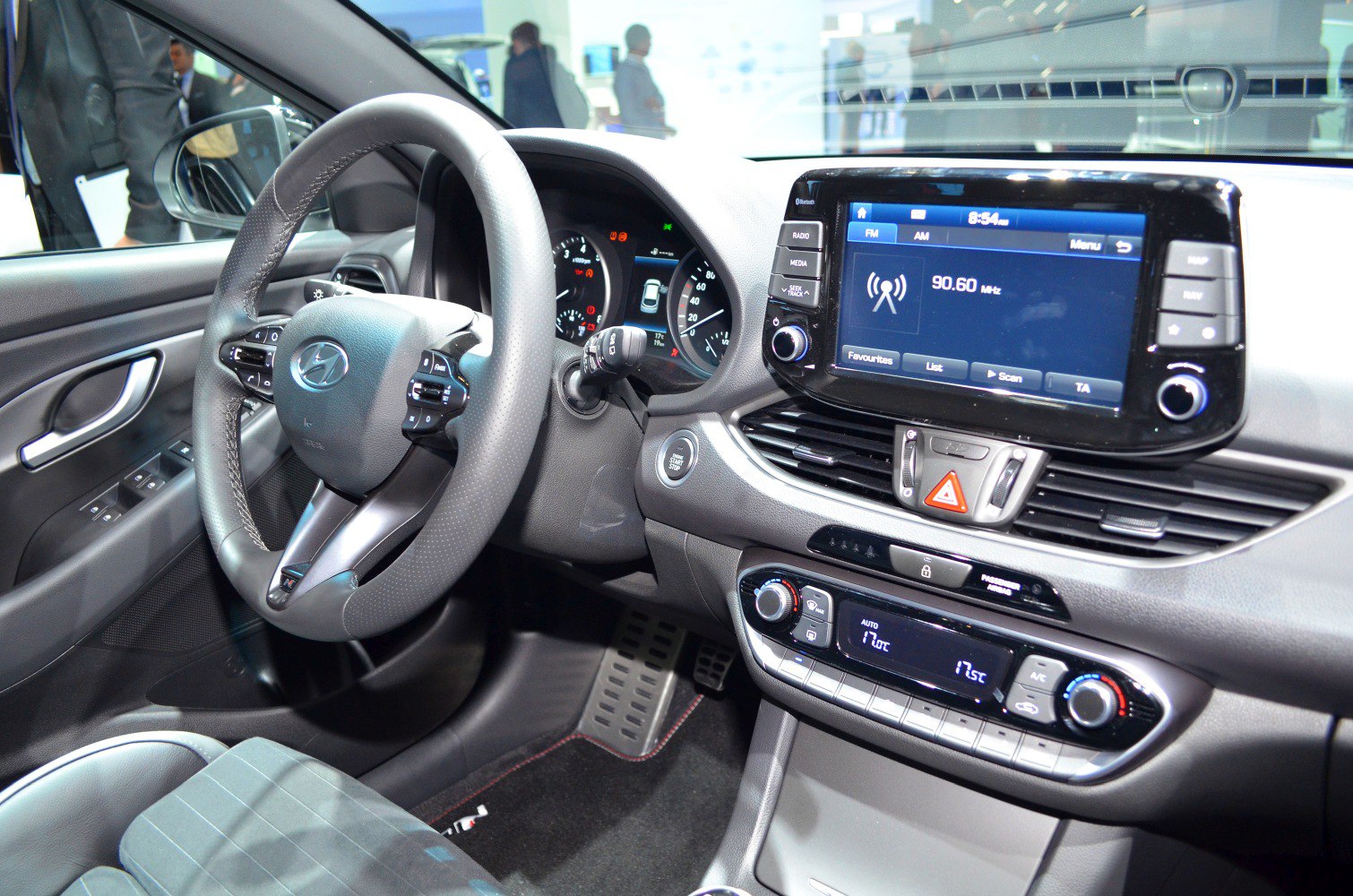

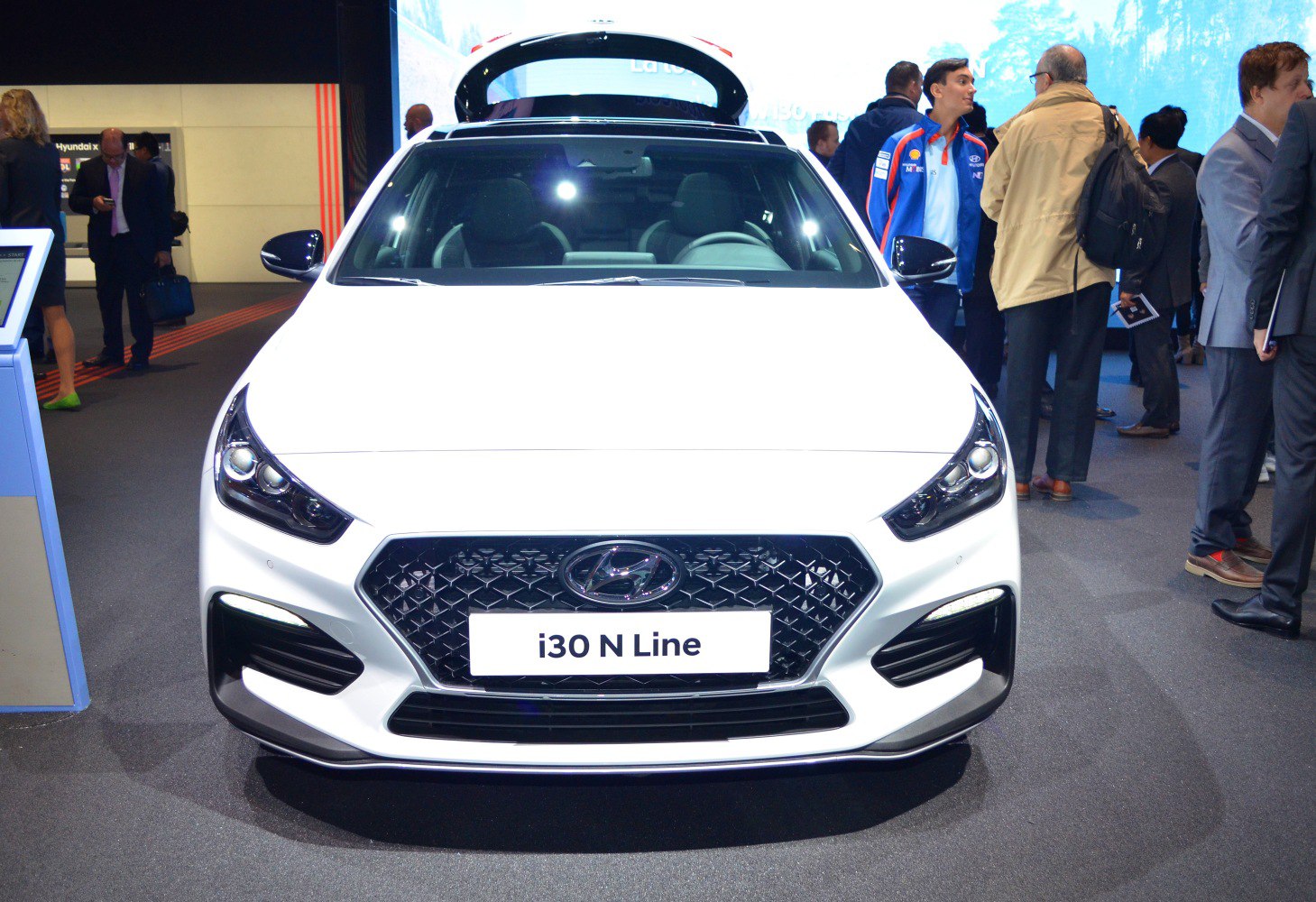

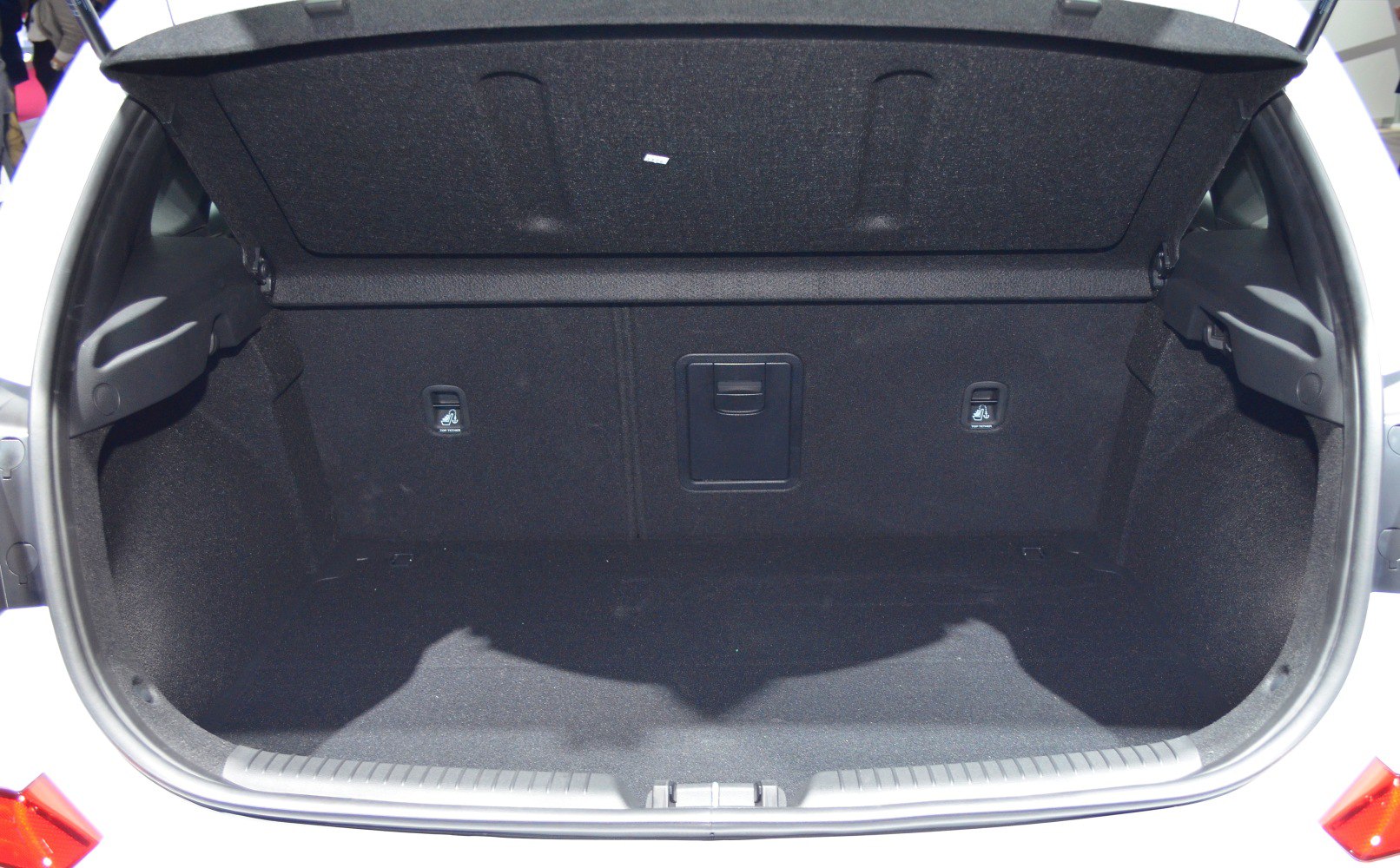

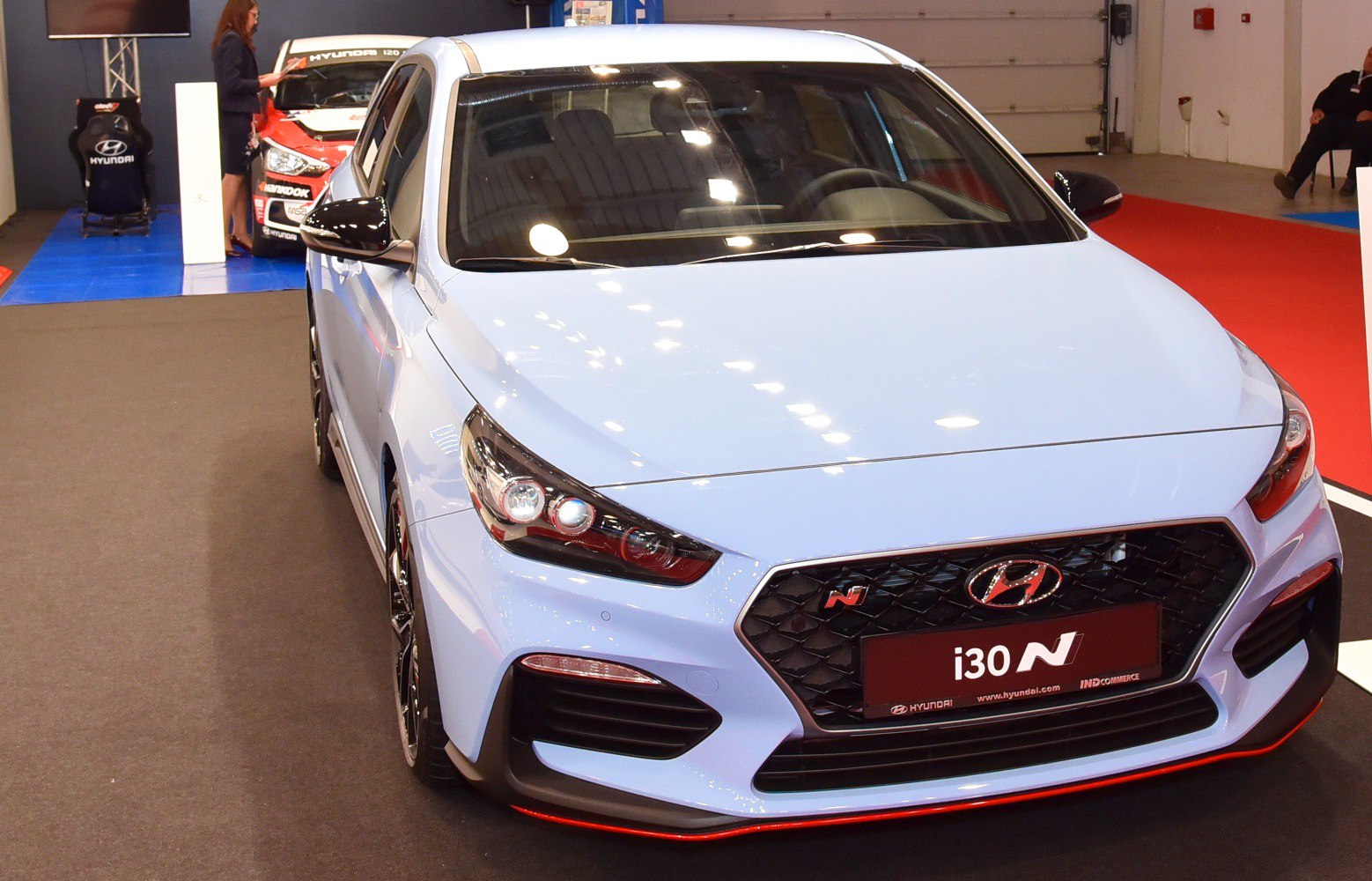

Vehicle photos
1 of 27
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
14 versions · 8 Gasoline · 6 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.4 MPi (100 KM) Selected | Gasoline | 100 KM | 2016–2018 |
| 1.6 CRDi (110 KM) DSG Selected | Diesel fuel | 110 KM | 2016–2018 |
| 1.6 CRDi (136 KM) DSG Selected | Diesel fuel | 136 KM | 2016–2018 |
| 1.6 CRDi (136 KM) Selected | Diesel fuel | 136 KM | 2016–2018 |
| 1.4 T-GDi (140 KM) Eco Selected | Gasoline | 140 KM | 2016–2018 |
| 1.4 T-GDi (140 KM) Selected | Gasoline | 140 KM | 2016–2018 |
| 1.0 T-GDi (120 KM) Selected | Gasoline | 120 KM | 2016–2018 |
| 1.6 CRDi (110 KM) Eco Selected | Diesel fuel | 110 KM | 2016–2018 |
| 1.0 T-GDi (120 KM) Eco Selected | Gasoline | 120 KM | 2016–2018 |
| 1.6 CRDi (95 KM) Selected | Diesel fuel | 95 KM | 2016–2018 |
| 1.4 T-GDi (140 KM) DCT Selected | Gasoline | 140 KM | 2016–2018 |
| 1.6 CRDi (110 KM) Selected | Diesel fuel | 110 KM | 2016–2018 |
| N Performance 2.0 T-GDI (275 KM) Selected | Gasoline | 275 KM | 2017–2018 |
| N 2.0 T-GDI (250 KM) Selected | Gasoline | 250 KM | 2017–2018 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.4 MPi (100 KM)
Gasoline · 2016–2018
- Engine power
- 100 KM
- Torque
- 134 Nm
- Engine displacement
- 1,368 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.7 s
- Maximum speed
- 183 km/h
On this page
Check vehicle history
Basic version information
Hyundai i30 i30 III- Brand
- Hyundai
- Model
- i30
- Version
- i30 III
- Engine
- 1.4 MPi (100 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2016
- End of production
- 2018
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 183 km/h
- Acceleration 0-100 km/h
- 12.7 s
- CO2 emissions
- 126-130 g/km
Engine
- Engine model / code
- Kappa/G4LC
- Engine position
- Front, Transverse
- Engine displacement
- 1368 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 72 mm
- Piston stroke
- 84 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Coolant capacity
- 5.8 l
- Power
- 100 KM @ 6000 obr./min
- Torque
- 134 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 395 l
- Maximum trunk capacity
- 1301 l
- Curb weight
- 1169-1316 kg
- Gross weight
- 1760 kg
Vehicle dimensions
- Length
- 4340 mm
- Width
- 1795 mm
- Height
- 1455 mm
- Wheelbase
- 2650 mm
- Ground clearance
- 140 mm
- Front overhang
- 905 mm
- Rear overhang
- 785 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15; 205/55 R16; 225/45 R17
- Rim size
- 6.0J x 15; 6.5J x 16; 7.0J x 17
- ABS
- yes
Selected engine version
1.6 CRDi (110 KM) DSG
Diesel fuel · 2016–2018
- Engine power
- 110 KM
- Torque
- 280 Nm
- Engine displacement
- 1,582 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.2 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Hyundai i30 i30 III- Brand
- Hyundai
- Model
- i30
- Version
- i30 III
- Engine
- 1.6 CRDi (110 KM) DSG
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2016
- End of production
- 2018
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 11.2 s
- CO2 emissions
- 105-109 g/km
Engine
- Engine model / code
- D4FB
- Engine position
- Front, Transverse
- Engine displacement
- 1582 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 77.2 mm
- Piston stroke
- 84.5 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.3 l
- Coolant capacity
- 6.7 l
- Power
- 110 KM @ 4000 obr./min
- Torque
- 280 Nm @ 1500-2500 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 395 l
- Maximum trunk capacity
- 1301 l
- Curb weight
- 1293-1441 kg
- Gross weight
- 1900 kg
Vehicle dimensions
- Length
- 4340 mm
- Width
- 1795 mm
- Height
- 1455 mm
- Wheelbase
- 2650 mm
- Ground clearance
- 140 mm
- Front overhang
- 905 mm
- Rear overhang
- 785 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DCT
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15; 205/55 R16; 225/45 R17
- Rim size
- 6.0J x 15; 6.5J x 16; 7.0J x 17
- ABS
- yes
Selected engine version
1.6 CRDi (136 KM) DSG
Diesel fuel · 2016–2018
- Engine power
- 136 KM
- Torque
- 300 Nm
- Engine displacement
- 1,582 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10.6 s
- Maximum speed
- 200 km/h
On this page
Check vehicle history
Basic version information
Hyundai i30 i30 III- Brand
- Hyundai
- Model
- i30
- Version
- i30 III
- Engine
- 1.6 CRDi (136 KM) DSG
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2016
- End of production
- 2018
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 200 km/h
- Acceleration 0-100 km/h
- 10.6 s
- CO2 emissions
- 105-109 g/km
Engine
- Engine model / code
- D4FB
- Engine position
- Front, Transverse
- Engine displacement
- 1582 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 77.2 mm
- Piston stroke
- 84.5 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.3 l
- Coolant capacity
- 6.7 l
- Power
- 136 KM @ 4000 obr./min
- Torque
- 300 Nm @ 1750-2500 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 395 l
- Maximum trunk capacity
- 1301 l
- Curb weight
- 1293-1441 kg
- Gross weight
- 1900 kg
Vehicle dimensions
- Length
- 4340 mm
- Width
- 1795 mm
- Height
- 1455 mm
- Wheelbase
- 2650 mm
- Ground clearance
- 140 mm
- Front overhang
- 905 mm
- Rear overhang
- 785 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15; 205/55 R16; 225/45 R17
- Rim size
- 6.0J x 15; 6.5J x 16; 7.0J x 17
- ABS
- yes
Selected engine version
1.6 CRDi (136 KM)
Diesel fuel · 2016–2018
- Engine power
- 136 KM
- Torque
- 280 Nm
- Engine displacement
- 1,582 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10.2 s
- Maximum speed
- 200 km/h
On this page
Check vehicle history
Basic version information
Hyundai i30 i30 III- Brand
- Hyundai
- Model
- i30
- Version
- i30 III
- Engine
- 1.6 CRDi (136 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2016
- End of production
- 2018
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 200 km/h
- Acceleration 0-100 km/h
- 10.2 s
- CO2 emissions
- 99-102 g/km
Engine
- Engine model / code
- D4FB
- Engine position
- Front, Transverse
- Engine displacement
- 1582 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 77.2 mm
- Piston stroke
- 84.5 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.3 l
- Coolant capacity
- 6.7 l
- Power
- 136 KM @ 4000 obr./min
- Torque
- 280 Nm @ 1500-3000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 395 l
- Maximum trunk capacity
- 1301 l
- Curb weight
- 1263-1411 kg
- Gross weight
- 1860 kg
Vehicle dimensions
- Length
- 4340 mm
- Width
- 1795 mm
- Height
- 1455 mm
- Wheelbase
- 2650 mm
- Ground clearance
- 140 mm
- Front overhang
- 905 mm
- Rear overhang
- 785 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15; 205/55 R16; 225/45 R17
- Rim size
- 6.0J x 15; 6.5J x 16; 7.0J x 17
- ABS
- yes
Selected engine version
1.4 T-GDi (140 KM) Eco
Gasoline · 2016–2018
- Engine power
- 140 KM
- Torque
- 242 Nm
- Engine displacement
- 1,353 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.1 s
- Maximum speed
- 208 km/h
On this page
Check vehicle history
Basic version information
Hyundai i30 i30 III- Brand
- Hyundai
- Model
- i30
- Version
- i30 III
- Engine
- 1.4 T-GDi (140 KM) Eco
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2016
- End of production
- 2018
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 208 km/h
- Acceleration 0-100 km/h
- 9.1 s
- CO2 emissions
- 109-114 g/km
Engine
- Engine model / code
- KappaII/G4LD
- Engine position
- Front, Transverse
- Engine displacement
- 1353 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 71.6 mm
- Piston stroke
- 84 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.2 l
- Coolant capacity
- 6.1 l
- Power
- 140 KM @ 6000 obr./min
- Torque
- 242 Nm @ 1500 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 395 l
- Maximum trunk capacity
- 1301 l
- Curb weight
- 1204-1352 kg
- Gross weight
- 1820 kg
Vehicle dimensions
- Length
- 4340 mm
- Width
- 1795 mm
- Height
- 1450 mm
- Wheelbase
- 2650 mm
- Ground clearance
- 135 mm
- Front overhang
- 905 mm
- Rear overhang
- 785 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15; 205/55 R16; 225/45 R17
- Rim size
- 6.0J x 15; 6.5J x 16; 7.0J x 17
- ABS
- yes
Selected engine version
1.4 T-GDi (140 KM)
Gasoline · 2016–2018
- Engine power
- 140 KM
- Torque
- 242 Nm
- Engine displacement
- 1,353 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.9 s
- Maximum speed
- 210 km/h
On this page
Check vehicle history
Basic version information
Hyundai i30 i30 III- Brand
- Hyundai
- Model
- i30
- Version
- i30 III
- Engine
- 1.4 T-GDi (140 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2016
- End of production
- 2018
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 8.9 s
- CO2 emissions
- 119-123 g/km
Engine
- Engine model / code
- KappaII/G4LD
- Engine position
- Front, Transverse
- Engine displacement
- 1353 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 71.6 mm
- Piston stroke
- 84 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.2 l
- Coolant capacity
- 6.1 l
- Power
- 140 KM @ 6000 obr./min
- Torque
- 242 Nm @ 1500 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 395 l
- Maximum trunk capacity
- 1301 l
- Curb weight
- 1204-1352 kg
- Gross weight
- 1820 kg
Vehicle dimensions
- Length
- 4340 mm
- Width
- 1795 mm
- Height
- 1455 mm
- Wheelbase
- 2650 mm
- Ground clearance
- 140 mm
- Front overhang
- 905 mm
- Rear overhang
- 785 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15; 205/55 R16; 225/45 R17
- Rim size
- 6.0J x 15; 6.5J x 16; 7.0J x 17
- ABS
- yes
Selected engine version
1.0 T-GDi (120 KM)
Gasoline · 2016–2018
- Engine power
- 120 KM
- Torque
- 171 Nm
- Engine displacement
- 998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.1 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Hyundai i30 i30 III- Brand
- Hyundai
- Model
- i30
- Version
- i30 III
- Engine
- 1.0 T-GDi (120 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2016
- End of production
- 2018
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 11.1 s
- CO2 emissions
- 112-117 g/km
Engine
- Engine model / code
- KappaII/G3LC
- Engine position
- Front, Transverse
- Engine displacement
- 998 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 3
- Cylinder bore
- 71 mm
- Piston stroke
- 84 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Coolant capacity
- 6 l
- Power
- 120 KM @ 6000 obr./min
- Torque
- 171 Nm @ 1500-4000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 395 l
- Maximum trunk capacity
- 1301 l
- Curb weight
- 1194-1342 kg
- Gross weight
- 1800 kg
Vehicle dimensions
- Length
- 4340 mm
- Width
- 1795 mm
- Height
- 1455 mm
- Wheelbase
- 2650 mm
- Ground clearance
- 140 mm
- Front overhang
- 905 mm
- Rear overhang
- 785 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15; 205/55 R16; 225/45 R17
- Rim size
- 6.0J x 15; 6.5J x 16; 7.0J x 17
- ABS
- yes
Selected engine version
1.6 CRDi (110 KM) Eco
Diesel fuel · 2016–2018
- Engine power
- 110 KM
- Torque
- 280 Nm
- Engine displacement
- 1,582 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10.7 s
- Maximum speed
- 188 km/h
On this page
Check vehicle history
Basic version information
Hyundai i30 i30 III- Brand
- Hyundai
- Model
- i30
- Version
- i30 III
- Engine
- 1.6 CRDi (110 KM) Eco
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2016
- End of production
- 2018
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 188 km/h
- Acceleration 0-100 km/h
- 10.7 s
- CO2 emissions
- 89-95 g/km
Engine
- Engine model / code
- D4FB
- Engine position
- Front, Transverse
- Engine displacement
- 1582 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 77.2 mm
- Piston stroke
- 84.5 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.3 l
- Coolant capacity
- 6.7 l
- Power
- 110 KM @ 4000 obr./min
- Torque
- 280 Nm @ 1500-2500 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 395 l
- Maximum trunk capacity
- 1301 l
- Curb weight
- 1263-1411 kg
- Gross weight
- 1860 kg
Vehicle dimensions
- Length
- 4340 mm
- Width
- 1795 mm
- Height
- 1450 mm
- Wheelbase
- 2650 mm
- Ground clearance
- 135 mm
- Front overhang
- 905 mm
- Rear overhang
- 785 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15; 205/55 R16; 225/45 R17
- Rim size
- 6.0J x 15; 6.5J x 16; 7.0J x 17
- ABS
- yes
Selected engine version
1.0 T-GDi (120 KM) Eco
Gasoline · 2016–2018
- Engine power
- 120 KM
- Torque
- 171 Nm
- Engine displacement
- 998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.3 s
- Maximum speed
- 187 km/h
On this page
Check vehicle history
Basic version information
Hyundai i30 i30 III- Brand
- Hyundai
- Model
- i30
- Version
- i30 III
- Engine
- 1.0 T-GDi (120 KM) Eco
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2016
- End of production
- 2018
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 187 km/h
- Acceleration 0-100 km/h
- 11.3 s
- CO2 emissions
- 103-108 g/km
Engine
- Engine model / code
- KappaII/G3LC
- Engine position
- Front, Transverse
- Engine displacement
- 998 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 3
- Cylinder bore
- 71 mm
- Piston stroke
- 84 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Coolant capacity
- 6 l
- Power
- 120 KM @ 6000 obr./min
- Torque
- 171 Nm @ 1500-4000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 395 l
- Maximum trunk capacity
- 1301 l
- Curb weight
- 1194-1342 kg
- Gross weight
- 1800 kg
Vehicle dimensions
- Length
- 4340 mm
- Width
- 1795 mm
- Height
- 1450 mm
- Wheelbase
- 2650 mm
- Ground clearance
- 135 mm
- Front overhang
- 905 mm
- Rear overhang
- 785 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15; 205/55 R16; 225/45 R17
- Rim size
- 6.0J x 15; 6.5J x 16; 7.0J x 17
- ABS
- yes
Selected engine version
1.6 CRDi (95 KM)
Diesel fuel · 2016–2018
- Engine power
- 95 KM
- Torque
- 280 Nm
- Engine displacement
- 1,582 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.2 s
- Maximum speed
- 186 km/h
On this page
Check vehicle history
Basic version information
Hyundai i30 i30 III- Brand
- Hyundai
- Model
- i30
- Version
- i30 III
- Engine
- 1.6 CRDi (95 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2016
- End of production
- 2018
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 186 km/h
- Acceleration 0-100 km/h
- 12.2 s
- CO2 emissions
- 95-98 g/km
Engine
- Engine model / code
- D4FB
- Engine position
- Front, Transverse
- Engine displacement
- 1582 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 77.2 mm
- Piston stroke
- 84.5 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.3 l
- Coolant capacity
- 6.7 l
- Power
- 95 KM @ 4000 obr./min
- Torque
- 280 Nm @ 1500-2000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 395 l
- Maximum trunk capacity
- 1301 l
- Curb weight
- 1263-1411 kg
- Gross weight
- 1860 kg
Vehicle dimensions
- Length
- 4340 mm
- Width
- 1795 mm
- Height
- 1455 mm
- Wheelbase
- 2650 mm
- Ground clearance
- 140 mm
- Front overhang
- 905 mm
- Rear overhang
- 785 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15; 205/55 R16; 225/45 R17
- Rim size
- 6.0J x 15; 6.5J x 16; 7.0J x 17
- ABS
- yes
Selected engine version
1.4 T-GDi (140 KM) DCT
Gasoline · 2016–2018
- Engine power
- 140 KM
- Torque
- 242 Nm
- Engine displacement
- 1,353 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.2 s
- Maximum speed
- 205 km/h
On this page
Check vehicle history
Basic version information
Hyundai i30 i30 III- Brand
- Hyundai
- Model
- i30
- Version
- i30 III
- Engine
- 1.4 T-GDi (140 KM) DCT
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2016
- End of production
- 2018
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 9.2 s
- CO2 emissions
- 121-125 g/km
Engine
- Engine model / code
- KappaII/G4LD
- Engine position
- Front, Transverse
- Engine displacement
- 1353 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 71.6 mm
- Piston stroke
- 84 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.2 l
- Coolant capacity
- 6.1 l
- Power
- 140 KM @ 6000 obr./min
- Torque
- 242 Nm @ 1500 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 395 l
- Maximum trunk capacity
- 1301 l
- Curb weight
- 1240-1388 kg
- Gross weight
- 1850 kg
Vehicle dimensions
- Length
- 4340 mm
- Width
- 1795 mm
- Height
- 1455 mm
- Wheelbase
- 2650 mm
- Ground clearance
- 140 mm
- Front overhang
- 905 mm
- Rear overhang
- 785 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DCT
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15; 205/55 R16; 225/45 R17
- Rim size
- 6.0J x 15; 6.5J x 16; 7.0J x 17
- ABS
- yes
Selected engine version
1.6 CRDi (110 KM)
Diesel fuel · 2016–2018
- Engine power
- 110 KM
- Torque
- 280 Nm
- Engine displacement
- 1,582 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Hyundai i30 i30 III- Brand
- Hyundai
- Model
- i30
- Version
- i30 III
- Engine
- 1.6 CRDi (110 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2016
- End of production
- 2018
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 11 s
- CO2 emissions
- 96-99 g/km
Engine
- Engine model / code
- D4FB
- Engine position
- Front, Transverse
- Engine displacement
- 1582 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 77.2 mm
- Piston stroke
- 84.5 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.3 l
- Coolant capacity
- 6.7 l
- Power
- 110 KM @ 4000 obr./min
- Torque
- 280 Nm @ 1500-2500 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 395 l
- Maximum trunk capacity
- 1301 l
- Curb weight
- 1263-1411 kg
- Gross weight
- 1860 kg
Vehicle dimensions
- Length
- 4340 mm
- Width
- 1795 mm
- Height
- 1455 mm
- Wheelbase
- 2650 mm
- Ground clearance
- 140 mm
- Front overhang
- 905 mm
- Rear overhang
- 785 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15; 205/55 R16; 225/45 R17
- Rim size
- 6.0J x 15; 6.5J x 16; 7.0J x 17
- ABS
- yes
Selected engine version
N Performance 2.0 T-GDI (275 KM)
Gasoline · 2017–2018
- Engine power
- 275 KM
- Torque
- 353 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 6.1 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Hyundai i30 i30 III- Brand
- Hyundai
- Model
- i30
- Version
- i30 III
- Engine
- N Performance 2.0 T-GDI (275 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2017
- End of production
- 2018
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 6.1 s
Engine
- Engine model / code
- G4KH
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC, E-CVVT
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.8 l
- Coolant capacity
- 8.5 l
- Power
- 275 KM @ 6000 obr./min
- Torque
- 353 Nm @ 1450-4500 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 395 l
- Maximum trunk capacity
- 1301 l
- Curb weight
- 1429-1509 kg
- Gross weight
- 1950 kg
Vehicle dimensions
- Length
- 4335 mm
- Width
- 1795 mm
- Height
- 1447-1451 mm
- Wheelbase
- 2650 mm
- Ground clearance
- 136-132 mm
- Front overhang
- 905 mm
- Rear overhang
- 780 mm
- Turning circle
- 11.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/40 R18; 235/35 R19
- Rim size
- 18; 19
- ABS
- yes
Selected engine version
N 2.0 T-GDI (250 KM)
Gasoline · 2017–2018
- Engine power
- 250 KM
- Torque
- 353 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 6.4 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Hyundai i30 i30 III- Brand
- Hyundai
- Model
- i30
- Version
- i30 III
- Engine
- N 2.0 T-GDI (250 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2017
- End of production
- 2018
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 6.4 s
Engine
- Engine model / code
- G4KH
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC, E-CVVT
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.8 l
- Coolant capacity
- 8.5 l
- Power
- 250 KM @ 6000 obr./min
- Torque
- 353 Nm @ 1450-4000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 395 l
- Maximum trunk capacity
- 1301 l
- Curb weight
- 1440-1480 kg
- Gross weight
- 1950 kg
Vehicle dimensions
- Length
- 4335 mm
- Width
- 1795 mm
- Height
- 1447-1451 mm
- Wheelbase
- 2650 mm
- Ground clearance
- 136-132 mm
- Front overhang
- 905 mm
- Rear overhang
- 780 mm
- Turning circle
- 11.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/40 R18; 235/35 R19
- Rim size
- 18; 19
- ABS
- yes
