Vehicle specifications

Volvo V60 II Cross Country

Compare all 6 engine versions of the Volvo V60 V60 II Cross Country, then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Volvo V60 II Cross Country? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?
1 of 6

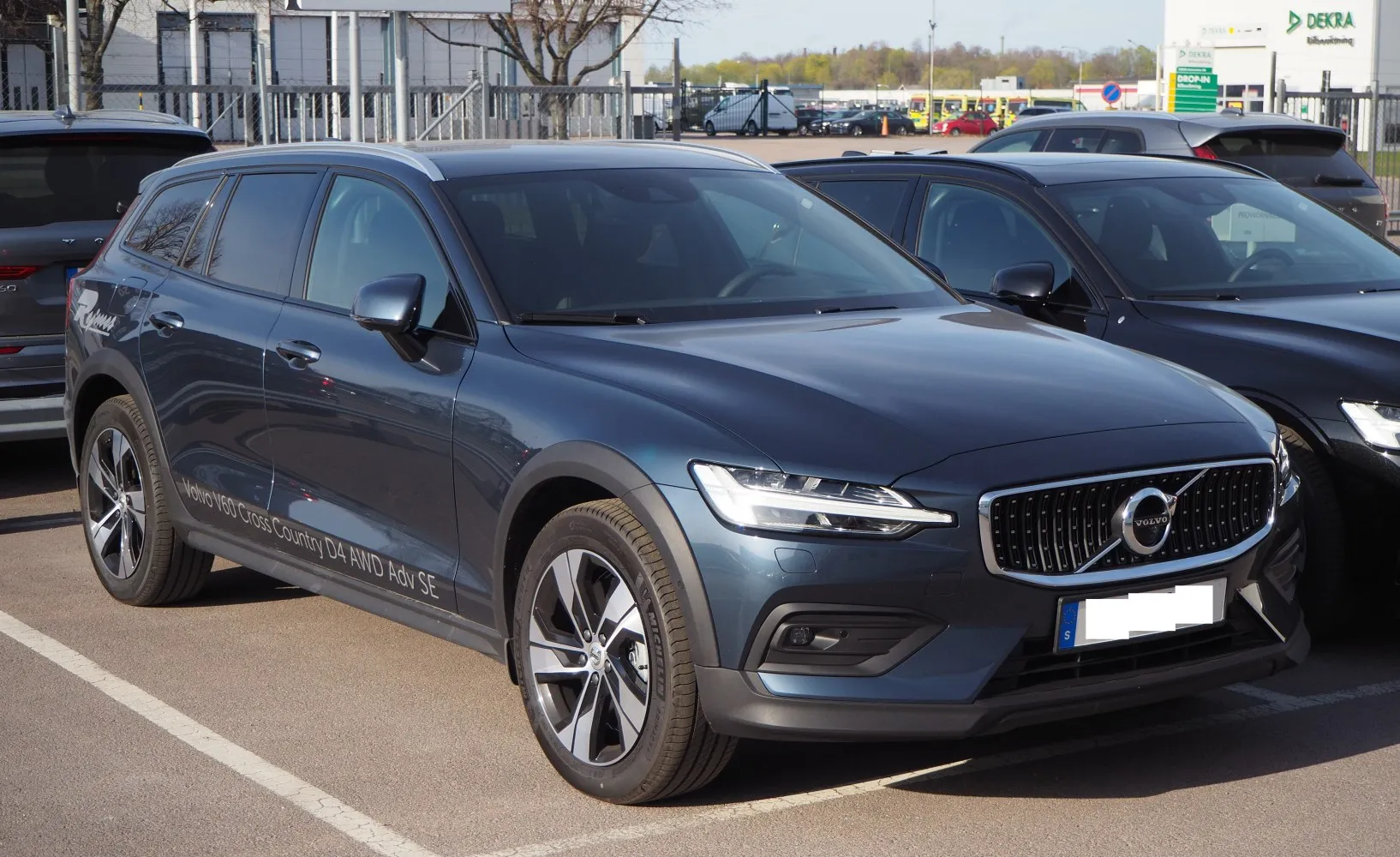

Volvo V60 V60 II Cross Country View larger
Photo: Vauxford, CC BY-SA 4.0 <https://creativecommons.org/licenses/by-sa/4.0>, via Wikimedia Commons

Vehicle gallery

Volvo V60 V60 II Cross Country

Photo: Vauxford, CC BY-SA 4.0 <https://creativecommons.org/licenses/by-sa/4.0>, via Wikimedia Commons

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

6 versions · 3 Gasoline · 3 Diesel fuel

Engine Fuel Power Production
2.0 T5 (254 KM) AWD Automatic Selected Gasoline 254 KM 2018–2020
2.0 T5 (250 KM) AWD Automatic Selected Gasoline 250 KM 2018–2020
2.0 D4 (190 KM) AWD Automatic Selected Diesel fuel 190 KM 2018–2020
2.0 D3 (150 KM) AWD Automatic Selected Diesel fuel 150 KM 2018–2019
2.0 B5 (250 KM) Mild Hybrid AWD Automatic Selected Gasoline 250 KM 2020–present
2.0 B4 (197 KM) Mild Hybrid AWD Geartronic Selected Diesel fuel 197 KM 2020–2021

Selected engine version

2.0 T5 (254 KM) AWD Automatic

Gasoline · 2018–2020

Engine power
254 KM
Torque
350 Nm
Engine displacement
1,969 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
6.8 s
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
Volvo
Model
V60
Version
V60 II Cross Country
Engine
2.0 T5 (254 KM) AWD Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Station wagon, Crossover
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
210 km/h
Acceleration 0-100 km/h
6.8 s
Deceleration from 100 km/h to 0
35 m
Fuel consumption - Urban cycle
12.8 l/100 km
Fuel consumption - Extra-urban cycle
9.1 l/100 km
Fuel consumption - Combined cycle
11.3 l/100 km

Engine

Engine model / code
B4204T23
Engine position
Front, Transverse
Engine displacement
1969 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82 mm
Piston stroke
93.2 mm
Compression ratio
10.8
Number of valves per cylinder
4
Engine oil capacity
5.6 l
Power
254 KM @ 5500 obr./min
Torque
350 Nm @ 1500-4800 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
898 l
Maximum trunk capacity
1441 l
Curb weight
kg
Roof load
75 kg
Braked trailer load (12% slope start)
2000 kg

Vehicle dimensions

Length
4784 mm
Width
1850 mm
Width with folded mirrors
1916 mm
Width with unfolded mirrors
2040 mm
Height
1499 mm
Wheelbase
2874 mm
Front track
1636-1649 mm
Rear track
1621-1633 mm
Ground clearance
210 mm
Turning circle
11.3 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Front suspension
Double wishbone
Rear suspension
Leaf springs
Steering system
Rack-and-pinion
Power steering
Electric power steering
Rim size
16; 17; 18
ABS
yes

Selected engine version

2.0 T5 (250 KM) AWD Automatic

Gasoline · 2018–2020

Engine power
250 KM
Torque
350 Nm
Engine displacement
1,969 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
6.8 s
Maximum speed
230 km/h
On this page
Check vehicle history

Basic version information

Brand
Volvo
Model
V60
Version
V60 II Cross Country
Engine
2.0 T5 (250 KM) AWD Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Station wagon, Crossover
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
230 km/h
Acceleration 0-100 km/h
6.8 s
Deceleration from 100 km/h to 0
35 m
Fuel consumption measurement standard
WLTP
Fuel consumption - Urban cycle
11.7-12.1 l/100 km
Fuel consumption measurement standard
WLTP
Fuel consumption - Extra-urban cycle
7.4-8.3 l/100 km
Fuel consumption measurement standard
WLTP
Fuel consumption - Combined cycle
7.9-8.8 l/100 km
Emission standard
Euro 6d
CO2 measurement standard
WLTP
CO2 emissions
180-200 g/km

Engine

Engine model / code
B4204T26
Engine position
Front, Transverse
Engine displacement
1969 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82 mm
Piston stroke
93.2 mm
Compression ratio
10.8
Number of valves per cylinder
4
Engine oil capacity
5.6 l
Power
250 KM @ 5500 obr./min
Torque
350 Nm @ 1800-4800 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
898 l
Maximum trunk capacity
1441 l
Curb weight
kg
Roof load
75 kg
Braked trailer load (12% slope start)
2000 kg

Vehicle dimensions

Length
4784 mm
Width
1850 mm
Width with folded mirrors
1916 mm
Width with unfolded mirrors
2040 mm
Height
1499 mm
Wheelbase
2874 mm
Front track
1636-1649 mm
Rear track
1621-1633 mm
Ground clearance
210 mm
Turning circle
11.3 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Front suspension
Double wishbone
Rear suspension
Leaf springs
Steering system
Rack-and-pinion
Power steering
Electric power steering
Rim size
16; 17; 18
ABS
yes

Selected engine version

2.0 D4 (190 KM) AWD Automatic

Diesel fuel · 2018–2020

Engine power
190 KM
Torque
400 Nm
Engine displacement
1,969 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.2 s
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
Volvo
Model
V60
Version
V60 II Cross Country
Engine
2.0 D4 (190 KM) AWD Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Station wagon, Crossover
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
210 km/h
Acceleration 0-100 km/h
8.2 s
Deceleration from 100 km/h to 0
35 m
Fuel consumption measurement standard
WLTP
Fuel consumption - Urban cycle
7.3-8.0 l/100 km
Fuel consumption measurement standard
WLTP
Fuel consumption - Extra-urban cycle
5.3-6.2 l/100 km
Fuel consumption measurement standard
WLTP
Fuel consumption - Combined cycle
5.5-6.5 l/100 km
Emission standard
Euro 6d
CO2 measurement standard
WLTP
CO2 emissions
145-145 g/km

Engine

Engine model / code
D4204T14
Engine position
Front, Transverse
Engine displacement
1969 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82 mm
Piston stroke
93.2 mm
Compression ratio
15.8
Number of valves per cylinder
4
Engine oil capacity
5.2 l
Power
190 KM @ 4250 obr./min
Torque
400 Nm @ 1750-2500 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
898 l
Maximum trunk capacity
1441 l
Curb weight
kg
Roof load
75 kg
Braked trailer load (12% slope start)
2000 kg

Vehicle dimensions

Length
4784 mm
Width
1850 mm
Width with folded mirrors
1916 mm
Width with unfolded mirrors
2040 mm
Height
1499 mm
Wheelbase
2874 mm
Front track
1636-1649 mm
Rear track
1621-1633 mm
Ground clearance
210 mm
Turning circle
11.3 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Front suspension
Double wishbone
Rear suspension
Leaf springs
Steering system
Rack-and-pinion
Power steering
Electric power steering
Rim size
16; 17; 18
ABS
yes

Selected engine version

2.0 D3 (150 KM) AWD Automatic

Diesel fuel · 2018–2019

Engine power
150 KM
Torque
350 Nm
Engine displacement
1,969 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.9 s
Maximum speed
195 km/h
On this page
Check vehicle history

Basic version information

Brand
Volvo
Model
V60
Version
V60 II Cross Country
Engine
2.0 D3 (150 KM) AWD Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon, Crossover
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
195 km/h
Acceleration 0-100 km/h
9.9 s
Deceleration from 100 km/h to 0
35 m
Fuel consumption measurement standard
WLTP
Fuel consumption - Urban cycle
7.4-8.2 l/100 km
Fuel consumption measurement standard
WLTP
Fuel consumption - Extra-urban cycle
5.7-6.4 l/100 km
Fuel consumption measurement standard
WLTP
Fuel consumption - Combined cycle
5.9-6.6 l/100 km
CO2 measurement standard
WLTP
CO2 emissions
155-173 g/km

Engine

Engine model / code
D4204T4
Engine position
Front, Transverse
Engine displacement
1969 cm³
Maximum engine speed
5000 obr./min
Fuel injection system
Diesel common rail
Engine type
Twin turbo, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82 mm
Piston stroke
93.2 mm
Compression ratio
15.8
Number of valves per cylinder
4
Engine oil capacity
5.2 l
Power
150 KM @ 4250 obr./min
Torque
350 Nm @ 1500-2520 obr./min

Volume and weight

Fuel tank
60 l
AdBlue tank
11.5 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
529 l
Maximum trunk capacity
1441 l
Curb weight
kg
Roof load
75 kg
Braked trailer load (12% slope start)
2000 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4784 mm
Width
1850 mm
Width with folded mirrors
1916 mm
Width with unfolded mirrors
2040 mm
Height
1499 mm
Wheelbase
2875 mm
Front track
1636-1649 mm
Rear track
1621-1633 mm
Ground clearance
210 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Front suspension
Double wishbone
Rear suspension
Leaf springs
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Rim size
16; 17;17; 18
ABS
yes

Selected engine version

2.0 B5 (250 KM) Mild Hybrid AWD Automatic

Gasoline · 2020–present

Engine power
250 KM
Torque
350 Nm
Engine displacement
1,969 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
6.9 s
Maximum speed
180 km/h
On this page
Check vehicle history

Basic version information

Brand
Volvo
Model
V60
Version
V60 II Cross Country
Engine
2.0 B5 (250 KM) Mild Hybrid AWD Automatic
Engine type
MHEV (Mild Hybrid Electric Vehicle)
Number of doors
5
Start of production
2020
Body type
Station wagon, Crossover
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
180 km/h
Acceleration 0-100 km/h
6.9 s
Deceleration from 100 km/h to 0
35 m
Fuel consumption measurement standard
WLTP
Fuel consumption - Urban cycle
10.5-11.0 l/100 km
Fuel consumption measurement standard
WLTP
Fuel consumption - Extra-urban cycle
6.2-7.2 l/100 km
Fuel consumption measurement standard
WLTP
Fuel consumption - Combined cycle
6.7-7.7 l/100 km
Emission standard
Euro 6d
CO2 measurement standard
WLTP
CO2 emissions
152-173 g/km

Engine

Max electric motor power
14 KM
Electric motor torque
40 Nm
Engine model / code
B420T2
Engine position
Front, Transverse
Engine displacement
1969 cm³
Maximum engine speed
6200 obr./min
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82 mm
Piston stroke
93.2 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
6.1 l
Power
250 KM @ 5400-5700 obr./min
Torque
350 Nm @ 1800-4800 obr./min

Volume and weight

Fuel tank
71 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
529 l
Maximum trunk capacity
1441 l
Curb weight
kg
Roof load
75 kg
Braked trailer load (12% slope start)
1800 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4784 mm
Width
1850 mm
Width with folded mirrors
1916 mm
Width with unfolded mirrors
2040 mm
Height
1499 mm
Wheelbase
2875 mm
Front track
1636-1649 mm
Rear track
1621-1633 mm
Ground clearance
210 mm
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
Geartronic
Front suspension
Double wishbone, Anti-roll bar
Rear suspension
Anti-roll bar, Leaf springs
Front brakes
Disc
Front brake disc/drum diameter
345 mm
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Rim size
18; 19; 20
ABS
yes

Selected engine version

2.0 B4 (197 KM) Mild Hybrid AWD Geartronic

Diesel fuel · 2020–2021

Engine power
197 KM
Torque
420 Nm
Engine displacement
1,969 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.2 s
Maximum speed
180 km/h
On this page
Check vehicle history

Basic version information

Brand
Volvo
Model
V60
Version
V60 II Cross Country
Engine
2.0 B4 (197 KM) Mild Hybrid AWD Geartronic
Engine type
MHEV (Mild Hybrid Electric Vehicle)
Number of doors
5
Start of production
2020
End of production
2021
Body type
Station wagon, Crossover
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
180 km/h
Acceleration 0-100 km/h
8.2 s
Deceleration from 100 km/h to 0
35 m
Fuel consumption measurement standard
WLTP
Fuel consumption - Urban cycle
7.3-8.1 l/100 km
Fuel consumption measurement standard
WLTP
Fuel consumption - Extra-urban cycle
5.7-6.2 l/100 km
Fuel consumption measurement standard
WLTP
Fuel consumption - Combined cycle
5.9-6.5 l/100 km
Emission standard
Euro 6d
CO2 measurement standard
WLTP
CO2 emissions
155-170 g/km

Engine

Max electric motor power
14 KM
Electric motor torque
40 Nm
Electric motor position
Integrated with the transmission
Engine model / code
D420T8
Engine position
Front, Transverse
Engine displacement
1969 cm³
Maximum engine speed
5000 obr./min
Fuel injection system
Diesel common rail
Engine type
Twin turbo, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82 mm
Piston stroke
93.2 mm
Compression ratio
15.8
Number of valves per cylinder
4
Engine oil capacity
5.6 l
Power
197 KM @ 4000 obr./min
Torque
420 Nm

Volume and weight

Fuel tank
71 l
AdBlue tank
12 l
Aerodynamic drag coefficient (Cx)
0.33
Minimum trunk capacity
519 l
Maximum trunk capacity
1431 l
Curb weight
1924 kg
Gross weight
2410 kg
Roof load
75 kg
Braked trailer load (12% slope start)
2000 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4787 mm
Width
1850 mm
Width with folded mirrors
1916 mm
Width with unfolded mirrors
2040 mm
Height
1499 mm
Wheelbase
2875 mm
Front track
1636-1649 mm
Rear track
1621-1633 mm
Ground clearance
197 mm
Approach angle
17 °
Departure angle
22.4 °
Ramp angle
18.4 °
Turning circle
11.7 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
Geartronic
Front suspension
Double wishbone, Anti-roll bar
Rear suspension
Anti-roll bar, Leaf springs
Front brakes
Disc
Front brake disc/drum diameter
322 mm
Front brake disc thickness
28 mm
Rear brakes
Disc
Rear brake disc/drum diameter
302 mm
Rear brake disc thickness
12 mm
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 225/50 R17; 235/45 R18; 235/40 R19; 245/35 R20
Rim size
7J x 16; 7J x 17; 8J x 18; 8J x 19; 8J x 20
ABS
yes

About Volvo V60 V60 II Cross Country

The Volvo V60 II Cross Country, produced between 2018 and 2021, is an elegant combination of a station wagon and a crossover, designed for those who value versatility and comfort on every journey. With its five-door body, the car accommodates up to five passengers and stands out with Scandinavian design, merging simplicity with luxury. Intended for active families and individuals who appreciate an outdoor lifestyle, it performs excellently both in the city and on less paved roads, while offering outstanding comfort and functionality.

Under the hood, the V60 Cross Country features a variety of powertrains, including petrol and diesel engines. Available engines deliver power ranging from 150 to 254 HP, allowing customization of power to meet individual needs. Models equipped with mild-hybrid (MHEV) technology benefit from additional electric support, providing a smoother driving experience and improved fuel efficiency. A standard feature is the advanced Geartronic automatic transmission, which enhances driving comfort, both in city traffic and during dynamic highway driving.

The Volvo V60 Cross Country is equipped with all-wheel drive (AWD), which ensures excellent grip and stability in all road conditions. Driving comfort is further enhanced by a well-tuned suspension that handles uneven terrain while providing adequate maneuverability, facilitating navigation in tight urban spaces. Modern driver assistance systems, such as lane departure assistance and an advanced multimedia system, enhance travel comfort and safety.

Like any model, the V60 Cross Country may have its drawbacks. Users occasionally report issues with electronics, particularly concerning the infotainment system and some driver assistance functionalities. Potentially higher maintenance costs are also associated with the advanced powertrain technology found in hybrid MHEV versions. It's also worth noting that fuel consumption in models with stronger engines may be higher than in some competing vehicles.

In summary, the Volvo V60 II Cross Country is an exceptional choice for those who appreciate luxury and functionality in a unique, Scandinavian style. Offering excellent performance, driving comfort, and advanced technologies, this model stands out in the crossover segment. With solid construction and versatility, it is an attractive option for active individuals and families looking for a reliable companion for everyday use and more demanding adventures.
