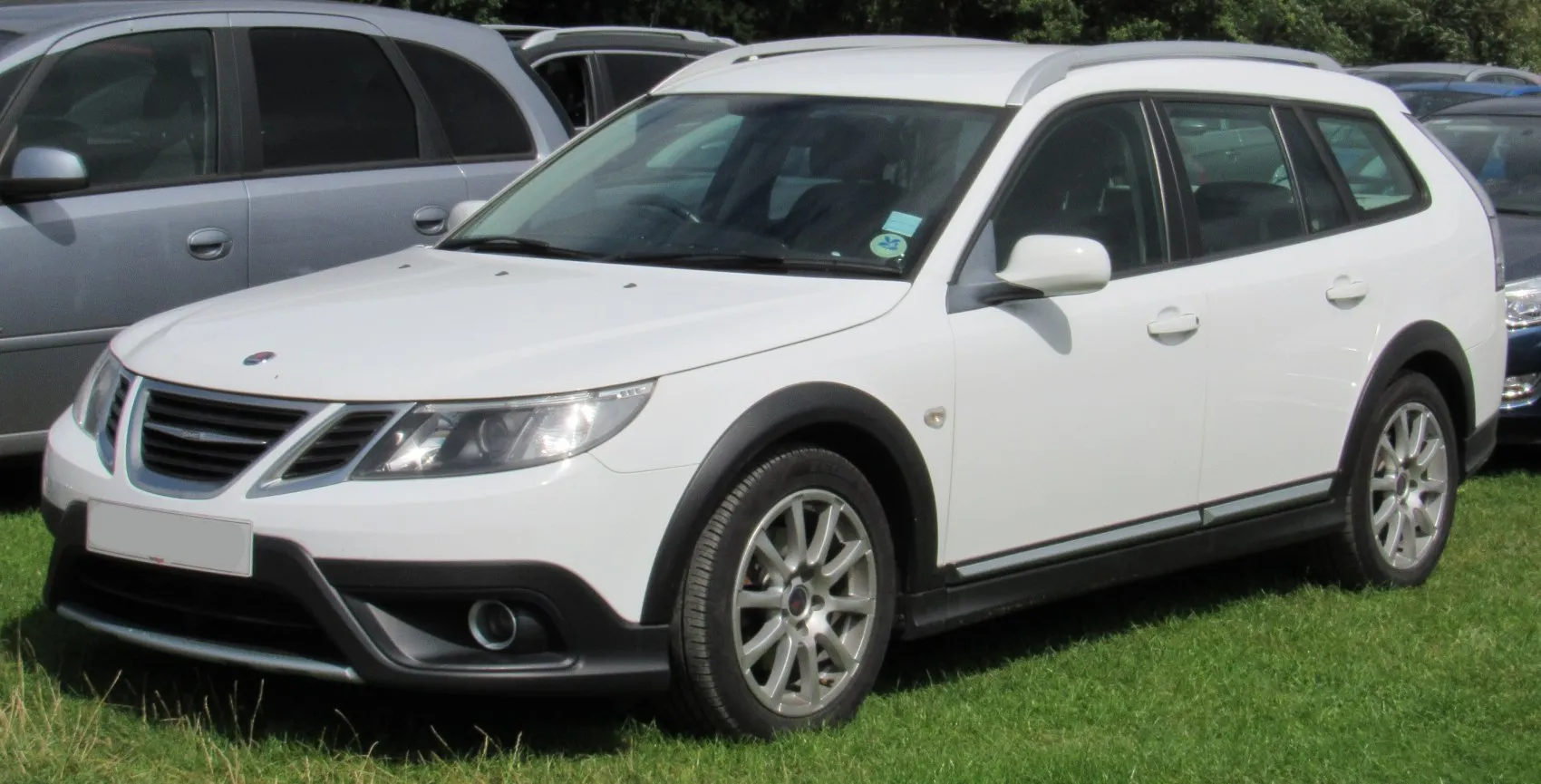

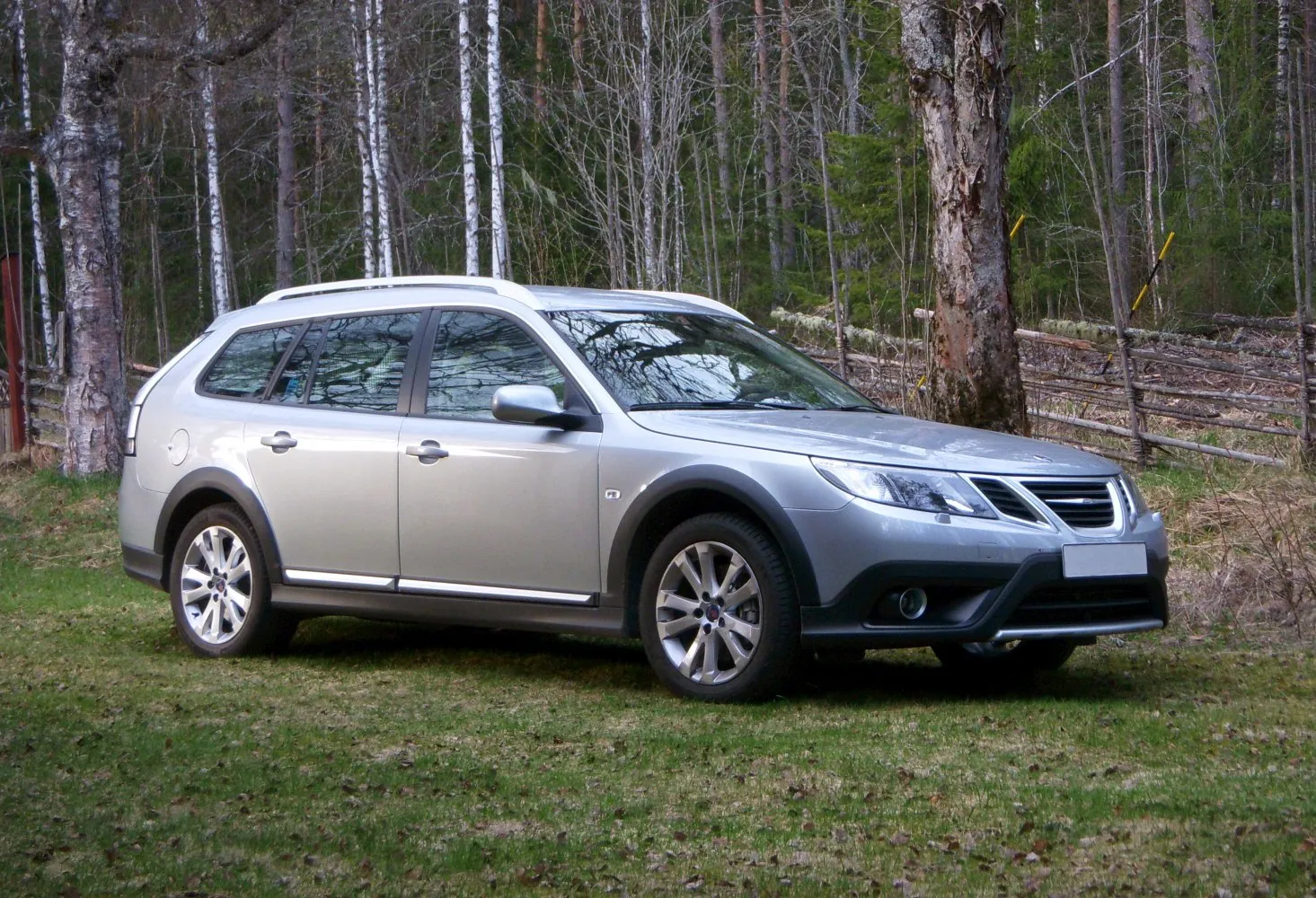

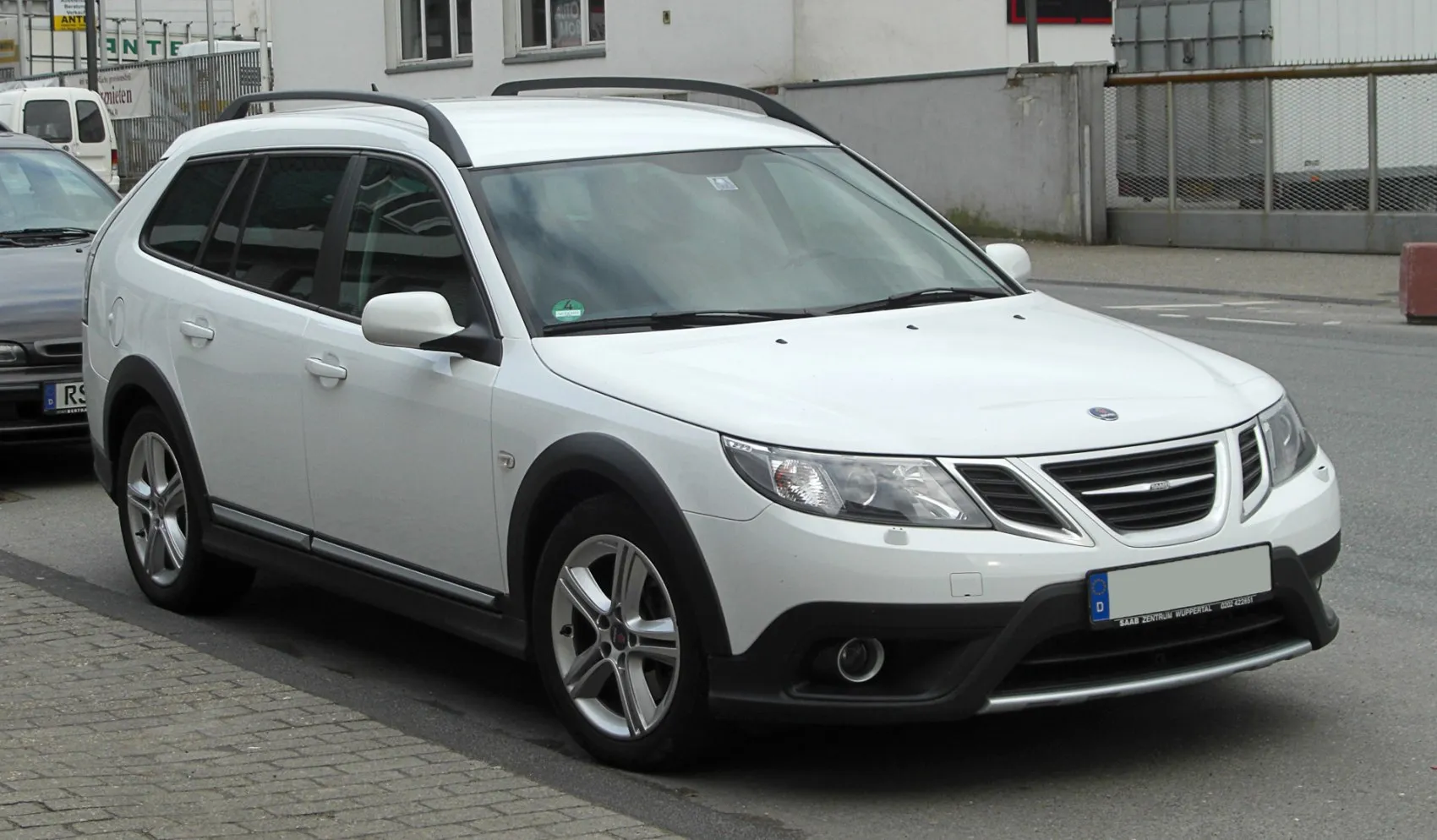

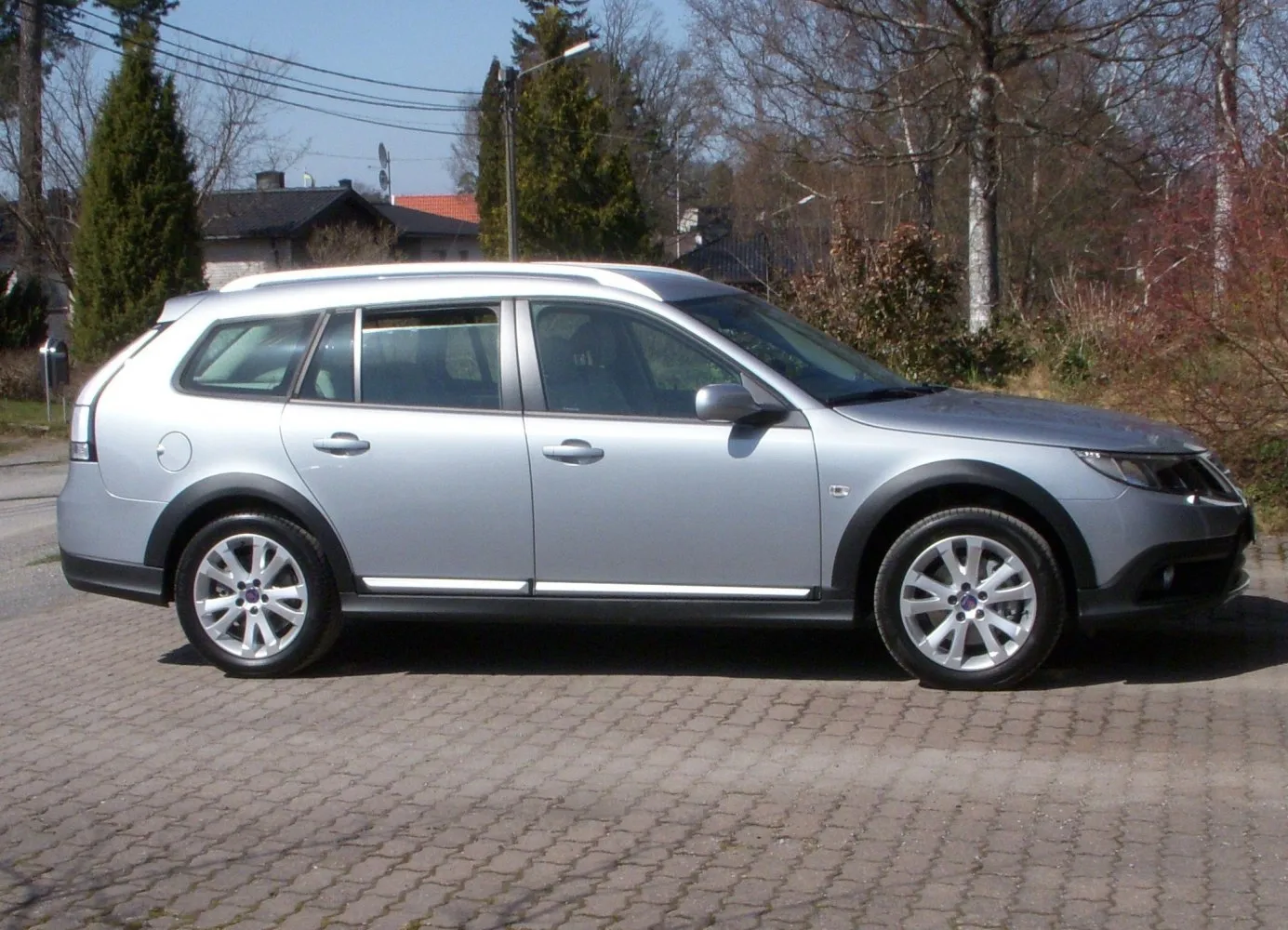

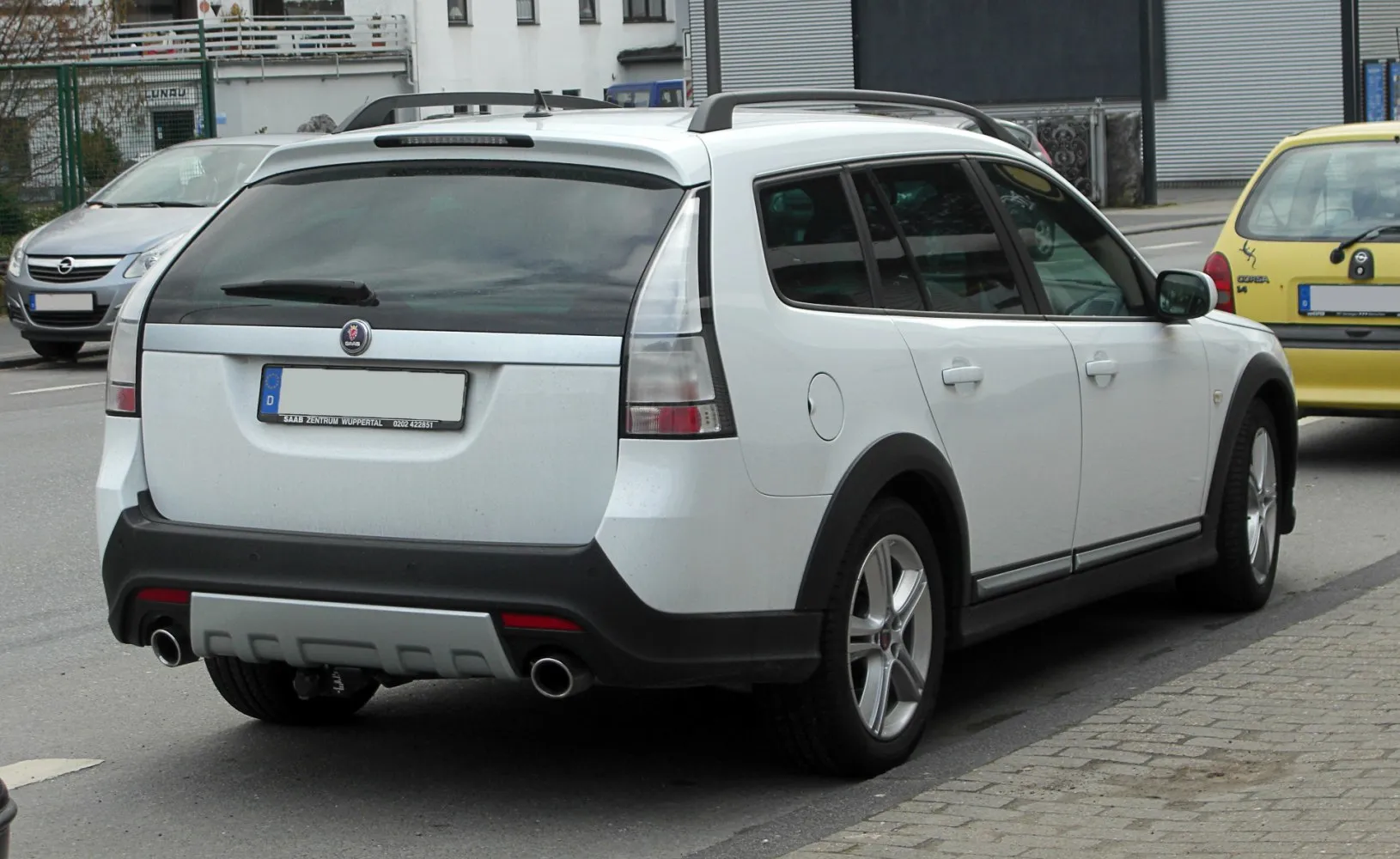

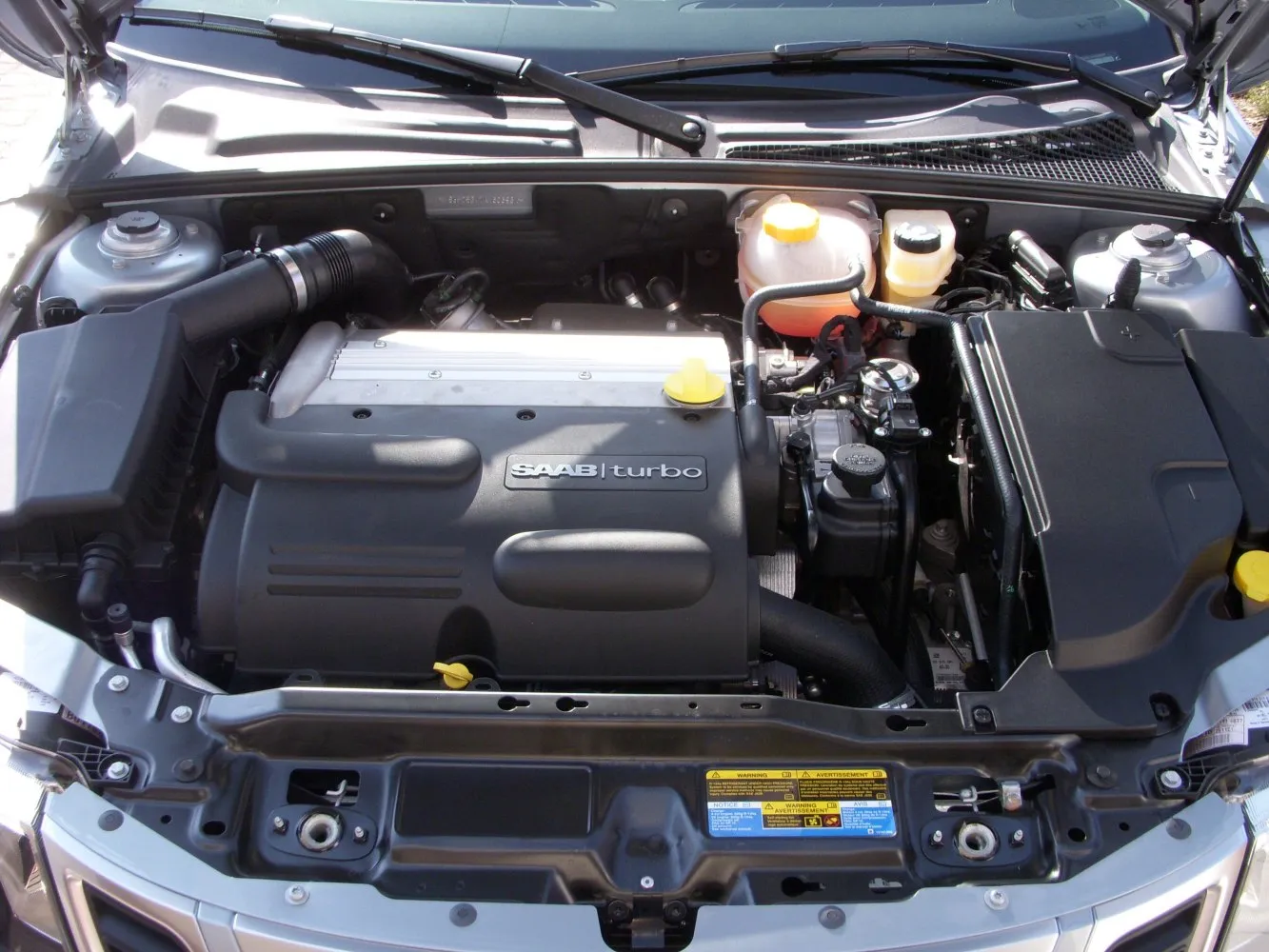

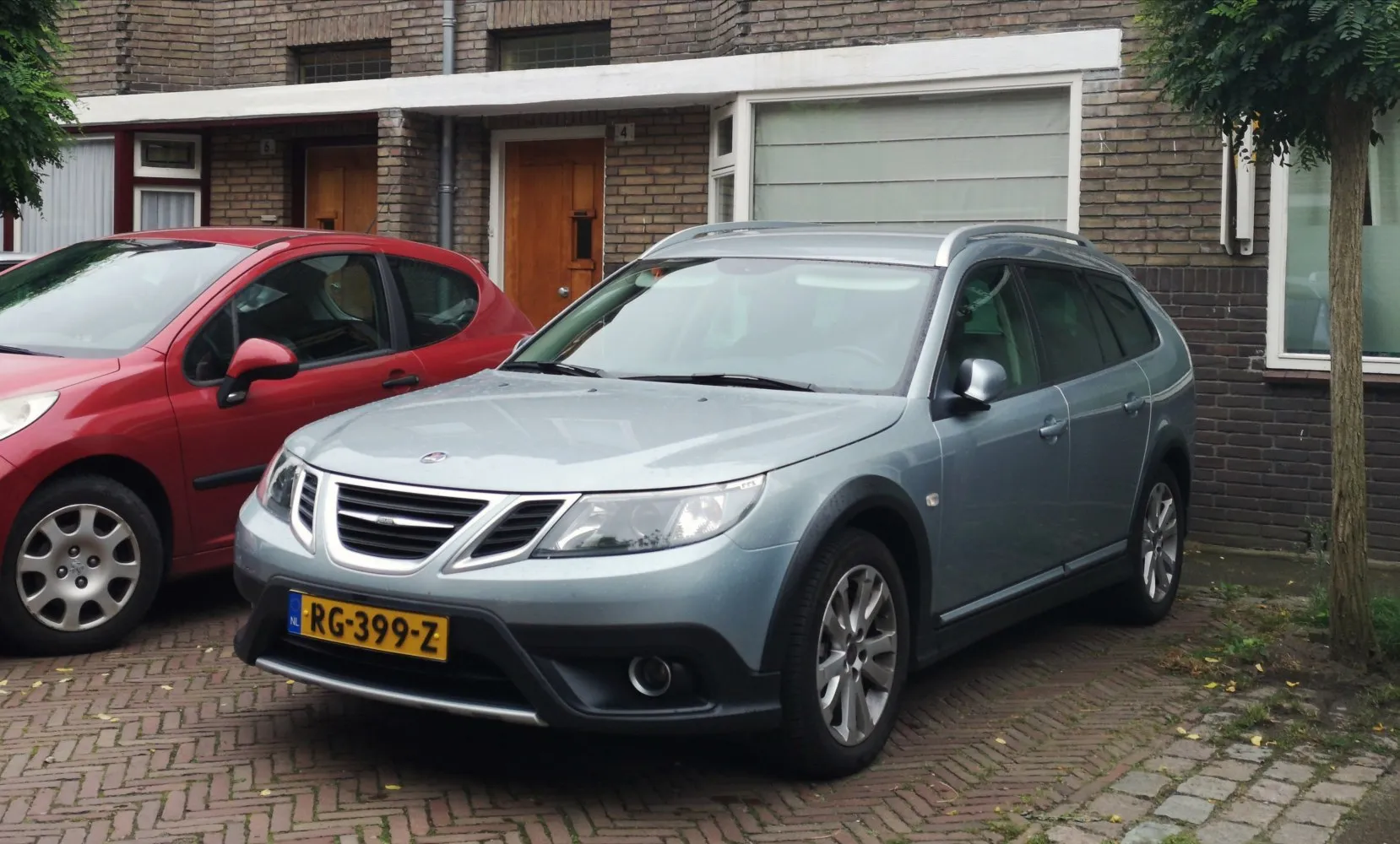

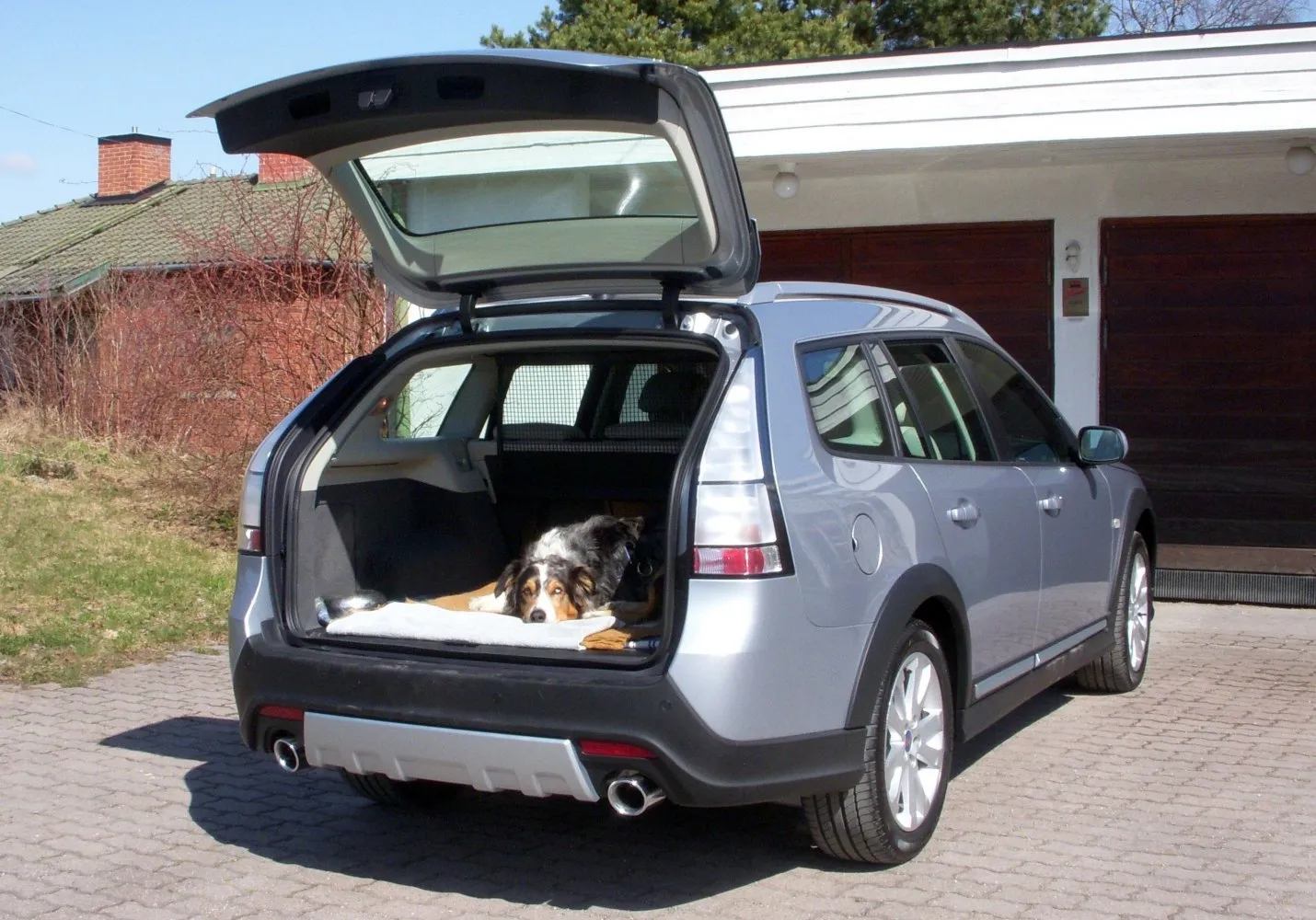

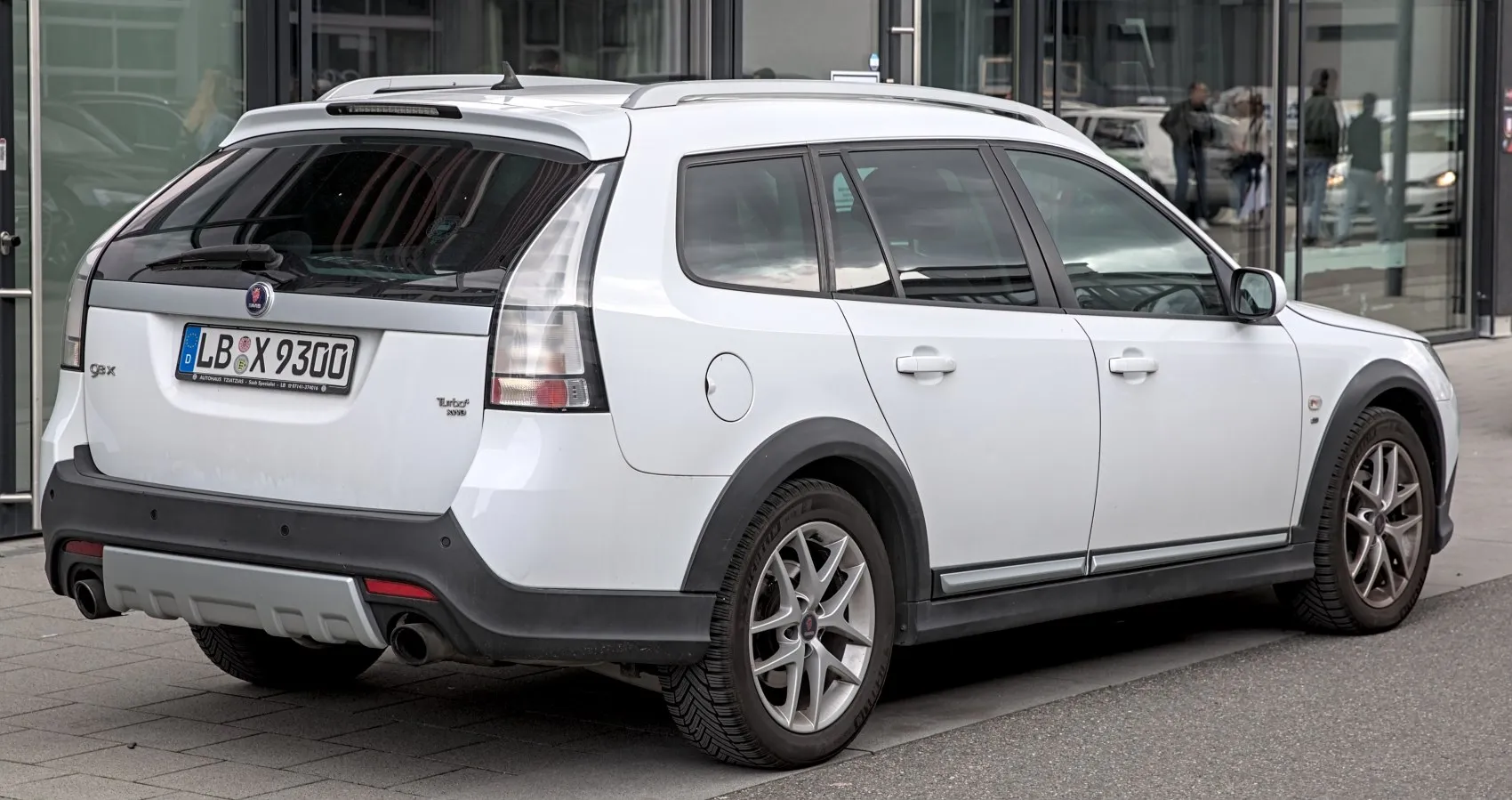

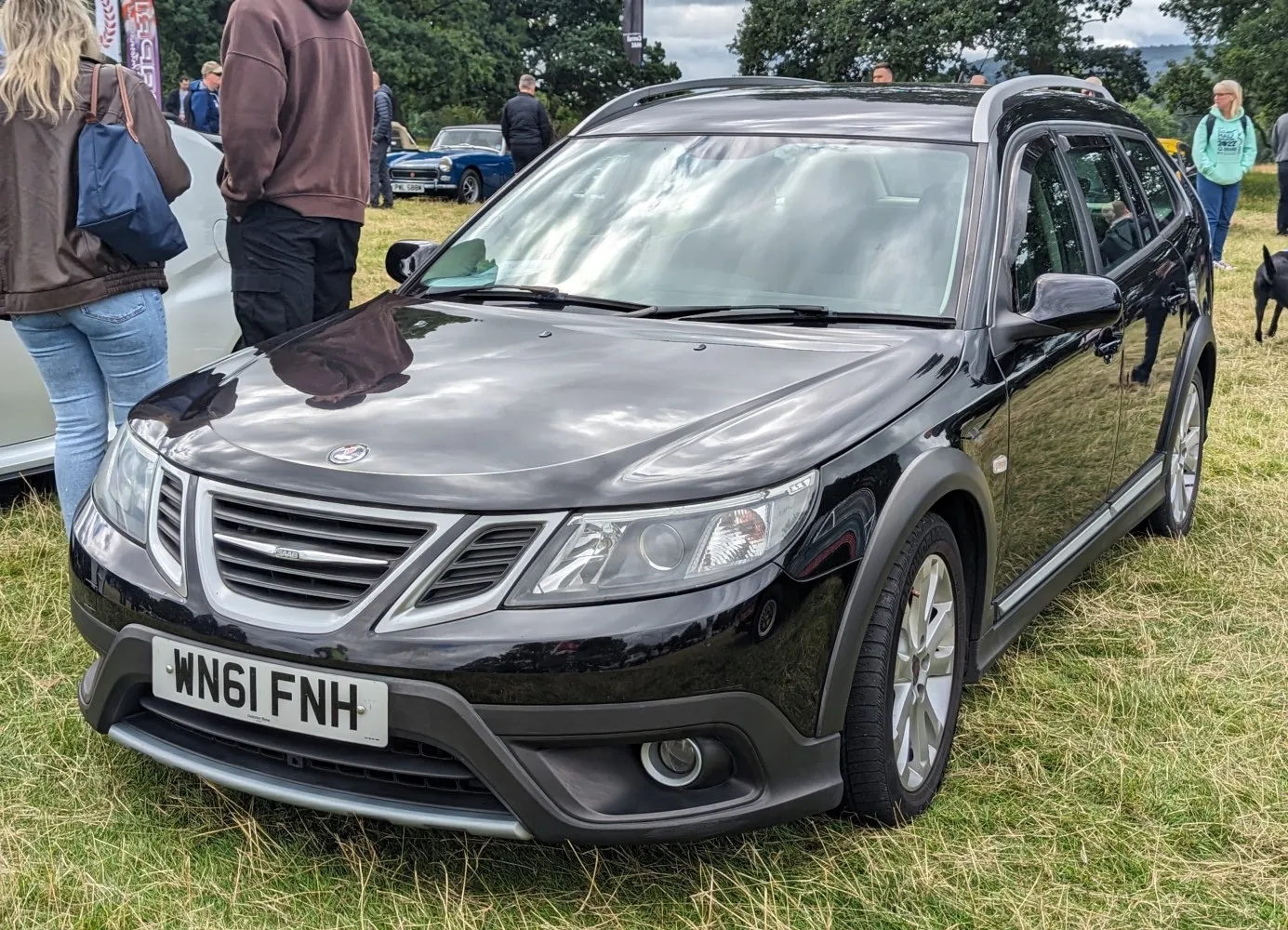

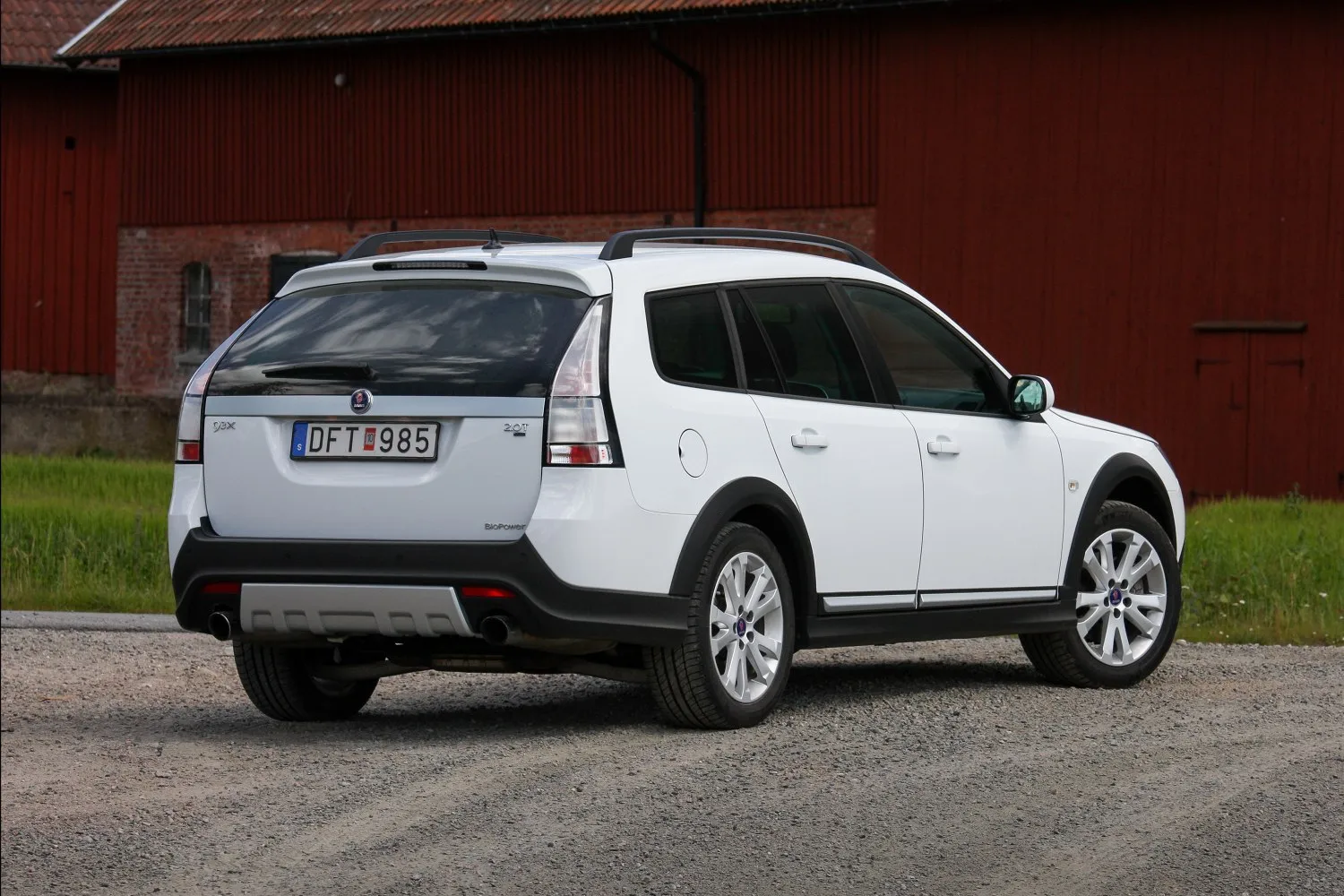

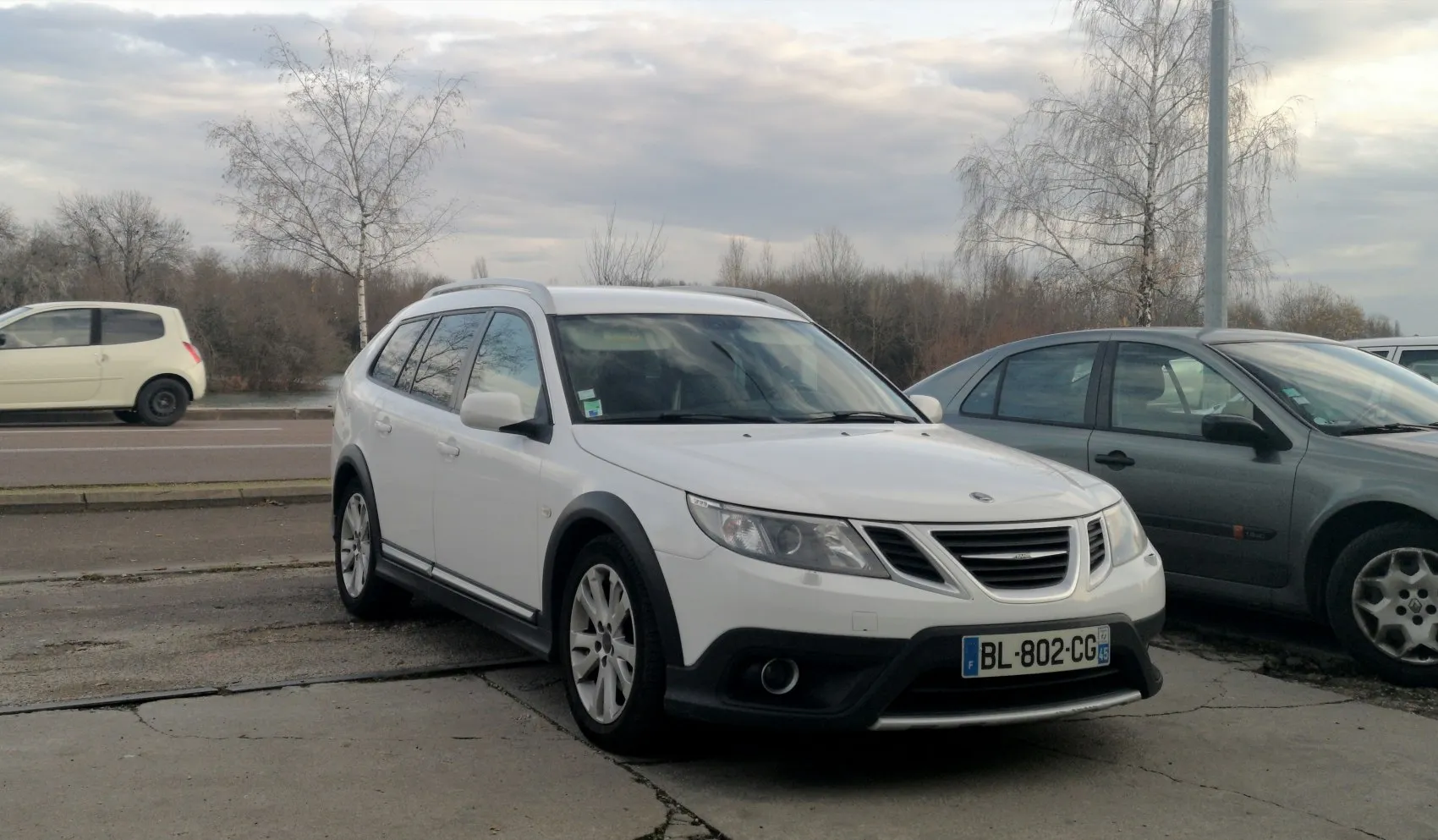

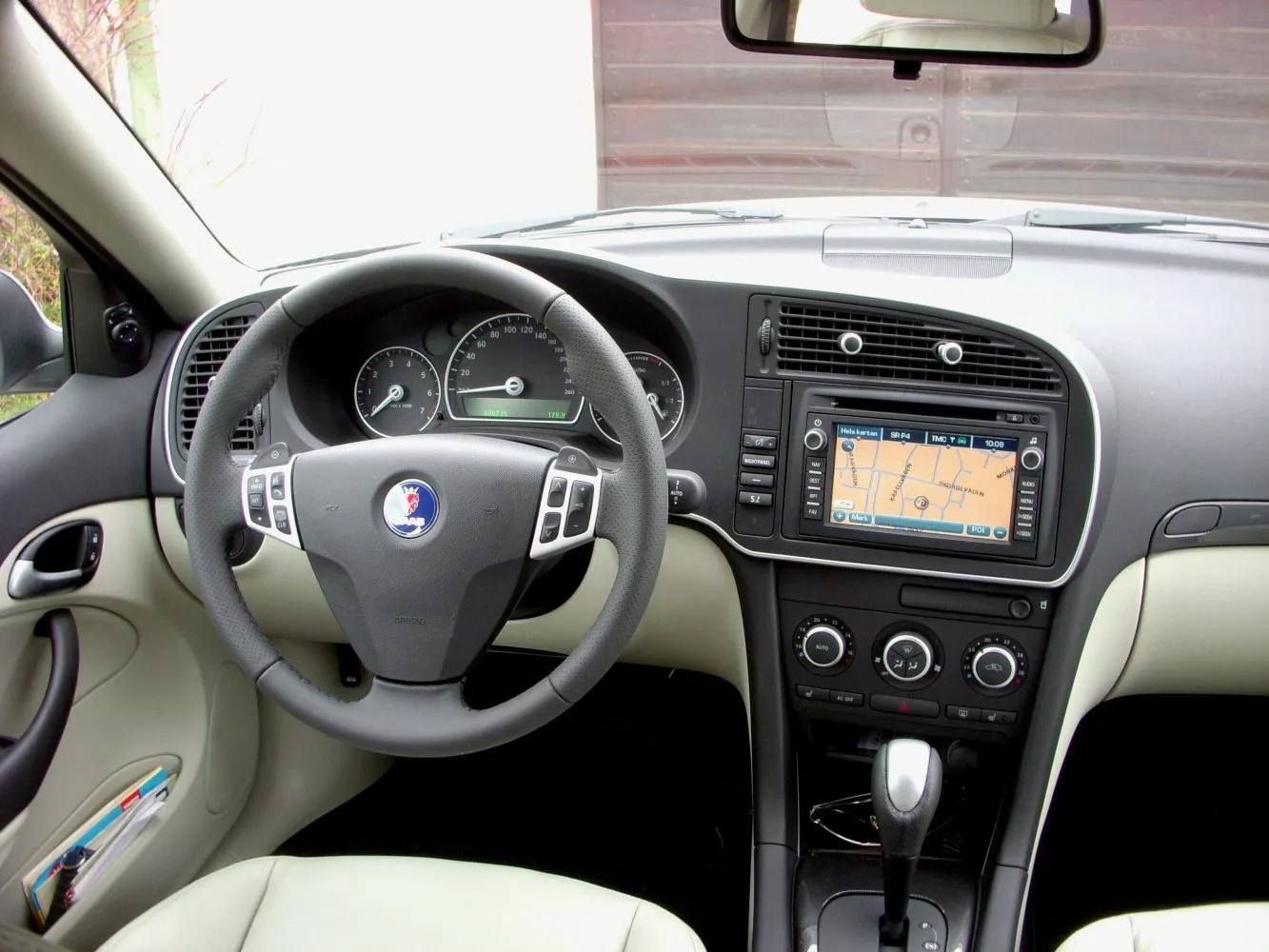

Vehicle photos
1 of 13
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
5 versions · 2 Diesel fuel · 1 Gasoline / Ethanol - E85 · 2 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.9 TTiD (180 KM) Sentronic Selected | Diesel fuel | 180 KM | 2009–2010 |
| 1.9 TTiD (180 KM) Selected | Diesel fuel | 180 KM | 2009–2010 |
| 2.0T BioPower (210 KM) XWD Selected | Gasoline / Ethanol - E85 | 210 KM | 2009–2010 |
| 2.0T (210 KM) XWD Sentronic Selected | Gasoline | 210 KM | 2009–2010 |
| 2.0T (210 KM) XWD Selected | Gasoline | 210 KM | 2009–2010 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.9 TTiD (180 KM) Sentronic
Diesel fuel · 2009–2010
- Engine power
- 180 KM
- Torque
- 370 Nm
- Engine displacement
- 1,910 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.2 s
- Maximum speed
- 215 km/h
On this page
Check vehicle history
Basic version information
Saab 9-3 9-3X II- Brand
- Saab
- Model
- 9-3
- Version
- 9-3X II
- Engine
- 1.9 TTiD (180 KM) Sentronic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2010
- Body type
- Station wagon, Crossover
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 215 km/h
- Acceleration 0-100 km/h
- 9.2 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 9 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 5.2 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 6.6 l/100 km
- Emission standard
- Euro 4
- CO2 measurement standard
- NEDC
- CO2 emissions
- 173 g/km
Engine
- Engine model / code
- Z19DTR
- Engine position
- Front, Transverse
- Engine displacement
- 1910 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Twin turbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 90.4 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 7.4 l
- Power
- 180 KM @ 4000 obr./min
- Torque
- 370 Nm @ 1750-3250 obr./min
Volume and weight
- Fuel tank
- 58 l
- Minimum trunk capacity
- 477 l
- Maximum trunk capacity
- 1331 l
- Curb weight
- 1653-1761 kg
- Gross weight
- 2118-2226 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1600 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4690 mm
- Width
- 1802 mm
- Width with unfolded mirrors
- 2038 mm
- Height
- 1575 mm
- Wheelbase
- 2675 mm
- Front track
- 1524 mm
- Rear track
- 1504 mm
- Front overhang
- 985 mm
- Rear overhang
- 1030 mm
- Turning circle
- 11.4 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- Sentronic
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 314 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 292 mm
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 225/50 R17; 235/45 R18
- Rim size
- 7J x 17; 7.5J x 18
- ABS
- yes
Selected engine version
1.9 TTiD (180 KM)
Diesel fuel · 2009–2010
- Engine power
- 180 KM
- Torque
- 400 Nm
- Engine displacement
- 1,910 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 8.7 s
- Maximum speed
- 220 km/h
On this page
Check vehicle history
Basic version information
Saab 9-3 9-3X II- Brand
- Saab
- Model
- 9-3
- Version
- 9-3X II
- Engine
- 1.9 TTiD (180 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2010
- Body type
- Station wagon, Crossover
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 220 km/h
- Acceleration 0-100 km/h
- 8.7 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 7 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 4.6 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 5.5 l/100 km
- Emission standard
- Euro 4
- CO2 measurement standard
- NEDC
- CO2 emissions
- 144 g/km
Engine
- Engine model / code
- Z19DTR
- Engine position
- Front, Transverse
- Engine displacement
- 1910 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Twin turbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 90.4 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 7.4 l
- Power
- 180 KM @ 4000 obr./min
- Torque
- 400 Nm @ 1850-2750 obr./min
Volume and weight
- Fuel tank
- 58 l
- Minimum trunk capacity
- 477 l
- Maximum trunk capacity
- 1331 l
- Curb weight
- 1653-1761 kg
- Gross weight
- 2118-2226 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1600 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4690 mm
- Width
- 1802 mm
- Width with unfolded mirrors
- 2038 mm
- Height
- 1575 mm
- Wheelbase
- 2675 mm
- Front track
- 1524 mm
- Rear track
- 1504 mm
- Front overhang
- 985 mm
- Rear overhang
- 1030 mm
- Turning circle
- 11.4 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 314 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 292 mm
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 225/50 R17; 235/45 R18
- Rim size
- 7J x 17; 7.5J x 18
- ABS
- yes
Selected engine version
2.0T BioPower (210 KM) XWD
Gasoline / Ethanol - E85 · 2009–2010
- Engine power
- 210 KM
- Torque
- 300 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline / Ethanol - E85
- Acceleration 0-100 km/h
- 8.5 s
- Maximum speed
- 230 km/h
On this page
Check vehicle history
Basic version information
Saab 9-3 9-3X II- Brand
- Saab
- Model
- 9-3
- Version
- 9-3X II
- Engine
- 2.0T BioPower (210 KM) XWD
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2010
- Body type
- Station wagon, Crossover
- Number of seats
- 5
- Fuel type
- Gasoline / Ethanol - E85
Performance
- Maximum speed
- 230 km/h
- Acceleration 0-100 km/h
- 8.5 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 11.1 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 6.2 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 8.1 l/100 km
- Emission standard
- Euro 4
- CO2 measurement standard
- NEDC
- CO2 emissions
- 194 g/km
Engine
- Engine model / code
- B207R
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6 l
- Coolant capacity
- 7.5 l
- Power
- 210 KM @ 5300 obr./min
- Torque
- 300 Nm @ 2500-4000 obr./min
Volume and weight
- Fuel tank
- 61 l
- Minimum trunk capacity
- 477 l
- Maximum trunk capacity
- 1331 l
- Curb weight
- 1653-1761 kg
- Gross weight
- 2118-2226 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1600 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4690 mm
- Width
- 1802 mm
- Width with unfolded mirrors
- 2038 mm
- Height
- 1574 mm
- Wheelbase
- 2675 mm
- Front track
- 1524 mm
- Rear track
- 1504 mm
- Front overhang
- 985 mm
- Rear overhang
- 1030 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 314 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 292 mm
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 225/50 R17; 235/45 R18
- Rim size
- 7J x 17; 7.5J x 18
- ABS
- yes
Selected engine version
2.0T (210 KM) XWD Sentronic
Gasoline · 2009–2010
- Engine power
- 210 KM
- Torque
- 300 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.6 s
- Maximum speed
- 220 km/h
On this page
Check vehicle history
Basic version information
Saab 9-3 9-3X II- Brand
- Saab
- Model
- 9-3
- Version
- 9-3X II
- Engine
- 2.0T (210 KM) XWD Sentronic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2010
- Body type
- Station wagon, Crossover
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 220 km/h
- Acceleration 0-100 km/h
- 9.6 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 15.1 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 7.2 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 10.1 l/100 km
- Emission standard
- Euro 4
- CO2 measurement standard
- NEDC
- CO2 emissions
- 242 g/km
Engine
- Engine model / code
- B207R
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6 l
- Coolant capacity
- 7.5 l
- Power
- 210 KM @ 5300 obr./min
- Torque
- 300 Nm @ 2500-4000 obr./min
Volume and weight
- Fuel tank
- 61 l
- Minimum trunk capacity
- 477 l
- Maximum trunk capacity
- 1331 l
- Curb weight
- 1653-1761 kg
- Gross weight
- 2118-2226 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1600 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4690 mm
- Width
- 1802 mm
- Width with unfolded mirrors
- 2038 mm
- Height
- 1574 mm
- Wheelbase
- 2675 mm
- Front track
- 1524 mm
- Rear track
- 1504 mm
- Front overhang
- 985 mm
- Rear overhang
- 1030 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Type of automatic gearbox
- Sentronic
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 314 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 292 mm
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 225/50 R17; 235/45 R18
- Rim size
- 7J x 17; 7.5J x 18
- ABS
- yes
Selected engine version
2.0T (210 KM) XWD
Gasoline · 2009–2010
- Engine power
- 210 KM
- Torque
- 300 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.5 s
- Maximum speed
- 230 km/h
On this page
Check vehicle history
Basic version information
Saab 9-3 9-3X II- Brand
- Saab
- Model
- 9-3
- Version
- 9-3X II
- Engine
- 2.0T (210 KM) XWD
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2010
- Body type
- Station wagon, Crossover
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 230 km/h
- Acceleration 0-100 km/h
- 8.5 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 11.4 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 6.2 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 8.1 l/100 km
- Emission standard
- Euro 4
- CO2 measurement standard
- NEDC
- CO2 emissions
- 194 g/km
Engine
- Engine model / code
- B207R
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6 l
- Coolant capacity
- 7.5 l
- Power
- 210 KM @ 5300 obr./min
- Torque
- 300 Nm @ 2500-4000 obr./min
Volume and weight
- Fuel tank
- 61 l
- Minimum trunk capacity
- 477 l
- Maximum trunk capacity
- 1331 l
- Curb weight
- 1653-1761 kg
- Gross weight
- 2118-2226 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1600 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4690 mm
- Width
- 1802 mm
- Width with unfolded mirrors
- 2038 mm
- Height
- 1574 mm
- Wheelbase
- 2675 mm
- Front track
- 1524 mm
- Rear track
- 1504 mm
- Front overhang
- 985 mm
- Rear overhang
- 1030 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 314 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 292 mm
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 225/50 R17; 235/45 R18
- Rim size
- 7J x 17; 7.5J x 18
- ABS
- yes
