Vehicle specifications
Renault Scenic Grand III (Phase I)
Compare all 20 engine versions of the Renault Scenic Grand Scenic III (Phase I), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Renault Scenic Grand III (Phase I)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Renault Scenic Grand III (Phase I)?
See the places on a 3D model →- VIN number
- Dashboard, visible through the windscreen, left side
- Scuttle panel below the windscreen, left side · less certain (little data)
- A-pillar, right side · less certain (little data)
- Identification plate
- B-pillar, right side

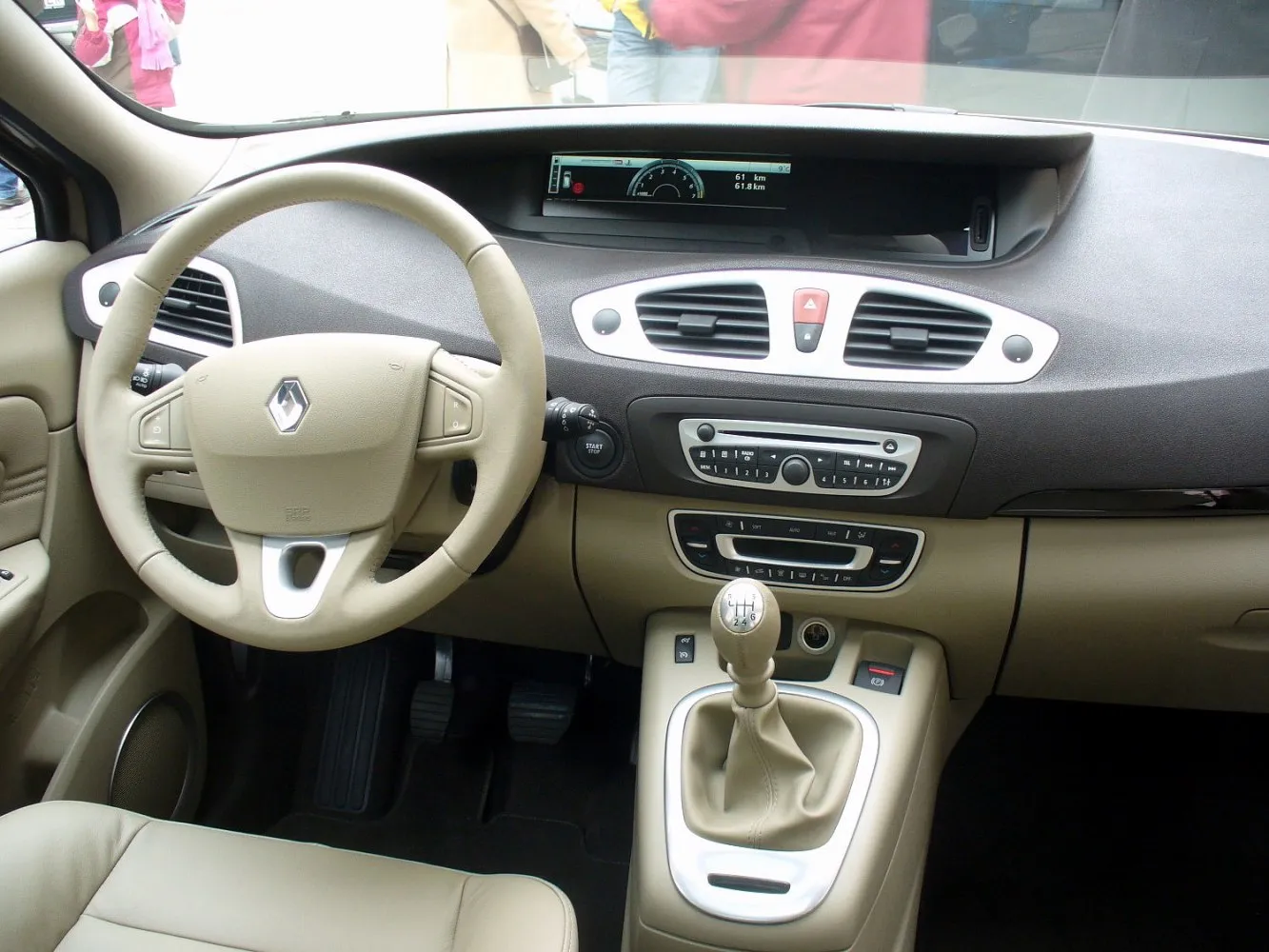

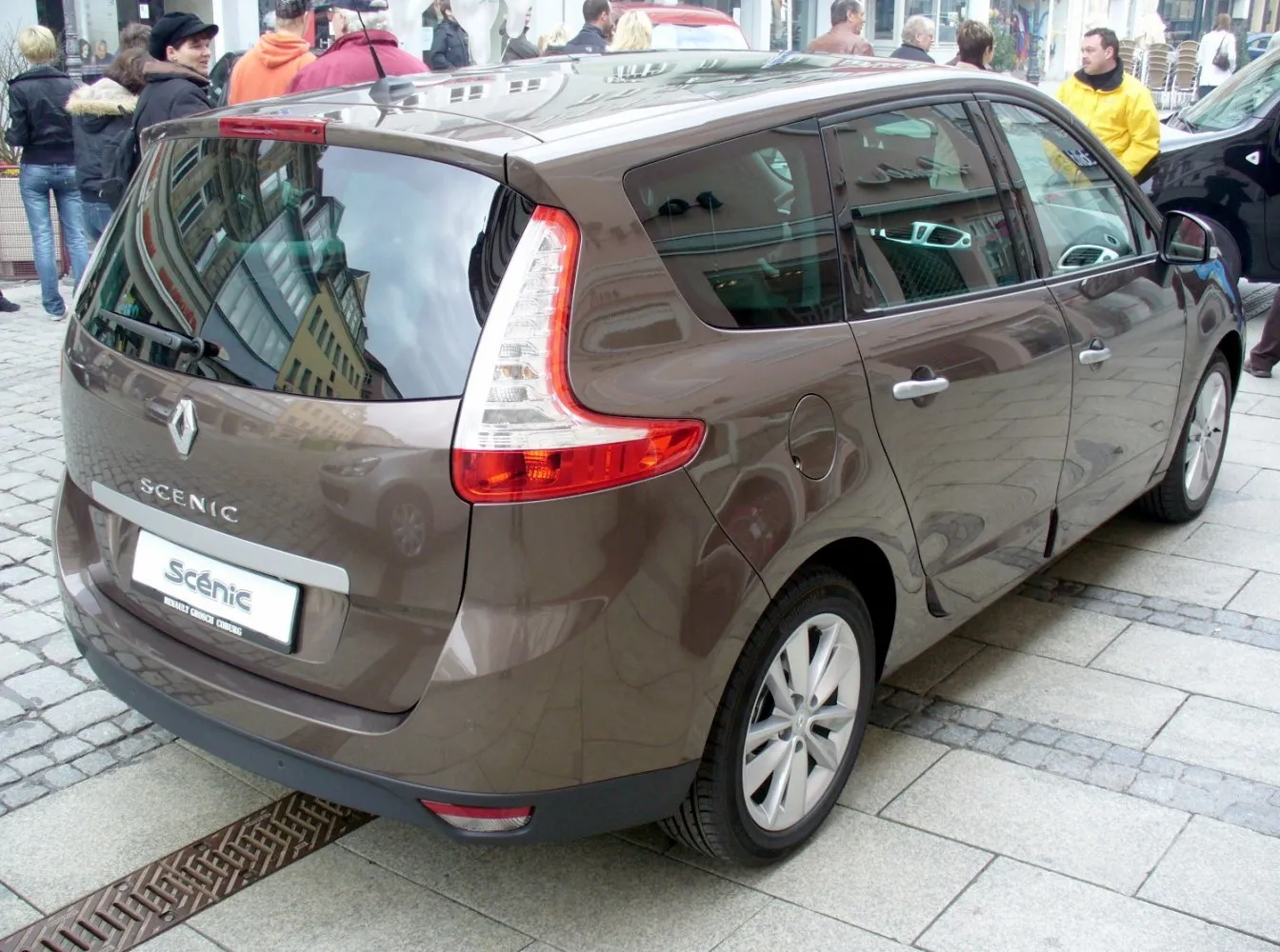

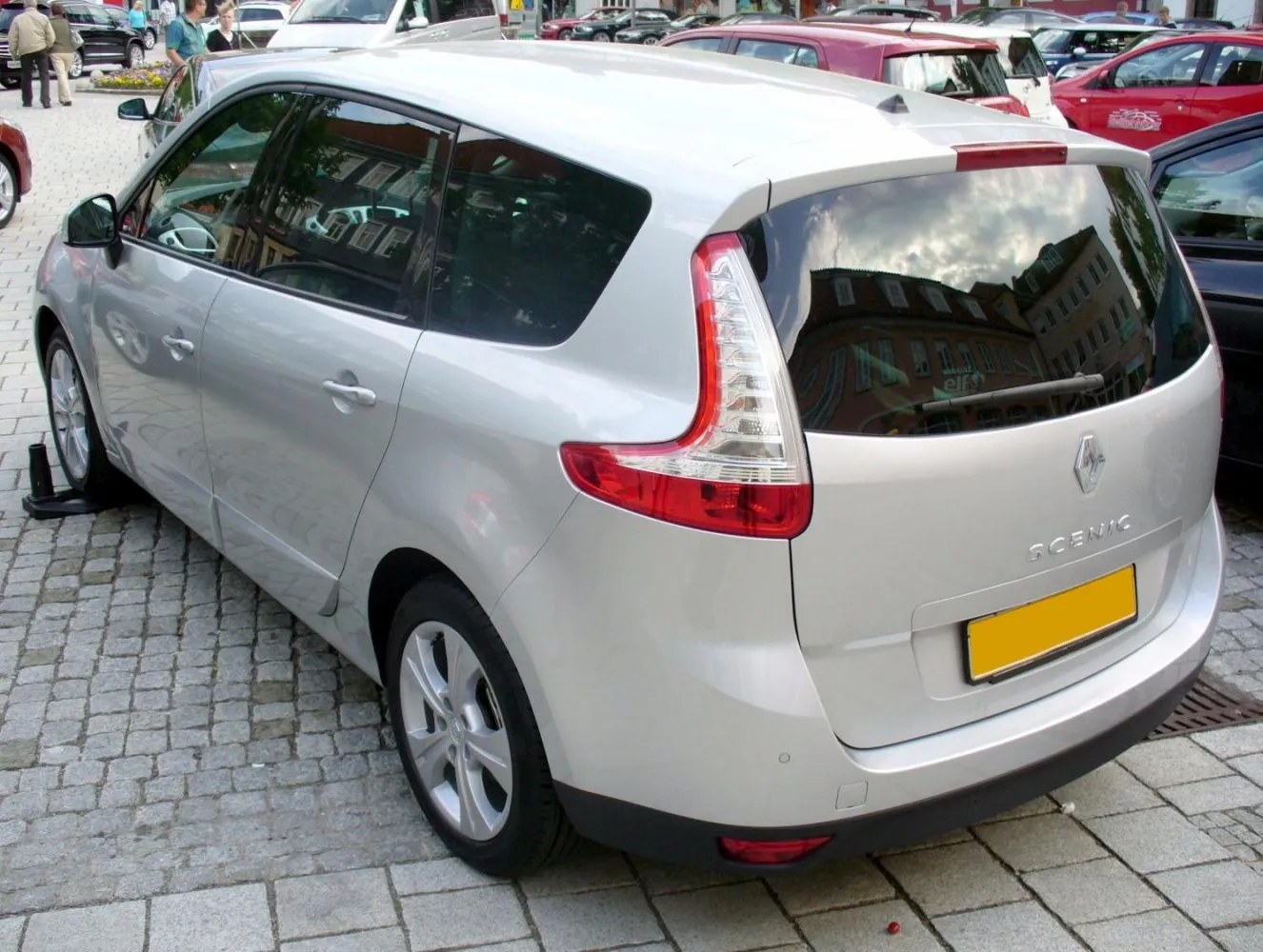

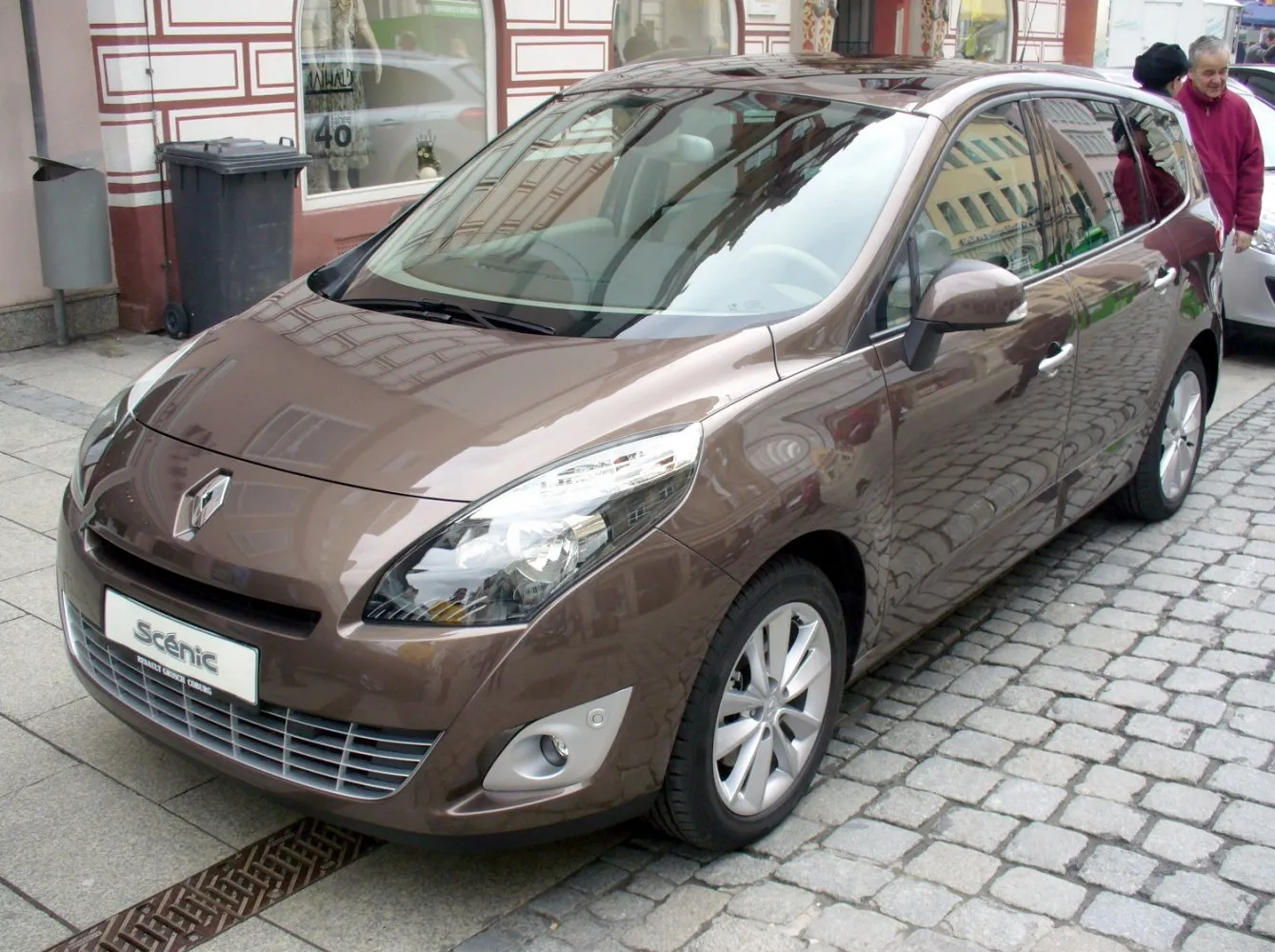

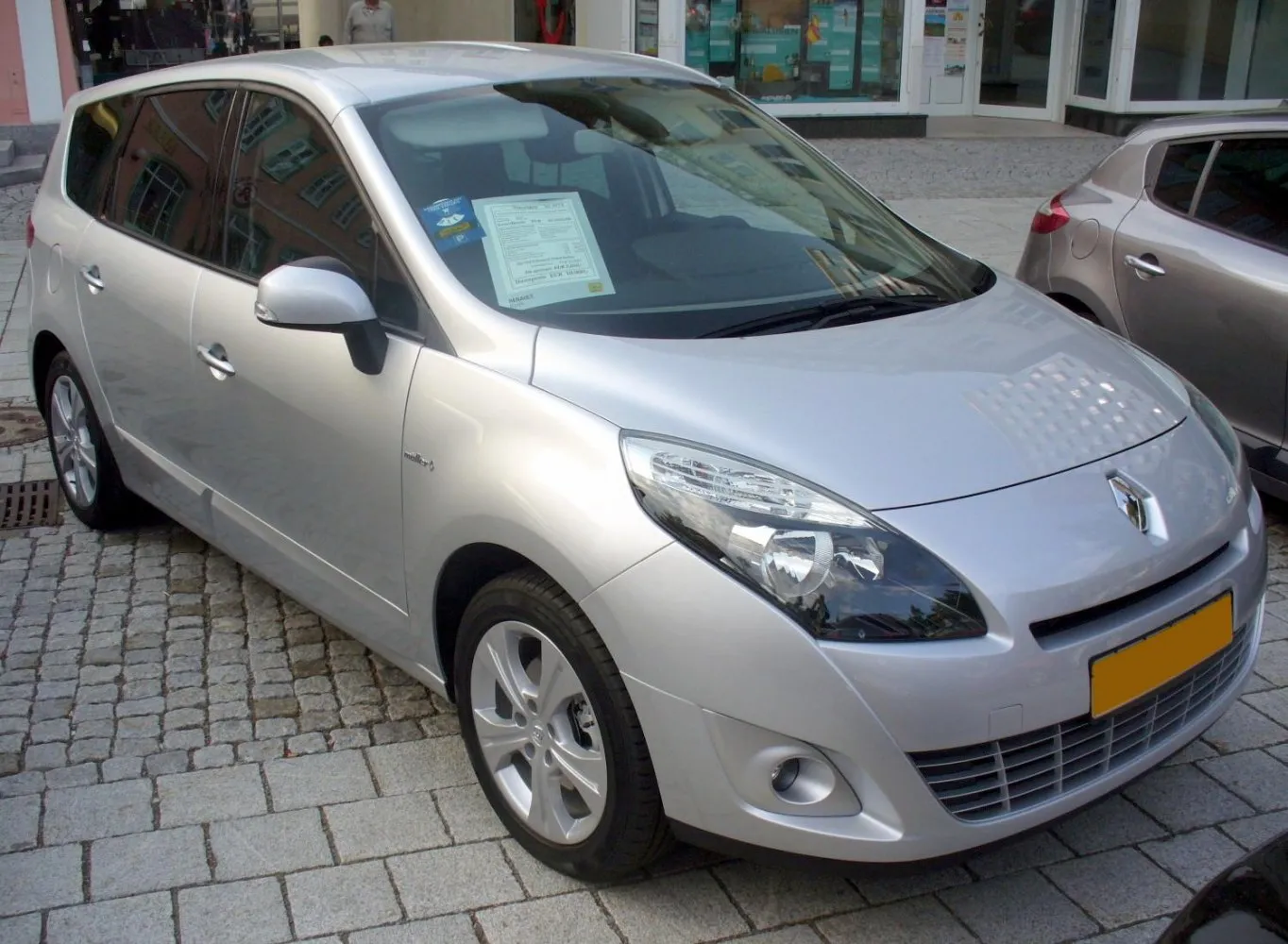

Vehicle photos
1 of 5
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
20 versions · 6 Gasoline · 12 Diesel fuel · 2 Gasoline / Ethanol - E85
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
2.0 16V (140 KM) CVT
Gasoline · 2009–2011
- Engine power
- 140 KM
- Torque
- 195 Nm
- Engine displacement
- 1,997 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.8 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 2.0 16V (140 KM) CVT
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 10.8 s
- Fuel consumption - Urban cycle
- 10.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.2 l/100 km
- Fuel consumption - Combined cycle
- 7.7 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 183 g/km
Engine
- Engine model / code
- M4R
- Engine position
- Front, Transverse
- Engine displacement
- 1997 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 84 mm
- Piston stroke
- 90.1 mm
- Compression ratio
- 10.2
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.4 l
- Coolant capacity
- 6.8 l
- Power
- 140 KM @ 6000 obr./min
- Torque
- 195 Nm @ 3750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 564-702 l
- Maximum trunk capacity
- 1863 l
- Curb weight
- 1430 kg
- Gross weight
- 2128 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Type of automatic gearbox
- CVT
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 296 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205 /60 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.6 16V (110 KM)
Gasoline · 2009–2011
- Engine power
- 110 KM
- Torque
- 151 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12 s
- Maximum speed
- 185 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 1.6 16V (110 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 185 km/h
- Acceleration 0-100 km/h
- 12 s
- Fuel consumption - Urban cycle
- 9.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.1 l/100 km
- Fuel consumption - Combined cycle
- 7.5 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 177 g/km
Engine
- Engine model / code
- K4M
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 9.7
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 5.3 l
- Power
- 110 KM @ 6000 obr./min
- Torque
- 151 Nm @ 4250 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 564-702 l
- Maximum trunk capacity
- 1863 l
- Curb weight
- 1407 kg
- Gross weight
- 2067 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 740 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 296 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/ 60 R16; 205/55 R17
- Rim size
- 16; 17
- ABS
- yes
Selected engine version
1.4 TCe (130 KM)
Gasoline · 2009–2011
- Engine power
- 130 KM
- Torque
- 190 Nm
- Engine displacement
- 1,395 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.7 s
- Maximum speed
- 195 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 1.4 TCe (130 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 195 km/h
- Acceleration 0-100 km/h
- 10.7 s
- Fuel consumption - Urban cycle
- 9.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.8 l/100 km
- Fuel consumption - Combined cycle
- 7.1 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 168 g/km
Engine
- Engine model / code
- H4J
- Engine position
- Front, Transverse
- Engine displacement
- 1395 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 78 mm
- Piston stroke
- 73.1 mm
- Compression ratio
- 9.1
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 6.5 l
- Power
- 130 KM @ 5500 obr./min
- Torque
- 190 Nm @ 2250 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 564 l
- Maximum trunk capacity
- 1863 l
- Curb weight
- 1420 kg
- Gross weight
- 2080 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 745 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 296 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/60 R16; 205/55 R17
- Rim size
- 16; 17
- ABS
- yes
Selected engine version
1.5 dCi (110 KM) FAP
Diesel fuel · 2009–2011
- Engine power
- 110 KM
- Torque
- 240 Nm
- Engine displacement
- 1,461 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.4 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 1.5 dCi (110 KM) FAP
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 12.4 s
- Fuel consumption - Urban cycle
- 6.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.5 l/100 km
- Fuel consumption - Combined cycle
- 5.2 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 136 g/km
Engine
- Engine model / code
- K9K
- Engine position
- Front, Transverse
- Engine displacement
- 1461 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 15.2
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 6.5 l
- Power
- 110 KM @ 4000 obr./min
- Torque
- 240 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 564-702 l
- Maximum trunk capacity
- 1863 l
- Curb weight
- 1410 kg
- Gross weight
- 2121 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 740 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 296 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/60 R16; 205/55 R17
- Rim size
- 16; 17
- ABS
- yes
Selected engine version
1.9 dCi (130 KM) FAP
Diesel fuel · 2009–2011
- Engine power
- 130 KM
- Torque
- 300 Nm
- Engine displacement
- 1,870 cm³
- Fuel type
- Diesel fuel
- Maximum speed
- 195 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 1.9 dCi (130 KM) FAP
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 195 km/h
- Fuel consumption - Urban cycle
- 6.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.9 l/100 km
- Fuel consumption - Combined cycle
- 5.5 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 145 g/km
Engine
- Engine model / code
- F9Q
- Engine position
- Front, Transverse
- Engine displacement
- 1870 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 80 mm
- Piston stroke
- 93 mm
- Compression ratio
- 16.6
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5.1 l
- Coolant capacity
- 6.3 l
- Power
- 130 KM @ 3750 obr./min
- Torque
- 300 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 564-702 l
- Maximum trunk capacity
- 1863 l
- Curb weight
- 1503 kg
- Gross weight
- 2163 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 296 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/60 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
2.0 dCi (160 KM) FAP
Diesel fuel · 2009–2011
- Engine power
- 160 KM
- Torque
- 380 Nm
- Engine displacement
- 1,995 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.3 s
- Maximum speed
- 205 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 2.0 dCi (160 KM) FAP
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 9.3 s
- Fuel consumption - Urban cycle
- 8.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.6 l/100 km
- Fuel consumption - Combined cycle
- 6.6 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 173 g/km
Engine
- Engine model / code
- M9R
- Engine position
- Front, Transverse
- Engine displacement
- 1995 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 84 mm
- Piston stroke
- 90 mm
- Compression ratio
- 15.1
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Coolant capacity
- 7.2 l
- Power
- 160 KM @ 3750 obr./min
- Torque
- 380 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 564-702 l
- Maximum trunk capacity
- 1863 l
- Curb weight
- 1591 kg
- Gross weight
- 2251 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 320 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 290 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/50 R17 98V
- Rim size
- 7J x 17
- ABS
- yes
Selected engine version
2.0 dCi (150 KM) FAP Automatic
Diesel fuel · 2009–2011
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,995 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10 s
- Maximum speed
- 200 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 2.0 dCi (150 KM) FAP Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 200 km/h
- Acceleration 0-100 km/h
- 10 s
- Fuel consumption - Urban cycle
- 9.0 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.9 l/100 km
- Fuel consumption - Combined cycle
- 7.0 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 184 g/km
Engine
- Engine model / code
- M9R
- Engine position
- Front, Transverse
- Engine displacement
- 1995 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 84 mm
- Piston stroke
- 90 mm
- Compression ratio
- 15.1
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Coolant capacity
- 7.5 l
- Power
- 150 KM @ 3750 obr./min
- Torque
- 340 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 564-702 l
- Maximum trunk capacity
- 1863 l
- Curb weight
- 1610 kg
- Gross weight
- 2270 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 320 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 290 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/50 R17 98V
- Rim size
- 7J x 17
- ABS
- yes
Selected engine version
1.5 dCi (110 KM) FAP EDC
Diesel fuel · 2010–2011
- Engine power
- 110 KM
- Torque
- 240 Nm
- Engine displacement
- 1,461 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 13.6 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 1.5 dCi (110 KM) FAP EDC
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2010
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 13.6 s
- Fuel consumption - Urban cycle
- 5.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.5 l/100 km
- Fuel consumption - Combined cycle
- 5.0 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 130 g/km
Engine
- Engine model / code
- K9K
- Engine position
- Front, Transverse
- Engine displacement
- 1461 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 15.2
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 6.5 l
- Power
- 110 KM @ 4000 obr./min
- Torque
- 240 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 564-702 l
- Maximum trunk capacity
- 1863 l
- Curb weight
- 1486 kg
- Gross weight
- 2146 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- EDC
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 296 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/60 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.6 16V (110 KM) Ethanol
Gasoline / Ethanol - E85 · 2009–2010
- Engine power
- 110 KM
- Torque
- 151 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline / Ethanol - E85
- Acceleration 0-100 km/h
- 12 s
- Maximum speed
- 185 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 1.6 16V (110 KM) Ethanol
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2010
- Body type
- Minivan
- Number of seats
- 5
- Fuel type
- Gasoline / Ethanol - E85
Performance
- Maximum speed
- 185 km/h
- Acceleration 0-100 km/h
- 12 s
- Fuel consumption - Urban cycle
- 9.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.1 l/100 km
- Fuel consumption - Combined cycle
- 7.8 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 177 g/km
Engine
- Engine model / code
- K4M
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 9.7
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 5.3 l
- Power
- 110 KM @ 6000 obr./min
- Torque
- 151 Nm @ 3750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 564-702 l
- Maximum trunk capacity
- 1863 l
- Curb weight
- 1407 kg
- Gross weight
- 2067 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 740 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 296 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/ 60 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.6 Energy dCi (130 KM) S&S
Diesel fuel · 2011
- Engine power
- 130 KM
- Torque
- 320 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10.5 s
- Maximum speed
- 195 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 1.6 Energy dCi (130 KM) S&S
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2011
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 195 km/h
- Acceleration 0-100 km/h
- 10.5 s
- Fuel consumption - Urban cycle
- 5.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.1 l/100 km
- Fuel consumption - Combined cycle
- 4.5 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 117 g/km
Engine
- Engine model / code
- R9M
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Engine oil capacity
- 5.5 l
- Coolant capacity
- 6.7 l
- Power
- 130 KM @ 4000 obr./min
- Torque
- 320 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 564-702 l
- Maximum trunk capacity
- 1863 l
- Curb weight
- 1529 kg
- Gross weight
- 2179 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 296 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/60 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.6 16V (110 KM) 7 Seat
Gasoline · 2009–2011
- Engine power
- 110 KM
- Torque
- 151 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.6 s
- Maximum speed
- 185 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 1.6 16V (110 KM) 7 Seat
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Gasoline
Performance
- Maximum speed
- 185 km/h
- Acceleration 0-100 km/h
- 12.6 s
- Fuel consumption - Urban cycle
- 9.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.1 l/100 km
- Fuel consumption - Combined cycle
- 7.5 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 177 g/km
Engine
- Engine model / code
- K4M
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 9.7
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 5.3 l
- Power
- 110 KM @ 6000 obr./min
- Torque
- 151 Nm @ 4250 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 208 l
- Maximum trunk capacity
- 2063 l
- Curb weight
- 1444 kg
- Gross weight
- 2074 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 296 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/55 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
1.4 TCe (130 KM) 7 Seat
Gasoline · 2009–2011
- Engine power
- 130 KM
- Torque
- 190 Nm
- Engine displacement
- 1,395 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.5 s
- Maximum speed
- 195 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 1.4 TCe (130 KM) 7 Seat
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Gasoline
Performance
- Maximum speed
- 195 km/h
- Acceleration 0-100 km/h
- 11.5 s
- Fuel consumption - Urban cycle
- 9.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.0 l/100 km
- Fuel consumption - Combined cycle
- 7.3 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 173 g/km
Engine
- Engine model / code
- H4J
- Engine position
- Front, Transverse
- Engine displacement
- 1395 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 78 mm
- Piston stroke
- 73.1 mm
- Compression ratio
- 9.1
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 6.5 l
- Power
- 130 KM @ 5500 obr./min
- Torque
- 190 Nm @ 2250 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 208 l
- Maximum trunk capacity
- 2063 l
- Curb weight
- 1430 kg
- Gross weight
- 2087 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 296 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/60 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 16V (140 KM) CVT 7 Seat
Gasoline · 2009–2011
- Engine power
- 140 KM
- Torque
- 195 Nm
- Engine displacement
- 1,997 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.4 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 2.0 16V (140 KM) CVT 7 Seat
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Gasoline
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 11.4 s
- Fuel consumption - Urban cycle
- 10.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.2 l/100 km
- Fuel consumption - Combined cycle
- 7.7 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 183 g/km
Engine
- Engine model / code
- M4R
- Engine position
- Front, Transverse
- Engine displacement
- 1997 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 84 mm
- Piston stroke
- 90.1 mm
- Compression ratio
- 10.2
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.4 l
- Coolant capacity
- 6.8 l
- Power
- 140 KM @ 6000 obr./min
- Torque
- 195 Nm @ 3750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 208 l
- Maximum trunk capacity
- 2063 l
- Curb weight
- 1505 kg
- Gross weight
- 2135 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Type of automatic gearbox
- CVT
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 296 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/60 R16 96H
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
1.5 dCi (110 KM) FAP 7 Seat
Diesel fuel · 2009–2011
- Engine power
- 110 KM
- Torque
- 240 Nm
- Engine displacement
- 1,461 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.5 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 1.5 dCi (110 KM) FAP 7 Seat
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 12.5 s
- Fuel consumption - Urban cycle
- 6.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.6 l/100 km
- Fuel consumption - Combined cycle
- 5.3 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 138 g/km
Engine
- Engine model / code
- K9K
- Engine position
- Front, Transverse
- Engine displacement
- 1461 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 15.2
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 6.5 l
- Power
- 110 KM @ 4000 obr./min
- Torque
- 240 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 208 l
- Maximum trunk capacity
- 2063 l
- Curb weight
- 1430 kg
- Gross weight
- 2128 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 296 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/60 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.9 dCi (130 KM) FAP 7 Seat
Diesel fuel · 2009–2011
- Engine power
- 130 KM
- Torque
- 300 Nm
- Engine displacement
- 1,870 cm³
- Fuel type
- Diesel fuel
- Maximum speed
- 195 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 1.9 dCi (130 KM) FAP 7 Seat
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 195 km/h
- Fuel consumption - Urban cycle
- 6.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.0 l/100 km
- Fuel consumption - Combined cycle
- 5.6 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 149 g/km
Engine
- Engine model / code
- F9Q
- Engine position
- Front, Transverse
- Engine displacement
- 1870 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 80 mm
- Piston stroke
- 93 mm
- Compression ratio
- 16.6
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5.1 l
- Coolant capacity
- 6.3 l
- Power
- 130 KM @ 3750 obr./min
- Torque
- 300 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 208 l
- Maximum trunk capacity
- 2063 l
- Curb weight
- 1540 kg
- Gross weight
- 2170 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 296 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/60 R16; 205/55 R17
- Rim size
- 16; 17
- ABS
- yes
Selected engine version
2.0 dCi (160 KM) FAP 7 Seat
Diesel fuel · 2009–2011
- Engine power
- 160 KM
- Torque
- 380 Nm
- Engine displacement
- 1,995 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.5 s
- Maximum speed
- 205 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 2.0 dCi (160 KM) FAP 7 Seat
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 9.5 s
- Fuel consumption - Urban cycle
- 8.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.6 l/100 km
- Fuel consumption - Combined cycle
- 6.6 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 173 g/km
Engine
- Engine model / code
- M9R
- Engine position
- Front, Transverse
- Engine displacement
- 1995 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 84 mm
- Piston stroke
- 90 mm
- Compression ratio
- 15.1
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Coolant capacity
- 7.2 l
- Power
- 160 KM @ 3750 obr./min
- Torque
- 380 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 208 l
- Maximum trunk capacity
- 2063 l
- Curb weight
- 1628 kg
- Gross weight
- 2251 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 320 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 290 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/50 R 17
- Rim size
- 7J x 17
- ABS
- yes
Selected engine version
2.0 dCi (150 KM) FAP Automatic 7 Seat
Diesel fuel · 2009–2011
- Engine power
- 150 KM
- Torque
- 340 Nm
- Engine displacement
- 1,995 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10.1 s
- Maximum speed
- 200 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 2.0 dCi (150 KM) FAP Automatic 7 Seat
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 200 km/h
- Acceleration 0-100 km/h
- 10.1 s
- Fuel consumption - Urban cycle
- 9.0 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.9 l/100 km
- Fuel consumption - Combined cycle
- 7.0 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 184 g/km
Engine
- Engine model / code
- M9R
- Engine position
- Front, Transverse
- Engine displacement
- 1995 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 84 mm
- Piston stroke
- 90 mm
- Compression ratio
- 15.1
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.4 l
- Coolant capacity
- 7.5 l
- Power
- 150 KM @ 3750 obr./min
- Torque
- 340 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 208 l
- Maximum trunk capacity
- 2063 l
- Curb weight
- 1647 kg
- Gross weight
- 2277 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 320 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 290 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/50 R17 98V
- Rim size
- 7J x 17
- ABS
- yes
Selected engine version
1.5 dCi (110 KM) FAP EDC 7 Seat
Diesel fuel · 2010–2011
- Engine power
- 110 KM
- Torque
- 240 Nm
- Engine displacement
- 1,461 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 14.3 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 1.5 dCi (110 KM) FAP EDC 7 Seat
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2010
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 14.3 s
- Fuel consumption - Urban cycle
- 5.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.5 l/100 km
- Fuel consumption - Combined cycle
- 5.0 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 130 g/km
Engine
- Engine model / code
- K9K
- Engine position
- Front, Transverse
- Engine displacement
- 1461 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 15.2
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 6.5 l
- Power
- 110 KM @ 4000 obr./min
- Torque
- 240 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 208 l
- Maximum trunk capacity
- 2063 l
- Curb weight
- 1523 kg
- Gross weight
- 2153 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- EDC
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 296 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/60 R16; 205/ 55 R17
- Rim size
- 16; 17
- ABS
- yes
Selected engine version
1.6 16V (110 KM) Ethanol 7 Seat
Gasoline / Ethanol - E85 · 2009–2010
- Engine power
- 110 KM
- Torque
- 151 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline / Ethanol - E85
- Acceleration 0-100 km/h
- 12.6 s
- Maximum speed
- 185 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 1.6 16V (110 KM) Ethanol 7 Seat
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2009
- End of production
- 2010
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Gasoline / Ethanol - E85
Performance
- Maximum speed
- 185 km/h
- Acceleration 0-100 km/h
- 12.6 s
- Fuel consumption - Urban cycle
- 9.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.1 l/100 km
- Fuel consumption - Combined cycle
- 7.8 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 177 g/km
Engine
- Engine model / code
- K4M
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 9.7
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 5.3 l
- Power
- 110 KM @ 6000 obr./min
- Torque
- 151 Nm @ 3750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 208 l
- Maximum trunk capacity
- 2063 l
- Curb weight
- 1444 kg
- Gross weight
- 2074 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 296 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/ 60 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.6 Energy dCi (130 KM) S&S 7 Seat
Diesel fuel · 2011
- Engine power
- 130 KM
- Torque
- 320 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.1 s
- Maximum speed
- 195 km/h
On this page
Check vehicle history
Basic version information
Renault Scenic Grand Scenic III (Phase I)- Brand
- Renault
- Model
- Scenic
- Version
- Grand Scenic III (Phase I)
- Engine
- 1.6 Energy dCi (130 KM) S&S 7 Seat
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2011
- End of production
- 2011
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 195 km/h
- Acceleration 0-100 km/h
- 11.1 s
- Fuel consumption - Urban cycle
- 5.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.1 l/100 km
- Fuel consumption - Combined cycle
- 4.5 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 117 g/km
Engine
- Engine model / code
- R9M
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Engine oil capacity
- 5.5 l
- Coolant capacity
- 6.7 l
- Power
- 130 KM @ 4000 obr./min
- Torque
- 320 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 208 l
- Maximum trunk capacity
- 2063 l
- Curb weight
- 1534 kg
- Gross weight
- 2225 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4560 mm
- Width
- 1845 mm
- Width with unfolded mirrors
- 2077 mm
- Height
- 1675 mm
- Wheelbase
- 2769 mm
- Front track
- 1536 mm
- Rear track
- 1539 mm
- Ground clearance
- 120 mm
- Front overhang
- 888 mm
- Rear overhang
- 903 mm
- Turning circle
- 11.29 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Torsion beam
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 296 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/60 R16; 205/55 R17
- Rim size
- 16; 17
- ABS
- yes
