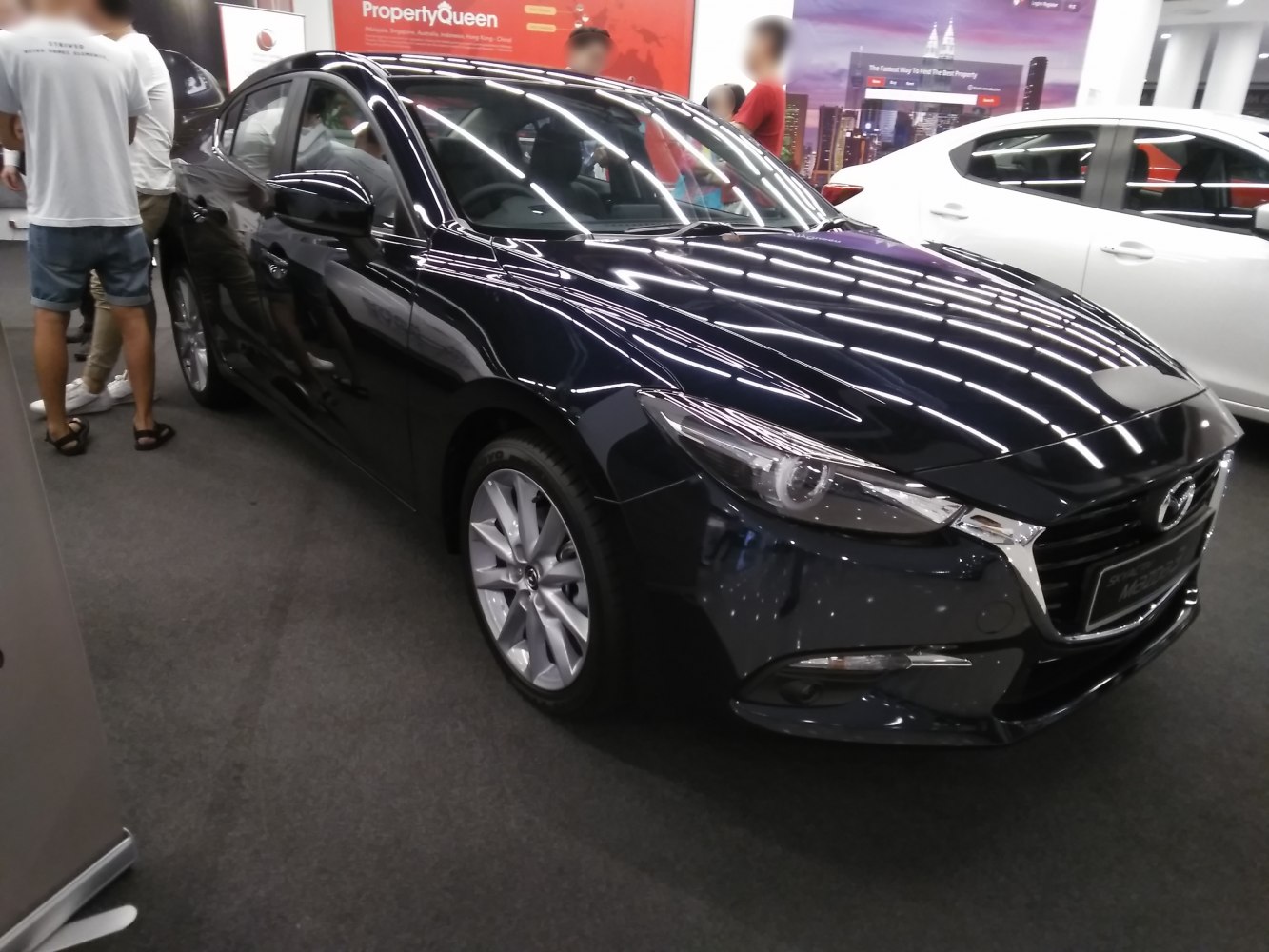

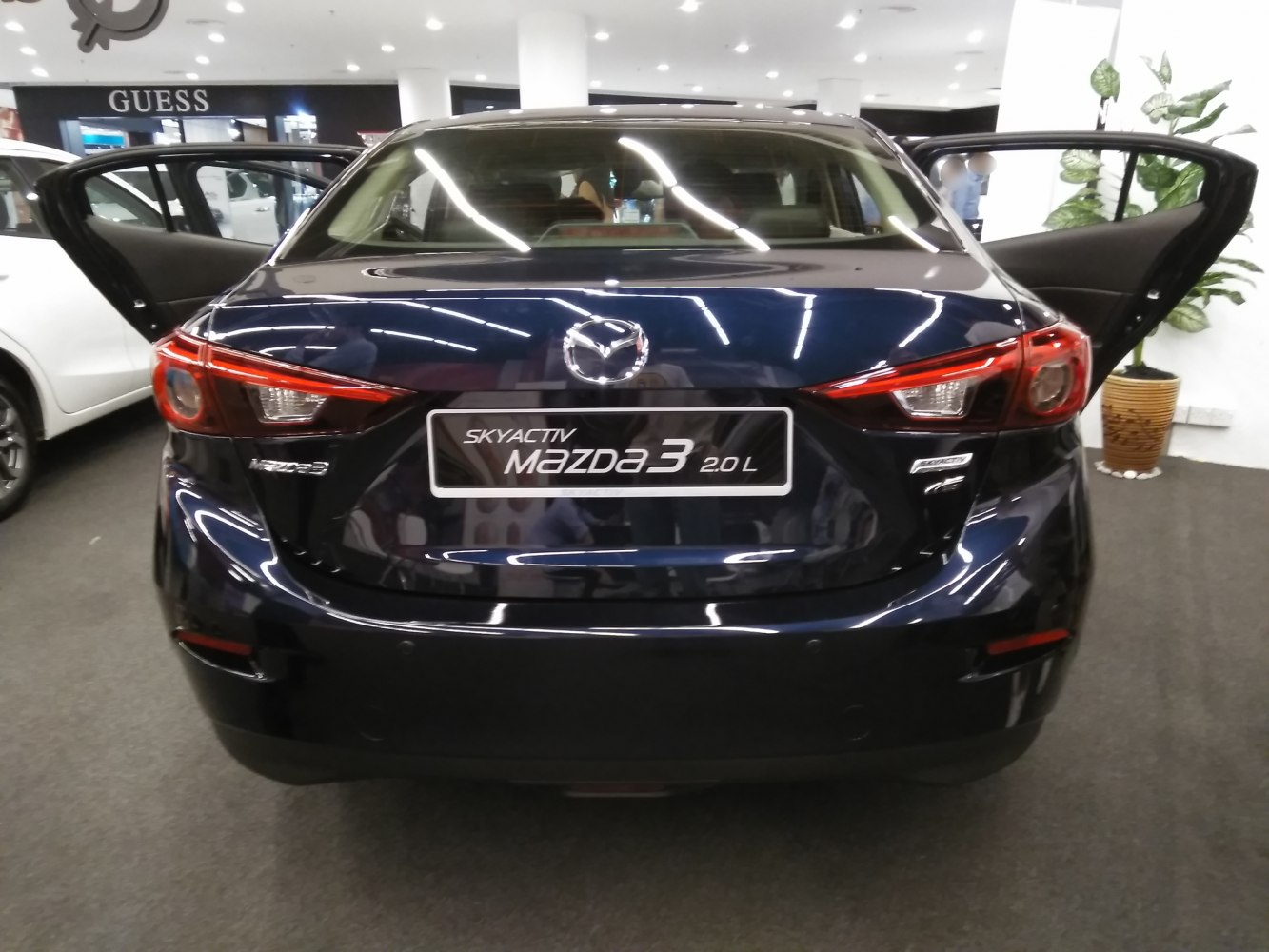

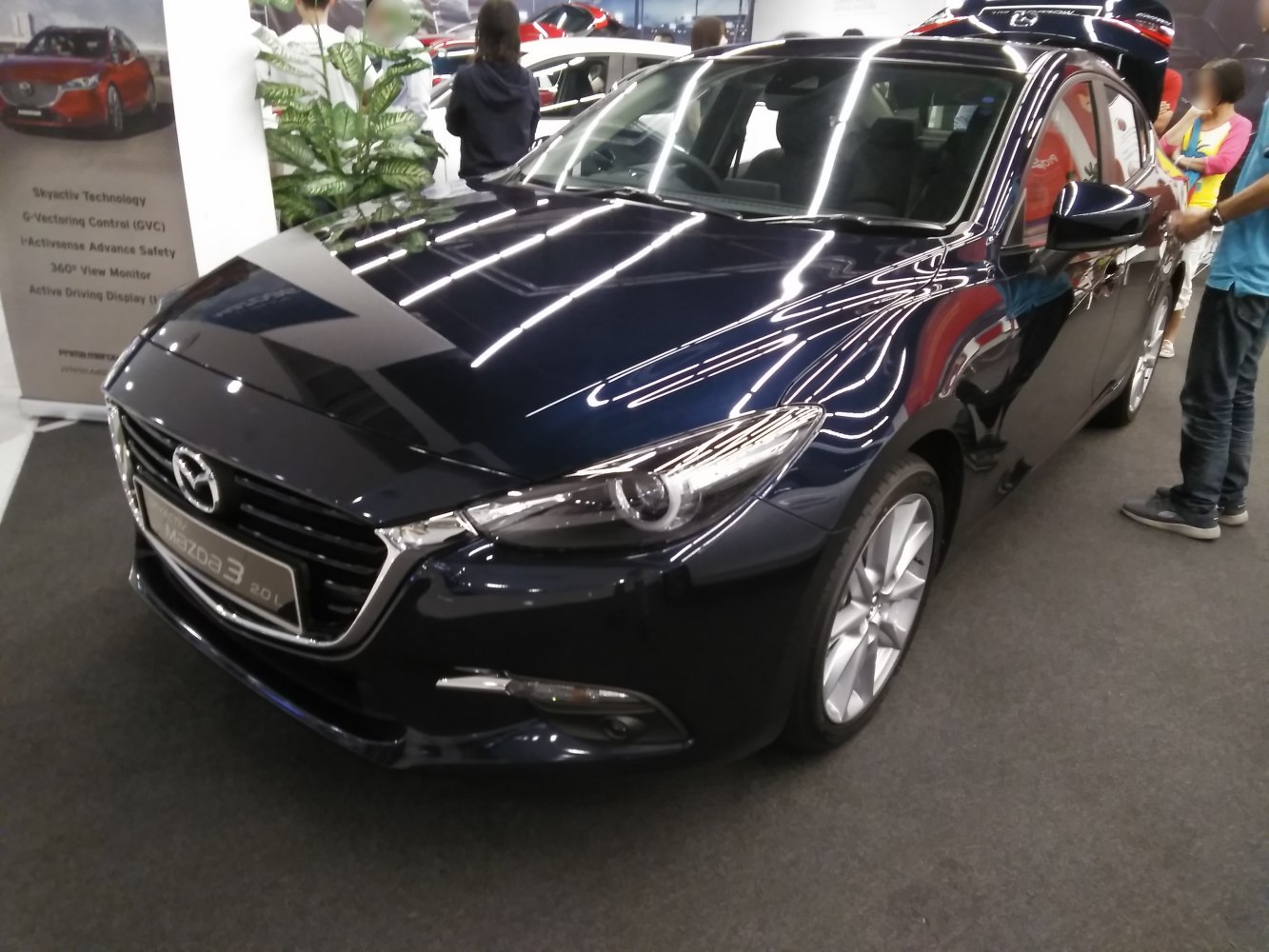

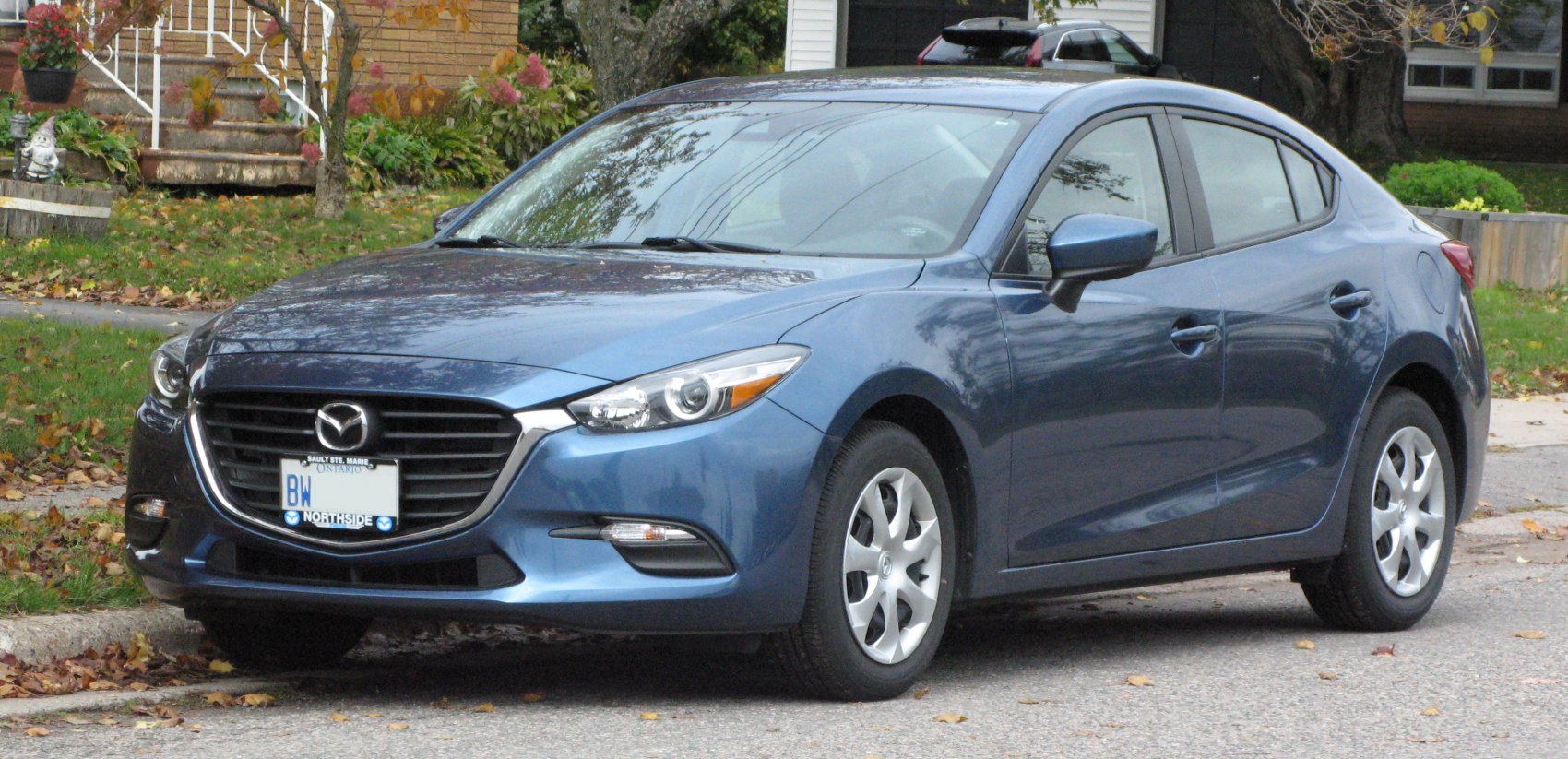

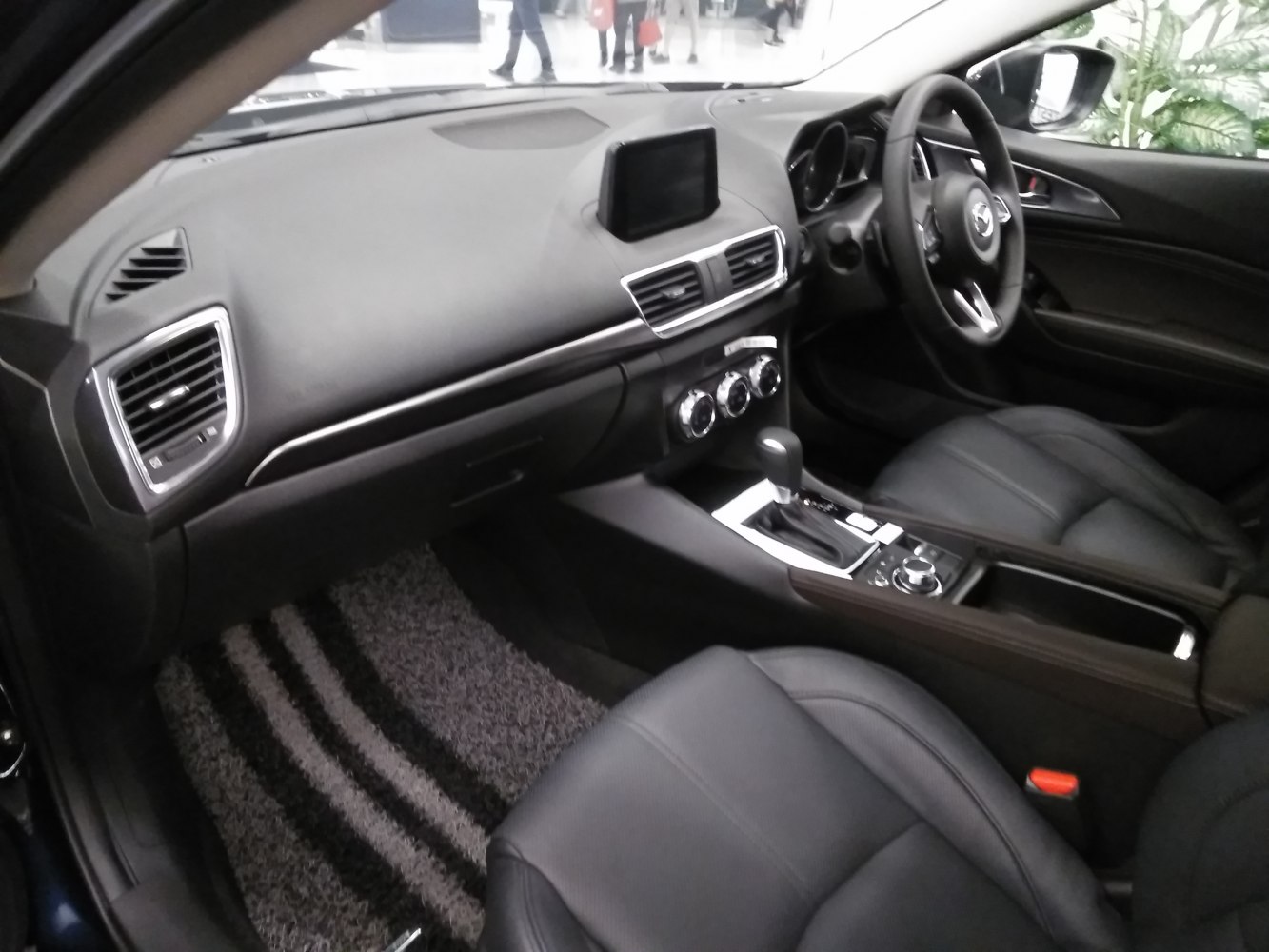

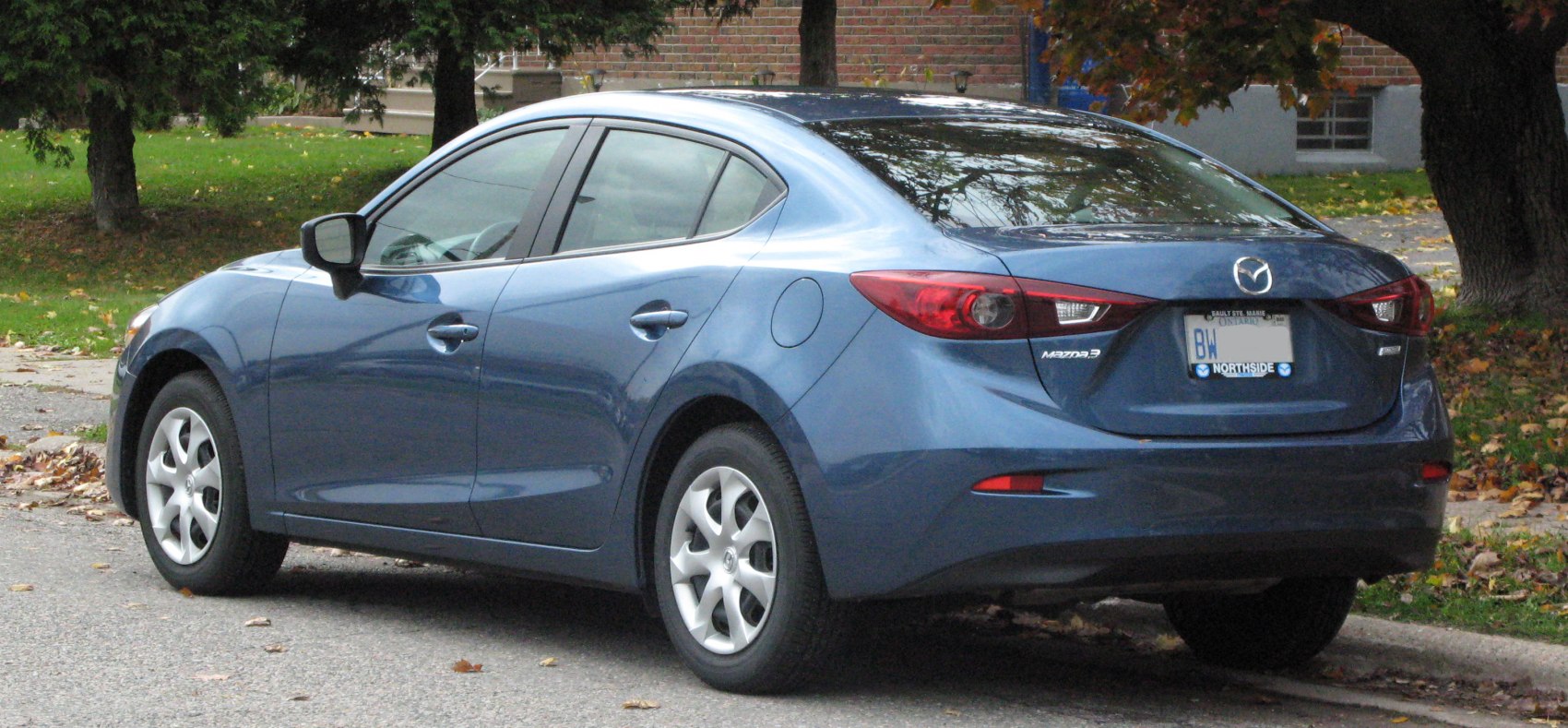

Vehicle photos
1 of 6
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
8 versions · 6 Gasoline · 2 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 2.0 SkyActiv-G (120 KM) Skyactiv-Drive Selected | Gasoline | 120 KM | 2017–2018 |
| 2.0 SkyActiv-G (120 KM) Selected | Gasoline | 120 KM | 2017–2018 |
| 1.5 SkyActiv-D (105 KM) Selected | Diesel fuel | 105 KM | 2017–2018 |
| 2.2 SkyActiv-D (150 KM) Selected | Diesel fuel | 150 KM | 2017–2018 |
| 2.0 SkyActiv-G (155 KM) Selected | Gasoline | 155 KM | 2018 |
| 2.0 SkyActiv-G (155 KM) Skyactiv-Drive Selected | Gasoline | 155 KM | 2018 |
| 2.5 SkyActiv-G (184 KM) Selected | Gasoline | 184 KM | 2018 |
| 2.5 SkyActiv-G (184 KM) Skyactiv-Drive Selected | Gasoline | 184 KM | 2018 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
2.0 SkyActiv-G (120 KM) Skyactiv-Drive
Gasoline · 2017–2018
- Engine power
- 120 KM
- Torque
- 210 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.3 s
- Maximum speed
- 198 km/h
On this page
Check vehicle history
Basic version information
Mazda 3 3 III Sedan (BM, facelift 2017)- Brand
- Mazda
- Model
- 3
- Version
- 3 III Sedan (BM, facelift 2017)
- Engine
- 2.0 SkyActiv-G (120 KM) Skyactiv-Drive
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 198 km/h
- Acceleration 0-100 km/h
- 10.3 s
- Fuel consumption - Urban cycle
- 7 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.8 l/100 km
- Fuel consumption - Combined cycle
- 5.6 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 128 g/km
Engine
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 83.5 mm
- Piston stroke
- 91.2 mm
- Compression ratio
- 14
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.2 l
- Coolant capacity
- 6.3 l
- Power
- 120 KM @ 6000 obr./min
- Torque
- 210 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 51 l
- Minimum trunk capacity
- 419 l
- Curb weight
- 1240-1324 kg
- Gross weight
- 1835 kg
- Roof load
- 75 kg
- Braked trailer load (8% slope start)
- 1600 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 600 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4580 mm
- Width
- 1795 mm
- Width with unfolded mirrors
- 2053 mm
- Height
- 1450 mm
- Wheelbase
- 2700 mm
- Ground clearance
- 155 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/60 R16; 215/45 R18
- Rim size
- 16; 18
- ABS
- yes
Selected engine version
2.0 SkyActiv-G (120 KM)
Gasoline · 2017–2018
- Engine power
- 120 KM
- Torque
- 210 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.8 s
- Maximum speed
- 198 km/h
On this page
Check vehicle history
Basic version information
Mazda 3 3 III Sedan (BM, facelift 2017)- Brand
- Mazda
- Model
- 3
- Version
- 3 III Sedan (BM, facelift 2017)
- Engine
- 2.0 SkyActiv-G (120 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 198 km/h
- Acceleration 0-100 km/h
- 8.8 s
- Fuel consumption - Urban cycle
- 6.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.3 l/100 km
- Fuel consumption - Combined cycle
- 5.1 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 119 g/km
Engine
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 83.5 mm
- Piston stroke
- 91.2 mm
- Compression ratio
- 14
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.2 l
- Coolant capacity
- 6.2 l
- Power
- 120 KM @ 6000 obr./min
- Torque
- 210 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 51 l
- Minimum trunk capacity
- 419 l
- Curb weight
- 1205-1289 kg
- Gross weight
- 1815 kg
- Roof load
- 75 kg
- Braked trailer load (8% slope start)
- 1600 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 600 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4580 mm
- Width
- 1795 mm
- Width with unfolded mirrors
- 2053 mm
- Height
- 1450 mm
- Wheelbase
- 2700 mm
- Ground clearance
- 155 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/60 R16; 215/45 R18
- Rim size
- 16; 18
- ABS
- yes
Selected engine version
1.5 SkyActiv-D (105 KM)
Diesel fuel · 2017–2018
- Engine power
- 105 KM
- Torque
- 270 Nm
- Engine displacement
- 1,499 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11 s
- Maximum speed
- 186 km/h
On this page
Check vehicle history
Basic version information
Mazda 3 3 III Sedan (BM, facelift 2017)- Brand
- Mazda
- Model
- 3
- Version
- 3 III Sedan (BM, facelift 2017)
- Engine
- 1.5 SkyActiv-D (105 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 186 km/h
- Acceleration 0-100 km/h
- 11 s
- Fuel consumption - Urban cycle
- 4.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.5 l/100 km
- Fuel consumption - Combined cycle
- 3.8 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 99 g/km
Engine
- Engine position
- Front, Transverse
- Engine displacement
- 1499 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76 mm
- Piston stroke
- 82.6 mm
- Compression ratio
- 14.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.1 l
- Coolant capacity
- 7 l
- Power
- 105 KM
- Torque
- 270 Nm @ 1600-2500 obr./min
Volume and weight
- Fuel tank
- 51 l
- Minimum trunk capacity
- 419 l
- Curb weight
- 1265-1347 kg
- Gross weight
- 1870 kg
- Roof load
- 75 kg
- Braked trailer load (8% slope start)
- 1300 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 600 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4580 mm
- Width
- 1795 mm
- Width with unfolded mirrors
- 2053 mm
- Height
- 1450 mm
- Wheelbase
- 2700 mm
- Ground clearance
- 155 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/60 R16; 215/45 R18
- Rim size
- 16; 18
- ABS
- yes
Selected engine version
2.2 SkyActiv-D (150 KM)
Diesel fuel · 2017–2018
- Engine power
- 150 KM
- Torque
- 380 Nm
- Engine displacement
- 2,191 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 8 s
- Maximum speed
- 213 km/h
On this page
Check vehicle history
Basic version information
Mazda 3 3 III Sedan (BM, facelift 2017)- Brand
- Mazda
- Model
- 3
- Version
- 3 III Sedan (BM, facelift 2017)
- Engine
- 2.2 SkyActiv-D (150 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 213 km/h
- Acceleration 0-100 km/h
- 8 s
- Fuel consumption - Urban cycle
- 4.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.5 l/100 km
- Fuel consumption - Combined cycle
- 3.9 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 104 g/km
Engine
- Engine position
- Front, Transverse
- Engine displacement
- 2191 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 94.3 mm
- Compression ratio
- 14
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.1 l
- Coolant capacity
- 8.5 l
- Power
- 150 KM @ 4500 obr./min
- Torque
- 380 Nm @ 1800 obr./min
Volume and weight
- Fuel tank
- 51 l
- Minimum trunk capacity
- 419 l
- Curb weight
- 1320-1404 kg
- Gross weight
- 1910 kg
- Roof load
- 75 kg
- Braked trailer load (8% slope start)
- 1800 kg
- Braked trailer load (12% slope start)
- 1500 kg
- Trailer load without brakes
- 650 kg
- Trailer nose weight
- 75 kg
Vehicle dimensions
- Length
- 4580 mm
- Width
- 1795 mm
- Width with unfolded mirrors
- 2053 mm
- Height
- 1450 mm
- Wheelbase
- 2700 mm
- Ground clearance
- 155 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/60 R16; 215/45 R18
- Rim size
- 16; 18
- ABS
- yes
Selected engine version
2.0 SkyActiv-G (155 KM)
Gasoline · 2018
- Engine power
- 155 KM
- Torque
- 203 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Mazda 3 3 III Sedan (BM, facelift 2017)- Brand
- Mazda
- Model
- 3
- Version
- 3 III Sedan (BM, facelift 2017)
- Engine
- 2.0 SkyActiv-G (155 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2018
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 8.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.4 l/100 km
- Fuel consumption - Combined cycle
- 7.6 l/100 km
Engine
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Maximum engine speed
- 6800 obr./min
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC-VVT
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 83.5 mm
- Piston stroke
- 91.2 mm
- Compression ratio
- 13
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.2 l
- Coolant capacity
- 6.2 l
- Power
- 155 KM @ 6000 obr./min
- Torque
- 203 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 351 l
- Curb weight
- 1315 kg
Vehicle dimensions
- Length
- 4580 mm
- Width
- 1796 mm
- Height
- 1455 mm
- Wheelbase
- 2700 mm
- Front track
- 1554 mm
- Rear track
- 1560 mm
- Ground clearance
- 155 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/60 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.0 SkyActiv-G (155 KM) Skyactiv-Drive
Gasoline · 2018
- Engine power
- 155 KM
- Torque
- 203 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Mazda 3 3 III Sedan (BM, facelift 2017)- Brand
- Mazda
- Model
- 3
- Version
- 3 III Sedan (BM, facelift 2017)
- Engine
- 2.0 SkyActiv-G (155 KM) Skyactiv-Drive
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2018
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 8.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.4 l/100 km
- Fuel consumption - Combined cycle
- 7.6 l/100 km
Engine
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Maximum engine speed
- 6800 obr./min
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC-VVT
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 83.5 mm
- Piston stroke
- 91.2 mm
- Compression ratio
- 13
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.2 l
- Coolant capacity
- 6.3 l
- Power
- 155 KM @ 6000 obr./min
- Torque
- 203 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 351 l
- Curb weight
- 1346 kg
Vehicle dimensions
- Length
- 4580 mm
- Width
- 1796 mm
- Height
- 1455 mm
- Wheelbase
- 2700 mm
- Front track
- 1554 mm
- Rear track
- 1560 mm
- Ground clearance
- 155 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/60 R16
- Rim size
- 6.5J x 16
- ABS
- yes
Selected engine version
2.5 SkyActiv-G (184 KM)
Gasoline · 2018
- Engine power
- 184 KM
- Torque
- 251 Nm
- Engine displacement
- 2,488 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Mazda 3 3 III Sedan (BM, facelift 2017)- Brand
- Mazda
- Model
- 3
- Version
- 3 III Sedan (BM, facelift 2017)
- Engine
- 2.5 SkyActiv-G (184 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2018
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 9.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.9 l/100 km
- Fuel consumption - Combined cycle
- 8.1 l/100 km
Engine
- Engine model / code
- PY-VPS
- Engine position
- Front, Transverse
- Engine displacement
- 2488 cm³
- Maximum engine speed
- 6500 obr./min
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC-VVT
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 89 mm
- Piston stroke
- 100 mm
- Compression ratio
- 13
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 6.5 l
- Power
- 184 KM @ 5700 obr./min
- Torque
- 251 Nm @ 3250 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 351 l
- Curb weight
- 1367 kg
Vehicle dimensions
- Length
- 4580 mm
- Width
- 1796 mm
- Height
- 1455 mm
- Wheelbase
- 2700 mm
- Front track
- 1554 mm
- Rear track
- 1560 mm
- Ground clearance
- 155 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/45 R18
- Rim size
- 7.0J x 18
- ABS
- yes
Selected engine version
2.5 SkyActiv-G (184 KM) Skyactiv-Drive
Gasoline · 2018
- Engine power
- 184 KM
- Torque
- 251 Nm
- Engine displacement
- 2,488 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Mazda 3 3 III Sedan (BM, facelift 2017)- Brand
- Mazda
- Model
- 3
- Version
- 3 III Sedan (BM, facelift 2017)
- Engine
- 2.5 SkyActiv-G (184 KM) Skyactiv-Drive
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2018
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 8.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.6 l/100 km
- Fuel consumption - Combined cycle
- 7.8 l/100 km
Engine
- Engine model / code
- PY-VPS
- Engine position
- Front, Transverse
- Engine displacement
- 2488 cm³
- Maximum engine speed
- 6500 obr./min
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC-VVT
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 89 mm
- Piston stroke
- 100 mm
- Compression ratio
- 13
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 6.5 l
- Power
- 184 KM @ 5700 obr./min
- Torque
- 251 Nm @ 3250 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 351 l
- Curb weight
- 1406 kg
Vehicle dimensions
- Length
- 4580 mm
- Width
- 1796 mm
- Height
- 1455 mm
- Wheelbase
- 2700 mm
- Front track
- 1554 mm
- Rear track
- 1560 mm
- Ground clearance
- 155 mm
- Turning circle
- 10.6 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/45 R18
- Rim size
- 7.0J x 18
- ABS
- yes
