Vehicle specifications
Kia Carnival Grand III (facelift 2018)
Compare all 1 engine versions of the Kia Carnival Grand Carnival III (facelift 2018), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Kia Carnival Grand III (facelift 2018)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

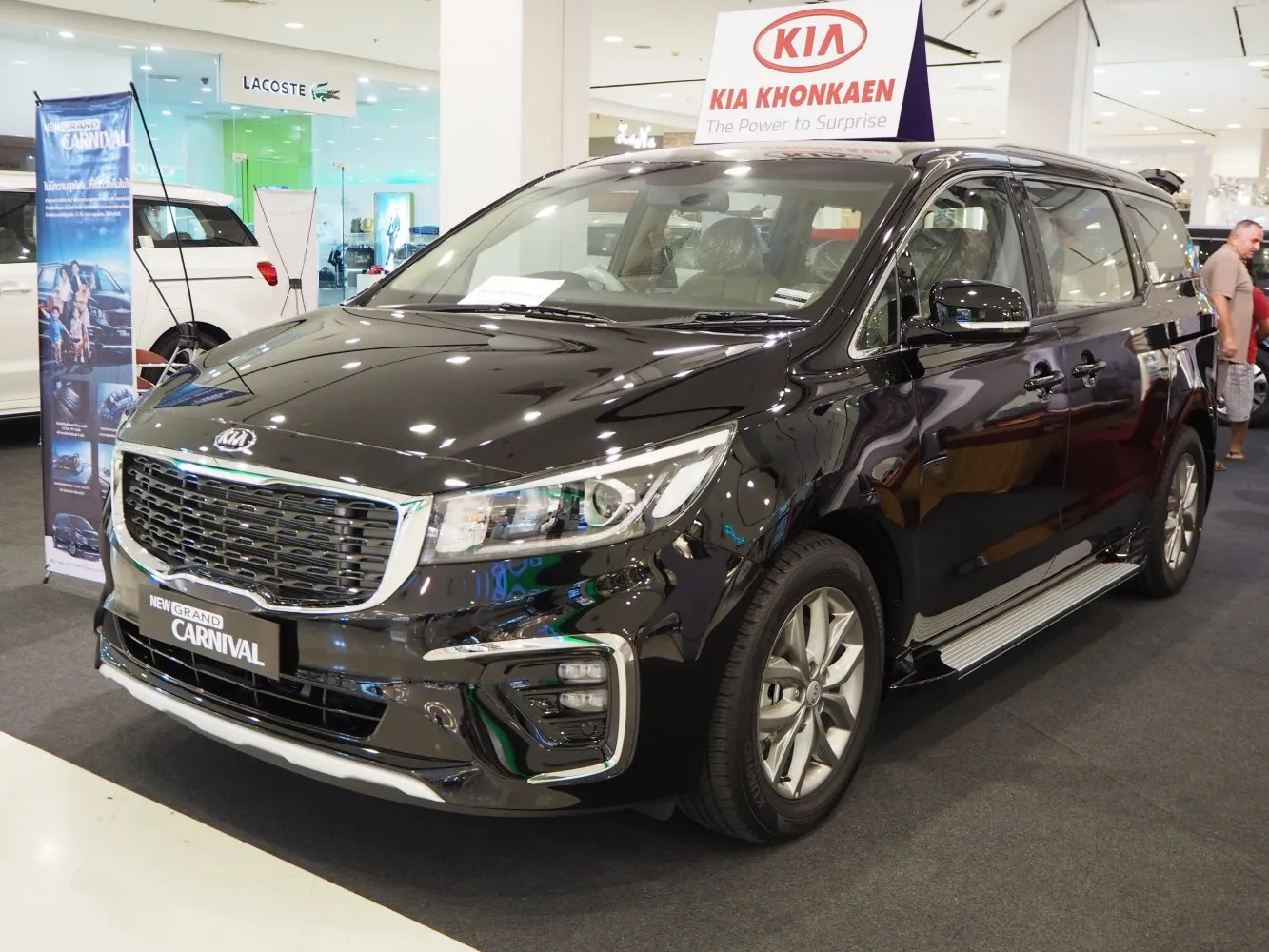

Vehicle photos
View larger Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
1 versions · 1 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 3.3 V6 (270 KM) Automatic Selected | Gasoline | 270 KM | 2018–2020 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
3.3 V6 (270 KM) Automatic
Gasoline · 2018–2020
- Engine power
- 270 KM
- Engine displacement
- 3,342 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Kia Carnival Grand Carnival III (facelift 2018)- Brand
- Kia
- Model
- Carnival
- Version
- Grand Carnival III (facelift 2018)
- Engine
- 3.3 V6 (270 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2018
- End of production
- 2020
- Body type
- Minivan
- Number of seats
- 8-11
- Fuel type
- Gasoline
Engine
- Engine model / code
- G6DF
- Engine position
- Front, Longitudinal
- Engine displacement
- 3342 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 92 mm
- Piston stroke
- 83.8 mm
- Compression ratio
- 10.69
- Engine oil capacity
- 6 l
- Coolant capacity
- 11.5 l
- Power
- 270 KM @ 6400 obr./min
Volume and weight
- Fuel tank
- 80 l
- Curb weight
- kg
Vehicle dimensions
- Length
- 5115 mm
- Width
- 1985 mm
- Height
- 1740 mm
- Wheelbase
- 3060 mm
- Front track
- 1740-1745 mm
- Rear track
- 1747-1752 mm
- Ground clearance
- 171 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- Sportmatic
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Tire size
- 235/65 R17; 235/60 R18
- Rim size
- 17; 18
- ABS
- yes
