Jaguar XJ (X351 facelift 2015)
Compare all 8 engine versions of the Jaguar XJ XJ (X351 facelift 2015), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Jaguar XJ (X351 facelift 2015)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Jaguar XJ (X351 facelift 2015)?
See the places on a 3D model →- VIN number
- Inner wing / front wheel arch in engine compartment, right side

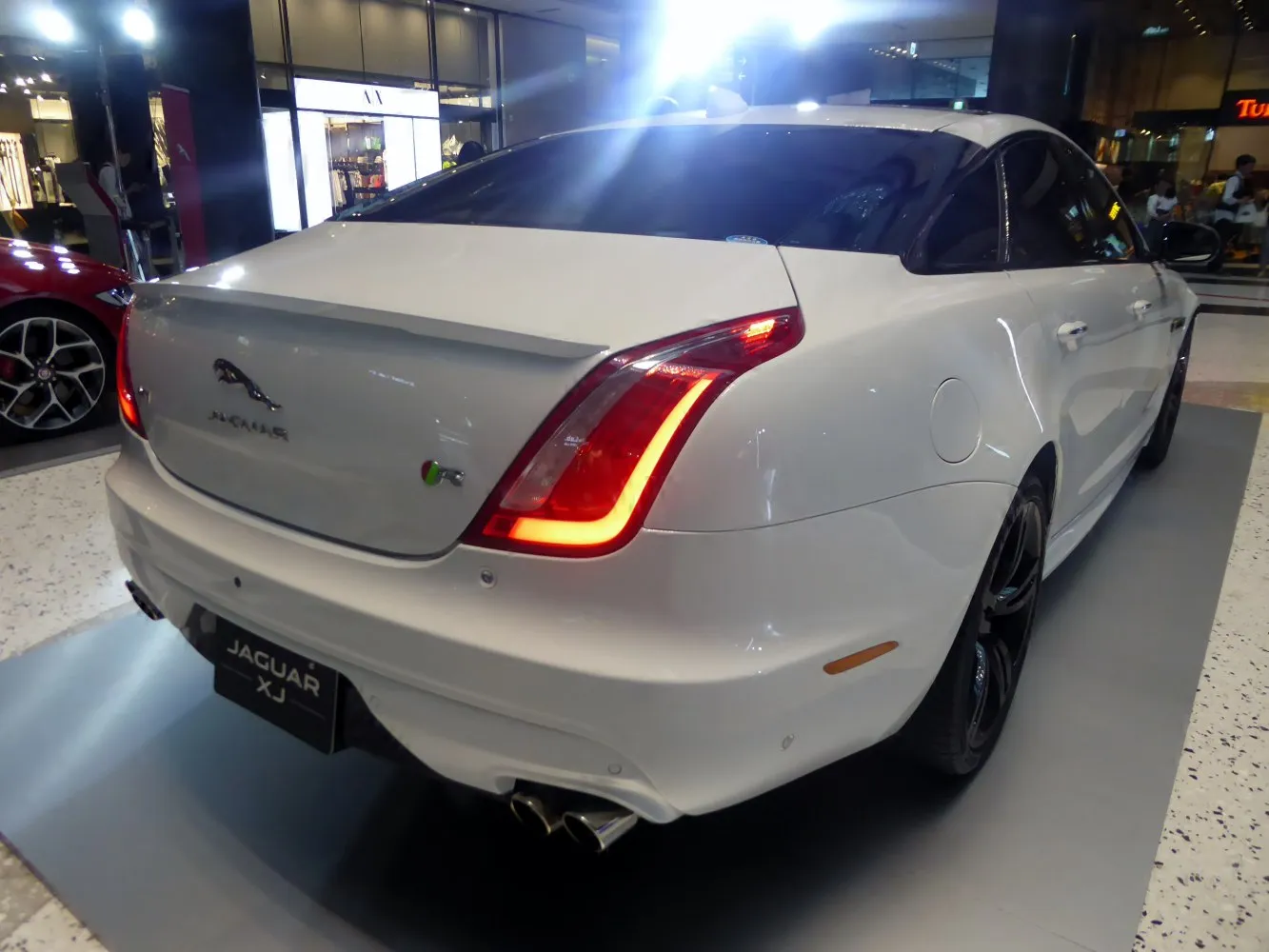

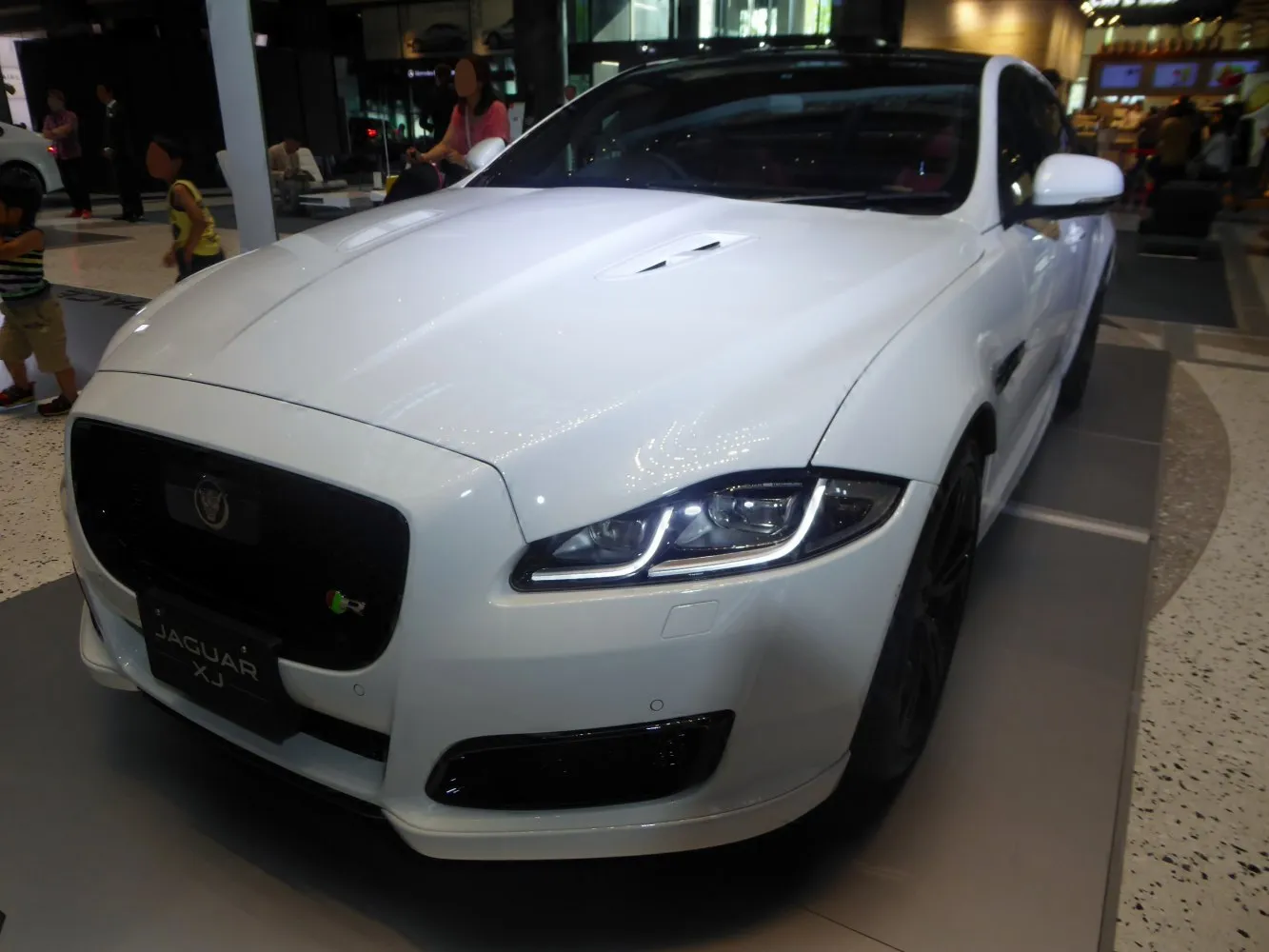

Vehicle photos
1 of 2
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
8 versions · 7 Gasoline · 1 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 3.0 V6 (340 KM) AWD Automatic Selected | Gasoline | 340 KM | 2015–2018 |
| 3.0d V6 (300 KM) Automatic Selected | Diesel fuel | 300 KM | 2015–2019 |
| R 5.0 V8 (550 KM) Automatic Selected | Gasoline | 550 KM | 2015–2017 |
| 2.0 (240 KM) Automatic Selected | Gasoline | 240 KM | 2015–2018 |
| 5.0 V8 (510 KM) Automatic Selected | Gasoline | 510 KM | 2015–2018 |
| 3.0 V6 (340 KM) Automatic Selected | Gasoline | 340 KM | 2015–2018 |
| 5.0 V8 (470 KM) Automatic Selected | Gasoline | 470 KM | 2015–2018 |
| R 5.0 V8 (575 KM) Automatic Selected | Gasoline | 575 KM | 2017–2018 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
3.0 V6 (340 KM) AWD Automatic
Gasoline · 2015–2018
- Engine power
- 340 KM
- Torque
- 450 Nm
- Engine displacement
- 2,995 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 6.4 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Jaguar XJ XJ (X351 facelift 2015)- Brand
- Jaguar
- Model
- XJ
- Version
- XJ (X351 facelift 2015)
- Engine
- 3.0 V6 (340 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2015
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 6.4 s
- Fuel consumption - Urban cycle
- 13.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.6 l/100 km
- Fuel consumption - Combined cycle
- 9.8 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 234 g/km
Engine
- Engine model / code
- 306PS
- Engine position
- Front, Longitudinal
- Engine displacement
- 2995 cm³
- Fuel injection system
- Direct injection
- Engine type
- Compressor, Intercooler
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 84.5 mm
- Piston stroke
- 89 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6.5 l
- Coolant capacity
- 8.6 l
- Power
- 340 KM @ 6500 obr./min
- Torque
- 450 Nm @ 3500-5000 obr./min
Volume and weight
- Fuel tank
- 80 l
- Curb weight
- 1865 kg
- Gross weight
- 2430 kg
Vehicle dimensions
- Length
- 5130 mm
- Width
- 1899 mm
- Width with unfolded mirrors
- 2105 mm
- Height
- 1460 mm
- Wheelbase
- 3032 mm
- Front track
- 1626 mm
- Rear track
- 1604 mm
- Turning circle
- 12.4 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 8
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
3.0d V6 (300 KM) Automatic
Diesel fuel · 2015–2019
- Engine power
- 300 KM
- Torque
- 700 Nm
- Engine displacement
- 2,993 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 6.2 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Jaguar XJ XJ (X351 facelift 2015)- Brand
- Jaguar
- Model
- XJ
- Version
- XJ (X351 facelift 2015)
- Engine
- 3.0d V6 (300 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2015
- End of production
- 2019
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 6.2 s
- Fuel consumption - Urban cycle
- 7 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.2 l/100 km
- Fuel consumption - Combined cycle
- 5.7 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 149 g/km
Engine
- Engine model / code
- 306DT
- Engine position
- Front, Longitudinal
- Engine displacement
- 2993 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 84 mm
- Piston stroke
- 90 mm
- Compression ratio
- 16.1
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6.6 l
- Coolant capacity
- 9.7 l
- Power
- 300 KM @ 4000 obr./min
- Torque
- 700 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 77 l
- Curb weight
- 1835 kg
- Gross weight
- 2400 kg
Vehicle dimensions
- Length
- 5130 mm
- Width
- 1899 mm
- Width with unfolded mirrors
- 2105 mm
- Height
- 1460 mm
- Wheelbase
- 3032 mm
- Front track
- 1626 mm
- Rear track
- 1604 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 8
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
R 5.0 V8 (550 KM) Automatic
Gasoline · 2015–2017
- Engine power
- 550 KM
- Torque
- 680 Nm
- Engine displacement
- 5,000 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 4.6 s
- Maximum speed
- 280 km/h
On this page
Check vehicle history
Basic version information
Jaguar XJ XJ (X351 facelift 2015)- Brand
- Jaguar
- Model
- XJ
- Version
- XJ (X351 facelift 2015)
- Engine
- R 5.0 V8 (550 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2015
- End of production
- 2017
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 280 km/h
- Acceleration 0-100 km/h
- 4.6 s
- Fuel consumption - Urban cycle
- 16.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.2 l/100 km
- Fuel consumption - Combined cycle
- 11.1 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 264 g/km
Engine
- Engine model / code
- 508PS
- Engine position
- Front, Longitudinal
- Engine displacement
- 5000 cm³
- Fuel injection system
- Direct injection
- Engine type
- Compressor, Intercooler
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 92.5 mm
- Piston stroke
- 93 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.25 l
- Coolant capacity
- 8.6 l
- Power
- 550 KM @ 6000-6500 obr./min
- Torque
- 680 Nm @ 3500-4000 obr./min
Volume and weight
- Fuel tank
- 80 l
- Curb weight
- 1875 kg
- Gross weight
- 2400 kg
Vehicle dimensions
- Length
- 5130 mm
- Width
- 1899 mm
- Width with unfolded mirrors
- 2105 mm
- Height
- 1460 mm
- Wheelbase
- 3032 mm
- Front track
- 1626 mm
- Rear track
- 1604 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 8
- Front suspension
- Double wishbone
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
2.0 (240 KM) Automatic
Gasoline · 2015–2018
- Engine power
- 240 KM
- Torque
- 340 Nm
- Engine displacement
- 1,999 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 7.9 s
- Maximum speed
- 241 km/h
On this page
Check vehicle history
Basic version information
Jaguar XJ XJ (X351 facelift 2015)- Brand
- Jaguar
- Model
- XJ
- Version
- XJ (X351 facelift 2015)
- Engine
- 2.0 (240 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2015
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 241 km/h
- Acceleration 0-100 km/h
- 7.9 s
- Fuel consumption - Combined cycle
- 8.4 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 199 g/km
Engine
- Engine model / code
- EcoBoost/204PT
- Engine position
- Front, Longitudinal
- Engine displacement
- 1999 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 87.5 mm
- Piston stroke
- 83.1 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.4 l
- Coolant capacity
- 8.1 l
- Power
- 240 KM @ 5500 obr./min
- Torque
- 340 Nm @ 2000-4000 obr./min
Volume and weight
- Fuel tank
- 80 l
- Curb weight
- 1735 kg
Vehicle dimensions
- Length
- 5130 mm
- Width
- 1899 mm
- Width with unfolded mirrors
- 2105 mm
- Height
- 1460 mm
- Wheelbase
- 3032 mm
- Front track
- 1626 mm
- Rear track
- 1604 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 8
- Front suspension
- Double wishbone
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
5.0 V8 (510 KM) Automatic
Gasoline · 2015–2018
- Engine power
- 510 KM
- Torque
- 625 Nm
- Engine displacement
- 5,000 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 4.9 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Jaguar XJ XJ (X351 facelift 2015)- Brand
- Jaguar
- Model
- XJ
- Version
- XJ (X351 facelift 2015)
- Engine
- 5.0 V8 (510 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2015
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 4.9 s
- Fuel consumption - Combined cycle
- 11.1 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 264 g/km
Engine
- Engine model / code
- 508PS
- Engine position
- Front, Longitudinal
- Engine displacement
- 5000 cm³
- Fuel injection system
- Direct injection
- Engine type
- Compressor, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 92.5 mm
- Piston stroke
- 93 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.25 l
- Coolant capacity
- 8.6 l
- Power
- 510 KM @ 6000-6500 obr./min
- Torque
- 625 Nm @ 2500-5500 obr./min
Volume and weight
- Fuel tank
- 80 l
- Curb weight
- 1875 kg
Vehicle dimensions
- Length
- 5130 mm
- Width
- 1899 mm
- Width with unfolded mirrors
- 2105 mm
- Height
- 1460 mm
- Wheelbase
- 3032 mm
- Front track
- 1626 mm
- Rear track
- 1604 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 8
- Front suspension
- Double wishbone
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
3.0 V6 (340 KM) Automatic
Gasoline · 2015–2018
- Engine power
- 340 KM
- Torque
- 450 Nm
- Engine displacement
- 2,995 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 5.9 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Jaguar XJ XJ (X351 facelift 2015)- Brand
- Jaguar
- Model
- XJ
- Version
- XJ (X351 facelift 2015)
- Engine
- 3.0 V6 (340 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2015
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 5.9 s
- Fuel consumption - Combined cycle
- 9.1 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 211 g/km
Engine
- Engine model / code
- 306PS
- Engine position
- Front, Longitudinal
- Engine displacement
- 2995 cm³
- Fuel injection system
- Direct injection
- Engine type
- Compressor, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 84.5 mm
- Piston stroke
- 89 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.25 l
- Coolant capacity
- 8.6 l
- Power
- 340 KM @ 6500 obr./min
- Torque
- 450 Nm @ 3500-5000 obr./min
Volume and weight
- Fuel tank
- 80 l
- Curb weight
- 1765 kg
Vehicle dimensions
- Length
- 5130 mm
- Width
- 1899 mm
- Width with unfolded mirrors
- 2105 mm
- Height
- 1460 mm
- Wheelbase
- 3032 mm
- Front track
- 1626 mm
- Rear track
- 1604 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 8
- Front suspension
- Double wishbone
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
5.0 V8 (470 KM) Automatic
Gasoline · 2015–2018
- Engine power
- 470 KM
- Torque
- 575 Nm
- Engine displacement
- 5,000 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 5.2 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Jaguar XJ XJ (X351 facelift 2015)- Brand
- Jaguar
- Model
- XJ
- Version
- XJ (X351 facelift 2015)
- Engine
- 5.0 V8 (470 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2015
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 5.2 s
- Fuel consumption - Combined cycle
- 11.1 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 264 g/km
Engine
- Engine model / code
- 508PS
- Engine position
- Front, Longitudinal
- Engine displacement
- 5000 cm³
- Fuel injection system
- Direct injection
- Engine type
- Compressor, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 92.5 mm
- Piston stroke
- 93 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.25 l
- Coolant capacity
- 8.6 l
- Power
- 470 KM @ 6000-6500 obr./min
- Torque
- 575 Nm @ 2000-5500 obr./min
Volume and weight
- Fuel tank
- 80 l
- Curb weight
- 1875 kg
Vehicle dimensions
- Length
- 5130 mm
- Width
- 1899 mm
- Width with unfolded mirrors
- 2105 mm
- Height
- 1460 mm
- Wheelbase
- 3032 mm
- Front track
- 1626 mm
- Rear track
- 1604 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 8
- Front suspension
- Double wishbone
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
R 5.0 V8 (575 KM) Automatic
Gasoline · 2017–2018
- Engine power
- 575 KM
- Torque
- 700 Nm
- Engine displacement
- 5,000 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 4.4 s
- Maximum speed
- 300 km/h
On this page
Check vehicle history
Basic version information
Jaguar XJ XJ (X351 facelift 2015)- Brand
- Jaguar
- Model
- XJ
- Version
- XJ (X351 facelift 2015)
- Engine
- R 5.0 V8 (575 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 300 km/h
- Acceleration 0-100 km/h
- 4.4 s
- Fuel consumption - Combined cycle
- 11.1 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 264 g/km
Engine
- Engine model / code
- 508PS
- Engine position
- Front, Longitudinal
- Engine displacement
- 5000 cm³
- Fuel injection system
- Direct injection
- Engine type
- Compressor, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 92.5 mm
- Piston stroke
- 93 mm
- Compression ratio
- 9.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 7.25 l
- Coolant capacity
- 8.6 l
- Power
- 575 KM @ 6250-6500 obr./min
- Torque
- 700 Nm @ 3500-4500 obr./min
Volume and weight
- Fuel tank
- 80 l
- Curb weight
- 1875 kg
Vehicle dimensions
- Length
- 5130 mm
- Width
- 1899 mm
- Width with unfolded mirrors
- 2105 mm
- Height
- 1460 mm
- Wheelbase
- 3032 mm
- Front track
- 1626 mm
- Rear track
- 1604 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 8
- Front suspension
- Double wishbone
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
