Volvo S90 (2016)
Compare all 19 engine versions of the Volvo S90 S90 (2016), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Volvo S90 (2016)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

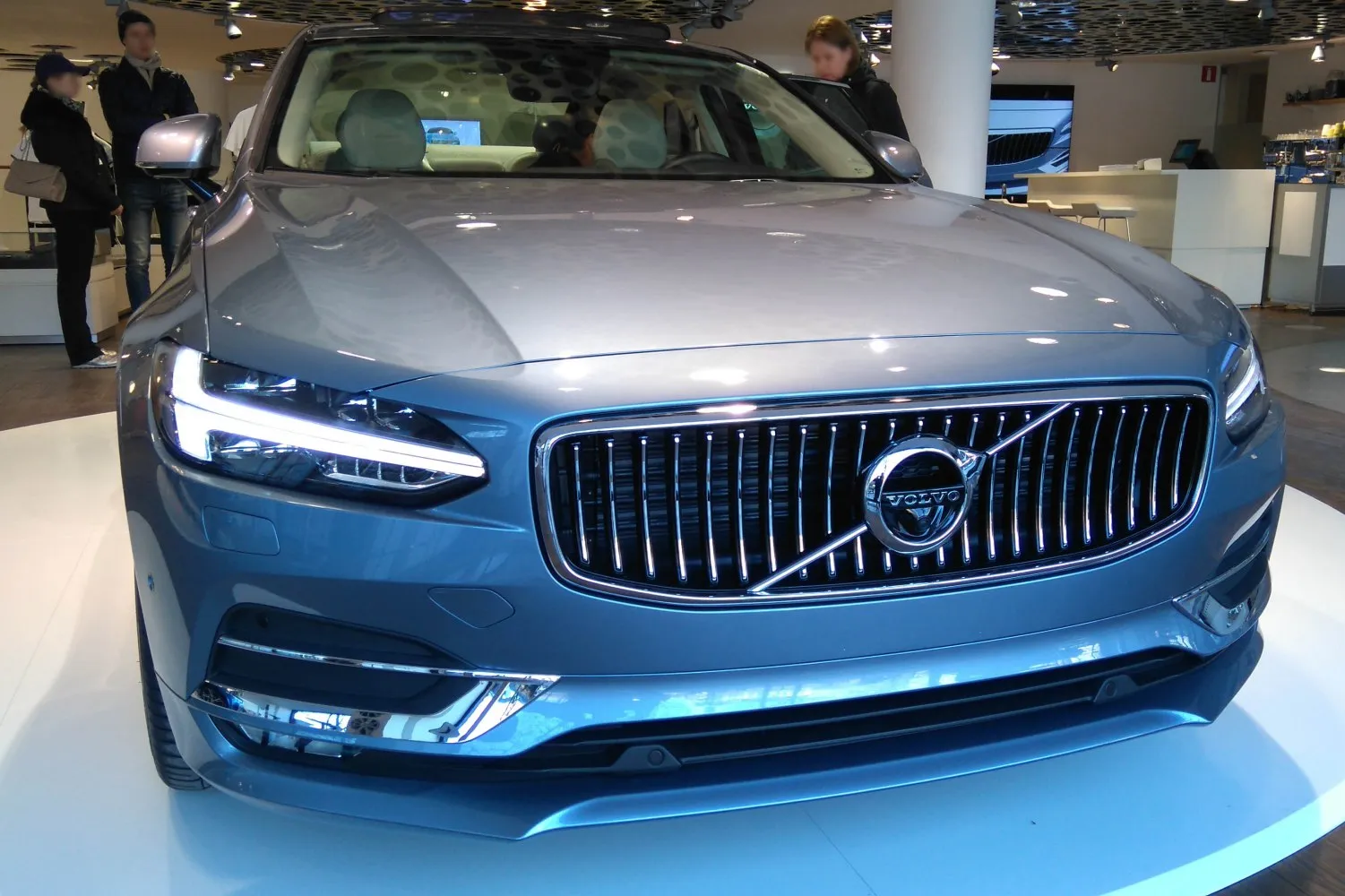

Vehicle photos
1 of 17
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
19 versions · 2 Gasoline / Electricity · 7 Gasoline · 10 Diesel fuel
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
2.0 T8 Twin Engine (320 KM) Plug-in Hybrid AWD Geartronic
Gasoline / Electricity · 2016–2017
- Engine power
- 320 KM
- Torque
- 400 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Gasoline / Electricity
- Acceleration 0-100 km/h
- 5.2 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 T8 Twin Engine (320 KM) Plug-in Hybrid AWD Geartronic
- Engine type
- PHEV (Plug-in Hybrid Electric Vehicle)
- Number of doors
- 4
- Start of production
- 2016
- End of production
- 2017
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline / Electricity
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 5.2 s
- Deceleration from 100 km/h to 0
- 35 m
- Battery gross capacity
- 9.2 kWh
- Electric range measurement standard
- NEDC
- All-electric range
- 45 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 1.9 l/100 km
- Emission standard
- Euro 6
- CO2 measurement standard
- NEDC
- CO2 emissions
- 44 g/km
Engine
- Max electric motor power
- 87 KM @ 7000 obr./min
- Electric motor torque
- 240 Nm @ 0-3000 obr./min
- Electric motor position
- Rear axle, Transverse
- Engine model / code
- B4204T35
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 6000 obr./min
- Fuel injection system
- Direct injection
- Engine type
- Turbo kompresor i Kompresor, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 10.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.6 l
- Power
- 320 KM @ 5700 obr./min
- Torque
- 400 Nm @ 2200-5400 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 500 l
- Curb weight
- kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2100 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1895 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1628 mm
- Rear track
- 1629 mm
- Ground clearance
- 152 mm
- Front overhang
- 873 mm
- Rear overhang
- 1149 mm
- Turning circle
- 12.1 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 8
- Type of automatic gearbox
- Geartronic
- Front suspension
- Double wishbone, Anti-roll bar
- Rear suspension
- Anti-roll bar, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 345 mm
- Front brake disc thickness
- 30 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 320 mm
- Rear brake disc thickness
- 20 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 245/45 R18; 255/40 R19
- Rim size
- 18; 19
- ABS
- yes
Selected engine version
2.0 T6 (320 KM) AWD
Gasoline · 2016–2017
- Engine power
- 320 KM
- Torque
- 400 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 5.8 s
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 T6 (320 KM) AWD
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2016
- End of production
- 2017
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Acceleration 0-100 km/h
- 5.8 s
- Fuel consumption - Combined cycle
- 7.3 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 169 g/km
Engine
- Engine model / code
- B4204T27
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbo kompresor i Kompresor, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 10.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.9 l
- Power
- 320 KM @ 5700 obr./min
- Torque
- 400 Nm @ 2200-5400 obr./min
Volume and weight
- Fuel tank
- 60 l
- Aerodynamic drag coefficient (Cx)
- 0.28-0.29
- Minimum trunk capacity
- 500 l
- Curb weight
- kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1800 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1895 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1617-1628 mm
- Rear track
- 1618-1629 mm
- Ground clearance
- 152 mm
- Turning circle
- 11.4 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Double wishbone
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
2.0 T6 (320 KM) AWD Automatic
Gasoline · 2016–2017
- Engine power
- 320 KM
- Torque
- 400 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 5.9 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 T6 (320 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2016
- End of production
- 2017
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 5.9 s
- Deceleration from 100 km/h to 0
- 35 m
- Fuel consumption - Urban cycle
- 9.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.9 l/100 km
- Fuel consumption - Combined cycle
- 7.2 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 165 g/km
Engine
- Engine model / code
- B4204T27
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 6000 obr./min
- Fuel injection system
- Direct injection
- Engine type
- Turbo kompresor i Kompresor, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 10.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.9 l
- Power
- 320 KM @ 5700 obr./min
- Torque
- 400 Nm @ 2220-5400 obr./min
Volume and weight
- Fuel tank
- 60 l
- Aerodynamic drag coefficient (Cx)
- 0.26-0.29
- Wading depth
- 250 mm
- Minimum trunk capacity
- 500 l
- Curb weight
- kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1800 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1895 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1617-1628 mm
- Rear track
- 1618-1629 mm
- Ground clearance
- 152 mm
- Turning circle
- 12.1 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 8
- Front suspension
- Double wishbone
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 245/45 R18; 255/40 R19; 255/35 R20
- Rim size
- 18; 19; 20
- ABS
- yes
Selected engine version
2.0 D5 (235 KM) AWD Automatic
Diesel fuel · 2016–2018
- Engine power
- 235 KM
- Torque
- 480 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 7 s
- Maximum speed
- 240 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 D5 (235 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2016
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 240 km/h
- Acceleration 0-100 km/h
- 7 s
- Deceleration from 100 km/h to 0
- 35 m
- Fuel consumption - Urban cycle
- 5.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.3 l/100 km
- Fuel consumption - Combined cycle
- 4.8 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 127 g/km
Engine
- Engine model / code
- D4204T23
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 5000 obr./min
- Fuel injection system
- Diesel common rail
- Engine type
- Twin turbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 15.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.2 l
- Power
- 235 KM @ 4000 obr./min
- Torque
- 480 Nm @ 1740-2220 obr./min
Volume and weight
- Fuel tank
- 60 l
- Aerodynamic drag coefficient (Cx)
- 0.26-0.29
- Wading depth
- 250 mm
- Minimum trunk capacity
- 500 l
- Curb weight
- kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1800 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1895 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1617-1628 mm
- Rear track
- 1618-1629 mm
- Ground clearance
- 152 mm
- Turning circle
- 12.1 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 8
- Front suspension
- Double wishbone
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 245/45 R18; 255/40 R19; 255/35 R20
- Rim size
- 18; 19; 20
- ABS
- yes
Selected engine version
2.0 D4 (190 KM)
Diesel fuel · 2016–2018
- Engine power
- 190 KM
- Torque
- 400 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 8.2 s
- Maximum speed
- 230 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 D4 (190 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2016
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 230 km/h
- Acceleration 0-100 km/h
- 8.2 s
- Deceleration from 100 km/h to 0
- 35 m
- Fuel consumption - Urban cycle
- 5.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.9 l/100 km
- Fuel consumption - Combined cycle
- 4.4 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 116 g/km
Engine
- Engine model / code
- D4204T14
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 5000 obr./min
- Fuel injection system
- Diesel common rail
- Engine type
- Twin turbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 15.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.2 l
- Power
- 190 KM @ 4250 obr./min
- Torque
- 400 Nm @ 1750-2520 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.26-0.29
- Wading depth
- 250 mm
- Minimum trunk capacity
- 500 l
- Curb weight
- kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1800 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1895 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1617-1628 mm
- Rear track
- 1618-1629 mm
- Ground clearance
- 152 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Double wishbone
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/55 R17; 245/45 R18; 255/40 R19; 255/35 R20
- Rim size
- 17; 18; 19; 20
- ABS
- yes
Selected engine version
2.0 D3 (150 KM) Automatic
Diesel fuel · 2016–2018
- Engine power
- 150 KM
- Torque
- 320 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.9 s
- Maximum speed
- 205 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 D3 (150 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2016
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 9.9 s
- Deceleration from 100 km/h to 0
- 35 m
- Fuel consumption - Urban cycle
- 5.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.0 l/100 km
- Fuel consumption - Combined cycle
- 4.4 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 115 g/km
Engine
- Engine model / code
- D4204T9
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 4500 obr./min
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.2 l
- Power
- 150 KM @ 3750 obr./min
- Torque
- 320 Nm @ 1740-3000 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.26-0.29
- Wading depth
- 250 mm
- Minimum trunk capacity
- 500 l
- Curb weight
- kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1800 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1895 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1617-1628 mm
- Rear track
- 1618-1629 mm
- Ground clearance
- 152 mm
- Turning circle
- 12.1 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Double wishbone
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/55 R17; 245/45 R18
- Rim size
- 17; 18
- ABS
- yes
Selected engine version
2.0 D3 (150 KM)
Diesel fuel · 2016–2018
- Engine power
- 150 KM
- Torque
- 320 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.9 s
- Maximum speed
- 205 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 D3 (150 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2016
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 9.9 s
- Deceleration from 100 km/h to 0
- 35 m
- Fuel consumption - Urban cycle
- 5.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.9 l/100 km
- Fuel consumption - Combined cycle
- 4.4 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 115 g/km
Engine
- Engine model / code
- D4204T9
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 4500 obr./min
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.2 l
- Power
- 150 KM @ 3750 obr./min
- Torque
- 320 Nm @ 1740-3000 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.26-0.29
- Wading depth
- 250 mm
- Minimum trunk capacity
- 500 l
- Curb weight
- kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1800 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1895 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1617-1628 mm
- Rear track
- 1618-1629 mm
- Ground clearance
- 152 mm
- Approach angle
- 19 °
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Double wishbone
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/55 R17; 245/45 R18
- Rim size
- 17; 18
- ABS
- yes
Selected engine version
2.0 D4 (190 KM) AWD Automatic
Diesel fuel · 2016–2018
- Engine power
- 190 KM
- Torque
- 400 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 8.4 s
- Maximum speed
- 230 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 D4 (190 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2016
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 230 km/h
- Acceleration 0-100 km/h
- 8.4 s
- Deceleration from 100 km/h to 0
- 35 m
- Fuel consumption - Urban cycle
- 5.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.2 l/100 km
- Fuel consumption - Combined cycle
- 4.7 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 124 g/km
Engine
- Engine model / code
- D4204T14
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 5000 obr./min
- Fuel injection system
- Diesel common rail
- Engine type
- Twin turbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 15.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.2 l
- Power
- 190 KM @ 4250 obr./min
- Torque
- 400 Nm @ 1740-2520 obr./min
Volume and weight
- Fuel tank
- 60 l
- Aerodynamic drag coefficient (Cx)
- 0.26-0.29
- Wading depth
- 250 mm
- Minimum trunk capacity
- 500 l
- Curb weight
- kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1800 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1895 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1617-1628 mm
- Rear track
- 1618-1629 mm
- Ground clearance
- 152 mm
- Turning circle
- 12.1 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 8
- Front suspension
- Double wishbone
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/55 R17; 245/45 R18; 255/40 R19; 255/35 R20
- Rim size
- 17; 18; 19; 20
- ABS
- yes
Selected engine version
2.0 D4 (190 KM) Automatic
Diesel fuel · 2016–2018
- Engine power
- 190 KM
- Torque
- 400 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 8.2 s
- Maximum speed
- 225 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 D4 (190 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2016
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 225 km/h
- Acceleration 0-100 km/h
- 8.2 s
- Deceleration from 100 km/h to 0
- 35 m
- Fuel consumption - Urban cycle
- 5.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.9 l/100 km
- Fuel consumption - Combined cycle
- 4.4 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 116 g/km
Engine
- Engine model / code
- D4204T14
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 5000 obr./min
- Fuel injection system
- Diesel common rail
- Engine type
- Twin turbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 15.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.2 l
- Power
- 190 KM @ 4250 obr./min
- Torque
- 400 Nm @ 1740-2520 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.26-0.29
- Wading depth
- 250 mm
- Minimum trunk capacity
- 500 l
- Curb weight
- kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1800 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1895 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1617-1628 mm
- Rear track
- 1618-1629 mm
- Ground clearance
- 152 mm
- Turning circle
- 12.1 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 8
- Front suspension
- Double wishbone
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/55 R17; 245/45 R18; 255/40 R19; 255/35 R20
- Rim size
- 17; 18; 19; 20
- ABS
- yes
Selected engine version
2.0 T5 (254 KM) Automatic
Gasoline · 2016–2017
- Engine power
- 254 KM
- Torque
- 350 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 6.8 s
- Maximum speed
- 230 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 T5 (254 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2016
- End of production
- 2017
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 230 km/h
- Acceleration 0-100 km/h
- 6.8 s
- Deceleration from 100 km/h to 0
- 35 m
- Fuel consumption - Urban cycle
- 8.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.3 l/100 km
- Fuel consumption - Combined cycle
- 6.5 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 149 g/km
Engine
- Engine model / code
- B4204T23
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 6000 obr./min
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 10.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.9 l
- Power
- 254 KM @ 5500 obr./min
- Torque
- 350 Nm @ 1500-4800 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.26-0.29
- Wading depth
- 250 mm
- Minimum trunk capacity
- 500 l
- Curb weight
- kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1800 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1895 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1617-1628 mm
- Rear track
- 1618-1629 mm
- Ground clearance
- 152 mm
- Turning circle
- 12.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 8
- Front suspension
- Double wishbone
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 245/45 R18; 255/40 R19; 255/35 R20
- Rim size
- 18; 19; 20
- ABS
- yes
Selected engine version
2.0 T8 Twin Engine (303 KM) Plug-in Hybrid AWD Geartronic
Gasoline / Electricity · 2018–2019
- Engine power
- 303 KM
- Torque
- 400 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Gasoline / Electricity
- Acceleration 0-100 km/h
- 5.1 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 T8 Twin Engine (303 KM) Plug-in Hybrid AWD Geartronic
- Engine type
- PHEV (Plug-in Hybrid Electric Vehicle)
- Number of doors
- 4
- Start of production
- 2018
- End of production
- 2019
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline / Electricity
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 5.1 s
- Deceleration from 100 km/h to 0
- 35 m
- Battery gross capacity
- 10.4 kWh
- Electric range measurement standard
- WLTP
- All-electric range
- 40-47 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 2.4-2.9 l/100 km
- Energy consumption measurement standard
- NEDC
- Average energy consumption
- 16.8 kWh/100 km
- Emission standard
- Euro 6d-TEMP
- CO2 measurement standard
- WLTP
- CO2 emissions
- 54-66 g/km
Engine
- Max electric motor power
- 87 KM @ 7000 obr./min
- Electric motor torque
- 240 Nm @ 0-3000 obr./min
- Electric motor position
- Rear axle, Transverse
- Engine model / code
- B4204T34
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 6000 obr./min
- Fuel injection system
- Direct injection
- Engine type
- Turbo kompresor i Kompresor, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 10.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.6 l
- Power
- 303 KM @ 6000 obr./min
- Torque
- 400 Nm @ 2200-4800 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 500 l
- Curb weight
- 2060 kg
- Gross weight
- 2590 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2100 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 110 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1895 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1628 mm
- Rear track
- 1629 mm
- Ground clearance
- 152 mm
- Front overhang
- 873 mm
- Rear overhang
- 1149 mm
- Turning circle
- 12.1 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 8
- Type of automatic gearbox
- Geartronic
- Front suspension
- Double wishbone, Anti-roll bar
- Rear suspension
- Anti-roll bar, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 345 mm
- Front brake disc thickness
- 30 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 320 mm
- Rear brake disc thickness
- 20 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 255/40 R19
- Rim size
- 8.5J x 19
- ABS
- yes
Selected engine version
2.0 T6 (310 KM) AWD Automatic
Gasoline · 2018–2020
- Engine power
- 310 KM
- Torque
- 400 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 5.9 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 T6 (310 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2018
- End of production
- 2020
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 5.9 s
- Deceleration from 100 km/h to 0
- 35 m
- Fuel consumption - Urban cycle
- 9.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.4 l/100 km
- Fuel consumption - Combined cycle
- 7.6 l/100 km
- Emission standard
- Euro 6 d-TEMP
- CO2 emissions
- 177 g/km
Engine
- Engine model / code
- B4204T29
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 6000 obr./min
- Fuel injection system
- Direct injection
- Engine type
- Turbo kompresor i Kompresor, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 10.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.6 l
- Power
- 310 KM @ 5700 obr./min
- Torque
- 400 Nm @ 2200-5100 obr./min
Volume and weight
- Fuel tank
- 60 l
- Aerodynamic drag coefficient (Cx)
- 0.26-0.29
- Wading depth
- 250 mm
- Minimum trunk capacity
- 500 l
- Curb weight
- 1930 kg
- Gross weight
- 2360 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2200 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 110 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1895 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1628 mm
- Rear track
- 1629 mm
- Ground clearance
- 152 mm
- Front overhang
- 873 mm
- Rear overhang
- 1149 mm
- Turning circle
- 12.2 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 8
- Front suspension
- Double wishbone
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 245/45 R18
- Rim size
- 8J x 18
- ABS
- yes
Selected engine version
2.0 T5 (250 KM) Automatic
Gasoline · 2017–2018
- Engine power
- 250 KM
- Torque
- 350 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 6.8 s
- Maximum speed
- 230 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 T5 (250 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2018
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 230 km/h
- Acceleration 0-100 km/h
- 6.8 s
- Deceleration from 100 km/h to 0
- 35 m
- Fuel consumption - Urban cycle
- 8.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.4 l/100 km
- Fuel consumption - Combined cycle
- 6.7 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 152 g/km
Engine
- Engine model / code
- B4204T26
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 6000 obr./min
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 10.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.6 l
- Power
- 250 KM @ 5500 obr./min
- Torque
- 350 Nm @ 1500-4800 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.26-0.29
- Wading depth
- 250 mm
- Minimum trunk capacity
- 500 l
- Curb weight
- kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1800 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1895 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1628 mm
- Rear track
- 1629 mm
- Ground clearance
- 152 mm
- Front overhang
- 873 mm
- Rear overhang
- 1149 mm
- Turning circle
- 12.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 8
- Front suspension
- Double wishbone
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/55 R17; 245/45 R18
- Rim size
- 8J x 17; 8J x 18
- ABS
- yes
Selected engine version
2.0 T4 (190 KM) Automatic
Gasoline · 2018–2020
- Engine power
- 190 KM
- Torque
- 300 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.7 s
- Maximum speed
- 210 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 T4 (190 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2018
- End of production
- 2020
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 8.7 s
- Deceleration from 100 km/h to 0
- 35 m
- Fuel consumption - Urban cycle
- 8.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.4 l/100 km
- Fuel consumption - Combined cycle
- 6.7 l/100 km
- Emission standard
- Euro 6d-Temp
- CO2 emissions
- 155 g/km
Engine
- Engine model / code
- B4204T31
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 6000 obr./min
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 10.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.6 l
- Power
- 190 KM @ 5000 obr./min
- Torque
- 300 Nm @ 1700-4000 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.26-0.29
- Minimum trunk capacity
- 500 l
- Curb weight
- 1831 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1800 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1895 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1628 mm
- Rear track
- 1629 mm
- Ground clearance
- 152 mm
- Front overhang
- 873 mm
- Rear overhang
- 1149 mm
- Turning circle
- 11.8 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 8
- Type of automatic gearbox
- Geartronic
- Front suspension
- Double wishbone
- Rear suspension
- Leaf springs
- Front brakes
- Disc
- Front brake disc/drum diameter
- 296 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 302 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 245/45 R18; 255/40 R19; 255/35 R20; 245/35 R21
- Rim size
- 18; 19; 20; 21
- ABS
- yes
Selected engine version
2.0 D3 (150 KM)
Diesel fuel · 2018–2020
- Engine power
- 150 KM
- Torque
- 320 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.9 s
- Maximum speed
- 205 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 D3 (150 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2018
- End of production
- 2020
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 9.9 s
- Deceleration from 100 km/h to 0
- 35 m
- Fuel consumption - Urban cycle
- 5.6-5.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.1-4.2 l/100 km
- Fuel consumption - Combined cycle
- 4.6-4.8 l/100 km
- Emission standard
- Euro 6d-Temp
- CO2 emissions
- 122-125 g/km
Engine
- Engine model / code
- D4204T16
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 4500 obr./min
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.2 l
- Power
- 150 KM @ 3750 obr./min
- Torque
- 320 Nm
Volume and weight
- Fuel tank
- 55 l
- AdBlue tank
- 11.5 l
- Aerodynamic drag coefficient (Cx)
- 0.26-0.29
- Wading depth
- 250 mm
- Minimum trunk capacity
- 500 l
- Curb weight
- 1826 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1800 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1890 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1617-1628 mm
- Rear track
- 1618-1629 mm
- Ground clearance
- 152 mm
- Front overhang
- 873 mm
- Rear overhang
- 1149 mm
- Turning circle
- 11.8 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Double wishbone, Anti-roll bar
- Rear suspension
- Anti-roll bar, Leaf springs
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
2.0 D3 (150 KM) Automatic
Diesel fuel · 2018–2020
- Engine power
- 150 KM
- Torque
- 320 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.9 s
- Maximum speed
- 205 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 D3 (150 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2018
- End of production
- 2020
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 9.9 s
- Deceleration from 100 km/h to 0
- 35 m
- Fuel consumption - Urban cycle
- 5.8-5.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.2-4.4 l/100 km
- Fuel consumption - Combined cycle
- 4.8-4.9 l/100 km
- Emission standard
- Euro 6d-Temp
- CO2 emissions
- 127-129 g/km
Engine
- Engine model / code
- D4204T16
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 4500 obr./min
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.2 l
- Power
- 150 KM @ 3750 obr./min
- Torque
- 320 Nm
Volume and weight
- Fuel tank
- 55 l
- AdBlue tank
- 11.5 l
- Aerodynamic drag coefficient (Cx)
- 0.26-0.29
- Wading depth
- 250 mm
- Minimum trunk capacity
- 500 l
- Curb weight
- 1847 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1800 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1890 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1617-1628 mm
- Rear track
- 1619-1629 mm
- Ground clearance
- 152 mm
- Front overhang
- 873 mm
- Rear overhang
- 1149 mm
- Turning circle
- 11.8 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 8
- Front suspension
- Double wishbone, Anti-roll bar
- Rear suspension
- Anti-roll bar, Leaf springs
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
2.0 D4 (190 KM) Automatic
Diesel fuel · 2018–2020
- Engine power
- 190 KM
- Torque
- 400 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 8.2 s
- Maximum speed
- 230 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 D4 (190 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2018
- End of production
- 2020
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 230 km/h
- Acceleration 0-100 km/h
- 8.2 s
- Deceleration from 100 km/h to 0
- 35 m
- Fuel consumption - Urban cycle
- 5.4-5.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.2 l/100 km
- Fuel consumption - Combined cycle
- 4.6-4.7 l/100 km
- Emission standard
- Euro 6d-Temp
- CO2 emissions
- 121-123 g/km
Engine
- Engine model / code
- D4204T14
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 5000 obr./min
- Fuel injection system
- Diesel common rail
- Engine type
- Twin turbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 15.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.2 l
- Power
- 190 KM @ 4250 obr./min
- Torque
- 400 Nm
Volume and weight
- Fuel tank
- 55 l
- AdBlue tank
- 11.5 l
- Aerodynamic drag coefficient (Cx)
- 0.26-0.29
- Wading depth
- 250 mm
- Minimum trunk capacity
- 500 l
- Curb weight
- 1866 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1800 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1895 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1617-1628 mm
- Rear track
- 1618-1629 mm
- Ground clearance
- 152 mm
- Front overhang
- 873 mm
- Rear overhang
- 1149 mm
- Turning circle
- 11.8 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 8
- Front suspension
- Double wishbone, Anti-roll bar
- Rear suspension
- Anti-roll bar, Leaf springs
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
2.0 D5 (235 KM) AWD Automatic
Diesel fuel · 2018–2020
- Engine power
- 235 KM
- Torque
- 480 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 7 s
- Maximum speed
- 240 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 D5 (235 KM) AWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2018
- End of production
- 2020
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 240 km/h
- Acceleration 0-100 km/h
- 7 s
- Deceleration from 100 km/h to 0
- 35 m
- Fuel consumption - Urban cycle
- 6.3-6.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.9 l/100 km
- Fuel consumption - Combined cycle
- 5.4-5.5 l/100 km
- Emission standard
- Euro 6d-Temp
- CO2 emissions
- 142-144 g/km
Engine
- Engine model / code
- D4204T23
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 5000 obr./min
- Fuel injection system
- Diesel common rail
- Engine type
- Twin turbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 15.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.2 l
- Power
- 235 KM @ 4000 obr./min
- Torque
- 480 Nm
Volume and weight
- Fuel tank
- 60 l
- AdBlue tank
- 11.5 l
- Aerodynamic drag coefficient (Cx)
- 0.26-0.29
- Wading depth
- 250 mm
- Minimum trunk capacity
- 500 l
- Curb weight
- 1953 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2200 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1895 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1617-1628 mm
- Rear track
- 1618-1629 mm
- Ground clearance
- 152 mm
- Front overhang
- 873 mm
- Rear overhang
- 1149 mm
- Turning circle
- 11.8 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 8
- Front suspension
- Double wishbone, Anti-roll bar
- Rear suspension
- Anti-roll bar, Steer
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
2.0 T5 (250 KM) Automatic
Gasoline · 2018–2020
- Engine power
- 250 KM
- Torque
- 350 Nm
- Engine displacement
- 1,969 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 6.8 s
- Maximum speed
- 230 km/h
On this page
Check vehicle history
Basic version information
Volvo S90 S90 (2016)- Brand
- Volvo
- Model
- S90
- Version
- S90 (2016)
- Engine
- 2.0 T5 (250 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2018
- End of production
- 2020
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 230 km/h
- Acceleration 0-100 km/h
- 6.8 s
- Fuel consumption - Urban cycle
- 8.4-8.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.6 l/100 km
- Fuel consumption - Combined cycle
- 6.6-6.7 l/100 km
- Emission standard
- Euro 6d-Temp
- CO2 emissions
- 154-156 g/km
Engine
- Engine model / code
- B4204T26
- Engine position
- Front, Transverse
- Engine displacement
- 1969 cm³
- Maximum engine speed
- 6000 obr./min
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82 mm
- Piston stroke
- 93.2 mm
- Compression ratio
- 10.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.6 l
- Power
- 250 KM @ 5500 obr./min
- Torque
- 350 Nm
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.26-0.29
- Wading depth
- 250 mm
- Minimum trunk capacity
- 500 l
- Curb weight
- 1825 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1800 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4963 mm
- Width
- 1879 mm
- Width with folded mirrors
- 1895 mm
- Width with unfolded mirrors
- 2019 mm
- Height
- 1443 mm
- Wheelbase
- 2941 mm
- Front track
- 1617-1628 mm
- Rear track
- 1618-1629 mm
- Ground clearance
- 152 mm
- Front overhang
- 873 mm
- Rear overhang
- 1149 mm
- Turning circle
- 11.8 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 8
- Front suspension
- Double wishbone, Anti-roll bar
- Rear suspension
- Anti-roll bar, Steer
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
