Volkswagen Transporter (T4, facelift 1996) Kombi
Compare all 9 engine versions of the Volkswagen Transporter Transporter (T4, facelift 1996) Kombi, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Volkswagen Transporter (T4, facelift 1996) Kombi? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Volkswagen Transporter (T4, facelift 1996) Kombi?
See the places on a 3D model →- VIN number
- Scuttle panel below the windscreen, right side
- Identification plate
- Front panel (radiator support)
- Floor next to / in front of the front seat, right side

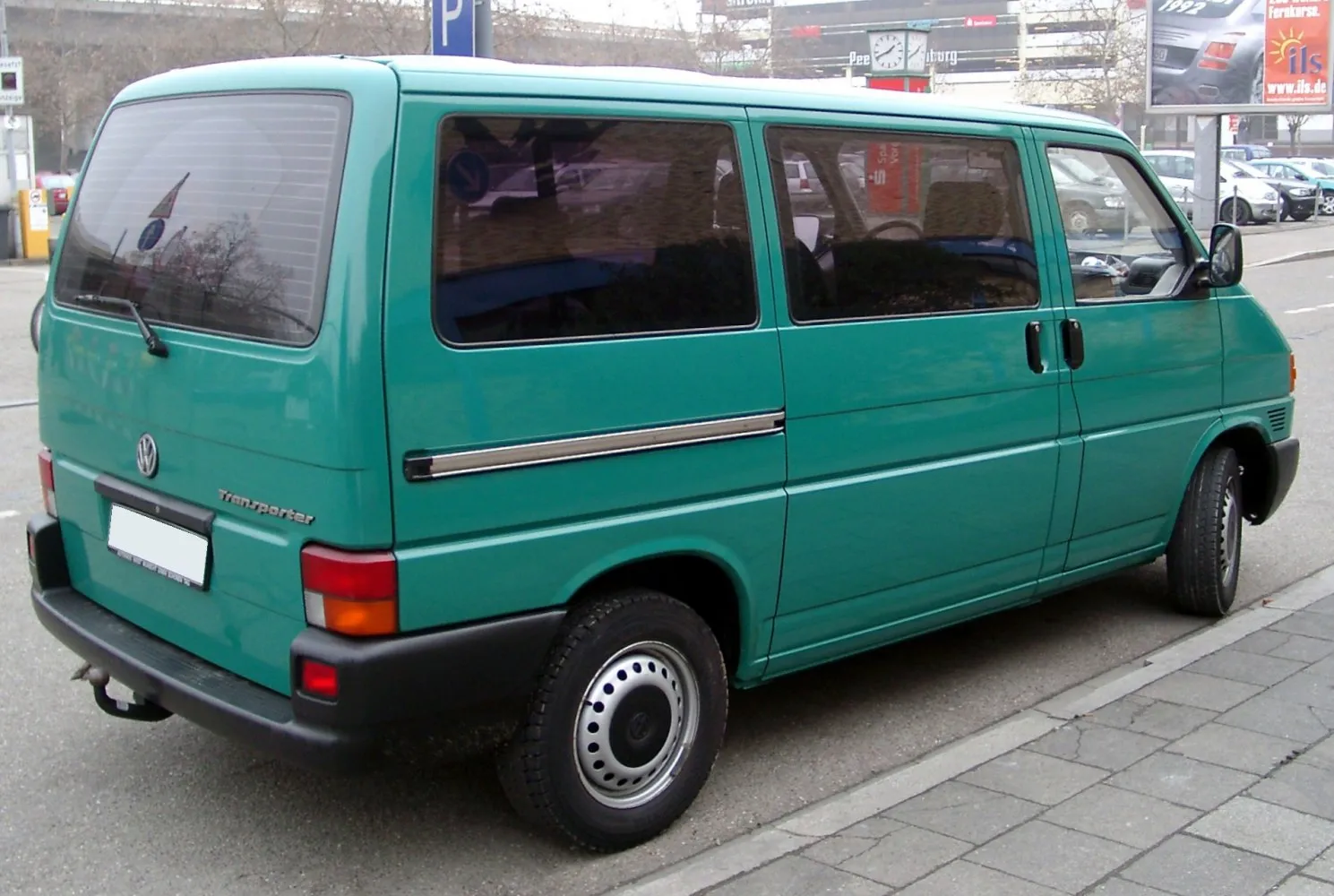

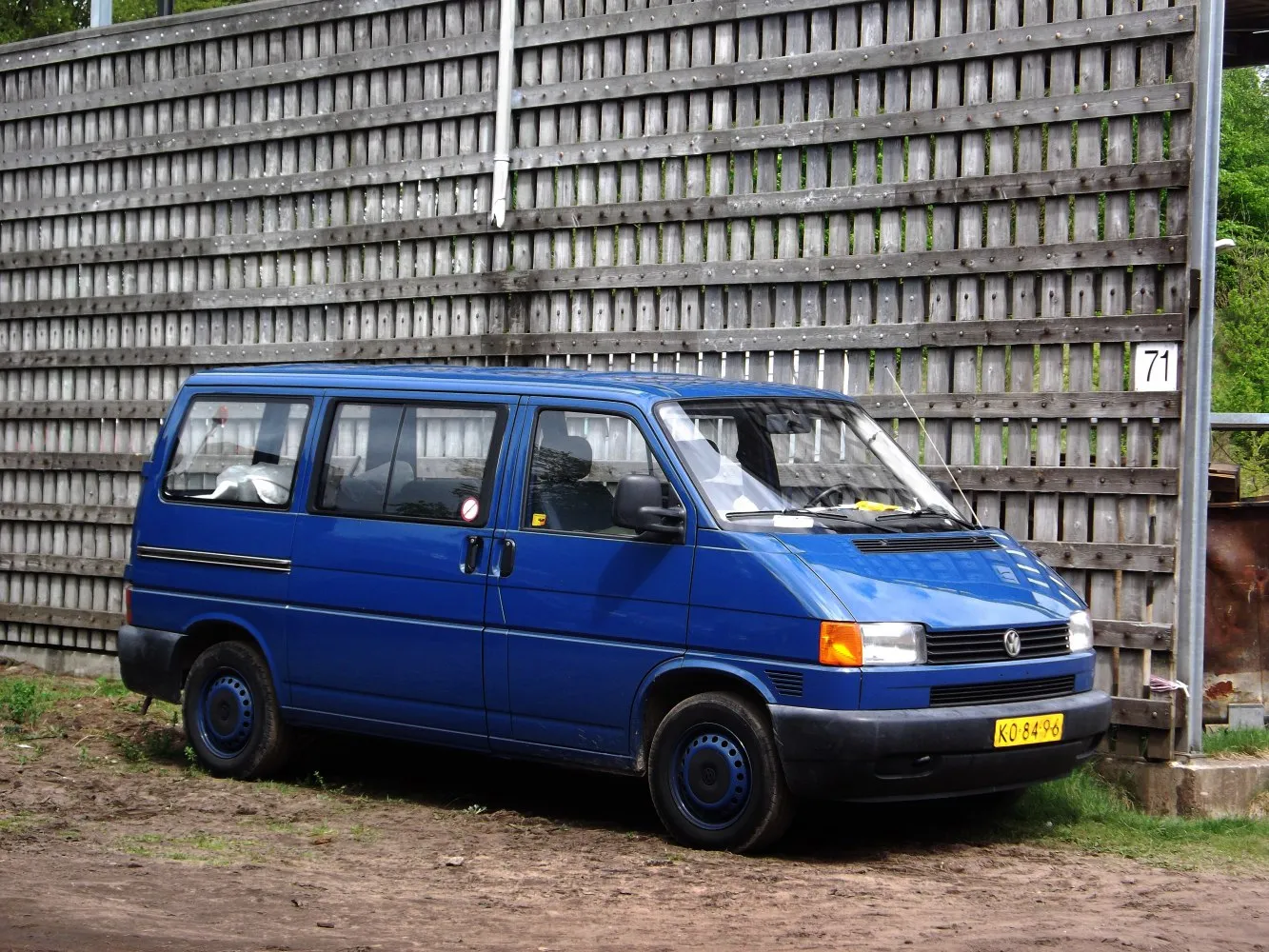

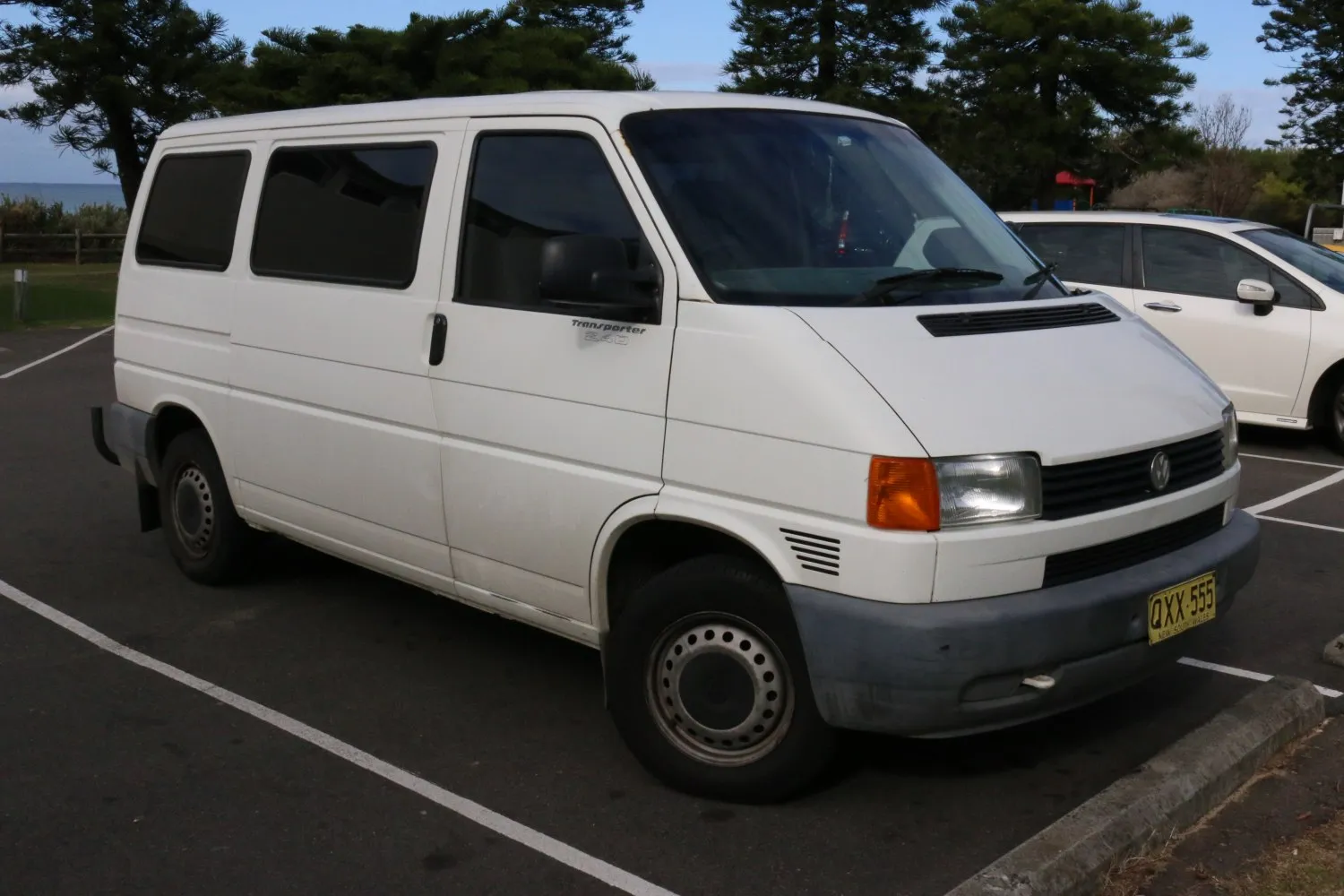

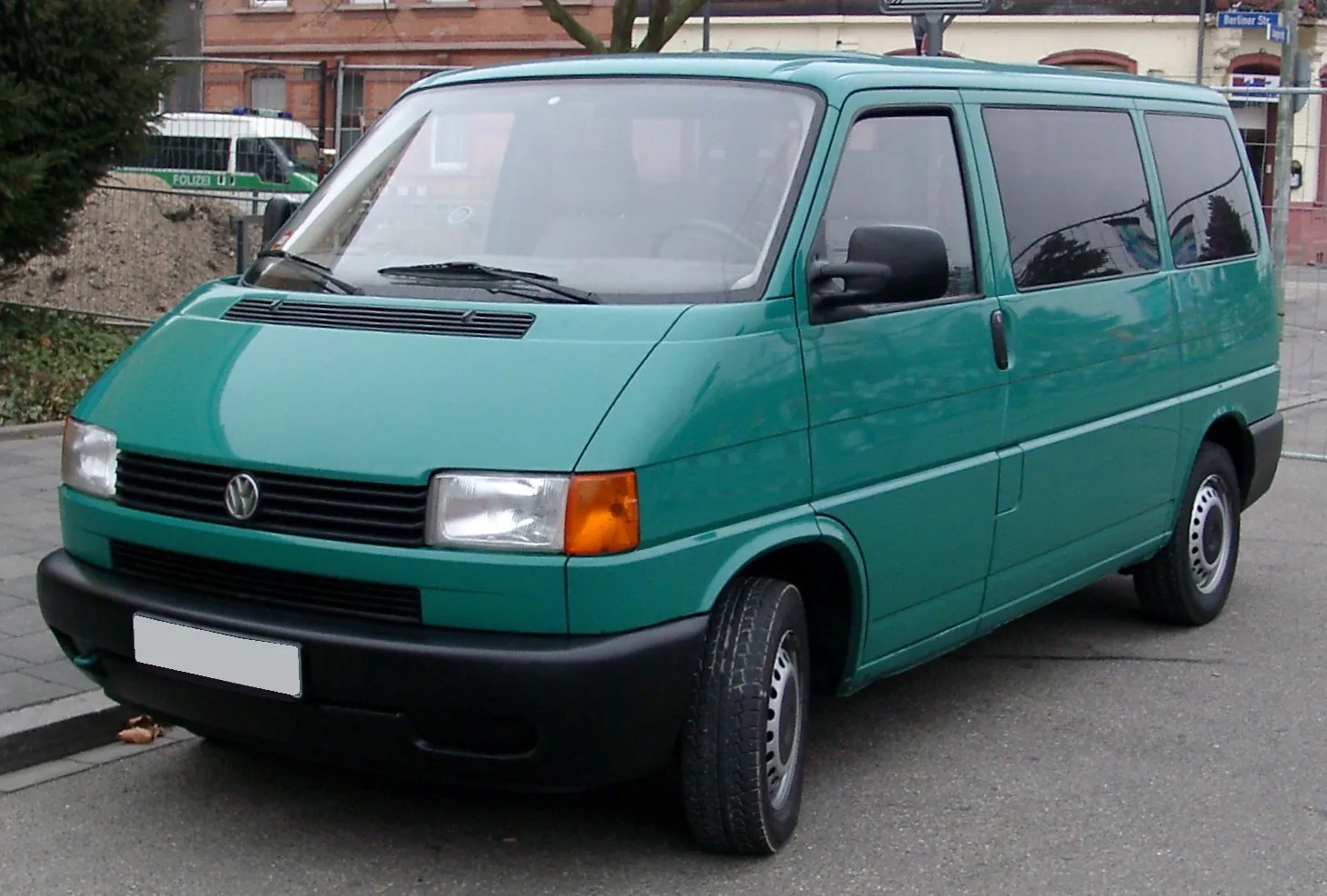

Vehicle photos
1 of 4
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
9 versions · 6 Diesel fuel · 3 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.9 TD (68 KM) L1H1 Selected | Diesel fuel | 68 KM | 1996–2003 |
| 1.9 TD (68 KM) L2H1 Selected | Diesel fuel | 68 KM | 1996–2003 |
| 1.9 TD (68 KM) L2H2 Selected | Diesel fuel | 68 KM | 1996–2003 |
| 2.0 (84 KM) L1H1 Selected | Gasoline | 84 KM | 1996–2003 |
| 2.0 (84 KM) L2H1 Selected | Gasoline | 84 KM | 1996–2003 |
| 2.0 (84 KM) L2H2 Selected | Gasoline | 84 KM | 1996–2003 |
| 2.4 D (78 KM) L1H1 Selected | Diesel fuel | 78 KM | 1996–1998 |
| 2.4 D (78 KM) L2H1 Selected | Diesel fuel | 78 KM | 1996–1998 |
| 2.4 D (78 KM) L2H2 Selected | Diesel fuel | 78 KM | 1996–1998 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.9 TD (68 KM) L1H1
Diesel fuel · 1996–2003
- Engine power
- 68 KM
- Torque
- 140 Nm
- Engine displacement
- 1,896 cm³
- Fuel type
- Diesel fuel
- Maximum speed
- 132 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T4, facelift 1996) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T4, facelift 1996) Kombi
- Engine
- 1.9 TD (68 KM) L1H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 1996
- End of production
- 2003
- Body type
- Awangarda
- Number of seats
- 2-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 132 km/h
- Fuel consumption - Urban cycle
- 9 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.9 l/100 km
Engine
- Engine model / code
- ABL
- Engine position
- Front, Transverse
- Engine displacement
- 1896 cm³
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Turbocharger
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 22.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5 l
- Coolant capacity
- 9 l
- Power
- 68 KM @ 3700 obr./min
- Torque
- 140 Nm @ 2000-3000 obr./min
Volume and weight
- Fuel tank
- 80 l
- Wading depth
- 350 mm
- Maximum trunk capacity
- 5400 l
- Curb weight
- 1580 kg
- Gross weight
- 2380-2785 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2000 kg
- Trailer load without brakes
- 700 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 4707 mm
- Width
- 1840 mm
- Width with unfolded mirrors
- 2175 mm
- Height
- 1940 mm
- Wheelbase
- 2920 mm
- Front track
- 1589 mm
- Rear track
- 1554 mm
- Ground clearance
- 180 mm
- Front overhang
- 886 mm
- Rear overhang
- 901 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent twist suspension on two transverse arms, Anti-roll bar
- Rear suspension
- Independent coil spring suspension, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R15; 205/65 R15
- Rim size
- 6J x 15
- ABS
- yes
Selected engine version
1.9 TD (68 KM) L2H1
Diesel fuel · 1996–2003
- Engine power
- 68 KM
- Torque
- 140 Nm
- Engine displacement
- 1,896 cm³
- Fuel type
- Diesel fuel
- Maximum speed
- 132 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T4, facelift 1996) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T4, facelift 1996) Kombi
- Engine
- 1.9 TD (68 KM) L2H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 1996
- End of production
- 2003
- Body type
- Awangarda
- Number of seats
- 2-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 132 km/h
- Fuel consumption - Urban cycle
- 9 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.9 l/100 km
Engine
- Engine model / code
- ABL
- Engine position
- Front, Transverse
- Engine displacement
- 1896 cm³
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Turbocharger
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 22.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5 l
- Coolant capacity
- 9 l
- Power
- 68 KM @ 3700 obr./min
- Torque
- 140 Nm @ 2000-3000 obr./min
Volume and weight
- Fuel tank
- 80 l
- Wading depth
- 350 mm
- Maximum trunk capacity
- 6300 l
- Curb weight
- 1630 kg
- Gross weight
- 2625-2800 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2000 kg
- Trailer load without brakes
- 700 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5107 mm
- Width
- 1840 mm
- Width with unfolded mirrors
- 2175 mm
- Height
- 1940 mm
- Wheelbase
- 3320 mm
- Front track
- 1589 mm
- Rear track
- 1554 mm
- Ground clearance
- 180 mm
- Front overhang
- 886 mm
- Rear overhang
- 901 mm
- Turning circle
- 12.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent twist suspension on two transverse arms, Anti-roll bar
- Rear suspension
- Independent coil spring suspension, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R15; 205/65 R15
- Rim size
- 6J x 15
- ABS
- yes
Selected engine version
1.9 TD (68 KM) L2H2
Diesel fuel · 1996–2003
- Engine power
- 68 KM
- Torque
- 140 Nm
- Engine displacement
- 1,896 cm³
- Fuel type
- Diesel fuel
- Maximum speed
- 126 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T4, facelift 1996) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T4, facelift 1996) Kombi
- Engine
- 1.9 TD (68 KM) L2H2
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 1996
- End of production
- 2003
- Body type
- Awangarda
- Number of seats
- 2-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 126 km/h
- Fuel consumption - Urban cycle
- 9.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.5 l/100 km
Engine
- Engine model / code
- ABL
- Engine position
- Front, Transverse
- Engine displacement
- 1896 cm³
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Turbocharger
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 22.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5 l
- Coolant capacity
- 9 l
- Power
- 68 KM @ 3700 obr./min
- Torque
- 140 Nm @ 2000-3000 obr./min
Volume and weight
- Fuel tank
- 80 l
- Wading depth
- 350 mm
- Maximum trunk capacity
- 7800 l
- Curb weight
- 1680 kg
- Gross weight
- 2625-2800 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2000 kg
- Trailer load without brakes
- 700 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5107 mm
- Width
- 1840 mm
- Width with unfolded mirrors
- 2175 mm
- Height
- 2430 mm
- Wheelbase
- 3320 mm
- Front track
- 1589 mm
- Rear track
- 1554 mm
- Ground clearance
- 180 mm
- Front overhang
- 886 mm
- Rear overhang
- 901 mm
- Turning circle
- 12.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent twist suspension on two transverse arms, Anti-roll bar
- Rear suspension
- Independent coil spring suspension, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R15; 205/65 R15
- Rim size
- 6J x 15
- ABS
- yes
Selected engine version
2.0 (84 KM) L1H1
Gasoline · 1996–2003
- Engine power
- 84 KM
- Torque
- 159 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Gasoline
- Maximum speed
- 144 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T4, facelift 1996) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T4, facelift 1996) Kombi
- Engine
- 2.0 (84 KM) L1H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 1996
- End of production
- 2003
- Body type
- Awangarda
- Number of seats
- 2-9
- Fuel type
- Gasoline
Performance
- Maximum speed
- 144 km/h
- Fuel consumption - Urban cycle
- 13.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.7 l/100 km
Engine
- Engine model / code
- AAC
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 8.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5 l
- Coolant capacity
- 9 l
- Power
- 84 KM @ 4300 obr./min
- Torque
- 159 Nm @ 2200 obr./min
Volume and weight
- Fuel tank
- 80 l
- Wading depth
- 350 mm
- Maximum trunk capacity
- 5400 l
- Curb weight
- 1580 kg
- Gross weight
- 2380-2785 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2000 kg
- Trailer load without brakes
- 700 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 4707 mm
- Width
- 1840 mm
- Width with unfolded mirrors
- 2175 mm
- Height
- 1940 mm
- Wheelbase
- 2920 mm
- Front track
- 1589 mm
- Rear track
- 1554 mm
- Ground clearance
- 180 mm
- Front overhang
- 886 mm
- Rear overhang
- 901 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent twist suspension on two transverse arms, Anti-roll bar
- Rear suspension
- Independent coil spring suspension, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R15; 205/65 R15
- Rim size
- 6J x 15
- ABS
- yes
Selected engine version
2.0 (84 KM) L2H1
Gasoline · 1996–2003
- Engine power
- 84 KM
- Torque
- 159 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Gasoline
- Maximum speed
- 144 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T4, facelift 1996) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T4, facelift 1996) Kombi
- Engine
- 2.0 (84 KM) L2H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 1996
- End of production
- 2003
- Body type
- Awangarda
- Number of seats
- 2-9
- Fuel type
- Gasoline
Performance
- Maximum speed
- 144 km/h
- Fuel consumption - Urban cycle
- 13.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.7 l/100 km
Engine
- Engine model / code
- AAC
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 8.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5 l
- Coolant capacity
- 9 l
- Power
- 84 KM @ 4300 obr./min
- Torque
- 159 Nm @ 2200 obr./min
Volume and weight
- Fuel tank
- 80 l
- Wading depth
- 350 mm
- Maximum trunk capacity
- 6300 l
- Curb weight
- 1630 kg
- Gross weight
- 2625-2800 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2000 kg
- Trailer load without brakes
- 700 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5107 mm
- Width
- 1840 mm
- Width with unfolded mirrors
- 2175 mm
- Height
- 1940 mm
- Wheelbase
- 3320 mm
- Front track
- 1589 mm
- Rear track
- 1554 mm
- Ground clearance
- 180 mm
- Front overhang
- 886 mm
- Rear overhang
- 901 mm
- Turning circle
- 12.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent twist suspension on two transverse arms, Anti-roll bar
- Rear suspension
- Independent coil spring suspension, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R15; 205/65 R15
- Rim size
- 6J x 15
- ABS
- yes
Selected engine version
2.0 (84 KM) L2H2
Gasoline · 1996–2003
- Engine power
- 84 KM
- Torque
- 159 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Gasoline
- Maximum speed
- 137 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T4, facelift 1996) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T4, facelift 1996) Kombi
- Engine
- 2.0 (84 KM) L2H2
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 1996
- End of production
- 2003
- Body type
- Awangarda
- Number of seats
- 2-9
- Fuel type
- Gasoline
Performance
- Maximum speed
- 137 km/h
- Fuel consumption - Urban cycle
- 13.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 9.4 l/100 km
Engine
- Engine model / code
- AAC
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 8.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5 l
- Coolant capacity
- 9 l
- Power
- 84 KM @ 4300 obr./min
- Torque
- 159 Nm @ 2200 obr./min
Volume and weight
- Fuel tank
- 80 l
- Wading depth
- 350 mm
- Maximum trunk capacity
- 7800 l
- Curb weight
- 1680 kg
- Gross weight
- 2625-2800 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2000 kg
- Trailer load without brakes
- 700 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5107 mm
- Width
- 1840 mm
- Width with unfolded mirrors
- 2175 mm
- Height
- 2430 mm
- Wheelbase
- 3320 mm
- Front track
- 1589 mm
- Rear track
- 1554 mm
- Ground clearance
- 180 mm
- Front overhang
- 886 mm
- Rear overhang
- 901 mm
- Turning circle
- 12.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent twist suspension on two transverse arms, Anti-roll bar
- Rear suspension
- Independent coil spring suspension, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R15; 205/65 R15
- Rim size
- 6J x 15
- ABS
- yes
Selected engine version
2.4 D (78 KM) L1H1
Diesel fuel · 1996–1998
- Engine power
- 78 KM
- Torque
- 164 Nm
- Engine displacement
- 2,370 cm³
- Fuel type
- Diesel fuel
- Maximum speed
- 137 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T4, facelift 1996) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T4, facelift 1996) Kombi
- Engine
- 2.4 D (78 KM) L1H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 1996
- End of production
- 1998
- Body type
- Awangarda
- Number of seats
- 2-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 137 km/h
- Fuel consumption - Urban cycle
- 10.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.2 l/100 km
Engine
- Engine model / code
- AAB
- Engine position
- Front, Transverse
- Engine displacement
- 2370 cm³
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 5
- Cylinder bore
- 79.5 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 22.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5.5 l
- Coolant capacity
- 9 l
- Power
- 78 KM @ 3700 obr./min
- Torque
- 164 Nm @ 1800-2500 obr./min
Volume and weight
- Fuel tank
- 80 l
- Wading depth
- 350 mm
- Maximum trunk capacity
- 5400 l
- Curb weight
- 1655 kg
- Gross weight
- 2455-2800 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2000 kg
- Trailer load without brakes
- 700 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 4707 mm
- Width
- 1840 mm
- Width with unfolded mirrors
- 2175 mm
- Height
- 1940 mm
- Wheelbase
- 2920 mm
- Front track
- 1589 mm
- Rear track
- 1554 mm
- Ground clearance
- 180 mm
- Front overhang
- 886 mm
- Rear overhang
- 901 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent twist suspension on two transverse arms, Anti-roll bar
- Rear suspension
- Independent coil spring suspension, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R15; 205/65 R15
- Rim size
- 6J x 15
- ABS
- yes
Selected engine version
2.4 D (78 KM) L2H1
Diesel fuel · 1996–1998
- Engine power
- 78 KM
- Torque
- 164 Nm
- Engine displacement
- 2,370 cm³
- Fuel type
- Diesel fuel
- Maximum speed
- 137 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T4, facelift 1996) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T4, facelift 1996) Kombi
- Engine
- 2.4 D (78 KM) L2H1
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 1996
- End of production
- 1998
- Body type
- Awangarda
- Number of seats
- 2-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 137 km/h
- Fuel consumption - Urban cycle
- 10.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.2 l/100 km
Engine
- Engine model / code
- AAB
- Engine position
- Front, Transverse
- Engine displacement
- 2370 cm³
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 5
- Cylinder bore
- 79.5 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 22.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5.5 l
- Coolant capacity
- 9 l
- Power
- 78 KM @ 3700 obr./min
- Torque
- 164 Nm @ 1800-2500 obr./min
Volume and weight
- Fuel tank
- 80 l
- Wading depth
- 350 mm
- Maximum trunk capacity
- 6300 l
- Curb weight
- 1705 kg
- Gross weight
- 2700-2800 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2000 kg
- Trailer load without brakes
- 700 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5107 mm
- Width
- 1840 mm
- Width with unfolded mirrors
- 2175 mm
- Height
- 1940 mm
- Wheelbase
- 3320 mm
- Front track
- 1589 mm
- Rear track
- 1554 mm
- Ground clearance
- 180 mm
- Front overhang
- 886 mm
- Rear overhang
- 901 mm
- Turning circle
- 12.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent twist suspension on two transverse arms, Anti-roll bar
- Rear suspension
- Independent coil spring suspension, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R15; 205/65 R15
- Rim size
- 6J x 15
- ABS
- yes
Selected engine version
2.4 D (78 KM) L2H2
Diesel fuel · 1996–1998
- Engine power
- 78 KM
- Torque
- 164 Nm
- Engine displacement
- 2,370 cm³
- Fuel type
- Diesel fuel
- Maximum speed
- 131 km/h
On this page
Check vehicle history
Basic version information
Volkswagen Transporter Transporter (T4, facelift 1996) Kombi- Brand
- Volkswagen
- Model
- Transporter
- Version
- Transporter (T4, facelift 1996) Kombi
- Engine
- 2.4 D (78 KM) L2H2
- Engine type
- Combustion engine
- Number of doors
- 4-5
- Start of production
- 1996
- End of production
- 1998
- Body type
- Awangarda
- Number of seats
- 2-9
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 131 km/h
- Fuel consumption - Urban cycle
- 10.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.1 l/100 km
Engine
- Engine model / code
- AAB
- Engine position
- Front, Transverse
- Engine displacement
- 2370 cm³
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 5
- Cylinder bore
- 79.5 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 22.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5.5 l
- Coolant capacity
- 9 l
- Power
- 78 KM @ 3700 obr./min
- Torque
- 164 Nm @ 1800-2500 obr./min
Volume and weight
- Fuel tank
- 80 l
- Wading depth
- 350 mm
- Maximum trunk capacity
- 7800 l
- Curb weight
- 1755 kg
- Gross weight
- 2700-2800 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 2000 kg
- Trailer load without brakes
- 700 kg
- Trailer nose weight
- 100 kg
Vehicle dimensions
- Length
- 5107 mm
- Width
- 1840 mm
- Width with unfolded mirrors
- 2175 mm
- Height
- 2430 mm
- Wheelbase
- 3320 mm
- Front track
- 1589 mm
- Rear track
- 1554 mm
- Ground clearance
- 180 mm
- Front overhang
- 886 mm
- Rear overhang
- 901 mm
- Turning circle
- 12.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent twist suspension on two transverse arms, Anti-roll bar
- Rear suspension
- Independent coil spring suspension, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 195/70 R15; 205/65 R15
- Rim size
- 6J x 15
- ABS
- yes
