Vehicle specifications
Renault Kangoo II Express Maxi Grand Volume (facelift 2013)
Compare all 8 engine versions of the Renault Kangoo Kangoo II Express Maxi Grand Volume (facelift 2013), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Renault Kangoo II Express Maxi Grand Volume (facelift 2013)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Renault Kangoo II Express Maxi Grand Volume (facelift 2013)?
See the places on a 3D model →- VIN number
- Inner wing / front wheel arch in engine compartment, right side
- Identification plate
- B-pillar, right side · less certain (little data)

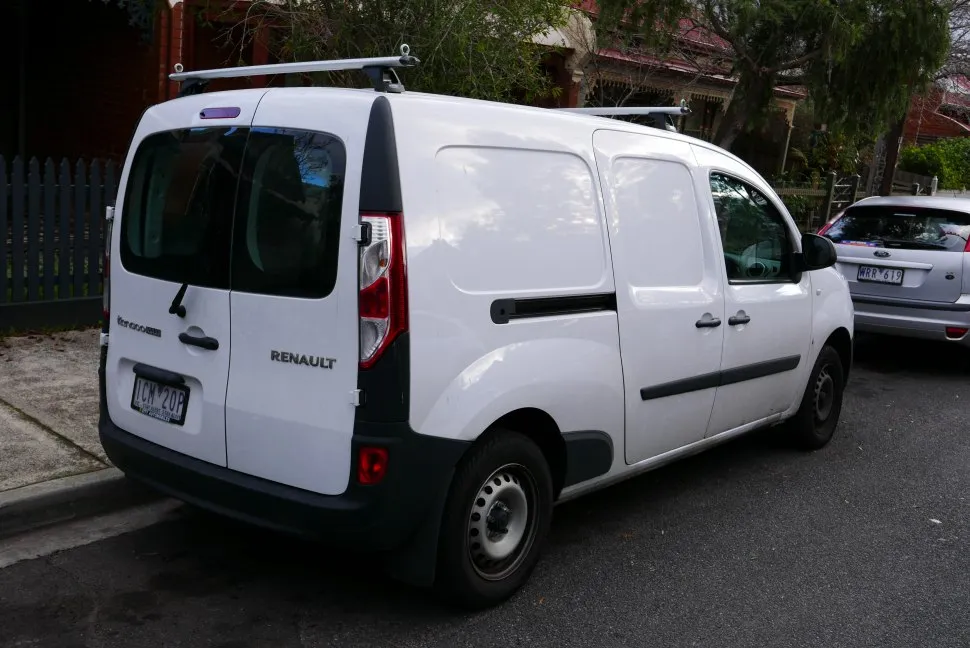

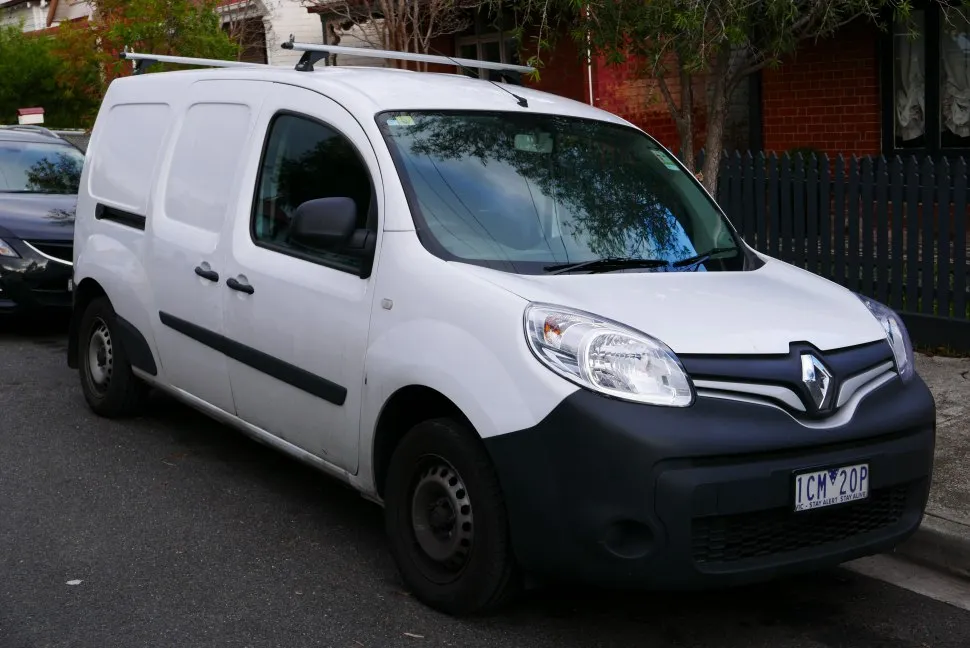

Vehicle photos
1 of 2
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
8 versions · 6 Diesel fuel · 2 Electricity
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.5 Energy dCi (90 KM) Stop&Start Selected | Diesel fuel | 90 KM | 2013–2018 |
| 1.5 dCi (110 KM) EDC Selected | Diesel fuel | 110 KM | 2013–2018 |
| 1.5 dCi (90 KM) EDC Selected | Diesel fuel | 90 KM | 2013–2018 |
| 1.5 Energy dCi (110 KM) Stop&Start Selected | Diesel fuel | 110 KM | 2013–2018 |
| 1.5 Energy dCi (95 KM) Selected | Diesel fuel | 95 KM | 2019–2021 |
| 1.5 Energy dCi (115 KM) Selected | Diesel fuel | 115 KM | 2019–2021 |
| Z.E. 33 kWh (60 KM) Selected | Electricity | 2017–2021 | |
| Z.E. 22 kWh (60 KM) Selected | Electricity | 2013–2017 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.5 Energy dCi (90 KM) Stop&Start
Diesel fuel · 2013–2018
- Engine power
- 90 KM
- Torque
- 220 Nm
- Engine displacement
- 1,461 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 13.3 s
- Maximum speed
- 160 km/h
On this page
Check vehicle history
Basic version information
Renault Kangoo Kangoo II Express Maxi Grand Volume (facelift 2013)- Brand
- Renault
- Model
- Kangoo
- Version
- Kangoo II Express Maxi Grand Volume (facelift 2013)
- Engine
- 1.5 Energy dCi (90 KM) Stop&Start
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2013
- End of production
- 2018
- Body type
- Minivan
- Number of seats
- 2
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 160 km/h
- Acceleration 0-100 km/h
- 13.3 s
- Fuel consumption - Combined cycle
- 4.7 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 123 g/km
Engine
- Engine model / code
- K9K
- Engine position
- Front, Transverse
- Engine displacement
- 1461 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 7.2 l
- Power
- 90 KM @ 4000 obr./min
- Torque
- 220 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 4000 l
- Maximum trunk capacity
- 4600 l
- Curb weight
- 1357-1496 kg
- Gross weight
- 2200 kg
- Braked trailer load (12% slope start)
- 1050 kg
- Trailer load without brakes
- 680 kg
Vehicle dimensions
- Length
- 4666 mm
- Width
- 1829 mm
- Width with unfolded mirrors
- 2138 mm
- Height
- 1810 mm
- Wheelbase
- 3081 mm
- Front track
- 1521 mm
- Rear track
- 1533 mm
- Front overhang
- 875 mm
- Rear overhang
- 710 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent McPherson type
- Rear suspension
- Steer
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15 91 T
- Rim size
- 15
- ABS
- yes
Selected engine version
1.5 dCi (110 KM) EDC
Diesel fuel · 2013–2018
- Engine power
- 110 KM
- Torque
- 250 Nm
- Engine displacement
- 1,461 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.7 s
- Maximum speed
- 170 km/h
On this page
Check vehicle history
Basic version information
Renault Kangoo Kangoo II Express Maxi Grand Volume (facelift 2013)- Brand
- Renault
- Model
- Kangoo
- Version
- Kangoo II Express Maxi Grand Volume (facelift 2013)
- Engine
- 1.5 dCi (110 KM) EDC
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2013
- End of production
- 2018
- Body type
- Minivan
- Number of seats
- 2
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 170 km/h
- Acceleration 0-100 km/h
- 12.7 s
- Fuel consumption - Combined cycle
- 5.2 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 136 g/km
Engine
- Engine model / code
- K9K
- Engine position
- Front, Transverse
- Engine displacement
- 1461 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 7.2 l
- Power
- 110 KM @ 4000 obr./min
- Torque
- 250 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 4000 l
- Maximum trunk capacity
- 4600 l
- Curb weight
- 1395-1540 kg
- Gross weight
- 2200 kg
- Braked trailer load (12% slope start)
- 1050 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4666 mm
- Width
- 1829 mm
- Width with unfolded mirrors
- 2138 mm
- Height
- 1810 mm
- Wheelbase
- 3081 mm
- Front track
- 1521 mm
- Rear track
- 1533 mm
- Front overhang
- 875 mm
- Rear overhang
- 710 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- EDC
- Front suspension
- Independent McPherson type
- Rear suspension
- Steer
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15 91 T
- Rim size
- 15
- ABS
- yes
Selected engine version
1.5 dCi (90 KM) EDC
Diesel fuel · 2013–2018
- Engine power
- 90 KM
- Torque
- 220 Nm
- Engine displacement
- 1,461 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 14.9 s
- Maximum speed
- 160 km/h
On this page
Check vehicle history
Basic version information
Renault Kangoo Kangoo II Express Maxi Grand Volume (facelift 2013)- Brand
- Renault
- Model
- Kangoo
- Version
- Kangoo II Express Maxi Grand Volume (facelift 2013)
- Engine
- 1.5 dCi (90 KM) EDC
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2013
- End of production
- 2018
- Body type
- Minivan
- Number of seats
- 2
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 160 km/h
- Acceleration 0-100 km/h
- 14.9 s
- Fuel consumption - Combined cycle
- 5.2 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 136 g/km
Engine
- Engine model / code
- K9K
- Engine position
- Front, Transverse
- Engine displacement
- 1461 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 7.2 l
- Power
- 90 KM @ 4000 obr./min
- Torque
- 220 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 4000 l
- Maximum trunk capacity
- 4600 l
- Curb weight
- 1300-1430 kg
- Gross weight
- 2200 kg
- Braked trailer load (12% slope start)
- 1050 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4666 mm
- Width
- 1829 mm
- Width with unfolded mirrors
- 2138 mm
- Height
- 1810 mm
- Wheelbase
- 3081 mm
- Front track
- 1521 mm
- Rear track
- 1533 mm
- Front overhang
- 875 mm
- Rear overhang
- 710 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- EDC
- Front suspension
- Independent McPherson type
- Rear suspension
- Steer
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15 91 T
- Rim size
- 15
- ABS
- yes
Selected engine version
1.5 Energy dCi (110 KM) Stop&Start
Diesel fuel · 2013–2018
- Engine power
- 110 KM
- Torque
- 260 Nm
- Engine displacement
- 1,461 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.3 s
- Maximum speed
- 170 km/h
On this page
Check vehicle history
Basic version information
Renault Kangoo Kangoo II Express Maxi Grand Volume (facelift 2013)- Brand
- Renault
- Model
- Kangoo
- Version
- Kangoo II Express Maxi Grand Volume (facelift 2013)
- Engine
- 1.5 Energy dCi (110 KM) Stop&Start
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2013
- End of production
- 2018
- Body type
- Minivan
- Number of seats
- 2
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 170 km/h
- Acceleration 0-100 km/h
- 12.3 s
- Fuel consumption - Combined cycle
- 4.5 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 119 g/km
Engine
- Engine model / code
- K9K
- Engine position
- Front, Transverse
- Engine displacement
- 1461 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Number of valves per cylinder
- 2
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 7.2 l
- Power
- 110 KM @ 4000 obr./min
- Torque
- 260 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 4000 l
- Maximum trunk capacity
- 4600 l
- Curb weight
- 1373-1540 kg
- Gross weight
- 2200 kg
- Braked trailer load (12% slope start)
- 1050 kg
- Trailer load without brakes
- 800 kg
Vehicle dimensions
- Length
- 4666 mm
- Width
- 1829 mm
- Width with unfolded mirrors
- 2138 mm
- Height
- 1810 mm
- Wheelbase
- 3081 mm
- Front track
- 1521 mm
- Rear track
- 1533 mm
- Front overhang
- 875 mm
- Rear overhang
- 710 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Steer
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15 91 T
- Rim size
- 15
- ABS
- yes
Selected engine version
1.5 Energy dCi (95 KM)
Diesel fuel · 2019–2021
- Engine power
- 95 KM
- Torque
- 230 Nm
- Engine displacement
- 1,461 cm³
- Fuel type
- Diesel fuel
- Maximum speed
- 163 km/h
On this page
Check vehicle history
Basic version information
Renault Kangoo Kangoo II Express Maxi Grand Volume (facelift 2013)- Brand
- Renault
- Model
- Kangoo
- Version
- Kangoo II Express Maxi Grand Volume (facelift 2013)
- Engine
- 1.5 Energy dCi (95 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2019
- End of production
- 2021
- Body type
- Minivan
- Number of seats
- 2
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 163 km/h
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 6.3 l/100 km
- Emission standard
- Euro 6 Dt
- CO2 measurement standard
- WLTP
- CO2 emissions
- 166 g/km
Engine
- Engine model / code
- K9K
- Engine position
- Front, Transverse
- Engine displacement
- 1461 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5.7 l
- Power
- 95 KM @ 3750 obr./min
- Torque
- 230 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- AdBlue tank
- 17.4 l
- Minimum trunk capacity
- 4000 l
- Maximum trunk capacity
- 4600 l
- Curb weight
- 1483 kg
- Gross weight
- 2200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1050 kg
- Trailer load without brakes
- 740 kg
Vehicle dimensions
- Length
- 4666 mm
- Width
- 1829 mm
- Width with unfolded mirrors
- 2138 mm
- Height
- 1810-1836 mm
- Wheelbase
- 3081 mm
- Front track
- 1521 mm
- Rear track
- 1533 mm
- Ground clearance
- 145-212 mm
- Front overhang
- 875 mm
- Rear overhang
- 710 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Steer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 280 mm
- Rear brakes
- Drum
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15
- Rim size
- 15
- ABS
- yes
Selected engine version
1.5 Energy dCi (115 KM)
Diesel fuel · 2019–2021
- Engine power
- 115 KM
- Torque
- 260 Nm
- Engine displacement
- 1,461 cm³
- Fuel type
- Diesel fuel
- Maximum speed
- 174 km/h
On this page
Check vehicle history
Basic version information
Renault Kangoo Kangoo II Express Maxi Grand Volume (facelift 2013)- Brand
- Renault
- Model
- Kangoo
- Version
- Kangoo II Express Maxi Grand Volume (facelift 2013)
- Engine
- 1.5 Energy dCi (115 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2019
- End of production
- 2021
- Body type
- Minivan
- Number of seats
- 2
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 174 km/h
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 6.3 l/100 km
- Emission standard
- Euro 6 Dt
- CO2 measurement standard
- WLTP
- CO2 emissions
- 165 g/km
Engine
- Engine model / code
- K9K
- Engine position
- Front, Transverse
- Engine displacement
- 1461 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5.7 l
- Power
- 115 KM @ 3750 obr./min
- Torque
- 260 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- AdBlue tank
- 17.4 l
- Minimum trunk capacity
- 4000 l
- Maximum trunk capacity
- 4600 l
- Curb weight
- 1489 kg
- Gross weight
- 2200 kg
- Roof load
- 100 kg
- Braked trailer load (12% slope start)
- 1050 kg
- Trailer load without brakes
- 745 kg
Vehicle dimensions
- Length
- 4666 mm
- Width
- 1829 mm
- Width with unfolded mirrors
- 2138 mm
- Height
- 1810-1836 mm
- Wheelbase
- 3081 mm
- Front track
- 1521 mm
- Rear track
- 1533 mm
- Ground clearance
- 145-212 mm
- Front overhang
- 875 mm
- Rear overhang
- 710 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Steer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 280 mm
- Rear brakes
- Drum
- Rear brake disc/drum diameter
- 274 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15
- Rim size
- 15
- ABS
- yes
Selected engine version
Z.E. 33 kWh (60 KM)
Electricity · 2017–2021
- Fuel type
- Electricity
- Acceleration 0-100 km/h
- 22.3 s
- Maximum speed
- 130 km/h
On this page
Check vehicle history
Basic version information
Renault Kangoo Kangoo II Express Maxi Grand Volume (facelift 2013)- Brand
- Renault
- Model
- Kangoo
- Version
- Kangoo II Express Maxi Grand Volume (facelift 2013)
- Engine
- Z.E. 33 kWh (60 KM)
- Engine type
- BEV (Battery Electric Vehicle)
- Number of doors
- 3
- Start of production
- 2017
- End of production
- 2021
- Body type
- Minivan
- Number of seats
- 2
- Fuel type
- Electricity
Performance
- Maximum speed
- 130 km/h
- Acceleration 0-100 km/h
- 22.3 s
- Battery gross capacity
- 33 kWh
- Net battery capacity
- 31 kWh
- All-electric range
- 270 km
- Average energy consumption
- 15.2 kWh/100 km
Engine
- Max electric motor power
- 60 KM @ 12000 obr./min
- Electric motor torque
- 225 Nm @ 225-1870 obr./min
- Electric motor position
- Front axle, Transverse
- System power
- 60 KM @ 12000 obr./min
- System torque
- 225 Nm @ 225-1870 obr./min
Volume and weight
- Minimum trunk capacity
- 4000 l
- Maximum trunk capacity
- 4600 l
- Curb weight
- 1510 kg
- Gross weight
- 2190 kg
- Braked trailer load (12% slope start)
- 322 kg
- Trailer load without brakes
- 322 kg
Vehicle dimensions
- Length
- 4666 mm
- Width
- 1829 mm
- Width with unfolded mirrors
- 2138 mm
- Height
- 1836 mm
- Wheelbase
- 3081 mm
- Front track
- 1521 mm
- Rear track
- 1533 mm
- Ground clearance
- 187 mm
- Front overhang
- 875 mm
- Rear overhang
- 710 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 1
- Front suspension
- Independent McPherson type
- Rear suspension
- Steer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 280 mm
- Front brake disc thickness
- 24 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Rear brake disc thickness
- 11 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15
- Rim size
- 6J x 15
- ABS
- yes
Selected engine version
Z.E. 22 kWh (60 KM)
Electricity · 2013–2017
- Fuel type
- Electricity
- Acceleration 0-100 km/h
- 22.4 s
- Maximum speed
- 130 km/h
On this page
Check vehicle history
Basic version information
Renault Kangoo Kangoo II Express Maxi Grand Volume (facelift 2013)- Brand
- Renault
- Model
- Kangoo
- Version
- Kangoo II Express Maxi Grand Volume (facelift 2013)
- Engine
- Z.E. 22 kWh (60 KM)
- Engine type
- BEV (Battery Electric Vehicle)
- Number of doors
- 3
- Start of production
- 2013
- End of production
- 2017
- Body type
- Minivan
- Number of seats
- 2
- Fuel type
- Electricity
Performance
- Maximum speed
- 130 km/h
- Acceleration 0-100 km/h
- 22.4 s
- Battery gross capacity
- 22 kWh
- Net battery capacity
- 20 kWh
- Electric range measurement standard
- NEDC
- All-electric range
- 170 km
- Energy consumption measurement standard
- NEDC
- Average energy consumption
- 15.5 kWh/100 km
Engine
- Max electric motor power
- 60 KM
- Electric motor torque
- 226 Nm
- Electric motor position
- Front axle, Transverse
- System power
- 60 KM
- System torque
- 226 Nm
Volume and weight
- Minimum trunk capacity
- 4000 l
- Maximum trunk capacity
- 4600 l
- Curb weight
- 1505 kg
- Gross weight
- 2175 kg
- Braked trailer load (12% slope start)
- 322 kg
- Trailer load without brakes
- 322 kg
Vehicle dimensions
- Length
- 4666 mm
- Width
- 1829 mm
- Width with unfolded mirrors
- 2138 mm
- Height
- 1836 mm
- Wheelbase
- 3081 mm
- Front track
- 1521 mm
- Rear track
- 1533 mm
- Ground clearance
- 187 mm
- Front overhang
- 875 mm
- Rear overhang
- 710 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 1
- Front suspension
- Independent McPherson type
- Rear suspension
- Steer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 280 mm
- Front brake disc thickness
- 24 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 274 mm
- Rear brake disc thickness
- 11 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15
- Rim size
- 6J x 15
- ABS
- yes
