Vehicle specifications

Opel Insignia Sports Tourer (B)

Compare all 21 engine versions of the Opel Insignia Insignia Sports Tourer (B), then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Opel Insignia Sports Tourer (B)? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?

Where can I find the VIN of Opel Insignia Sports Tourer (B)?

See the places on a 3D model →
VIN number
Firewall (bulkhead), right side
1 of 3

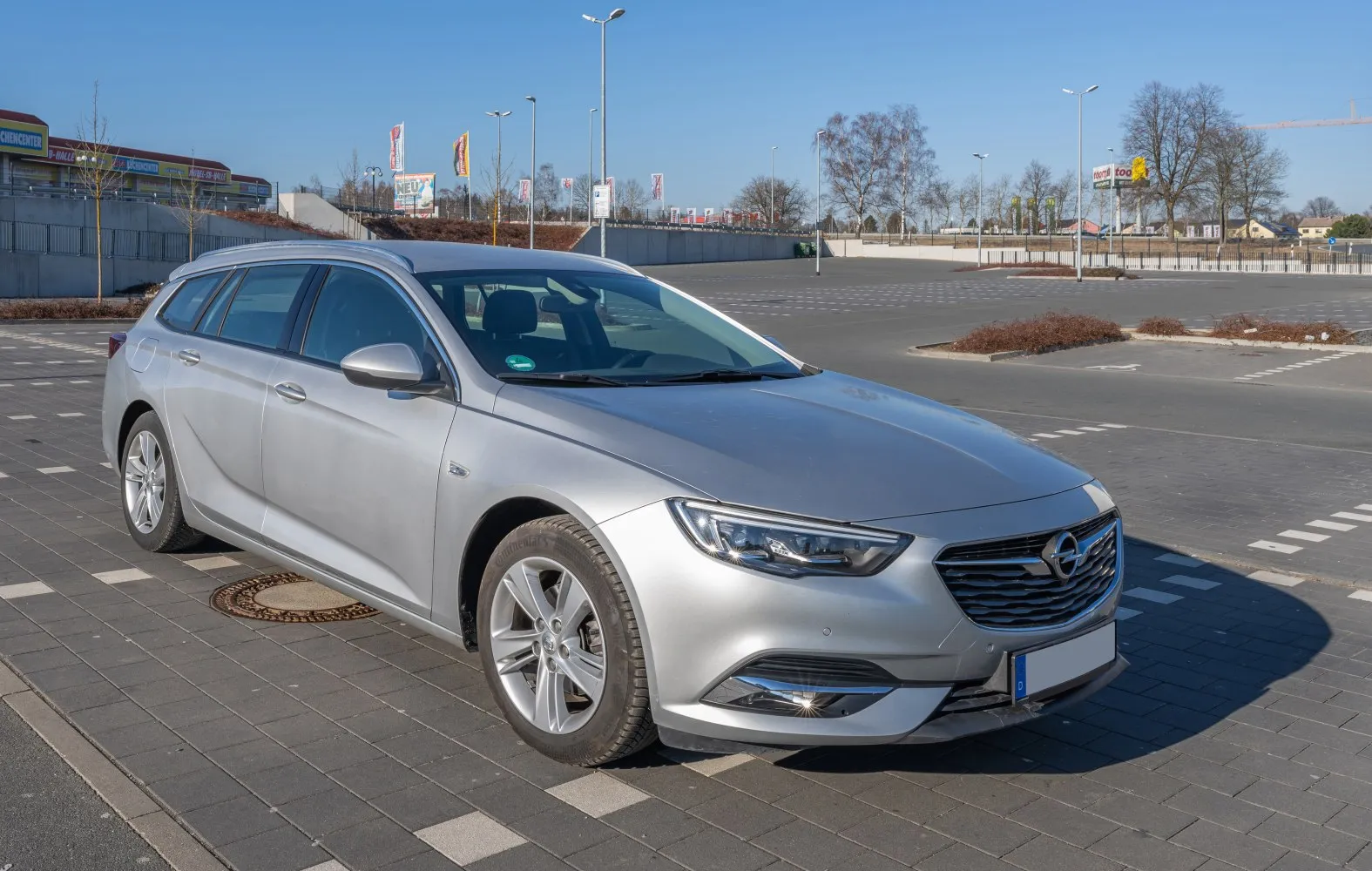

Opel Insignia Insignia Sports Tourer (B) View larger
Photo: PantheraLeo1359531, CC BY 4.0 <https://creativecommons.org/licenses/by/4.0>, via Wikimedia Commons

Vehicle gallery

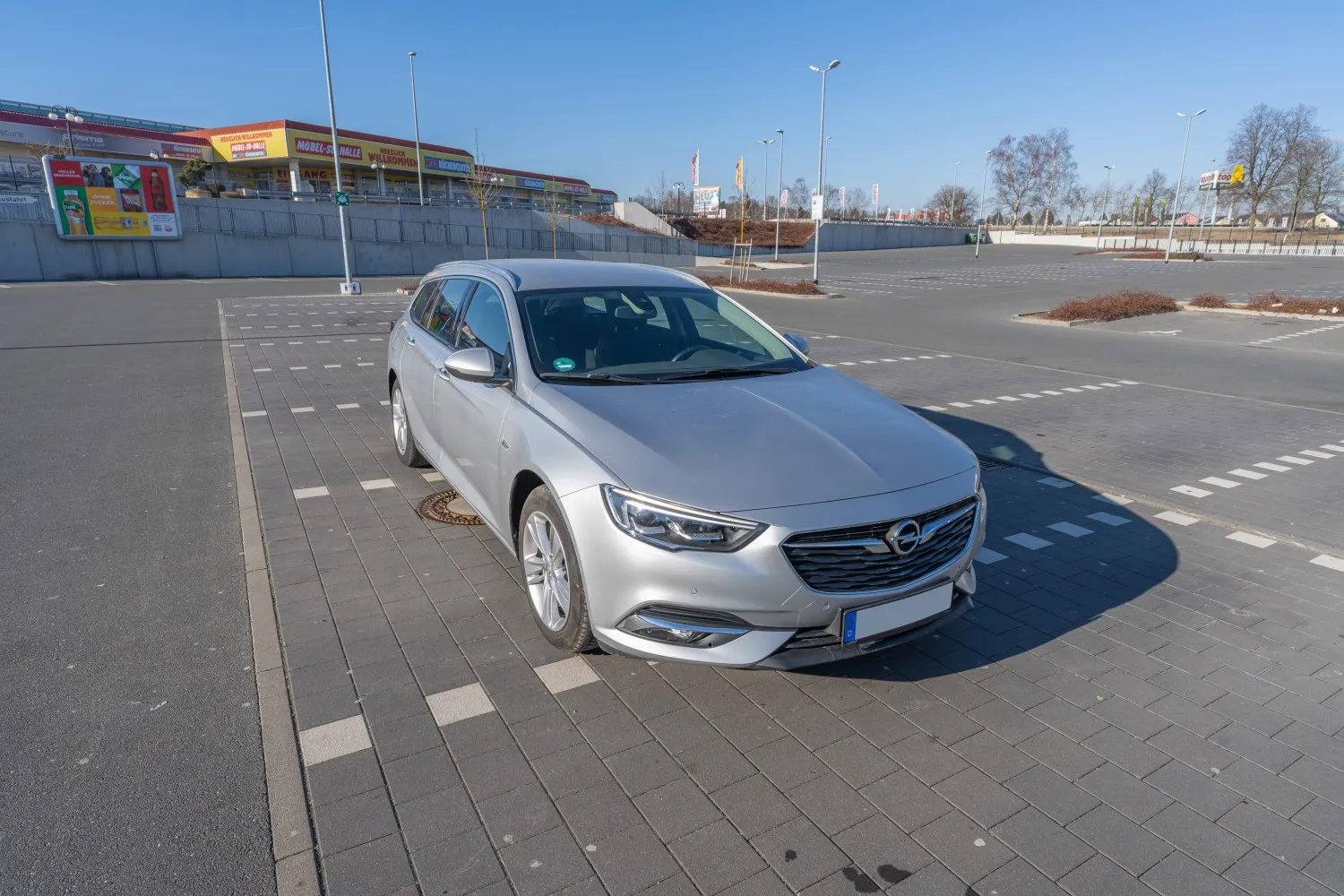

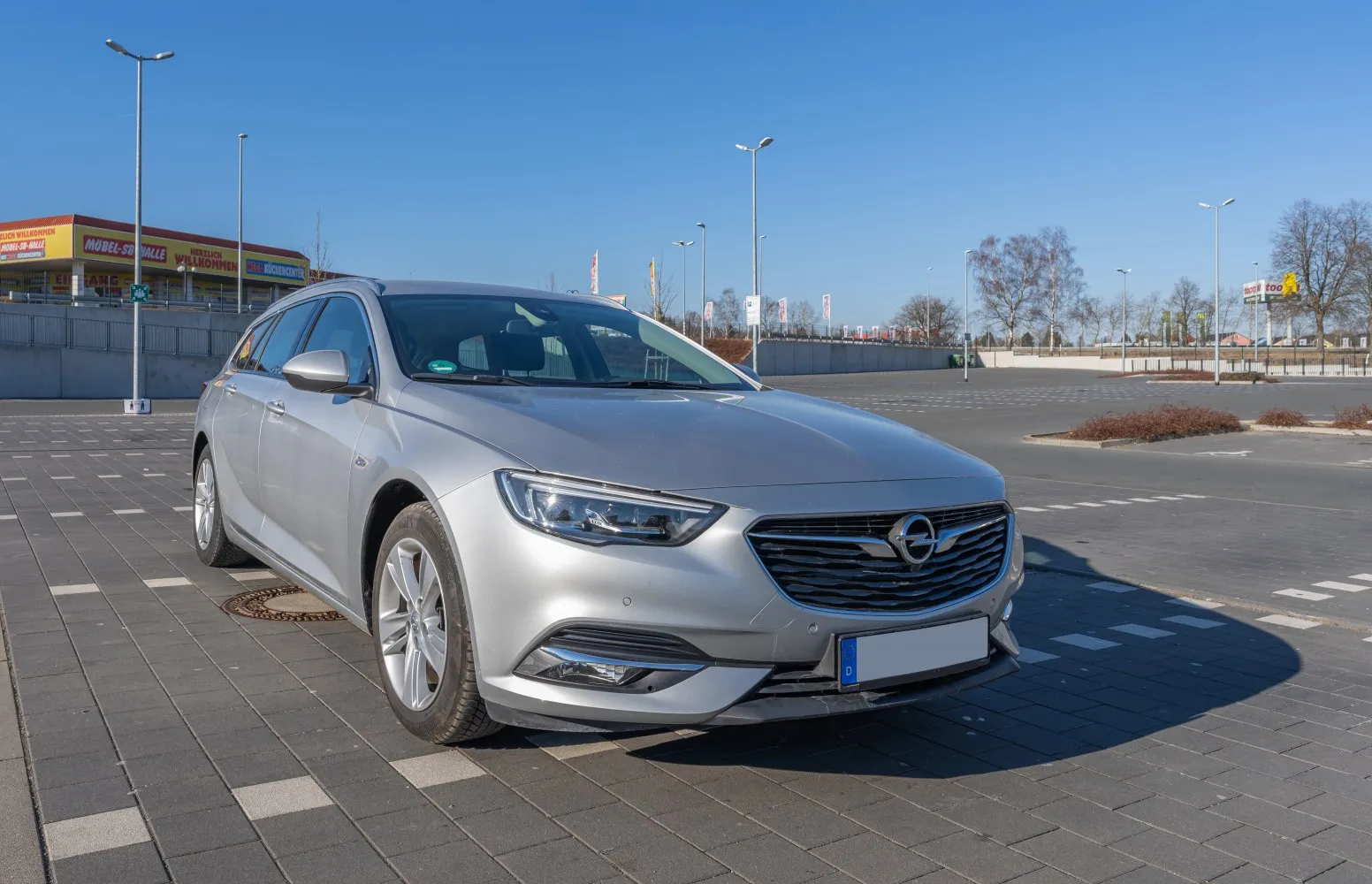

Opel Insignia Insignia Sports Tourer (B)

Photo: PantheraLeo1359531, CC BY 4.0 <https://creativecommons.org/licenses/by/4.0>, via Wikimedia Commons

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

21 versions · 10 Diesel fuel · 11 Gasoline

Engine Fuel Power Production
2.0 CDTI (170 KM) Selected Diesel fuel 170 KM 2017–2018
1.5 Turbo (165 KM) Selected Gasoline 165 KM 2017–2018
1.5 Turbo (165 KM) Automatic Selected Gasoline 165 KM 2017–2018
2.0 Turbo (260 KM) AWD Automatic Selected Gasoline 260 KM 2017–2018
1.5 EcoTEC Turbo (140 KM) Selected Gasoline 140 KM 2017–2018
1.5 Turbo (140 KM) Selected Gasoline 140 KM 2017–2018
GSi 2.0 Turbo (260 KM) AWD Automatic Selected Gasoline 260 KM 2017–2018
GSi 2.0 BiTurbo (210 KM) AWD Automatic Selected Diesel fuel 210 KM 2017–2019
GSi 2.0 BiTurbo (210 KM) 4x4 Automatic Selected Diesel fuel 210 KM 2019–2020
2.0d BiTurbo (210 KM) 4x4 Automatic Selected Diesel fuel 210 KM 2019–2020
2.0d (170 KM) 4x4 Selected Diesel fuel 170 KM 2018–2020
2.0d (170 KM) Automatic Selected Diesel fuel 170 KM 2018–2020
2.0d (170 KM) Selected Diesel fuel 170 KM 2018–2020
1.6d (136 KM) Automatic Selected Diesel fuel 136 KM 2018–2020
1.6d (136 KM) Selected Diesel fuel 136 KM 2018–2020
1.6d EcoTec (110 KM) Selected Diesel fuel 110 KM 2018–2019
1.6 Turbo (200 KM) Automatic Selected Gasoline 200 KM 2018–2019
1.6 Turbo (200 KM) Selected Gasoline 200 KM 2018–2019
1.5 Turbo (165 KM) Automatic Selected Gasoline 165 KM 2018–2020
1.5 Turbo (165 KM) Selected Gasoline 165 KM 2018–2020
1.5 Turbo (140 KM) Selected Gasoline 140 KM 2018–2020

Selected engine version

2.0 CDTI (170 KM)

Diesel fuel · 2017–2018

Engine power
170 KM
Torque
400 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.9 s
Maximum speed
223 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
2.0 CDTI (170 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
223 km/h
Acceleration 0-100 km/h
8.9 s
Fuel consumption - Urban cycle
6.9 l/100 km
Fuel consumption - Extra-urban cycle
4.3 l/100 km
Fuel consumption - Combined cycle
5.3 l/100 km
Emission standard
Euro 6
CO2 emissions
139 g/km

Engine

Engine model / code
B20DTH
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.9 l
Coolant capacity
5.9 l
Power
170 KM @ 3500-4000 obr./min
Torque
400 Nm @ 1750-2500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1665 l
Curb weight
1558 kg
Gross weight
2240 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1950 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
245/35 R20
Rim size
8.5 J x 20
ABS
yes

Selected engine version

1.5 Turbo (165 KM)

Gasoline · 2017–2018

Engine power
165 KM
Torque
250 Nm
Engine displacement
1,490 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.2 s
Maximum speed
218 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
1.5 Turbo (165 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
218 km/h
Acceleration 0-100 km/h
9.2 s
Fuel consumption - Urban cycle
7.6 l/100 km
Fuel consumption - Extra-urban cycle
5.2 l/100 km
Fuel consumption - Combined cycle
6.1 l/100 km
Emission standard
Euro 6
CO2 emissions
139 g/km

Engine

Engine model / code
B15XFT
Engine position
Front, Transverse
Engine displacement
1490 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
86.6 mm
Compression ratio
10.1
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
5.4 l
Power
165 KM @ 5600 obr./min
Torque
250 Nm @ 2000-4500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1665 l
Curb weight
1412 kg
Gross weight
2085 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
730 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16
Rim size
6.5 J x 16
ABS
yes

Selected engine version

1.5 Turbo (165 KM) Automatic

Gasoline · 2017–2018

Engine power
165 KM
Torque
250 Nm
Engine displacement
1,490 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.6 s
Maximum speed
214 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
1.5 Turbo (165 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
214 km/h
Acceleration 0-100 km/h
9.6 s
Fuel consumption - Urban cycle
7.7 l/100 km
Fuel consumption - Extra-urban cycle
5.3 l/100 km
Fuel consumption - Combined cycle
6.2 l/100 km
Emission standard
Euro 6
CO2 emissions
141 g/km

Engine

Engine model / code
B15XFT
Engine position
Front, Transverse
Engine displacement
1490 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
86.6 mm
Compression ratio
10.1
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
5.4 l
Power
165 KM @ 5600 obr./min
Torque
250 Nm @ 2000-4500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1665 l
Curb weight
1447 kg
Gross weight
2110 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
730 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16
Rim size
6.5 J x 16
ABS
yes

Selected engine version

2.0 Turbo (260 KM) AWD Automatic

Gasoline · 2017–2018

Engine power
260 KM
Torque
400 Nm
Engine displacement
1,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.5 s
Maximum speed
245 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
2.0 Turbo (260 KM) AWD Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
245 km/h
Acceleration 0-100 km/h
7.5 s
Fuel consumption - Urban cycle
11.5 l/100 km
Fuel consumption - Extra-urban cycle
7.1 l/100 km
Fuel consumption - Combined cycle
8.7 l/100 km
Emission standard
Euro 6
CO2 emissions
199 g/km

Engine

Engine model / code
B20NFT
Engine position
Front, Transverse
Engine displacement
1998 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
86 mm
Piston stroke
86 mm
Compression ratio
9.5
Number of valves per cylinder
4
Engine oil capacity
5.7 l
Coolant capacity
5 l
Power
260 KM @ 5300 obr./min
Torque
400 Nm @ 2500-4000 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1665 l
Curb weight
1608 kg
Gross weight
2295 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2200 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
245/35 R20
Rim size
8.5 J x 20
ABS
yes

Selected engine version

1.5 EcoTEC Turbo (140 KM)

Gasoline · 2017–2018

Engine power
140 KM
Torque
250 Nm
Engine displacement
1,490 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
10.2 s
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
1.5 EcoTEC Turbo (140 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
210 km/h
Acceleration 0-100 km/h
10.2 s
Fuel consumption - Urban cycle
7.6 l/100 km
Fuel consumption - Extra-urban cycle
4.8 l/100 km
Fuel consumption - Combined cycle
5.8 l/100 km
Emission standard
Euro 6
CO2 emissions
132 g/km

Engine

Engine model / code
B15XFL
Engine position
Front, Transverse
Engine displacement
1490 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
86.6 mm
Compression ratio
10.1
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
5.4 l
Power
140 KM @ 5600 obr./min
Torque
250 Nm @ 2000-4100 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1665 l
Curb weight
1412 kg
Gross weight
2080 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
730 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/55 R17
Rim size
7 J x 17
ABS
yes

Selected engine version

1.5 Turbo (140 KM)

Gasoline · 2017–2018

Engine power
140 KM
Torque
250 Nm
Engine displacement
1,490 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
10.2 s
Maximum speed
207 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
1.5 Turbo (140 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
207 km/h
Acceleration 0-100 km/h
10.2 s
Fuel consumption - Urban cycle
7.7 l/100 km
Fuel consumption - Extra-urban cycle
4.9 l/100 km
Fuel consumption - Combined cycle
6 l/100 km
Emission standard
Euro 6
CO2 emissions
136 g/km

Engine

Engine model / code
B15XFL
Engine position
Front, Transverse
Engine displacement
1490 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
86.6 mm
Compression ratio
10.1
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
5.4 l
Power
140 KM @ 5600 obr./min
Torque
250 Nm @ 2000-4100 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1665 l
Curb weight
1412 kg
Gross weight
2080 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
730 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16
Rim size
6.5 J x 16
ABS
yes

Selected engine version

GSi 2.0 Turbo (260 KM) AWD Automatic

Gasoline · 2017–2018

Engine power
260 KM
Torque
400 Nm
Engine displacement
1,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.5 s
Maximum speed
245 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
GSi 2.0 Turbo (260 KM) AWD Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
245 km/h
Acceleration 0-100 km/h
7.5 s
Fuel consumption - Urban cycle
11.5 l/100 km
Fuel consumption - Extra-urban cycle
7.1 l/100 km
Fuel consumption - Combined cycle
8.7 l/100 km
Emission standard
Euro 6
CO2 emissions
199 g/km

Engine

Engine model / code
B20NFT
Engine position
Front, Transverse
Engine displacement
1998 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
86 mm
Piston stroke
86 mm
Compression ratio
9.5
Number of valves per cylinder
4
Engine oil capacity
5.7 l
Coolant capacity
5 l
Power
260 KM @ 5300 obr./min
Torque
400 Nm @ 2500-4000 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1665 l
Curb weight
1641 kg
Gross weight
2275 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2200 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4998 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1490 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
1000 mm
Rear overhang
1169 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
ABS
yes

Selected engine version

GSi 2.0 BiTurbo (210 KM) AWD Automatic

Diesel fuel · 2017–2019

Engine power
210 KM
Torque
480 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
7.9 s
Maximum speed
231 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
GSi 2.0 BiTurbo (210 KM) AWD Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
231 km/h
Acceleration 0-100 km/h
7.9 s
Fuel consumption - Urban cycle
8.9 l/100 km
Fuel consumption - Extra-urban cycle
6.1 l/100 km
Fuel consumption - Combined cycle
7.3 l/100 km
Emission standard
Euro 6
CO2 emissions
192 g/km

Engine

Engine model / code
B20DTR
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
BiTurbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.9 l
Coolant capacity
5.9 l
Power
210 KM @ 4000 obr./min
Torque
480 Nm @ 1500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1665 l
Curb weight
1732 kg
Gross weight
2370 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1805 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4998 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1490 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
1000 mm
Rear overhang
1169 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
ABS
yes

Selected engine version

GSi 2.0 BiTurbo (210 KM) 4x4 Automatic

Diesel fuel · 2019–2020

Engine power
210 KM
Torque
480 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8 s
Maximum speed
231 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
GSi 2.0 BiTurbo (210 KM) 4x4 Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2019
End of production
2020
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
231 km/h
Acceleration 0-100 km/h
8 s
Fuel consumption - Urban cycle
9.4 l/100 km
Fuel consumption - Extra-urban cycle
5.8 l/100 km
Fuel consumption - Combined cycle
7.1 l/100 km
Emission standard
Euro 6c
CO2 emissions
188 g/km

Engine

Engine model / code
D20DTR
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.9 l
Coolant capacity
5.9 l
Power
210 KM @ 4000 obr./min
Torque
480 Nm @ 1500 obr./min

Volume and weight

Fuel tank
62 l
AdBlue tank
15 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1665 l
Curb weight
1732 kg
Gross weight
2370 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1805 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4998 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1490 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
1000 mm
Rear overhang
1169 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
235/40 R18
Rim size
8J x 18
ABS
yes

Selected engine version

2.0d BiTurbo (210 KM) 4x4 Automatic

Diesel fuel · 2019–2020

Engine power
210 KM
Torque
480 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8 s
Maximum speed
231 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
2.0d BiTurbo (210 KM) 4x4 Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2019
End of production
2020
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
231 km/h
Acceleration 0-100 km/h
8 s
Fuel consumption - Urban cycle
9.2-9.4 l/100 km
Fuel consumption - Extra-urban cycle
5.5-5.8 l/100 km
Fuel consumption - Combined cycle
6.9-7.1 l/100 km
Emission standard
Euro 6c
CO2 emissions
181-187 g/km

Engine

Engine model / code
D20DTR
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
BiTurbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.9 l
Coolant capacity
5.9 l
Power
210 KM @ 4000 obr./min
Torque
480 Nm @ 1500 obr./min

Volume and weight

Fuel tank
62 l
AdBlue tank
15 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1660 l
Curb weight
1647 kg
Gross weight
2390 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1805 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

2.0d (170 KM) 4x4

Diesel fuel · 2018–2020

Engine power
170 KM
Torque
400 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.9 s
Maximum speed
220 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
2.0d (170 KM) 4x4
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
220 km/h
Acceleration 0-100 km/h
9.9 s
Fuel consumption - Urban cycle
7.8 l/100 km
Fuel consumption - Extra-urban cycle
4.9-5.2 l/100 km
Fuel consumption - Combined cycle
5.9-6.2 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
156-162 g/km

Engine

Engine model / code
D20DTH
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.9 l
Coolant capacity
5.9 l
Power
170 KM @ 3750 obr./min
Torque
400 Nm @ 1750-2500 obr./min

Volume and weight

Fuel tank
62 l
AdBlue tank
15 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1660 l
Curb weight
1641 kg
Gross weight
2330 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2200 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

2.0d (170 KM) Automatic

Diesel fuel · 2018–2020

Engine power
170 KM
Torque
400 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.2 s
Maximum speed
220 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
2.0d (170 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
220 km/h
Acceleration 0-100 km/h
9.2 s
Fuel consumption - Urban cycle
7.1-7.2 l/100 km
Fuel consumption - Extra-urban cycle
4.7-4.9 l/100 km
Fuel consumption - Combined cycle
5.6-5.7 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
147-150 g/km

Engine

Engine model / code
D20DTH
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.9 l
Coolant capacity
5.9 l
Power
170 KM @ 3750 obr./min
Torque
400 Nm @ 1750-2500 obr./min

Volume and weight

Fuel tank
62 l
AdBlue tank
15 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1660 l
Curb weight
1591 kg
Gross weight
2270 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1700 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
8
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

2.0d (170 KM)

Diesel fuel · 2018–2020

Engine power
170 KM
Torque
400 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.9 s
Maximum speed
223 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
2.0d (170 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
223 km/h
Acceleration 0-100 km/h
8.9 s
Fuel consumption - Urban cycle
6.8-7.3 l/100 km
Fuel consumption - Extra-urban cycle
4.6-4.7 l/100 km
Fuel consumption - Combined cycle
5.4-5.6 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
142-148 g/km

Engine

Engine model / code
D20DTH
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.9 l
Coolant capacity
5.9 l
Power
170 KM @ 3750 obr./min
Torque
400 Nm @ 1750-2500 obr./min

Volume and weight

Fuel tank
62 l
AdBlue tank
15 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1660 l
Curb weight
1558 kg
Gross weight
2240 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1950 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

1.6d (136 KM) Automatic

Diesel fuel · 2018–2020

Engine power
136 KM
Torque
320 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.2 s
Maximum speed
202 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
1.6d (136 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
202 km/h
Acceleration 0-100 km/h
11.2 s
Fuel consumption - Urban cycle
6.6-7.0 l/100 km
Fuel consumption - Extra-urban cycle
4.5-4.6 l/100 km
Fuel consumption - Combined cycle
5.3-5.5 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
139-145 g/km

Engine

Engine model / code
D16DTH
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6 l
Power
136 KM @ 3500-4000 obr./min
Torque
320 Nm @ 2000-2250 obr./min

Volume and weight

Fuel tank
62 l
AdBlue tank
15 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1660 l
Curb weight
1492 kg
Gross weight
2160 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1300 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

1.6d (136 KM)

Diesel fuel · 2018–2020

Engine power
136 KM
Torque
320 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.7 s
Maximum speed
208 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
1.6d (136 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
208 km/h
Acceleration 0-100 km/h
10.7 s
Fuel consumption - Urban cycle
5.8-6.0 l/100 km
Fuel consumption - Extra-urban cycle
4.2-4.4 l/100 km
Fuel consumption - Combined cycle
4.8-5.0 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
125-131 g/km

Engine

Engine model / code
D16DTH
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6 l
Power
136 KM @ 3500-4000 obr./min
Torque
320 Nm @ 2000-2250 obr./min

Volume and weight

Fuel tank
62 l
AdBlue tank
15 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1660 l
Curb weight
1462 kg
Gross weight
2135 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

1.6d EcoTec (110 KM)

Diesel fuel · 2018–2019

Engine power
110 KM
Torque
300 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.6 s
Maximum speed
202 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
1.6d EcoTec (110 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
202 km/h
Acceleration 0-100 km/h
11.6 s
Fuel consumption - Urban cycle
5.4 l/100 km
Fuel consumption - Extra-urban cycle
4.2 l/100 km
Fuel consumption - Combined cycle
4.6 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
121 g/km

Engine

Engine model / code
D16DTI
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6 l
Power
110 KM @ 4000 obr./min
Torque
300 Nm @ 2000 obr./min

Volume and weight

Fuel tank
62 l
AdBlue tank
15 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1660 l
Curb weight
1447 kg
Gross weight
2125 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
720 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

1.6 Turbo (200 KM) Automatic

Gasoline · 2018–2019

Engine power
200 KM
Torque
280 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.2 s
Maximum speed
230 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
1.6 Turbo (200 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
230 km/h
Acceleration 0-100 km/h
8.2 s
Fuel consumption - Urban cycle
8.1-8.3 l/100 km
Fuel consumption - Extra-urban cycle
5.5-5.8 l/100 km
Fuel consumption - Combined cycle
6.4-6.7 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
147-154 g/km

Engine

Engine model / code
D16SHT
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.5 mm
Compression ratio
9.5
Number of valves per cylinder
4
Engine oil capacity
5.5 l
Power
200 KM @ 5500 obr./min
Torque
280 Nm @ 1650-4500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1660 l
Curb weight
1477 kg
Gross weight
2165 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1450 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

1.6 Turbo (200 KM)

Gasoline · 2018–2019

Engine power
200 KM
Torque
280 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.9 s
Maximum speed
232 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
1.6 Turbo (200 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
232 km/h
Acceleration 0-100 km/h
7.9 s
Fuel consumption - Urban cycle
8.0-8.3 l/100 km
Fuel consumption - Extra-urban cycle
5.3-5.6 l/100 km
Fuel consumption - Combined cycle
6.3-6.6 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
145-151 g/km

Engine

Engine model / code
D16SHT
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.5 mm
Compression ratio
9.5
Number of valves per cylinder
4
Engine oil capacity
5.5 l
Power
200 KM @ 5500 obr./min
Torque
280 Nm @ 1650-4500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1660 l
Curb weight
1462 kg
Gross weight
2130 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1410 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

1.5 Turbo (165 KM) Automatic

Gasoline · 2018–2020

Engine power
165 KM
Torque
250 Nm
Engine displacement
1,490 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.6 s
Maximum speed
214 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
1.5 Turbo (165 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
214 km/h
Acceleration 0-100 km/h
9.6 s
Fuel consumption - Urban cycle
7.8-8.1 l/100 km
Fuel consumption - Extra-urban cycle
5.1-5.5 l/100 km
Fuel consumption - Combined cycle
6.1-6.4 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
140-147 g/km

Engine

Engine model / code
D15XFL
Engine position
Front, Transverse
Engine displacement
1490 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
86.6 mm
Compression ratio
10.1
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
5.4 l
Power
165 KM @ 5600 obr./min
Torque
250 Nm @ 2000-4500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1660 l
Curb weight
1447 kg
Gross weight
2110 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
730 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

1.5 Turbo (165 KM)

Gasoline · 2018–2020

Engine power
165 KM
Torque
250 Nm
Engine displacement
1,490 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.2 s
Maximum speed
218 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
1.5 Turbo (165 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
218 km/h
Acceleration 0-100 km/h
9.2 s
Fuel consumption - Urban cycle
6.9-7.1 l/100 km
Fuel consumption - Extra-urban cycle
4.8-5.0 l/100 km
Fuel consumption - Combined cycle
5.6-5.8 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
128-133 g/km

Engine

Engine model / code
D15XFL
Engine position
Front, Transverse
Engine displacement
1490 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
86.6 mm
Compression ratio
10.1
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
5.4 l
Power
165 KM @ 5600 obr./min
Torque
250 Nm @ 2000-4500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1660 l
Curb weight
1412 kg
Gross weight
2085 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
730 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

1.5 Turbo (140 KM)

Gasoline · 2018–2020

Engine power
140 KM
Torque
250 Nm
Engine displacement
1,490 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
10.2 s
Maximum speed
207 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Sports Tourer (B)
Engine
1.5 Turbo (140 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Station wagon
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
207 km/h
Acceleration 0-100 km/h
10.2 s
Fuel consumption - Urban cycle
7.1-7.3 l/100 km
Fuel consumption - Extra-urban cycle
4.8-5.0 l/100 km
Fuel consumption - Combined cycle
5.6-5.8 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
128-133 g/km

Engine

Engine model / code
D15XFL
Engine position
Front, Transverse
Engine displacement
1490 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
86.6 mm
Compression ratio
10.1
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
5.4 l
Power
140 KM @ 5600 obr./min
Torque
250 Nm @ 2000-4100 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
560 l
Maximum trunk capacity
1660 l
Curb weight
1412 kg
Gross weight
2080 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
730 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4986 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1500 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1167 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

About Opel Insignia Insignia Sports Tourer (B)

The Opel Insignia Sports Tourer (B), produced from 2017 to 2020, is a stylish estate car aimed at individuals seeking a spacious and functional vehicle. Its five-door design, offering seating for five passengers, has been developed with families and those needing increased luggage capacity in mind, without sacrificing comfort and style. The modern Ozone design is characterized by dynamic lines and refined details, making it an attractive choice for drivers who value both aesthetics and practicality.

The Insignia Sports Tourer (B) offers a wide range of powertrains, including both gasoline and diesel engines. Power output ranges from 110 to 260 horsepower, allowing for flexible customization according to the driver's needs. Available are both economical versions, such as the 1.6d EcoTec (110 HP), as well as more dynamic options, like the 2.0 Turbo (260 HP) with all-wheel drive and an automatic transmission. These options include both manual and automatic gearboxes, providing a broad spectrum of driving experiences.

With front-wheel drive and 4x4 versions available, the Insignia Sports Tourer delivers stability and grip in diverse road conditions. The vehicle performs exceptionally well in both urban and rural settings, combining agility with long-distance driving comfort. The Insignia is equipped with numerous driver assistance systems, such as lane-keeping assist, adaptive cruise control, and an advanced multimedia system, significantly enhancing travel comfort and safety.

Despite its many advantages, the Insignia Sports Tourer (B) has some drawbacks that are worth noting. There have been known issues regarding electronics, particularly in multimedia and navigation systems. Additionally, versions with more advanced technologies may come with higher servicing costs. Some users also point out that while the luggage space is ample, its layout could be somewhat more practical and flexible.

The Opel Insignia Sports Tourer (B) is an appealing choice for those who need space and functionality without compromising on style and modern technology. Its elegant design, comfortable interior, and availability of various powertrains make it stand out among competitors. The Insignia offers an excellent balance between performance and comfort, making it a remarkable choice in the estate segment.
