Vehicle specifications

Opel Insignia Grand Sport (B)

Compare all 26 engine versions of the Opel Insignia Insignia Grand Sport (B), then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Opel Insignia Grand Sport (B)? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?

Where can I find the VIN of Opel Insignia Grand Sport (B)?

See the places on a 3D model →
VIN number
Firewall (bulkhead), right side
1 of 15

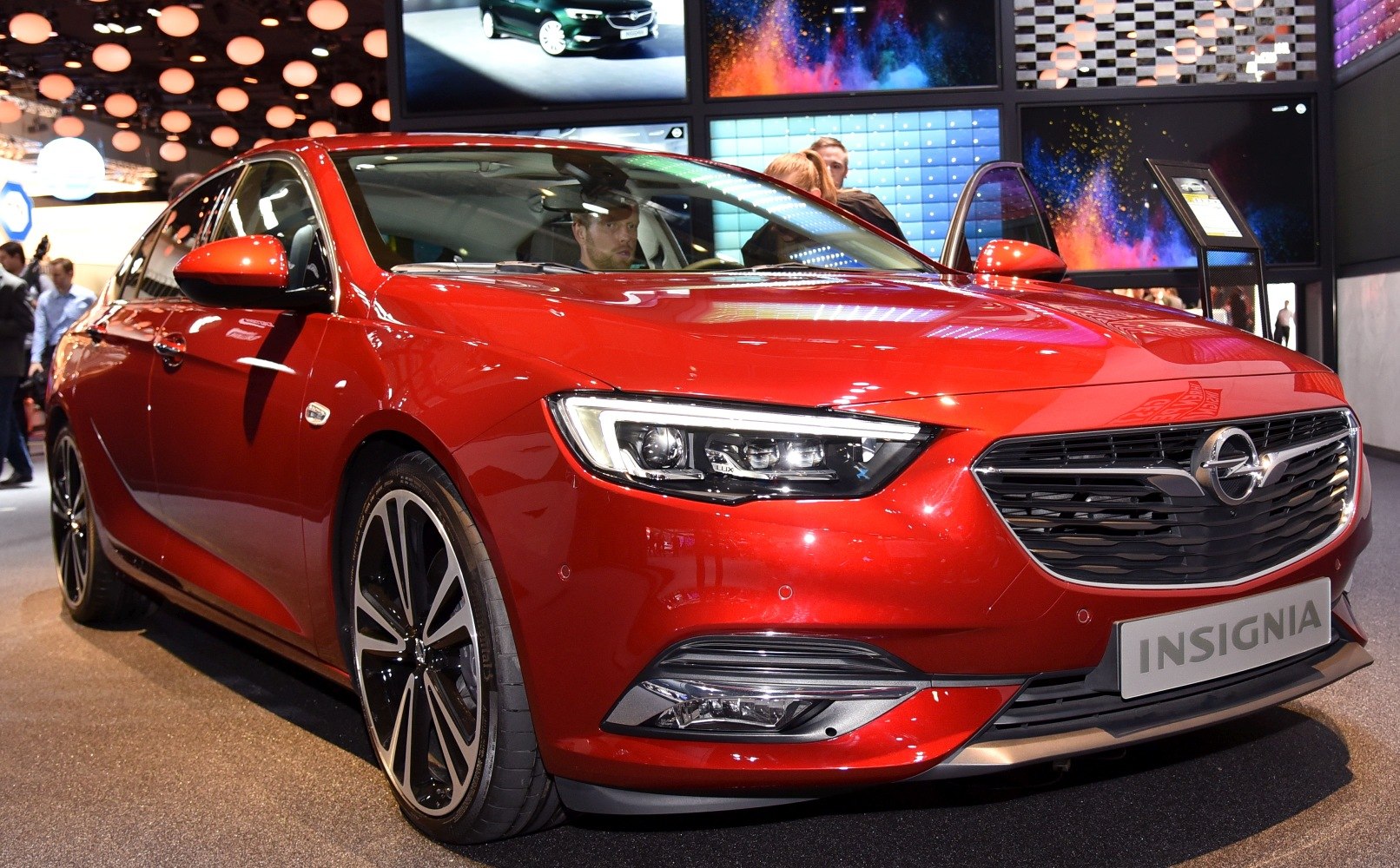

Opel Insignia Insignia Grand Sport (B) View larger
Photo: © www.Auto-Data.net

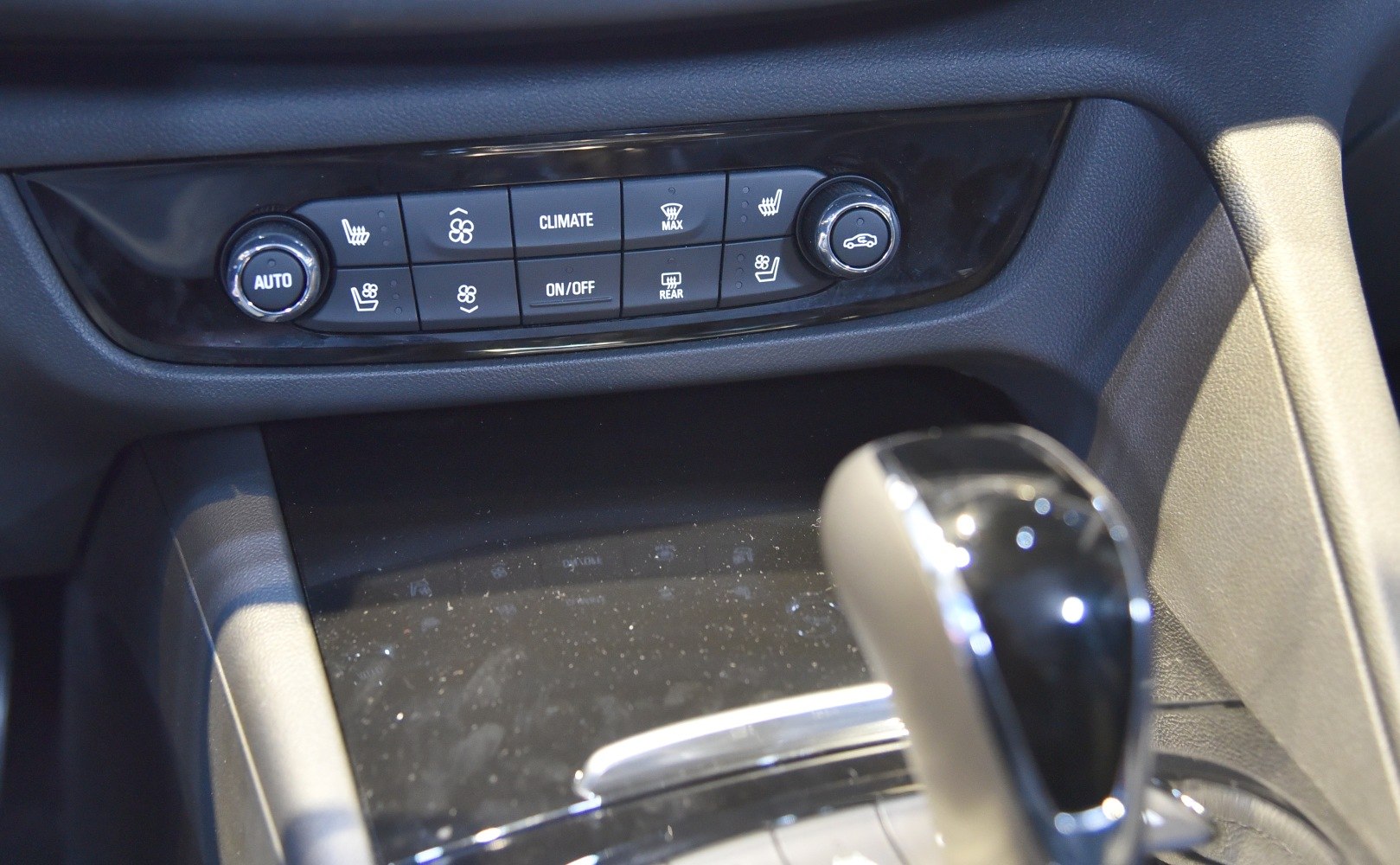

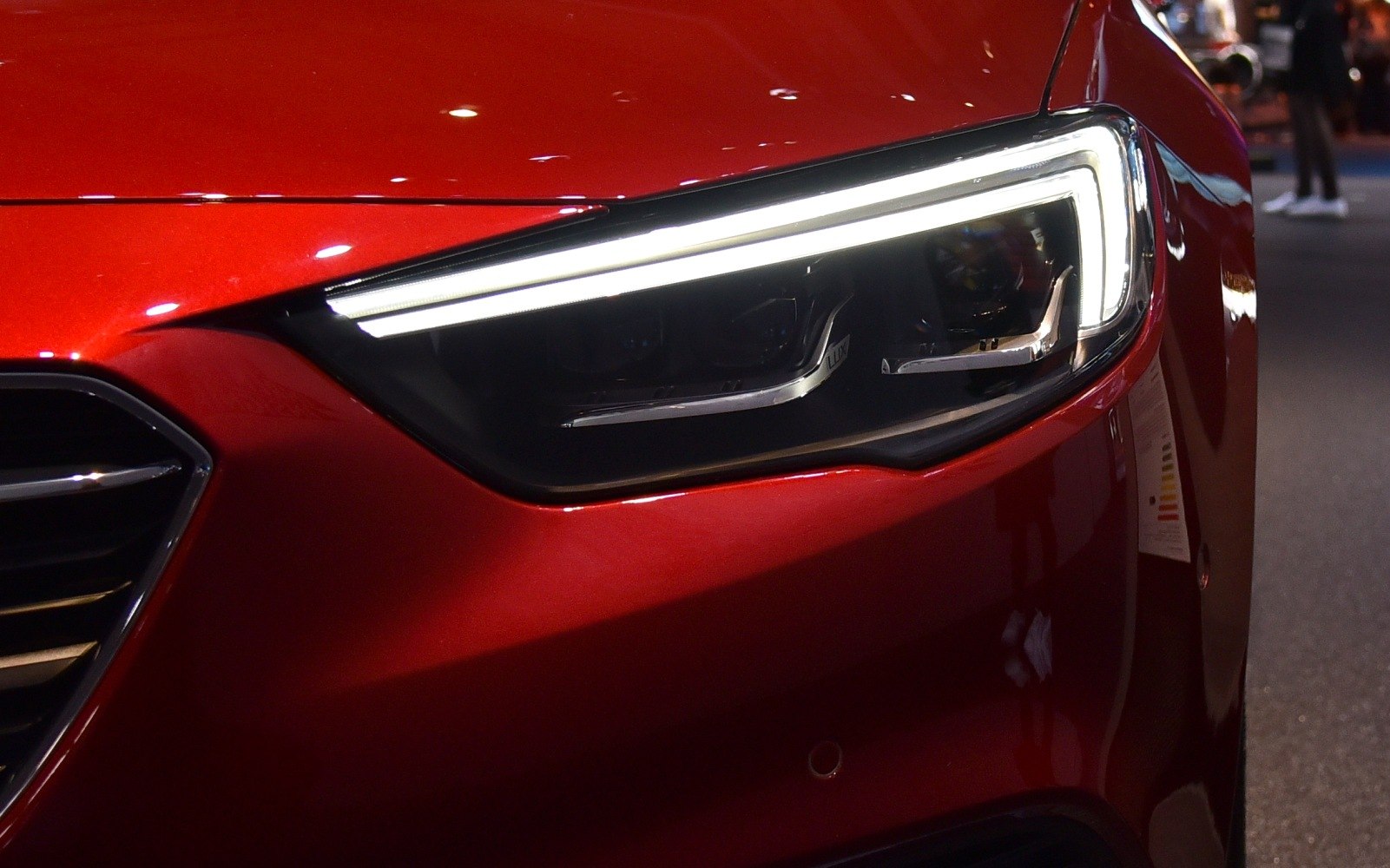

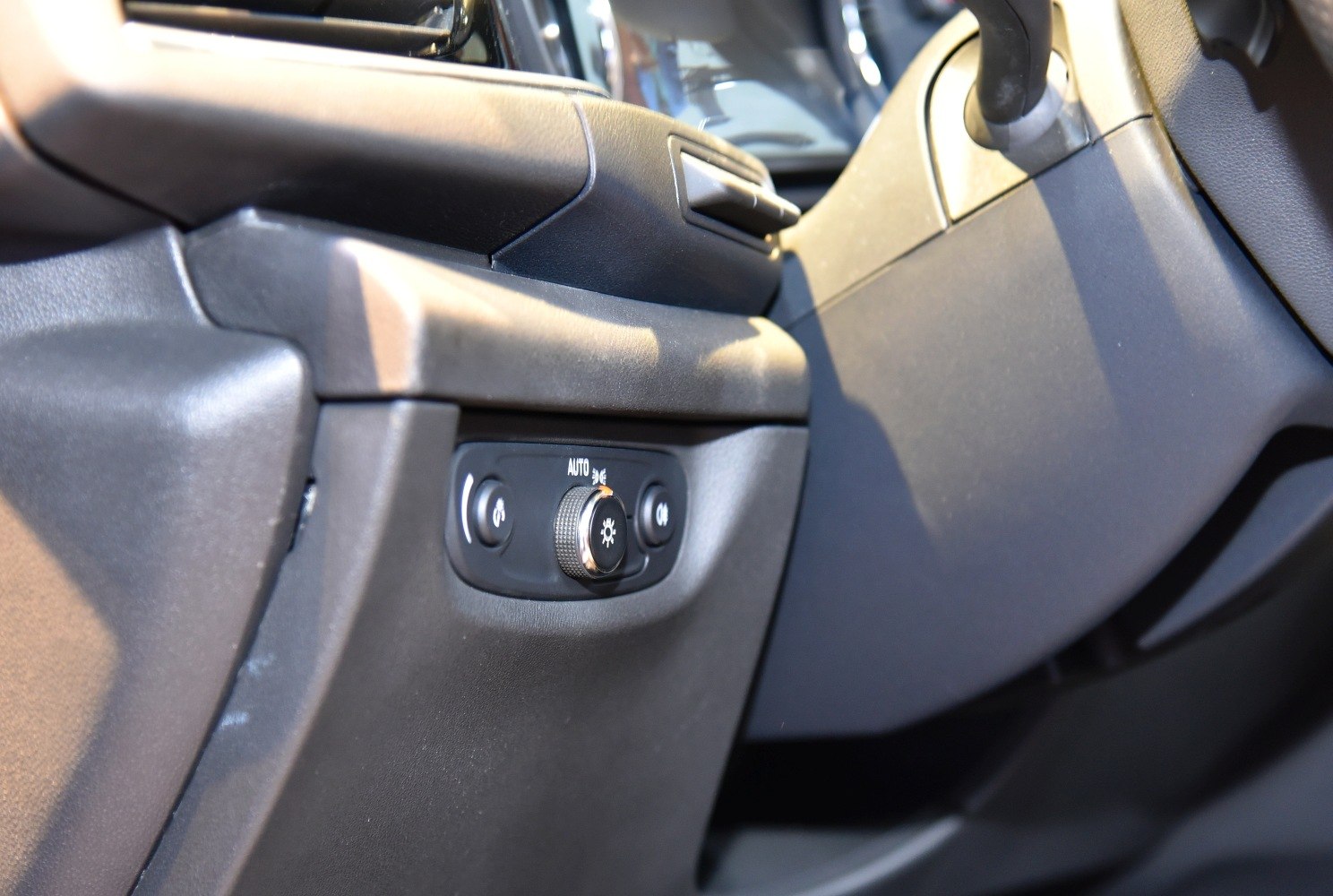

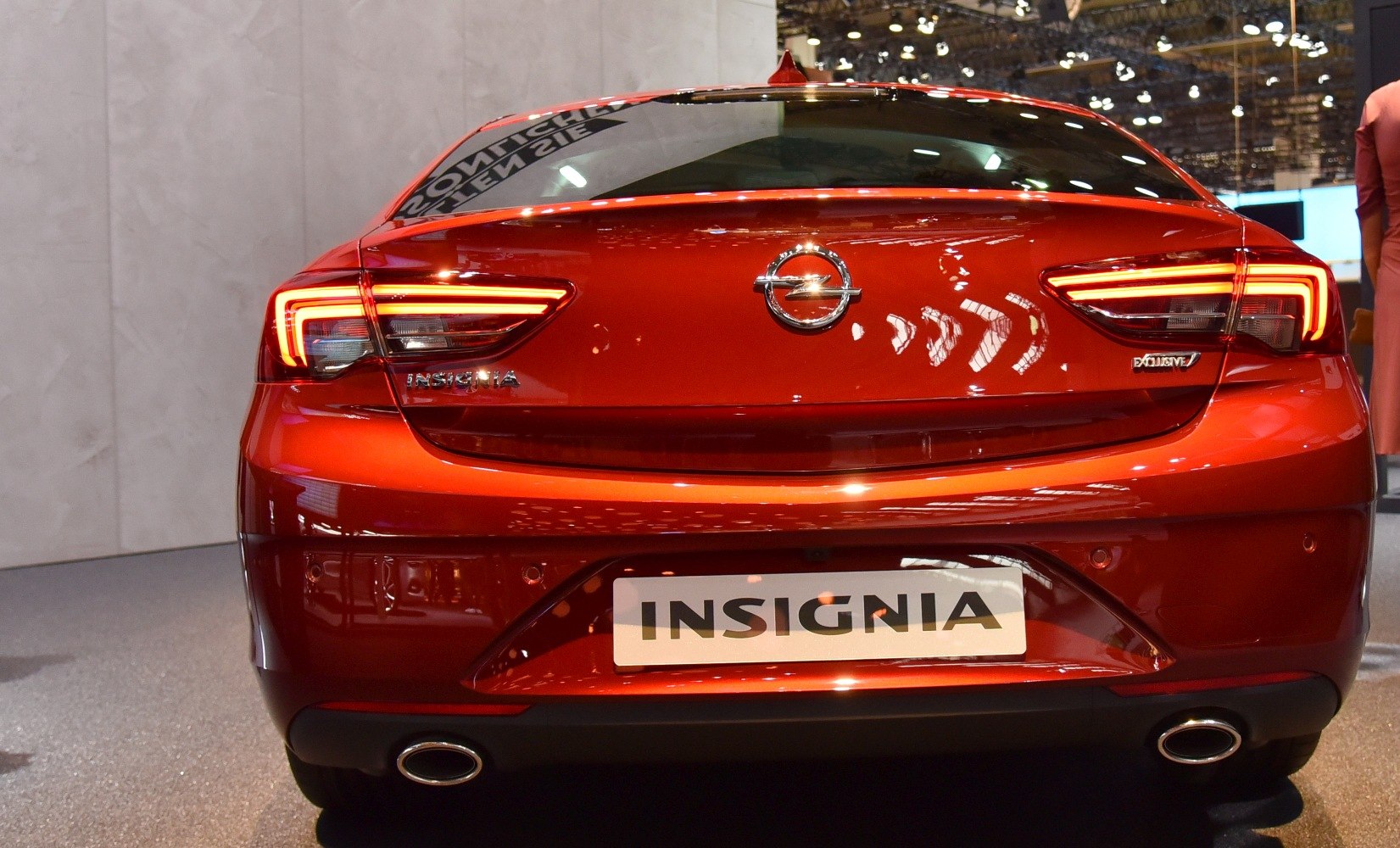

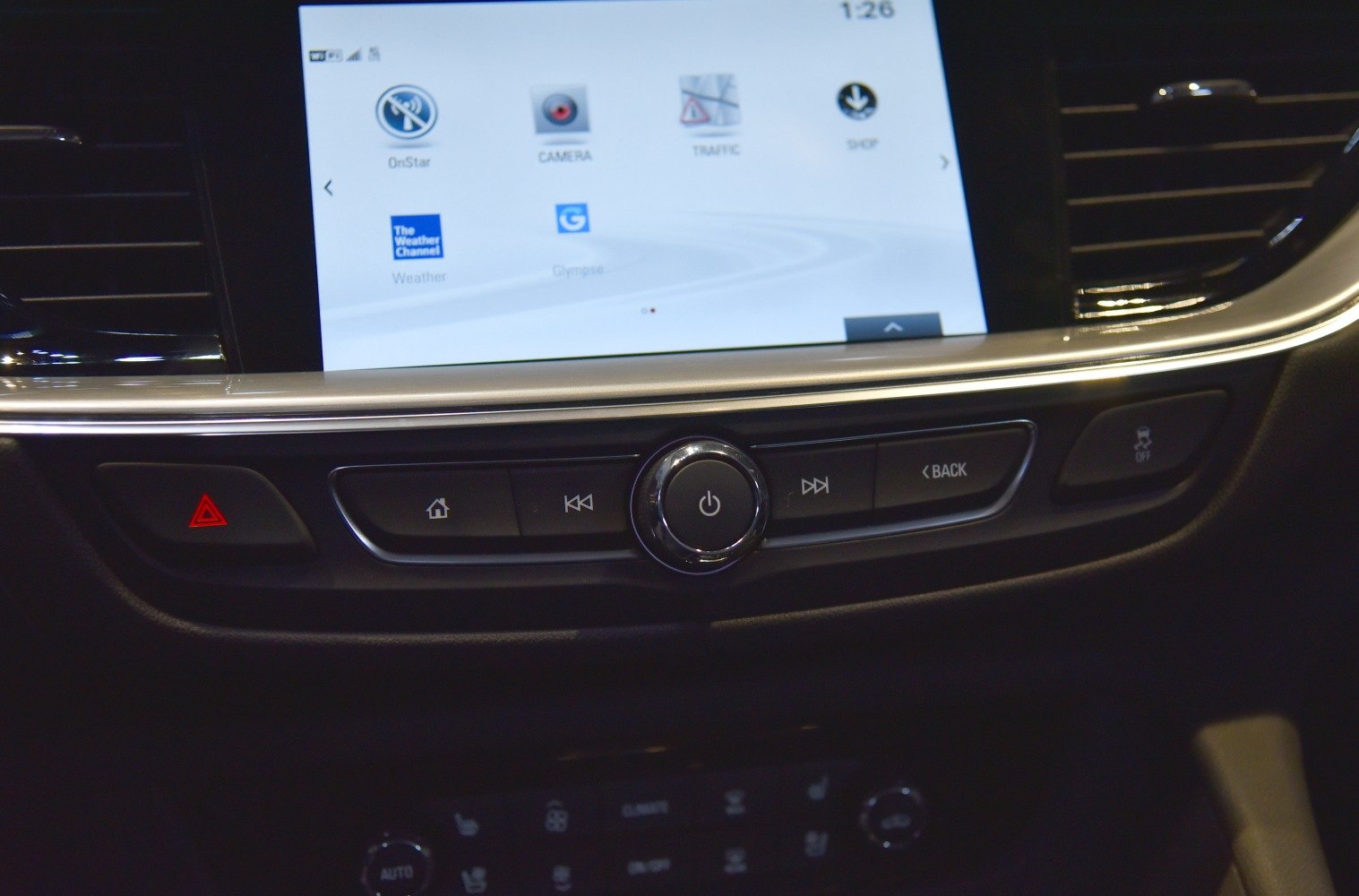

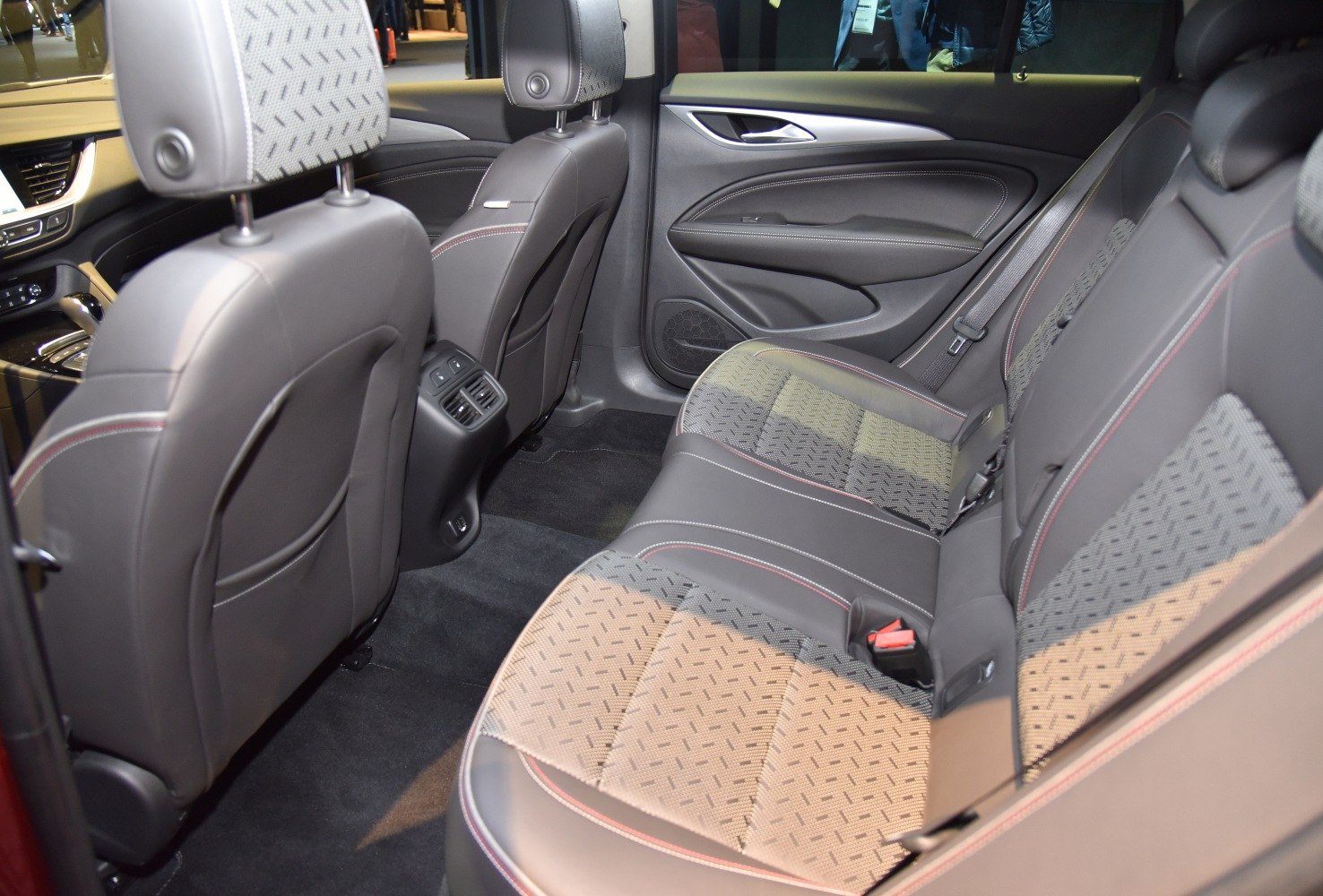

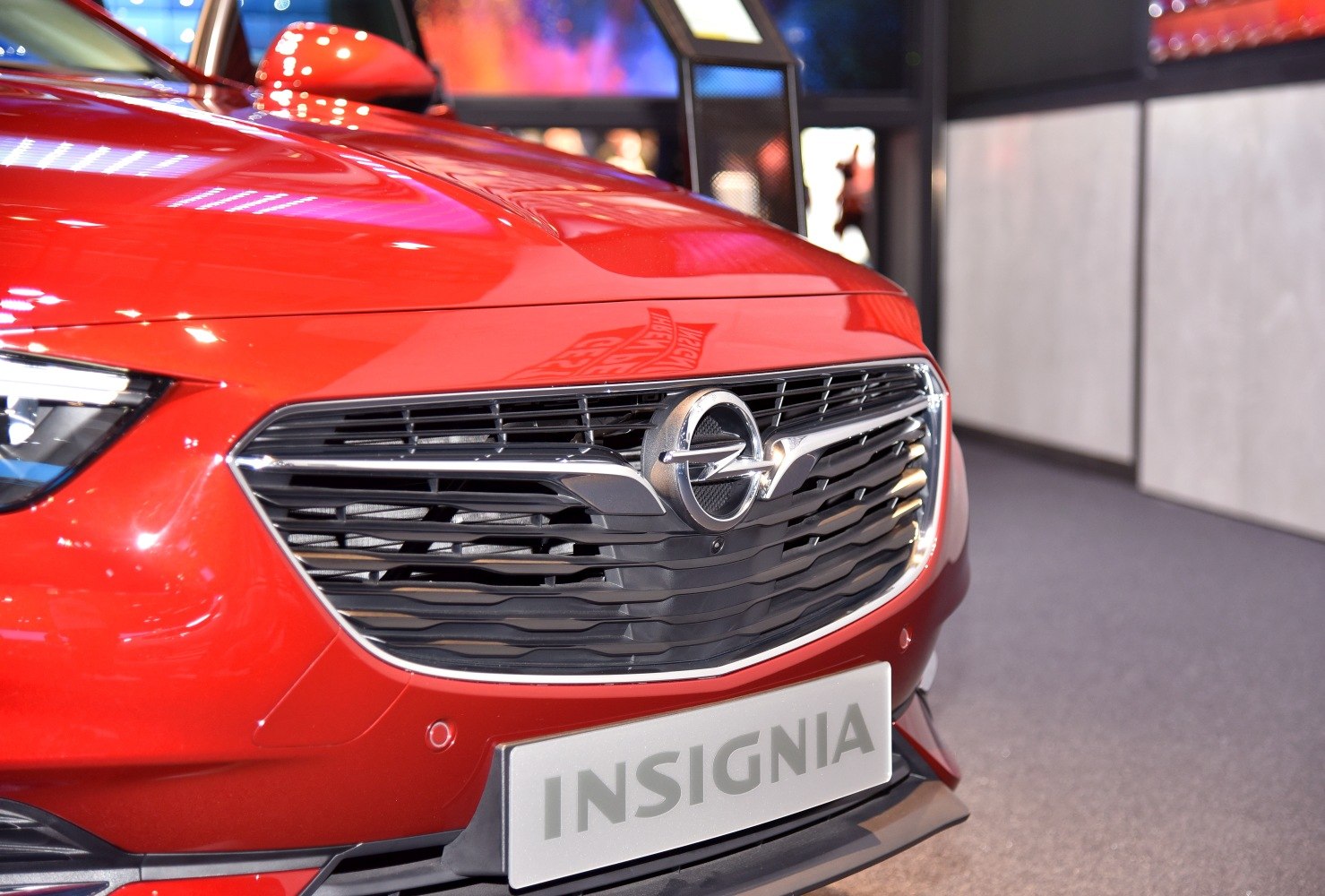

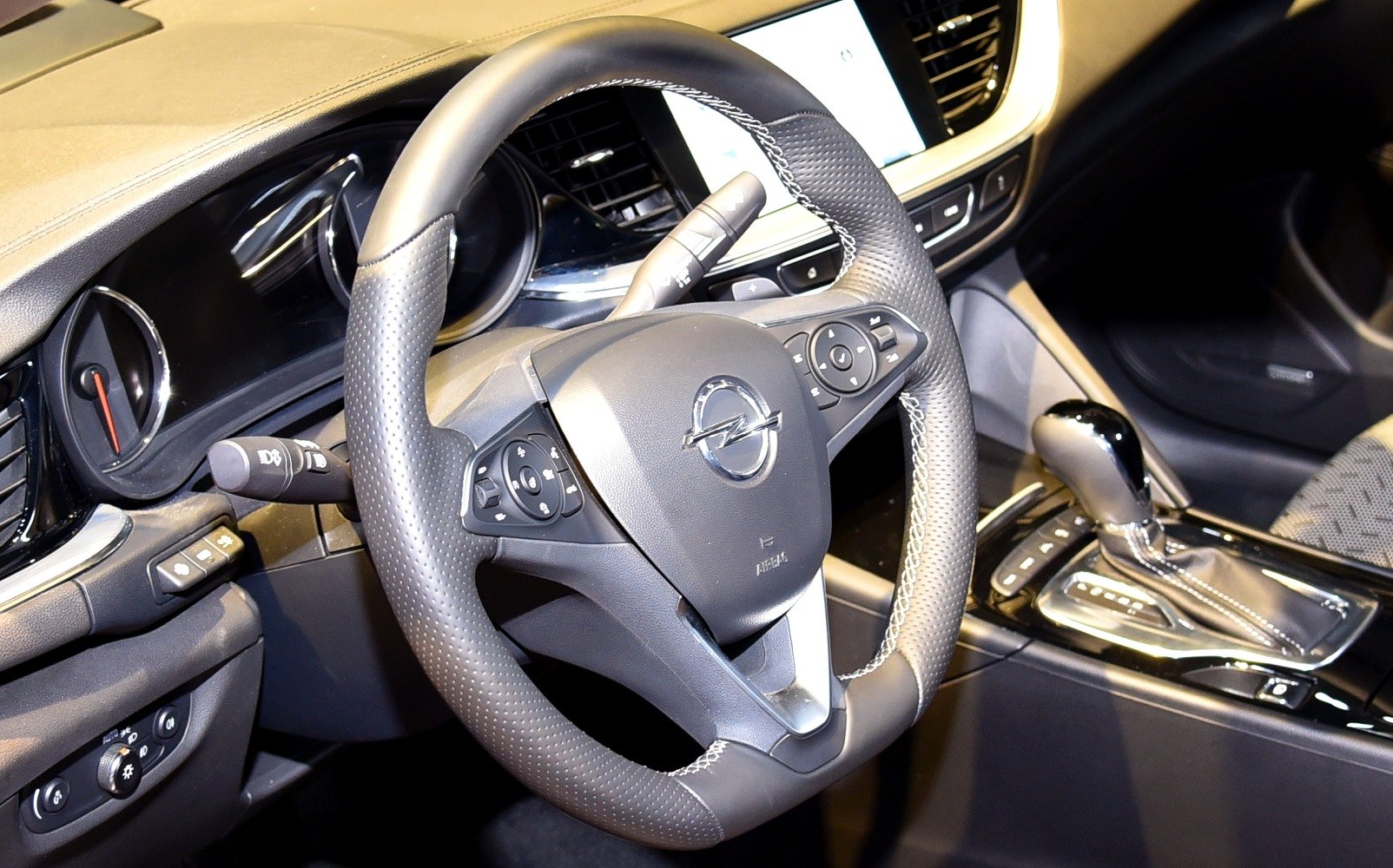

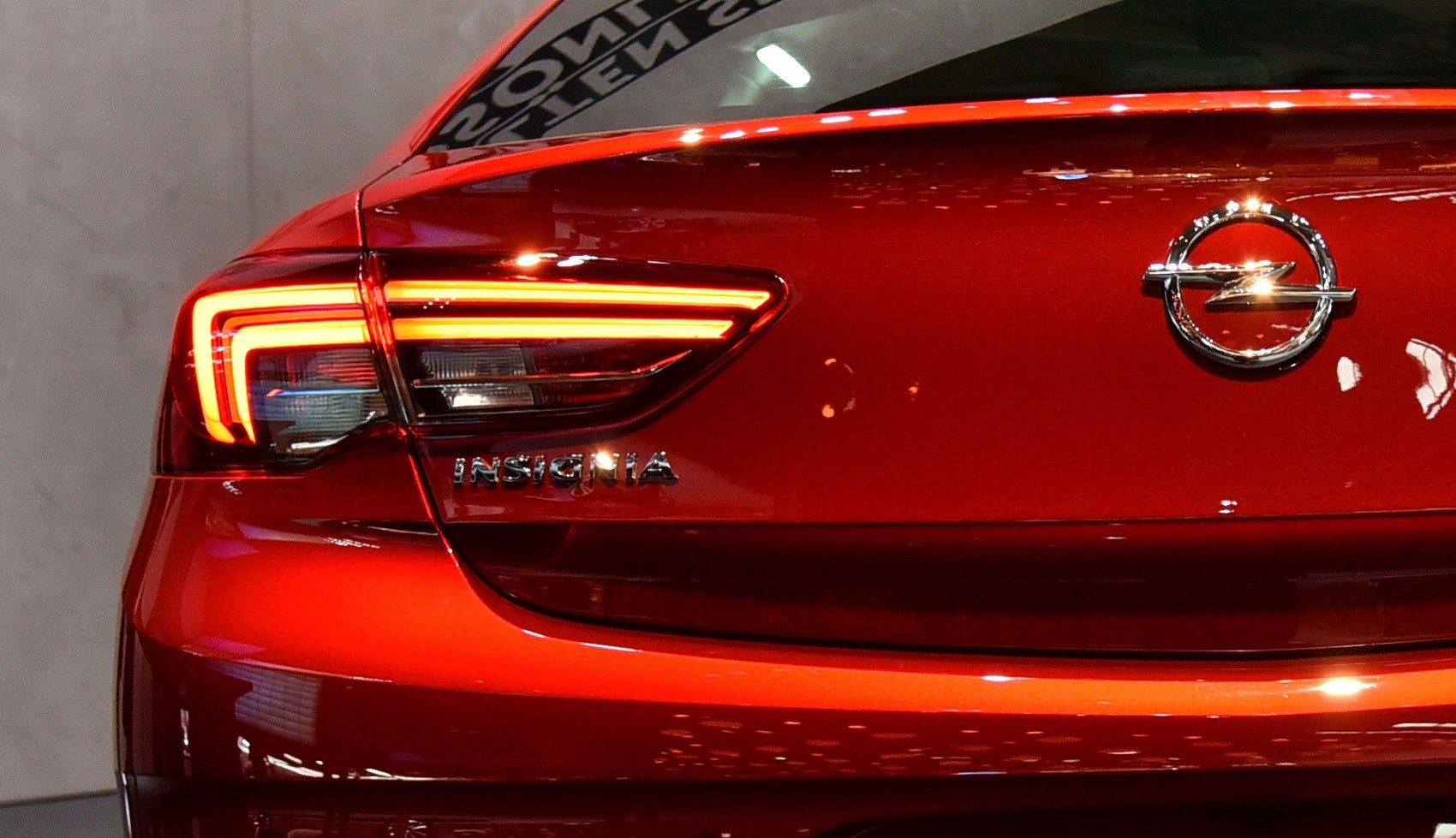

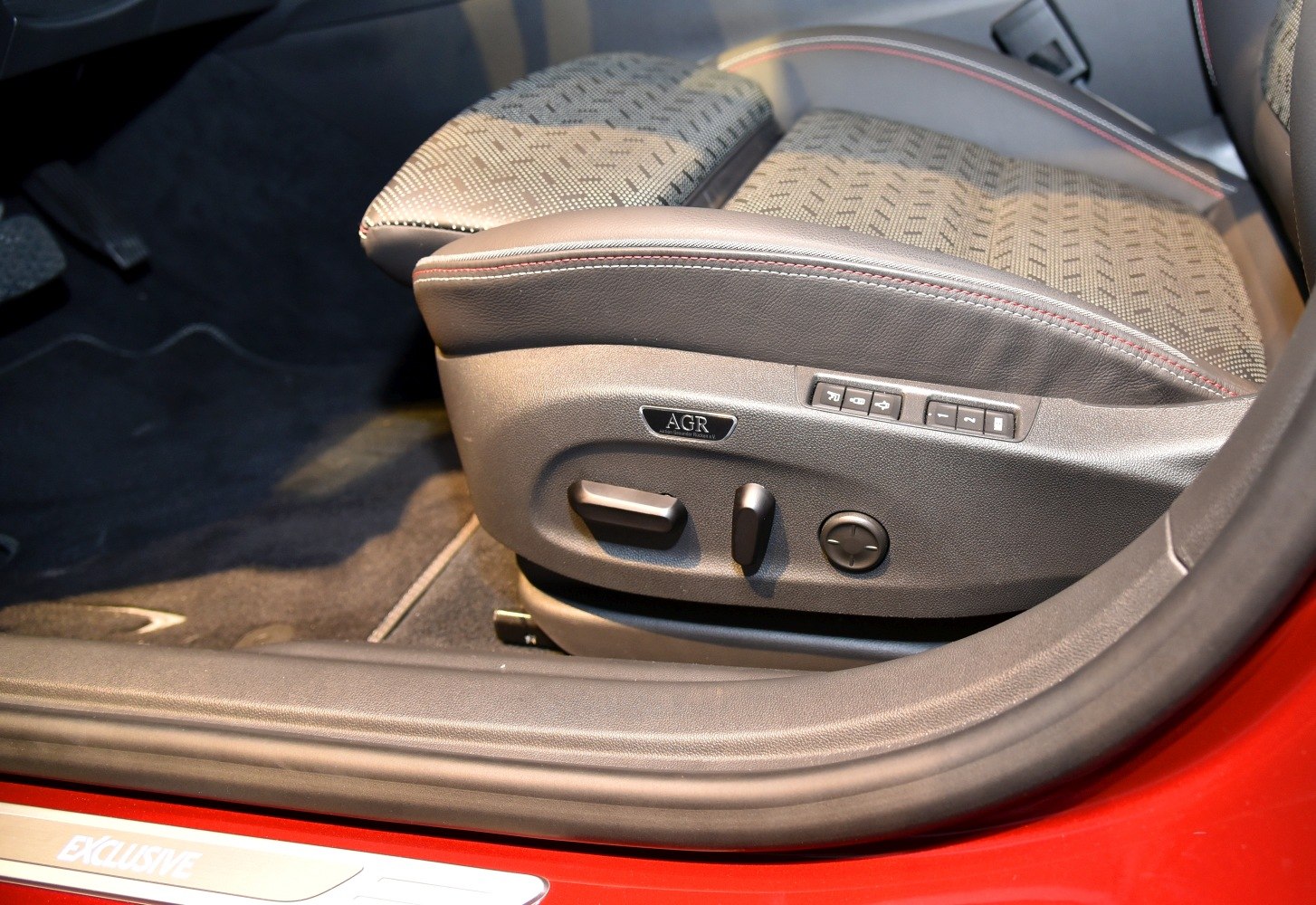

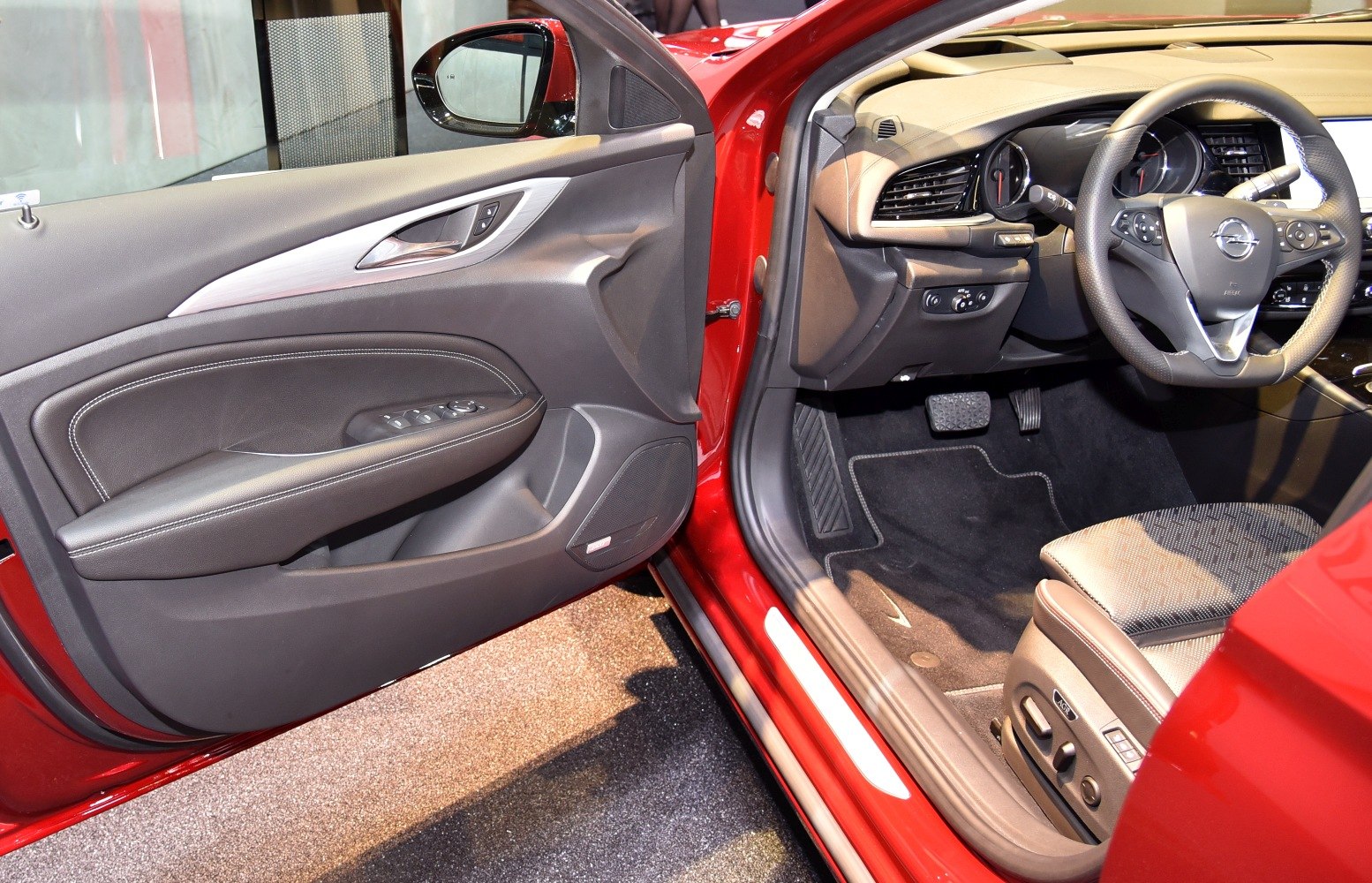

Vehicle gallery

Opel Insignia Insignia Grand Sport (B)

Photo: © www.Auto-Data.net

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

26 versions · 11 Gasoline · 15 Diesel fuel

Engine Fuel Power Production
1.5 Turbo (165 KM) Selected Gasoline 165 KM 2017–2018
1.6 CDTI (136 KM) Automatic Selected Diesel fuel 136 KM 2017–2018
1.5 Turbo (140 KM) Selected Gasoline 140 KM 2017–2018
1.5 EcoTEC Turbo (140 KM) Selected Gasoline 140 KM 2017–2018
1.5 Turbo (165 KM) Automatic Selected Gasoline 165 KM 2017–2018
2.0 Turbo (260 KM) AWD Automatic Selected Gasoline 260 KM 2017–2018
1.6 CDTI EcoTEC (110 KM) Selected Diesel fuel 110 KM 2017–2018
2.0 CDTI (170 KM) Selected Diesel fuel 170 KM 2017–2018
1.6 CDTI (136 KM) Selected Diesel fuel 136 KM 2017–2018
1.6 CDTI (110 KM) Selected Diesel fuel 110 KM 2017–2018
2.0 CDTI (170 KM) AWD Selected Diesel fuel 170 KM 2017–2018
GSi 2.0 Turbo (260 KM) AWD Automatic Selected Gasoline 260 KM 2017–2018
GSi 2.0 CDTI BiTurbo (210 KM) AWD Automatic Selected Diesel fuel 210 KM 2017–2019
GSi 2.0d BiTurbo (210 KM) 4x4 Automatic Selected Diesel fuel 210 KM 2019–2020
1.5 Turbo (140 KM) Selected Gasoline 140 KM 2018–2020
1.5 Turbo (165 KM) Selected Gasoline 165 KM 2018–2020
1.5 Turbo (165 KM) Automatic Selected Gasoline 165 KM 2018–2020
1.6 Turbo (200 KM) Selected Gasoline 200 KM 2018–2019
1.6 Turbo (200 KM) Automatic Selected Gasoline 200 KM 2018–2019
1.6d EcoTec (110 KM) Selected Diesel fuel 110 KM 2018–2019
1.6d (136 KM) Selected Diesel fuel 136 KM 2018–2020
1.6d (136 KM) Automatic Selected Diesel fuel 136 KM 2018–2020
2.0d (170 KM) Selected Diesel fuel 170 KM 2018–2020
2.0d (170 KM) Automatic Selected Diesel fuel 170 KM 2018–2020
2.0d (170 KM) 4x4 Selected Diesel fuel 170 KM 2018–2020
2.0d BiTurbo (210 KM) 4x4 Automatic Selected Diesel fuel 210 KM 2019–2020

Selected engine version

1.5 Turbo (165 KM)

Gasoline · 2017–2018

Engine power
165 KM
Torque
250 Nm
Engine displacement
1,490 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.9 s
Maximum speed
222 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
1.5 Turbo (165 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
222 km/h
Acceleration 0-100 km/h
8.9 s
Fuel consumption - Urban cycle
7.3 l/100 km
Fuel consumption - Extra-urban cycle
5.2 l/100 km
Fuel consumption - Combined cycle
6 l/100 km
Emission standard
Euro 6
CO2 emissions
136 g/km

Engine

Engine model / code
B15XFT
Engine position
Front, Transverse
Engine displacement
1490 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
86.6 mm
Compression ratio
10.1
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
5.4 l
Power
165 KM @ 5600 obr./min
Torque
250 Nm @ 2000-4500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1365 kg
Gross weight
2015 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
700 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16
Rim size
6.5 J x 16
ABS
yes

Selected engine version

1.6 CDTI (136 KM) Automatic

Diesel fuel · 2017–2018

Engine power
136 KM
Torque
320 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.9 s
Maximum speed
203 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
1.6 CDTI (136 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
203 km/h
Acceleration 0-100 km/h
10.9 s
Fuel consumption - Urban cycle
6.1 l/100 km
Fuel consumption - Extra-urban cycle
4.5 l/100 km
Fuel consumption - Combined cycle
5.1 l/100 km
Emission standard
Euro 6
CO2 emissions
134 g/km

Engine

Engine model / code
B16DTH
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6 l
Power
136 KM @ 3500-4000 obr./min
Torque
320 Nm @ 2000-2250 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1447 kg
Gross weight
2095 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1300 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/55 R17
Rim size
7 J x 17
ABS
yes

Selected engine version

1.5 Turbo (140 KM)

Gasoline · 2017–2018

Engine power
140 KM
Torque
250 Nm
Engine displacement
1,490 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.9 s
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
1.5 Turbo (140 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
210 km/h
Acceleration 0-100 km/h
9.9 s
Fuel consumption - Urban cycle
7.5 l/100 km
Fuel consumption - Extra-urban cycle
4.9 l/100 km
Fuel consumption - Combined cycle
5.9 l/100 km
Emission standard
Euro 6
CO2 emissions
133 g/km

Engine

Engine model / code
B15XFL
Engine position
Front, Transverse
Engine displacement
1490 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
86.6 mm
Compression ratio
10.1
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
5.4 l
Power
140 KM @ 5600 obr./min
Torque
250 Nm @ 2000-4100 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1365 kg
Gross weight
2015 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
700 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16
Rim size
6.5J x 16
ABS
yes

Selected engine version

1.5 EcoTEC Turbo (140 KM)

Gasoline · 2017–2018

Engine power
140 KM
Torque
250 Nm
Engine displacement
1,490 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.9 s
Maximum speed
213 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
1.5 EcoTEC Turbo (140 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
213 km/h
Acceleration 0-100 km/h
9.9 s
Fuel consumption - Urban cycle
7.3 l/100 km
Fuel consumption - Extra-urban cycle
4.7 l/100 km
Fuel consumption - Combined cycle
5.7 l/100 km
Emission standard
Euro 6
CO2 emissions
129 g/km

Engine

Engine model / code
B15XFL
Engine position
Front, Transverse
Engine displacement
1490 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
86.6 mm
Compression ratio
10.1
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
5.4 l
Power
140 KM @ 5600 obr./min
Torque
250 Nm @ 2000-4100 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1381 kg
Gross weight
2000 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
700 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/55 R17
Rim size
7J x 17
ABS
yes

Selected engine version

1.5 Turbo (165 KM) Automatic

Gasoline · 2017–2018

Engine power
165 KM
Torque
250 Nm
Engine displacement
1,490 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.4 s
Maximum speed
218 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
1.5 Turbo (165 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
218 km/h
Acceleration 0-100 km/h
9.4 s
Fuel consumption - Urban cycle
7.5 l/100 km
Fuel consumption - Extra-urban cycle
5.3 l/100 km
Fuel consumption - Combined cycle
6.1 l/100 km
Emission standard
Euro 6
CO2 emissions
138 g/km

Engine

Engine model / code
B15XFT
Engine position
Front, Transverse
Engine displacement
1490 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
86.6 mm
Compression ratio
10.1
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
5.4 l
Power
165 KM @ 5600 obr./min
Torque
250 Nm @ 2000-4500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1397 kg
Gross weight
2040 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
700 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16
Rim size
6.5 J x 16
ABS
yes

Selected engine version

2.0 Turbo (260 KM) AWD Automatic

Gasoline · 2017–2018

Engine power
260 KM
Torque
400 Nm
Engine displacement
1,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.3 s
Maximum speed
250 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
2.0 Turbo (260 KM) AWD Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
250 km/h
Acceleration 0-100 km/h
7.3 s
Fuel consumption - Urban cycle
11.2 l/100 km
Fuel consumption - Extra-urban cycle
7.1 l/100 km
Fuel consumption - Combined cycle
8.6 l/100 km
Emission standard
Euro 6
CO2 emissions
197 g/km

Engine

Engine model / code
B20NFT
Engine position
Front, Transverse
Engine displacement
1998 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
86 mm
Piston stroke
86 mm
Compression ratio
9.5
Number of valves per cylinder
4
Engine oil capacity
5.7 l
Coolant capacity
5 l
Power
260 KM @ 5300 obr./min
Torque
400 Nm @ 2500-4000 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1574 kg
Gross weight
2245 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2200 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
245/35 R20
Rim size
8.5 J x 20
ABS
yes

Selected engine version

1.6 CDTI EcoTEC (110 KM)

Diesel fuel · 2017–2018

Engine power
110 KM
Torque
300 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.6 s
Maximum speed
205 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
1.6 CDTI EcoTEC (110 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
205 km/h
Acceleration 0-100 km/h
11.6 s
Fuel consumption - Urban cycle
4.6 l/100 km
Fuel consumption - Extra-urban cycle
3.6 l/100 km
Fuel consumption - Combined cycle
4 l/100 km
Emission standard
Euro 6
CO2 emissions
105 g/km

Engine

Engine model / code
B16DTE
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6 l
Power
110 KM @ 3500 obr./min
Torque
300 Nm @ 2000 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1428 kg
Gross weight
2035 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
720 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/55 R17
Rim size
7 J x 17
ABS
yes

Selected engine version

2.0 CDTI (170 KM)

Diesel fuel · 2017–2018

Engine power
170 KM
Torque
400 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.7 s
Maximum speed
226 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
2.0 CDTI (170 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
226 km/h
Acceleration 0-100 km/h
8.7 s
Fuel consumption - Urban cycle
6.7 l/100 km
Fuel consumption - Extra-urban cycle
4.3 l/100 km
Fuel consumption - Combined cycle
5.2 l/100 km
Emission standard
Euro 6
CO2 emissions
136 g/km

Engine

Engine model / code
B20DTH
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.9 l
Coolant capacity
5.9 l
Power
170 KM @ 3500-4000 obr./min
Torque
400 Nm @ 1750-2500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1507 kg
Gross weight
2185 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1950 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
245/35 R20
Rim size
8.5 J x 20
ABS
yes

Selected engine version

1.6 CDTI (136 KM)

Diesel fuel · 2017–2018

Engine power
136 KM
Torque
320 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.5 s
Maximum speed
211 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
1.6 CDTI (136 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
211 km/h
Acceleration 0-100 km/h
10.5 s
Fuel consumption - Urban cycle
5.1 l/100 km
Fuel consumption - Extra-urban cycle
3.9 l/100 km
Fuel consumption - Combined cycle
4.3 l/100 km
Emission standard
Euro 6
CO2 emissions
114 g/km

Engine

Engine model / code
B16DTH
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6 l
Power
136 KM @ 3500-4000 obr./min
Torque
320 Nm @ 2000-2250 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1428 kg
Gross weight
2070 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/55 R17
Rim size
7 J x 17
ABS
yes

Selected engine version

1.6 CDTI (110 KM)

Diesel fuel · 2017–2018

Engine power
110 KM
Torque
300 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.6 s
Maximum speed
201 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
1.6 CDTI (110 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
201 km/h
Acceleration 0-100 km/h
11.6 s
Fuel consumption - Urban cycle
4.9 l/100 km
Fuel consumption - Extra-urban cycle
3.8 l/100 km
Fuel consumption - Combined cycle
4.2 l/100 km
Emission standard
Euro 6
CO2 emissions
110 g/km

Engine

Engine model / code
B16DTE
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6 l
Power
110 KM @ 3500 obr./min
Torque
300 Nm @ 2000 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1428 kg
Gross weight
2035 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
720 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/55 R17
Rim size
7J x 17
ABS
yes

Selected engine version

2.0 CDTI (170 KM) AWD

Diesel fuel · 2017–2018

Engine power
170 KM
Torque
400 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.7 s
Maximum speed
223 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
2.0 CDTI (170 KM) AWD
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
223 km/h
Acceleration 0-100 km/h
9.7 s
Fuel consumption - Urban cycle
8.1 l/100 km
Fuel consumption - Extra-urban cycle
5.1 l/100 km
Fuel consumption - Combined cycle
6.2 l/100 km
Emission standard
Euro 6
CO2 emissions
163 g/km

Engine

Engine model / code
B20DTH
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.9 l
Coolant capacity
5.9 l
Power
170 KM @ 3500-4000 obr./min
Torque
400 Nm @ 1750-2500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1608 kg
Gross weight
2280 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1900 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
245/35 R20
Rim size
8.5 J x 20
ABS
yes

Selected engine version

GSi 2.0 Turbo (260 KM) AWD Automatic

Gasoline · 2017–2018

Engine power
260 KM
Torque
400 Nm
Engine displacement
1,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.3 s
Maximum speed
250 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
GSi 2.0 Turbo (260 KM) AWD Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2018
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
250 km/h
Acceleration 0-100 km/h
7.3 s
Fuel consumption - Urban cycle
11.2 l/100 km
Fuel consumption - Extra-urban cycle
7.1 l/100 km
Fuel consumption - Combined cycle
8.6 l/100 km
Emission standard
Euro 6
CO2 emissions
197 g/km

Engine

Engine model / code
B20NFT
Engine position
Front, Transverse
Engine displacement
1998 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
86 mm
Piston stroke
86 mm
Compression ratio
9.5
Number of valves per cylinder
4
Engine oil capacity
5.7 l
Coolant capacity
5 l
Power
260 KM @ 5300 obr./min
Torque
400 Nm @ 2500-4000 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1608 kg
Gross weight
2220 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2200 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4910 mm
Width
1863 mm
Width with unfolded mirrors
2093 mm
Height
1445 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
1000 mm
Rear overhang
1081 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
ABS
yes

Selected engine version

GSi 2.0 CDTI BiTurbo (210 KM) AWD Automatic

Diesel fuel · 2017–2019

Engine power
210 KM
Torque
480 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
7.8 s
Maximum speed
233 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
GSi 2.0 CDTI BiTurbo (210 KM) AWD Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2017
End of production
2019
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
233 km/h
Acceleration 0-100 km/h
7.8 s
Fuel consumption - Urban cycle
8.9 l/100 km
Fuel consumption - Extra-urban cycle
6.1 l/100 km
Fuel consumption - Combined cycle
7.3 l/100 km
Emission standard
Euro 6
CO2 emissions
192 g/km

Engine

Engine model / code
B20DTR
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
BiTurbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.9 l
Coolant capacity
5.9 l
Power
210 KM @ 4000 obr./min
Torque
480 Nm @ 1500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1697 kg
Gross weight
2315 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1805 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4910 mm
Width
1863 mm
Width with unfolded mirrors
2093 mm
Height
1445 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
1000 mm
Rear overhang
1081 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
ABS
yes

Selected engine version

GSi 2.0d BiTurbo (210 KM) 4x4 Automatic

Diesel fuel · 2019–2020

Engine power
210 KM
Torque
480 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
7.9 s
Maximum speed
233 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
GSi 2.0d BiTurbo (210 KM) 4x4 Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2019
End of production
2020
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
233 km/h
Acceleration 0-100 km/h
7.9 s
Fuel consumption - Urban cycle
9.4 l/100 km
Fuel consumption - Extra-urban cycle
5.8 l/100 km
Fuel consumption - Combined cycle
7.1 l/100 km
Emission standard
Euro 6c
CO2 emissions
187 g/km

Engine

Engine model / code
D20DTR
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.9 l
Coolant capacity
5.9 l
Power
210 KM @ 4000 obr./min
Torque
480 Nm @ 1500 obr./min

Volume and weight

Fuel tank
62 l
AdBlue tank
15 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1697 kg
Gross weight
2315 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1805 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4910 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1445 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
1000 mm
Rear overhang
1081 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
235/40 R18
Rim size
8J x 18
ABS
yes

Selected engine version

1.5 Turbo (140 KM)

Gasoline · 2018–2020

Engine power
140 KM
Torque
250 Nm
Engine displacement
1,490 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.9 s
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
1.5 Turbo (140 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
210 km/h
Acceleration 0-100 km/h
9.9 s
Fuel consumption - Urban cycle
7.0-7.2 l/100 km
Fuel consumption - Extra-urban cycle
4.6-4.9 l/100 km
Fuel consumption - Combined cycle
5.5-5.7 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
126-132 g/km

Engine

Engine model / code
D15XFL
Engine position
Front, Transverse
Engine displacement
1490 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
86.6 mm
Compression ratio
10.1
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
5.4 l
Power
140 KM @ 5600 obr./min
Torque
250 Nm @ 2000-4100 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
480 l
Maximum trunk capacity
1450 l
Curb weight
1366 kg
Gross weight
2015 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
700 kg
Trailer nose weight
60 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

1.5 Turbo (165 KM)

Gasoline · 2018–2020

Engine power
165 KM
Torque
250 Nm
Engine displacement
1,490 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.9 s
Maximum speed
222 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
1.5 Turbo (165 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
222 km/h
Acceleration 0-100 km/h
8.9 s
Fuel consumption - Urban cycle
6.9-7.1 l/100 km
Fuel consumption - Extra-urban cycle
4.7-4.9 l/100 km
Fuel consumption - Combined cycle
5.7-6.0 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
126-132 g/km

Engine

Engine model / code
D15XFL
Engine position
Front, Transverse
Engine displacement
1490 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
86.6 mm
Compression ratio
10.1
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
5.4 l
Power
165 KM @ 5600 obr./min
Torque
250 Nm @ 2000-4500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1366 kg
Gross weight
2015 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
700 kg
Trailer nose weight
60 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

1.5 Turbo (165 KM) Automatic

Gasoline · 2018–2020

Engine power
165 KM
Torque
250 Nm
Engine displacement
1,490 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.4 s
Maximum speed
218 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
1.5 Turbo (165 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
218 km/h
Acceleration 0-100 km/h
9.4 s
Fuel consumption - Urban cycle
7.6-7.9 l/100 km
Fuel consumption - Extra-urban cycle
4.9-5.2 l/100 km
Fuel consumption - Combined cycle
5.9-6.2 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
135-141 g/km

Engine

Engine model / code
D15XFL
Engine position
Front, Transverse
Engine displacement
1490 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74 mm
Piston stroke
86.6 mm
Compression ratio
10.1
Number of valves per cylinder
4
Engine oil capacity
4 l
Coolant capacity
5.4 l
Power
165 KM @ 5600 obr./min
Torque
250 Nm @ 2000-4500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1397 kg
Gross weight
2040 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
700 kg
Trailer nose weight
60 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

1.6 Turbo (200 KM)

Gasoline · 2018–2019

Engine power
200 KM
Torque
280 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.7 s
Maximum speed
235 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
1.6 Turbo (200 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
235 km/h
Acceleration 0-100 km/h
7.7 s
Fuel consumption - Urban cycle
7.7-8.0 l/100 km
Fuel consumption - Extra-urban cycle
5.1-5.3 l/100 km
Fuel consumption - Combined cycle
6.1-6.3 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
139-145 g/km

Engine

Engine model / code
D16SHT
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.5 mm
Compression ratio
9.5
Number of valves per cylinder
4
Engine oil capacity
5.5 l
Power
200 KM @ 5500 obr./min
Torque
280 Nm @ 1650-4500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1428 kg
Gross weight
2090 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1410 kg
Trailer load without brakes
730 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

1.6 Turbo (200 KM) Automatic

Gasoline · 2018–2019

Engine power
200 KM
Torque
280 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8 s
Maximum speed
232 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
1.6 Turbo (200 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Hatchback
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
232 km/h
Acceleration 0-100 km/h
8 s
Fuel consumption - Urban cycle
8.1-8.3 l/100 km
Fuel consumption - Extra-urban cycle
5.4-5.7 l/100 km
Fuel consumption - Combined cycle
6.4-6.7 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
146-153 g/km

Engine

Engine model / code
D16SHT
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.5 mm
Compression ratio
9.5
Number of valves per cylinder
4
Engine oil capacity
5.5 l
Power
200 KM @ 5500 obr./min
Torque
280 Nm @ 1650-4500 obr./min

Volume and weight

Fuel tank
62 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1477 kg
Gross weight
2110 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1450 kg
Trailer load without brakes
730 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

1.6d EcoTec (110 KM)

Diesel fuel · 2018–2019

Engine power
110 KM
Torque
300 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.8 s
Maximum speed
205 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
1.6d EcoTec (110 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
205 km/h
Acceleration 0-100 km/h
11.8 s
Fuel consumption - Urban cycle
5.2 l/100 km
Fuel consumption - Extra-urban cycle
3.9 l/100 km
Fuel consumption - Combined cycle
4.4 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
116 g/km

Engine

Engine model / code
D16DTI
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6 l
Power
110 KM @ 4000 obr./min
Torque
300 Nm @ 2000 obr./min

Volume and weight

Fuel tank
62 l
AdBlue tank
15 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1428 kg
Gross weight
2035 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
720 kg
Trailer nose weight
60 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

1.6d (136 KM)

Diesel fuel · 2018–2020

Engine power
136 KM
Torque
320 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.5 s
Maximum speed
211 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
1.6d (136 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
211 km/h
Acceleration 0-100 km/h
10.5 s
Fuel consumption - Urban cycle
5.7-5.8 l/100 km
Fuel consumption - Extra-urban cycle
4.0-4.2 l/100 km
Fuel consumption - Combined cycle
4.6-4.8 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
121-126 g/km

Engine

Engine model / code
D16DTH
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6 l
Power
136 KM @ 3500-4000 obr./min
Torque
320 Nm @ 2000-2250 obr./min

Volume and weight

Fuel tank
62 l
AdBlue tank
15 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1428 kg
Gross weight
2070 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1405 kg
Trailer load without brakes
750 kg
Trailer nose weight
60 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

1.6d (136 KM) Automatic

Diesel fuel · 2018–2020

Engine power
136 KM
Torque
320 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.9 s
Maximum speed
205 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
1.6d (136 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
205 km/h
Acceleration 0-100 km/h
10.9 s
Fuel consumption - Urban cycle
6.5-7.0 l/100 km
Fuel consumption - Extra-urban cycle
4.5-4.6 l/100 km
Fuel consumption - Combined cycle
5.2-5.4 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
137-143 g/km

Engine

Engine model / code
D16DTH
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.7 mm
Piston stroke
80.1 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5 l
Coolant capacity
6 l
Power
136 KM @ 3500-4000 obr./min
Torque
320 Nm @ 2000-2250 obr./min

Volume and weight

Fuel tank
62 l
AdBlue tank
15 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1447 kg
Gross weight
2095 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1300 kg
Trailer load without brakes
750 kg
Trailer nose weight
60 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

2.0d (170 KM)

Diesel fuel · 2018–2020

Engine power
170 KM
Torque
400 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.7 s
Maximum speed
226 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
2.0d (170 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
226 km/h
Acceleration 0-100 km/h
8.7 s
Fuel consumption - Urban cycle
6.4-6.9 l/100 km
Fuel consumption - Extra-urban cycle
4.6 l/100 km
Fuel consumption - Combined cycle
5.3-5.5 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
139-144 g/km

Engine

Engine model / code
D20DTH
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.9 l
Coolant capacity
5.9 l
Power
170 KM @ 3750 obr./min
Torque
400 Nm @ 1750-2500 obr./min

Volume and weight

Fuel tank
62 l
AdBlue tank
15 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1507 kg
Gross weight
2185 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1950 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

2.0d (170 KM) Automatic

Diesel fuel · 2018–2020

Engine power
170 KM
Torque
400 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.9 s
Maximum speed
223 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
2.0d (170 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
223 km/h
Acceleration 0-100 km/h
8.9 s
Fuel consumption - Urban cycle
7.0-7.1 l/100 km
Fuel consumption - Extra-urban cycle
4.6-4.7 l/100 km
Fuel consumption - Combined cycle
5.5-5.6 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
144-148 g/km

Engine

Engine model / code
D20DTH
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.9 l
Coolant capacity
5.9 l
Power
170 KM @ 3750 obr./min
Torque
400 Nm @ 1750-2500 obr./min

Volume and weight

Fuel tank
62 l
AdBlue tank
15 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1538 kg
Gross weight
2220 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1700 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
8
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

2.0d (170 KM) 4x4

Diesel fuel · 2018–2020

Engine power
170 KM
Torque
400 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.7 s
Maximum speed
223 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
2.0d (170 KM) 4x4
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
223 km/h
Acceleration 0-100 km/h
9.7 s
Fuel consumption - Urban cycle
7.8 l/100 km
Fuel consumption - Extra-urban cycle
4.8-5.1 l/100 km
Fuel consumption - Combined cycle
5.9-6.1 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
156-161 g/km

Engine

Engine model / code
D20DTH
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.9 l
Coolant capacity
5.9 l
Power
170 KM @ 3750 obr./min
Torque
400 Nm @ 1750-2500 obr./min

Volume and weight

Fuel tank
62 l
AdBlue tank
15 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1608 kg
Gross weight
2280 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2200 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

Selected engine version

2.0d BiTurbo (210 KM) 4x4 Automatic

Diesel fuel · 2019–2020

Engine power
210 KM
Torque
480 Nm
Engine displacement
1,956 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
7.9 s
Maximum speed
233 km/h
On this page
Check vehicle history

Basic version information

Brand
Opel
Model
Insignia
Version
Insignia Grand Sport (B)
Engine
2.0d BiTurbo (210 KM) 4x4 Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2019
End of production
2020
Body type
Hatchback
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
233 km/h
Acceleration 0-100 km/h
7.9 s
Fuel consumption - Urban cycle
9.1-9.3 l/100 km
Fuel consumption - Extra-urban cycle
5.4-5.7 l/100 km
Fuel consumption - Combined cycle
6.8-7.0 l/100 km
Emission standard
Euro 6c
CO2 emissions
178-184 g/km

Engine

Engine model / code
D20DTR
Engine position
Front, Transverse
Engine displacement
1956 cm³
Fuel injection system
Diesel common rail
Engine type
BiTurbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
83 mm
Piston stroke
90.4 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
4.9 l
Coolant capacity
5.9 l
Power
210 KM @ 4000 obr./min
Torque
480 Nm @ 1500 obr./min

Volume and weight

Fuel tank
62 l
AdBlue tank
15 l
Minimum trunk capacity
490 l
Maximum trunk capacity
1450 l
Curb weight
1658 kg
Gross weight
2340 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1805 kg
Trailer load without brakes
750 kg
Trailer nose weight
90 kg

Vehicle dimensions

Length
4897 mm
Width
1863 mm
Width with folded mirrors
1941 mm
Width with unfolded mirrors
2093 mm
Height
1455 mm
Wheelbase
2829 mm
Front track
1607 mm
Rear track
1610 mm
Front overhang
990 mm
Rear overhang
1078 mm
Turning circle
11.74 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Front brakes
Disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/60 R16; 215/55 R17; 225/55 R17; 245/45 R18
Rim size
6.5J x 16; 7J x 17; 7.5J x 17; 8.5J x 18
ABS
yes

About Opel Insignia Insignia Grand Sport (B)

The Opel Insignia Grand Sport (B), produced from 2017 to 2020, is a five-door hatchback in the mid-size class that has gained recognition for its elegance and modernity. It is dedicated to drivers seeking a combination of stylish design and functionality. The Insignia features dynamic body lines and a spacious interior, making it an attractive option for both families and individuals traveling longer distances.

The model offers a wide range of powertrains, including gasoline and diesel engines. The engine power ranges from 110 to 260 hp, providing significant flexibility in choice depending on the driver's preferences and needs. There are versions available with manual and automatic transmissions, as well as options with all-wheel drive that enhance driving dynamics. Options such as the 2.0 Turbo (260 hp) AWD Automatic offer excellent performance, while variants with smaller engines, like the 1.6 CDTI EcoTEC (110 hp), provide better fuel efficiency.

The Insignia Grand Sport (B) features front-wheel drive, with an option for 4x4 on selected versions, ensuring excellent grip and stability on the road. The car performs well both in the city, offering good maneuverability and comfort, and on highways, providing a smooth ride. Travel comfort is enhanced by advanced driver assistance systems, such as adaptive cruise control, a traffic sign recognition system, and modern multimedia.

One of the potential drawbacks of the model is the complex electronics, which in some cases may cause issues, especially in entertainment and navigation systems. Maintenance costs may be higher for all-wheel drive versions and more advanced powertrains. Additionally, users sometimes report rapid wear of certain suspension components under tougher road conditions.

The Opel Insignia Grand Sport (B) is an attractive option for those seeking a stylish yet functional mid-sized car. Its modern design, wide selection of engines, and advanced technologies make it a competitive choice in the market. The Insignia stands out from other models due to its unique blend of comfort, style, and dynamic performance, making it an ideal choice for discerning drivers.
