Vehicle specifications
Honda Civic IX Coupe (facelift 2013)
Compare all 3 engine versions of the Honda Civic Civic IX Coupe (facelift 2013), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Honda Civic IX Coupe (facelift 2013)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Honda Civic IX Coupe (facelift 2013)?
See the places on a 3D model →- VIN number
- Firewall (bulkhead), right side
- Identification plate
- Door pillar / door frame, left side · less certain (little data)

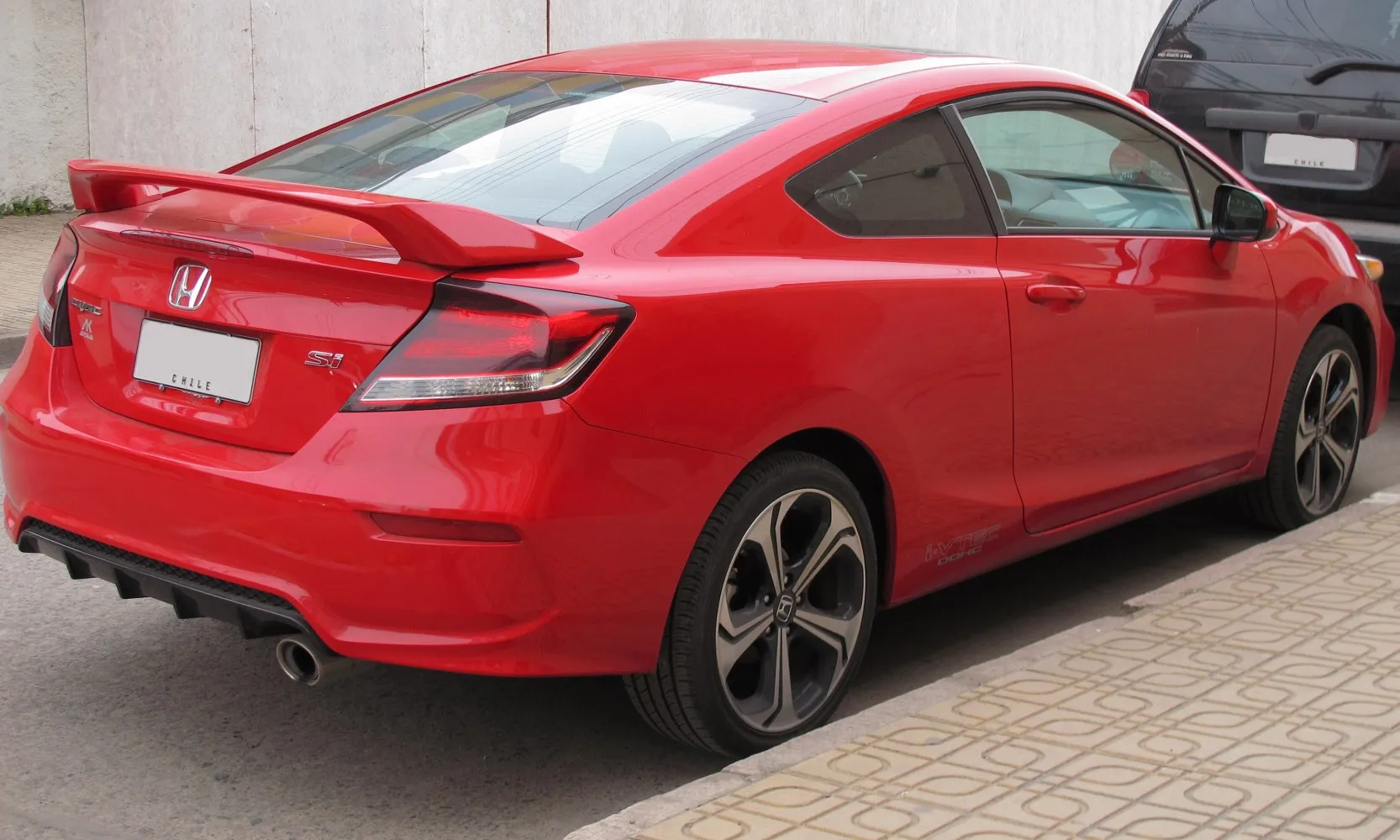

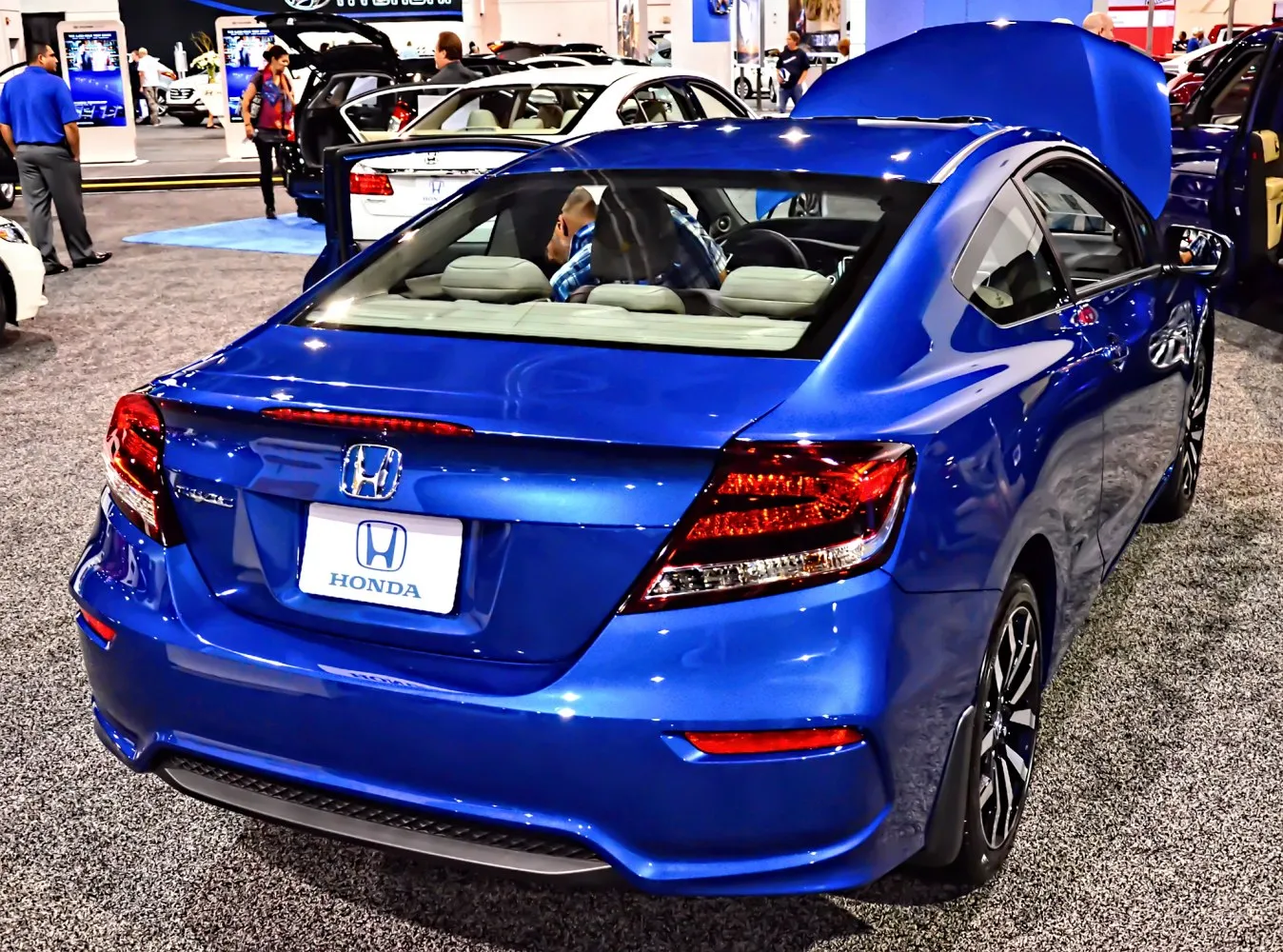

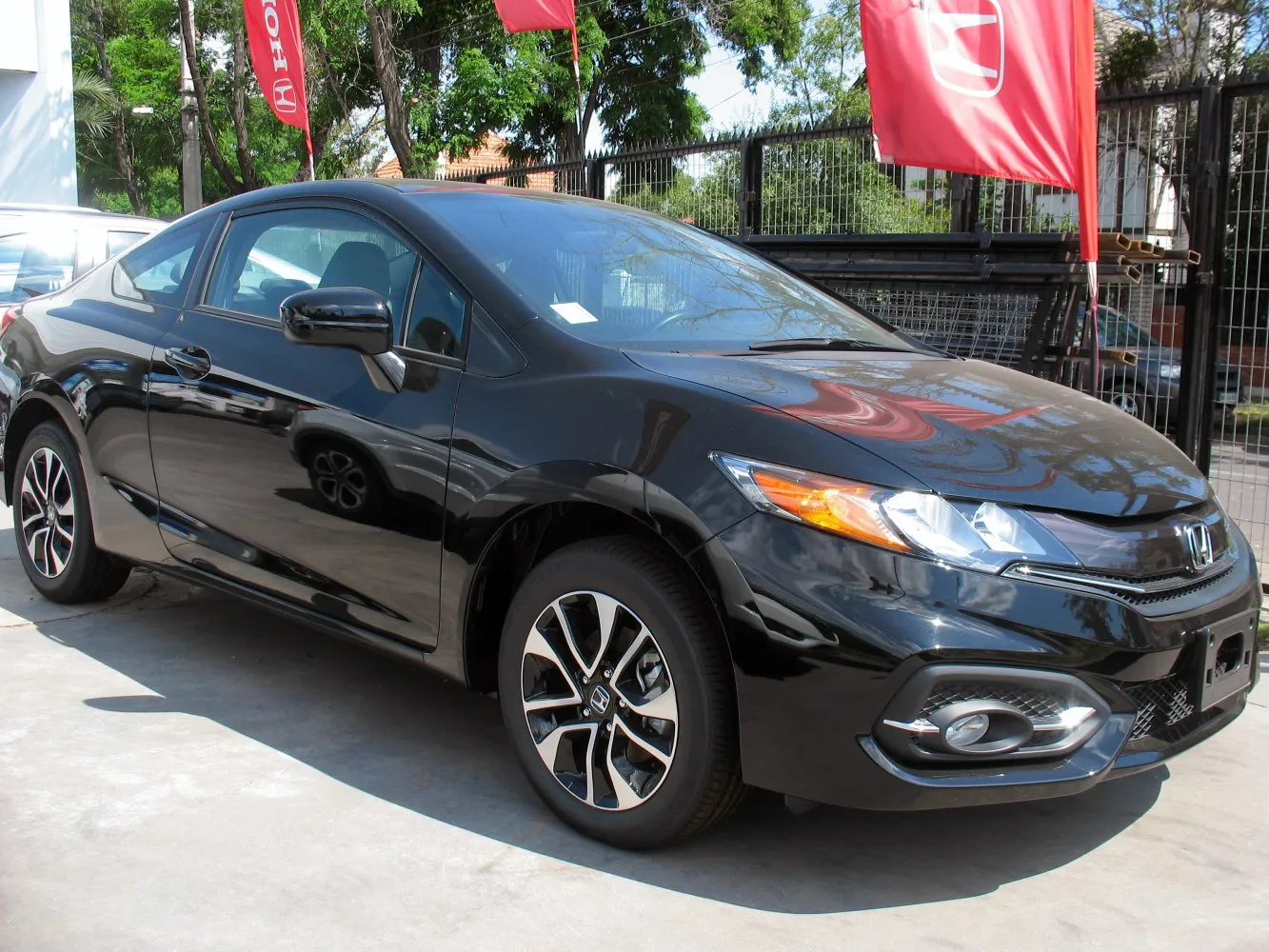

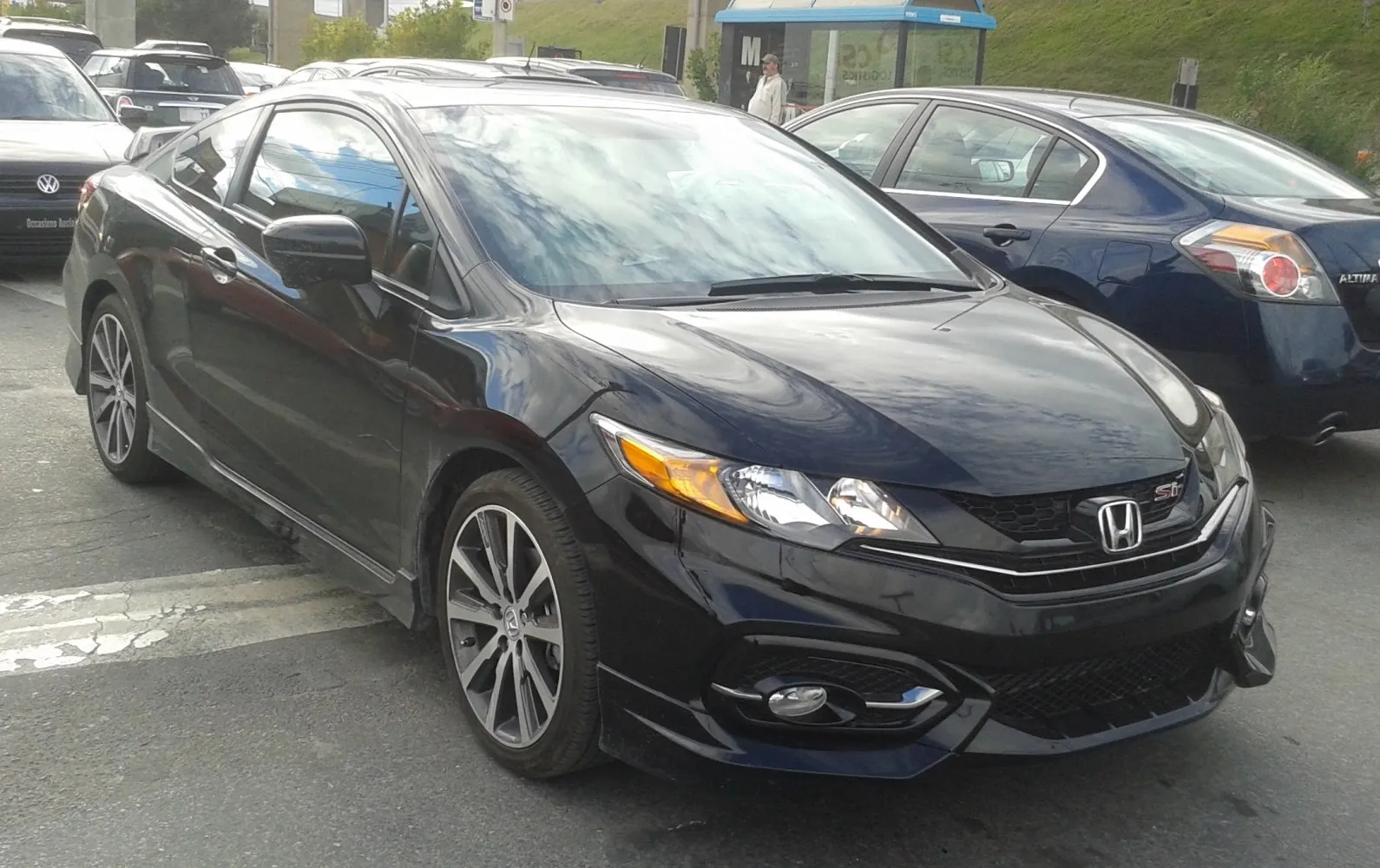

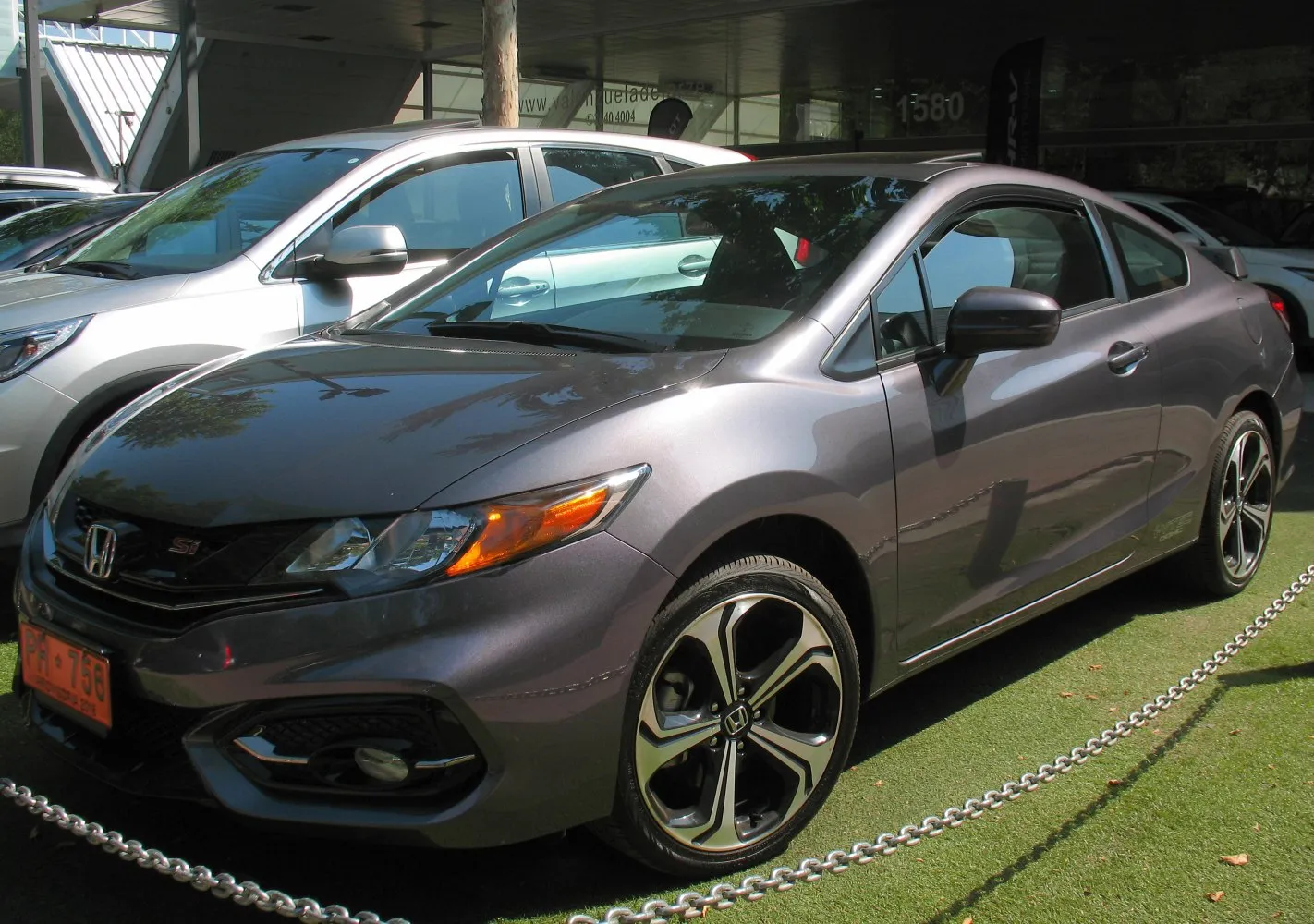

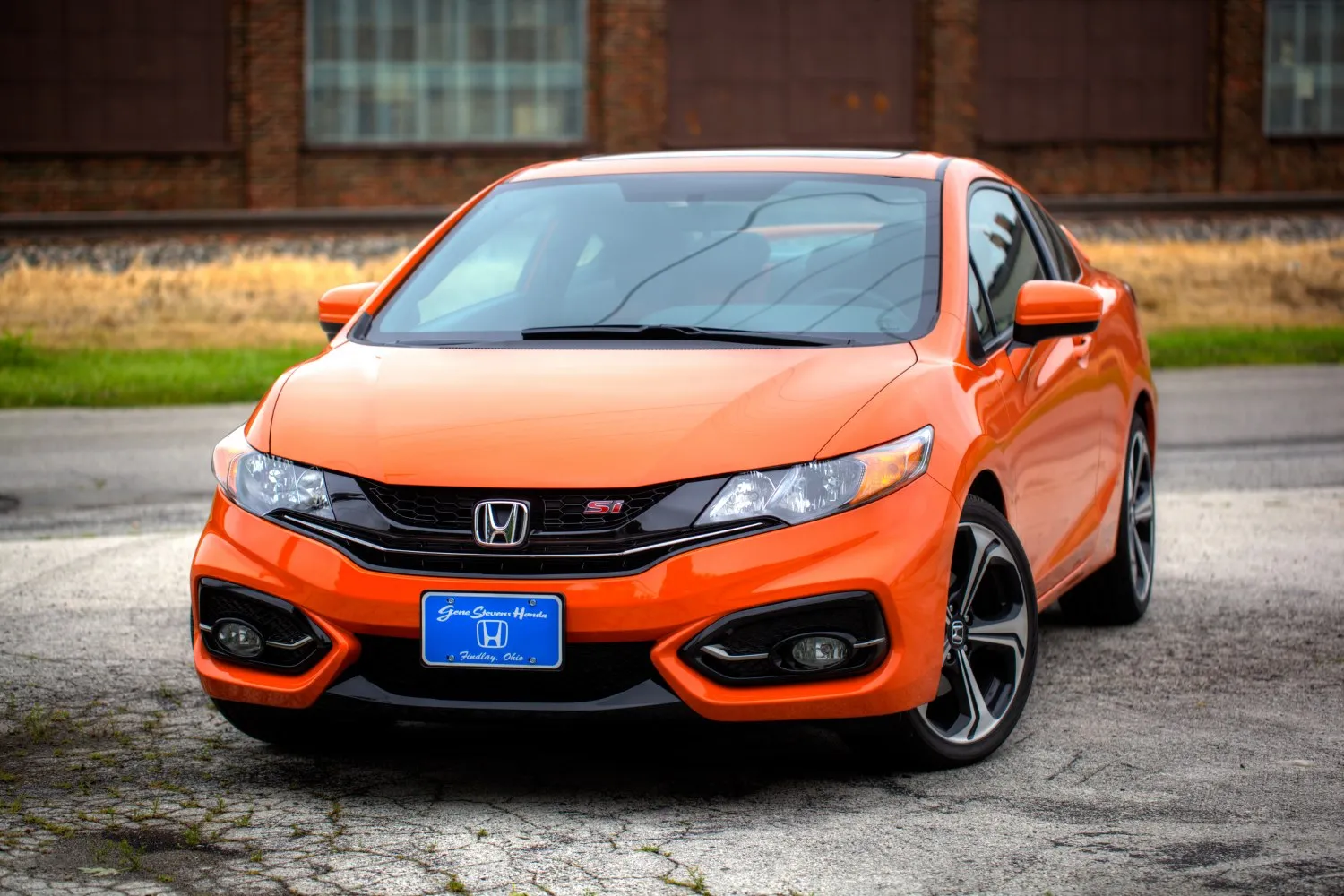

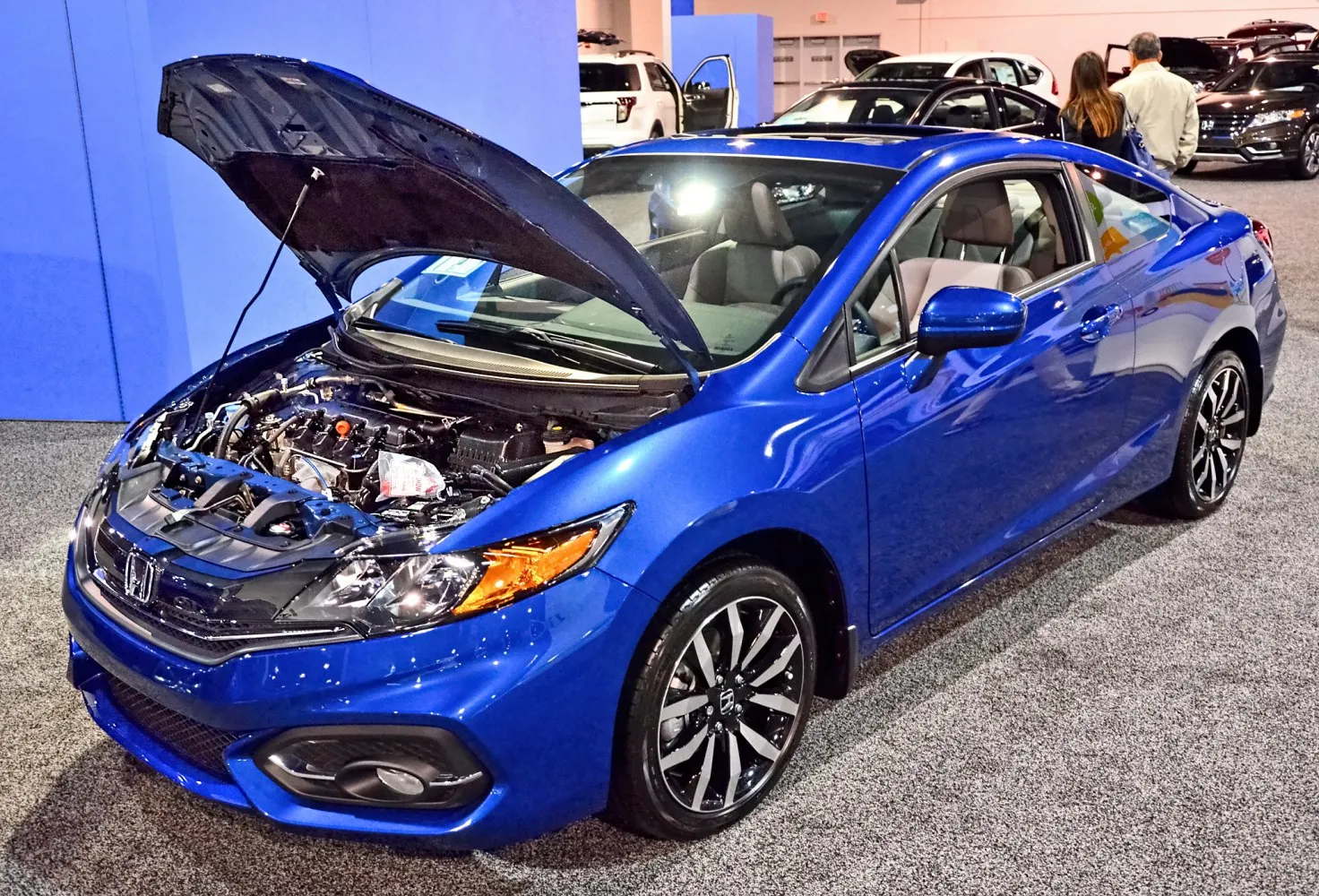

Vehicle photos
1 of 7
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
3 versions · 3 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.8 i-VTEC (143 KM) CVT Selected | Gasoline | 143 KM | 2013–2015 |
| Si 2.4 i-VTEC (205 KM) Selected | Gasoline | 205 KM | 2014–2015 |
| 1.8 i-VTEC (143 KM) Selected | Gasoline | 143 KM | 2013–2015 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.8 i-VTEC (143 KM) CVT
Gasoline · 2013–2015
- Engine power
- 143 KM
- Torque
- 175 Nm
- Engine displacement
- 1,798 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Honda Civic Civic IX Coupe (facelift 2013)- Brand
- Honda
- Model
- Civic
- Version
- Civic IX Coupe (facelift 2013)
- Engine
- 1.8 i-VTEC (143 KM) CVT
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2013
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption measurement standard
- EPA
- Fuel consumption - Urban cycle
- 7.8 l/100 km
- Fuel consumption measurement standard
- EPA
- Fuel consumption - Extra-urban cycle
- 6 l/100 km
- Fuel consumption measurement standard
- EPA
- Fuel consumption - Combined cycle
- 7.1 l/100 km
- Emission standard
- ULEV-2
Engine
- Engine model / code
- R18Z1
- Engine position
- Front, Transverse
- Engine displacement
- 1798 cm³
- Maximum engine speed
- 6700 obr./min
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC, i-VTEC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 87.3 mm
- Compression ratio
- 10.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.7 l
- Coolant capacity
- 5.6 l
- Power
- 143 KM @ 6500 obr./min
- Torque
- 175 Nm @ 4300 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 331 l
- Curb weight
- 1286-1326 kg
- Gross weight
- 1680-1720 kg
Vehicle dimensions
- Length
- 4519 mm
- Width
- 1752 mm
- Height
- 1397 mm
- Wheelbase
- 2621 mm
- Front track
- 1499 mm
- Rear track
- 1522 mm
- Ground clearance
- 152 mm
- Turning circle
- 10.8 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Type of automatic gearbox
- CVT
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 282 mm
- Rear brakes
- Drum
- Rear brake disc/drum diameter
- 201 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/55 R16; 215/45 R17
- Rim size
- 6.5J x 16; 7J x 17
- ABS
- yes
Selected engine version
Si 2.4 i-VTEC (205 KM)
Gasoline · 2014–2015
- Engine power
- 205 KM
- Torque
- 236 Nm
- Engine displacement
- 2,354 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Honda Civic Civic IX Coupe (facelift 2013)- Brand
- Honda
- Model
- Civic
- Version
- Civic IX Coupe (facelift 2013)
- Engine
- Si 2.4 i-VTEC (205 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2014
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption measurement standard
- EPA
- Fuel consumption - Urban cycle
- 10.7 l/100 km
- Fuel consumption measurement standard
- EPA
- Fuel consumption - Extra-urban cycle
- 7.6 l/100 km
- Fuel consumption measurement standard
- EPA
- Fuel consumption - Combined cycle
- 6.7 l/100 km
- Emission standard
- ULEV-2
Engine
- Engine model / code
- K24Z7
- Engine position
- Front, Transverse
- Engine displacement
- 2354 cm³
- Maximum engine speed
- 7000 obr./min
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC, i-VTEC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 87 mm
- Piston stroke
- 99 mm
- Compression ratio
- 11
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.2 l
- Coolant capacity
- 5.5 l
- Power
- 205 KM @ 7000 obr./min
- Torque
- 236 Nm @ 4400 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 331 l
- Curb weight
- 1362 kg
- Gross weight
- 1780 kg
Vehicle dimensions
- Length
- 4542 mm
- Width
- 1752 mm
- Height
- 1397 mm
- Wheelbase
- 2621 mm
- Front track
- 1503 mm
- Rear track
- 1522 mm
- Ground clearance
- 147 mm
- Turning circle
- 11 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 300 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 259 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/40 R18
- Rim size
- 7.5J x 18
- ABS
- yes
Selected engine version
1.8 i-VTEC (143 KM)
Gasoline · 2013–2015
- Engine power
- 143 KM
- Torque
- 175 Nm
- Engine displacement
- 1,798 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Honda Civic Civic IX Coupe (facelift 2013)- Brand
- Honda
- Model
- Civic
- Version
- Civic IX Coupe (facelift 2013)
- Engine
- 1.8 i-VTEC (143 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2013
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption measurement standard
- EPA
- Fuel consumption - Urban cycle
- 8.4 l/100 km
- Fuel consumption measurement standard
- EPA
- Fuel consumption - Extra-urban cycle
- 6.5 l/100 km
- Fuel consumption measurement standard
- EPA
- Fuel consumption - Combined cycle
- 7.6 l/100 km
- Emission standard
- ULEV-2
Engine
- Engine model / code
- R18Z1
- Engine position
- Front, Transverse
- Engine displacement
- 1798 cm³
- Maximum engine speed
- 6700 obr./min
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC, i-VTEC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 87.3 mm
- Compression ratio
- 10.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.7 l
- Coolant capacity
- 5.6 l
- Power
- 143 KM @ 6500 obr./min
- Torque
- 175 Nm @ 4300 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 331 l
- Curb weight
- 1262-1281 kg
- Gross weight
- 1670-1720 kg
Vehicle dimensions
- Length
- 4519 mm
- Width
- 1752 mm
- Height
- 1397 mm
- Wheelbase
- 2621 mm
- Front track
- 1499 mm
- Rear track
- 1522 mm
- Ground clearance
- 152 mm
- Turning circle
- 10.8 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 262 mm
- Rear brakes
- Drum
- Rear brake disc/drum diameter
- 201 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/55 R16; 215/45 R17
- Rim size
- 6.5J x 16; 7J x 17
- ABS
- yes
