Vehicle specifications
Ford F-350 Super Duty IV Crew Cab Long box
Compare all 8 engine versions of the Ford F-350 Super Duty F-350 Super Duty IV Crew Cab Long box, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Ford F-350 Super Duty IV Crew Cab Long box? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

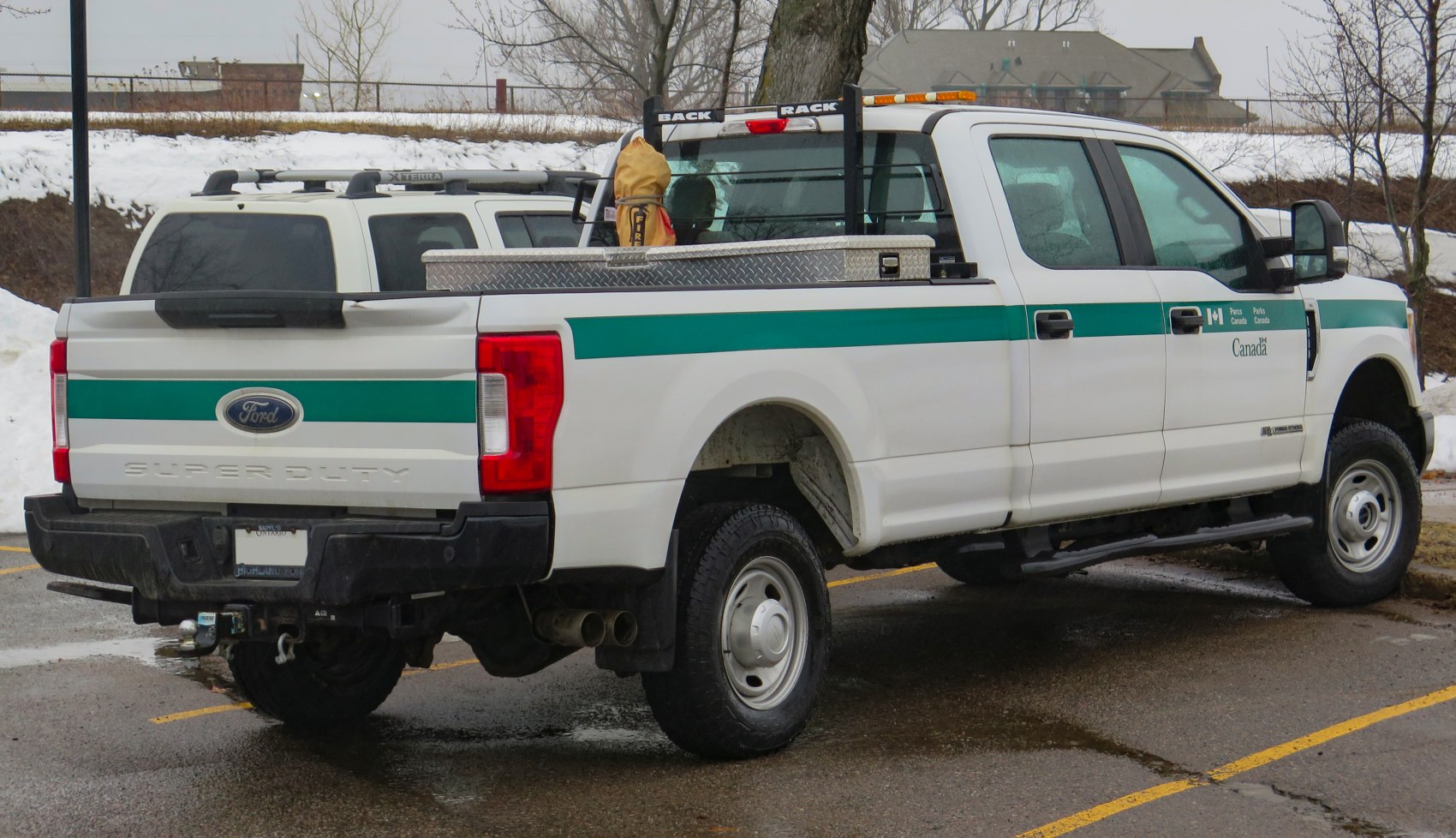

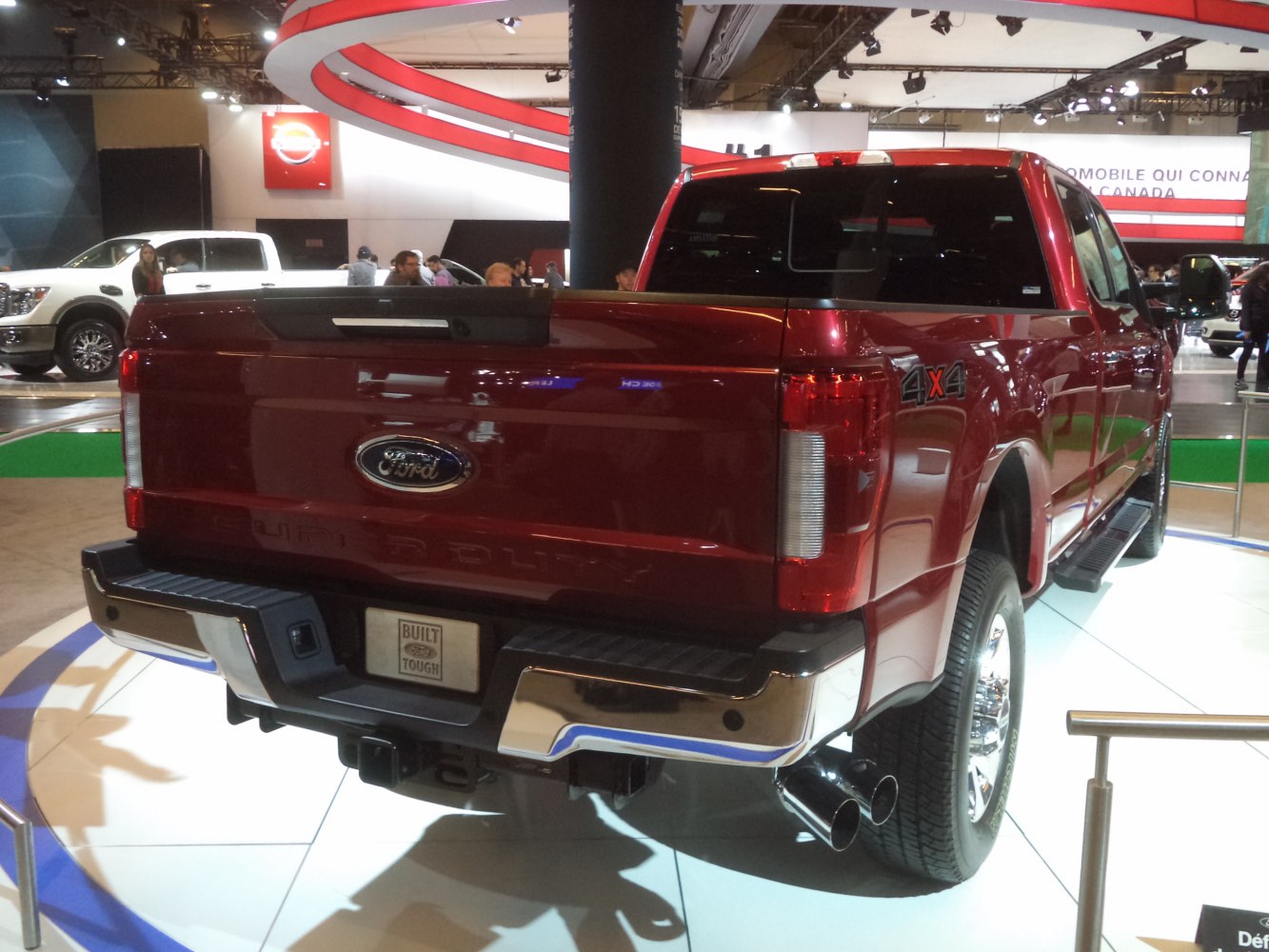

Vehicle photos
1 of 8
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
8 versions · 4 Gasoline · 4 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 6.2 V8 (385 KM) Automatic SRW Selected | Gasoline | 385 KM | 2017–2019 |
| 6.2 V8 (385 KM) Automatic DRW Selected | Gasoline | 385 KM | 2017–2019 |
| 6.7d V8 (450 KM) 4x4 Automatic DRW Selected | Diesel fuel | 450 KM | 2017–2019 |
| 6.7d V8 (450 KM) Automatic DRW Selected | Diesel fuel | 450 KM | 2017–2019 |
| 6.2 V8 (385 KM) 4x4 Automatic SRW Selected | Gasoline | 385 KM | 2017–2019 |
| 6.2 V8 (385 KM) 4x4 Automatic DRW Selected | Gasoline | 385 KM | 2017–2019 |
| 6.7d V8 (450 KM) 4x4 Automatic SRW Selected | Diesel fuel | 450 KM | 2017–2019 |
| 6.7d V8 (450 KM) Automatic SRW Selected | Diesel fuel | 450 KM | 2017–2019 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
6.2 V8 (385 KM) Automatic SRW
Gasoline · 2017–2019
- Engine power
- 385 KM
- Torque
- 583 Nm
- Engine displacement
- 6,211 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Ford F-350 Super Duty F-350 Super Duty IV Crew Cab Long box- Brand
- Ford
- Model
- F-350 Super Duty
- Version
- F-350 Super Duty IV Crew Cab Long box
- Engine
- 6.2 V8 (385 KM) Automatic SRW
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2019
- Body type
- Pick-up
- Number of seats
- 6
- Fuel type
- Gasoline
Engine
- Engine position
- Front, Longitudinal
- Engine displacement
- 6211 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 102.1 mm
- Piston stroke
- 95 mm
- Compression ratio
- 9.8
- Number of valves per cylinder
- 2
- Engine oil capacity
- 6.6 l
- Coolant capacity
- 20.2 l
- Power
- 385 KM @ 5750 obr./min
- Torque
- 583 Nm @ 3800 obr./min
Volume and weight
- Fuel tank
- 182 l
- Minimum trunk capacity
- 2222 l
- Curb weight
- 2956-2981 kg
- Braked trailer load (12% slope start)
- 7348 kg
Vehicle dimensions
- Length
- 6761 mm
- Width
- 2438 mm
- Width with unfolded mirrors
- 2690 mm
- Height
- 1981 mm
- Wheelbase
- 4470 mm
- Front track
- 1735 mm
- Rear track
- 1707 mm
- Ground clearance
- 216 mm
- Approach angle
- 17.9 °
- Departure angle
- 17.6 °
- Ramp angle
- 16.7 °
- Front overhang
- 970 mm
- Rear overhang
- 1321 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- TorqShift
- Front suspension
- Independent coil spring suspension, Trailing arm
- Rear suspension
- Solid axle suspension, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 363 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 363 mm
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 245/75 R17
- ABS
- yes
Selected engine version
6.2 V8 (385 KM) Automatic DRW
Gasoline · 2017–2019
- Engine power
- 385 KM
- Torque
- 583 Nm
- Engine displacement
- 6,211 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Ford F-350 Super Duty F-350 Super Duty IV Crew Cab Long box- Brand
- Ford
- Model
- F-350 Super Duty
- Version
- F-350 Super Duty IV Crew Cab Long box
- Engine
- 6.2 V8 (385 KM) Automatic DRW
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2019
- Body type
- Pick-up
- Number of seats
- 6
- Fuel type
- Gasoline
Engine
- Engine position
- Front, Longitudinal
- Engine displacement
- 6211 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 102.1 mm
- Piston stroke
- 95 mm
- Compression ratio
- 9.8
- Number of valves per cylinder
- 2
- Engine oil capacity
- 6.6 l
- Coolant capacity
- 20.2 l
- Power
- 385 KM @ 5750 obr./min
- Torque
- 583 Nm @ 3800 obr./min
Volume and weight
- Fuel tank
- 182 l
- Minimum trunk capacity
- 2222 l
- Curb weight
- 3163 kg
- Braked trailer load (12% slope start)
- 7257 kg
Vehicle dimensions
- Length
- 6761 mm
- Width
- 2438 mm
- Width with unfolded mirrors
- 2690 mm
- Height
- 1979 mm
- Wheelbase
- 4470 mm
- Front track
- 1755 mm
- Rear track
- 1897 mm
- Ground clearance
- 198 mm
- Approach angle
- 18.5 °
- Departure angle
- 17.2 °
- Ramp angle
- 16.7 °
- Front overhang
- 970 mm
- Rear overhang
- 1321 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- TorqShift
- Front suspension
- Independent coil spring suspension, Trailing arm
- Rear suspension
- Solid axle suspension, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 363 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 363 mm
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 245/75 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
6.7d V8 (450 KM) 4x4 Automatic DRW
Diesel fuel · 2017–2019
- Engine power
- 450 KM
- Torque
- 1,267 Nm
- Engine displacement
- 6,653 cm³
- Fuel type
- Diesel fuel
On this page
Check vehicle history
Basic version information
Ford F-350 Super Duty F-350 Super Duty IV Crew Cab Long box- Brand
- Ford
- Model
- F-350 Super Duty
- Version
- F-350 Super Duty IV Crew Cab Long box
- Engine
- 6.7d V8 (450 KM) 4x4 Automatic DRW
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2019
- Body type
- Pick-up
- Number of seats
- 6
- Fuel type
- Diesel fuel
Engine
- Engine position
- Front, Longitudinal
- Engine displacement
- 6653 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- OHV
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 99.06 mm
- Piston stroke
- 107.95 mm
- Compression ratio
- 16.2
- Number of valves per cylinder
- 4
- Engine oil capacity
- 12.3 l
- Coolant capacity
- 33.2 l
- Power
- 450 KM @ 2800 obr./min
- Torque
- 1267 Nm @ 1800 obr./min
Volume and weight
- Fuel tank
- 182 l
- Minimum trunk capacity
- 2222 l
- Curb weight
- 3484-3673 kg
- Braked trailer load (12% slope start)
- 14197 kg
Vehicle dimensions
- Length
- 6761 mm
- Width
- 2438 mm
- Width with unfolded mirrors
- 2690 mm
- Height
- 2057 mm
- Wheelbase
- 4470 mm
- Front track
- 1755 mm
- Rear track
- 1897 mm
- Ground clearance
- 198 mm
- Approach angle
- 19.1 °
- Departure angle
- 20.1 °
- Ramp angle
- 20.8 °
- Front overhang
- 970 mm
- Rear overhang
- 1321 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Type of automatic gearbox
- TorqShift
- Front suspension
- Dependent spring suspension with anti-roll bar, Trailing arm
- Rear suspension
- Solid axle suspension, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 363 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 363 mm
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 245/75 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
6.7d V8 (450 KM) Automatic DRW
Diesel fuel · 2017–2019
- Engine power
- 450 KM
- Torque
- 1,267 Nm
- Engine displacement
- 6,653 cm³
- Fuel type
- Diesel fuel
On this page
Check vehicle history
Basic version information
Ford F-350 Super Duty F-350 Super Duty IV Crew Cab Long box- Brand
- Ford
- Model
- F-350 Super Duty
- Version
- F-350 Super Duty IV Crew Cab Long box
- Engine
- 6.7d V8 (450 KM) Automatic DRW
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2019
- Body type
- Pick-up
- Number of seats
- 6
- Fuel type
- Diesel fuel
Engine
- Engine position
- Front, Longitudinal
- Engine displacement
- 6653 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- OHV
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 99.06 mm
- Piston stroke
- 107.95 mm
- Compression ratio
- 16.2
- Number of valves per cylinder
- 4
- Engine oil capacity
- 12.3 l
- Coolant capacity
- 33.2 l
- Power
- 450 KM @ 2800 obr./min
- Torque
- 1267 Nm @ 1800 obr./min
Volume and weight
- Fuel tank
- 182 l
- Minimum trunk capacity
- 2222 l
- Curb weight
- 3301-3490 kg
- Braked trailer load (12% slope start)
- 14378 kg
Vehicle dimensions
- Length
- 6761 mm
- Width
- 2438 mm
- Width with unfolded mirrors
- 2690 mm
- Height
- 1979 mm
- Wheelbase
- 4470 mm
- Front track
- 1755 mm
- Rear track
- 1897 mm
- Ground clearance
- 198 mm
- Approach angle
- 18.5 °
- Departure angle
- 17.2 °
- Ramp angle
- 16.7 °
- Front overhang
- 970 mm
- Rear overhang
- 1321 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- TorqShift
- Front suspension
- Independent coil spring suspension, Trailing arm
- Rear suspension
- Solid axle suspension, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 363 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 363 mm
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 245/75 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
6.2 V8 (385 KM) 4x4 Automatic SRW
Gasoline · 2017–2019
- Engine power
- 385 KM
- Torque
- 583 Nm
- Engine displacement
- 6,211 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Ford F-350 Super Duty F-350 Super Duty IV Crew Cab Long box- Brand
- Ford
- Model
- F-350 Super Duty
- Version
- F-350 Super Duty IV Crew Cab Long box
- Engine
- 6.2 V8 (385 KM) 4x4 Automatic SRW
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2019
- Body type
- Pick-up
- Number of seats
- 6
- Fuel type
- Gasoline
Engine
- Engine position
- Front, Longitudinal
- Engine displacement
- 6211 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 102.1 mm
- Piston stroke
- 95 mm
- Compression ratio
- 9.8
- Number of valves per cylinder
- 2
- Engine oil capacity
- 6.6 l
- Coolant capacity
- 20.2 l
- Power
- 385 KM @ 5750 obr./min
- Torque
- 583 Nm @ 3800 obr./min
Volume and weight
- Fuel tank
- 182 l
- Minimum trunk capacity
- 2222 l
- Curb weight
- 3142-3168 kg
- Braked trailer load (12% slope start)
- 7121 kg
Vehicle dimensions
- Length
- 6761 mm
- Width
- 2438 mm
- Width with unfolded mirrors
- 2690 mm
- Height
- 2060 mm
- Wheelbase
- 4470 mm
- Front track
- 1735 mm
- Rear track
- 1707 mm
- Ground clearance
- 208 mm
- Approach angle
- 18.1 °
- Departure angle
- 20.9 °
- Ramp angle
- 20.9 °
- Front overhang
- 970 mm
- Rear overhang
- 1321 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Type of automatic gearbox
- TorqShift
- Front suspension
- Dependent spring suspension with anti-roll bar, Trailing arm
- Rear suspension
- Solid axle suspension, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 363 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 363 mm
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 245/75 R17
- ABS
- yes
Selected engine version
6.2 V8 (385 KM) 4x4 Automatic DRW
Gasoline · 2017–2019
- Engine power
- 385 KM
- Torque
- 583 Nm
- Engine displacement
- 6,211 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Ford F-350 Super Duty F-350 Super Duty IV Crew Cab Long box- Brand
- Ford
- Model
- F-350 Super Duty
- Version
- F-350 Super Duty IV Crew Cab Long box
- Engine
- 6.2 V8 (385 KM) 4x4 Automatic DRW
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2019
- Body type
- Pick-up
- Number of seats
- 6
- Fuel type
- Gasoline
Engine
- Engine position
- Front, Longitudinal
- Engine displacement
- 6211 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 102.1 mm
- Piston stroke
- 95 mm
- Compression ratio
- 9.8
- Number of valves per cylinder
- 2
- Engine oil capacity
- 6.6 l
- Coolant capacity
- 20.2 l
- Power
- 385 KM @ 5750 obr./min
- Torque
- 583 Nm @ 3800 obr./min
Volume and weight
- Fuel tank
- 182 l
- Minimum trunk capacity
- 2222 l
- Curb weight
- 3347 kg
- Braked trailer load (12% slope start)
- 7031 kg
Vehicle dimensions
- Length
- 6761 mm
- Width
- 2438 mm
- Width with unfolded mirrors
- 2690 mm
- Height
- 2057 mm
- Wheelbase
- 4470 mm
- Front track
- 1755 mm
- Rear track
- 1897 mm
- Ground clearance
- 198 mm
- Approach angle
- 19.1 °
- Departure angle
- 20.1 °
- Ramp angle
- 20.8 °
- Front overhang
- 970 mm
- Rear overhang
- 1321 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Type of automatic gearbox
- TorqShift
- Front suspension
- Dependent spring suspension with anti-roll bar, Trailing arm
- Rear suspension
- Solid axle suspension, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 363 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 363 mm
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 245/75 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
6.7d V8 (450 KM) 4x4 Automatic SRW
Diesel fuel · 2017–2019
- Engine power
- 450 KM
- Torque
- 1,267 Nm
- Engine displacement
- 6,653 cm³
- Fuel type
- Diesel fuel
On this page
Check vehicle history
Basic version information
Ford F-350 Super Duty F-350 Super Duty IV Crew Cab Long box- Brand
- Ford
- Model
- F-350 Super Duty
- Version
- F-350 Super Duty IV Crew Cab Long box
- Engine
- 6.7d V8 (450 KM) 4x4 Automatic SRW
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2019
- Body type
- Pick-up
- Number of seats
- 6
- Fuel type
- Diesel fuel
Engine
- Engine position
- Front, Longitudinal
- Engine displacement
- 6653 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- OHV
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 99.06 mm
- Piston stroke
- 107.95 mm
- Compression ratio
- 16.2
- Number of valves per cylinder
- 4
- Engine oil capacity
- 12.3 l
- Coolant capacity
- 33.2 l
- Power
- 450 KM @ 2800 obr./min
- Torque
- 1267 Nm @ 1800 obr./min
Volume and weight
- Fuel tank
- 182 l
- Minimum trunk capacity
- 2222 l
- Curb weight
- 3482-3508 kg
- Braked trailer load (12% slope start)
- 9344 kg
Vehicle dimensions
- Length
- 6761 mm
- Width
- 2438 mm
- Width with unfolded mirrors
- 2690 mm
- Height
- 2060 mm
- Wheelbase
- 4470 mm
- Front track
- 1735 mm
- Rear track
- 1707 mm
- Ground clearance
- 208 mm
- Approach angle
- 18.1 °
- Departure angle
- 20.9 °
- Ramp angle
- 20.9 °
- Front overhang
- 970 mm
- Rear overhang
- 1321 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Type of automatic gearbox
- TorqShift
- Front suspension
- Dependent spring suspension with anti-roll bar, Trailing arm
- Rear suspension
- Solid axle suspension, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 363 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 363 mm
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 245/75 R17
- ABS
- yes
Selected engine version
6.7d V8 (450 KM) Automatic SRW
Diesel fuel · 2017–2019
- Engine power
- 450 KM
- Torque
- 1,267 Nm
- Engine displacement
- 6,653 cm³
- Fuel type
- Diesel fuel
On this page
Check vehicle history
Basic version information
Ford F-350 Super Duty F-350 Super Duty IV Crew Cab Long box- Brand
- Ford
- Model
- F-350 Super Duty
- Version
- F-350 Super Duty IV Crew Cab Long box
- Engine
- 6.7d V8 (450 KM) Automatic SRW
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2019
- Body type
- Pick-up
- Number of seats
- 6
- Fuel type
- Diesel fuel
Engine
- Engine position
- Front, Longitudinal
- Engine displacement
- 6653 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- OHV
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 99.06 mm
- Piston stroke
- 107.95 mm
- Compression ratio
- 16.2
- Number of valves per cylinder
- 4
- Engine oil capacity
- 12.3 l
- Coolant capacity
- 33.2 l
- Power
- 450 KM @ 2800 obr./min
- Torque
- 1267 Nm @ 1800 obr./min
Volume and weight
- Fuel tank
- 182 l
- Minimum trunk capacity
- 2222 l
- Curb weight
- 3293-3319 kg
- Braked trailer load (12% slope start)
- 9525 kg
Vehicle dimensions
- Length
- 6761 mm
- Width
- 2438 mm
- Width with unfolded mirrors
- 2690 mm
- Height
- 1981 mm
- Wheelbase
- 4470 mm
- Front track
- 1735 mm
- Rear track
- 1707 mm
- Ground clearance
- 216 mm
- Approach angle
- 17.9 °
- Departure angle
- 17.6 °
- Ramp angle
- 16.7 °
- Front overhang
- 970 mm
- Rear overhang
- 1321 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- TorqShift
- Front suspension
- Independent coil spring suspension, Trailing arm
- Rear suspension
- Solid axle suspension, Leaf springs
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 363 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 363 mm
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 245/75 R17
- ABS
- yes
