Ford C-MAX II

Compare all 17 engine versions of the Ford C-MAX C-MAX II, then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Ford C-MAX II? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?

Vehicle photos

1 of 7

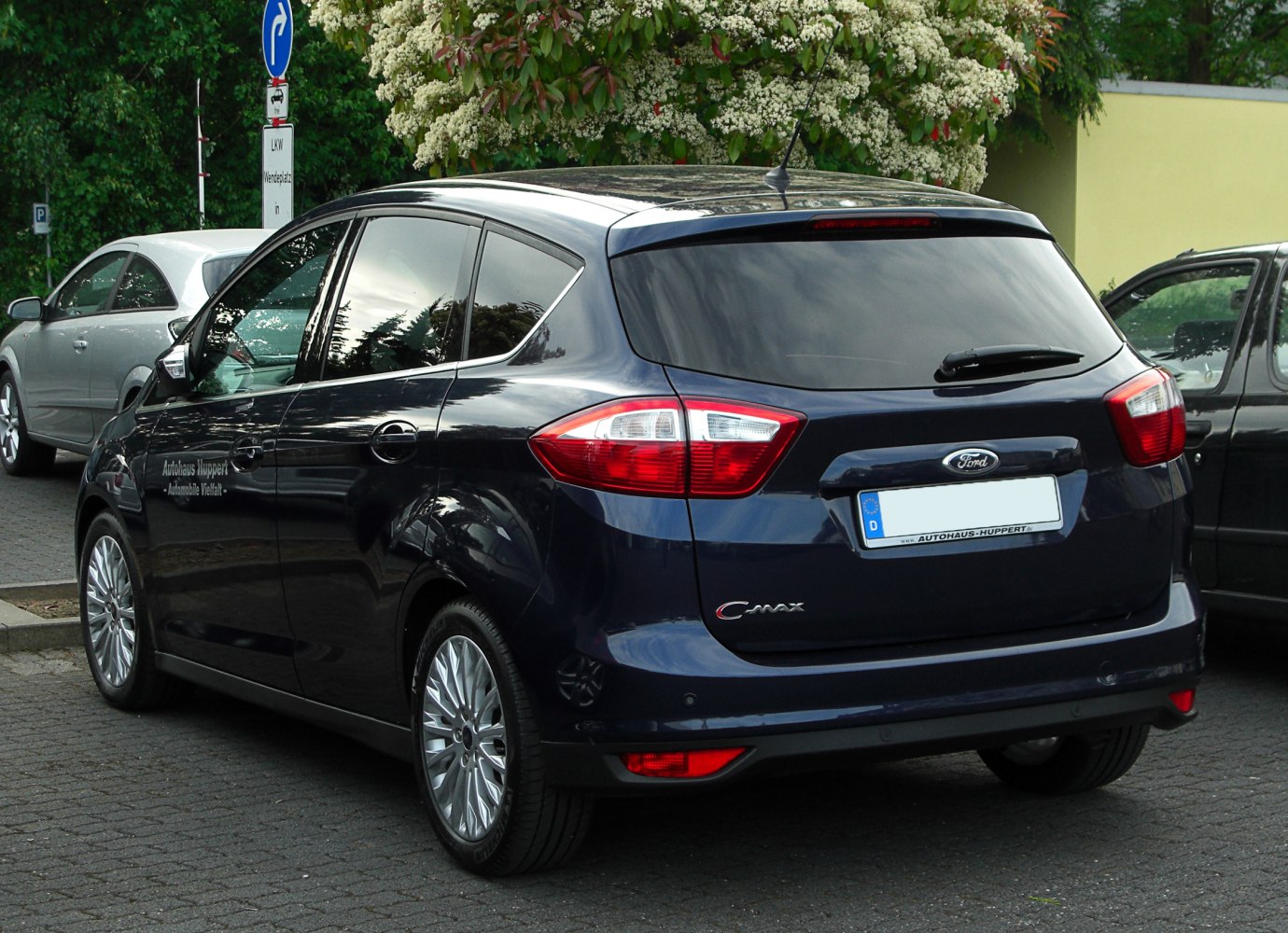

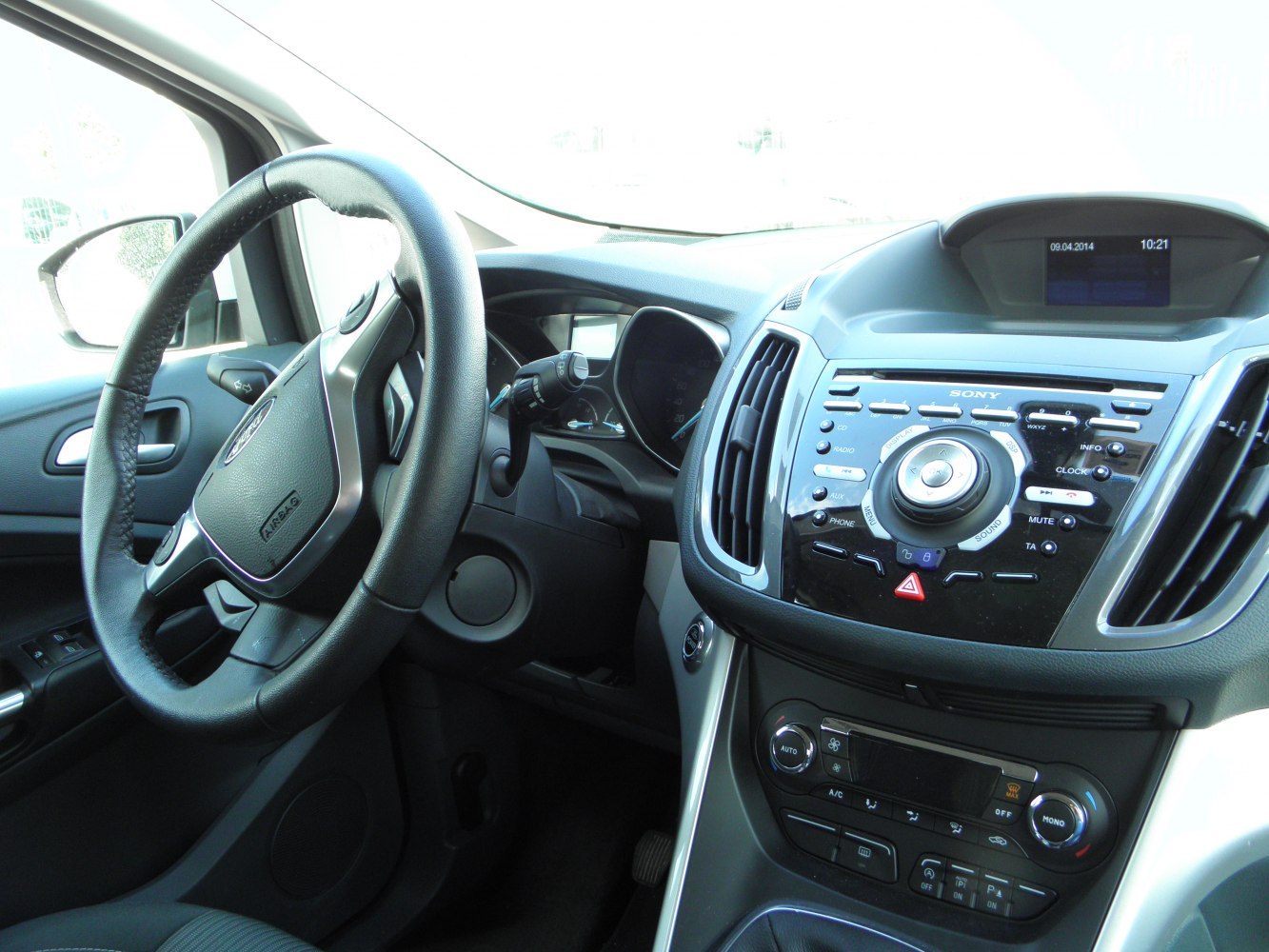

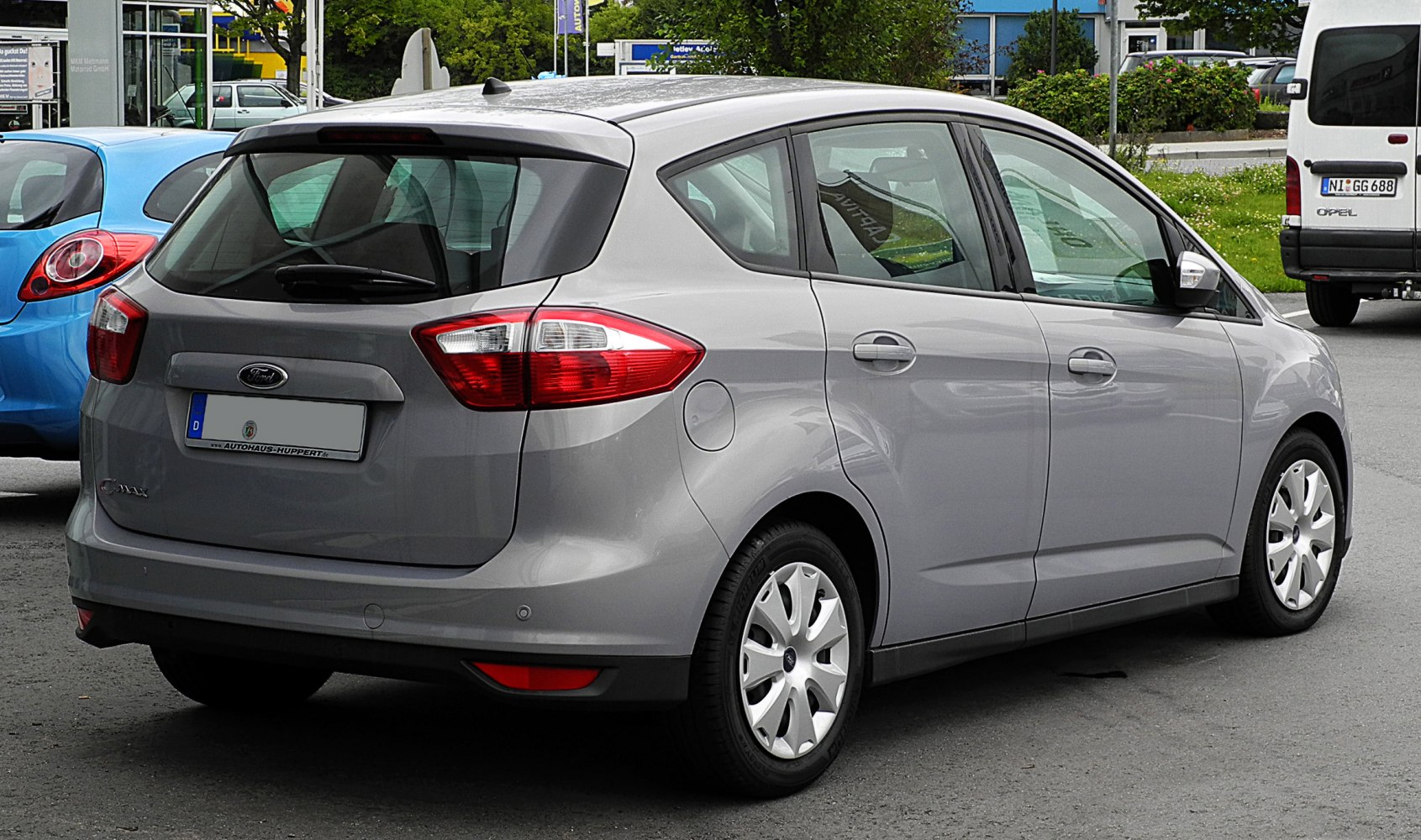

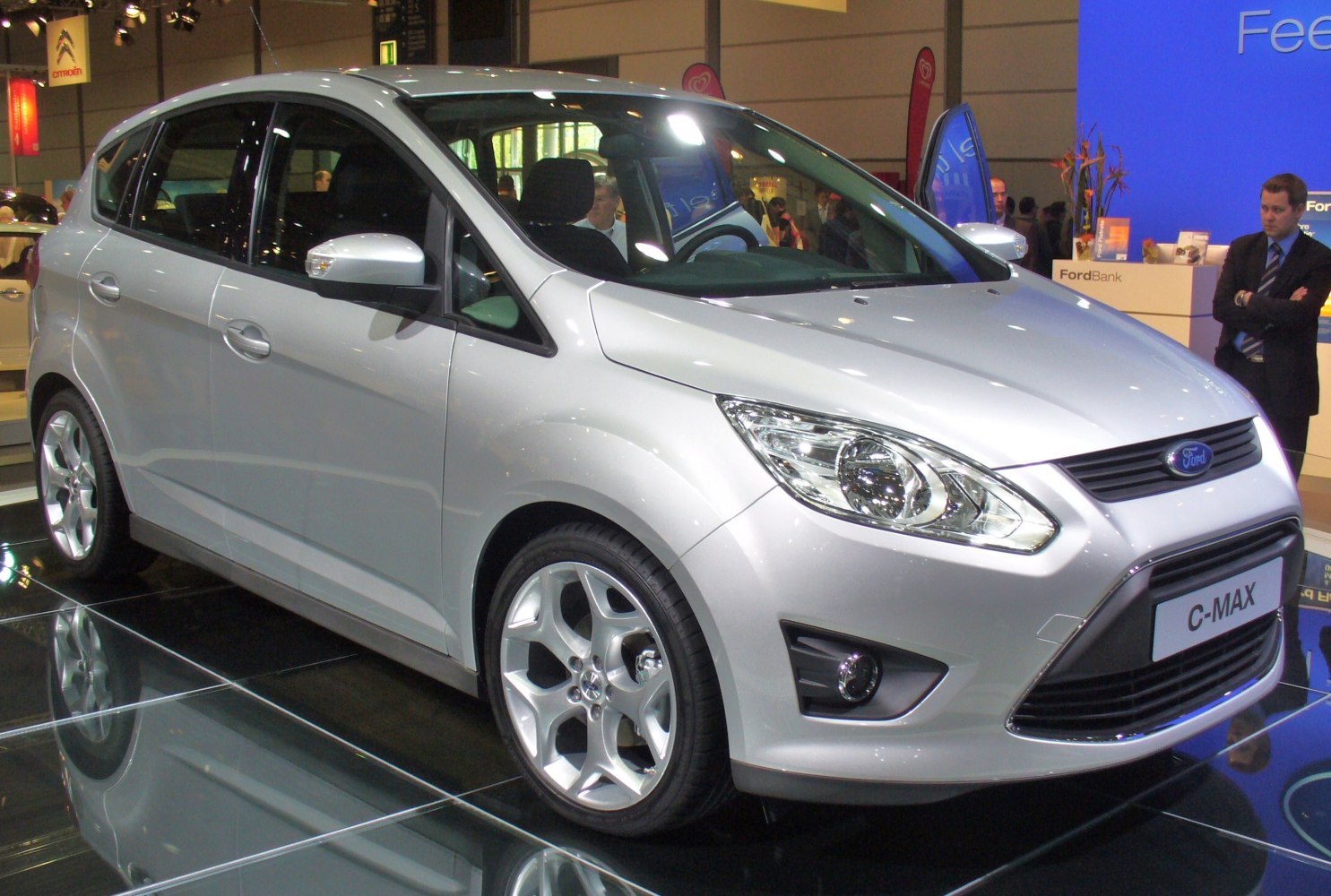

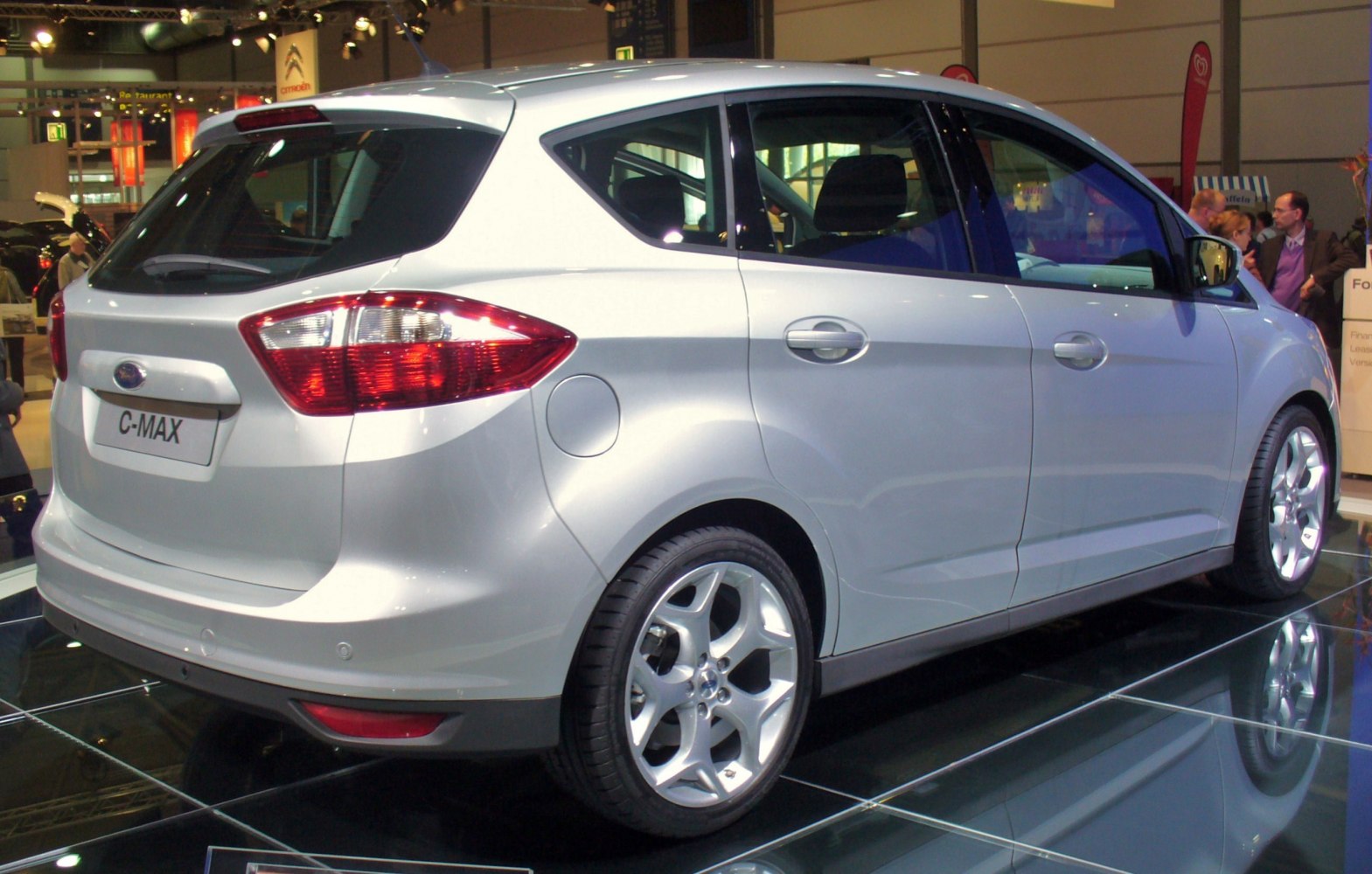

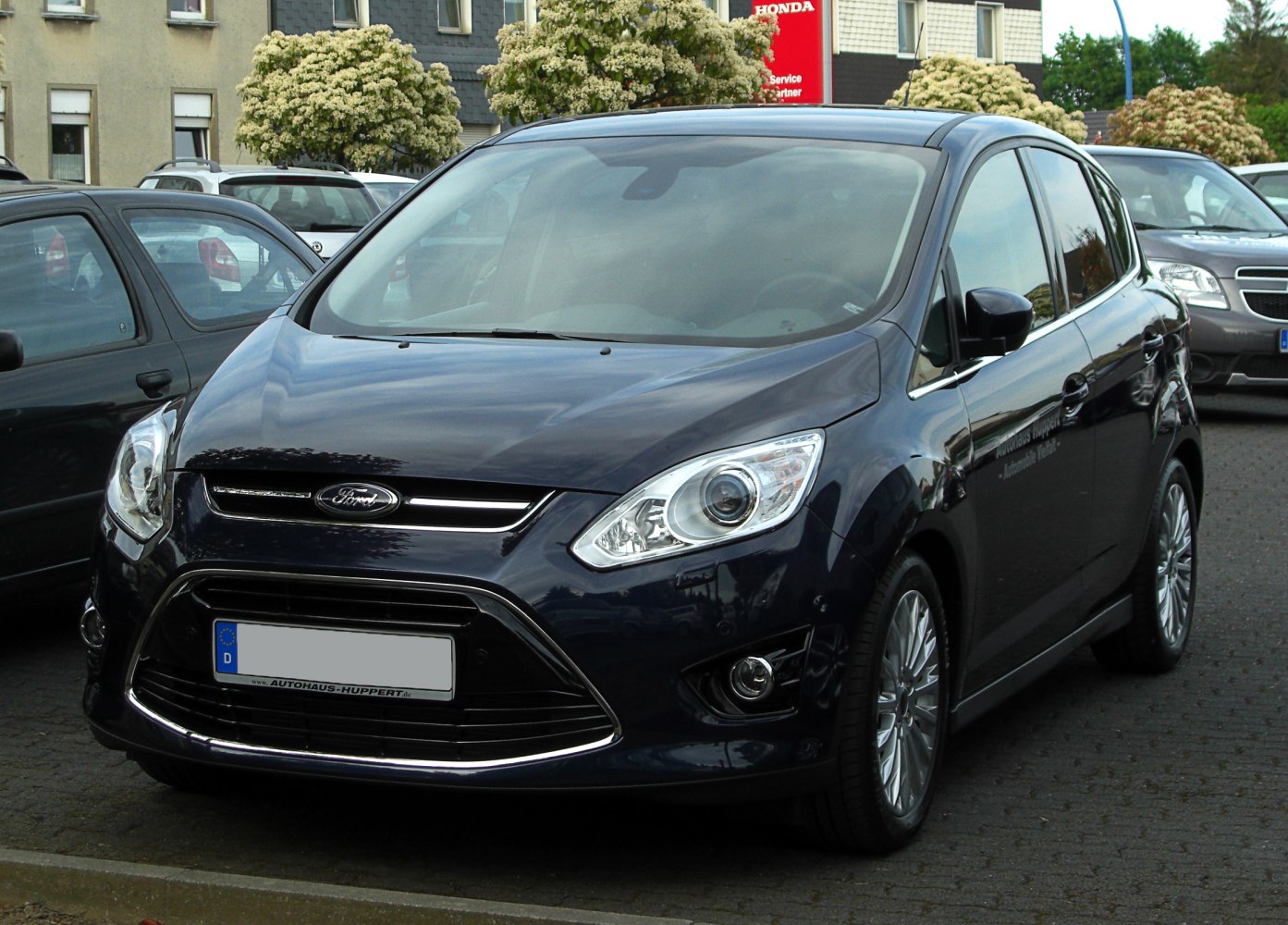

Ford C-MAX C-MAX II View larger
Ford C-MAX C-MAX II — 1 Ford C-MAX C-MAX II — 2 Ford C-MAX C-MAX II — 3 Ford C-MAX C-MAX II — 4 Ford C-MAX C-MAX II — 5 Ford C-MAX C-MAX II — 6 Ford C-MAX C-MAX II — 7
Photo: Thomas doerfer, CC BY 3.0 <https://creativecommons.org/licenses/by/3.0>, via Wikimedia Commons

Vehicle gallery

Ford C-MAX C-MAX II

Ford C-MAX C-MAX II

Photo: Thomas doerfer, CC BY 3.0 <https://creativecommons.org/licenses/by/3.0>, via Wikimedia Commons

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

17 versions · 7 Gasoline · 9 Diesel fuel · 1 Gasoline / LPG

Engine Fuel Power Production
1.0 EcoBoost (100 KM) S&S Selected Gasoline 100 KM 2012–2015
1.6 Duratec Ti-VCT (105 KM) Selected Gasoline 105 KM 2010–2014
1.6 Duratorq TDCi (95 KM) DPF S&S Selected Diesel fuel 95 KM 2010–2015
1.6 Duratorq TDCi (115 KM) DPF S&S Selected Diesel fuel 115 KM 2010–2015
2.0 Duratorq TDCi (140 KM) DPF Selected Diesel fuel 140 KM 2010–2015
2.0 Duratorq TDCi (163 KM) DPF Selected Diesel fuel 163 KM 2010–2015
2.0 Duratorq TDCi (140 KM) DPF Automatic Selected Diesel fuel 140 KM 2010–2015
1.0 EcoBoost (125 KM) S&S Selected Gasoline 125 KM 2012–2015
1.6 Duratec Ti-VCT (125 KM) Selected Gasoline 125 KM 2010–2014
1.6 EcoBoost SCTi (150 KM) S&S Selected Gasoline 150 KM 2010–2015
1.6 Duratorq TDCi (95 KM) DPF Selected Diesel fuel 95 KM 2010–2014
1.6 Duratorq TDCi (115 KM) DPF Selected Diesel fuel 115 KM 2010–2015
2.0 Duratorq TDCi (163 KM) DPF Automatic Selected Diesel fuel 163 KM 2010–2015
1.6 Ti-VCT (85 KM) Selected Gasoline 85 KM 2010–2015
2.0 TDCi (115 KM) PowerShift Automatic DPF Selected Diesel fuel 115 KM 2011–2015
1.6 EcoBoost (182 KM) S&S Selected Gasoline 182 KM 2010–2015
1.6 Ti-VCT (117 KM) LPG Selected Gasoline / LPG 117 KM 2010–2015

Selected engine version

1.0 EcoBoost (100 KM) S&S

Gasoline · 2012–2015

Engine power
100 KM
Torque
170 Nm
Engine displacement
998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
12.6 s
Maximum speed
174 km/h
On this page
Check vehicle history

Basic version information

Brand
Ford
Model
C-MAX
Version
C-MAX II
Engine
1.0 EcoBoost (100 KM) S&S
Engine type
Combustion engine
Number of doors
5
Start of production
2012
End of production
2015
Body type
MPV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
174 km/h
Acceleration 0-100 km/h
12.6 s
Fuel consumption - Urban cycle
6.3 l/100 km
Fuel consumption - Extra-urban cycle
4.5 l/100 km
Fuel consumption - Combined cycle
5.1 l/100 km
Emission standard
Euro 5
CO2 emissions
117 g/km

Engine

Engine model / code
M2DA
Engine position
Front, Transverse
Engine displacement
998 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
3
Cylinder bore
71.9 mm
Piston stroke
82 mm
Compression ratio
10
Number of valves per cylinder
3
Engine oil capacity
4.1 l
Coolant capacity
5.8 l
Power
100 KM @ 6000 obr./min
Torque
170 Nm @ 1400-4000 obr./min

Volume and weight

Fuel tank
55 l
Minimum trunk capacity
432 l
Maximum trunk capacity
1723 l
Curb weight
1316 kg
Gross weight
1900 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1200 kg
Trailer load without brakes
695 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4380 mm
Width
1828 mm
Width with folded mirrors
1858 mm
Width with unfolded mirrors
2067 mm
Height
1626 mm
Wheelbase
2648 mm
Front track
1544-1559 mm
Rear track
1554-1569 mm
Turning circle
10.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 215/55 R16
Rim size
6.5 J x 16; 7.0 J x 16
ABS
yes

Selected engine version

1.6 Duratec Ti-VCT (105 KM)

Gasoline · 2010–2014

Engine power
105 KM
Torque
150 Nm
Engine displacement
1,596 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
12.6 s
Maximum speed
180 km/h
On this page
Check vehicle history

Basic version information

Brand
Ford
Model
C-MAX
Version
C-MAX II
Engine
1.6 Duratec Ti-VCT (105 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2014
Body type
MPV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
180 km/h
Acceleration 0-100 km/h
12.6 s
Fuel consumption - Urban cycle
8.7 l/100 km
Fuel consumption - Extra-urban cycle
5.3 l/100 km
Fuel consumption - Combined cycle
6.6 l/100 km
Emission standard
Euro 5
CO2 emissions
154 g/km

Engine

Engine model / code
IQDB
Engine position
Front, Transverse
Engine displacement
1596 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.4 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
4.1 l
Coolant capacity
5.8 l
Power
105 KM @ 6000 obr./min
Torque
150 Nm @ 4000-4500 obr./min

Volume and weight

Fuel tank
55 l
Minimum trunk capacity
432 l
Maximum trunk capacity
1723 l
Curb weight
1374 kg
Gross weight
1860 kg
Roof load
75 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4380 mm
Width
1828 mm
Width with folded mirrors
1858 mm
Width with unfolded mirrors
2067 mm
Height
1626 mm
Wheelbase
2648 mm
Front track
1544-1559 mm
Rear track
1554-1569 mm
Turning circle
10.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 215/55 R16
Rim size
6.5 J x 16; 7.0 J x 16
ABS
yes

Selected engine version

1.6 Duratorq TDCi (95 KM) DPF S&S

Diesel fuel · 2010–2015

Engine power
95 KM
Torque
230 Nm
Engine displacement
1,560 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
13.3 s
Maximum speed
170 km/h
On this page
Check vehicle history

Basic version information

Brand
Ford
Model
C-MAX
Version
C-MAX II
Engine
1.6 Duratorq TDCi (95 KM) DPF S&S
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2015
Body type
MPV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
170 km/h
Acceleration 0-100 km/h
13.3 s
Fuel consumption - Urban cycle
4.9 l/100 km
Fuel consumption - Extra-urban cycle
3.9 l/100 km
Fuel consumption - Combined cycle
4.3 l/100 km
Emission standard
Euro 5
CO2 emissions
112 g/km

Engine

Engine model / code
T3DB
Engine position
Front, Transverse
Engine displacement
1560 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
SOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
75 mm
Piston stroke
88.3 mm
Compression ratio
16
Number of valves per cylinder
2
Engine oil capacity
3.8 l
Coolant capacity
7.3 l
Power
95 KM @ 3600 obr./min
Torque
230 Nm @ 1500-2000 obr./min

Volume and weight

Fuel tank
53 l
Minimum trunk capacity
432 l
Maximum trunk capacity
1723 l
Curb weight
1315 kg
Gross weight
1915 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1200 kg
Trailer load without brakes
695 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4380 mm
Width
1828 mm
Width with folded mirrors
1858 mm
Width with unfolded mirrors
2067 mm
Height
1626 mm
Wheelbase
2648 mm
Front track
1544-1559 mm
Rear track
1554-1569 mm
Turning circle
10.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 215/55 R16
Rim size
6.5 J x 16; 7.0 J x 16
ABS
yes

Selected engine version

1.6 Duratorq TDCi (115 KM) DPF S&S

Diesel fuel · 2010–2015

Engine power
115 KM
Torque
270 Nm
Engine displacement
1,560 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.3 s
Maximum speed
184 km/h
On this page
Check vehicle history

Basic version information

Brand
Ford
Model
C-MAX
Version
C-MAX II
Engine
1.6 Duratorq TDCi (115 KM) DPF S&S
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2015
Body type
MPV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
184 km/h
Acceleration 0-100 km/h
11.3 s
Fuel consumption - Urban cycle
4.9 l/100 km
Fuel consumption - Extra-urban cycle
3.8 l/100 km
Fuel consumption - Combined cycle
4.2 l/100 km
Emission standard
Euro 5
CO2 emissions
110 g/km

Engine

Engine model / code
T1DB
Engine position
Front, Transverse
Engine displacement
1560 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
SOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
75 mm
Piston stroke
88.3 mm
Compression ratio
16
Number of valves per cylinder
2
Engine oil capacity
3.8 l
Coolant capacity
7.3 l
Power
115 KM @ 3600 obr./min
Torque
270 Nm @ 1750-2500 obr./min

Volume and weight

Fuel tank
53 l
Minimum trunk capacity
432 l
Maximum trunk capacity
1723 l
Curb weight
1315 kg
Gross weight
1915 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1200 kg
Trailer load without brakes
695 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4380 mm
Width
1828 mm
Width with folded mirrors
1858 mm
Width with unfolded mirrors
2067 mm
Height
1626 mm
Wheelbase
2648 mm
Front track
1544-1559 mm
Rear track
1554-1569 mm
Turning circle
10.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 215/55 R16
Rim size
6.5J x 16; 7.0J x 16
ABS
yes

Selected engine version

2.0 Duratorq TDCi (140 KM) DPF

Diesel fuel · 2010–2015

Engine power
140 KM
Torque
320 Nm
Engine displacement
1,997 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.6 s
Maximum speed
201 km/h
On this page
Check vehicle history

Basic version information

Brand
Ford
Model
C-MAX
Version
C-MAX II
Engine
2.0 Duratorq TDCi (140 KM) DPF
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2015
Body type
MPV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
201 km/h
Acceleration 0-100 km/h
9.6 s
Fuel consumption - Urban cycle
6.1 l/100 km
Fuel consumption - Extra-urban cycle
4.2 l/100 km
Fuel consumption - Combined cycle
4.9 l/100 km
Emission standard
Euro 5
CO2 emissions
129 g/km

Engine

Engine model / code
UFDB
Engine position
Front, Transverse
Engine displacement
1997 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
85 mm
Piston stroke
88 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5.7 l
Coolant capacity
8.5 l
Power
140 KM @ 3750 obr./min
Torque
320 Nm @ 1750-2750 obr./min

Volume and weight

Fuel tank
60 l
Minimum trunk capacity
432 l
Maximum trunk capacity
1723 l
Curb weight
1413 kg
Gross weight
2050 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
740 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4380 mm
Width
1828 mm
Width with folded mirrors
1858 mm
Width with unfolded mirrors
2067 mm
Height
1626 mm
Wheelbase
2648 mm
Front track
1544-1559 mm
Rear track
1554-1569 mm
Turning circle
10.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 215/55 R16
Rim size
6.5J x 16; 7.0J x 16
ABS
yes

Selected engine version

2.0 Duratorq TDCi (163 KM) DPF

Diesel fuel · 2010–2015

Engine power
163 KM
Torque
340 Nm
Engine displacement
1,997 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.6 s
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
Ford
Model
C-MAX
Version
C-MAX II
Engine
2.0 Duratorq TDCi (163 KM) DPF
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2015
Body type
MPV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
210 km/h
Acceleration 0-100 km/h
8.6 s
Fuel consumption - Urban cycle
6.1 l/100 km
Fuel consumption - Extra-urban cycle
4.2 l/100 km
Fuel consumption - Combined cycle
4.9 l/100 km
Emission standard
Euro 5
CO2 emissions
129 g/km

Engine

Engine model / code
TXDB
Engine position
Front, Transverse
Engine displacement
1997 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
85 mm
Piston stroke
88 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5.7 l
Coolant capacity
8.5 l
Power
163 KM @ 3750 obr./min
Torque
340 Nm @ 2000-3250 obr./min

Volume and weight

Fuel tank
60 l
Minimum trunk capacity
432 l
Maximum trunk capacity
1723 l
Curb weight
1413 kg
Gross weight
2050 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
740 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4380 mm
Width
1828 mm
Width with folded mirrors
1858 mm
Width with unfolded mirrors
2067 mm
Height
1626 mm
Wheelbase
2648 mm
Front track
1544-1559 mm
Rear track
1554-1569 mm
Turning circle
10.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/55 R16
Rim size
7.0J x 16
ABS
yes

Selected engine version

2.0 Duratorq TDCi (140 KM) DPF Automatic

Diesel fuel · 2010–2015

Engine power
140 KM
Torque
320 Nm
Engine displacement
1,997 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.1 s
Maximum speed
200 km/h
On this page
Check vehicle history

Basic version information

Brand
Ford
Model
C-MAX
Version
C-MAX II
Engine
2.0 Duratorq TDCi (140 KM) DPF Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2015
Body type
MPV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
200 km/h
Acceleration 0-100 km/h
10.1 s
Fuel consumption - Urban cycle
6.9 l/100 km
Fuel consumption - Extra-urban cycle
4.7 l/100 km
Fuel consumption - Combined cycle
5.5 l/100 km
Emission standard
Euro 5
CO2 emissions
144 g/km

Engine

Engine model / code
UFDB
Engine position
Front, Transverse
Engine displacement
1997 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
85 mm
Piston stroke
88 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5.7 l
Coolant capacity
8.5 l
Power
140 KM @ 3750 obr./min
Torque
320 Nm @ 1750-2750 obr./min

Volume and weight

Fuel tank
60 l
Minimum trunk capacity
432 l
Maximum trunk capacity
1723 l
Curb weight
1475 kg
Gross weight
2050 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4380 mm
Width
1828 mm
Width with folded mirrors
1858 mm
Width with unfolded mirrors
2067 mm
Height
1626 mm
Wheelbase
2648 mm
Front track
1544-1559 mm
Rear track
1554-1569 mm
Turning circle
10.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 215/55 R16
Rim size
6.5J x 16; 7.0J x 16
ABS
yes

Selected engine version

1.0 EcoBoost (125 KM) S&S

Gasoline · 2012–2015

Engine power
125 KM
Torque
170 Nm
Engine displacement
998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
11.4 s
Maximum speed
187 km/h
On this page
Check vehicle history

Basic version information

Brand
Ford
Model
C-MAX
Version
C-MAX II
Engine
1.0 EcoBoost (125 KM) S&S
Engine type
Combustion engine
Number of doors
5
Start of production
2012
End of production
2015
Body type
MPV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
187 km/h
Acceleration 0-100 km/h
11.4 s
Fuel consumption - Urban cycle
6.3 l/100 km
Fuel consumption - Extra-urban cycle
4.5 l/100 km
Fuel consumption - Combined cycle
5.1 l/100 km
Emission standard
Euro 5
CO2 emissions
117 g/km

Engine

Engine model / code
M1DA
Engine position
Front, Transverse
Engine displacement
998 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
3
Cylinder bore
71.9 mm
Piston stroke
82 mm
Compression ratio
10
Number of valves per cylinder
4
Engine oil capacity
4.1 l
Coolant capacity
5.8 l
Power
125 KM @ 6000 obr./min
Torque
170 Nm @ 1500-4500 obr./min

Volume and weight

Fuel tank
55 l
Minimum trunk capacity
432 l
Maximum trunk capacity
1723 l
Curb weight
1316 kg
Gross weight
1900 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1200 kg
Trailer load without brakes
695 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4380 mm
Width
1828 mm
Width with folded mirrors
1858 mm
Width with unfolded mirrors
2067 mm
Height
1626 mm
Wheelbase
2648 mm
Front track
1544-1559 mm
Rear track
1554-1569 mm
Turning circle
10.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 215/55 R16
Rim size
6.5 J x 16; 7.0 J x 16
ABS
yes

Selected engine version

1.6 Duratec Ti-VCT (125 KM)

Gasoline · 2010–2014

Engine power
125 KM
Torque
159 Nm
Engine displacement
1,596 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
11.5 s
Maximum speed
188 km/h
On this page
Check vehicle history

Basic version information

Brand
Ford
Model
C-MAX
Version
C-MAX II
Engine
1.6 Duratec Ti-VCT (125 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2014
Body type
MPV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
188 km/h
Acceleration 0-100 km/h
11.5 s
Fuel consumption - Urban cycle
8.7 l/100 km
Fuel consumption - Extra-urban cycle
5.3 l/100 km
Fuel consumption - Combined cycle
6.6 l/100 km
Emission standard
Euro 5
CO2 emissions
154 g/km

Engine

Engine model / code
PNDA
Engine position
Front, Transverse
Engine displacement
1596 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.4 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
4.1 l
Coolant capacity
5.8 l
Power
125 KM @ 6300 obr./min
Torque
159 Nm @ 4000 obr./min

Volume and weight

Fuel tank
55 l
Minimum trunk capacity
432 l
Maximum trunk capacity
1723 l
Curb weight
1374 kg
Gross weight
1860 kg
Roof load
75 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4380 mm
Width
1828 mm
Width with folded mirrors
1858 mm
Width with unfolded mirrors
2067 mm
Height
1626 mm
Wheelbase
2648 mm
Front track
1544-1559 mm
Rear track
1554-1569 mm
Turning circle
10.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 215/55 R16
Rim size
6.5 J x 16; 7.0 J x 16
ABS
yes

Selected engine version

1.6 EcoBoost SCTi (150 KM) S&S

Gasoline · 2010–2015

Engine power
150 KM
Torque
240 Nm
Engine displacement
1,596 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.4 s
Maximum speed
204 km/h
On this page
Check vehicle history

Basic version information

Brand
Ford
Model
C-MAX
Version
C-MAX II
Engine
1.6 EcoBoost SCTi (150 KM) S&S
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2015
Body type
MPV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
204 km/h
Acceleration 0-100 km/h
9.4 s
Fuel consumption - Urban cycle
7.8 l/100 km
Fuel consumption - Extra-urban cycle
5.3 l/100 km
Fuel consumption - Combined cycle
6.2 l/100 km
Emission standard
Euro 5
CO2 emissions
144 g/km

Engine

Engine model / code
JQDB
Engine position
Front, Transverse
Engine displacement
1596 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.4 mm
Compression ratio
10
Number of valves per cylinder
4
Engine oil capacity
4.1 l
Coolant capacity
5.5 l
Power
150 KM @ 5700 obr./min
Torque
240 Nm @ 1600-4000 obr./min

Volume and weight

Fuel tank
55 l
Minimum trunk capacity
432 l
Maximum trunk capacity
1723 l
Curb weight
1310 kg
Gross weight
1900 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
690 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4380 mm
Width
1828 mm
Width with folded mirrors
1858 mm
Width with unfolded mirrors
2067 mm
Height
1626 mm
Wheelbase
2648 mm
Front track
1544-1559 mm
Rear track
1554-1569 mm
Turning circle
10.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 215/55 R16
Rim size
6.5J x 16; 7.0J x 16
ABS
yes

Selected engine version

1.6 Duratorq TDCi (95 KM) DPF

Diesel fuel · 2010–2014

Engine power
95 KM
Torque
230 Nm
Engine displacement
1,560 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
13.3 s
Maximum speed
170 km/h
On this page
Check vehicle history

Basic version information

Brand
Ford
Model
C-MAX
Version
C-MAX II
Engine
1.6 Duratorq TDCi (95 KM) DPF
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2014
Body type
MPV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
170 km/h
Acceleration 0-100 km/h
13.3 s
Fuel consumption - Urban cycle
5.4 l/100 km
Fuel consumption - Extra-urban cycle
4.1 l/100 km
Fuel consumption - Combined cycle
4.6 l/100 km
Emission standard
Euro 5
CO2 emissions
119 g/km

Engine

Engine model / code
T3DB
Engine position
Front, Transverse
Engine displacement
1560 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
SOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
75 mm
Piston stroke
88.3 mm
Compression ratio
16
Number of valves per cylinder
2
Engine oil capacity
3.8 l
Coolant capacity
7.3 l
Power
95 KM @ 3600 obr./min
Torque
230 Nm @ 1500 obr./min

Volume and weight

Fuel tank
53 l
Minimum trunk capacity
432 l
Maximum trunk capacity
1723 l
Curb weight
1315 kg
Gross weight
1915 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1200 kg
Trailer load without brakes
695 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4380 mm
Width
1828 mm
Width with folded mirrors
1858 mm
Width with unfolded mirrors
2067 mm
Height
1626 mm
Wheelbase
2648 mm
Front track
1544-1559 mm
Rear track
1554-1569 mm
Turning circle
10.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 215/55 R16
Rim size
6.5 J x 16; 7.0 J x 16
ABS
yes

Selected engine version

1.6 Duratorq TDCi (115 KM) DPF

Diesel fuel · 2010–2015

Engine power
115 KM
Torque
270 Nm
Engine displacement
1,560 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.3 s
Maximum speed
184 km/h
On this page
Check vehicle history

Basic version information

Brand
Ford
Model
C-MAX
Version
C-MAX II
Engine
1.6 Duratorq TDCi (115 KM) DPF
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2015
Body type
MPV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
184 km/h
Acceleration 0-100 km/h
11.3 s
Fuel consumption - Urban cycle
4.9 l/100 km
Fuel consumption - Extra-urban cycle
3.9 l/100 km
Fuel consumption - Combined cycle
4.3 l/100 km
Emission standard
Euro 5
CO2 emissions
112 g/km

Engine

Engine model / code
T1DB
Engine position
Front, Transverse
Engine displacement
1560 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
SOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
75 mm
Piston stroke
88.3 mm
Compression ratio
16
Number of valves per cylinder
2
Engine oil capacity
3.8 l
Coolant capacity
7.3 l
Power
115 KM @ 3600 obr./min
Torque
270 Nm @ 1750-2500 obr./min

Volume and weight

Fuel tank
53 l
Minimum trunk capacity
432 l
Maximum trunk capacity
1723 l
Curb weight
1315 kg
Gross weight
1915 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1200 kg
Trailer load without brakes
695 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4380 mm
Width
1828 mm
Width with folded mirrors
1858 mm
Width with unfolded mirrors
2067 mm
Height
1626 mm
Wheelbase
2648 mm
Front track
1544-1559 mm
Rear track
1554-1569 mm
Turning circle
10.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 215/55 R16
Rim size
6.5J x 16; 7.0J x 16
ABS
yes

Selected engine version

2.0 Duratorq TDCi (163 KM) DPF Automatic

Diesel fuel · 2010–2015

Engine power
163 KM
Torque
340 Nm
Engine displacement
1,997 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.3 s
Maximum speed
207 km/h
On this page
Check vehicle history

Basic version information

Brand
Ford
Model
C-MAX
Version
C-MAX II
Engine
2.0 Duratorq TDCi (163 KM) DPF Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2015
Body type
MPV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
207 km/h
Acceleration 0-100 km/h
9.3 s
Fuel consumption - Urban cycle
6.9 l/100 km
Fuel consumption - Extra-urban cycle
4.7 l/100 km
Fuel consumption - Combined cycle
5.5 l/100 km
Emission standard
Euro 5
CO2 emissions
144 g/km

Engine

Engine model / code
TXDB
Engine position
Front, Transverse
Engine displacement
1997 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
85 mm
Piston stroke
88 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5.7 l
Coolant capacity
8.5 l
Power
163 KM @ 3750 obr./min
Torque
340 Nm @ 2000-3250 obr./min

Volume and weight

Fuel tank
60 l
Minimum trunk capacity
432 l
Maximum trunk capacity
1723 l
Curb weight
1475 kg
Gross weight
2050 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4380 mm
Width
1828 mm
Width with folded mirrors
1858 mm
Width with unfolded mirrors
2067 mm
Height
1626 mm
Wheelbase
2648 mm
Front track
1544-1559 mm
Rear track
1554-1569 mm
Turning circle
10.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/55 R16
Rim size
7.0J x 16
ABS
yes

Selected engine version

1.6 Ti-VCT (85 KM)

Gasoline · 2010–2015

Engine power
85 KM
Torque
141 Nm
Engine displacement
1,596 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
15.9 s
Maximum speed
165 km/h
On this page
Check vehicle history

Basic version information

Brand
Ford
Model
C-MAX
Version
C-MAX II
Engine
1.6 Ti-VCT (85 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2015
Body type
MPV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
165 km/h
Acceleration 0-100 km/h
15.9 s
Fuel consumption - Urban cycle
8.4 l/100 km
Fuel consumption - Extra-urban cycle
5.2 l/100 km
Fuel consumption - Combined cycle
6.4 l/100 km
Emission standard
Euro 5
CO2 emissions
149 g/km

Engine

Engine model / code
XTDB
Engine position
Front, Transverse
Engine displacement
1596 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.4 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
4.1 l
Coolant capacity
5.5 l
Power
85 KM @ 6000 obr./min
Torque
141 Nm @ 2500 obr./min

Volume and weight

Fuel tank
55 l
Minimum trunk capacity
432 l
Maximum trunk capacity
1723 l
Curb weight
1299 kg
Gross weight
1860 kg
Roof load
75 kg
Braked trailer load (12% slope start)
800 kg
Trailer load without brakes
685 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4380 mm
Width
1828 mm
Width with folded mirrors
1858 mm
Width with unfolded mirrors
2067 mm
Height
1626 mm
Wheelbase
2648 mm
Front track
1544-1559 mm
Rear track
1554-1569 mm
Turning circle
10.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
6.5 J x 16
ABS
yes

Selected engine version

2.0 TDCi (115 KM) PowerShift Automatic DPF

Diesel fuel · 2011–2015

Engine power
115 KM
Torque
300 Nm
Engine displacement
1,997 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.8 s
Maximum speed
185 km/h
On this page
Check vehicle history

Basic version information

Brand
Ford
Model
C-MAX
Version
C-MAX II
Engine
2.0 TDCi (115 KM) PowerShift Automatic DPF
Engine type
Combustion engine
Number of doors
5
Start of production
2011
End of production
2015
Body type
MPV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
185 km/h
Acceleration 0-100 km/h
11.8 s
Fuel consumption - Urban cycle
6.9 l/100 km
Fuel consumption - Extra-urban cycle
4.7 l/100 km
Fuel consumption - Combined cycle
5.5 l/100 km
Emission standard
Euro 5
CO2 emissions
144 g/km

Engine

Engine model / code
TYDA
Engine position
Front, Transverse
Engine displacement
1997 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
85 mm
Piston stroke
88 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
5.7 l
Coolant capacity
8.5 l
Power
115 KM @ 3750 obr./min
Torque
300 Nm @ 1500-2250 obr./min

Volume and weight

Fuel tank
60 l
Minimum trunk capacity
432 l
Maximum trunk capacity
1723 l
Curb weight
1475 kg
Gross weight
2050 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4380 mm
Width
1828 mm
Width with folded mirrors
1858 mm
Width with unfolded mirrors
2067 mm
Height
1626 mm
Wheelbase
2648 mm
Front track
1544-1559 mm
Rear track
1554-1569 mm
Turning circle
10.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 215/55 R16
Rim size
6.5 J x 16; 7.0 J x 16
ABS
yes

Selected engine version

1.6 EcoBoost (182 KM) S&S

Gasoline · 2010–2015

Engine power
182 KM
Torque
240 Nm
Engine displacement
1,596 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.5 s
Maximum speed
217 km/h
On this page
Check vehicle history

Basic version information

Brand
Ford
Model
C-MAX
Version
C-MAX II
Engine
1.6 EcoBoost (182 KM) S&S
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2015
Body type
MPV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
217 km/h
Acceleration 0-100 km/h
8.5 s
Fuel consumption - Urban cycle
7.8 l/100 km
Fuel consumption - Extra-urban cycle
5.3 l/100 km
Fuel consumption - Combined cycle
6.2 l/100 km
Emission standard
Euro 5
CO2 emissions
144 g/km

Engine

Engine model / code
JTDB
Engine position
Front, Transverse
Engine displacement
1596 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.4 mm
Compression ratio
10
Number of valves per cylinder
4
Engine oil capacity
4.1 l
Coolant capacity
5.5 l
Power
182 KM @ 5700 obr./min
Torque
240 Nm @ 1600-5000 obr./min

Volume and weight

Fuel tank
55 l
Minimum trunk capacity
432 l
Maximum trunk capacity
1723 l
Curb weight
1310 kg
Gross weight
1900 kg
Roof load
75 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
690 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4380 mm
Width
1828 mm
Width with folded mirrors
1858 mm
Width with unfolded mirrors
2067 mm
Height
1626 mm
Wheelbase
2648 mm
Front track
1544-1559 mm
Rear track
1554-1569 mm
Turning circle
10.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
215/55 R16
Rim size
7.0 J x 16
ABS
yes

Selected engine version

1.6 Ti-VCT (117 KM) LPG

Gasoline / LPG · 2010–2015

Engine power
117 KM
Torque
140 Nm
Engine displacement
1,596 cm³
Fuel type
Gasoline / LPG
Acceleration 0-100 km/h
11.7 s
Maximum speed
185 km/h
On this page
Check vehicle history

Basic version information

Brand
Ford
Model
C-MAX
Version
C-MAX II
Engine
1.6 Ti-VCT (117 KM) LPG
Engine type
Combustion engine
Number of doors
5
Start of production
2010
End of production
2015
Body type
MPV
Number of seats
5
Fuel type
Gasoline / LPG

Performance

Maximum speed
185 km/h
Acceleration 0-100 km/h
11.7 s
Fuel consumption - Urban cycle
8.9/11.3 l/100 km
Fuel consumption - Urban cycle (LPG)
11.3 l/100 km
Fuel consumption - Extra-urban cycle
5.6/6.3 l/100 km
Fuel consumption - Extra-urban cycle (LPG)
6.3 l/100 km
Fuel consumption - Combined cycle
6.8/8.2 l/100 km
Fuel consumption - Combined cycle (LPG)
8.2 l/100 km
Emission standard
Euro 5
CO2 emissions
159/132 g/km
CO2 emissions (LPG)
132 g/km

Engine

Engine model / code
MUDD
Engine position
Front, Transverse
Engine displacement
1596 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79 mm
Piston stroke
81.4 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
4.1 l
Coolant capacity
5.5 l
Power
117 KM @ 6400 obr./min
Torque
140 Nm @ 4200 obr./min

Volume and weight

Fuel tank
55 l
Minimum trunk capacity
432 l
Maximum trunk capacity
1723 l
Curb weight
1369 kg
Gross weight
1870 kg
Roof load
75 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4380 mm
Width
1828 mm
Width with folded mirrors
1858 mm
Width with unfolded mirrors
2067 mm
Height
1626 mm
Wheelbase
2648 mm
Front track
1544-1559 mm
Rear track
1554-1569 mm
Turning circle
10.7 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 215/55 R16
Rim size
6.5 J x 16; 7.0 J x 16
ABS
yes

About Ford C-MAX C-MAX II

The Ford C-MAX II, produced from 2010 to 2015, is a versatile MPV designed with families and individuals needing a spacious vehicle for everyday use in mind. As a five-door vehicle offering seating for five passengers, it combines functionality with modern design. The distinctive body lines and aerodynamic silhouette add elegance, making it an ideal choice for those who value comfort and style in daily driving.

Under the hood of the Ford C-MAX II, we find a variety of power units, including both petrol and diesel engines. The power outputs range from 85 to 182 hp, allowing for adjustments in performance to meet individual driver preferences. EcoBoost versions offer dynamic performance while maintaining low fuel consumption, while Duratorq diesel variants ensure economical long-distance travel. Both manual and automatic transmissions are available, further allowing for customization to the user's driving style.

The Ford C-MAX II is equipped with front-wheel drive, providing stability and good traction in everyday use. Its excellent maneuverability and ease of driving make it ideal for congested city driving, but it also performs well on long journeys, offering the driver comfort and support from many modern assist systems, such as traction control and advanced safety systems.

Despite its many advantages, the Ford C-MAX II is not without flaws. Users often point to electronics malfunctions, particularly in the multimedia and interior electrical systems. Some models may experience suspension issues, leading to more frequent service visits. Additionally, higher servicing costs for certain components, such as automatic transmissions, may deter potential buyers.

Despite potential drawbacks, the Ford C-MAX II remains a car worth considering due to its modern design, advanced technologies, and balanced combination of comfort and performance. Its versatility and functionality make it an attractive choice for families and anyone in need of a spacious yet stylish vehicle for daily use. It stands out in the MPV segment primarily for its interior comfort and practical solutions.
