Vehicle specifications
Fiat Doblo II (263, facelift 2015)
Compare all 9 engine versions of the Fiat Doblo Doblo II (263, facelift 2015), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Fiat Doblo II (263, facelift 2015)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Fiat Doblo II (263, facelift 2015)?
See the places on a 3D model →- VIN number
- Floor next to / in front of the front seat, right side

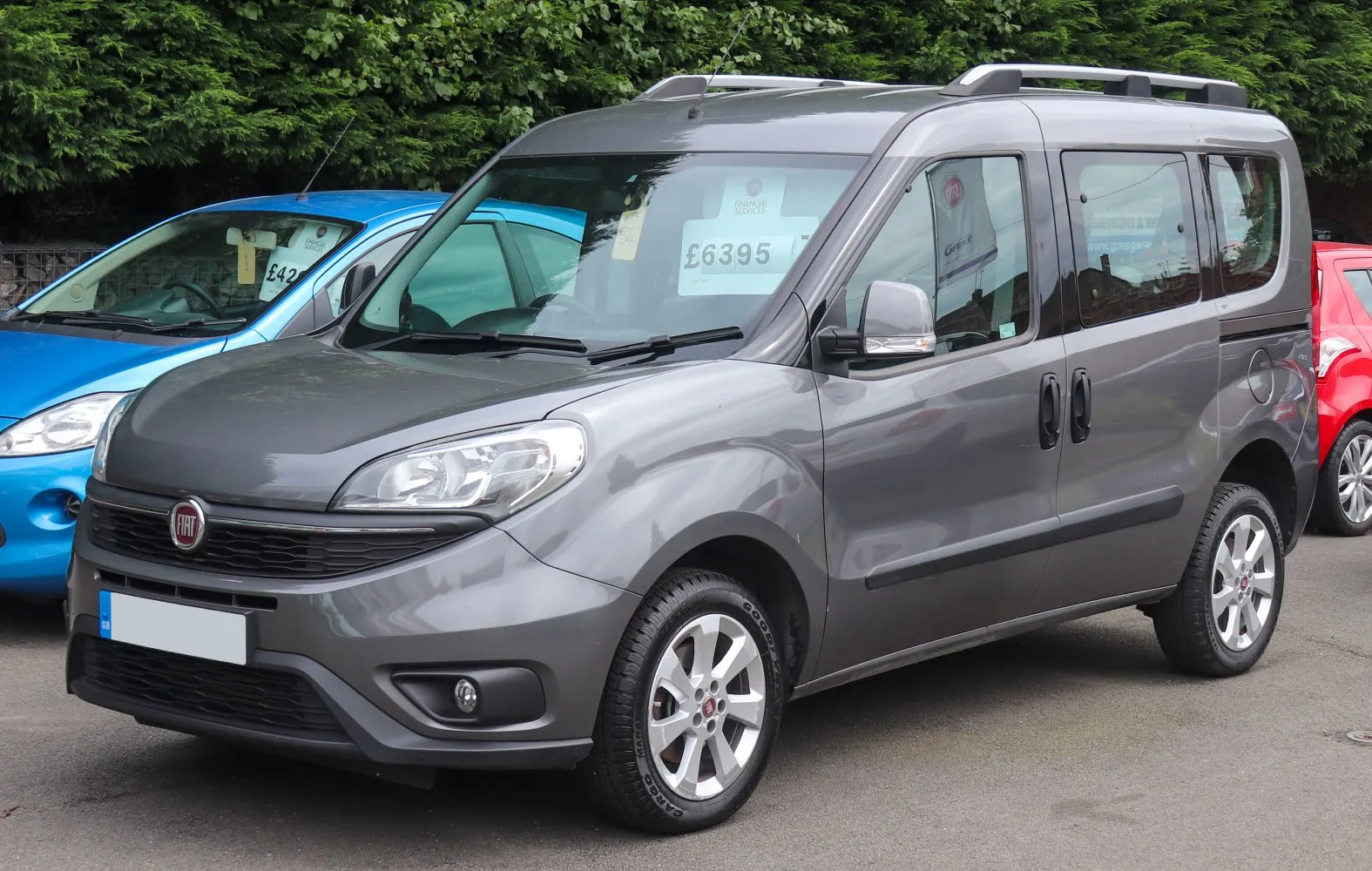

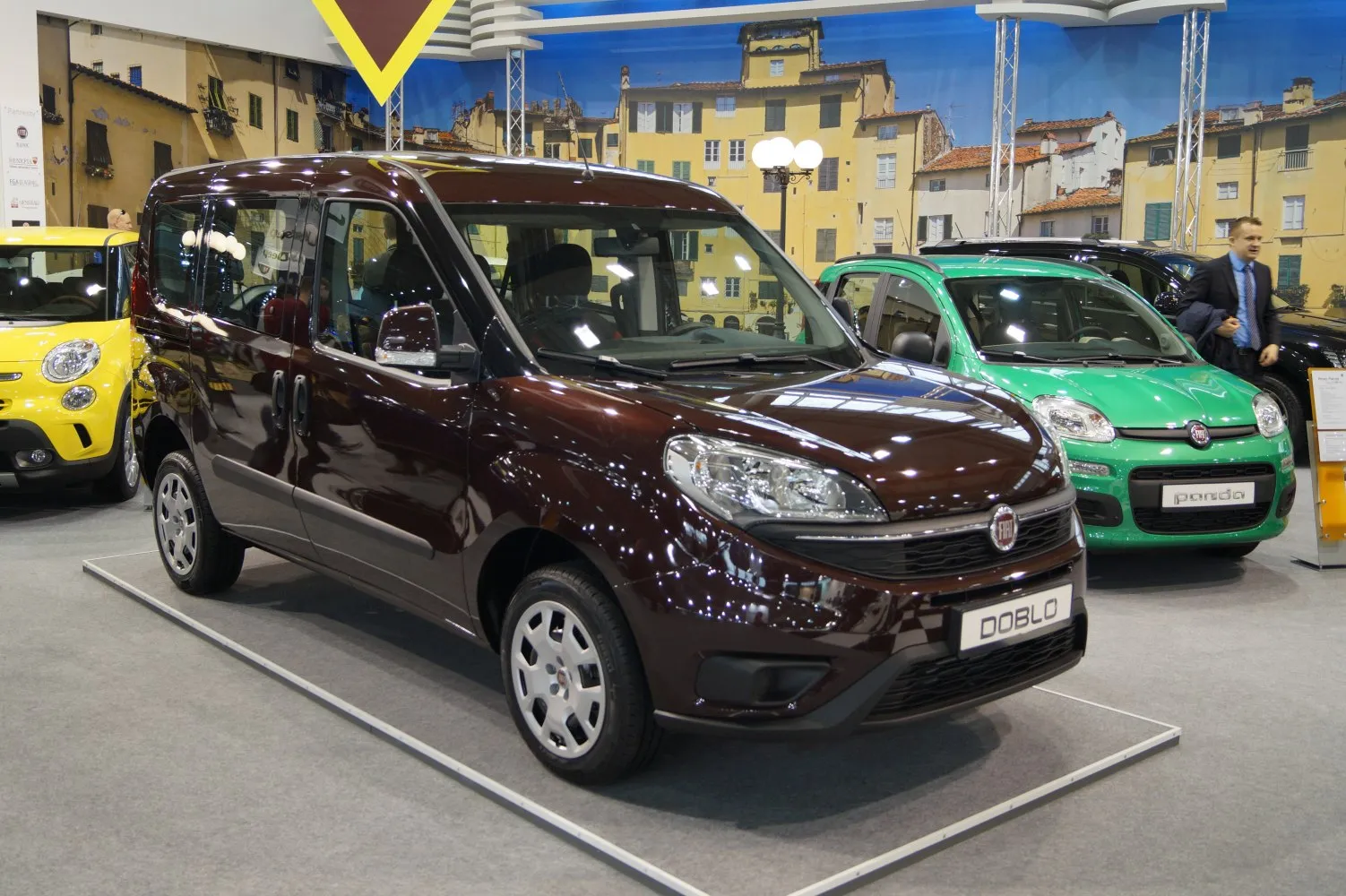

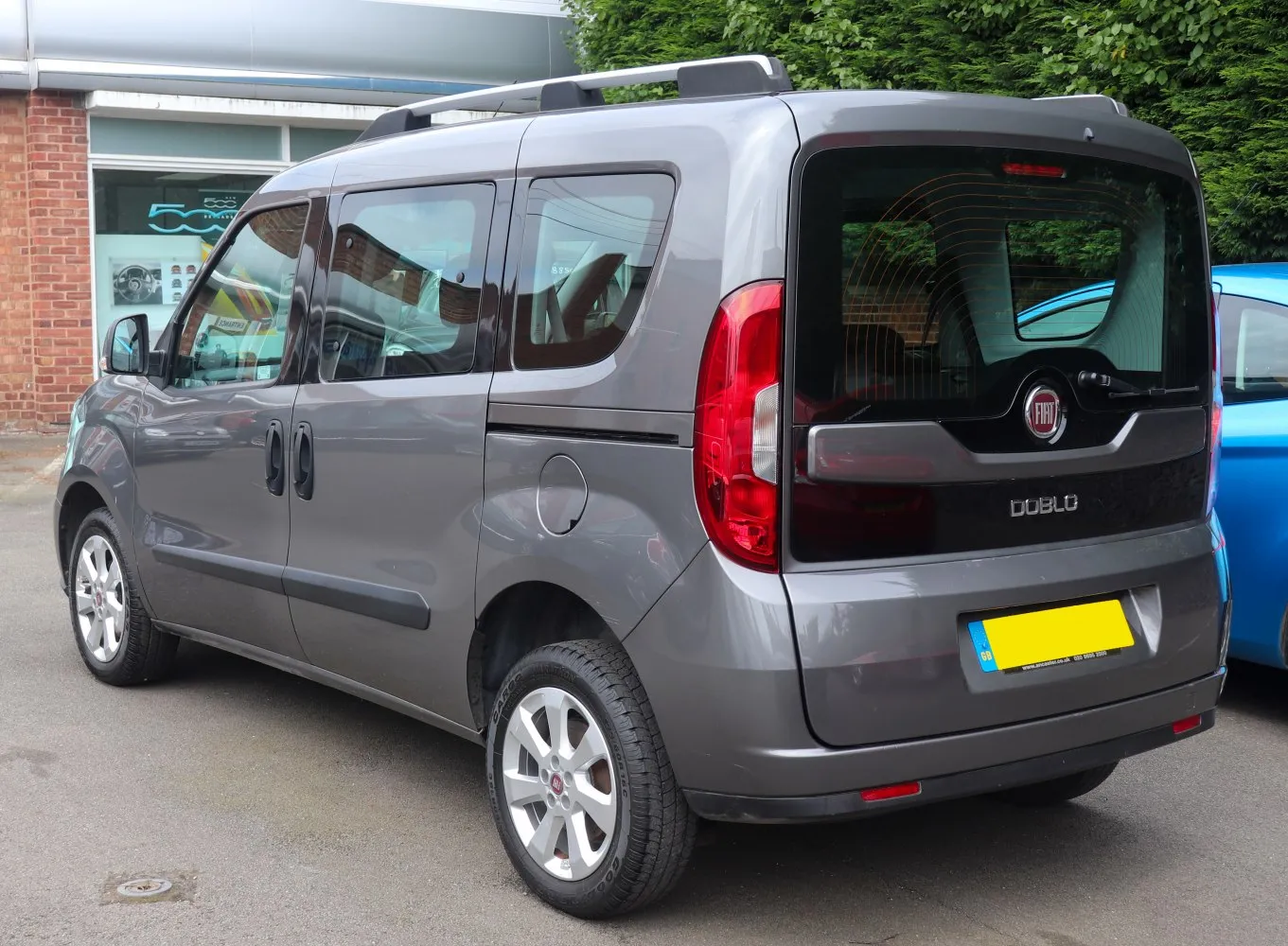

Vehicle photos
1 of 3
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
9 versions · 2 Gasoline · 1 Gasoline / CNG · 6 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.4 (95 KM) Selected | Gasoline | 95 KM | 2015–2018 |
| 1.4 T-JET (120 KM) Selected | Gasoline | 120 KM | 2015–2019 |
| 1.4 T-JET (120 KM) CNG Selected | Gasoline / CNG | 120 KM | 2015–2019 |
| 1.6 (90 KM) MultiJet Selected | Diesel fuel | 90 KM | 2015 |
| 1.6 (90 KM) MultiJet Dualogic Selected | Diesel fuel | 90 KM | 2015 |
| 1.6 (105 KM) MultiJet Selected | Diesel fuel | 105 KM | 2015 |
| 2.0 (135 KM) MultiJet Selected | Diesel fuel | 135 KM | 2015 |
| 1.6 Multijet (95 KM) Selected | Diesel fuel | 95 KM | 2015–2019 |
| 1.6 Multijet (120 KM) Selected | Diesel fuel | 120 KM | 2015–2019 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.4 (95 KM)
Gasoline · 2015–2018
- Engine power
- 95 KM
- Torque
- 127 Nm
- Engine displacement
- 1,368 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 15.4 s
- Maximum speed
- 161 km/h
On this page
Check vehicle history
Basic version information
Fiat Doblo Doblo II (263, facelift 2015)- Brand
- Fiat
- Model
- Doblo
- Version
- Doblo II (263, facelift 2015)
- Engine
- 1.4 (95 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2015
- End of production
- 2018
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Gasoline
Performance
- Maximum speed
- 161 km/h
- Acceleration 0-100 km/h
- 15.4 s
- Fuel consumption - Urban cycle
- 9.3-9.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.9-6.1 l/100 km
- Fuel consumption - Combined cycle
- 7.2-7.4 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 165/171 g/km
Engine
- Engine model / code
- 843A1000
- Engine position
- Front, Transverse
- Engine displacement
- 1368 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 72 mm
- Piston stroke
- 84 mm
- Compression ratio
- 11
- Number of valves per cylinder
- 4
- Engine oil capacity
- 2.7 l
- Coolant capacity
- 5 l
- Power
- 95 KM @ 6000 obr./min
- Torque
- 127 Nm @ 4500 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 790 l
- Maximum trunk capacity
- 3200 l
- Curb weight
- 1370/1430 kg
- Braked trailer load (12% slope start)
- 1000 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4406 mm
- Width
- 1832 mm
- Height
- 1895/2115 mm
- Wheelbase
- 2755 mm
- Front track
- 1510 mm
- Rear track
- 1530 mm
- Turning circle
- 11.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent coil spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 195/60 R16 C 99T
- Rim size
- 16
- ABS
- yes
Selected engine version
1.4 T-JET (120 KM)
Gasoline · 2015–2019
- Engine power
- 120 KM
- Torque
- 206 Nm
- Engine displacement
- 1,368 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.3 s
- Maximum speed
- 172 km/h
On this page
Check vehicle history
Basic version information
Fiat Doblo Doblo II (263, facelift 2015)- Brand
- Fiat
- Model
- Doblo
- Version
- Doblo II (263, facelift 2015)
- Engine
- 1.4 T-JET (120 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2015
- End of production
- 2019
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Gasoline
Performance
- Maximum speed
- 172 km/h
- Acceleration 0-100 km/h
- 12.3 s
- Fuel consumption - Urban cycle
- 9.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.9 l/100 km
- Fuel consumption - Combined cycle
- 7.2 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 169 g/km
Engine
- Engine model / code
- 198A4000
- Engine position
- Front, Transverse
- Engine displacement
- 1368 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 72 mm
- Piston stroke
- 84 mm
- Compression ratio
- 9.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 2.9 l
- Coolant capacity
- 5.8 l
- Power
- 120 KM @ 5000 obr./min
- Torque
- 206 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 790 l
- Maximum trunk capacity
- 3200 l
- Curb weight
- 1415 kg
- Braked trailer load (12% slope start)
- 1000 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4406 mm
- Width
- 1832 mm
- Height
- 1895 mm
- Wheelbase
- 2755 mm
- Front track
- 1510 mm
- Rear track
- 1530 mm
- Turning circle
- 11.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent coil spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 195/60 R16 C 99T
- Rim size
- 16
- ABS
- yes
Selected engine version
1.4 T-JET (120 KM) CNG
Gasoline / CNG · 2015–2019
- Engine power
- 120 KM
- Torque
- 206 Nm
- Engine displacement
- 1,368 cm³
- Fuel type
- Gasoline / CNG
- Acceleration 0-100 km/h
- 12.3 s
- Maximum speed
- 172 km/h
On this page
Check vehicle history
Basic version information
Fiat Doblo Doblo II (263, facelift 2015)- Brand
- Fiat
- Model
- Doblo
- Version
- Doblo II (263, facelift 2015)
- Engine
- 1.4 T-JET (120 KM) CNG
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2015
- End of production
- 2019
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Gasoline / CNG
Performance
- Maximum speed
- 172 km/h
- Acceleration 0-100 km/h
- 12.3 s
- Fuel consumption - Urban cycle
- 9.7/6.5 l/100 km
- Fuel consumption - Urban cycle (CNG)
- 6.5 kg/100 km
- Fuel consumption - Extra-urban cycle
- 6.1/4.0 l/100 km
- Fuel consumption - Extra-urban cycle (CNG)
- 4.0 kg/100 km
- Fuel consumption - Combined cycle
- 7.4/4.9 l/100 km
- Fuel consumption - Combined cycle (CNG)
- 4.9 kg/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 173/134 g/km
- CO2 emissions (CNG)
- 134 g/km
Engine
- Engine model / code
- 198A4000
- Engine position
- Front, Transverse
- Engine displacement
- 1368 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 72 mm
- Piston stroke
- 84 mm
- Compression ratio
- 9.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 2.9 l
- Coolant capacity
- 5.8 l
- Power
- 120 KM @ 5000 obr./min
- Torque
- 206 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 22 l
- CNG tank capacity
- 16.15 kg
- Minimum trunk capacity
- 790 l
- Maximum trunk capacity
- 3200 l
- Curb weight
- 1540 kg
- Braked trailer load (12% slope start)
- 1000 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4406 mm
- Width
- 1832 mm
- Height
- 1899 mm
- Wheelbase
- 2755 mm
- Front track
- 1510 mm
- Rear track
- 1530 mm
- Turning circle
- 11.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent coil spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 195/60 R16 C 99T
- Rim size
- 16
- ABS
- yes
Selected engine version
1.6 (90 KM) MultiJet
Diesel fuel · 2015
- Engine power
- 90 KM
- Torque
- 290 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 14.9 s
- Maximum speed
- 158 km/h
On this page
Check vehicle history
Basic version information
Fiat Doblo Doblo II (263, facelift 2015)- Brand
- Fiat
- Model
- Doblo
- Version
- Doblo II (263, facelift 2015)
- Engine
- 1.6 (90 KM) MultiJet
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2015
- End of production
- 2015
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 158 km/h
- Acceleration 0-100 km/h
- 14.9 s
- Fuel consumption - Urban cycle
- 6.8-7.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.7-5.3 l/100 km
- Fuel consumption - Combined cycle
- 5.5-6.0 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 145/158 g/km
Engine
- Engine model / code
- 263A4000
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.9 l
- Coolant capacity
- 6.7 l
- Power
- 90 KM @ 4000 obr./min
- Torque
- 290 Nm @ 1500 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 790 l
- Maximum trunk capacity
- 3200 l
- Curb weight
- 1430/1500 kg
- Braked trailer load (12% slope start)
- 1000 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4406 mm
- Width
- 1832 mm
- Height
- 1895/2115 mm
- Wheelbase
- 2755 mm
- Front track
- 1510 mm
- Rear track
- 1530 mm
- Turning circle
- 11.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent coil spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 195/60 R16 C 99T
- Rim size
- 16
- ABS
- yes
Selected engine version
1.6 (90 KM) MultiJet Dualogic
Diesel fuel · 2015
- Engine power
- 90 KM
- Torque
- 200 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 15.4 s
- Maximum speed
- 158 km/h
On this page
Check vehicle history
Basic version information
Fiat Doblo Doblo II (263, facelift 2015)- Brand
- Fiat
- Model
- Doblo
- Version
- Doblo II (263, facelift 2015)
- Engine
- 1.6 (90 KM) MultiJet Dualogic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2015
- End of production
- 2015
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 158 km/h
- Acceleration 0-100 km/h
- 15.4 s
- Fuel consumption - Urban cycle
- 5.6-5.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.7-5.3 l/100 km
- Fuel consumption - Combined cycle
- 5.0-5.5 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 133/145 g/km
Engine
- Engine model / code
- 263A5000
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.9 l
- Coolant capacity
- 6.7 l
- Power
- 90 KM @ 4000 obr./min
- Torque
- 200 Nm @ 1500 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 790 l
- Maximum trunk capacity
- 3200 l
- Curb weight
- 1430/1500 kg
- Braked trailer load (12% slope start)
- 1000 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4406 mm
- Width
- 1832 mm
- Height
- 1895/2115 mm
- Wheelbase
- 2755 mm
- Front track
- 1510 mm
- Rear track
- 1530 mm
- Turning circle
- 11.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Type of automatic gearbox
- Dualogic
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent coil spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 195/60 R16 C 99T
- Rim size
- 16
- ABS
- yes
Selected engine version
1.6 (105 KM) MultiJet
Diesel fuel · 2015
- Engine power
- 105 KM
- Torque
- 290 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 13.4 s
- Maximum speed
- 164 km/h
On this page
Check vehicle history
Basic version information
Fiat Doblo Doblo II (263, facelift 2015)- Brand
- Fiat
- Model
- Doblo
- Version
- Doblo II (263, facelift 2015)
- Engine
- 1.6 (105 KM) MultiJet
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2015
- End of production
- 2015
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 164 km/h
- Acceleration 0-100 km/h
- 13.4 s
- Fuel consumption - Urban cycle
- 6.1-6.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.7-5.3 l/100 km
- Fuel consumption - Combined cycle
- 5.2-5.7 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 138/150 g/km
Engine
- Engine model / code
- 198A3000, 263A7000
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.9 l
- Coolant capacity
- 6.7 l
- Power
- 105 KM @ 4000 obr./min
- Torque
- 290 Nm @ 1500 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 790 l
- Maximum trunk capacity
- 3200 l
- Curb weight
- 1430/1500 kg
- Braked trailer load (12% slope start)
- 1000 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4406 mm
- Width
- 1832 mm
- Height
- 1895/2115 mm
- Wheelbase
- 2755 mm
- Front track
- 1510 mm
- Rear track
- 1530 mm
- Turning circle
- 11.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent coil spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 195/60 R16 C 99T
- Rim size
- 16
- ABS
- yes
Selected engine version
2.0 (135 KM) MultiJet
Diesel fuel · 2015
- Engine power
- 135 KM
- Torque
- 320 Nm
- Engine displacement
- 1,956 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.3 s
- Maximum speed
- 179 km/h
On this page
Check vehicle history
Basic version information
Fiat Doblo Doblo II (263, facelift 2015)- Brand
- Fiat
- Model
- Doblo
- Version
- Doblo II (263, facelift 2015)
- Engine
- 2.0 (135 KM) MultiJet
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2015
- End of production
- 2015
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 179 km/h
- Acceleration 0-100 km/h
- 11.3 s
- Fuel consumption - Urban cycle
- 7.3-7.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.1-5.5 l/100 km
- Fuel consumption - Combined cycle
- 5.9-6.2 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 156/163 g/km
Engine
- Engine model / code
- 263A1000
- Engine position
- Front, Transverse
- Engine displacement
- 1956 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 83 mm
- Piston stroke
- 90.5 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.9 l
- Coolant capacity
- 6.7 l
- Power
- 135 KM @ 3500 obr./min
- Torque
- 320 Nm @ 1500 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 790 l
- Maximum trunk capacity
- 3200 l
- Curb weight
- 1480/1540 kg
- Braked trailer load (12% slope start)
- 1500 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4406 mm
- Width
- 1832 mm
- Height
- 1895/2115 mm
- Wheelbase
- 2755 mm
- Front track
- 1510 mm
- Rear track
- 1530 mm
- Turning circle
- 11.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent coil spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 195/60 R16 C 99T
- Rim size
- 16
- ABS
- yes
Selected engine version
1.6 Multijet (95 KM)
Diesel fuel · 2015–2019
- Engine power
- 95 KM
- Torque
- 300 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 13.9 s
- Maximum speed
- 164 km/h
On this page
Check vehicle history
Basic version information
Fiat Doblo Doblo II (263, facelift 2015)- Brand
- Fiat
- Model
- Doblo
- Version
- Doblo II (263, facelift 2015)
- Engine
- 1.6 Multijet (95 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2015
- End of production
- 2019
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 164 km/h
- Acceleration 0-100 km/h
- 13.9 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 7.2 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 5.2 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 6.0 l/100 km
- Emission standard
- Euro 6d-Temp
- CO2 measurement standard
- WLTP
- CO2 emissions
- 167-178 g/km
Engine
- Engine model / code
- 55280444
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.8 l
- Coolant capacity
- 6.3 l
- Power
- 95 KM @ 2500 obr./min
- Torque
- 300 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 790 l
- Maximum trunk capacity
- 3200 l
- Curb weight
- 1505 kg
- Gross weight
- 2080 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4406 mm
- Width
- 1832 mm
- Height
- 1895 mm
- Wheelbase
- 2755 mm
- Front track
- 1510 mm
- Rear track
- 1530 mm
- Front overhang
- 911 mm
- Rear overhang
- 740 mm
- Turning circle
- 11.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 284 mm
- Rear brakes
- Drum
- Rear brake disc/drum diameter
- 254 mm
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 195/65 R15 95T; 195/60 R16 99/97T
- Rim size
- 15; 16
- ABS
- yes
Selected engine version
1.6 Multijet (120 KM)
Diesel fuel · 2015–2019
- Engine power
- 120 KM
- Torque
- 320 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.1 s
- Maximum speed
- 176 km/h
On this page
Check vehicle history
Basic version information
Fiat Doblo Doblo II (263, facelift 2015)- Brand
- Fiat
- Model
- Doblo
- Version
- Doblo II (263, facelift 2015)
- Engine
- 1.6 Multijet (120 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2015
- End of production
- 2019
- Body type
- Minivan
- Number of seats
- 7
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 176 km/h
- Acceleration 0-100 km/h
- 12.1 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 7.2 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 5.2 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 6.0 l/100 km
- Emission standard
- Euro 6d-Temp
- CO2 measurement standard
- WLTP
- CO2 emissions
- 167-178 g/km
Engine
- Engine model / code
- 940C1000
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.8 l
- Coolant capacity
- 6.7 l
- Power
- 120 KM @ 3750 obr./min
- Torque
- 320 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 790 l
- Maximum trunk capacity
- 3200 l
- Curb weight
- 1505 kg
- Gross weight
- 2080 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 500 kg
Vehicle dimensions
- Length
- 4406 mm
- Width
- 1832 mm
- Height
- 1895 mm
- Wheelbase
- 2755 mm
- Front track
- 1510 mm
- Rear track
- 1530 mm
- Front overhang
- 911 mm
- Rear overhang
- 740 mm
- Turning circle
- 11.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 305 mm
- Rear brakes
- Drum
- Rear brake disc/drum diameter
- 254 mm
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 195/65 R15 95T; 195/60 R16 99/97T
- Rim size
- 15; 16
- ABS
- yes
