Vehicle specifications
Cupra Terramar Terramar
Compare all 5 engine versions of the Cupra Terramar Terramar, then open the technical data for the exact drivetrain and production year.

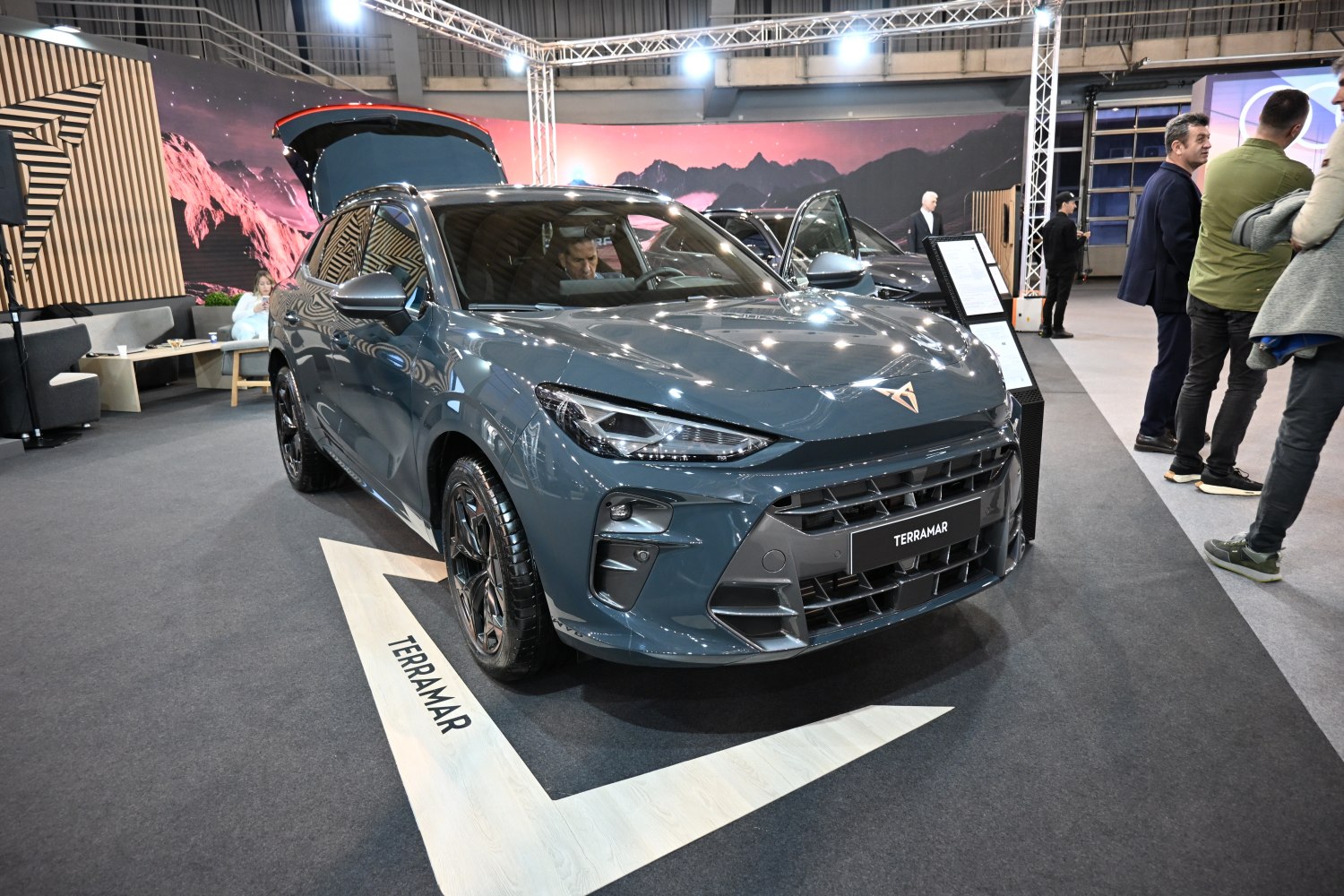

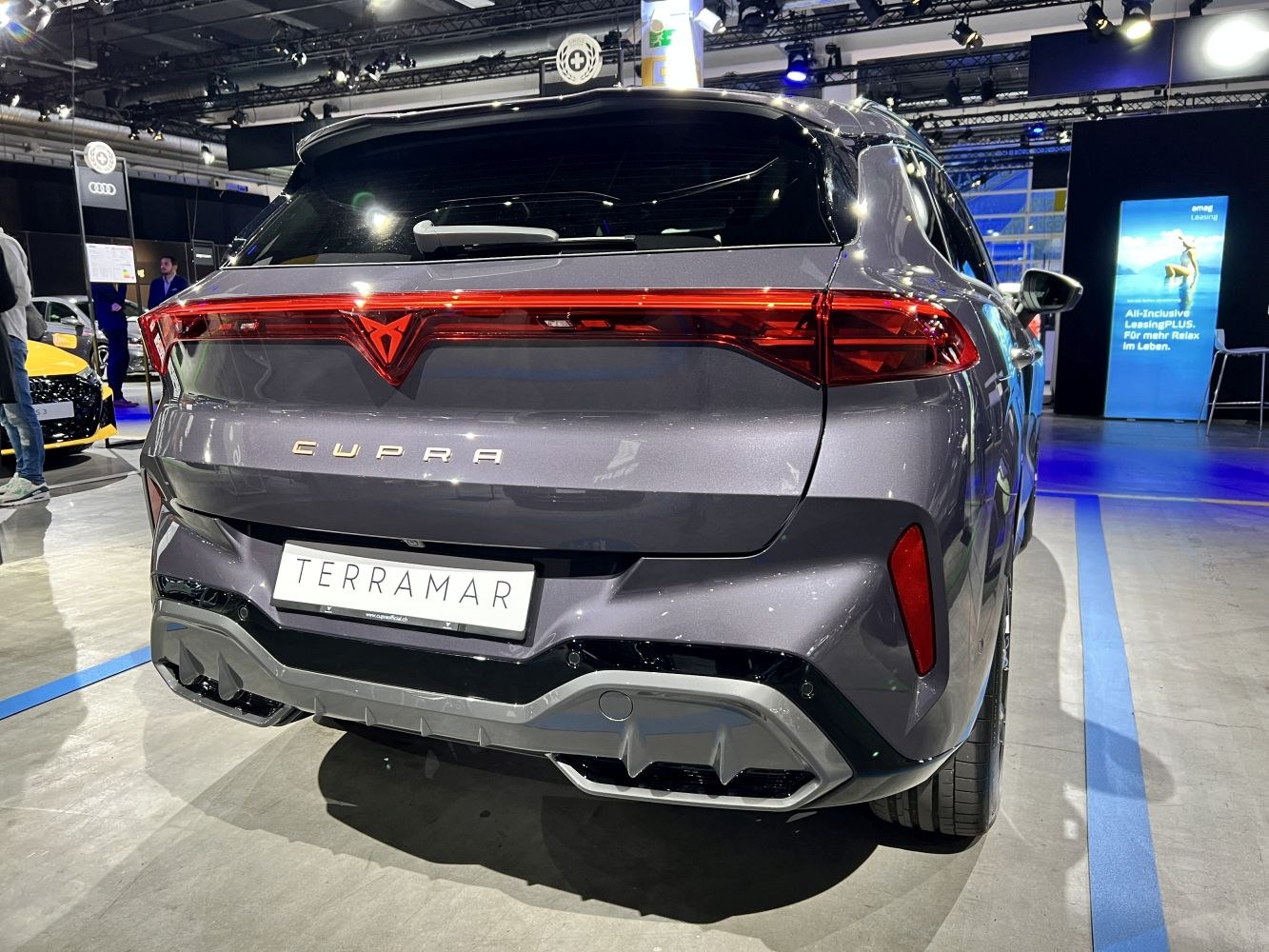

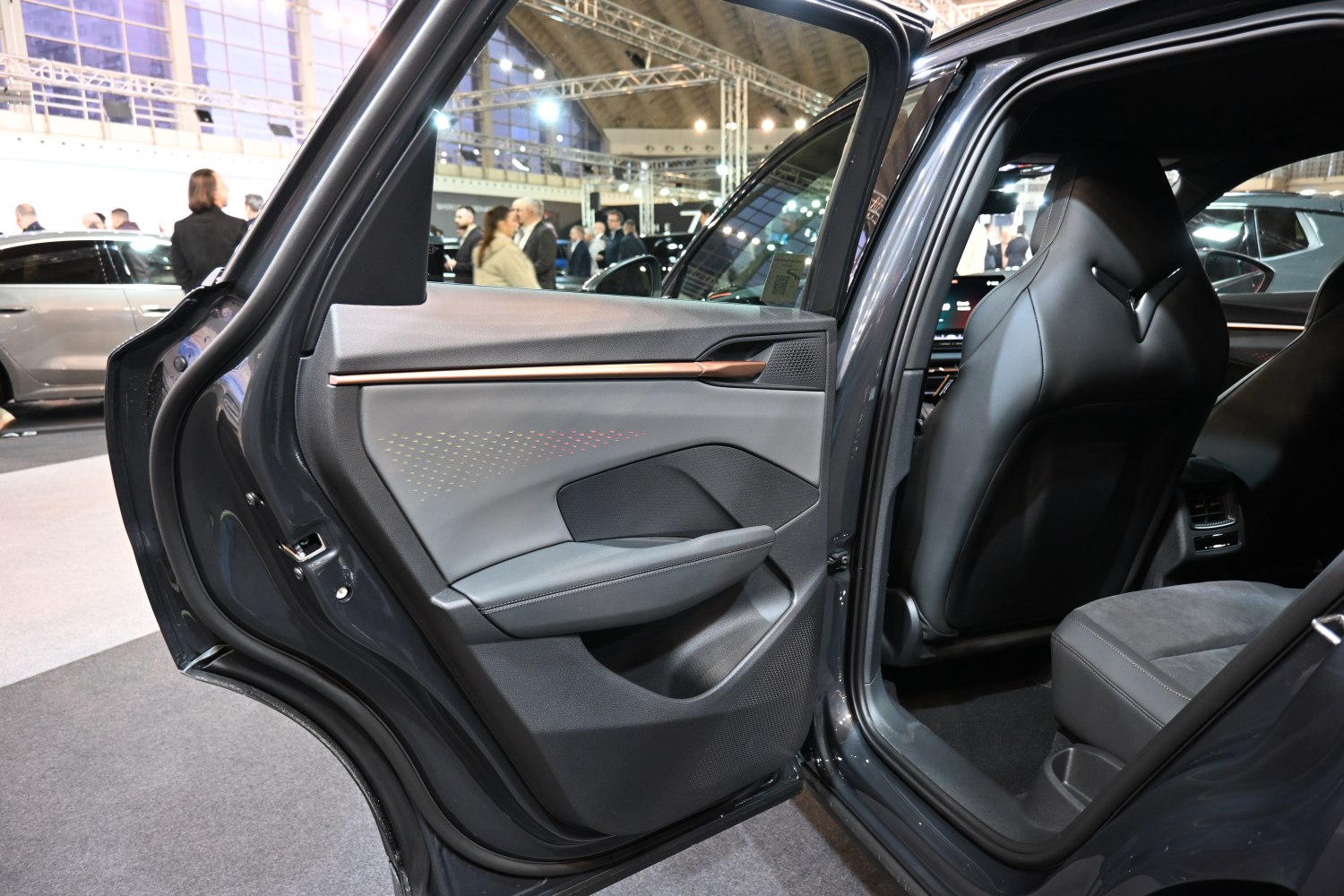

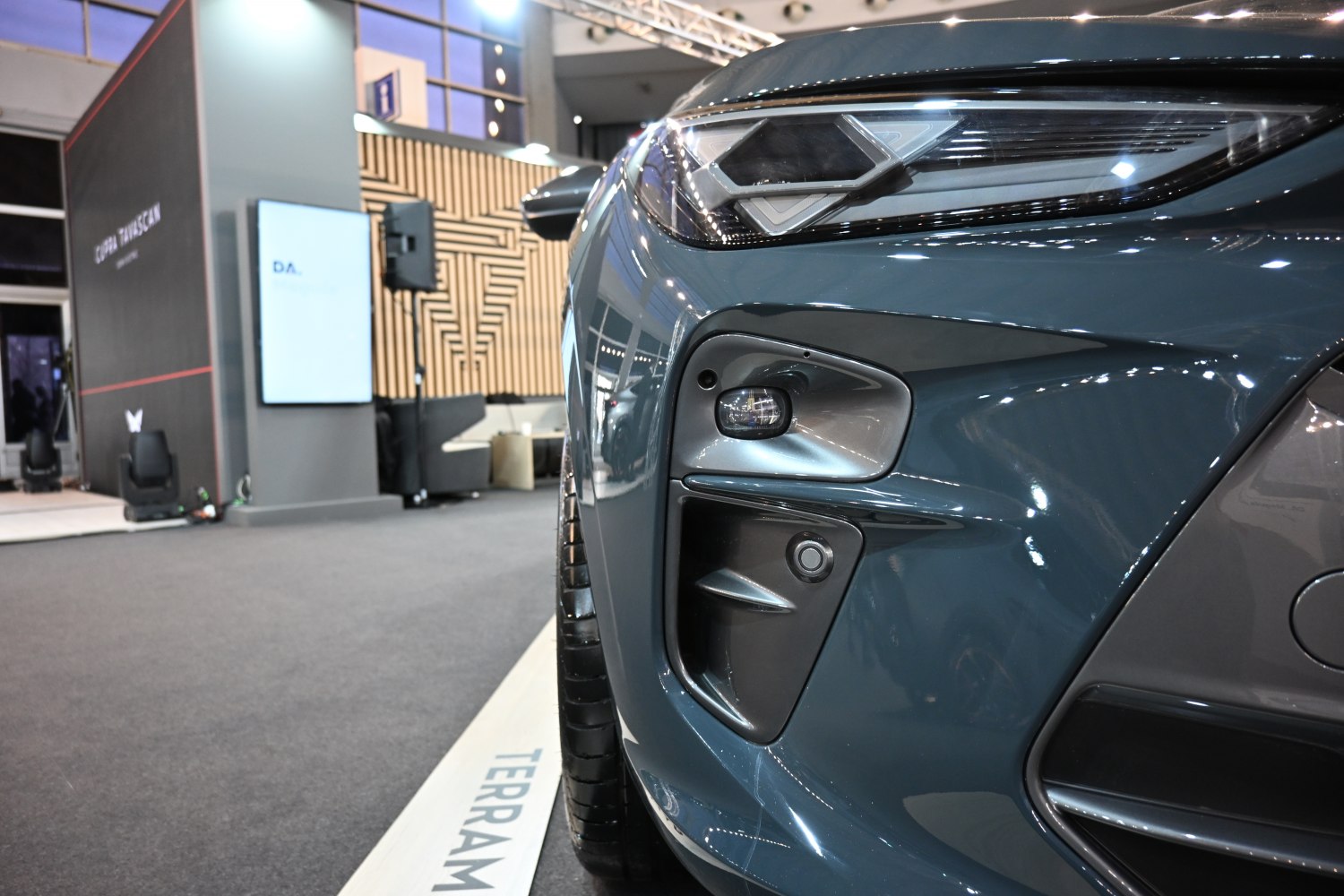

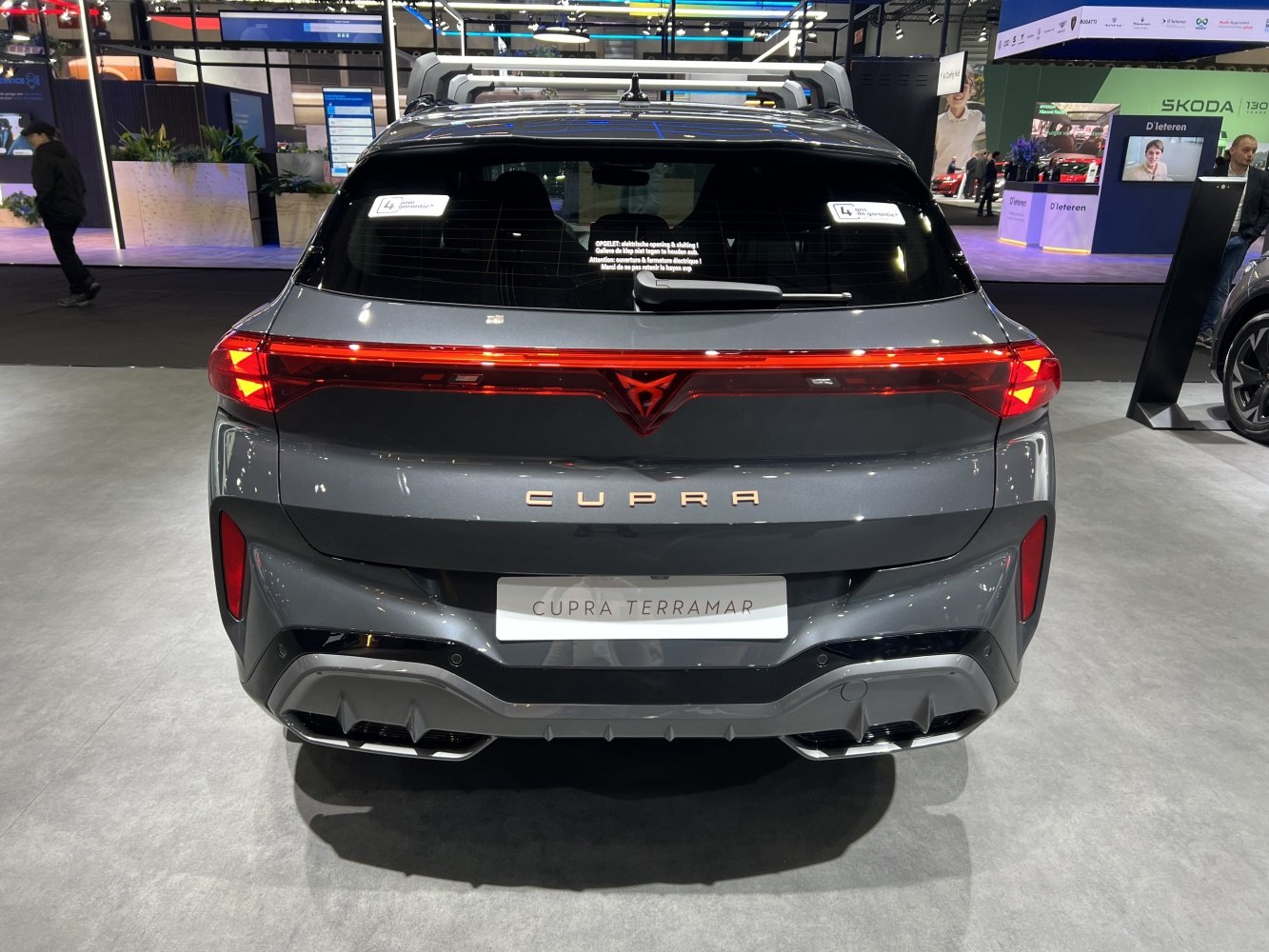

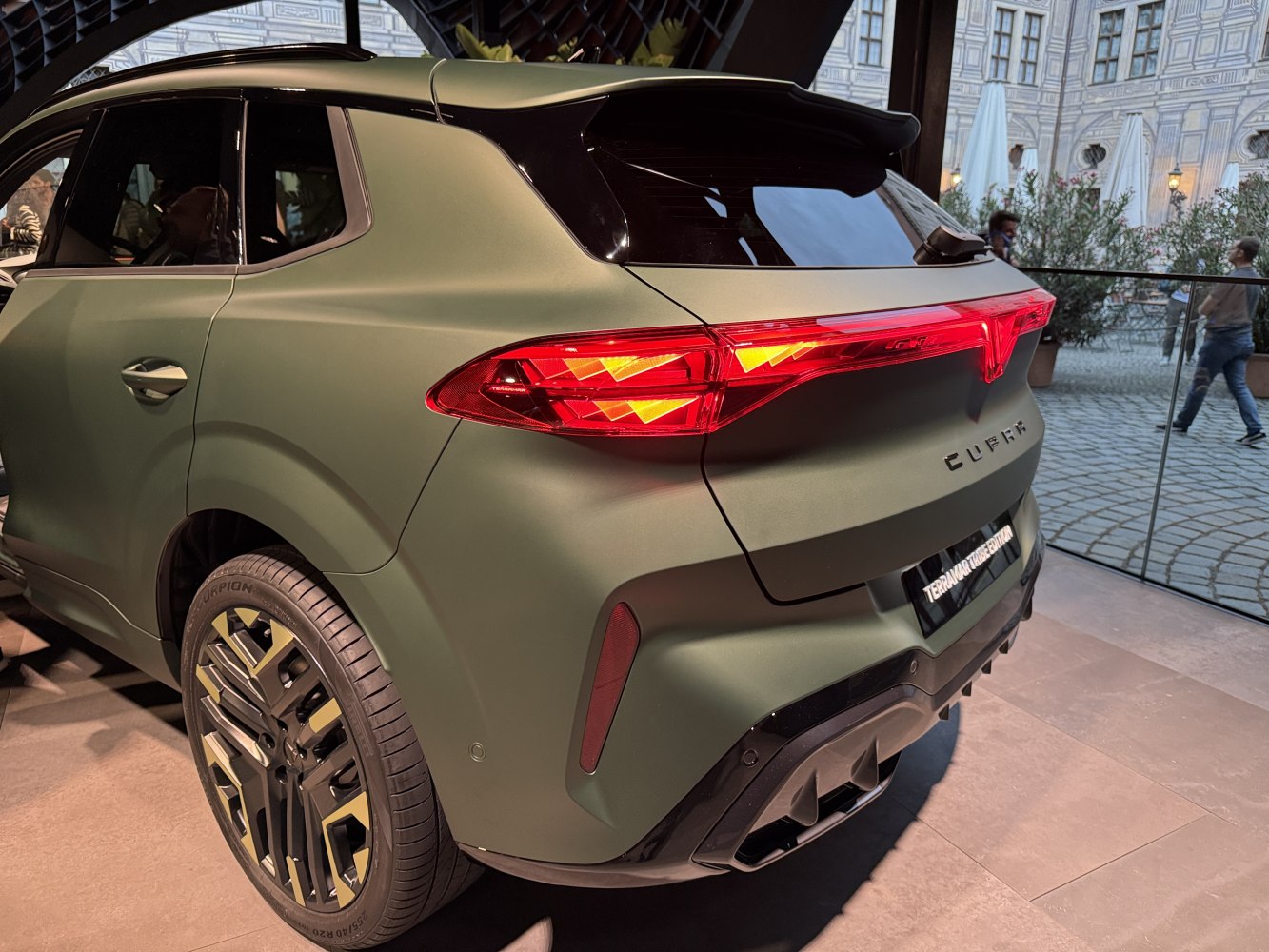

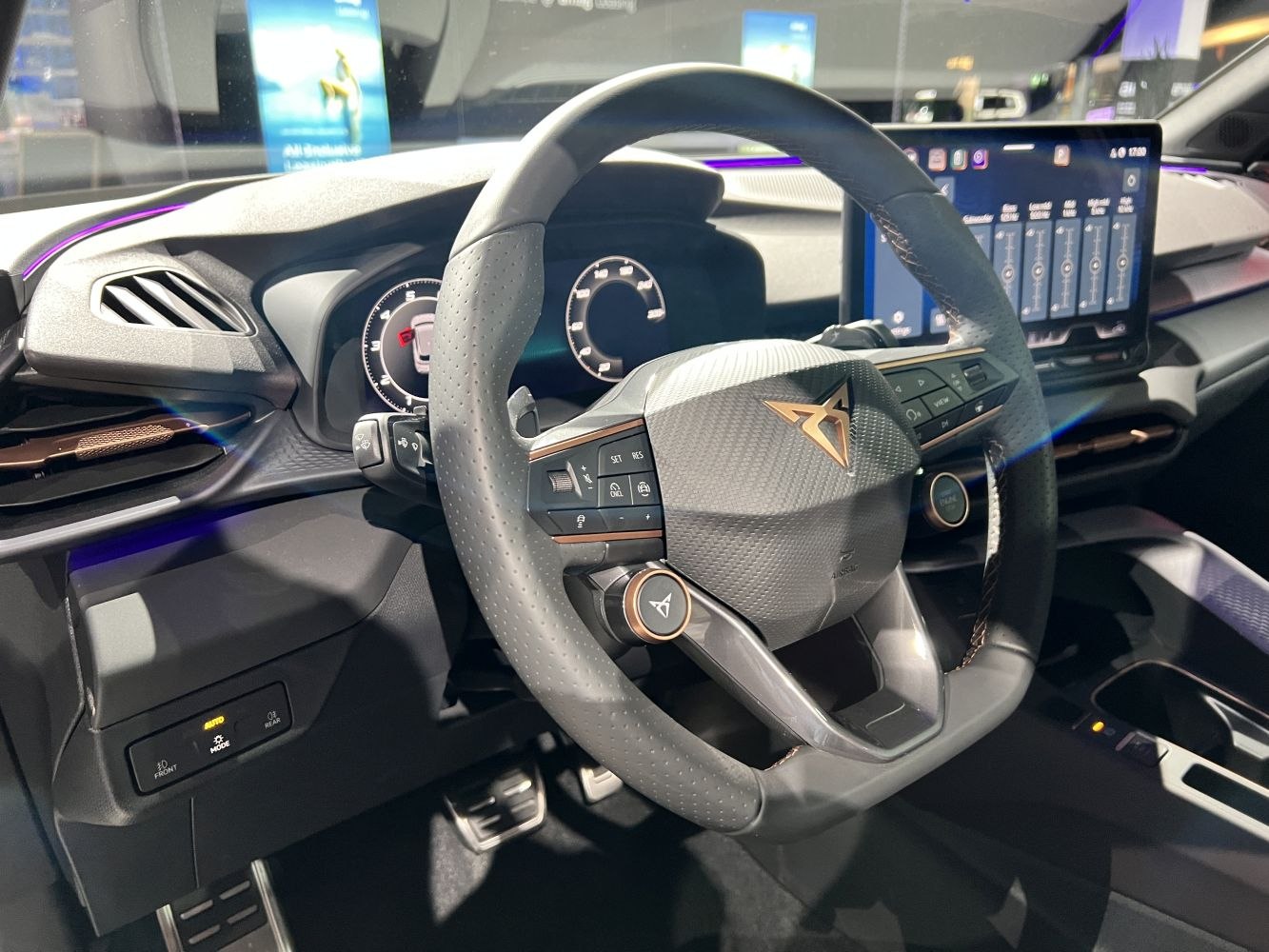

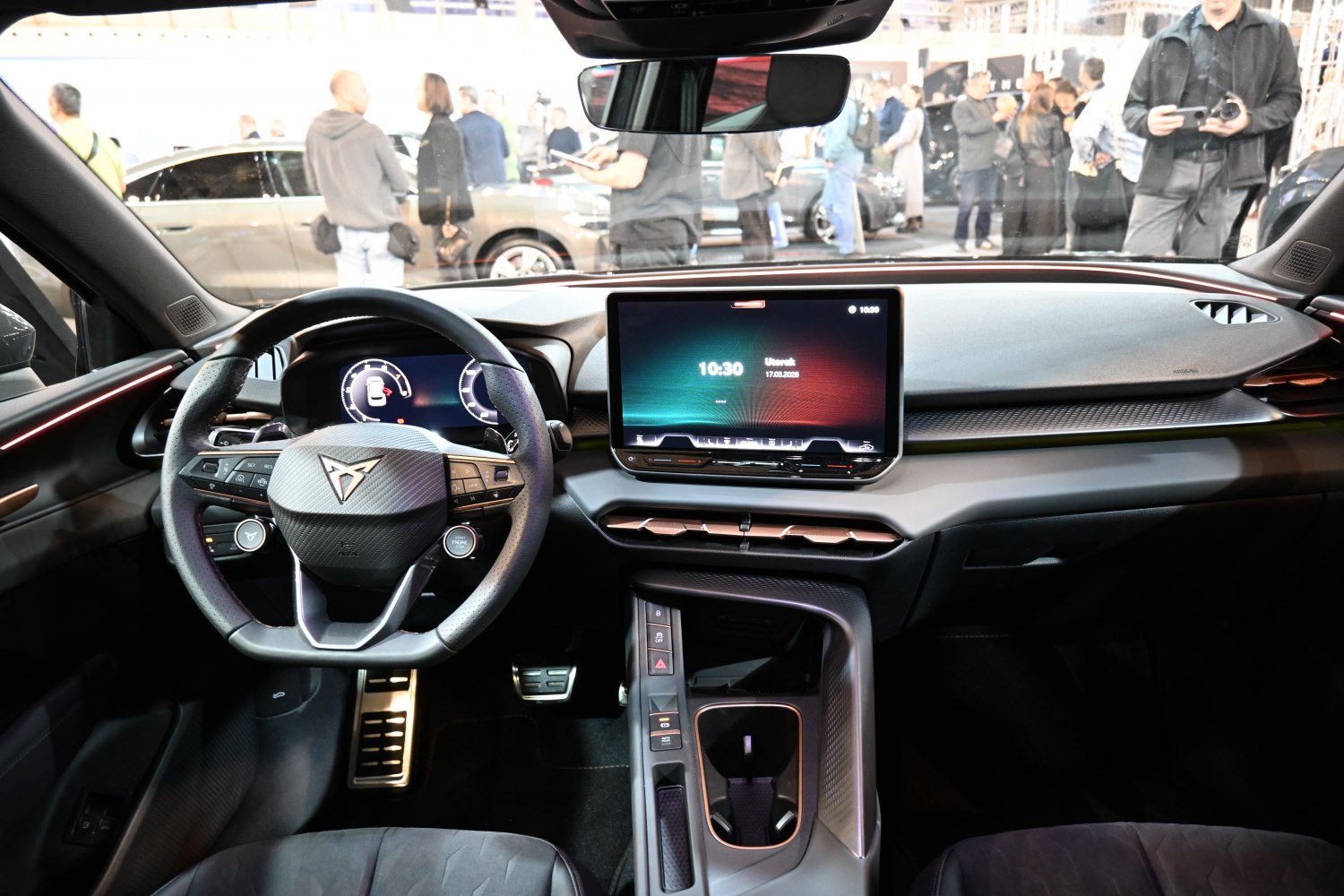

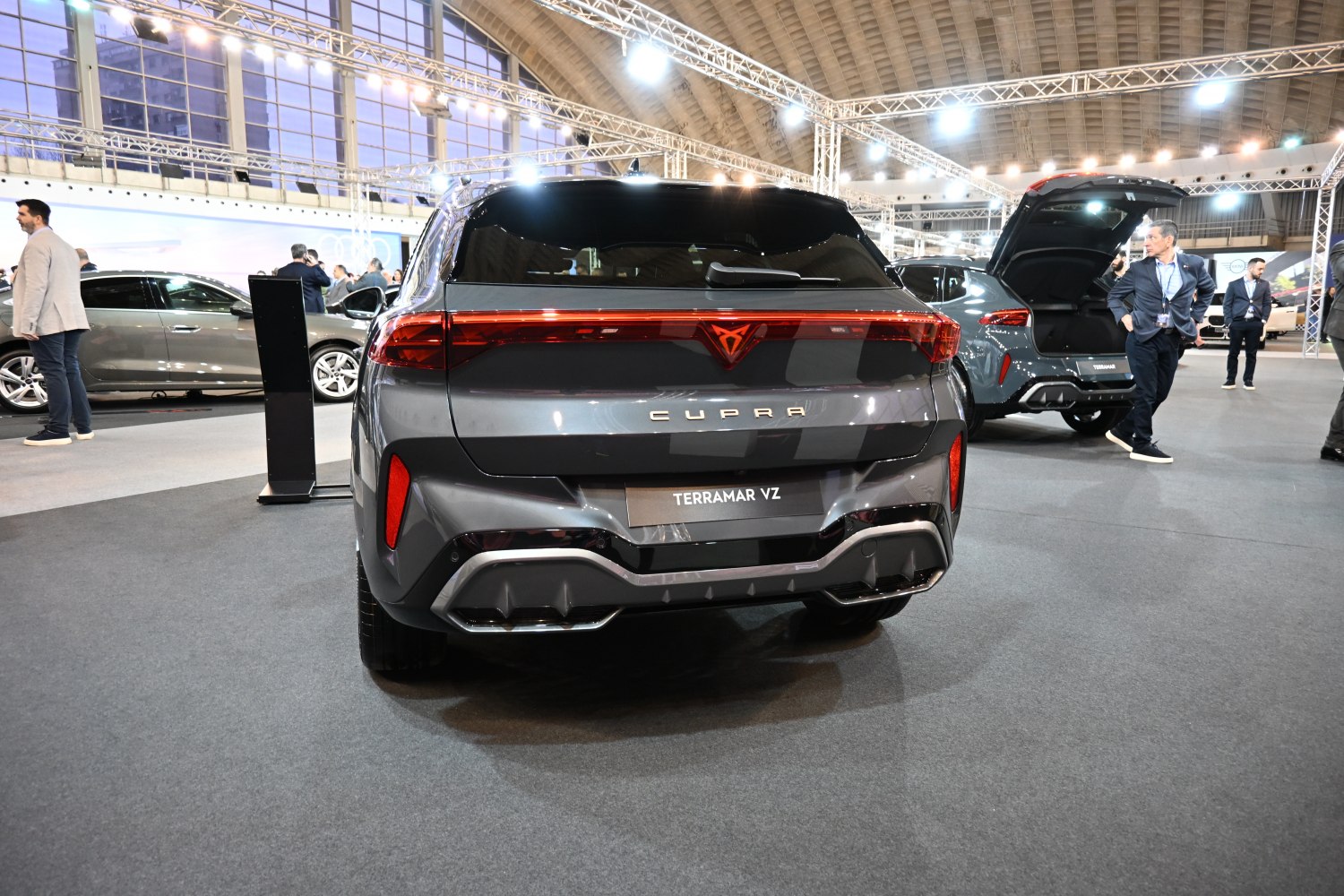

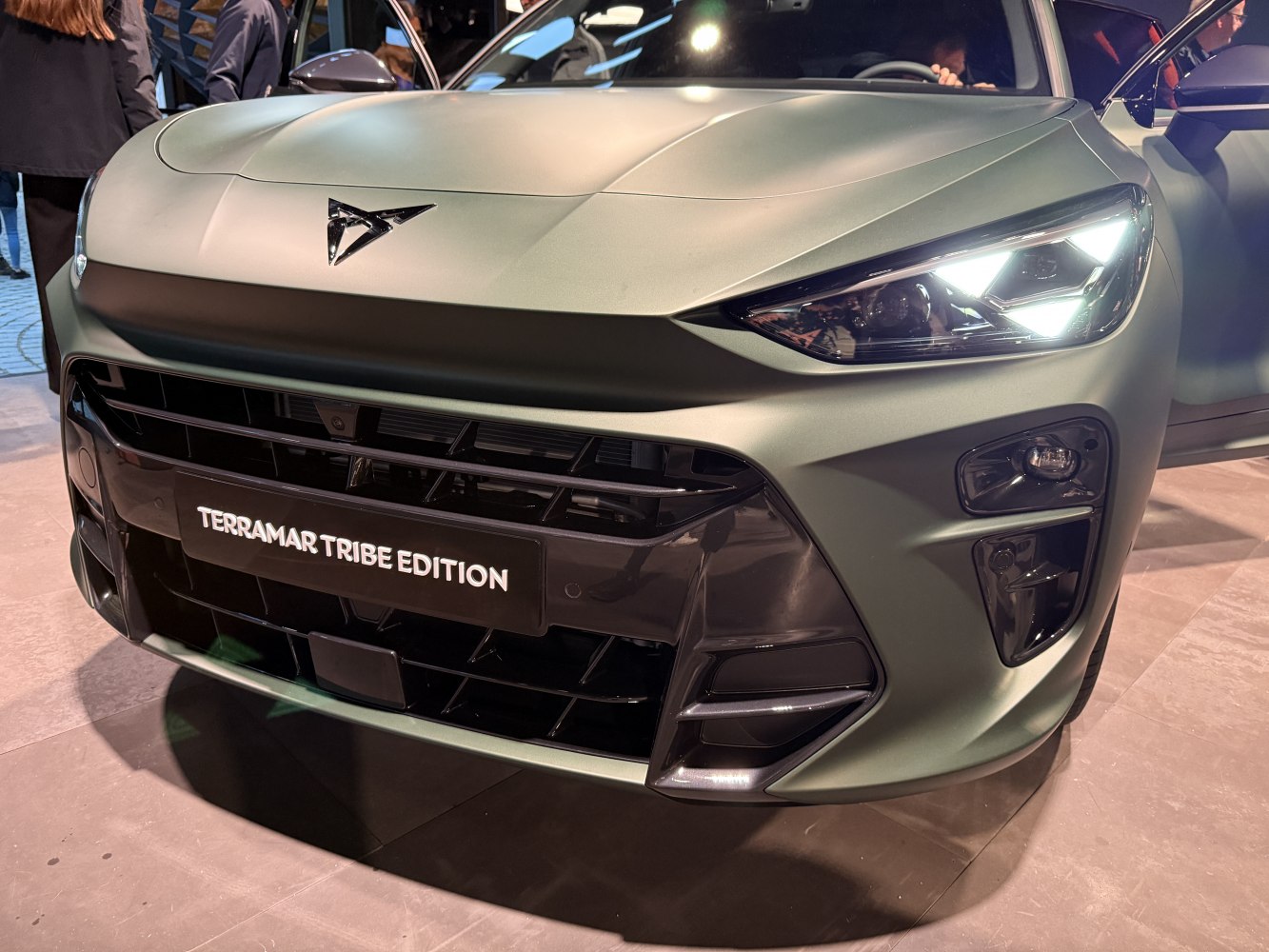

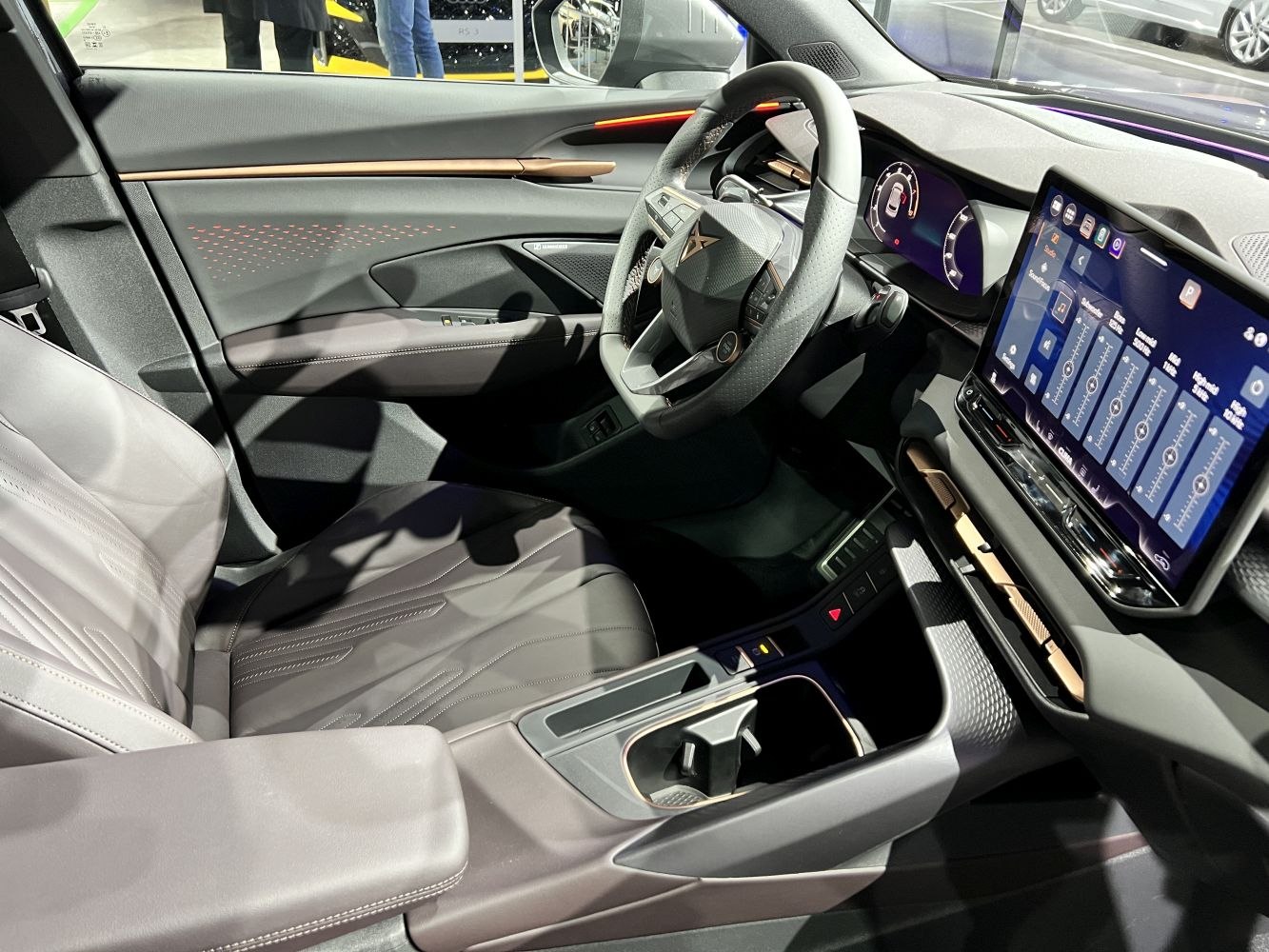

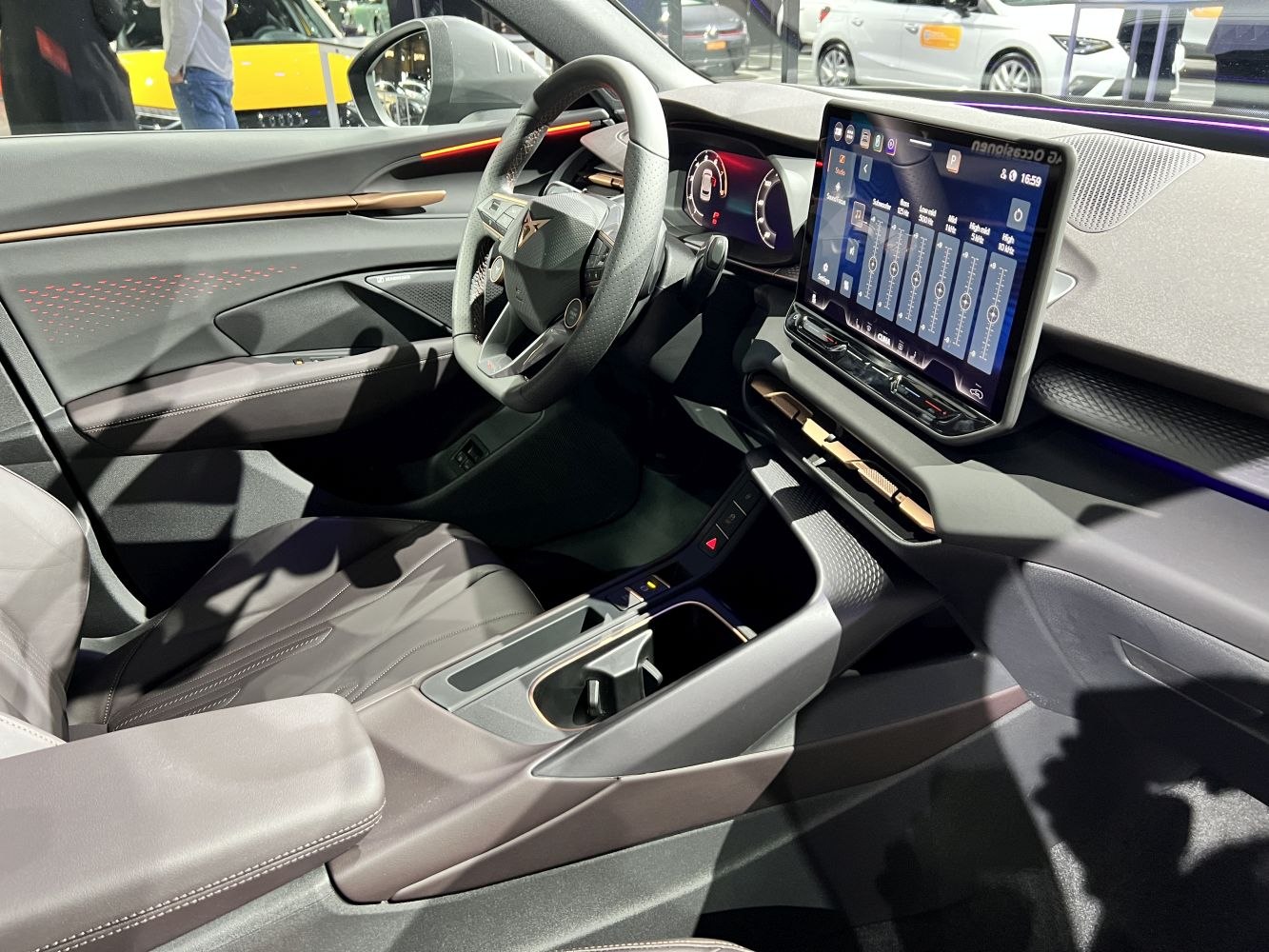

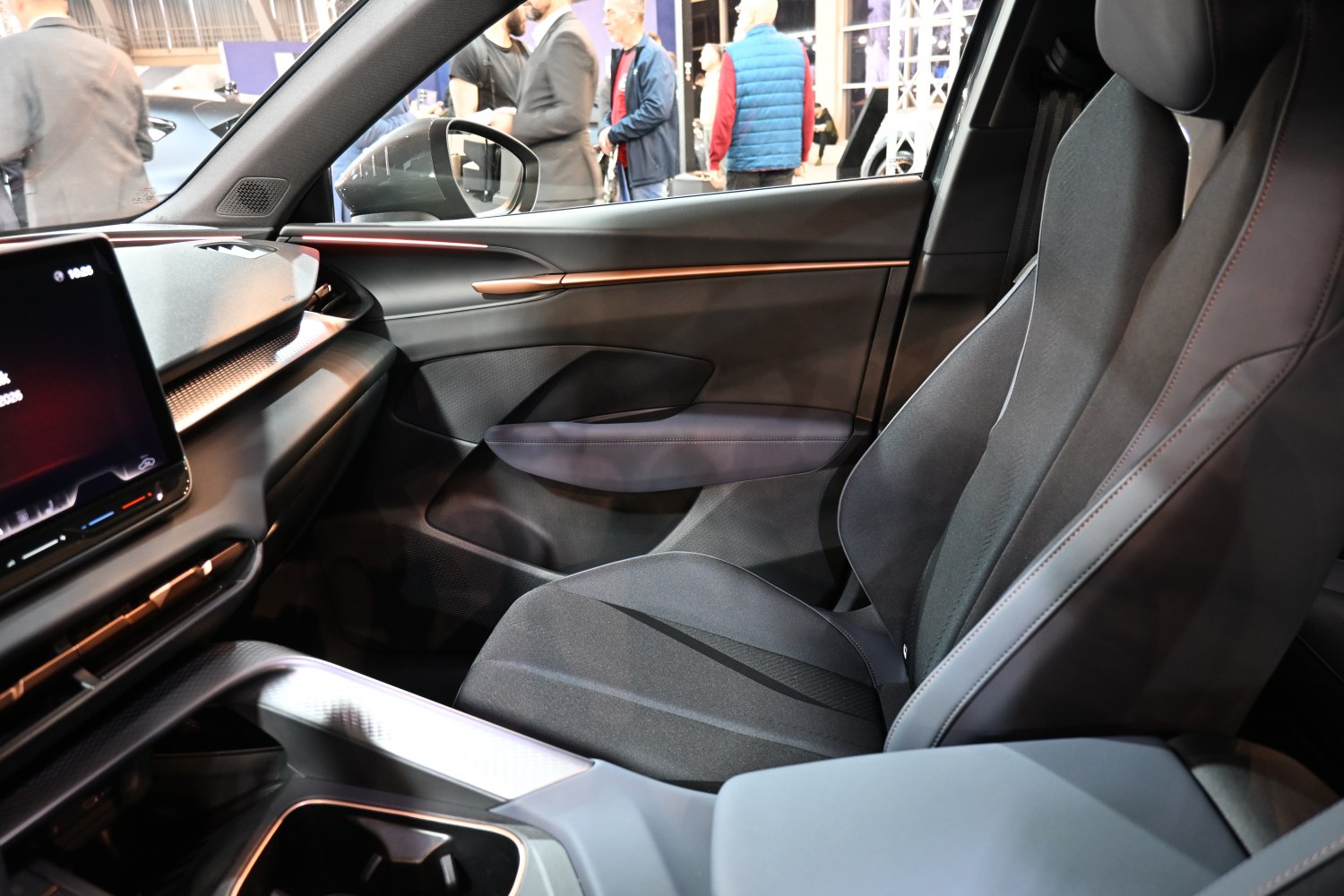

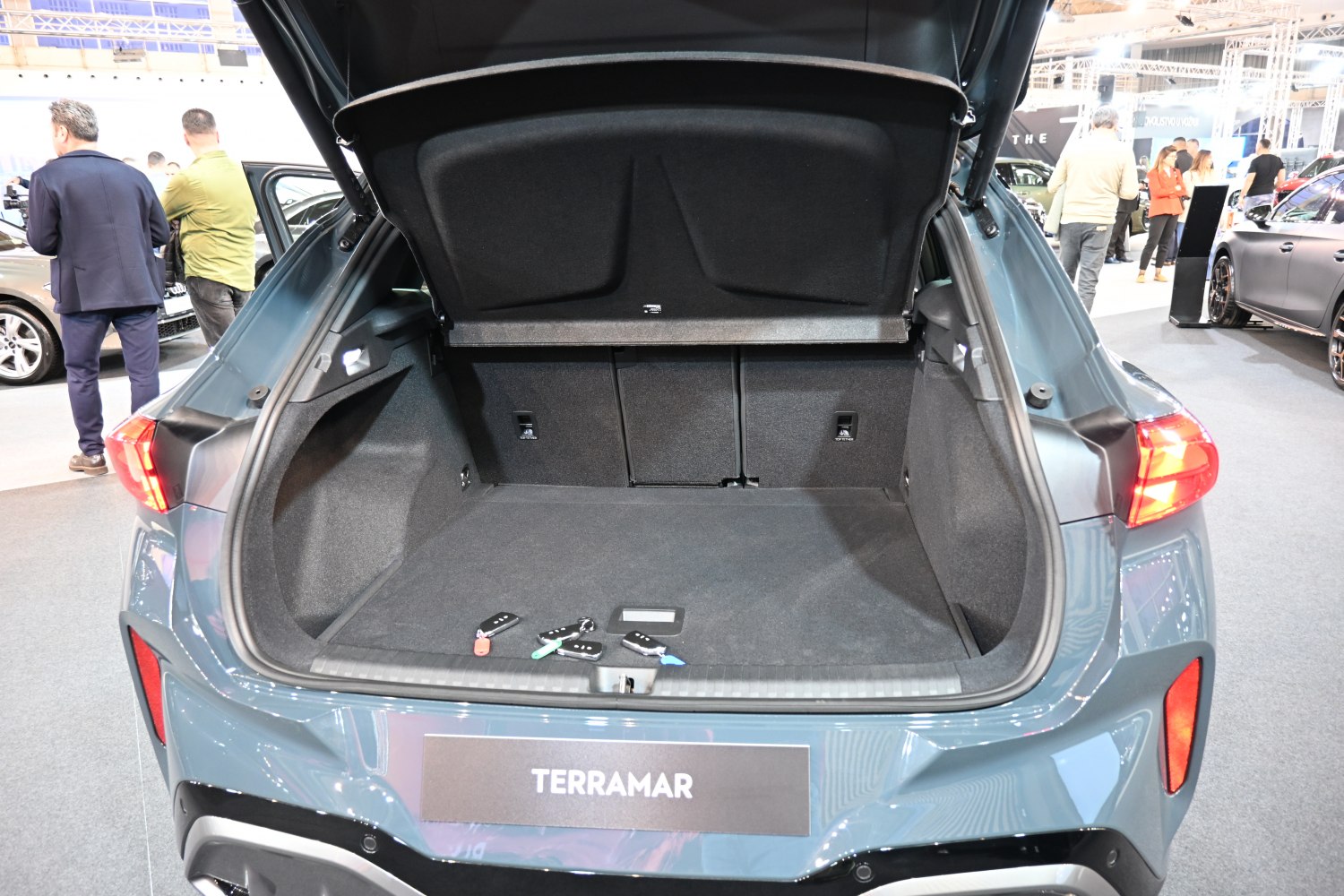

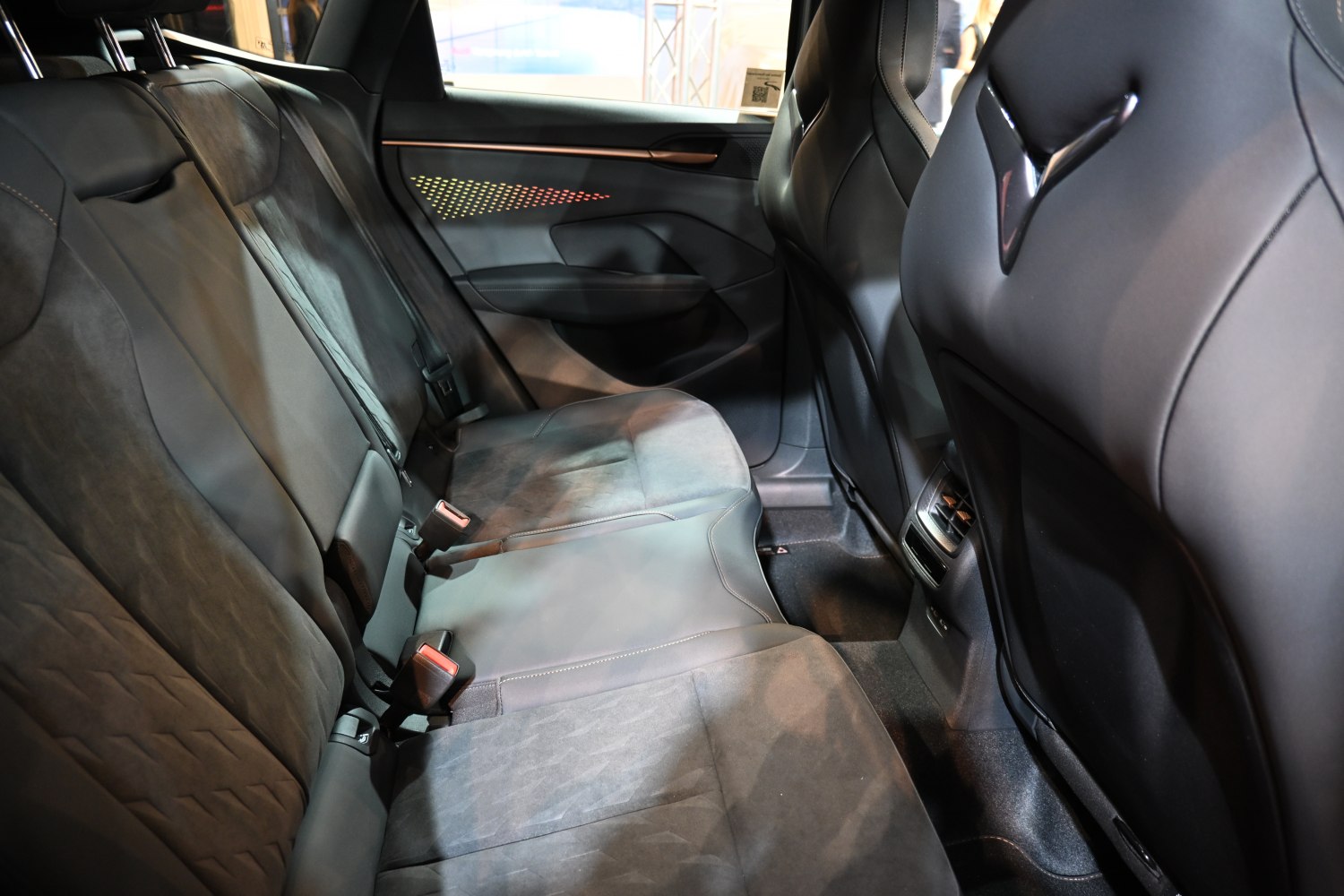

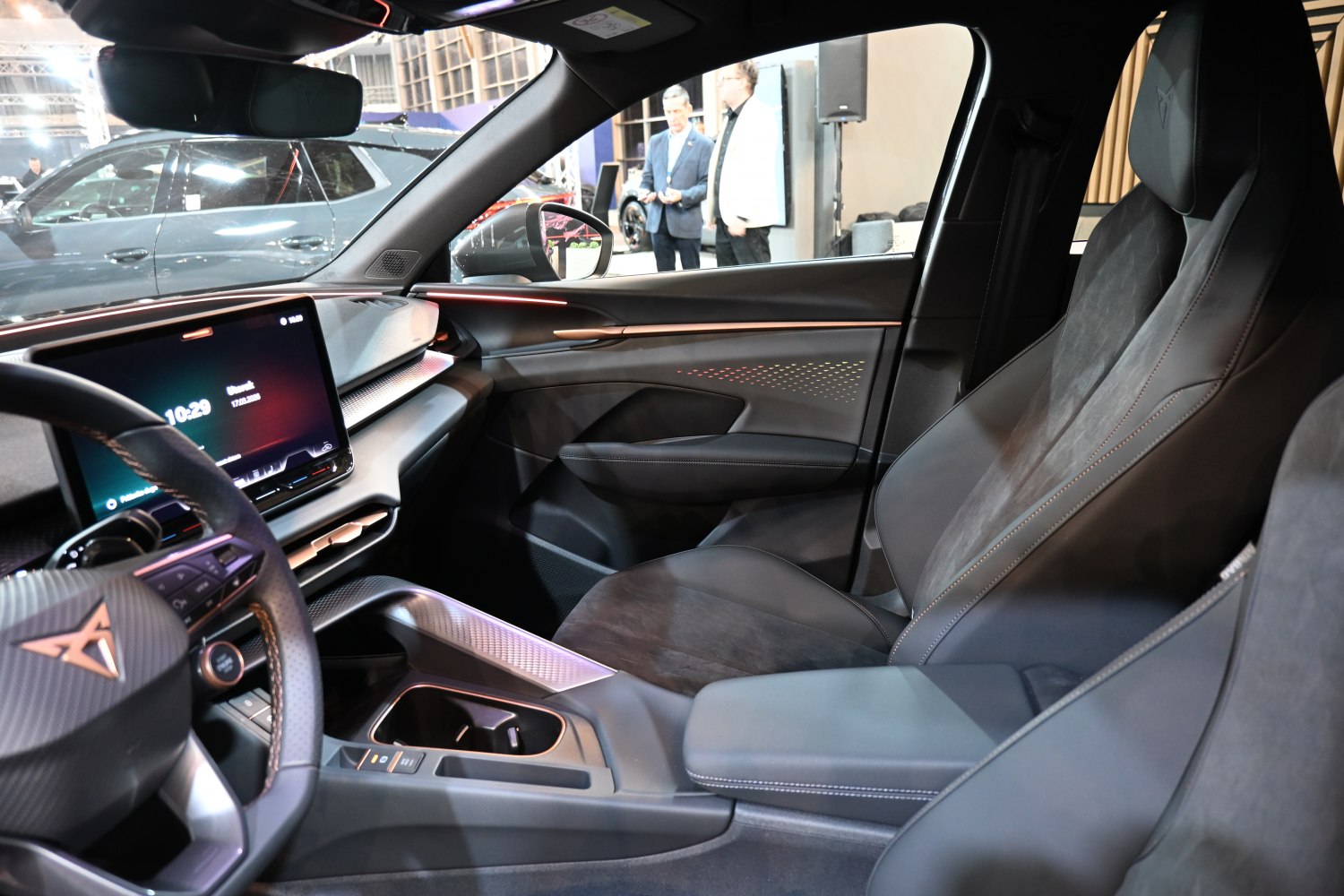

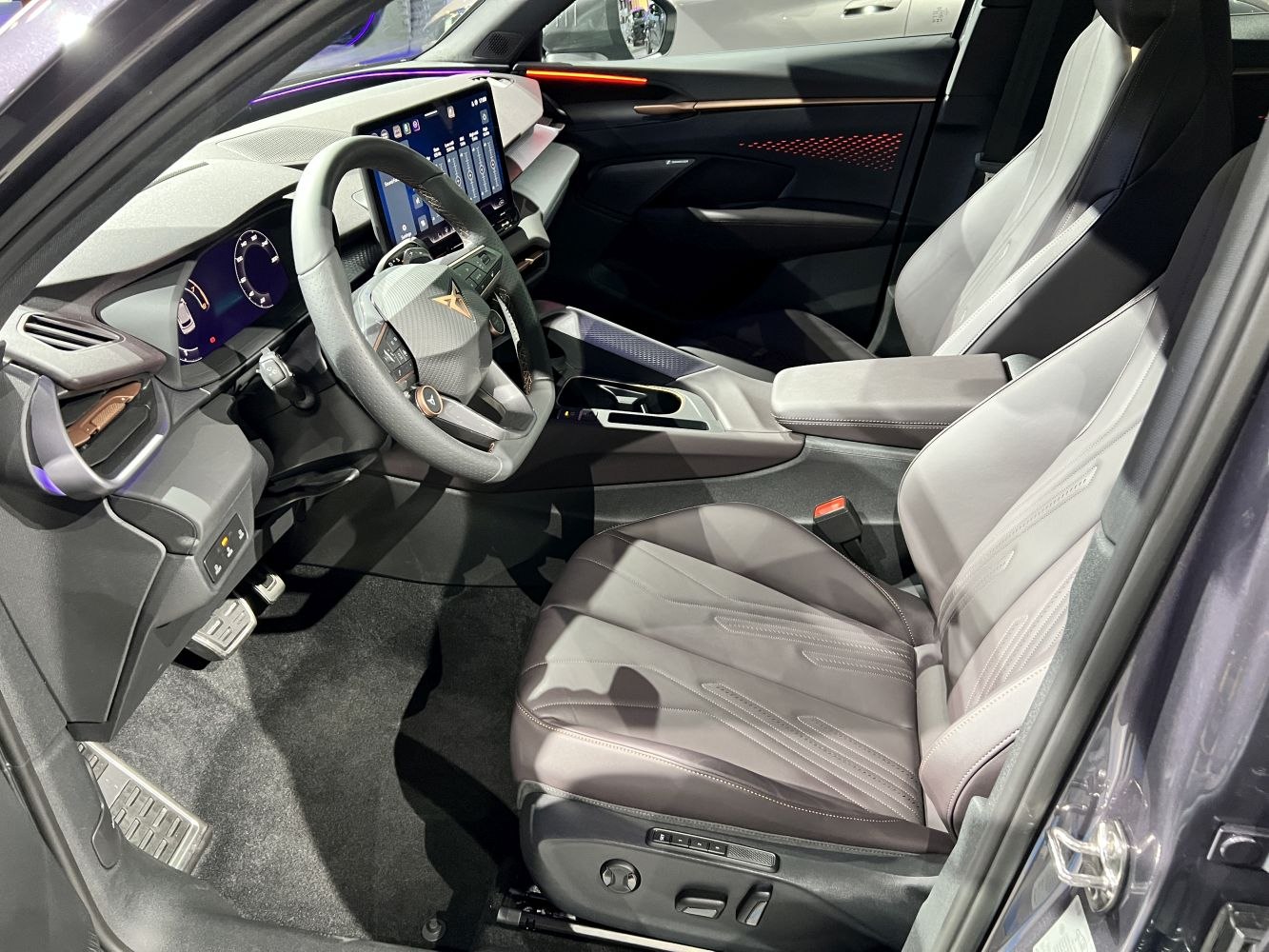

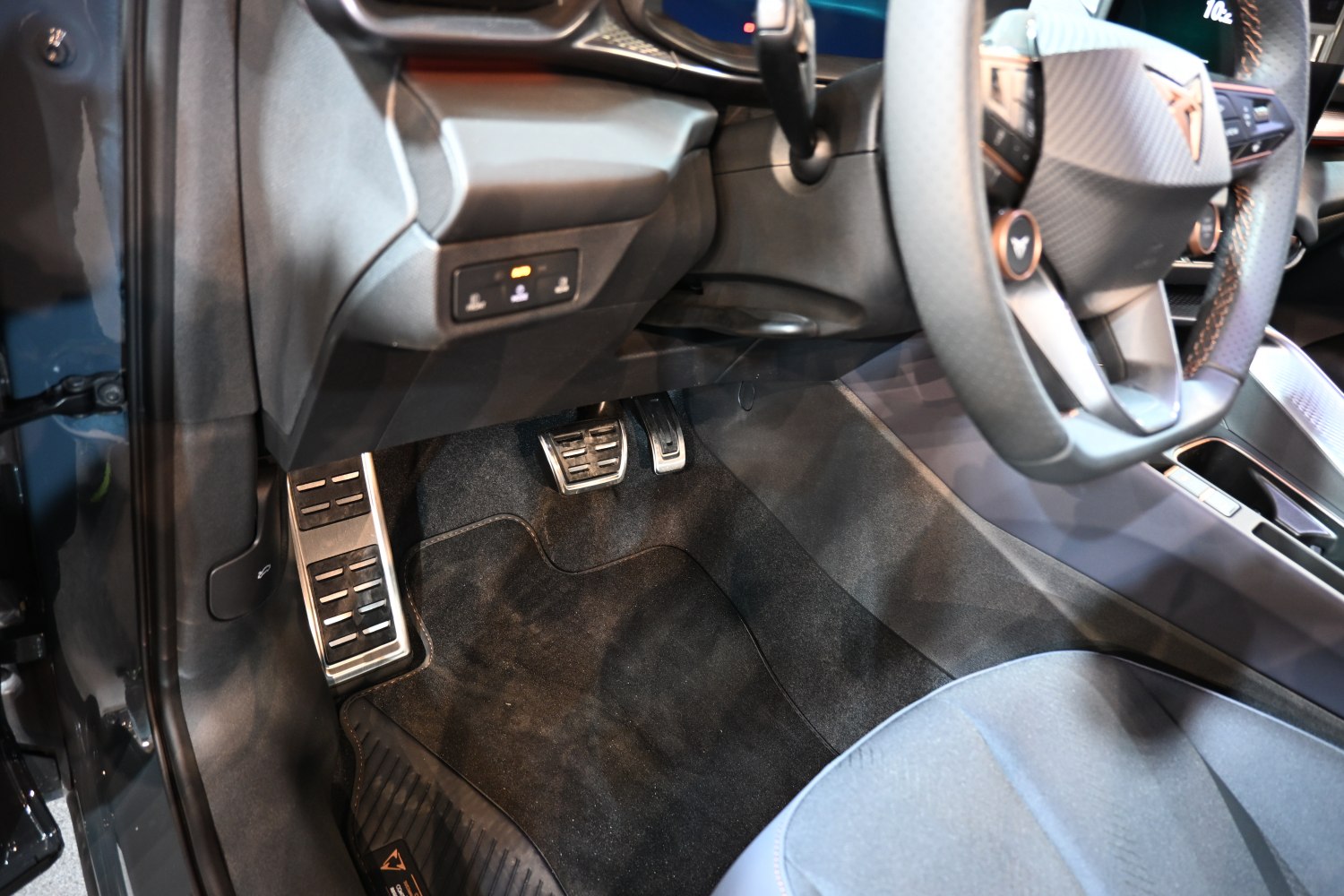

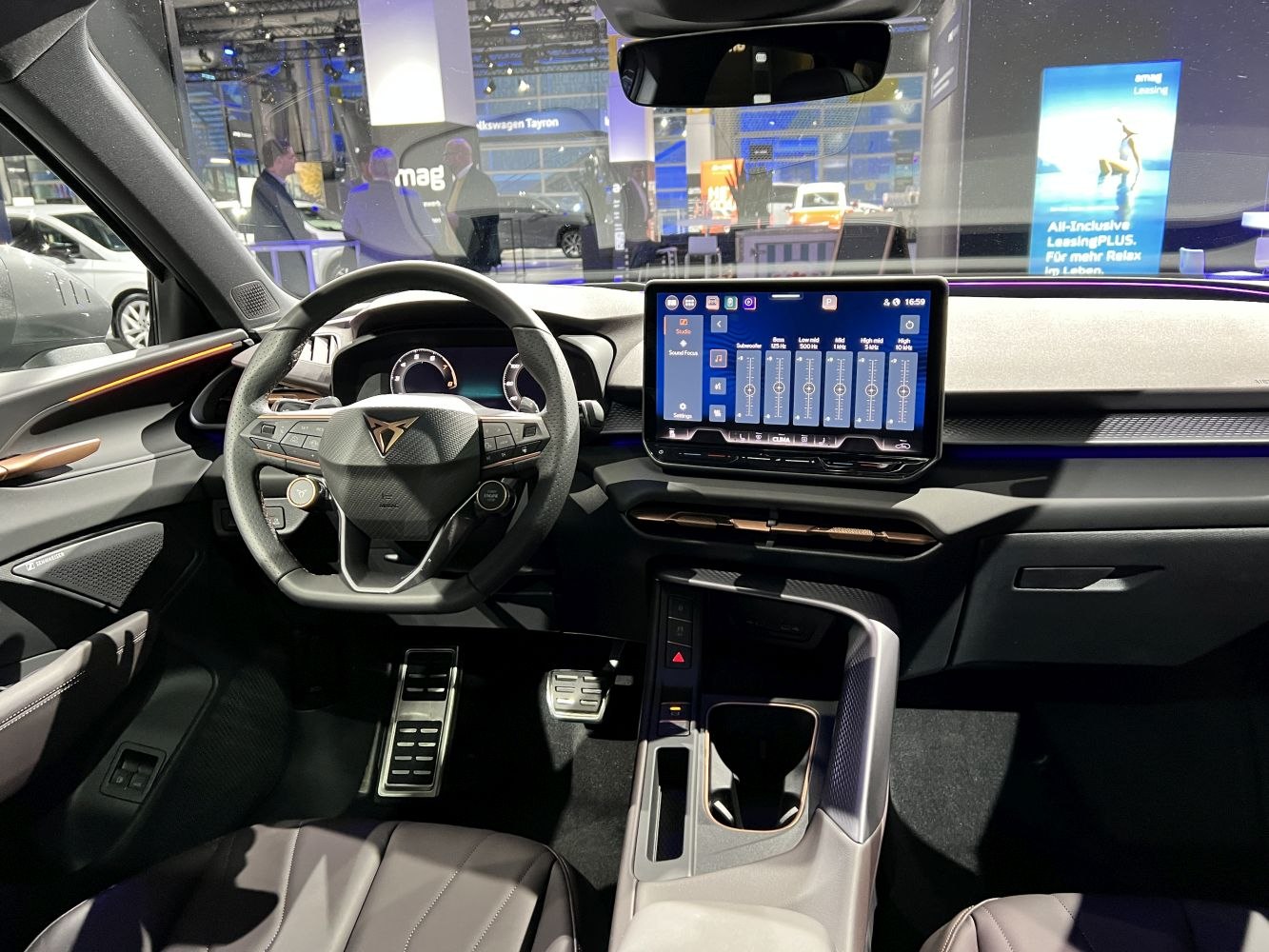

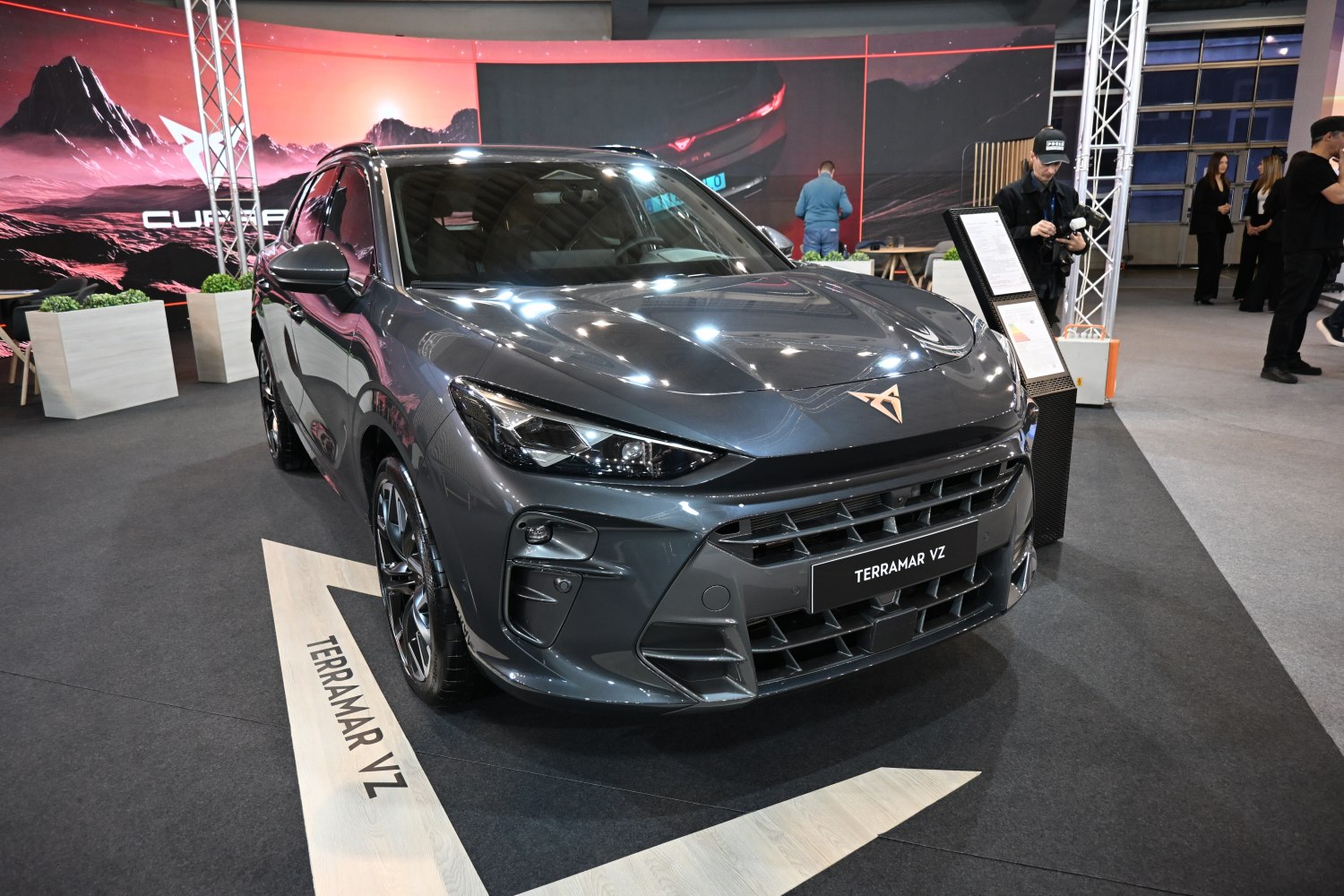

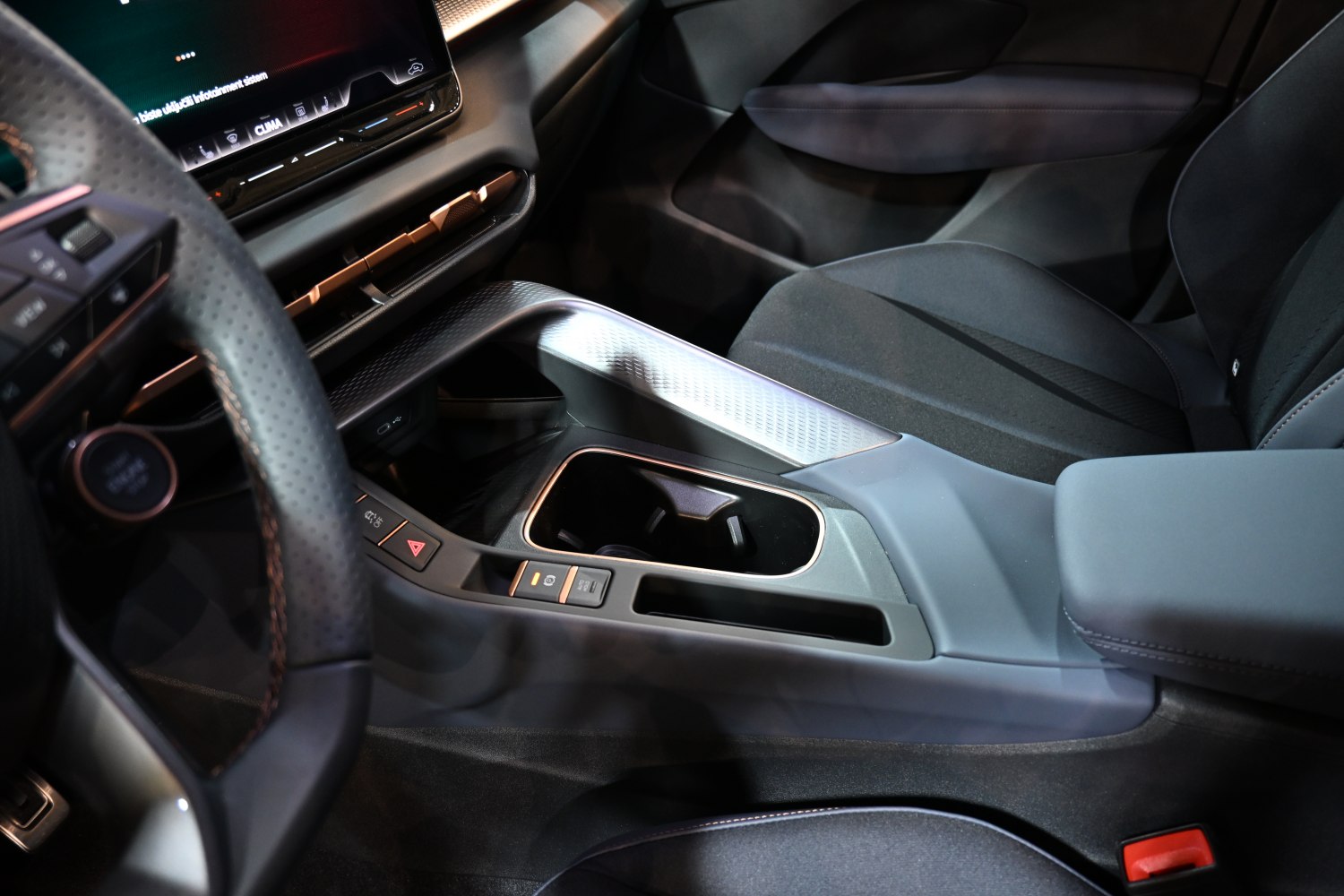

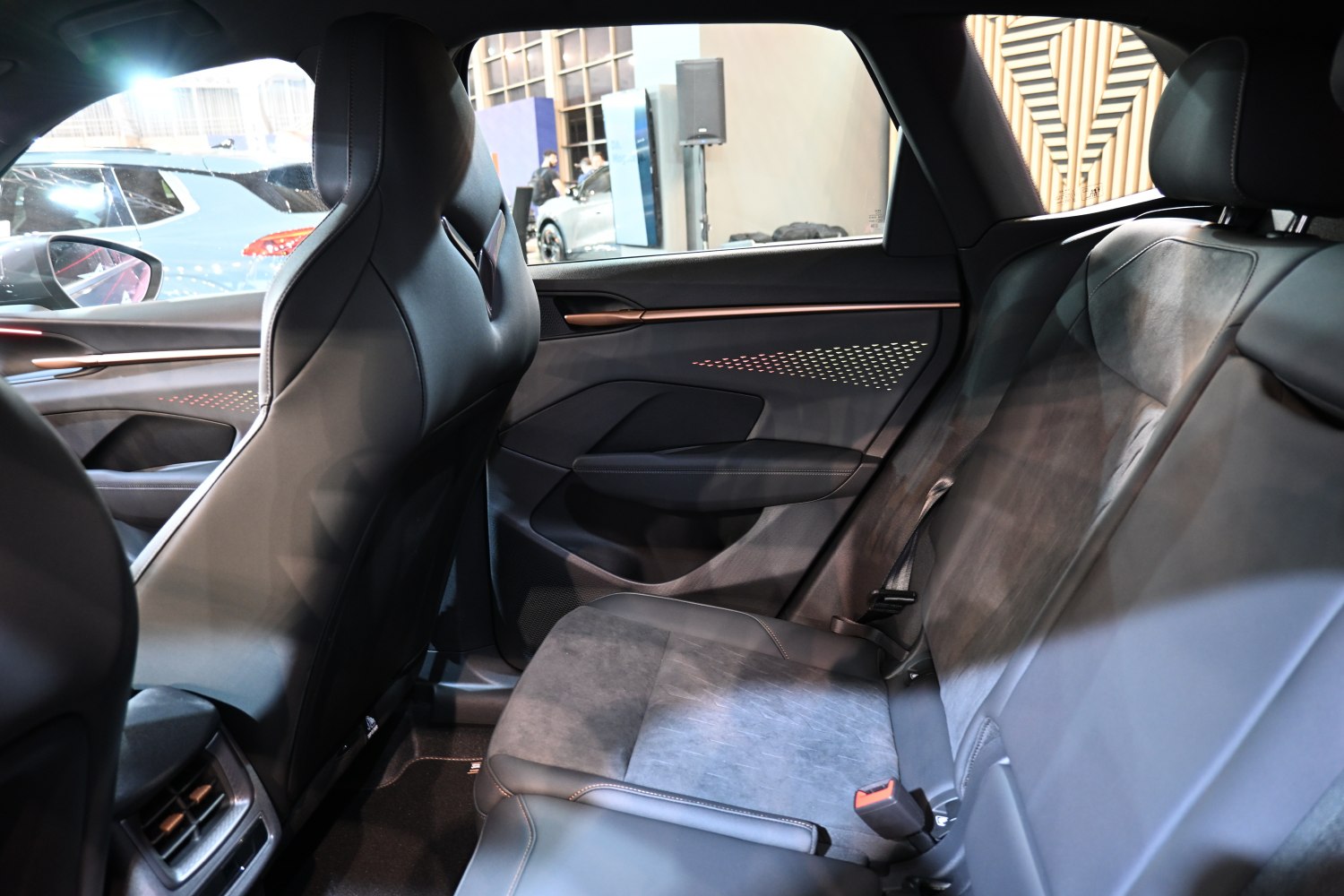

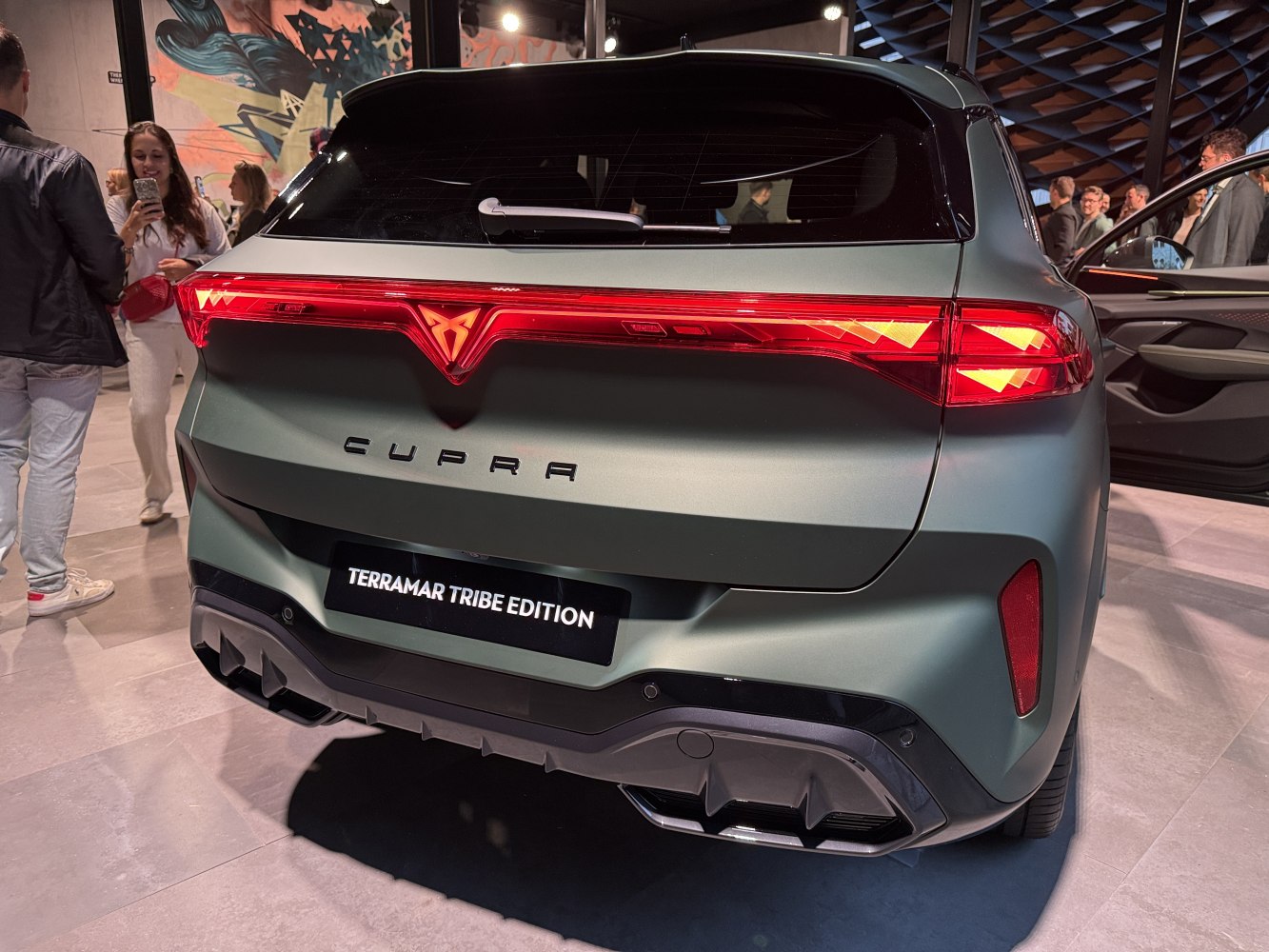

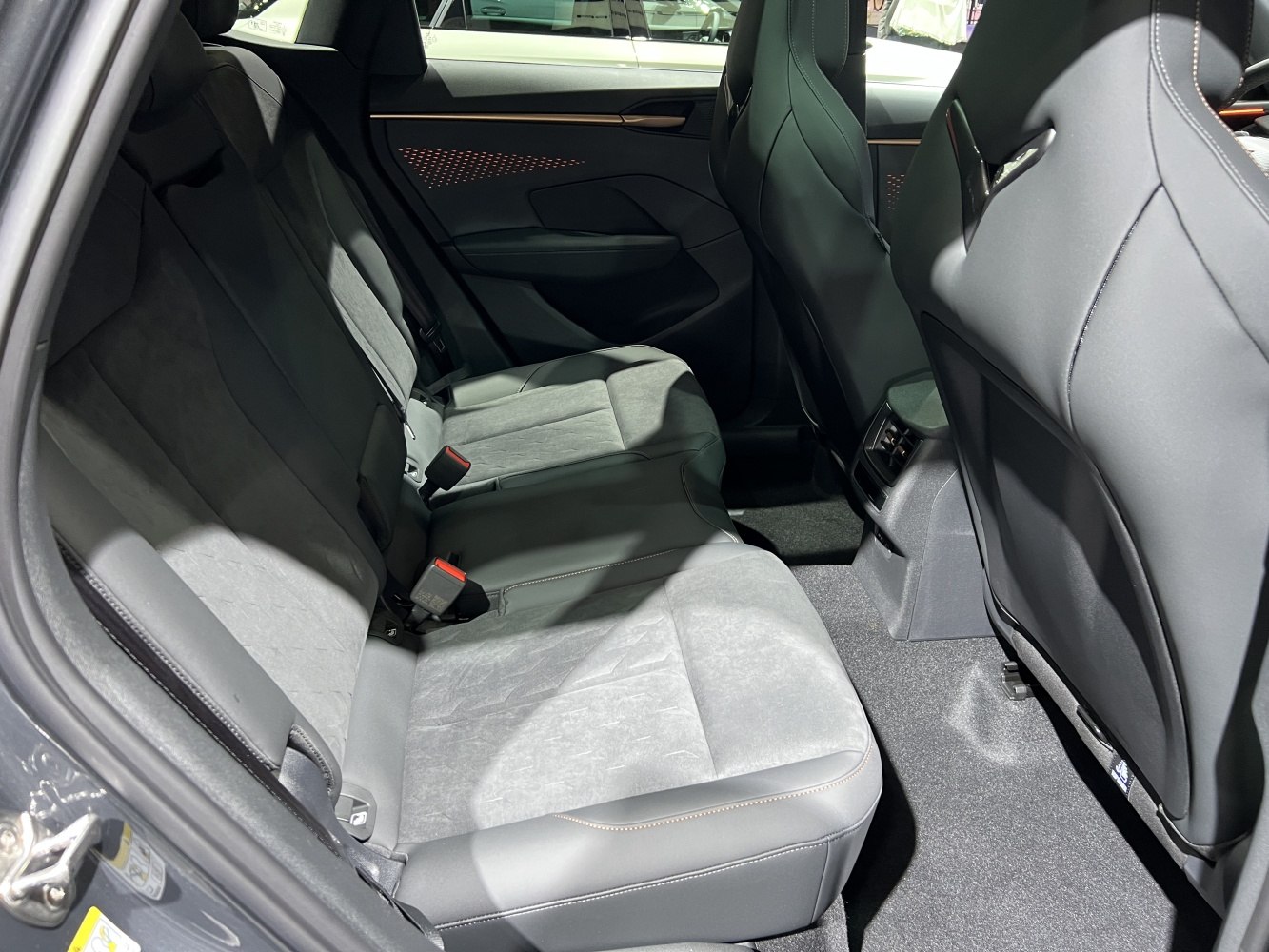

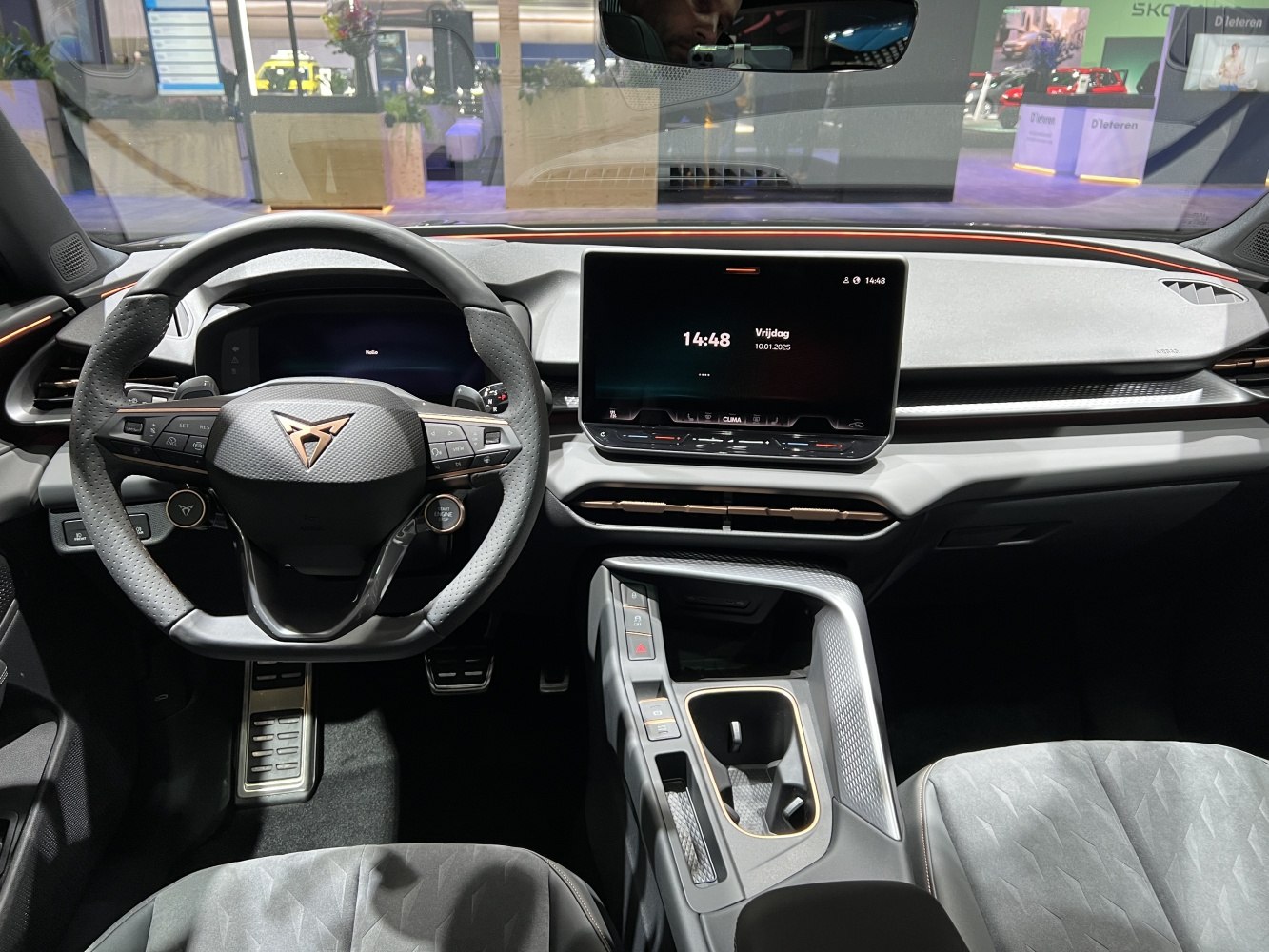

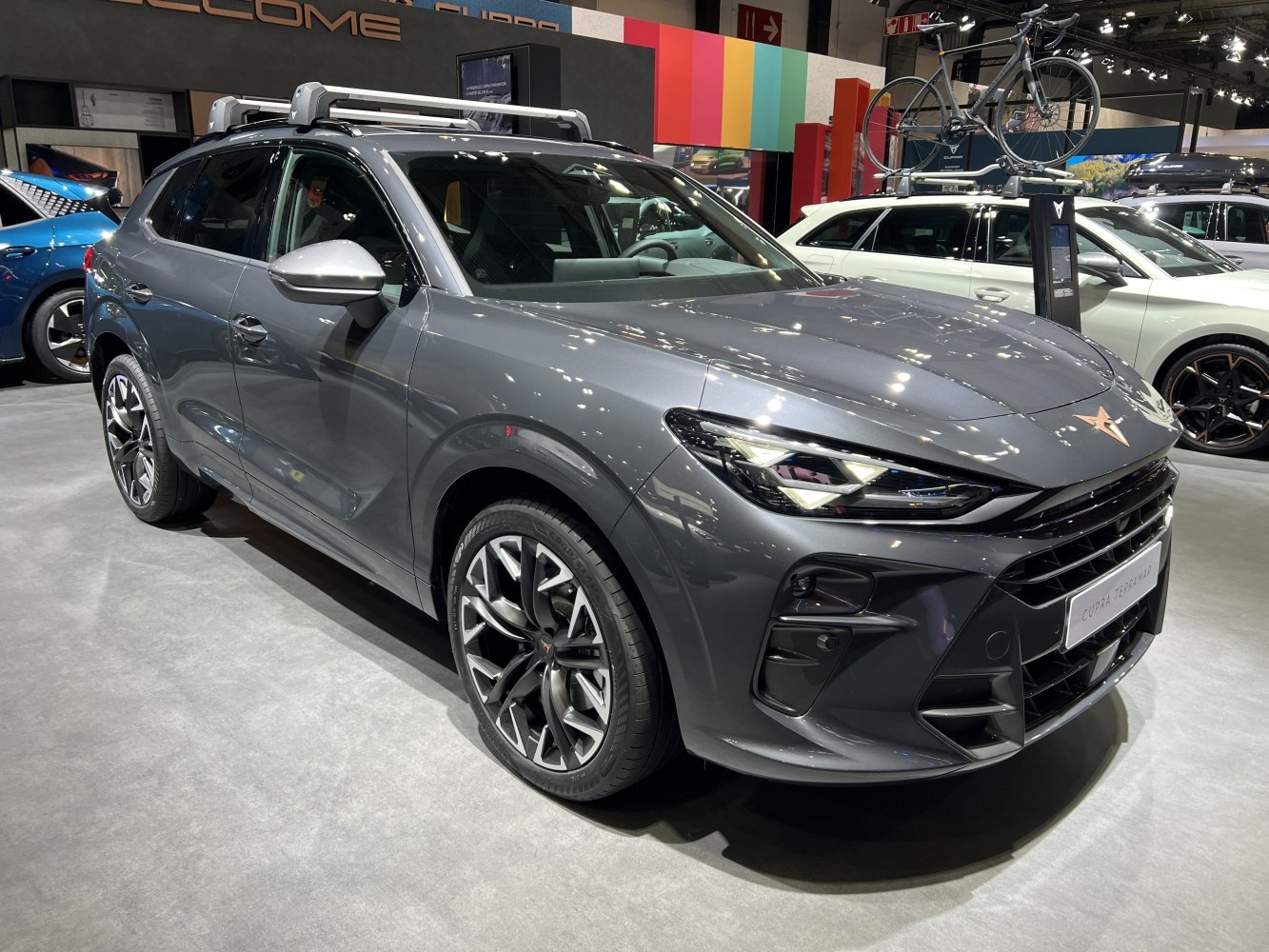

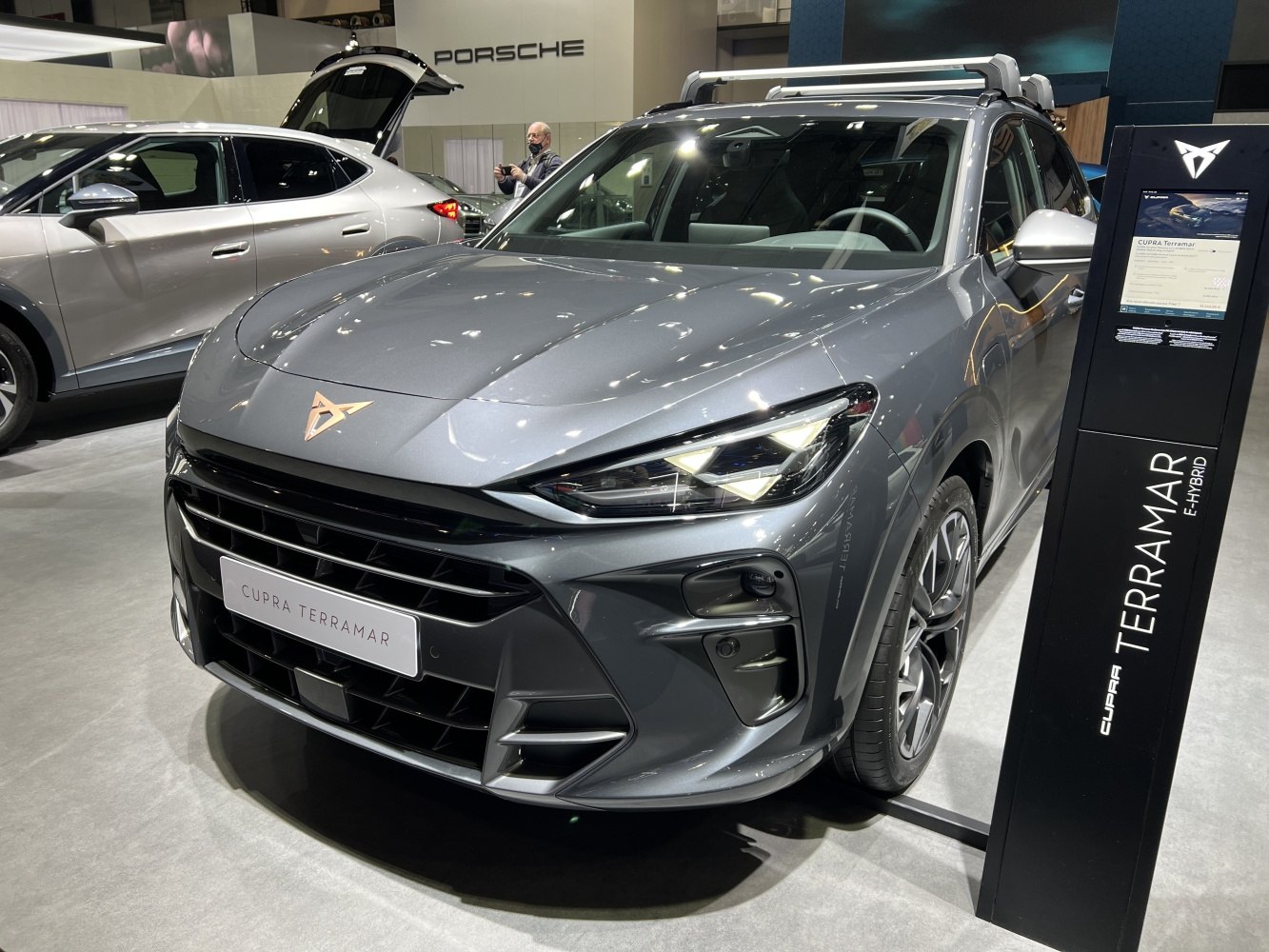

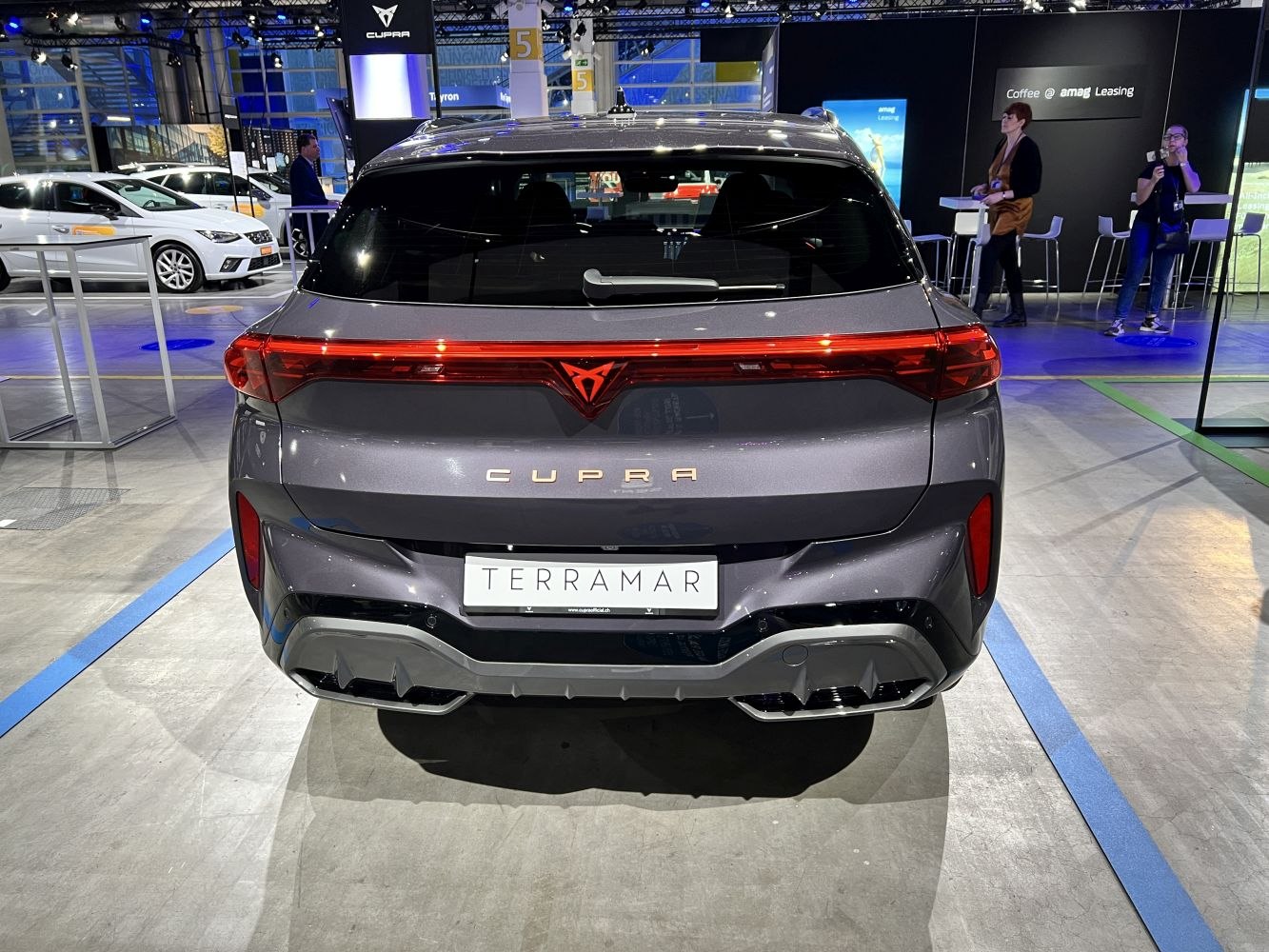

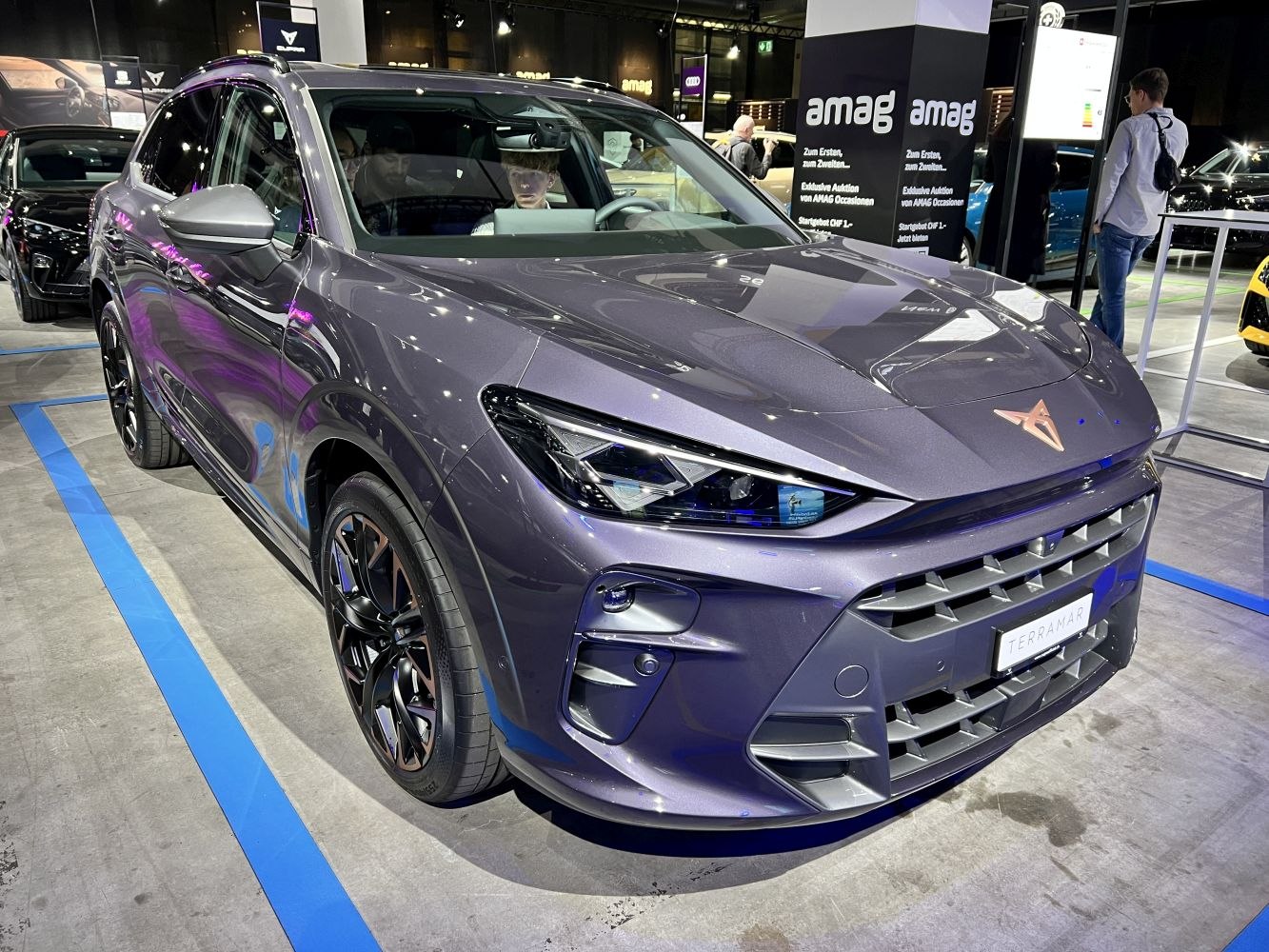

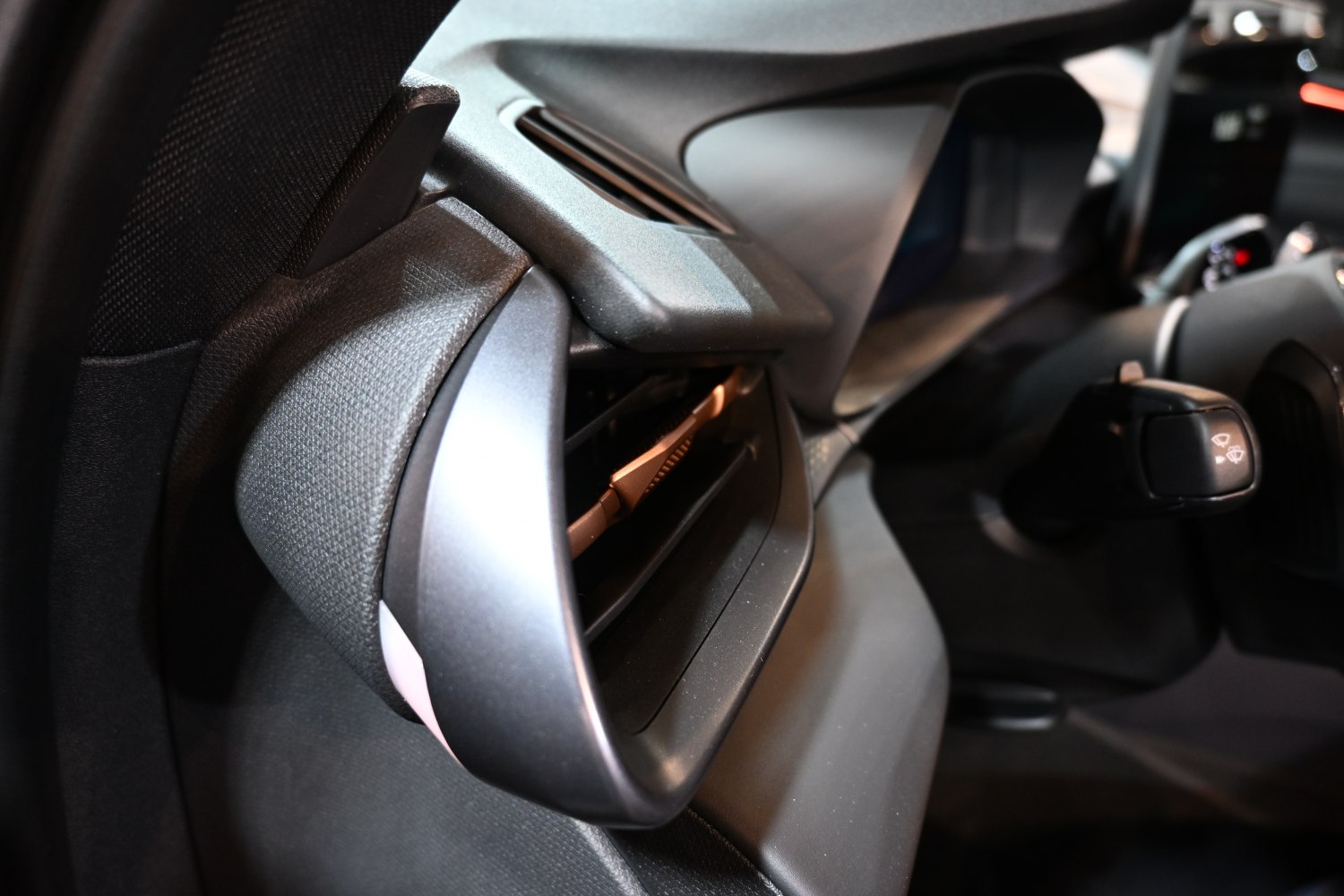

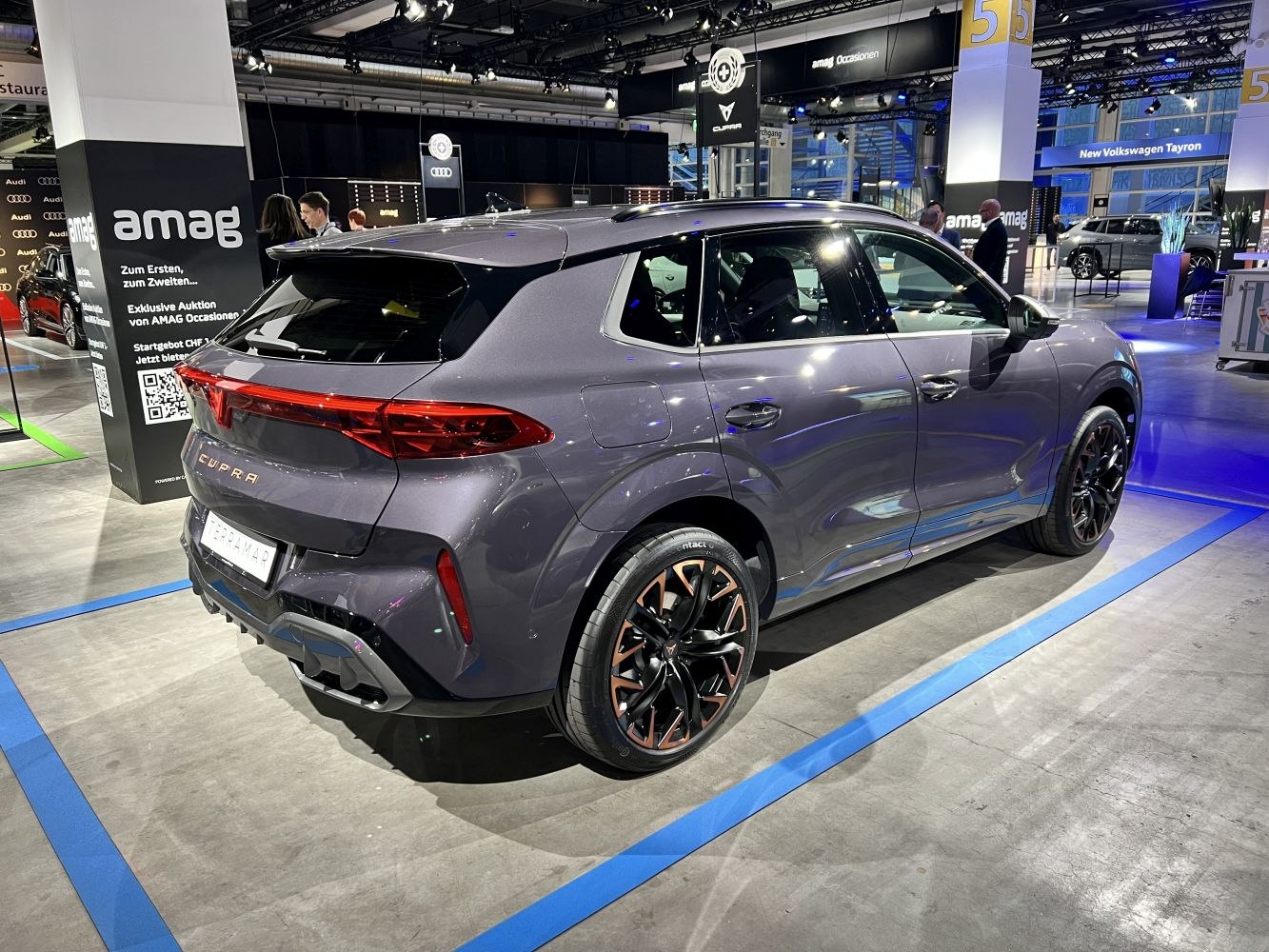

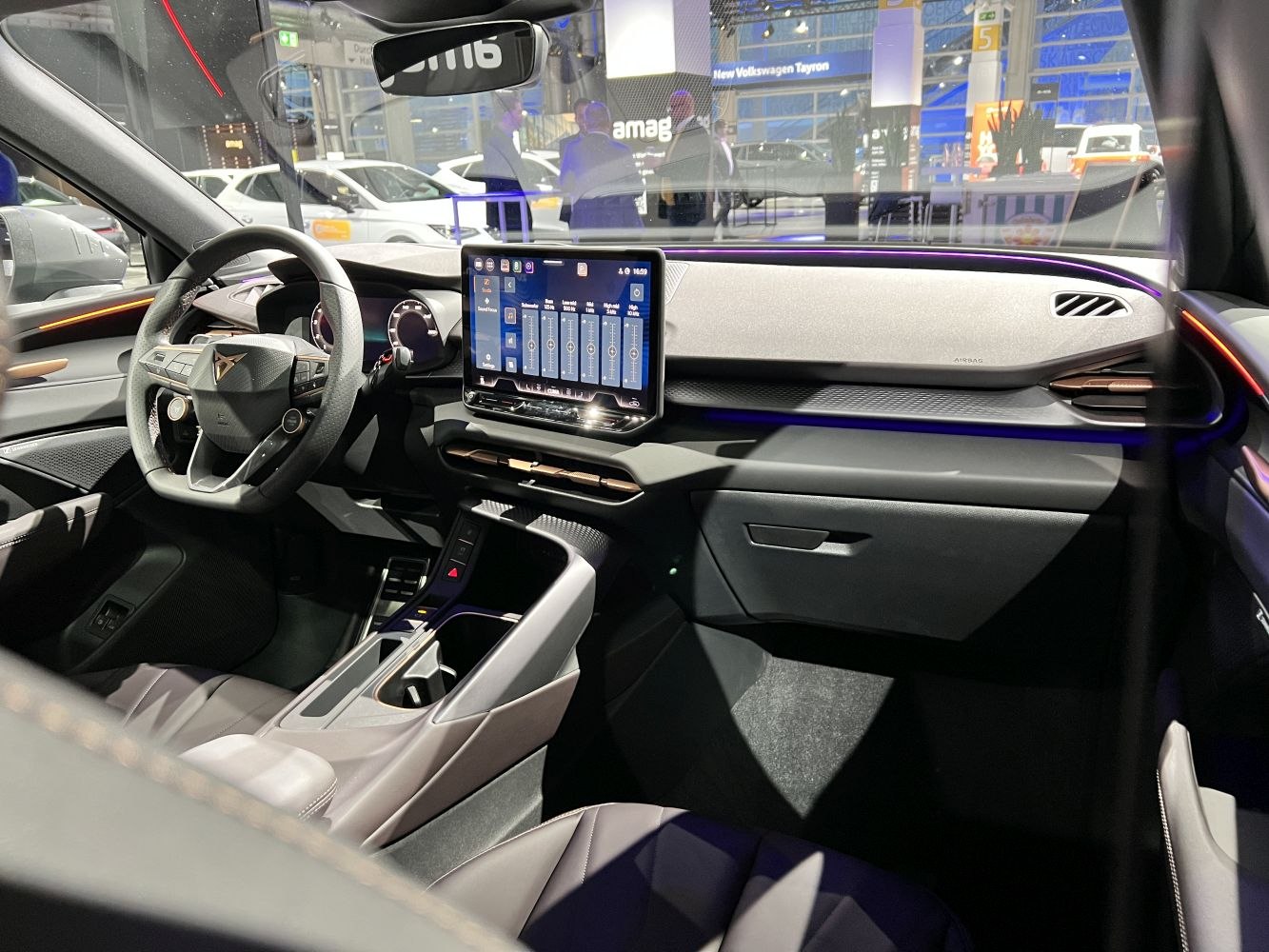

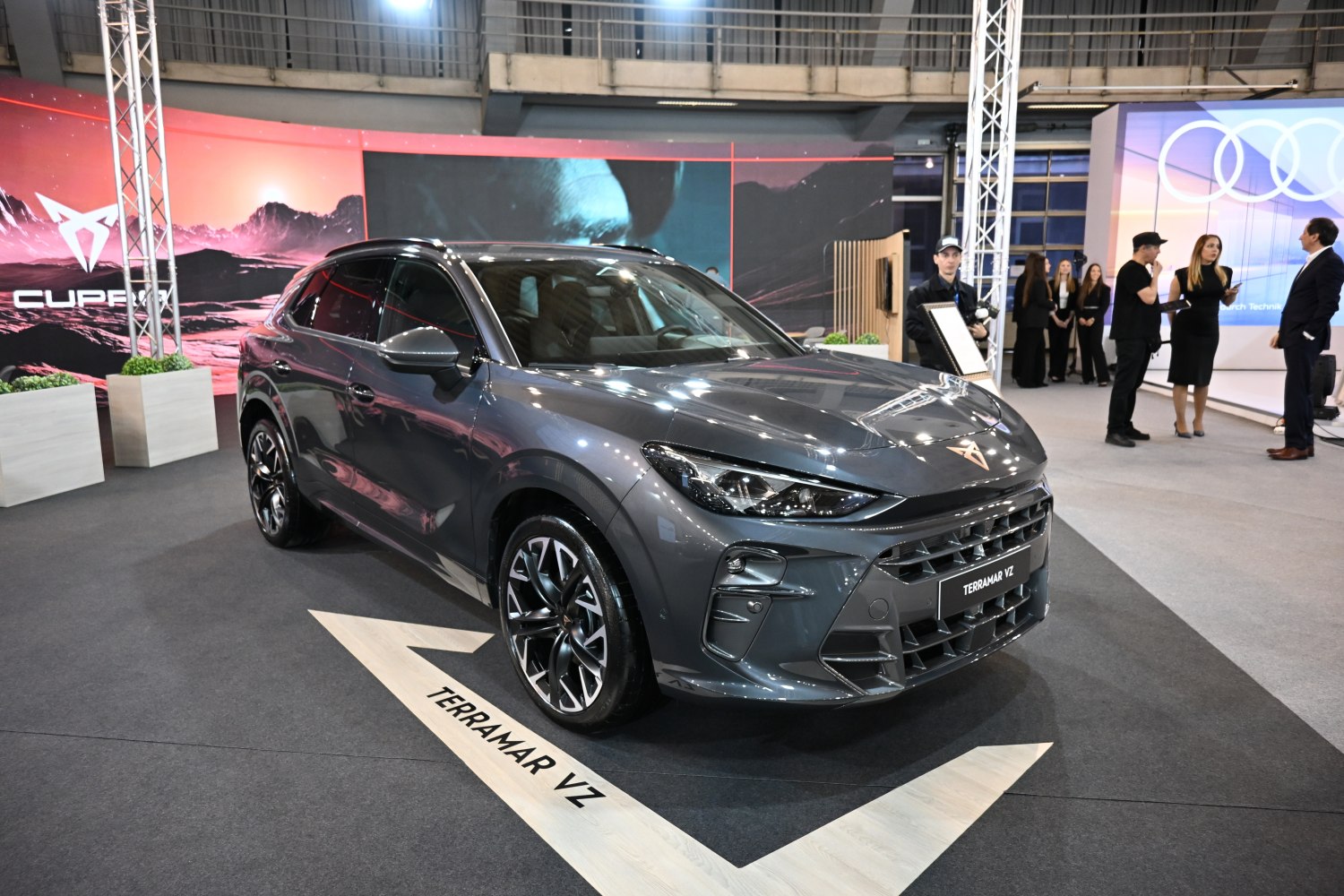

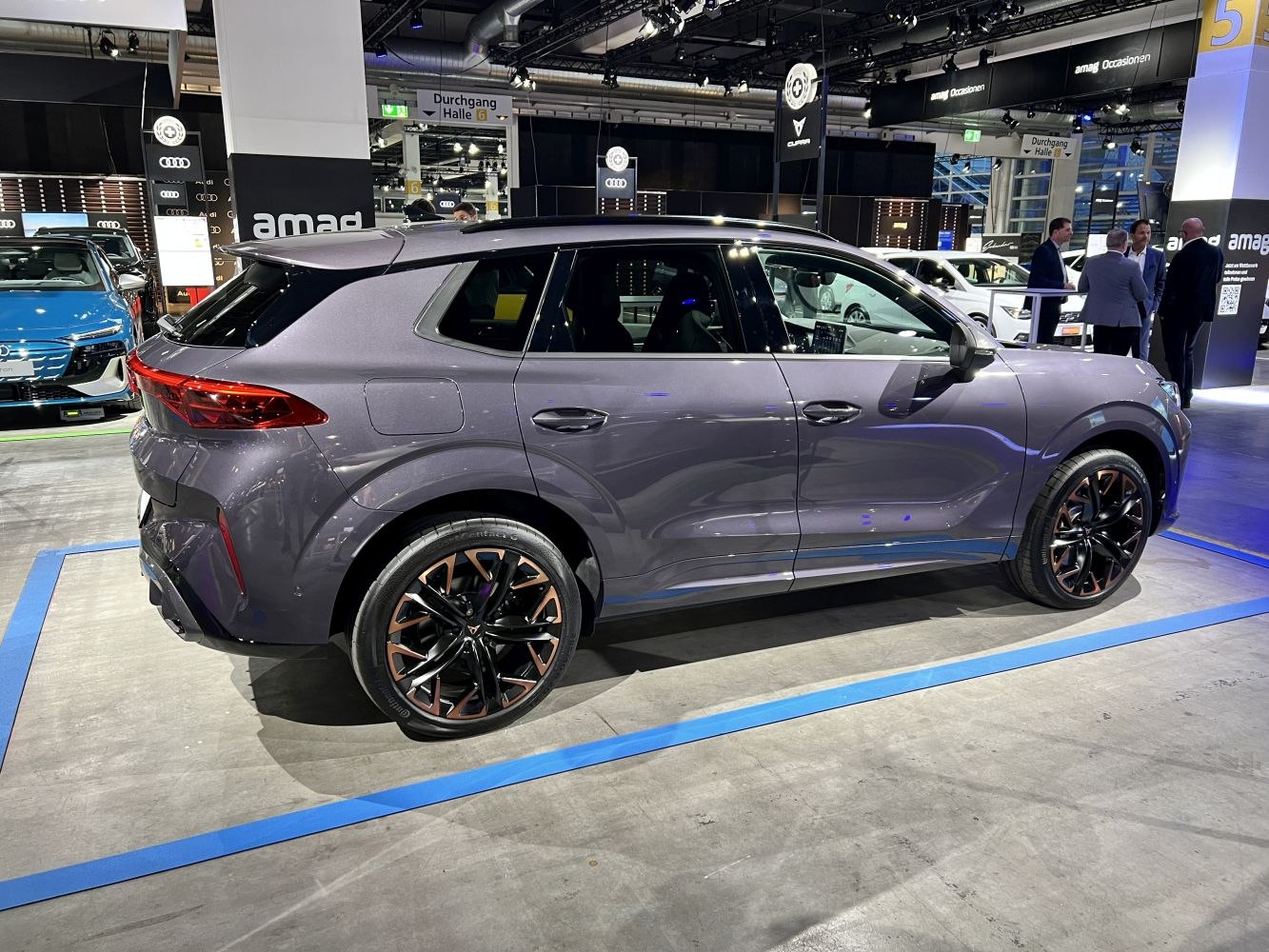

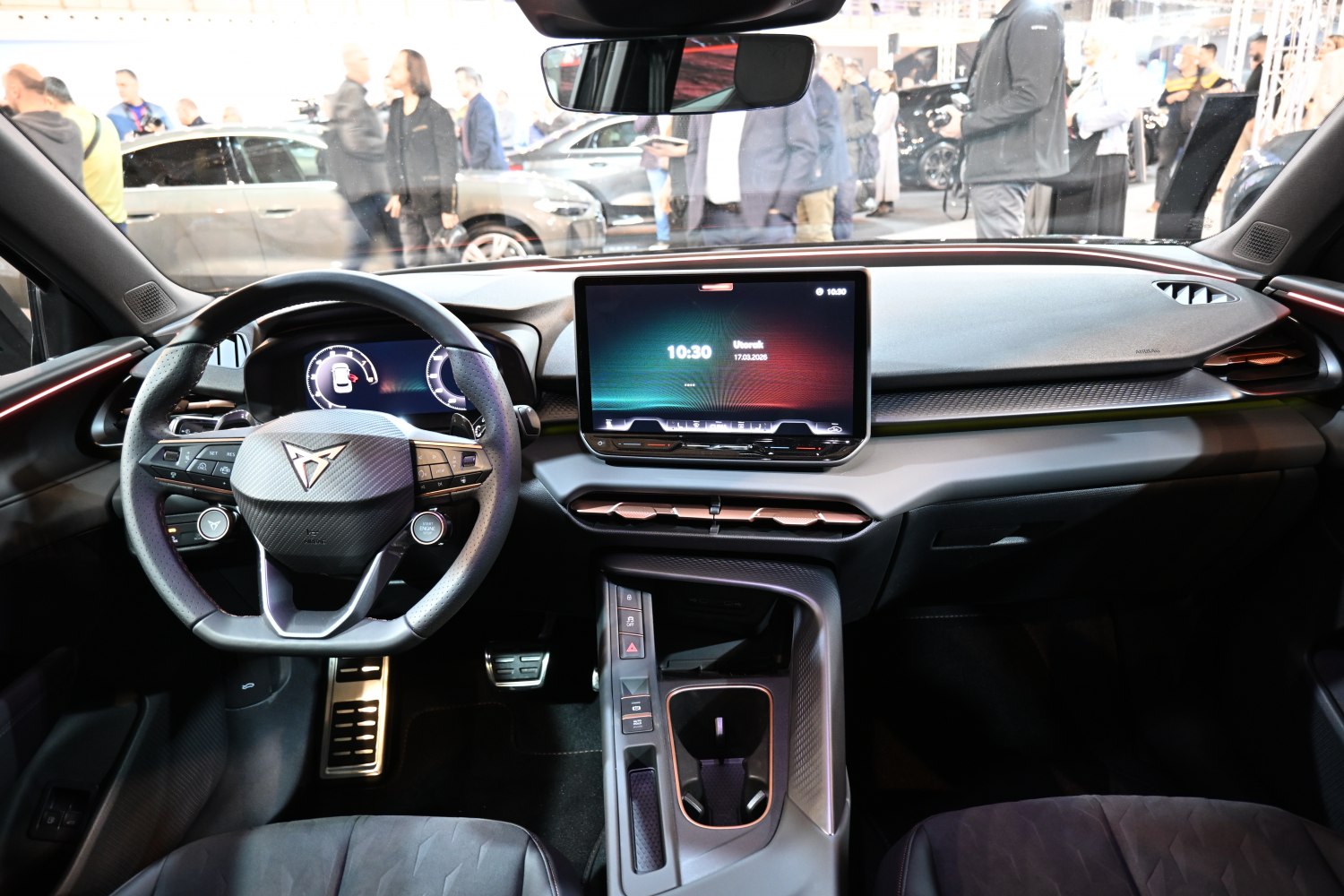

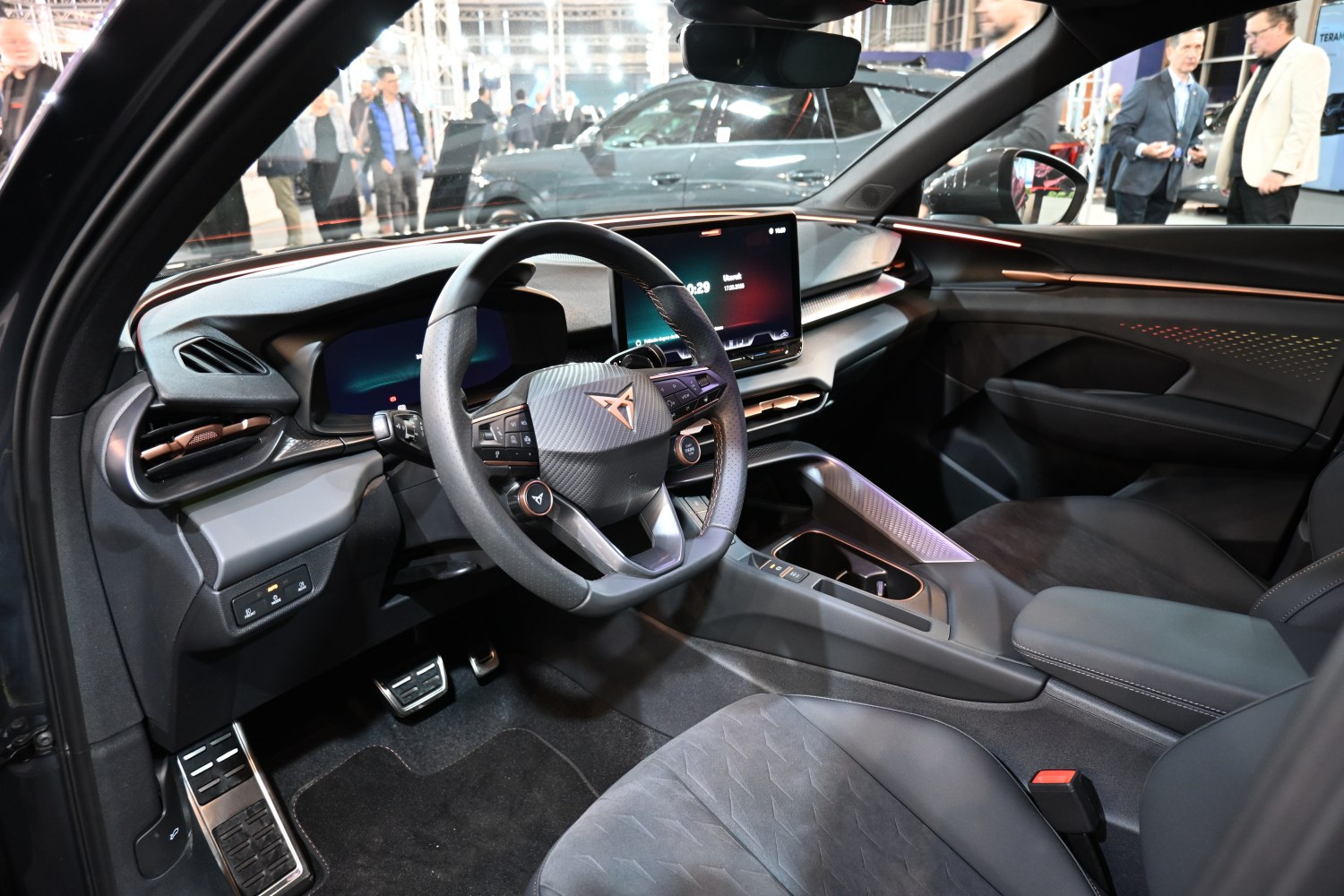

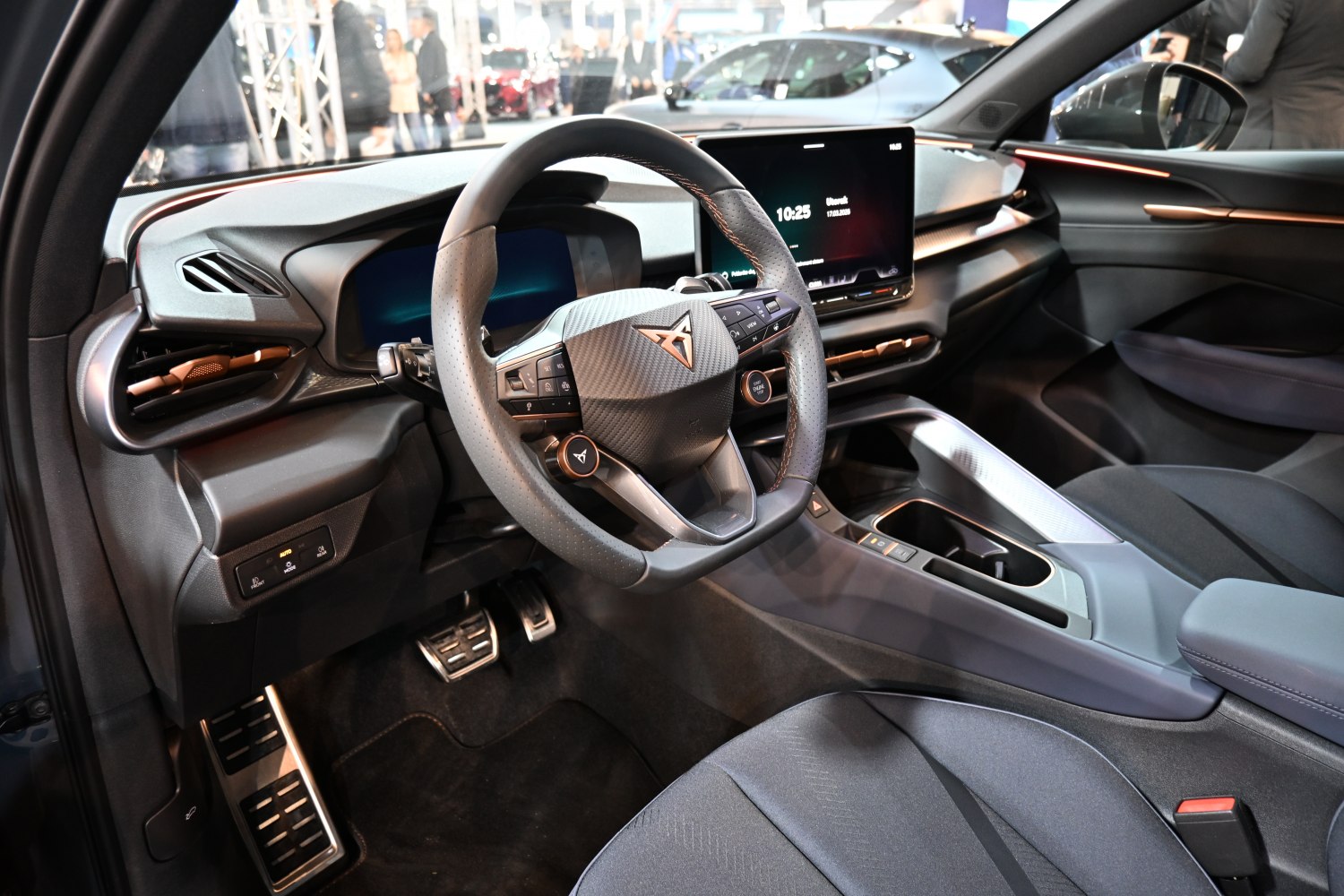

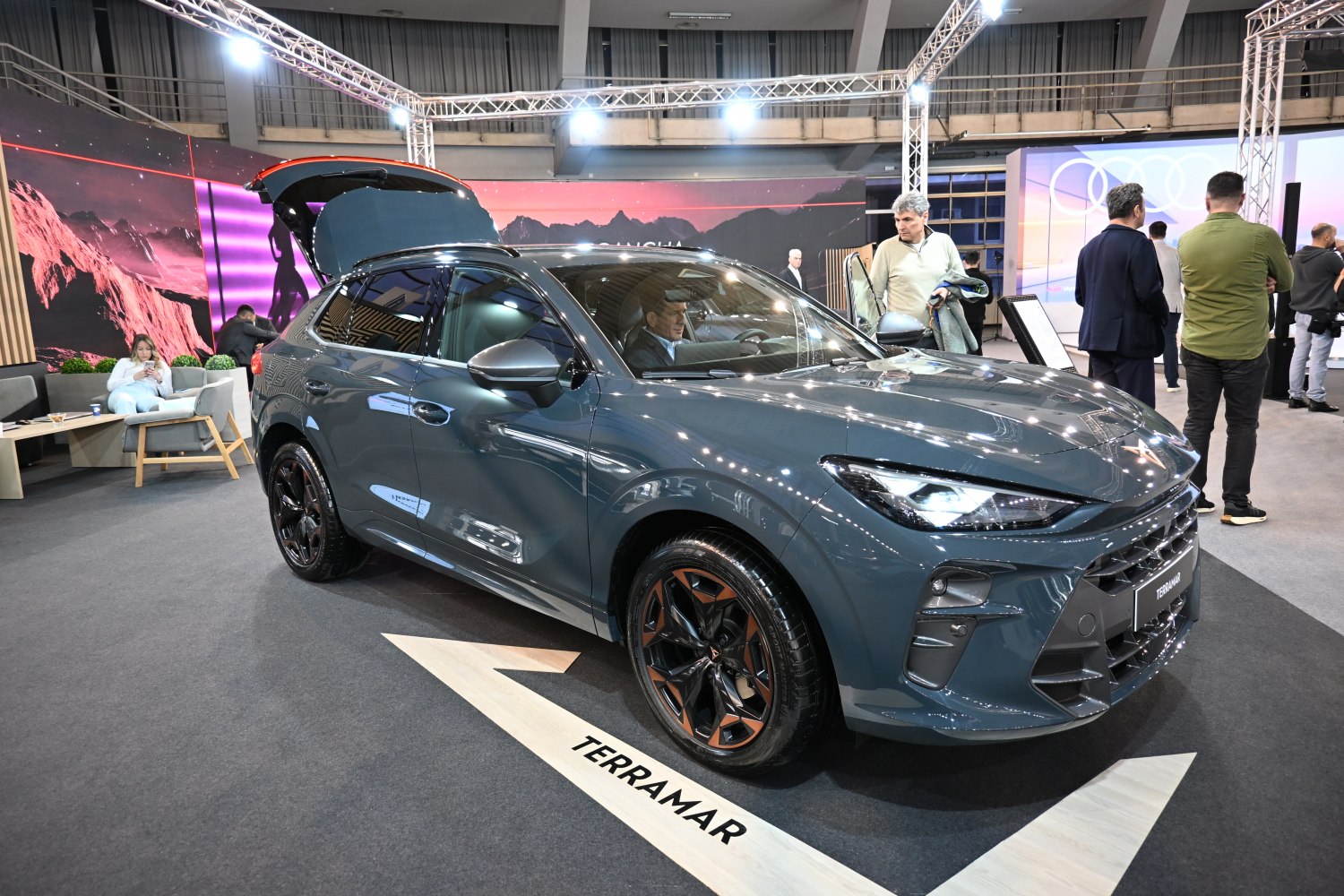

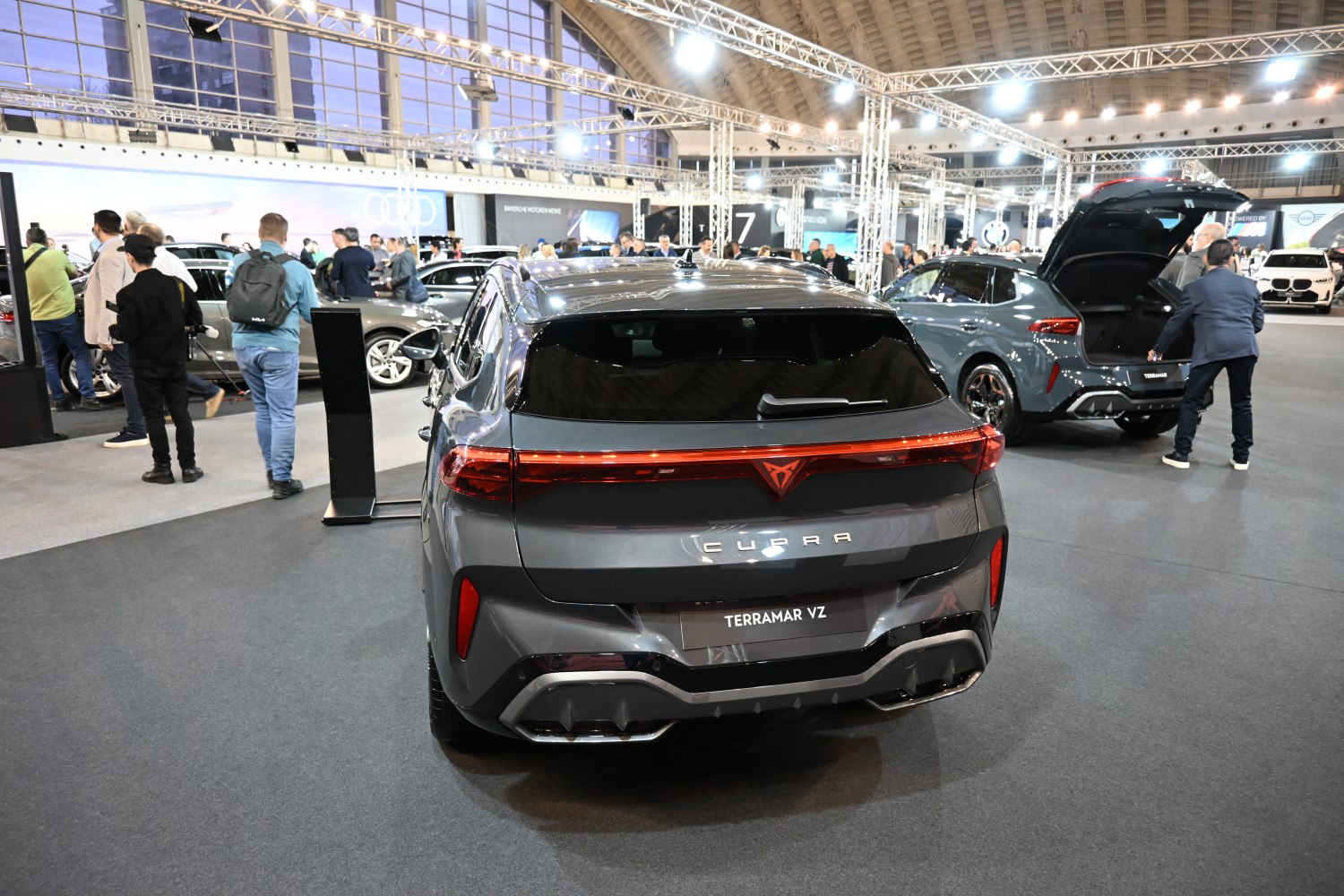

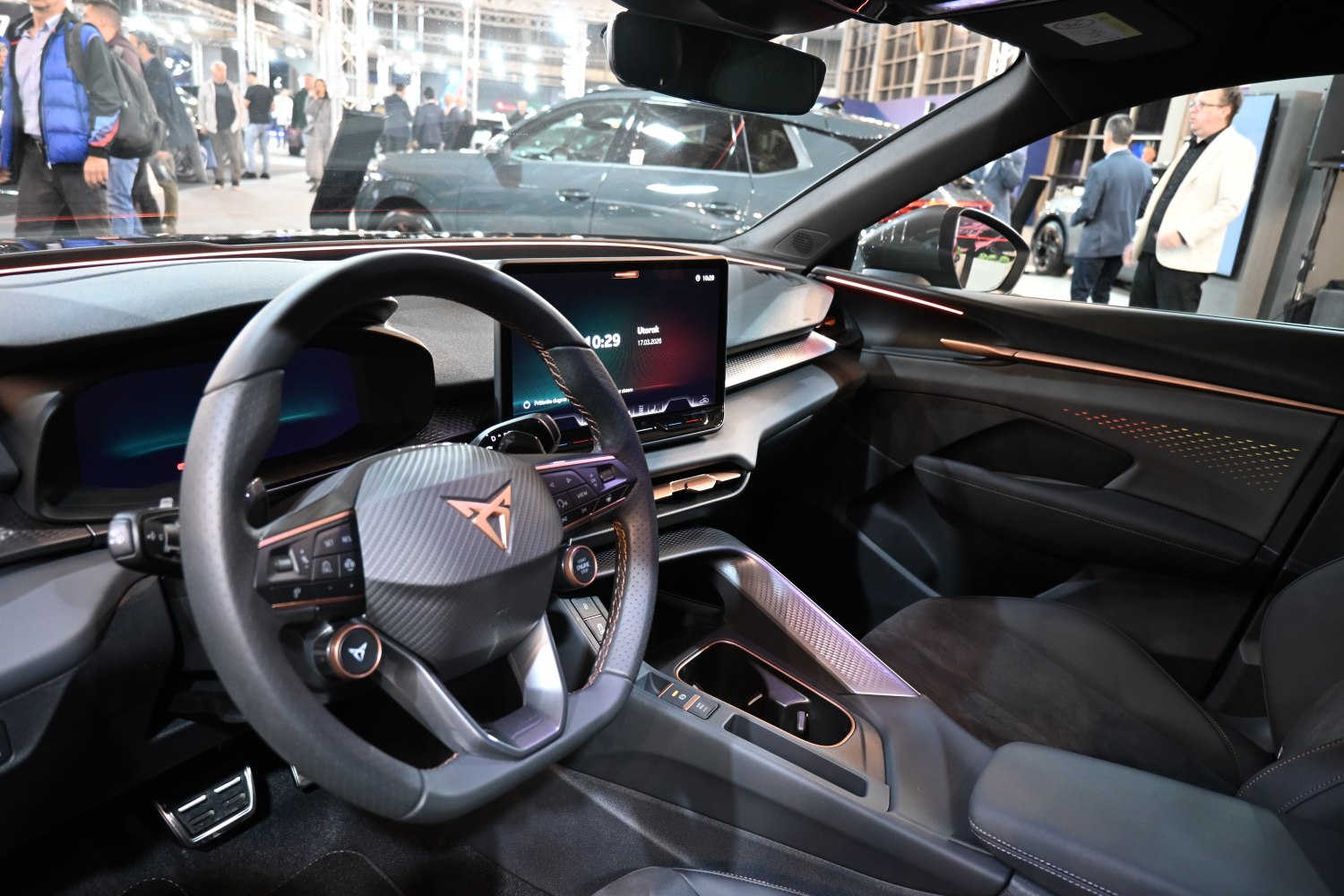

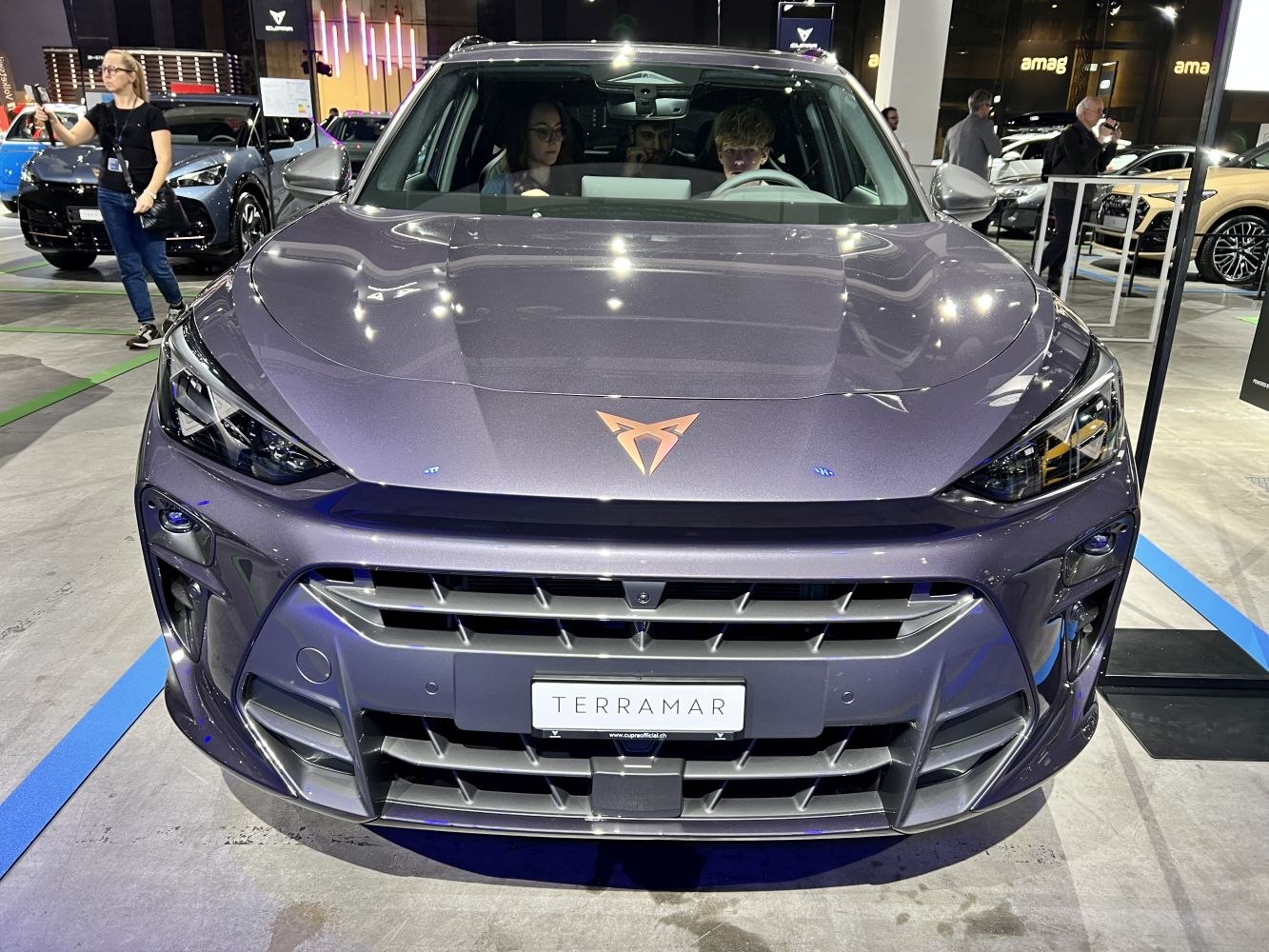

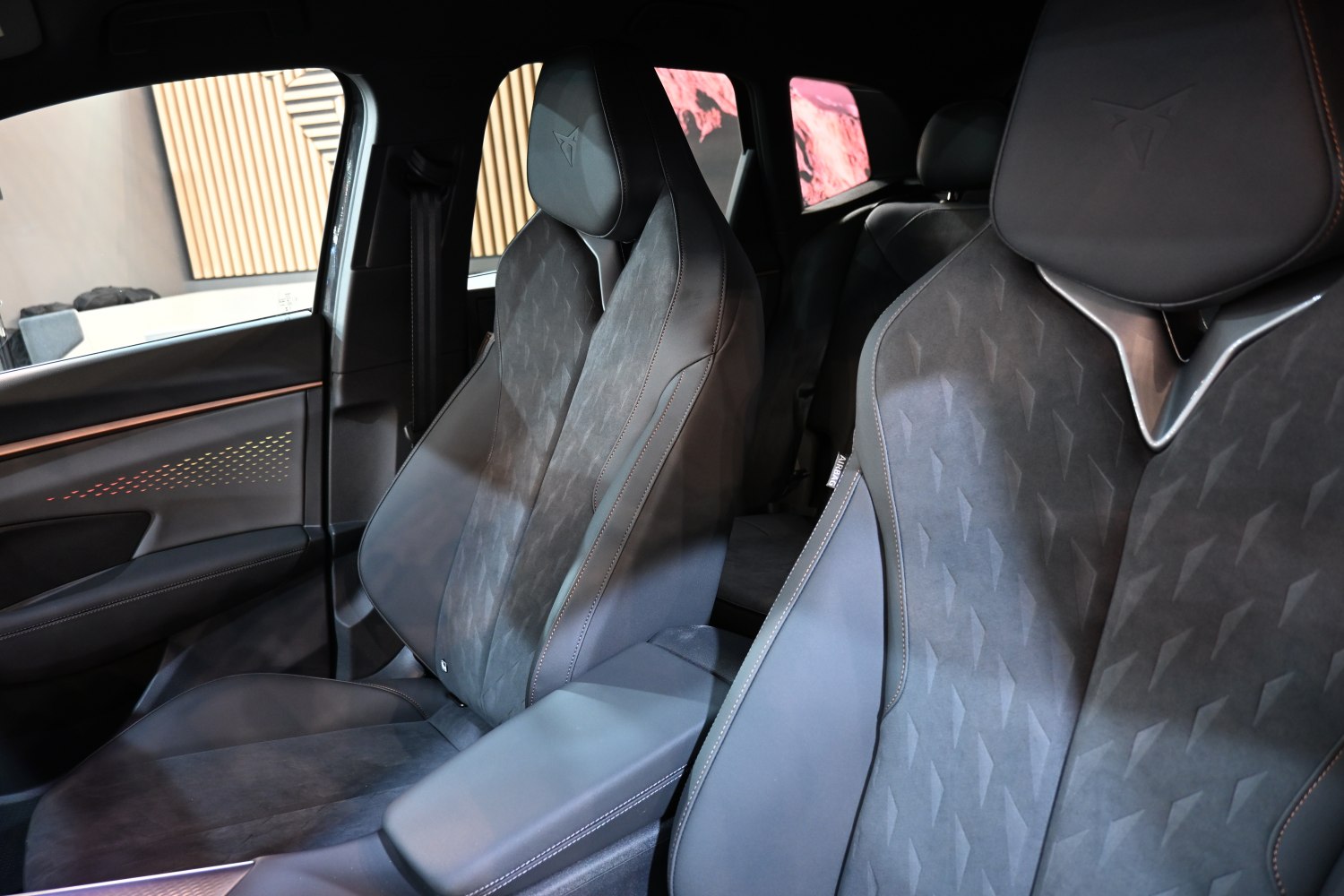

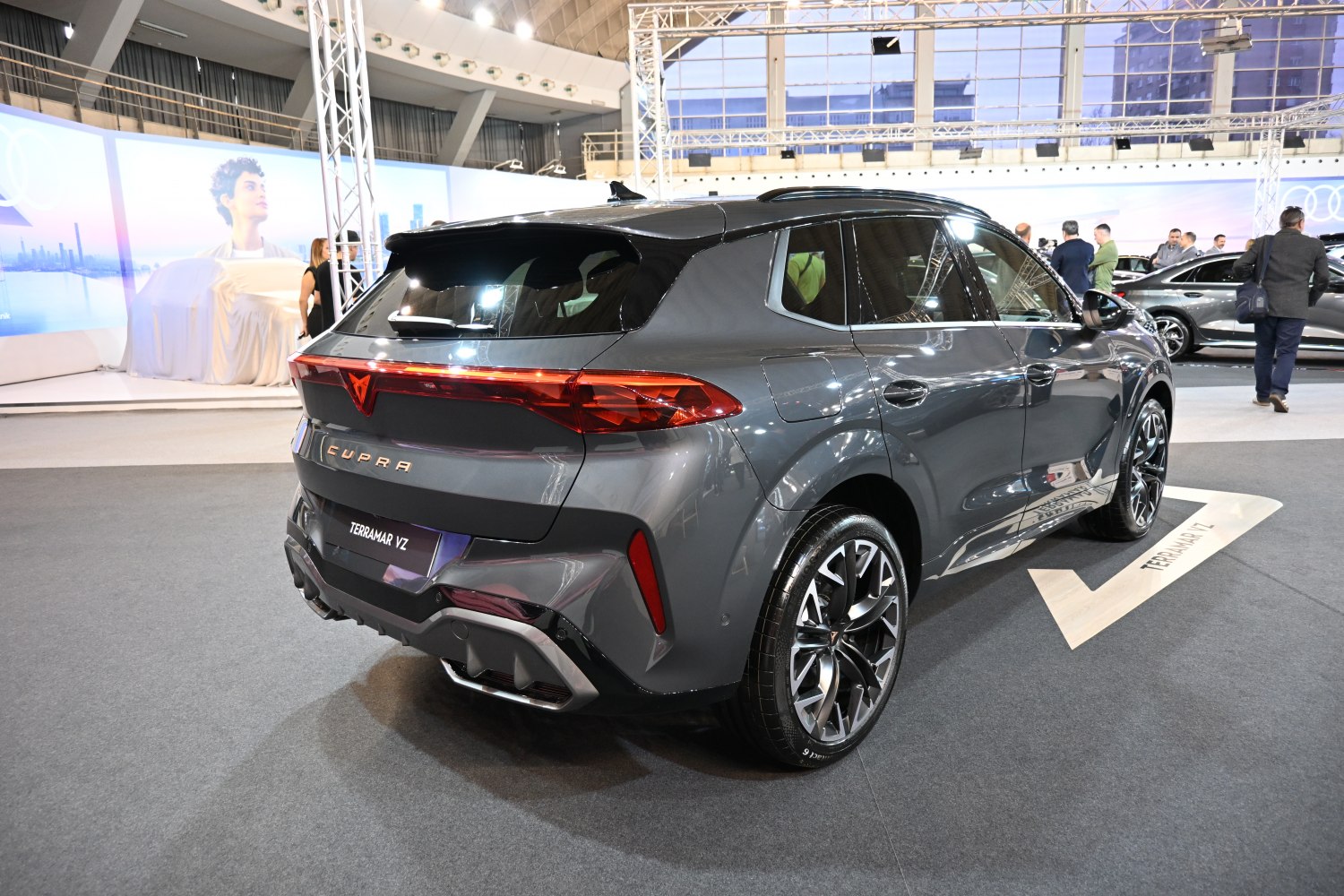

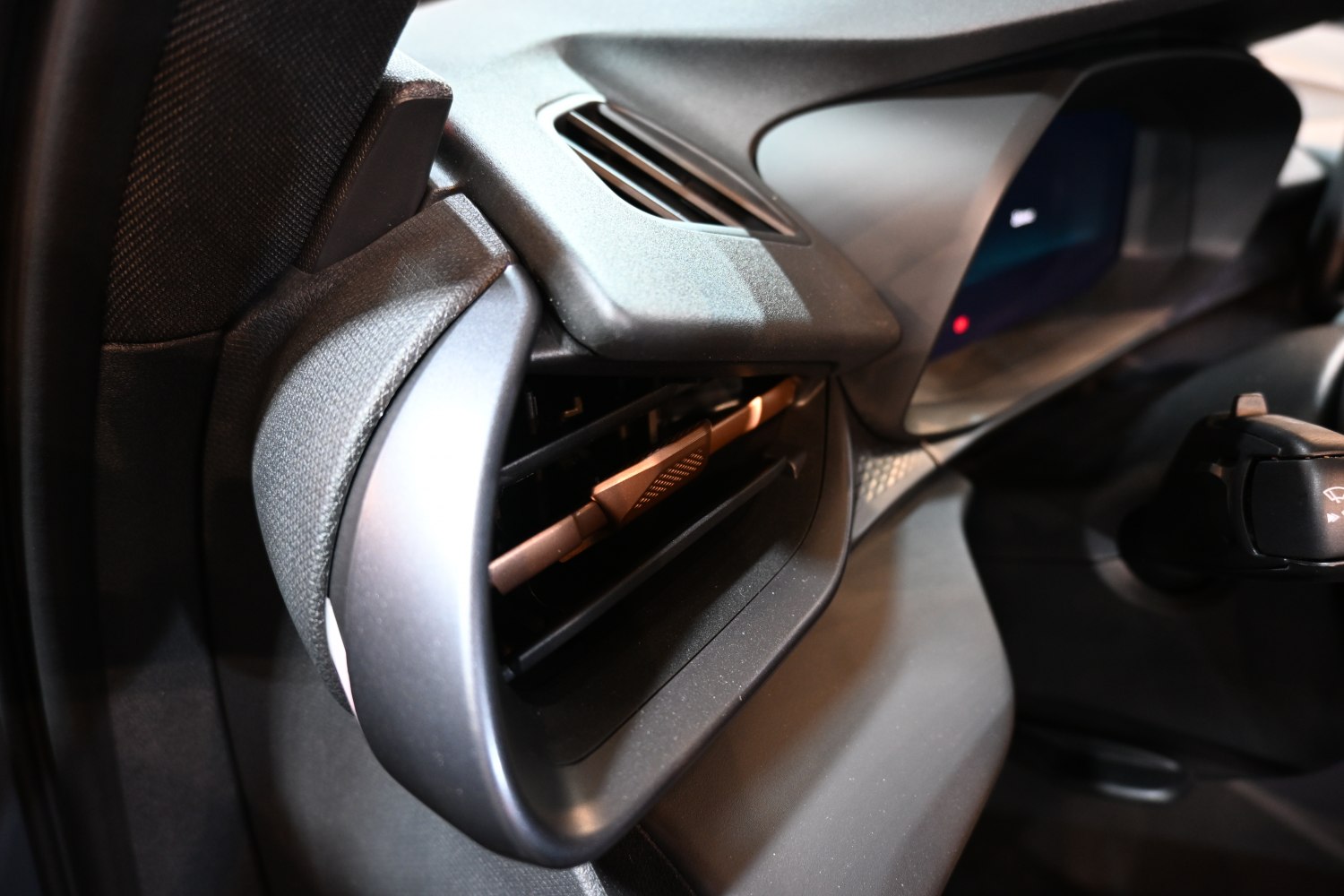

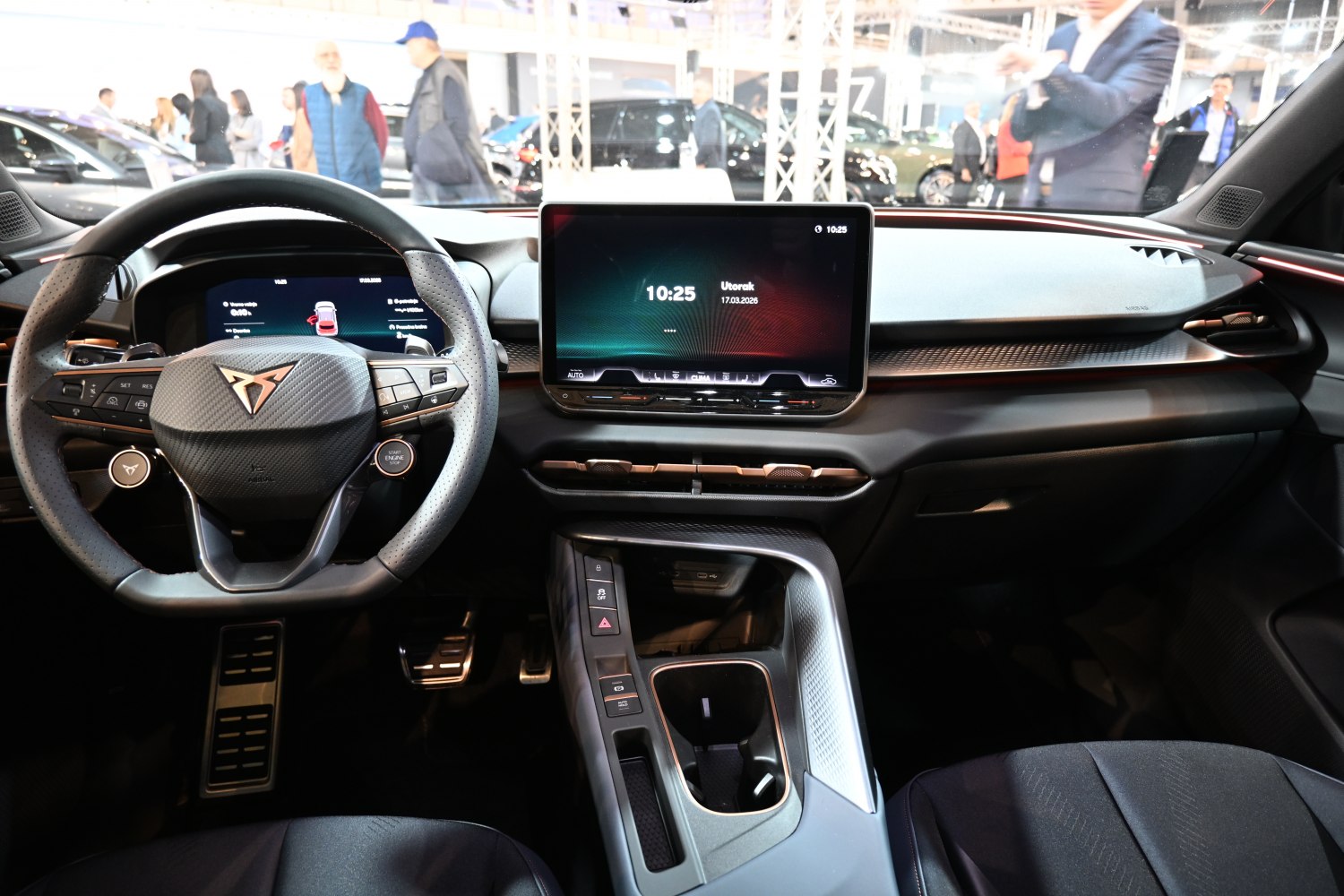

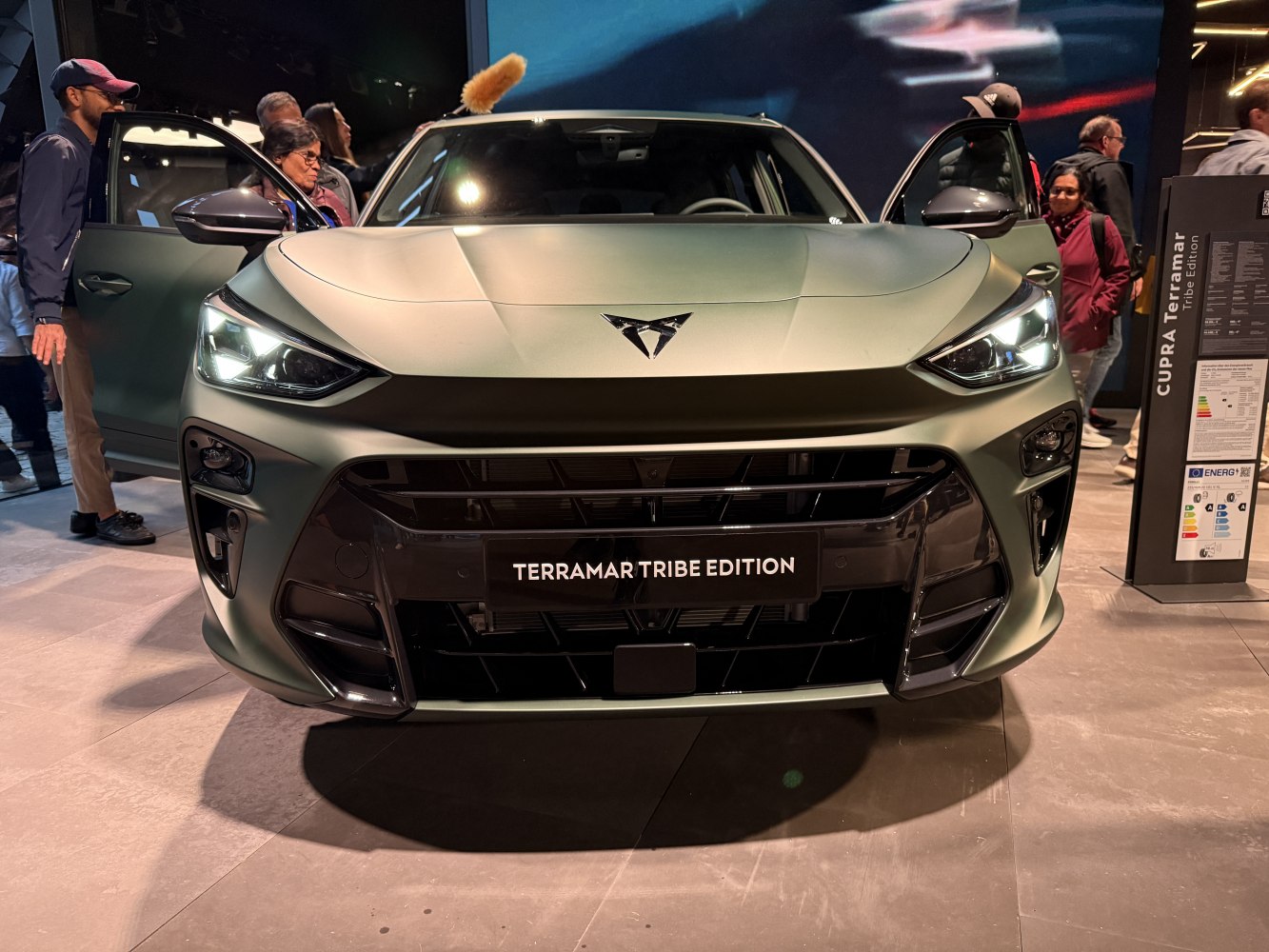

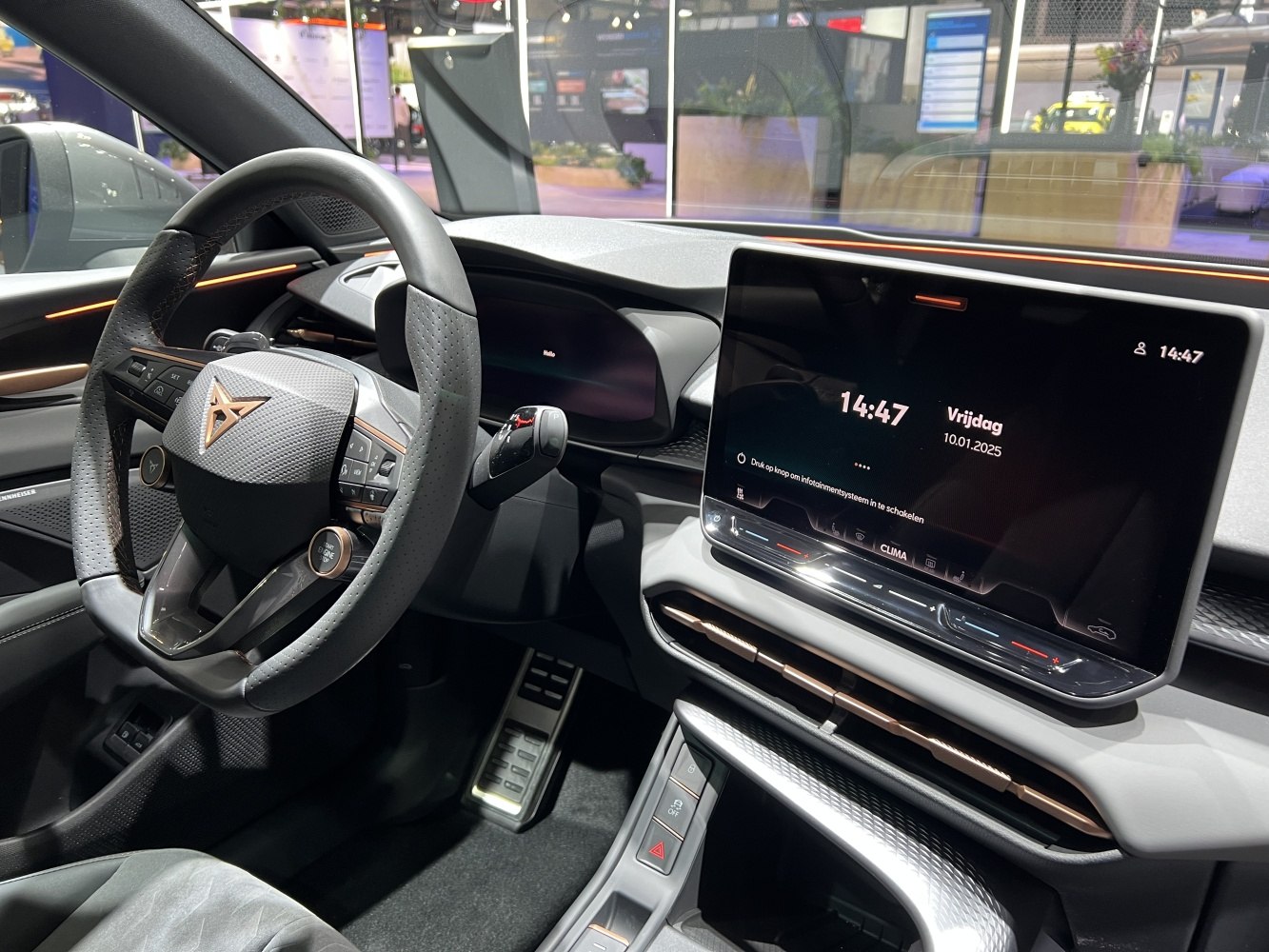

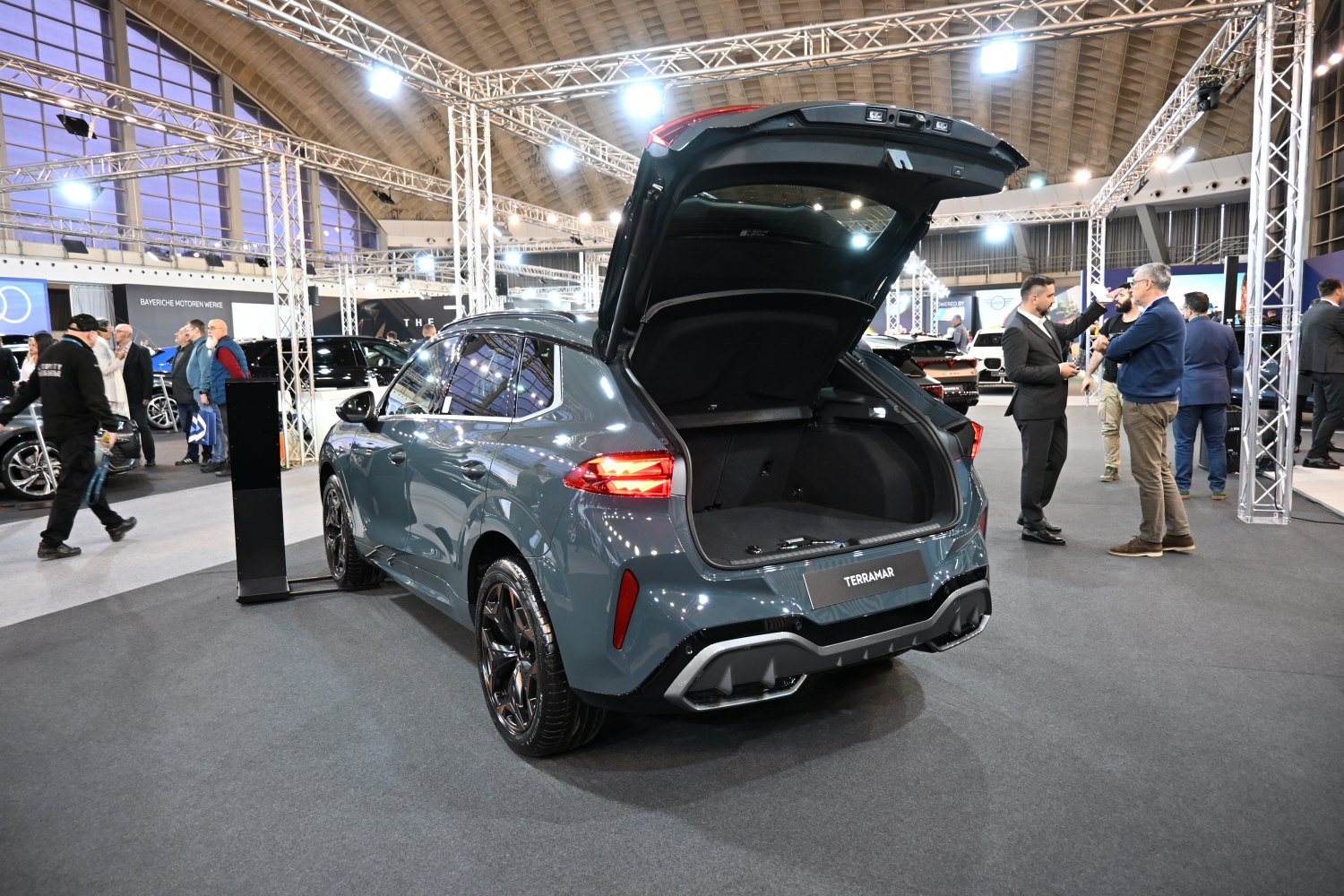

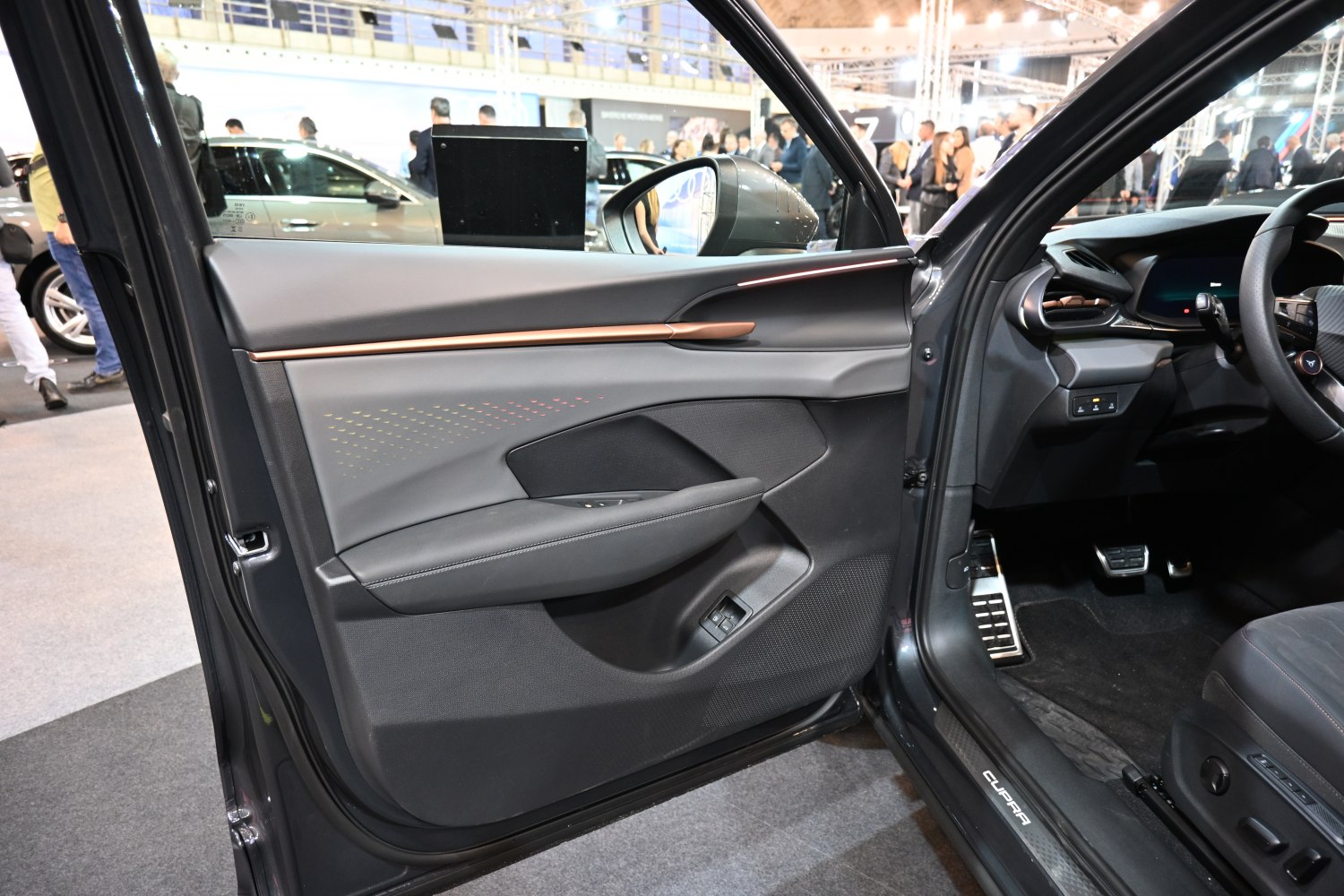

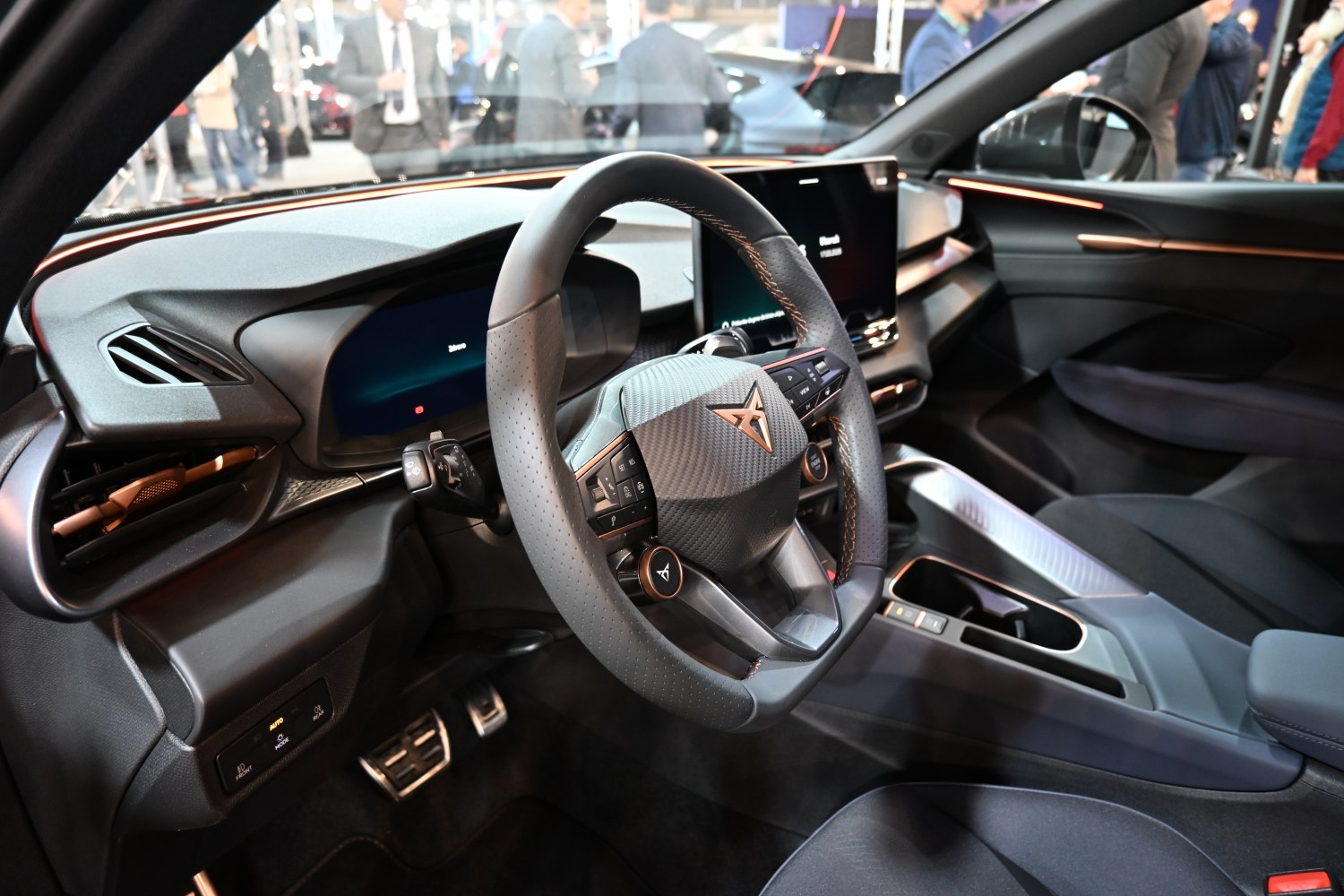

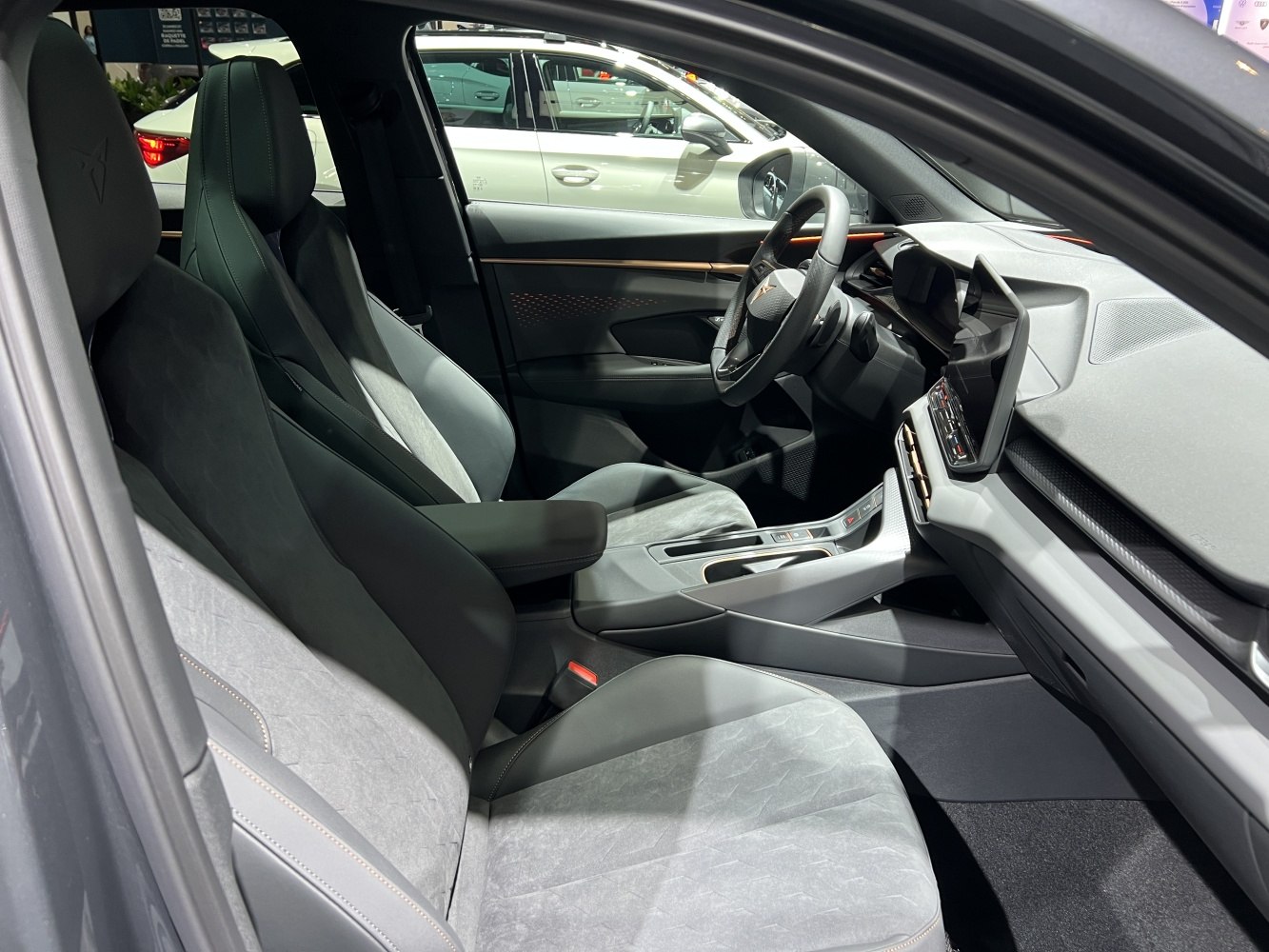

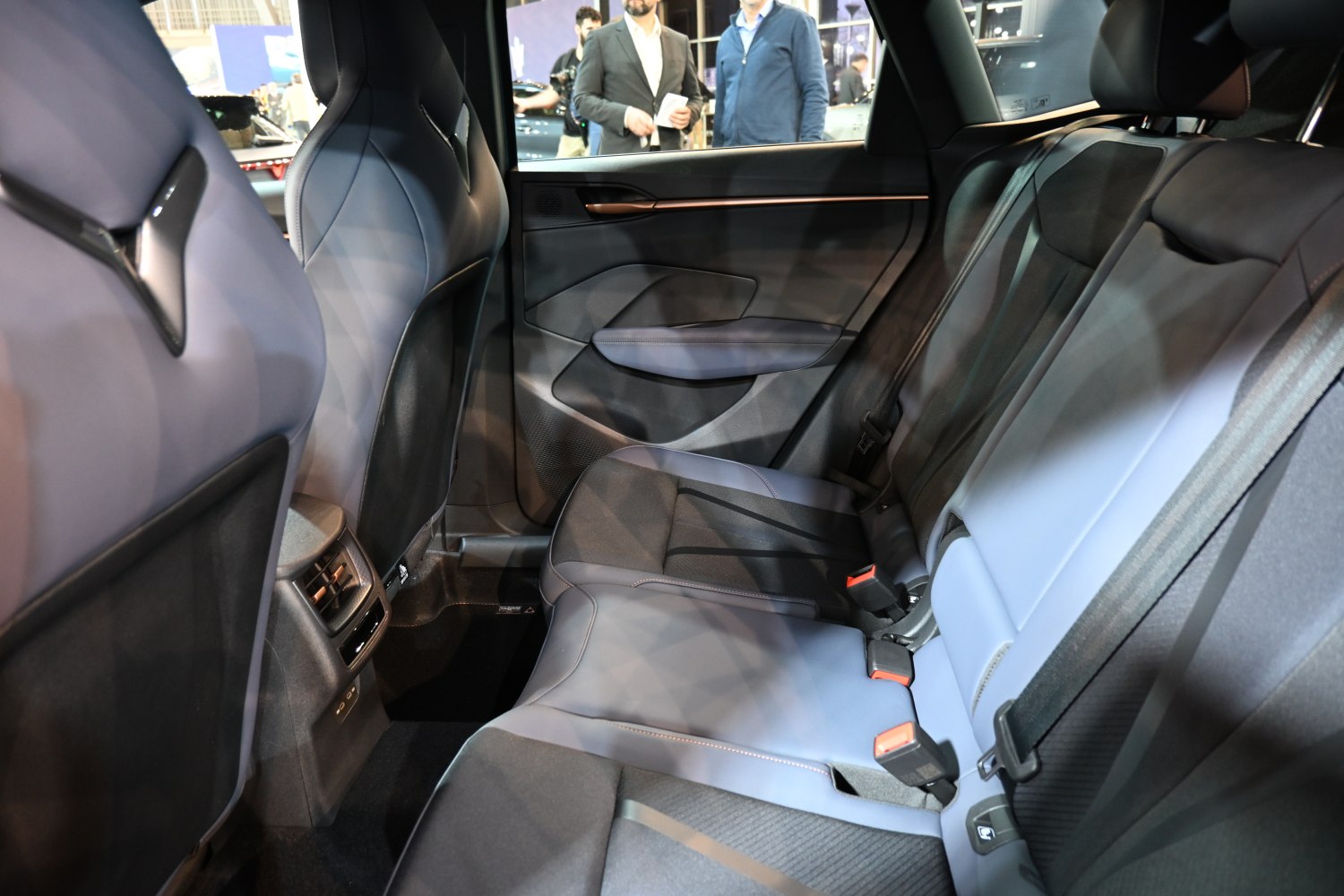

Vehicle photos
1 of 61
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
5 versions · 3 Gasoline · 2 Gasoline / Electricity
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.5 eTSI (150 KM) Mild Hybrid DSG Selected | Gasoline | 150 KM | 2024–present |
| 2.0 TSI (265 KM) 4Drive DSG Selected | Gasoline | 265 KM | 2024–present |
| 1.5 TSI (272 KM) e-Hybrid DSG Selected | Gasoline / Electricity | 177 KM | 2024–present |
| 1.5 TSI (204 KM) e-Hybrid DSG Selected | Gasoline / Electricity | 150 KM | 2024–present |
| 2.0 TSI (204 KM) 4Drive DSG Selected | Gasoline | 204 KM | 2024–present |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.5 eTSI (150 KM) Mild Hybrid DSG
Gasoline · 2024–present
- Engine power
- 150KM
- Torque
- 250Nm
- Engine displacement
- 1,498cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.3s
- Maximum speed
- 205km/h
On this page
Basic version information
Cupra Terramar Terramar- Brand
- Cupra
- Model
- Terramar
- Version
- Terramar
- Engine
- 1.5 eTSI (150 KM) Mild Hybrid DSG
- Engine type
- MHEV (Mild Hybrid Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2024
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 9.3 s
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 6.1-6.6 l/100 km
- Emission standard
- Euro 6 EB
- CO2 measurement standard
- WLTP
- CO2 emissions
- 139-152 g/km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Engine model / code
- DXD
- Engine position
- Front, Transverse
- Engine displacement
- 1498 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 74.5 mm
- Piston stroke
- 85.9 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.3 l
- Power
- 150 KM @ 5000-6000 obr./min
- Torque
- 250 Nm @ 1500-3500 obr./min
Volume and weight
- Fuel tank
- 55 l
- Minimum trunk capacity
- 540 l
- Curb weight
- 1563 kg
- Gross weight
- 2180 kg
- Roof load
- 75 kg
- Braked trailer load (12% slope start)
- 1800 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 80 kg
Vehicle dimensions
- Length
- 4519 mm
- Width
- 1869 mm
- Width with unfolded mirrors
- 2087 mm
- Height
- 1586 mm
- Wheelbase
- 2681 mm
- Front track
- 1590 mm
- Rear track
- 1580 mm
- Front overhang
- 936 mm
- Rear overhang
- 902 mm
- Turning circle
- 11.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- With spring struts, Coil spring, Independent McPherson type
- Rear suspension
- With spring struts, Independent multi-link suspension, Coil spring
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 340 mm
- Front brake disc thickness
- 30 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 310 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 235/55 R18; 255/45 R19; 255/40 R20
- Rim size
- 8J x 18 ET38; 8.5J x 19 ET38; 8.5J x 20 ET38
- ABS
- yes
Selected engine version
2.0 TSI (265 KM) 4Drive DSG
Gasoline · 2024–present
- Engine power
- 265KM
- Torque
- 400Nm
- Engine displacement
- 1,984cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 5.9s
- Maximum speed
- 243km/h
On this page
Basic version information
Cupra Terramar Terramar- Brand
- Cupra
- Model
- Terramar
- Version
- Terramar
- Engine
- 2.0 TSI (265 KM) 4Drive DSG
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2024
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 243 km/h
- Acceleration 0-100 km/h
- 5.9 s
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 8.4-8.8 l/100 km
- Emission standard
- Euro 6 EB
- CO2 measurement standard
- WLTP
- CO2 emissions
- 191-199 g/km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Engine position
- Front, Transverse
- Engine displacement
- 1984 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82.5 mm
- Piston stroke
- 92.8 mm
- Compression ratio
- 9.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6.6 l
- Power
- 265 KM @ 5300-6500 obr./min
- Torque
- 400 Nm @ 1650-4350 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 540 l
- Curb weight
- 1675 kg
- Gross weight
- 2290 kg
- Roof load
- 75 kg
- Braked trailer load (12% slope start)
- 2200 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 80 kg
Vehicle dimensions
- Length
- 4519 mm
- Width
- 1869 mm
- Width with unfolded mirrors
- 2087 mm
- Height
- 1586 mm
- Wheelbase
- 2681 mm
- Front track
- 1590 mm
- Rear track
- 1580 mm
- Front overhang
- 936 mm
- Rear overhang
- 902 mm
- Turning circle
- 11.5 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- With spring struts, Coil spring, Independent McPherson type
- Rear suspension
- With spring struts, Independent multi-link suspension, Coil spring
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 340 mm
- Front brake disc thickness
- 30 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 310 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 235/55 R18; 255/45 R19; 255/40 R20
- Rim size
- 8J x 18 ET38; 8.5J x 19 ET38; 8.5J x 20 ET38
- ABS
- yes
Selected engine version
1.5 TSI (272 KM) e-Hybrid DSG
Gasoline / Electricity · 2024–present
- Engine power
- 177KM
- Torque
- 250Nm
- Engine displacement
- 1,498cm³
- Fuel type
- Gasoline / Electricity
- Acceleration 0-100 km/h
- 7.3s
- Maximum speed
- 215km/h
On this page
Basic version information
Cupra Terramar Terramar- Brand
- Cupra
- Model
- Terramar
- Version
- Terramar
- Engine
- 1.5 TSI (272 KM) e-Hybrid DSG
- Engine type
- PHEV (Plug-in Hybrid Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2024
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline / Electricity
Performance
- Maximum speed
- 215 km/h
- Acceleration 0-100 km/h
- 7.3 s
- Battery gross capacity
- 25.8 kWh
- Net battery capacity
- 19.7 kWh
- Electric range measurement standard
- WLTP
- All-electric range
- 110-120 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 0.4-0.5 l/100 km
- Energy consumption measurement standard
- WLTP
- Average energy consumption
- 17.6-19 kWh/100 km
- Emission standard
- Euro 6 EA
- CO2 measurement standard
- WLTP
- CO2 emissions
- 10-12 g/km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Max electric motor power
- 116 KM
- Electric motor torque
- 330 Nm
- Electric motor position
- Między silnikiem spalinowym a skrzynią biegów
- System power
- 272 KM
- System torque
- 400 Nm
- Engine position
- Front, Transverse
- Engine displacement
- 1498 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 74.5 mm
- Piston stroke
- 85.9 mm
- Compression ratio
- 11.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.8 l
- Power
- 177 KM @ 5500-6000 obr./min
- Torque
- 250 Nm @ 1500-4000 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 450 l
- Curb weight
- 1829 kg
- Gross weight
- 2420 kg
- Roof load
- 75 kg
- Braked trailer load (12% slope start)
- 2000 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 80 kg
Vehicle dimensions
- Length
- 4519 mm
- Width
- 1869 mm
- Width with unfolded mirrors
- 2087 mm
- Height
- 1586 mm
- Wheelbase
- 2681 mm
- Front track
- 1590 mm
- Rear track
- 1580 mm
- Front overhang
- 936 mm
- Rear overhang
- 902 mm
- Turning circle
- 11.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- DSG
- Front suspension
- With spring struts, Coil spring, Independent McPherson type
- Rear suspension
- With spring struts, Independent multi-link suspension, Coil spring
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 340 mm
- Front brake disc thickness
- 30 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 310 mm
- Rear brake disc thickness
- 22 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 235/55 R18; 255/45 R19; 255/40 R20
- Rim size
- 8J x 18 ET38; 8.5J x 19 ET38; 8.5J x 20 ET38
- ABS
- yes
Selected engine version
1.5 TSI (204 KM) e-Hybrid DSG
Gasoline / Electricity · 2024–present
- Engine power
- 150KM
- Torque
- 250Nm
- Engine displacement
- 1,498cm³
- Fuel type
- Gasoline / Electricity
- Acceleration 0-100 km/h
- 8.3s
- Maximum speed
- 205km/h
On this page
Basic version information
Cupra Terramar Terramar- Brand
- Cupra
- Model
- Terramar
- Version
- Terramar
- Engine
- 1.5 TSI (204 KM) e-Hybrid DSG
- Engine type
- PHEV (Plug-in Hybrid Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2024
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline / Electricity
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 8.3 s
- Battery gross capacity
- 25.8 kWh
- Net battery capacity
- 19.7 kWh
- Electric range measurement standard
- WLTP
- All-electric range
- 113-120 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 0.4-0.5 l/100 km
- Energy consumption measurement standard
- WLTP
- Average energy consumption
- 17.6-19.0 kWh/100 km
- Emission standard
- Euro 6 EA
- CO2 measurement standard
- WLTP
- CO2 emissions
- 10-12 g/km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Max electric motor power
- 116 KM
- Electric motor position
- Między silnikiem spalinowym a skrzynią biegów
- System power
- 204 KM
- System torque
- 350 Nm
- Engine position
- Front, Transverse
- Engine displacement
- 1498 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 74.5 mm
- Piston stroke
- 85.9 mm
- Compression ratio
- 11.5
- Number of valves per cylinder
- 4
- Power
- 150 KM @ 5000-6000 obr./min
- Torque
- 250 Nm @ 1500-4000 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 450 l
- Curb weight
- 1823 kg
- Gross weight
- 2410 kg
- Roof load
- 75 kg
- Braked trailer load (12% slope start)
- 1800 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 80 kg
Vehicle dimensions
- Length
- 4519 mm
- Width
- 1869 mm
- Height
- 1586 mm
- Wheelbase
- 2681 mm
- Front track
- 1590 mm
- Rear track
- 1580 mm
- Turning circle
- 11.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- DSG
- Front suspension
- With spring struts, Coil spring, Independent McPherson type
- Rear suspension
- With spring struts, Independent multi-link suspension, Coil spring
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 235/55 R18; 255/45 R19; 255/45 R20
- Rim size
- 8J x 18 ET38; 8.5J x 19 ET38; 8.5J x 20 ET38
- ABS
- yes
Selected engine version
2.0 TSI (204 KM) 4Drive DSG
Gasoline · 2024–present
- Engine power
- 204KM
- Torque
- 320Nm
- Engine displacement
- 1,984cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 7.1s
- Maximum speed
- 225km/h
On this page
Basic version information
Cupra Terramar Terramar- Brand
- Cupra
- Model
- Terramar
- Version
- Terramar
- Engine
- 2.0 TSI (204 KM) 4Drive DSG
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2024
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 225 km/h
- Acceleration 0-100 km/h
- 7.1 s
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 7.5-8 l/100 km
- Emission standard
- Euro 6 EB
- CO2 measurement standard
- WLTP
- CO2 emissions
- 171-182 g/km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Engine position
- Front, Transverse
- Engine displacement
- 1984 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 82.5 mm
- Piston stroke
- 92.8 mm
- Compression ratio
- 12.2
- Number of valves per cylinder
- 4
- Power
- 204 KM @ 4500-6000 obr./min
- Torque
- 320 Nm @ 1500-4400 obr./min
Volume and weight
- Fuel tank
- 60 l
- Minimum trunk capacity
- 540 l
- Curb weight
- 1665 kg
- Gross weight
- 2280 kg
- Roof load
- 75 kg
- Braked trailer load (8% slope start)
- 2200 kg
- Braked trailer load (12% slope start)
- 2200 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 80 kg
Vehicle dimensions
- Length
- 4519 mm
- Width
- 1869 mm
- Width with unfolded mirrors
- 2087 mm
- Height
- 1586 mm
- Wheelbase
- 2681 mm
- Front track
- 1590 mm
- Rear track
- 1580 mm
- Front overhang
- 936 mm
- Rear overhang
- 902 mm
- Turning circle
- 11.5 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 340 mm
- Front brake disc thickness
- 30 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 300 mm
- Rear brake disc thickness
- 12 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 235/55 R18; 255/45 R19; 255/40 R20
- Rim size
- 8J x 18; 8.5J x 19; 8.5J x 20
- ABS
- yes
