Vehicle specifications
Citroen C5 II (Phase II, 2012)
Compare all 12 engine versions of the Citroen C5 C5 II (Phase II, 2012), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Citroen C5 II (Phase II, 2012)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

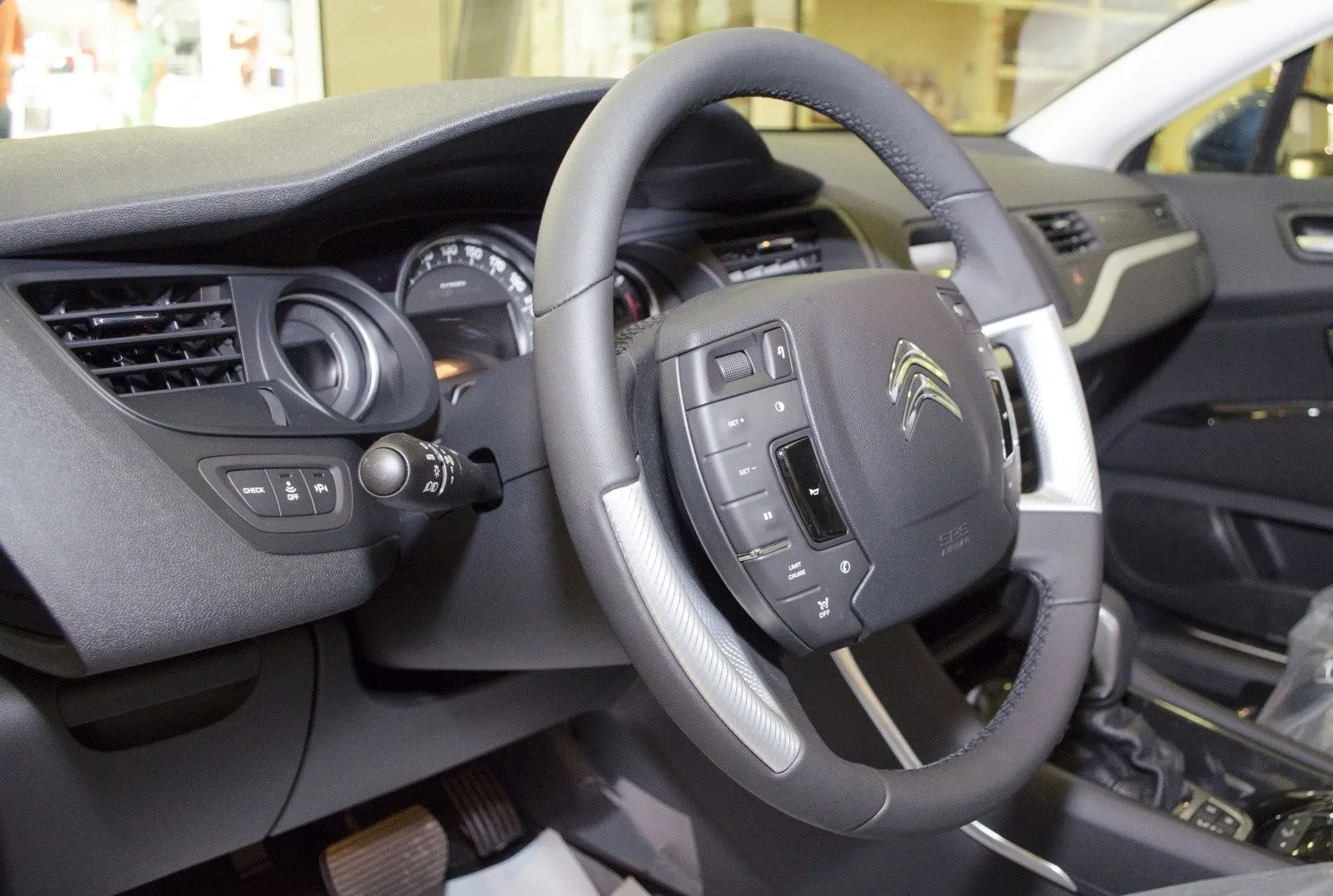

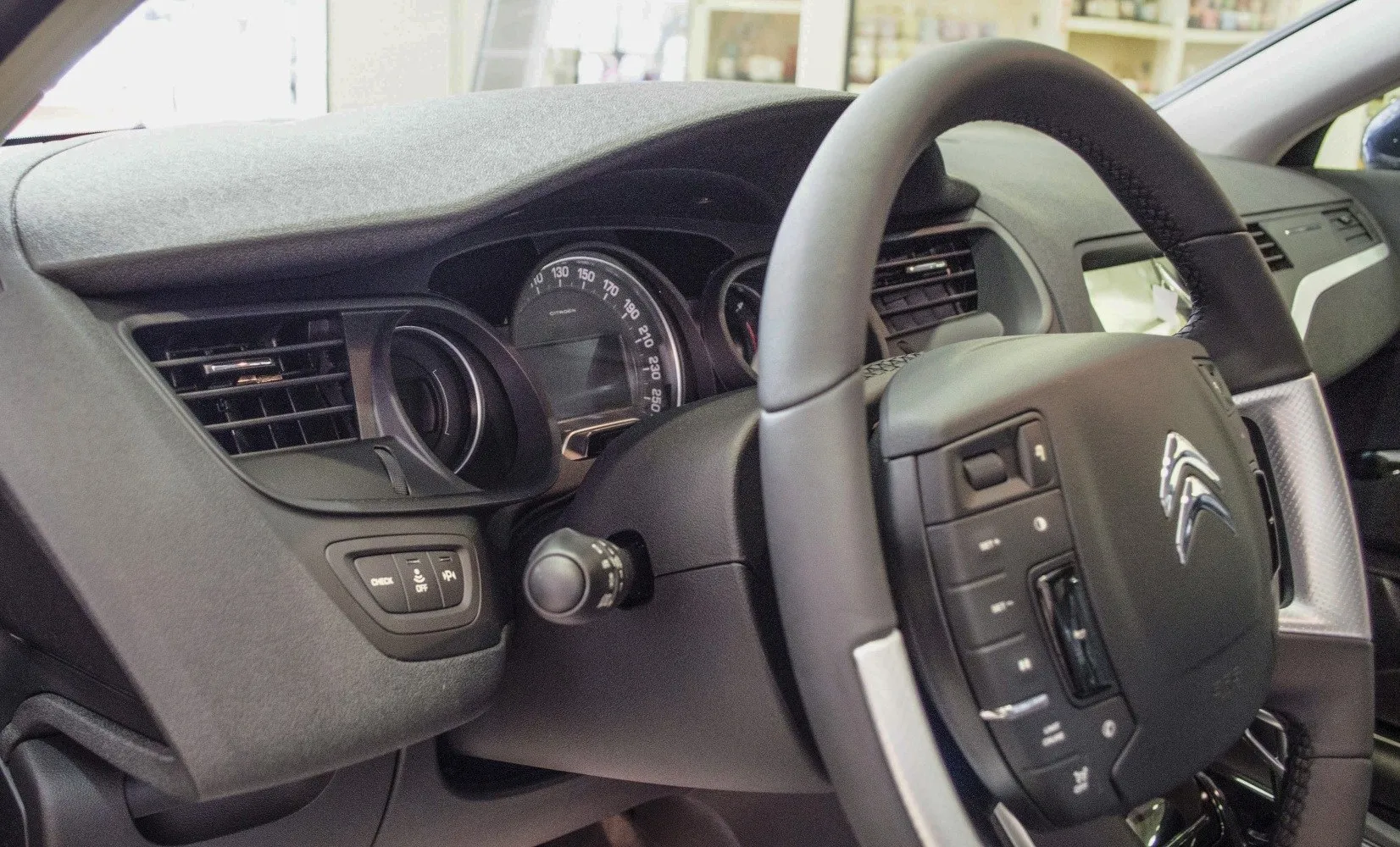

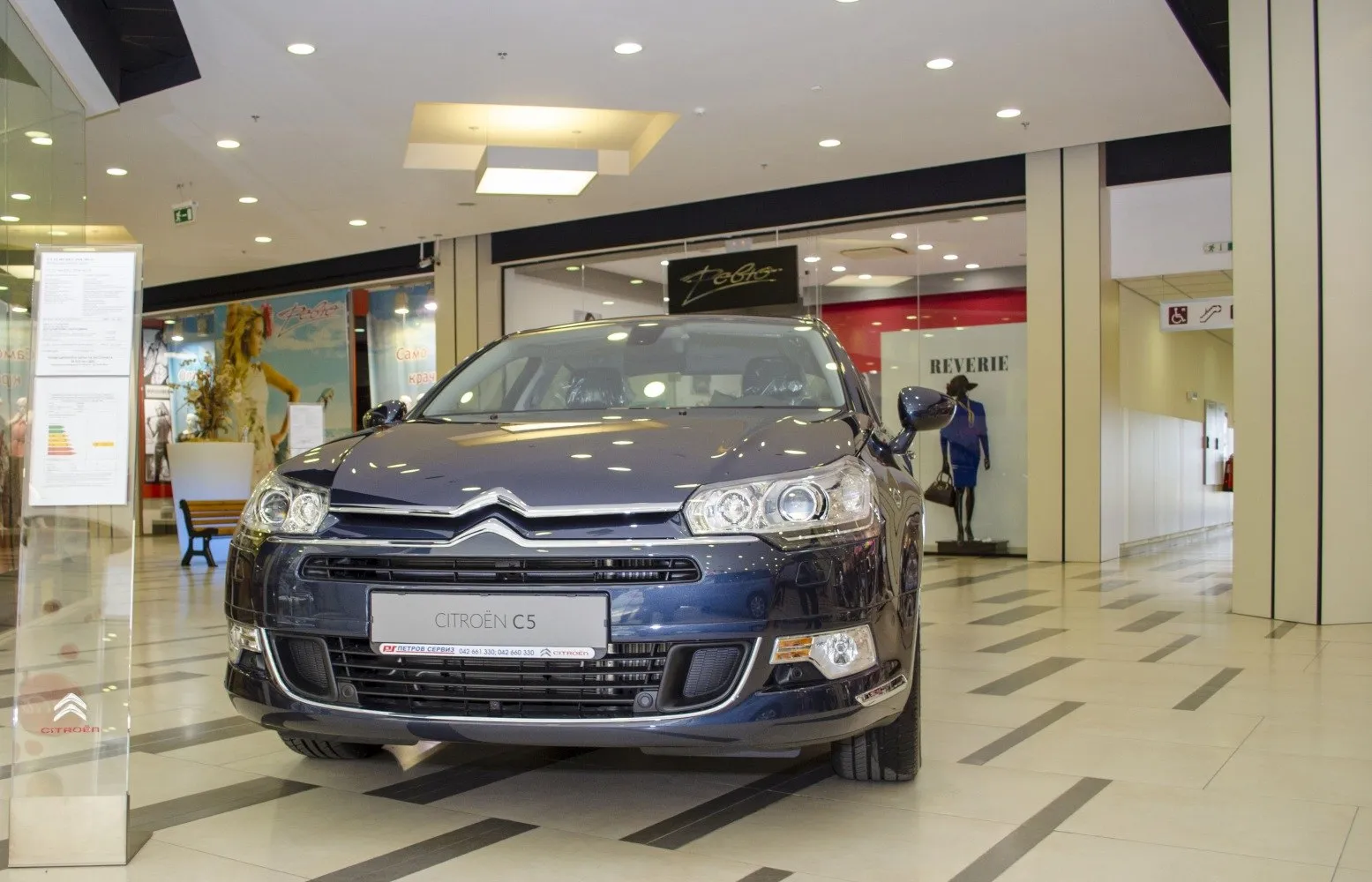

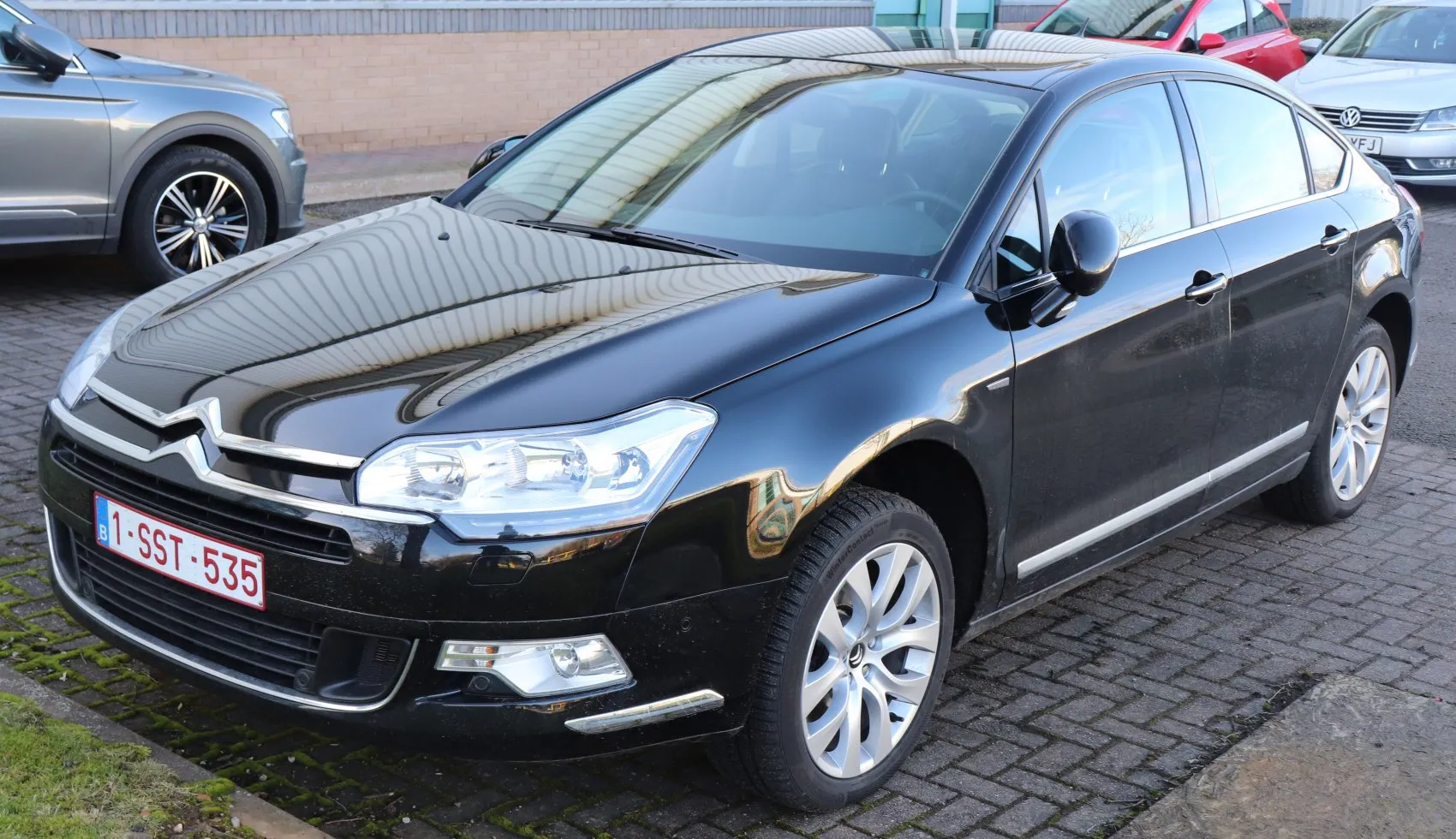

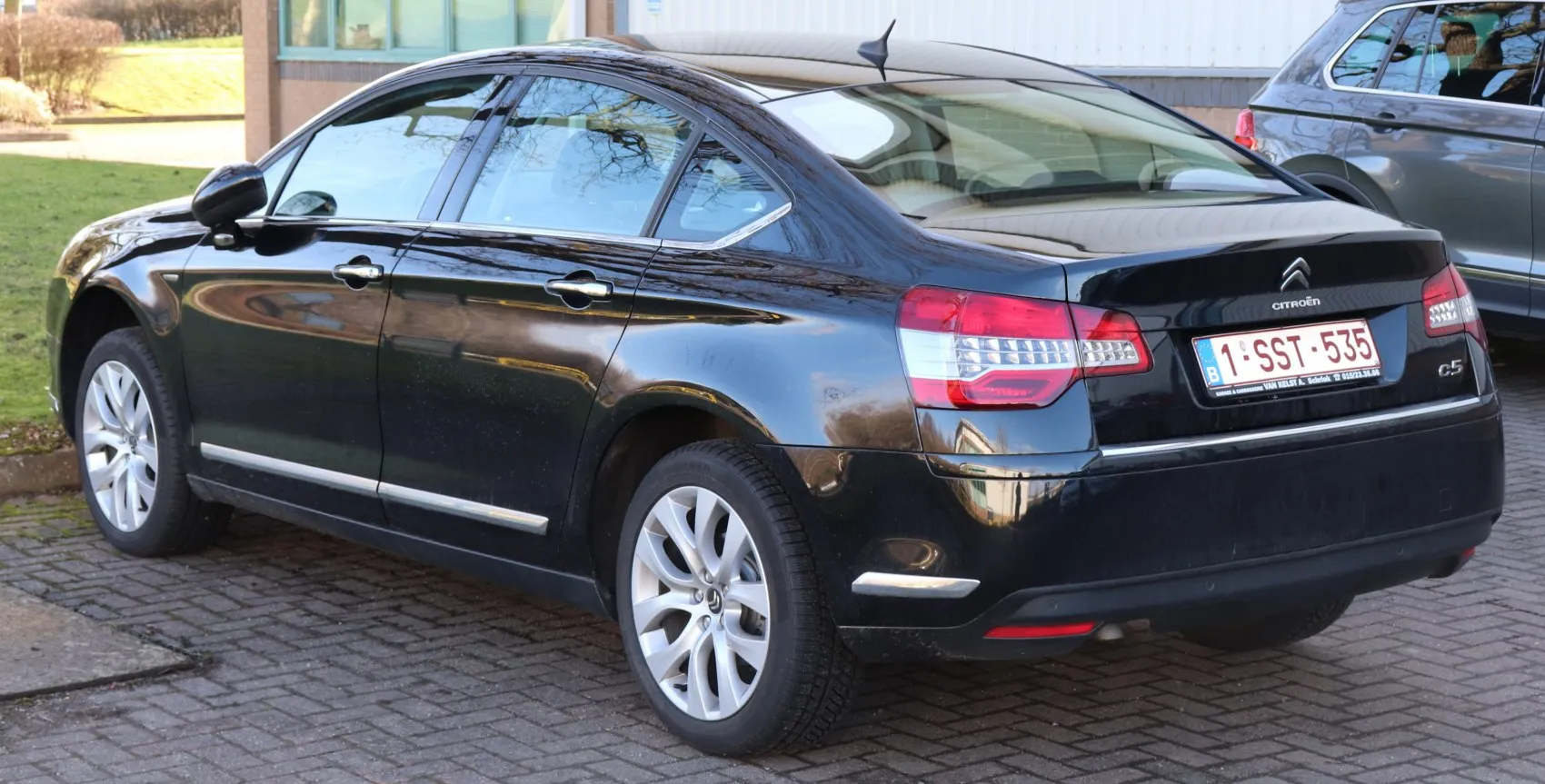

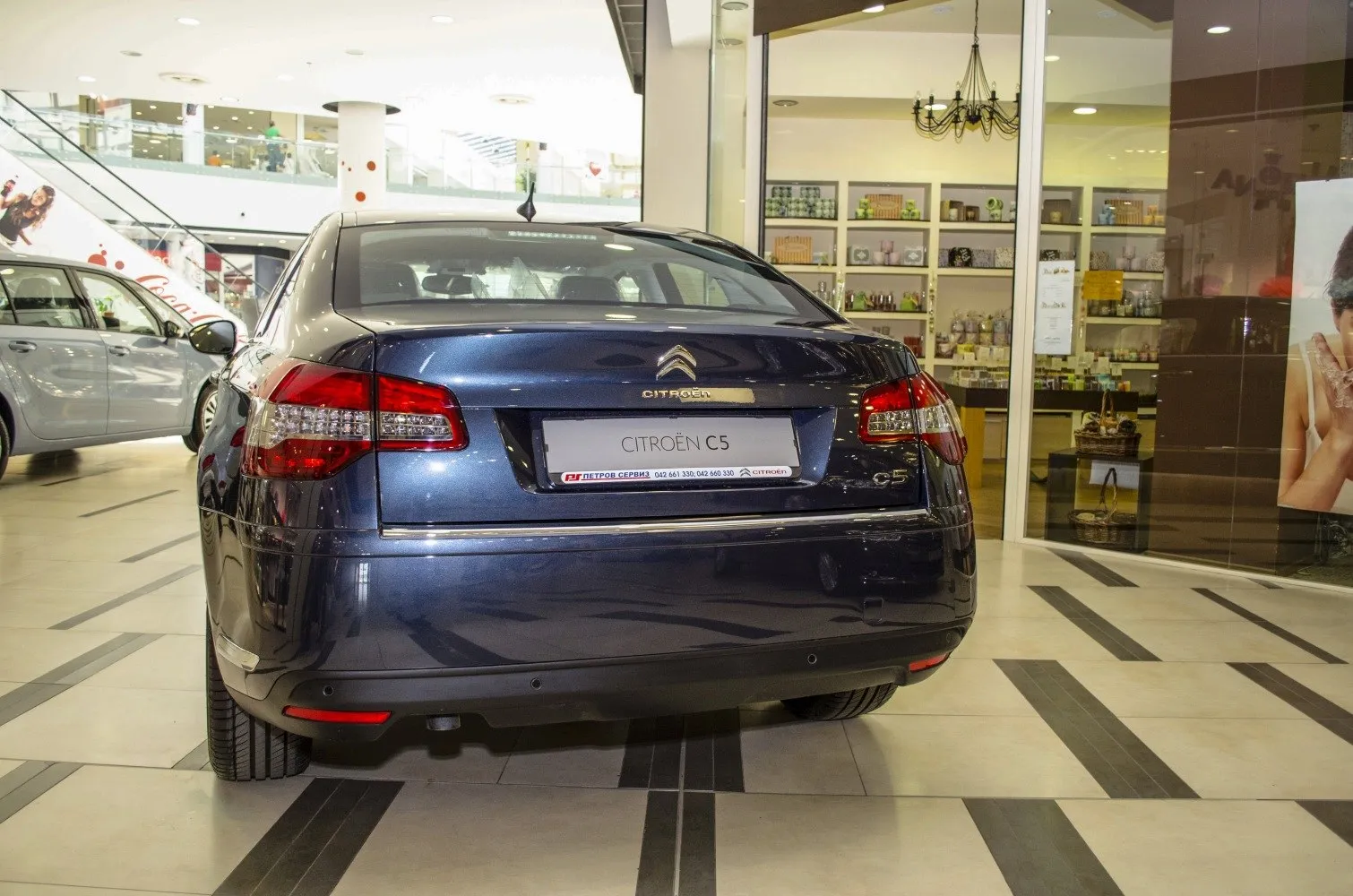

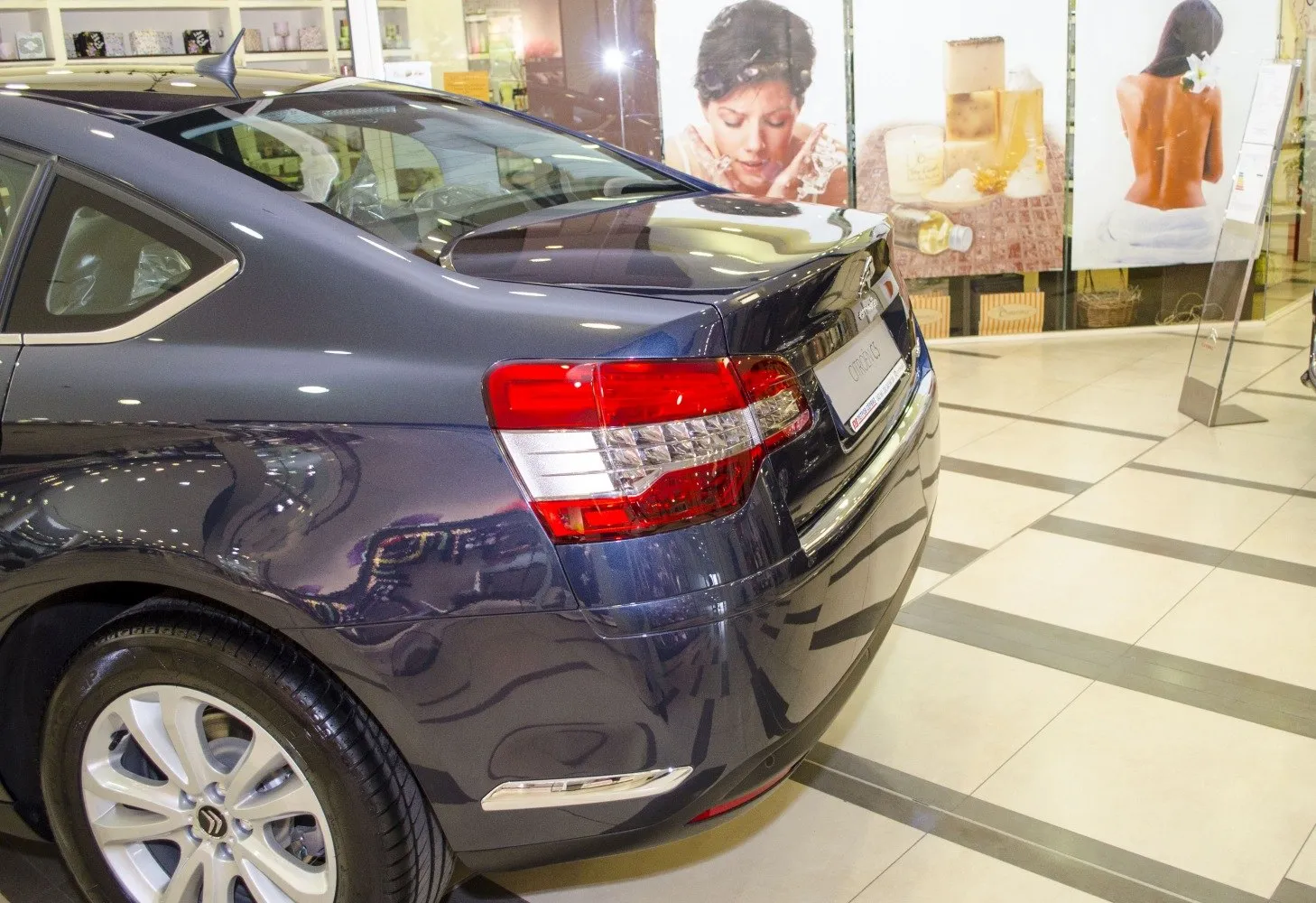

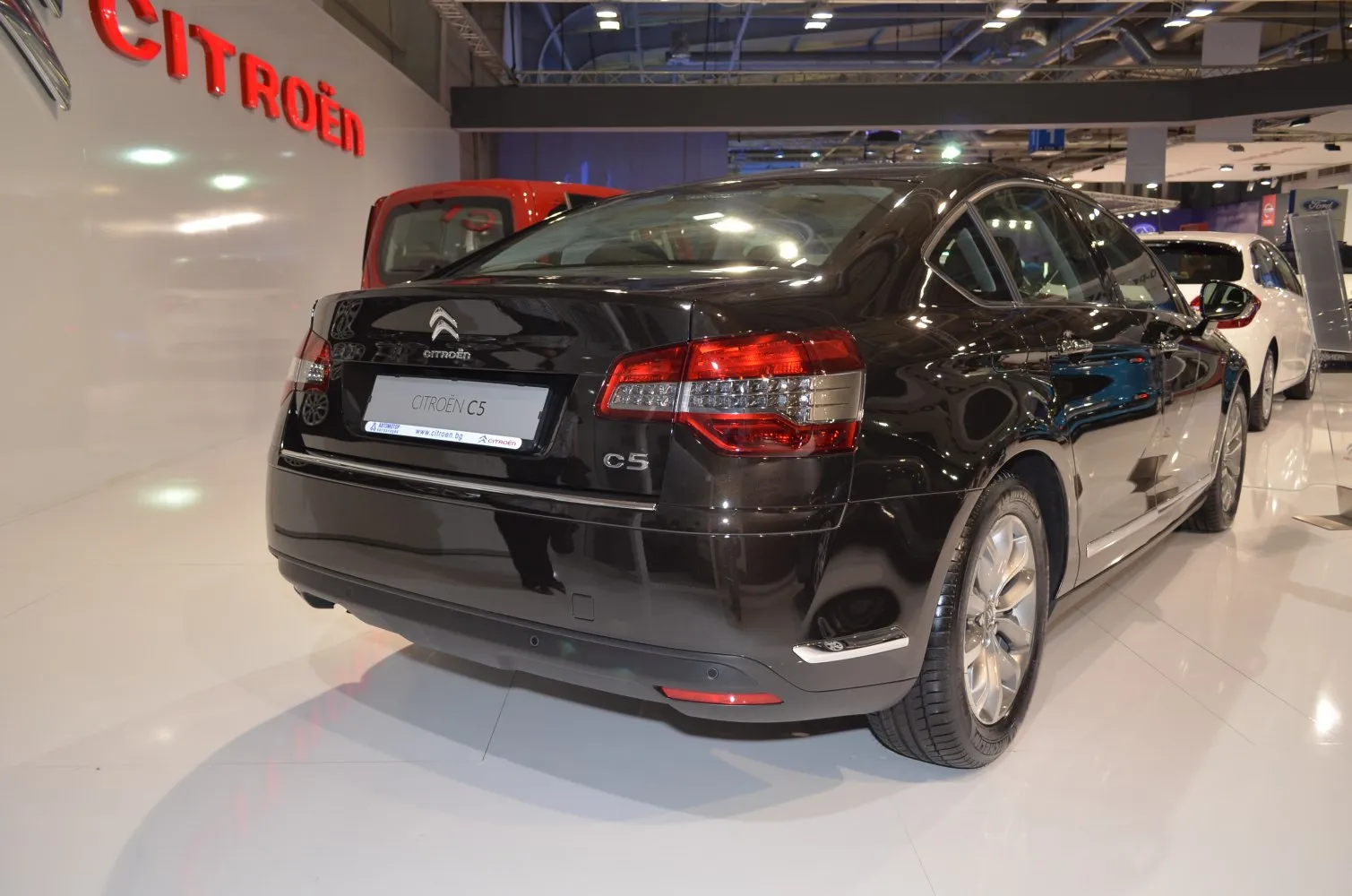

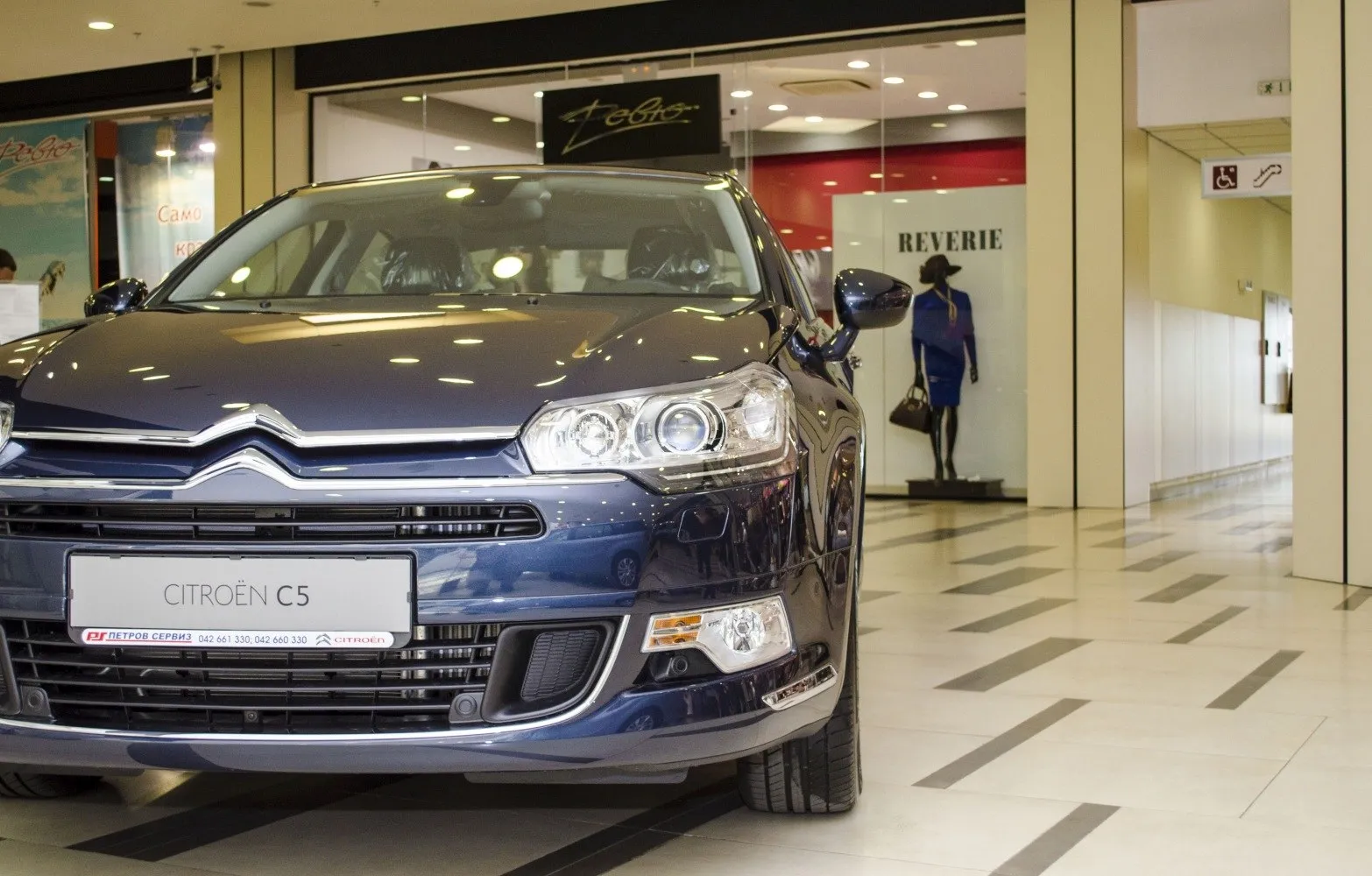

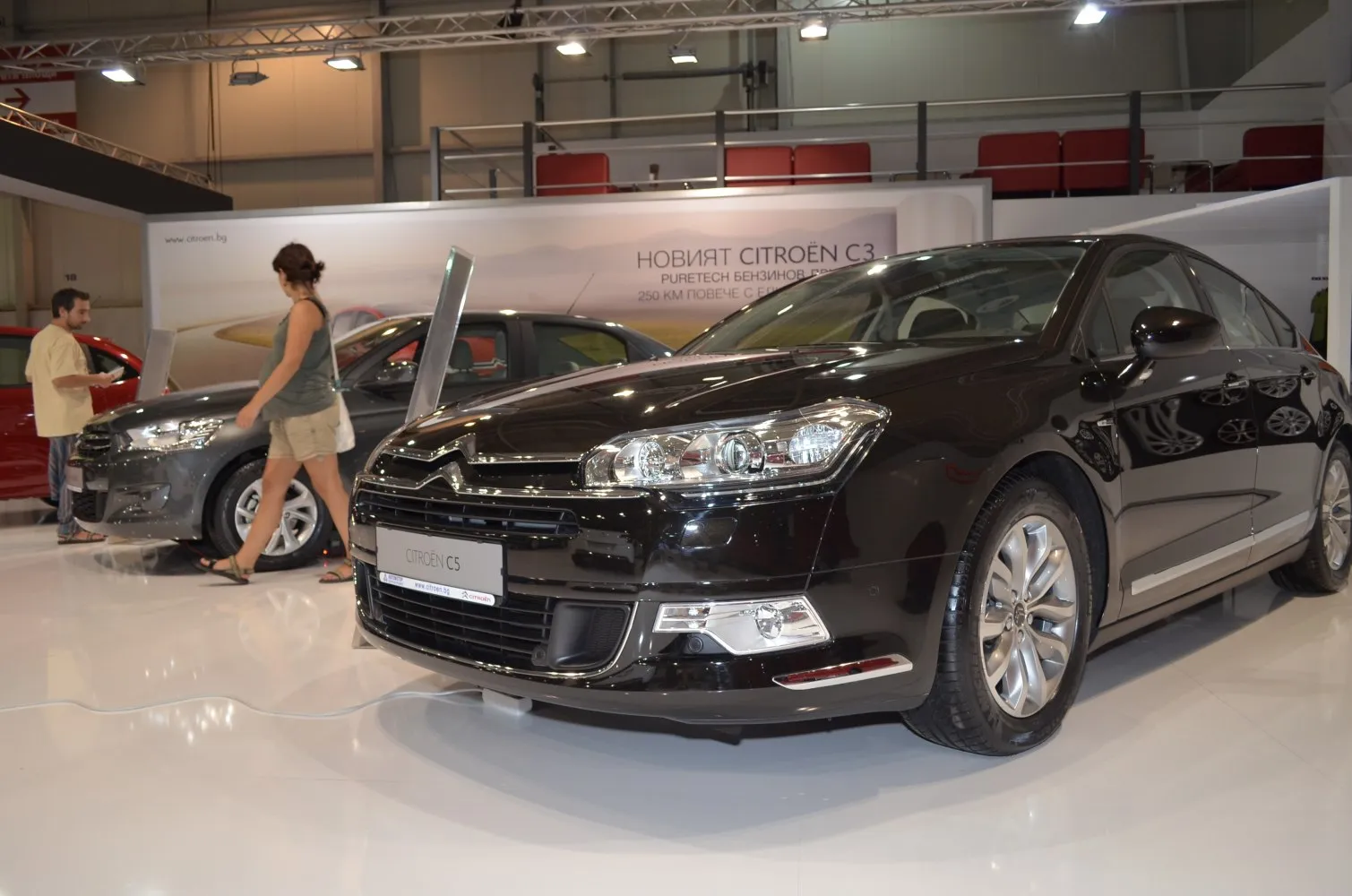

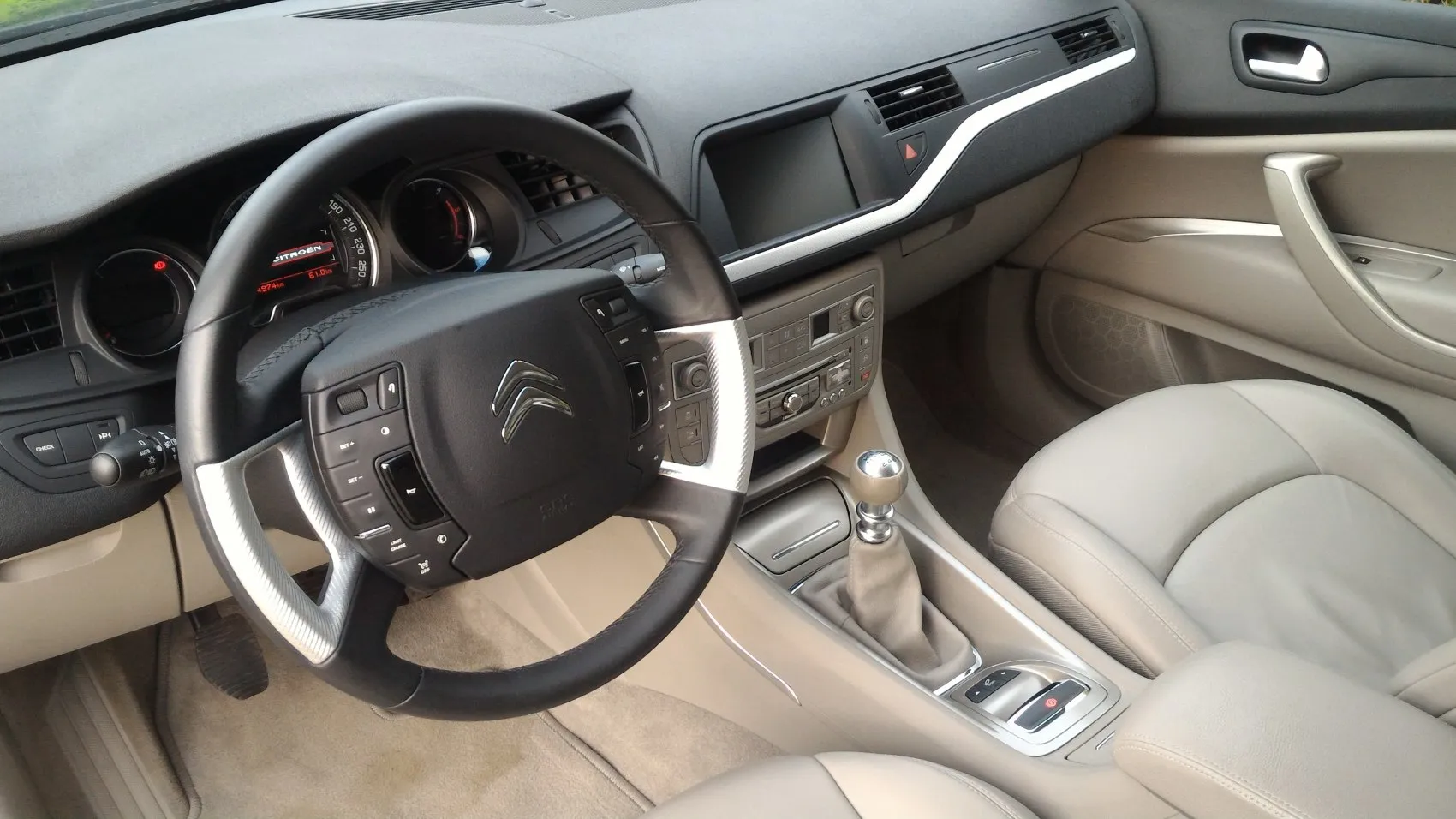

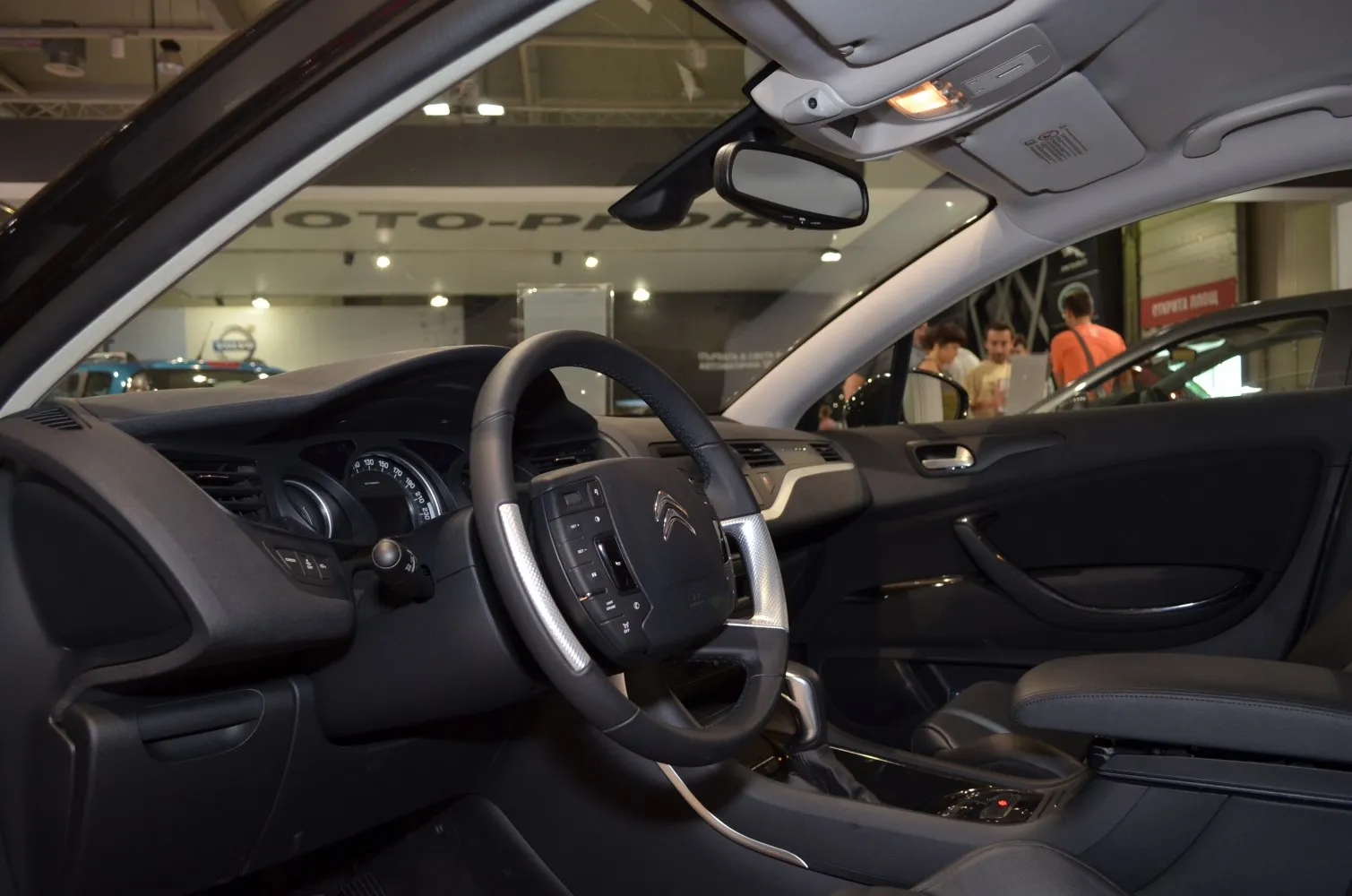

Vehicle photos
1 of 12
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
12 versions · 3 Gasoline · 9 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.6 THP (156 KM) Automatic Selected | Gasoline | 156 KM | 2012–2015 |
| 1.6 e-HDi (114 KM) Airdream EGS Selected | Diesel fuel | 114 KM | 2012–2015 |
| 2.0 HDi (163 KM) Selected | Diesel fuel | 163 KM | 2012–2015 |
| 1.6 VTi (120 KM) EGS Selected | Gasoline | 120 KM | 2012–2015 |
| 1.6 THP (156 KM) Selected | Gasoline | 156 KM | 2012–2015 |
| 2.0 HDi (163 KM) Automatic Selected | Diesel fuel | 163 KM | 2012–2015 |
| 2.2 HDi (204 KM) Automatic Selected | Diesel fuel | 204 KM | 2012–2015 |
| 2.0 BlueHDi (150 KM) S&S Selected | Diesel fuel | 150 KM | 2015–2017 |
| 2.0 BlueHDi (180 KM) S&S Automatic Selected | Diesel fuel | 180 KM | 2015–2017 |
| 1.6 HDi (114 KM) Selected | Diesel fuel | 114 KM | 2012–2015 |
| 2.0 HDi (140 KM) Selected | Diesel fuel | 140 KM | 2012–2015 |
| 3.0 V6 HDi (241 KM) Automatic Selected | Diesel fuel | 241 KM | 2012–2014 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.6 THP (156 KM) Automatic
Gasoline · 2012–2015
- Engine power
- 156 KM
- Torque
- 240 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.8 s
- Maximum speed
- 210 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 II (Phase II, 2012)- Brand
- Citroen
- Model
- C5
- Version
- C5 II (Phase II, 2012)
- Engine
- 1.6 THP (156 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2012
- End of production
- 2015
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 9.8 s
- Fuel consumption - Urban cycle
- 10.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.6 l/100 km
- Fuel consumption - Combined cycle
- 7.3 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 169 g/km
Engine
- Engine model / code
- 5FVEP6CDT
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 77 mm
- Piston stroke
- 85.8 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.25 l
- Power
- 156 KM @ 6000 obr./min
- Torque
- 240 Nm @ 1400 obr./min
Volume and weight
- Fuel tank
- 71 l
- Minimum trunk capacity
- 439 l
- Curb weight
- 1515 kg
- Gross weight
- 2026 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 69 kg
Vehicle dimensions
- Length
- 4779 mm
- Width
- 1860 mm
- Width with unfolded mirrors
- 2096 mm
- Height
- 1451-1458 mm
- Wheelbase
- 2815 mm
- Front track
- 1586 mm
- Rear track
- 1557 mm
- Front overhang
- 1054 mm
- Rear overhang
- 910 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/55 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
1.6 e-HDi (114 KM) Airdream EGS
Diesel fuel · 2012–2015
- Engine power
- 114 KM
- Torque
- 270 Nm
- Engine displacement
- 1,560 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.6 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 II (Phase II, 2012)- Brand
- Citroen
- Model
- C5
- Version
- C5 II (Phase II, 2012)
- Engine
- 1.6 e-HDi (114 KM) Airdream EGS
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2012
- End of production
- 2015
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 12.6 s
- Fuel consumption - Urban cycle
- 5.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.1 l/100 km
- Fuel consumption - Combined cycle
- 4.5 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 117 g/km
Engine
- Engine model / code
- 9HRDV6C
- Engine position
- Front, Transverse
- Engine displacement
- 1560 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Piston stroke
- 88.3 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.7 l
- Power
- 114 KM @ 3600 obr./min
- Torque
- 270 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 71 l
- Minimum trunk capacity
- 439 l
- Curb weight
- 1525 kg
- Gross weight
- 2062 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1340 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4779 mm
- Width
- 1860 mm
- Width with unfolded mirrors
- 2096 mm
- Height
- 1451-1458 mm
- Wheelbase
- 2815 mm
- Front track
- 1586 mm
- Rear track
- 1557 mm
- Front overhang
- 1054 mm
- Rear overhang
- 910 mm
- Turning circle
- 11.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- EGS
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/60 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
2.0 HDi (163 KM)
Diesel fuel · 2012–2015
- Engine power
- 163 KM
- Torque
- 340 Nm
- Engine displacement
- 1,997 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.1 s
- Maximum speed
- 210 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 II (Phase II, 2012)- Brand
- Citroen
- Model
- C5
- Version
- C5 II (Phase II, 2012)
- Engine
- 2.0 HDi (163 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2012
- End of production
- 2015
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 9.1 s
- Fuel consumption - Urban cycle
- 6.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.4 l/100 km
- Fuel consumption - Combined cycle
- 5.3 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 139 g/km
Engine
- Engine model / code
- RHHDW10CTED4
- Engine position
- Front, Transverse
- Engine displacement
- 1997 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 88 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 10.8 l
- Power
- 163 KM @ 3750 obr./min
- Torque
- 340 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 71 l
- Minimum trunk capacity
- 439 l
- Curb weight
- 1563 kg
- Gross weight
- 2156 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 70 kg
Vehicle dimensions
- Length
- 4779 mm
- Width
- 1860 mm
- Width with unfolded mirrors
- 2096 mm
- Height
- 1451-1458 mm
- Wheelbase
- 2815 mm
- Front track
- 1586 mm
- Rear track
- 1557 mm
- Front overhang
- 1054 mm
- Rear overhang
- 910 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/55 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
1.6 VTi (120 KM) EGS
Gasoline · 2012–2015
- Engine power
- 120 KM
- Torque
- 160 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.2 s
- Maximum speed
- 198 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 II (Phase II, 2012)- Brand
- Citroen
- Model
- C5
- Version
- C5 II (Phase II, 2012)
- Engine
- 1.6 VTi (120 KM) EGS
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2012
- End of production
- 2015
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 198 km/h
- Acceleration 0-100 km/h
- 12.2 s
- Fuel consumption - Urban cycle
- 8.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 5 l/100 km
- Fuel consumption - Combined cycle
- 6.2 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 144 g/km
Engine
- Engine model / code
- 5FSEP6C
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 77 mm
- Piston stroke
- 85.8 mm
- Compression ratio
- 11
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.25 l
- Power
- 120 KM @ 6000 obr./min
- Torque
- 160 Nm @ 4250 obr./min
Volume and weight
- Fuel tank
- 71 l
- Minimum trunk capacity
- 439 l
- Curb weight
- 1425 kg
- Gross weight
- 2018 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 64 kg
Vehicle dimensions
- Length
- 4779 mm
- Width
- 1860 mm
- Width with unfolded mirrors
- 2096 mm
- Height
- 1451-1458 mm
- Wheelbase
- 2815 mm
- Front track
- 1586 mm
- Rear track
- 1557 mm
- Front overhang
- 1054 mm
- Rear overhang
- 910 mm
- Turning circle
- 11.5 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Type of automatic gearbox
- EGS
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/60 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.6 THP (156 KM)
Gasoline · 2012–2015
- Engine power
- 156 KM
- Torque
- 240 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.6 s
- Maximum speed
- 210 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 II (Phase II, 2012)- Brand
- Citroen
- Model
- C5
- Version
- C5 II (Phase II, 2012)
- Engine
- 1.6 THP (156 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2012
- End of production
- 2015
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 8.6 s
- Fuel consumption - Urban cycle
- 9.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.1 l/100 km
- Fuel consumption - Combined cycle
- 6.7 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 153 g/km
Engine
- Engine model / code
- 5FVEP6CDT
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 77 mm
- Piston stroke
- 85.8 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.25 l
- Power
- 156 KM @ 6000 obr./min
- Torque
- 240 Nm @ 1400 obr./min
Volume and weight
- Fuel tank
- 71 l
- Minimum trunk capacity
- 439 l
- Curb weight
- 1471 kg
- Gross weight
- 2065 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1500 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 70 kg
Vehicle dimensions
- Length
- 4779 mm
- Width
- 1860 mm
- Width with unfolded mirrors
- 2096 mm
- Height
- 1451-1458 mm
- Wheelbase
- 2815 mm
- Front track
- 1586 mm
- Rear track
- 1557 mm
- Front overhang
- 1054 mm
- Rear overhang
- 910 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/55 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
2.0 HDi (163 KM) Automatic
Diesel fuel · 2012–2015
- Engine power
- 163 KM
- Torque
- 340 Nm
- Engine displacement
- 1,997 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10 s
- Maximum speed
- 210 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 II (Phase II, 2012)- Brand
- Citroen
- Model
- C5
- Version
- C5 II (Phase II, 2012)
- Engine
- 2.0 HDi (163 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2012
- End of production
- 2015
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 10 s
- Fuel consumption - Urban cycle
- 8.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.6 l/100 km
- Fuel consumption - Combined cycle
- 6.8 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 179 g/km
Engine
- Engine model / code
- RHHDW10CTED4
- Engine position
- Front, Transverse
- Engine displacement
- 1997 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 88 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 10.8 l
- Power
- 163 KM @ 3750 obr./min
- Torque
- 340 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 71 l
- Minimum trunk capacity
- 439 l
- Curb weight
- 1609 kg
- Gross weight
- 2190 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1100 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 57 kg
Vehicle dimensions
- Length
- 4779 mm
- Width
- 1860 mm
- Width with unfolded mirrors
- 2096 mm
- Height
- 1451-1458 mm
- Wheelbase
- 2815 mm
- Front track
- 1586 mm
- Rear track
- 1557 mm
- Front overhang
- 1054 mm
- Rear overhang
- 910 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/55 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
2.2 HDi (204 KM) Automatic
Diesel fuel · 2012–2015
- Engine power
- 204 KM
- Torque
- 440 Nm
- Engine displacement
- 2,179 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 8.3 s
- Maximum speed
- 230 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 II (Phase II, 2012)- Brand
- Citroen
- Model
- C5
- Version
- C5 II (Phase II, 2012)
- Engine
- 2.2 HDi (204 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2012
- End of production
- 2015
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 230 km/h
- Acceleration 0-100 km/h
- 8.3 s
- Fuel consumption - Urban cycle
- 8 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.7 l/100 km
- Fuel consumption - Combined cycle
- 5.9 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 155 g/km
Engine
- Engine model / code
- DW12C
- Engine position
- Front, Transverse
- Engine displacement
- 2179 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 96 mm
- Compression ratio
- 16.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.3 l
- Coolant capacity
- 10.7 l
- Power
- 204 KM @ 3500 obr./min
- Torque
- 440 Nm @ 1900 obr./min
Volume and weight
- Fuel tank
- 71 l
- Minimum trunk capacity
- 439 l
- Curb weight
- 1731 kg
- Gross weight
- 2231 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1600 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 73 kg
Vehicle dimensions
- Length
- 4779 mm
- Width
- 1860 mm
- Width with unfolded mirrors
- 2096 mm
- Height
- 1451-1458 mm
- Wheelbase
- 2815 mm
- Front track
- 1586 mm
- Rear track
- 1557 mm
- Front overhang
- 1054 mm
- Rear overhang
- 910 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/45 R18
- Rim size
- 18
- ABS
- yes
Selected engine version
2.0 BlueHDi (150 KM) S&S
Diesel fuel · 2015–2017
- Engine power
- 150 KM
- Torque
- 370 Nm
- Engine displacement
- 1,997 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.4 s
- Maximum speed
- 214 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 II (Phase II, 2012)- Brand
- Citroen
- Model
- C5
- Version
- C5 II (Phase II, 2012)
- Engine
- 2.0 BlueHDi (150 KM) S&S
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2015
- End of production
- 2017
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 214 km/h
- Acceleration 0-100 km/h
- 9.4 s
- Fuel consumption - Urban cycle
- 4.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.8 l/100 km
- Fuel consumption - Combined cycle
- 4.2 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 111 g/km
Engine
- Engine model / code
- AHRDW10FD
- Engine position
- Front, Transverse
- Engine displacement
- 1997 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 88 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6 l
- Power
- 150 KM @ 4000 obr./min
- Torque
- 370 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 71 l
- AdBlue tank
- 17 l
- Minimum trunk capacity
- 439 l
- Curb weight
- 1540 kg
- Gross weight
- 2160 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1750 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 73 kg
Vehicle dimensions
- Length
- 4779 mm
- Width
- 1860 mm
- Width with unfolded mirrors
- 2096 mm
- Height
- 1451-1458 mm
- Wheelbase
- 2815 mm
- Front track
- 1586 mm
- Rear track
- 1557 mm
- Front overhang
- 1054 mm
- Rear overhang
- 910 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225 / 55 R17; 245 / 45 R18; 245 / 40 R19
- Rim size
- 17; 18; 19
- ABS
- yes
Selected engine version
2.0 BlueHDi (180 KM) S&S Automatic
Diesel fuel · 2015–2017
- Engine power
- 180 KM
- Torque
- 400 Nm
- Engine displacement
- 1,997 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 8.7 s
- Maximum speed
- 222 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 II (Phase II, 2012)- Brand
- Citroen
- Model
- C5
- Version
- C5 II (Phase II, 2012)
- Engine
- 2.0 BlueHDi (180 KM) S&S Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2015
- End of production
- 2017
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 222 km/h
- Acceleration 0-100 km/h
- 8.7 s
- Fuel consumption - Urban cycle
- 5.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.8 l/100 km
- Fuel consumption - Combined cycle
- 4.4 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 114 g/km
Engine
- Engine model / code
- AHWDW10FC
- Engine position
- Front, Transverse
- Engine displacement
- 1997 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 88 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Power
- 180 KM @ 3750 obr./min
- Torque
- 400 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 71 l
- AdBlue tank
- 17 l
- Minimum trunk capacity
- 439 l
- Curb weight
- 1620 kg
- Gross weight
- 2190 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1100 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 57 kg
Vehicle dimensions
- Length
- 4779 mm
- Width
- 1860 mm
- Width with unfolded mirrors
- 2096 mm
- Height
- 1451-1458 mm
- Wheelbase
- 2815 mm
- Front track
- 1586 mm
- Rear track
- 1557 mm
- Front overhang
- 1054 mm
- Rear overhang
- 910 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/55 R17; 245/45 R18; 245/40 R19
- Rim size
- 17; 18; 19
- ABS
- yes
Selected engine version
1.6 HDi (114 KM)
Diesel fuel · 2012–2015
- Engine power
- 114 KM
- Torque
- 240 Nm
- Engine displacement
- 1,560 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.6 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 II (Phase II, 2012)- Brand
- Citroen
- Model
- C5
- Version
- C5 II (Phase II, 2012)
- Engine
- 1.6 HDi (114 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2012
- End of production
- 2015
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 11.6 s
- Fuel consumption - Urban cycle
- 6 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.4 l/100 km
- Fuel consumption - Combined cycle
- 5 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 129 g/km
Engine
- Engine model / code
- 9HRDV6C
- Engine position
- Front, Transverse
- Engine displacement
- 1560 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Piston stroke
- 88.3 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 2
- Engine oil capacity
- 3.7 l
- Power
- 114 KM @ 3600 obr./min
- Torque
- 240 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 71 l
- Minimum trunk capacity
- 439 l
- Curb weight
- 1506 kg
- Gross weight
- 2041 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1340 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4779 mm
- Width
- 1860 mm
- Width with unfolded mirrors
- 2096 mm
- Height
- 1451-1458 mm
- Wheelbase
- 2815 mm
- Front track
- 1586 mm
- Rear track
- 1557 mm
- Front overhang
- 1054 mm
- Rear overhang
- 910 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/55 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
2.0 HDi (140 KM)
Diesel fuel · 2012–2015
- Engine power
- 140 KM
- Torque
- 320 Nm
- Engine displacement
- 1,997 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10.6 s
- Maximum speed
- 205 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 II (Phase II, 2012)- Brand
- Citroen
- Model
- C5
- Version
- C5 II (Phase II, 2012)
- Engine
- 2.0 HDi (140 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2012
- End of production
- 2015
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 10.6 s
- Fuel consumption - Urban cycle
- 7.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.7 l/100 km
- Fuel consumption - Combined cycle
- 5.7 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 149 g/km
Engine
- Engine model / code
- RHFDW10BTED4
- Engine position
- Front, Transverse
- Engine displacement
- 1997 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 88 mm
- Compression ratio
- 17.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.25 l
- Power
- 140 KM @ 4000 obr./min
- Torque
- 320 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 71 l
- Minimum trunk capacity
- 439 l
- Curb weight
- 1608 kg
- Gross weight
- 2155 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1600 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4779 mm
- Width
- 1860 mm
- Width with unfolded mirrors
- 2096 mm
- Height
- 1451-1458 mm
- Wheelbase
- 2815 mm
- Front track
- 1586 mm
- Rear track
- 1557 mm
- Front overhang
- 1054 mm
- Rear overhang
- 910 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/55 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
3.0 V6 HDi (241 KM) Automatic
Diesel fuel · 2012–2014
- Engine power
- 241 KM
- Torque
- 450 Nm
- Engine displacement
- 2,992 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 7.9 s
- Maximum speed
- 240 km/h
On this page
Check vehicle history
Basic version information
Citroen C5 C5 II (Phase II, 2012)- Brand
- Citroen
- Model
- C5
- Version
- C5 II (Phase II, 2012)
- Engine
- 3.0 V6 HDi (241 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2012
- End of production
- 2014
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 240 km/h
- Acceleration 0-100 km/h
- 7.9 s
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Urban cycle
- 9.9 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Extra-urban cycle
- 5.7 l/100 km
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 7.2 l/100 km
- Emission standard
- Euro 5
- CO2 measurement standard
- NEDC
- CO2 emissions
- 189 g/km
Engine
- Engine model / code
- DT20C
- Engine position
- Front, Transverse
- Engine displacement
- 2992 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 84 mm
- Piston stroke
- 90 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6.3 l
- Coolant capacity
- 11 l
- Power
- 241 KM @ 3800 obr./min
- Torque
- 450 Nm @ 1600 obr./min
Volume and weight
- Fuel tank
- 71 l
- Minimum trunk capacity
- 467 l
- Curb weight
- 1841 kg
- Gross weight
- 2276 kg
- Roof load
- 80 kg
- Braked trailer load (12% slope start)
- 1650 kg
- Trailer load without brakes
- 750 kg
- Trailer nose weight
- 67 kg
Vehicle dimensions
- Length
- 4779 mm
- Width
- 1860 mm
- Width with unfolded mirrors
- 2096 mm
- Height
- 1451 mm
- Wheelbase
- 2815 mm
- Front track
- 1584-1587 mm
- Rear track
- 1557-1564 mm
- Front overhang
- 1054 mm
- Rear overhang
- 910 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Hydraulic element, Double wishbone, Anti-roll bar
- Rear suspension
- Hydraulic element, Independent multi-link suspension, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 340 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 290 mm
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 245/45 R18; 245/40 R19
- Rim size
- 8J x 18; 8J x 19
- ABS
- yes
