BMW X5 (G05)

Compare all 15 engine versions of the BMW X5 X5 (G05), then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used BMW X5 (G05)? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?

Where can I find the VIN of BMW X5 (G05)?

See the places on a 3D model →
VIN number
Inner wing / front wheel arch in engine compartment, right side
1 of 54

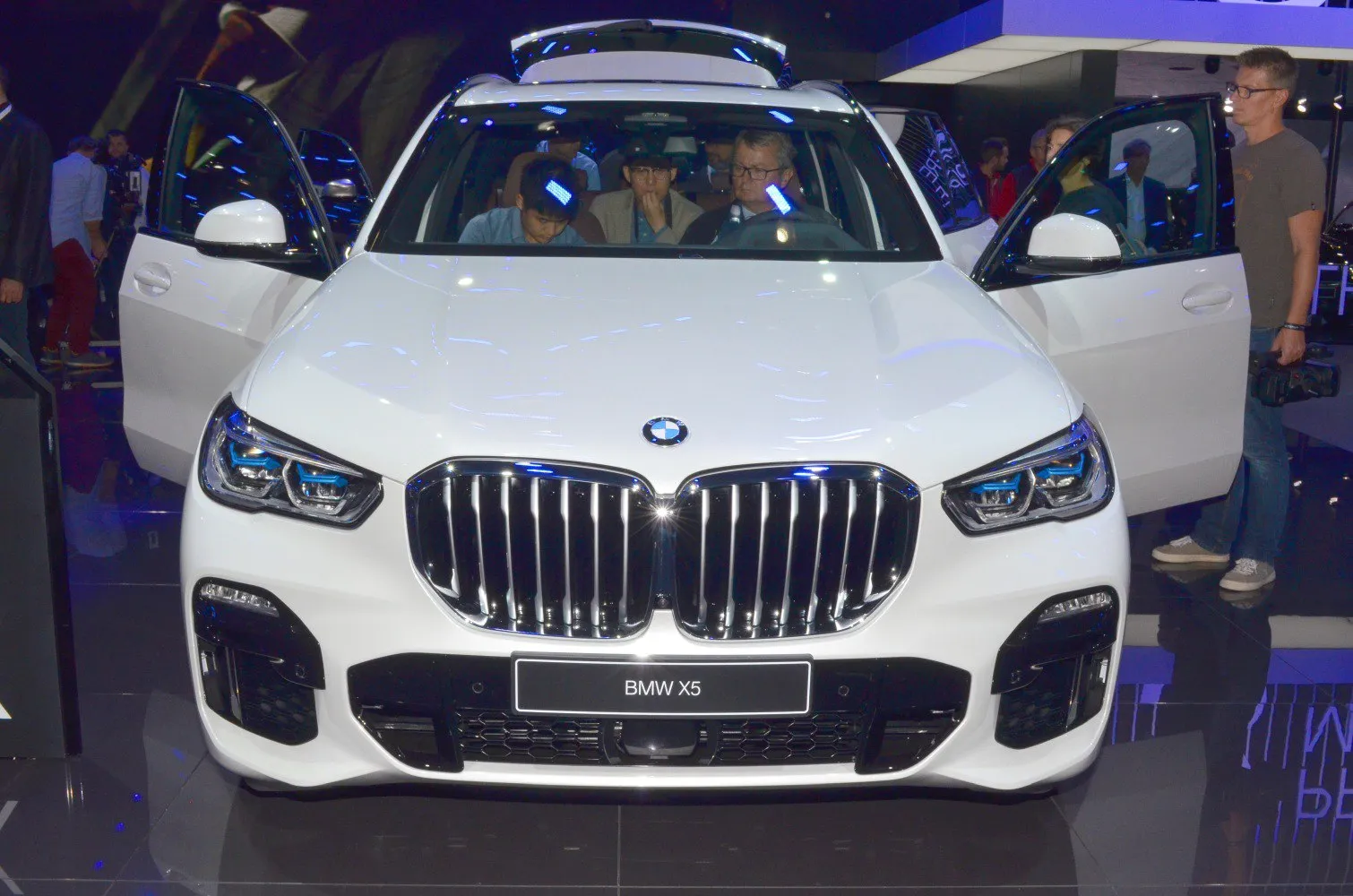

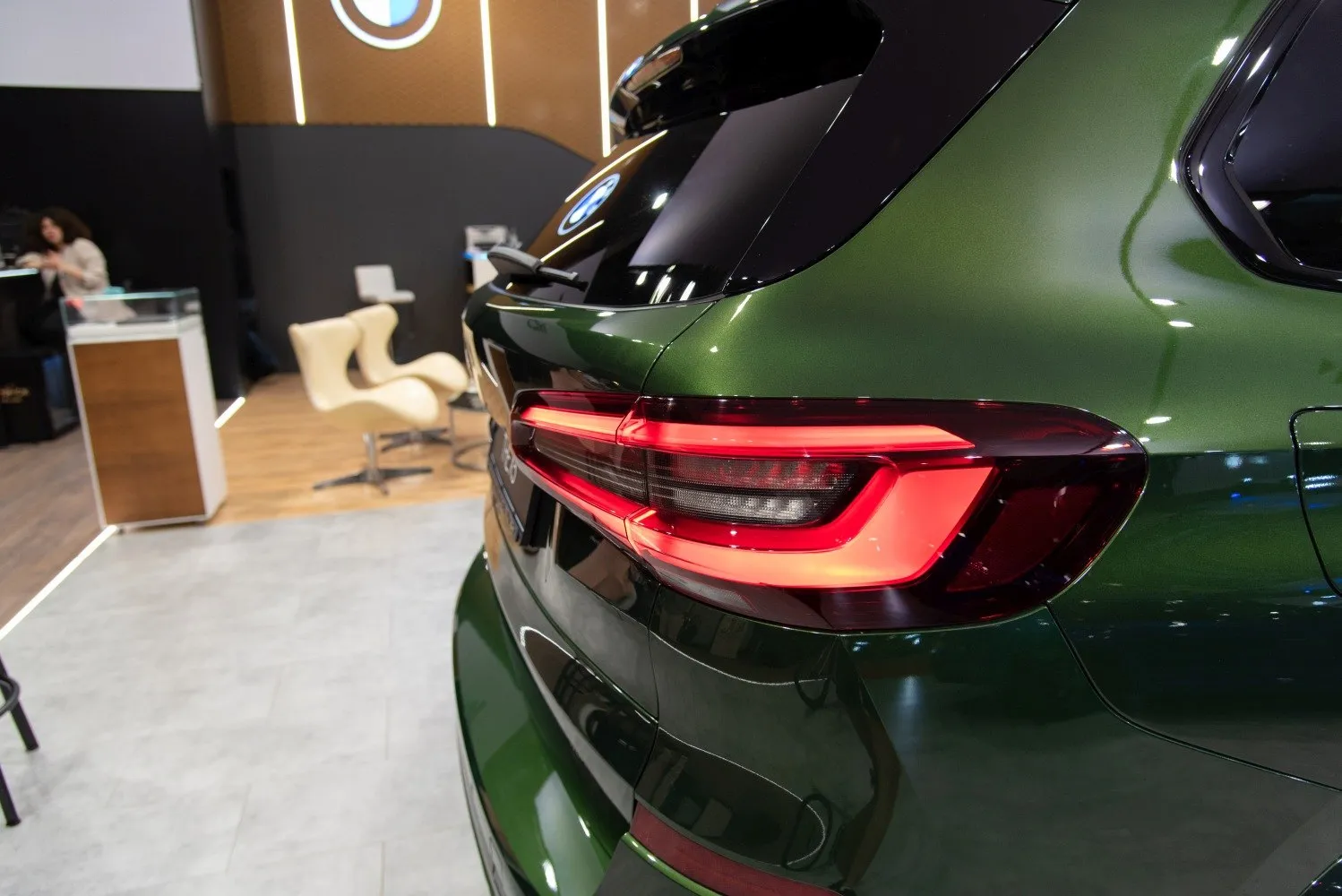

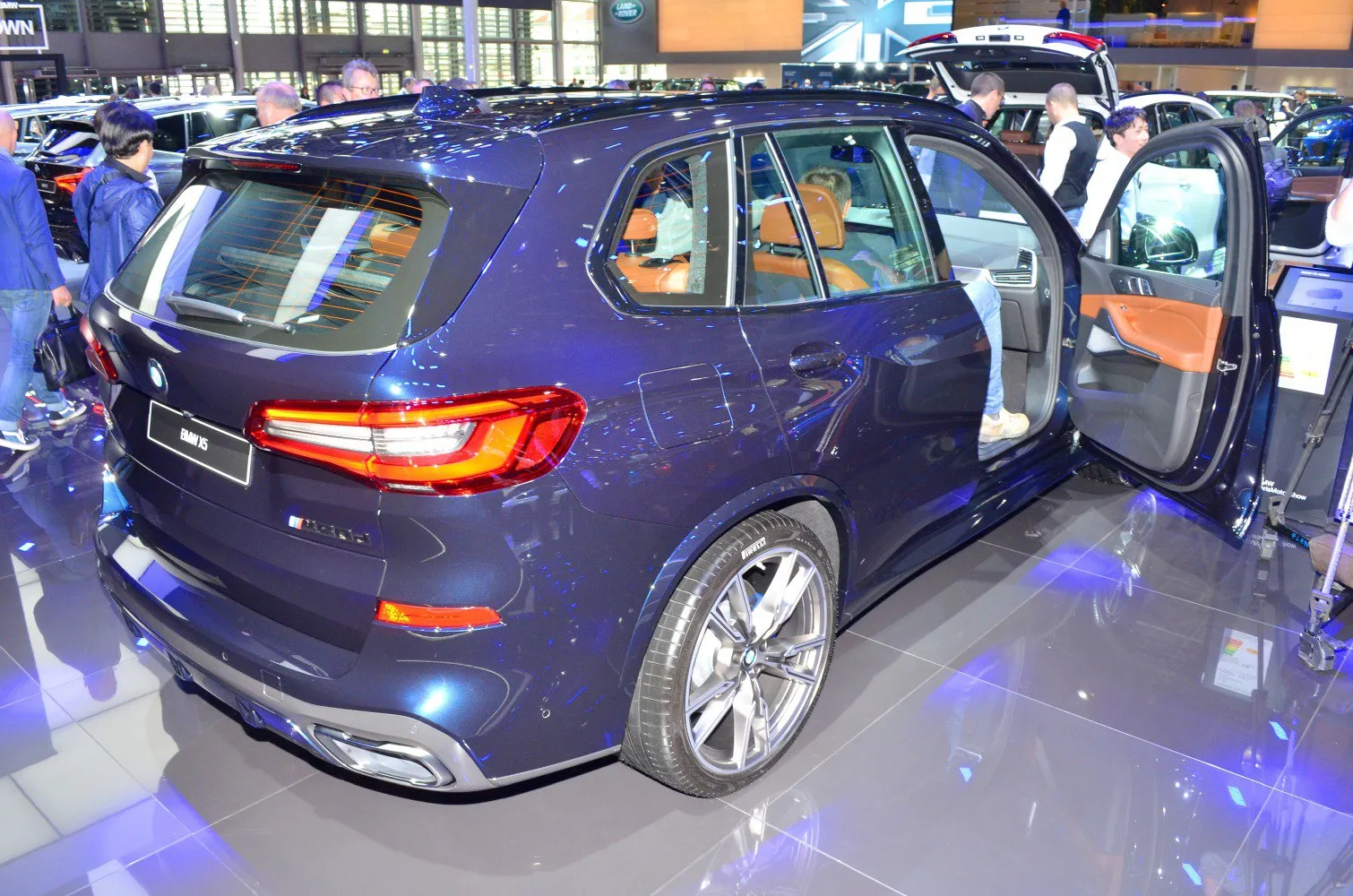

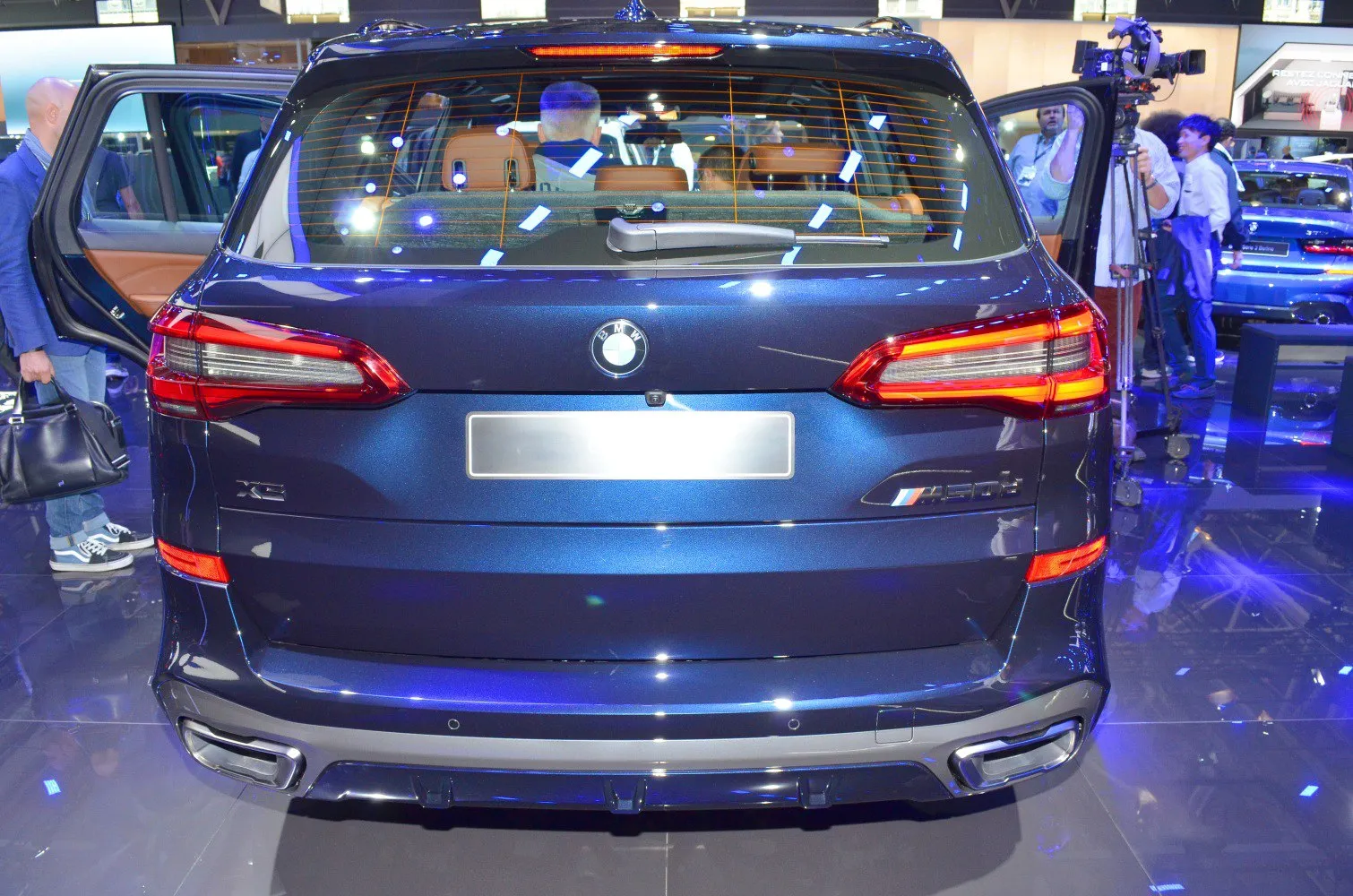

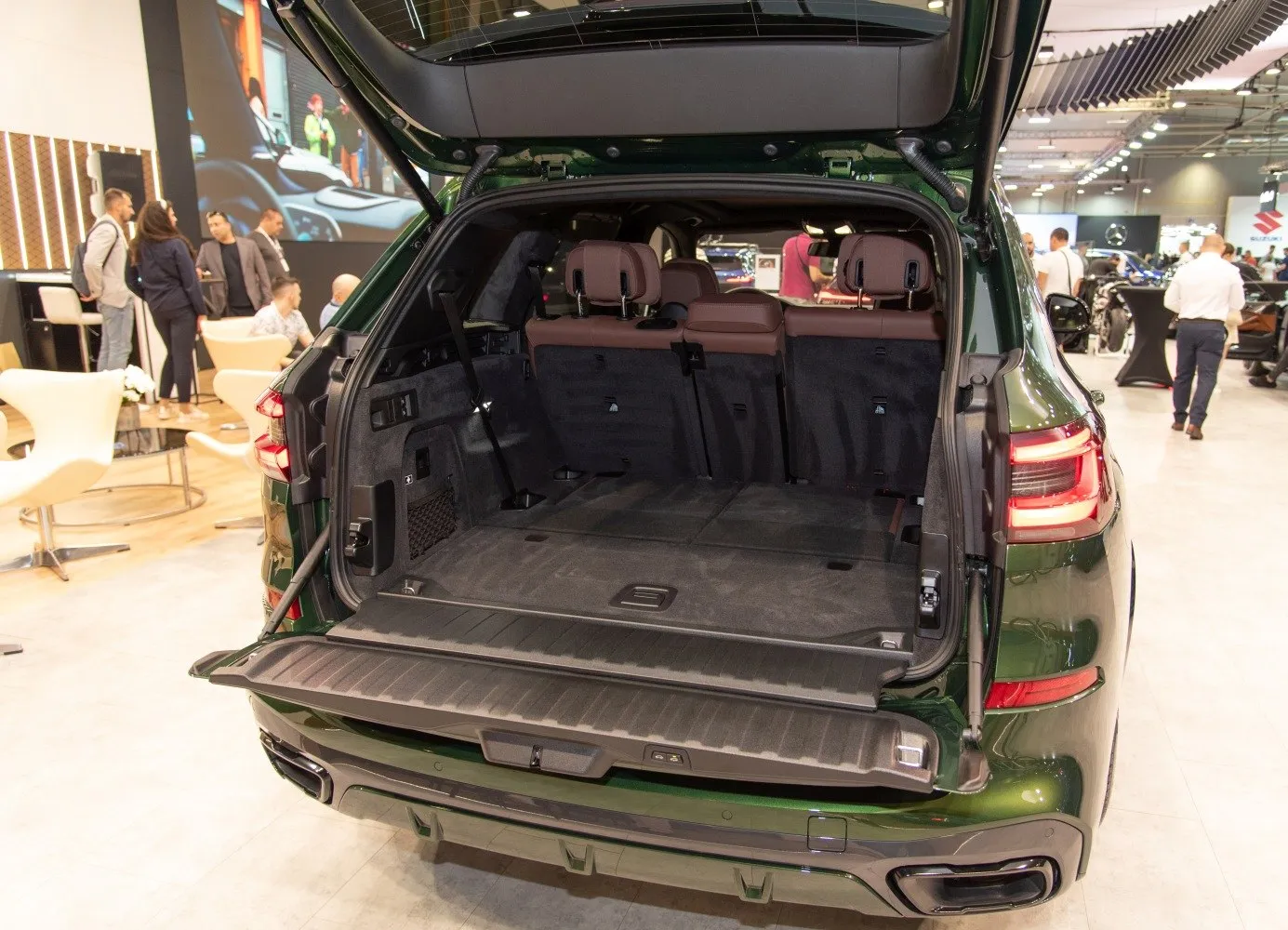

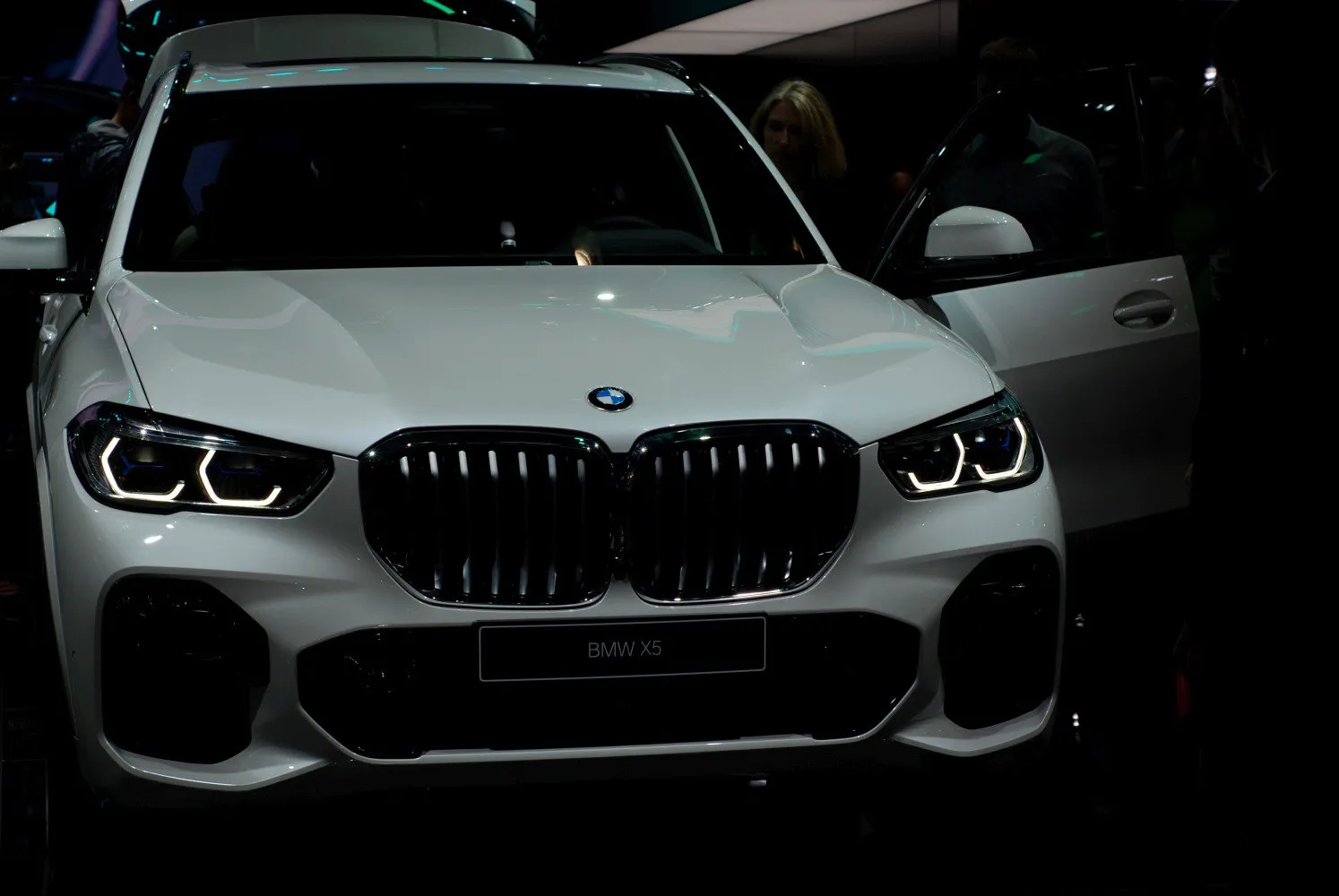

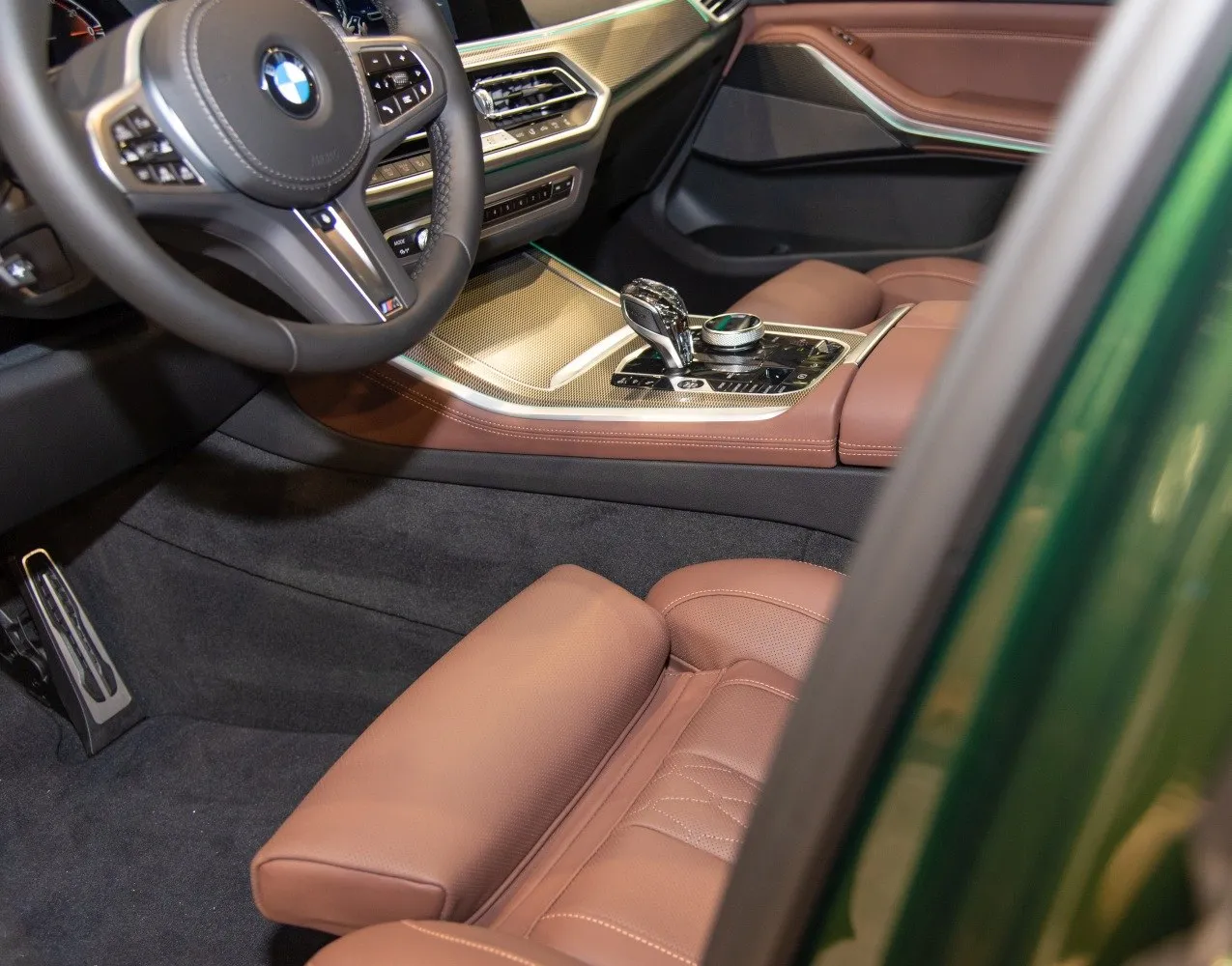

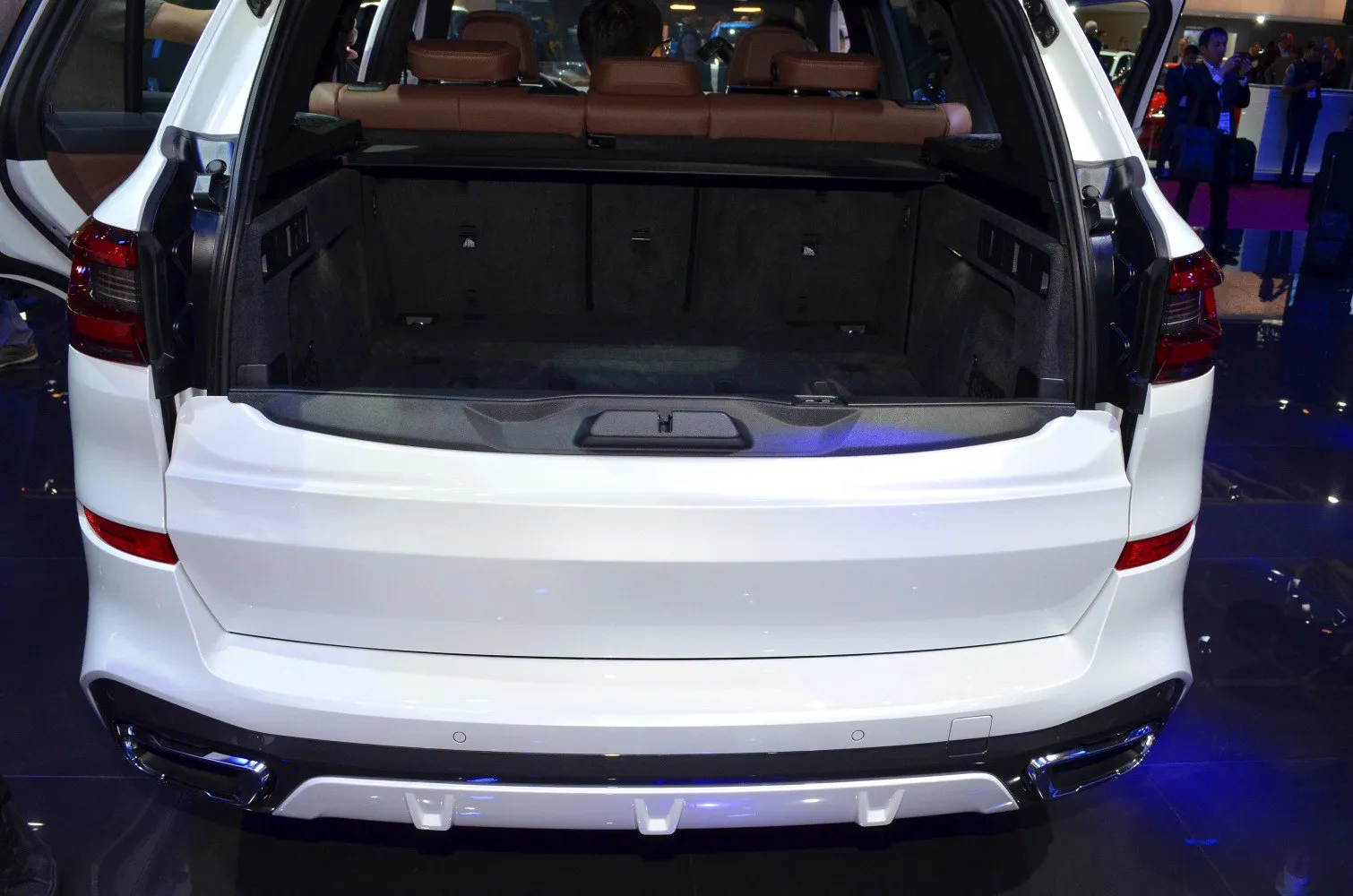

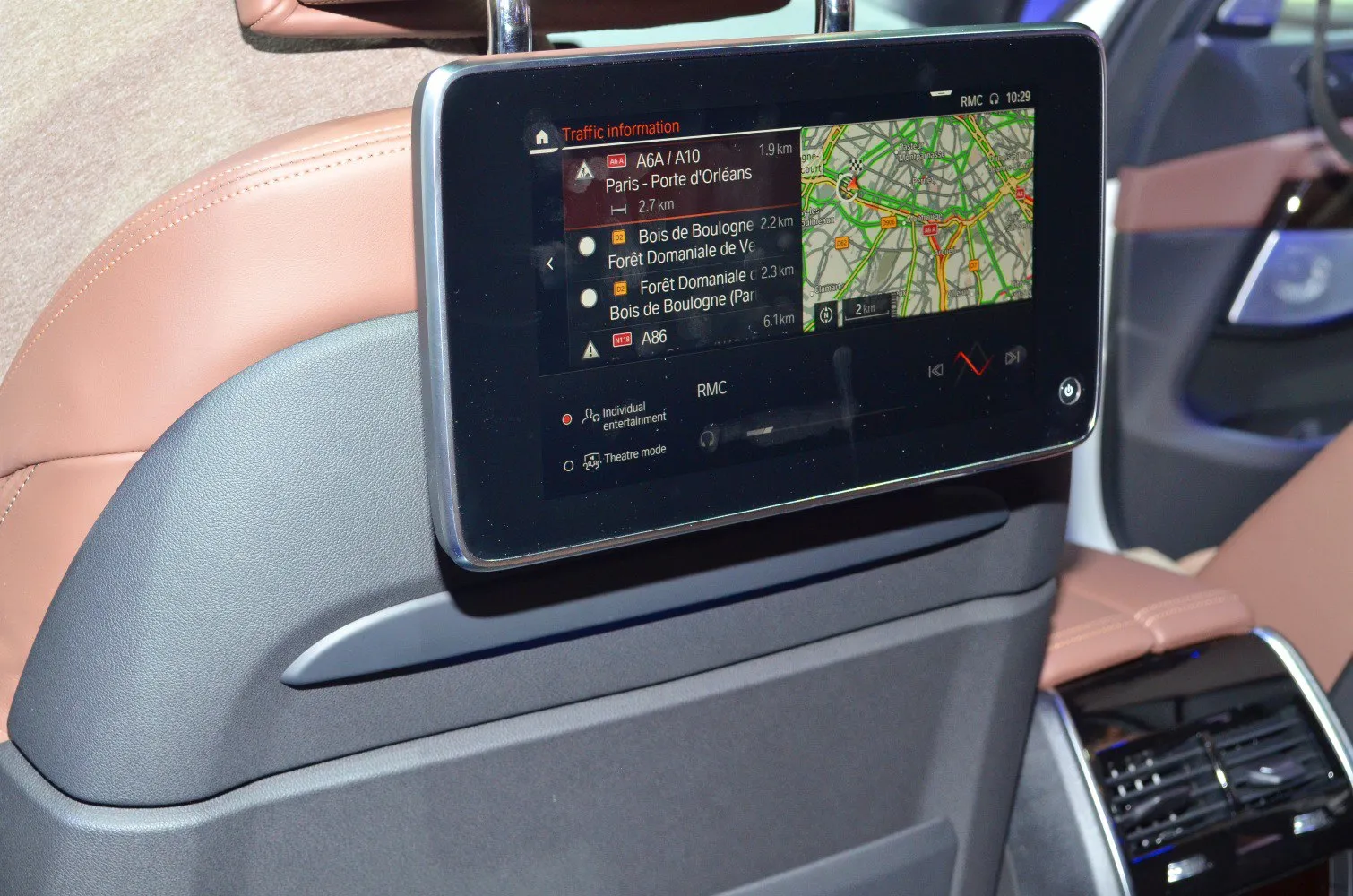

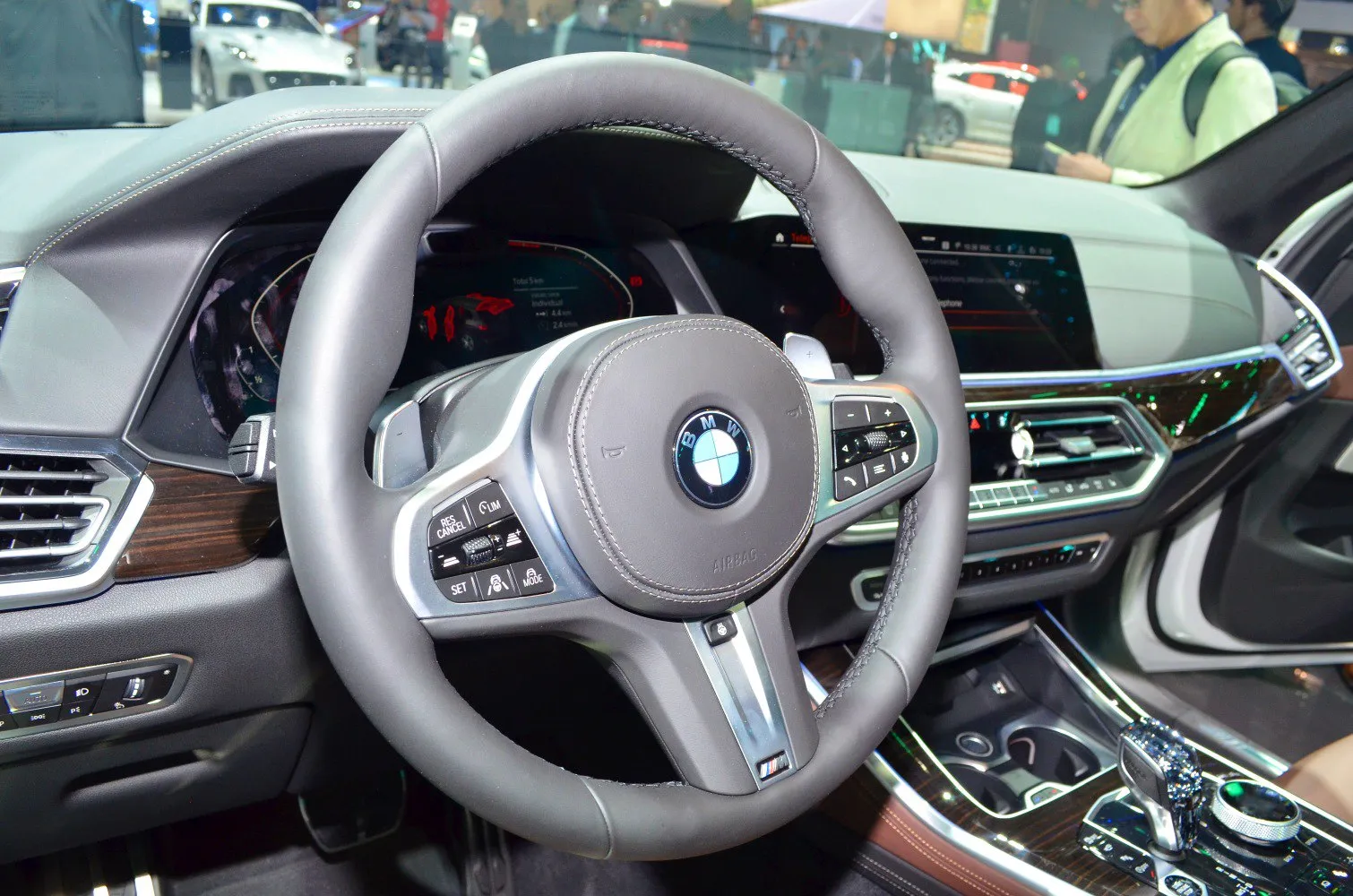

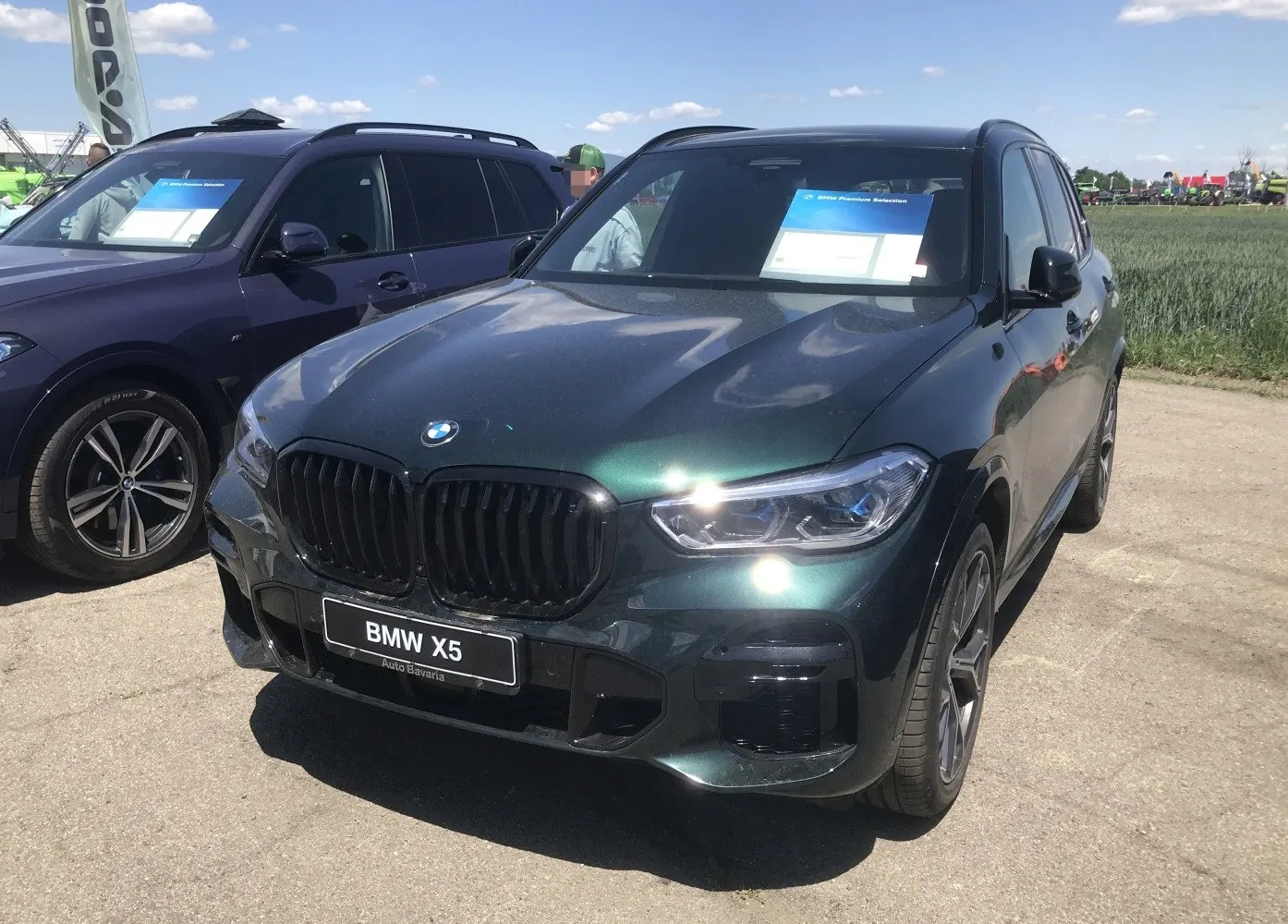

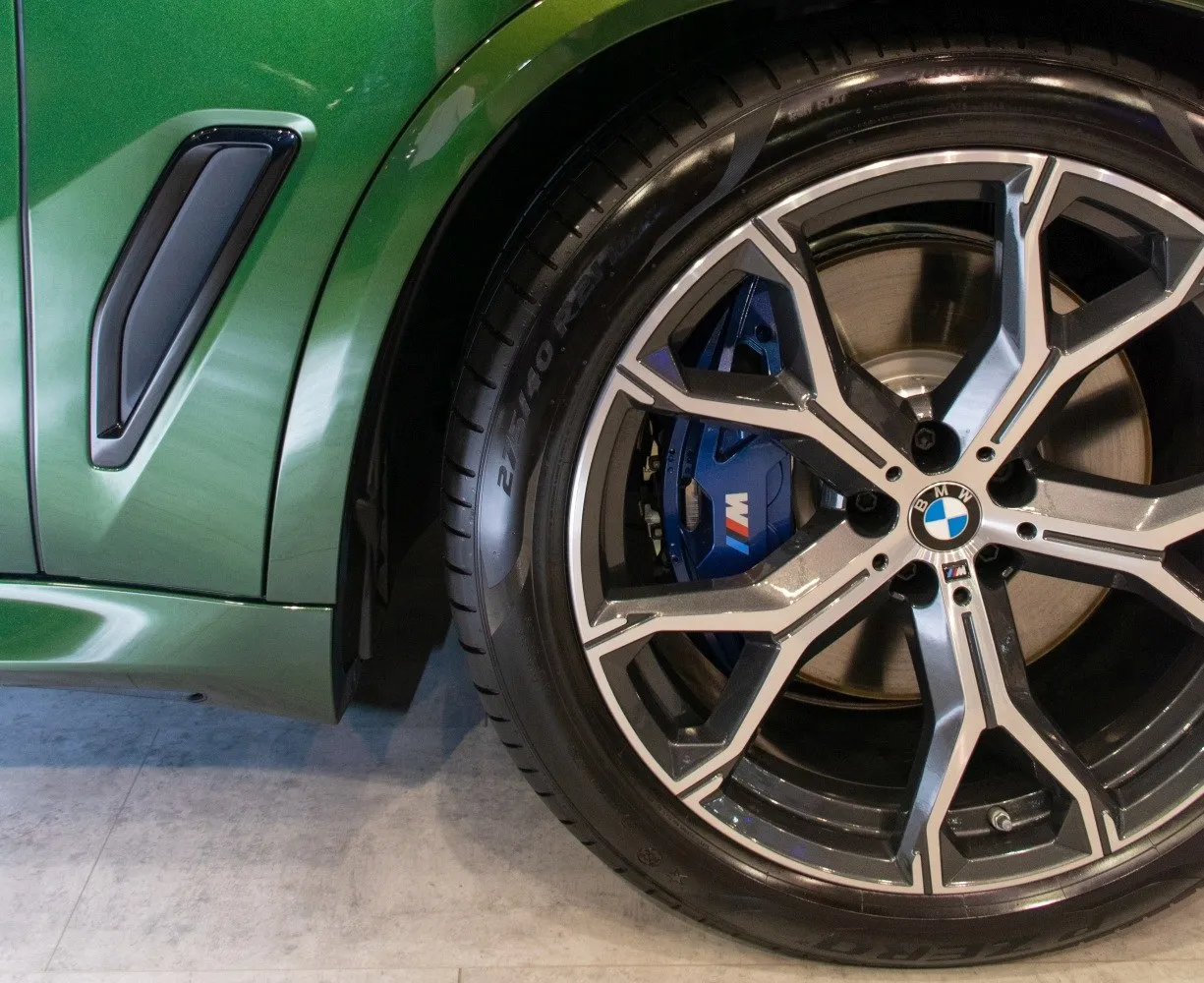

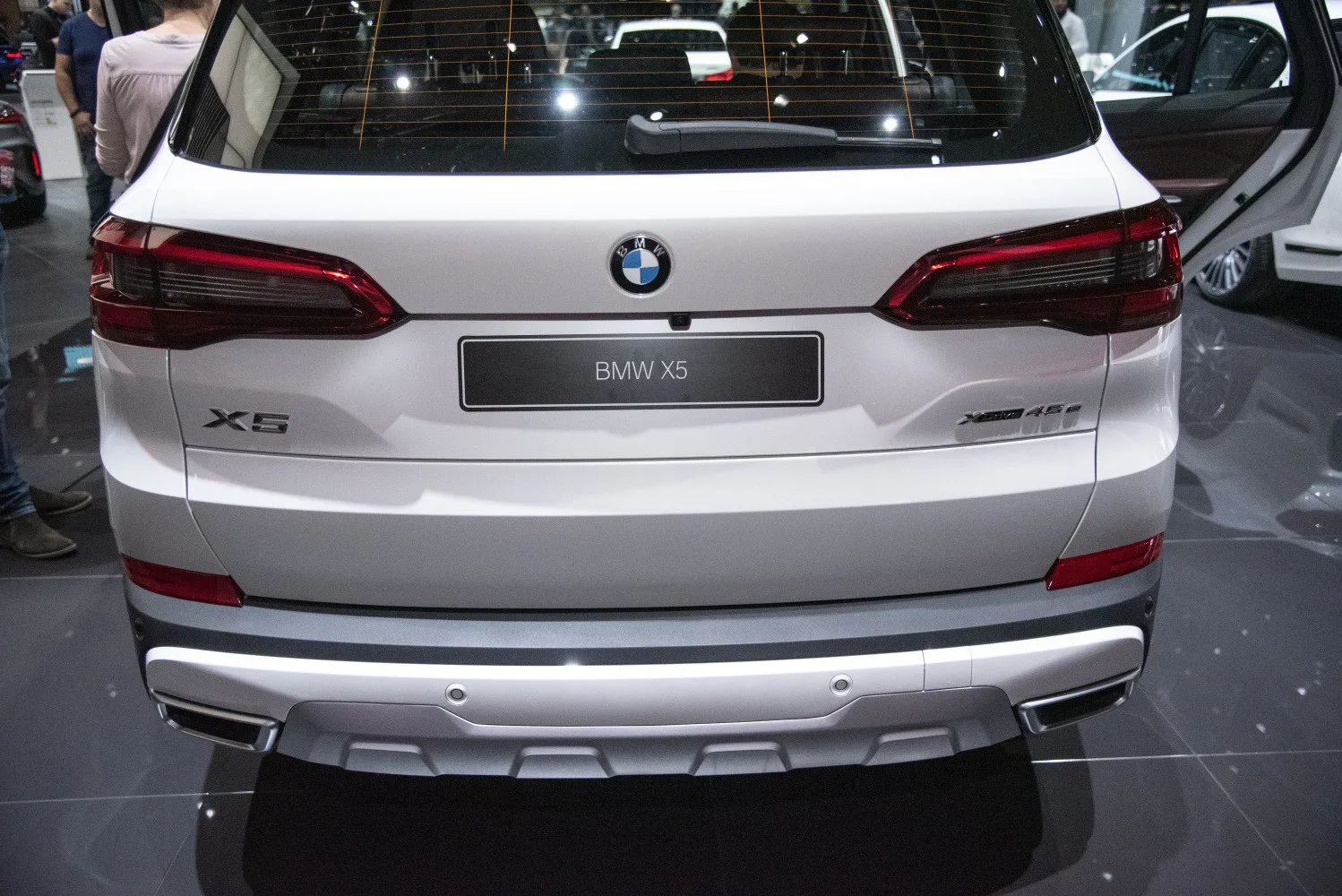

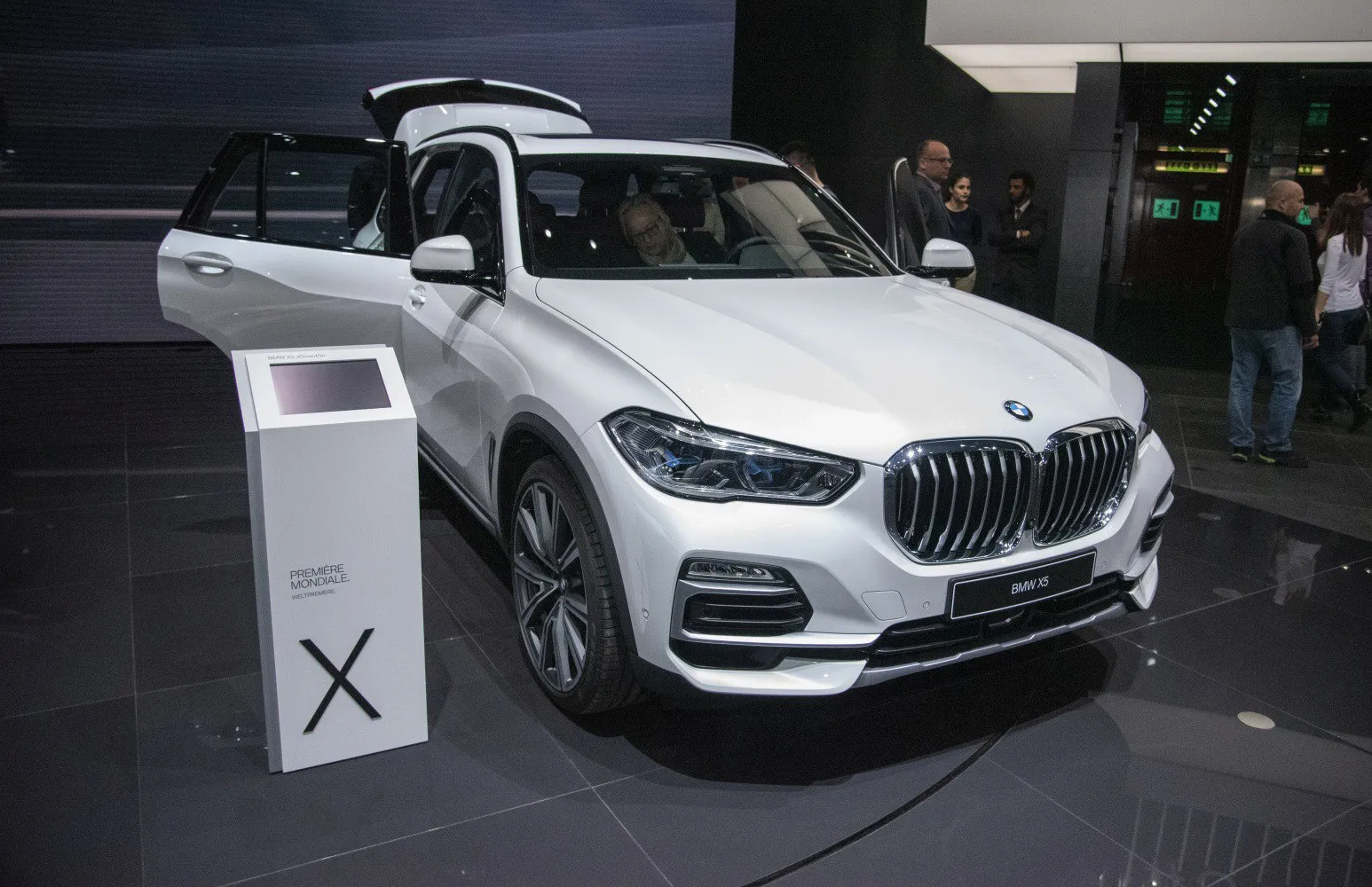

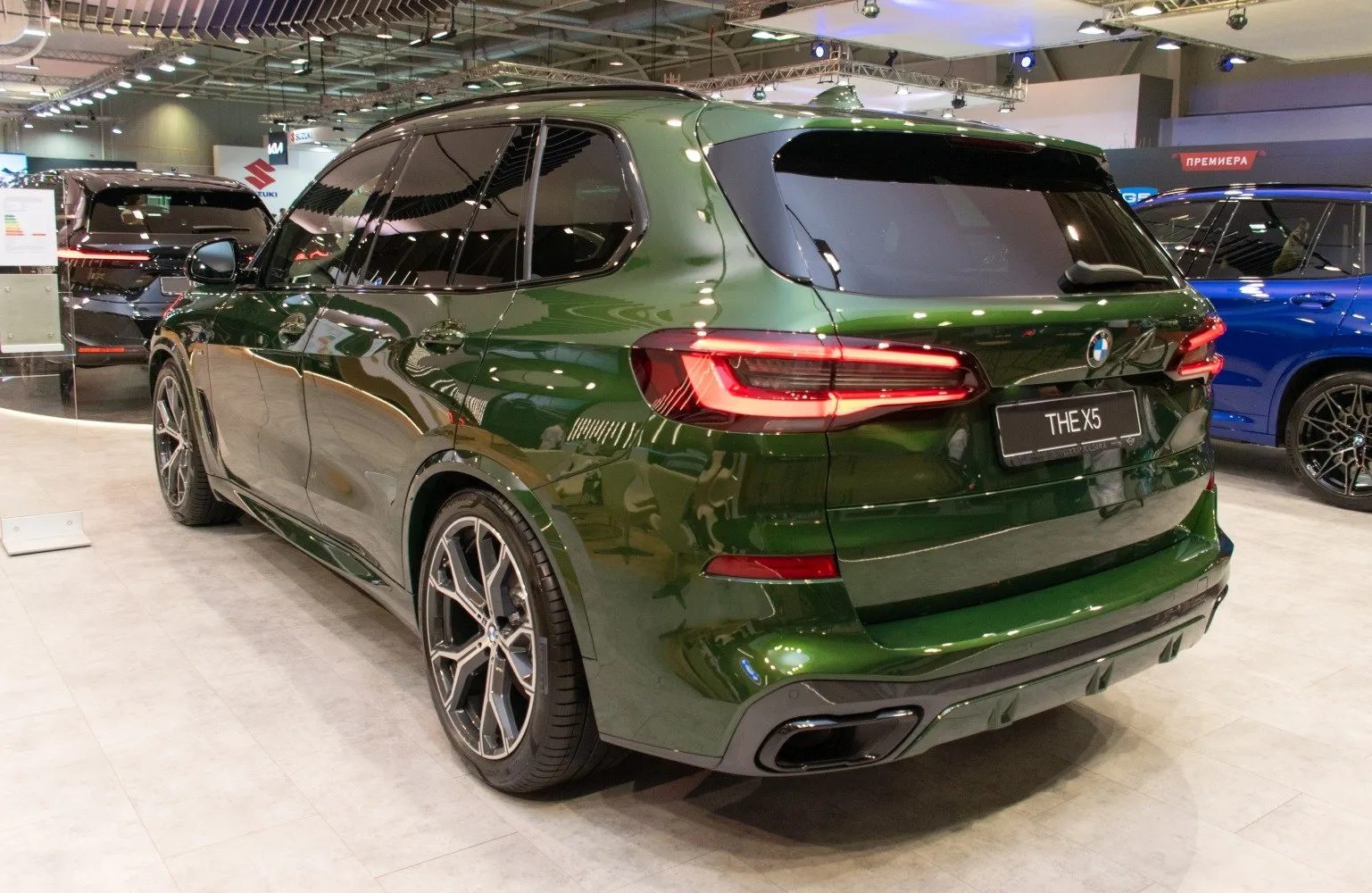

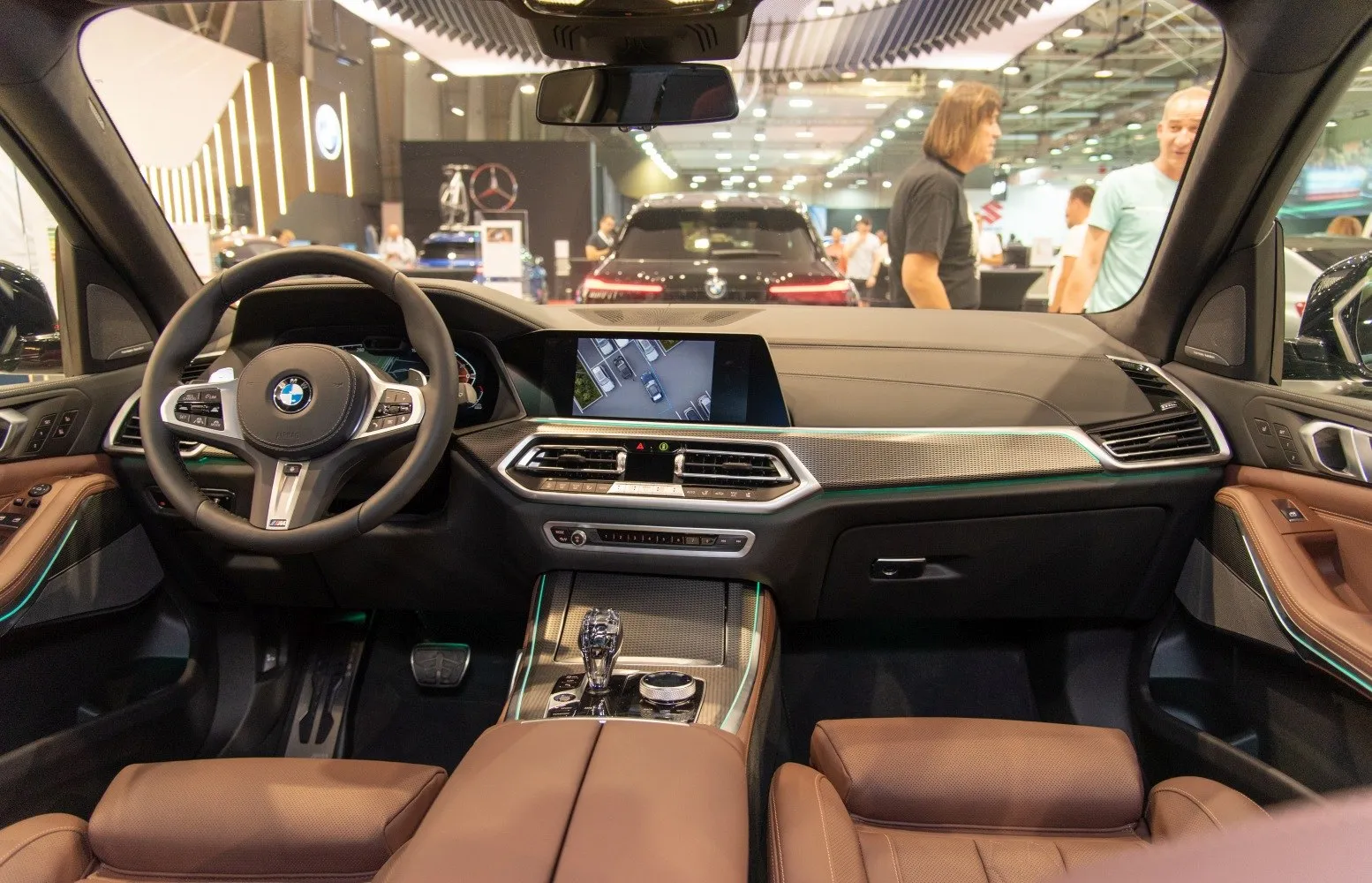

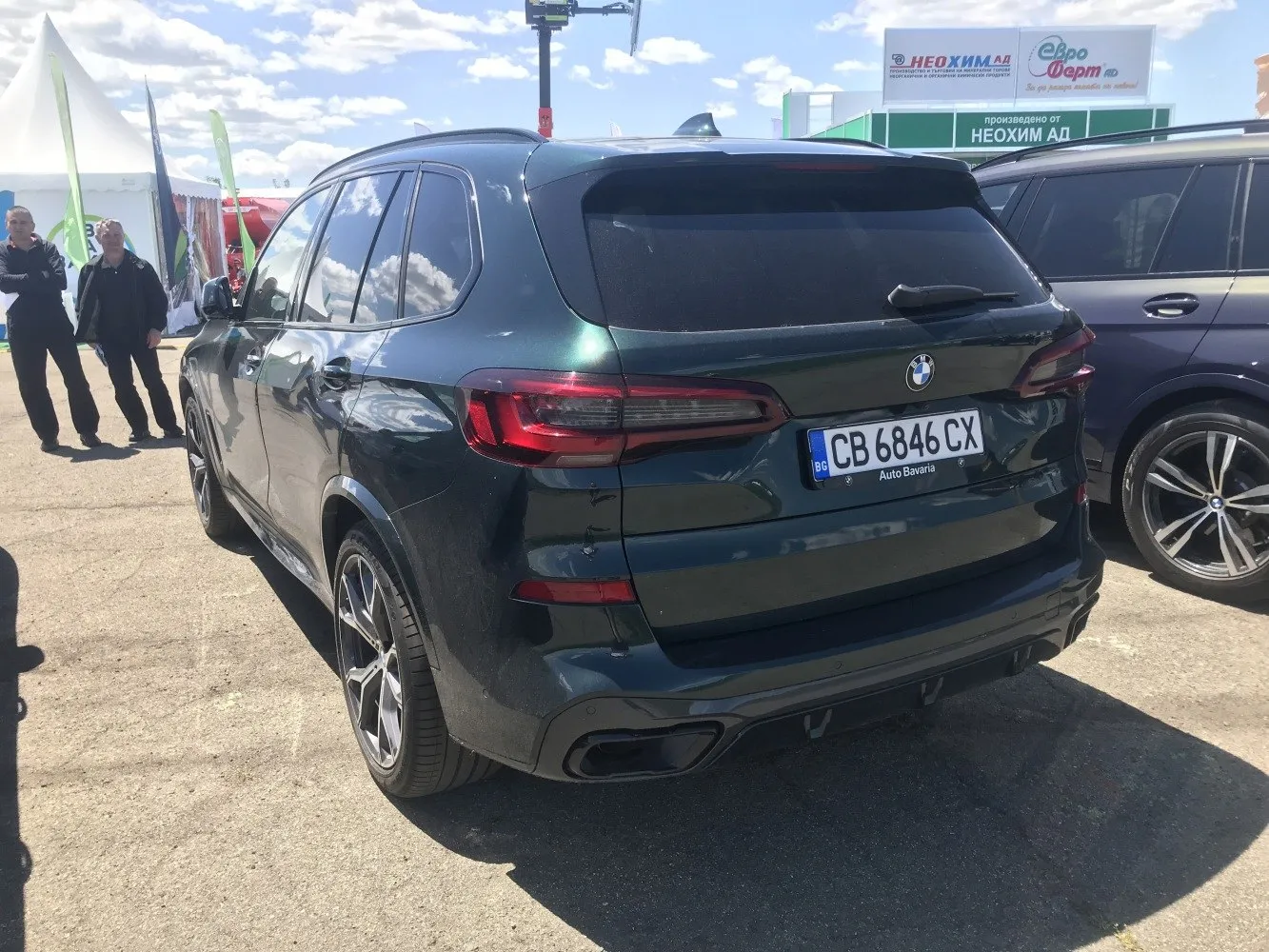

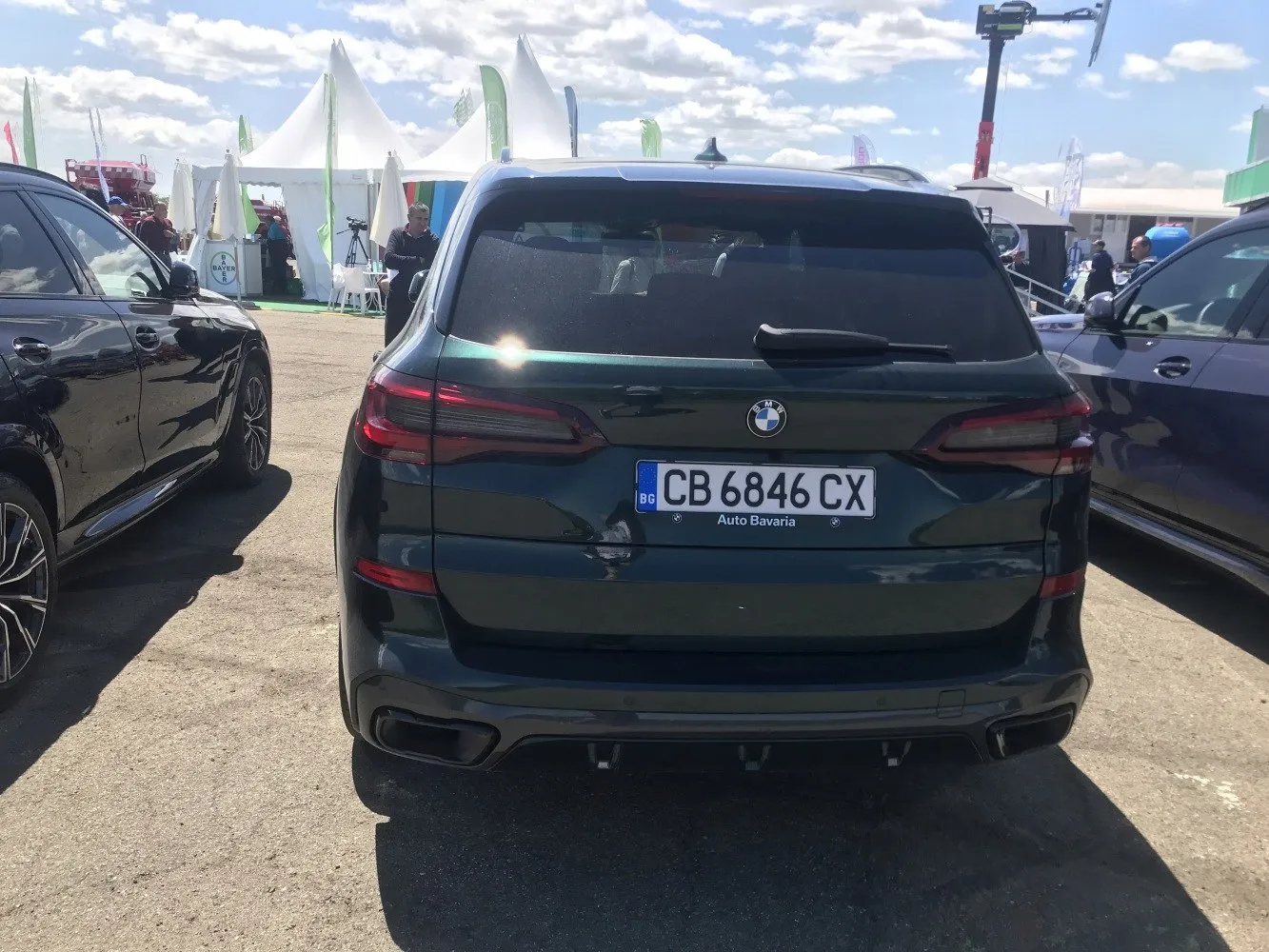

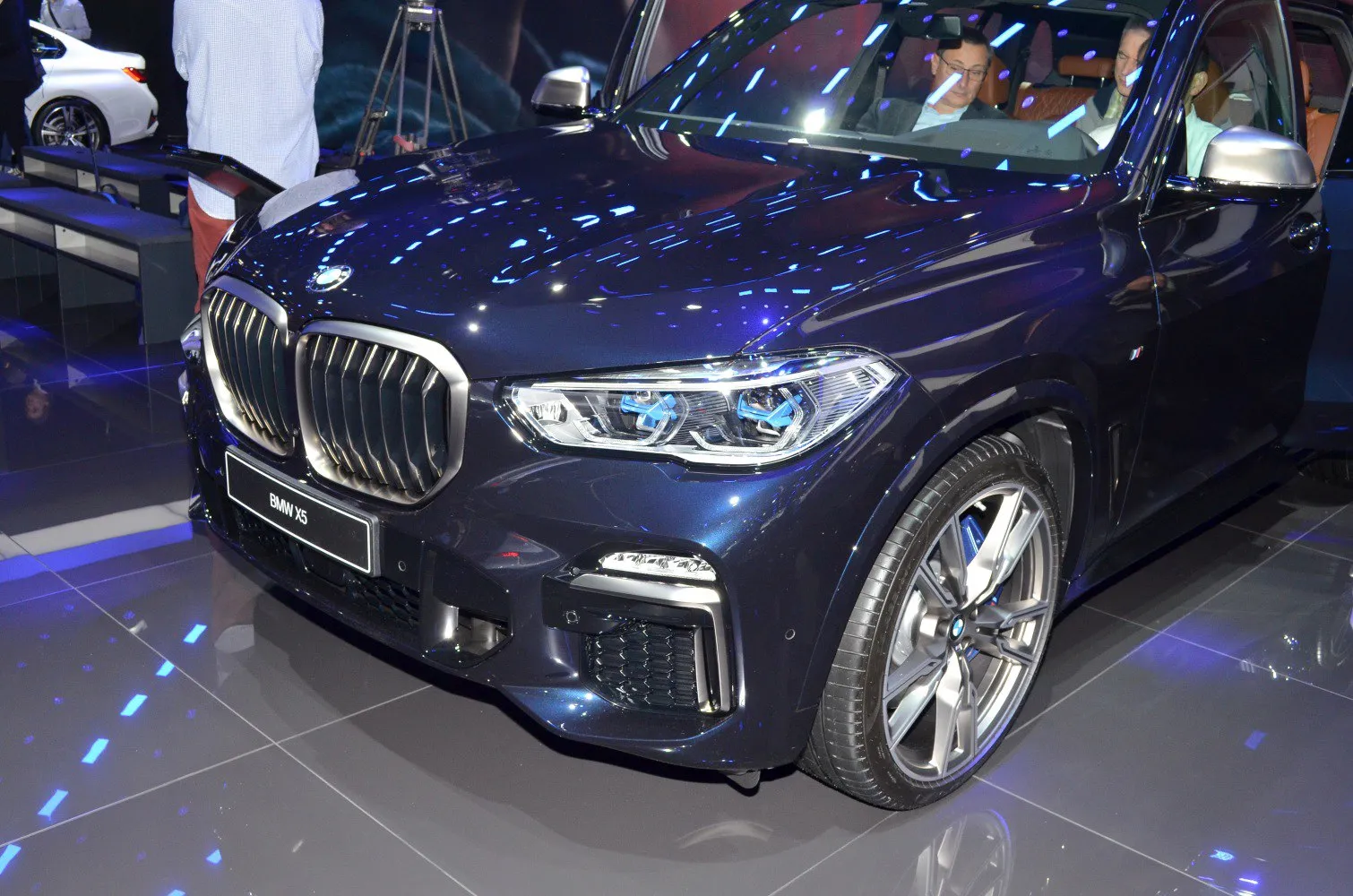

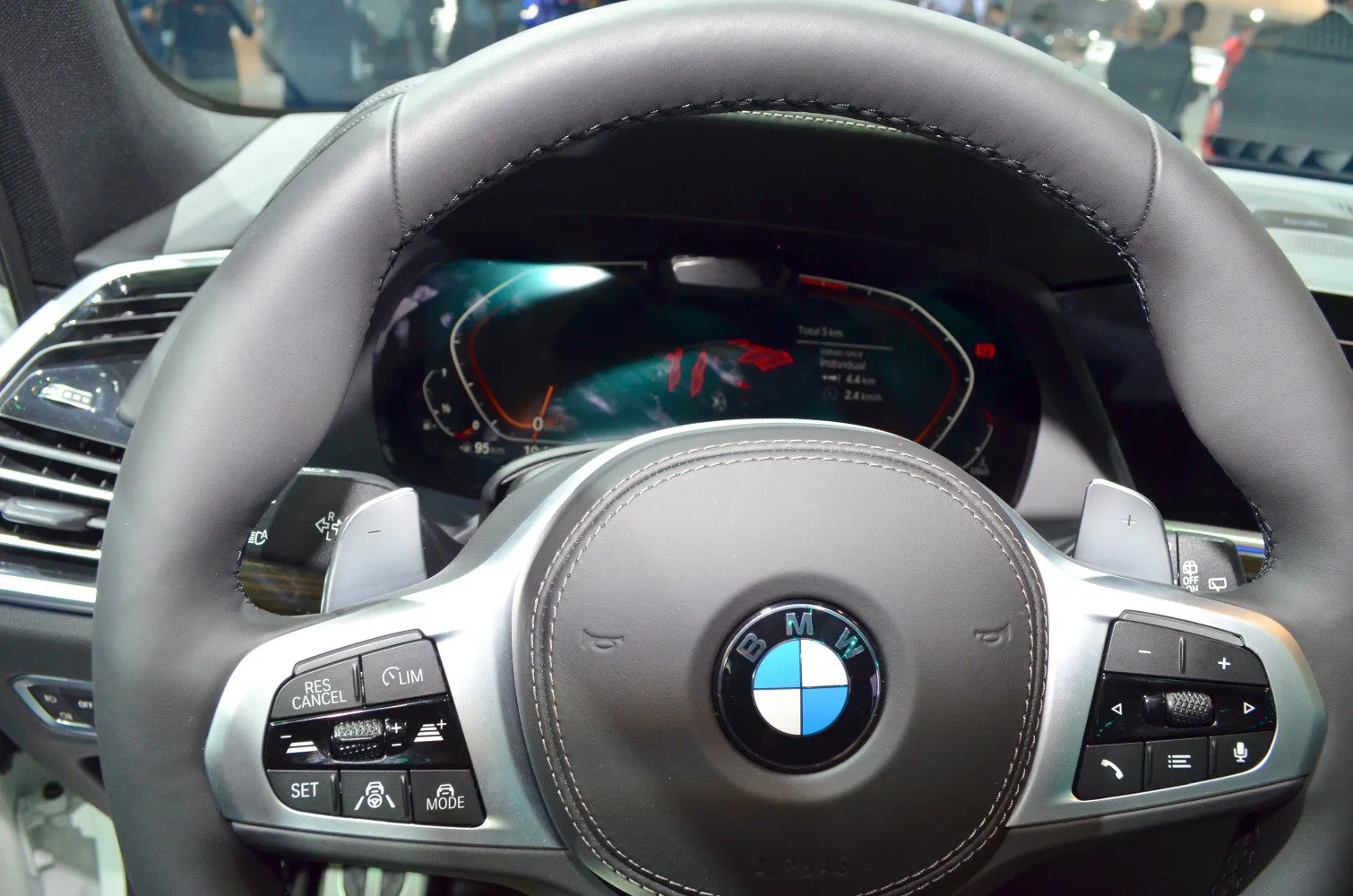

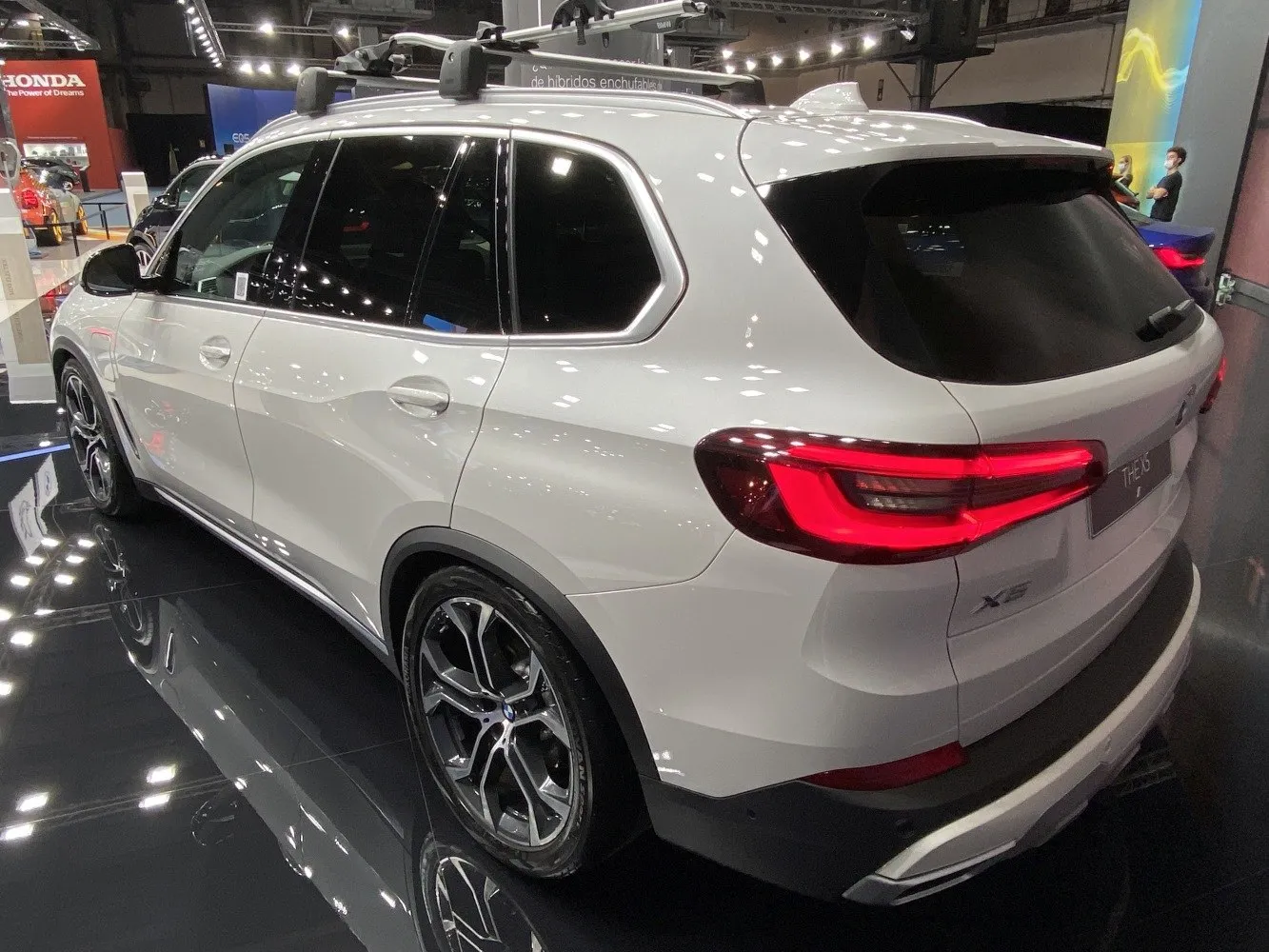

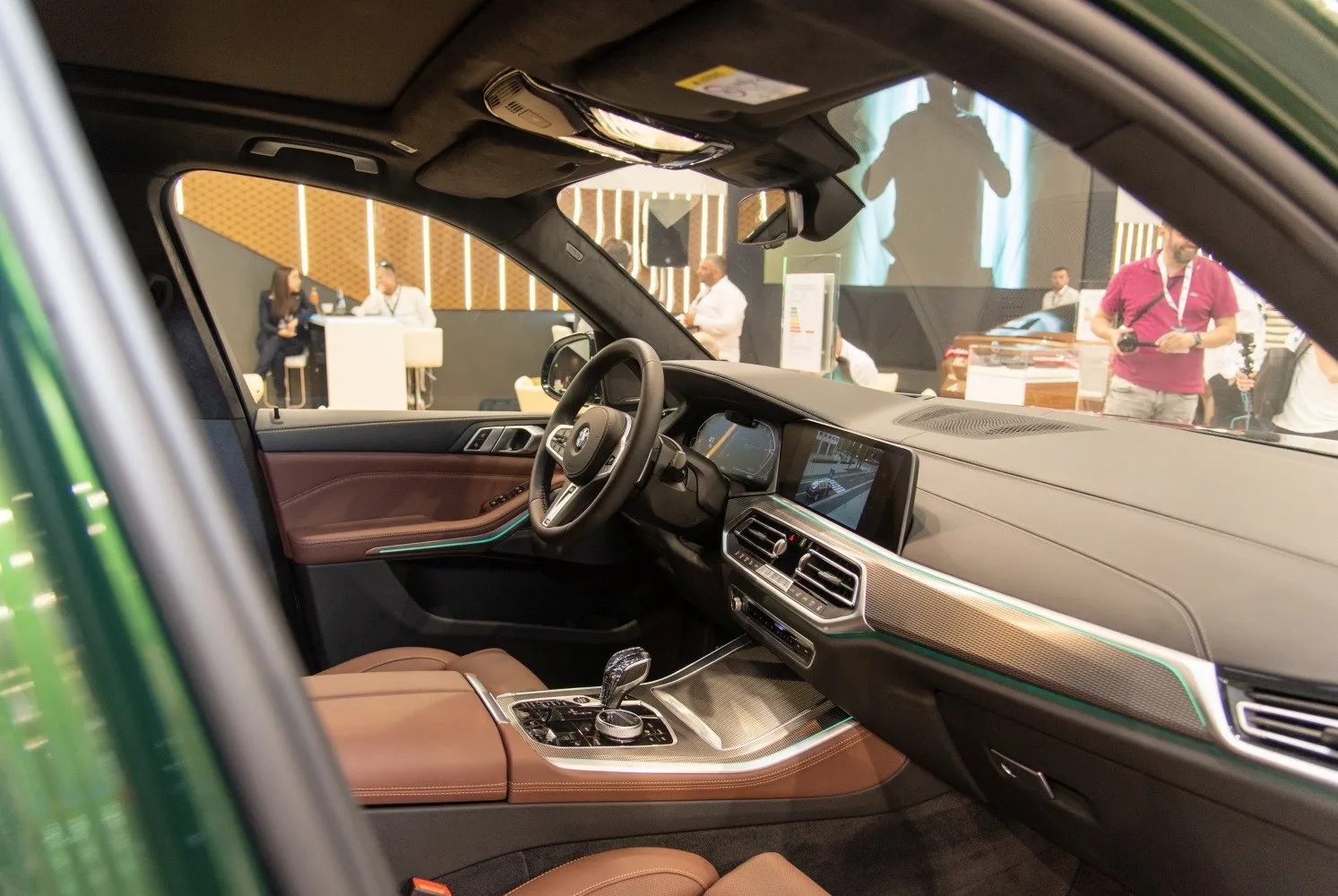

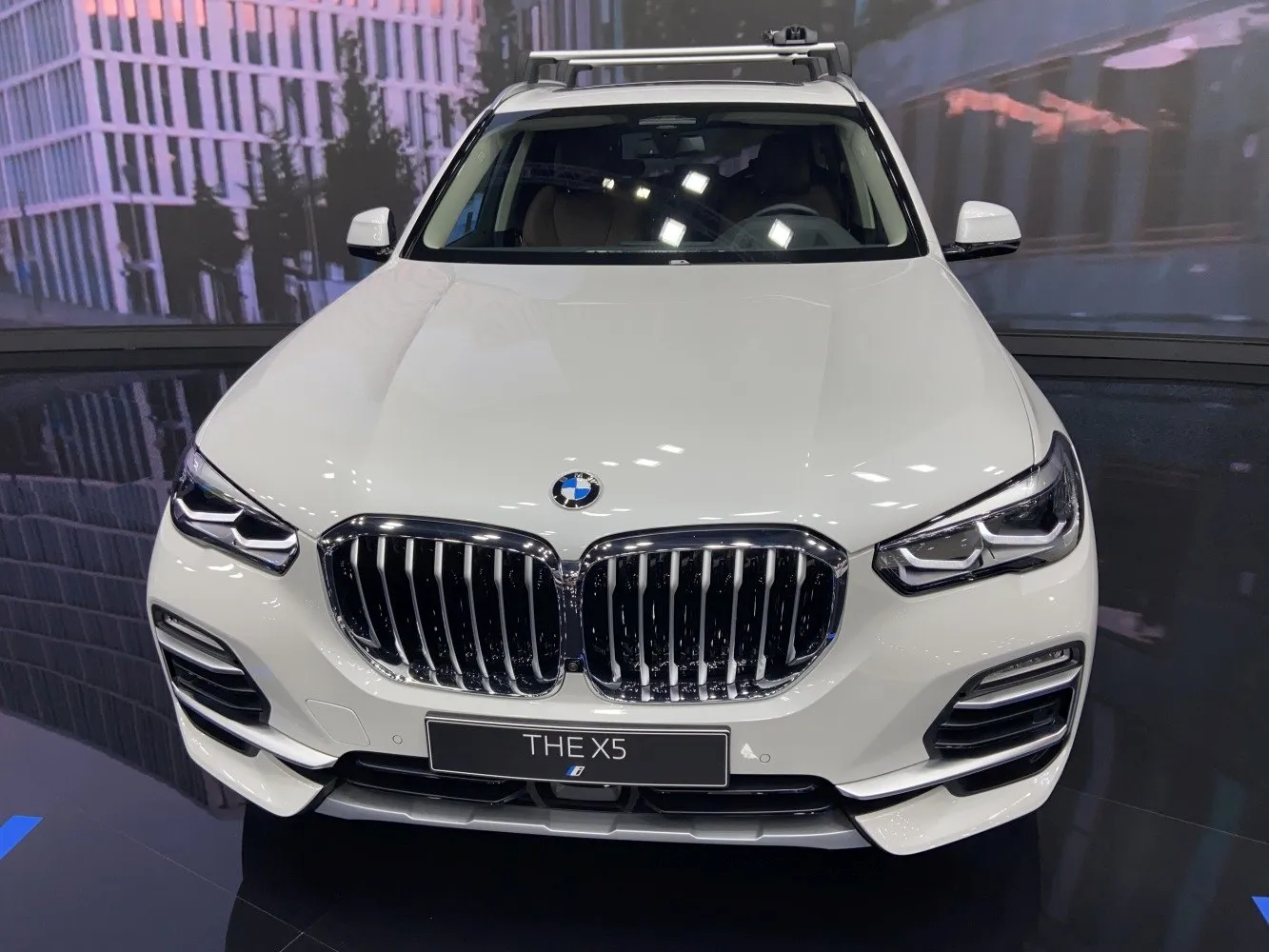

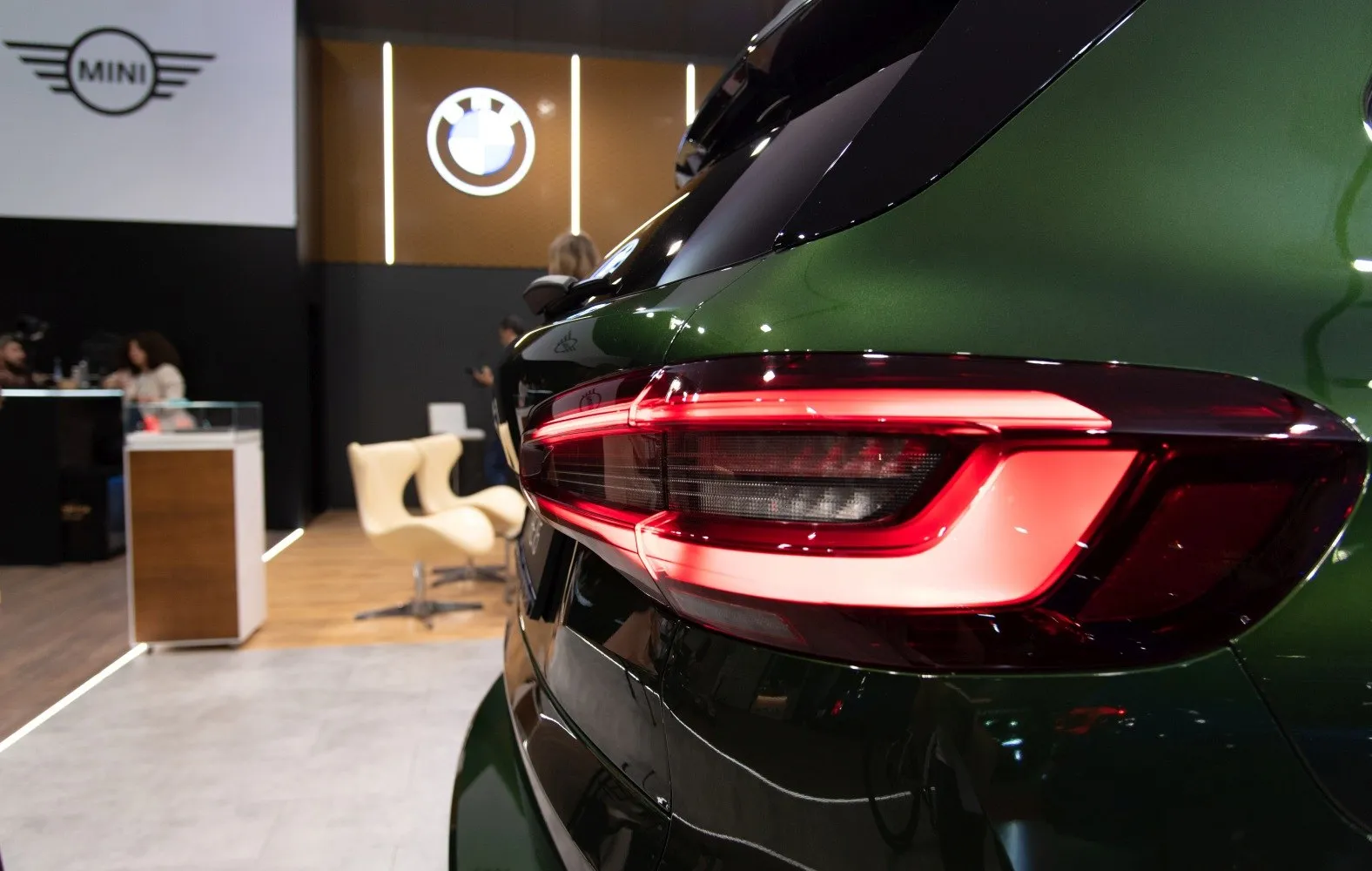

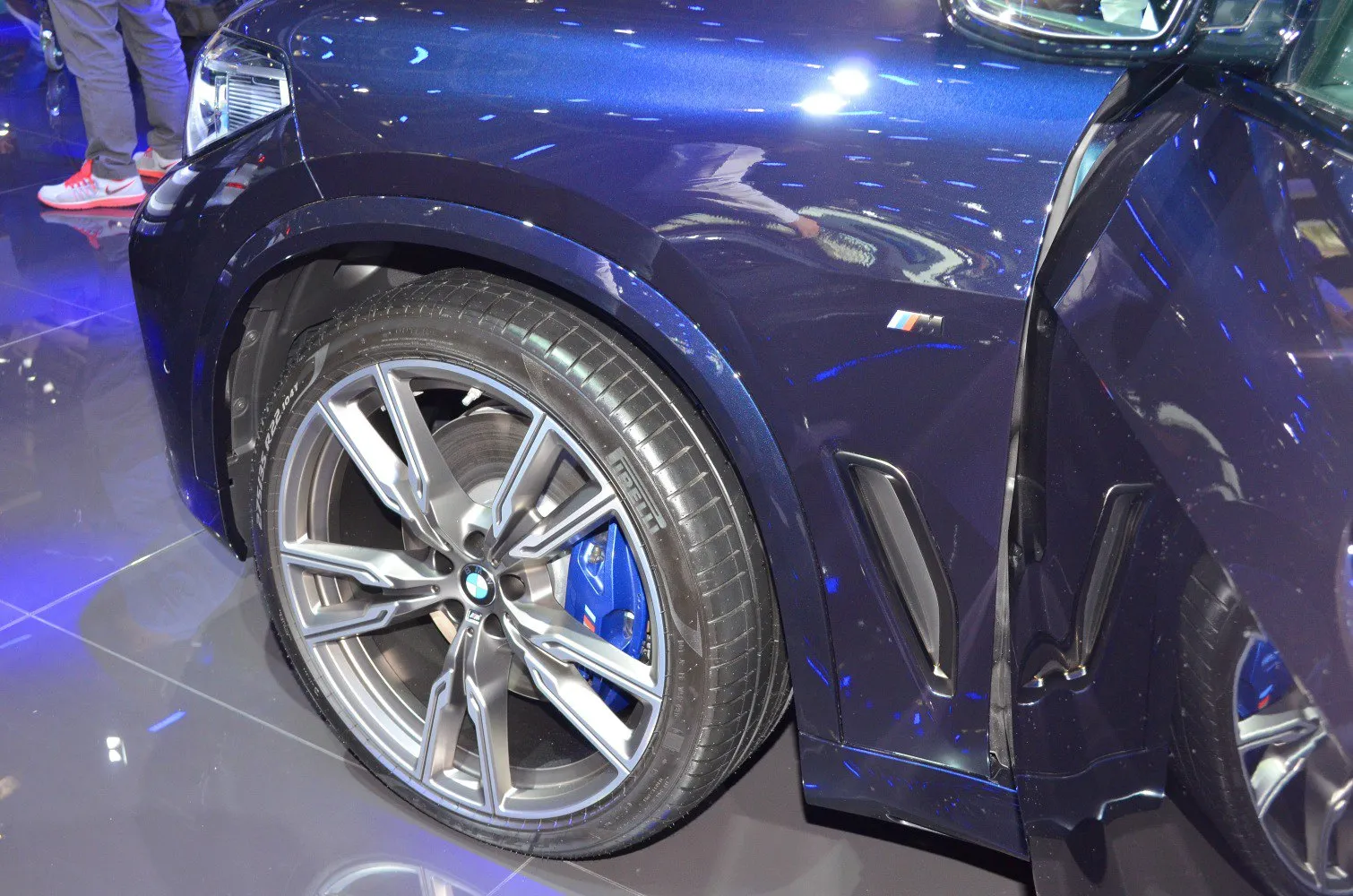

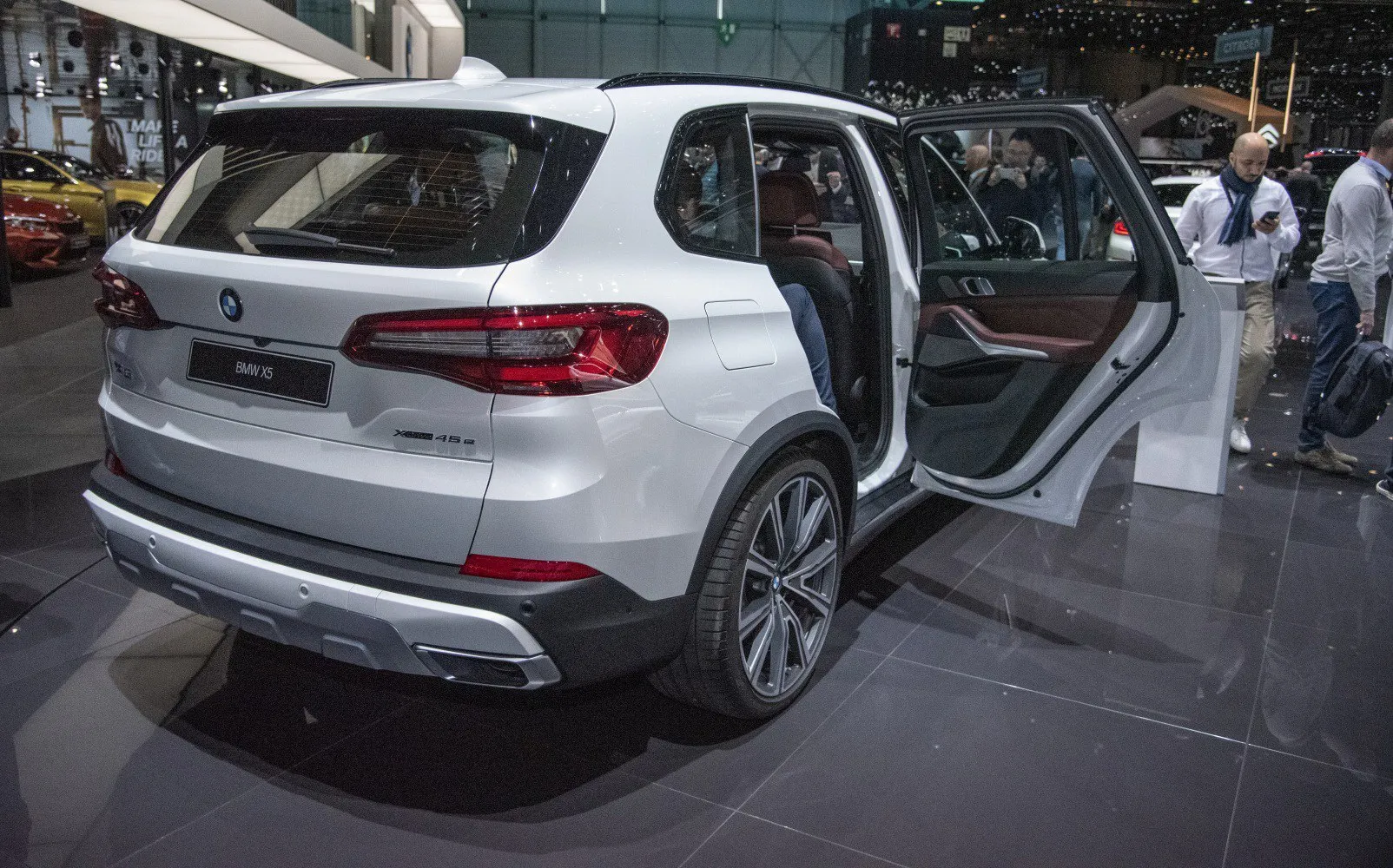

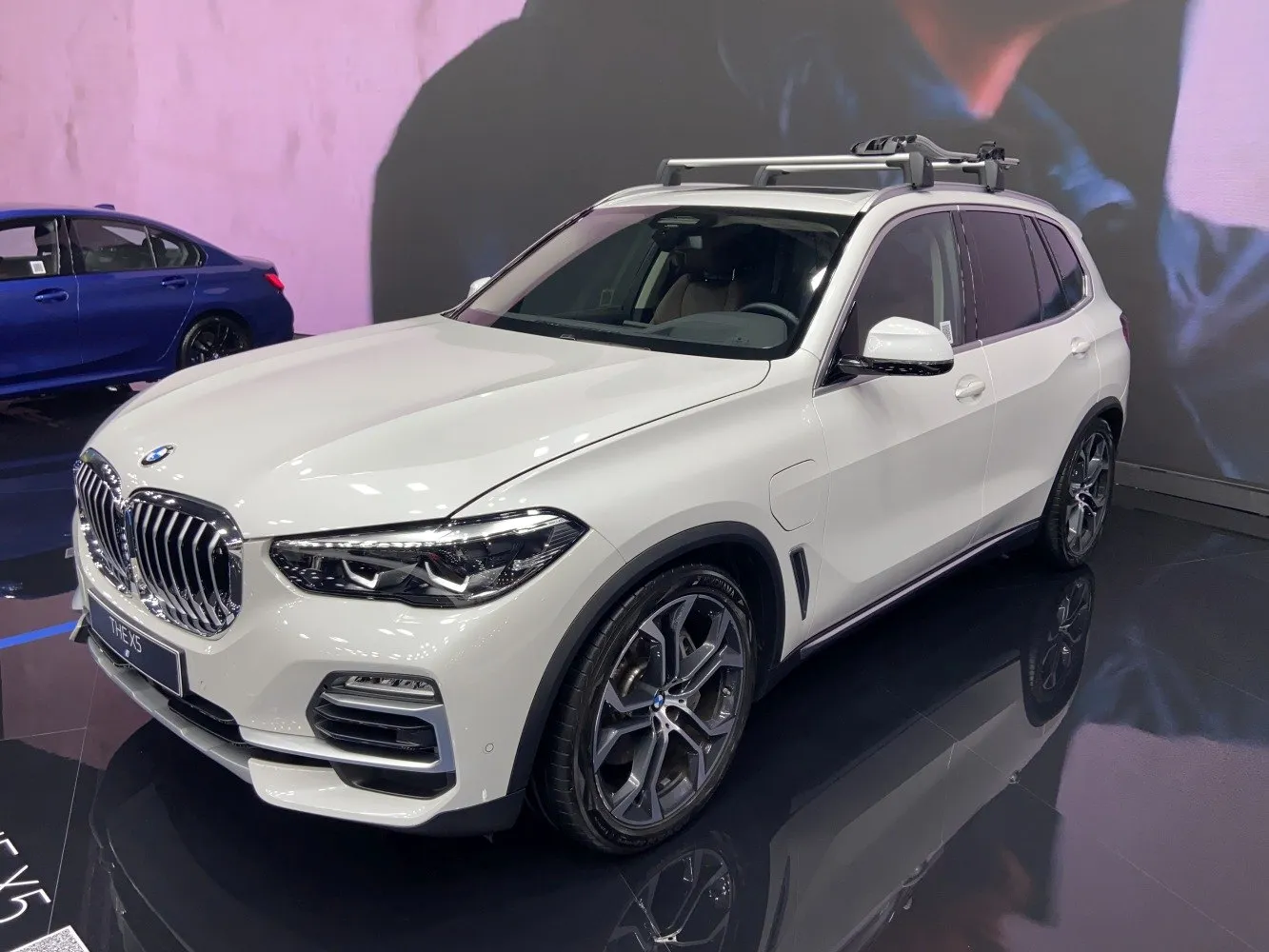

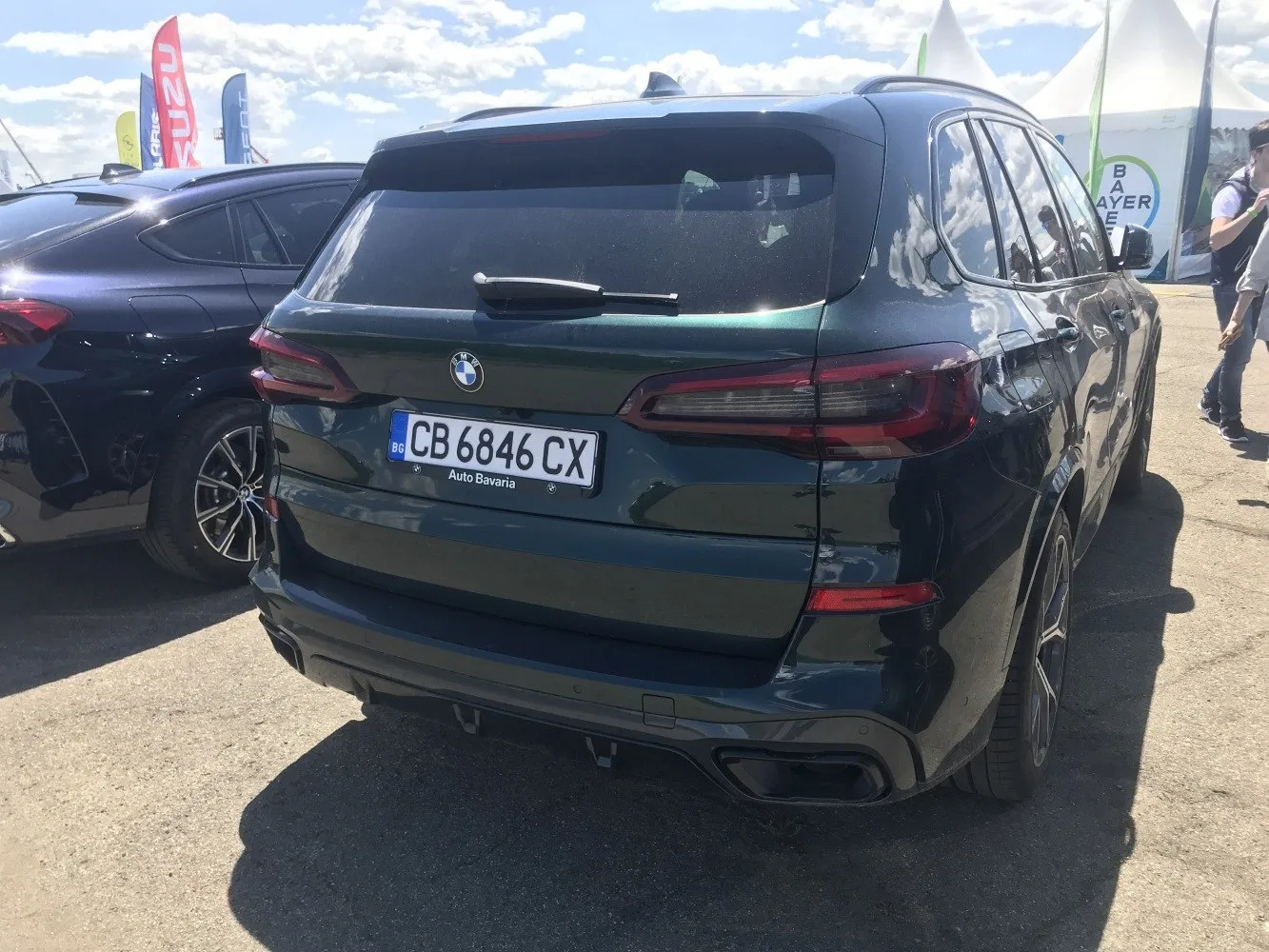

BMW X5 X5 (G05) View larger
Photo: © www.Auto-Data.net

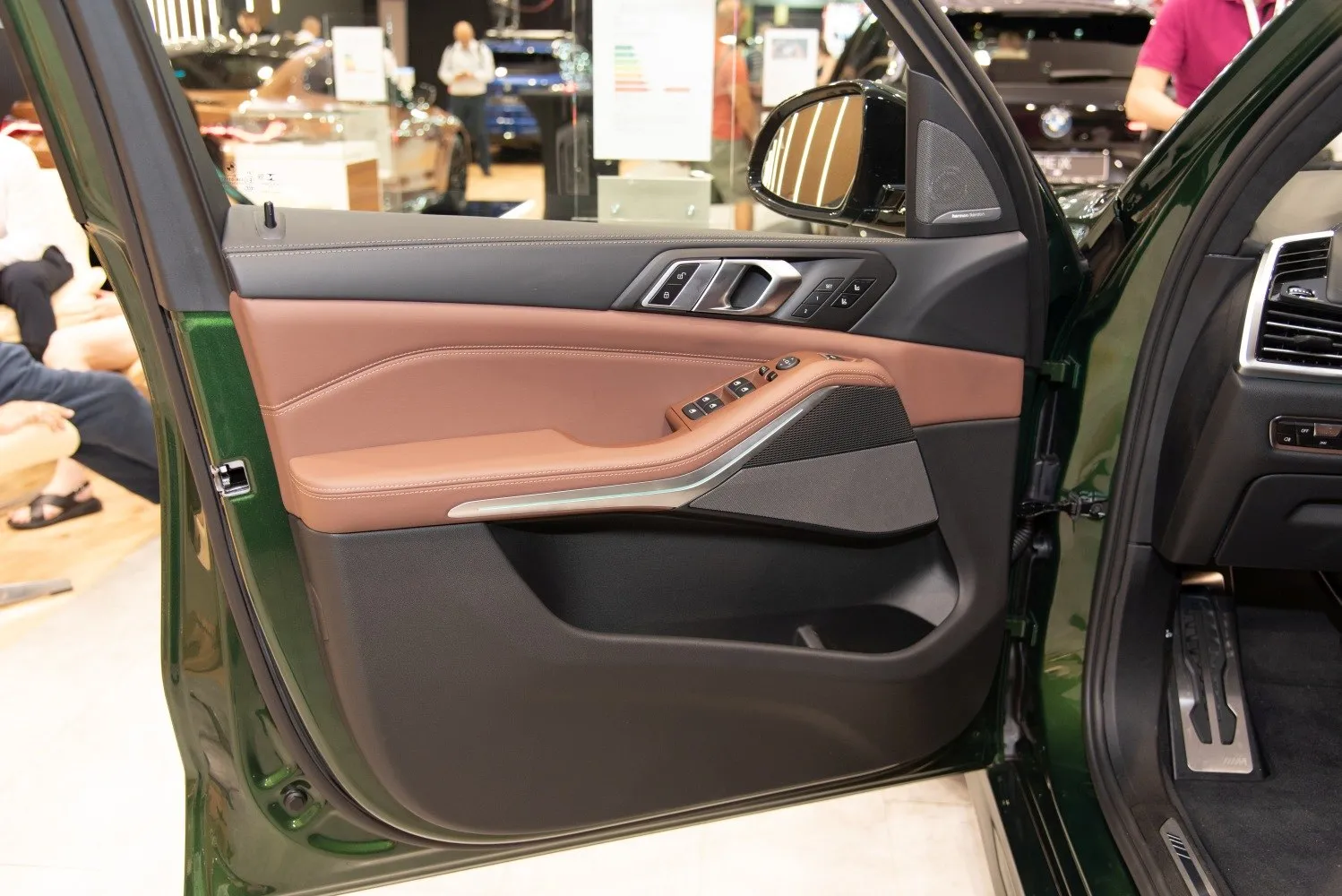

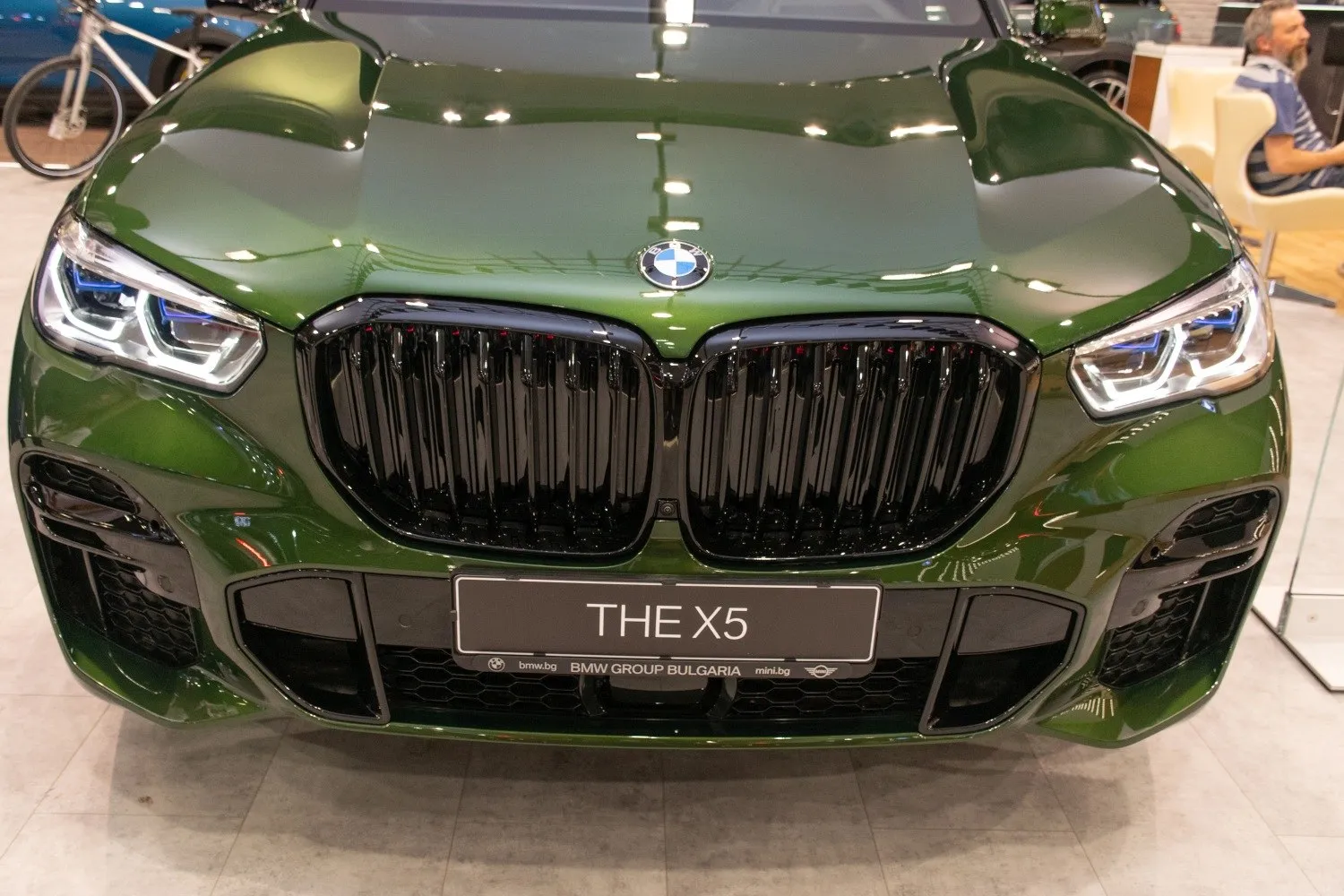

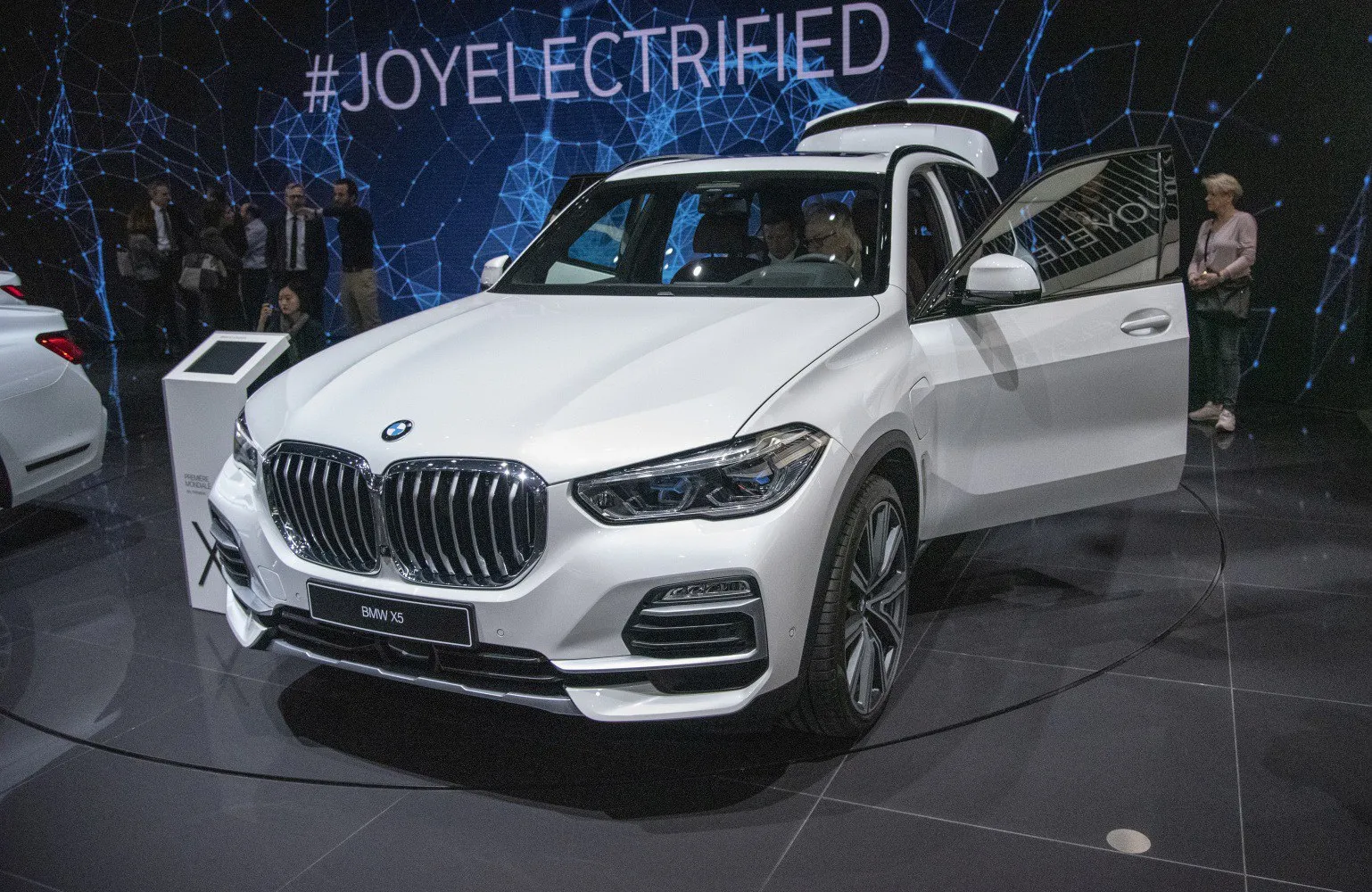

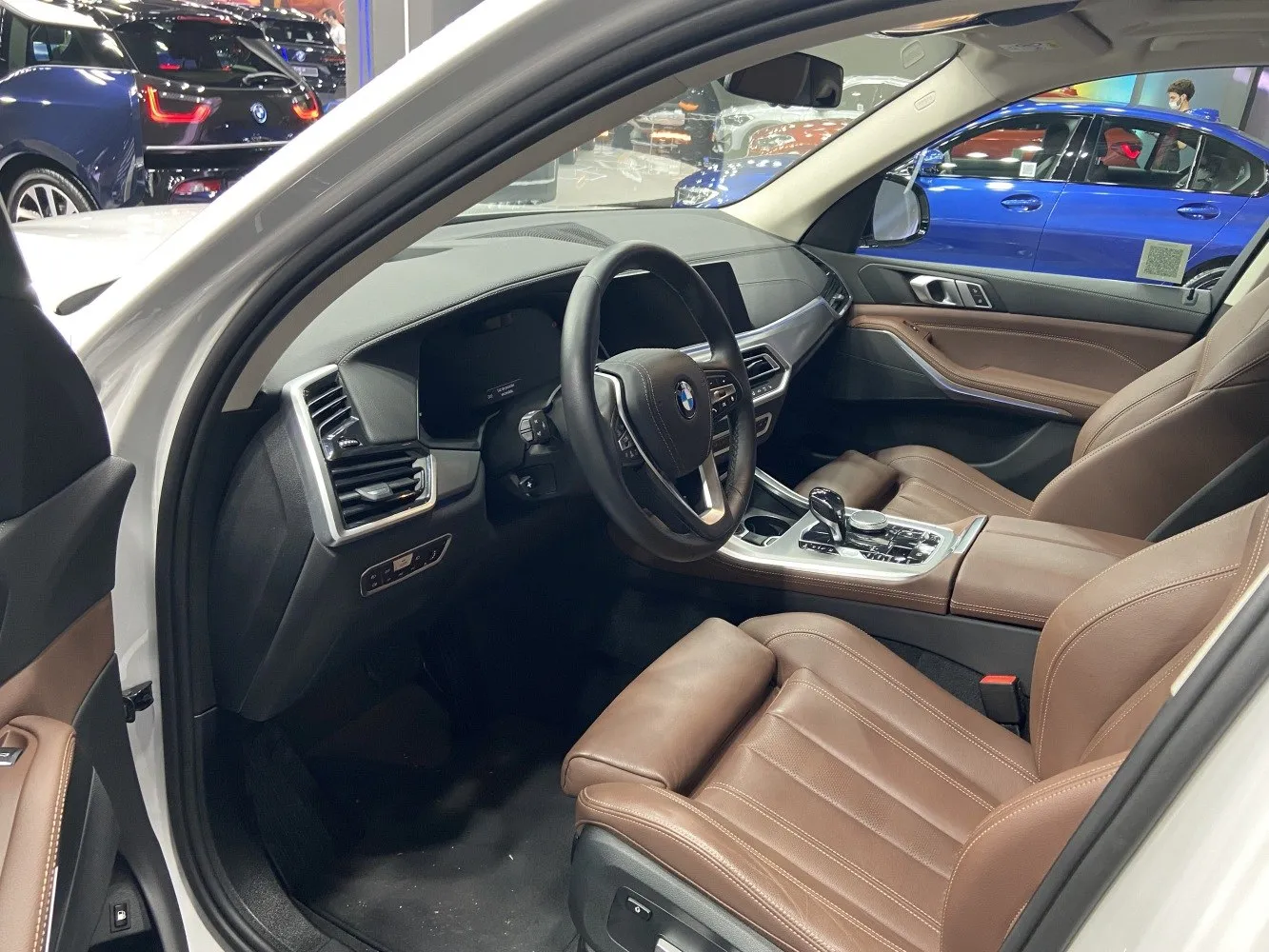

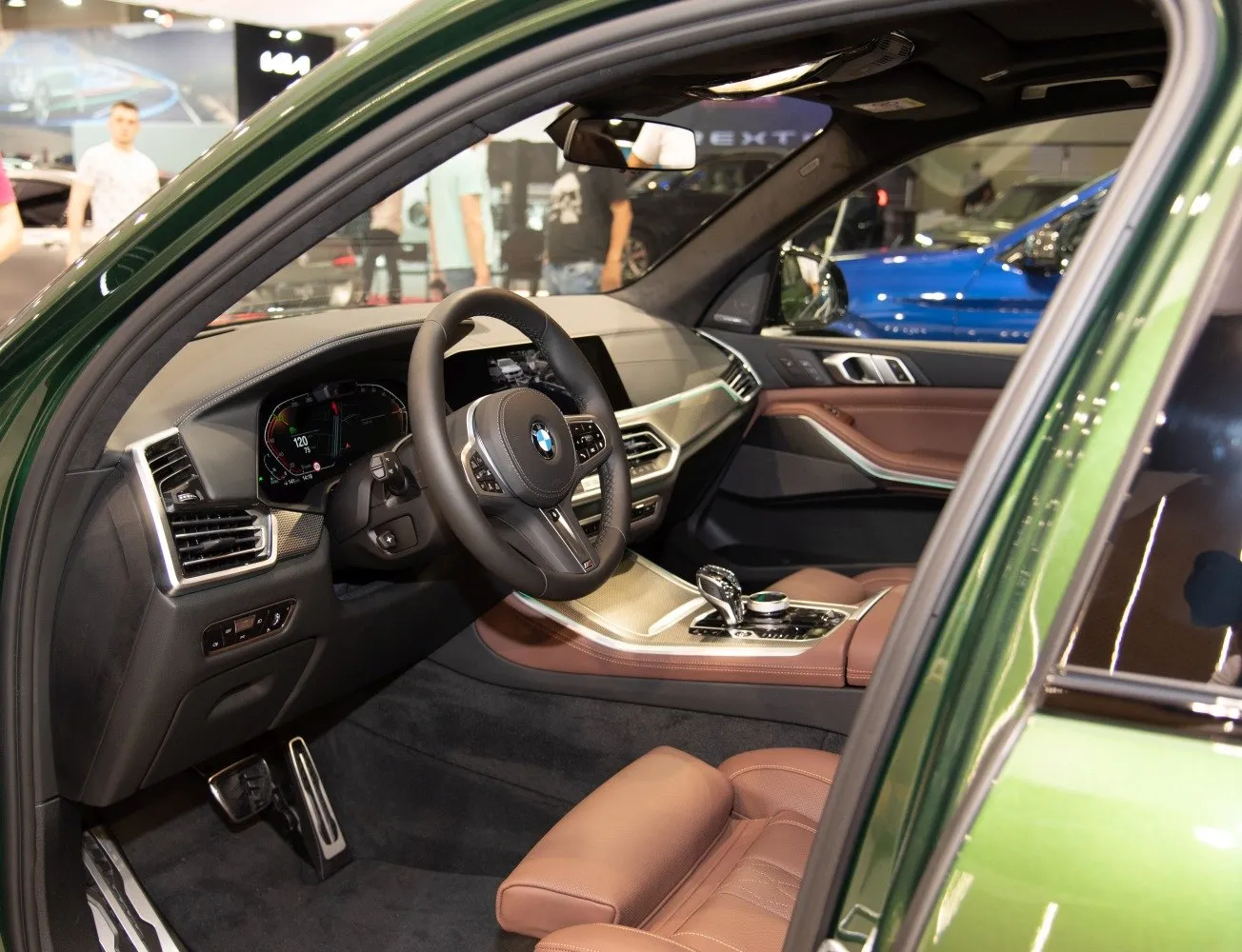

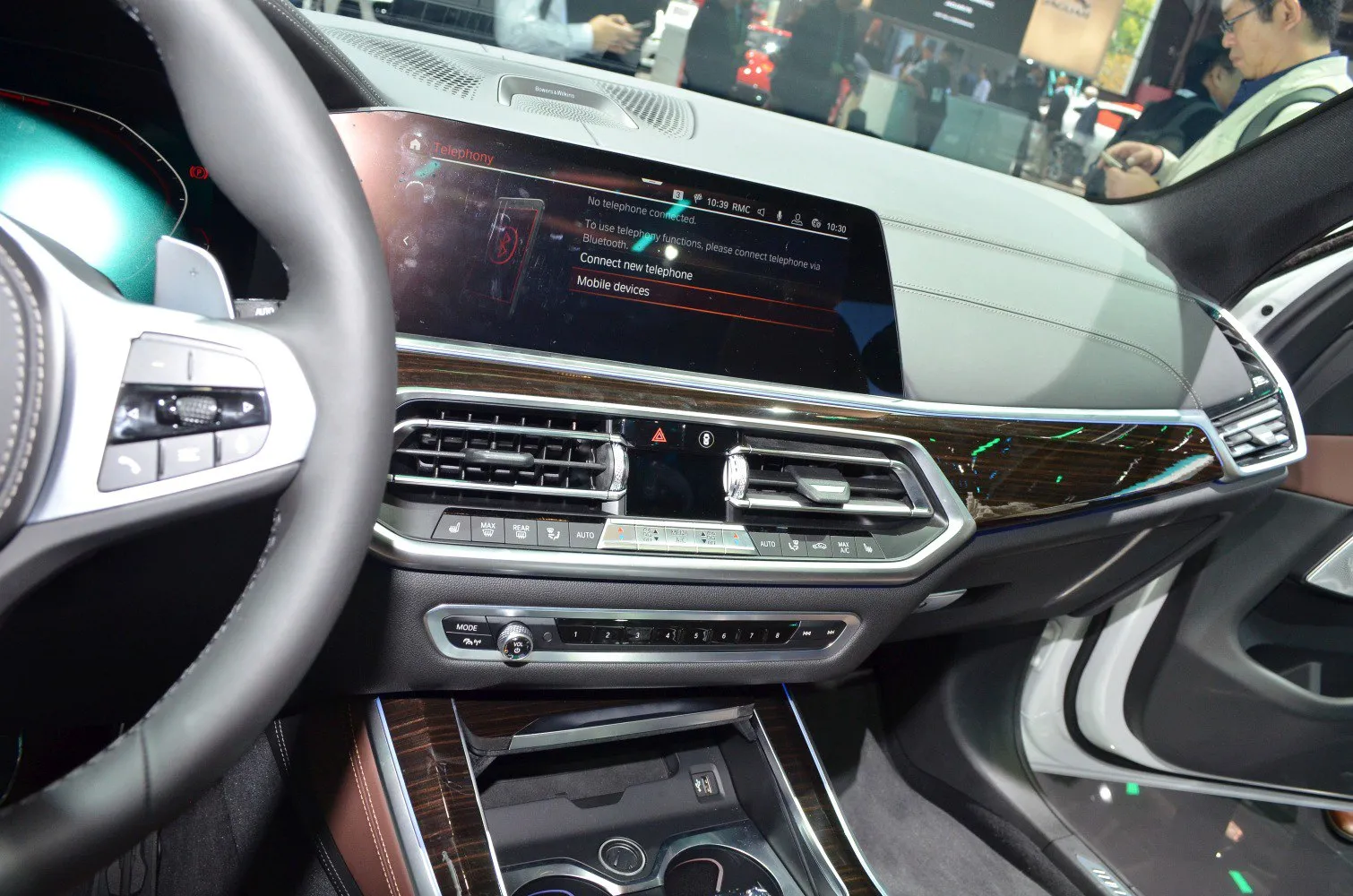

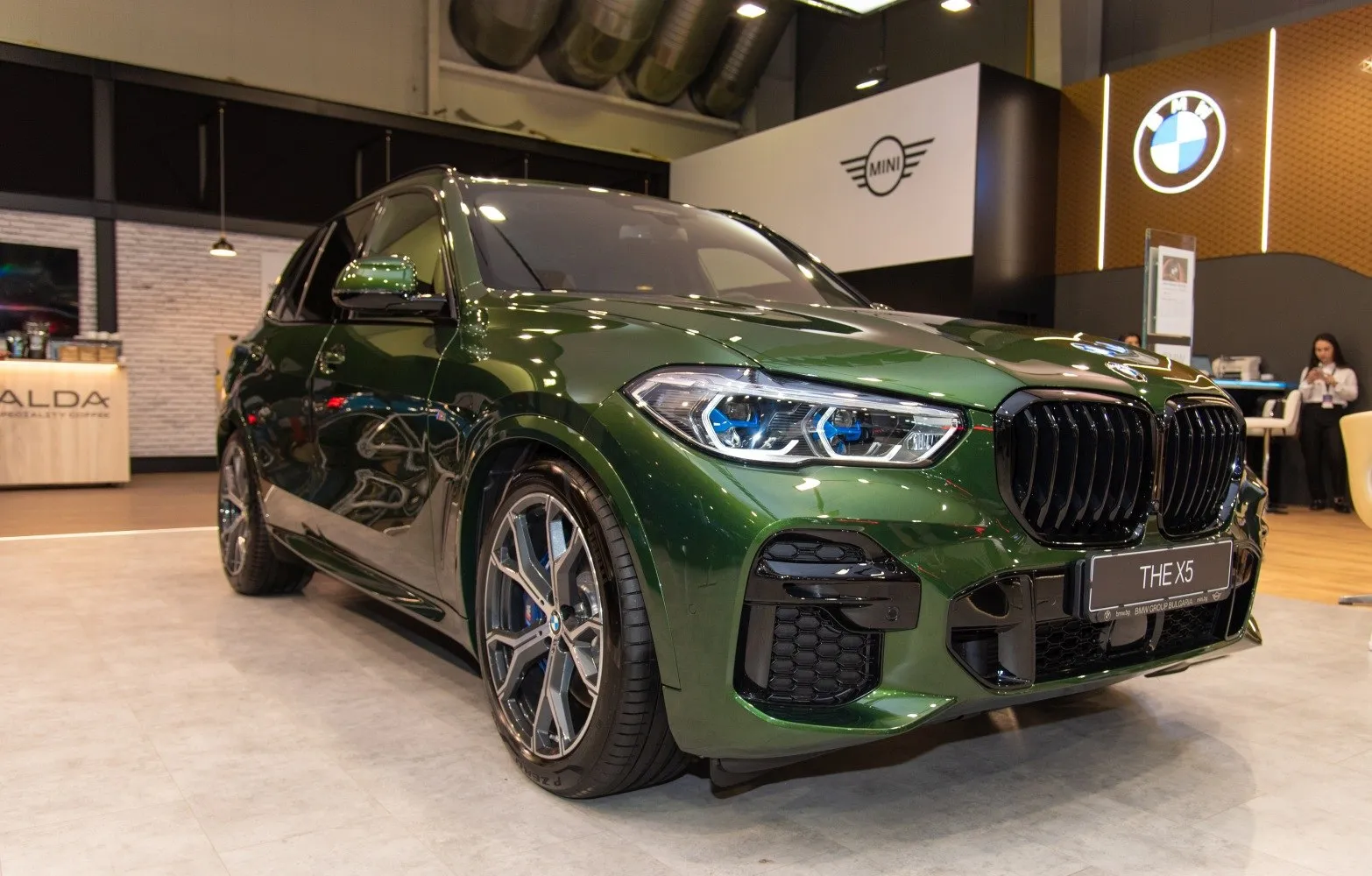

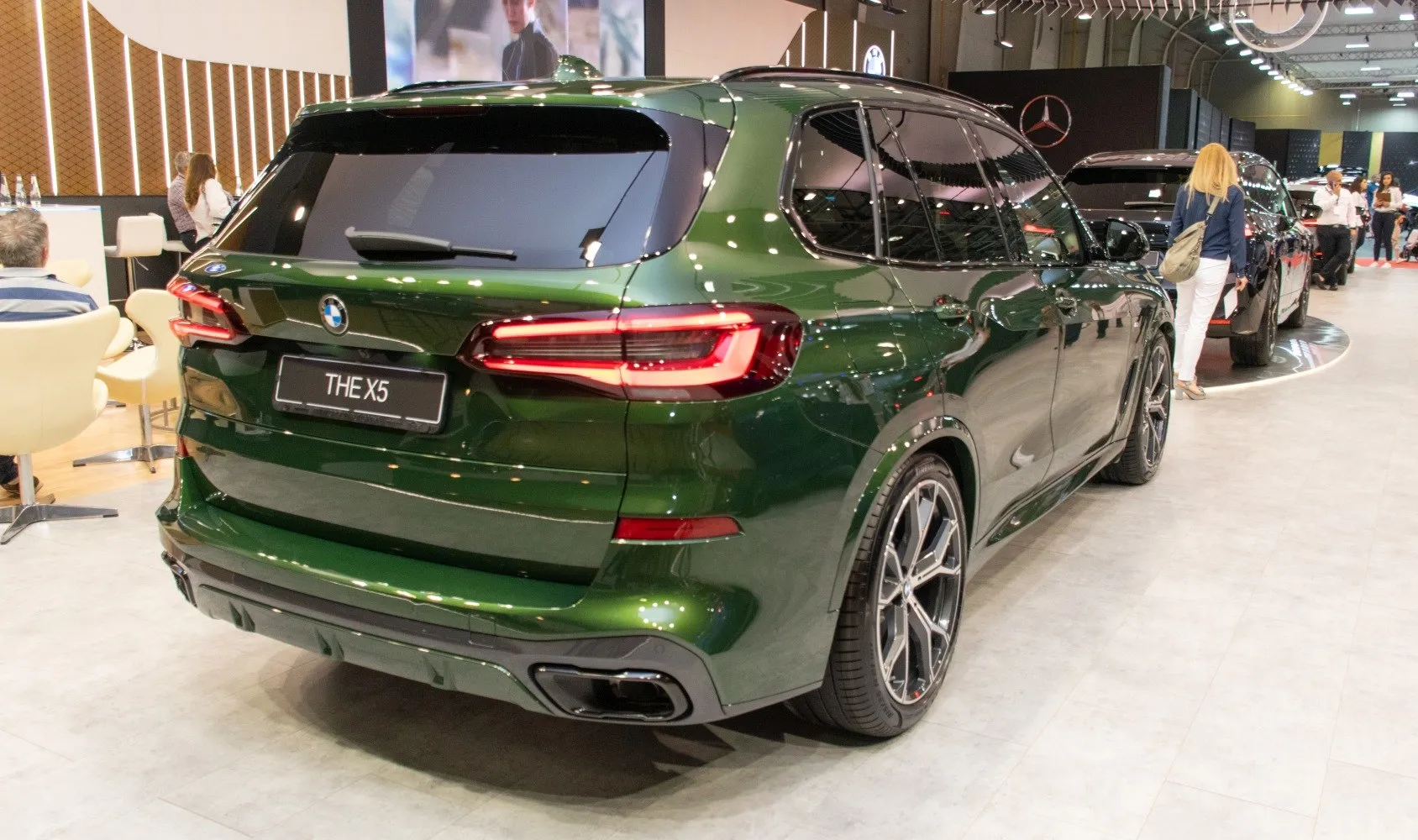

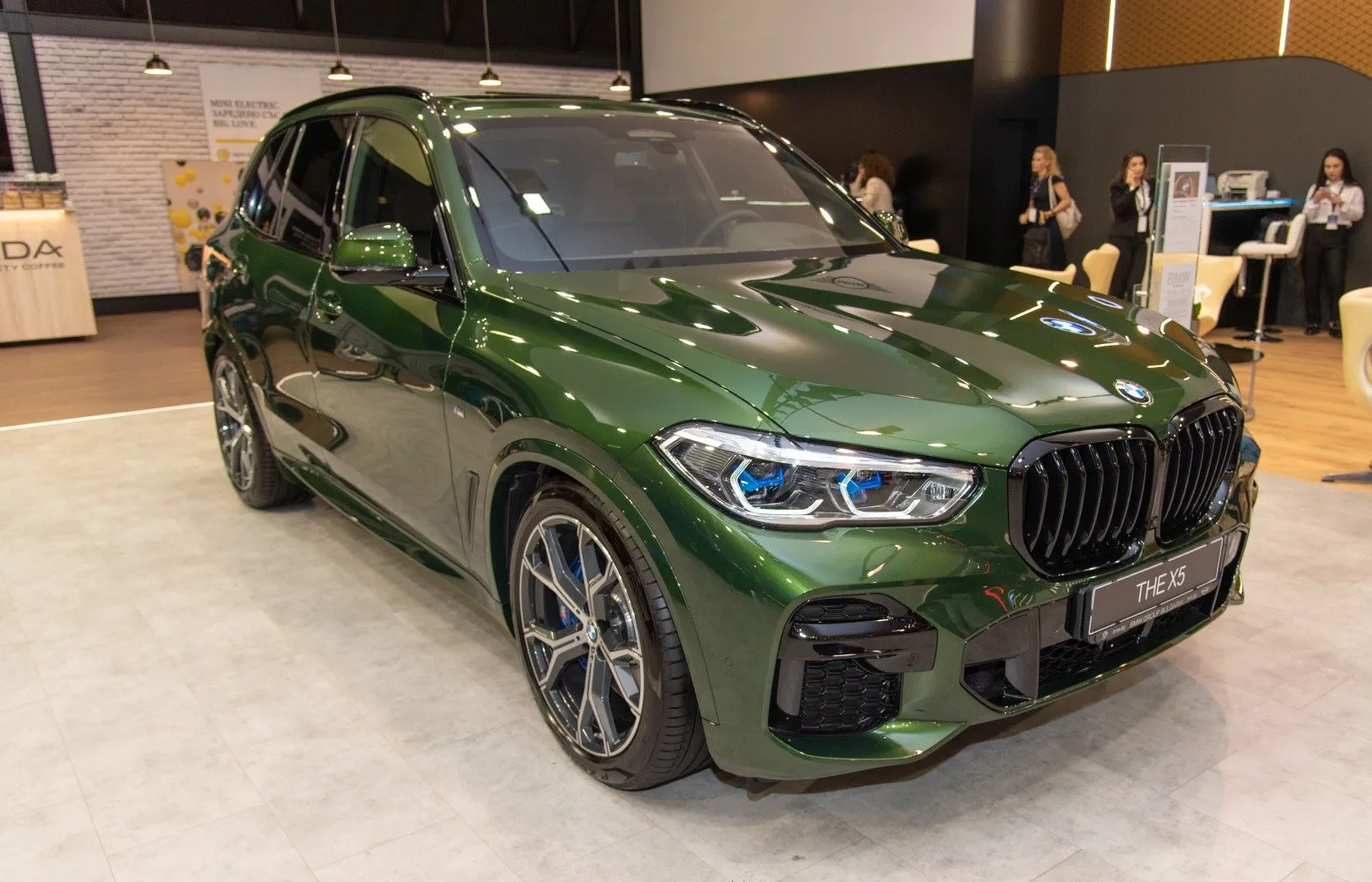

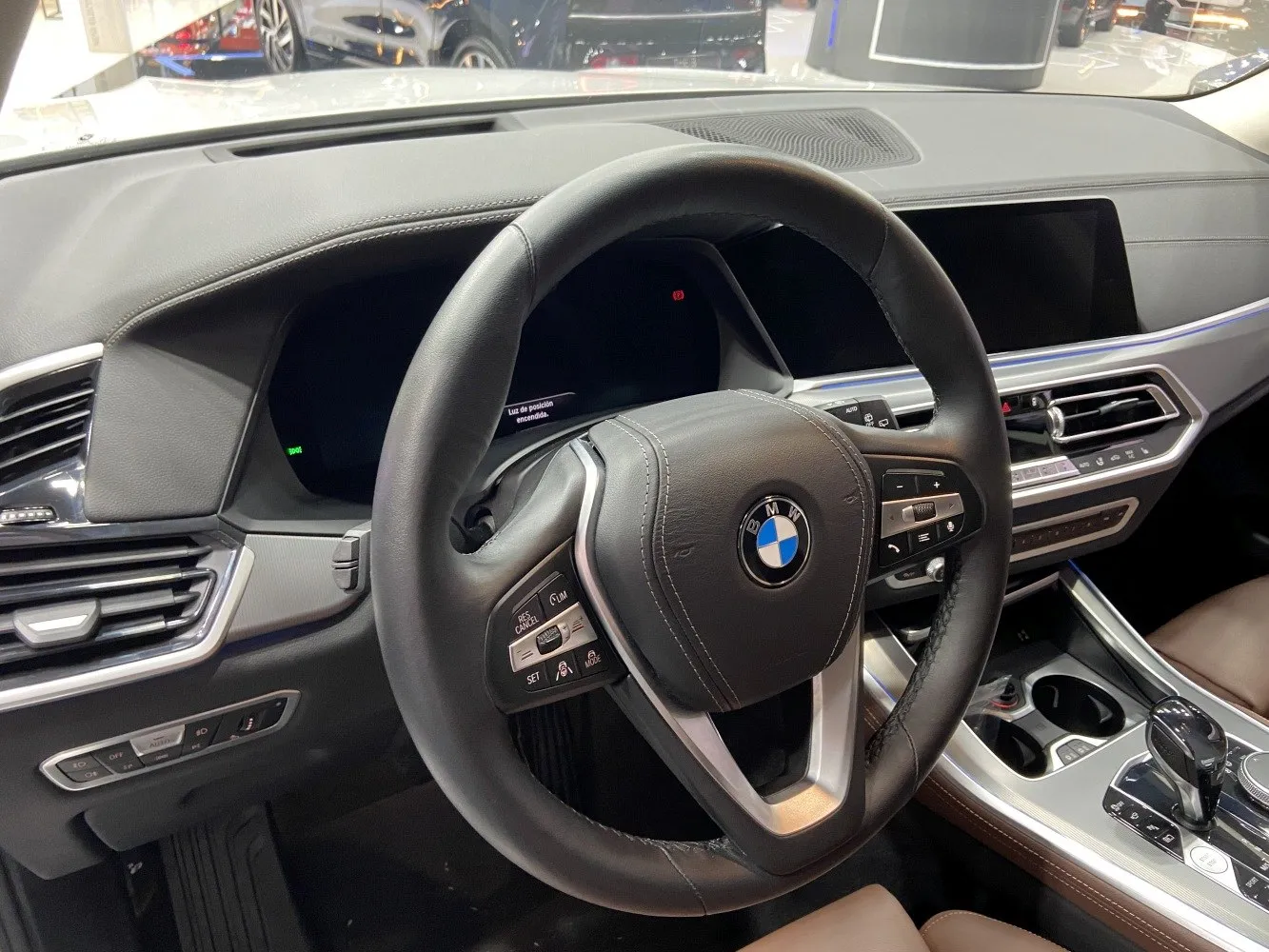

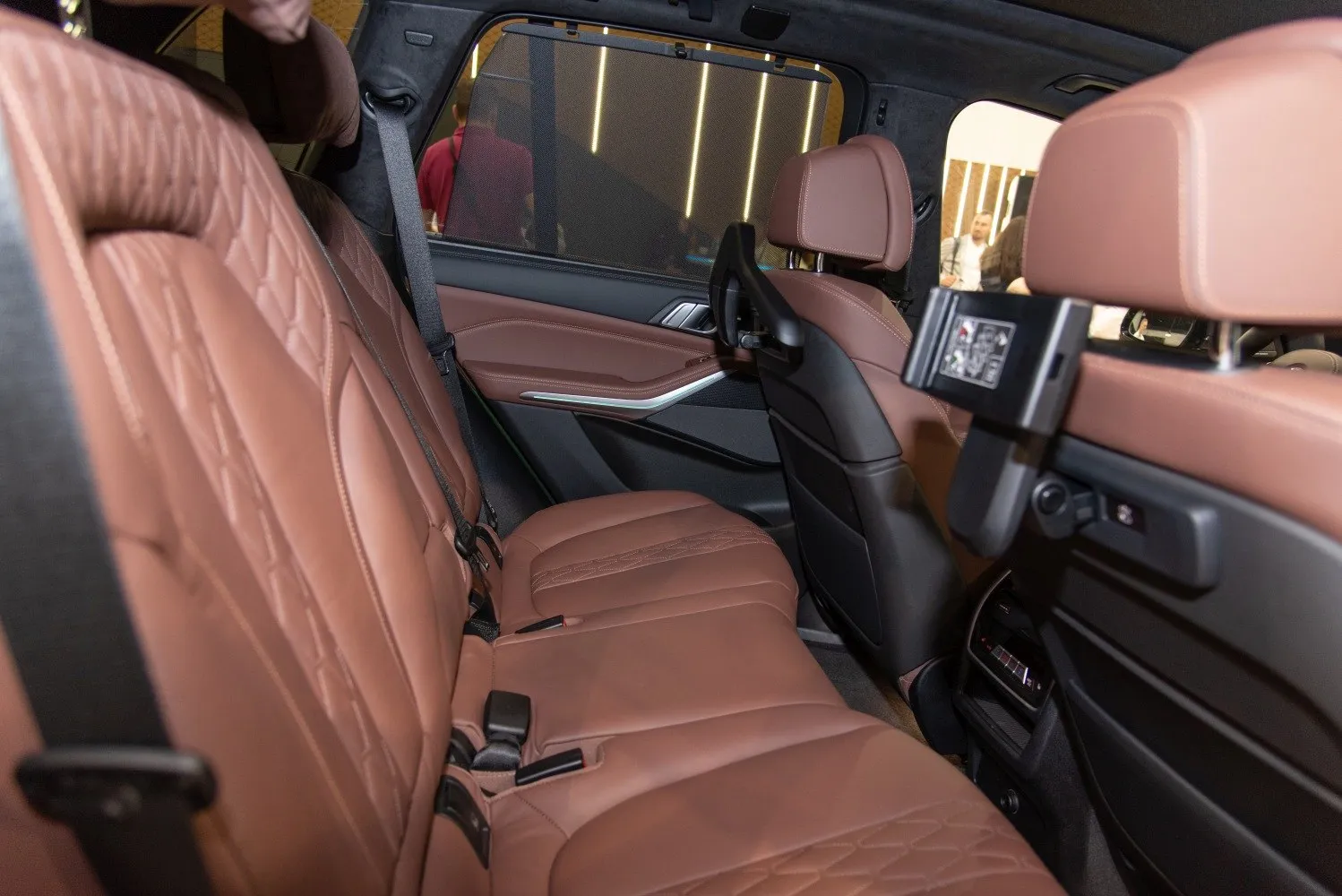

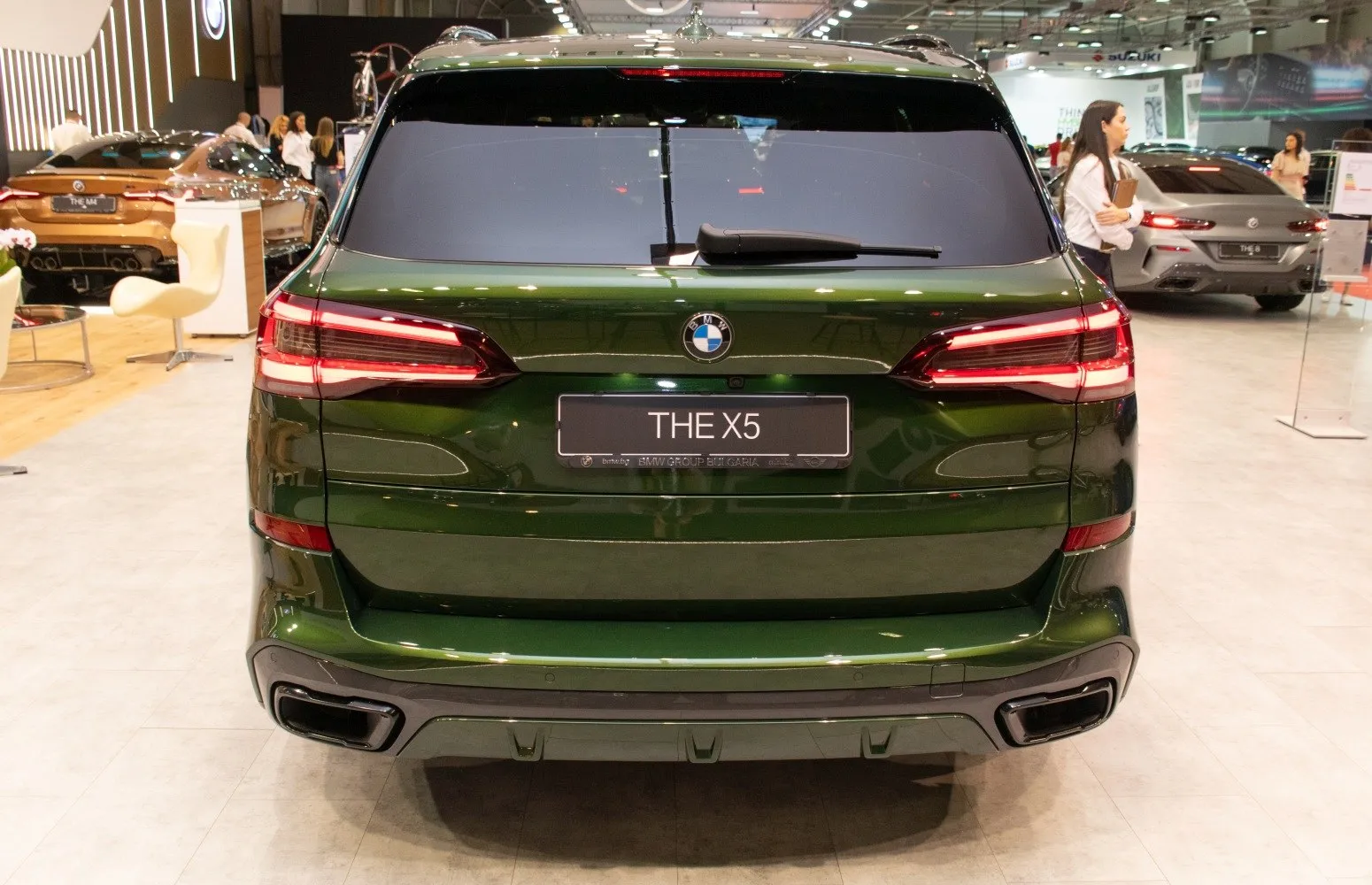

Vehicle gallery

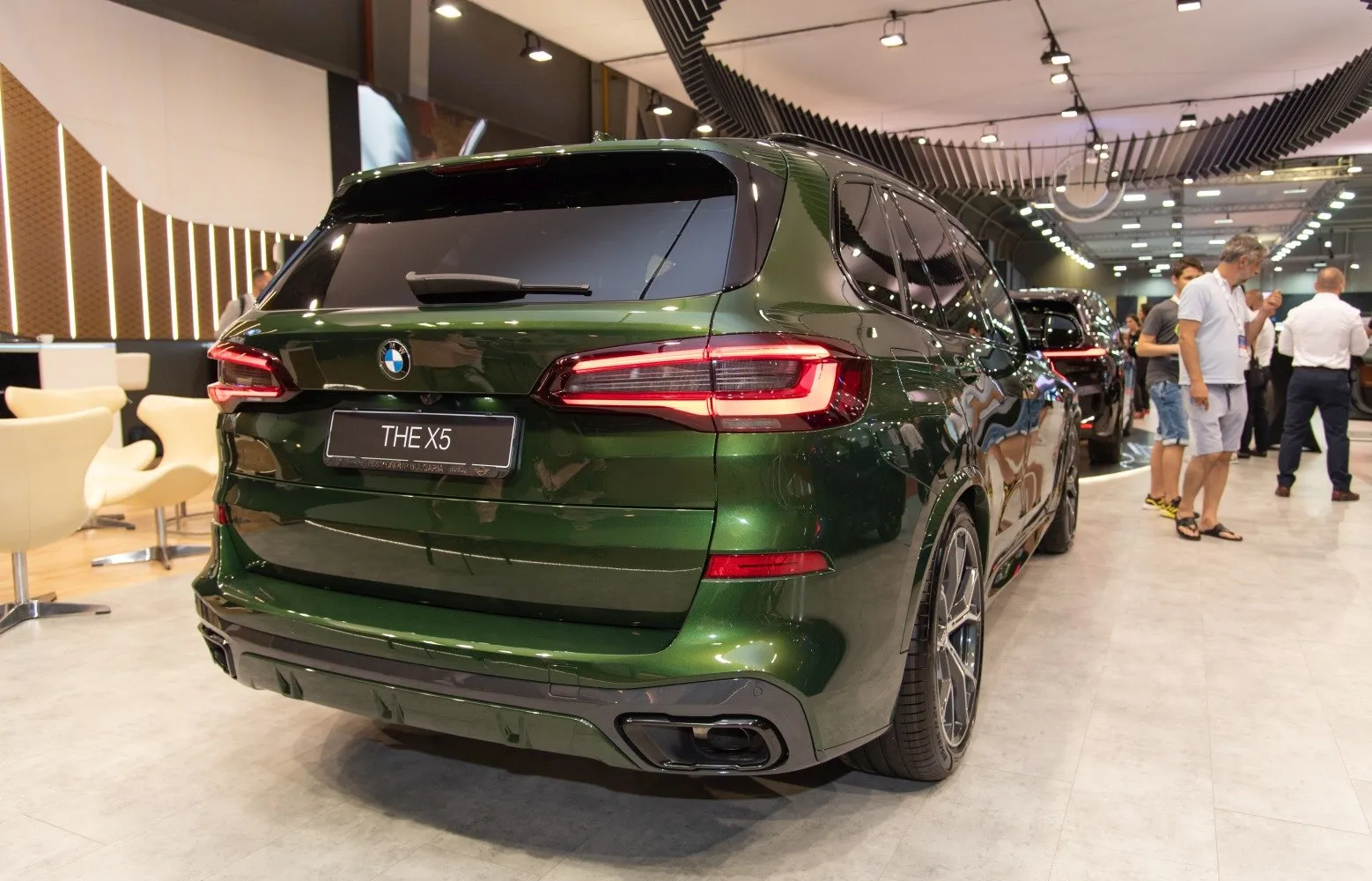

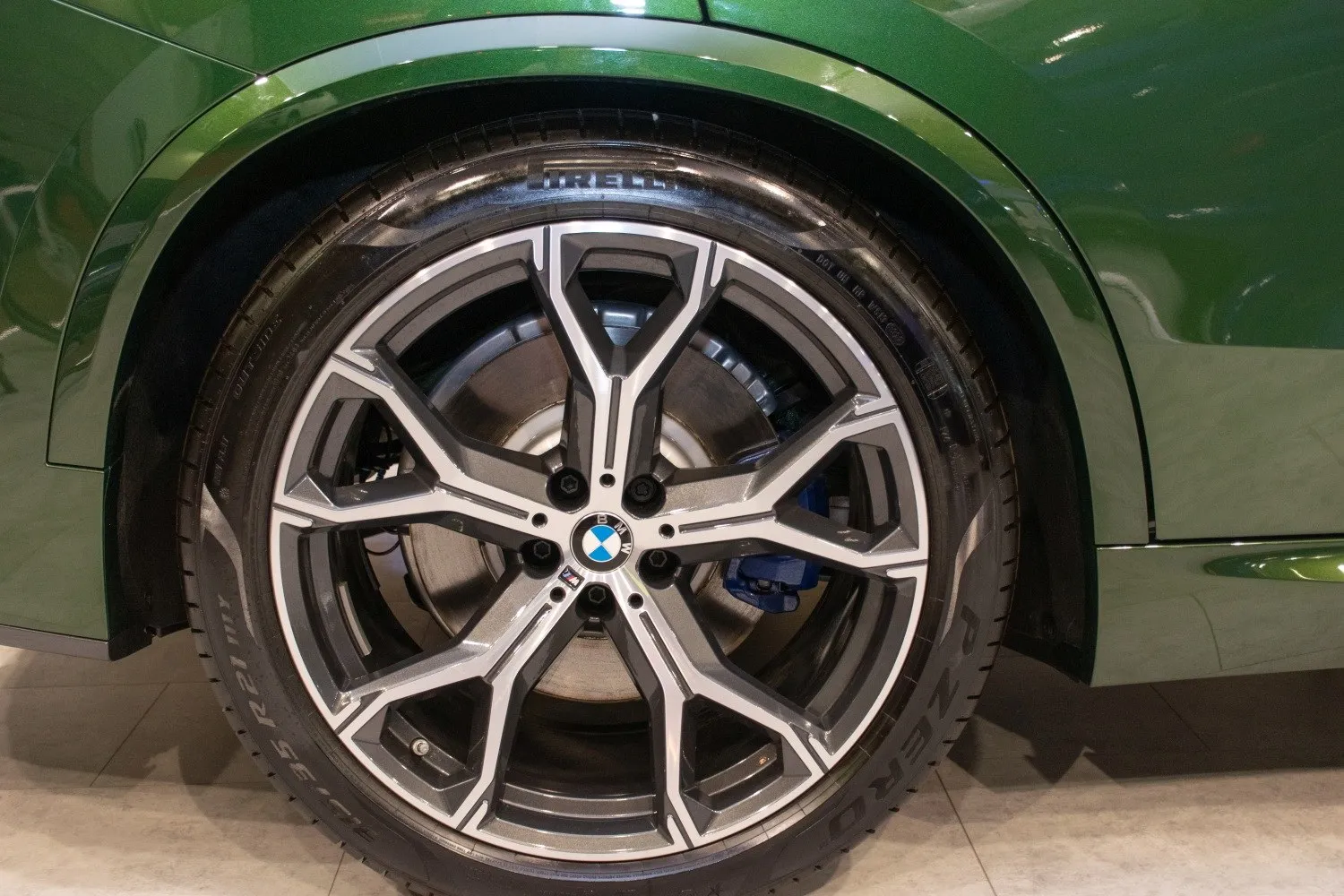

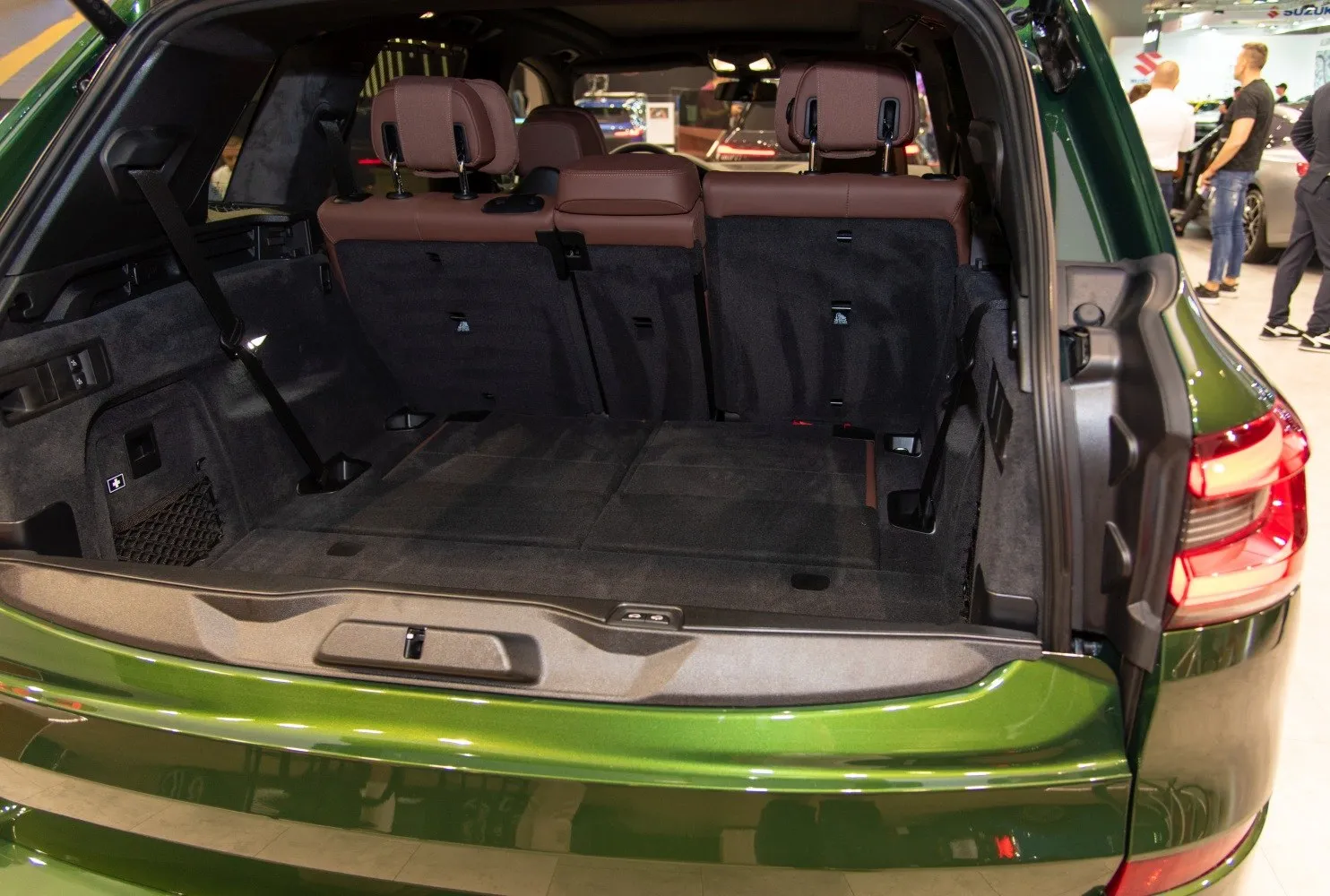

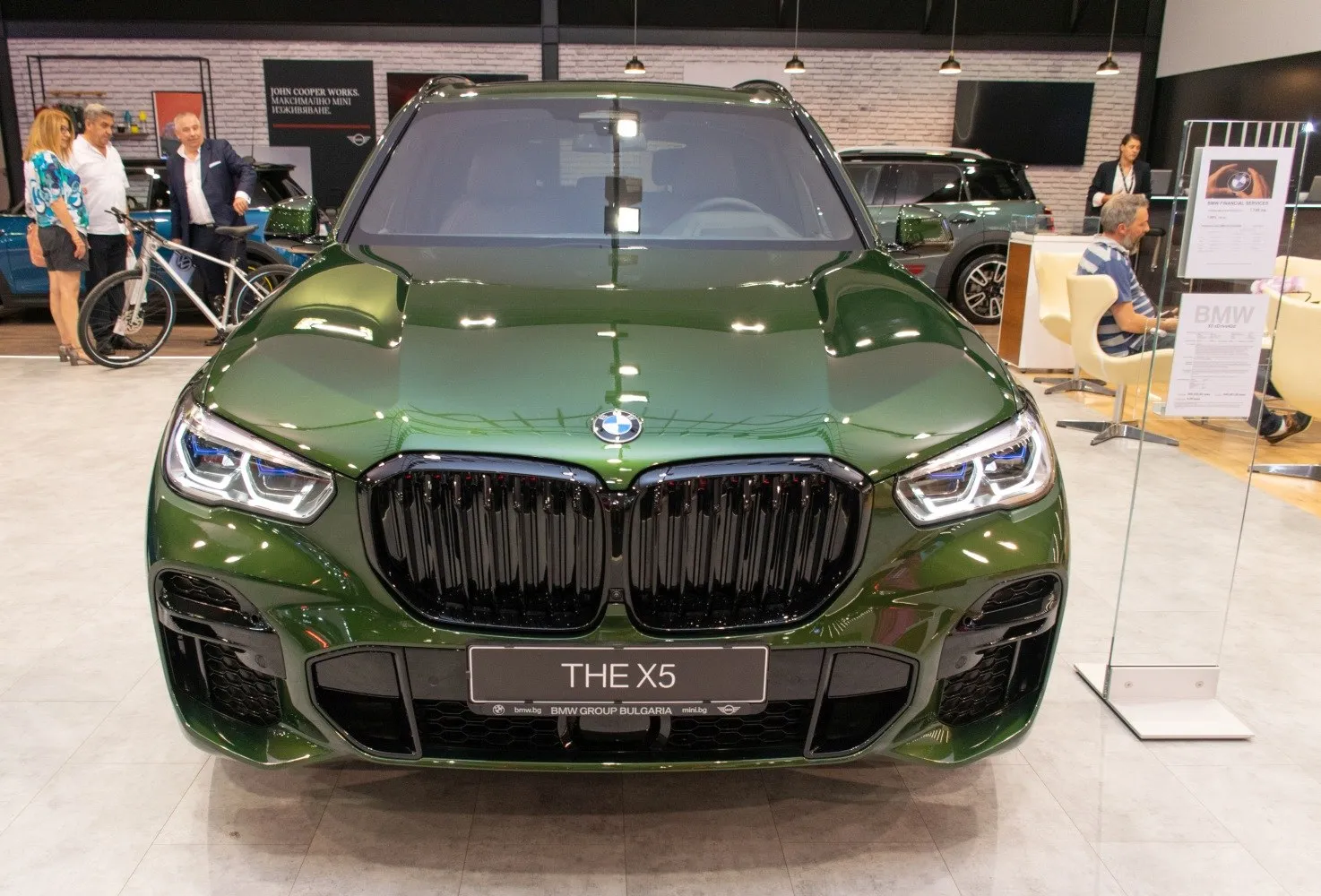

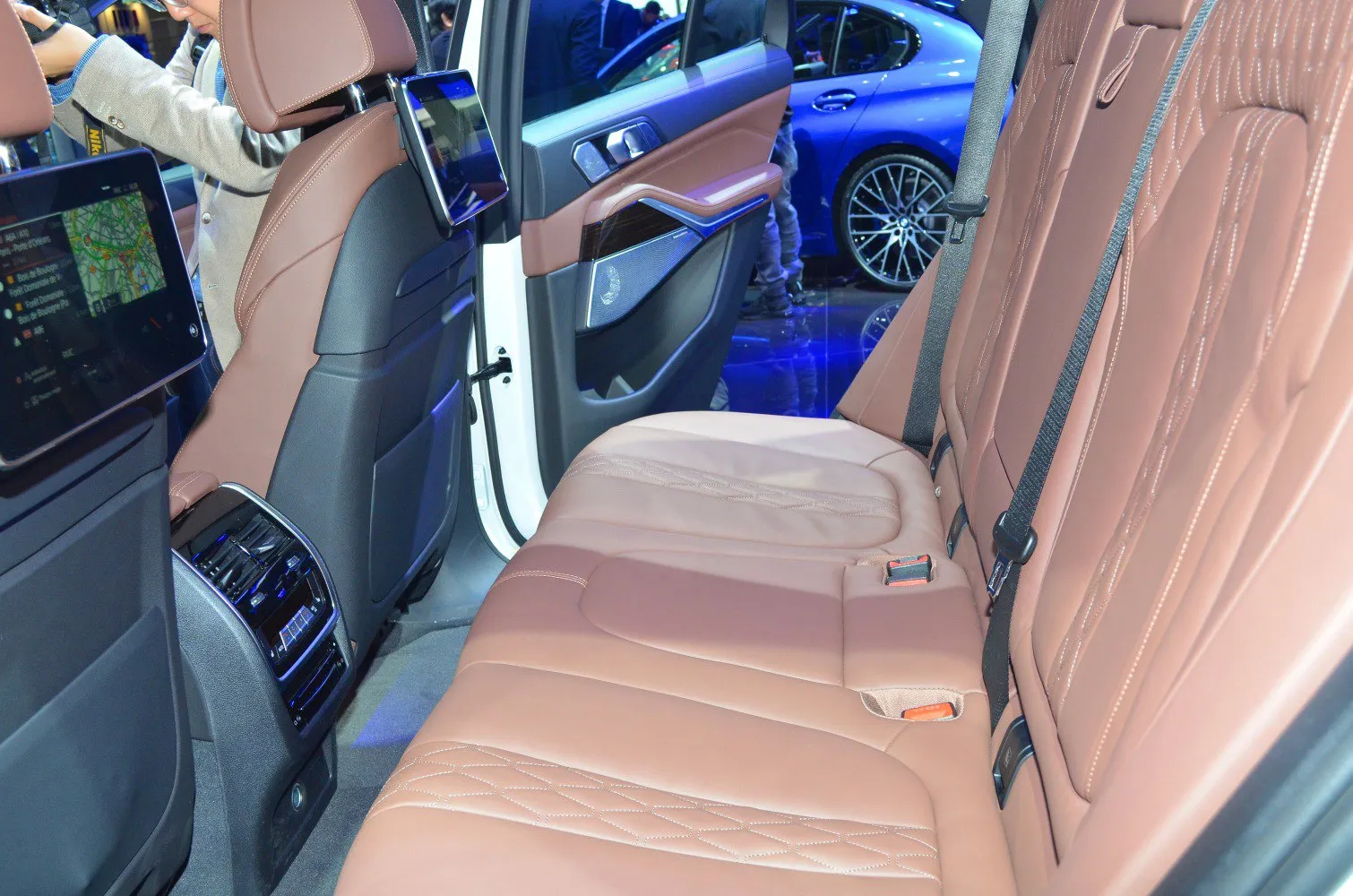

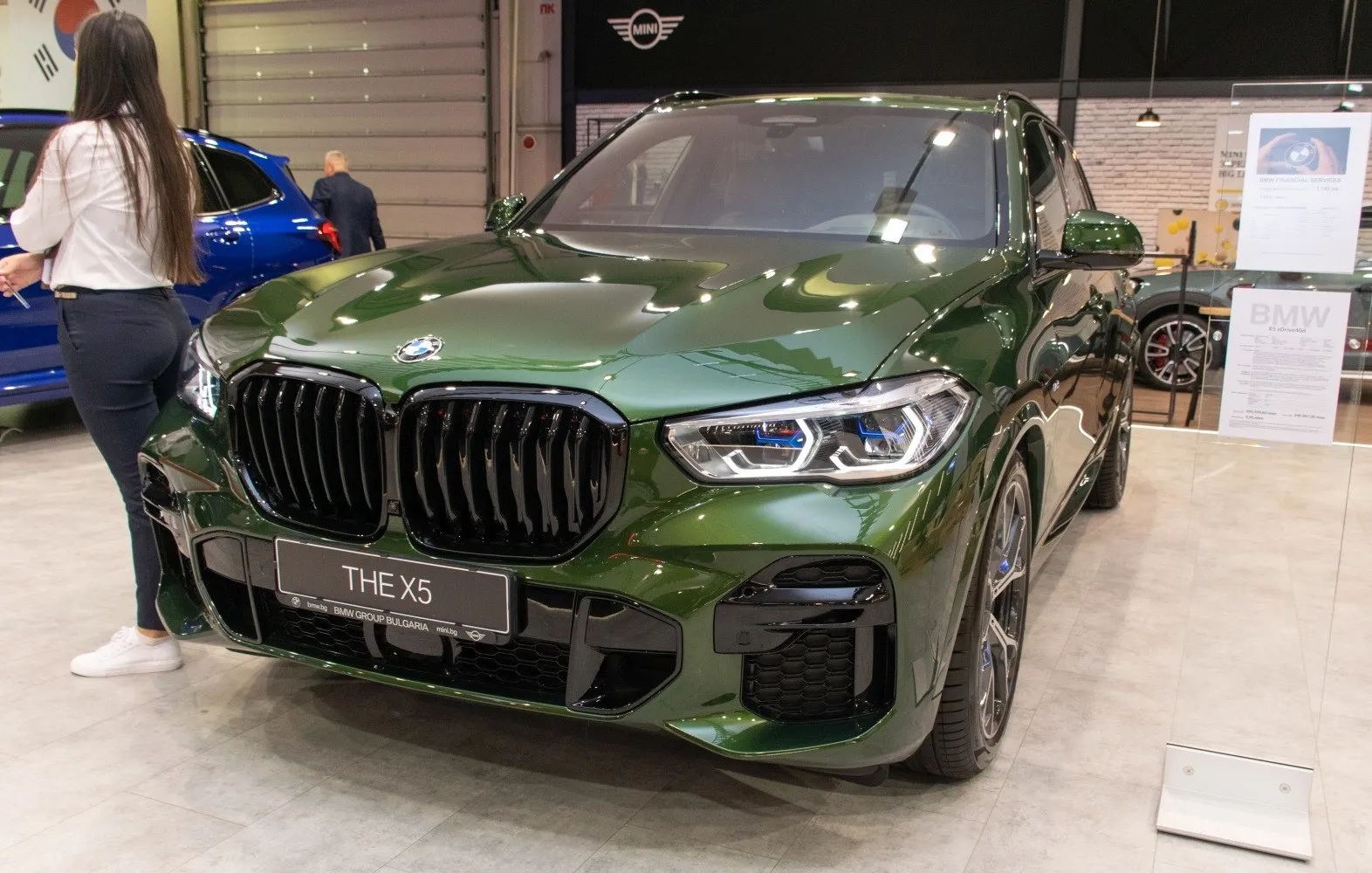

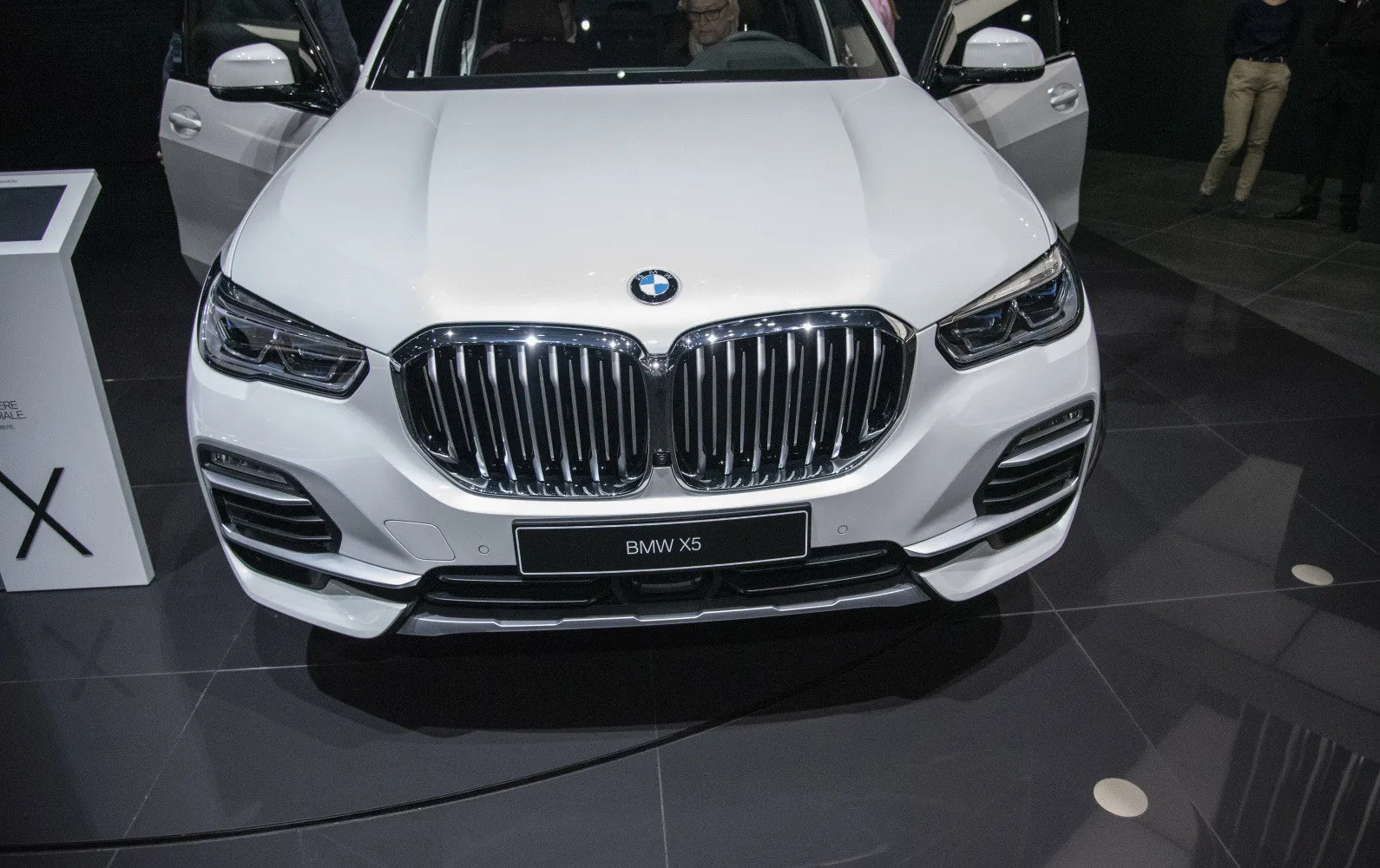

BMW X5 X5 (G05)

Photo: © www.Auto-Data.net

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

15 versions · 7 Gasoline · 7 Diesel fuel · 1 Gasoline / Electricity

Engine Fuel Power Production
40i (340 KM) xDrive Steptronic Selected Gasoline 340 KM 2018–2020
50i (462 KM) xDrive Steptronic Selected Gasoline 462 KM 2018–2019
30d (265 KM) xDrive Steptronic Selected Diesel fuel 265 KM 2018–2020
M50d (400 KM) xDrive Steptronic Selected Diesel fuel 400 KM 2018–2020
45e (394 KM) Plug-in hybrid xDrive Steptronic Selected Gasoline / Electricity 286 KM 2019–2023
M50i V8 (530 KM) xDrive Steptronic Selected Gasoline 530 KM 2019–2023
25d (231 KM) xDrive Steptronic Selected Diesel fuel 231 KM 2019–2023
M50d (400 KM) xDrive Steptronic 7 Seat Selected Diesel fuel 400 KM 2018–2020
30d (265 KM) xDrive Steptronic 7 Seat Selected Diesel fuel 265 KM 2018–2020
40i (340 KM) xDrive Steptronic 7 Seat Selected Gasoline 340 KM 2018–2020
40d (340 KM) Mild Hybrid xDrive Steptronic Selected Diesel fuel 340 KM 2020–2023
30d (286 KM) Mild Hybrid xDrive Steptronic Selected Diesel fuel 286 KM 2020–2023
40i (333 KM) Mild Hybrid xDrive Steptronic Selected Gasoline 333 KM 2020–2023
40i (335 KM) Mild Hybrid sDrive Steptronic Selected Gasoline 335 KM 2020–2023
40i (335 KM) sDrive Steptronic Selected Gasoline 335 KM 2019–2020

Selected engine version

40i (340 KM) xDrive Steptronic

Gasoline · 2018–2020

Engine power
340 KM
Torque
450 Nm
Engine displacement
2,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
5.5 s
Maximum speed
243 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
X5
Version
X5 (G05)
Engine
40i (340 KM) xDrive Steptronic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
SAV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
243 km/h
Acceleration 0-100 km/h
5.5 s
Fuel consumption - Combined cycle
8.5-8.8 l/100 km
Emission standard
Euro 6d-TEMP
CO2 emissions
193-200 g/km

Engine

Engine model / code
B58B30C
Engine position
Front, Longitudinal
Engine displacement
2998 cm³
Fuel injection system
Direct injection
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
6
Cylinder bore
82 mm
Piston stroke
94.6 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
6.5 l
Coolant capacity
12.6 l
Power
340 KM @ 5500-6500 obr./min
Torque
450 Nm @ 1500-5200 obr./min

Volume and weight

Fuel tank
83 l
Aerodynamic drag coefficient (Cx)
0.32
Minimum trunk capacity
645 l
Maximum trunk capacity
1860 l
Curb weight
2060 kg
Gross weight
2800 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2700 kg
Trailer load without brakes
750 kg
Trailer nose weight
140 kg

Vehicle dimensions

Length
4922 mm
Width
2004 mm
Width with unfolded mirrors
2218 mm
Height
1745 mm
Wheelbase
2975 mm
Front track
1666 mm
Rear track
1685 mm
Ground clearance
214 mm
Approach angle
25.2 °
Departure angle
22.3 °
Ramp angle
20.2 °
Front overhang
874 mm
Rear overhang
1073 mm
Turning circle
12.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Double wishbone
Rear suspension
Double wishbone
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
255/55 R18
Rim size
8.5J x 18
ABS
yes

Selected engine version

50i (462 KM) xDrive Steptronic

Gasoline · 2018–2019

Engine power
462 KM
Torque
650 Nm
Engine displacement
4,395 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
4.7 s
Maximum speed
250 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
X5
Version
X5 (G05)
Engine
50i (462 KM) xDrive Steptronic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2019
Body type
SAV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
250 km/h
Acceleration 0-100 km/h
4.7 s
Fuel consumption - Urban cycle
15.6 l/100 km
Fuel consumption - Extra-urban cycle
9.2 l/100 km
Fuel consumption - Combined cycle
11.6 l/100 km
Emission standard
Euro 6
CO2 emissions
264 g/km

Engine

Engine model / code
N63B44M3
Engine position
Front, Longitudinal
Engine displacement
4395 cm³
Fuel injection system
Direct injection
Engine type
Twin-power turbo, Intercooler
Engine configuration
V-shaped
Number of cylinders
8
Cylinder bore
89 mm
Piston stroke
88.3 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
10.5 l
Coolant capacity
12.6 l
Power
462 KM @ 5250-6000 obr./min
Torque
650 Nm @ 1500-4750 obr./min

Volume and weight

Fuel tank
83 l
Aerodynamic drag coefficient (Cx)
0.32
Minimum trunk capacity
645 l
Maximum trunk capacity
1860 l
Curb weight
2286 kg
Gross weight
2930 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2700 kg
Trailer load without brakes
750 kg
Trailer nose weight
140 kg

Vehicle dimensions

Length
4922 mm
Width
2004 mm
Width with unfolded mirrors
2218 mm
Height
1745 mm
Wheelbase
2975 mm
Front track
1678 mm
Rear track
1697 mm
Ground clearance
214 mm
Approach angle
25.2 °
Departure angle
22.3 °
Ramp angle
20.2 °
Front overhang
874 mm
Rear overhang
1073 mm
Turning circle
12.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Double wishbone
Rear suspension
Double wishbone
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
265/50 R19
Rim size
9J x 19
ABS
yes

Selected engine version

30d (265 KM) xDrive Steptronic

Diesel fuel · 2018–2020

Engine power
265 KM
Torque
620 Nm
Engine displacement
2,993 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
6.5 s
Maximum speed
230 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
X5
Version
X5 (G05)
Engine
30d (265 KM) xDrive Steptronic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
SAV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
230 km/h
Acceleration 0-100 km/h
6.5 s
Fuel consumption - Urban cycle
6.8-7.7 l/100 km
Fuel consumption - Extra-urban cycle
5.6-6.3 l/100 km
Fuel consumption - Combined cycle
6.0-6.8 l/100 km
Emission standard
Euro 6d-TEMP
CO2 emissions
158-179 g/km

Engine

Engine model / code
B57D30A
Engine position
Front, Longitudinal
Engine displacement
2993 cm³
Fuel injection system
Diesel common rail
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
6
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
6.5 l
Coolant capacity
10 l
Power
265 KM @ 4000 obr./min
Torque
620 Nm @ 2000-2500 obr./min

Volume and weight

Fuel tank
80 l
Aerodynamic drag coefficient (Cx)
0.31
Wading depth
500 mm
Minimum trunk capacity
645 l
Maximum trunk capacity
1860 l
Curb weight
2110 kg
Gross weight
2860 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2700 kg
Trailer load without brakes
750 kg
Trailer nose weight
140 kg

Vehicle dimensions

Length
4922 mm
Width
2004 mm
Width with unfolded mirrors
2218 mm
Height
1745 mm
Wheelbase
2975 mm
Front track
1666 mm
Rear track
1685 mm
Ground clearance
214 mm
Approach angle
25.2 °
Departure angle
22.3 °
Ramp angle
20.2 °
Front overhang
874 mm
Rear overhang
1073 mm
Turning circle
12.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Double wishbone
Rear suspension
Double wishbone
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
255/55 R18
Rim size
8.5J x 18
ABS
yes

Selected engine version

M50d (400 KM) xDrive Steptronic

Diesel fuel · 2018–2020

Engine power
400 KM
Torque
760 Nm
Engine displacement
2,993 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
5.2 s
Maximum speed
250 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
X5
Version
X5 (G05)
Engine
M50d (400 KM) xDrive Steptronic
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
SAV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
250 km/h
Acceleration 0-100 km/h
5.2 s
Fuel consumption measurement standard
NEDC
Fuel consumption - Urban cycle
7.6-8.1 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Extra-urban cycle
6.3-6.7 l/100 km
Fuel consumption measurement standard
WLTP
Fuel consumption - Combined cycle
8.3-9.1 l/100 km
Emission standard
Euro 6d-TEMP
CO2 measurement standard
WLTP
CO2 emissions
216-238 g/km

Engine

Engine model / code
B57D30C
Engine position
Front, Longitudinal
Engine displacement
2993 cm³
Fuel injection system
Diesel common rail
Engine type
Twin-power turbo, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
6
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
6.5 l
Coolant capacity
11.1 l
Power
400 KM @ 4400 obr./min
Torque
760 Nm @ 2000-3000 obr./min

Volume and weight

Fuel tank
80 l
Aerodynamic drag coefficient (Cx)
0.32
Wading depth
500 mm
Minimum trunk capacity
650 l
Maximum trunk capacity
1870 l
Curb weight
2275 kg
Gross weight
3010 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2700 kg
Trailer load without brakes
750 kg
Trailer nose weight
140 kg

Vehicle dimensions

Length
4922 mm
Width
2004 mm
Width with unfolded mirrors
2218 mm
Height
1745 mm
Wheelbase
2975 mm
Front track
1680 mm
Rear track
1687 mm
Ground clearance
214 mm
Approach angle
25.2 °
Departure angle
22.3 °
Ramp angle
20.2 °
Front overhang
874 mm
Rear overhang
1073 mm
Turning circle
12.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Coil spring, Double wishbone, Anti-roll bar, Air suspension - optional
Rear suspension
Independent multi-link coil spring suspension with stabilizer, Air suspension - optional
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
315/35 R21; 315/30 R22;275/40 R21; 275/35 R22
Rim size
10.5J x 21; 10.5J x 22;9.5J x 21; 9.5J x 22
ABS
yes

Selected engine version

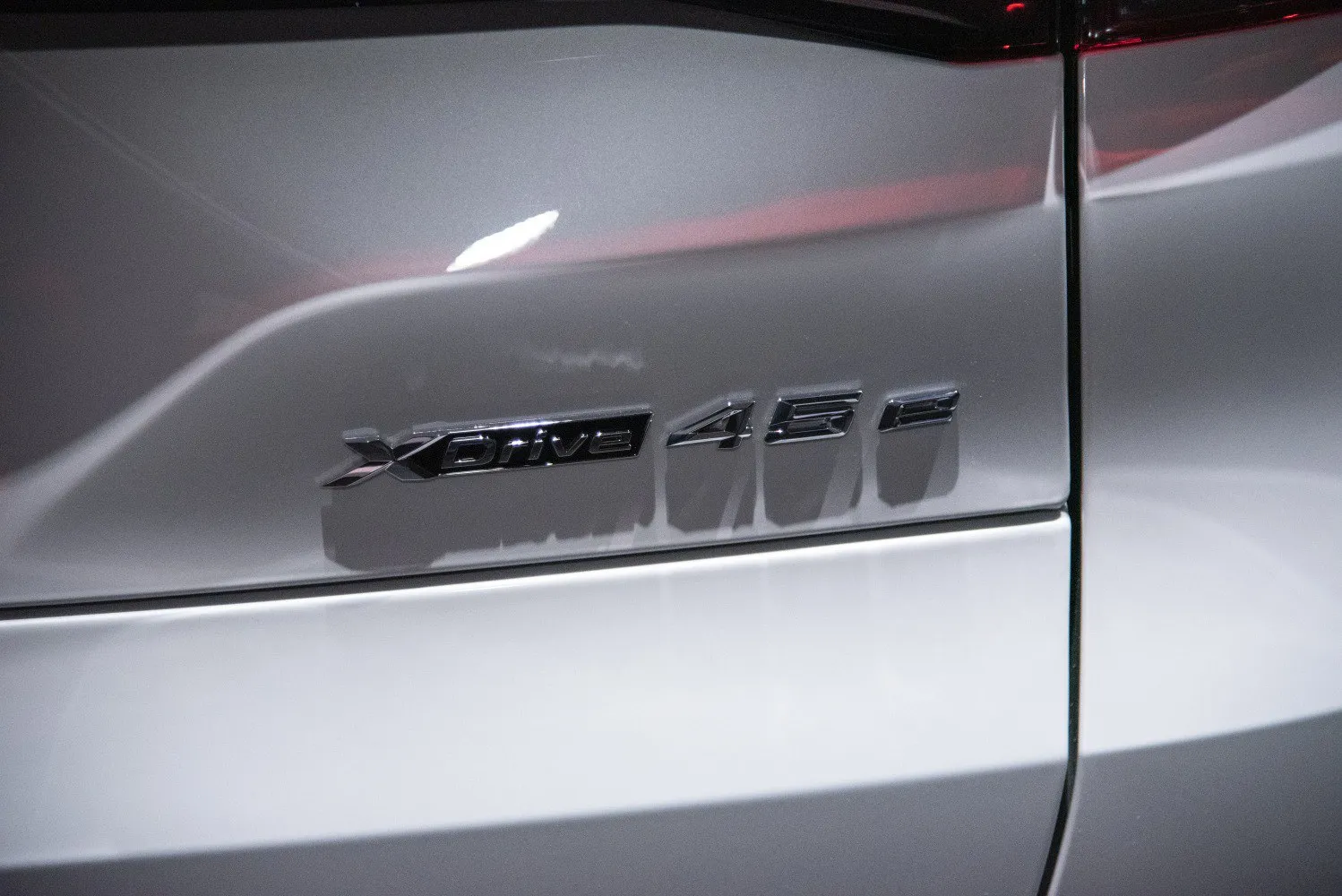

45e (394 KM) Plug-in hybrid xDrive Steptronic

Gasoline / Electricity · 2019–2023

Engine power
286 KM
Torque
450 Nm
Engine displacement
2,998 cm³
Fuel type
Gasoline / Electricity
Acceleration 0-100 km/h
5.6 s
Maximum speed
235 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
X5
Version
X5 (G05)
Engine
45e (394 KM) Plug-in hybrid xDrive Steptronic
Engine type
PHEV (Plug-in Hybrid Electric Vehicle)
Number of doors
5
Start of production
2019
End of production
2023
Body type
SAV
Number of seats
5
Fuel type
Gasoline / Electricity

Performance

Maximum speed
235 km/h
Acceleration 0-100 km/h
5.6 s
Battery gross capacity
24 kWh
Net battery capacity
21.6 kWh
Electric range measurement standard
NEDC, WLTP equivalent
All-electric range
86-97 km
Fuel consumption measurement standard
NEDC, WLTP equivalent
Fuel consumption - Combined cycle
1.7-2.0 l/100 km
Energy consumption measurement standard
NEDC, WLTP equivalent
Average energy consumption
20.3-23.5 kWh/100 km
Emission standard
Euro 6d-TEMP
CO2 measurement standard
NEDC, WLTP equivalent
CO2 emissions
39-47 g/km

Engine

Max electric motor power
113 KM @ 3170 obr./min
Electric motor torque
265 Nm @ 0-3170 obr./min
Electric motor position
Między silnikiem spalinowym a skrzynią biegów
System power
394 KM
System torque
600 Nm
Engine model / code
B58B30C
Engine position
Front, Longitudinal
Engine displacement
2998 cm³
Fuel injection system
Direct injection
Engine type
Twin-power turbo, Intercooler
Valvetrain
VALVETRONIC
Engine configuration
Inline
Number of cylinders
6
Cylinder bore
82 mm
Piston stroke
94.6 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
6.5 l
Coolant capacity
15.4 l
Power
286 KM @ 5000-6000 obr./min
Torque
450 Nm @ 1500-3500 obr./min

Volume and weight

Fuel tank
69 l
Aerodynamic drag coefficient (Cx)
0.32
Wading depth
500 mm
Minimum trunk capacity
500 l
Maximum trunk capacity
1720 l
Curb weight
2435 kg
Gross weight
3150 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2700 kg
Trailer load without brakes
750 kg
Trailer nose weight
140 kg

Vehicle dimensions

Length
4922 mm
Width with unfolded mirrors
2004 mm
Height
1745 mm
Wheelbase
2975 mm
Front track
1678 mm
Rear track
1698 mm
Ground clearance
214 mm
Approach angle
25.2 °
Departure angle
22.3 °
Ramp angle
20.2 °
Turning circle
12.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Double wishbone, Air suspension
Rear suspension
Independent multi-link suspension, Air suspension
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
265/50 R19
Rim size
9J x 19
ABS
yes

Selected engine version

M50i V8 (530 KM) xDrive Steptronic

Gasoline · 2019–2023

Engine power
530 KM
Torque
750 Nm
Fuel type
Gasoline
Acceleration 0-100 km/h
4.3 s
Maximum speed
250 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
X5
Version
X5 (G05)
Engine
M50i V8 (530 KM) xDrive Steptronic
Engine type
Combustion engine
Number of doors
5
Start of production
2019
End of production
2023
Body type
SAV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
250 km/h
Acceleration 0-100 km/h
4.3 s
Fuel consumption - Combined cycle
10.5-10.8 l/100 km
Emission standard
Euro 6d-Temp
CO2 emissions
238-243 g/km

Engine

Engine model / code
N63B44D
Engine position
Front, Longitudinal
Fuel injection system
Direct injection
Engine type
Twin-power turbo, Intercooler
Engine configuration
V-shaped
Number of cylinders
8
Number of valves per cylinder
4
Engine oil capacity
10.5 l
Coolant capacity
13.6 l
Power
530 KM @ 5500-6000 obr./min
Torque
750 Nm @ 1800-4600 obr./min

Volume and weight

Curb weight
kg

Vehicle dimensions

Length
4922 mm
Width
2004 mm
Width with unfolded mirrors
2218 mm
Height
1745 mm
Wheelbase
2975 mm
Front track
1680 mm
Rear track
1687 mm

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Double wishbone
Rear suspension
Double wishbone
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
275/40 R21; 315/35 R21
Rim size
9.5J x 21; 10.5J x 21
ABS
yes

Selected engine version

25d (231 KM) xDrive Steptronic

Diesel fuel · 2019–2023

Engine power
231 KM
Torque
450 Nm
Engine displacement
1,995 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
7.5 s
Maximum speed
222 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
X5
Version
X5 (G05)
Engine
25d (231 KM) xDrive Steptronic
Engine type
Combustion engine
Number of doors
5
Start of production
2019
End of production
2023
Body type
SAV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
222 km/h
Acceleration 0-100 km/h
7.5 s
Fuel consumption - Urban cycle
6.1-6.4 l/100 km
Fuel consumption - Extra-urban cycle
5.4-6.1 l/100 km
Fuel consumption - Combined cycle
5.7-6.2 l/100 km
Emission standard
Euro 6d-TEMP
CO2 emissions
150-162 g/km

Engine

Engine model / code
B47D20B
Engine position
Front, Longitudinal
Engine displacement
1995 cm³
Fuel injection system
Diesel common rail
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
5.5 l
Coolant capacity
9 l
Power
231 KM @ 4400 obr./min
Torque
450 Nm @ 1500-3000 obr./min

Volume and weight

Fuel tank
80 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1870 l
Curb weight
2070 kg
Gross weight
2820 kg
Roof load
140 kg
Braked trailer load (8% slope start)
2700 kg
Braked trailer load (12% slope start)
2700 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4922 mm
Width
2004 mm
Width with unfolded mirrors
2218 mm
Height
1745 mm
Wheelbase
2975 mm
Turning circle
12.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
Steptronic
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
255/55 R18 109W XL
Rim size
8.5J x 18
ABS
yes

Selected engine version

M50d (400 KM) xDrive Steptronic 7 Seat

Diesel fuel · 2018–2020

Engine power
400 KM
Torque
760 Nm
Engine displacement
2,993 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
5.2 s
Maximum speed
250 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
X5
Version
X5 (G05)
Engine
M50d (400 KM) xDrive Steptronic 7 Seat
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
SAV
Number of seats
7
Fuel type
Diesel fuel

Performance

Maximum speed
250 km/h
Acceleration 0-100 km/h
5.2 s
Fuel consumption measurement standard
NEDC
Fuel consumption - Urban cycle
7.6-8.1 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Extra-urban cycle
6.3-6.7 l/100 km
Fuel consumption measurement standard
WLTP
Fuel consumption - Combined cycle
8.3-9.1 l/100 km
Emission standard
Euro 6d-TEMP
CO2 measurement standard
WLTP
CO2 emissions
216-238 g/km

Engine

Engine model / code
B57D30C
Engine position
Front, Longitudinal
Engine displacement
2993 cm³
Fuel injection system
Diesel common rail
Engine type
Twin-power turbo, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
6
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16
Number of valves per cylinder
4
Engine oil capacity
6.5 l
Coolant capacity
11.1 l
Power
400 KM @ 4400 obr./min
Torque
760 Nm @ 2000-3000 obr./min

Volume and weight

Fuel tank
80 l
Aerodynamic drag coefficient (Cx)
0.32
Wading depth
500 mm
Minimum trunk capacity
650 l
Maximum trunk capacity
1870 l
Curb weight
2350 kg
Gross weight
3160 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2700 kg
Trailer load without brakes
750 kg
Trailer nose weight
140 kg

Vehicle dimensions

Length
4922 mm
Width
2004 mm
Width with unfolded mirrors
2218 mm
Height
1745 mm
Wheelbase
2975 mm
Front track
1680 mm
Rear track
1687 mm
Ground clearance
214 mm
Approach angle
25.2 °
Departure angle
22.3 °
Ramp angle
20.2 °
Front overhang
874 mm
Rear overhang
1073 mm
Turning circle
12.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Coil spring, Double wishbone, Anti-roll bar, Air suspension - optional
Rear suspension
Independent multi-link coil spring suspension with stabilizer, Air suspension - optional
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
315/35 R21; 315/30 R22;275/40 R21; 275/35 R22
Rim size
10.5J x 21; 10.5J x 22;9.5J x 21; 9.5J x 22
ABS
yes

Selected engine version

30d (265 KM) xDrive Steptronic 7 Seat

Diesel fuel · 2018–2020

Engine power
265 KM
Torque
620 Nm
Engine displacement
2,993 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
6.5 s
Maximum speed
230 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
X5
Version
X5 (G05)
Engine
30d (265 KM) xDrive Steptronic 7 Seat
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
SAV
Number of seats
7
Fuel type
Diesel fuel

Performance

Maximum speed
230 km/h
Acceleration 0-100 km/h
6.5 s
Fuel consumption - Urban cycle
6.8-7.7 l/100 km
Fuel consumption - Extra-urban cycle
5.6-6.3 l/100 km
Fuel consumption - Combined cycle
6.0-6.8 l/100 km
Emission standard
Euro 6
CO2 emissions
158-179 g/km

Engine

Engine model / code
B57D30A
Engine position
Front, Longitudinal
Engine displacement
2993 cm³
Fuel injection system
Diesel common rail
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
6
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
6.5 l
Coolant capacity
10 l
Power
265 KM @ 4000 obr./min
Torque
620 Nm @ 2000-2500 obr./min

Volume and weight

Fuel tank
80 l
Aerodynamic drag coefficient (Cx)
0.31
Wading depth
500 mm
Minimum trunk capacity
645 l
Maximum trunk capacity
1860 l
Curb weight
2185 kg
Gross weight
3090 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2700 kg
Trailer load without brakes
750 kg
Trailer nose weight
140 kg

Vehicle dimensions

Length
4922 mm
Width
2004 mm
Width with unfolded mirrors
2218 mm
Height
1745 mm
Wheelbase
2975 mm
Front track
1666 mm
Rear track
1685 mm
Ground clearance
214 mm
Approach angle
25.2 °
Departure angle
22.3 °
Ramp angle
20.2 °
Front overhang
874 mm
Rear overhang
1073 mm
Turning circle
12.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Double wishbone
Rear suspension
Double wishbone
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
255/55 R18
Rim size
8.5J x 18
ABS
yes

Selected engine version

40i (340 KM) xDrive Steptronic 7 Seat

Gasoline · 2018–2020

Engine power
340 KM
Torque
450 Nm
Engine displacement
2,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
5.5 s
Maximum speed
243 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
X5
Version
X5 (G05)
Engine
40i (340 KM) xDrive Steptronic 7 Seat
Engine type
Combustion engine
Number of doors
5
Start of production
2018
End of production
2020
Body type
SAV
Number of seats
7
Fuel type
Gasoline

Performance

Maximum speed
243 km/h
Acceleration 0-100 km/h
5.5 s
Fuel consumption - Combined cycle
8.5-8.8 l/100 km
Emission standard
Euro 6
CO2 emissions
193-200 g/km

Engine

Engine model / code
B58B30C
Engine position
Front, Longitudinal
Engine displacement
2998 cm³
Fuel injection system
Direct injection
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
6
Cylinder bore
82 mm
Piston stroke
94.6 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
6.5 l
Coolant capacity
12.6 l
Power
340 KM @ 5500-6500 obr./min
Torque
450 Nm @ 1500-5200 obr./min

Volume and weight

Fuel tank
83 l
Aerodynamic drag coefficient (Cx)
0.32
Minimum trunk capacity
645 l
Maximum trunk capacity
1860 l
Curb weight
2135 kg
Gross weight
3010 kg
Roof load
100 kg
Braked trailer load (12% slope start)
2700 kg
Trailer load without brakes
750 kg
Trailer nose weight
140 kg

Vehicle dimensions

Length
4922 mm
Width
2004 mm
Width with unfolded mirrors
2218 mm
Height
1745 mm
Wheelbase
2975 mm
Front track
1666 mm
Rear track
1685 mm
Ground clearance
214 mm
Approach angle
25.2 °
Departure angle
22.3 °
Ramp angle
20.2 °
Front overhang
874 mm
Rear overhang
1073 mm
Turning circle
12.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Double wishbone
Rear suspension
Double wishbone
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
255/55 R18
Rim size
8.5J x 18
ABS
yes

Selected engine version

40d (340 KM) Mild Hybrid xDrive Steptronic

Diesel fuel · 2020–2023

Engine power
340 KM
Torque
700 Nm
Engine displacement
2,993 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
5.5 s
Maximum speed
245 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
X5
Version
X5 (G05)
Engine
40d (340 KM) Mild Hybrid xDrive Steptronic
Engine type
MHEV (Mild Hybrid Electric Vehicle)
Number of doors
5
Start of production
2020
End of production
2023
Body type
SAV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
245 km/h
Acceleration 0-100 km/h
5.5 s
Fuel consumption measurement standard
NEDC, WLTP equivalent
Fuel consumption - Urban cycle
7.2-7.8 l/100 km
Fuel consumption measurement standard
NEDC, WLTP equivalent
Fuel consumption - Extra-urban cycle
5.1-5.6 l/100 km
Fuel consumption measurement standard
NEDC, WLTP equivalent
Fuel consumption - Combined cycle
5.9-6.4 l/100 km
Emission standard
Euro 6d
CO2 measurement standard
NEDC, WLTP equivalent
CO2 emissions
154-167 g/km

Engine

Max electric motor power
11 KM
Engine model / code
B57D30B
Engine position
Front, Longitudinal
Engine displacement
2993 cm³
Fuel injection system
Diesel common rail
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
6
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
6.5 l
Power
340 KM @ 4400 obr./min
Torque
700 Nm @ 1750-2250 obr./min

Volume and weight

Fuel tank
80 l
Aerodynamic drag coefficient (Cx)
0.31
Wading depth
500 mm
Minimum trunk capacity
650 l
Maximum trunk capacity
1870 l
Curb weight
2200 kg
Gross weight
2940 kg
Roof load
100 kg
Braked trailer load (8% slope start)
3500 kg
Braked trailer load (12% slope start)
3500 kg
Trailer load without brakes
750 kg
Trailer nose weight
140 kg

Vehicle dimensions

Length
4922 mm
Width
2004 mm
Width with unfolded mirrors
2218 mm
Height
1745 mm
Wheelbase
2975 mm
Front track
1666 mm
Rear track
1685 mm
Ground clearance
214 mm
Approach angle
25.2 °
Departure angle
22.3 °
Ramp angle
20.2 °
Turning circle
12.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Double wishbone
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
255/55 R18 109W XL
Rim size
8.5J x 18
ABS
yes

Selected engine version

30d (286 KM) Mild Hybrid xDrive Steptronic

Diesel fuel · 2020–2023

Engine power
286 KM
Torque
650 Nm
Engine displacement
2,993 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
6.1 s
Maximum speed
235 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
X5
Version
X5 (G05)
Engine
30d (286 KM) Mild Hybrid xDrive Steptronic
Engine type
MHEV (Mild Hybrid Electric Vehicle)
Number of doors
5
Start of production
2020
End of production
2023
Body type
SAV
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
235 km/h
Acceleration 0-100 km/h
6.1 s
Battery gross capacity
0.528 kWh
Fuel consumption measurement standard
NEDC, WLTP equivalent
Fuel consumption - Urban cycle
6.7-7.3 l/100 km
Fuel consumption measurement standard
NEDC, WLTP equivalent
Fuel consumption - Extra-urban cycle
5.1-5.6 l/100 km
Fuel consumption measurement standard
NEDC, WLTP equivalent
Fuel consumption - Combined cycle
5.7-6.2 l/100 km
Emission standard
EURO 6d
CO2 measurement standard
NEDC, WLTP equivalent
CO2 emissions
150-164 g/km

Engine

Max electric motor power
11 KM
Engine model / code
B57D30B
Engine position
Front, Longitudinal
Engine displacement
2993 cm³
Fuel injection system
Diesel common rail
Engine type
Twin-power turbo, Intercooler
Engine configuration
Inline
Number of cylinders
6
Cylinder bore
84 mm
Piston stroke
90 mm
Compression ratio
16.5
Number of valves per cylinder
4
Engine oil capacity
7 l
Power
286 KM @ 4000 obr./min
Torque
650 Nm @ 1500-2500 obr./min

Volume and weight

Fuel tank
80 l
Aerodynamic drag coefficient (Cx)
0.32
Wading depth
500 mm
Minimum trunk capacity
650 l
Maximum trunk capacity
1870 l
Curb weight
2190 kg
Gross weight
2940 kg
Roof load
100 kg
Braked trailer load (12% slope start)
3500 kg
Trailer load without brakes
750 kg
Trailer nose weight
140 kg

Vehicle dimensions

Length
4922 mm
Width
2004 mm
Height
1745 mm
Wheelbase
2975 mm
Front track
1666 mm
Rear track
1685 mm
Ground clearance
214 mm
Approach angle
25.2 °
Departure angle
22.3 °
Ramp angle
20.2 °
Turning circle
12.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Double wishbone
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
255/55 R18 109W XL
Rim size
8.5J x 18
ABS
yes

Selected engine version

40i (333 KM) Mild Hybrid xDrive Steptronic

Gasoline · 2020–2023

Engine power
333 KM
Torque
450 Nm
Engine displacement
2,998 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
5.7 s
Maximum speed
243 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
X5
Version
X5 (G05)
Engine
40i (333 KM) Mild Hybrid xDrive Steptronic
Engine type
MHEV (Mild Hybrid Electric Vehicle)
Number of doors
5
Start of production
2020
End of production
2023
Body type
SAV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
243 km/h
Acceleration 0-100 km/h
5.7 s
Fuel consumption measurement standard
NEDC
Fuel consumption - Urban cycle
9.5-10.1 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Extra-urban cycle
6.7-7.4 l/100 km
Fuel consumption measurement standard
WLTP
Fuel consumption - Combined cycle
8.9-10.7 l/100 km
Emission standard
Euro 6d
CO2 measurement standard
WLTP
CO2 emissions
204-244 g/km

Engine

Max electric motor power
11 KM
Electric motor position
Front, Longitudinal
Engine model / code
B58B30C
Engine position
Front, Longitudinal
Engine displacement
2998 cm³
Fuel injection system
Direct injection
Engine type
Twin-power turbo, Intercooler
Valvetrain
VALVETRONIC, Double-VANOS
Engine configuration
Inline
Number of cylinders
6
Cylinder bore
82 mm
Piston stroke
94.6 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
6.5 l
Coolant capacity
12.6 l
Power
333 KM @ 5500-6250 obr./min
Torque
450 Nm @ 1600-4800 obr./min

Volume and weight

Fuel tank
83 l
Aerodynamic drag coefficient (Cx)
0.32
Wading depth
500 mm
Minimum trunk capacity
650 l
Maximum trunk capacity
1870 l
Curb weight
2100 kg
Gross weight
2840 kg
Roof load
100 kg
Braked trailer load (12% slope start)
3500 kg
Trailer load without brakes
750 kg
Trailer nose weight
140 kg

Vehicle dimensions

Length
4922 mm
Width
2004 mm
Width with unfolded mirrors
2218 mm
Height
1745 mm
Wheelbase
2975 mm
Front track
1666 mm
Rear track
1685 mm
Ground clearance
214 mm
Approach angle
25.2 °
Departure angle
22.3 °
Ramp angle
20.2 °
Front overhang
874 mm
Rear overhang
1073 mm
Turning circle
12.6 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Double wishbone
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
255/55 R18; 265/50 R19; 305/40 R20;255/55 R18; 265/50 R19; 275/45 R20
Rim size
8.5J x 18; 9J x 19; 10.5J x 21;8.5J x 18; 9J x 19; 9J x 20
ABS
yes

Selected engine version

40i (335 KM) Mild Hybrid sDrive Steptronic

Gasoline · 2020–2023

Engine power
335 KM
Torque
450 Nm
Engine displacement
2,998 cm³
Fuel type
Gasoline
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
X5
Version
X5 (G05)
Engine
40i (335 KM) Mild Hybrid sDrive Steptronic
Engine type
MHEV (Mild Hybrid Electric Vehicle)
Number of doors
5
Start of production
2020
End of production
2023
Body type
SAV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
210 km/h
Acceleration 0-60 mph
5.3 mph
Fuel consumption measurement standard
EPA
Fuel consumption - Urban cycle
11.2 l/100 km
Fuel consumption measurement standard
EPA
Fuel consumption - Extra-urban cycle
9 l/100 km
Fuel consumption measurement standard
EPA
Fuel consumption - Combined cycle
10.2 l/100 km

Engine

Max electric motor power
11 KM
Electric motor position
Front, Longitudinal
Engine model / code
B58B30M1
Engine position
Front, Longitudinal
Engine displacement
2998 cm³
Fuel injection system
Direct injection
Engine type
Twin-power turbo, Intercooler
Valvetrain
VALVETRONIC, Double-VANOS
Engine configuration
Inline
Number of cylinders
6
Cylinder bore
82 mm
Piston stroke
94.6 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
6.5 l
Power
335 KM @ 5500-6500 obr./min
Torque
450 Nm @ 1500-5200 obr./min

Volume and weight

Fuel tank
83 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1870 l
Curb weight
2190 kg
Gross weight
2777 kg
Roof load
100 kg
Braked trailer load (12% slope start)
3270 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4936 mm
Width
2004 mm
Width with unfolded mirrors
2218 mm
Height
1744 mm
Wheelbase
2975 mm
Front track
1679 mm
Rear track
1687 mm
Ground clearance
212 mm
Approach angle
23.9 °
Departure angle
21.6 °
Ramp angle
19.1 °
Front overhang
888 mm
Rear overhang
1073 mm
Turning circle
12 m

Drivetrain, Brakes and suspension

Drive
Rear-wheel drive
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Coil spring, Double wishbone, Anti-roll bar, Air suspension - optional
Rear suspension
Independent multi-link coil spring suspension with stabilizer, Air suspension - optional
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
265/50 R19; 275/45 R20; 315/35 R21; 315/30 R22;265/50 R19; 275/45 R20; 275/40 R21; 275/35 R22
Rim size
9J x 19; 9J x 20; 10.5J x 21; 10.5J x 22;9J x 19; 9J x 20; 9.5J x 21; 9.5J x 22
ABS
yes

Selected engine version

40i (335 KM) sDrive Steptronic

Gasoline · 2019–2020

Engine power
335 KM
Torque
447 Nm
Engine displacement
2,998 cm³
Fuel type
Gasoline
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
X5
Version
X5 (G05)
Engine
40i (335 KM) sDrive Steptronic
Engine type
Combustion engine
Number of doors
5
Start of production
2019
End of production
2020
Body type
SAV
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
210 km/h
Acceleration 0-60 mph
5.2 mph
Fuel consumption measurement standard
EPA
Fuel consumption - Urban cycle
11.2 l/100 km
Fuel consumption measurement standard
EPA
Fuel consumption - Extra-urban cycle
9 l/100 km
Fuel consumption measurement standard
EPA
Fuel consumption - Combined cycle
10.2 l/100 km

Engine

Engine model / code
B58B30M1
Engine position
Front, Longitudinal
Engine displacement
2998 cm³
Fuel injection system
Direct injection
Engine type
Twin-power turbo, Intercooler
Valvetrain
VALVETRONIC, Double-VANOS
Engine configuration
Inline
Number of cylinders
6
Cylinder bore
82 mm
Piston stroke
94.6 mm
Compression ratio
11
Number of valves per cylinder
4
Engine oil capacity
6.5 l
Power
335 KM @ 5500-6500 obr./min
Torque
447 Nm @ 1500-5200 obr./min

Volume and weight

Fuel tank
83 l
Minimum trunk capacity
650 l
Maximum trunk capacity
1870 l
Curb weight
2158 kg
Gross weight
2745 kg
Roof load
100 kg
Braked trailer load (12% slope start)
3270 kg
Trailer load without brakes
750 kg

Vehicle dimensions

Length
4936 mm
Width
2004 mm
Width with unfolded mirrors
2218 mm
Height
1744 mm
Wheelbase
2975 mm
Front track
1679 mm
Rear track
1699 mm
Ground clearance
212 mm
Approach angle
23.9 °
Departure angle
21.6 °
Ramp angle
19.1 °
Front overhang
888 mm
Rear overhang
1073 mm
Turning circle
12 m

Drivetrain, Brakes and suspension

Drive
Rear-wheel drive
Number of gears
8
Type of automatic gearbox
Steptronic
Front suspension
Coil spring, Double wishbone, Anti-roll bar, Air suspension - optional
Rear suspension
Independent multi-link coil spring suspension with stabilizer, Air suspension - optional
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
265/50 R19; 275/45 R20; 315/35 R21; 315/30 R22;265/50 R19; 275/45 R20; 275/40 R21; 275/35 R22
Rim size
9J x 19; 9J x 20; 10.5J x 21; 10.5J x 22;9J x 19; 9J x 20; 9.5J x 21; 9.5J x 22
ABS
yes

About BMW X5 X5 (G05)

The BMW X5 (G05), produced from 2018 to 2023, is a luxury SUV, more precisely a SAV (Sports Activity Vehicle), designed with the most demanding drivers in mind. It is a spacious, five-door vehicle that provides seating for five passengers, combining elegant design with versatility. Its modern appearance, advanced technologies, and solid construction make it an ideal choice for those who value comfort and prestige, both in the city and on longer journeys.

Under the hood of the BMW X5 (G05), there is a wide range of powertrains, including petrol, diesel, and hybrid engines. Engine power ranges from 231 to as much as 530 HP, allowing for customization to every driver's needs. The most powerful versions, such as the M50i V8 (530 HP) xDrive Steptronic, offer impressive performance. An automatic Steptronic gearbox is available for all options, ensuring smooth and dynamic gear changes. Hybrid options, such as the 45e (394 HP) PHEV, provide additional efficiency thanks to electric support, combining power with ecological benefits.

The BMW X5 (G05) is equipped with an xDrive all-wheel drive system, which guarantees excellent traction and stability regardless of road conditions. Exceptional ride comfort is ensured by advanced suspension, which perfectly absorbs road imperfections. The vehicle performs well in various environments – it is not only easy to maneuver in the city but also stable on highways. Modern driver-assistance systems, such as adaptive cruise control, parking assistance systems, and advanced multimedia, significantly enhance comfort and travel safety.

Despite numerous advantages, potential buyers should be aware of several potential issues related to this model. The complex electronics, which are an important element of the modern X5, may occasionally cause problems, especially concerning multimedia systems and driver assistants. Furthermore, while maintenance costs align with the luxury nature of the vehicle, they may be higher than those of some competitors. Hybrid versions, although offering benefits related to lower fuel consumption, may involve greater service complexity.

The BMW X5 (G05) is an impressive offering in the luxury SUV segment, distinguished by powerful engines, advanced technologies, and exceptional riding comfort. Combining modern design with functionality, it offers a wide range of options for diverse driver needs. Thanks to specialist technology and the reputable BMW brand, the X5 remains an attractive choice for those seeking a vehicle that blends prestige with the highest travel comfort.
