BMW Seria 5 Active Hybrid (F10)

Compare all 1 engine versions of the BMW Seria 5 Seria 5 Active Hybrid (F10), then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used BMW Seria 5 Active Hybrid (F10)? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?

Where can I find the VIN of BMW Seria 5 Active Hybrid (F10)?

See the places on a 3D model →
VIN number
Inner wing / front wheel arch in engine compartment, right side
Identification plate
B-pillar, right side
1 of 2

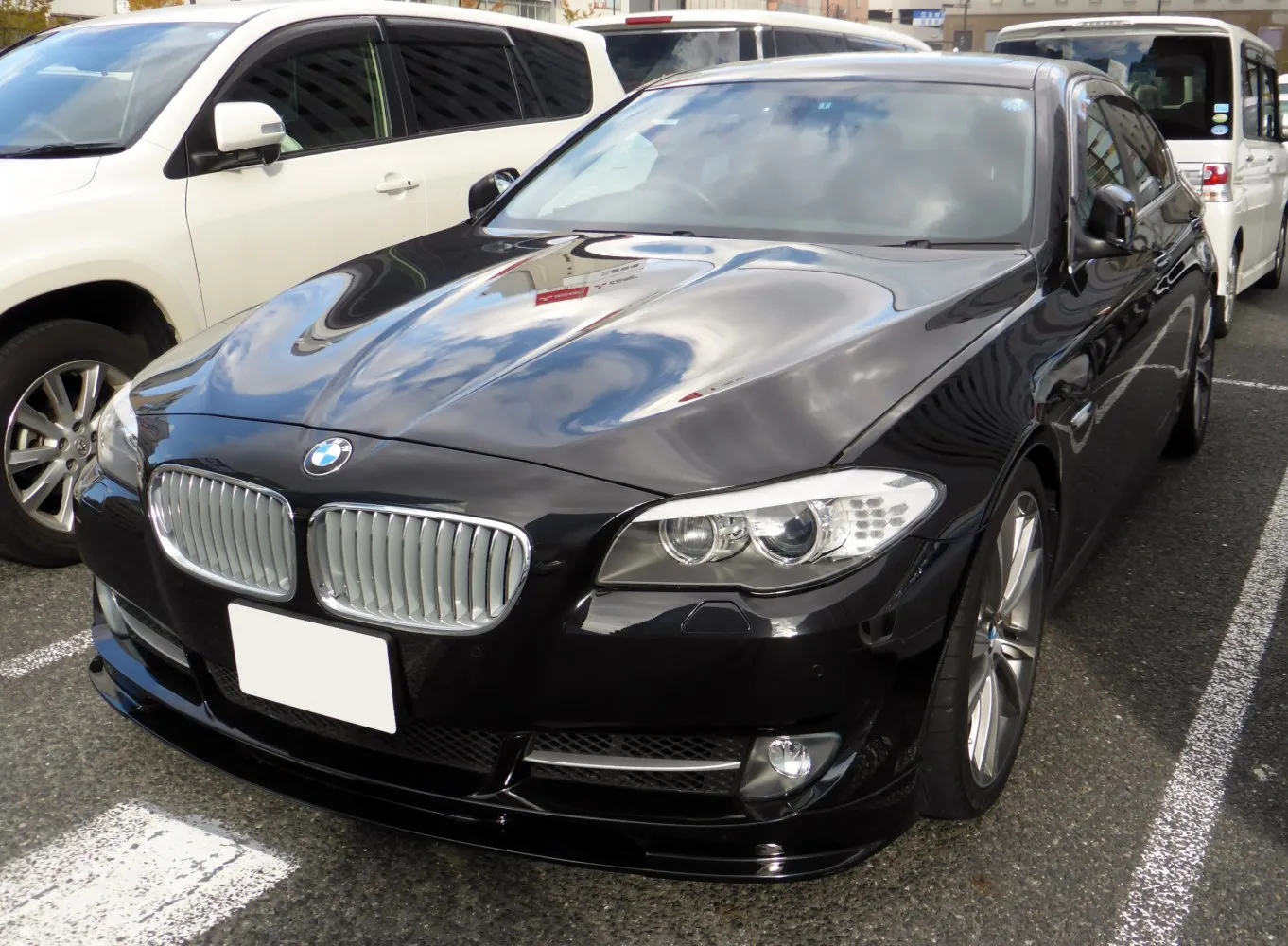

BMW Seria 5 Seria 5 Active Hybrid (F10) View larger
Photo: Tokumeigakarinoaoshima, CC0, via Wikimedia Commons

Vehicle gallery

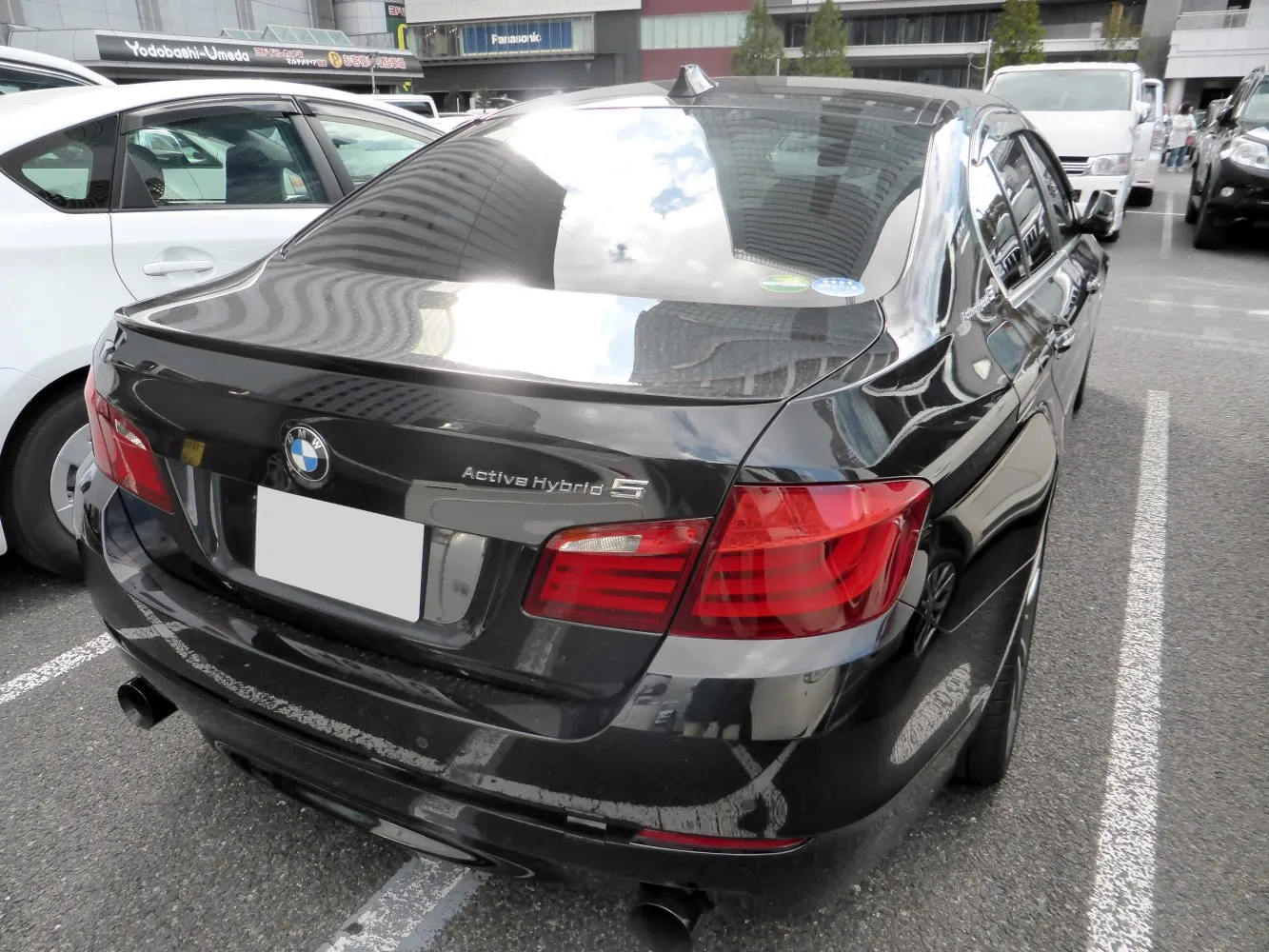

BMW Seria 5 Seria 5 Active Hybrid (F10)

Photo: Tokumeigakarinoaoshima, CC0, via Wikimedia Commons

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

1 versions · 1 Gasoline

Engine Fuel Power Production
ActiveHybrid 3.0 (340 KM) Selected Gasoline 306 KM 2011–2013

Selected engine version

ActiveHybrid 3.0 (340 KM)

Gasoline · 2011–2013

Engine power
306 KM
Engine displacement
2,979 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
5.9 s
Maximum speed
250 km/h
On this page
Check vehicle history

Basic version information

Brand
BMW
Model
Seria 5
Version
Seria 5 Active Hybrid (F10)
Engine
ActiveHybrid 3.0 (340 KM)
Engine type
FHEF (Full Hybrid Electric Vehicle)
Number of doors
4
Start of production
2011
End of production
2013
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
250 km/h
Acceleration 0-100 km/h
5.9 s
Fuel consumption - Urban cycle
5.7-6.2 l/100 km
Fuel consumption - Extra-urban cycle
6.7-7.4 l/100 km
Fuel consumption - Combined cycle
6.4-7.0 l/100 km
Emission standard
Euro 5
CO2 emissions
149-163 g/km

Engine

Max electric motor power
54 KM
System power
340 KM @ 5800 obr./min
System torque
450 Nm @ 1200-5000 obr./min
Engine model / code
N55B30A
Engine position
Front, Longitudinal
Engine displacement
2979 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
6
Cylinder bore
84 mm
Piston stroke
89.6 mm
Compression ratio
10.2
Number of valves per cylinder
4
Engine oil capacity
6.5 l
Coolant capacity
9 l
Power
306 KM

Volume and weight

Aerodynamic drag coefficient (Cx)
0.28
Curb weight
1925 kg
Gross weight
2400 kg

Vehicle dimensions

Length
4899 mm
Width
1860 mm
Height
1464 mm
Wheelbase
2968 mm
Front track
1600 mm
Rear track
1627 mm

Drivetrain, Brakes and suspension

Drive
Rear-wheel drive
Number of gears
8
Type of automatic gearbox
Steptronic
Front brakes
Ventilated disc
Rear brakes
Ventilated disc
Steering system
Rack-and-pinion
Tire size
225/55 R17 97W
Rim size
8J x 17
ABS
yes

About BMW Seria 5 Seria 5 Active Hybrid (F10)

The BMW 5 Series Active Hybrid (F10) is a luxury sedan produced from 2011 to 2013, aimed at discerning drivers seeking elegance and modern technological solutions in a vehicle. With a four-door construction and spacious interior accommodating five passengers, the car combines dynamic and contemporary design with functionality. Ideal for professionals and individuals who value comfort and prestige on a daily basis, especially during longer business trips.

The ActiveHybrid 5 is equipped with an advanced 3.0 hybrid engine producing 340 horsepower, blending a gasoline engine with hybrid technology, allowing for exceptional performance while achieving balanced fuel consumption. Dynamic acceleration and smooth driving are ensured by automatic transmissions, which are standard in this model. The hybrid solution not only enhances energy efficiency but also assists the engine under heavy loads, improving throttle response.

The rear-wheel drive in the ActiveHybrid 5 provides excellent driving characteristics, offering stability and traction in all road conditions. The car stands out for its travel comfort both in crowded cities, thanks to its precise steering system, and on highways, where smooth driving and low noise emissions enhance user comfort. Support systems such as adaptive cruise control and parking assist assist the driver in daily commutes and maneuvers.

Despite many advantages, this model is not without its drawbacks. Potential owners should pay attention to possible electronic issues typical of advanced hybrid systems. Maintenance costs may be higher than those of traditional combustion units, especially considering the technological complexity applied in the powertrain. For some users, the vehicle's weight may also be a downside, slightly affecting agility compared to lighter competitors.

The BMW 5 Series Active Hybrid (F10) is an excellent choice for those seeking a luxury car that combines innovation with outstanding performance. Its advanced hybrid technology, high driving comfort, and the prestige of the BMW brand make it a unique proposition in the premium sedan segment. It catches the eye with its modern design and attention to detail, while also offering an environmentally friendly alternative to traditional powertrains.
