Audi A3 Sedan (8V)

Compare all 23 engine versions of the Audi A3 A3 Sedan (8V), then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Audi A3 Sedan (8V)? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?
1 of 9

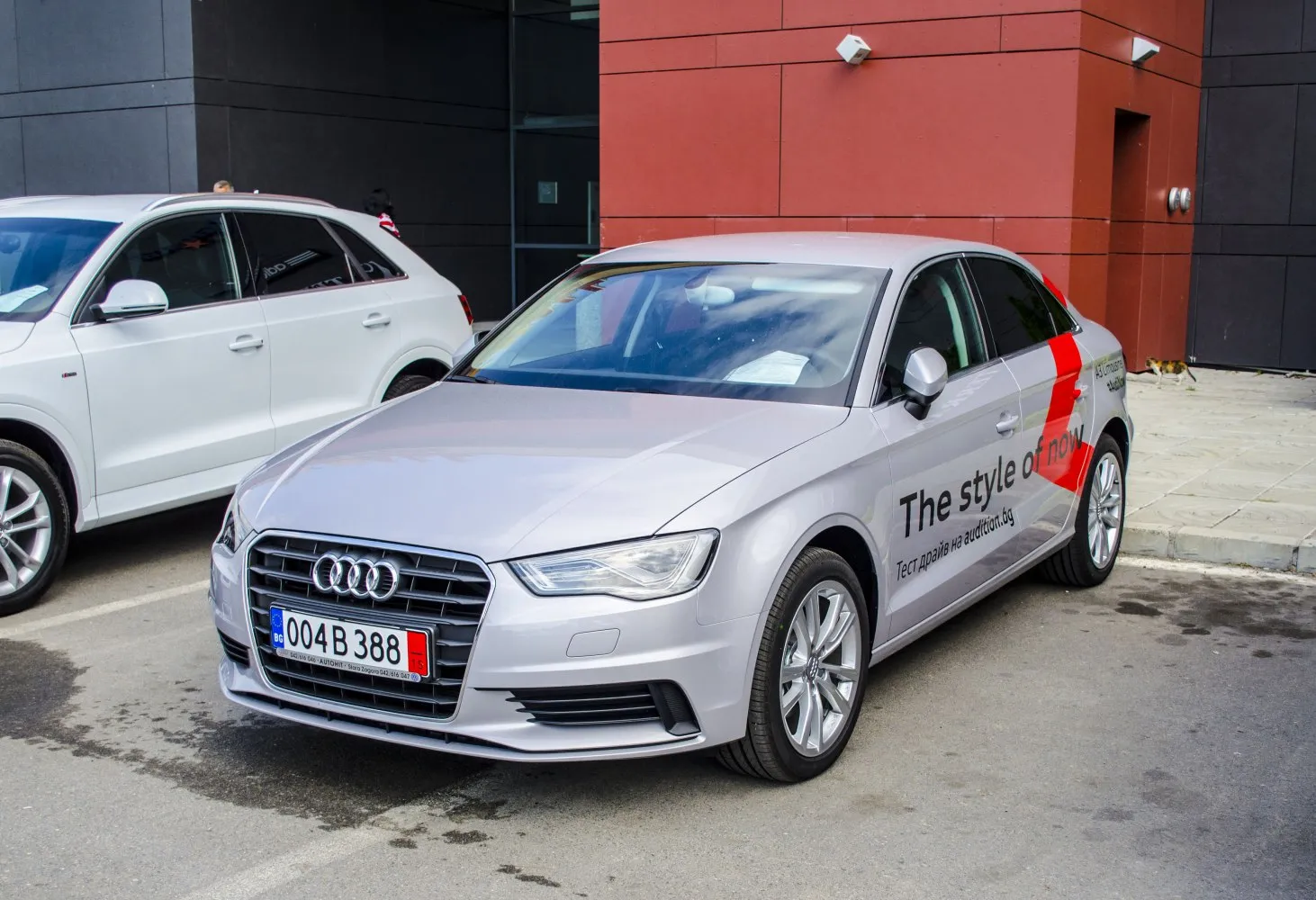

Audi A3 A3 Sedan (8V) View larger
Photo: © M 93 / CC BY-SA 3.0 (DE) <https://creativecommons.org/licenses/by-sa/3.0/de/>, via Wikimedia Commons

Vehicle gallery

Audi A3 A3 Sedan (8V)

Photo: © M 93 / CC BY-SA 3.0 (DE) <https://creativecommons.org/licenses/by-sa/3.0/de/>, via Wikimedia Commons

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

23 versions · 12 Diesel fuel · 11 Gasoline

Engine Fuel Power Production
2.0 TDI (150 KM) Selected Diesel fuel 150 KM 2013–2014
1.8 TFSI (180 KM) S tronic Selected Gasoline 180 KM 2013–2016
1.4 TFSI (140 KM) Selected Gasoline 140 KM 2013–2014
1.4 TFSI (140 KM) S tronic Selected Gasoline 140 KM 2013–2014
1.4 TFSI (125 KM) Selected Gasoline 125 KM 2013–2016
2.0 TDI (150 KM) clean diesel Selected Diesel fuel 150 KM 2013–2016
1.6 TDI (110 KM) clean diesel S-tronic Selected Diesel fuel 110 KM 2014–2016
1.6 TDI (110 KM) clean diesel Selected Diesel fuel 110 KM 2014–2016
2.0 TDI (150 KM) clean diesel S-tronic Selected Diesel fuel 150 KM 2013–2014
1.8 TFSI (180 KM) quattro S tronic Selected Gasoline 180 KM 2013–2016
2.0 TDI (184 KM) clean diesel Selected Diesel fuel 184 KM 2014–2016
1.8 TFSI (180 KM) Selected Gasoline 180 KM 2013–2016
1.6 TDI ultra (110 KM) Selected Diesel fuel 110 KM 2015–2016
1.4 TFSI COD ultra (150 KM) S-tronic Selected Gasoline 150 KM 2014–2016
1.4 TFSI COD ultra (150 KM) Selected Gasoline 150 KM 2014–2016
2.0 TDI (150 KM) clean diesel quattro Selected Diesel fuel 150 KM 2013–2016
2.0 TDI (184 KM) clean diesel quattro S-tronic Selected Diesel fuel 184 KM 2014–2016
1.4 TFSI (125 KM) S tronic Selected Gasoline 125 KM 2014–2016
1.6 TDI (110 KM) quattro Selected Diesel fuel 110 KM 2014–2016
1.6 TDI (105 KM) S tronic Selected Diesel fuel 105 KM 2013–2014
2.0 T (223 KM) quattro Selected Gasoline 223 KM 2015–2016
1.6 TDI (105 KM) Selected Diesel fuel 105 KM 2013–2014
1.8 TFSI (170 KM) S tronic Selected Gasoline 170 KM 2014–2016

Selected engine version

2.0 TDI (150 KM)

Diesel fuel · 2013–2014

Engine power
150 KM
Torque
320 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.7 s
Maximum speed
216 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
2.0 TDI (150 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
2013
End of production
2014
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
216 km/h
Acceleration 0-100 km/h
8.7 s
Fuel consumption - Urban cycle
5.2 l/100 km
Fuel consumption - Extra-urban cycle
3.5 l/100 km
Fuel consumption - Combined cycle
4.1 l/100 km
Emission standard
Euro 5
CO2 emissions
107 g/km

Engine

Engine model / code
CRBC, CRLB, CRUA, DBGA, DEJA, DCYA
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
150 KM @ 3500 obr./min
Torque
320 Nm @ 1750-3000 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
425 l
Maximum trunk capacity
880 l
Curb weight
1315 kg
Gross weight
1865 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1800 kg
Trailer load without brakes
690 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
10.9 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
225/45 R17
Rim size
17
ABS
yes

Selected engine version

1.8 TFSI (180 KM) S tronic

Gasoline · 2013–2016

Engine power
180 KM
Torque
250 Nm
Engine displacement
1,798 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.3 s
Maximum speed
235 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
1.8 TFSI (180 KM) S tronic
Engine type
Combustion engine
Number of doors
4
Start of production
2013
End of production
2016
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
235 km/h
Acceleration 0-100 km/h
7.3 s
Fuel consumption - Urban cycle
7 l/100 km
Fuel consumption - Extra-urban cycle
4.8 l/100 km
Fuel consumption - Combined cycle
5.6 l/100 km
Emission standard
Euro 6
CO2 emissions
129 g/km

Engine

Engine model / code
EA888/CJSA
Engine position
Front, Transverse
Engine displacement
1798 cm³
Fuel injection system
Wtrysk bezpośredni i Wtrysk wielopunktowy
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
84.1 mm
Compression ratio
9.6
Number of valves per cylinder
4
Engine oil capacity
5.2 l
Power
180 KM @ 5100-6200 obr./min
Torque
250 Nm @ 1250-5000 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
425 l
Maximum trunk capacity
880 l
Curb weight
1295 kg
Gross weight
1845 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1800 kg
Trailer load without brakes
680 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
Stronic
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 225/45 R17
Rim size
7J x 16; 7.5J x 17
ABS
yes

Selected engine version

1.4 TFSI (140 KM)

Gasoline · 2013–2014

Engine power
140 KM
Torque
250 Nm
Engine displacement
1,395 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.4 s
Maximum speed
219 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
1.4 TFSI (140 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
2013
End of production
2014
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
219 km/h
Acceleration 0-100 km/h
8.4 s
Fuel consumption - Urban cycle
5.9 l/100 km
Fuel consumption - Extra-urban cycle
4.2 l/100 km
Fuel consumption - Combined cycle
4.8 l/100 km
Emission standard
Euro 6
CO2 emissions
111 g/km

Engine

Engine model / code
CPTA
Engine position
Front, Transverse
Engine displacement
1395 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74.5 mm
Piston stroke
80 mm
Compression ratio
10
Number of valves per cylinder
4
Engine oil capacity
4 l
Power
140 KM @ 5000-6000 obr./min
Torque
250 Nm @ 1500-3500 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
425 l
Maximum trunk capacity
880 l
Curb weight
1240 kg
Gross weight
1790 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1700 kg
Trailer load without brakes
650 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
10.9 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
225/45 R17
Rim size
17
ABS
yes

Selected engine version

1.4 TFSI (140 KM) S tronic

Gasoline · 2013–2014

Engine power
140 KM
Torque
250 Nm
Engine displacement
1,395 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.4 s
Maximum speed
217 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
1.4 TFSI (140 KM) S tronic
Engine type
Combustion engine
Number of doors
4
Start of production
2013
End of production
2014
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
217 km/h
Acceleration 0-100 km/h
8.4 s
Fuel consumption - Urban cycle
5.9 l/100 km
Fuel consumption - Extra-urban cycle
4.1 l/100 km
Fuel consumption - Combined cycle
4.7 l/100 km
Emission standard
Euro 5
CO2 emissions
109 g/km

Engine

Engine model / code
CPTA
Engine position
Front, Transverse
Engine displacement
1395 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74.5 mm
Piston stroke
80 mm
Compression ratio
10
Number of valves per cylinder
4
Engine oil capacity
4 l
Power
140 KM @ 5000 obr./min
Torque
250 Nm @ 1500-3500 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
425 l
Maximum trunk capacity
880 l
Curb weight
1250 kg
Gross weight
1800 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1700 kg
Trailer load without brakes
660 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
10.9 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
Stronic
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
225/45 R17
Rim size
17
ABS
yes

Selected engine version

1.4 TFSI (125 KM)

Gasoline · 2013–2016

Engine power
125 KM
Torque
200 Nm
Engine displacement
1,395 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.4 s
Maximum speed
212 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
1.4 TFSI (125 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
2013
End of production
2016
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
212 km/h
Acceleration 0-100 km/h
9.4 s
Fuel consumption - Urban cycle
6.7 l/100 km
Fuel consumption - Extra-urban cycle
4.4 l/100 km
Fuel consumption - Combined cycle
5.3 l/100 km
Emission standard
Euro 6
CO2 emissions
122 g/km

Engine

Engine model / code
CXSB, CZCA
Engine position
Front, Transverse
Engine displacement
1395 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74.5 mm
Piston stroke
80 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
3.6 l
Power
125 KM @ 5000 obr./min
Torque
200 Nm @ 1400-4000 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
425 l
Maximum trunk capacity
880 l
Curb weight
1215 kg
Gross weight
1765 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1600 kg
Trailer load without brakes
640 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
10.9 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
225/45 R17
Rim size
17
ABS
yes

Selected engine version

2.0 TDI (150 KM) clean diesel

Diesel fuel · 2013–2016

Engine power
150 KM
Torque
340 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.6 s
Maximum speed
224 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
2.0 TDI (150 KM) clean diesel
Engine type
Combustion engine
Number of doors
4
Start of production
2013
End of production
2016
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
224 km/h
Acceleration 0-100 km/h
8.6 s
Fuel consumption - Urban cycle
5 l/100 km
Fuel consumption - Extra-urban cycle
3.6 l/100 km
Fuel consumption - Combined cycle
4.1 l/100 km
Emission standard
Euro 6
CO2 emissions
107 g/km

Engine

Engine model / code
CRBC, CRLB, CRUA, DBGA, DEJA, DCYA
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
150 KM @ 3500-4000 obr./min
Torque
340 Nm @ 1750-3000 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
425 l
Maximum trunk capacity
880 l
Curb weight
1315 kg
Gross weight
1865 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1800 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
690 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
7.0J x 16
ABS
yes

Selected engine version

1.6 TDI (110 KM) clean diesel S-tronic

Diesel fuel · 2014–2016

Engine power
110 KM
Torque
250 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.7 s
Maximum speed
203 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
1.6 TDI (110 KM) clean diesel S-tronic
Engine type
Combustion engine
Number of doors
4
Start of production
2014
End of production
2016
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
203 km/h
Acceleration 0-100 km/h
10.7 s
Fuel consumption - Urban cycle
4.4 l/100 km
Fuel consumption - Extra-urban cycle
3.6 l/100 km
Fuel consumption - Combined cycle
3.9 l/100 km
Emission standard
Euro 6
CO2 emissions
102 g/km

Engine

Engine model / code
CRKB, CXXB
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
80.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
110 KM @ 3200-4000 obr./min
Torque
250 Nm @ 1500-3000 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.28
Minimum trunk capacity
425 l
Maximum trunk capacity
880 l
Curb weight
1290 kg
Gross weight
1840 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1700 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
680 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
S-tronic
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
7.0J x 16
ABS
yes

Selected engine version

1.6 TDI (110 KM) clean diesel

Diesel fuel · 2014–2016

Engine power
110 KM
Torque
250 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.7 s
Maximum speed
203 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
1.6 TDI (110 KM) clean diesel
Engine type
Combustion engine
Number of doors
4
Start of production
2014
End of production
2016
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
203 km/h
Acceleration 0-100 km/h
10.7 s
Fuel consumption - Urban cycle
4.5 l/100 km
Fuel consumption - Extra-urban cycle
3.4 l/100 km
Fuel consumption - Combined cycle
3.8 l/100 km
Emission standard
Euro 6
CO2 emissions
99 g/km

Engine

Engine model / code
CRKB, CXXB
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
80.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
110 KM @ 3200-4000 obr./min
Torque
250 Nm @ 1500-3000 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.28
Minimum trunk capacity
425 l
Maximum trunk capacity
880 l
Curb weight
1270 kg
Gross weight
1820 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1700 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
670 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
7.0J x 16
ABS
yes

Selected engine version

2.0 TDI (150 KM) clean diesel S-tronic

Diesel fuel · 2013–2014

Engine power
150 KM
Torque
340 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.4 s
Maximum speed
219 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
2.0 TDI (150 KM) clean diesel S-tronic
Engine type
Combustion engine
Number of doors
4
Start of production
2013
End of production
2014
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
219 km/h
Acceleration 0-100 km/h
8.4 s
Fuel consumption - Urban cycle
5.5 l/100 km
Fuel consumption - Extra-urban cycle
3.9 l/100 km
Fuel consumption - Combined cycle
4.5 l/100 km
Emission standard
Euro 6
CO2 emissions
118 g/km

Engine

Engine model / code
CRBC, CRLB, CRUA, DBGA, DEJA, DCYA
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
150 KM @ 3500-4000 obr./min
Torque
340 Nm @ 1750-3000 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
425 l
Maximum trunk capacity
880 l
Curb weight
1320 kg
Gross weight
1870 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1800 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
690 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Type of automatic gearbox
S-tronic
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
7.0J x 16
ABS
yes

Selected engine version

1.8 TFSI (180 KM) quattro S tronic

Gasoline · 2013–2016

Engine power
180 KM
Torque
280 Nm
Engine displacement
1,798 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
6.8 s
Maximum speed
235 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
1.8 TFSI (180 KM) quattro S tronic
Engine type
Combustion engine
Number of doors
4
Start of production
2013
End of production
2016
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
235 km/h
Acceleration 0-100 km/h
6.8 s
Fuel consumption - Urban cycle
8.2 l/100 km
Fuel consumption - Extra-urban cycle
5.6 l/100 km
Fuel consumption - Combined cycle
6.6 l/100 km
Emission standard
Euro 6
CO2 emissions
152 g/km

Engine

Engine model / code
EA888/CJSB
Engine position
Front, Transverse
Engine displacement
1798 cm³
Fuel injection system
Wtrysk bezpośredni i Wtrysk wielopunktowy
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
84.1 mm
Compression ratio
9.6
Number of valves per cylinder
4
Engine oil capacity
5.2 l
Power
180 KM @ 4500-6200 obr./min
Torque
280 Nm @ 1350-4500 obr./min

Volume and weight

Fuel tank
55 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
390 l
Maximum trunk capacity
845 l
Curb weight
1395 kg
Gross weight
1945 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1800 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
730 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Type of automatic gearbox
Stronic
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 225/45 R17
Rim size
7J x 16; 7.5J x 17
ABS
yes

Selected engine version

2.0 TDI (184 KM) clean diesel

Diesel fuel · 2014–2016

Engine power
184 KM
Torque
380 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
7.4 s
Maximum speed
241 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
2.0 TDI (184 KM) clean diesel
Engine type
Combustion engine
Number of doors
4
Start of production
2014
End of production
2016
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
241 km/h
Acceleration 0-100 km/h
7.4 s
Fuel consumption - Urban cycle
5 l/100 km
Fuel consumption - Extra-urban cycle
3.6 l/100 km
Fuel consumption - Combined cycle
4.1 l/100 km
Emission standard
Euro 6
CO2 emissions
109 g/km

Engine

Engine model / code
CUNA, DGCA
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
15.8
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
184 KM @ 3500-4000 obr./min
Torque
380 Nm @ 1750-3250 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
425 l
Maximum trunk capacity
880 l
Curb weight
1320 kg
Gross weight
1870 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1800 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
690 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
7.0J x 16
ABS
yes

Selected engine version

1.8 TFSI (180 KM)

Gasoline · 2013–2016

Engine power
180 KM
Torque
250 Nm
Engine displacement
1,798 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
7.2 s
Maximum speed
242 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
1.8 TFSI (180 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
2013
End of production
2016
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
242 km/h
Acceleration 0-100 km/h
7.2 s
Fuel consumption - Urban cycle
7.4 l/100 km
Fuel consumption - Extra-urban cycle
4.9 l/100 km
Fuel consumption - Combined cycle
5.8 l/100 km
Emission standard
Euro 6
CO2 emissions
135 g/km

Engine

Engine model / code
EA888/CJSA
Engine position
Front, Transverse
Engine displacement
1798 cm³
Fuel injection system
Wtrysk bezpośredni i Wtrysk wielopunktowy
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
84.1 mm
Compression ratio
9.6
Number of valves per cylinder
4
Engine oil capacity
5.2 l
Power
180 KM @ 5100-6200 obr./min
Torque
250 Nm @ 1250-5000 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
425 l
Maximum trunk capacity
880 l
Curb weight
1270 kg
Gross weight
1820 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1800 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
670 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 225/45 R17
Rim size
7J x 16; 7.5J x 17
ABS
yes

Selected engine version

1.6 TDI ultra (110 KM)

Diesel fuel · 2015–2016

Engine power
110 KM
Torque
250 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.7 s
Maximum speed
203 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
1.6 TDI ultra (110 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
2015
End of production
2016
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
203 km/h
Acceleration 0-100 km/h
10.7 s
Fuel consumption - Urban cycle
4.0-4.1 l/100 km
Fuel consumption - Extra-urban cycle
3.2-3.3 l/100 km
Fuel consumption - Combined cycle
3.5-3.6 l/100 km
Emission standard
Euro 6
CO2 emissions
92-95 g/km

Engine

Engine model / code
CRKB, CXXB
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
80.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
110 KM @ 3200-4000 obr./min
Torque
250 Nm @ 1500-3000 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
425 l
Maximum trunk capacity
880 l
Curb weight
1215 kg
Gross weight
1765 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1300 kg
Braked trailer load (12% slope start)
1000 kg
Trailer load without brakes
640 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
7.0J x 16
ABS
yes

Selected engine version

1.4 TFSI COD ultra (150 KM) S-tronic

Gasoline · 2014–2016

Engine power
150 KM
Torque
250 Nm
Engine displacement
1,395 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.2 s
Maximum speed
224 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
1.4 TFSI COD ultra (150 KM) S-tronic
Engine type
Combustion engine
Number of doors
4
Start of production
2014
End of production
2016
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
224 km/h
Acceleration 0-100 km/h
8.2 s
Fuel consumption - Urban cycle
5.8 l/100 km
Fuel consumption - Extra-urban cycle
4.1 l/100 km
Fuel consumption - Combined cycle
4.7 l/100 km
Emission standard
Euro 6
CO2 emissions
109 g/km

Engine

Engine model / code
CZDA, CZEA
Engine position
Front, Transverse
Engine displacement
1395 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74.5 mm
Piston stroke
80 mm
Compression ratio
10
Number of valves per cylinder
4
Engine oil capacity
4 l
Power
150 KM @ 5000-6000 obr./min
Torque
250 Nm @ 1500-3500 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
425 l
Maximum trunk capacity
880 l
Curb weight
1250 kg
Gross weight
1800 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1700 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
660 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
S-tronic
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
7.0J x 16
ABS
yes

Selected engine version

1.4 TFSI COD ultra (150 KM)

Gasoline · 2014–2016

Engine power
150 KM
Torque
250 Nm
Engine displacement
1,395 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
8.2 s
Maximum speed
224 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
1.4 TFSI COD ultra (150 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
2014
End of production
2016
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
224 km/h
Acceleration 0-100 km/h
8.2 s
Fuel consumption - Urban cycle
5.8 l/100 km
Fuel consumption - Extra-urban cycle
4.1 l/100 km
Fuel consumption - Combined cycle
4.7 l/100 km
Emission standard
Euro 6
CO2 emissions
109 g/km

Engine

Engine model / code
CZDA, CZEA
Engine position
Front, Transverse
Engine displacement
1395 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74.5 mm
Piston stroke
80 mm
Compression ratio
10
Number of valves per cylinder
4
Engine oil capacity
4 l
Power
150 KM @ 5000-6000 obr./min
Torque
250 Nm @ 1500-3500 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
425 l
Maximum trunk capacity
880 l
Curb weight
1240 kg
Gross weight
1790 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1700 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
650 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
7.0J x 16
ABS
yes

Selected engine version

2.0 TDI (150 KM) clean diesel quattro

Diesel fuel · 2013–2016

Engine power
150 KM
Torque
340 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
8.3 s
Maximum speed
219 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
2.0 TDI (150 KM) clean diesel quattro
Engine type
Combustion engine
Number of doors
4
Start of production
2013
End of production
2016
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
219 km/h
Acceleration 0-100 km/h
8.3 s
Fuel consumption - Urban cycle
5.7-5.9 l/100 km
Fuel consumption - Extra-urban cycle
4.2-4.4 l/100 km
Fuel consumption - Combined cycle
4.8-5.0 l/100 km
Emission standard
Euro 6
CO2 emissions
125-128 g/km

Engine

Engine model / code
CRBC, CRLB, CRUA, DBGA, DEJA, DCYA
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
150 KM @ 3500-4000 obr./min
Torque
340 Nm @ 1750-3000 obr./min

Volume and weight

Fuel tank
55 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
390 l
Maximum trunk capacity
845 l
Curb weight
1395 kg
Gross weight
1945 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1800 kg
Braked trailer load (12% slope start)
1800 kg
Trailer load without brakes
730 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/45 R17; 225/40 R18; 235/35 R19
Rim size
7.5J x 17; 8J x 18; 8J x 19
ABS
yes

Selected engine version

2.0 TDI (184 KM) clean diesel quattro S-tronic

Diesel fuel · 2014–2016

Engine power
184 KM
Torque
380 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
6.9 s
Maximum speed
237 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
2.0 TDI (184 KM) clean diesel quattro S-tronic
Engine type
Combustion engine
Number of doors
4
Start of production
2014
End of production
2016
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
237 km/h
Acceleration 0-100 km/h
6.9 s
Fuel consumption - Urban cycle
5.5-5.7 l/100 km
Fuel consumption - Extra-urban cycle
4.4-4.6 l/100 km
Fuel consumption - Combined cycle
4.8-5.0 l/100 km
Emission standard
Euro 6
CO2 emissions
127-230 g/km

Engine

Engine model / code
CUNA, DGCA
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
15.8
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
184 KM @ 3500-4000 obr./min
Torque
380 Nm @ 1750-3250 obr./min

Volume and weight

Fuel tank
55 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
390 l
Maximum trunk capacity
845 l
Curb weight
1430 kg
Gross weight
1980 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1800 kg
Braked trailer load (12% slope start)
1800 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Type of automatic gearbox
S-tronic
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
7.0J x 16
ABS
yes

Selected engine version

1.4 TFSI (125 KM) S tronic

Gasoline · 2014–2016

Engine power
125 KM
Torque
200 Nm
Engine displacement
1,395 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.3 s
Maximum speed
213 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
1.4 TFSI (125 KM) S tronic
Engine type
Combustion engine
Number of doors
4
Start of production
2014
End of production
2016
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
213 km/h
Acceleration 0-100 km/h
9.3 s
Fuel consumption - Urban cycle
6.1 l/100 km
Fuel consumption - Extra-urban cycle
4.2 l/100 km
Fuel consumption - Combined cycle
4.9 l/100 km
Emission standard
Euro 6
CO2 emissions
114 g/km

Engine

Engine model / code
CXSB, CZCA
Engine position
Front, Transverse
Engine displacement
1395 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
74.5 mm
Piston stroke
80 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
3.6 l
Power
125 KM @ 5000-6000 obr./min
Torque
200 Nm @ 1400-4000 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
425 l
Maximum trunk capacity
880 l
Curb weight
1235 kg
Gross weight
1785 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1600 kg
Trailer load without brakes
650 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
10.9 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
Stronic
Front suspension
Independent McPherson type
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
225/45 R17
Rim size
17
ABS
yes

Selected engine version

1.6 TDI (110 KM) quattro

Diesel fuel · 2014–2016

Engine power
110 KM
Torque
250 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
11.2 s
Maximum speed
193 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
1.6 TDI (110 KM) quattro
Engine type
Combustion engine
Number of doors
4
Start of production
2014
End of production
2016
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
193 km/h
Acceleration 0-100 km/h
11.2 s
Fuel consumption - Urban cycle
5.5-5.6 l/100 km
Fuel consumption - Extra-urban cycle
4.3-4.4 l/100 km
Fuel consumption - Combined cycle
4.7-4.8 l/100 km
Emission standard
Euro 6
CO2 emissions
127-130 g/km

Engine

Engine model / code
CRKB, CXXB
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
80.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
110 KM @ 3200-4000 obr./min
Torque
250 Nm @ 1500-3000 obr./min

Volume and weight

Fuel tank
55 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
390 l
Maximum trunk capacity
845 l
Curb weight
1390 kg
Gross weight
1940 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1700 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
730 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/55 R17; 245/45 R18; 235/35 R19
Rim size
7.5J x 17; 8J x 18; 8J x 19
ABS
yes

Selected engine version

1.6 TDI (105 KM) S tronic

Diesel fuel · 2013–2014

Engine power
105 KM
Torque
250 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.9 s
Maximum speed
198 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
1.6 TDI (105 KM) S tronic
Engine type
Combustion engine
Number of doors
4
Start of production
2013
End of production
2014
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
198 km/h
Acceleration 0-100 km/h
10.9 s
Fuel consumption - Urban cycle
4.8 l/100 km
Fuel consumption - Extra-urban cycle
3.4 l/100 km
Fuel consumption - Combined cycle
3.9 l/100 km
Emission standard
Euro 5
CO2 emissions
102 g/km

Engine

Engine model / code
CLHA
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
80.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
105 KM @ 3000-4000 obr./min
Torque
250 Nm @ 1250-2750 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
425 l
Maximum trunk capacity
880 l
Curb weight
1290 kg
Gross weight
1840 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1700 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
680 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
7
Type of automatic gearbox
Stronic
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
7.0J x 16
ABS
yes

Selected engine version

2.0 T (223 KM) quattro

Gasoline · 2015–2016

Engine power
223 KM
Torque
350 Nm
Engine displacement
1,984 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
6.2 s
Maximum speed
209 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
2.0 T (223 KM) quattro
Engine type
Combustion engine
Number of doors
4
Start of production
2015
End of production
2016
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
209 km/h
Acceleration 0-100 km/h
6.2 s
Fuel consumption - Urban cycle
7.4 l/100 km
Fuel consumption - Extra-urban cycle
4.9 l/100 km
Fuel consumption - Combined cycle
5.8 l/100 km
Emission standard
Euro 6
CO2 emissions
135 g/km

Engine

Engine model / code
CNTC
Engine position
Front, Transverse
Engine displacement
1984 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
92.8 mm
Compression ratio
9.6
Number of valves per cylinder
4
Engine oil capacity
5.7 l
Power
223 KM @ 4500-6200 obr./min
Torque
350 Nm @ 1600-4400 obr./min

Volume and weight

Fuel tank
55 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
390 l
Maximum trunk capacity
845 l
Curb weight
1270 kg
Gross weight
1820 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1800 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
670 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
All-wheel drive (4x4)
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
7.0J x 16
ABS
yes

Selected engine version

1.6 TDI (105 KM)

Diesel fuel · 2013–2014

Engine power
105 KM
Torque
250 Nm
Engine displacement
1,598 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.9 s
Maximum speed
198 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
1.6 TDI (105 KM)
Engine type
Combustion engine
Number of doors
4
Start of production
2013
End of production
2014
Body type
Sedan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
198 km/h
Acceleration 0-100 km/h
10.9 s
Fuel consumption - Urban cycle
4.5 l/100 km
Fuel consumption - Extra-urban cycle
3.4 l/100 km
Fuel consumption - Combined cycle
3.8 l/100 km
Emission standard
Euro 5
CO2 emissions
99 g/km

Engine

Engine model / code
CLHA
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Diesel common rail
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
80.5 mm
Compression ratio
16.2
Number of valves per cylinder
4
Engine oil capacity
4.7 l
Power
105 KM @ 3000-4000 obr./min
Torque
250 Nm @ 1250-2750 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.29
Minimum trunk capacity
425 l
Maximum trunk capacity
880 l
Curb weight
1275 kg
Gross weight
1825 kg
Roof load
75 kg
Braked trailer load (8% slope start)
1700 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
670 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Semi-independent spring suspension
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16
Rim size
7.0J x 16
ABS
yes

Selected engine version

1.8 TFSI (170 KM) S tronic

Gasoline · 2014–2016

Engine power
170 KM
Torque
271 Nm
Engine displacement
1,798 cm³
Fuel type
Gasoline
Maximum speed
210 km/h
On this page
Check vehicle history

Basic version information

Brand
Audi
Model
A3
Version
A3 Sedan (8V)
Engine
1.8 TFSI (170 KM) S tronic
Engine type
Combustion engine
Number of doors
4
Start of production
2014
End of production
2016
Body type
Sedan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
210 km/h
Acceleration 0-60 mph
7.2 mph
Fuel consumption measurement standard
EPA
Fuel consumption - Urban cycle
10.2 l/100 km
Fuel consumption measurement standard
EPA
Fuel consumption - Extra-urban cycle
7.1 l/100 km
Fuel consumption measurement standard
EPA
Fuel consumption - Combined cycle
8.7 l/100 km
Emission standard
SULEV

Engine

Engine model / code
EA888/CNSB
Engine position
Front, Transverse
Engine displacement
1798 cm³
Fuel injection system
Direct injection
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
84.1 mm
Compression ratio
9.6
Number of valves per cylinder
4
Engine oil capacity
5.2 l
Coolant capacity
8.5 l
Power
170 KM @ 4500-6200 obr./min
Torque
271 Nm @ 1600-4400 obr./min

Volume and weight

Fuel tank
50 l
Aerodynamic drag coefficient (Cx)
0.30
Minimum trunk capacity
348 l
Curb weight
1440 kg

Vehicle dimensions

Length
4456 mm
Width
1796 mm
Width with unfolded mirrors
1960 mm
Height
1416 mm
Wheelbase
2637 mm
Front track
1555 mm
Rear track
1526 mm
Front overhang
869 mm
Rear overhang
950 mm
Turning circle
11 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Type of automatic gearbox
Stronic
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Front brake disc/drum diameter
312 mm
Rear brakes
Disc
Rear brake disc/drum diameter
272 mm
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
225/45 R17; 225/40 R18; 235/35 R19
Rim size
7.5J x 17; 8J x 18; 8J x 19
ABS
yes

About Audi A3 A3 Sedan (8V)

The Audi A3 Sedan (8V) is a compact sedan produced from 2013 to 2016, aimed at drivers seeking a combination of luxury and functionality in a small package. Its four-door body offers seating for five passengers, impressing with its modern design and elegant lines. Its style and compact dimensions make it an ideal choice for young professionals and those who appreciate a classic look combined with modern solutions.

The Audi A3 Sedan (8V) offers a wide range of powertrains, encompassing both petrol and diesel engines, with power outputs ranging from 105 to 223 hp. The TFSI versions provide dynamic performance, while the TDI engines are valued for fuel efficiency. Notably, the 1.8 TFSI units (180 hp) available with quattro drive and S-tronic transmission combine power and precision. The car is equipped with manual or automatic transmissions, including the modern DSG, providing a smooth and dynamic driving experience.

With front-wheel drive and optionally all-wheel drive (quattro), the A3 Sedan guarantees excellent stability and traction. It is a vehicle with high agility, making it ideal for urban driving, but it also performs well on highways thanks to its comfortable suspension. The car is equipped with modern driver assistance technologies, such as navigation systems, adaptive cruise control, and parking assist, enhancing the comfort and safety of travel.

Despite numerous advantages, the Audi A3 Sedan (8V) has a few issues worth noting. There are known problems with electronics, especially regarding multimedia and navigation systems. Maintenance costs, particularly for versions with quattro drive, can be higher than for some competing models. It should also be noted that some components may tend to wear out faster, which requires careful inspection when purchasing a used model.

The Audi A3 Sedan (8V) is an excellent option for those looking for a compact sedan that combines luxury with performance. Its modern design, advanced technologies, and dynamic powertrains make it an attractive choice in its segment. It stands out as a vehicle that delivers driving enjoyment without compromising on comfort and functionality.
