Technical data Mazda CX-5 II (facelift 2021)

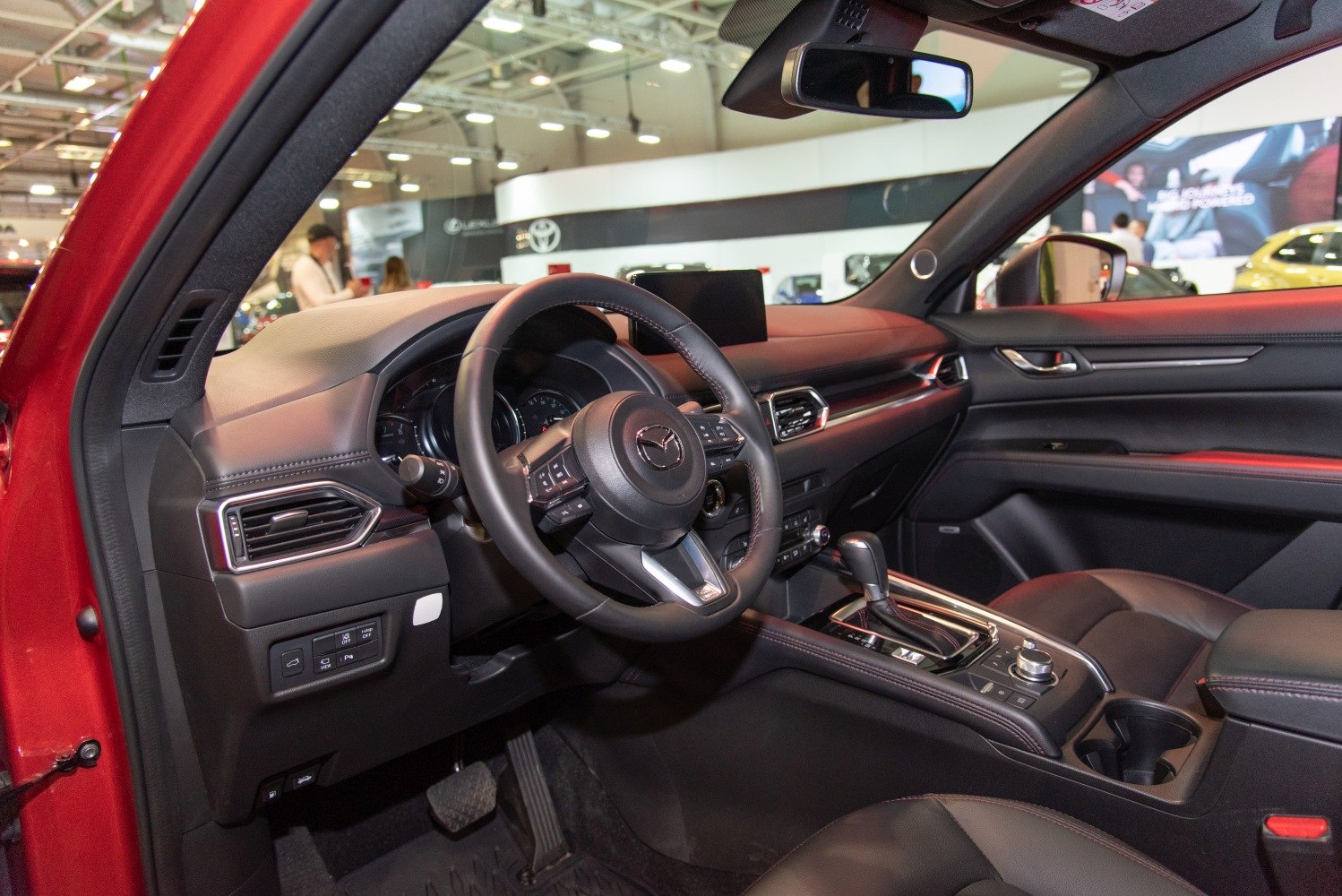

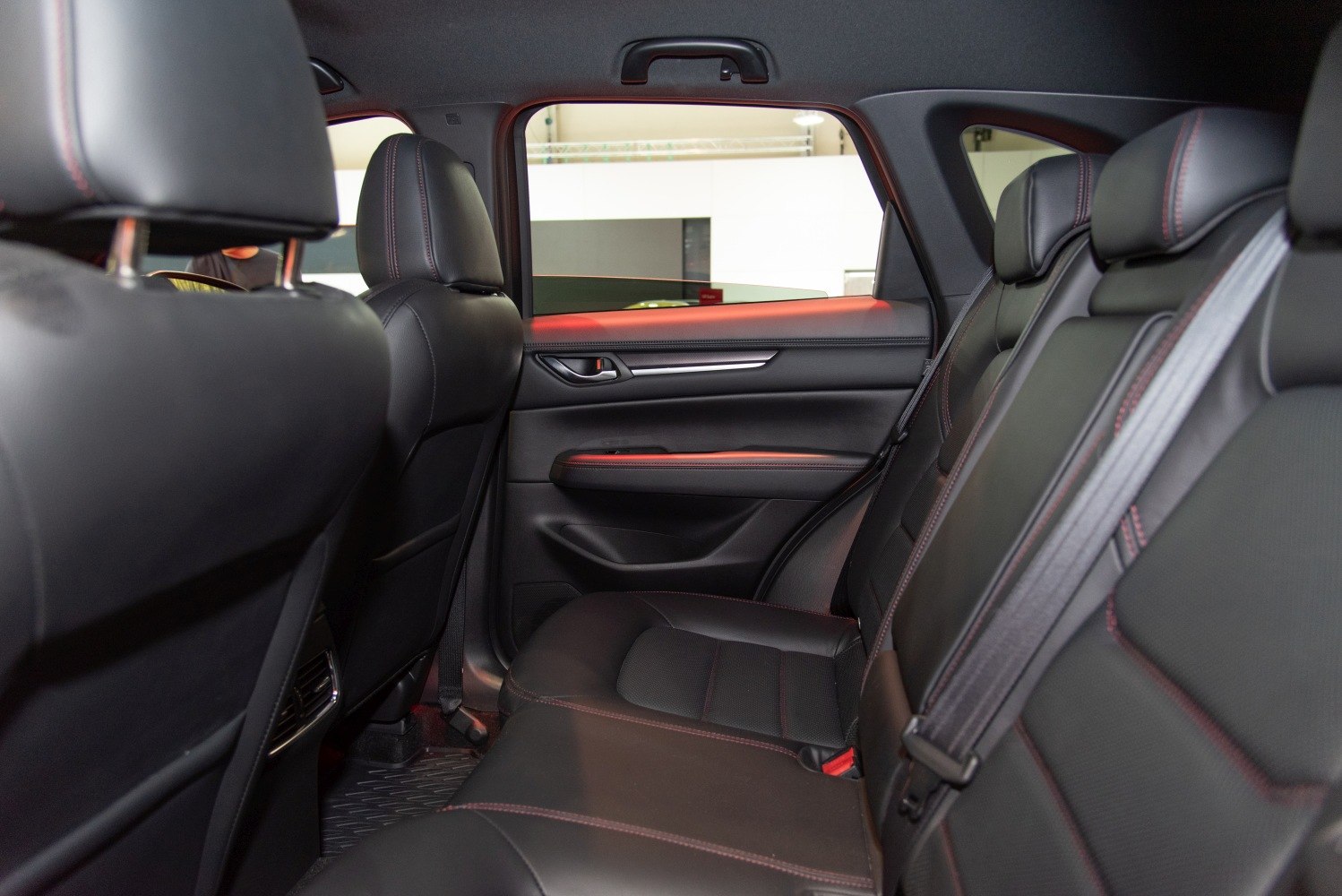

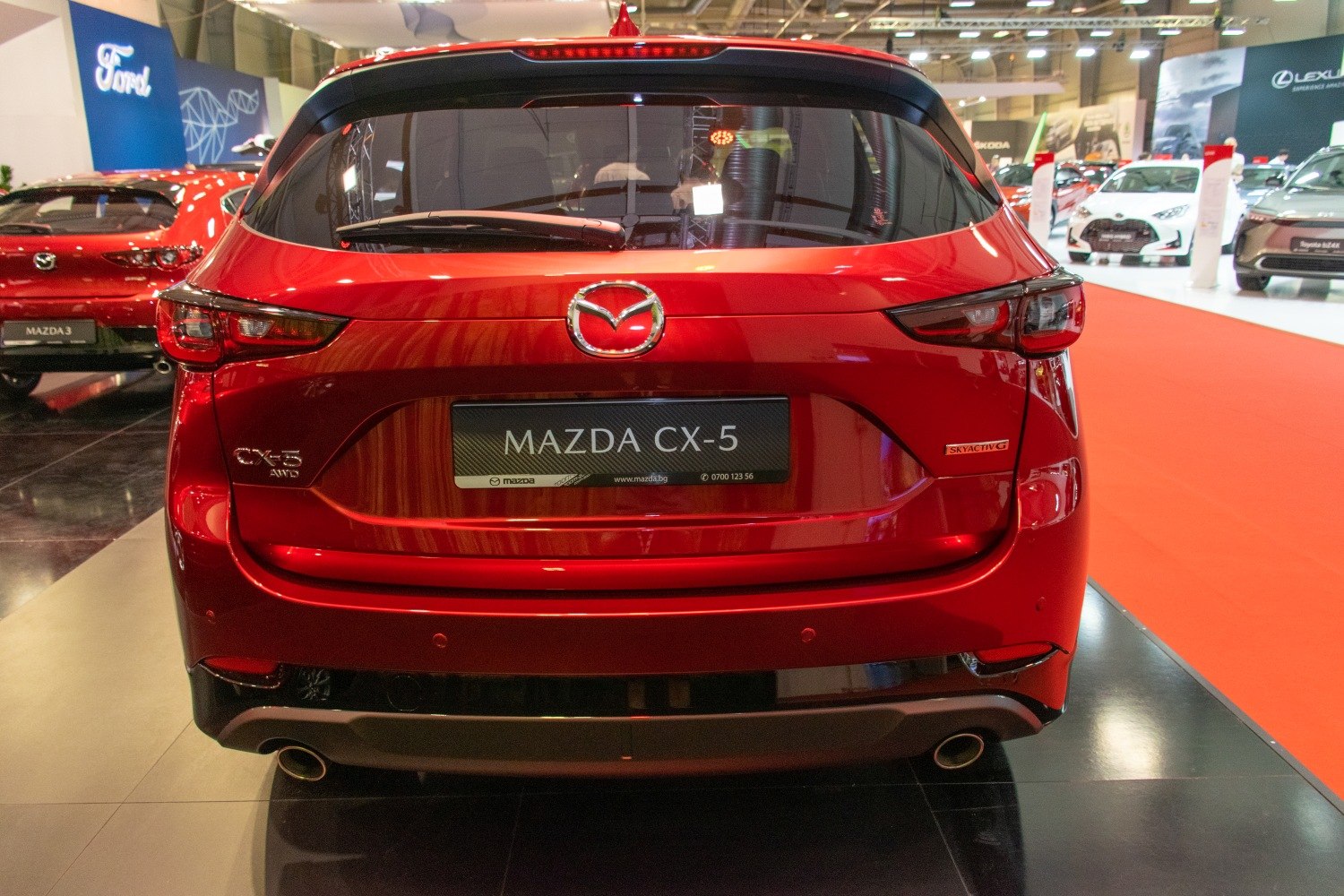

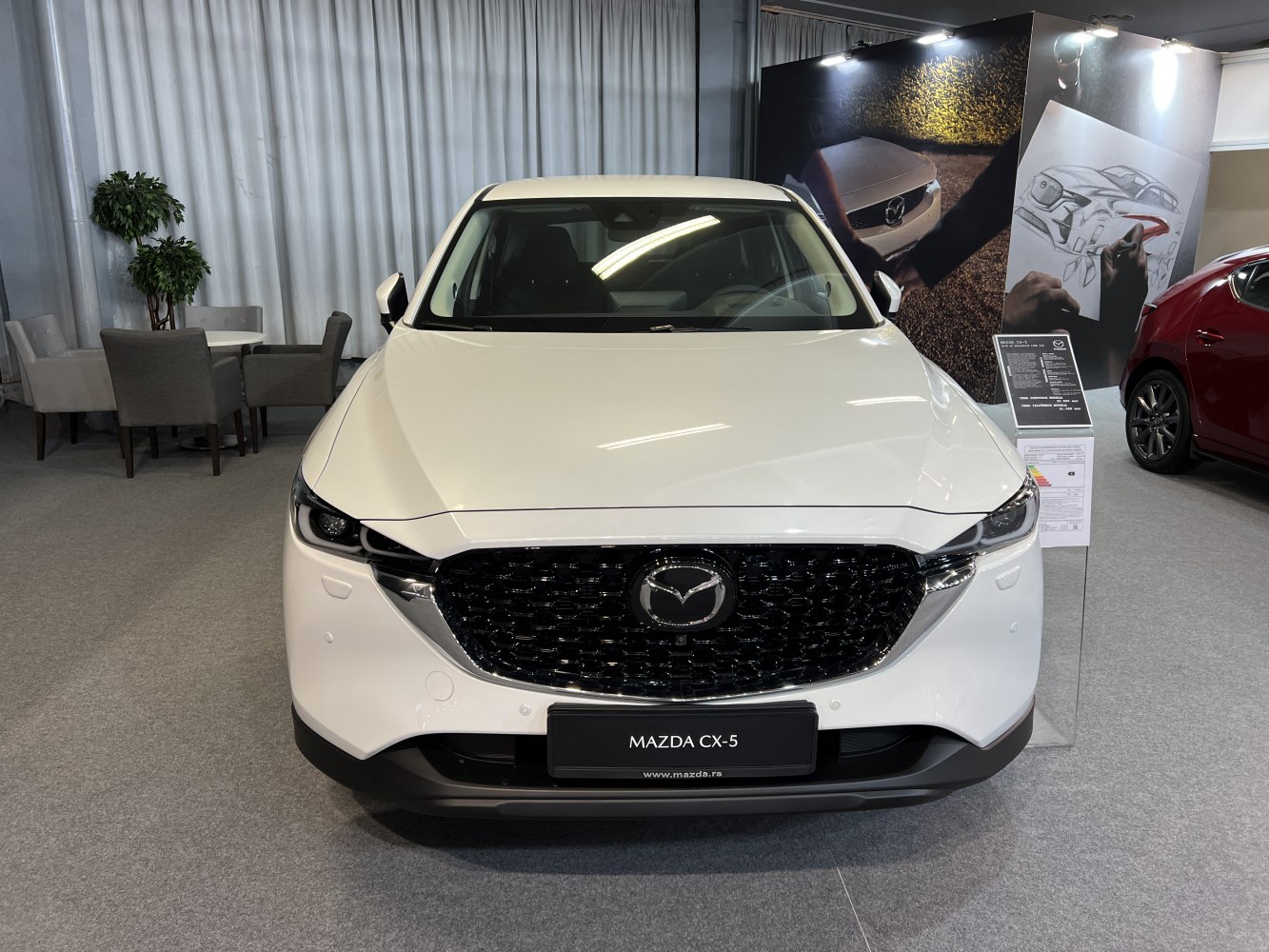

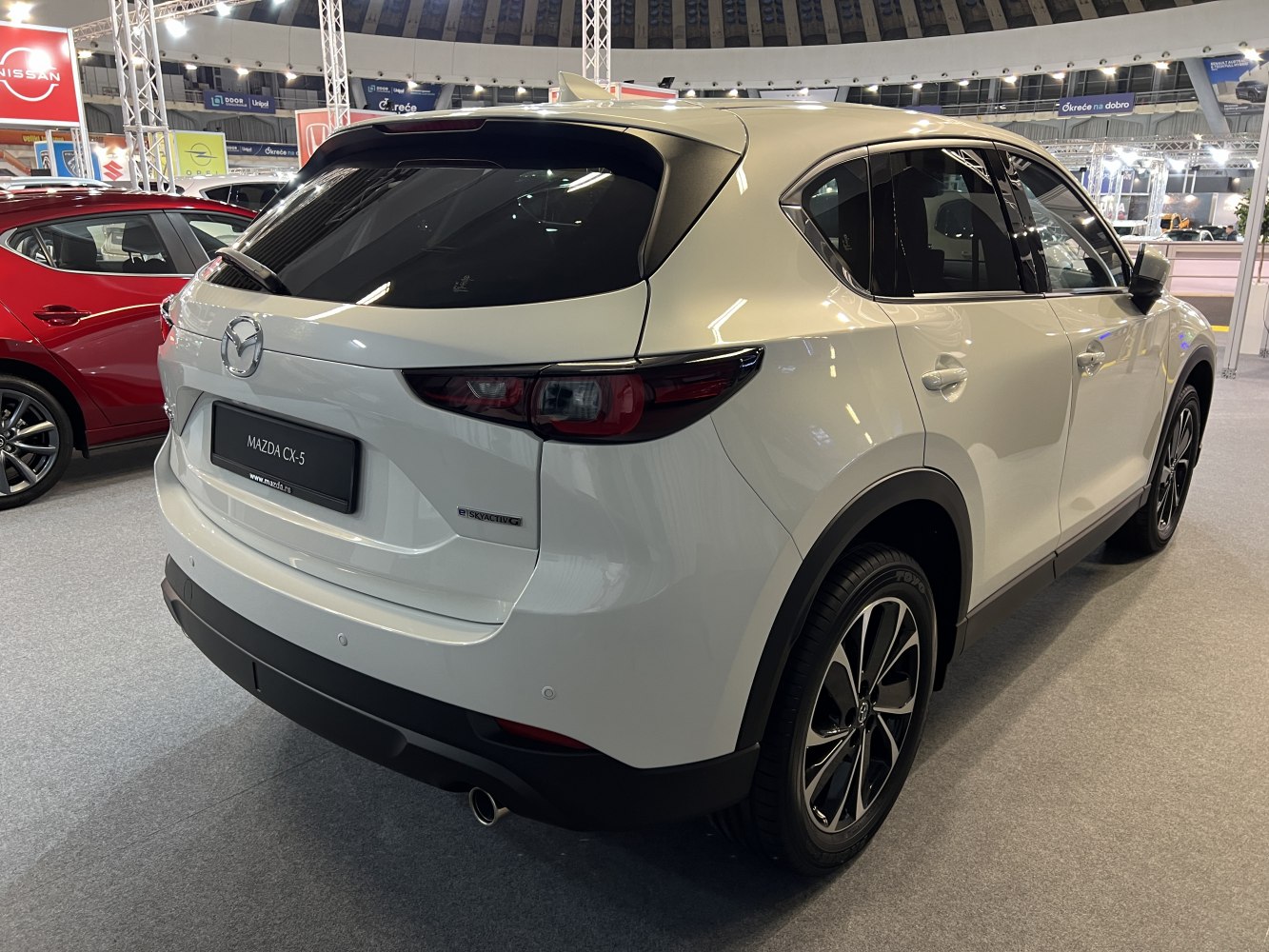

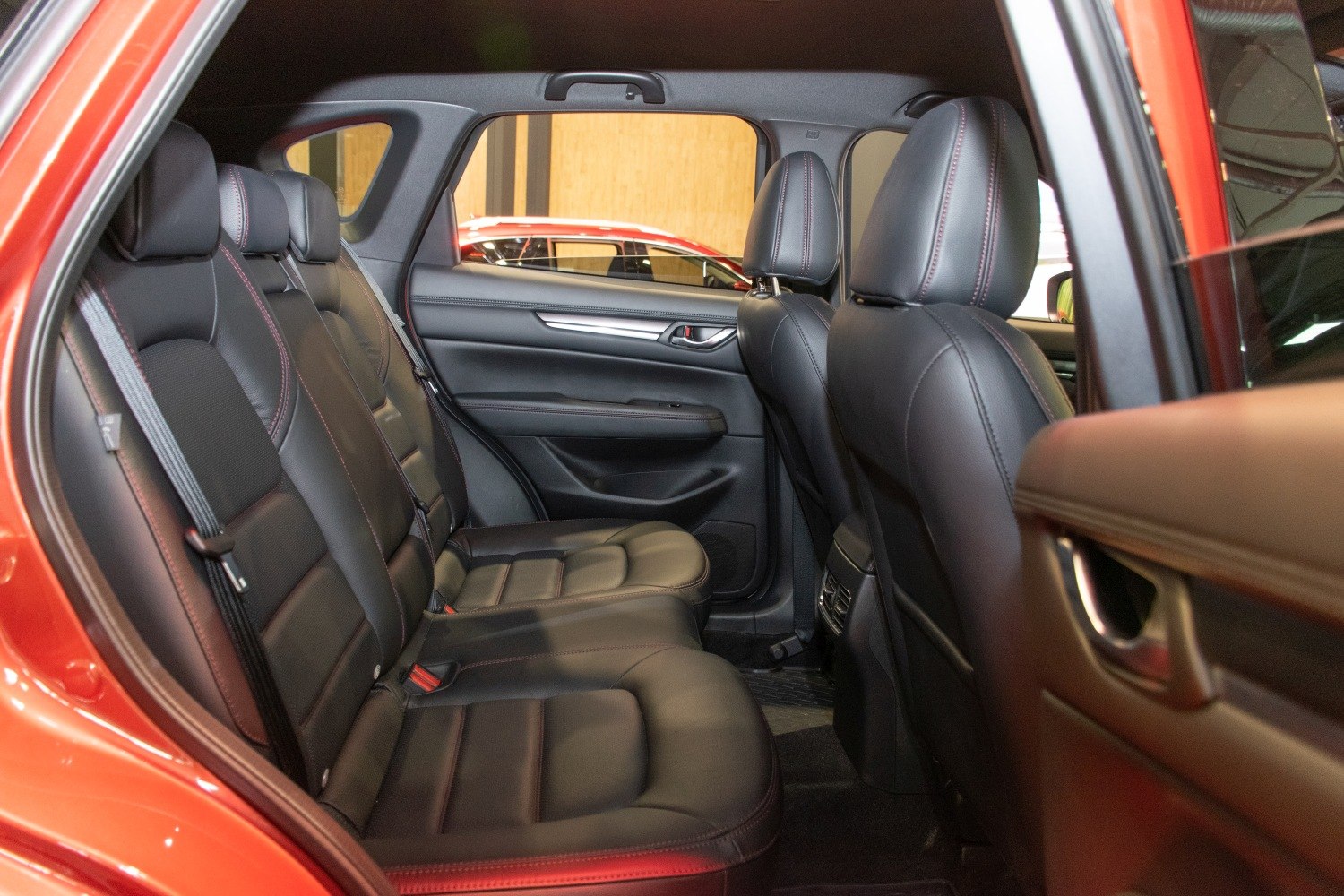

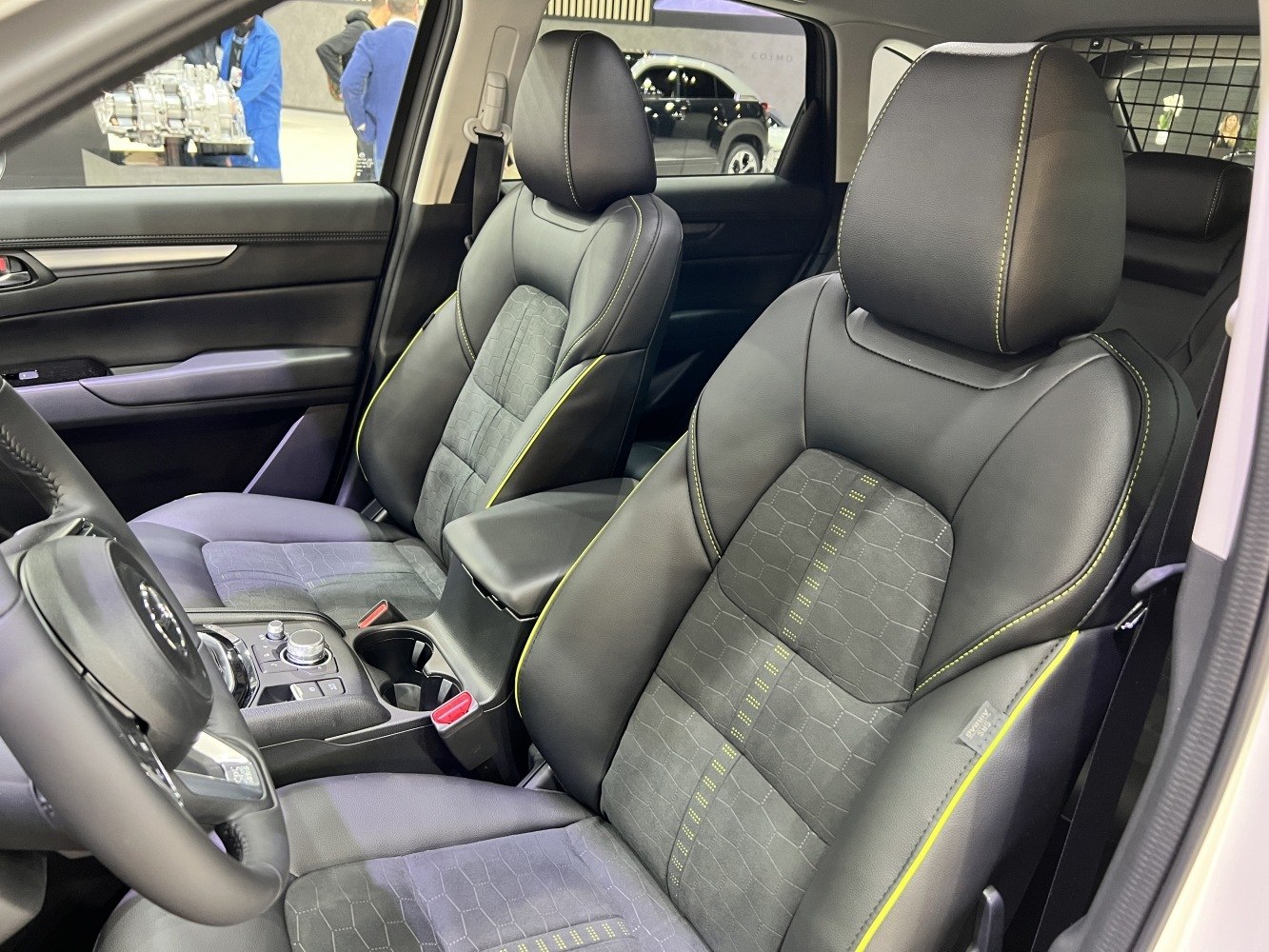

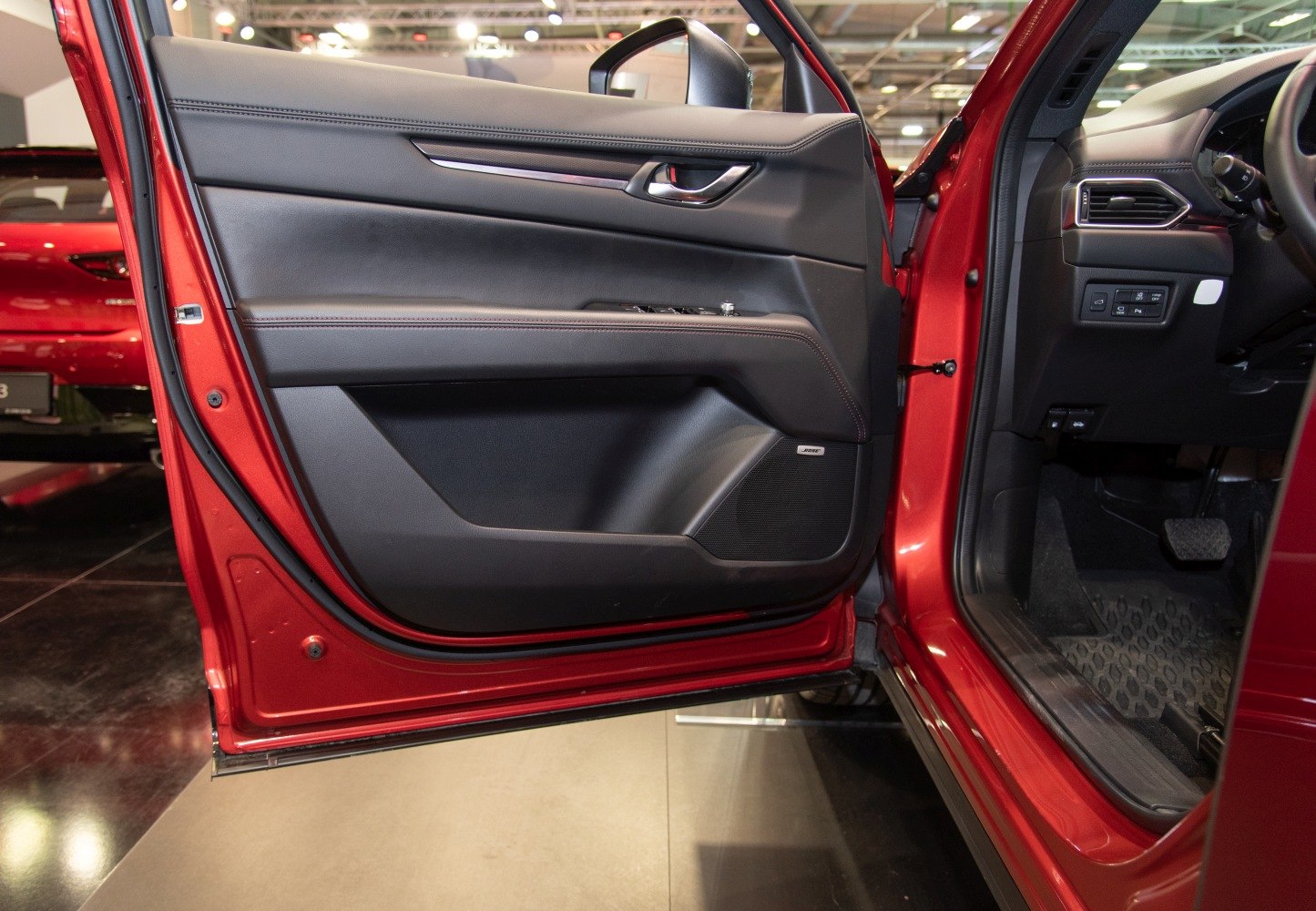

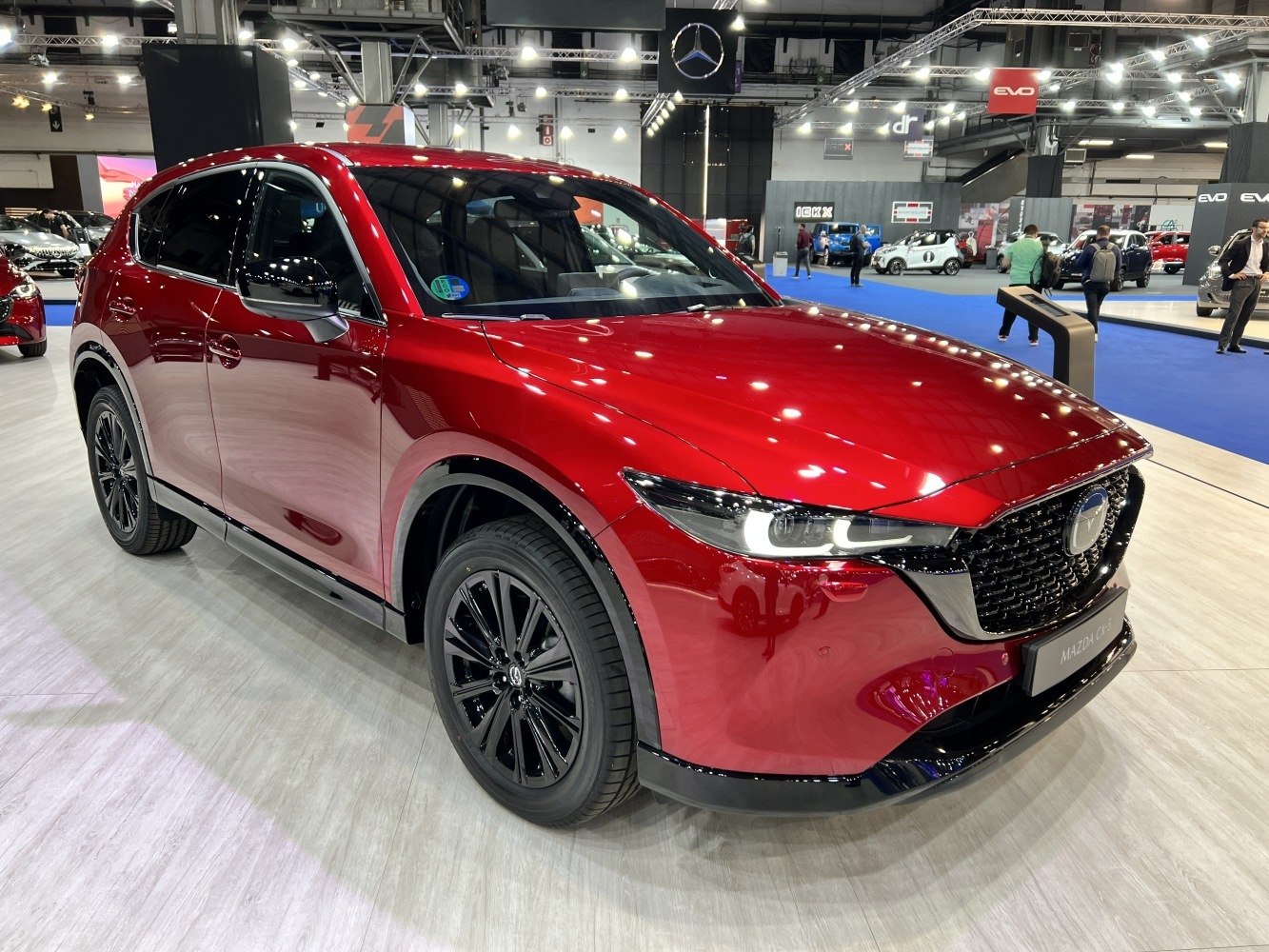

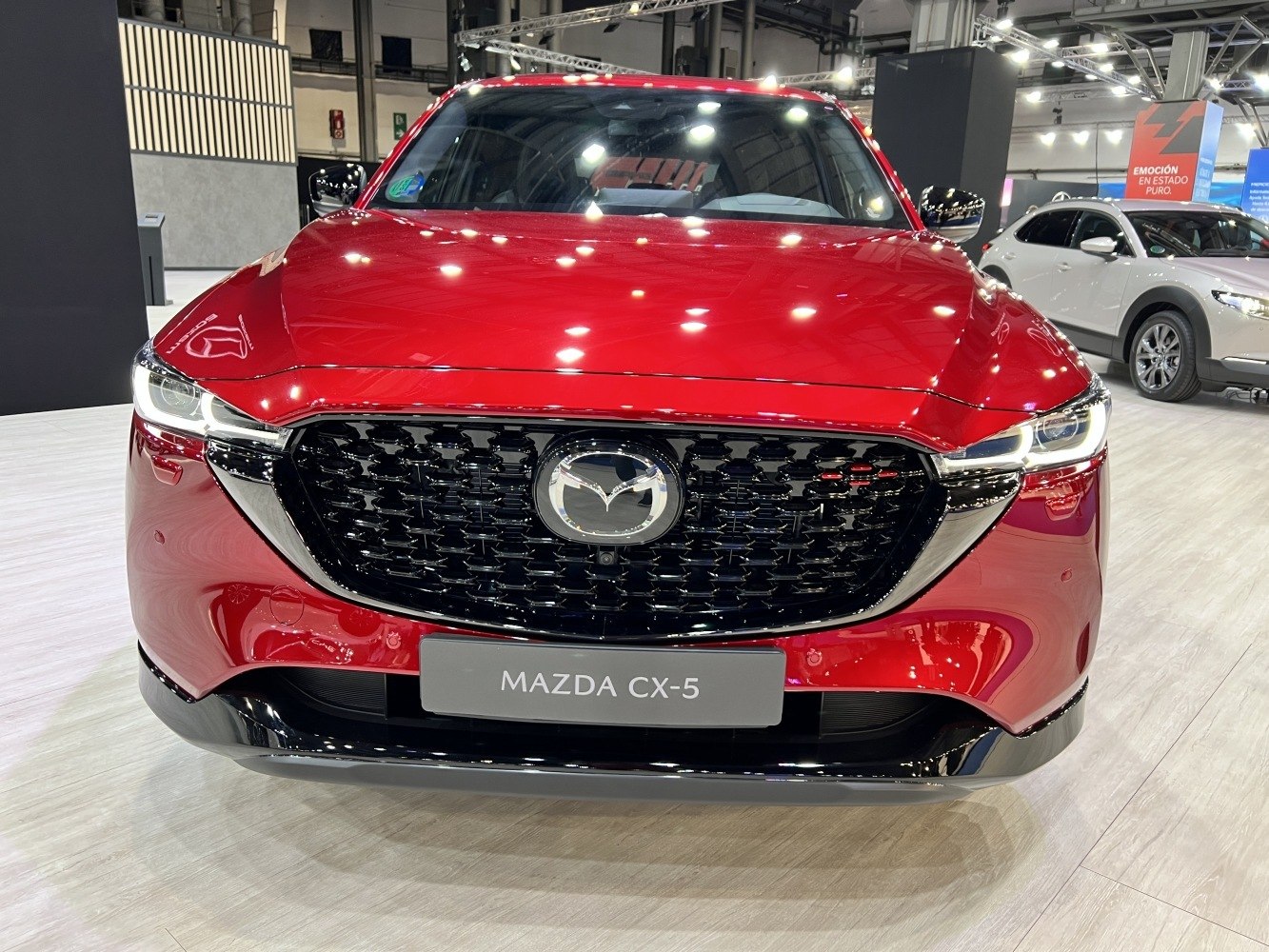

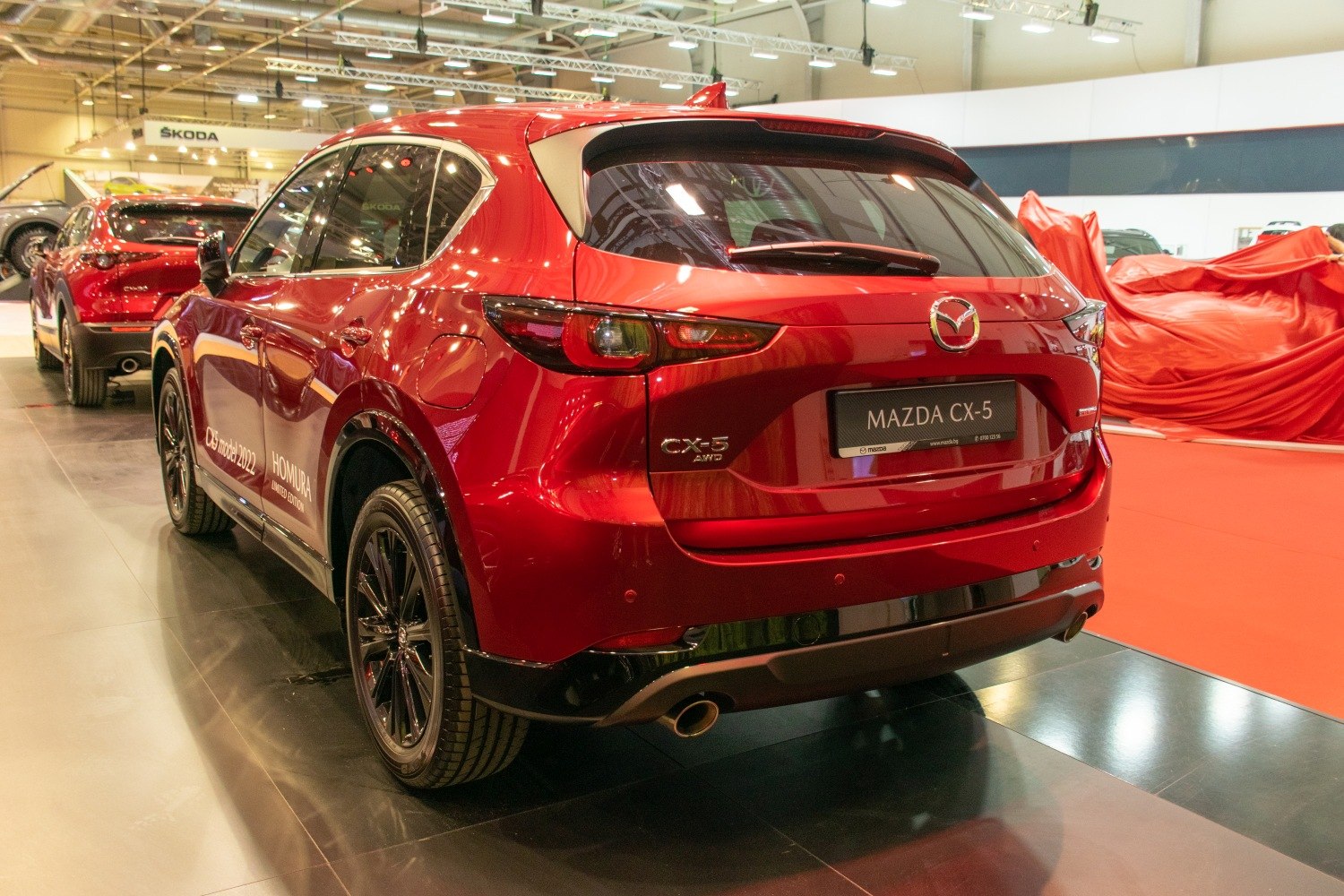

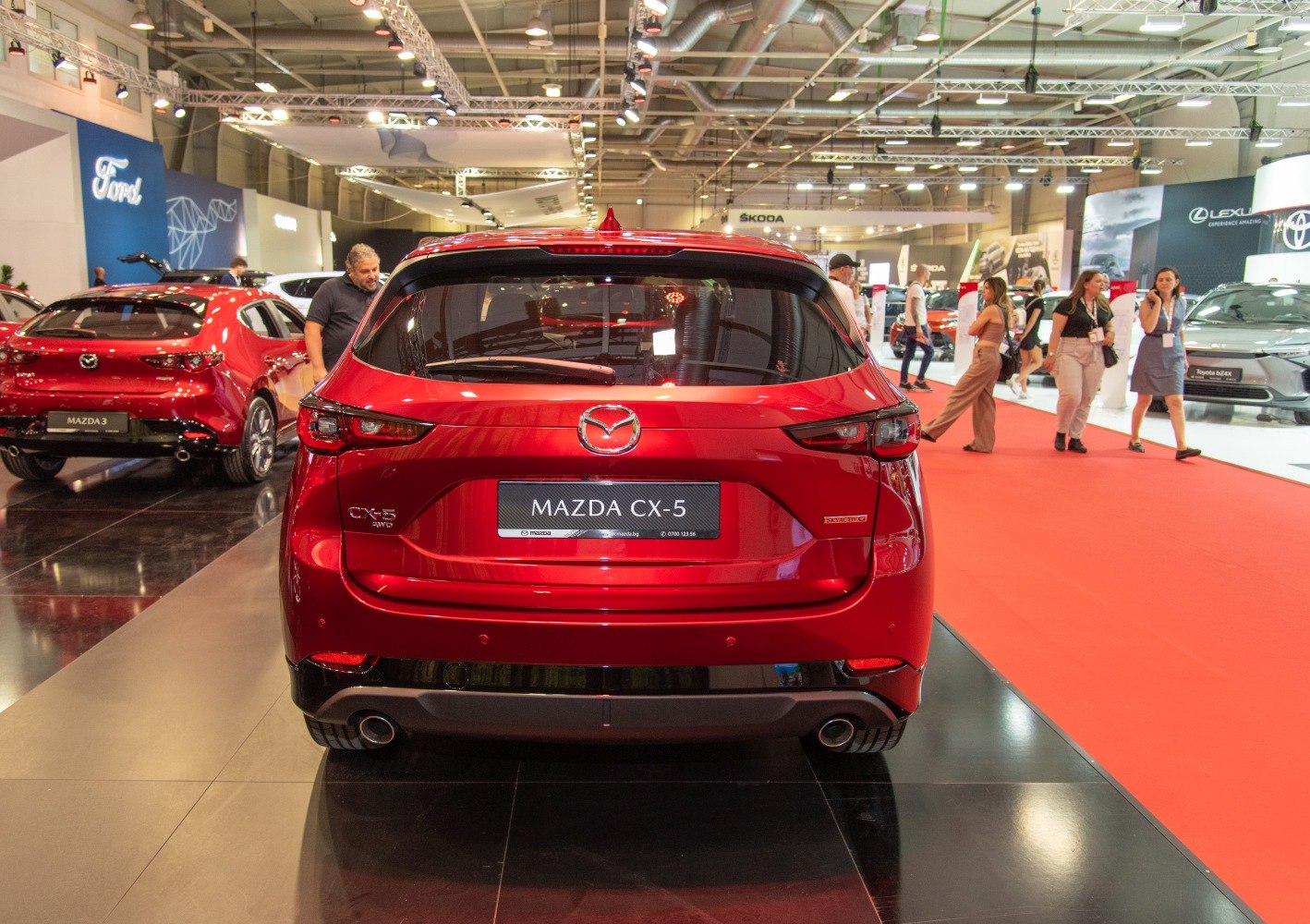

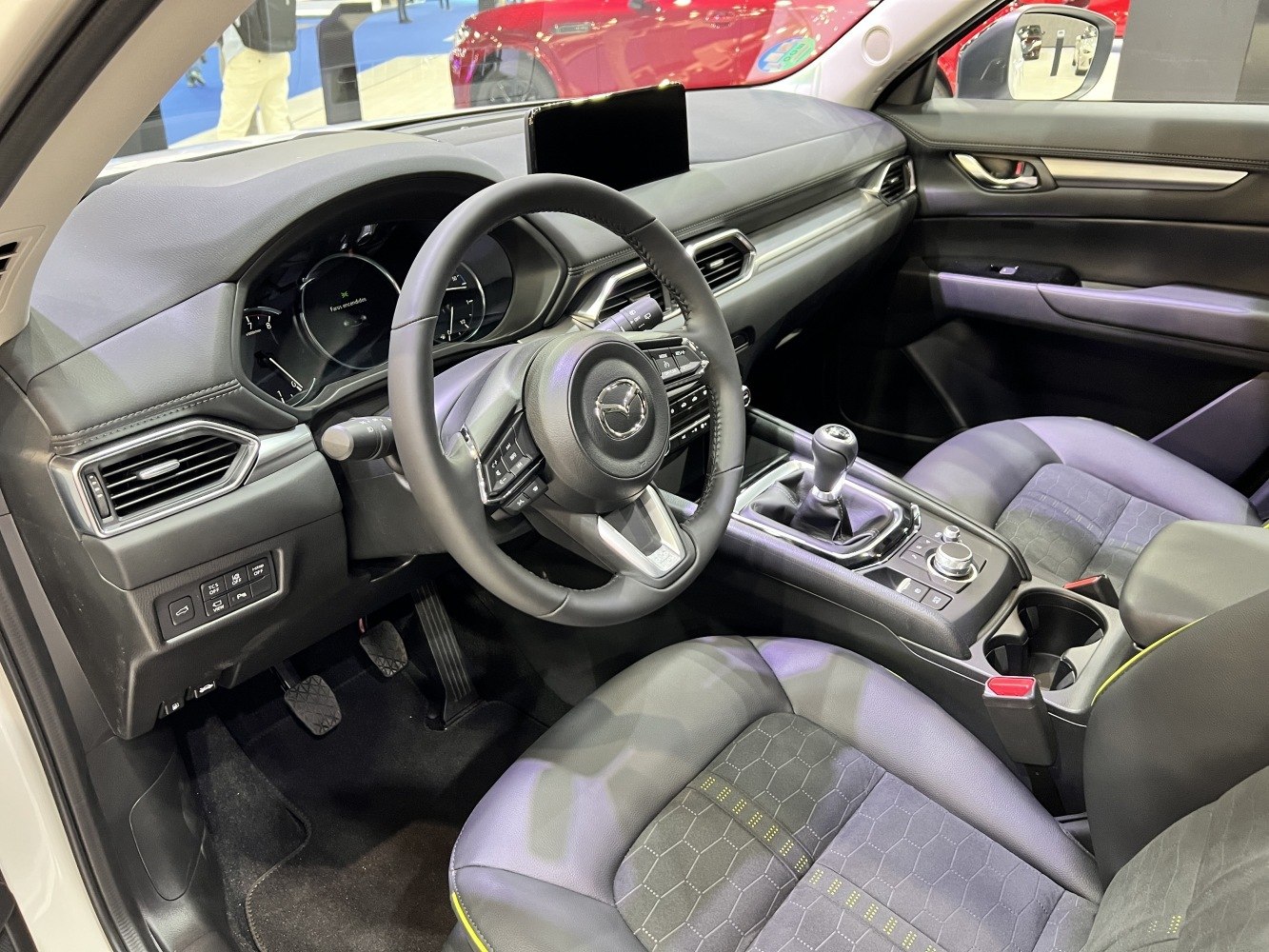

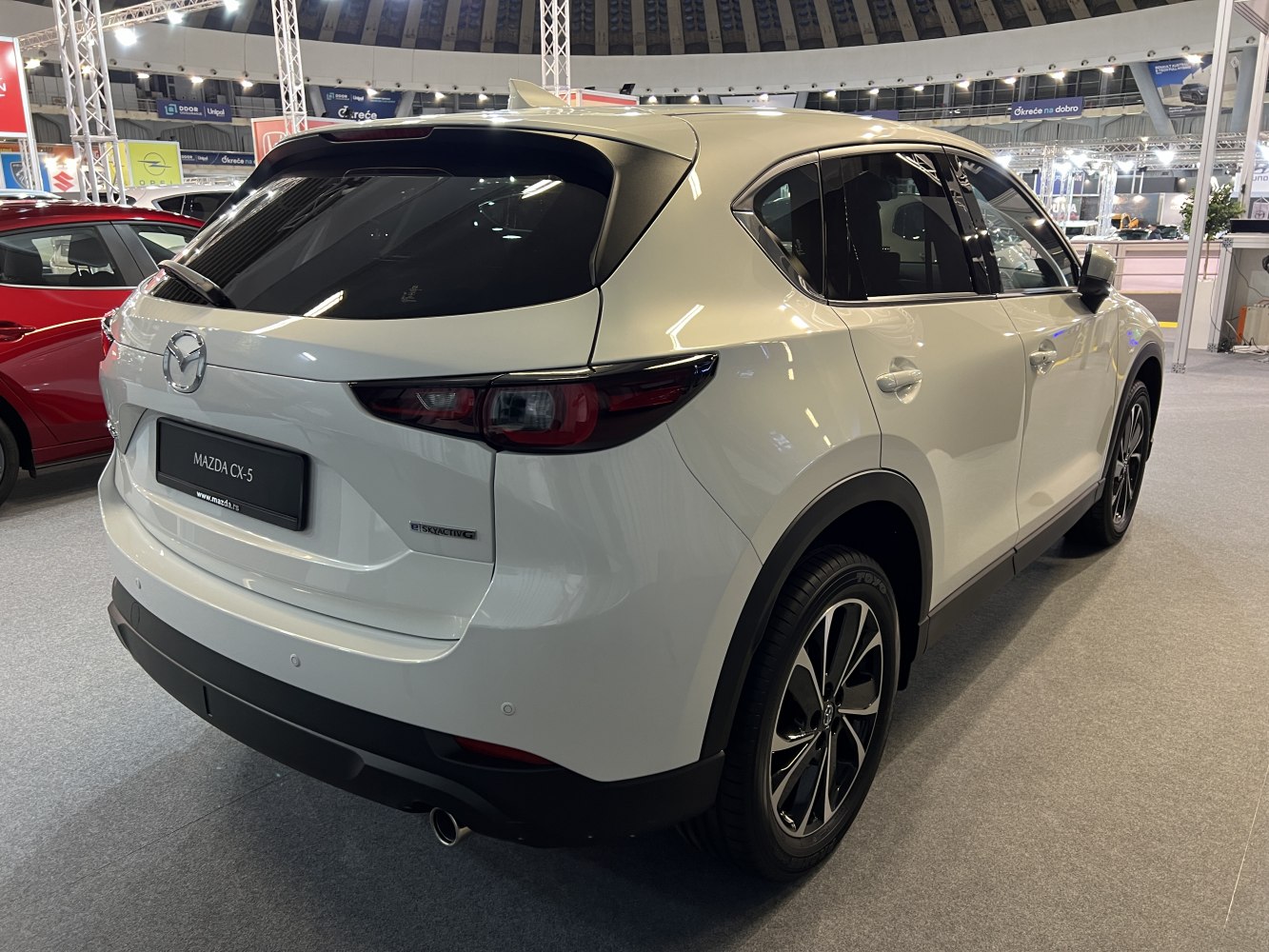

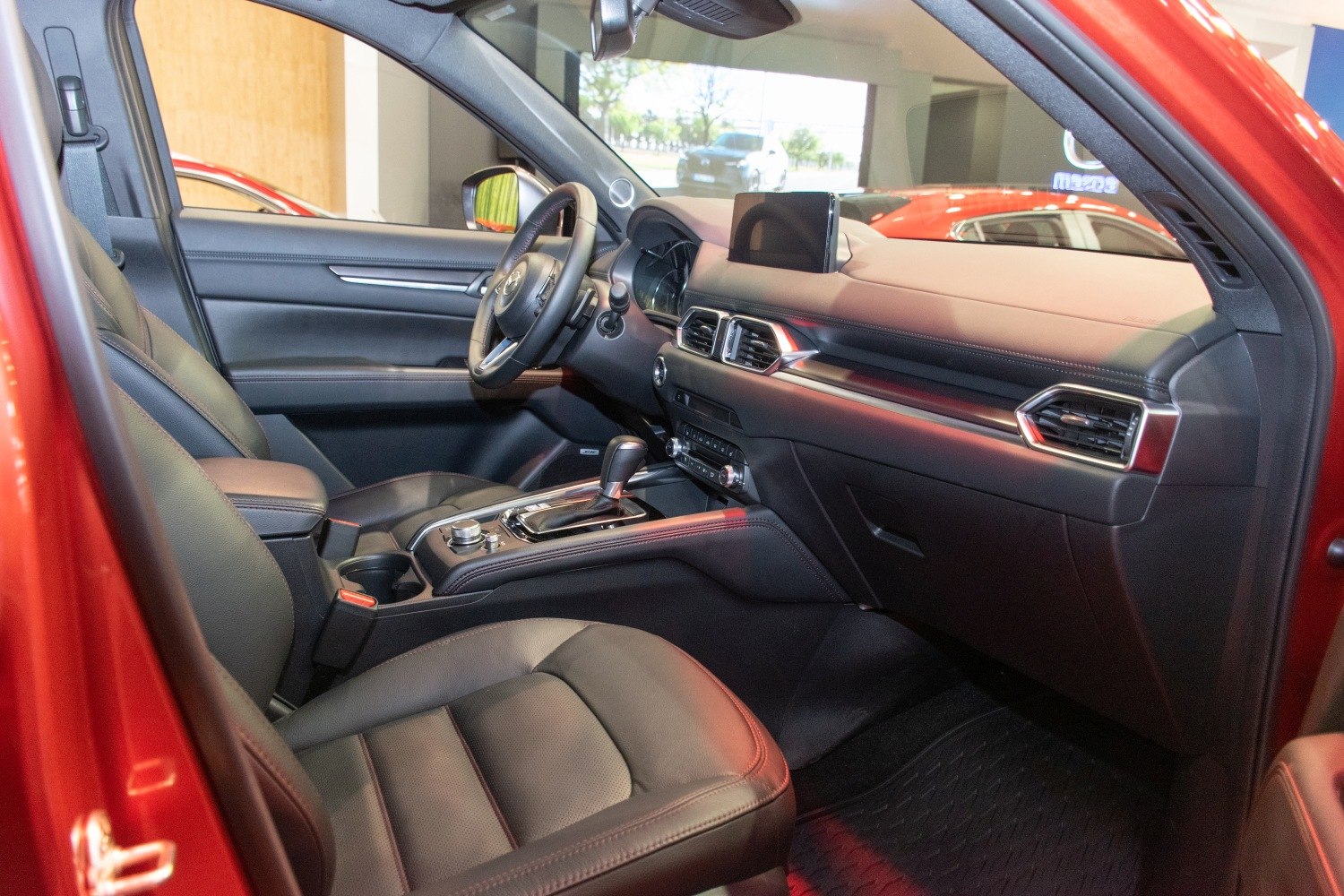

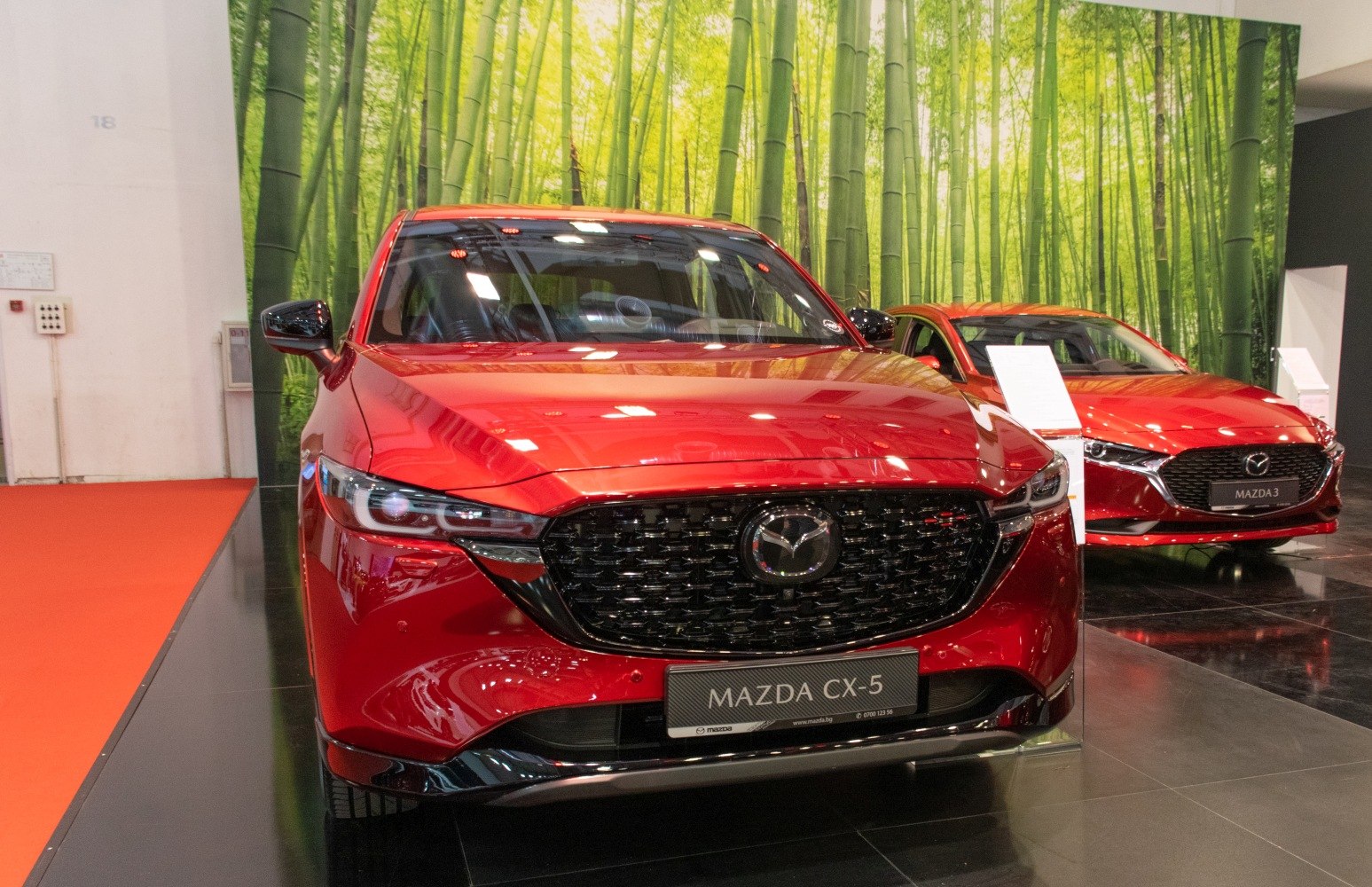

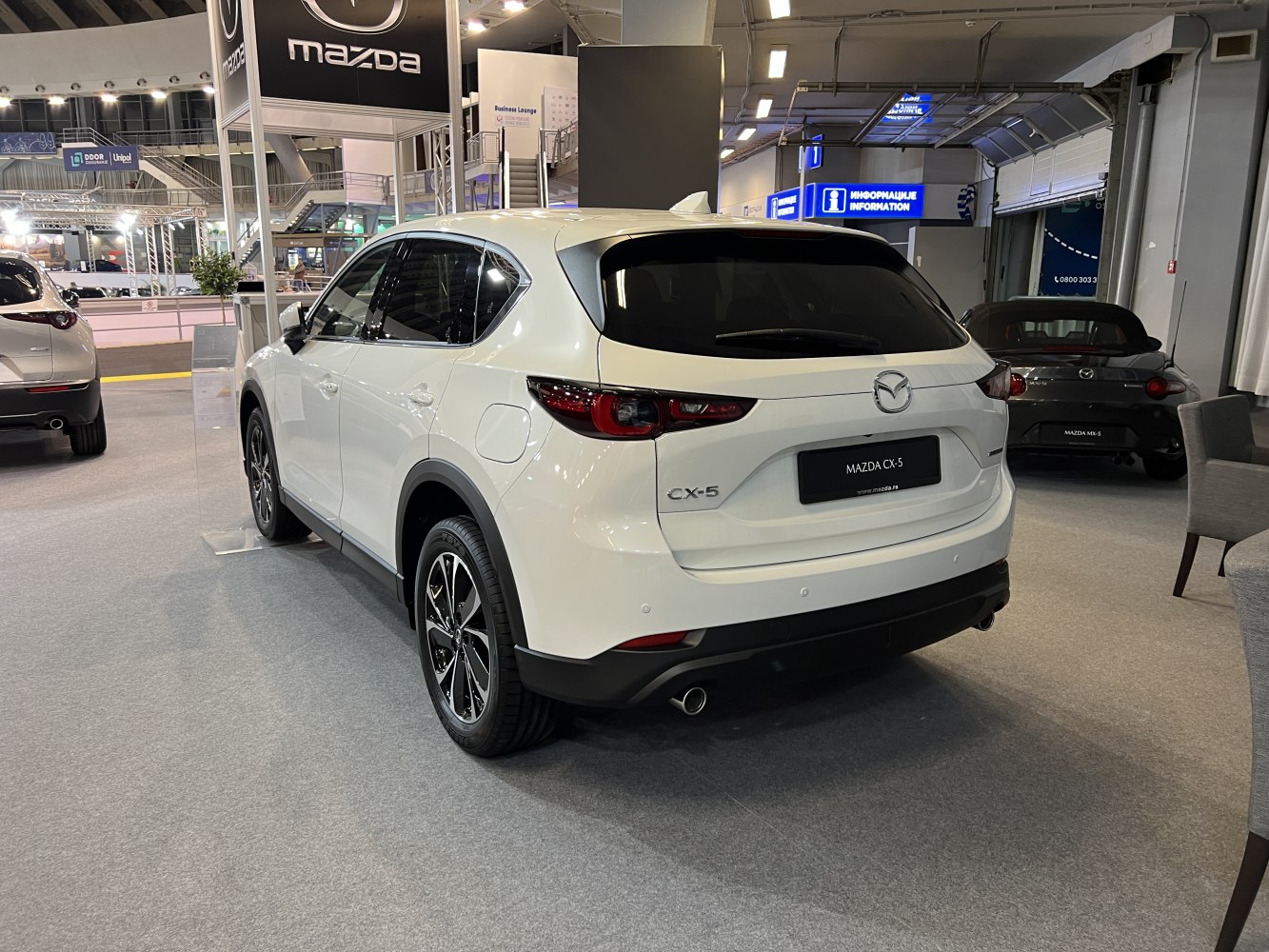

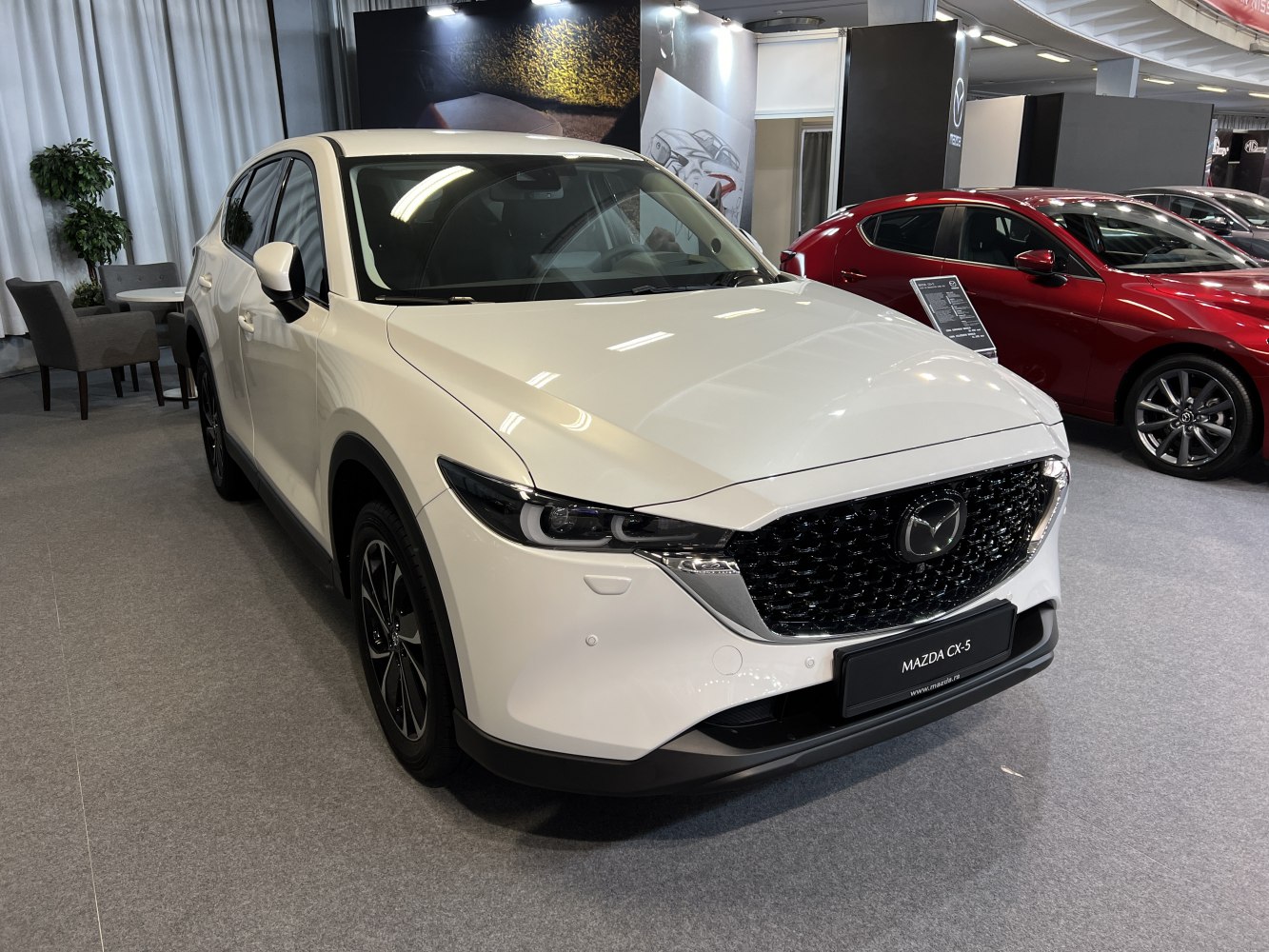

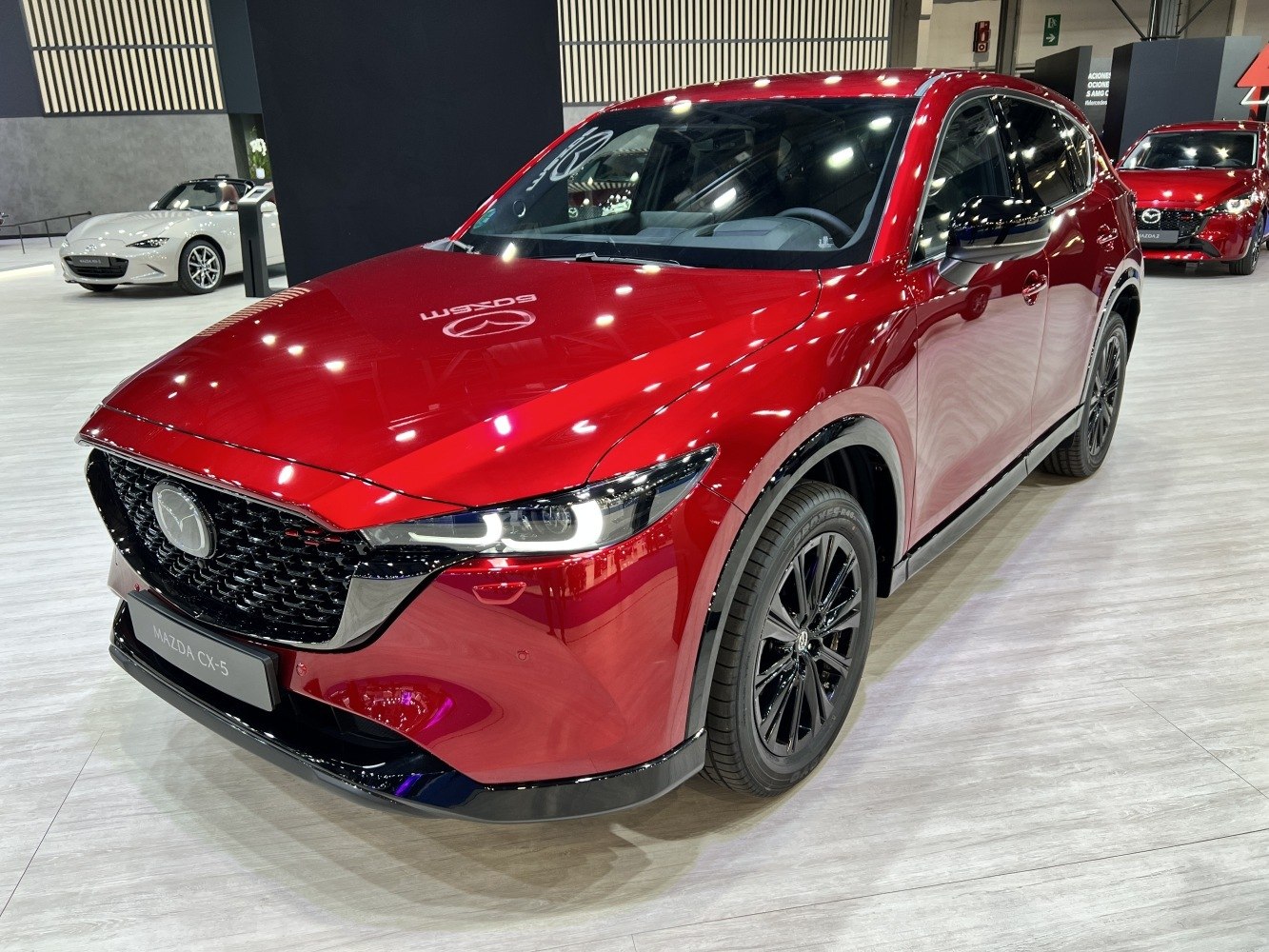

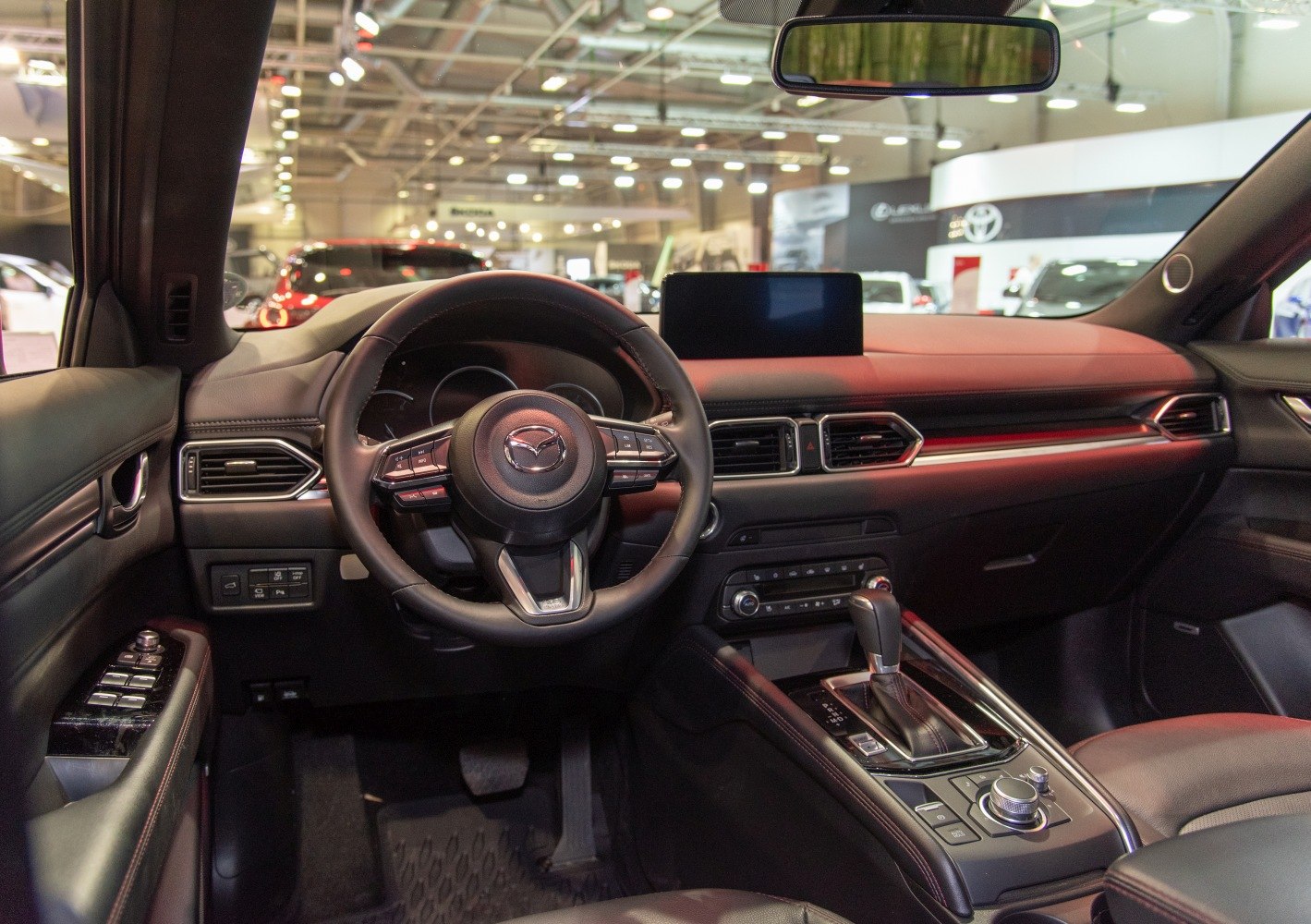

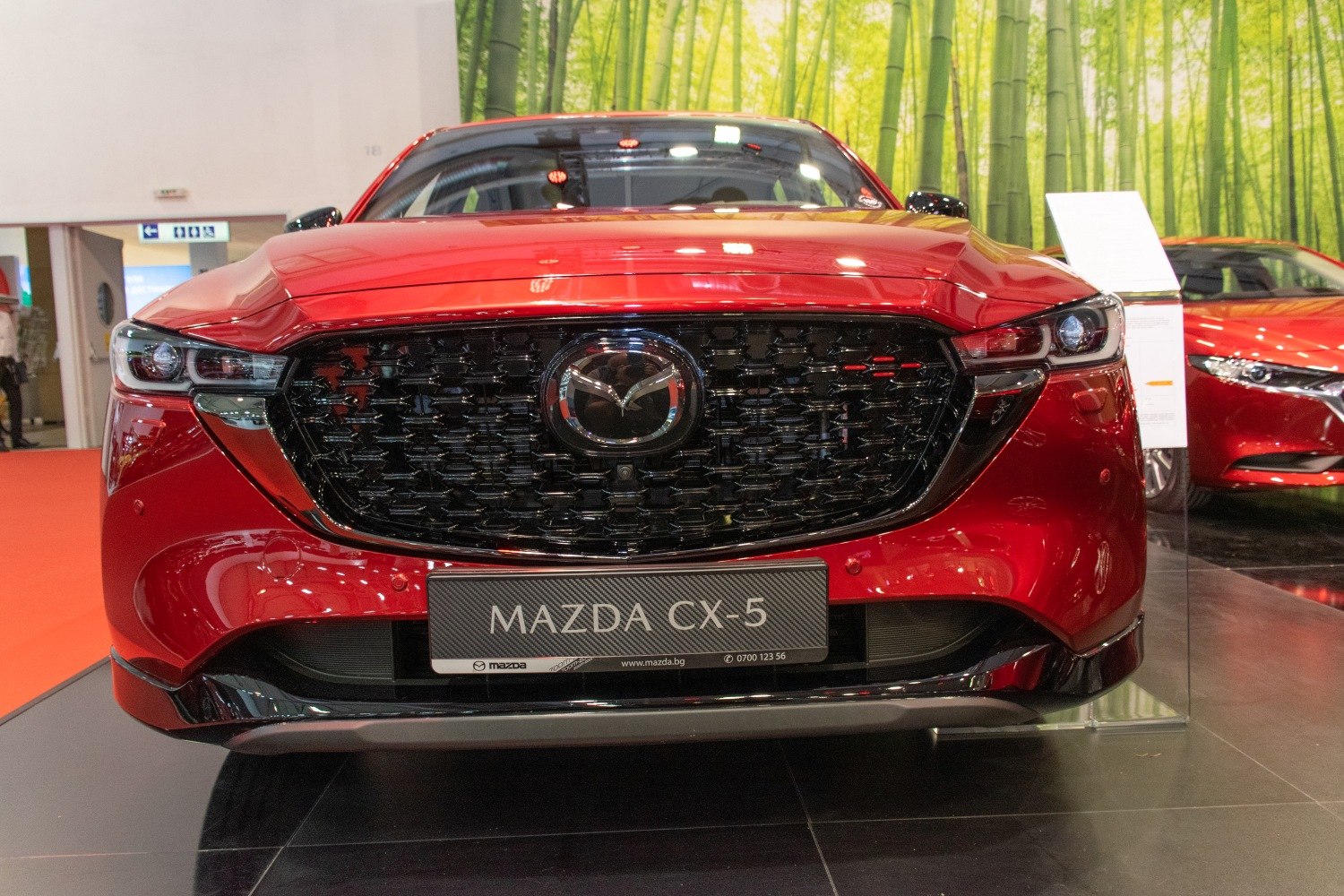

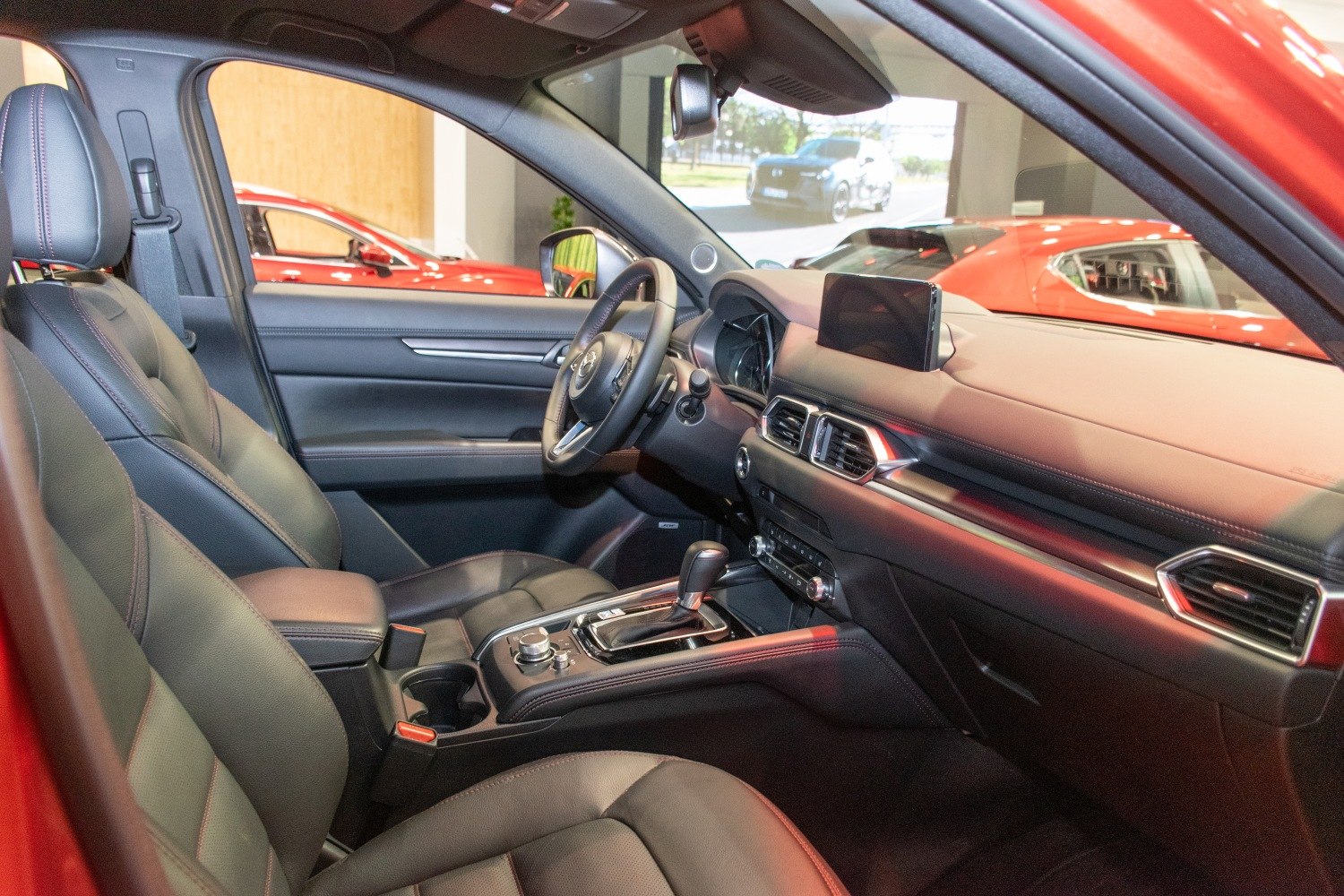

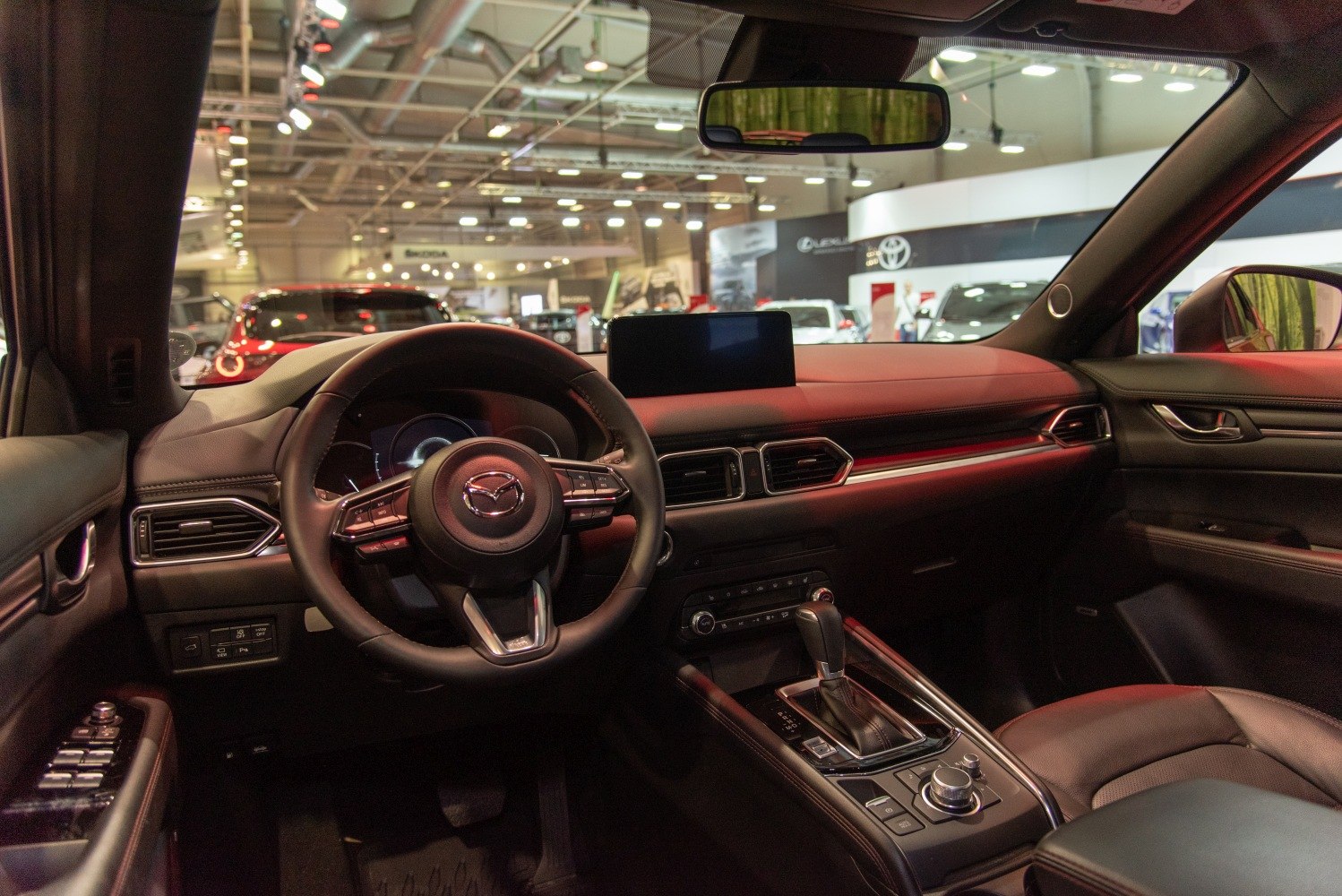

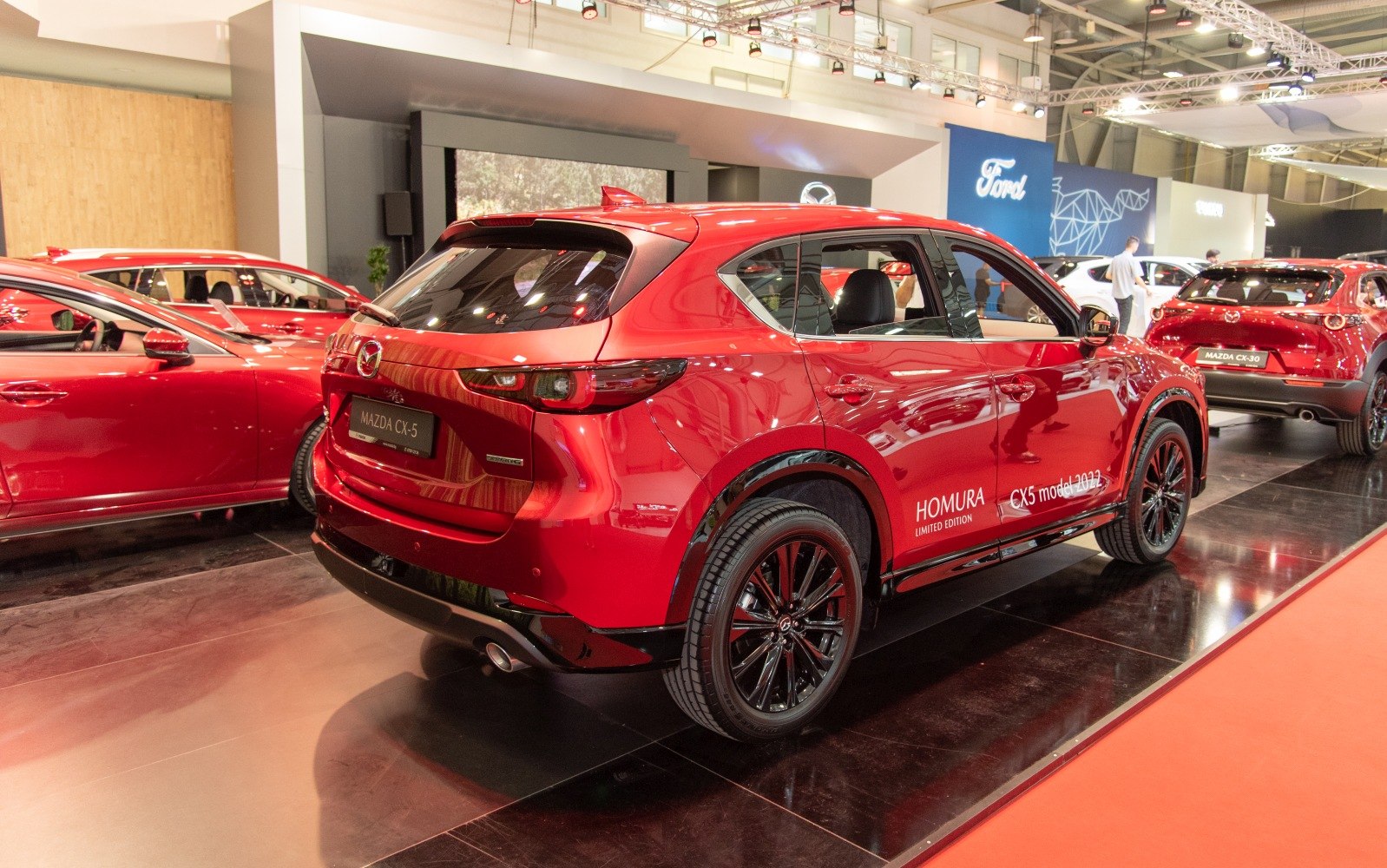

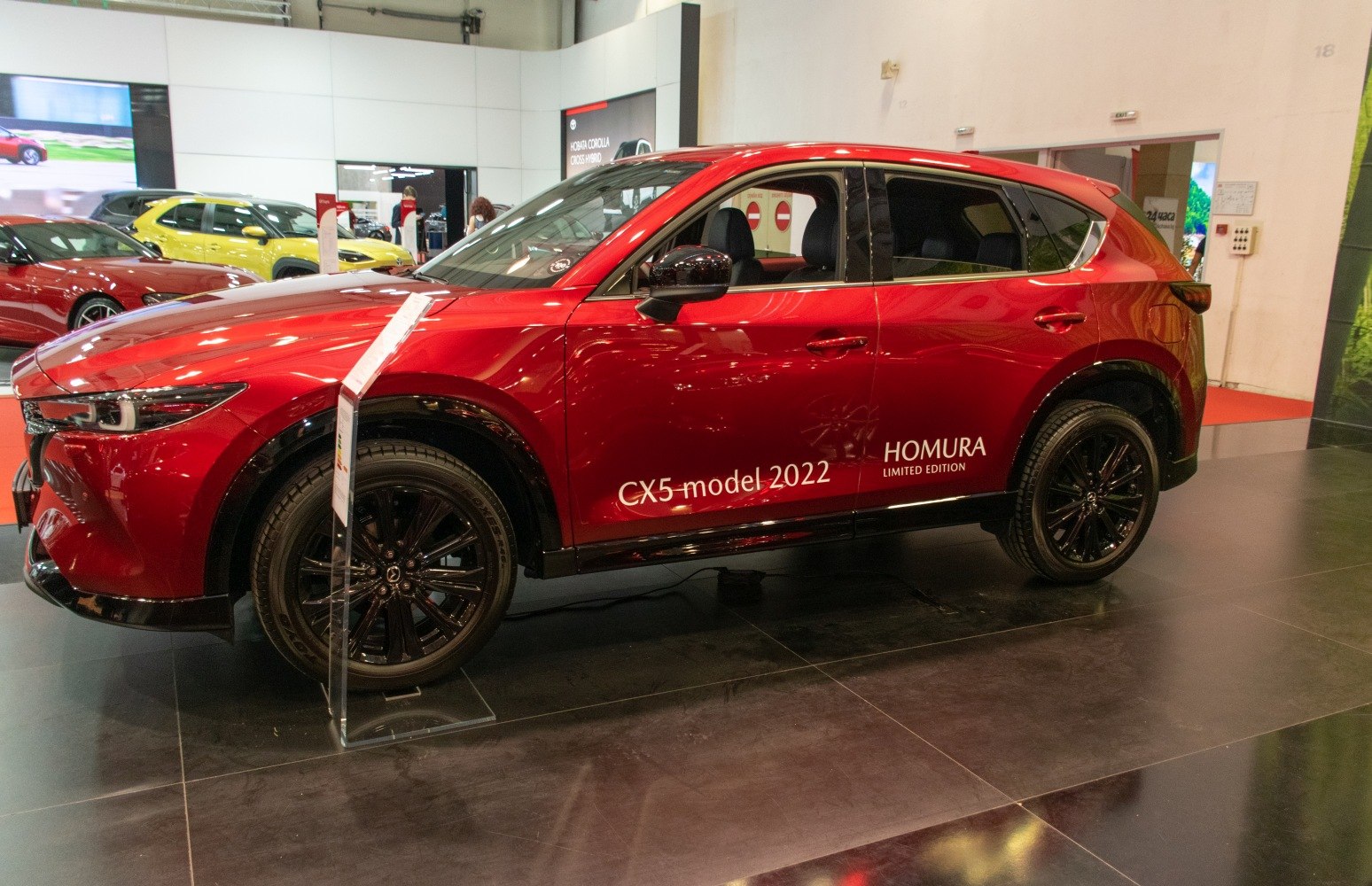

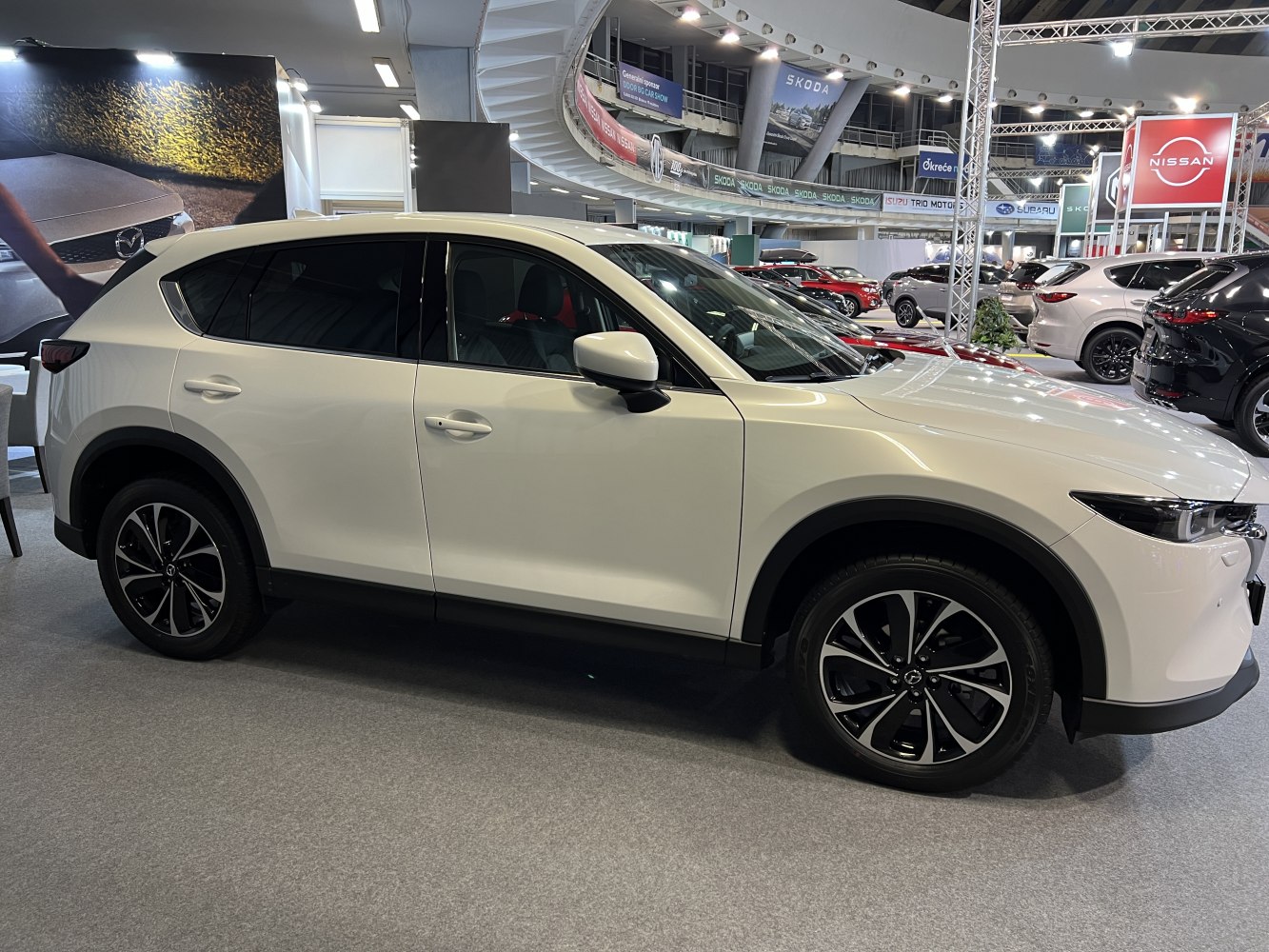

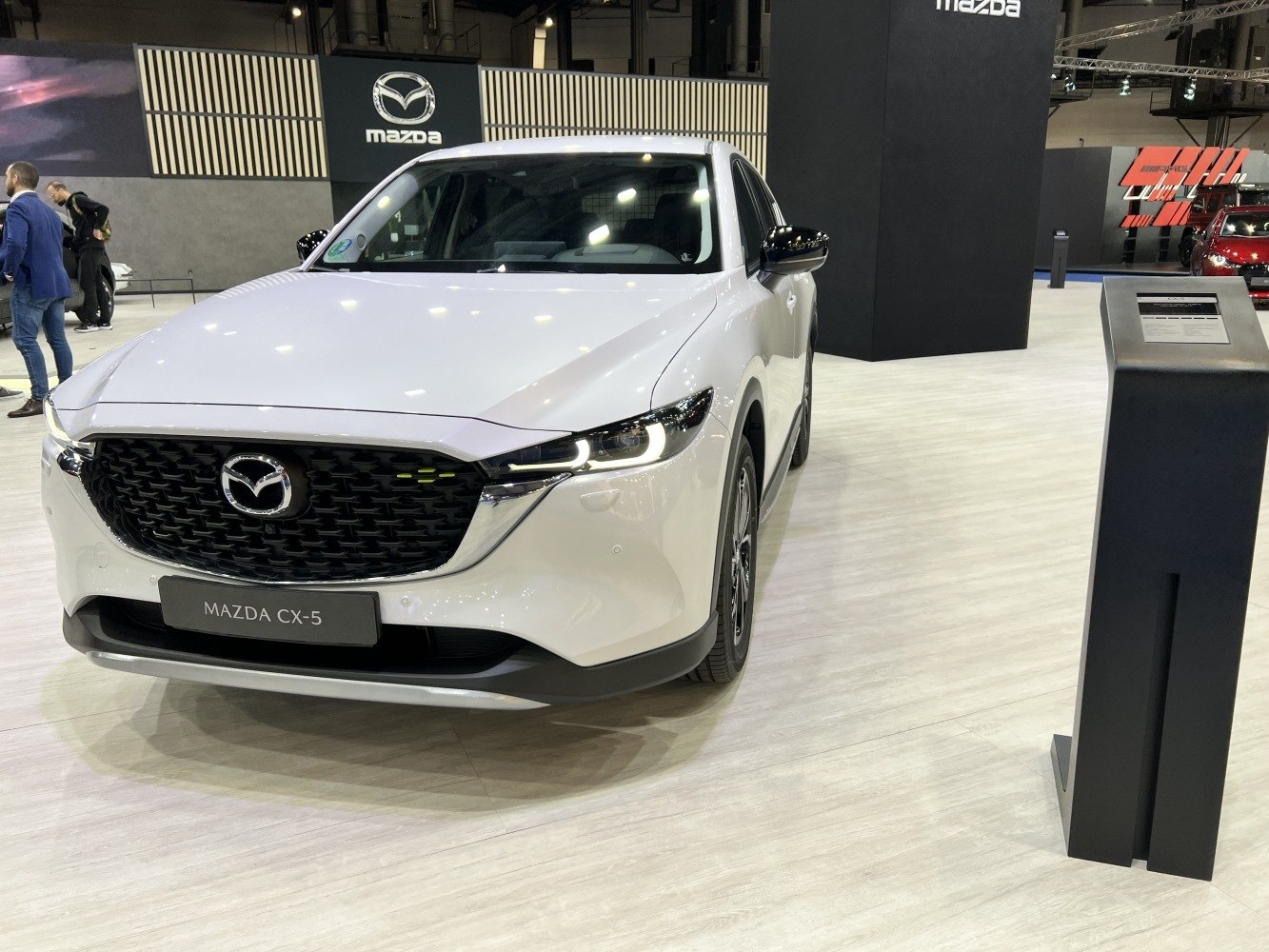

Vehicle photos

Basic information

BrandMazda
ModelCX-5
VersionCX-5 II (facelift 2021)
Engine Power150 KM – 227 KM
Production Years2021 r. –
Body TypeSUV
Number of Doors5
Number of Seats5

Choose an engine version, to see vehicle technical data

Basic version information

BrandMazda
ModelCX-5
VersionCX-5 II (facelift 2021)
Engine2.0 SKYACTIV-G (165 KM)
Engine TypeInternal combustion engine
Number of Doors5
Production Start2021 r.
Body TypeSUV
Number of Seats5
Fuel TypeGasoline

Performance

Maximum Speed201 km/h
Acceleration 0 – 100 km/h10.5 s
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Urban Cycle8.2 l/100 km
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Extra-Urban Cycle6.5 l/100 km
Fuel Consumption – Combined Cycle6.8 l/100 km
Environmental StandardEuro 6d
CO2 Measurement StandardWLTP
CO2 Emissions153-154 g/km

Engine

Model / Engine CodePE
Engine PositionFront, Transverse
Engine Capacity1998 cm³
Fuel Injection SystemDirect injection
Engine TypeNaturally aspirated engine
Timing SystemDOHC
Engine ConfigurationInline
Number of Cylinders4
Cylinder Diameter83.5 mm
Piston Stroke91.2 mm
Compression Ratio13
Number of Valves per Cylinder4
Engine Oil Capacity4.2 l
Coolant Capacity7.1 l

Volume and weight

Fuel Tank Capacity56 l
Minimum Luggage Capacity522 l
Maximum Luggage Capacity1638 l
Curb Weight1411-1501 kg
Permissible Weight2020 kg
Permissible Roof Load75 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with an 8% Gradient1900 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with a 12% Gradient1800 kg
Permissible Total Weight of Trailer without Brakes750 kg

Vehicle dimensions

Length4575 mm
Width1845 mm
Width with Mirrors Extended2115 mm
Height1680-1685 mm
Wheelbase2700 mm
Front Wheel Track1595 mm
Rear Wheel Track1595 mm
Ground Clearance192-200 mm
Front Overhang965 mm
Rear Overhang910 mm
Minimum Turning Diameter11 m

Drive system, brakes and suspension

Drive TypeFront-wheel drive
Number of Gears6
Front SuspensionIndependent MacPherson type
Rear SuspensionIndependent multi-link suspension
Front BrakesVentilated disc
Diameter of Front Brake Discs or Drums297 mm
Rear BrakesDisc
Diameter of Rear Brake Discs or Drums303 mm
ABSyes
Steering SystemGear transmission
Power SteeringElectric power steering
Tire Size225/65 R17; 225/55 R19
Wheel Size7J x 17; 7J x 19

Basic version information

BrandMazda
ModelCX-5
VersionCX-5 II (facelift 2021)
Engine2.0 SKYACTIV-G (165 KM) Automatic
Engine TypeInternal combustion engine
Number of Doors5
Production Start2021 r.
Body TypeSUV
Number of Seats5
Fuel TypeGasoline

Performance

Maximum Speed192 km/h
Acceleration 0 – 100 km/h9.9 s
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Urban Cycle8.9-9 l/100 km
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Extra-Urban Cycle7.1 l/100 km
Fuel Consumption – Combined Cycle7.3-7.4 l/100 km
Environmental StandardEuro 6d
CO2 Measurement StandardWLTP
CO2 Emissions165-166 g/km

Engine

Model / Engine CodePE
Engine PositionFront, Transverse
Engine Capacity1998 cm³
Fuel Injection SystemDirect injection
Engine TypeNaturally aspirated engine
Timing SystemDOHC
Engine ConfigurationInline
Number of Cylinders4
Cylinder Diameter83.5 mm
Piston Stroke91.2 mm
Compression Ratio13
Number of Valves per Cylinder4
Engine Oil Capacity4.2 l
Coolant Capacity7.1 l

Volume and weight

Fuel Tank Capacity56 l
Minimum Luggage Capacity522 l
Maximum Luggage Capacity1638 l
Curb Weight1510-1568 kg
Permissible Weight2035 kg
Permissible Roof Load75 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with an 8% Gradient2000 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with a 12% Gradient2000 kg
Permissible Total Weight of Trailer without Brakes750 kg

Vehicle dimensions

Length4575 mm
Width1845 mm
Width with Mirrors Extended2115 mm
Height1680-1685 mm
Wheelbase2700 mm
Front Wheel Track1595 mm
Rear Wheel Track1595 mm
Ground Clearance192-200 mm
Front Overhang965 mm
Rear Overhang910 mm
Minimum Turning Diameter11 m

Drive system, brakes and suspension

Drive TypeFront-wheel drive
Number of Gears6
Front SuspensionIndependent MacPherson type
Rear SuspensionIndependent multi-link suspension
Front BrakesVentilated disc
Diameter of Front Brake Discs or Drums297 mm
Rear BrakesDisc
Diameter of Rear Brake Discs or Drums303 mm
ABSyes
Steering SystemGear transmission
Power SteeringElectric power steering
Tire Size225/65 R17; 225/55 R19
Wheel Size7J x 17; 7J x 19

Basic version information

BrandMazda
ModelCX-5
VersionCX-5 II (facelift 2021)
Engine2.0 SKYACTIV-G (165 KM) AWD
Engine TypeInternal combustion engine
Number of Doors5
Production Start2021 r.
Body TypeSUV
Number of Seats5
Fuel TypeGasoline

Performance

Maximum Speed198 km/h
Acceleration 0 – 100 km/h10.9 s
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Urban Cycle8.8-9 l/100 km
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Extra-Urban Cycle7.3 l/100 km
Fuel Consumption – Combined Cycle7.6 l/100 km
Environmental StandardEuro 6d
CO2 Measurement StandardWLTP
CO2 Emissions171-172 g/km

Engine

Model / Engine CodePE
Engine PositionFront, Transverse
Engine Capacity1998 cm³
Fuel Injection SystemDirect injection
Engine TypeNaturally aspirated engine
Timing SystemDOHC
Engine ConfigurationInline
Number of Cylinders4
Cylinder Diameter83.5 mm
Piston Stroke91.2 mm
Compression Ratio13
Number of Valves per Cylinder4
Engine Oil Capacity4.2 l
Coolant Capacity7.1 l

Volume and weight

Fuel Tank Capacity58 l
Minimum Luggage Capacity522 l
Maximum Luggage Capacity1638 l
Curb Weight1524-1574 kg
Permissible Weight2080 kg
Permissible Roof Load75 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with an 8% Gradient1900 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with a 12% Gradient1800 kg
Permissible Total Weight of Trailer without Brakes750 kg

Vehicle dimensions

Length4575 mm
Width1845 mm
Width with Mirrors Extended2115 mm
Height1680-1685 mm
Wheelbase2700 mm
Front Wheel Track1595 mm
Rear Wheel Track1595 mm
Ground Clearance192-200 mm
Front Overhang965 mm
Rear Overhang910 mm
Minimum Turning Diameter11 m

Drive system, brakes and suspension

Drive TypeAll-wheel drive (4x4)
Number of Gears6
Front SuspensionIndependent MacPherson type
Rear SuspensionIndependent multi-link suspension
Front BrakesVentilated disc
Diameter of Front Brake Discs or Drums297 mm
Rear BrakesDisc
Diameter of Rear Brake Discs or Drums303 mm
ABSyes
Steering SystemGear transmission
Power SteeringElectric power steering
Tire Size225/65 R17; 225/55 R19
Wheel Size7J x 17; 7J x 19

Basic version information

BrandMazda
ModelCX-5
VersionCX-5 II (facelift 2021)
Engine2.0 SKYACTIV-G (165 KM) AWD Automatic
Engine TypeInternal combustion engine
Number of Doors5
Production Start2021 r.
Body TypeSUV
Number of Seats5
Fuel TypeGasoline

Performance

Maximum Speed188 km/h
Acceleration 0 – 100 km/h10.4 s
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Urban Cycle9.5 l/100 km
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Extra-Urban Cycle7.4 l/100 km
Fuel Consumption – Combined Cycle7.7-7.8 l/100 km
Environmental StandardEuro 6d
CO2 Measurement StandardWLTP
CO2 Emissions174-176 g/km

Engine

Model / Engine CodePE
Engine PositionFront, Transverse
Engine Capacity1998 cm³
Fuel Injection SystemDirect injection
Engine TypeNaturally aspirated engine
Timing SystemDOHC
Engine ConfigurationInline
Number of Cylinders4
Cylinder Diameter83.5 mm
Piston Stroke91.2 mm
Compression Ratio13
Number of Valves per Cylinder4
Engine Oil Capacity4.2 l
Coolant Capacity7.1 l

Volume and weight

Fuel Tank Capacity58 l
Minimum Luggage Capacity522 l
Maximum Luggage Capacity1638 l
Curb Weight1542-1592 kg
Permissible Weight2115 kg
Permissible Roof Load75 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with an 8% Gradient2000 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with a 12% Gradient2000 kg
Permissible Total Weight of Trailer without Brakes750 kg

Vehicle dimensions

Length4575 mm
Width1845 mm
Width with Mirrors Extended2115 mm
Height1680-1685 mm
Wheelbase2700 mm
Front Wheel Track1595 mm
Rear Wheel Track1595 mm
Ground Clearance192-200 mm
Front Overhang965 mm
Rear Overhang910 mm
Minimum Turning Diameter11 m

Drive system, brakes and suspension

Drive TypeAll-wheel drive (4x4)
Number of Gears6
Front SuspensionIndependent MacPherson type
Rear SuspensionIndependent multi-link suspension
Front BrakesVentilated disc
Diameter of Front Brake Discs or Drums297 mm
Rear BrakesDisc
Diameter of Rear Brake Discs or Drums303 mm
ABSyes
Steering SystemGear transmission
Power SteeringElectric power steering
Tire Size225/65 R17; 225/55 R19
Wheel Size7J x 17; 7J x 19

Basic version information

BrandMazda
ModelCX-5
VersionCX-5 II (facelift 2021)
Engine2.5 SKYACTIV-G (194 KM) Automatic
Engine TypeInternal combustion engine
Number of Doors5
Production Start2021 r.
Body TypeSUV
Number of Seats5
Fuel TypeGasoline

Performance

Maximum Speed195 km/h
Acceleration 0 – 100 km/h9 s
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Urban Cycle9.7-9.9 l/100 km
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Extra-Urban Cycle7.3-7.4 l/100 km
Fuel Consumption – Combined Cycle7.6-7.7 l/100 km
Environmental StandardEuro 6d
CO2 Measurement StandardWLTP
CO2 Emissions171-174 g/km

Engine

Model / Engine CodePY
Engine PositionFront, Transverse
Engine Capacity2488 cm³
Fuel Injection SystemDirect injection
Engine TypeNaturally aspirated engine
Timing SystemDOHC
Engine ConfigurationInline
Number of Cylinders4
Cylinder Diameter89 mm
Piston Stroke100 mm
Compression Ratio13
Number of Valves per Cylinder4
Engine Oil Capacity4.5 l
Coolant Capacity7.4 l

Volume and weight

Fuel Tank Capacity56 l
Minimum Luggage Capacity522 l
Maximum Luggage Capacity1638 l
Curb Weight1516-1566 kg
Permissible Weight2070 kg
Permissible Roof Load75 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with an 8% Gradient2000 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with a 12% Gradient2000 kg
Permissible Total Weight of Trailer without Brakes750 kg

Vehicle dimensions

Length4575 mm
Width1845 mm
Width with Mirrors Extended2115 mm
Height1680-1685 mm
Wheelbase2700 mm
Front Wheel Track1595 mm
Rear Wheel Track1595 mm
Ground Clearance192-200 mm
Front Overhang965 mm
Rear Overhang910 mm
Minimum Turning Diameter11 m

Drive system, brakes and suspension

Drive TypeFront-wheel drive
Number of Gears6
Front SuspensionIndependent MacPherson type
Rear SuspensionIndependent multi-link suspension
Front BrakesVentilated disc
Diameter of Front Brake Discs or Drums297 mm
Rear BrakesDisc
Diameter of Rear Brake Discs or Drums303 mm
ABSyes
Steering SystemGear transmission
Power SteeringElectric power steering
Tire Size225/65 R17; 225/55 R19
Wheel Size7J x 17; 7J x 19

Basic version information

BrandMazda
ModelCX-5
VersionCX-5 II (facelift 2021)
Engine2.5 SKYACTIV-G (194 KM) AWD Automatic
Engine TypeInternal combustion engine
Number of Doors5
Production Start2021 r.
Body TypeSUV
Number of Seats5
Fuel TypeGasoline

Performance

Maximum Speed195 km/h
Acceleration 0 – 100 km/h9.3 s
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Urban Cycle10.3-10.6 l/100 km
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Extra-Urban Cycle7.5-7.6 l/100 km
Fuel Consumption – Combined Cycle8-8.1 l/100 km
Environmental StandardEuro 6d
CO2 Measurement StandardWLTP
CO2 Emissions182-184 g/km

Engine

Model / Engine CodePY
Engine PositionFront, Transverse
Engine Capacity2488 cm³
Fuel Injection SystemDirect injection
Engine TypeNaturally aspirated engine
Timing SystemDOHC
Engine ConfigurationInline
Number of Cylinders4
Cylinder Diameter89 mm
Piston Stroke100 mm
Compression Ratio13
Number of Valves per Cylinder4
Engine Oil Capacity4.5 l
Coolant Capacity7.4 l

Volume and weight

Fuel Tank Capacity58 l
Minimum Luggage Capacity522 l
Maximum Luggage Capacity1638 l
Curb Weight1577-1627 kg
Permissible Weight2140 kg
Permissible Roof Load75 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with an 8% Gradient2000 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with a 12% Gradient2000 kg
Permissible Total Weight of Trailer without Brakes750 kg

Vehicle dimensions

Length4575 mm
Width1845 mm
Width with Mirrors Extended2115 mm
Height1680-1685 mm
Wheelbase2700 mm
Front Wheel Track1595 mm
Rear Wheel Track1595 mm
Ground Clearance192-200 mm
Front Overhang965 mm
Rear Overhang910 mm
Minimum Turning Diameter11 m

Drive system, brakes and suspension

Drive TypeAll-wheel drive (4x4)
Number of Gears6
Front SuspensionIndependent MacPherson type
Rear SuspensionIndependent multi-link suspension
Front BrakesVentilated disc
Diameter of Front Brake Discs or Drums297 mm
Rear BrakesDisc
Diameter of Rear Brake Discs or Drums303 mm
ABSyes
Steering SystemGear transmission
Power SteeringElectric power steering
Tire Size225/65 R17; 225/55 R19
Wheel Size7J x 17; 7J x 19

Basic version information

BrandMazda
ModelCX-5
VersionCX-5 II (facelift 2021)
Engine2.2 SKYACTIV-D (150 KM)
Engine TypeInternal combustion engine
Number of Doors5
Production Start2021 r.
Body TypeSUV
Number of Seats5
Fuel TypeDiesel fuel

Performance

Maximum Speed204 km/h
Acceleration 0 – 100 km/h9.9 s
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Urban Cycle5.9-6.2 l/100 km
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Extra-Urban Cycle5.5 l/100 km
Fuel Consumption – Combined Cycle5.6 l/100 km
Environmental StandardEuro 6d
CO2 Measurement StandardWLTP
CO2 Emissions147 g/km

Engine

Model / Engine CodeSHY6
Engine PositionFront, Transverse
Engine Capacity2191 cm³
Fuel Injection SystemDiesel common rail
Engine TypeTurbocharger, Intercooler
Timing SystemDOHC
Engine ConfigurationInline
Number of Cylinders4
Cylinder Diameter86 mm
Piston Stroke94.3 mm
Compression Ratio14.4
Number of Valves per Cylinder4
Engine Oil Capacity5.1 l
Coolant Capacity8.7 l

Volume and weight

Fuel Tank Capacity56 l
Minimum Luggage Capacity510 l
Maximum Luggage Capacity1626 l
Curb Weight1591-1648 kg
Permissible Weight2143 kg
Permissible Roof Load75 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with an 8% Gradient2000 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with a 12% Gradient2000 kg
Permissible Total Weight of Trailer without Brakes750 kg

Vehicle dimensions

Length4575 mm
Width1845 mm
Width with Mirrors Extended2115 mm
Height1680-1685 mm
Wheelbase2700 mm
Front Wheel Track1595 mm
Rear Wheel Track1595 mm
Ground Clearance192-200 mm
Front Overhang965 mm
Rear Overhang910 mm
Minimum Turning Diameter11 m

Drive system, brakes and suspension

Drive TypeFront-wheel drive
Number of Gears6
Front SuspensionIndependent MacPherson type
Rear SuspensionIndependent multi-link suspension
Front BrakesVentilated disc
Diameter of Front Brake Discs or Drums320 mm
Rear BrakesDisc
Diameter of Rear Brake Discs or Drums303 mm
ABSyes
Steering SystemGear transmission
Power SteeringElectric power steering
Tire Size225/65 R17; 225/55 R19
Wheel Size7J x 17; 7J x 19

Basic version information

BrandMazda
ModelCX-5
VersionCX-5 II (facelift 2021)
Engine2.2 SKYACTIV-D (150 KM) Automatic
Engine TypeInternal combustion engine
Number of Doors5
Production Start2021 r.
Body TypeSUV
Number of Seats5
Fuel TypeDiesel fuel

Performance

Maximum Speed200 km/h
Acceleration 0 – 100 km/h10.7 s
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Urban Cycle7.5 l/100 km
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Extra-Urban Cycle5.9 l/100 km
Fuel Consumption – Combined Cycle6.1 l/100 km
Environmental StandardEuro 6d
CO2 Measurement StandardWLTP
CO2 Emissions160 g/km

Engine

Model / Engine CodeSHY6
Engine PositionFront, Transverse
Engine Capacity2191 cm³
Fuel Injection SystemDiesel common rail
Engine TypeTurbocharger, Intercooler
Timing SystemDOHC
Engine ConfigurationInline
Number of Cylinders4
Cylinder Diameter86 mm
Piston Stroke94.3 mm
Compression Ratio14.4
Number of Valves per Cylinder4
Engine Oil Capacity5.1 l
Coolant Capacity8.7 l

Volume and weight

Fuel Tank Capacity56 l
Minimum Luggage Capacity510 l
Maximum Luggage Capacity1626 l
Curb Weight1614-1664 kg
Permissible Weight2143 kg
Permissible Roof Load75 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with an 8% Gradient2000 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with a 12% Gradient2000 kg
Permissible Total Weight of Trailer without Brakes750 kg

Vehicle dimensions

Length4575 mm
Width1845 mm
Width with Mirrors Extended2115 mm
Height1680-1685 mm
Wheelbase2700 mm
Front Wheel Track1595 mm
Rear Wheel Track1595 mm
Ground Clearance192-200 mm
Front Overhang965 mm
Rear Overhang910 mm
Minimum Turning Diameter11 m

Drive system, brakes and suspension

Drive TypeFront-wheel drive
Number of Gears6
Front SuspensionIndependent MacPherson type
Rear SuspensionIndependent multi-link suspension
Front BrakesVentilated disc
Diameter of Front Brake Discs or Drums320 mm
Rear BrakesDisc
Diameter of Rear Brake Discs or Drums303 mm
ABSyes
Steering SystemGear transmission
Power SteeringElectric power steering
Tire Size225/65 R17; 225/55 R19
Wheel Size7J x 17; 7J x 19

Basic version information

BrandMazda
ModelCX-5
VersionCX-5 II (facelift 2021)
Engine2.2 SKYACTIV-D (150 KM) AWD
Engine TypeInternal combustion engine
Number of Doors5
Production Start2021 r.
Body TypeSUV
Number of Seats5
Fuel TypeDiesel fuel

Performance

Maximum Speed199 km/h
Acceleration 0 – 100 km/h10.1 s
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Urban Cycle6.5-6.7 l/100 km
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Extra-Urban Cycle6.2 l/100 km
Fuel Consumption – Combined Cycle6.3 l/100 km
Environmental StandardEuro 6d
CO2 Measurement StandardWLTP
CO2 Emissions164-165 g/km

Engine

Model / Engine CodeSHY6
Engine PositionFront, Transverse
Engine Capacity2191 cm³
Fuel Injection SystemDiesel common rail
Engine TypeTurbocharger, Intercooler
Timing SystemDOHC
Engine ConfigurationInline
Number of Cylinders4
Cylinder Diameter86 mm
Piston Stroke94.3 mm
Compression Ratio14.4
Number of Valves per Cylinder4
Engine Oil Capacity5.1 l
Coolant Capacity8.7 l

Volume and weight

Fuel Tank Capacity58 l
Minimum Luggage Capacity510 l
Maximum Luggage Capacity1626 l
Curb Weight1661-1711 kg
Permissible Weight2220 kg
Permissible Roof Load75 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with an 8% Gradient2100 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with a 12% Gradient2000 kg
Permissible Total Weight of Trailer without Brakes750 kg

Vehicle dimensions

Length4575 mm
Width1845 mm
Width with Mirrors Extended2115 mm
Height1680-1685 mm
Wheelbase2700 mm
Front Wheel Track1595 mm
Rear Wheel Track1595 mm
Ground Clearance192-200 mm
Front Overhang965 mm
Rear Overhang910 mm
Minimum Turning Diameter11 m

Drive system, brakes and suspension

Drive TypeAll-wheel drive (4x4)
Number of Gears6
Front SuspensionIndependent MacPherson type
Rear SuspensionIndependent multi-link suspension
Front BrakesVentilated disc
Diameter of Front Brake Discs or Drums320 mm
Rear BrakesDisc
Diameter of Rear Brake Discs or Drums303 mm
ABSyes
Steering SystemGear transmission
Power SteeringElectric power steering
Tire Size225/65 R17; 225/55 R19
Wheel Size7J x 17; 7J x 19

Basic version information

BrandMazda
ModelCX-5
VersionCX-5 II (facelift 2021)
Engine2.2 SKYACTIV-D (150 KM) AWD Automatic
Engine TypeInternal combustion engine
Number of Doors5
Production Start2021 r.
Body TypeSUV
Number of Seats5
Fuel TypeDiesel fuel

Performance

Maximum Speed196 km/h
Acceleration 0 – 100 km/h10.9 s
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Urban Cycle7.9-8.2 l/100 km
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Extra-Urban Cycle6.4 l/100 km
Fuel Consumption – Combined Cycle6.6 l/100 km
Environmental StandardEuro 6d
CO2 Measurement StandardWLTP
CO2 Emissions173 g/km

Engine

Model / Engine CodeSHY6
Engine PositionFront, Transverse
Engine Capacity2191 cm³
Fuel Injection SystemDiesel common rail
Engine TypeTurbocharger, Intercooler
Timing SystemDOHC
Engine ConfigurationInline
Number of Cylinders4
Cylinder Diameter86 mm
Piston Stroke94.3 mm
Compression Ratio14.4
Number of Valves per Cylinder4
Engine Oil Capacity5.1 l
Coolant Capacity8.7 l

Volume and weight

Fuel Tank Capacity58 l
Minimum Luggage Capacity510 l
Maximum Luggage Capacity1626 l
Curb Weight1675-1725 kg
Permissible Weight2235 kg
Permissible Roof Load75 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with an 8% Gradient2100 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with a 12% Gradient2100 kg
Permissible Total Weight of Trailer without Brakes750 kg

Vehicle dimensions

Length4575 mm
Width1845 mm
Width with Mirrors Extended2115 mm
Height1680-1685 mm
Wheelbase2700 mm
Front Wheel Track1595 mm
Rear Wheel Track1595 mm
Ground Clearance192-200 mm
Front Overhang965 mm
Rear Overhang910 mm
Minimum Turning Diameter11 m

Drive system, brakes and suspension

Drive TypeAll-wheel drive (4x4)
Number of Gears6
Front SuspensionIndependent MacPherson type
Rear SuspensionIndependent multi-link suspension
Front BrakesVentilated disc
Diameter of Front Brake Discs or Drums320 mm
Rear BrakesDisc
Diameter of Rear Brake Discs or Drums303 mm
ABSyes
Steering SystemGear transmission
Power SteeringElectric power steering
Tire Size225/65 R17; 225/55 R19
Wheel Size7J x 17; 7J x 19

Basic version information

BrandMazda
ModelCX-5
VersionCX-5 II (facelift 2021)
Engine2.2 SKYACTIV-D (184 KM)
Engine TypeInternal combustion engine
Number of Doors5
Production Start2021 r.
Body TypeSUV
Number of Seats5
Fuel TypeDiesel fuel

Performance

Maximum Speed214 km/h
Acceleration 0 – 100 km/h9.2 s
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Urban Cycle6.2 l/100 km
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Extra-Urban Cycle5.5 l/100 km
Fuel Consumption – Combined Cycle5.6 l/100 km
Environmental StandardEuro 6d
CO2 Measurement StandardWLTP
CO2 Emissions147 g/km

Engine

Model / Engine CodeSHY8
Engine PositionFront, Transverse
Engine Capacity2191 cm³
Fuel Injection SystemDiesel common rail
Engine TypeTurbocharger, Intercooler
Timing SystemDOHC
Engine ConfigurationInline
Number of Cylinders4
Cylinder Diameter86 mm
Piston Stroke94.3 mm
Compression Ratio14.4
Number of Valves per Cylinder4
Engine Oil Capacity5.1 l
Coolant Capacity8.7 l

Volume and weight

Fuel Tank Capacity56 l
Minimum Luggage Capacity510 l
Maximum Luggage Capacity1626 l
Curb Weight1612-1648 kg
Permissible Weight2143 kg
Permissible Roof Load75 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with an 8% Gradient2000 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with a 12% Gradient2000 kg
Permissible Total Weight of Trailer without Brakes750 kg

Vehicle dimensions

Length4575 mm
Width1845 mm
Width with Mirrors Extended2115 mm
Height1680-1685 mm
Wheelbase2700 mm
Front Wheel Track1595 mm
Rear Wheel Track1595 mm
Ground Clearance192-200 mm
Front Overhang965 mm
Rear Overhang910 mm
Minimum Turning Diameter11 m

Drive system, brakes and suspension

Drive TypeFront-wheel drive
Number of Gears6
Front SuspensionIndependent MacPherson type
Rear SuspensionIndependent multi-link suspension
Front BrakesVentilated disc
Diameter of Front Brake Discs or Drums320 mm
Rear BrakesDisc
Diameter of Rear Brake Discs or Drums303 mm
ABSyes
Steering SystemGear transmission
Power SteeringElectric power steering
Tire Size225/65 R17; 225/55 R19
Wheel Size7J x 17; 7J x 19

Basic version information

BrandMazda
ModelCX-5
VersionCX-5 II (facelift 2021)
Engine2.2 SKYACTIV-D (184 KM) Automatic
Engine TypeInternal combustion engine
Number of Doors5
Production Start2021 r.
Body TypeSUV
Number of Seats5
Fuel TypeDiesel fuel

Performance

Maximum Speed210 km/h
Acceleration 0 – 100 km/h9.3 s
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Urban Cycle7.5 l/100 km
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Extra-Urban Cycle5.9 l/100 km
Fuel Consumption – Combined Cycle6.1 l/100 km
Environmental StandardEuro 6d
CO2 Measurement StandardWLTP
CO2 Emissions160 g/km

Engine

Model / Engine CodeSHY8
Engine PositionFront, Transverse
Engine Capacity2191 cm³
Fuel Injection SystemDiesel common rail
Engine TypeTurbocharger, Intercooler
Timing SystemDOHC
Engine ConfigurationInline
Number of Cylinders4
Cylinder Diameter86 mm
Piston Stroke94.3 mm
Compression Ratio14.4
Number of Valves per Cylinder4
Engine Oil Capacity5.1 l
Coolant Capacity8.7 l

Volume and weight

Fuel Tank Capacity56 l
Minimum Luggage Capacity510 l
Maximum Luggage Capacity1626 l
Curb Weight1699 kg
Permissible Weight2143 kg
Permissible Roof Load75 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with an 8% Gradient2000 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with a 12% Gradient2000 kg
Permissible Total Weight of Trailer without Brakes750 kg

Vehicle dimensions

Length4575 mm
Width1845 mm
Width with Mirrors Extended2115 mm
Height1680-1685 mm
Wheelbase2700 mm
Front Wheel Track1595 mm
Rear Wheel Track1595 mm
Ground Clearance192-200 mm
Front Overhang965 mm
Rear Overhang910 mm
Minimum Turning Diameter11 m

Drive system, brakes and suspension

Drive TypeFront-wheel drive
Number of Gears6
Front SuspensionIndependent MacPherson type
Rear SuspensionIndependent multi-link suspension
Front BrakesVentilated disc
Diameter of Front Brake Discs or Drums320 mm
Rear BrakesDisc
Diameter of Rear Brake Discs or Drums303 mm
ABSyes
Steering SystemGear transmission
Power SteeringElectric power steering
Tire Size225/65 R17; 225/55 R19
Wheel Size7J x 17; 7J x 19

Basic version information

BrandMazda
ModelCX-5
VersionCX-5 II (facelift 2021)
Engine2.2 SKYACTIV-D (184 KM) AWD
Engine TypeInternal combustion engine
Number of Doors5
Production Start2021 r.
Body TypeSUV
Number of Seats5
Fuel TypeDiesel fuel

Performance

Maximum Speed211 km/h
Acceleration 0 – 100 km/h9.3 s
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Urban Cycle6.7 l/100 km
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Extra-Urban Cycle6.2 l/100 km
Fuel Consumption – Combined Cycle6.3 l/100 km
Environmental StandardEuro 6d
CO2 Measurement StandardWLTP
CO2 Emissions165 g/km

Engine

Model / Engine CodeSHY8
Engine PositionFront, Transverse
Engine Capacity2191 cm³
Fuel Injection SystemDiesel common rail
Engine TypeTurbocharger, Intercooler
Timing SystemDOHC
Engine ConfigurationInline
Number of Cylinders4
Cylinder Diameter86 mm
Piston Stroke94.3 mm
Compression Ratio14.4
Number of Valves per Cylinder4
Engine Oil Capacity5.1 l
Coolant Capacity8.7 l

Volume and weight

Fuel Tank Capacity58 l
Minimum Luggage Capacity510 l
Maximum Luggage Capacity1626 l
Curb Weight1748 kg
Permissible Weight2220 kg
Permissible Roof Load75 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with an 8% Gradient2100 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with a 12% Gradient2000 kg
Permissible Total Weight of Trailer without Brakes750 kg

Vehicle dimensions

Length4575 mm
Width1845 mm
Width with Mirrors Extended2115 mm
Height1680-1685 mm
Wheelbase2700 mm
Front Wheel Track1595 mm
Rear Wheel Track1595 mm
Ground Clearance192-200 mm
Front Overhang965 mm
Rear Overhang910 mm
Minimum Turning Diameter11 m

Drive system, brakes and suspension

Drive TypeAll-wheel drive (4x4)
Number of Gears6
Front SuspensionIndependent MacPherson type
Rear SuspensionIndependent multi-link suspension
Front BrakesVentilated disc
Diameter of Front Brake Discs or Drums320 mm
Rear BrakesDisc
Diameter of Rear Brake Discs or Drums303 mm
ABSyes
Steering SystemGear transmission
Power SteeringElectric power steering
Tire Size225/65 R17; 225/55 R19
Wheel Size7J x 17; 7J x 19

Basic version information

BrandMazda
ModelCX-5
VersionCX-5 II (facelift 2021)
Engine2.2 SKYACTIV-D (184 KM) AWD Automatic
Engine TypeInternal combustion engine
Number of Doors5
Production Start2021 r.
Body TypeSUV
Number of Seats5
Fuel TypeDiesel fuel

Performance

Maximum Speed208 km/h
Acceleration 0 – 100 km/h9.6 s
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Urban Cycle7.9 l/100 km
Fuel Consumption Measurement StandardWLTP
Fuel Consumption – Extra-Urban Cycle6.4 l/100 km
Fuel Consumption – Combined Cycle6.6 l/100 km
Environmental StandardEuro 6d
CO2 Measurement StandardWLTP
CO2 Emissions173 g/km

Engine

Model / Engine CodeSHY8
Engine PositionFront, Transverse
Engine Capacity2191 cm³
Fuel Injection SystemDiesel common rail
Engine TypeTurbocharger, Intercooler
Timing SystemDOHC
Engine ConfigurationInline
Number of Cylinders4
Cylinder Diameter86 mm
Piston Stroke94.3 mm
Compression Ratio14.4
Number of Valves per Cylinder4
Engine Oil Capacity5.1 l
Coolant Capacity8.7 l

Volume and weight

Fuel Tank Capacity58 l
Minimum Luggage Capacity510 l
Maximum Luggage Capacity1626 l
Curb Weight1689-1726 kg
Permissible Weight2235 kg
Permissible Roof Load75 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with an 8% Gradient2100 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with a 12% Gradient2100 kg
Permissible Total Weight of Trailer without Brakes750 kg

Vehicle dimensions

Length4575 mm
Width1845 mm
Width with Mirrors Extended2115 mm
Height1680-1685 mm
Wheelbase2700 mm
Front Wheel Track1595 mm
Rear Wheel Track1595 mm
Ground Clearance192-200 mm
Front Overhang965 mm
Rear Overhang910 mm
Minimum Turning Diameter11 m

Drive system, brakes and suspension

Drive TypeAll-wheel drive (4x4)
Number of Gears6
Front SuspensionIndependent MacPherson type
Rear SuspensionIndependent multi-link suspension
Front BrakesVentilated disc
Diameter of Front Brake Discs or Drums320 mm
Rear BrakesDisc
Diameter of Rear Brake Discs or Drums303 mm
ABSyes
Steering SystemGear transmission
Power SteeringElectric power steering
Tire Size225/65 R17; 225/55 R19
Wheel Size7J x 17; 7J x 19

Basic version information

BrandMazda
ModelCX-5
VersionCX-5 II (facelift 2021)
Engine2.5 SKYACTIV-G (187 KM) AWD Automatic
Engine TypeInternal combustion engine
Number of Doors5
Production Start2021 r.
Body TypeSUV
Number of Seats5
Fuel TypeGasoline

Performance

Fuel Consumption – Urban Cycle9.8 l/100 km
Fuel Consumption – Extra-Urban Cycle7.8 l/100 km
Environmental StandardT3B50; SULEV30

Engine

Model / Engine CodePY
Engine PositionFront, Transverse
Engine Capacity2488 cm³
Maximum Engine Speed6500 obr./min
Fuel Injection SystemDirect injection
Engine TypeNaturally aspirated engine
Timing SystemDOHC
Engine ConfigurationInline
Number of Cylinders4
Cylinder Diameter89 mm
Piston Stroke100 mm
Compression Ratio13
Number of Valves per Cylinder4
Engine Oil Capacity4.5 l
Coolant Capacity7.4 l

Volume and weight

Fuel Tank Capacity58 l
Minimum Luggage Capacity824-872 l
Maximum Luggage Capacity1679 l
Curb Weight1686 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with a 12% Gradient907 kg

Vehicle dimensions

Length4575 mm
Width1844 mm
Width with Mirrors Extended2116 mm
Height1679-1681 mm
Wheelbase2697 mm
Front Wheel Track1595 mm
Rear Wheel Track1595 mm
Ground Clearance193 mm
Minimum Turning Diameter11 m

Drive system, brakes and suspension

Drive TypeAll-wheel drive (4x4)
Number of Gears6
Front SuspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear SuspensionIndependent multi-link suspension with coil spring and stabilizer
Front BrakesVentilated disc
Diameter of Front Brake Discs or Drums297 mm
Rear BrakesDisc
Diameter of Rear Brake Discs or Drums302 mm
ABSyes
Steering SystemGear transmission
Power SteeringElectric power steering
Tire Size225/55 R19
Wheel Size7J x 19

Basic version information

BrandMazda
ModelCX-5
VersionCX-5 II (facelift 2021)
Engine2.5 SKYACTIV-G Turbo (227 KM) AWD Automatic
Engine TypeInternal combustion engine
Number of Doors5
Production Start2021 r.
Body TypeSUV
Number of Seats5
Fuel TypeGasoline

Performance

Fuel Consumption – Urban Cycle10.7 l/100 km
Fuel Consumption – Extra-Urban Cycle8.7 l/100 km
Environmental StandardT3B70; ULEV70

Engine

Model / Engine CodePY
Engine PositionFront, Transverse
Engine Capacity2488 cm³
Maximum Engine Speed6300 obr./min
Fuel Injection SystemDirect injection
Engine TypeTurbocharger, Intercooler
Timing SystemDOHC, VVT
Engine ConfigurationInline
Number of Cylinders4
Cylinder Diameter89 mm
Piston Stroke100 mm
Compression Ratio10.5
Number of Valves per Cylinder4
Engine Oil Capacity4.8 l
Coolant Capacity8.5 l

Volume and weight

Fuel Tank Capacity58 l
Minimum Luggage Capacity824-872 l
Maximum Luggage Capacity1679 l
Curb Weight1749 kg
Permissible Total Weight of Trailer with Brakes when Starting on an Incline with a 12% Gradient907 kg

Vehicle dimensions

Length4575 mm
Width1844 mm
Width with Mirrors Extended2116 mm
Height1684 mm
Wheelbase2697 mm
Front Wheel Track1595 mm
Rear Wheel Track1595 mm
Ground Clearance201 mm
Minimum Turning Diameter11 m

Drive system, brakes and suspension

Drive TypeAll-wheel drive (4x4)
Number of Gears6
Front SuspensionIndependent, McPherson type with coil spring and stabilizer bar
Rear SuspensionIndependent multi-link suspension with coil spring and stabilizer
Front BrakesVentilated disc
Diameter of Front Brake Discs or Drums320 mm
Rear BrakesDisc
Diameter of Rear Brake Discs or Drums302 mm
ABSyes
Steering SystemGear transmission
Power SteeringElectric power steering
Tire Size225/55 R19
Wheel Size7J x 19
