Vehicle specifications

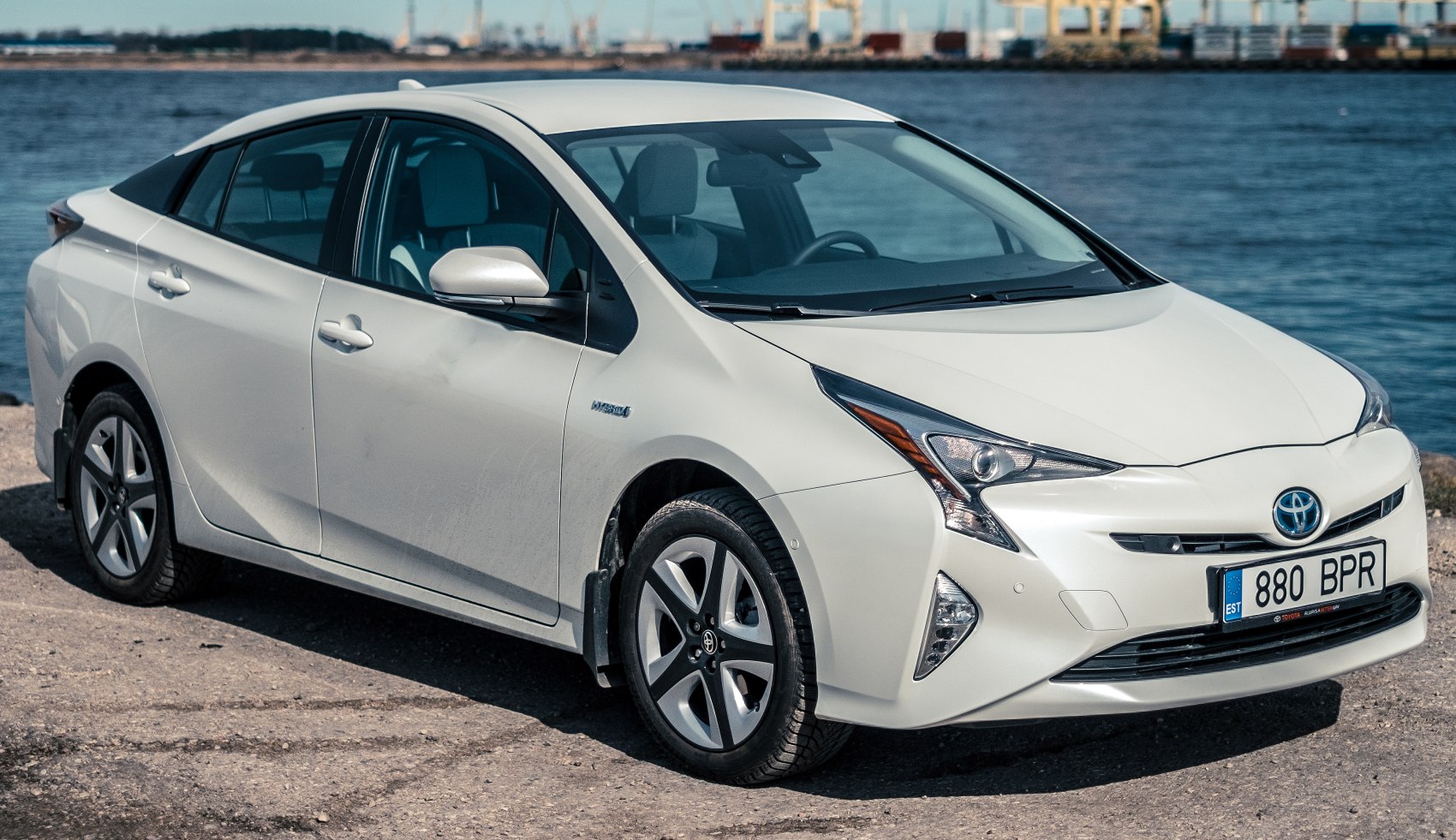

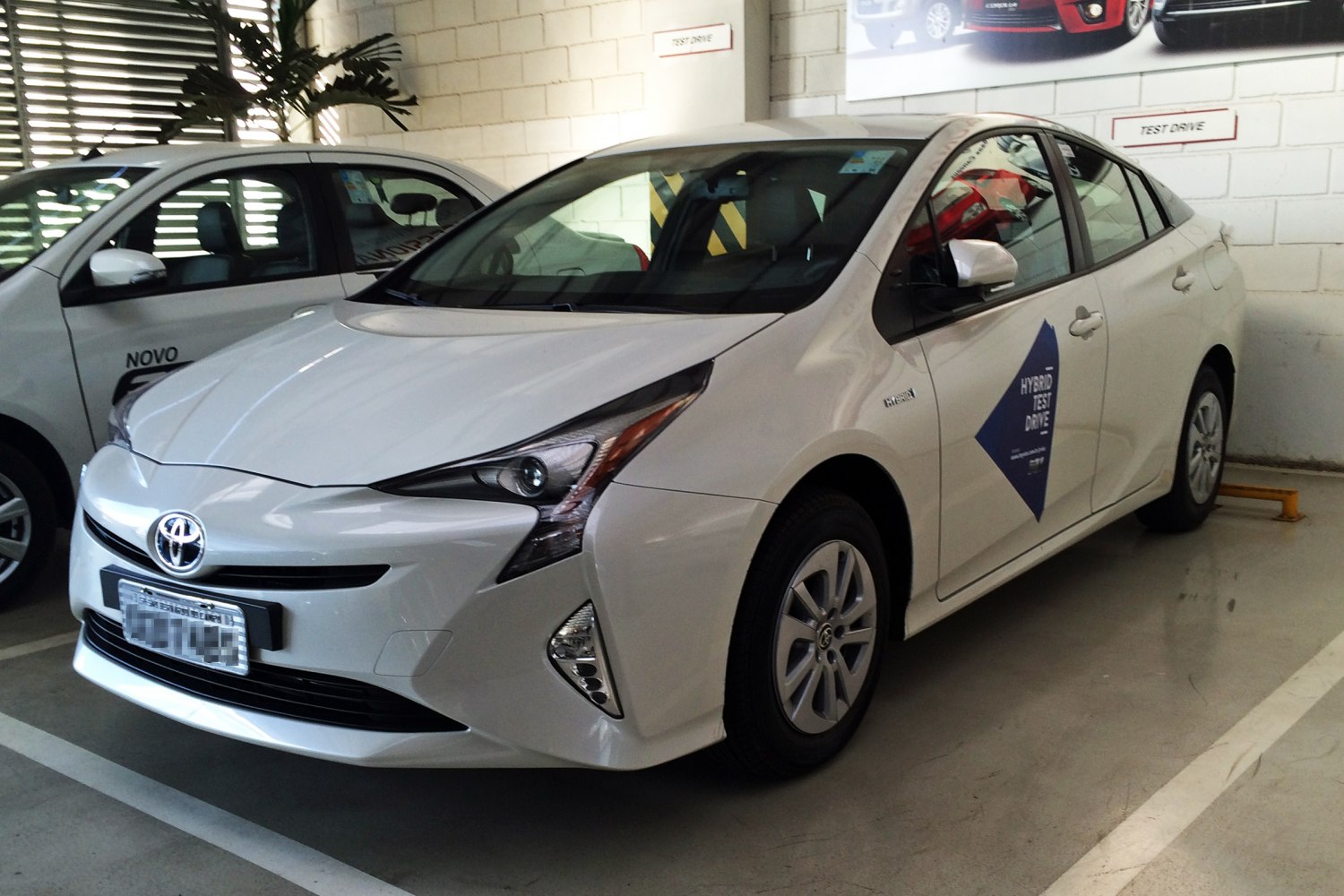

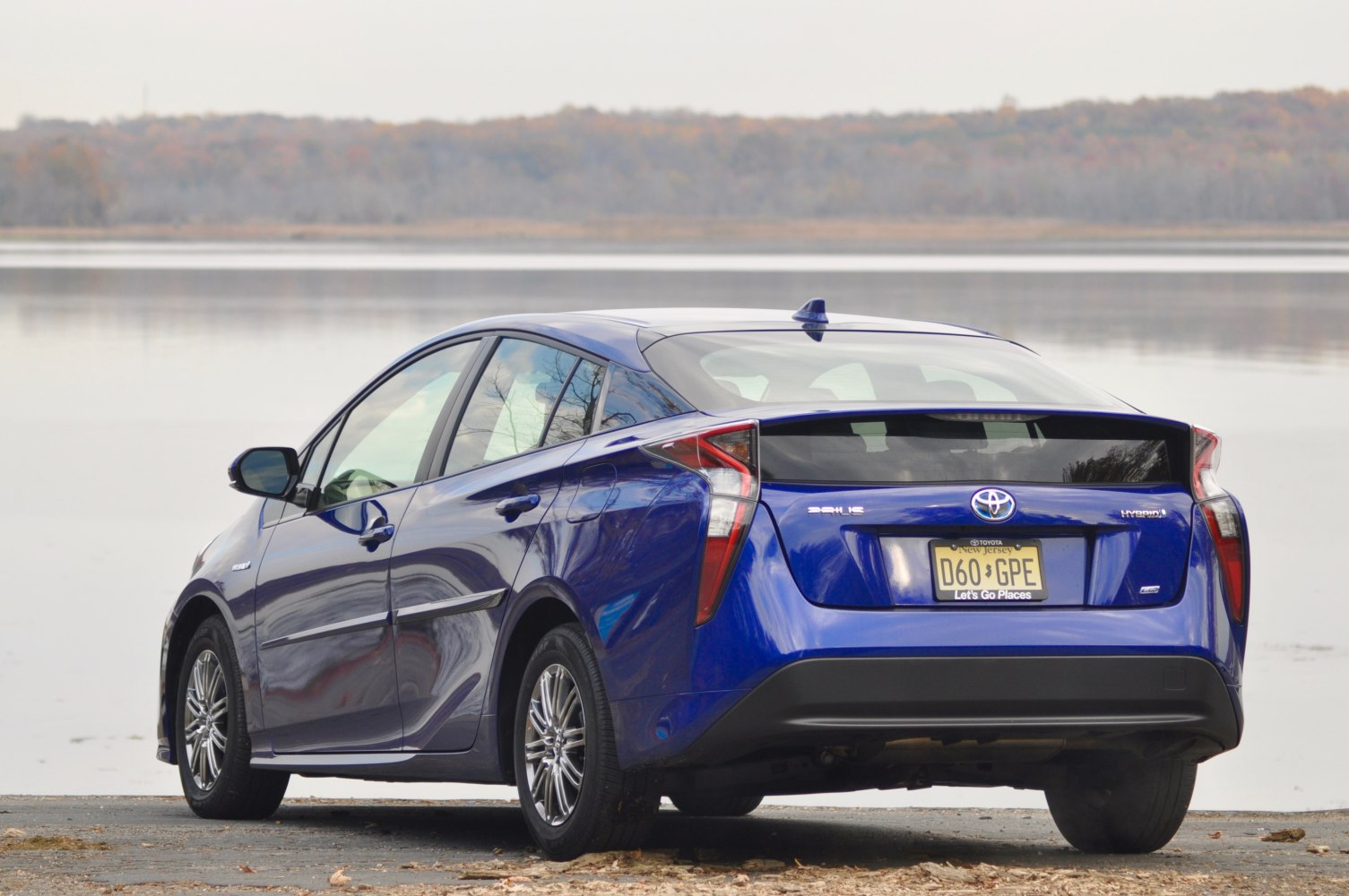

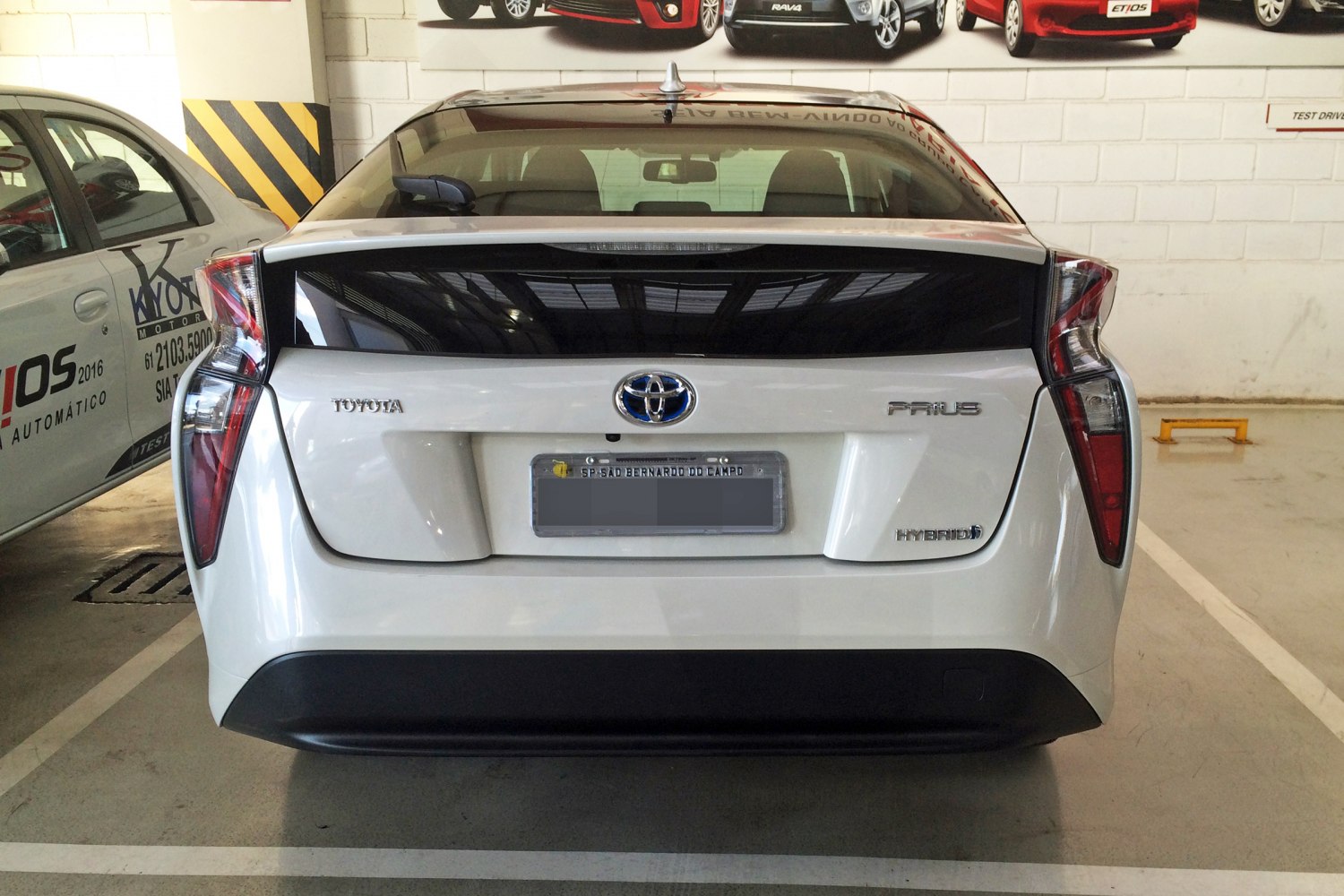

Toyota Prius IV (XW50)
Compare all 2 engine versions of the Toyota Prius Prius IV (XW50), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Toyota Prius IV (XW50)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

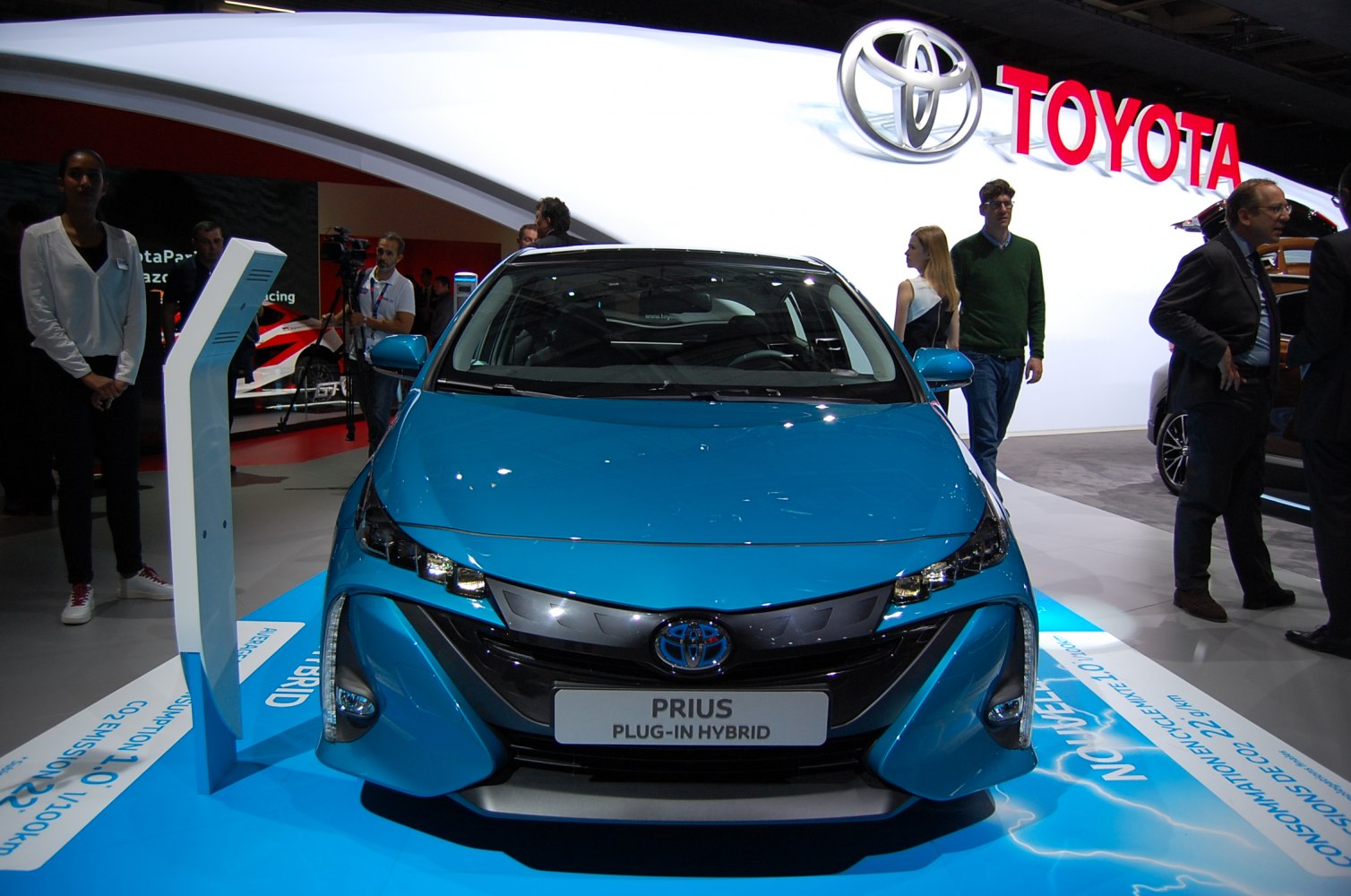

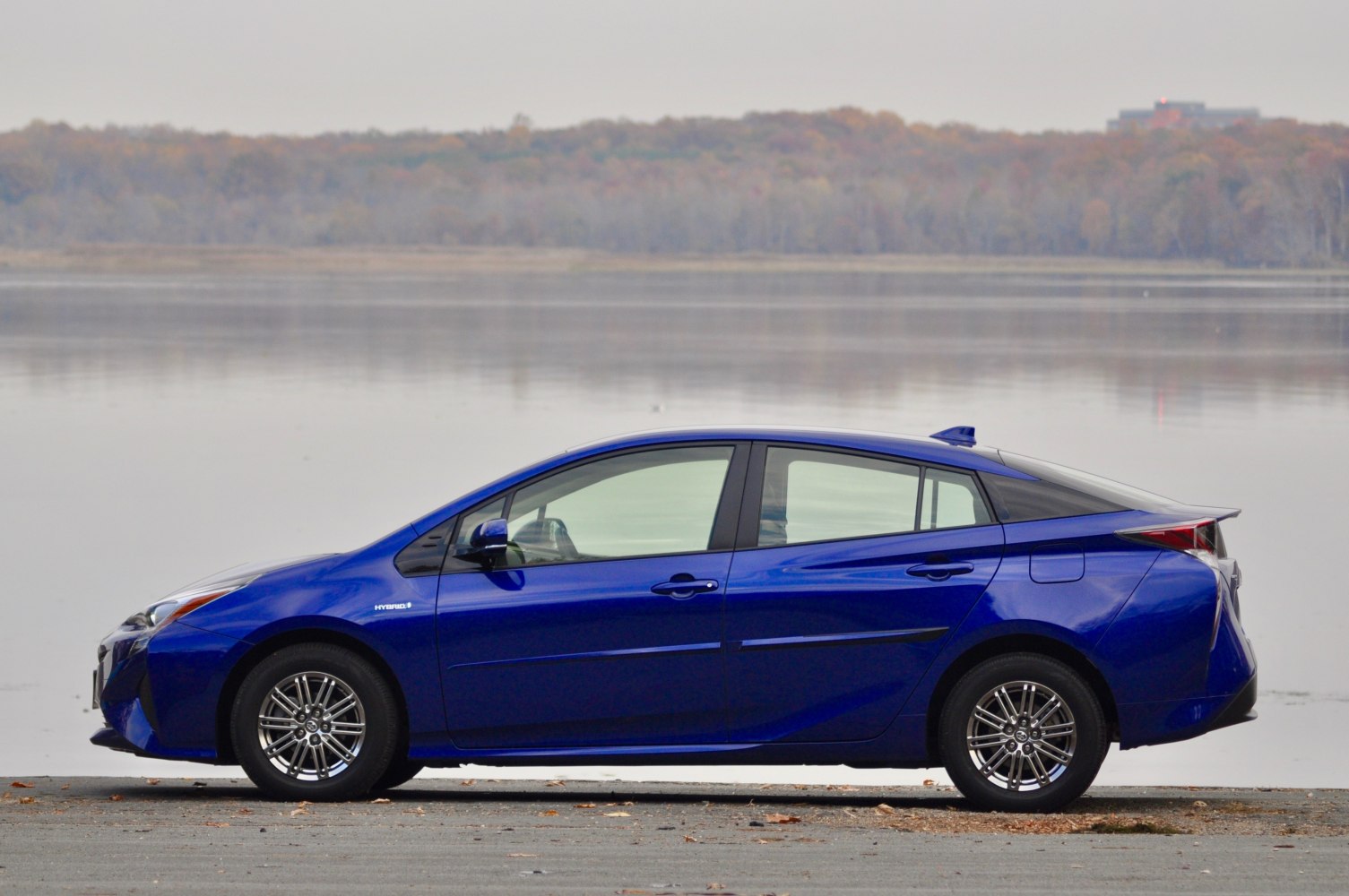

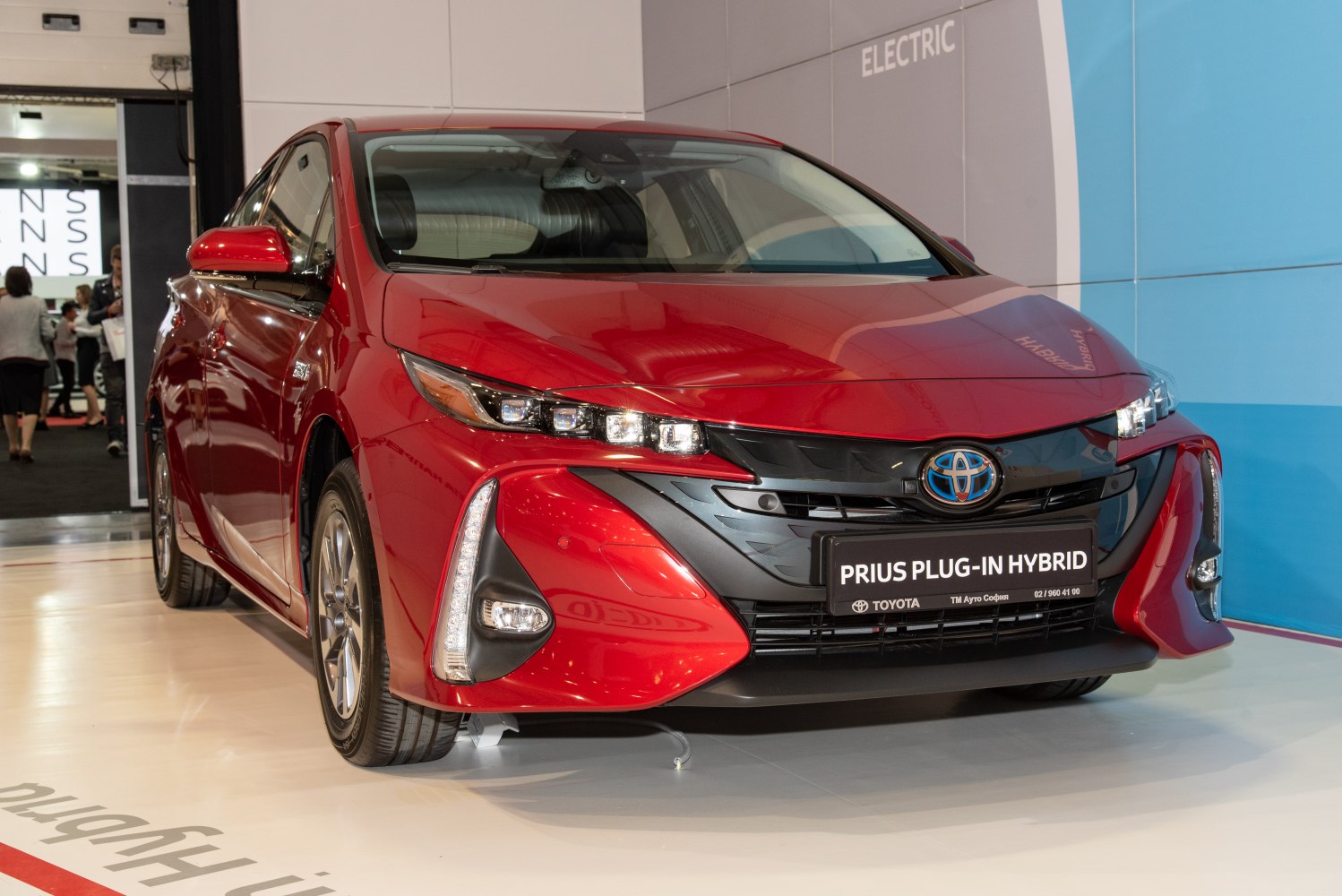

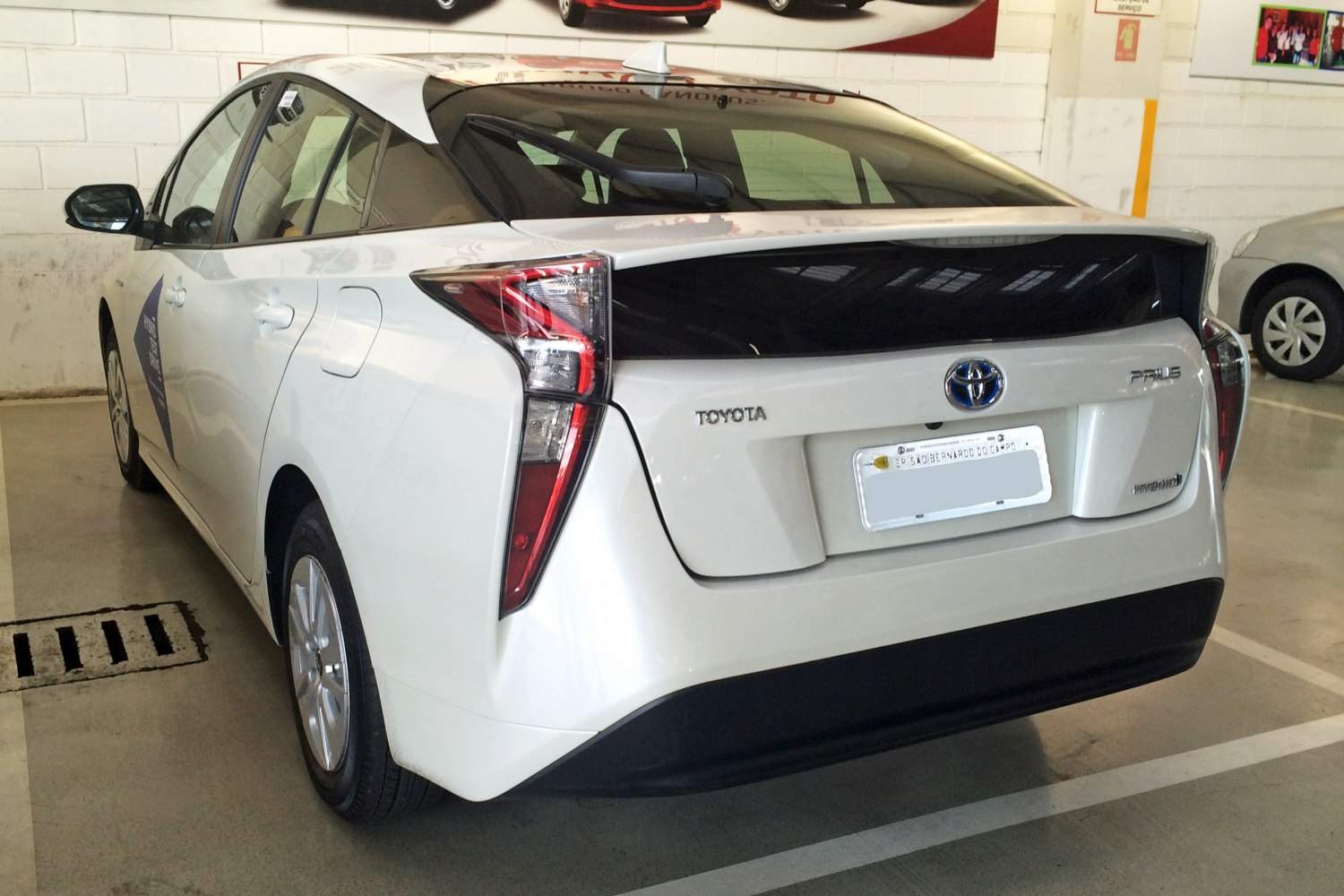

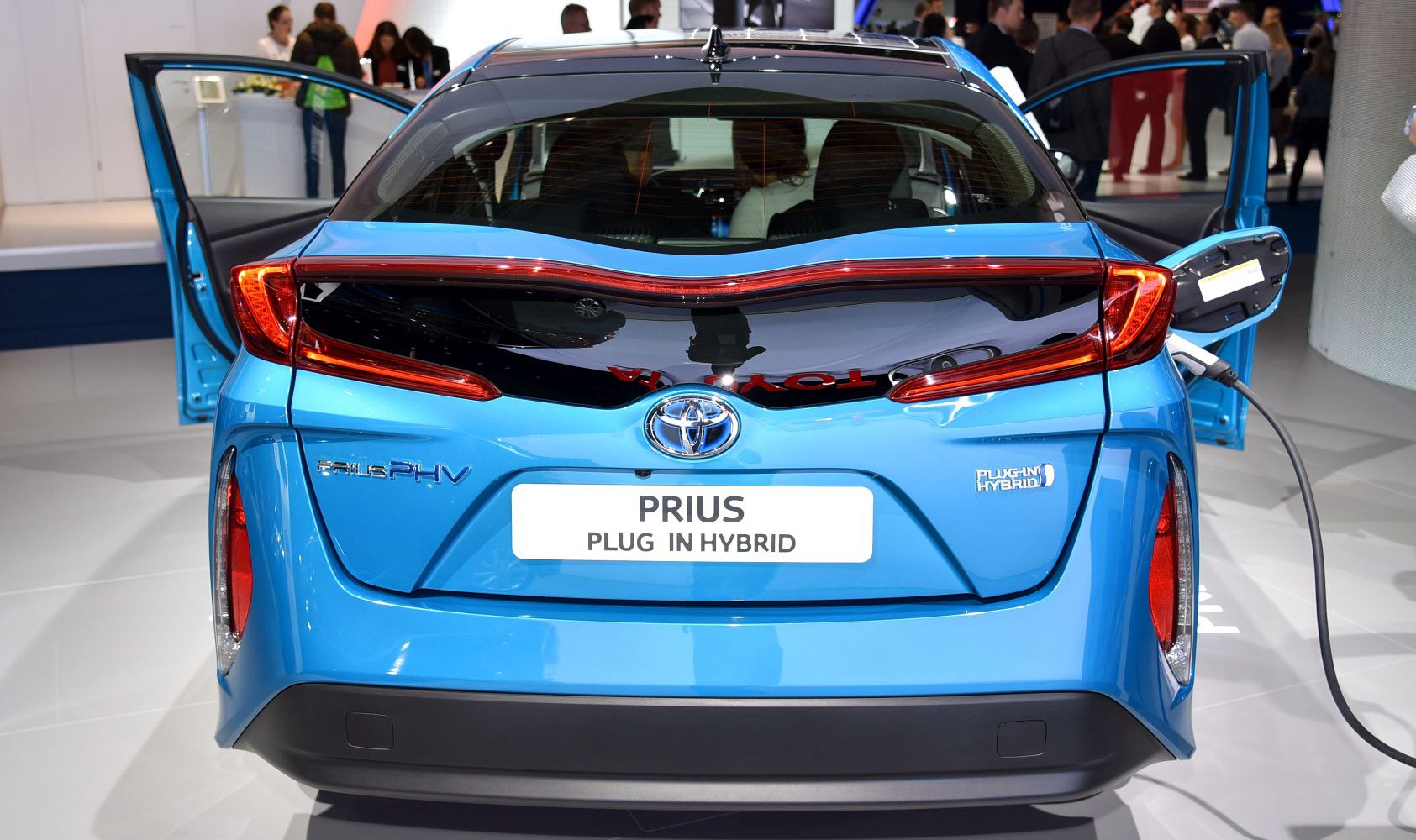

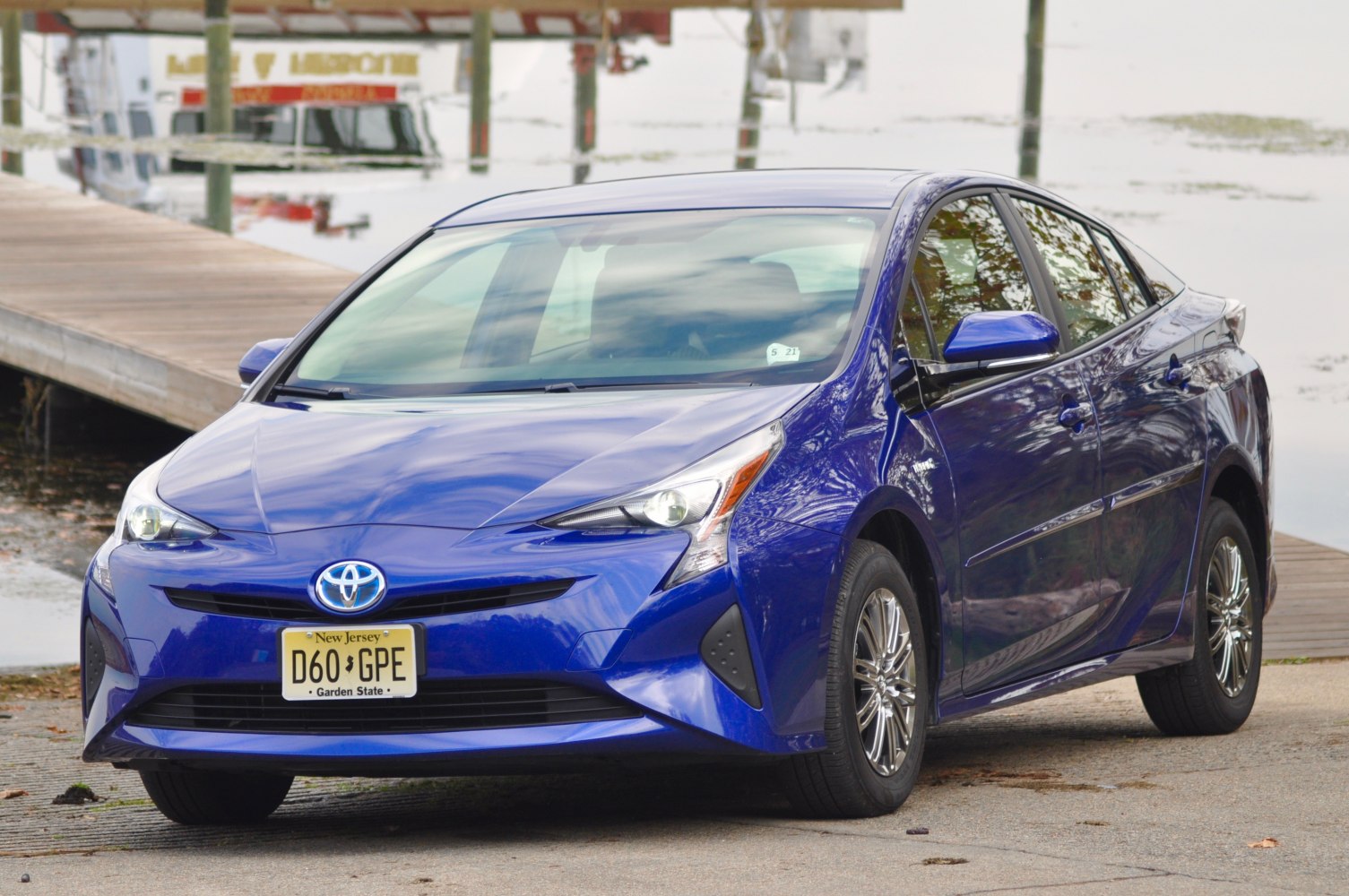

Vehicle photos
1 of 23
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
2 versions · 1 Gasoline · 1 Gasoline / Electricity
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.8 VVT-I (122 KM) Hybrid e-CVT Selected | Gasoline | 98 KM | 2015–2018 |
| 1.8 (122 KM) Plug-in Hybrid e-CVT Selected | Gasoline / Electricity | 98 KM | 2016–2018 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.8 VVT-I (122 KM) Hybrid e-CVT
Gasoline · 2015–2018
- Engine power
- 98 KM
- Torque
- 142 Nm
- Engine displacement
- 1,798 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.6 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Toyota Prius Prius IV (XW50)- Brand
- Toyota
- Model
- Prius
- Version
- Prius IV (XW50)
- Engine
- 1.8 VVT-I (122 KM) Hybrid e-CVT
- Engine type
- FHEF (Full Hybrid Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2015
- End of production
- 2018
- Body type
- Liftback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 10.6 s
- Battery gross capacity
- 1.31 kWh
- Fuel consumption - Urban cycle
- 2.9-3.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.1-3.3 l/100 km
- Fuel consumption - Combined cycle
- 3.0-3.3 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 70-76 g/km
Engine
- Max electric motor power
- 72 KM
- Electric motor torque
- 163 Nm
- Electric motor position
- Integrated with the transmission
- System power
- 122 KM @ 5200 obr./min
- Engine model / code
- 2ZR-FXE
- Engine position
- Front, Transverse
- Engine displacement
- 1798 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 80.5 mm
- Piston stroke
- 88.3 mm
- Compression ratio
- 13.04
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.2 l
- Coolant capacity
- 6 l
- Power
- 98 KM
- Torque
- 142 Nm @ 3600 obr./min
Volume and weight
- Fuel tank
- 43 l
- Minimum trunk capacity
- 501 l
- Curb weight
- 1375 kg
- Gross weight
- 1790 kg
- Trailer load without brakes
- 725 kg
Vehicle dimensions
- Length
- 4540 mm
- Width
- 1760 mm
- Height
- 1470 mm
- Wheelbase
- 2700 mm
- Front track
- 1530-1510 mm
- Rear track
- 1520-1540 mm
- Ground clearance
- 123-136 mm
- Turning circle
- 10.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Type of automatic gearbox
- e-CVT
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15; 215/45 R17
- Rim size
- 6.5J x 15; 7J x 17
- ABS
- yes
Selected engine version

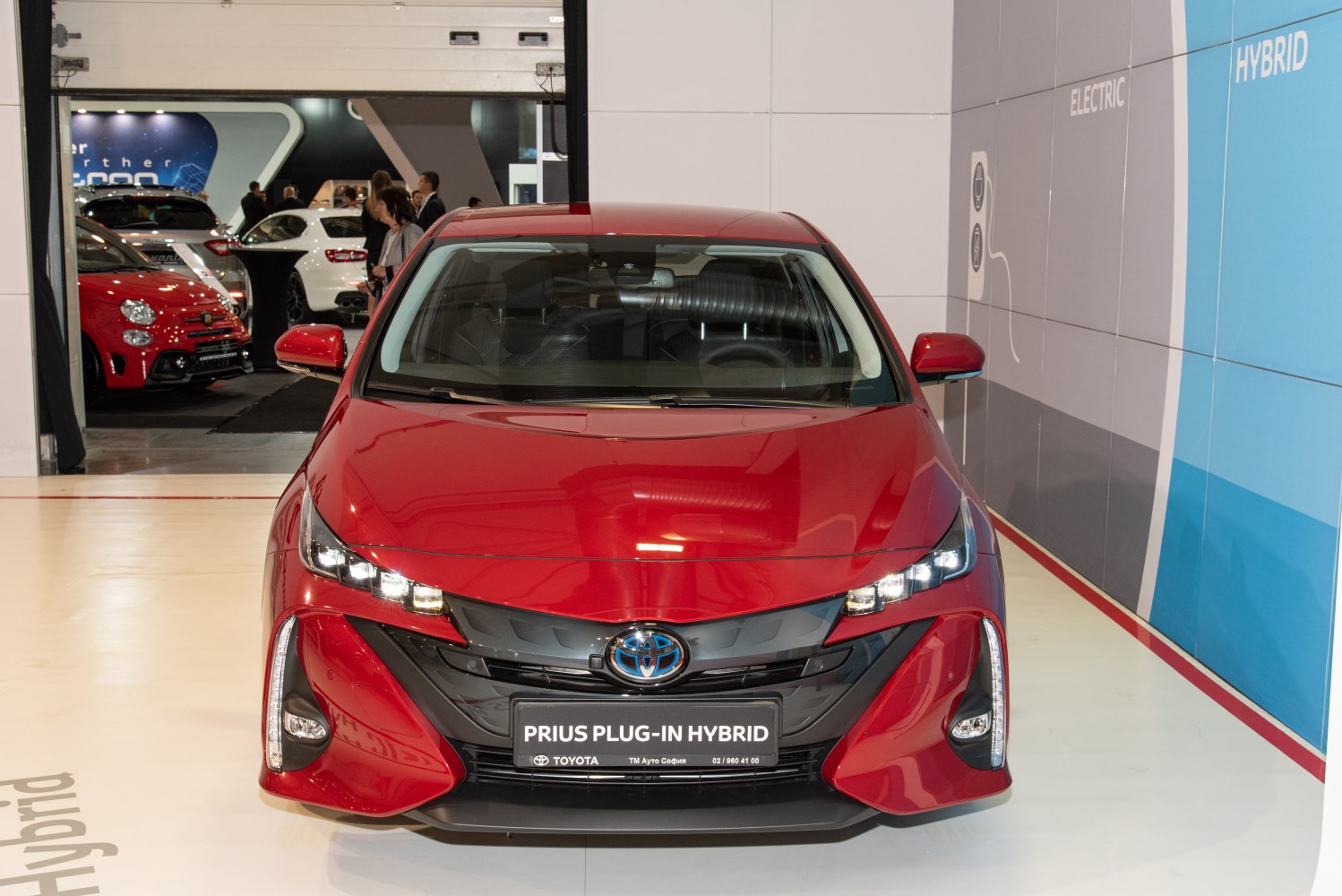

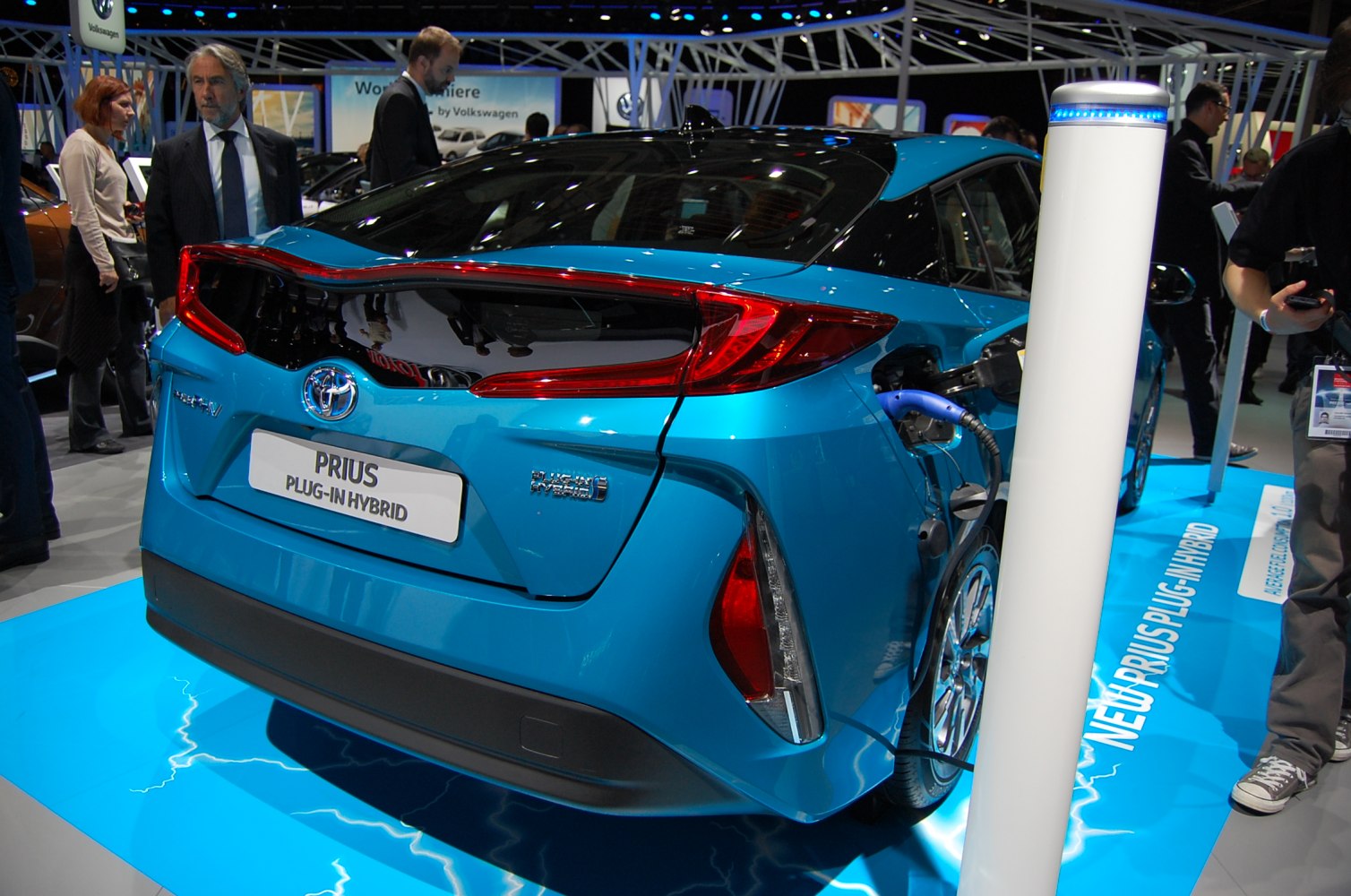

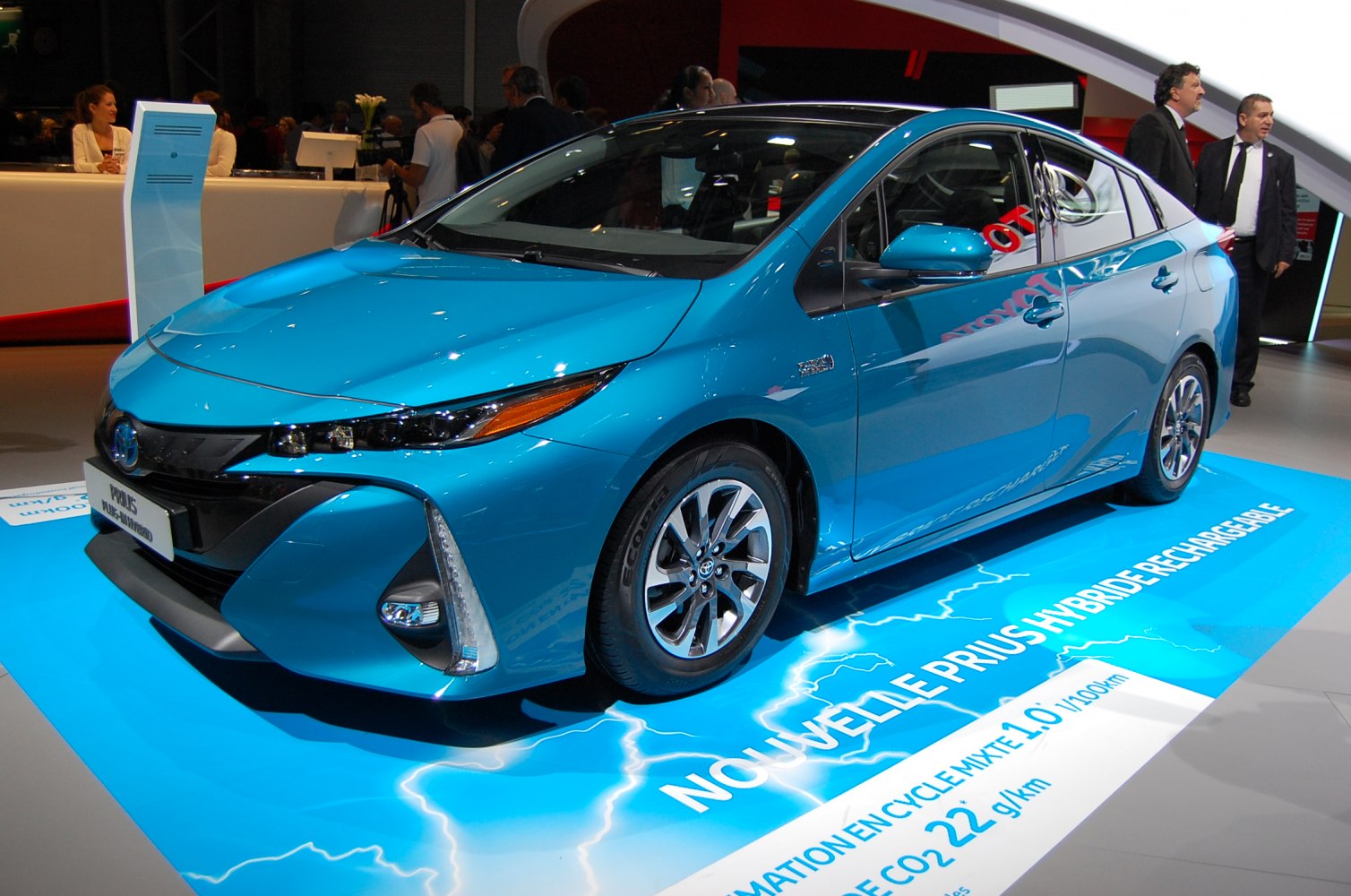

1.8 (122 KM) Plug-in Hybrid e-CVT
Gasoline / Electricity · 2016–2018
- Engine power
- 98 KM
- Torque
- 142 Nm
- Engine displacement
- 1,798 cm³
- Fuel type
- Gasoline / Electricity
- Acceleration 0-100 km/h
- 11.1 s
- Maximum speed
- 162 km/h
On this page
Check vehicle history
Basic version information
Toyota Prius Prius IV (XW50)- Brand
- Toyota
- Model
- Prius
- Version
- Prius IV (XW50)
- Engine
- 1.8 (122 KM) Plug-in Hybrid e-CVT
- Engine type
- PHEV (Plug-in Hybrid Electric Vehicle)
- Number of doors
- 5
- Start of production
- 2016
- End of production
- 2018
- Body type
- Liftback
- Number of seats
- 5
- Fuel type
- Gasoline / Electricity
Performance
- Maximum speed
- 162 km/h
- Acceleration 0-100 km/h
- 11.1 s
- Battery gross capacity
- 8.8 kWh
- Electric range measurement standard
- WLTP
- All-electric range
- 45 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Urban cycle
- 4.3-4.6 l/100 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Extra-urban cycle
- 4.6-5 l/100 km
- Fuel consumption measurement standard
- WLTP
- Fuel consumption - Combined cycle
- 1.3-1.5 l/100 km
- Energy consumption measurement standard
- WLTP
- Average energy consumption
- 10 kWh/100 km
- Emission standard
- Euro 6
- CO2 measurement standard
- WLTP
- CO2 emissions
- 28-35 g/km
Engine
- Max electric motor power
- 72 KM
- 2nd electric motor max power
- 31 KM
- Electric motor torque
- 163 Nm
- 2nd electric motor torque
- 40 Nm
- Electric motor position
- Front, Transverse
- 2nd electric motor position
- Front, Transverse
- System power
- 122 KM
- Engine model / code
- 2ZR-FXE
- Engine position
- Front, Transverse
- Engine displacement
- 1798 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC, VVT-i
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 80.5 mm
- Piston stroke
- 88.3 mm
- Compression ratio
- 13
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.2 l
- Coolant capacity
- 6 l
- Power
- 98 KM @ 5200 obr./min
- Torque
- 142 Nm @ 3600 obr./min
Volume and weight
- Fuel tank
- 43 l
- Aerodynamic drag coefficient (Cx)
- 0.25
- Minimum trunk capacity
- 191 l
- Maximum trunk capacity
- 1204 l
- Curb weight
- 1530-1550 kg
- Gross weight
- 1930 kg
- Roof load
- 75 kg
Vehicle dimensions
- Length
- 4645 mm
- Width
- 1760 mm
- Height
- 1470 mm
- Wheelbase
- 2700 mm
- Front track
- 1530 mm
- Rear track
- 1545 mm
- Front overhang
- 975 mm
- Rear overhang
- 970 mm
- Turning circle
- 10.2 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Type of automatic gearbox
- e-CVT
- Front suspension
- Independent McPherson type
- Rear suspension
- Double wishbone, Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15; 215/45R17
- Rim size
- 6J x 15; 7J x 17
- ABS
- yes
