Vehicle specifications

Volkswagen Touran I

Compare all 16 engine versions of the Volkswagen Touran Touran I, then open the technical data for the exact drivetrain and production year.

Vehicle history report

Buying a used Volkswagen Touran I? Check the history of the exact car

A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

What is a VIN?

Where can I find the VIN of Volkswagen Touran I?

See the places on a 3D model →
VIN number
Under the front seat, right side
Identification plate
B-pillar, left side
1 of 6

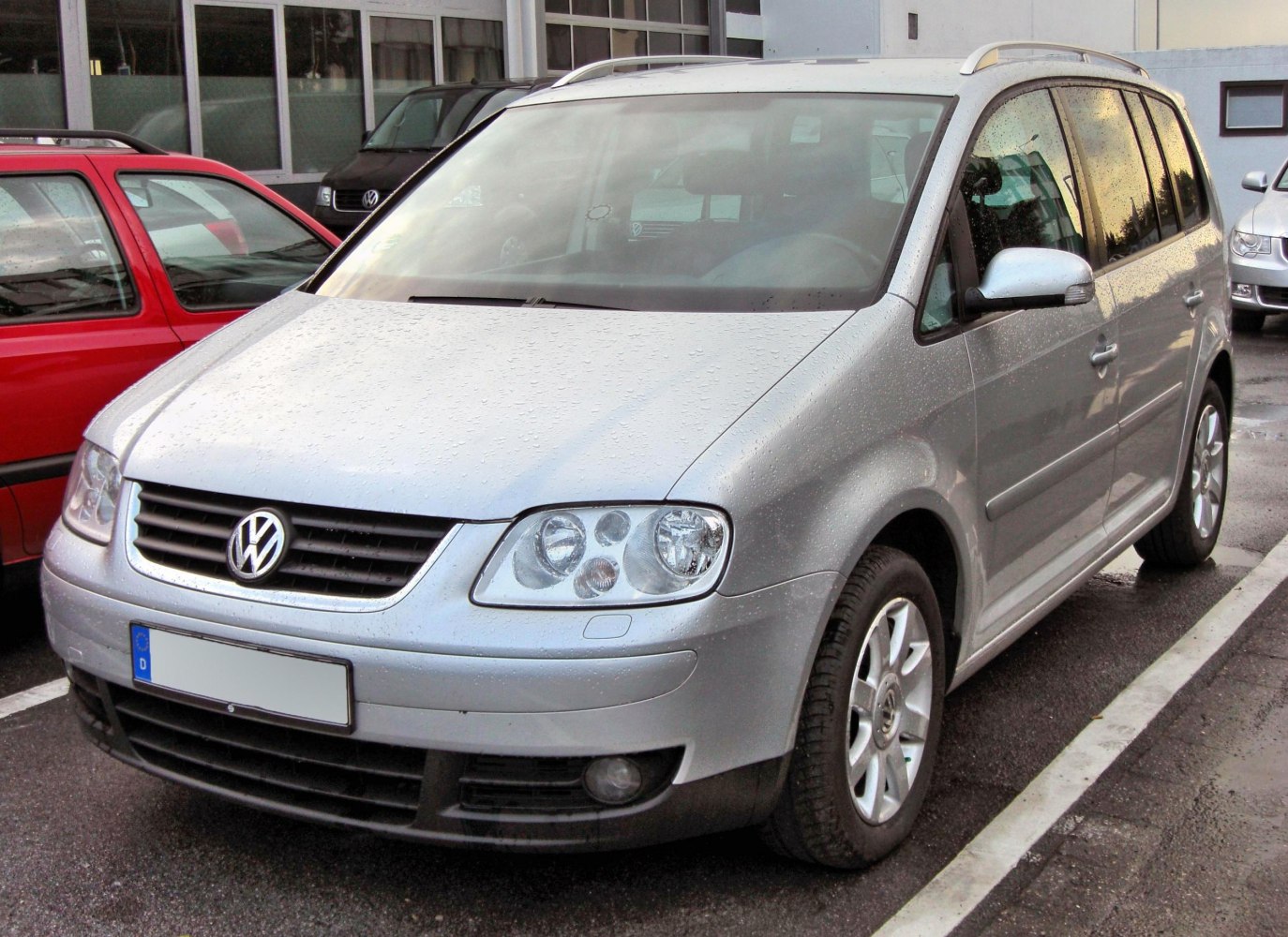

Volkswagen Touran Touran I View larger
Photo: M 93, CC BY-SA 3.0 <https://creativecommons.org/licenses/by-sa/3.0>, via Wikimedia Commons

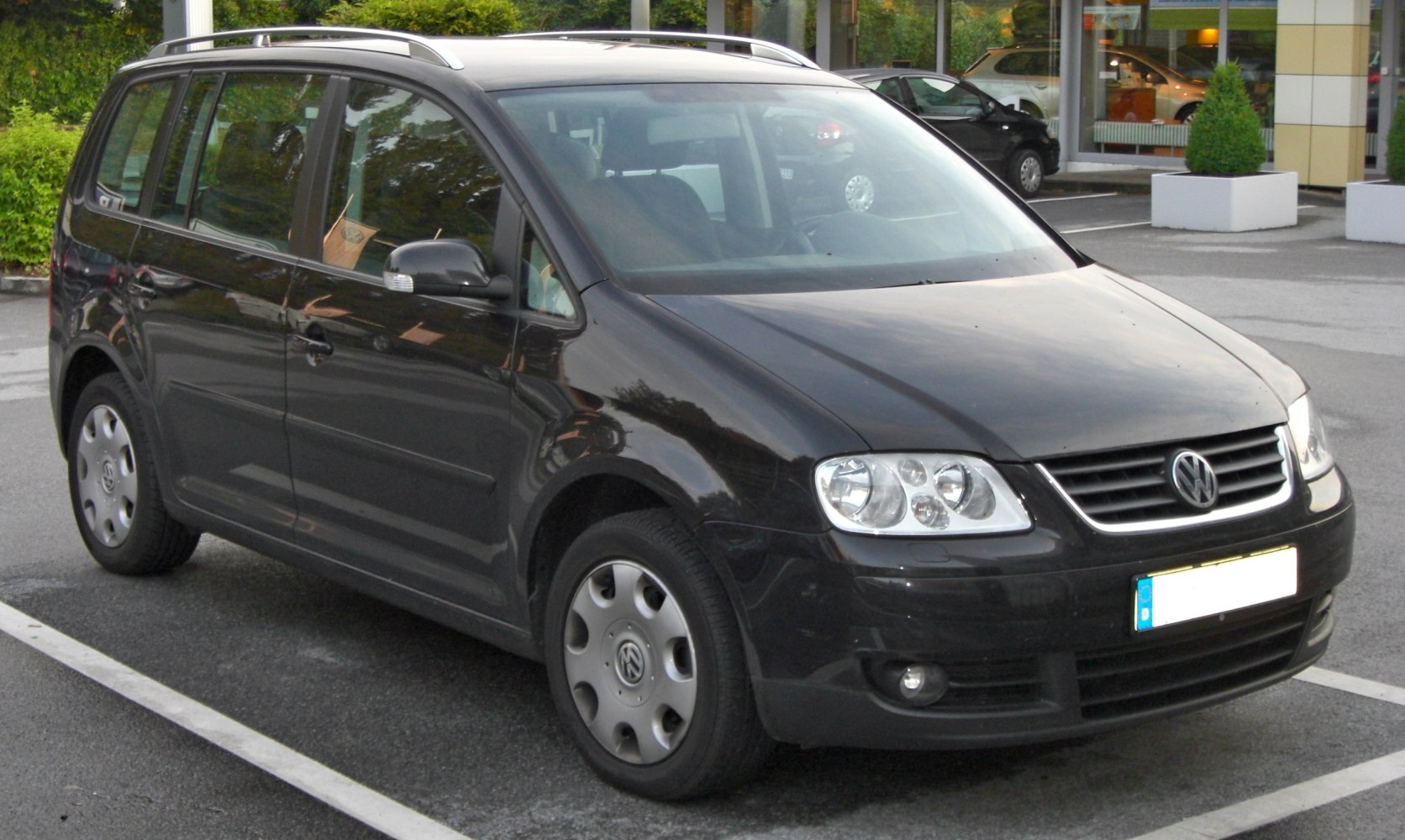

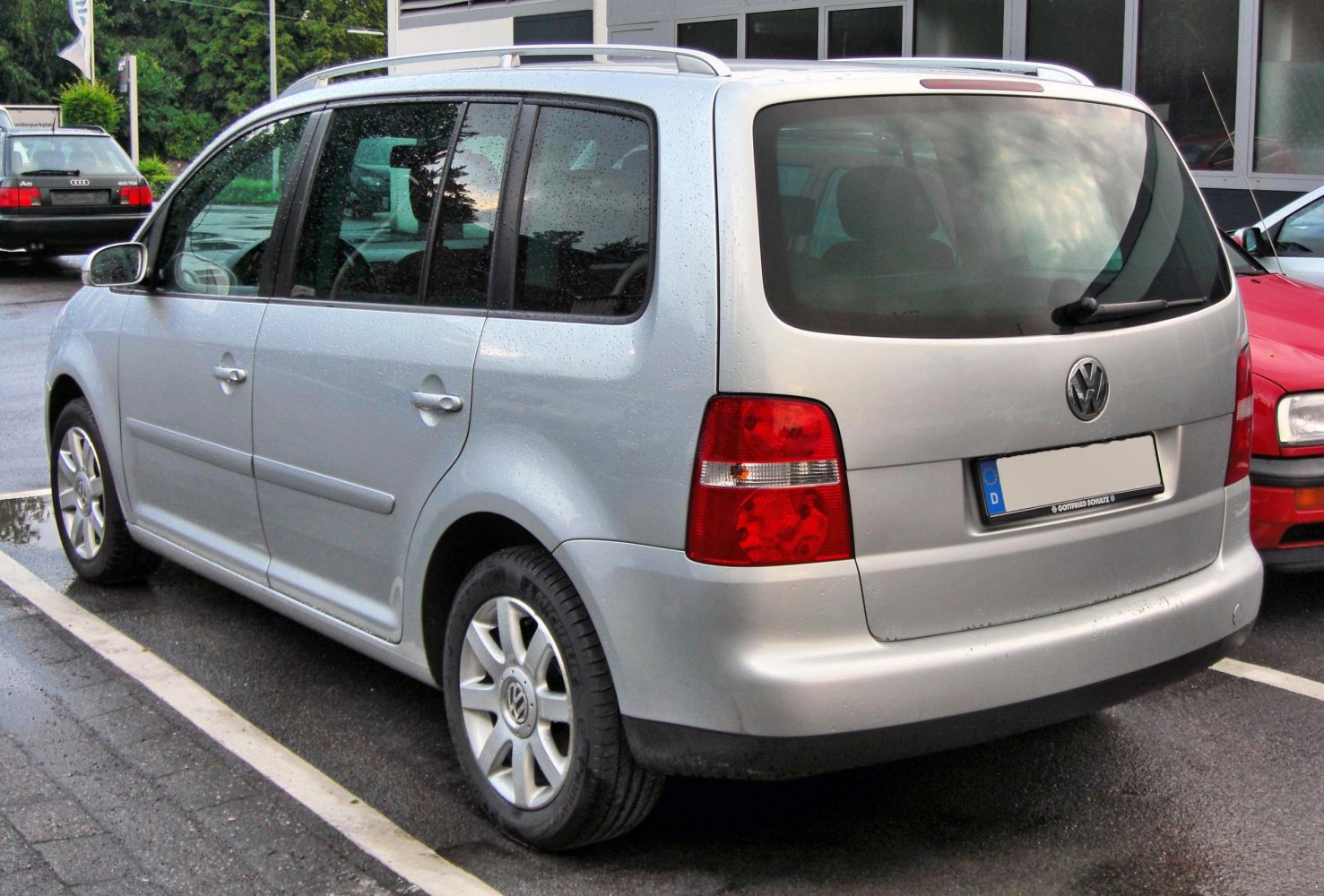

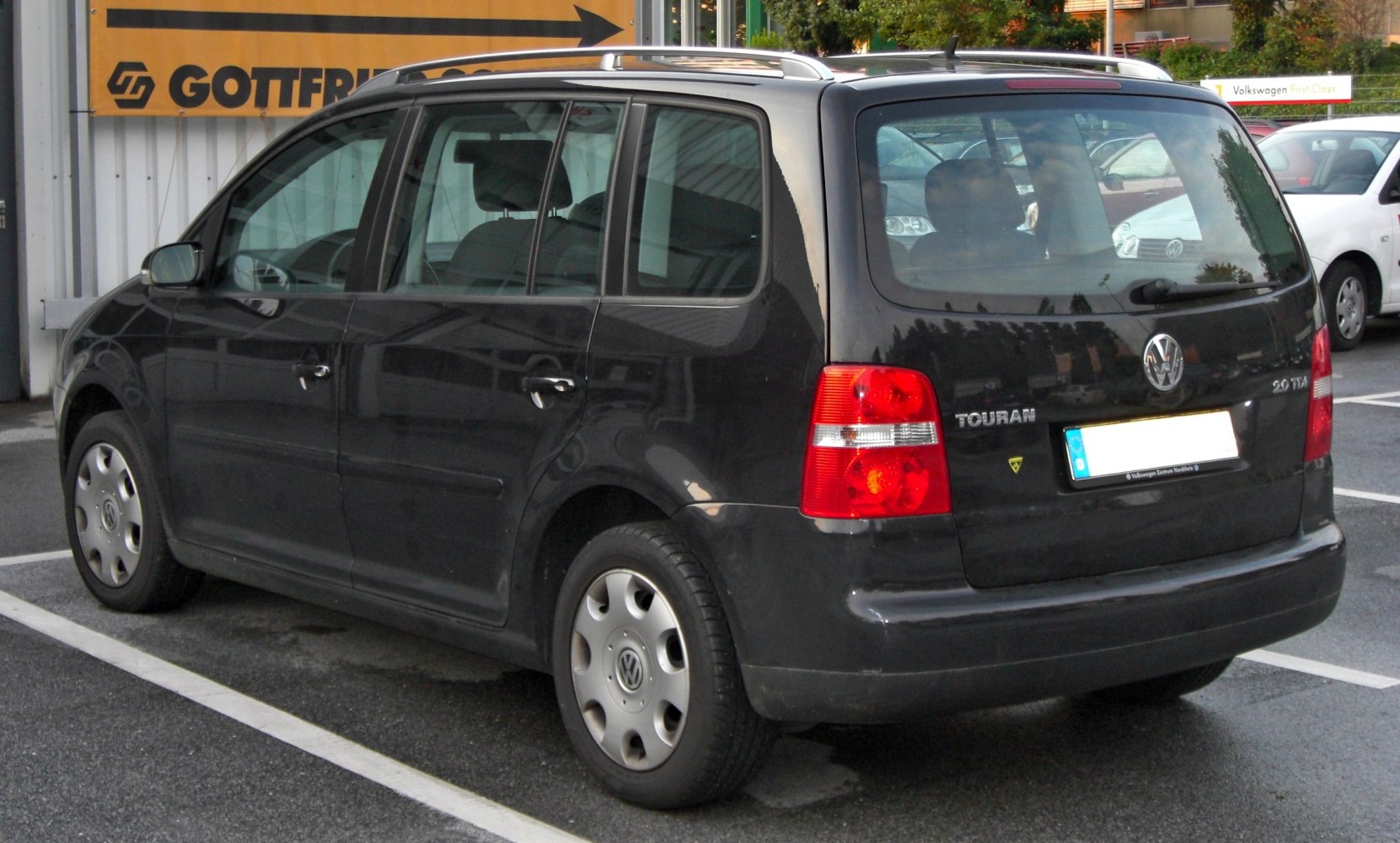

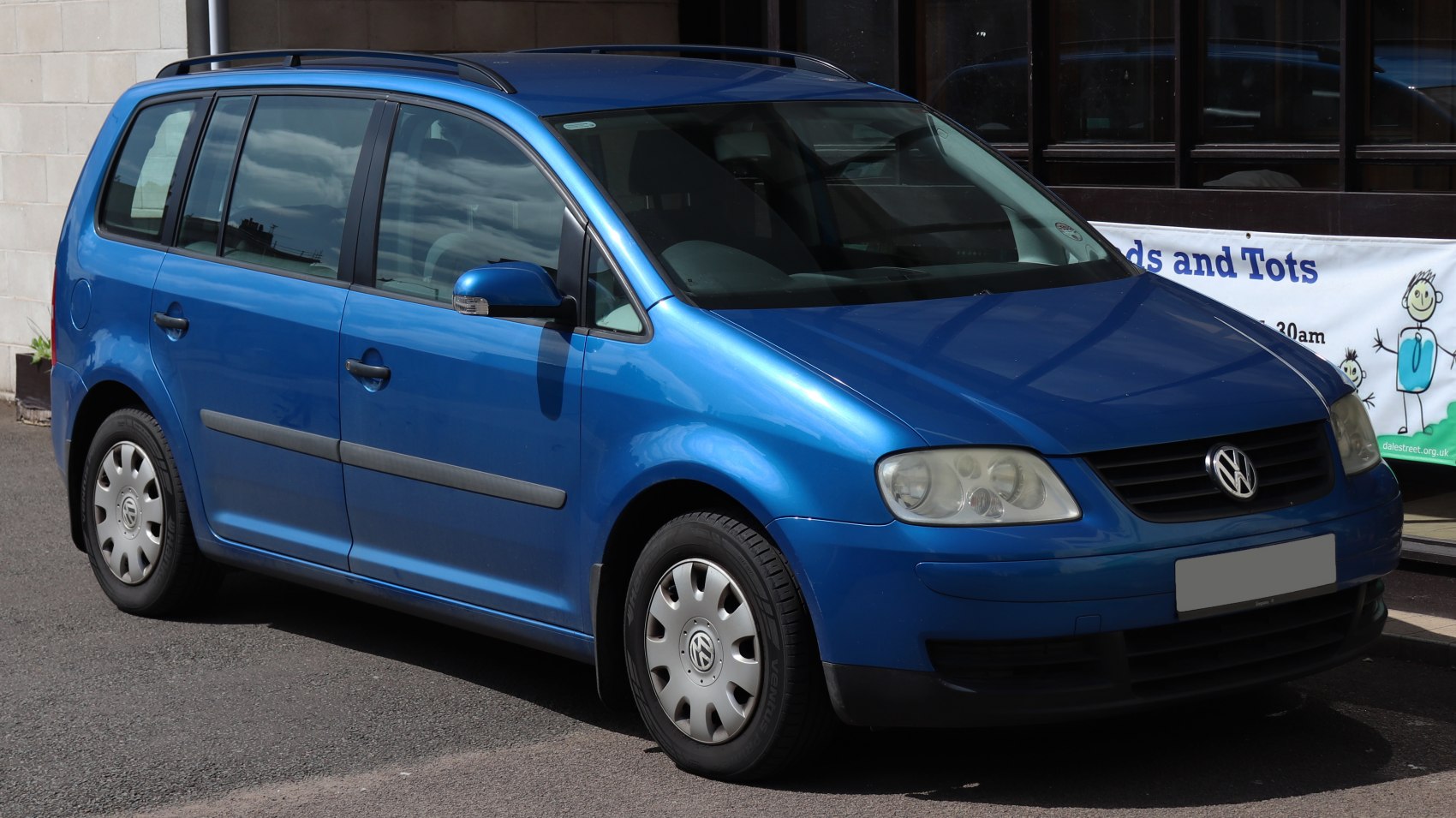

Vehicle gallery

Volkswagen Touran Touran I

Photo: M 93, CC BY-SA 3.0 <https://creativecommons.org/licenses/by-sa/3.0>, via Wikimedia Commons

Choose a drivetrain

Engine versions

Select a row to update the key figures and detailed specifications below.

16 versions · 6 Gasoline · 10 Diesel fuel

Engine Fuel Power Production
1.6 FSI (115 KM) Selected Gasoline 115 KM 2003–2006
1.6 i (102 KM) Selected Gasoline 102 KM 2003–2006
1.9 TDI (100 KM) Selected Diesel fuel 100 KM 2003–2004
1.9 TDI (90 KM) Selected Diesel fuel 90 KM 2004–2006
2.0 FSI (150 KM) Selected Gasoline 150 KM 2003–2006
2.0 TDI (136 KM) Selected Diesel fuel 136 KM 2003–2004
2.0 TDI 16V (140 KM) DSG Selected Diesel fuel 140 KM 2004–2006
2.0 TDI (136 KM) Automatic Selected Diesel fuel 136 KM 2003–2004
1.9 TDI (100 KM) Automatic Selected Diesel fuel 100 KM 2003–2004
1.4 TSI (140 KM) Selected Gasoline 140 KM 2006
1.9 TDI (105 KM) Selected Diesel fuel 105 KM 2004–2006
2.0 TDI 16V (140 KM) Selected Diesel fuel 140 KM 2004–2006
1.6 FSI (115 KM) Tiptronic Selected Gasoline 115 KM 2003–2006
2.0 FSI (150 KM) Tiptronic Selected Gasoline 150 KM 2005–2006
2.0 TDI (170 KM) DPF Selected Diesel fuel 170 KM 2006
2.0 TDI (170 KM) DPF DSG Selected Diesel fuel 170 KM 2006

Selected engine version

1.6 FSI (115 KM)

Gasoline · 2003–2006

Engine power
115 KM
Torque
155 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
11.9 s
Maximum speed
186 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Touran
Version
Touran I
Engine
1.6 FSI (115 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2003
End of production
2006
Body type
Minivan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
186 km/h
Acceleration 0-100 km/h
11.9 s
Fuel consumption - Urban cycle
9.7-10 l/100 km
Fuel consumption - Extra-urban cycle
6.4-6.6 l/100 km
Fuel consumption - Combined cycle
7.6-7.9 l/100 km
CO2 emissions
182-190 g/km

Engine

Engine model / code
EA111/BAG, BLF, BLP
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Direct injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
76.5 mm
Piston stroke
86.9 mm
Compression ratio
12
Number of valves per cylinder
4
Engine oil capacity
3.6 l
Power
115 KM @ 6000 obr./min
Torque
155 Nm @ 4000 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.315
Minimum trunk capacity
695 l
Maximum trunk capacity
1989 l
Curb weight
1423 kg
Gross weight
2090 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1300 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4391 mm
Width
1794 mm
Width with unfolded mirrors
2066 mm
Height
1635 mm
Wheelbase
2677 mm
Front track
1539 mm
Rear track
1521 mm
Turning circle
11.2 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Coil spring
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/55 R16; 225/45 R17
Rim size
6.5J x 16; 7J x 17
ABS
yes

Selected engine version

1.6 i (102 KM)

Gasoline · 2003–2006

Engine power
102 KM
Torque
148 Nm
Engine displacement
1,595 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
12.9 s
Maximum speed
179 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Touran
Version
Touran I
Engine
1.6 i (102 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2003
End of production
2006
Body type
Minivan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
179 km/h
Acceleration 0-100 km/h
12.9 s
Fuel consumption - Urban cycle
11.1 l/100 km
Fuel consumption - Extra-urban cycle
6.4 l/100 km
Fuel consumption - Combined cycle
8.1 l/100 km
CO2 emissions
194 g/km

Engine

Engine model / code
EA113/BGU, BSE, BSF
Engine position
Front, Transverse
Engine displacement
1595 cm³
Fuel injection system
Multi-point injection
Engine type
Naturally aspirated engine
Valvetrain
SOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
77.4 mm
Compression ratio
10.5
Number of valves per cylinder
2
Engine oil capacity
4.5 l
Power
102 KM @ 5600 obr./min
Torque
148 Nm @ 3800 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.315
Minimum trunk capacity
695 l
Maximum trunk capacity
1989 l
Curb weight
1427 kg
Gross weight
2090 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1200 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4391 mm
Width
1794 mm
Width with unfolded mirrors
2066 mm
Height
1635 mm
Wheelbase
2677 mm
Front track
1539 mm
Rear track
1521 mm
Turning circle
11.2 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Coil spring
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
195/65 R15; 205/55 R16; 225/45 R17
Rim size
6J x 15; 6.5J x 16; 7J x 17
ABS
yes

Selected engine version

1.9 TDI (100 KM)

Diesel fuel · 2003–2004

Engine power
100 KM
Torque
250 Nm
Engine displacement
1,896 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
13.5 s
Maximum speed
177 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Touran
Version
Touran I
Engine
1.9 TDI (100 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2003
End of production
2004
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
177 km/h
Acceleration 0-100 km/h
13.5 s
Fuel consumption - Urban cycle
7.4 l/100 km
Fuel consumption - Extra-urban cycle
5.2 l/100 km
Fuel consumption - Combined cycle
5.9 l/100 km
CO2 emissions
159 g/km

Engine

Engine model / code
EA188/AVQ
Engine position
Front, Transverse
Engine displacement
1896 cm³
Fuel injection system
Unit injector
Engine type
Turbocharger, Intercooler
Valvetrain
SOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
95.5 mm
Compression ratio
19
Number of valves per cylinder
2
Engine oil capacity
3.8 l
Coolant capacity
8 l
Power
100 KM @ 4000 obr./min
Torque
250 Nm @ 1900 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.315
Minimum trunk capacity
695 l
Maximum trunk capacity
1989 l
Curb weight
1498 kg
Gross weight
2160 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4391 mm
Width
1794 mm
Width with unfolded mirrors
2066 mm
Height
1635 mm
Wheelbase
2677 mm
Front track
1539 mm
Rear track
1521 mm
Turning circle
11.2 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Coil spring
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
195/65 R15; 205/55 R16; 225/45 R17
Rim size
6J x 15; 6.5J x 16; 7J x 17
ABS
yes

Selected engine version

1.9 TDI (90 KM)

Diesel fuel · 2004–2006

Engine power
90 KM
Torque
210 Nm
Engine displacement
1,896 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
14.9 s
Maximum speed
171 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Touran
Version
Touran I
Engine
1.9 TDI (90 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2004
End of production
2006
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
171 km/h
Acceleration 0-100 km/h
14.9 s
Fuel consumption measurement standard
NEDC
Fuel consumption - Urban cycle
7.5 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Extra-urban cycle
5.3 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Combined cycle
6 l/100 km
Emission standard
Euro 4
CO2 measurement standard
NEDC
CO2 emissions
162 g/km

Engine

Engine model / code
EA188/BRU, BXF, BXJ
Engine position
Front, Transverse
Engine displacement
1896 cm³
Fuel injection system
Unit injector
Engine type
Turbocharger, Intercooler
Valvetrain
SOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
95.5 mm
Compression ratio
19.5
Number of valves per cylinder
2
Engine oil capacity
3.8 l
Coolant capacity
8 l
Power
90 KM @ 4000 obr./min
Torque
210 Nm @ 1800 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.315
Minimum trunk capacity
695 l
Maximum trunk capacity
1989 l
Curb weight
1498 kg
Gross weight
2160 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1300 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4391 mm
Width
1794 mm
Width with unfolded mirrors
2066 mm
Height
1635 mm
Wheelbase
2677 mm
Front track
1539 mm
Rear track
1521 mm
Turning circle
11.2 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Front brake disc/drum diameter
288 mm
Front brake disc thickness
25 mm
Rear brakes
Disc
Rear brake disc/drum diameter
260 mm
Rear brake disc thickness
12 mm
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
195/65 R15; 205/55 R16; 225/45 R17
Rim size
6J x 15; 6.5J x 16; 7J x 17
ABS
yes

Selected engine version

2.0 FSI (150 KM)

Gasoline · 2003–2006

Engine power
150 KM
Torque
200 Nm
Engine displacement
1,984 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
10.4 s
Maximum speed
201 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Touran
Version
Touran I
Engine
2.0 FSI (150 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2003
End of production
2006
Body type
Minivan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
201 km/h
Acceleration 0-100 km/h
10.4 s
Fuel consumption - Urban cycle
11 l/100 km
Fuel consumption - Extra-urban cycle
6.4 l/100 km
Fuel consumption - Combined cycle
8.1 l/100 km
CO2 emissions
194 g/km

Engine

Engine model / code
EA113/AXW, BLR, BLX, BVY
Engine position
Front, Transverse
Engine displacement
1984 cm³
Fuel injection system
Direct injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
92.8 mm
Compression ratio
10.5
Number of valves per cylinder
4
Engine oil capacity
4.6 l
Coolant capacity
8 l
Power
150 KM @ 6000 obr./min
Torque
200 Nm @ 3500 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.315
Minimum trunk capacity
695 l
Maximum trunk capacity
1989 l
Curb weight
1509 kg
Gross weight
2170 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4391 mm
Width
1794 mm
Width with unfolded mirrors
2066 mm
Height
1635 mm
Wheelbase
2677 mm
Front track
1539 mm
Rear track
1521 mm
Turning circle
11.2 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Coil spring
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/55 R16; 225/45 R17
Rim size
6.5J x 16; 7J x 17
ABS
yes

Selected engine version

2.0 TDI (136 KM)

Diesel fuel · 2003–2004

Engine power
136 KM
Torque
320 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.6 s
Maximum speed
197 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Touran
Version
Touran I
Engine
2.0 TDI (136 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2003
End of production
2004
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
197 km/h
Acceleration 0-100 km/h
10.6 s
Fuel consumption - Urban cycle
7.6 l/100 km
Fuel consumption - Extra-urban cycle
5.2 l/100 km
Fuel consumption - Combined cycle
6 l/100 km
CO2 emissions
162 g/km

Engine

Engine model / code
EA188/AZV
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Unit injector
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
18
Number of valves per cylinder
4
Engine oil capacity
3.8 l
Coolant capacity
8 l
Power
136 KM @ 4000 obr./min
Torque
320 Nm @ 1750 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.315
Minimum trunk capacity
695 l
Maximum trunk capacity
1989 l
Curb weight
1561 kg
Gross weight
2210 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4391 mm
Width
1794 mm
Width with unfolded mirrors
2066 mm
Height
1635 mm
Wheelbase
2677 mm
Front track
1539 mm
Rear track
1521 mm
Turning circle
11.2 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Coil spring
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/55 R16; 225/45 R17
Rim size
6.5J x 16; 7J x 17
ABS
yes

Selected engine version

2.0 TDI 16V (140 KM) DSG

Diesel fuel · 2004–2006

Engine power
140 KM
Torque
320 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.6 s
Maximum speed
197 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Touran
Version
Touran I
Engine
2.0 TDI 16V (140 KM) DSG
Engine type
Combustion engine
Number of doors
5
Start of production
2004
End of production
2006
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
197 km/h
Acceleration 0-100 km/h
10.6 s
Fuel consumption - Urban cycle
8.3 l/100 km
Fuel consumption - Extra-urban cycle
5.4 l/100 km
Fuel consumption - Combined cycle
6.5 l/100 km
Emission standard
Euro 4
CO2 emissions
176 g/km

Engine

Engine model / code
EA188/BKD
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Unit injector
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
18.5
Number of valves per cylinder
4
Engine oil capacity
3.8 l
Coolant capacity
8 l
Power
140 KM @ 4000 obr./min
Torque
320 Nm @ 1750 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.315
Minimum trunk capacity
695 l
Maximum trunk capacity
1989 l
Curb weight
1592 kg
Gross weight
2240 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4391 mm
Width
1794 mm
Width with unfolded mirrors
2066 mm
Height
1635 mm
Wheelbase
2677 mm
Front track
1539 mm
Rear track
1521 mm
Turning circle
11.2 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Type of automatic gearbox
DSG
Front suspension
Coil spring
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/55 R16; 225/45 R17
Rim size
6.5J x 16; 7J x 17
ABS
yes

Selected engine version

2.0 TDI (136 KM) Automatic

Diesel fuel · 2003–2004

Engine power
136 KM
Torque
320 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.6 s
Maximum speed
195 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Touran
Version
Touran I
Engine
2.0 TDI (136 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2003
End of production
2004
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
195 km/h
Acceleration 0-100 km/h
10.6 s
Fuel consumption - Urban cycle
7.6 l/100 km
Fuel consumption - Extra-urban cycle
5.2 l/100 km
Fuel consumption - Combined cycle
6 l/100 km

Engine

Engine model / code
EA188/AZV
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Unit injector
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
18
Number of valves per cylinder
4
Engine oil capacity
3.8 l
Coolant capacity
8 l
Power
136 KM @ 4000 obr./min
Torque
320 Nm @ 1750 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.315
Minimum trunk capacity
695 l
Maximum trunk capacity
1989 l
Curb weight
1561 kg
Gross weight
2210 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4391 mm
Width
1794 mm
Width with unfolded mirrors
2066 mm
Height
1635 mm
Wheelbase
2677 mm
Front track
1539 mm
Rear track
1521 mm
Turning circle
11.2 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Coil spring
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
205/55 R16; 225/45 R17
Rim size
6.5J x 16; 7J x 17
ABS
yes

Selected engine version

1.9 TDI (100 KM) Automatic

Diesel fuel · 2003–2004

Engine power
100 KM
Torque
250 Nm
Engine displacement
1,896 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
13.5 s
Maximum speed
175 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Touran
Version
Touran I
Engine
1.9 TDI (100 KM) Automatic
Engine type
Combustion engine
Number of doors
5
Start of production
2003
End of production
2004
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
175 km/h
Acceleration 0-100 km/h
13.5 s
Fuel consumption - Urban cycle
7.6 l/100 km
Fuel consumption - Extra-urban cycle
5.2 l/100 km

Engine

Engine model / code
EA188/AVQ
Engine position
Front, Transverse
Engine displacement
1896 cm³
Fuel injection system
Unit injector
Engine type
Turbocharger, Intercooler
Valvetrain
SOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
95.5 mm
Compression ratio
19
Number of valves per cylinder
2
Engine oil capacity
3.8 l
Coolant capacity
8 l
Power
100 KM @ 4000 obr./min
Torque
250 Nm @ 1900 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.315
Minimum trunk capacity
695 l
Maximum trunk capacity
1989 l
Curb weight
1580 kg
Gross weight
2250 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4391 mm
Width
1794 mm
Width with unfolded mirrors
2066 mm
Height
1635 mm
Wheelbase
2677 mm
Front track
1539 mm
Rear track
1521 mm
Turning circle
11.2 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
5
Front suspension
Coil spring
Rear suspension
With spring struts
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Tire size
195/65 R15; 205/55 R16; 225/45 R17
Rim size
6J x 15; 6.5J x 16; 7J x 17
ABS
yes

Selected engine version

1.4 TSI (140 KM)

Gasoline · 2006

Engine power
140 KM
Torque
220 Nm
Engine displacement
1,390 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
9.8 s
Maximum speed
200 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Touran
Version
Touran I
Engine
1.4 TSI (140 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2006
End of production
2006
Body type
Minivan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
200 km/h
Acceleration 0-100 km/h
9.8 s
Fuel consumption measurement standard
NEDC
Fuel consumption - Urban cycle
9.8 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Extra-urban cycle
6.2 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Combined cycle
7.5 l/100 km
Emission standard
Euro 4
CO2 measurement standard
NEDC
CO2 emissions
180 g/km

Engine

Engine model / code
EA111/BMY
Engine position
Front, Transverse
Engine displacement
1390 cm³
Fuel injection system
Direct injection
Engine type
Turbo kompresor i Kompresor, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
76.5 mm
Piston stroke
75.6 mm
Compression ratio
10
Number of valves per cylinder
4
Engine oil capacity
3.6 l
Coolant capacity
5.6 l
Power
140 KM @ 5600 obr./min
Torque
220 Nm @ 1750 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.315
Minimum trunk capacity
695 l
Maximum trunk capacity
1989 l
Curb weight
1478 kg
Gross weight
2150 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4391 mm
Width
1794 mm
Width with unfolded mirrors
2066 mm
Height
1635 mm
Wheelbase
2677 mm
Front track
1539 mm
Rear track
1521 mm
Turning circle
11.2 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Coil spring, Lateral control arm, Anti-roll bar
Rear suspension
Independent multi-link suspension, Anti-roll bar
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 225/45 R17
Rim size
6.5J x 16; 7J x 17
ABS
yes

Selected engine version

1.9 TDI (105 KM)

Diesel fuel · 2004–2006

Engine power
105 KM
Torque
250 Nm
Engine displacement
1,896 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
13.2 s
Maximum speed
177 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Touran
Version
Touran I
Engine
1.9 TDI (105 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2004
End of production
2006
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
177 km/h
Acceleration 0-100 km/h
13.2 s
Fuel consumption measurement standard
NEDC
Fuel consumption - Urban cycle
7.5 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Extra-urban cycle
5.3 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Combined cycle
6 l/100 km
Emission standard
Euro 4
CO2 measurement standard
NEDC
CO2 emissions
162 g/km

Engine

Engine model / code
EA188/BXE
Engine position
Front, Transverse
Engine displacement
1896 cm³
Fuel injection system
Unit injector
Engine type
Turbocharger, Intercooler
Valvetrain
SOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
79.5 mm
Piston stroke
95.5 mm
Compression ratio
19
Number of valves per cylinder
2
Engine oil capacity
3.8 l
Coolant capacity
8 l
Power
105 KM @ 4000 obr./min
Torque
250 Nm @ 1900 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.315
Minimum trunk capacity
695 l
Maximum trunk capacity
1989 l
Curb weight
1498 kg
Gross weight
2160 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4391 mm
Width
1794 mm
Width with unfolded mirrors
2066 mm
Height
1635 mm
Wheelbase
2677 mm
Front track
1539 mm
Rear track
1521 mm
Turning circle
11.2 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Coil spring, Lateral control arm, Anti-roll bar
Rear suspension
Independent multi-link suspension, Anti-roll bar
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
195/65 R15; 205/55 R16; 225/45 R17
Rim size
6J x 15; 6.5J x 16; 7J x 17
ABS
yes

Selected engine version

2.0 TDI 16V (140 KM)

Diesel fuel · 2004–2006

Engine power
140 KM
Torque
320 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
10.2 s
Maximum speed
200 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Touran
Version
Touran I
Engine
2.0 TDI 16V (140 KM)
Engine type
Combustion engine
Number of doors
5
Start of production
2004
End of production
2006
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
200 km/h
Acceleration 0-100 km/h
10.2 s
Fuel consumption measurement standard
NEDC
Fuel consumption - Urban cycle
7.6 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Extra-urban cycle
5.2 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Combined cycle
6 l/100 km
Emission standard
Euro 4
CO2 measurement standard
NEDC
CO2 emissions
162 g/km

Engine

Engine model / code
EA188/BKD
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Unit injector
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
18
Number of valves per cylinder
4
Engine oil capacity
3.8 l
Coolant capacity
8 l
Power
140 KM @ 4000 obr./min
Torque
320 Nm @ 1750 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.315
Minimum trunk capacity
695 l
Maximum trunk capacity
1989 l
Curb weight
1558 kg
Gross weight
2210 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4391 mm
Width
1794 mm
Width with unfolded mirrors
2066 mm
Height
1635 mm
Wheelbase
2677 mm
Front track
1539 mm
Rear track
1521 mm
Turning circle
11.2 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Coil spring, Lateral control arm, Anti-roll bar
Rear suspension
Independent multi-link suspension, Anti-roll bar
Front brakes
Ventilated disc
Rear brakes
Disc
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 225/45 R17
Rim size
6.5J x 16; 7J x 17
ABS
yes

Selected engine version

1.6 FSI (115 KM) Tiptronic

Gasoline · 2003–2006

Engine power
115 KM
Torque
155 Nm
Engine displacement
1,598 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
13.2 s
Maximum speed
182 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Touran
Version
Touran I
Engine
1.6 FSI (115 KM) Tiptronic
Engine type
Combustion engine
Number of doors
5
Start of production
2003
End of production
2006
Body type
Minivan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
182 km/h
Acceleration 0-100 km/h
13.2 s
Fuel consumption measurement standard
NEDC
Fuel consumption - Urban cycle
10.7-11.1 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Extra-urban cycle
6.8-7 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Combined cycle
8.2-8.5 l/100 km
Emission standard
Euro 4
CO2 measurement standard
NEDC
CO2 emissions
197-204 g/km

Engine

Engine model / code
EA111/BAG, BLF, BLP
Engine position
Front, Transverse
Engine displacement
1598 cm³
Fuel injection system
Direct injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
76.5 mm
Piston stroke
86.9 mm
Compression ratio
12
Number of valves per cylinder
4
Engine oil capacity
3.6 l
Coolant capacity
5.6 l
Power
115 KM @ 5800 obr./min
Torque
155 Nm @ 4000 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.315
Minimum trunk capacity
695 l
Maximum trunk capacity
1989 l
Curb weight
1469-1470 kg
Gross weight
2130 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1300 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4391 mm
Width
1794 mm
Width with unfolded mirrors
2066 mm
Height
1635 mm
Wheelbase
2677 mm
Front track
1539 mm
Rear track
1521 mm
Turning circle
11.2 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Type of automatic gearbox
Tiptronic
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Front brake disc/drum diameter
288 mm
Front brake disc thickness
25 mm
Rear brakes
Disc
Rear brake disc/drum diameter
260 mm
Rear brake disc thickness
12 mm
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
195/65 R15; 205/55 R16; 225/45 R17
Rim size
6J x 15; 6.5J x 16; 7J x 17
ABS
yes

Selected engine version

2.0 FSI (150 KM) Tiptronic

Gasoline · 2005–2006

Engine power
150 KM
Torque
200 Nm
Engine displacement
1,984 cm³
Fuel type
Gasoline
Acceleration 0-100 km/h
11.2 s
Maximum speed
200 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Touran
Version
Touran I
Engine
2.0 FSI (150 KM) Tiptronic
Engine type
Combustion engine
Number of doors
5
Start of production
2005
End of production
2006
Body type
Minivan
Number of seats
5
Fuel type
Gasoline

Performance

Maximum speed
200 km/h
Acceleration 0-100 km/h
11.2 s
Fuel consumption measurement standard
NEDC
Fuel consumption - Urban cycle
12.9 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Extra-urban cycle
7.6 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Combined cycle
9.5 l/100 km
Emission standard
Euro 4
CO2 measurement standard
NEDC
CO2 emissions
228 g/km

Engine

Engine model / code
EA113/AXW, BLR, BLX, BVY
Engine position
Front, Transverse
Engine displacement
1984 cm³
Fuel injection system
Direct injection
Engine type
Naturally aspirated engine
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
82.5 mm
Piston stroke
92.8 mm
Compression ratio
11.5
Number of valves per cylinder
4
Engine oil capacity
4.6 l
Coolant capacity
8 l
Power
150 KM @ 6000 obr./min
Torque
200 Nm @ 3500 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.315
Minimum trunk capacity
695 l
Maximum trunk capacity
1989 l
Curb weight
1545 kg
Gross weight
2200 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1500 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4391 mm
Width
1794 mm
Width with unfolded mirrors
2066 mm
Height
1635 mm
Wheelbase
2677 mm
Front track
1539 mm
Rear track
1521 mm
Turning circle
11.2 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Type of automatic gearbox
Tiptronic
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Front brake disc/drum diameter
288 mm
Front brake disc thickness
25 mm
Rear brakes
Disc
Rear brake disc/drum diameter
260 mm
Rear brake disc thickness
12 mm
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 225/45 R17
Rim size
6.5J x 16; 7J x 17
ABS
yes

Selected engine version

2.0 TDI (170 KM) DPF

Diesel fuel · 2006

Engine power
170 KM
Torque
350 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9 s
Maximum speed
214 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Touran
Version
Touran I
Engine
2.0 TDI (170 KM) DPF
Engine type
Combustion engine
Number of doors
5
Start of production
2006
End of production
2006
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
214 km/h
Acceleration 0-100 km/h
9 s
Fuel consumption measurement standard
NEDC
Fuel consumption - Urban cycle
8.5 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Extra-urban cycle
5.6 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Combined cycle
6.6 l/100 km
Emission standard
Euro 4
CO2 measurement standard
NEDC
CO2 emissions
179 g/km

Engine

Engine model / code
EA188/BMN
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Unit injector
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
18.5
Number of valves per cylinder
4
Engine oil capacity
4.3 l
Coolant capacity
8 l
Power
170 KM @ 4200 obr./min
Torque
350 Nm @ 2000 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.315
Minimum trunk capacity
695 l
Maximum trunk capacity
1989 l
Curb weight
1551 kg
Gross weight
2210 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4391 mm
Width
1794 mm
Width with unfolded mirrors
2066 mm
Height
1635 mm
Wheelbase
2677 mm
Front track
1539 mm
Rear track
1521 mm
Turning circle
11.2 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Front brake disc/drum diameter
288 mm
Front brake disc thickness
25 mm
Rear brakes
Disc
Rear brake disc/drum diameter
260 mm
Rear brake disc thickness
12 mm
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 225/45 R17
Rim size
6.5J x 16; 7J x 17
ABS
yes

Selected engine version

2.0 TDI (170 KM) DPF DSG

Diesel fuel · 2006

Engine power
170 KM
Torque
350 Nm
Engine displacement
1,968 cm³
Fuel type
Diesel fuel
Acceleration 0-100 km/h
9.1 s
Maximum speed
212 km/h
On this page
Check vehicle history

Basic version information

Brand
Volkswagen
Model
Touran
Version
Touran I
Engine
2.0 TDI (170 KM) DPF DSG
Engine type
Combustion engine
Number of doors
5
Start of production
2006
End of production
2006
Body type
Minivan
Number of seats
5
Fuel type
Diesel fuel

Performance

Maximum speed
212 km/h
Acceleration 0-100 km/h
9.1 s
Fuel consumption measurement standard
NEDC
Fuel consumption - Urban cycle
8.8 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Extra-urban cycle
5.9 l/100 km
Fuel consumption measurement standard
NEDC
Fuel consumption - Combined cycle
7 l/100 km
Emission standard
Euro 4
CO2 measurement standard
NEDC
CO2 emissions
189 g/km

Engine

Engine model / code
EA188/BMN
Engine position
Front, Transverse
Engine displacement
1968 cm³
Fuel injection system
Unit injector
Engine type
Turbocharger, Intercooler
Valvetrain
DOHC
Engine configuration
Inline
Number of cylinders
4
Cylinder bore
81 mm
Piston stroke
95.5 mm
Compression ratio
18.5
Number of valves per cylinder
4
Engine oil capacity
4.3 l
Coolant capacity
8 l
Power
170 KM @ 4200 obr./min
Torque
350 Nm @ 2000 obr./min

Volume and weight

Fuel tank
60 l
Aerodynamic drag coefficient (Cx)
0.315
Minimum trunk capacity
695 l
Maximum trunk capacity
1989 l
Curb weight
1585 kg
Gross weight
2240 kg
Roof load
100 kg
Braked trailer load (12% slope start)
1600 kg
Trailer load without brakes
750 kg
Trailer nose weight
75 kg

Vehicle dimensions

Length
4391 mm
Width
1794 mm
Width with unfolded mirrors
2066 mm
Height
1635 mm
Wheelbase
2677 mm
Front track
1539 mm
Rear track
1521 mm
Turning circle
11.2 m

Drivetrain, Brakes and suspension

Drive
Front-wheel drive
Number of gears
6
Type of automatic gearbox
DSG
Front suspension
Independent, McPherson type with coil spring and stabilizer bar
Rear suspension
Independent multi-link coil spring suspension with stabilizer
Front brakes
Ventilated disc
Front brake disc/drum diameter
288 mm
Front brake disc thickness
25 mm
Rear brakes
Disc
Rear brake disc/drum diameter
260 mm
Rear brake disc thickness
12 mm
Steering system
Rack-and-pinion
Power steering
Electric power steering
Tire size
205/55 R16; 225/45 R17
Rim size
6.5J x 16; 7J x 17
ABS
yes

About Volkswagen Touran Touran I

The Volkswagen Touran I, produced from 2003 to 2006, is a minivan designed with families and individuals needing a spacious, functional car in mind. As a five-door vehicle, it offers seating for five passengers, combining comfort with practical solutions. Its style is rather conservative, emphasizing simplicity and elegance, making it a perfect fit for those who value utility and reliability in everyday use.

The Touran I offers a wide range of powertrains, both diesel and petrol. Engine power ranges from 90 to 150 hp, striking a good balance between efficiency and performance. Among the most popular versions is the economical 1.9 TDI with 90 hp and the dynamic 2.0 TDI with an automatic DSG transmission, boasting 140 hp. With the variety of available options, the Touran I can meet the needs of those looking for economical solutions as well as enthusiasts of more dynamic driving.

With front-wheel drive, the Touran I was designed with stability and driving comfort in mind, performing well on both short city trips and longer journeys. The vehicle's maneuverability is one of its advantages, allowing for easy navigation in tight spaces. The car was equipped with basic driver assistance systems by today's standards, which at the time offered a sense of safety and comfort, such as ABS and a stability control system.

While the Touran I enjoys a reputation as a reliable vehicle, it is not without its flaws. Users often report issues with electronics, particularly related to infotainment systems and electrical components. Additionally, some powertrains may require more service attention over time, especially the TDI versions, known for problems with turbochargers or EGR systems. It is also worth noting that the maintenance costs of the vehicle may be higher in the case of more advanced versions.

Despite some shortcomings, the Volkswagen Touran I remains an attractive option for families seeking a spacious and practical car with solid mechanical foundations. Its greatest advantages are versatility, comfort, and a rich selection of powertrains, making it competitive in the minivan segment. For many drivers, especially those with families, the Touran I was and still is an excellent solution that meets the needs of everyday use.
