Specifications Volkswagen Touran I

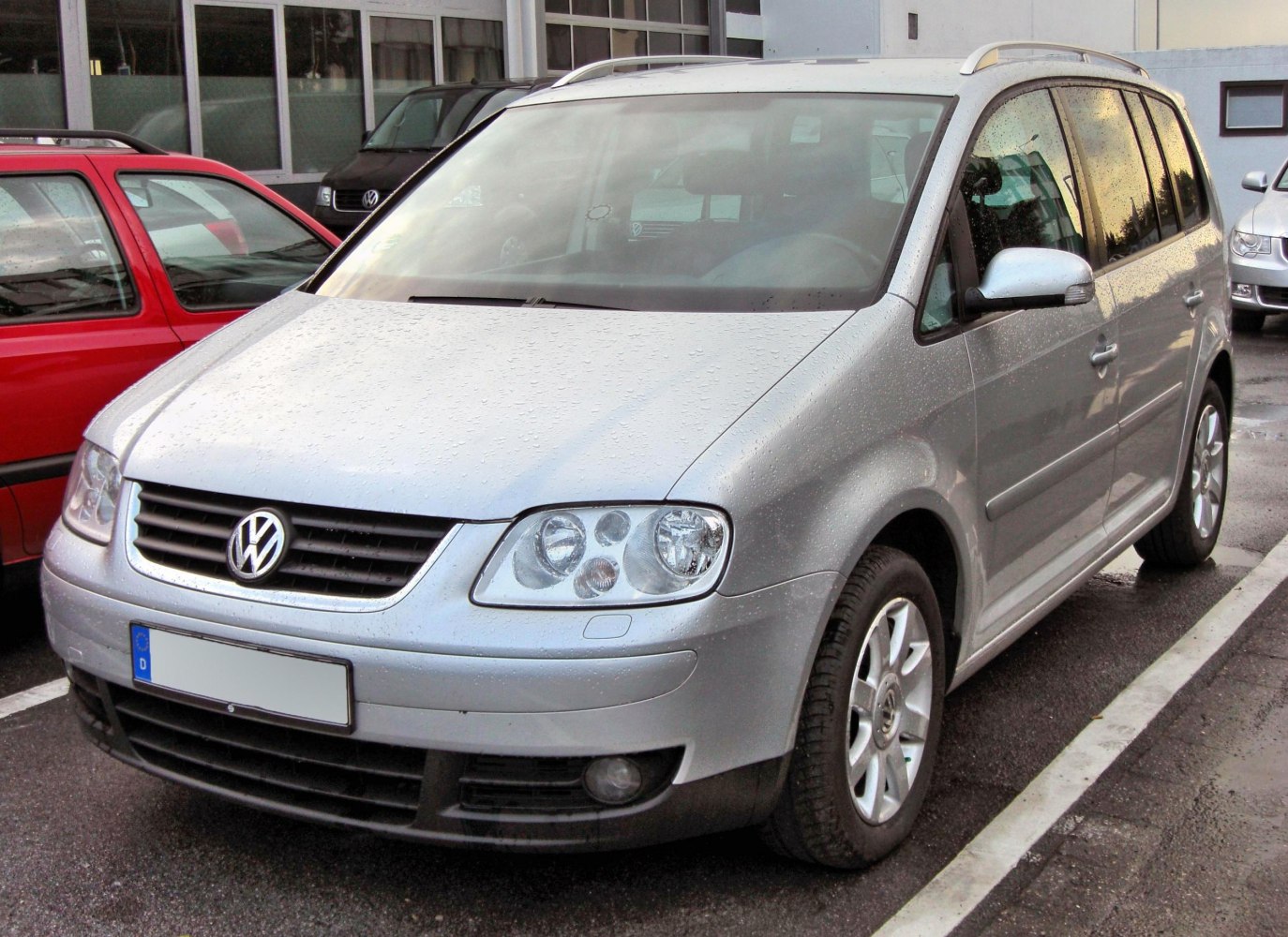

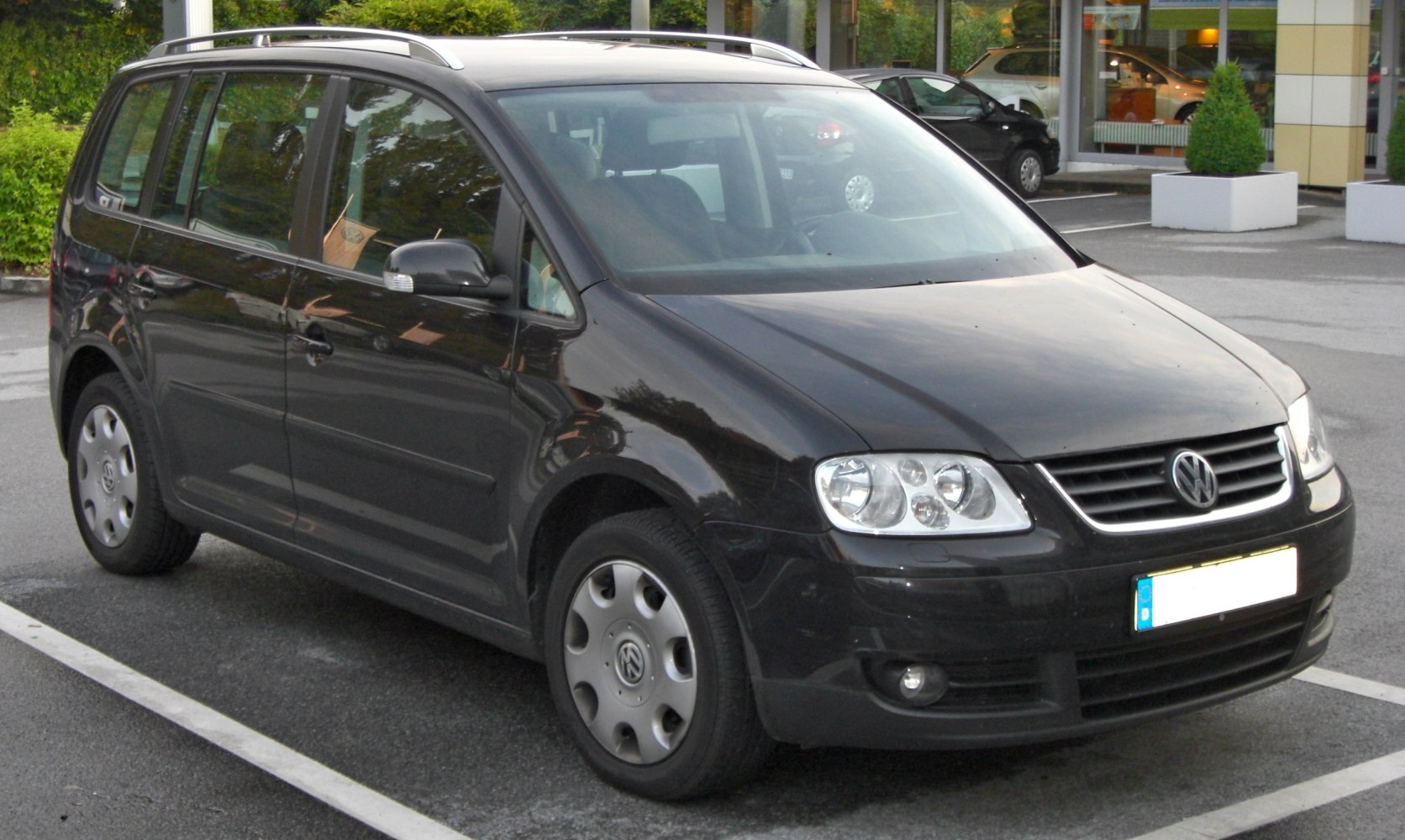

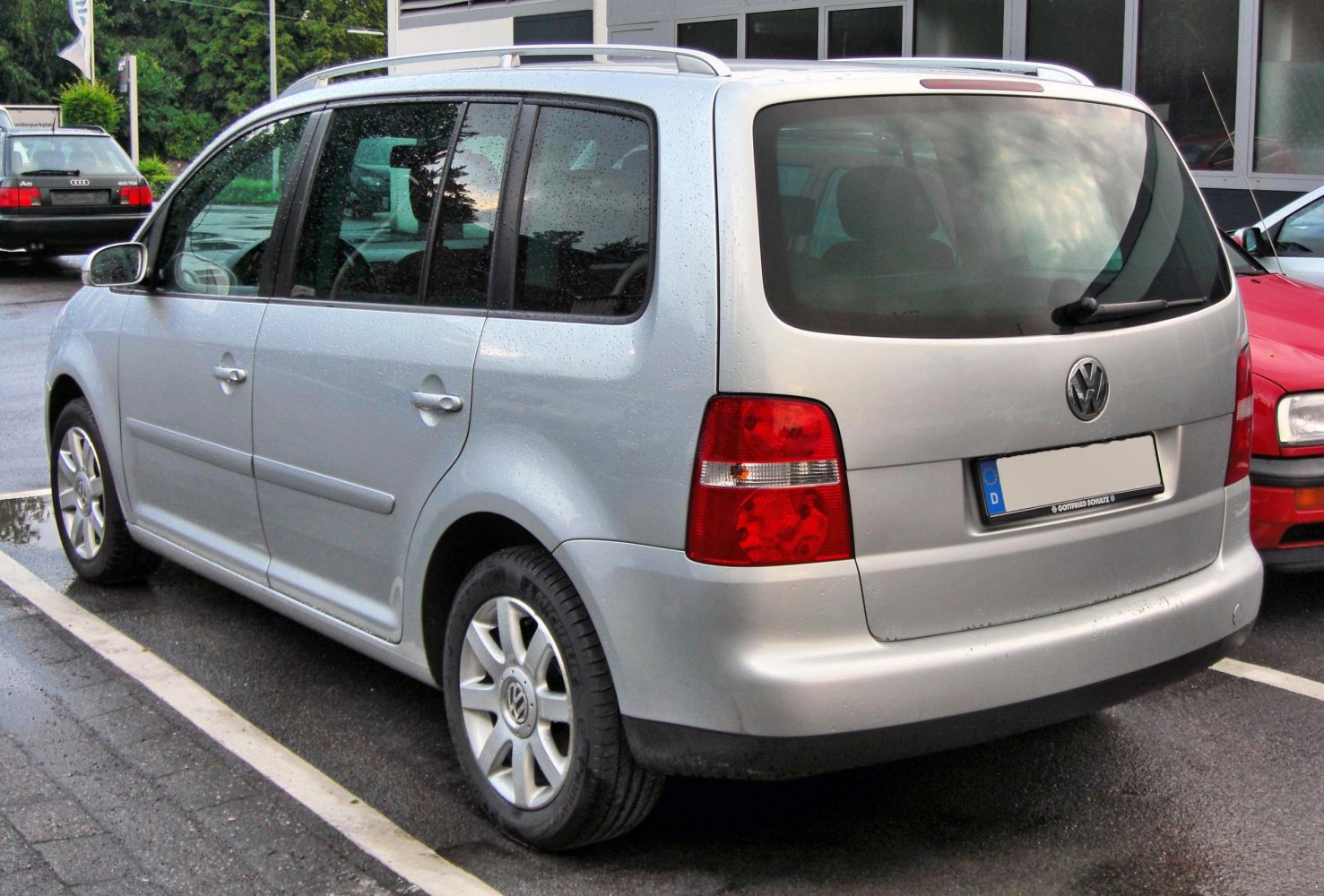

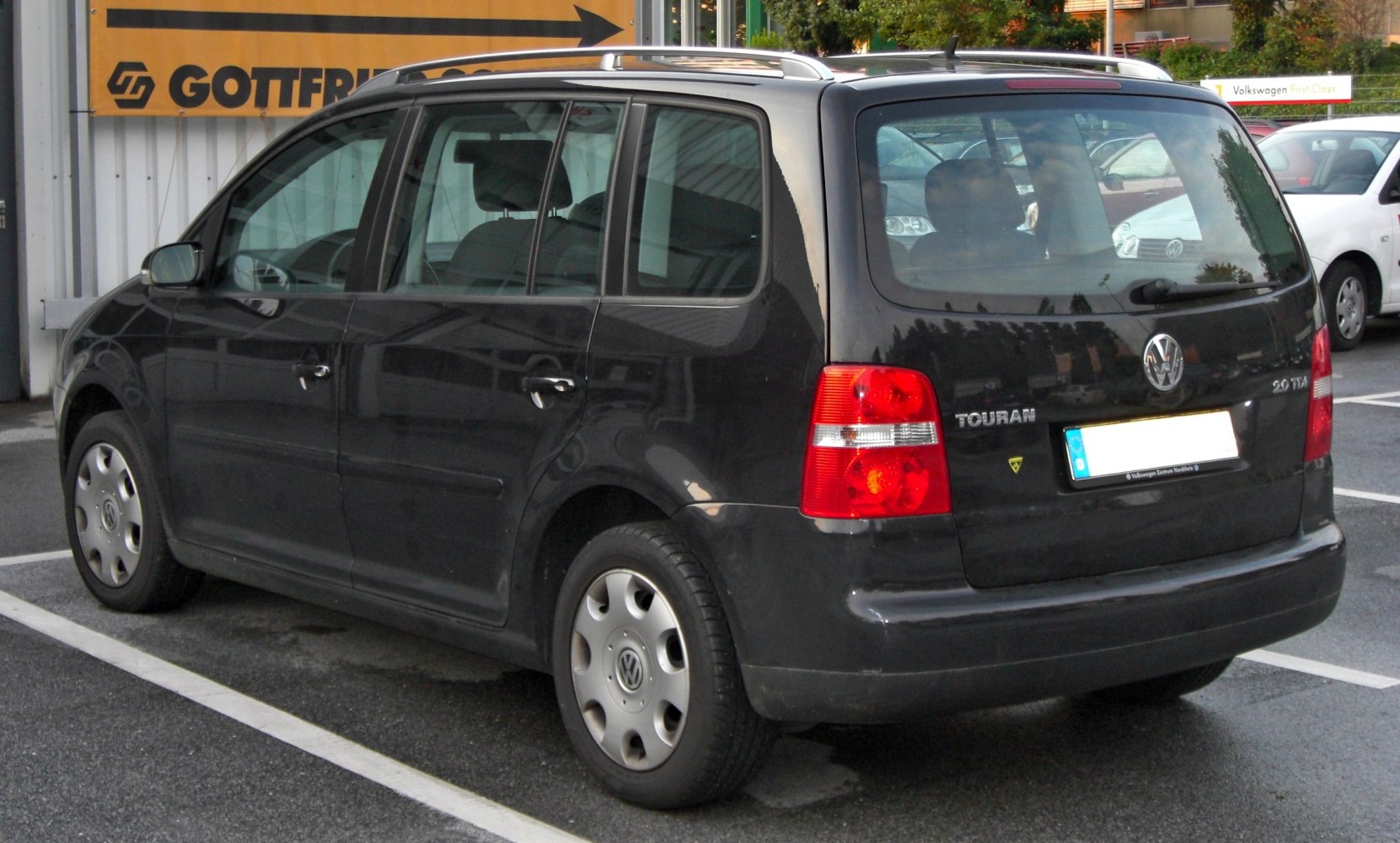

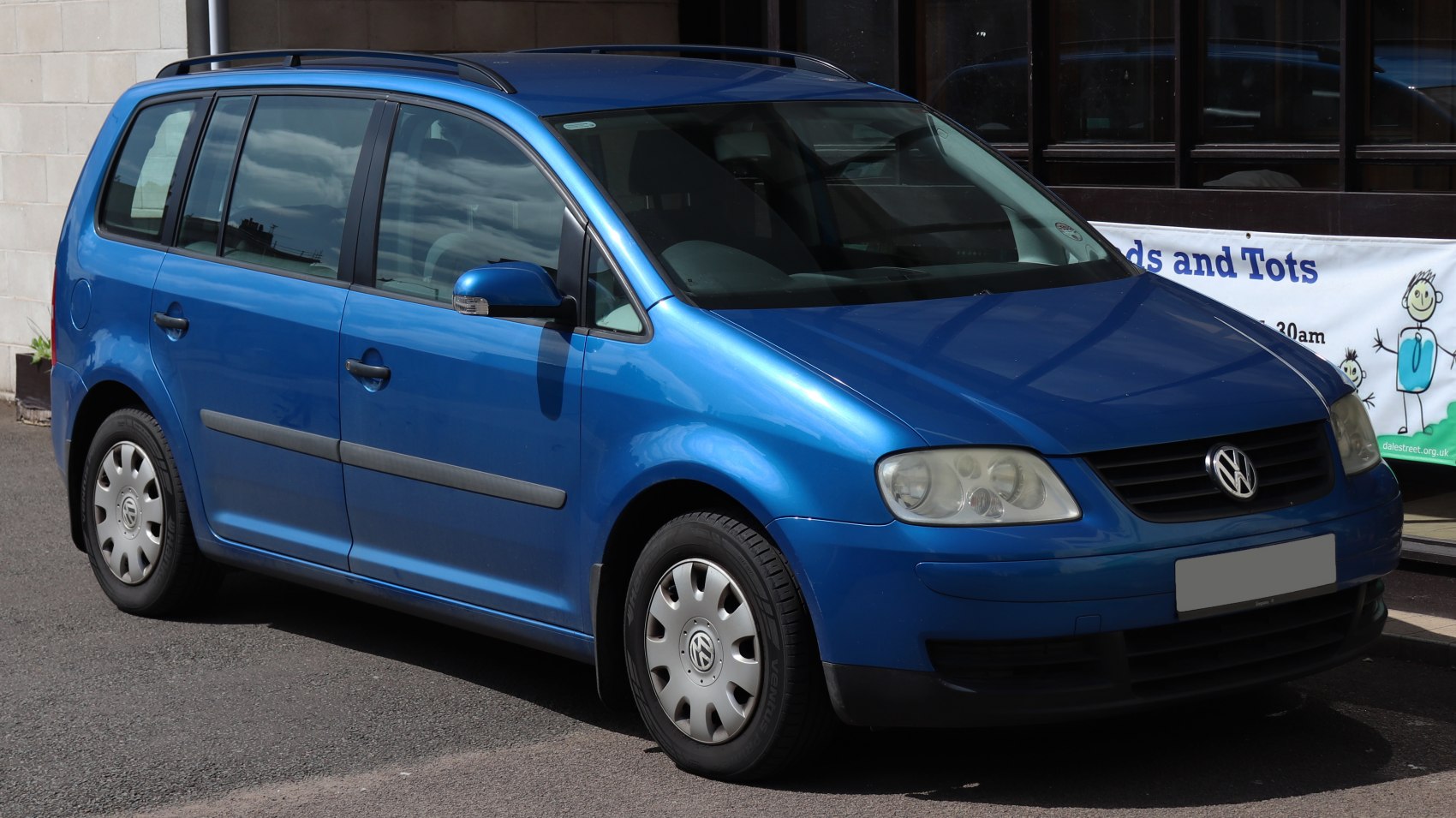

Vehicle photos
Basic information
| Brand | Volkswagen |
|---|---|
| Model | Touran |
| Version | Touran I |
| Engine power | 90 KM – 150 KM |
| Years of production | 2003 r. – 2006 r. |
| Body type | Minivan |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Touran |
| Version | Touran I |
| Engine | 1.6 FSI (115 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2003 r. |
| End of production | 2006 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 178 km/h |
|---|---|
| Acceleration 0-100 km/h | 11.9 s |
| Fuel consumption - Urban cycle | 9.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.2 l/100 km |
| Fuel consumption - Combined cycle | 7.4 l/100 km |
Engine
| Engine model / code | BAG, BLF, BLP |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1598 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 76.5 mm |
| Piston stroke | 86.9 mm |
| Compression ratio | 12 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.6 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 667 l |
| Maximum trunk capacity | 1989 l |
| Curb weight | 1423 kg |
| Gross weight | 2090 kg |
Vehicle dimensions
| Length | 4391 mm |
|---|---|
| Width | 1794 mm |
| Height | 1652 mm |
| Wheelbase | 2678 mm |
| Front track | 1539 mm |
| Rear track | 1521 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Coil spring |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 205/55 R16 |
| Rim size | 16 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Touran |
| Version | Touran I |
| Engine | 1.6 i (102 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2003 r. |
| End of production | 2006 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 179 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.9 s |
| Fuel consumption - Urban cycle | 10.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.2 l/100 km |
Engine
| Engine model / code | BGU, BSE, BSF |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1595 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | OHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 81 mm |
| Piston stroke | 77.4 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 4.5 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 667 l |
| Maximum trunk capacity | 1989 l |
| Curb weight | 1430 kg |
| Gross weight | 2090 kg |
Vehicle dimensions
| Length | 4391 mm |
|---|---|
| Width | 1794 mm |
| Height | 1652 mm |
| Wheelbase | 2678 mm |
| Front track | 1539 mm |
| Rear track | 1521 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Coil spring |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 195/65 R15 |
| Rim size | 15 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Touran |
| Version | Touran I |
| Engine | 1.9 TDI (100 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2003 r. |
| End of production | 2004 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 179 km/h |
|---|---|
| Acceleration 0-100 km/h | 13.5 s |
| Fuel consumption - Urban cycle | 7.4 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.2 l/100 km |
Engine
| Engine model / code | AVQ |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1896 cm³ |
| Fuel injection system | Unit injector |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 79.5 mm |
| Piston stroke | 95.5 mm |
| Compression ratio | 19 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.8 l |
| Coolant capacity | 8 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 662 l |
| Maximum trunk capacity | 1989 l |
| Curb weight | 1580 kg |
| Gross weight | 2250 kg |
Vehicle dimensions
| Length | 4391 mm |
|---|---|
| Width | 1794 mm |
| Height | 1652 mm |
| Wheelbase | 2678 mm |
| Front track | 1539 mm |
| Rear track | 1521 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Coil spring |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 195/65 R15 |
| Rim size | 15 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Touran |
| Version | Touran I |
| Engine | 1.9 TDI (90 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2004 r. |
| End of production | 2006 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 171 km/h |
|---|---|
| Acceleration 0-100 km/h | 14.9 s |
| Fuel consumption - Urban cycle | 7.4 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.2 l/100 km |
Engine
| Engine model / code | BRU, BXF, BXJ |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1896 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | OHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 79.5 mm |
| Piston stroke | 95.5 mm |
| Compression ratio | 19.5 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.8 l |
| Coolant capacity | 8 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 667 l |
| Maximum trunk capacity | 1989 l |
| Curb weight | 1540 kg |
| Gross weight | 2210 kg |
Vehicle dimensions
| Length | 4391 mm |
|---|---|
| Width | 1794 mm |
| Height | 1652 mm |
| Wheelbase | 2678 mm |
| Front track | 1539 mm |
| Rear track | 1521 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Coil spring |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 195/65 R15 |
| Rim size | 15 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Touran |
| Version | Touran I |
| Engine | 2.0 FSI (150 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2003 r. |
| End of production | 2006 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 203 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.4 s |
| Fuel consumption - Urban cycle | 9.8 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.4 l/100 km |
Engine
| Engine model / code | AXW, BLR, BLX, BLY, BLR, BMB, BVX, BVY, BVZ |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1984 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 82.5 mm |
| Piston stroke | 92.8 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.6 l |
| Coolant capacity | 8 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 667 l |
| Maximum trunk capacity | 1989 l |
| Curb weight | 1450 kg |
| Gross weight | 2130 kg |
Vehicle dimensions
| Length | 4391 mm |
|---|---|
| Width | 1794 mm |
| Height | 1652 mm |
| Wheelbase | 2678 mm |
| Front track | 1539 mm |
| Rear track | 1521 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Coil spring |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 205/55 R16 |
| Rim size | 16 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Touran |
| Version | Touran I |
| Engine | 2.0 TDI (136 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2003 r. |
| End of production | 2004 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 197 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.6 s |
| Fuel consumption - Urban cycle | 7.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.2 l/100 km |
| Fuel consumption - Combined cycle | 6 l/100 km |
Engine
| Engine model / code | EA188/AZV |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1968 cm³ |
| Fuel injection system | Unit injector |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 81 mm |
| Piston stroke | 95.5 mm |
| Compression ratio | 18 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.8 l |
| Coolant capacity | 8 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 649 l |
| Maximum trunk capacity | 1989 l |
| Curb weight | 1561 kg |
| Gross weight | 2210 kg |
Vehicle dimensions
| Length | 4391 mm |
|---|---|
| Width | 1794 mm |
| Height | 1652 mm |
| Wheelbase | 2678 mm |
| Front track | 1539 mm |
| Rear track | 1521 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Coil spring |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 205/55 R16 |
| Rim size | 16 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Touran |
| Version | Touran I |
| Engine | 2.0 TDI (140 KM) DSG |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2004 r. |
| End of production | 2006 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 195 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.6 s |
| Fuel consumption - Urban cycle | 8.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.4 l/100 km |
| Fuel consumption - Combined cycle | 6.5 l/100 km |
| Emission standard | Euro 4 |
Engine
| Engine model / code | EA188/BKD |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1968 cm³ |
| Fuel injection system | Unit injector |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 81 mm |
| Piston stroke | 95.5 mm |
| Compression ratio | 18.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.8 l |
| Coolant capacity | 8 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 649 l |
| Maximum trunk capacity | 1989 l |
| Curb weight | 1561 kg |
| Gross weight | 2210 kg |
Vehicle dimensions
| Length | 4391 mm |
|---|---|
| Width | 1794 mm |
| Height | 1652 mm |
| Wheelbase | 2678 mm |
| Front track | 1539 mm |
| Rear track | 1521 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Type of automatic gearbox | DSG |
| Front suspension | Coil spring |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 205/55 R16 |
| Rim size | 16 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Touran |
| Version | Touran I |
| Engine | 2.0 TDI (136 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2003 r. |
| End of production | 2004 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 195 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.6 s |
| Fuel consumption - Urban cycle | 7.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.2 l/100 km |
| Fuel consumption - Combined cycle | 6 l/100 km |
Engine
| Engine model / code | EA188/AZV |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1968 cm³ |
| Fuel injection system | Unit injector |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 81 mm |
| Piston stroke | 95.5 mm |
| Compression ratio | 18 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.8 l |
| Coolant capacity | 8 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 649 l |
| Maximum trunk capacity | 1989 l |
| Curb weight | 1561 kg |
| Gross weight | 2210 kg |
Vehicle dimensions
| Length | 4391 mm |
|---|---|
| Width | 1794 mm |
| Height | 1652 mm |
| Wheelbase | 2678 mm |
| Front track | 1539 mm |
| Rear track | 1521 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Coil spring |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 205/55 R16 |
| Rim size | 16 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Touran |
| Version | Touran I |
| Engine | 1.9 TDI (100 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2003 r. |
| End of production | 2004 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 175 km/h |
|---|---|
| Acceleration 0-100 km/h | 13.5 s |
| Fuel consumption - Urban cycle | 7.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.2 l/100 km |
Engine
| Engine model / code | AVQ |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1896 cm³ |
| Fuel injection system | Unit injector |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 79.5 mm |
| Piston stroke | 95.5 mm |
| Compression ratio | 19 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.8 l |
| Coolant capacity | 8 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 662 l |
| Maximum trunk capacity | 1989 l |
| Curb weight | 1580 kg |
| Gross weight | 2250 kg |
Vehicle dimensions
| Length | 4391 mm |
|---|---|
| Width | 1794 mm |
| Height | 1652 mm |
| Wheelbase | 2678 mm |
| Front track | 1539 mm |
| Rear track | 1521 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | Coil spring |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 195/65 R15 |
| Rim size | 15 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Touran |
| Version | Touran I |
| Engine | 1.4 TSI (140 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2006 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 200 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.8 s |
| Fuel consumption measurement standard | NEDC |
| Fuel consumption - Urban cycle | 9.8 l/100 km |
| Fuel consumption measurement standard | NEDC |
| Fuel consumption - Extra-urban cycle | 6.2 l/100 km |
| Fuel consumption - Combined cycle | 7.5 l/100 km |
| Emission standard | Euro 4 |
| CO2 measurement standard | NEDC |
| CO2 emissions | 180 g/km |
Engine
| Engine model / code | BMY |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1390 cm³ |
| Fuel injection system | Direct injection |
| Engine type | Turbo kompresor i Kompresor, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 76.5 mm |
| Piston stroke | 75.6 mm |
| Compression ratio | 10 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.6 l |
| Coolant capacity | 5.6 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 695 l |
| Maximum trunk capacity | 1989 l |
| Curb weight | 1478 kg |
| Gross weight | 2150 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 4391 mm |
|---|---|
| Width | 1794 mm |
| Width with unfolded mirrors | 2066 mm |
| Height | 1635 mm |
| Wheelbase | 2677 mm |
| Turning circle | 11.2 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Coil spring, Lateral control arm, Anti-roll bar |
| Rear suspension | Independent multi-link suspension, Anti-roll bar |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/55 R16 |
| Rim size | 6.5J x 16 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Touran |
| Version | Touran I |
| Engine | 1.9 TDI (105 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2003 r. |
| End of production | 2006 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 177 km/h |
|---|---|
| Acceleration 0-100 km/h | 13.2 s |
| Fuel consumption measurement standard | NEDC |
| Fuel consumption - Urban cycle | 7.5 l/100 km |
| Fuel consumption measurement standard | NEDC |
| Fuel consumption - Extra-urban cycle | 5.3 l/100 km |
| Fuel consumption - Combined cycle | 6 l/100 km |
| Emission standard | Euro 4 |
| CO2 measurement standard | NEDC |
| CO2 emissions | 162 g/km |
Engine
| Engine model / code | EA188/BXE |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1896 cm³ |
| Fuel injection system | Unit injector |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | SOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 79.5 mm |
| Piston stroke | 95.5 mm |
| Compression ratio | 19 |
| Number of valves per cylinder | 2 |
| Engine oil capacity | 3.8 l |
| Coolant capacity | 8 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 695 l |
| Maximum trunk capacity | 1989 l |
| Curb weight | 1498 kg |
| Gross weight | 2160 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 4391 mm |
|---|---|
| Width | 1794 mm |
| Width with unfolded mirrors | 2066 mm |
| Height | 1635 mm |
| Wheelbase | 2677 mm |
| Turning circle | 11.2 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Coil spring, Lateral control arm, Anti-roll bar |
| Rear suspension | Independent multi-link suspension, Anti-roll bar |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 195/65 R15 |
| Rim size | 6J x 15 |
Basic version information
| Brand | Volkswagen |
|---|---|
| Model | Touran |
| Version | Touran I |
| Engine | 2.0 TDI (140 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2004 r. |
| End of production | 2006 r. |
| Body type | Minivan |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 197 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.6 s |
| Fuel consumption measurement standard | NEDC |
| Fuel consumption - Urban cycle | 7.7 l/100 km |
| Fuel consumption measurement standard | NEDC |
| Fuel consumption - Extra-urban cycle | 5.3 l/100 km |
| Fuel consumption - Combined cycle | 6.1 l/100 km |
| Emission standard | Euro 4 |
| CO2 measurement standard | NEDC |
| CO2 emissions | 165 g/km |
Engine
| Engine model / code | EA188/BKD |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1968 cm³ |
| Fuel injection system | Unit injector |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 81 mm |
| Piston stroke | 95.5 mm |
| Compression ratio | 18 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.8 l |
| Coolant capacity | 8 l |
Volume and weight
| Fuel tank | 60 l |
|---|---|
| Minimum trunk capacity | 695 l |
| Maximum trunk capacity | 1989 l |
| Curb weight | 1561 kg |
| Gross weight | 2210 kg |
| Roof load | 100 kg |
| Braked trailer load (12% slope start) | 1500 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 4391 mm |
|---|---|
| Width | 1794 mm |
| Width with unfolded mirrors | 2066 mm |
| Height | 1635 mm |
| Wheelbase | 2677 mm |
| Turning circle | 11.2 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Coil spring, Lateral control arm, Anti-roll bar |
| Rear suspension | Independent multi-link suspension, Anti-roll bar |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Power steering | Electric power steering |
| Tire size | 205/55 R16 |
| Rim size | 6.5J x 16 |
