Vehicle specifications

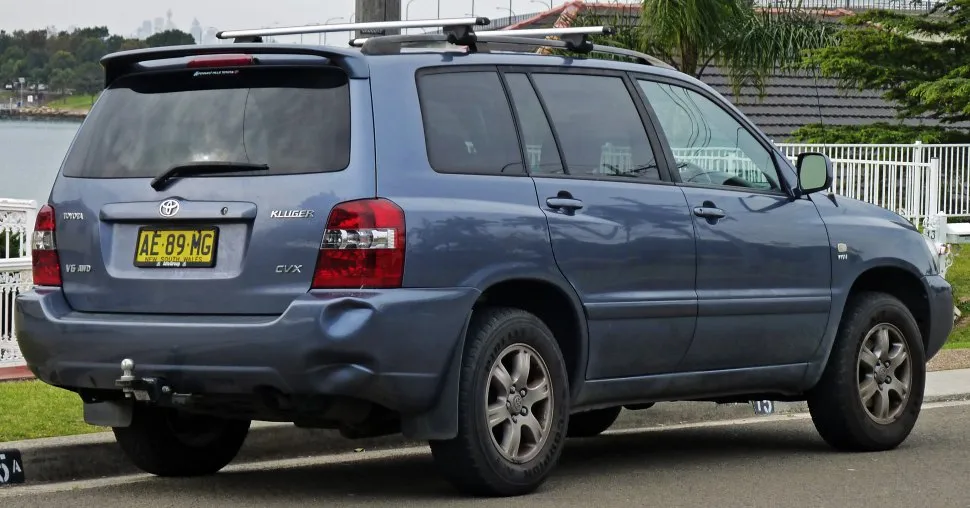

Toyota Kluger I
Compare all 2 engine versions of the Toyota Kluger Kluger I, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Toyota Kluger I? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Vehicle photos
View larger Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
2 versions · 2 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 2.4 16V (160 KM) Selected | Gasoline | 160 KM | 2000–2007 |
| 3.0 V6 24V (220 KM) Selected | Gasoline | 220 KM | 2000–2007 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
2.4 16V (160 KM)
Gasoline · 2000–2007
- Engine power
- 160 KM
- Torque
- 221 Nm
- Engine displacement
- 2,364 cm³
- Fuel type
- Gasoline
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Toyota Kluger Kluger I- Brand
- Toyota
- Model
- Kluger
- Version
- Kluger I
- Engine
- 2.4 16V (160 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2000
- End of production
- 2007
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 180 km/h
Engine
- Engine model / code
- 2AZ-FE
- Engine position
- Front, Transverse
- Engine displacement
- 2364 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 88.5 mm
- Piston stroke
- 96 mm
- Compression ratio
- 9.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.3 l
- Coolant capacity
- 6.4 l
- Power
- 160 KM @ 5600 obr./min
- Torque
- 221 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 72 l
- Curb weight
- 1660 kg
- Gross weight
- 1935 kg
Vehicle dimensions
- Length
- 4685 mm
- Width
- 1825 mm
- Height
- 1720 mm
- Wheelbase
- 2715 mm
- Front track
- 1575 mm
- Rear track
- 1555 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 4
- Front suspension
- Lateral control arm
- Rear suspension
- Coil spring
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 215/70 R16 S
- ABS
- yes
Selected engine version
3.0 V6 24V (220 KM)
Gasoline · 2000–2007
- Engine power
- 220 KM
- Torque
- 301 Nm
- Engine displacement
- 2,995 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Toyota Kluger Kluger I- Brand
- Toyota
- Model
- Kluger
- Version
- Kluger I
- Engine
- 3.0 V6 24V (220 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2000
- End of production
- 2007
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Engine
- Engine model / code
- 1MZ-FE
- Engine position
- Front, Longitudinal
- Engine displacement
- 2995 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 87.5 mm
- Piston stroke
- 83 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.7 l
- Coolant capacity
- 9 l
- Power
- 220 KM @ 5800 obr./min
- Torque
- 301 Nm @ 4400 obr./min
Volume and weight
- Fuel tank
- 72 l
- Curb weight
- 1630 kg
- Gross weight
- 1905 kg
Vehicle dimensions
- Length
- 4685 mm
- Width
- 1825 mm
- Height
- 1720 mm
- Wheelbase
- 2715 mm
- Front track
- 1575 mm
- Rear track
- 1555 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 4
- Front suspension
- Lateral control arm
- Rear suspension
- Coil spring
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 215/70 R16 S
- ABS
- yes
