Vehicle specifications
Toyota Crown XV (S220)
Compare all 4 engine versions of the Toyota Crown Crown XV (S220), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Toyota Crown XV (S220)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

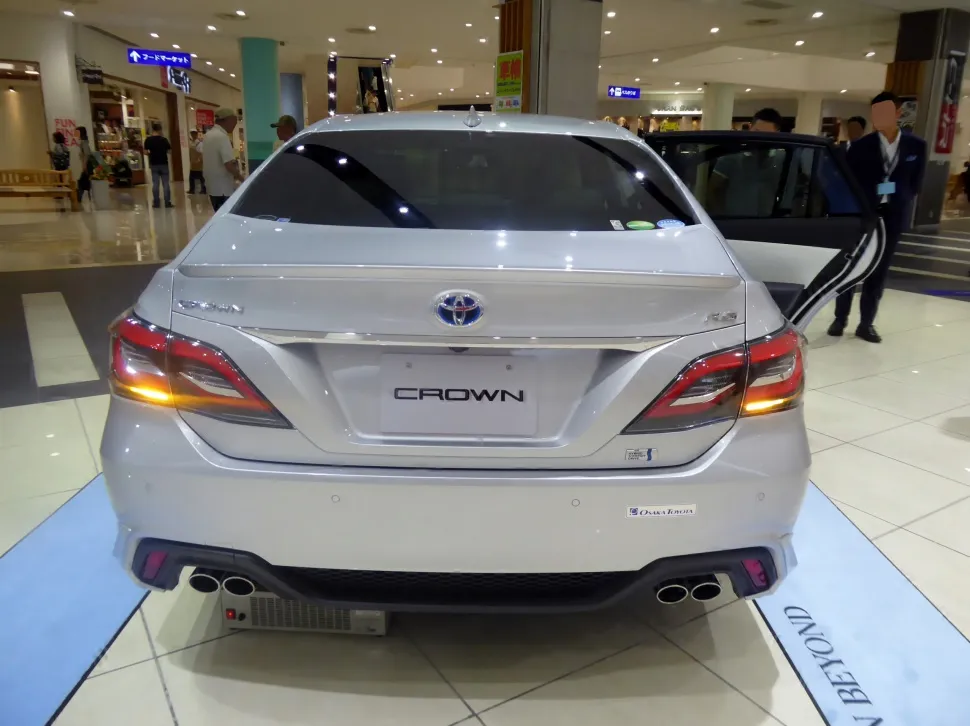

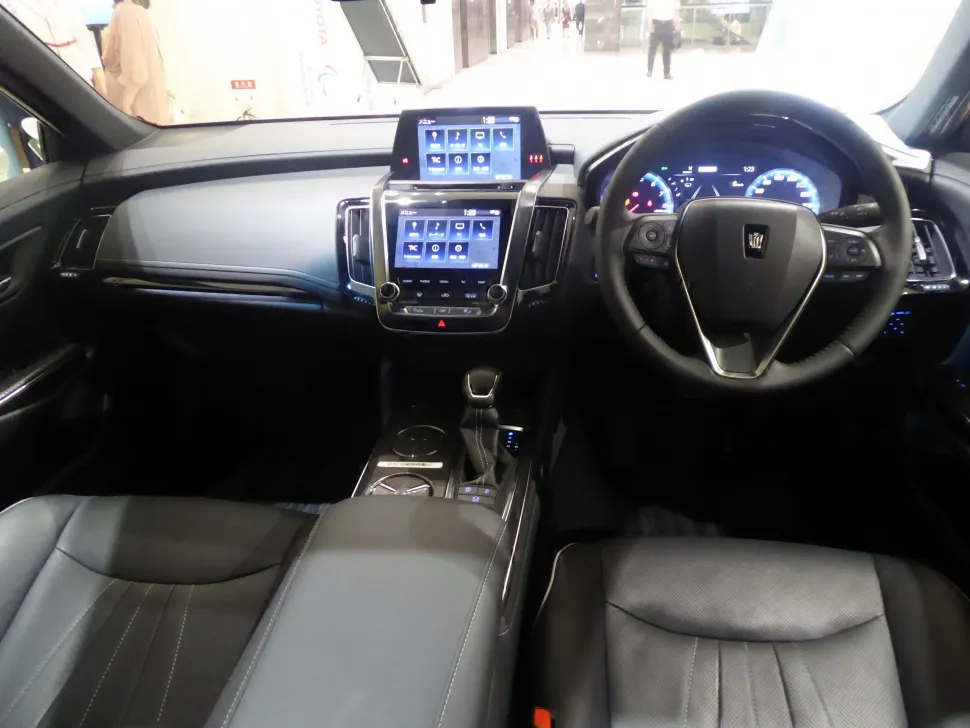

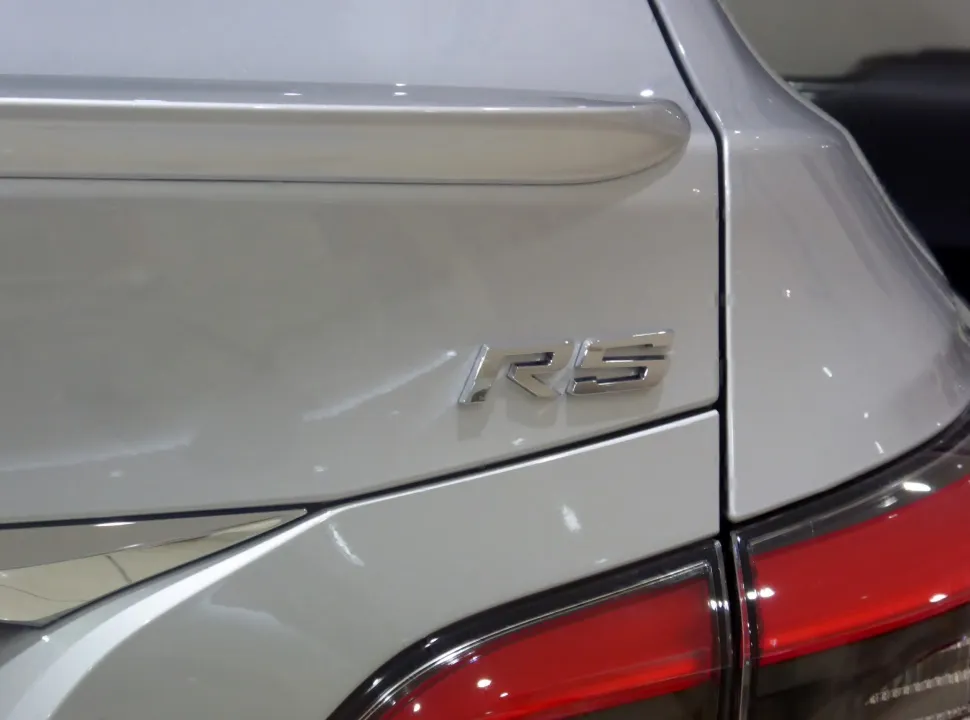

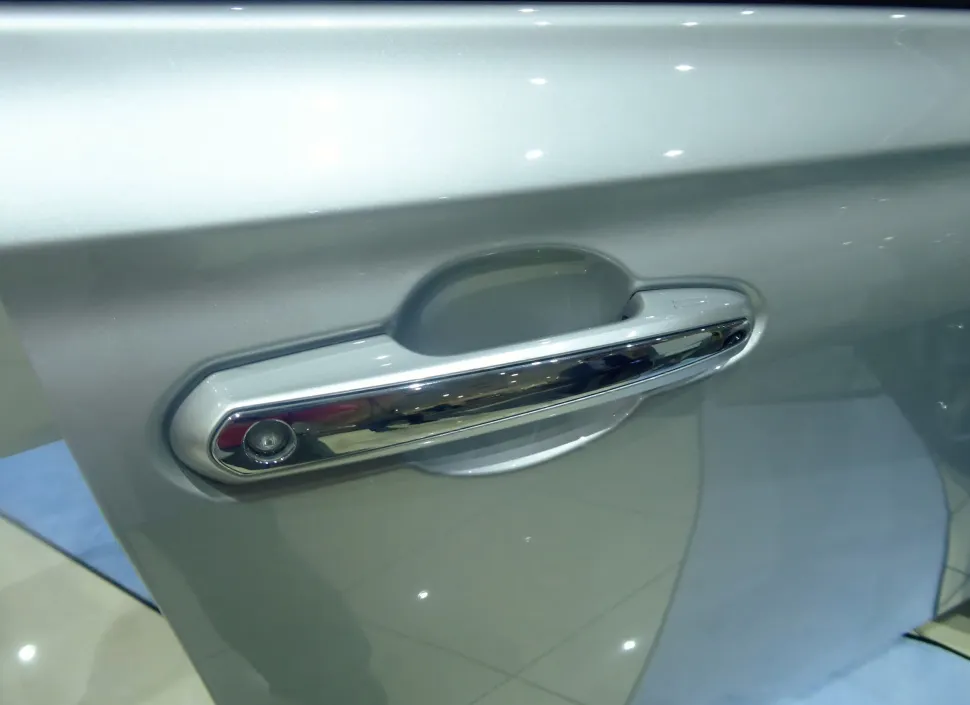

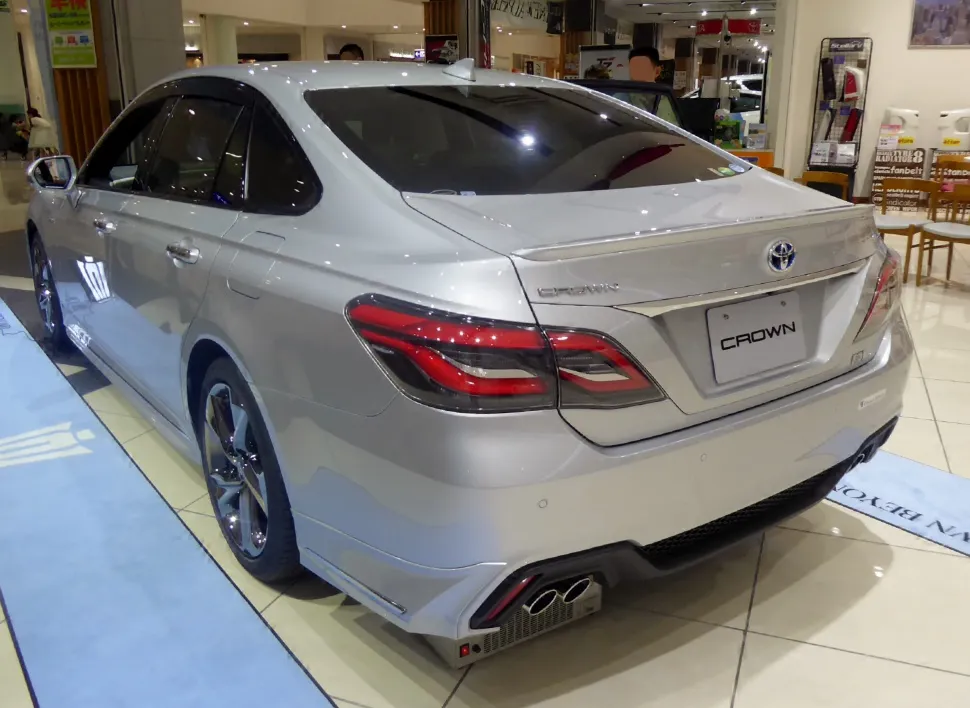

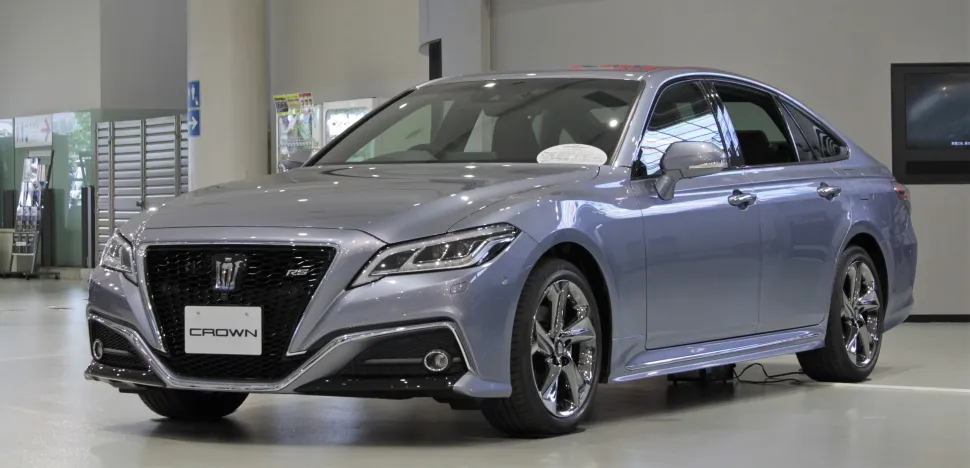

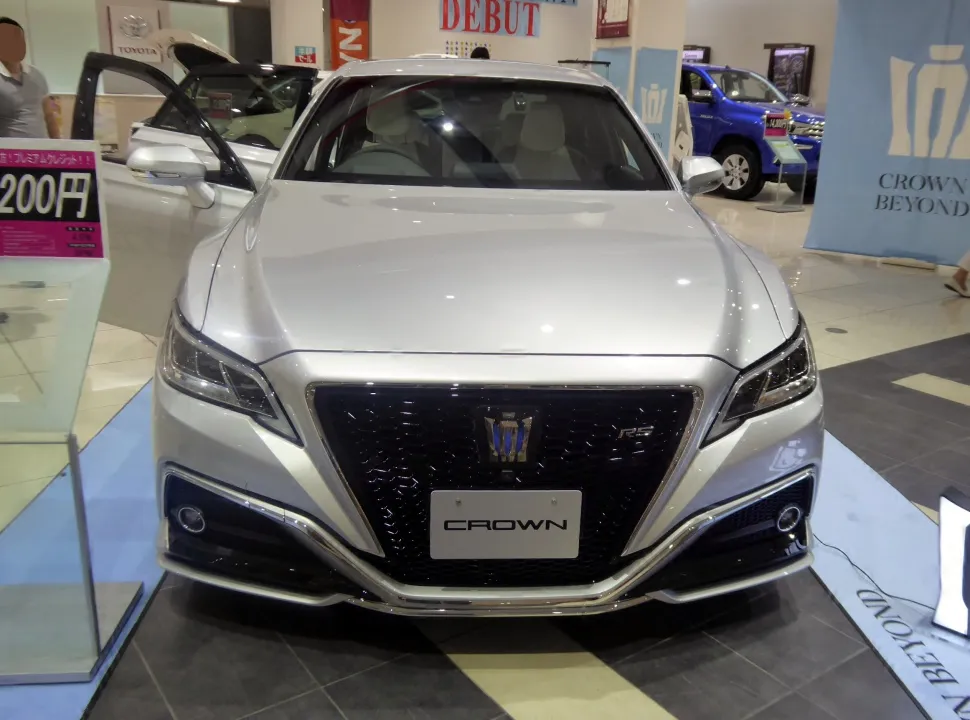

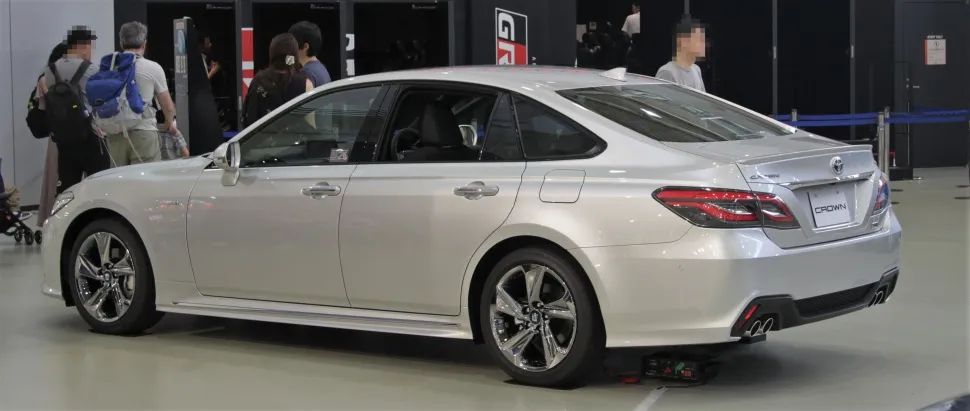

Vehicle photos
1 of 12
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
4 versions · 4 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 3.5 V6 (359 KM) Hybrid e-CVT Selected | Gasoline | 299 KM | 2018–2022 |
| 2.5 (226 KM) Hybrid e-CVT Selected | Gasoline | 184 KM | 2018–2022 |
| 2.5 (226 KM) Hybrid E-Four e-CVT Selected | Gasoline | 184 KM | 2018–2022 |
| 2.0 Turbo (245 KM) ECT Selected | Gasoline | 245 KM | 2018–2022 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
3.5 V6 (359 KM) Hybrid e-CVT
Gasoline · 2018–2022
- Engine power
- 299 KM
- Torque
- 356 Nm
- Engine displacement
- 3,456 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Toyota Crown Crown XV (S220)- Brand
- Toyota
- Model
- Crown
- Version
- Crown XV (S220)
- Engine
- 3.5 V6 (359 KM) Hybrid e-CVT
- Engine type
- FHEF (Full Hybrid Electric Vehicle)
- Number of doors
- 4
- Start of production
- 2018
- End of production
- 2022
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 7.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.6 l/100 km
Engine
- Max electric motor power
- 180 KM
- Electric motor torque
- 300 Nm
- System power
- 359 KM
- Engine model / code
- 8GR-FXS
- Engine position
- Front, Longitudinal
- Engine displacement
- 3456 cm³
- Fuel injection system
- Wtrysk bezpośredni i Wtrysk wielopunktowy
- Engine type
- Naturally aspirated engine
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 94 mm
- Piston stroke
- 83 mm
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 10.3 l
- Power
- 299 KM @ 6600 obr./min
- Torque
- 356 Nm @ 5100 obr./min
Volume and weight
- Fuel tank
- 66 l
- Curb weight
- 1860-1900 kg
- Gross weight
- 2175 kg
Vehicle dimensions
- Length
- 4910 mm
- Width
- 1800 mm
- Height
- 1455 mm
- Wheelbase
- 2920 mm
- Front track
- 1550 mm
- Rear track
- 1550 mm
- Ground clearance
- 135 mm
- Turning circle
- 11 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Type of automatic gearbox
- Multi-StageHybridTransmission
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Rim size
- 18
- ABS
- yes
Selected engine version
2.5 (226 KM) Hybrid e-CVT
Gasoline · 2018–2022
- Engine power
- 184 KM
- Torque
- 221 Nm
- Engine displacement
- 2,487 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Toyota Crown Crown XV (S220)- Brand
- Toyota
- Model
- Crown
- Version
- Crown XV (S220)
- Engine
- 2.5 (226 KM) Hybrid e-CVT
- Engine type
- FHEF (Full Hybrid Electric Vehicle)
- Number of doors
- 4
- Start of production
- 2018
- End of production
- 2022
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 5.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.7 l/100 km
Engine
- Max electric motor power
- 143 KM
- Electric motor torque
- 300 Nm
- Electric motor position
- Integrated with the transmission
- System power
- 226 KM
- Engine model / code
- A25A-FXS
- Engine position
- Front, Transverse
- Engine displacement
- 2487 cm³
- Fuel injection system
- Wtrysk bezpośredni i Wtrysk wielopunktowy
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 87.5 mm
- Piston stroke
- 103.4 mm
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 7.7 l
- Power
- 184 KM @ 6000 obr./min
- Torque
- 221 Nm @ 3800-5400 obr./min
Volume and weight
- Fuel tank
- 66 l
- Curb weight
- 1730-1770 kg
- Gross weight
- 2045 kg
Vehicle dimensions
- Length
- 4910 mm
- Width
- 1800 mm
- Height
- 1455 mm
- Wheelbase
- 2920 mm
- Front track
- 1560 mm
- Rear track
- 1560 mm
- Ground clearance
- 135 mm
- Turning circle
- 11 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Type of automatic gearbox
- e-CVT
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/60 R16; 215/55 R17; 225/45Z R18
- Rim size
- 7J x 16; 7J x 17; 8J x 18
- ABS
- yes
Selected engine version
2.5 (226 KM) Hybrid E-Four e-CVT
Gasoline · 2018–2022
- Engine power
- 184 KM
- Torque
- 221 Nm
- Engine displacement
- 2,487 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Toyota Crown Crown XV (S220)- Brand
- Toyota
- Model
- Crown
- Version
- Crown XV (S220)
- Engine
- 2.5 (226 KM) Hybrid E-Four e-CVT
- Engine type
- FHEF (Full Hybrid Electric Vehicle)
- Number of doors
- 4
- Start of production
- 2018
- End of production
- 2022
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 6.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.1 l/100 km
Engine
- Max electric motor power
- 143 KM
- Electric motor torque
- 300 Nm
- System power
- 226 KM
- Engine model / code
- A25A-FXS
- Engine position
- Front, Transverse
- Engine displacement
- 2487 cm³
- Fuel injection system
- Wtrysk bezpośredni i Wtrysk wielopunktowy
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 87.5 mm
- Piston stroke
- 103.4 mm
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 7.7 l
- Power
- 184 KM @ 6000 obr./min
- Torque
- 221 Nm @ 3800-5400 obr./min
Volume and weight
- Fuel tank
- 66 l
- Curb weight
- 1820-1890 kg
- Gross weight
- 2165 kg
Vehicle dimensions
- Length
- 4910 mm
- Width
- 1800 mm
- Height
- 1465 mm
- Wheelbase
- 2920 mm
- Front track
- 1550-1560 mm
- Rear track
- 1550-1560 mm
- Ground clearance
- 130 mm
- Turning circle
- 11 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Type of automatic gearbox
- e-CVT
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/60 R16; 215/55 R17; 225/45Z R18
- Rim size
- 7J x 16; 7J x 17; 8J x 18
- ABS
- yes
Selected engine version
2.0 Turbo (245 KM) ECT
Gasoline · 2018–2022
- Engine power
- 245 KM
- Torque
- 350 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Toyota Crown Crown XV (S220)- Brand
- Toyota
- Model
- Crown
- Version
- Crown XV (S220)
- Engine
- 2.0 Turbo (245 KM) ECT
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2018
- End of production
- 2022
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 11.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.6 l/100 km
Engine
- Engine model / code
- 8AR-FTS
- Engine position
- Front, Longitudinal
- Engine displacement
- 1998 cm³
- Fuel injection system
- Wtrysk bezpośredni i Wtrysk wielopunktowy
- Engine type
- Twin-scroll turbo, Intercooler
- Valvetrain
- DOHC, DualVVT-iW
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.6 l
- Coolant capacity
- 8.5 l
- Power
- 245 KM @ 5200-5800 obr./min
- Torque
- 350 Nm @ 1650-4400 obr./min
Volume and weight
- Fuel tank
- 66 l
- Curb weight
- 1690-1730 kg
- Gross weight
- 2005 kg
Vehicle dimensions
- Length
- 4910 mm
- Width
- 1800 mm
- Height
- 1455 mm
- Wheelbase
- 2920 mm
- Front track
- 1550-1560 mm
- Rear track
- 1550-1560 mm
- Ground clearance
- 135 mm
- Turning circle
- 11 m
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 8
- Type of automatic gearbox
- SuperECT
- Front suspension
- Independent multi-link suspension
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
