Vehicle specifications
Toyota Crown Wagon (GS130)
Compare all 3 engine versions of the Toyota Crown Crown Wagon (GS130), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Toyota Crown Wagon (GS130)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

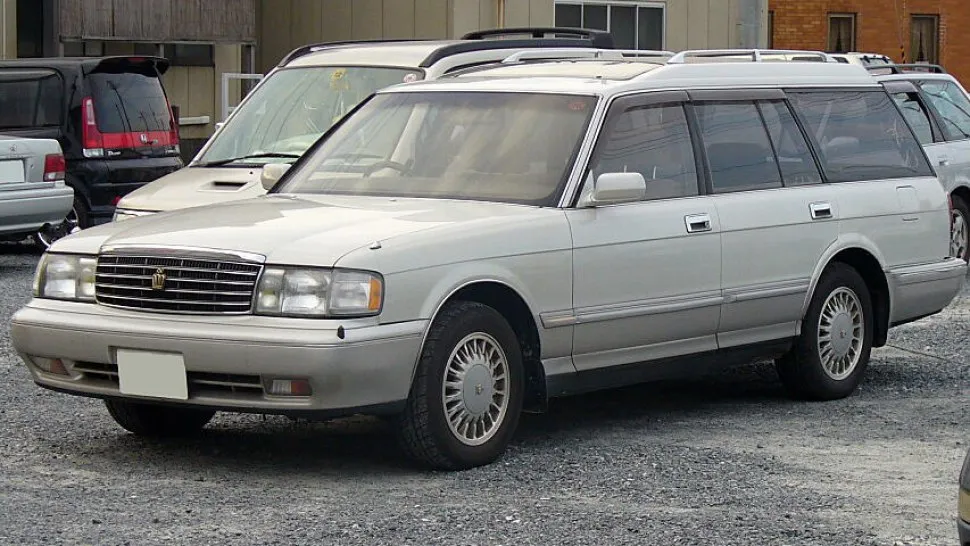

Vehicle photos
View larger Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
3 versions · 2 Gasoline · 1 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 2.0 i (135 KM) Selected | Gasoline | 135 KM | 1987–1999 |
| 2.4 DT (97 KM) Selected | Diesel fuel | 97 KM | 1987–1999 |
| 2.5 i (180 KM) Selected | Gasoline | 180 KM | 1987–1999 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
2.0 i (135 KM)
Gasoline · 1987–1999
- Engine power
- 135 KM
- Torque
- 177 Nm
- Engine displacement
- 1,988 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Toyota Crown Crown Wagon (GS130)- Brand
- Toyota
- Model
- Crown
- Version
- Crown Wagon (GS130)
- Engine
- 2.0 i (135 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1987
- End of production
- 1999
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Engine
- Engine model / code
- 1G-FE
- Engine position
- Front, Longitudinal
- Engine displacement
- 1988 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 75 mm
- Piston stroke
- 75 mm
- Compression ratio
- 9.6
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.1 l
- Power
- 135 KM @ 5600 obr./min
- Torque
- 177 Nm @ 4400 obr./min
Volume and weight
- Fuel tank
- 64 l
- Curb weight
- 1500 kg
Vehicle dimensions
- Length
- 4690 mm
- Width
- 1695 mm
- Height
- 1515 mm
- Wheelbase
- 2730 mm
- Front track
- 1465 mm
- Rear track
- 1410 mm
- Turning circle
- 11 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Tire size
- 185/75 SR14
- Rim size
- 5.5Jx14 ET27 5x114.3
- ABS
- no
Selected engine version
2.4 DT (97 KM)
Diesel fuel · 1987–1999
- Engine power
- 97 KM
- Torque
- 221 Nm
- Engine displacement
- 2,446 cm³
- Fuel type
- Diesel fuel
On this page
Check vehicle history
Basic version information
Toyota Crown Crown Wagon (GS130)- Brand
- Toyota
- Model
- Crown
- Version
- Crown Wagon (GS130)
- Engine
- 2.4 DT (97 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1987
- End of production
- 1999
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Engine
- Engine model / code
- 2L-TE
- Engine position
- Front, Longitudinal
- Engine displacement
- 2446 cm³
- Fuel injection system
- Wtrysk do komory wstępnego spalania
- Engine type
- Turbocharger
- Valvetrain
- OHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.1 l
- Power
- 97 KM @ 3800 obr./min
- Torque
- 221 Nm @ 2400 obr./min
Volume and weight
- Fuel tank
- 64 l
- Curb weight
- 1500 kg
Vehicle dimensions
- Length
- 4690 mm
- Width
- 1695 mm
- Height
- 1515 mm
- Wheelbase
- 2730 mm
- Front track
- 1465 mm
- Rear track
- 1410 mm
- Turning circle
- 11 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Tire size
- 185/75 SR14
- Rim size
- 5.5Jx14 ET27 5x114.3
- ABS
- no
Selected engine version
2.5 i (180 KM)
Gasoline · 1987–1999
- Engine power
- 180 KM
- Torque
- 235 Nm
- Engine displacement
- 2,491 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Toyota Crown Crown Wagon (GS130)- Brand
- Toyota
- Model
- Crown
- Version
- Crown Wagon (GS130)
- Engine
- 2.5 i (180 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 1987
- End of production
- 1999
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Engine
- Engine model / code
- 1JZ-GE
- Engine position
- Front, Longitudinal
- Engine displacement
- 2491 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 86 mm
- Piston stroke
- 71.5 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.4 l
- Power
- 180 KM @ 6000 obr./min
- Torque
- 235 Nm @ 4800 obr./min
Volume and weight
- Fuel tank
- 64 l
- Curb weight
- 1500 kg
Vehicle dimensions
- Length
- 4690 mm
- Width
- 1695 mm
- Height
- 1515 mm
- Wheelbase
- 2730 mm
- Front track
- 1465 mm
- Rear track
- 1410 mm
- Turning circle
- 11 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Tire size
- 185/75 SR14
- Rim size
- 5.5Jx14 ET27 5x114.3
- ABS
- no
