Vehicle specifications
Toyota Carina ED
Compare all 4 engine versions of the Toyota Carina Carina ED, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Toyota Carina ED? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Toyota Carina ED?
See the places on a 3D model →- VIN number
- Firewall (bulkhead), centre
- Identification plate
- Firewall (bulkhead), left side · less certain (little data)

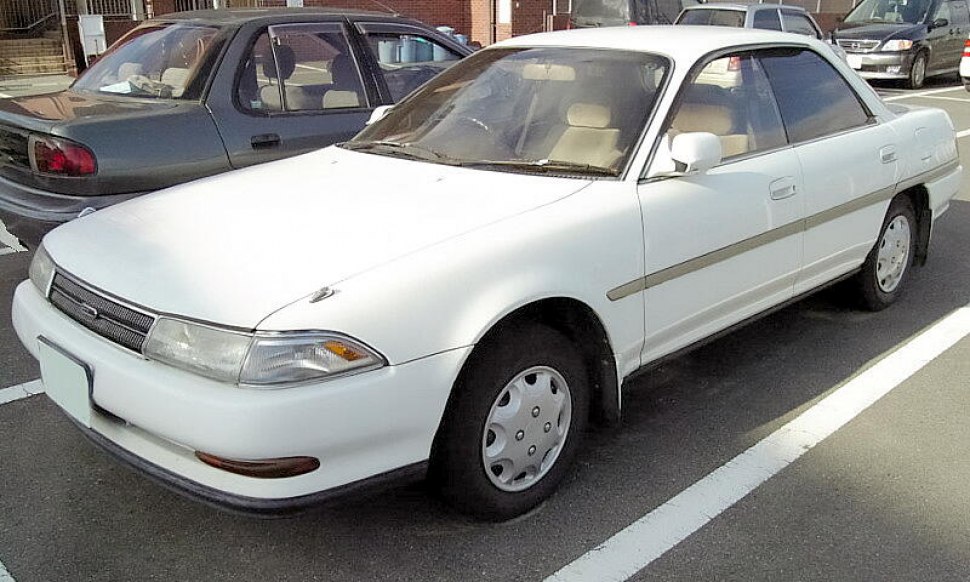

Vehicle photos
View larger Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
4 versions · 4 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.8 i (115 KM) Selected | Gasoline | 115 KM | 1988–1992 |
| 1.8 i (125 KM) Automatic Selected | Gasoline | 125 KM | 1994–1996 |
| 2.0 i (140 KM) Selected | Gasoline | 140 KM | 1989–1992 |
| 2.0 i (140 KM) Selected | Gasoline | 140 KM | 1993–1998 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.8 i (115 KM)
Gasoline · 1988–1992
- Engine power
- 115 KM
- Torque
- 155 Nm
- Engine displacement
- 1,762 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Toyota Carina Carina ED- Brand
- Toyota
- Model
- Carina
- Version
- Carina ED
- Engine
- 1.8 i (115 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1988
- End of production
- 1992
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Engine
- Engine model / code
- 4S-FE
- Engine position
- Front, Transverse
- Engine displacement
- 1762 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 85.5 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.9 l
- Coolant capacity
- 6.9 l
- Power
- 115 KM @ 5400 obr./min
- Torque
- 155 Nm @ 2800 obr./min
Volume and weight
- Fuel tank
- 60 l
- Curb weight
- kg
Vehicle dimensions
- Length
- 4485 mm
- Width
- 1690 mm
- Height
- 1315 mm
- Wheelbase
- 2525 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- ABS
- no
Selected engine version
1.8 i (125 KM) Automatic
Gasoline · 1994–1996
- Engine power
- 125 KM
- Torque
- 161 Nm
- Engine displacement
- 1,794 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.9 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Toyota Carina Carina ED- Brand
- Toyota
- Model
- Carina
- Version
- Carina ED
- Engine
- 1.8 i (125 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1994
- End of production
- 1996
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 11.9 s
Engine
- Engine model / code
- 7A-FE
- Engine position
- Front, Transverse
- Engine displacement
- 1794 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79 mm
- Piston stroke
- 91.5 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Power
- 125 KM @ 6000 obr./min
- Torque
- 161 Nm @ 4200 obr./min
Volume and weight
- Fuel tank
- 60 l
- Curb weight
- kg
Vehicle dimensions
- Length
- 4485 mm
- Width
- 1690 mm
- Height
- 1315 mm
- Wheelbase
- 2525 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- ABS
- no
Selected engine version
2.0 i (140 KM)
Gasoline · 1989–1992
- Engine power
- 140 KM
- Torque
- 186 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Toyota Carina Carina ED- Brand
- Toyota
- Model
- Carina
- Version
- Carina ED
- Engine
- 2.0 i (140 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1989
- End of production
- 1992
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Engine
- Engine model / code
- 3S-FE
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.9 l
- Coolant capacity
- 6.5 l
- Power
- 140 KM @ 6000 obr./min
- Torque
- 186 Nm @ 4400 obr./min
Volume and weight
- Fuel tank
- 60 l
- Curb weight
- kg
Vehicle dimensions
- Length
- 4485 mm
- Width
- 1690 mm
- Height
- 1315 mm
- Wheelbase
- 2525 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- ABS
- no
Selected engine version
2.0 i (140 KM)
Gasoline · 1993–1998
- Engine power
- 140 KM
- Torque
- 186 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Toyota Carina Carina ED- Brand
- Toyota
- Model
- Carina
- Version
- Carina ED
- Engine
- 2.0 i (140 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1993
- End of production
- 1998
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Engine
- Engine model / code
- 3S-FE
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.9 l
- Coolant capacity
- 6.5 l
- Power
- 140 KM @ 6000 obr./min
- Torque
- 186 Nm @ 4400 obr./min
Volume and weight
- Fuel tank
- 60 l
- Curb weight
- kg
Vehicle dimensions
- Length
- 4485 mm
- Width
- 1690 mm
- Height
- 1315 mm
- Wheelbase
- 2525 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- ABS
- no
