Vehicle specifications
Seat Ibiza IV ST (facelift 2012)
Compare all 12 engine versions of the Seat Ibiza Ibiza IV ST (facelift 2012), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Seat Ibiza IV ST (facelift 2012)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

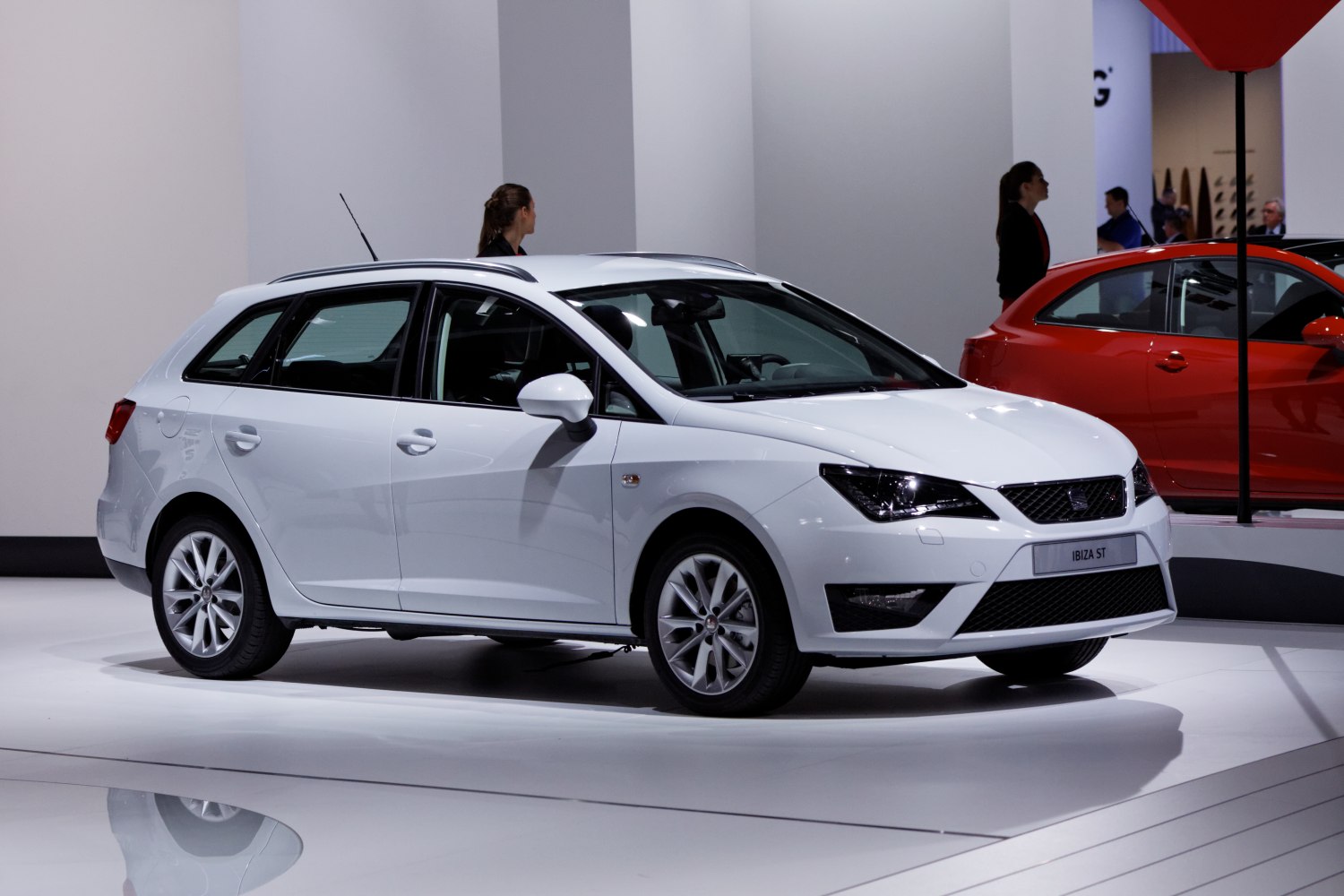

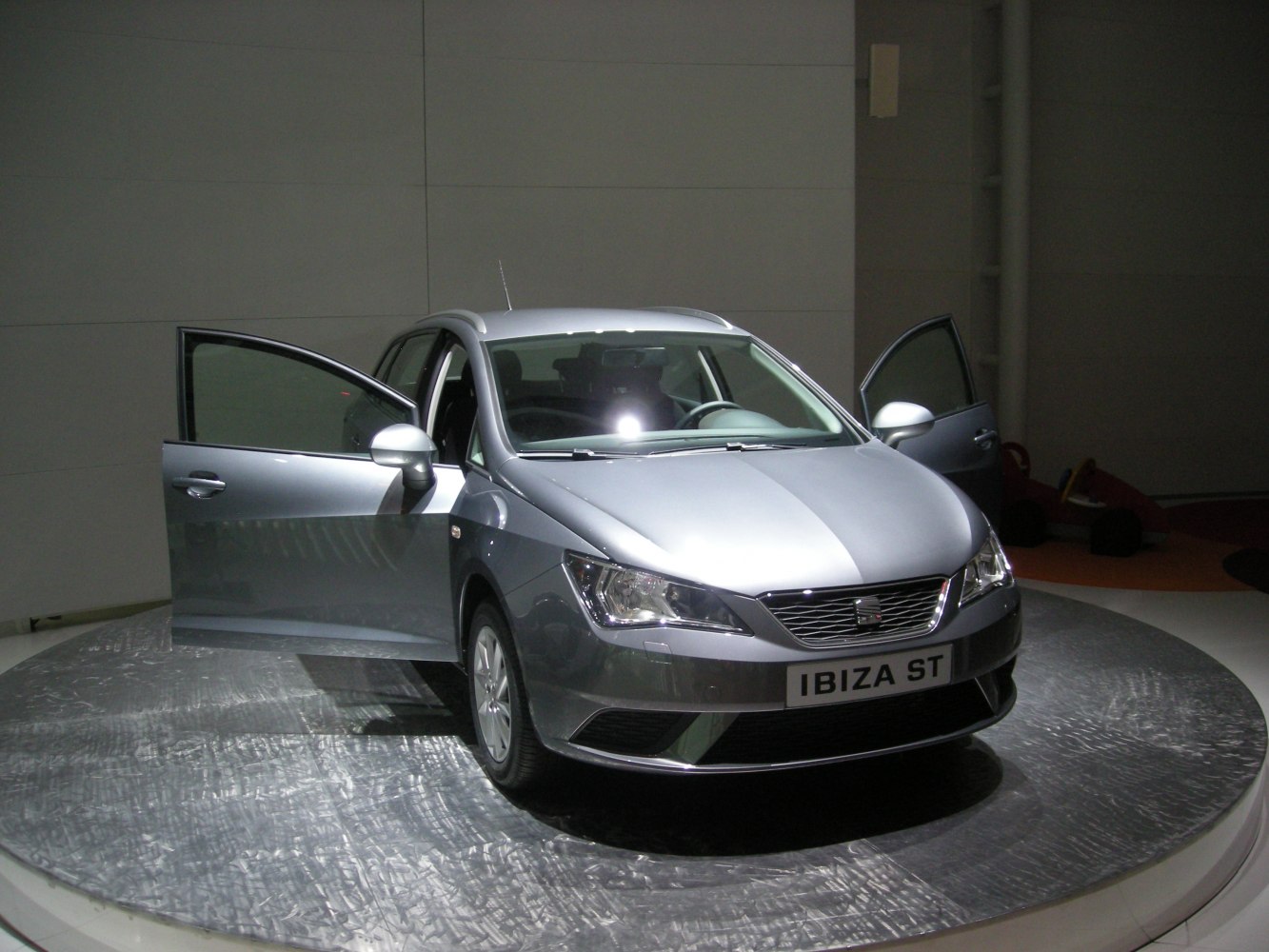

Vehicle photos
1 of 2
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
12 versions · 7 Gasoline · 5 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.2 TSI (85 KM) Selected | Gasoline | 85 KM | 2012–2015 |
| 1.2 TDI (75 KM) Selected | Diesel fuel | 75 KM | 2012–2015 |
| 1.6 TDI (90 KM) Selected | Diesel fuel | 90 KM | 2012–2015 |
| 1.6 TDI (105 KM) Selected | Diesel fuel | 105 KM | 2012–2015 |
| 1.2 TSI (105 KM) DSG Selected | Gasoline | 105 KM | 2012–2015 |
| 1.6 TDI (90 KM) DSG Selected | Diesel fuel | 90 KM | 2012–2015 |
| 1.4 TSI (140 KM) ACT Selected | Gasoline | 140 KM | 2012–2015 |
| 1.2 (60 KM) Selected | Gasoline | 60 KM | 2012–2015 |
| 1.2 (70 KM) Selected | Gasoline | 70 KM | 2012–2015 |
| FR 1.4 TSI (150 KM) DSG Selected | Gasoline | 150 KM | 2012–2015 |
| 1.2 TDI (75 KM) start/stop Selected | Diesel fuel | 75 KM | 2012–2015 |
| 1.2 TSI (105 KM) Selected | Gasoline | 105 KM | 2012–2015 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.2 TSI (85 KM)
Gasoline · 2012–2015
- Engine power
- 85 KM
- Torque
- 160 Nm
- Engine displacement
- 1,197 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.7 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV ST (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV ST (facelift 2012)
- Engine
- 1.2 TSI (85 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2012
- End of production
- 2015
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 11.7 s
- Fuel consumption - Urban cycle
- 6.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.4 l/100 km
- Fuel consumption - Combined cycle
- 5.1 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 119 g/km
Engine
- Engine model / code
- CBZA
- Engine position
- Front, Transverse
- Engine displacement
- 1197 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 71 mm
- Piston stroke
- 75.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Coolant capacity
- 5.6 l
- Power
- 85 KM @ 4800 obr./min
- Torque
- 160 Nm @ 1500-3500 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 430 l
- Curb weight
- 1145 kg
- Gross weight
- 1605 kg
Vehicle dimensions
- Length
- 4236 mm
- Width
- 1693 mm
- Height
- 1445 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
1.2 TDI (75 KM)
Diesel fuel · 2012–2015
- Engine power
- 75 KM
- Torque
- 180 Nm
- Engine displacement
- 1,199 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 14.5 s
- Maximum speed
- 168 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV ST (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV ST (facelift 2012)
- Engine
- 1.2 TDI (75 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2012
- End of production
- 2015
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 168 km/h
- Acceleration 0-100 km/h
- 14.5 s
- Fuel consumption - Urban cycle
- 4.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.4 l/100 km
- Fuel consumption - Combined cycle
- 3.9 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 102 g/km
Engine
- Engine model / code
- CFWA
- Engine position
- Front, Transverse
- Engine displacement
- 1199 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 3
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.3 l
- Coolant capacity
- 8 l
- Power
- 75 KM @ 4200 obr./min
- Torque
- 180 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 430 l
- Curb weight
- 1190 kg
- Gross weight
- 1680 kg
Vehicle dimensions
- Length
- 4236 mm
- Width
- 1693 mm
- Height
- 1445 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
1.6 TDI (90 KM)
Diesel fuel · 2012–2015
- Engine power
- 90 KM
- Torque
- 230 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.2 s
- Maximum speed
- 178 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV ST (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV ST (facelift 2012)
- Engine
- 1.6 TDI (90 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2012
- End of production
- 2015
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 178 km/h
- Acceleration 0-100 km/h
- 12.2 s
- Fuel consumption - Urban cycle
- 5.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.6 l/100 km
- Fuel consumption - Combined cycle
- 4.2 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 109 g/km
Engine
- Engine model / code
- CAYB
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.3 l
- Coolant capacity
- 8 l
- Power
- 90 KM @ 4200 obr./min
- Torque
- 230 Nm @ 1500-2500 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 430 l
- Curb weight
- 1225 kg
- Gross weight
- 1680 kg
Vehicle dimensions
- Length
- 4236 mm
- Width
- 1693 mm
- Height
- 1445 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
1.6 TDI (105 KM)
Diesel fuel · 2012–2015
- Engine power
- 105 KM
- Torque
- 250 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10.9 s
- Maximum speed
- 188 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV ST (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV ST (facelift 2012)
- Engine
- 1.6 TDI (105 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2012
- End of production
- 2015
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 188 km/h
- Acceleration 0-100 km/h
- 10.9 s
- Fuel consumption - Urban cycle
- 5.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.6 l/100 km
- Fuel consumption - Combined cycle
- 4.2 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 109 g/km
Engine
- Engine model / code
- CLNA
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Coolant capacity
- 5.6 l
- Power
- 105 KM @ 4400 obr./min
- Torque
- 250 Nm @ 1500-2500 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 430 l
- Curb weight
- 1225 kg
- Gross weight
- 1680 kg
Vehicle dimensions
- Length
- 4236 mm
- Width
- 1693 mm
- Height
- 1445 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
1.2 TSI (105 KM) DSG
Gasoline · 2012–2015
- Engine power
- 105 KM
- Torque
- 175 Nm
- Engine displacement
- 1,197 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV ST (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV ST (facelift 2012)
- Engine
- 1.2 TSI (105 KM) DSG
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2012
- End of production
- 2015
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 10 s
- Fuel consumption - Urban cycle
- 7 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.4 l/100 km
- Fuel consumption - Combined cycle
- 5.3 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 124 g/km
Engine
- Engine model / code
- CBZB
- Engine position
- Front, Transverse
- Engine displacement
- 1197 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 71 mm
- Piston stroke
- 75.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.9 l
- Coolant capacity
- 5.6 l
- Power
- 105 KM @ 5000 obr./min
- Torque
- 175 Nm @ 1550-4100 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 430 l
- Curb weight
- 1165 kg
- Gross weight
- 1640 kg
Vehicle dimensions
- Length
- 4236 mm
- Width
- 1693 mm
- Height
- 1445 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
1.6 TDI (90 KM) DSG
Diesel fuel · 2012–2015
- Engine power
- 90 KM
- Torque
- 230 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12 s
- Maximum speed
- 178 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV ST (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV ST (facelift 2012)
- Engine
- 1.6 TDI (90 KM) DSG
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2012
- End of production
- 2015
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 178 km/h
- Acceleration 0-100 km/h
- 12 s
- Fuel consumption - Urban cycle
- 5.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.7 l/100 km
- Fuel consumption - Combined cycle
- 4.3 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 112 g/km
Engine
- Engine model / code
- CAYB
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.3 l
- Coolant capacity
- 8 l
- Power
- 90 KM @ 4200 obr./min
- Torque
- 230 Nm @ 1500-2500 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 430 l
- Curb weight
- 1224 kg
- Gross weight
- 1700 kg
Vehicle dimensions
- Length
- 4236 mm
- Width
- 1693 mm
- Height
- 1445 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
1.4 TSI (140 KM) ACT
Gasoline · 2012–2015
- Engine power
- 140 KM
- Torque
- 250 Nm
- Engine displacement
- 1,395 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.1 s
- Maximum speed
- 210 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV ST (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV ST (facelift 2012)
- Engine
- 1.4 TSI (140 KM) ACT
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2012
- End of production
- 2015
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 8.1 s
- Fuel consumption - Urban cycle
- 5.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 4 l/100 km
- Fuel consumption - Combined cycle
- 4.7 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 109 g/km
Engine
- Engine model / code
- CPTA
- Engine position
- Front, Transverse
- Engine displacement
- 1395 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 74.5 mm
- Piston stroke
- 80 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4 l
- Coolant capacity
- 8 l
- Power
- 140 KM @ 4500-6000 obr./min
- Torque
- 250 Nm @ 1500-3500 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 430 l
- Curb weight
- 1222 kg
- Gross weight
- 1680 kg
Vehicle dimensions
- Length
- 4240 mm
- Width
- 1693 mm
- Height
- 1441 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- ABS
- yes
Selected engine version
1.2 (60 KM)
Gasoline · 2012–2015
- Engine power
- 60 KM
- Torque
- 108 Nm
- Engine displacement
- 1,198 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 16.7 s
- Maximum speed
- 155 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV ST (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV ST (facelift 2012)
- Engine
- 1.2 (60 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2012
- End of production
- 2015
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 155 km/h
- Acceleration 0-100 km/h
- 16.7 s
- Fuel consumption - Urban cycle
- 7.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.5 l/100 km
- Fuel consumption - Combined cycle
- 5.5 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 128 g/km
Engine
- Engine model / code
- CGPB
- Engine position
- Front, Transverse
- Engine displacement
- 1198 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 3
- Cylinder bore
- 76.5 mm
- Piston stroke
- 86.9 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3 l
- Coolant capacity
- 5.6 l
- Power
- 60 KM @ 5200 obr./min
- Torque
- 108 Nm @ 3000 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 430 l
- Curb weight
- 1110 kg
- Gross weight
- 1565 kg
Vehicle dimensions
- Length
- 4236 mm
- Width
- 1693 mm
- Height
- 1445 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 175/70 R14; 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 5.0J x 14; 6.0J x 15; 7.0J x 16; 7.0J x 17
- ABS
- yes
Selected engine version
1.2 (70 KM)
Gasoline · 2012–2015
- Engine power
- 70 KM
- Torque
- 112 Nm
- Engine displacement
- 1,198 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 14.6 s
- Maximum speed
- 163 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV ST (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV ST (facelift 2012)
- Engine
- 1.2 (70 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2012
- End of production
- 2015
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 163 km/h
- Acceleration 0-100 km/h
- 14.6 s
- Fuel consumption - Urban cycle
- 7.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.5 l/100 km
- Fuel consumption - Combined cycle
- 5.5 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 128 g/km
Engine
- Engine model / code
- CGPA, CJLB
- Engine position
- Front, Transverse
- Engine displacement
- 1198 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 3
- Cylinder bore
- 76.5 mm
- Piston stroke
- 86.9 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3 l
- Coolant capacity
- 5.6 l
- Power
- 70 KM @ 5400 obr./min
- Torque
- 112 Nm @ 3000 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 430 l
- Curb weight
- 1110 kg
- Gross weight
- 1565 kg
Vehicle dimensions
- Length
- 4236 mm
- Width
- 1693 mm
- Height
- 1445 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 175/70 R14; 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 5.0J x 14; 6.0J x 15; 7.0J x 16; 7.0J x 17
- ABS
- yes
Selected engine version
FR 1.4 TSI (150 KM) DSG
Gasoline · 2012–2015
- Engine power
- 150 KM
- Torque
- 220 Nm
- Engine displacement
- 1,390 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8 s
- Maximum speed
- 212 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV ST (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV ST (facelift 2012)
- Engine
- FR 1.4 TSI (150 KM) DSG
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2012
- End of production
- 2015
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 212 km/h
- Acceleration 0-100 km/h
- 8 s
- Fuel consumption - Urban cycle
- 7.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.1 l/100 km
- Fuel consumption - Combined cycle
- 5.9 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 139 g/km
Engine
- Engine model / code
- CAVF, CNUB, CTHF, CTJB
- Engine position
- Front, Transverse
- Engine displacement
- 1390 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbo kompresor i Kompresor, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76.5 mm
- Piston stroke
- 75.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Coolant capacity
- 5.6 l
- Power
- 150 KM @ 5800 obr./min
- Torque
- 220 Nm @ 1250-4500 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 430 l
- Curb weight
- 1280 kg
- Gross weight
- 1735 kg
Vehicle dimensions
- Length
- 4240 mm
- Width
- 1693 mm
- Height
- 1693 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 215/40 R17
- Rim size
- 7.0J x 17
- ABS
- yes
Selected engine version
1.2 TDI (75 KM) start/stop
Diesel fuel · 2012–2015
- Engine power
- 75 KM
- Torque
- 180 Nm
- Engine displacement
- 1,199 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 14.6 s
- Maximum speed
- 173 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV ST (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV ST (facelift 2012)
- Engine
- 1.2 TDI (75 KM) start/stop
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2012
- End of production
- 2015
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 173 km/h
- Acceleration 0-100 km/h
- 14.6 s
- Fuel consumption - Urban cycle
- 4.1-4.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.0-3.1 l/100 km
- Fuel consumption - Combined cycle
- 3.4-3.5 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 89-92 g/km
Engine
- Engine model / code
- CFWA
- Engine position
- Front, Transverse
- Engine displacement
- 1199 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 3
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.3 l
- Coolant capacity
- 8 l
- Power
- 75 KM @ 4200 obr./min
- Torque
- 180 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 430 l
- Curb weight
- 1205 kg
- Gross weight
- 1660 kg
Vehicle dimensions
- Length
- 4236 mm
- Width
- 1693 mm
- Height
- 1445 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 185/60 R15
- Rim size
- 6.0J x 15
- ABS
- yes
Selected engine version
1.2 TSI (105 KM)
Gasoline · 2012–2015
- Engine power
- 105 KM
- Torque
- 175 Nm
- Engine displacement
- 1,197 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.2 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV ST (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV ST (facelift 2012)
- Engine
- 1.2 TSI (105 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2012
- End of production
- 2015
- Body type
- Station wagon
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 10.2 s
- Fuel consumption - Urban cycle
- 6.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.4 l/100 km
- Fuel consumption - Combined cycle
- 5.1 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 119 g/km
Engine
- Engine model / code
- CBZB
- Engine position
- Front, Transverse
- Engine displacement
- 1197 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 71 mm
- Piston stroke
- 75.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.9 l
- Coolant capacity
- 5.6 l
- Power
- 105 KM @ 5000 obr./min
- Torque
- 175 Nm @ 1550-4100 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 430 l
- Curb weight
- 1150 kg
- Gross weight
- 1605 kg
Vehicle dimensions
- Length
- 4236 mm
- Width
- 1693 mm
- Height
- 1445 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 175/70 R14; 185/60 R15; 215/45 R16
- ABS
- yes
