Vehicle specifications
Seat Ibiza IV SC (facelift 2012)
Compare all 19 engine versions of the Seat Ibiza Ibiza IV SC (facelift 2012), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Seat Ibiza IV SC (facelift 2012)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

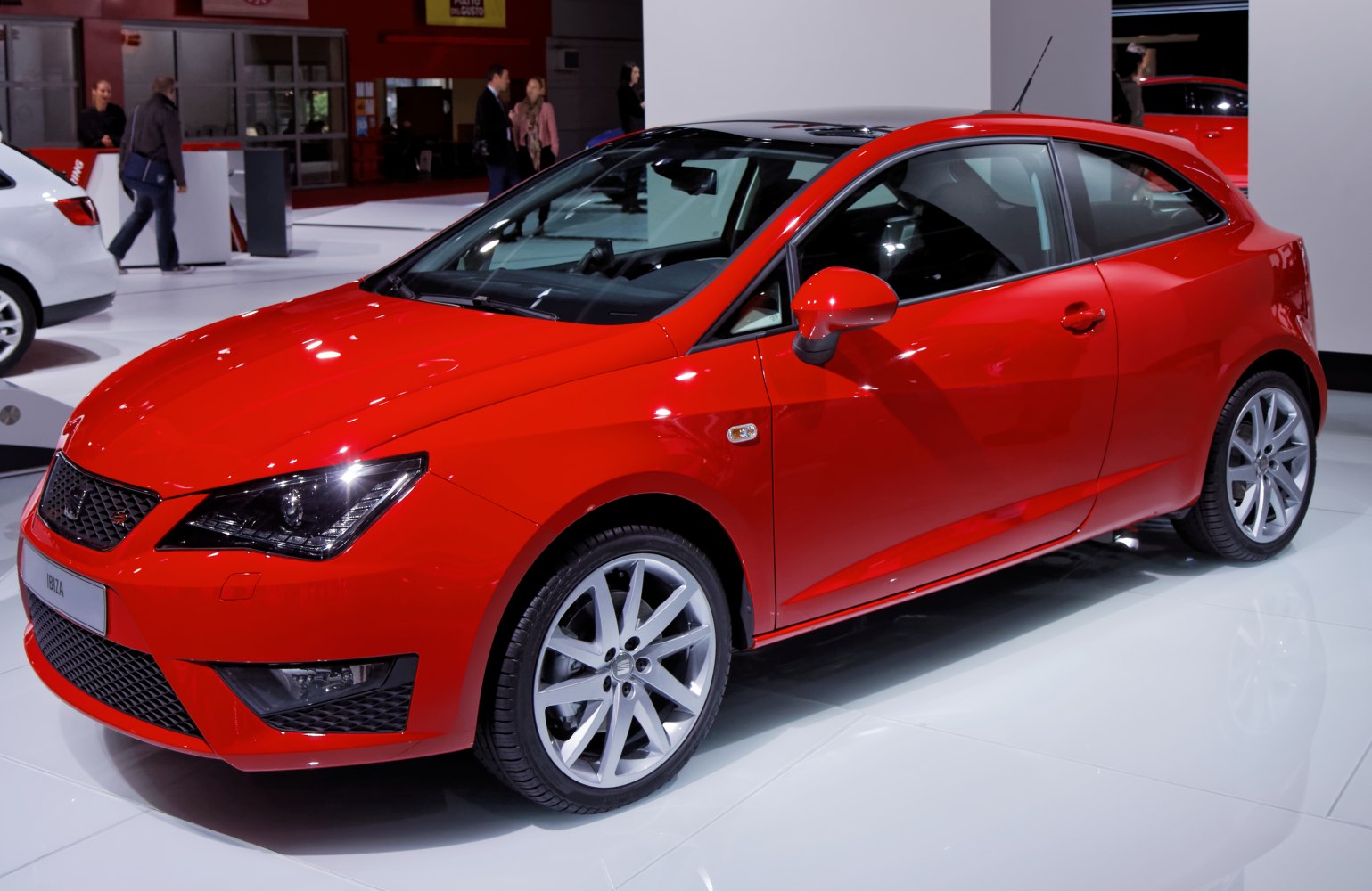

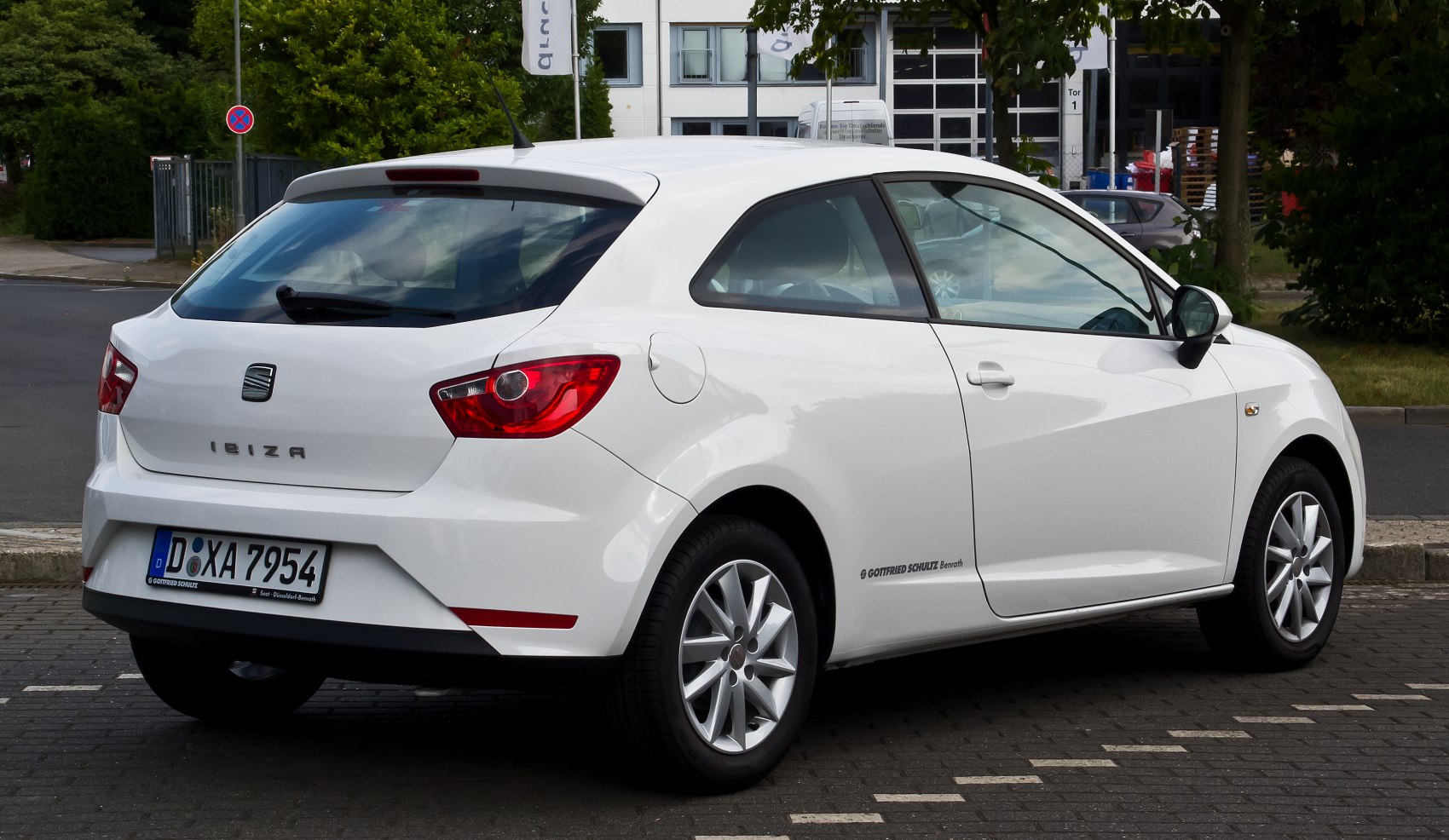

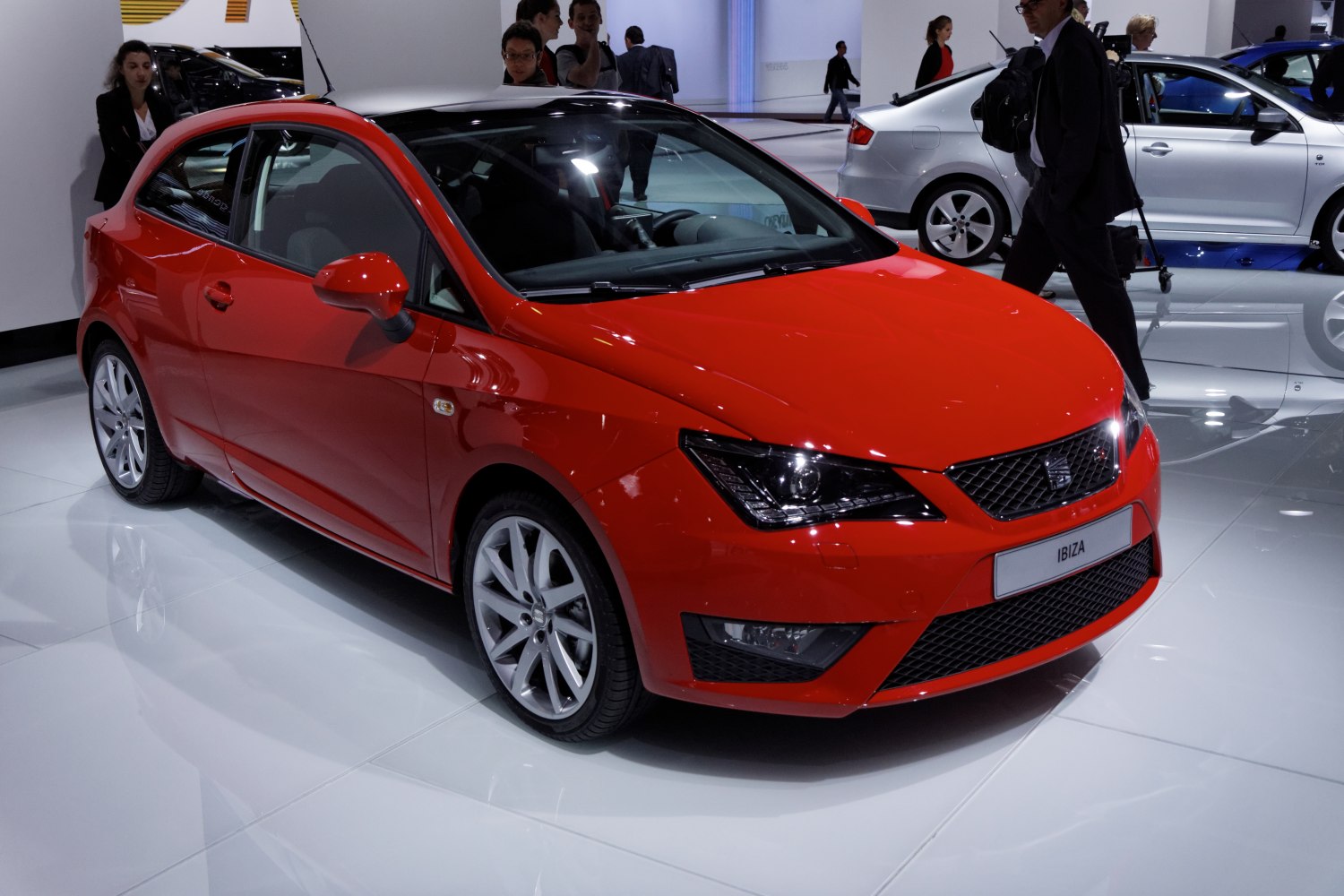

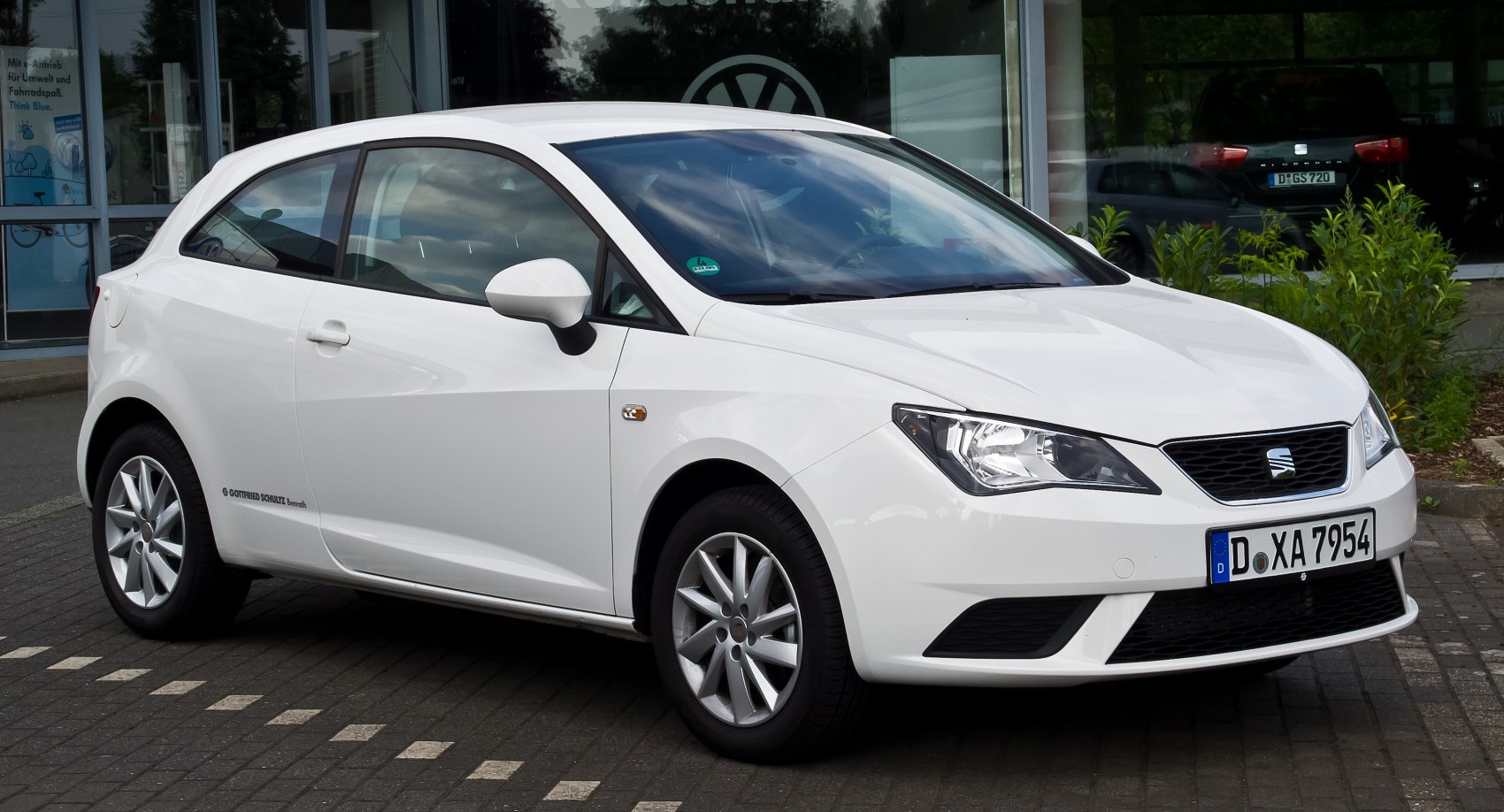

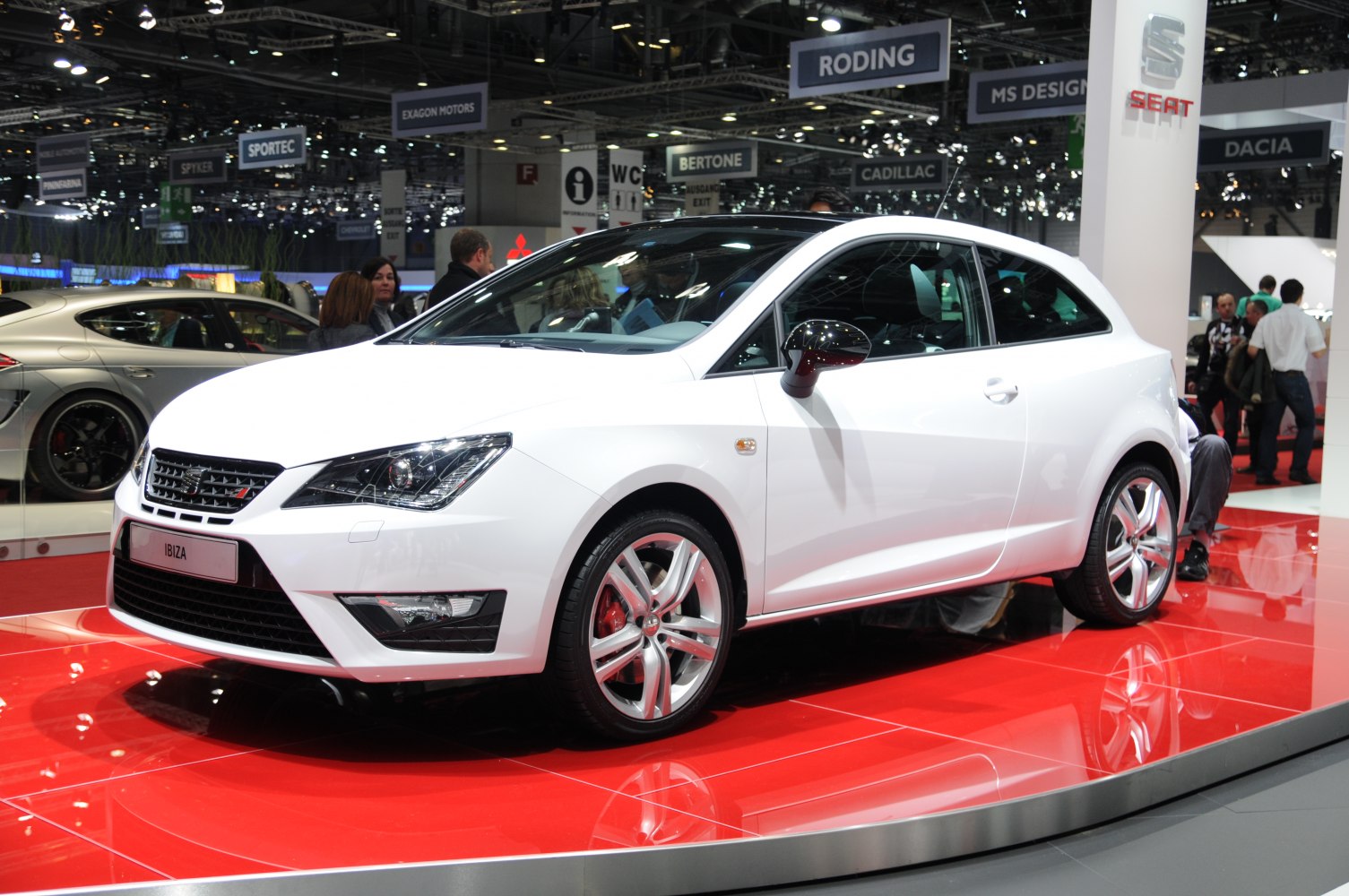

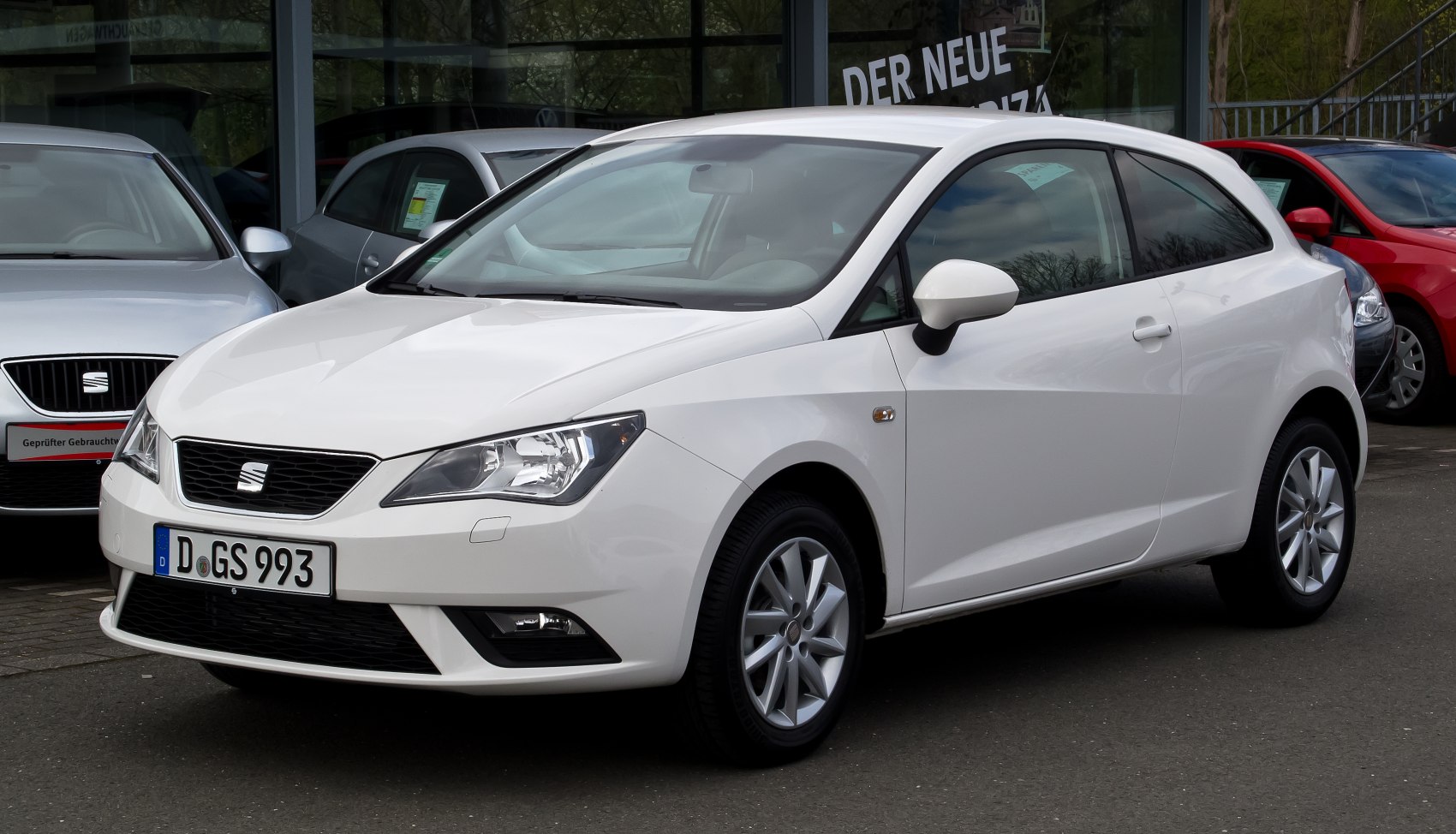

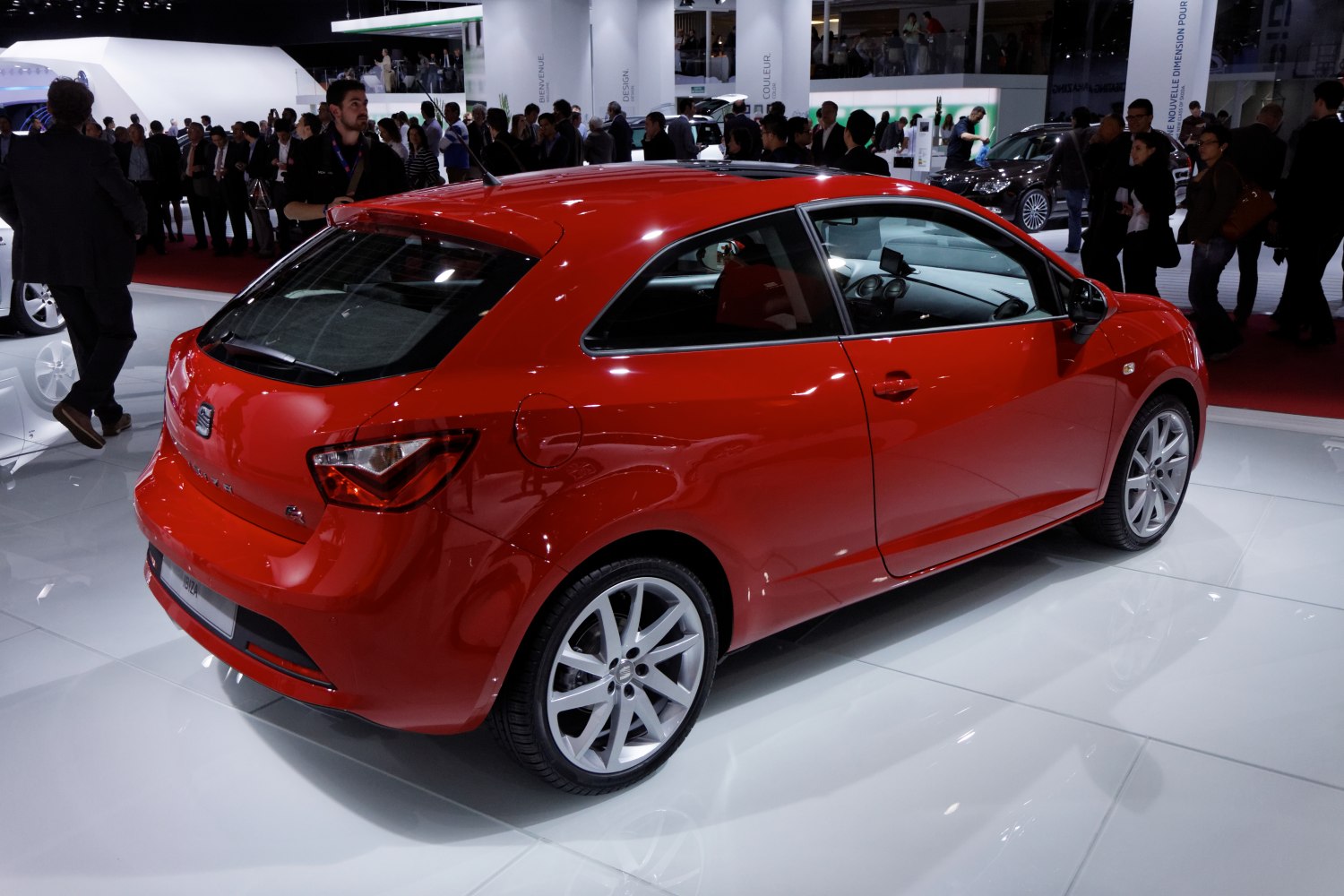

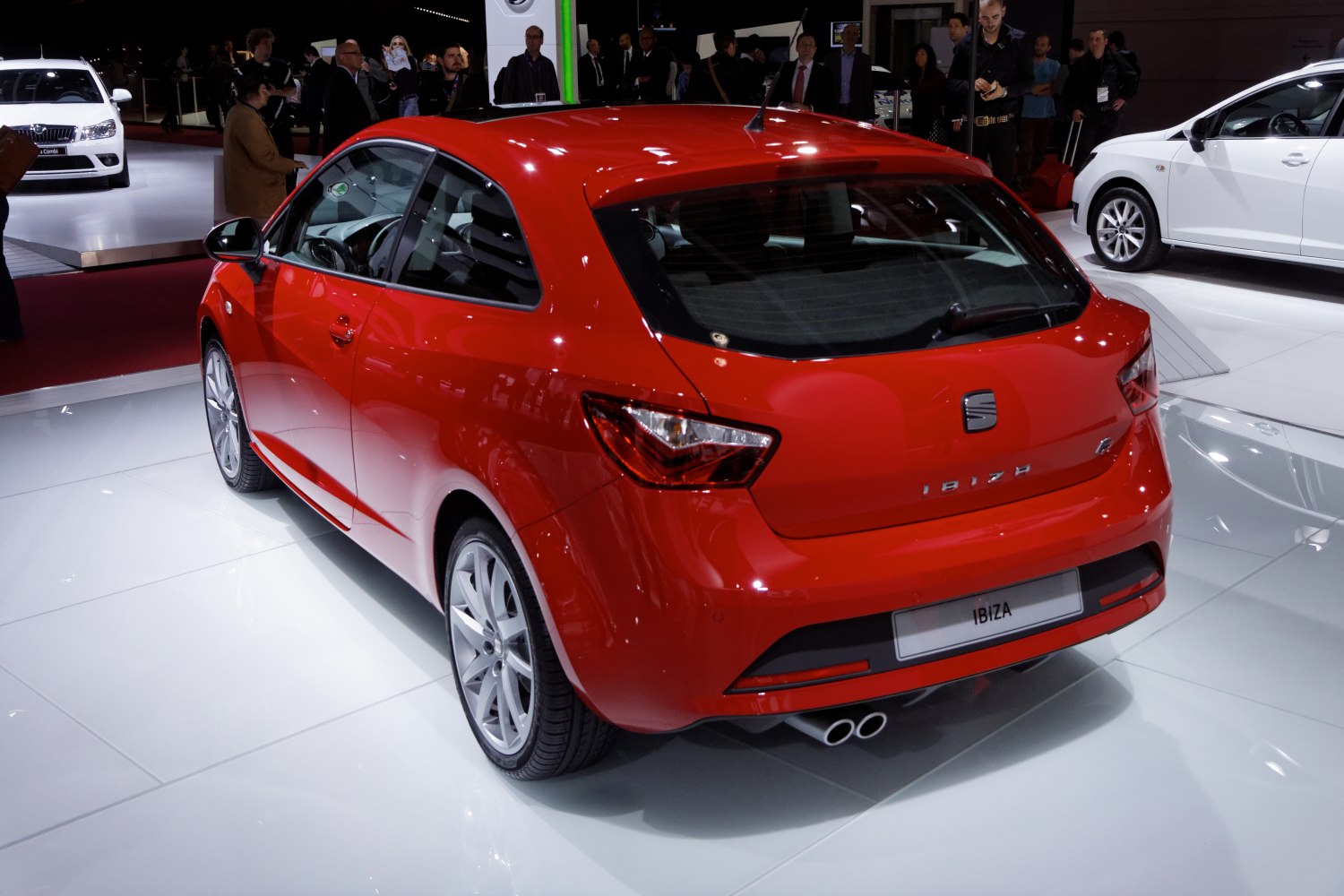

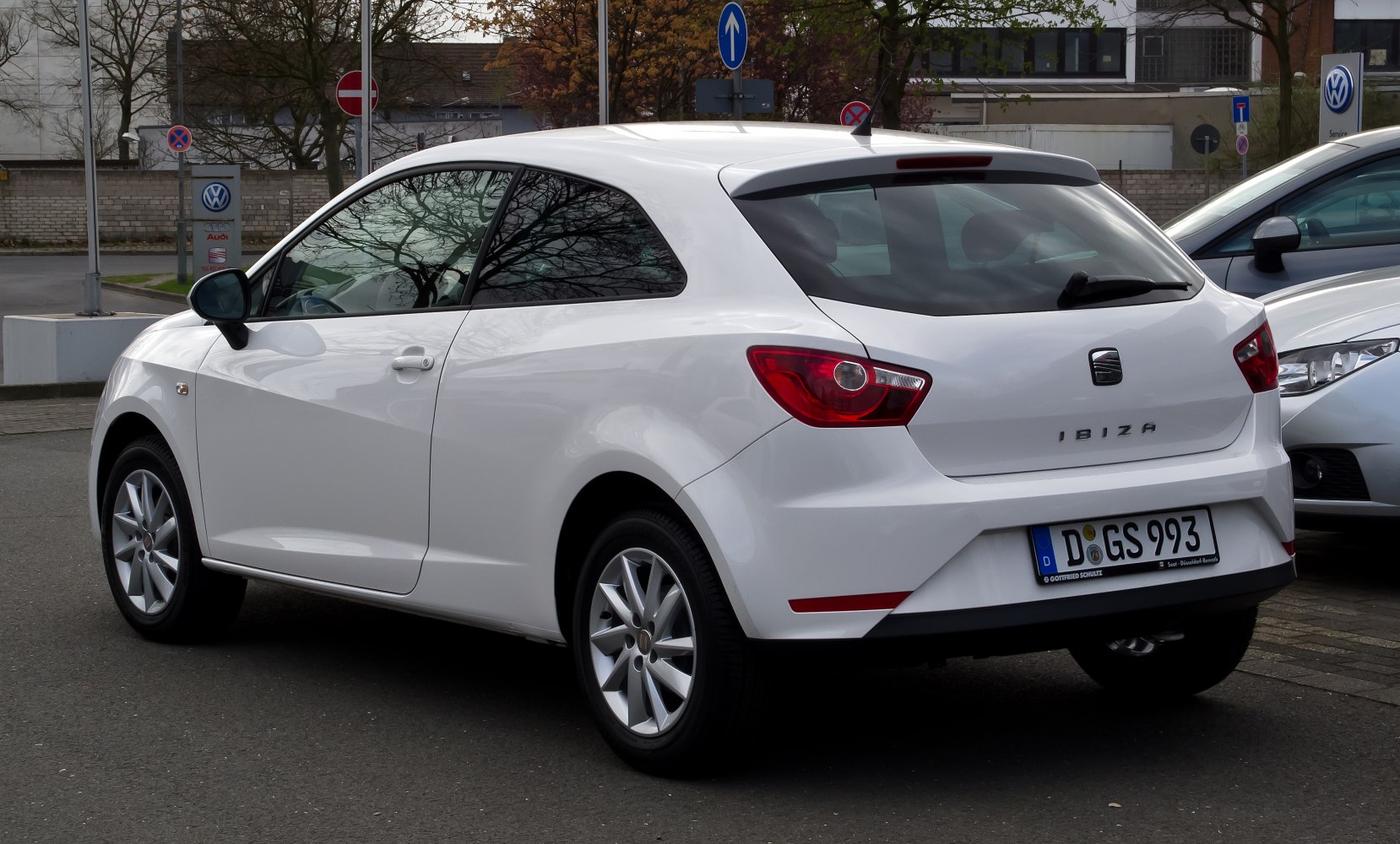

Vehicle photos
1 of 9
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
19 versions · 12 Gasoline · 6 Diesel fuel · 1 Gasoline / LPG
| Engine | Fuel | Power | Production |
|---|---|---|---|
| Cupra 1.4 TSI (180 KM) DSG Selected | Gasoline | 180 KM | 2012–2015 |
| FR 1.4 TSI (150 KM) DSG Selected | Gasoline | 150 KM | 2012–2015 |
| 1.2 TSI (105 KM) Eco Technology Selected | Gasoline | 105 KM | 2012–2015 |
| 1.2 TSI (105 KM) DSG Selected | Gasoline | 105 KM | 2012–2015 |
| 1.2 TSI (105 KM) Selected | Gasoline | 105 KM | 2012–2015 |
| 1.2 12V (60 KM) Selected | Gasoline | 60 KM | 2012–2015 |
| 1.2 TDI (75 KM) Selected | Diesel fuel | 75 KM | 2012–2015 |
| 1.6 TDI (90 KM) Selected | Diesel fuel | 90 KM | 2012–2015 |
| 1.6 TDI (90 KM) DSG Selected | Diesel fuel | 90 KM | 2012–2015 |
| 1.4 TSI (140 KM) ACT Selected | Gasoline | 140 KM | 2013–2015 |
| 1.2 12V (70 KM) Selected | Gasoline | 70 KM | 2012–2015 |
| 1.2 TSI (85 KM) Selected | Gasoline | 85 KM | 2012–2015 |
| 1.4 16V (85 KM) Selected | Gasoline | 85 KM | 2012–2015 |
| 1.2 TDI (75 KM) start/stop Selected | Diesel fuel | 75 KM | 2012–2015 |
| 1.6 TDI (105 KM) Selected | Diesel fuel | 105 KM | 2012–2015 |
| 2.0 TDI (143 KM) Selected | Diesel fuel | 143 KM | 2012–2015 |
| 1.6 (81 KM) Selected | Gasoline | 81 KM | 2012–2015 |
| 1.6 (81 KM) LPG Selected | Gasoline / LPG | 81 KM | 2012–2015 |
| 1.2 TSI (105 KM) start/stop Selected | Gasoline | 105 KM | 2012–2015 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
Cupra 1.4 TSI (180 KM) DSG
Gasoline · 2012–2015
- Engine power
- 180 KM
- Torque
- 250 Nm
- Engine displacement
- 1,390 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 6.9 s
- Maximum speed
- 228 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- Cupra 1.4 TSI (180 KM) DSG
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 228 km/h
- Acceleration 0-100 km/h
- 6.9 s
- Fuel consumption - Urban cycle
- 7.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.1 l/100 km
- Fuel consumption - Combined cycle
- 5.9 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 139 g/km
Engine
- Engine model / code
- CAVE, CTHE, CTJC
- Engine position
- Front, Transverse
- Engine displacement
- 1390 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76.5 mm
- Piston stroke
- 75.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Coolant capacity
- 5.6 l
- Power
- 180 KM @ 6200 obr./min
- Torque
- 250 Nm @ 2000-4500 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 236 l
- Curb weight
- 1259 kg
- Gross weight
- 1670 kg
Vehicle dimensions
- Length
- 4055 mm
- Width
- 1693 mm
- Height
- 1420 mm
- Wheelbase
- 2469 mm
- Front track
- 1449 mm
- Rear track
- 1441 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/40 R17
- Rim size
- 7J x 17
- ABS
- yes
Selected engine version
FR 1.4 TSI (150 KM) DSG
Gasoline · 2012–2015
- Engine power
- 150 KM
- Torque
- 220 Nm
- Engine displacement
- 1,390 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 7.6 s
- Maximum speed
- 212 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- FR 1.4 TSI (150 KM) DSG
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 212 km/h
- Acceleration 0-100 km/h
- 7.6 s
- Fuel consumption - Urban cycle
- 7.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.1 l/100 km
- Fuel consumption - Combined cycle
- 5.9 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 139 g/km
Engine
- Engine model / code
- CAVF, CNUB, CTHF, CTJB
- Engine position
- Front, Transverse
- Engine displacement
- 1390 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76.5 mm
- Piston stroke
- 75.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Coolant capacity
- 5.6 l
- Power
- 150 KM @ 5800 obr./min
- Torque
- 220 Nm @ 1250-4500 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 236 l
- Curb weight
- 1254 kg
- Gross weight
- 1680 kg
Vehicle dimensions
- Length
- 4066 mm
- Width
- 1693 mm
- Height
- 1424 mm
- Wheelbase
- 2469 mm
- Front track
- 1449 mm
- Rear track
- 1491 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/40 R17
- Rim size
- 7J x 17
- ABS
- yes
Selected engine version
1.2 TSI (105 KM) Eco Technology
Gasoline · 2012–2015
- Engine power
- 105 KM
- Torque
- 175 Nm
- Engine displacement
- 1,197 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.8 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- 1.2 TSI (105 KM) Eco Technology
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 9.8 s
- Fuel consumption - Urban cycle
- 6 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.5 l/100 km
- Fuel consumption - Combined cycle
- 5.1 l/100 km
- Emission standard
- Euro 5
Engine
- Engine model / code
- CBZB
- Engine position
- Front, Transverse
- Engine displacement
- 1197 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 71 mm
- Piston stroke
- 75.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.9 l
- Coolant capacity
- 5.6 l
- Power
- 105 KM @ 5000 obr./min
- Torque
- 175 Nm @ 1550-4100 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 284 l
- Curb weight
- 1095 kg
- Gross weight
- 1546 kg
Vehicle dimensions
- Length
- 4043 mm
- Width
- 1693 mm
- Height
- 1428 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 6J x 15; 7J x 16; 7J x 17
- ABS
- yes
Selected engine version
1.2 TSI (105 KM) DSG
Gasoline · 2012–2015
- Engine power
- 105 KM
- Torque
- 175 Nm
- Engine displacement
- 1,197 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.7 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- 1.2 TSI (105 KM) DSG
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 9.7 s
- Fuel consumption - Urban cycle
- 7 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.4 l/100 km
- Fuel consumption - Combined cycle
- 5.3 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 124 g/km
Engine
- Engine model / code
- CBZB
- Engine position
- Front, Transverse
- Engine displacement
- 1197 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 71 mm
- Piston stroke
- 75.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.9 l
- Coolant capacity
- 5.6 l
- Power
- 105 KM @ 5000 obr./min
- Torque
- 175 Nm @ 1550-4100 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 284 l
- Curb weight
- 1115 kg
- Gross weight
- 1590 kg
Vehicle dimensions
- Length
- 4043 mm
- Width
- 1693 mm
- Height
- 1428 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 6J x 15; 7J x 16; 7J x 17
- ABS
- yes
Selected engine version
1.2 TSI (105 KM)
Gasoline · 2012–2015
- Engine power
- 105 KM
- Torque
- 175 Nm
- Engine displacement
- 1,197 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.8 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- 1.2 TSI (105 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 9.8 s
- Fuel consumption - Urban cycle
- 6.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.4 l/100 km
- Fuel consumption - Combined cycle
- 5.1 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 119 g/km
Engine
- Engine model / code
- CBZB
- Engine position
- Front, Transverse
- Engine displacement
- 1197 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 71 mm
- Piston stroke
- 75.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.9 l
- Coolant capacity
- 5.6 l
- Power
- 105 KM @ 5000 obr./min
- Torque
- 175 Nm @ 1550-4100 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 284 l
- Curb weight
- 1090 kg
- Gross weight
- 1580 kg
Vehicle dimensions
- Length
- 4043 mm
- Width
- 1693 mm
- Height
- 1428 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 6J x 15; 7J x 16; 7J x 17
- ABS
- yes
Selected engine version
1.2 12V (60 KM)
Gasoline · 2012–2015
- Engine power
- 60 KM
- Torque
- 108 Nm
- Engine displacement
- 1,198 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 15.9 s
- Maximum speed
- 155 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- 1.2 12V (60 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 155 km/h
- Acceleration 0-100 km/h
- 15.9 s
- Fuel consumption - Urban cycle
- 7.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.4 l/100 km
- Fuel consumption - Combined cycle
- 5.4 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 125 g/km
Engine
- Engine model / code
- CGPB
- Engine position
- Front, Transverse
- Engine displacement
- 1198 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 3
- Cylinder bore
- 76.5 mm
- Piston stroke
- 86.9 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3 l
- Coolant capacity
- 5.6 l
- Power
- 60 KM @ 5200 obr./min
- Torque
- 108 Nm @ 3000 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 284 l
- Curb weight
- 1049 kg
- Gross weight
- 1540 kg
Vehicle dimensions
- Length
- 4043 mm
- Width
- 1693 mm
- Height
- 1428 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 6J x 15; 7J x 16; 7J x 17
- ABS
- yes
Selected engine version
1.2 TDI (75 KM)
Diesel fuel · 2012–2015
- Engine power
- 75 KM
- Torque
- 180 Nm
- Engine displacement
- 1,199 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 13.9 s
- Maximum speed
- 168 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- 1.2 TDI (75 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 168 km/h
- Acceleration 0-100 km/h
- 13.9 s
- Fuel consumption - Urban cycle
- 4.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.3 l/100 km
- Fuel consumption - Combined cycle
- 3.8 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 99 g/km
Engine
- Engine model / code
- CFWA
- Engine position
- Front, Transverse
- Engine displacement
- 1199 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 3
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.3 l
- Coolant capacity
- 8 l
- Power
- 75 KM @ 4200 obr./min
- Torque
- 180 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 284 l
- Curb weight
- 1035 kg
- Gross weight
- 1630 kg
Vehicle dimensions
- Length
- 4043 mm
- Width
- 1693 mm
- Height
- 1428 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 6J x 15; 7J x 16; 7J x 17
- ABS
- yes
Selected engine version
1.6 TDI (90 KM)
Diesel fuel · 2012–2015
- Engine power
- 90 KM
- Torque
- 230 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.8 s
- Maximum speed
- 178 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- 1.6 TDI (90 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 178 km/h
- Acceleration 0-100 km/h
- 11.8 s
- Fuel consumption - Urban cycle
- 5.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.6 l/100 km
- Fuel consumption - Combined cycle
- 4.2 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 109 g/km
Engine
- Engine model / code
- CAYB
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.3 l
- Coolant capacity
- 8 l
- Power
- 90 KM @ 4200 obr./min
- Torque
- 230 Nm @ 1500-2500 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 284 l
- Curb weight
- 1170 kg
- Gross weight
- 1670 kg
Vehicle dimensions
- Length
- 4043 mm
- Width
- 1693 mm
- Height
- 1428 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 6J x 15; 7J x 16; 7J x 17
- ABS
- yes
Selected engine version
1.6 TDI (90 KM) DSG
Diesel fuel · 2012–2015
- Engine power
- 90 KM
- Torque
- 230 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.6 s
- Maximum speed
- 178 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- 1.6 TDI (90 KM) DSG
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 178 km/h
- Acceleration 0-100 km/h
- 11.6 s
- Fuel consumption - Urban cycle
- 5.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.7 l/100 km
- Fuel consumption - Combined cycle
- 4.3 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 112 g/km
Engine
- Engine model / code
- CAYB
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.3 l
- Coolant capacity
- 8 l
- Power
- 90 KM @ 4200 obr./min
- Torque
- 230 Nm @ 1500-2500 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 284 l
- Curb weight
- 1189 kg
- Gross weight
- 1690 kg
Vehicle dimensions
- Length
- 4043 mm
- Width
- 1693 mm
- Height
- 1428 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 7
- Type of automatic gearbox
- DSG
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 6J x 15; 7J x 16; 7J x 17
- ABS
- yes
Selected engine version
1.4 TSI (140 KM) ACT
Gasoline · 2013–2015
- Engine power
- 140 KM
- Torque
- 250 Nm
- Engine displacement
- 1,395 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 7.8 s
- Maximum speed
- 210 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- 1.4 TSI (140 KM) ACT
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2013
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 7.8 s
- Fuel consumption - Urban cycle
- 5.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 4 l/100 km
- Fuel consumption - Combined cycle
- 4.7 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 109 g/km
Engine
- Engine model / code
- CPTA
- Engine position
- Front, Transverse
- Engine displacement
- 1395 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 74.5 mm
- Piston stroke
- 80 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4 l
- Coolant capacity
- 8 l
- Power
- 140 KM @ 4500-6000 obr./min
- Torque
- 250 Nm @ 1500-3500 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 284 l
- Curb weight
- 1167 kg
- Gross weight
- 1630 kg
Vehicle dimensions
- Length
- 4066 mm
- Width
- 1693 mm
- Height
- 1424 mm
- Wheelbase
- 2469 mm
- Front track
- 1449 mm
- Rear track
- 1491 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 215/40 R17
- Rim size
- 7J x 17
- ABS
- yes
Selected engine version
1.2 12V (70 KM)
Gasoline · 2012–2015
- Engine power
- 70 KM
- Torque
- 112 Nm
- Engine displacement
- 1,198 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 13.9 s
- Maximum speed
- 163 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- 1.2 12V (70 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 163 km/h
- Acceleration 0-100 km/h
- 13.9 s
- Fuel consumption - Urban cycle
- 7.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.4 l/100 km
- Fuel consumption - Combined cycle
- 5.4 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 125 g/km
Engine
- Engine model / code
- CGPA, CJLB
- Engine position
- Front, Transverse
- Engine displacement
- 1198 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 3
- Cylinder bore
- 76.5 mm
- Piston stroke
- 86.9 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3 l
- Coolant capacity
- 5.6 l
- Power
- 70 KM @ 5400 obr./min
- Torque
- 112 Nm @ 3000 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 284 l
- Curb weight
- 1049 kg
- Gross weight
- 1540 kg
Vehicle dimensions
- Length
- 4043 mm
- Width
- 1693 mm
- Height
- 1428 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 6J x 15; 7J x 16; 7J x 17
- ABS
- yes
Selected engine version
1.2 TSI (85 KM)
Gasoline · 2012–2015
- Engine power
- 85 KM
- Torque
- 160 Nm
- Engine displacement
- 1,197 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.3 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- 1.2 TSI (85 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 11.3 s
- Fuel consumption - Urban cycle
- 6.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.4 l/100 km
- Fuel consumption - Combined cycle
- 5.1 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 119 g/km
Engine
- Engine model / code
- CBZA
- Engine position
- Front, Transverse
- Engine displacement
- 1197 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 71 mm
- Piston stroke
- 75.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Coolant capacity
- 5.6 l
- Power
- 85 KM @ 4800 obr./min
- Torque
- 160 Nm @ 1500-3500 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 284 l
- Curb weight
- 1090 kg
- Gross weight
- 1570 kg
Vehicle dimensions
- Length
- 4043 mm
- Width
- 1693 mm
- Height
- 1428 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 6J x 15; 7J x 16; 7J x 17
- ABS
- yes
Selected engine version
1.4 16V (85 KM)
Gasoline · 2012–2015
- Engine power
- 85 KM
- Torque
- 132 Nm
- Engine displacement
- 1,390 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.8 s
- Maximum speed
- 177 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- 1.4 16V (85 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 177 km/h
- Acceleration 0-100 km/h
- 11.8 s
- Fuel consumption - Urban cycle
- 8 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.7 l/100 km
- Fuel consumption - Combined cycle
- 5.9 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 139 g/km
Engine
- Engine model / code
- CGGB
- Engine position
- Front, Transverse
- Engine displacement
- 1390 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76.5 mm
- Piston stroke
- 75.6 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.2 l
- Coolant capacity
- 5.6 l
- Power
- 85 KM @ 5000 obr./min
- Torque
- 132 Nm @ 3800 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 284 l
- Curb weight
- 1075 kg
- Gross weight
- 1560 kg
Vehicle dimensions
- Length
- 4043 mm
- Width
- 1693 mm
- Height
- 1428 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 15; 16; 17
- ABS
- yes
Selected engine version
1.2 TDI (75 KM) start/stop
Diesel fuel · 2012–2015
- Engine power
- 75 KM
- Torque
- 180 Nm
- Engine displacement
- 1,199 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 13.9 s
- Maximum speed
- 173 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- 1.2 TDI (75 KM) start/stop
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 173 km/h
- Acceleration 0-100 km/h
- 13.9 s
- Fuel consumption - Urban cycle
- 4.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 3 l/100 km
- Fuel consumption - Combined cycle
- 3.4 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 89 g/km
Engine
- Engine model / code
- CFWA
- Engine position
- Front, Transverse
- Engine displacement
- 1199 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 3
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.3 l
- Coolant capacity
- 8 l
- Power
- 75 KM @ 4200 obr./min
- Torque
- 180 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 284 l
- Curb weight
- 1150 kg
- Gross weight
- 1620 kg
Vehicle dimensions
- Length
- 4043 mm
- Width
- 1693 mm
- Height
- 1428 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 6J x 15; 7J x 16; 7J x 17
- ABS
- yes
Selected engine version
1.6 TDI (105 KM)
Diesel fuel · 2012–2015
- Engine power
- 105 KM
- Torque
- 250 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10.5 s
- Maximum speed
- 188 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- 1.6 TDI (105 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 188 km/h
- Acceleration 0-100 km/h
- 10.5 s
- Fuel consumption - Urban cycle
- 5.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.6 l/100 km
- Fuel consumption - Combined cycle
- 4.2 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 109 g/km
Engine
- Engine model / code
- CLNA
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79.5 mm
- Piston stroke
- 80.5 mm
- Compression ratio
- 16.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Coolant capacity
- 5.6 l
- Power
- 105 KM @ 4400 obr./min
- Torque
- 250 Nm @ 1500-2500 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 284 l
- Curb weight
- 1170 kg
- Gross weight
- 1670 kg
Vehicle dimensions
- Length
- 4043 mm
- Width
- 1693 mm
- Height
- 1428 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 6J x 15; 7J x 16; 7J x 17
- ABS
- yes
Selected engine version
2.0 TDI (143 KM)
Diesel fuel · 2012–2015
- Engine power
- 143 KM
- Torque
- 320 Nm
- Engine displacement
- 1,968 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 8.2 s
- Maximum speed
- 210 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- 2.0 TDI (143 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 8.2 s
- Fuel consumption - Urban cycle
- 5.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.9 l/100 km
- Fuel consumption - Combined cycle
- 4.6 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 119 g/km
Engine
- Engine model / code
- CFHD
- Engine position
- Front, Transverse
- Engine displacement
- 1968 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 81 mm
- Piston stroke
- 95.5 mm
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.3 l
- Coolant capacity
- 8 l
- Power
- 143 KM @ 4200 obr./min
- Torque
- 320 Nm @ 1750-2500 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 236 l
- Curb weight
- 1254 kg
- Gross weight
- 1690 kg
Vehicle dimensions
- Length
- 4066 mm
- Width
- 1693 mm
- Height
- 1424 mm
- Wheelbase
- 2469 mm
- Front track
- 1449 mm
- Rear track
- 1441 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Trailing arm
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 6J x 15; 7J x 16; 7J x 17
- ABS
- yes
Selected engine version
1.6 (81 KM)
Gasoline · 2012–2015
- Engine power
- 81 KM
- Torque
- 145 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.2 s
- Maximum speed
- 174 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- 1.6 (81 KM)
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 174 km/h
- Acceleration 0-100 km/h
- 12.2 s
- Fuel consumption - Urban cycle
- 8.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.8 l/100 km
- Fuel consumption - Combined cycle
- 6 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 139 g/km
Engine
- Engine model / code
- BTS
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76.5 mm
- Piston stroke
- 86.9 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Power
- 81 KM @ 4000-6000 obr./min
- Torque
- 145 Nm @ 3800 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 218 l
- Curb weight
- 1143 kg
- Gross weight
- 1569 kg
Vehicle dimensions
- Length
- 4043 mm
- Width
- 1693 mm
- Height
- 1428 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Drum
- Steering system
- Rack-and-pinion
- Tire size
- 175/70 R14; 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 5.0J x 14; 6.0J x 15; 7.0J x 16; 7.0J x 17
- ABS
- yes
Selected engine version
1.6 (81 KM) LPG
Gasoline / LPG · 2012–2015
- Engine power
- 81 KM
- Torque
- 145 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline / LPG
- Acceleration 0-100 km/h
- 12.2 s
- Maximum speed
- 174 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- 1.6 (81 KM) LPG
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Gasoline / LPG
Performance
- Maximum speed
- 174 km/h
- Acceleration 0-100 km/h
- 12.2 s
- Fuel consumption - Urban cycle
- 8.1/10.4 l/100 km
- Fuel consumption - Urban cycle (LPG)
- 10.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.8/6.0 l/100 km
- Fuel consumption - Extra-urban cycle (LPG)
- 6.0 l/100 km
- Fuel consumption - Combined cycle
- 6.0/7.6 l/100 km
- Fuel consumption - Combined cycle (LPG)
- 7.6 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 139/123 g/km
- CO2 emissions (LPG)
- 123 g/km
Engine
- Engine model / code
- CNKA
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 76.5 mm
- Piston stroke
- 86.9 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Coolant capacity
- 5.6 l
- Power
- 81 KM @ 4000-6000 obr./min
- Torque
- 145 Nm @ 3800 obr./min
Volume and weight
- Fuel tank
- 45 l
- Fuel tank (LPG)
- 52.8 l
- Minimum trunk capacity
- 218 l
- Curb weight
- 1143 kg
- Gross weight
- 1610 kg
- Braked trailer load (12% slope start)
- 1000 kg
Vehicle dimensions
- Length
- 4043 mm
- Width
- 1693 mm
- Height
- 1428 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 256 mm
- Front brake disc thickness
- 22 mm
- Rear brakes
- Drum
- Rear brake disc/drum diameter
- 200 mm
- Rear brake disc thickness
- 40 mm
- Steering system
- Rack-and-pinion
- Tire size
- 175/70 R14; 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 5.0J x 14; 6.0J x 15; 7.0J x 16; 7.0J x 17
- ABS
- yes
Selected engine version
1.2 TSI (105 KM) start/stop
Gasoline · 2012–2015
- Engine power
- 105 KM
- Torque
- 175 Nm
- Engine displacement
- 1,197 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.8 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Seat Ibiza Ibiza IV SC (facelift 2012)- Brand
- Seat
- Model
- Ibiza
- Version
- Ibiza IV SC (facelift 2012)
- Engine
- 1.2 TSI (105 KM) start/stop
- Engine type
- Combustion engine
- Number of doors
- 3
- Start of production
- 2012
- End of production
- 2015
- Body type
- Coupé
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 9.8 s
- Fuel consumption - Urban cycle
- 5.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.3 l/100 km
- Fuel consumption - Combined cycle
- 4.9 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 113 g/km
Engine
- Engine model / code
- CBZB
- Engine position
- Front, Transverse
- Engine displacement
- 1197 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 71 mm
- Piston stroke
- 75.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.9 l
- Coolant capacity
- 5.6 l
- Power
- 105 KM @ 5000 obr./min
- Torque
- 175 Nm @ 1550-4100 obr./min
Volume and weight
- Fuel tank
- 45 l
- Minimum trunk capacity
- 284 l
- Curb weight
- 1095 kg
- Gross weight
- 1546 kg
Vehicle dimensions
- Length
- 4043 mm
- Width
- 1693 mm
- Height
- 1428 mm
- Wheelbase
- 2469 mm
- Front track
- 1465 mm
- Rear track
- 1457 mm
- Turning circle
- 10.48 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 185/60 R15; 215/45 R16; 215/40 R17
- Rim size
- 6.0J x 15; 7.0J x 16; 7.0J x 17
- ABS
- yes
