Vehicle specifications
Saab 9-5 II
Compare all 3 engine versions of the Saab 9-5 9-5 II, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Saab 9-5 II? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

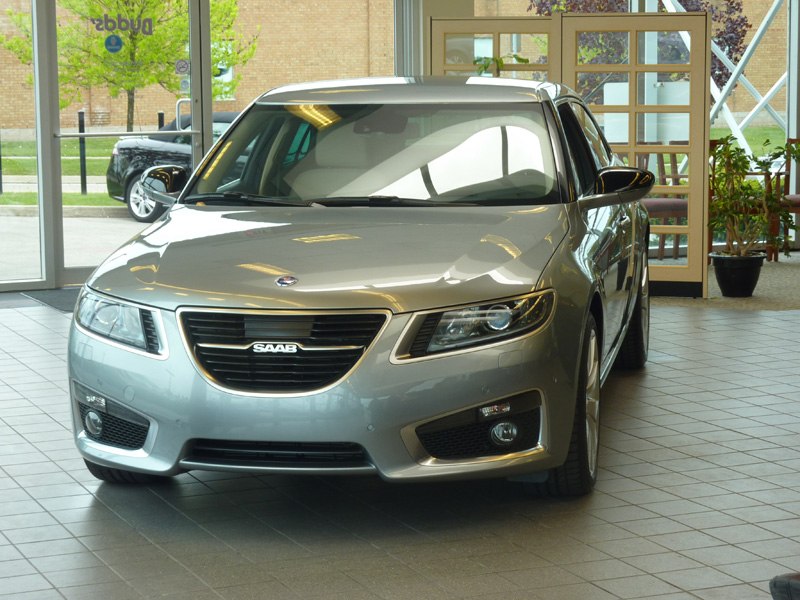

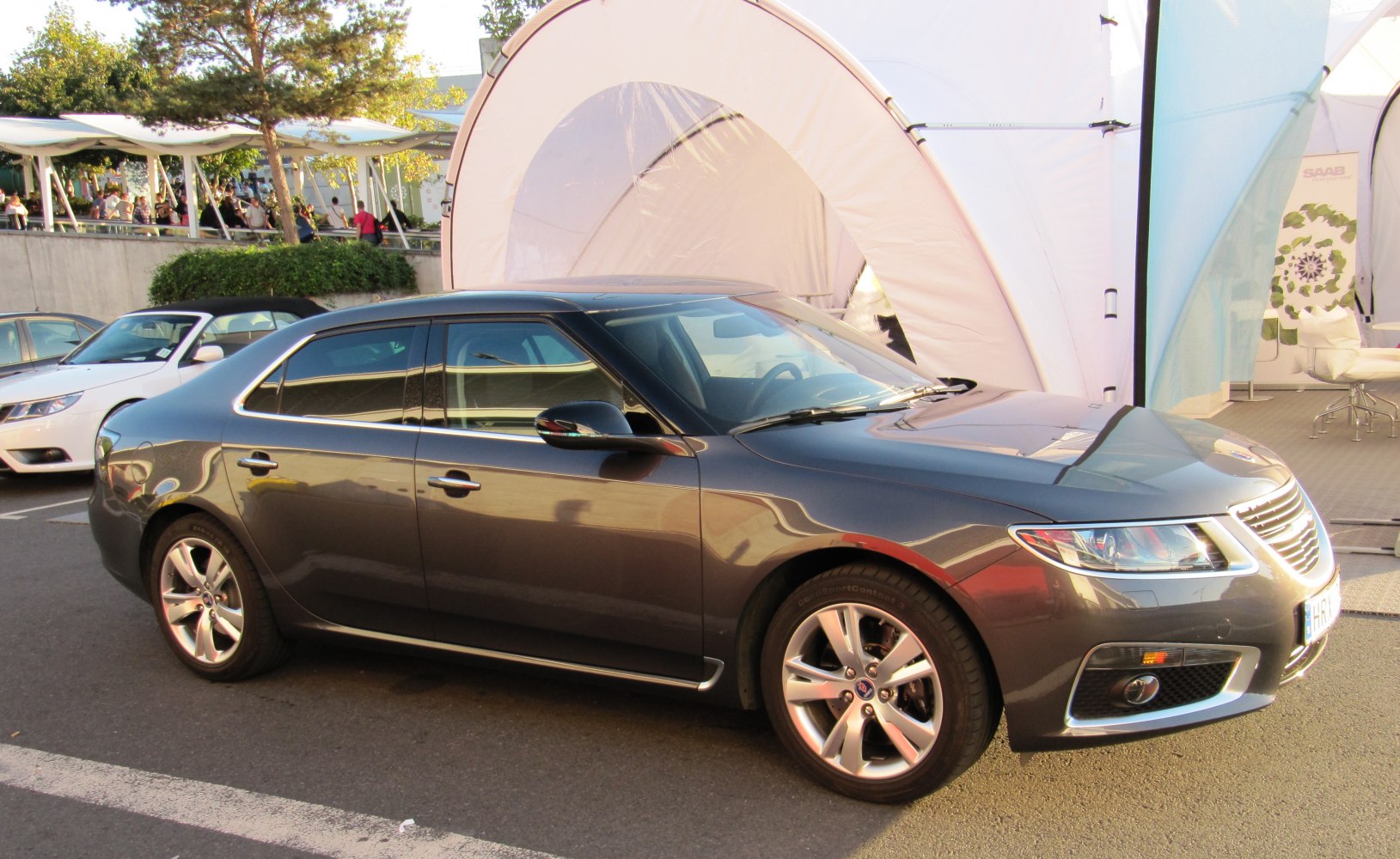

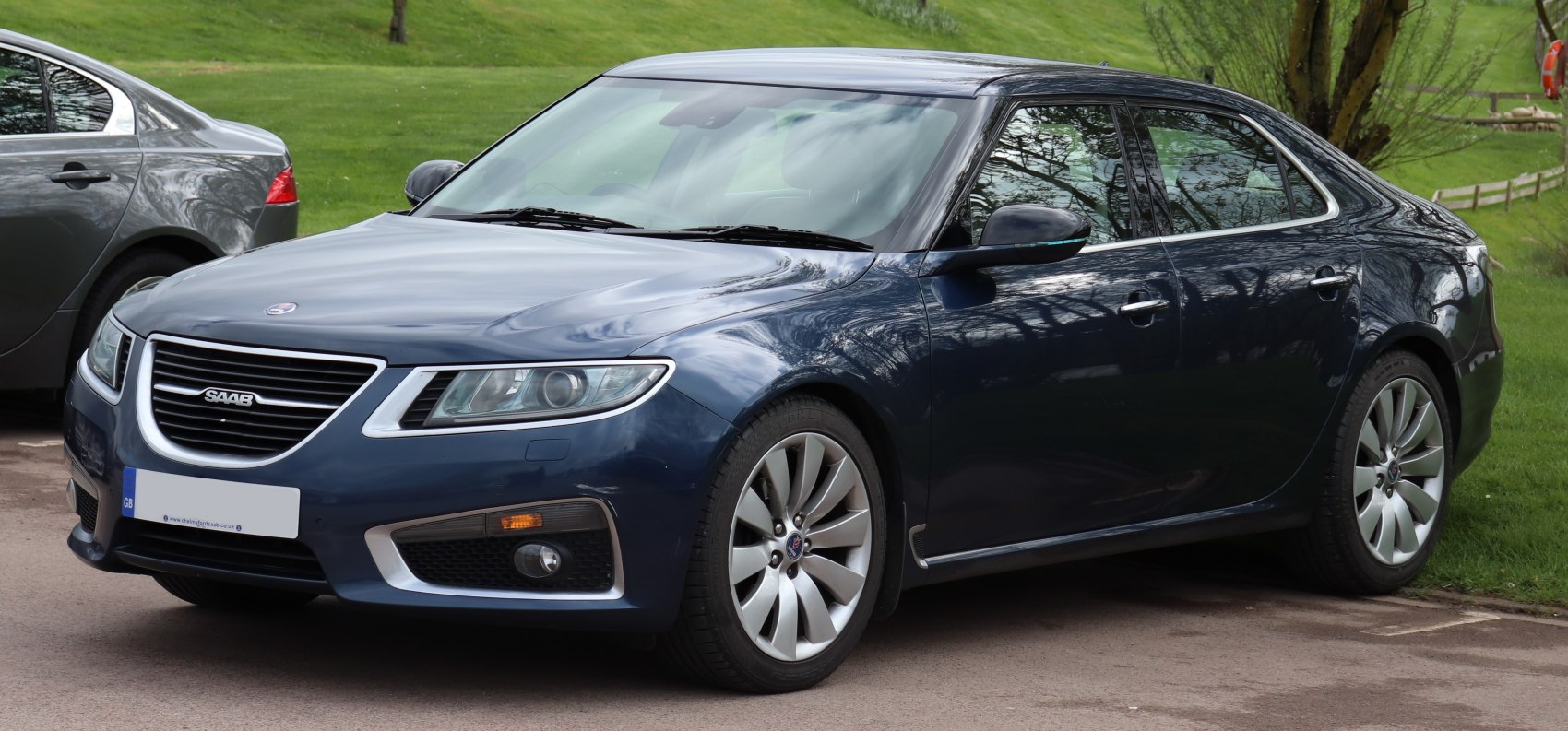

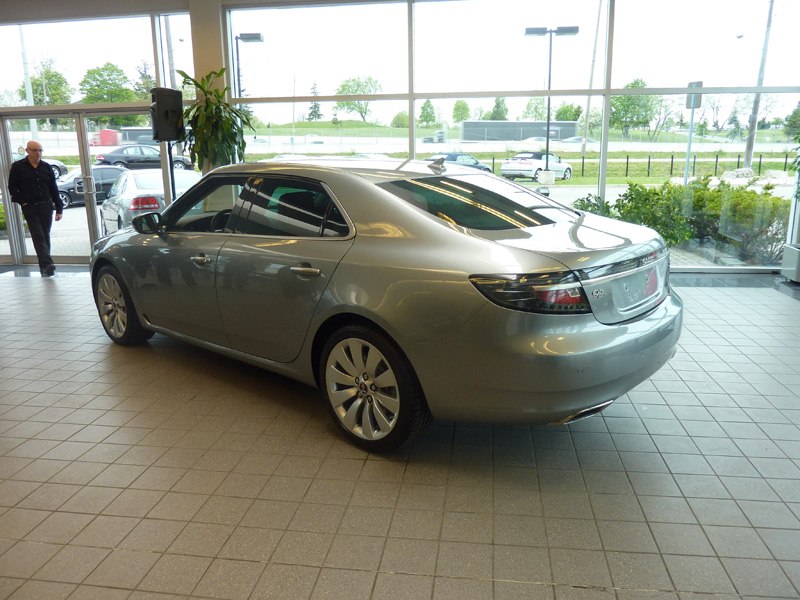

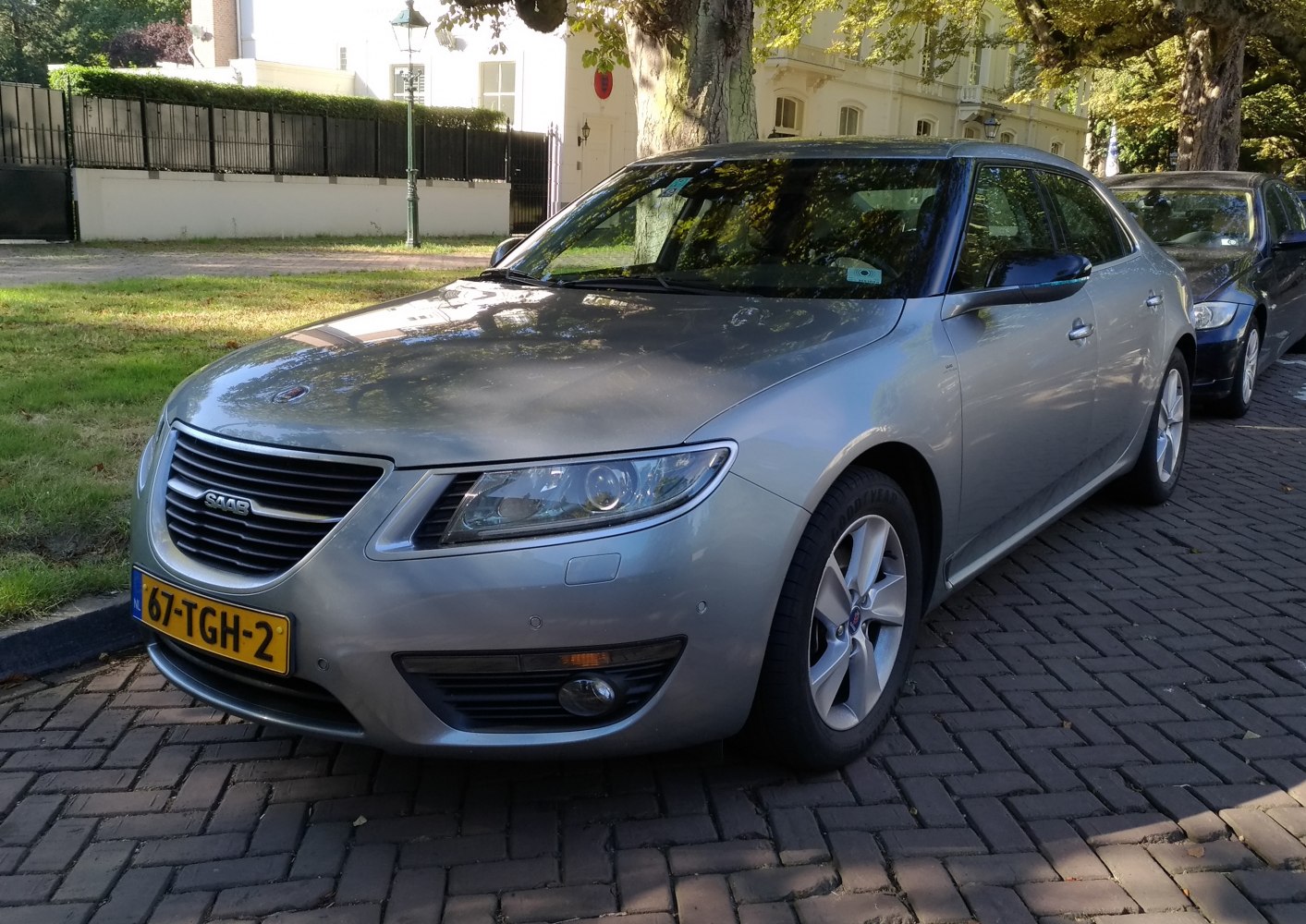

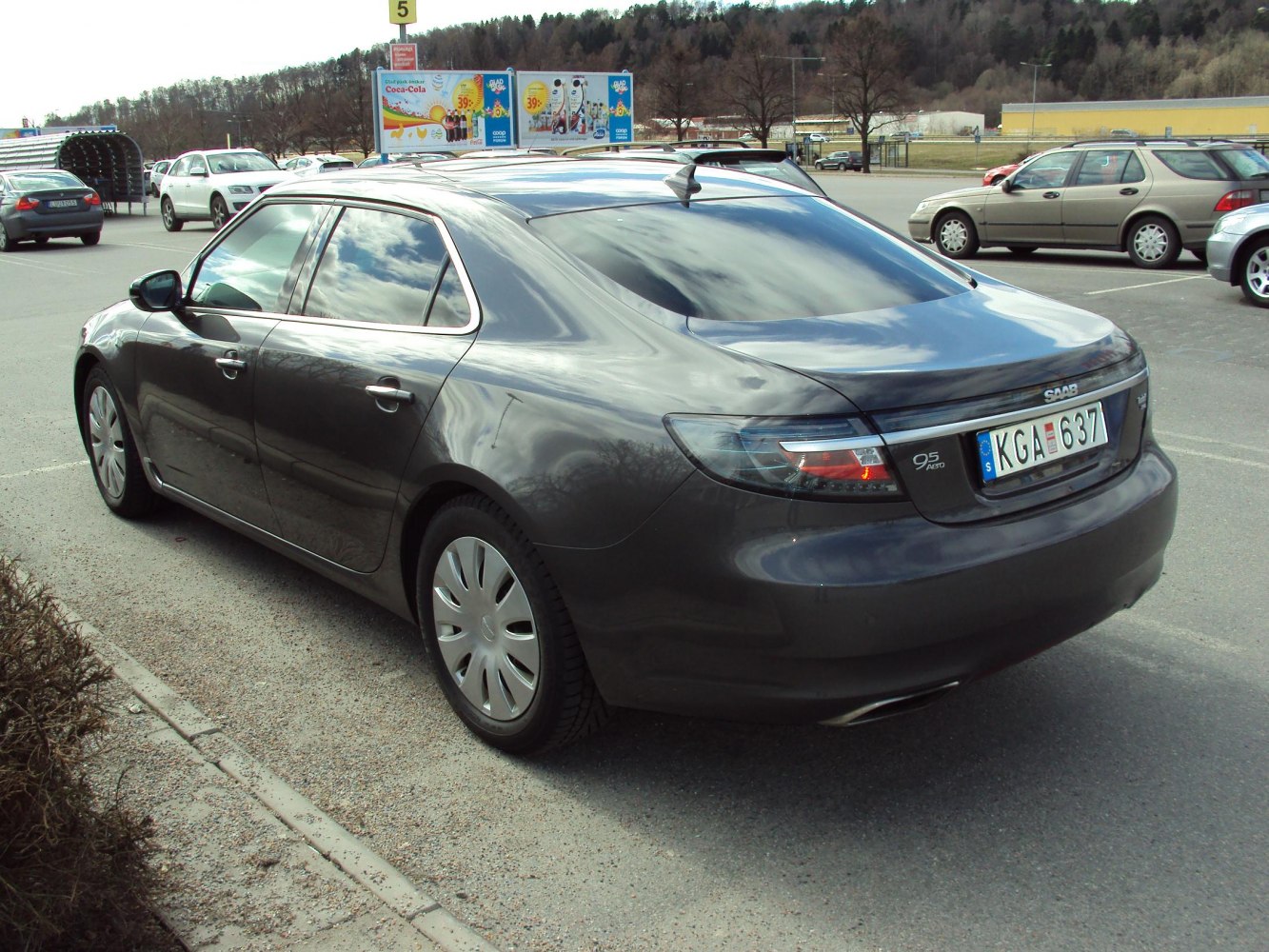

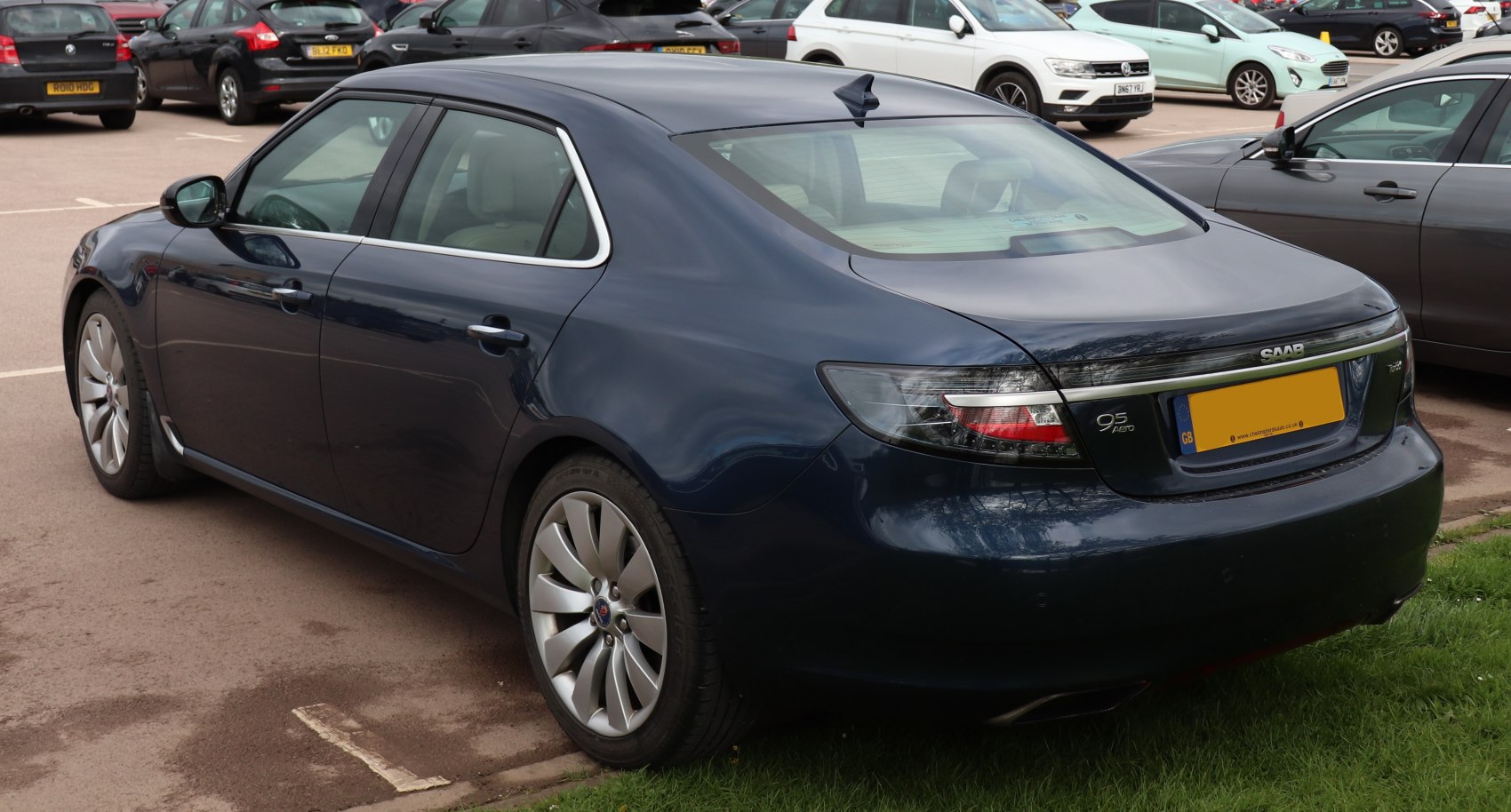

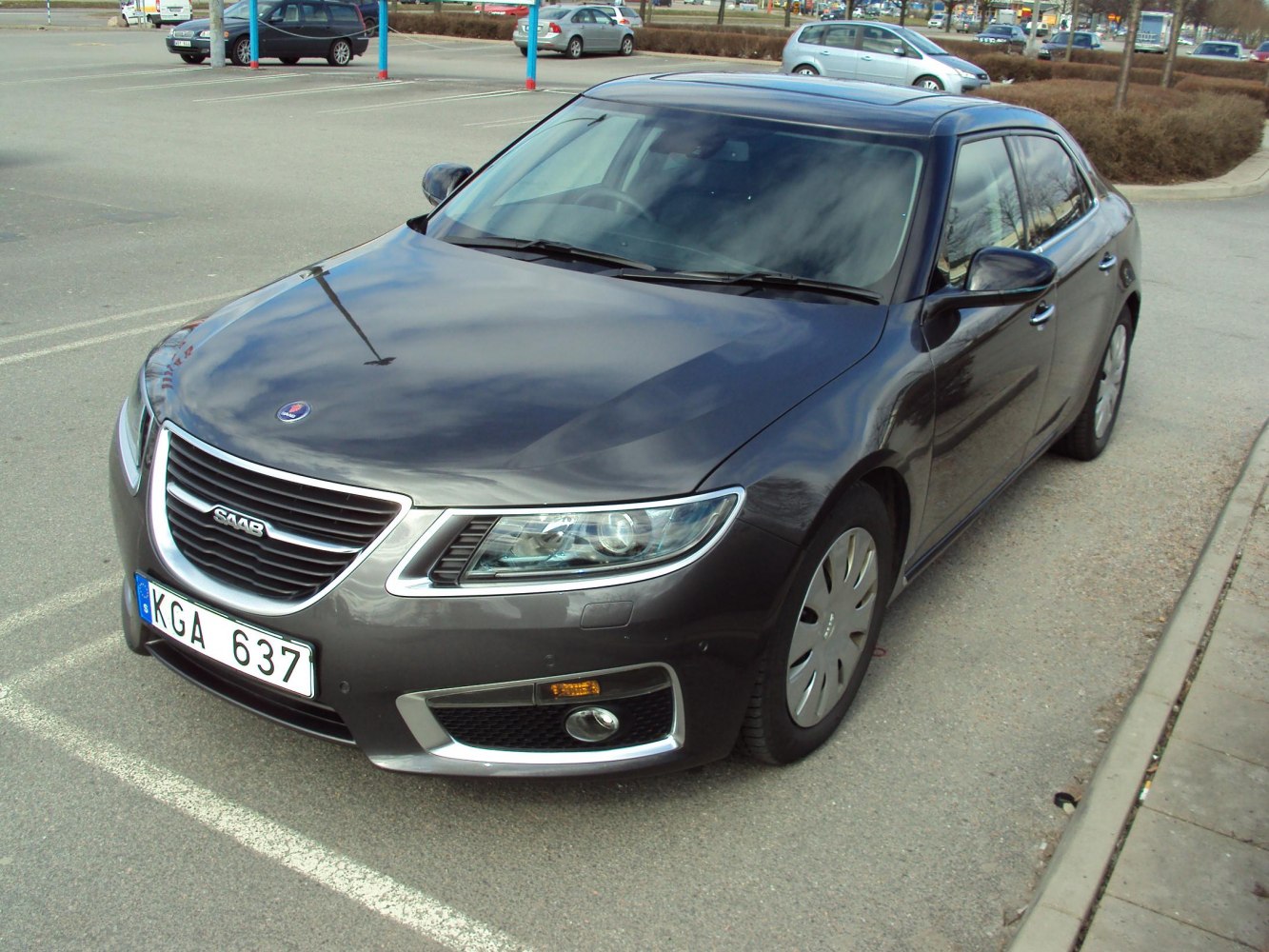

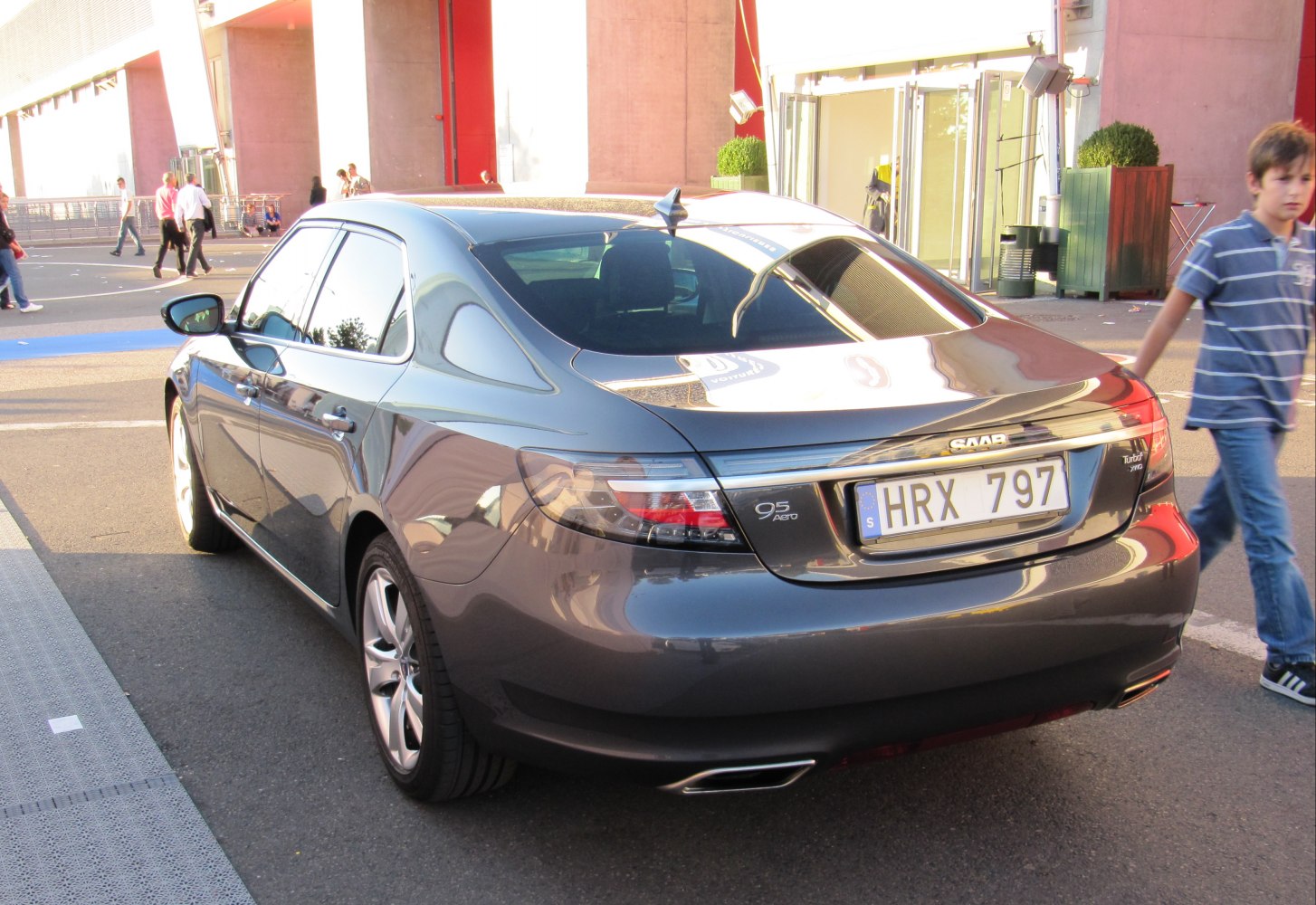

Vehicle photos
1 of 12
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
3 versions · 3 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 2.8i V6 (300 KM) XWD Automatic Selected | Gasoline | 300 KM | 2009–2011 |
| 2.0i (220 KM) Automatic Selected | Gasoline | 220 KM | 2009–2011 |
| 2.0i (220 KM) Selected | Gasoline | 220 KM | 2009–2011 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
2.8i V6 (300 KM) XWD Automatic
Gasoline · 2009–2011
- Engine power
- 300 KM
- Torque
- 400 Nm
- Engine displacement
- 2,792 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Saab 9-5 9-5 II- Brand
- Saab
- Model
- 9-5
- Version
- 9-5 II
- Engine
- 2.8i V6 (300 KM) XWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2009
- End of production
- 2011
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 13.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 8.7 l/100 km
Engine
- Engine model / code
- A28NER
- Engine position
- Front, Transverse
- Engine displacement
- 2792 cm³
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 89 mm
- Piston stroke
- 74.8 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 6.3 l
- Power
- 300 KM @ 5500 obr./min
- Torque
- 400 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 68 l
- Aerodynamic drag coefficient (Cx)
- 0.28
- Minimum trunk capacity
- 513 l
- Curb weight
- 1885-1975 kg
- Gross weight
- 2430 kg
- Braked trailer load (12% slope start)
- 2000 kg
Vehicle dimensions
- Length
- 5009 mm
- Width
- 2113 mm
- Height
- 1466 mm
- Wheelbase
- 2837 mm
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 245/45 R18 100H; 245/40 R19 98Y
- Rim size
- 18; 19
- ABS
- yes
Selected engine version
2.0i (220 KM) Automatic
Gasoline · 2009–2011
- Engine power
- 220 KM
- Torque
- 350 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Saab 9-5 9-5 II- Brand
- Saab
- Model
- 9-5
- Version
- 9-5 II
- Engine
- 2.0i (220 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2009
- End of production
- 2011
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Engine
- Engine model / code
- A20NHT
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Direct injection
- Engine type
- Twin-scroll turbo, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.7 l
- Power
- 220 KM @ 5300 obr./min
- Torque
- 350 Nm @ 2500 obr./min
Volume and weight
- Fuel tank
- 68 l
- Aerodynamic drag coefficient (Cx)
- 0.28
- Minimum trunk capacity
- 513 l
- Curb weight
- 1885-1975 kg
- Gross weight
- 2430 kg
- Braked trailer load (12% slope start)
- 2000 kg
Vehicle dimensions
- Length
- 5009 mm
- Width
- 2113 mm
- Height
- 1466 mm
- Wheelbase
- 2837 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/55 R17 97H; 245/45 R18 100H
- Rim size
- 17; 18
- ABS
- yes
Selected engine version
2.0i (220 KM)
Gasoline · 2009–2011
- Engine power
- 220 KM
- Torque
- 350 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Saab 9-5 9-5 II- Brand
- Saab
- Model
- 9-5
- Version
- 9-5 II
- Engine
- 2.0i (220 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2009
- End of production
- 2011
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Engine
- Engine model / code
- A20NHT
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Direct injection
- Engine type
- Twin-scroll turbo, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.7 l
- Power
- 220 KM @ 5300 obr./min
- Torque
- 350 Nm @ 2500 obr./min
Volume and weight
- Fuel tank
- 68 l
- Aerodynamic drag coefficient (Cx)
- 0.28
- Minimum trunk capacity
- 513 l
- Curb weight
- 1885-1975 kg
- Gross weight
- 2430 kg
- Braked trailer load (12% slope start)
- 2000 kg
Vehicle dimensions
- Length
- 5009 mm
- Width
- 2113 mm
- Height
- 1466 mm
- Wheelbase
- 2837 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 225/55 R17 97H
- Rim size
- 17
- ABS
- yes
