Vehicle specifications
Saab 9-4X 9-4X
Compare all 3 engine versions of the Saab 9-4X 9-4X, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Saab 9-4X 9-4X? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

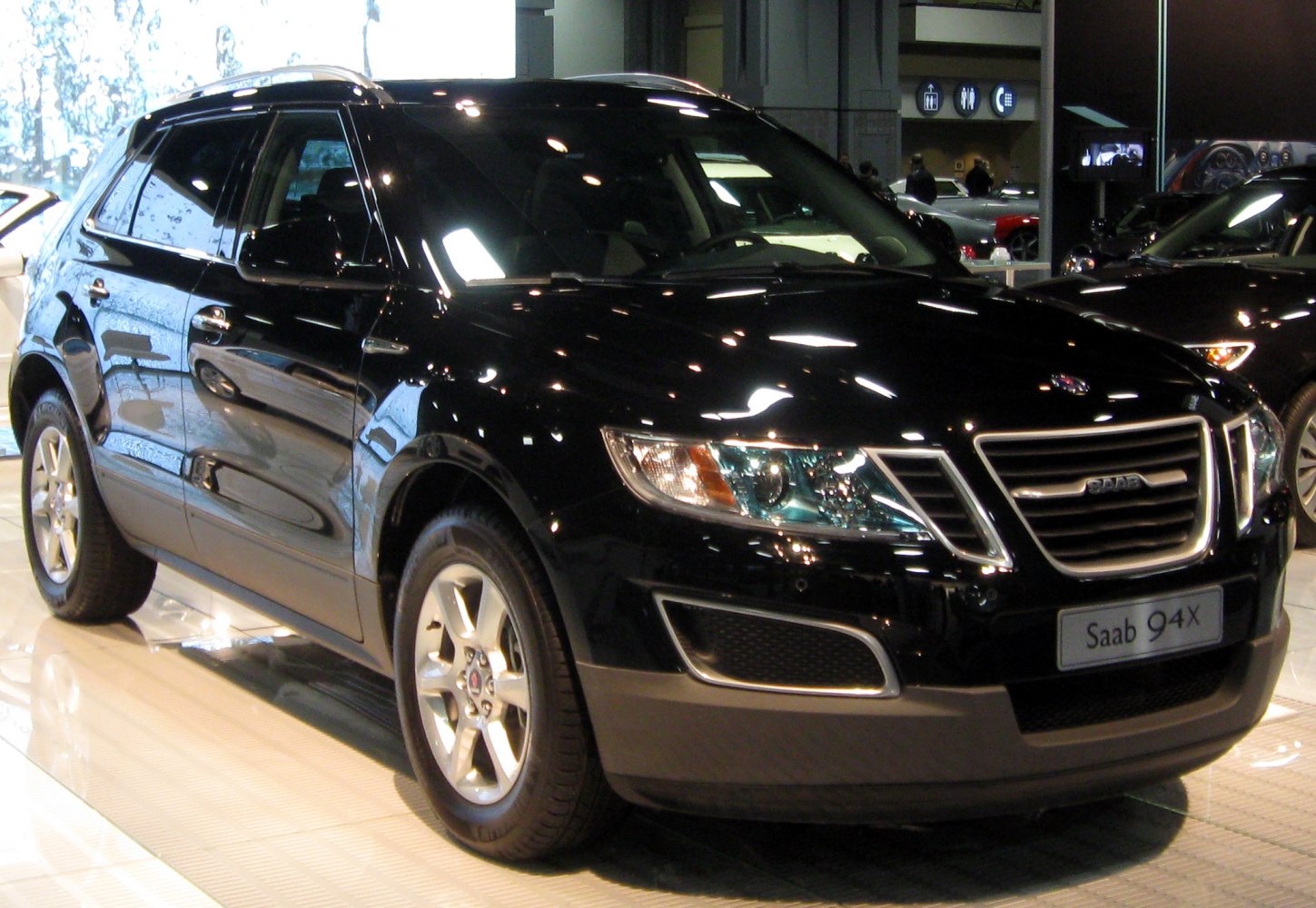

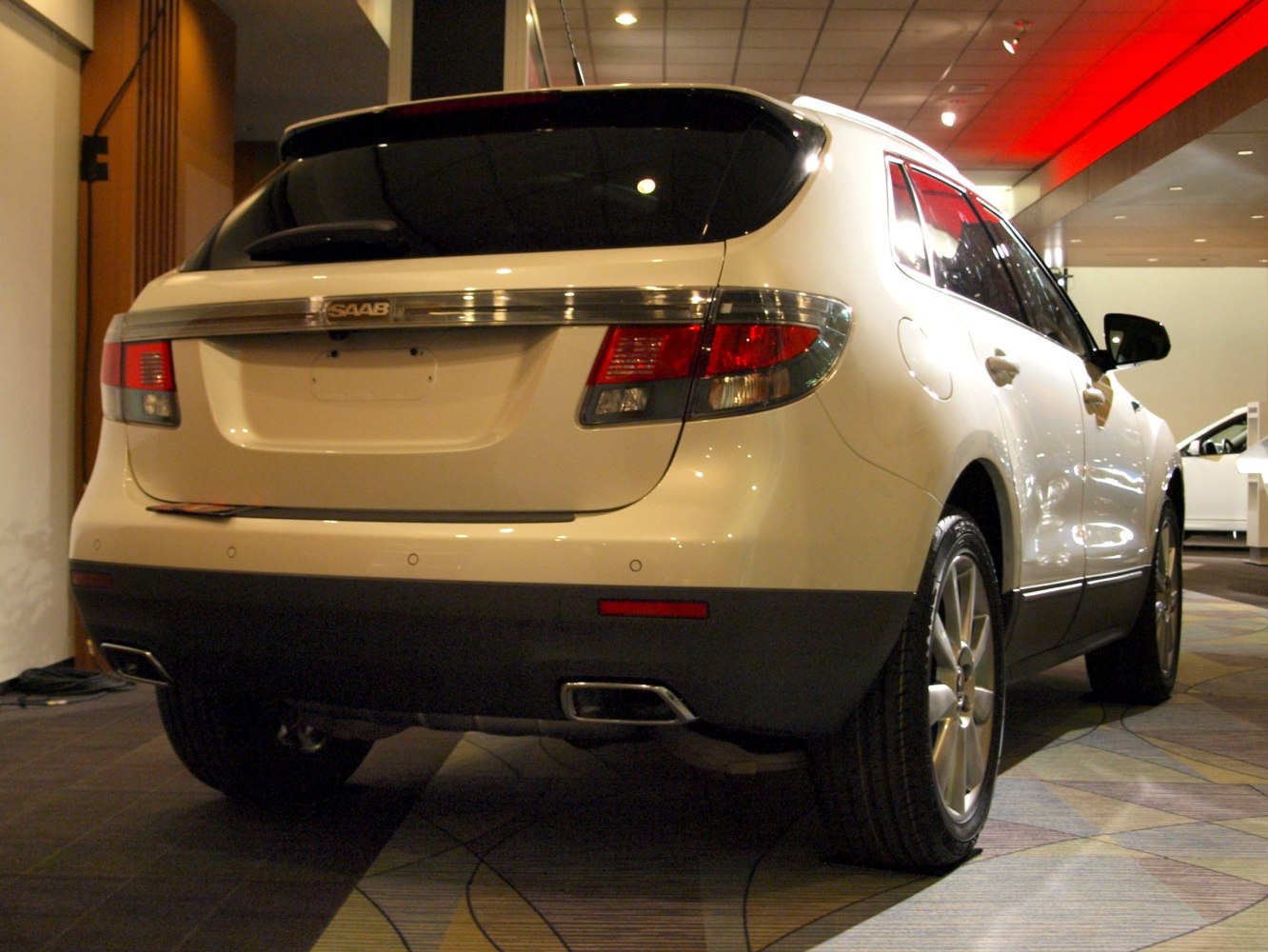

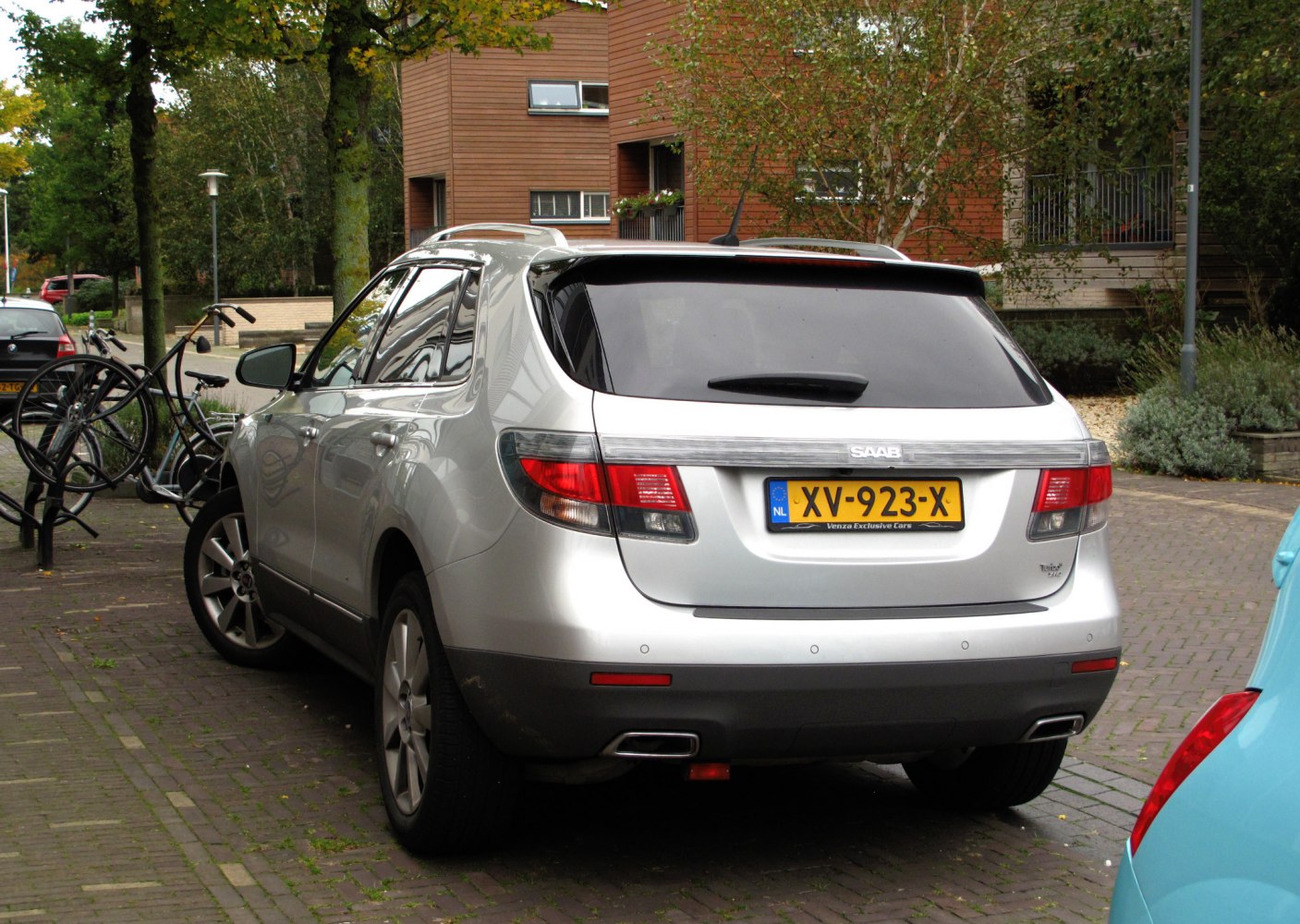

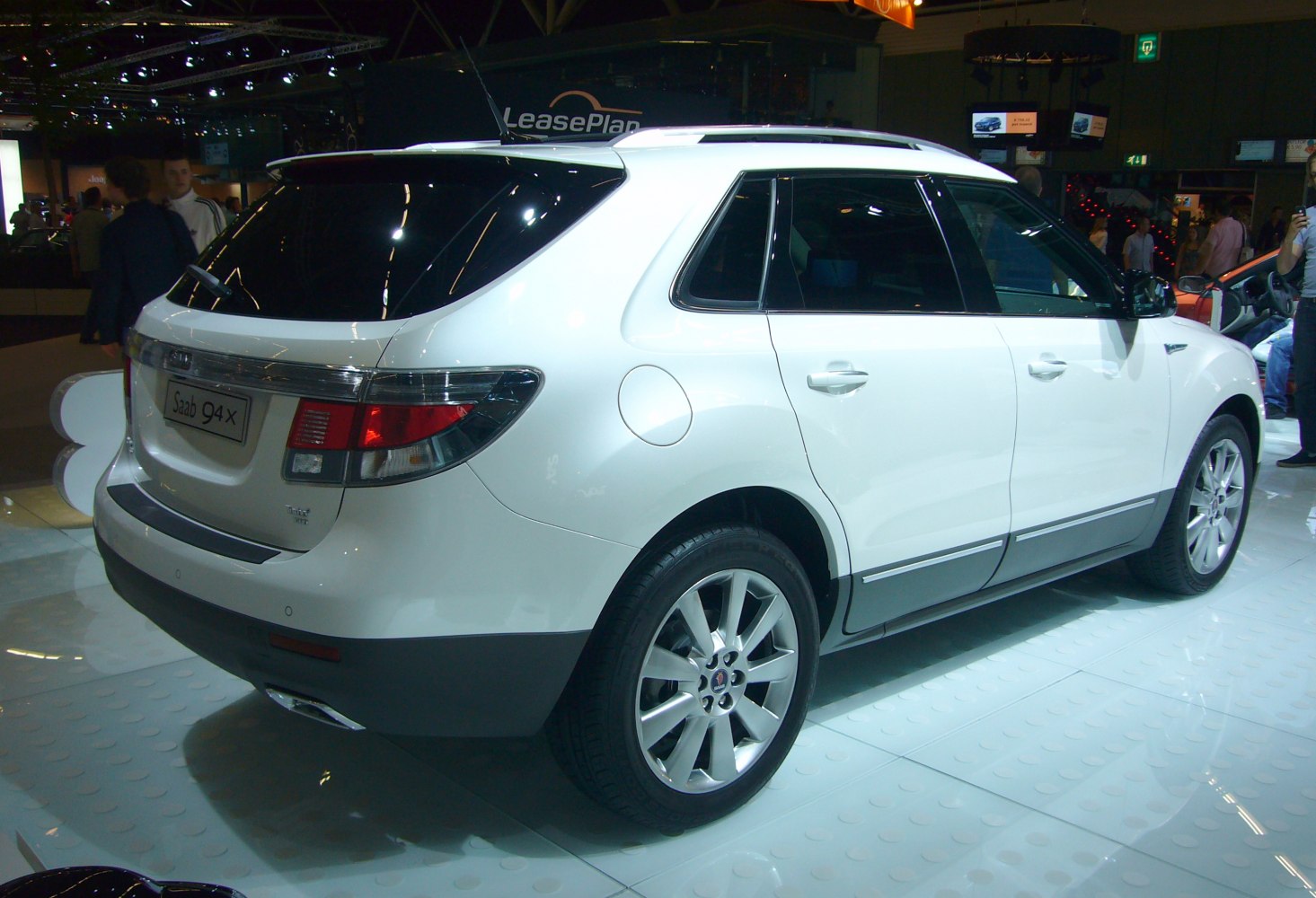

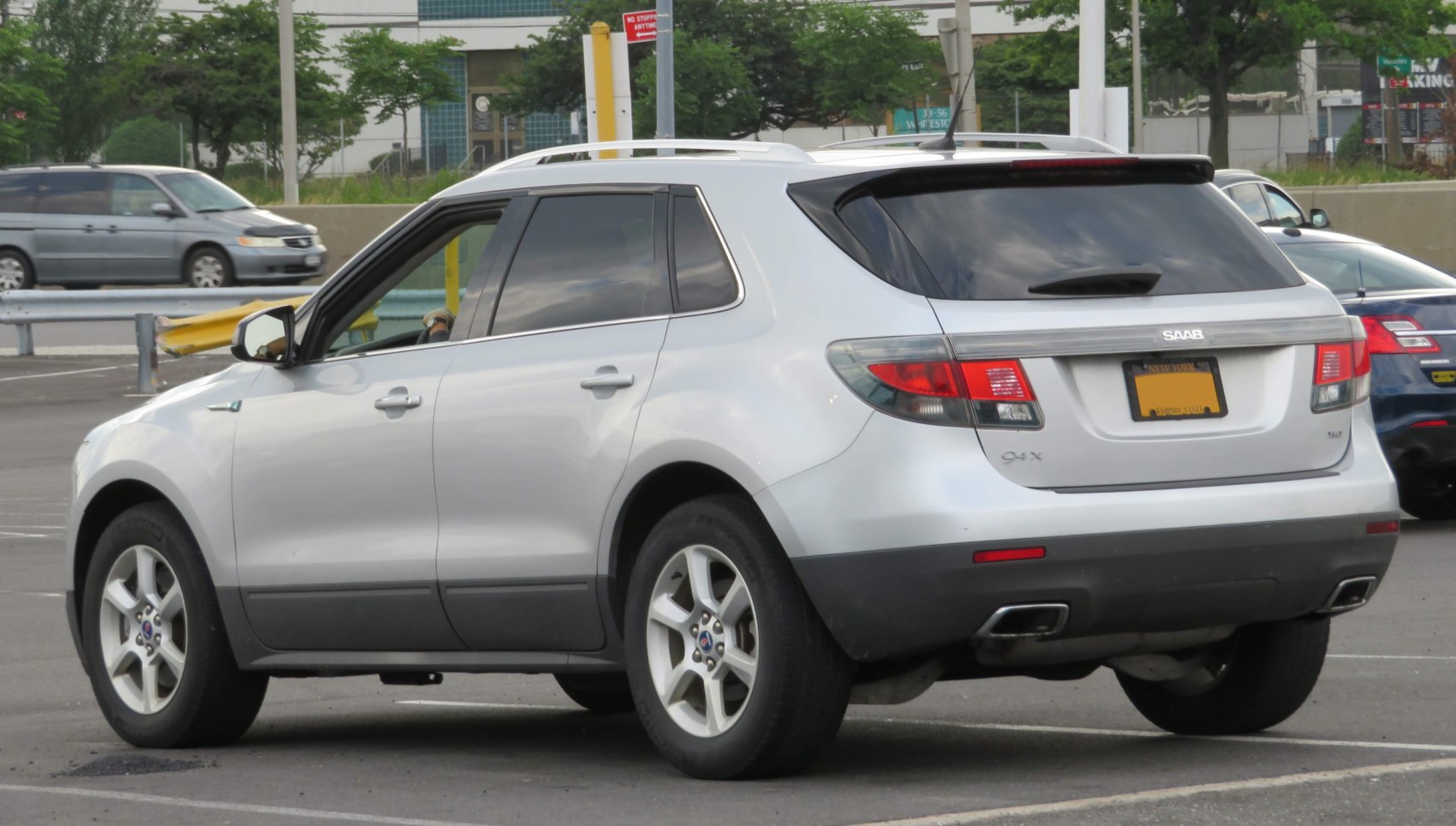

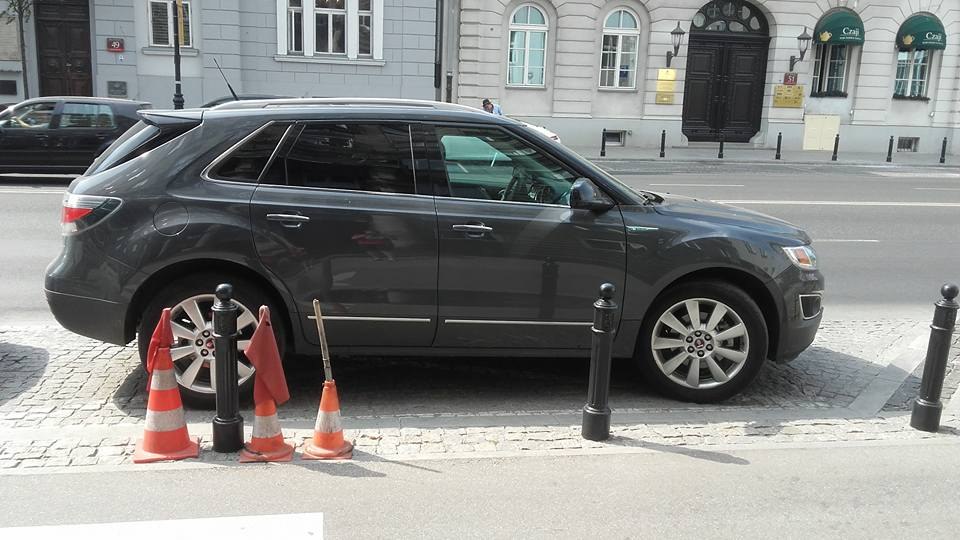

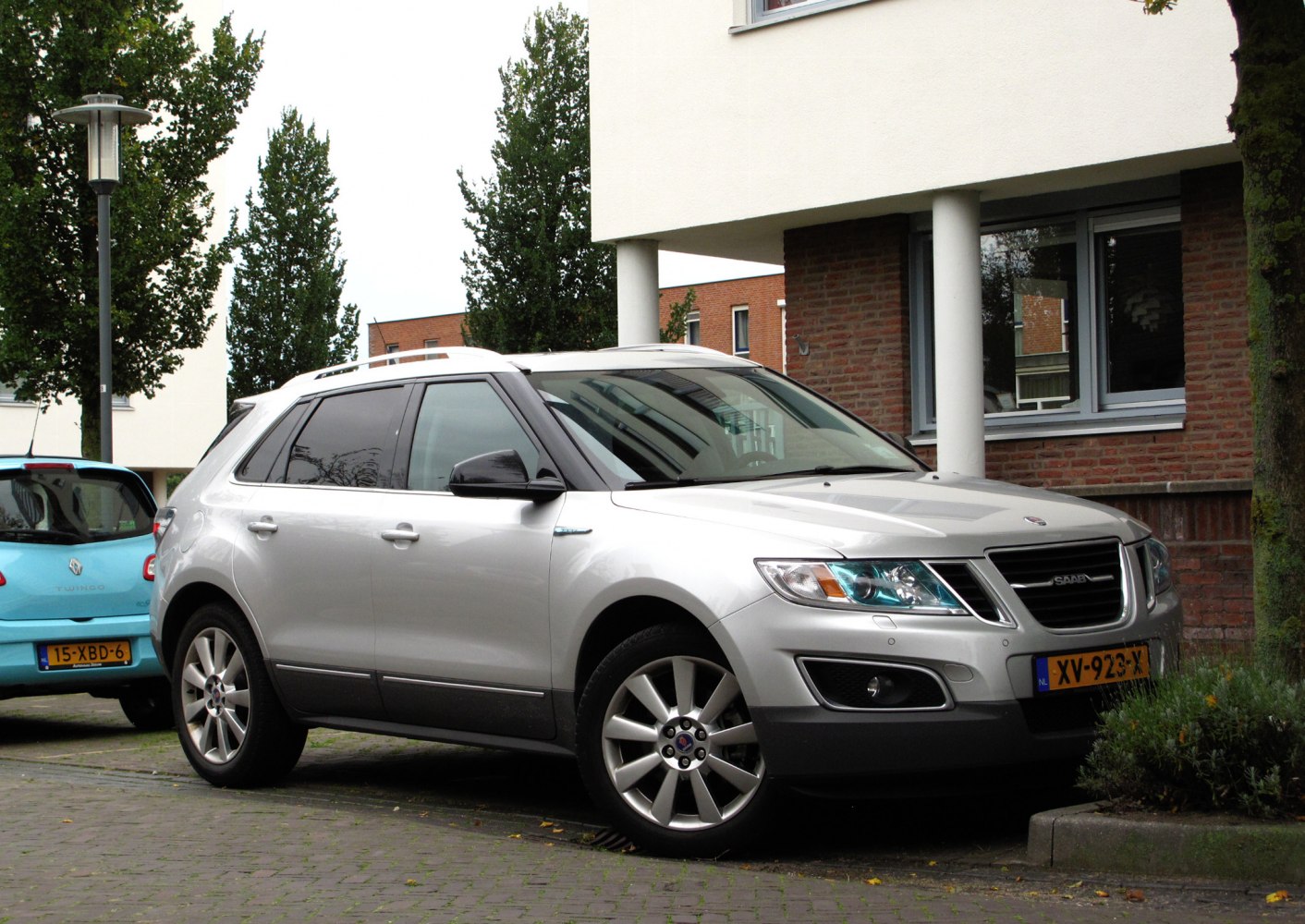

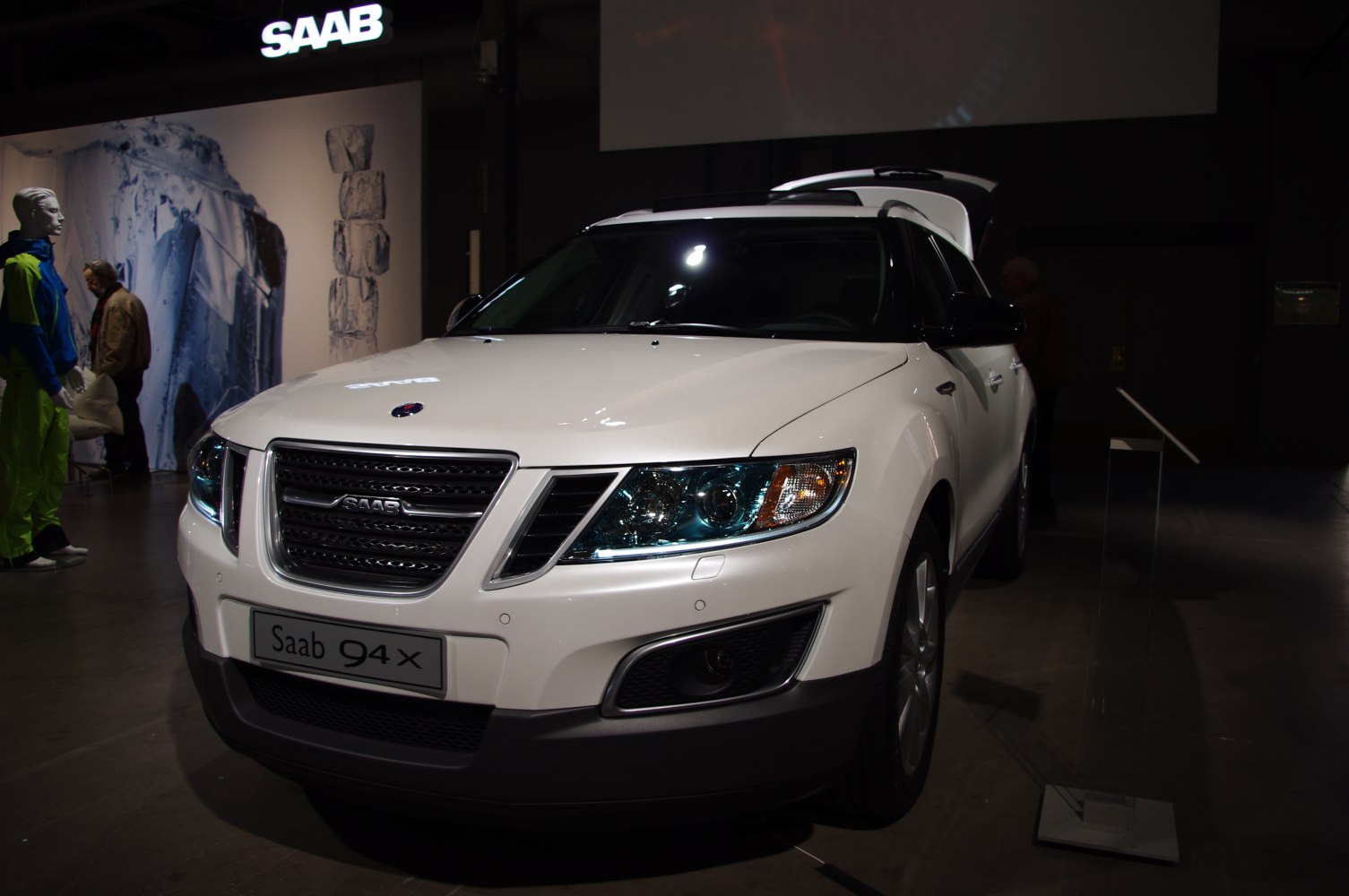

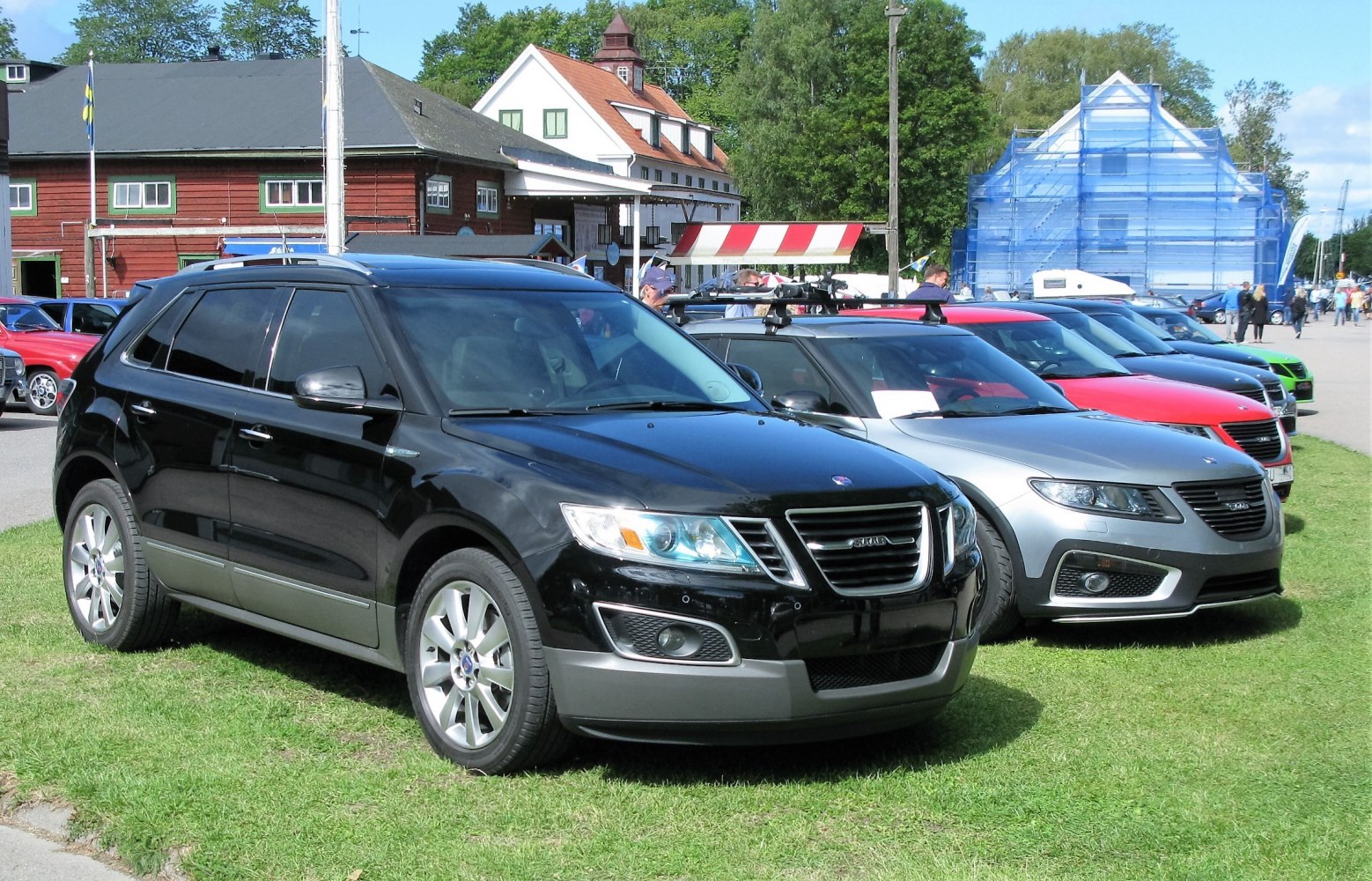

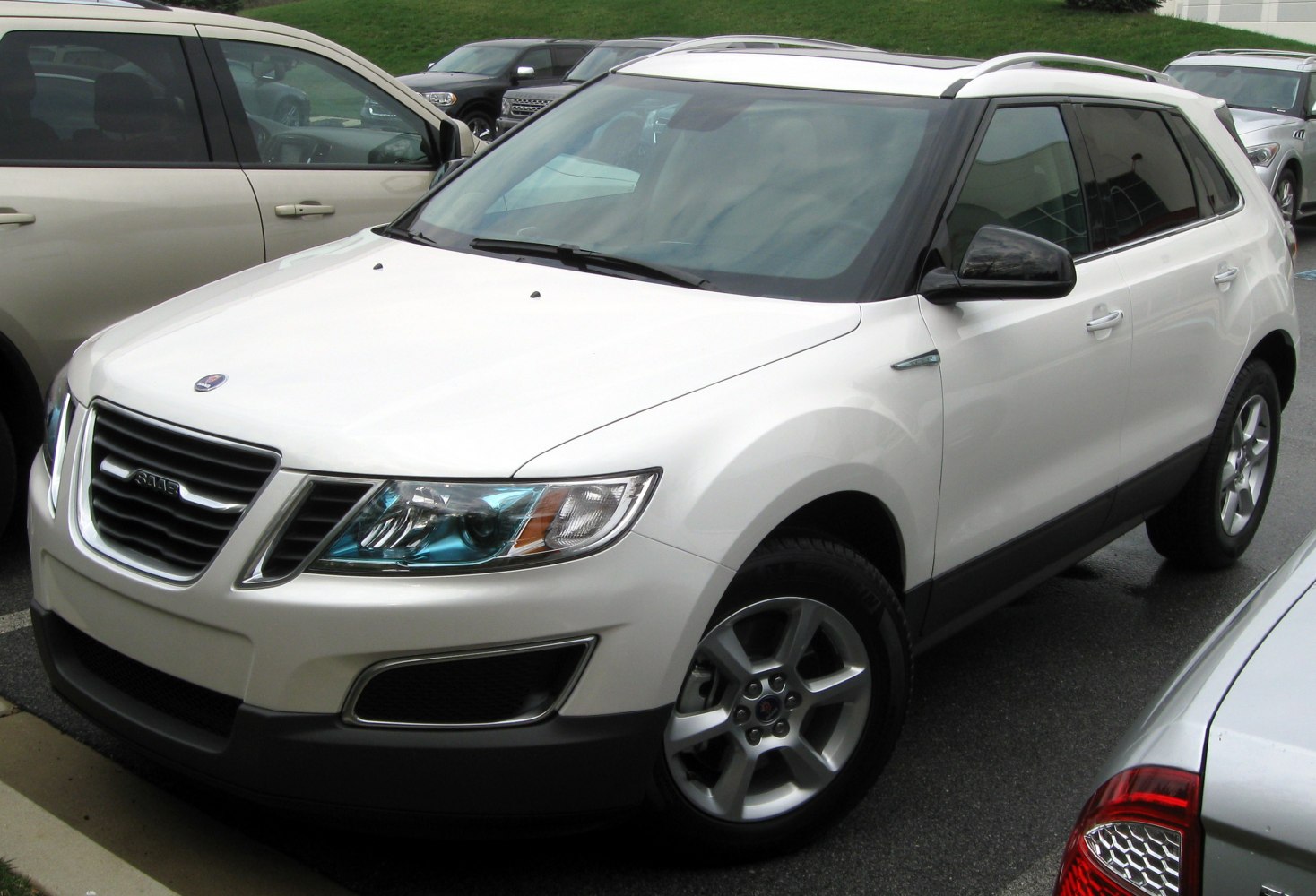

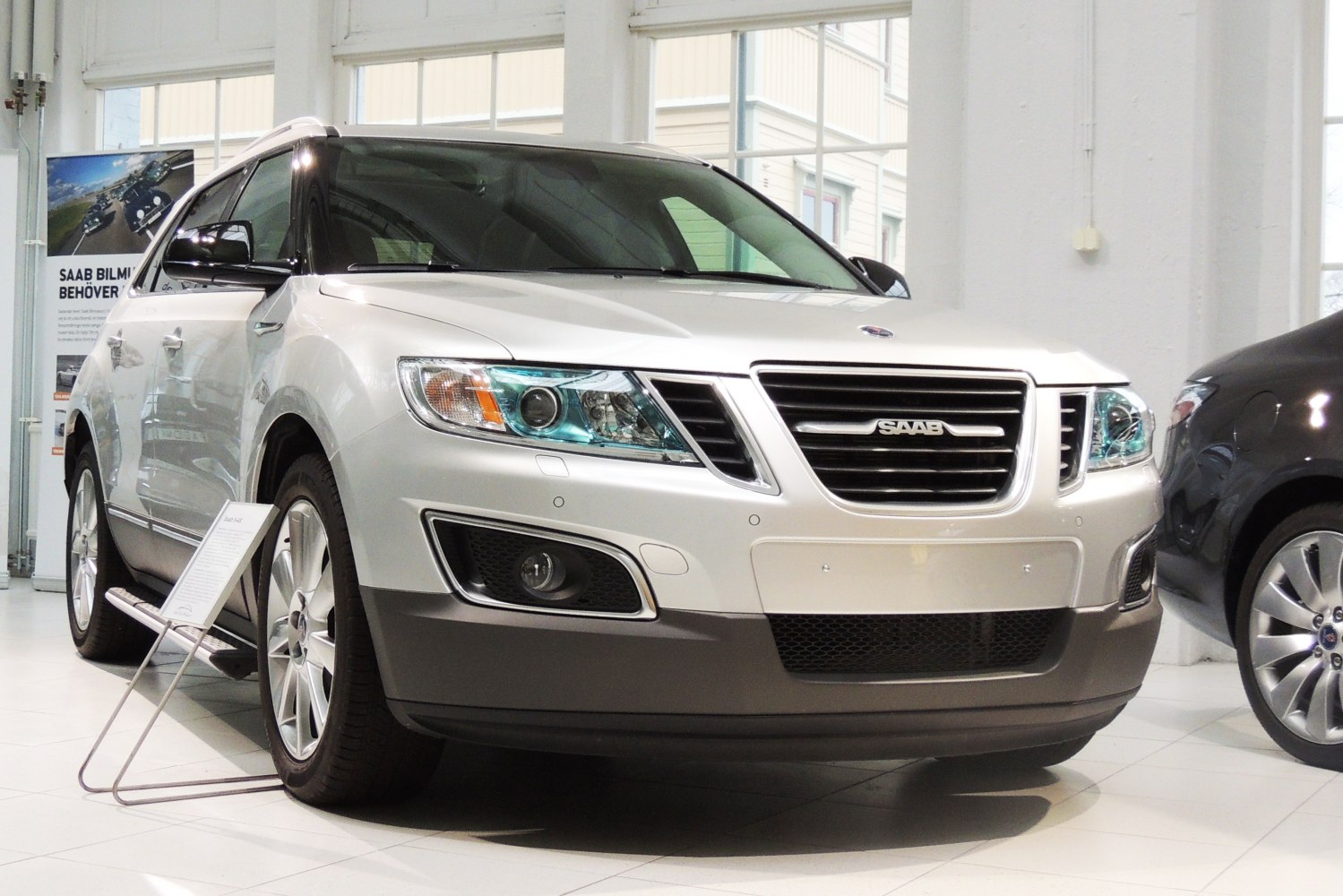

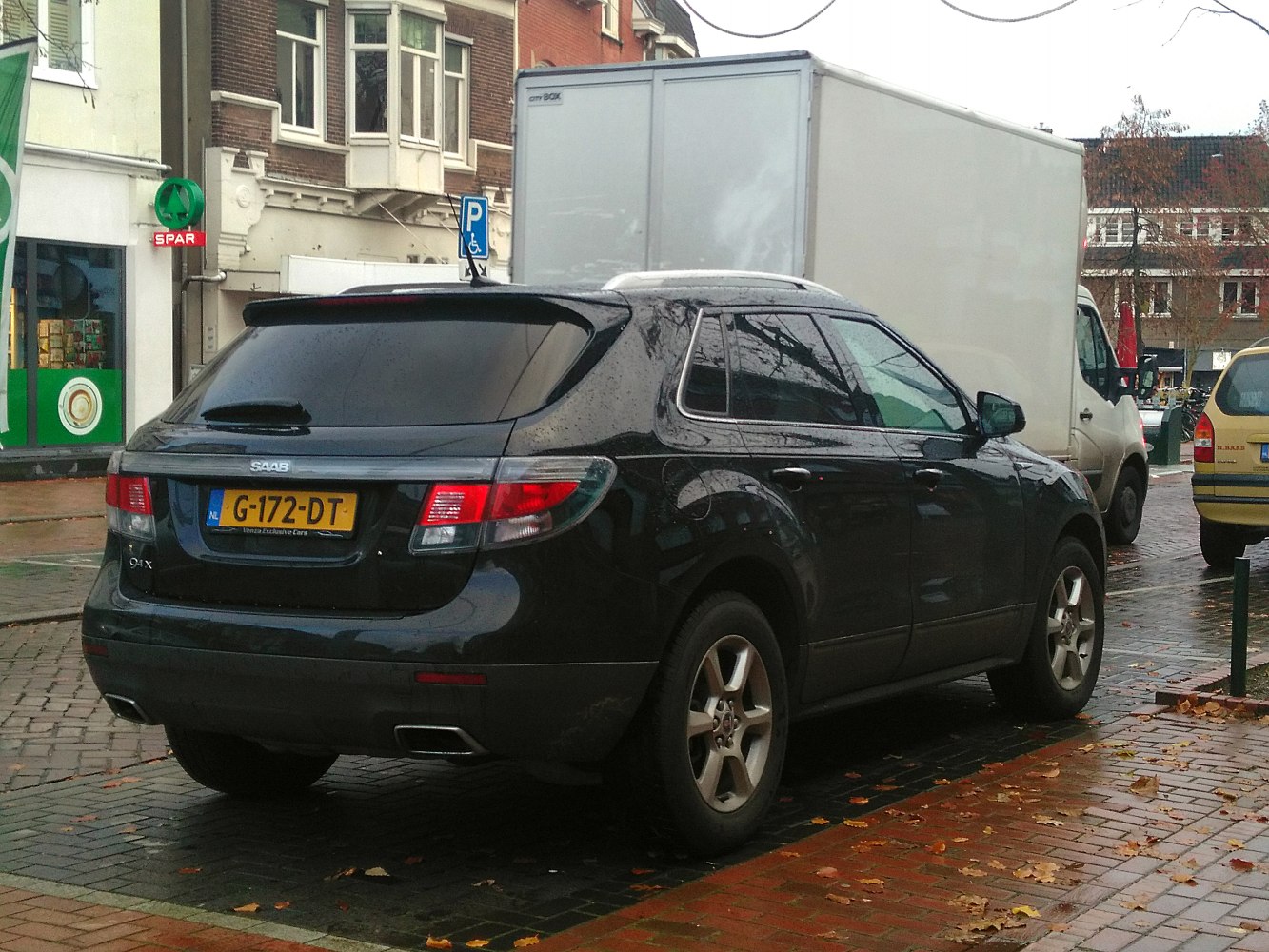

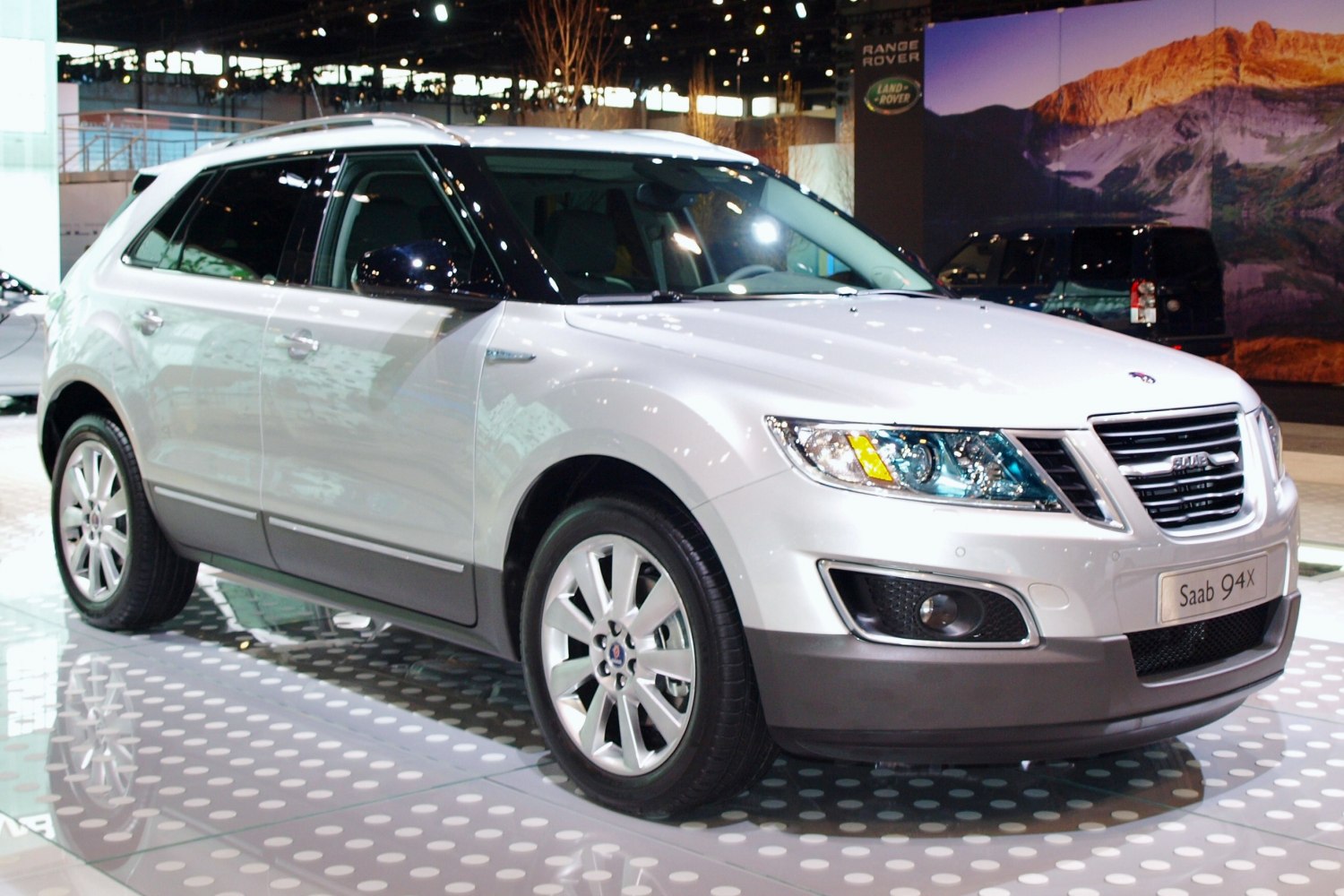

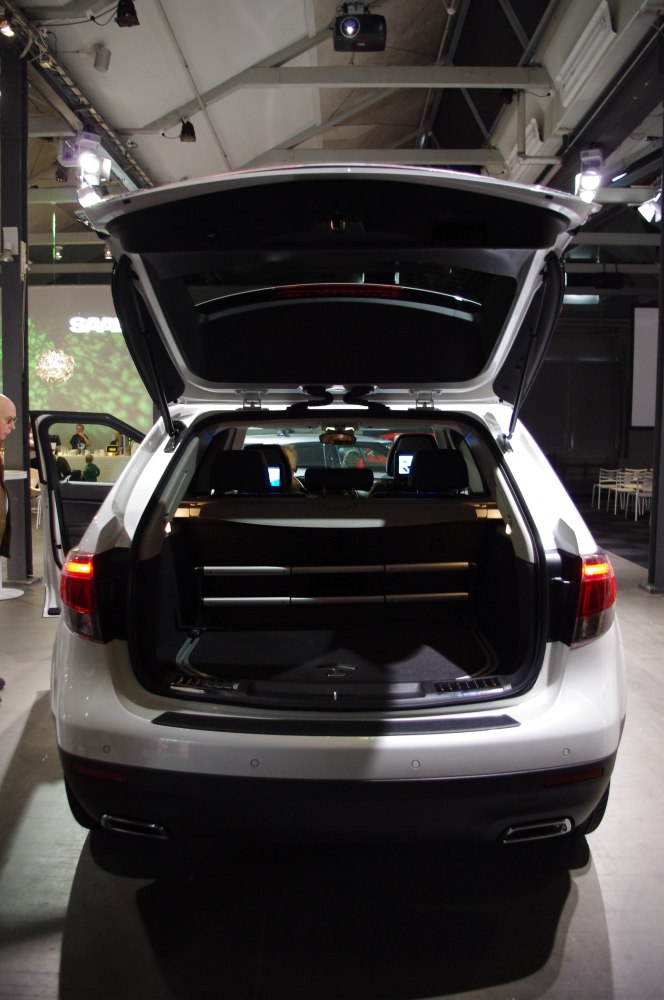

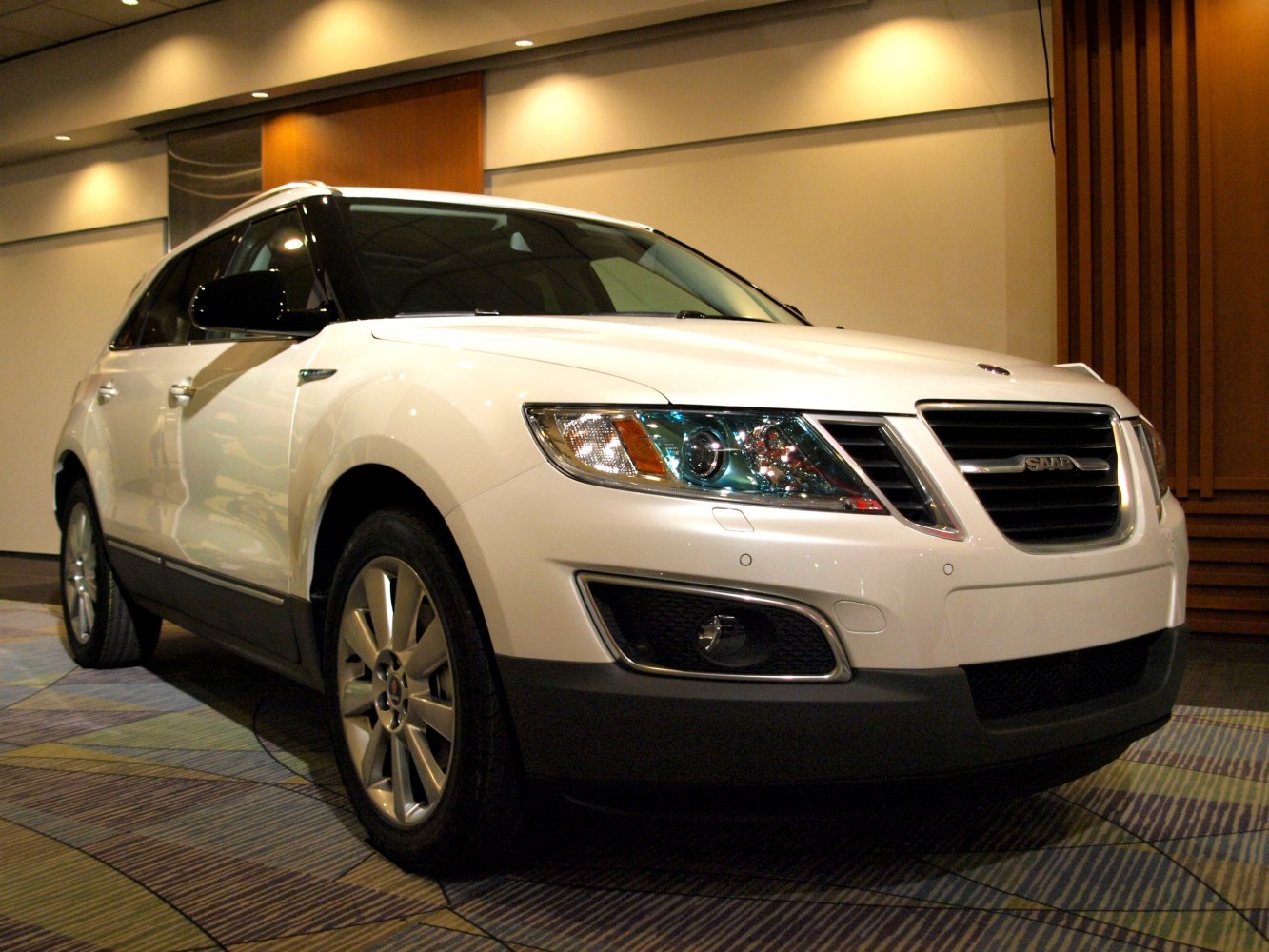

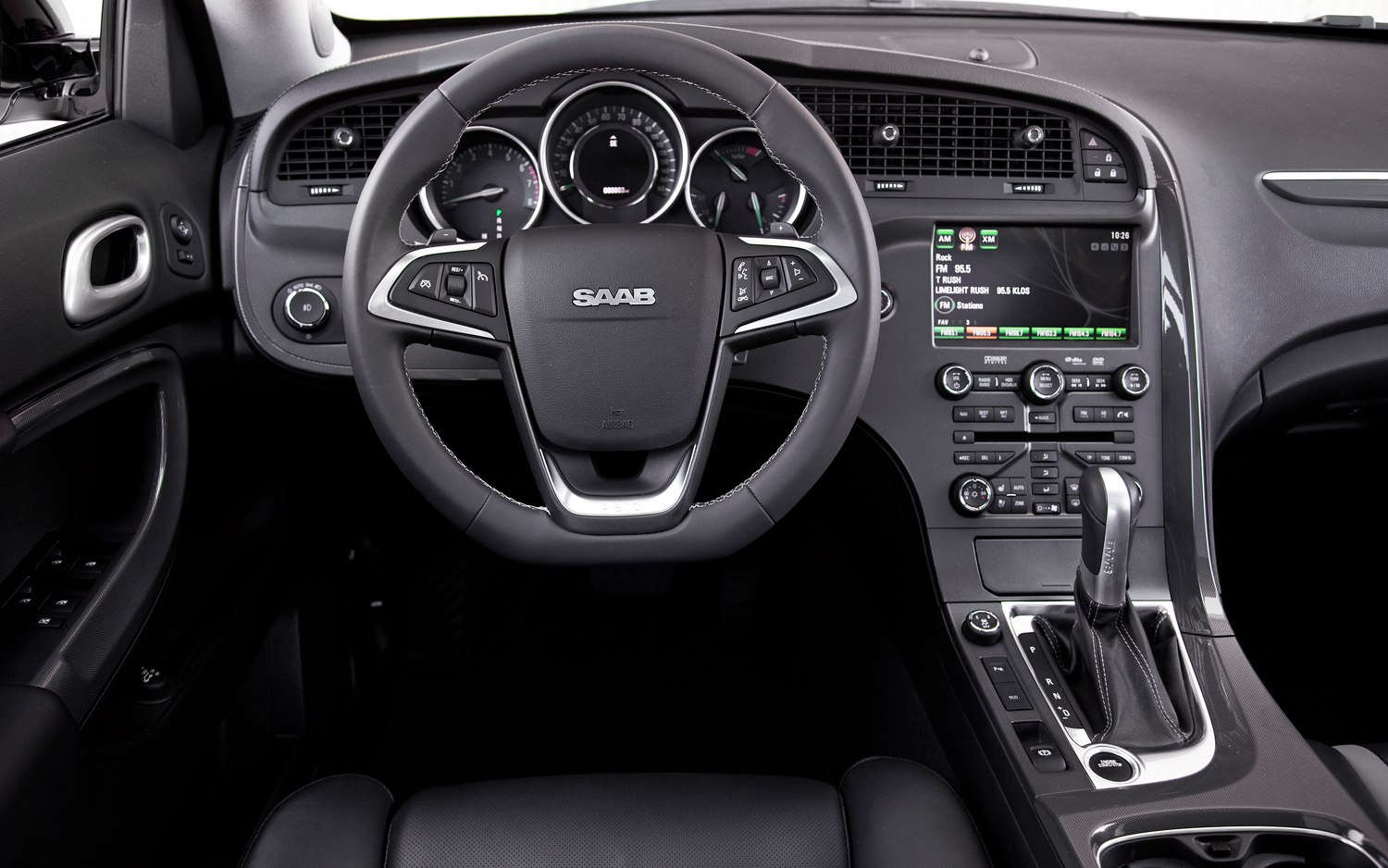

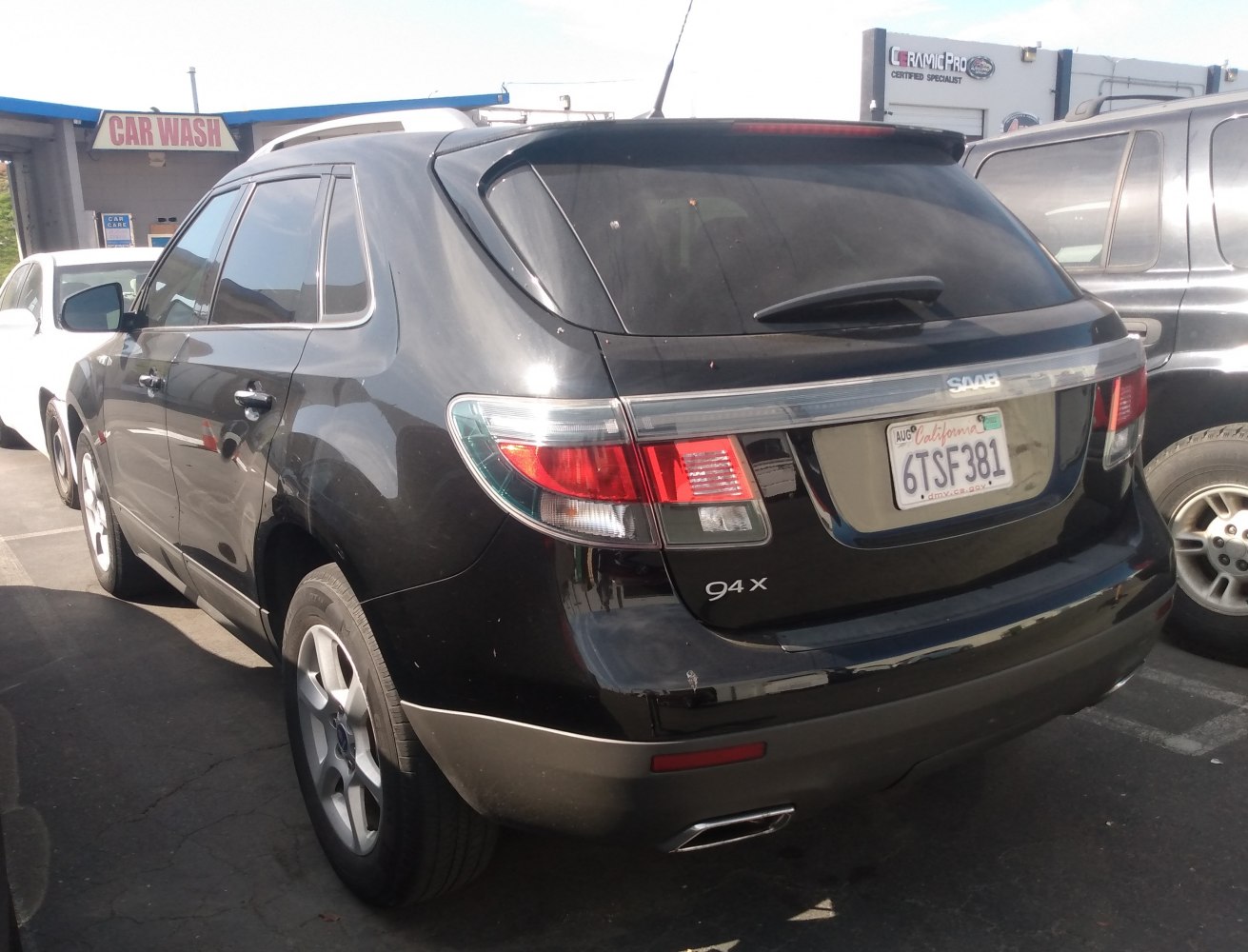

Vehicle photos
1 of 17
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
3 versions · 3 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 3.0i V6 (265 KM) Automatic Selected | Gasoline | 265 KM | 2010–2011 |
| 3.0i V6 (265 KM) XWD Automatic Selected | Gasoline | 265 KM | 2010–2011 |
| Aero 2.8L V6 Turbo (300 KM) XWD Automatic Selected | Gasoline | 300 KM | 2010–2011 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
3.0i V6 (265 KM) Automatic
Gasoline · 2010–2011
- Engine power
- 265 KM
- Torque
- 302 Nm
- Engine displacement
- 2,997 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Saab 9-4X 9-4X- Brand
- Saab
- Model
- 9-4X
- Version
- 9-4X
- Engine
- 3.0i V6 (265 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2010
- End of production
- 2011
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 13.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 9.4 l/100 km
Engine
- Engine model / code
- LF1
- Engine position
- Front, Transverse
- Engine displacement
- 2997 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 88.9 mm
- Piston stroke
- 80.26 mm
- Compression ratio
- 11.7
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 11.7 l
- Power
- 265 KM @ 6950 obr./min
- Torque
- 302 Nm @ 5100 obr./min
Volume and weight
- Fuel tank
- 80 l
- Aerodynamic drag coefficient (Cx)
- 0.38
- Minimum trunk capacity
- 827 l
- Curb weight
- 1928-1975 kg
- Braked trailer load (12% slope start)
- 1588 kg
Vehicle dimensions
- Length
- 4829 mm
- Width
- 1905 mm
- Height
- 1679 mm
- Wheelbase
- 2807 mm
- Front track
- 1622 mm
- Rear track
- 1623 mm
- Ground clearance
- 200 mm
- Front overhang
- 1006 mm
- Rear overhang
- 1016 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- With spring struts, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 345 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 315 mm
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- ABS
- yes
Selected engine version
3.0i V6 (265 KM) XWD Automatic
Gasoline · 2010–2011
- Engine power
- 265 KM
- Torque
- 302 Nm
- Engine displacement
- 2,997 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Saab 9-4X 9-4X- Brand
- Saab
- Model
- 9-4X
- Version
- 9-4X
- Engine
- 3.0i V6 (265 KM) XWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2010
- End of production
- 2011
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 13.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 10.2 l/100 km
Engine
- Engine model / code
- LF1
- Engine position
- Front, Transverse
- Engine displacement
- 2997 cm³
- Fuel injection system
- Direct injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 89 mm
- Piston stroke
- 80.26 mm
- Compression ratio
- 11.7
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 11.7 l
- Power
- 265 KM @ 6950 obr./min
- Torque
- 302 Nm @ 5100 obr./min
Volume and weight
- Fuel tank
- 80 l
- Aerodynamic drag coefficient (Cx)
- 0.38
- Minimum trunk capacity
- 827 l
- Curb weight
- 1928-1975 kg
- Braked trailer load (12% slope start)
- 1588 kg
Vehicle dimensions
- Length
- 4829 mm
- Width
- 1905 mm
- Height
- 1679 mm
- Wheelbase
- 2807 mm
- Front track
- 1622 mm
- Rear track
- 1623 mm
- Ground clearance
- 200 mm
- Front overhang
- 1006 mm
- Rear overhang
- 1016 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- With spring struts, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 345 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 315 mm
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- ABS
- yes
Selected engine version
Aero 2.8L V6 Turbo (300 KM) XWD Automatic
Gasoline · 2010–2011
- Engine power
- 300 KM
- Torque
- 400 Nm
- Engine displacement
- 2,796 cm³
- Fuel type
- Gasoline
On this page
Check vehicle history
Basic version information
Saab 9-4X 9-4X- Brand
- Saab
- Model
- 9-4X
- Version
- 9-4X
- Engine
- Aero 2.8L V6 Turbo (300 KM) XWD Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2010
- End of production
- 2011
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Fuel consumption - Urban cycle
- 15.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 10.7 l/100 km
Engine
- Engine model / code
- LAU
- Engine position
- Front, Transverse
- Engine displacement
- 2796 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 89 mm
- Piston stroke
- 74.8 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 12.8 l
- Power
- 300 KM @ 5500 obr./min
- Torque
- 400 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 80 l
- Aerodynamic drag coefficient (Cx)
- 0.38
- Minimum trunk capacity
- 827 l
- Curb weight
- 1928-1975 kg
- Braked trailer load (12% slope start)
- 1588 kg
Vehicle dimensions
- Length
- 4829 mm
- Width
- 1905 mm
- Height
- 1679 mm
- Wheelbase
- 2807 mm
- Front track
- 1622 mm
- Rear track
- 1623 mm
- Ground clearance
- 200 mm
- Front overhang
- 1006 mm
- Rear overhang
- 1016 mm
- Turning circle
- 11.9 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- With spring struts, Lateral control arm, Anti-roll bar
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 345 mm
- Rear brakes
- Ventilated disc
- Rear brake disc/drum diameter
- 315 mm
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- ABS
- yes
