Specifications Peugeot 407 SW

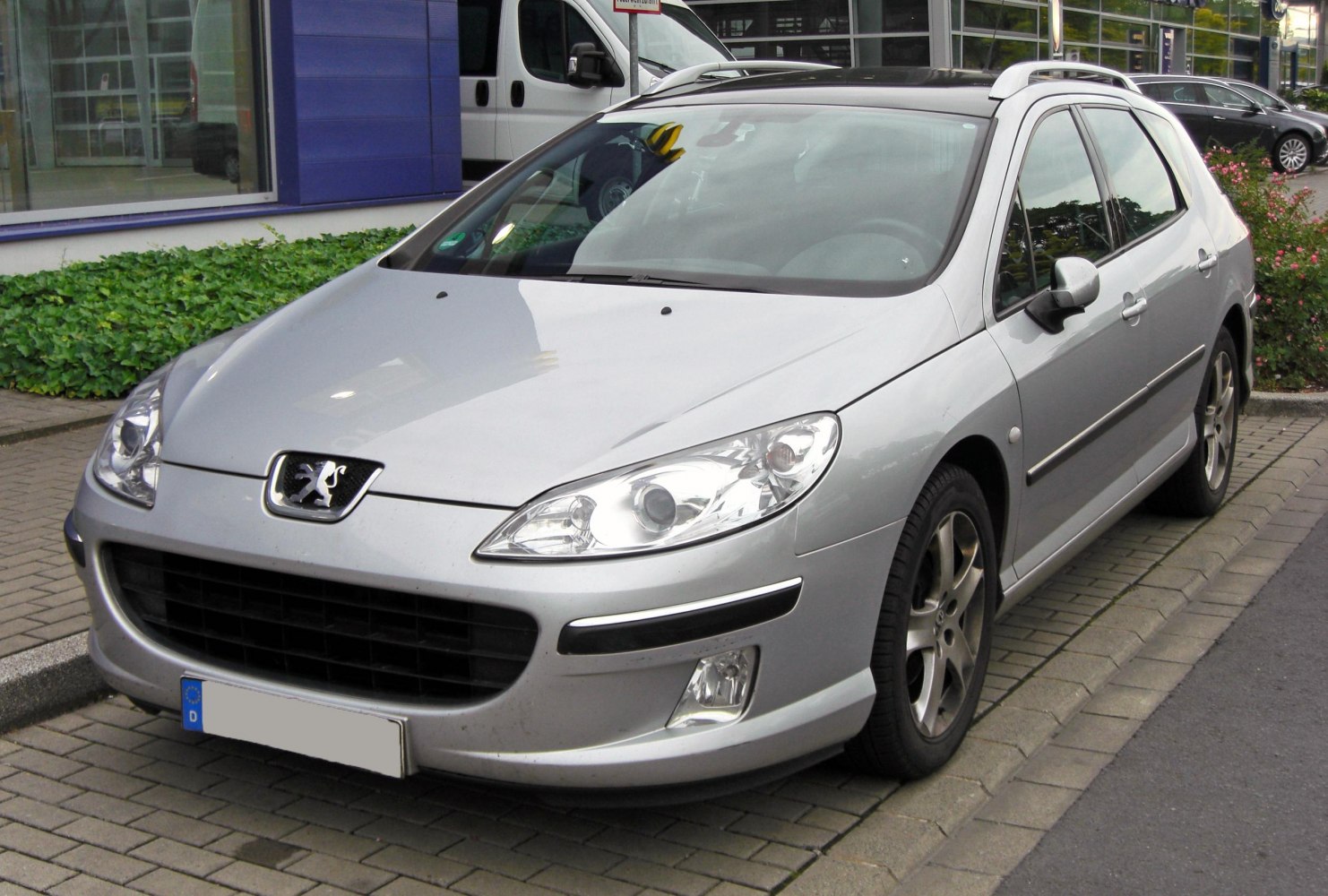

Vehicle photos
Basic information
| Brand | Peugeot |
|---|---|
| Model | 407 |
| Version | 407 SW |
| Engine power | 109 KM – 211 KM |
| Years of production | 2006 r. – 2008 r. |
| Body type | Station wagon |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Peugeot |
|---|---|
| Model | 407 |
| Version | 407 SW |
| Engine | 1.6 HDi (109 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 189 km/h |
|---|---|
| Acceleration 0-100 km/h | 13.4 s |
| Fuel consumption - Urban cycle | 7.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 4.7 l/100 km |
Engine
| Engine model / code | 9HZDV6TED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1560 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 75 mm |
| Piston stroke | 88.3 mm |
| Compression ratio | 17.6 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 3.75 l |
| Coolant capacity | 7.2 l |
Volume and weight
| Fuel tank | 66 l |
|---|---|
| Minimum trunk capacity | 489 l |
| Curb weight | 1495 kg |
| Gross weight | 2125 kg |
Vehicle dimensions
| Length | 4763 mm |
|---|---|
| Width | 1811 mm |
| Height | 1486 mm |
| Wheelbase | 2725 mm |
| Front track | 1554 mm |
| Rear track | 1510 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | With spring struts |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 205/60 R16 |
| Rim size | 6.5J X 16 |
Basic version information
| Brand | Peugeot |
|---|---|
| Model | 407 |
| Version | 407 SW |
| Engine | 1.8 i 16V (116 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 197 km/h |
|---|---|
| Acceleration 0-100 km/h | 13.5 s |
| Fuel consumption - Urban cycle | 11.4 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.2 l/100 km |
| Fuel consumption - Combined cycle | 8.1 l/100 km |
Engine
| Engine model / code | 6FZEW7J4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1749 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 82.7 mm |
| Piston stroke | 81.4 mm |
| Compression ratio | 10.8 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
| Coolant capacity | 7.5 l |
Volume and weight
| Fuel tank | 66 l |
|---|---|
| Minimum trunk capacity | 489 l |
| Curb weight | 1455 kg |
| Gross weight | 2090 kg |
Vehicle dimensions
| Length | 4763 mm |
|---|---|
| Width | 1811 mm |
| Height | 1486 mm |
| Wheelbase | 2725 mm |
| Front track | 1554 mm |
| Rear track | 1510 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | With spring struts |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 205/60 R16 |
| Rim size | 6.5J X 16 |
Basic version information
| Brand | Peugeot |
|---|---|
| Model | 407 |
| Version | 407 SW |
| Engine | 2.0 HDi (136 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 205 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.8 s |
| Fuel consumption - Urban cycle | 11.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.6 l/100 km |
| Fuel consumption - Combined cycle | 8.2 l/100 km |
| Emission standard | Euro 4 |
Engine
| Engine model / code | RHRDW10BTED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.25 l |
| Coolant capacity | 9 l |
Volume and weight
| Minimum trunk capacity | 407 l |
|---|---|
| Curb weight | 1648 kg |
| Gross weight | 2183 kg |
Vehicle dimensions
| Length | 4763 mm |
|---|---|
| Width | 1811 mm |
| Height | 1486 mm |
| Wheelbase | 2725 mm |
| Front track | 1554-1560 mm |
| Rear track | 1510-1526 mm |
| Front overhang | 1029 mm |
| Rear overhang | 1009 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front brakes | Disc |
| Rear brakes | Disc |
| ABS | yes |
| Power steering | Electric power steering |
| Rim size | 16; 17 |
Basic version information
| Brand | Peugeot |
|---|---|
| Model | 407 |
| Version | 407 SW |
| Engine | 2.0i 16V (136 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 208 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.8 s |
| Fuel consumption - Urban cycle | 11.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.5 l/100 km |
| Fuel consumption - Combined cycle | 8.3 l/100 km |
Engine
| Engine model / code | RFNEW10J4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 10.8 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
| Coolant capacity | 7.3 l |
Volume and weight
| Fuel tank | 66 l |
|---|---|
| Minimum trunk capacity | 489 l |
| Curb weight | 1470 kg |
| Gross weight | 2105 kg |
Vehicle dimensions
| Length | 4763 mm |
|---|---|
| Width | 1811 mm |
| Height | 1486 mm |
| Wheelbase | 2725 mm |
| Front track | 1554 mm |
| Rear track | 1510 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 5 |
| Front suspension | With spring struts |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 205/60 R16 |
| Rim size | 6.5 X 16 |
Basic version information
| Brand | Peugeot |
|---|---|
| Model | 407 |
| Version | 407 SW |
| Engine | 2.2i 16V (160 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 216 km/h |
|---|---|
| Acceleration 0-100 km/h | 10.4 s |
| Fuel consumption - Urban cycle | 12.9 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.8 l/100 km |
| Fuel consumption - Combined cycle | 9 l/100 km |
Engine
| Engine model / code | 3FYEW12J4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 2230 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 86 mm |
| Piston stroke | 96 mm |
| Compression ratio | 10.8 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
| Coolant capacity | 7.9 l |
Volume and weight
| Fuel tank | 66 l |
|---|---|
| Minimum trunk capacity | 489 l |
| Curb weight | 1571 kg |
| Gross weight | 2195 kg |
Vehicle dimensions
| Length | 4763 mm |
|---|---|
| Width | 1811 mm |
| Height | 1486 mm |
| Wheelbase | 2725 mm |
| Front track | 1554 mm |
| Rear track | 1510 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | With spring struts |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/55 R17 |
| Rim size | 7J x17 |
Basic version information
| Brand | Peugeot |
|---|---|
| Model | 407 |
| Version | 407 SW |
| Engine | 3.0 i V6 24V (211 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 229 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.6 s |
| Fuel consumption - Urban cycle | 14.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 7.1 l/100 km |
| Fuel consumption - Combined cycle | 9.9 l/100 km |
Engine
| Engine model / code | XFVES9A |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 2946 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | V-shaped |
| Number of cylinders | 6 |
| Cylinder bore | 87 mm |
| Piston stroke | 82.6 mm |
| Compression ratio | 10.9 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.75 l |
| Coolant capacity | 9.8 l |
Volume and weight
| Fuel tank | 66 l |
|---|---|
| Minimum trunk capacity | 489 l |
| Curb weight | 1640 kg |
| Gross weight | 2260 kg |
Vehicle dimensions
| Length | 4763 mm |
|---|---|
| Width | 1811 mm |
| Height | 1486 mm |
| Wheelbase | 2725 mm |
| Front track | 1554 mm |
| Rear track | 1510 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | With spring struts |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/55 R17 |
| Rim size | 7J x17 |
Basic version information
| Brand | Peugeot |
|---|---|
| Model | 407 |
| Version | 407 SW |
| Engine | 2.2i 16V (160 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 205 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.7 s |
| Fuel consumption - Urban cycle | 14.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 7 l/100 km |
| Fuel consumption - Combined cycle | 9.6 l/100 km |
Engine
| Engine model / code | 3FYEW12J4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 2230 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 86 mm |
| Piston stroke | 96 mm |
| Compression ratio | 10.8 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
| Coolant capacity | 8.4 l |
Volume and weight
| Fuel tank | 66 l |
|---|---|
| Minimum trunk capacity | 489 l |
| Curb weight | 1571 kg |
| Gross weight | 2195 kg |
Vehicle dimensions
| Length | 4763 mm |
|---|---|
| Width | 1811 mm |
| Height | 1486 mm |
| Wheelbase | 2725 mm |
| Front track | 1554 mm |
| Rear track | 1510 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 4 |
| Front suspension | With spring struts |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/55 R17 |
| Rim size | 7J x 17 |
Basic version information
| Brand | Peugeot |
|---|---|
| Model | 407 |
| Version | 407 SW |
| Engine | 2.0i 16V (136 KM) Automatic |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 201 km/h |
|---|---|
| Acceleration 0-100 km/h | 12.8 s |
| Fuel consumption - Urban cycle | 12.7 l/100 km |
| Fuel consumption - Extra-urban cycle | 6.4 l/100 km |
| Fuel consumption - Combined cycle | 8.7 l/100 km |
Engine
| Engine model / code | RFNEW10J4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 1997 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Cylinder bore | 85 mm |
| Piston stroke | 88 mm |
| Compression ratio | 10.8 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 4.25 l |
| Coolant capacity | 8.1 l |
Volume and weight
| Fuel tank | 66 l |
|---|---|
| Minimum trunk capacity | 489 l |
| Curb weight | 1470 kg |
| Gross weight | 2105 kg |
Vehicle dimensions
| Length | 4763 mm |
|---|---|
| Width | 1811 mm |
| Height | 1486 mm |
| Wheelbase | 2725 mm |
| Front track | 1554 mm |
| Rear track | 1510 mm |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 4 |
| Front suspension | With spring struts |
| Rear suspension | With spring struts |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 205/60 R16 |
| Rim size | 6.5 x 16 |
Basic version information
| Brand | Peugeot |
|---|---|
| Model | 407 |
| Version | 407 SW |
| Engine | 2.2 HDI (170 KM) |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | Station wagon |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 221 km/h |
|---|---|
| Acceleration 0-100 km/h | 9 s |
| Fuel consumption - Urban cycle | 8.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 5.1 l/100 km |
| Fuel consumption - Combined cycle | 6.2 l/100 km |
| CO2 emissions | 165 g/km |
Engine
| Engine model / code | 4HTDW12BTED4 |
|---|---|
| Engine position | Front, Transverse |
| Engine displacement | 2179 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Twin turbo, Intercooler |
| Engine configuration | Inline |
| Number of cylinders | 4 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 5.25 l |
| Coolant capacity | 9.7 l |
Volume and weight
| Fuel tank | 66 l |
|---|---|
| Minimum trunk capacity | 448 l |
| Maximum trunk capacity | 1365 l |
| Curb weight | 1750 kg |
| Gross weight | 2275 kg |
| Roof load | 80 kg |
| Braked trailer load (12% slope start) | 1900 kg |
| Trailer load without brakes | 750 kg |
| Trailer nose weight | 80 kg |
Vehicle dimensions
| Length | 4763 mm |
|---|---|
| Width | 1811 mm |
| Height | 1486 mm |
| Wheelbase | 2725 mm |
| Front track | 1554 mm |
| Rear track | 1510 mm |
| Front overhang | 1029 mm |
| Rear overhang | 1009 mm |
| Turning circle | 12 m |
Drivetrain, Brakes and suspension
| Drive | Front-wheel drive |
|---|---|
| Number of gears | 6 |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Disc |
| ABS | yes |
| Steering system | Rack-and-pinion |
| Tire size | 215/55 R17 |
| Rim size | 17 |
