Peugeot 406 Coupe (Phase II, 2003)
Compare all 4 engine versions of the Peugeot 406 406 Coupe (Phase II, 2003), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Peugeot 406 Coupe (Phase II, 2003)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

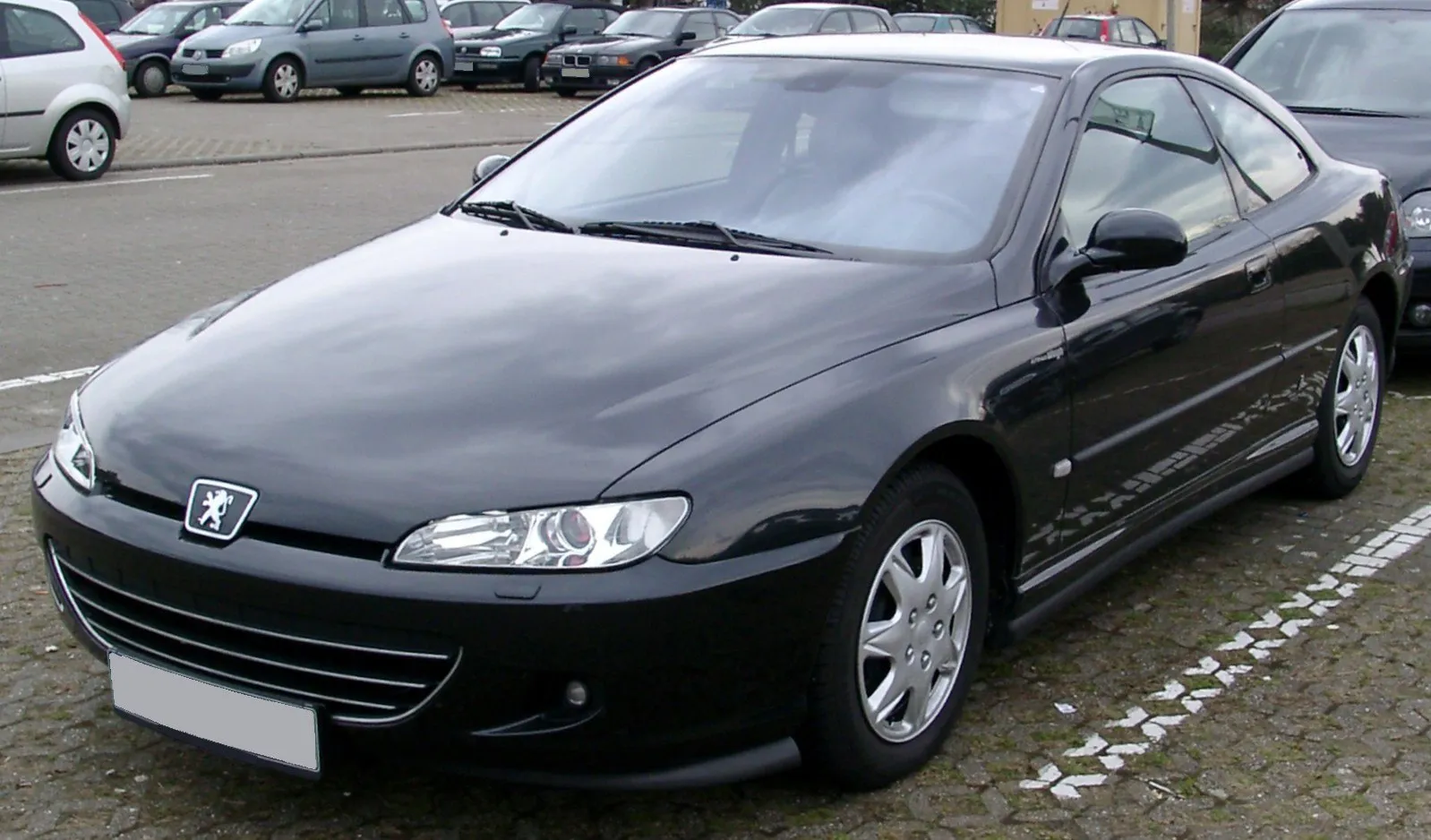

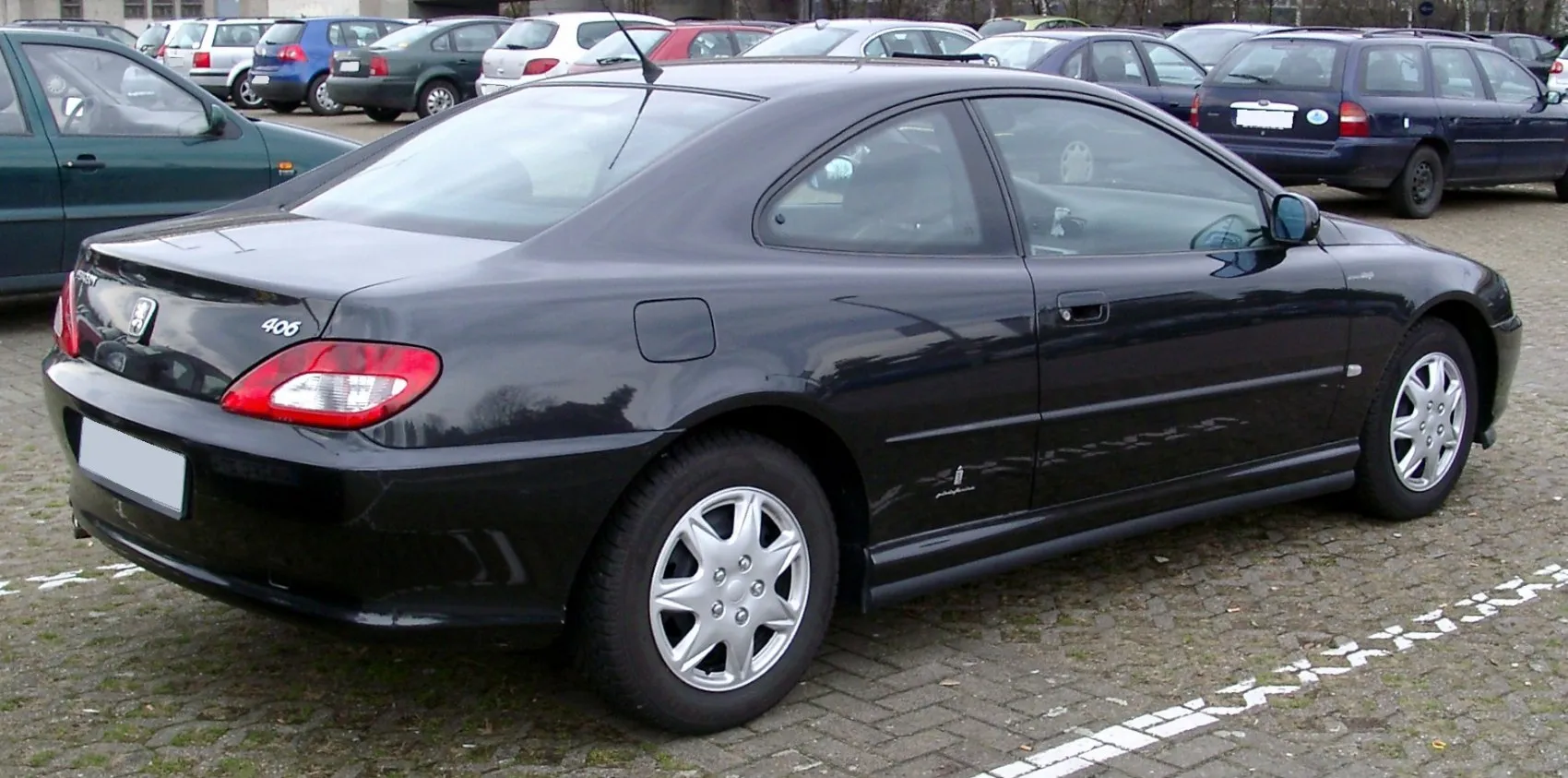

Vehicle photos
1 of 2
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
4 versions · 3 Gasoline · 1 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 3.0 V6 (207 KM) Selected | Gasoline | 207 KM | 2003–2005 |
| 3.0 V6 (207 KM) Automatic Selected | Gasoline | 207 KM | 2003–2005 |
| 2.2 HDi (133 KM) Selected | Diesel fuel | 133 KM | 2003–2005 |
| 2.2 16V (158 KM) Selected | Gasoline | 158 KM | 2003–2005 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
3.0 V6 (207 KM)
Gasoline · 2003–2005
- Engine power
- 207 KM
- Torque
- 285 Nm
- Engine displacement
- 2,946 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 7.8 s
- Maximum speed
- 240 km/h
On this page
Check vehicle history
Basic version information
Peugeot 406 406 Coupe (Phase II, 2003)- Brand
- Peugeot
- Model
- 406
- Version
- 406 Coupe (Phase II, 2003)
- Engine
- 3.0 V6 (207 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2003
- End of production
- 2005
- Body type
- Coupé
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 240 km/h
- Acceleration 0-100 km/h
- 7.8 s
- Fuel consumption - Urban cycle
- 14.4 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.4 l/100 km
- Fuel consumption - Combined cycle
- 10 l/100 km
- Emission standard
- Euro 3
- CO2 emissions
- 238 g/km
Engine
- Engine model / code
- XFXES9J4S
- Engine position
- Front, Transverse
- Engine displacement
- 2946 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 87 mm
- Piston stroke
- 82.6 mm
- Compression ratio
- 10.9
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.75 l
- Coolant capacity
- 9.6 l
- Power
- 207 KM @ 6000 obr./min
- Torque
- 285 Nm @ 3750 obr./min
Volume and weight
- Fuel tank
- 70 l
- Minimum trunk capacity
- 390 l
- Curb weight
- 1485 kg
- Gross weight
- 1910 kg
- Braked trailer load (12% slope start)
- 1200 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4615 mm
- Width
- 1780 mm
- Height
- 1352 mm
- Wheelbase
- 2700 mm
- Front track
- 1511 mm
- Rear track
- 1525 mm
- Front overhang
- 985 mm
- Rear overhang
- 930 mm
- Turning circle
- 11.95 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 215/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
3.0 V6 (207 KM) Automatic
Gasoline · 2003–2005
- Engine power
- 207 KM
- Torque
- 285 Nm
- Engine displacement
- 2,946 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.5 s
- Maximum speed
- 232 km/h
On this page
Check vehicle history
Basic version information
Peugeot 406 406 Coupe (Phase II, 2003)- Brand
- Peugeot
- Model
- 406
- Version
- 406 Coupe (Phase II, 2003)
- Engine
- 3.0 V6 (207 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2003
- End of production
- 2005
- Body type
- Coupé
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 232 km/h
- Acceleration 0-100 km/h
- 9.5 s
- Fuel consumption - Urban cycle
- 14.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.8 l/100 km
- Fuel consumption - Combined cycle
- 10.4 l/100 km
- Emission standard
- Euro 3
- CO2 emissions
- 248 g/km
Engine
- Engine model / code
- XFXES9J4S
- Engine position
- Front, Transverse
- Engine displacement
- 2946 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 87 mm
- Piston stroke
- 82.6 mm
- Compression ratio
- 10.9
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.75 l
- Coolant capacity
- 10.6 l
- Power
- 207 KM @ 6000 obr./min
- Torque
- 285 Nm @ 3750 obr./min
Volume and weight
- Fuel tank
- 70 l
- Minimum trunk capacity
- 390 l
- Curb weight
- 1510 kg
- Gross weight
- 1935 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4615 mm
- Width
- 1780 mm
- Height
- 1352 mm
- Wheelbase
- 2700 mm
- Front track
- 1511 mm
- Rear track
- 1525 mm
- Front overhang
- 985 mm
- Rear overhang
- 930 mm
- Turning circle
- 11.95 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 215/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
2.2 HDi (133 KM)
Diesel fuel · 2003–2005
- Engine power
- 133 KM
- Torque
- 314 Nm
- Engine displacement
- 2,179 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10.9 s
- Maximum speed
- 208 km/h
On this page
Check vehicle history
Basic version information
Peugeot 406 406 Coupe (Phase II, 2003)- Brand
- Peugeot
- Model
- 406
- Version
- 406 Coupe (Phase II, 2003)
- Engine
- 2.2 HDi (133 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2003
- End of production
- 2005
- Body type
- Coupé
- Number of seats
- 4
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 208 km/h
- Acceleration 0-100 km/h
- 10.9 s
- Fuel consumption - Urban cycle
- 8.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.9 l/100 km
- Fuel consumption - Combined cycle
- 6.4 l/100 km
- Emission standard
- Euro 3
- CO2 emissions
- 168 g/km
Engine
- Engine model / code
- 4HZDW12TED4
- Engine position
- Front, Transverse
- Engine displacement
- 2179 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 85 mm
- Piston stroke
- 96 mm
- Compression ratio
- 18
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 9.7 l
- Power
- 133 KM @ 4000 obr./min
- Torque
- 314 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 70 l
- Minimum trunk capacity
- 390 l
- Curb weight
- 1410 kg
- Gross weight
- 1835 kg
- Braked trailer load (12% slope start)
- 1200 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 4615 mm
- Width
- 1780 mm
- Height
- 1350 mm
- Wheelbase
- 2700 mm
- Front track
- 1510 mm
- Rear track
- 1525 mm
- Front overhang
- 985 mm
- Rear overhang
- 930 mm
- Turning circle
- 11.95 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 215/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
2.2 16V (158 KM)
Gasoline · 2003–2005
- Engine power
- 158 KM
- Torque
- 217 Nm
- Engine displacement
- 2,231 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.9 s
- Maximum speed
- 218 km/h
On this page
Check vehicle history
Basic version information
Peugeot 406 406 Coupe (Phase II, 2003)- Brand
- Peugeot
- Model
- 406
- Version
- 406 Coupe (Phase II, 2003)
- Engine
- 2.2 16V (158 KM)
- Engine type
- Combustion engine
- Number of doors
- 2
- Start of production
- 2003
- End of production
- 2005
- Body type
- Coupé
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 218 km/h
- Acceleration 0-100 km/h
- 9.9 s
- Fuel consumption - Urban cycle
- 12.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.5 l/100 km
- Fuel consumption - Combined cycle
- 8.8 l/100 km
- Emission standard
- Euro 3
- CO2 emissions
- 210 g/km
Engine
- Engine model / code
- 3FZEW12J4
- Engine position
- Front, Transverse
- Engine displacement
- 2231 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 96 mm
- Compression ratio
- 10.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.25 l
- Coolant capacity
- 7.5 l
- Power
- 158 KM @ 5650 obr./min
- Torque
- 217 Nm @ 3900 obr./min
Volume and weight
- Fuel tank
- 70 l
- Minimum trunk capacity
- 390 l
- Curb weight
- 1359 kg
- Gross weight
- 1900 kg
Vehicle dimensions
- Length
- 4615 mm
- Width
- 1780 mm
- Height
- 1350 mm
- Wheelbase
- 2700 mm
- Front track
- 1510 mm
- Rear track
- 1525 mm
- Front overhang
- 985 mm
- Rear overhang
- 930 mm
- Turning circle
- 11.95 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Hydraulic power steering
- Tire size
- 215/55 R16
- Rim size
- 16
- ABS
- yes
