Morgan Super 3 Super 3
Compare all 1 engine versions of the Morgan Super 3 Super 3, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Morgan Super 3 Super 3? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

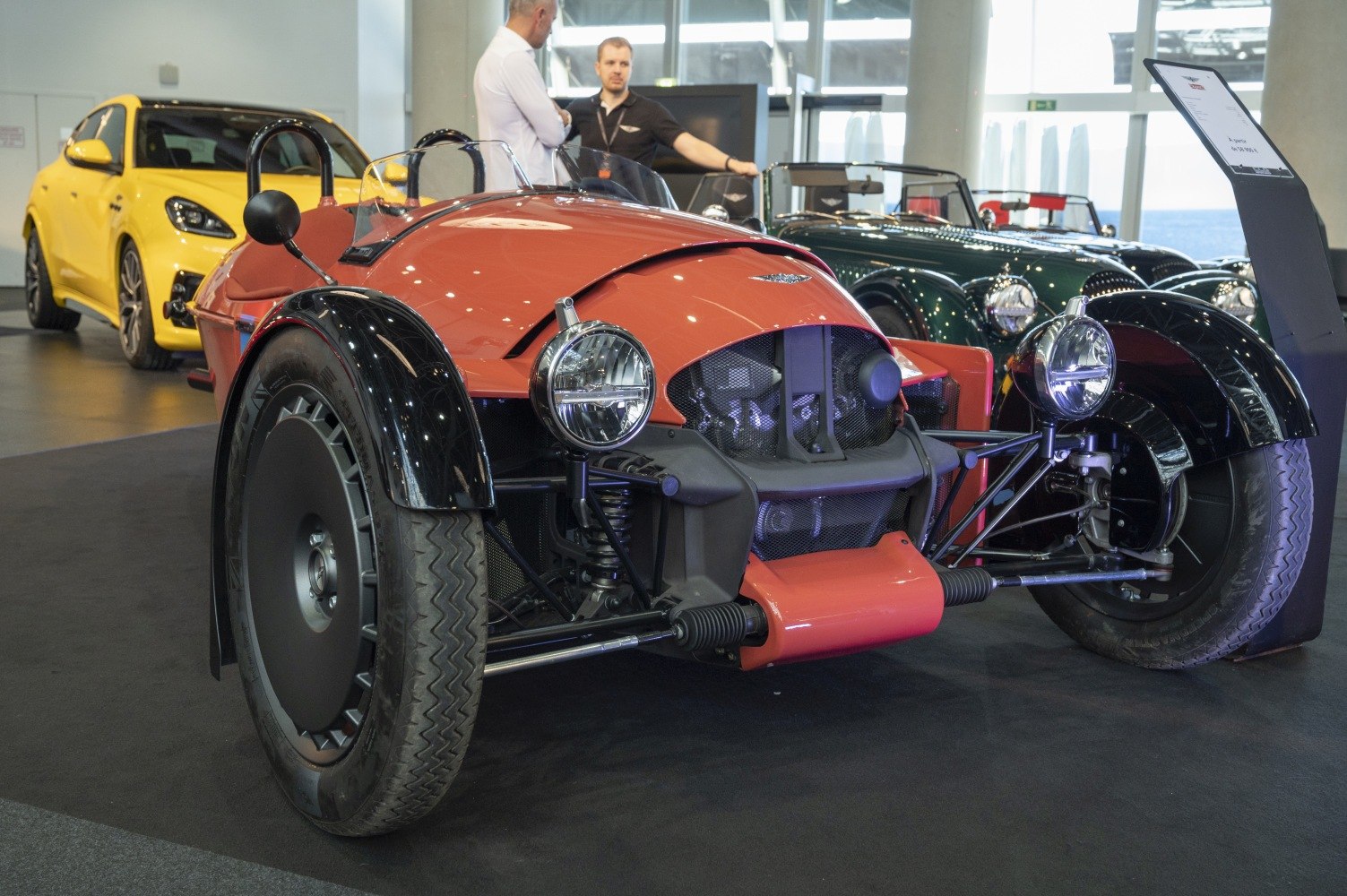

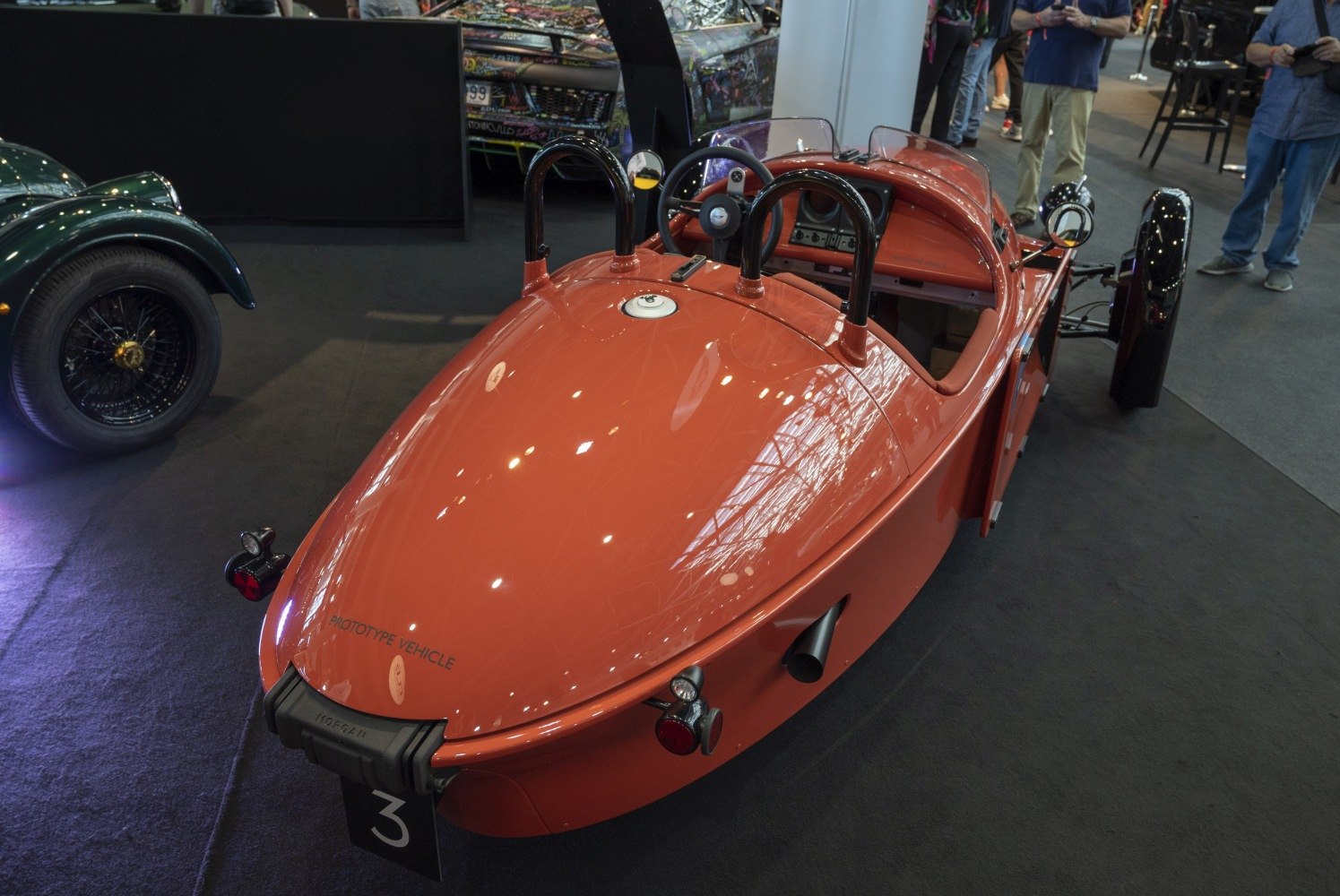

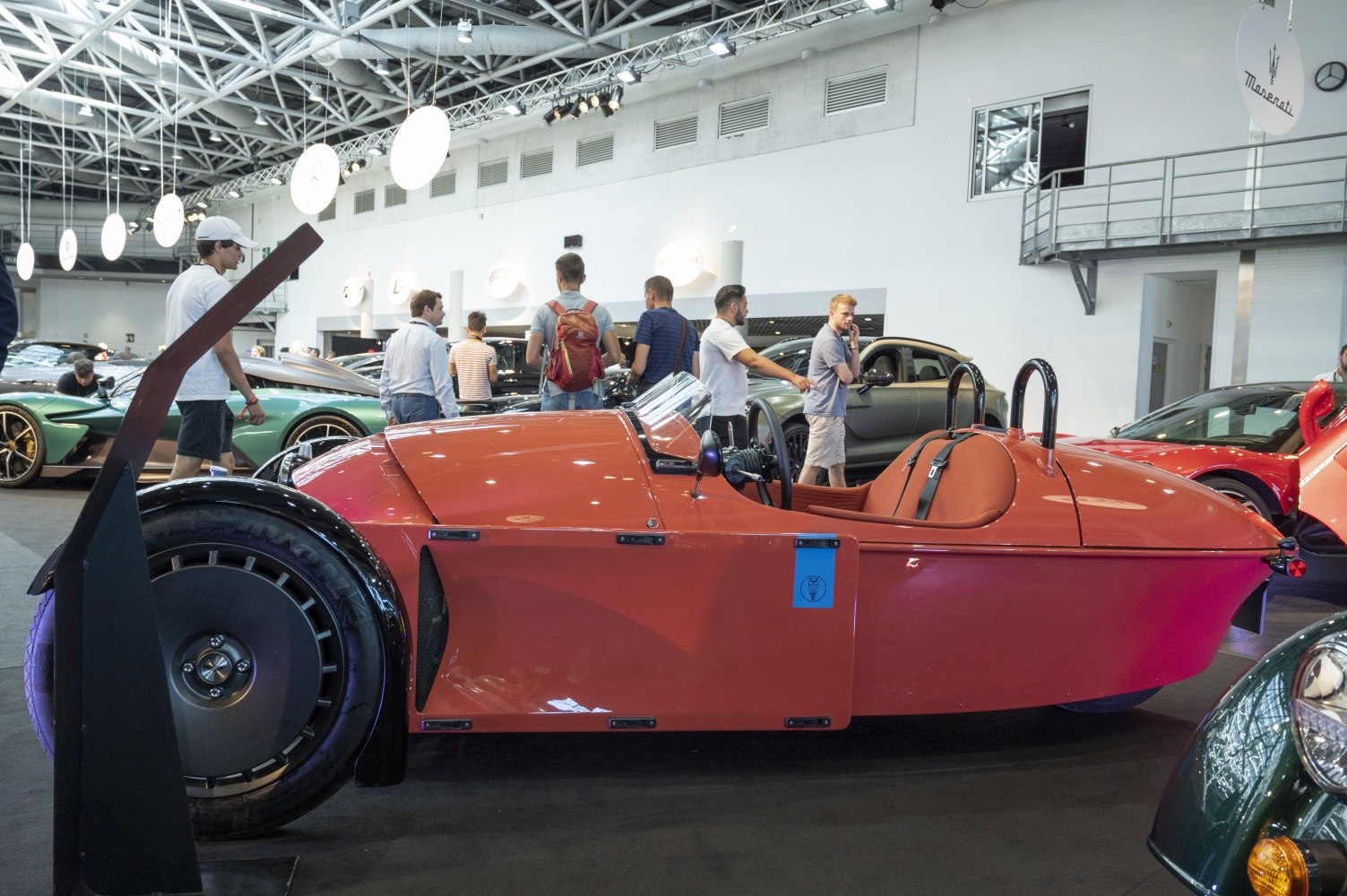

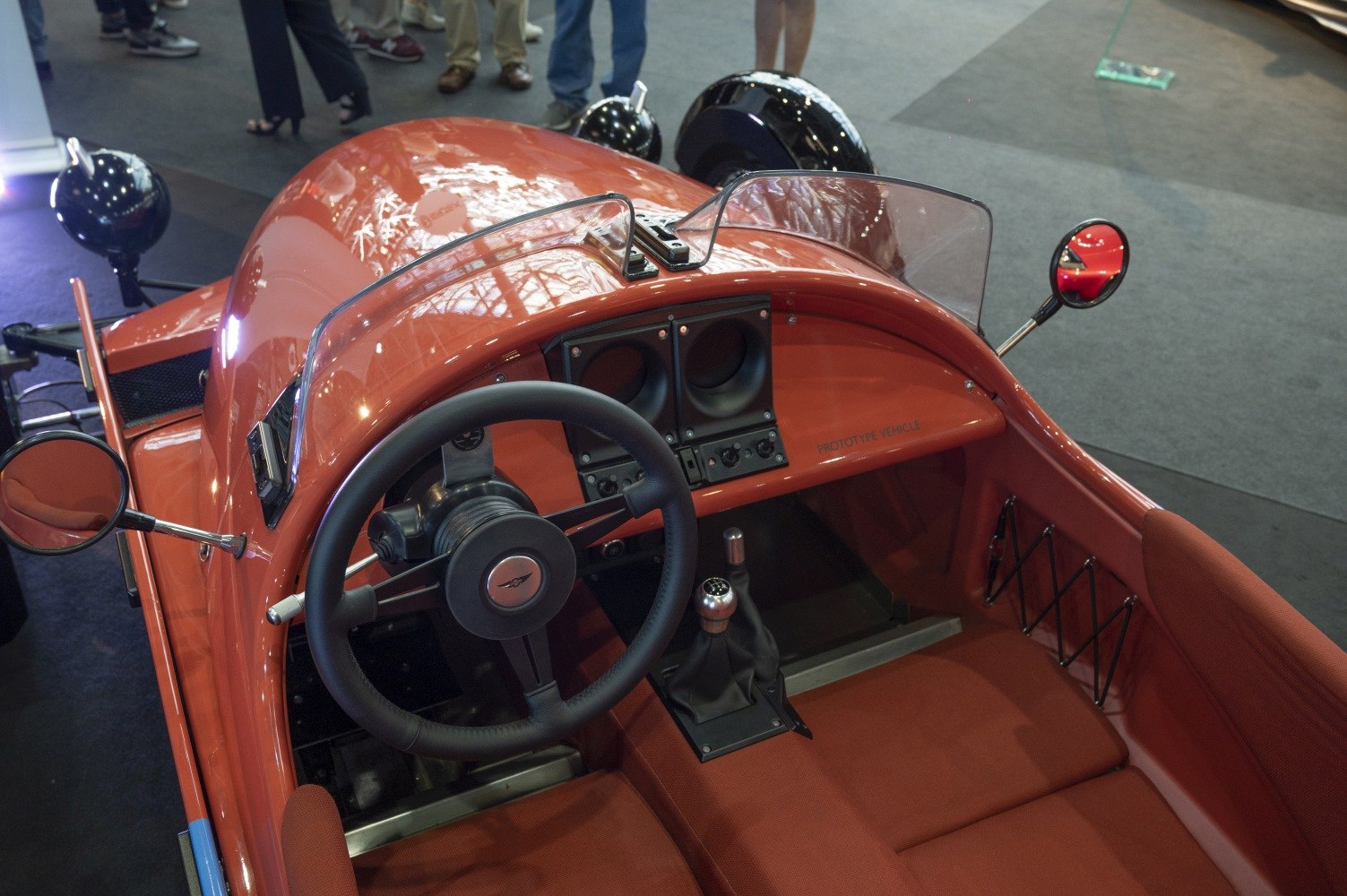

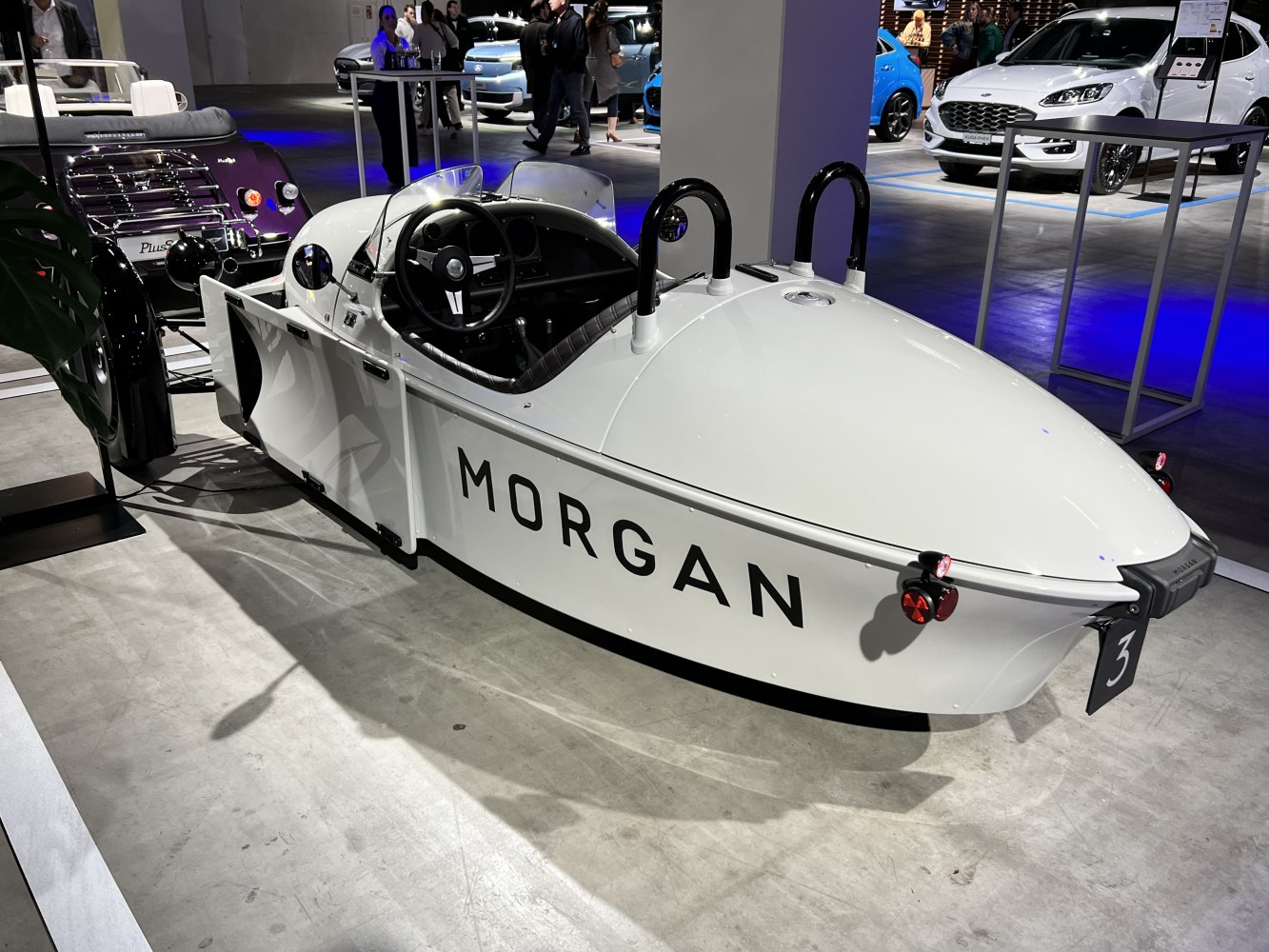

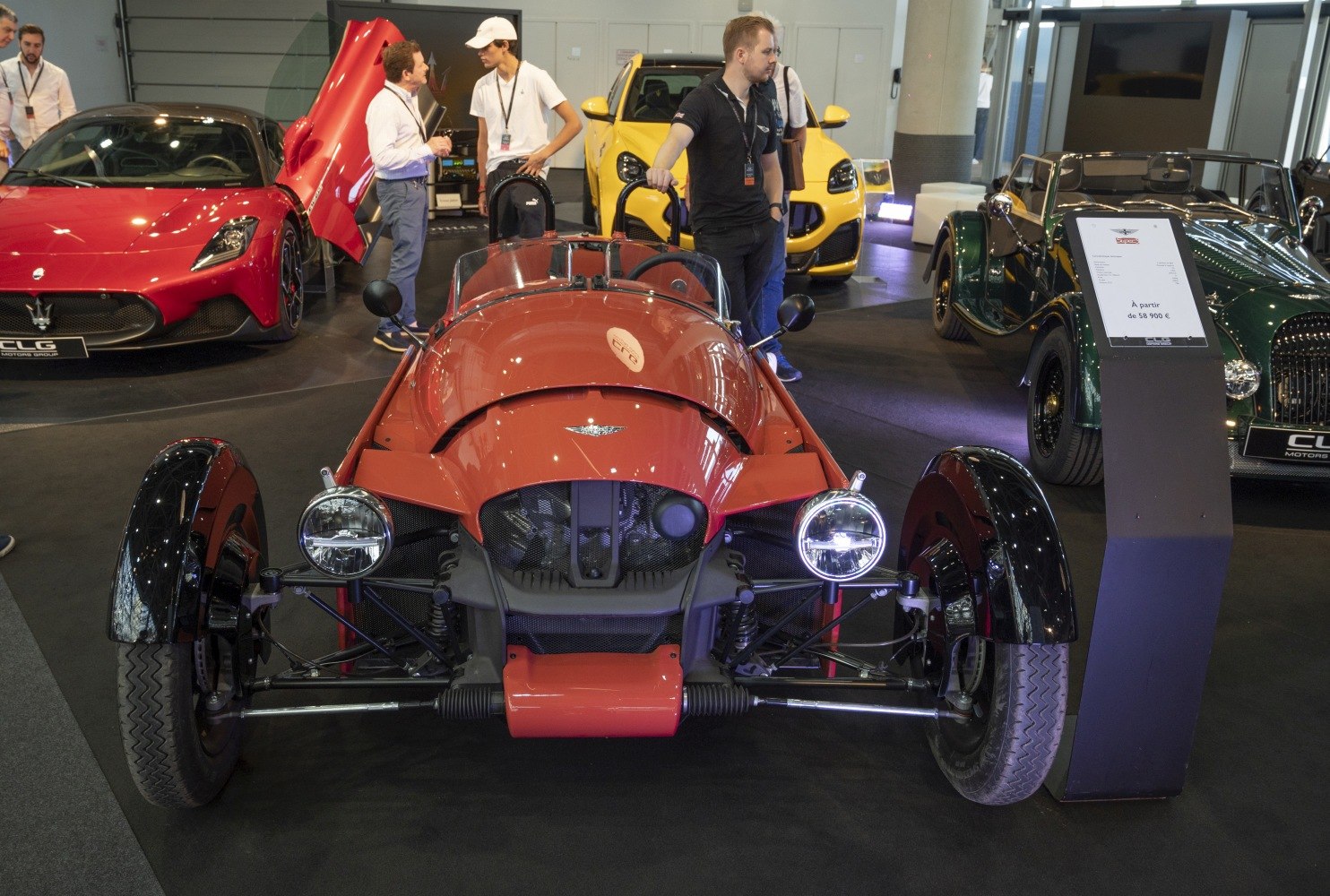

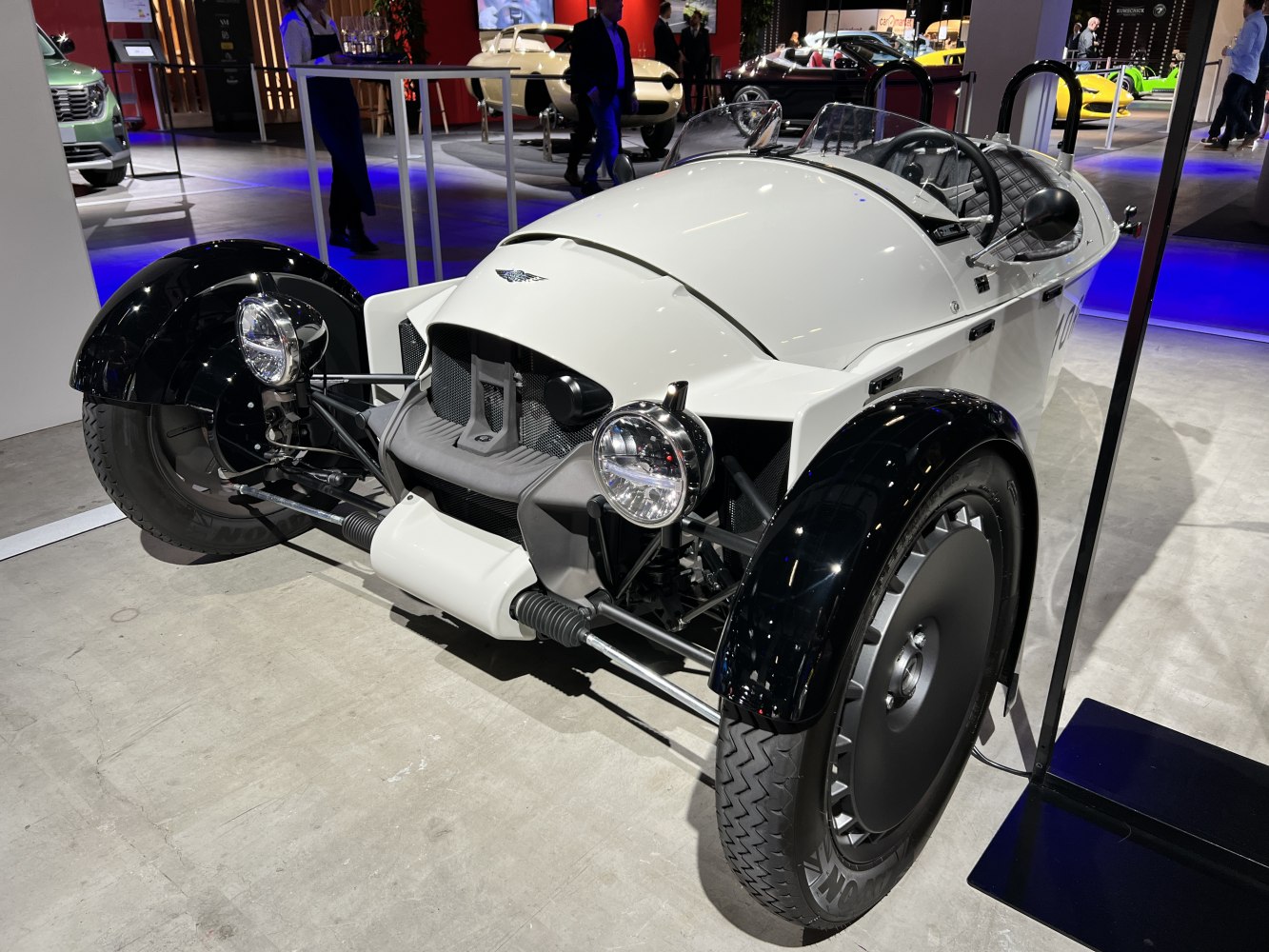

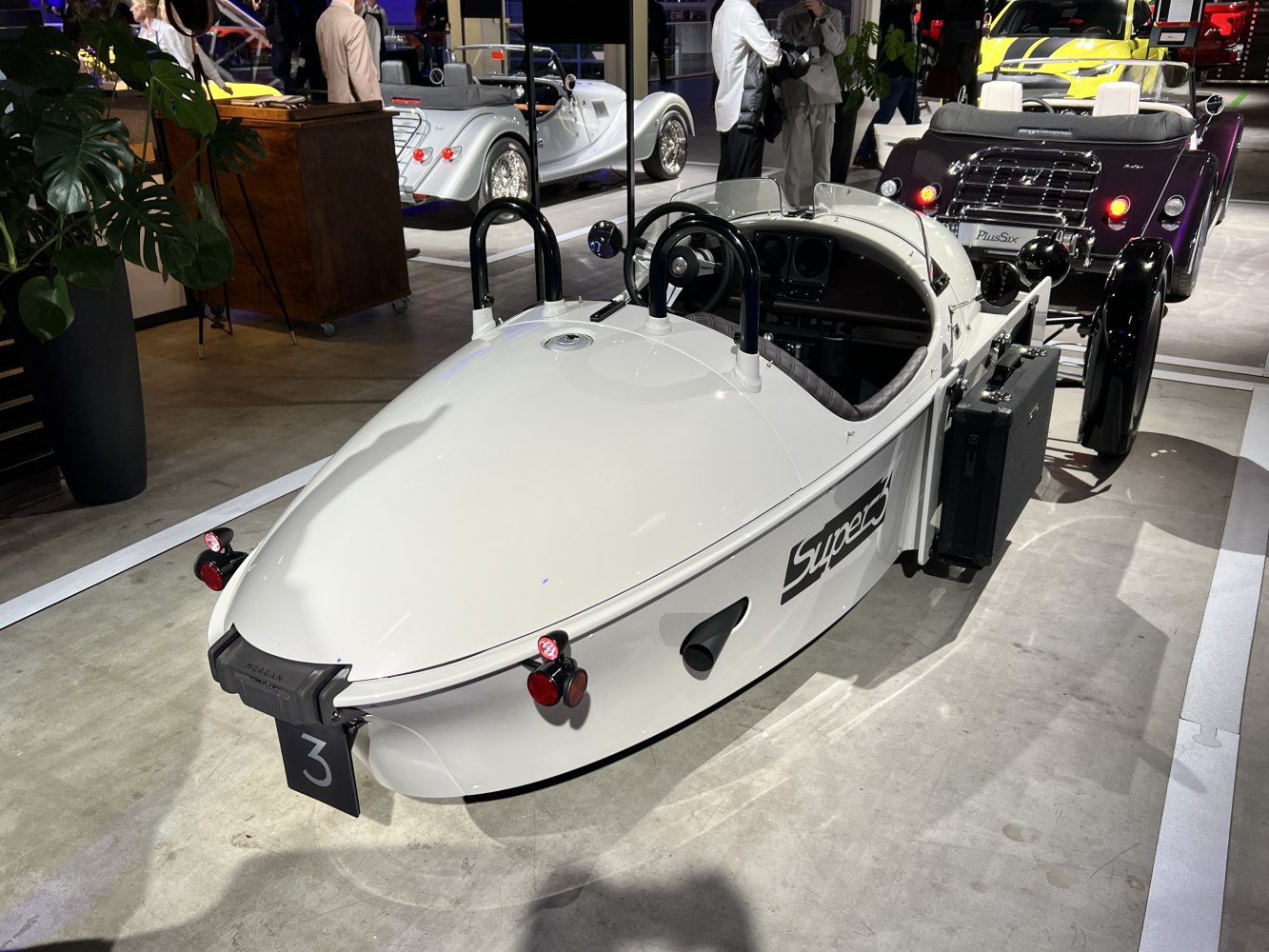

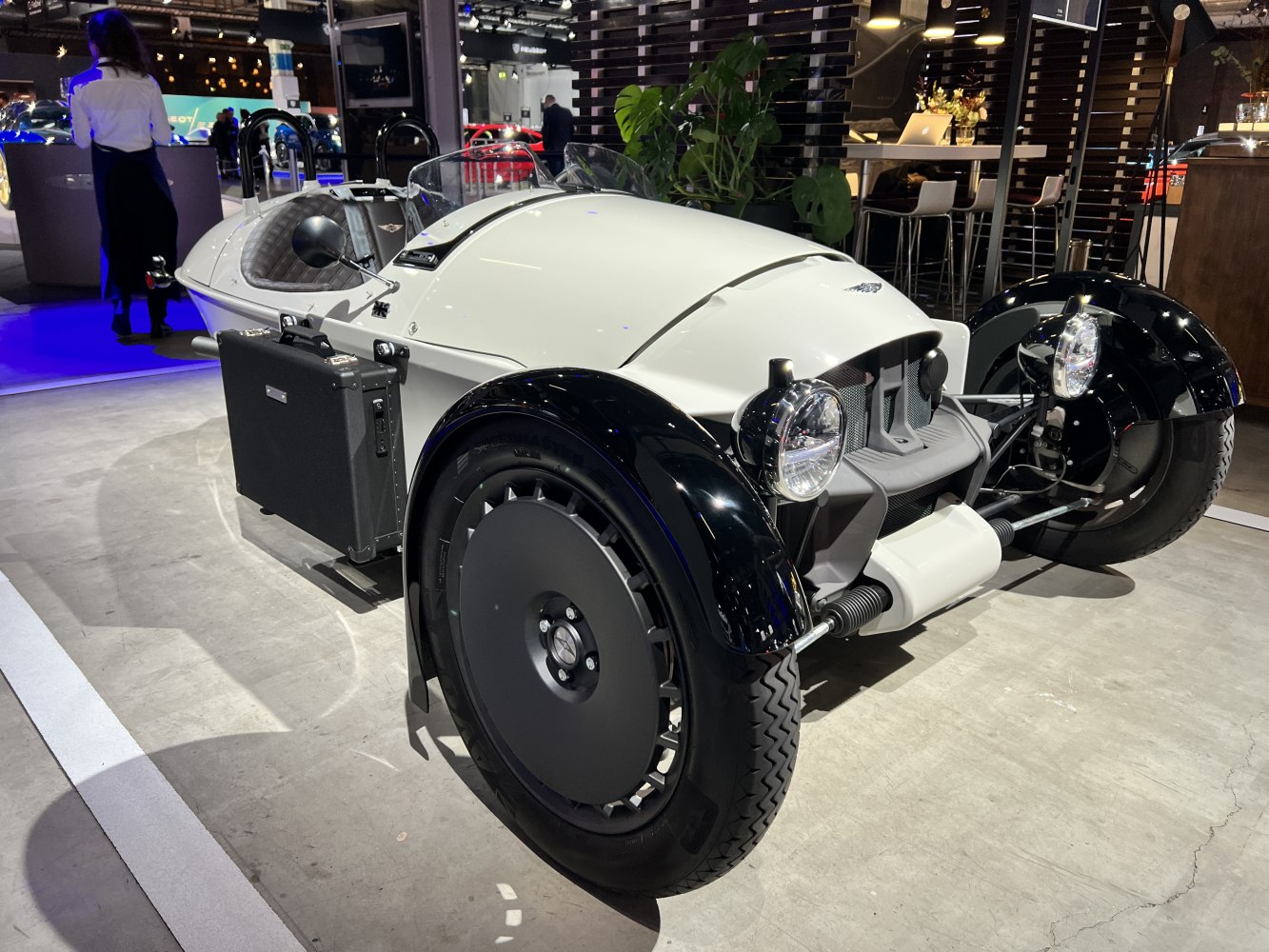

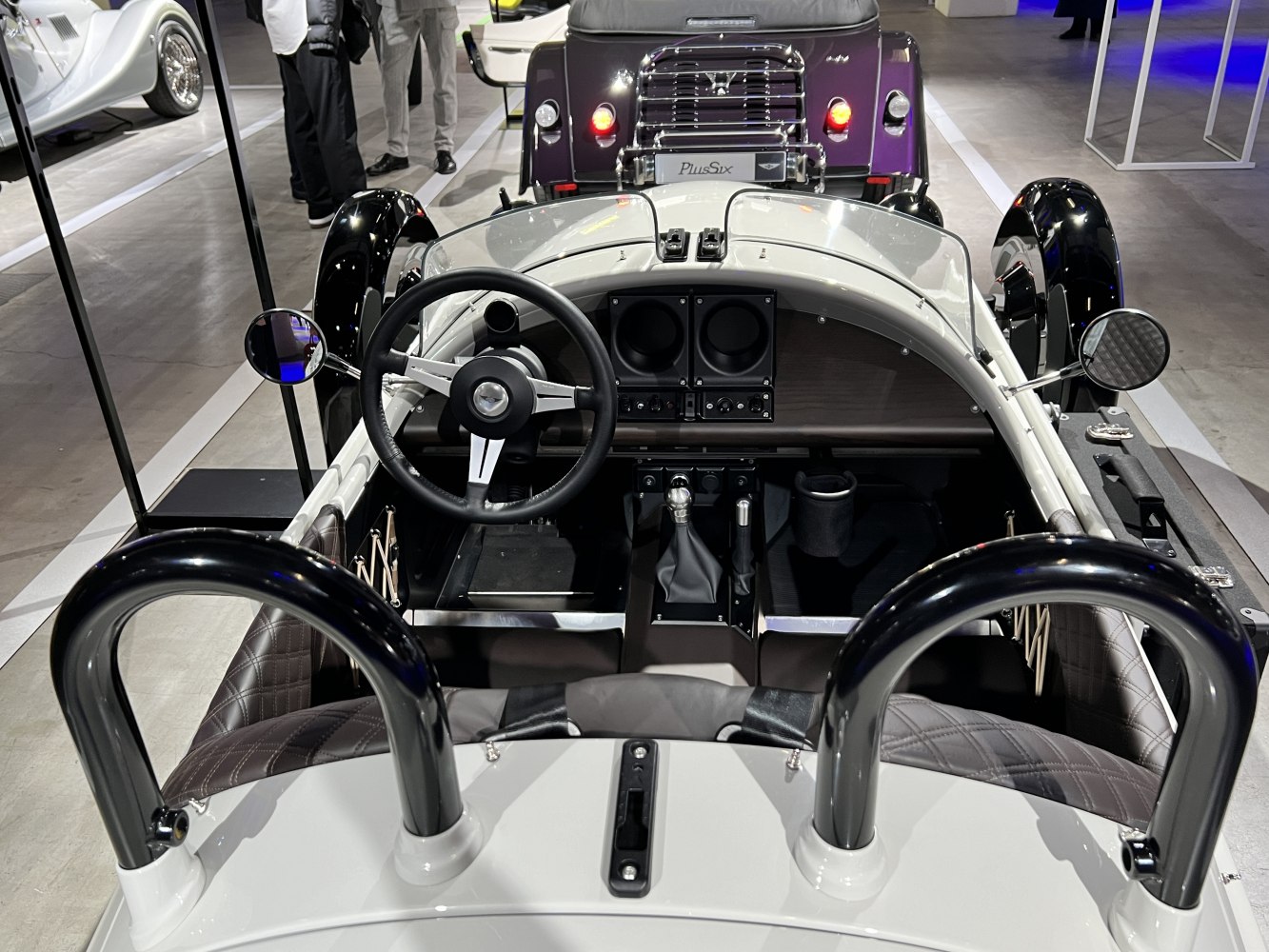

Vehicle photos
1 of 11
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
1 versions · 1 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| Ford Dragon 1.5 (118 KM) Selected | Gasoline | 118 KM | 2022–present |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
Ford Dragon 1.5 (118 KM)
Gasoline · 2022–present
- Engine power
- 118 KM
- Torque
- 150 Nm
- Engine displacement
- 1,432 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 7 s
- Maximum speed
- 209 km/h
On this page
Check vehicle history
Basic version information
Morgan Super 3 Super 3- Brand
- Morgan
- Model
- Super 3
- Version
- Super 3
- Engine
- Ford Dragon 1.5 (118 KM)
- Engine type
- Combustion engine
- Start of production
- 2022
- Body type
- Roadster
- Number of seats
- 2
- Fuel type
- Gasoline
Performance
- Maximum speed
- 209 km/h
- Acceleration 0-100 km/h
- 7 s
- Fuel consumption - Combined cycle
- 7 l/100 km
- CO2 emissions
- 130 g/km
Engine
- Engine position
- Front, Longitudinal
- Engine displacement
- 1432 cm³
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 3
- Cylinder bore
- 84 mm
- Piston stroke
- 90 mm
- Engine oil capacity
- 4.5 l
- Coolant capacity
- 6 l
- Power
- 118 KM @ 6500 obr./min
- Torque
- 150 Nm
Volume and weight
- Fuel tank
- 52 l
- Curb weight
- 635 kg
Vehicle dimensions
- Length
- 3581 mm
- Width
- 1840 mm
- Height
- 1132 mm
- Wheelbase
- 2533 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 5
- Front suspension
- Double wishbone
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- ABS
- no
