Vehicle specifications
Mercedes-Benz W108 SEL
Compare all 3 engine versions of the Mercedes-Benz W108 W108 SEL, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Mercedes-Benz W108 SEL? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

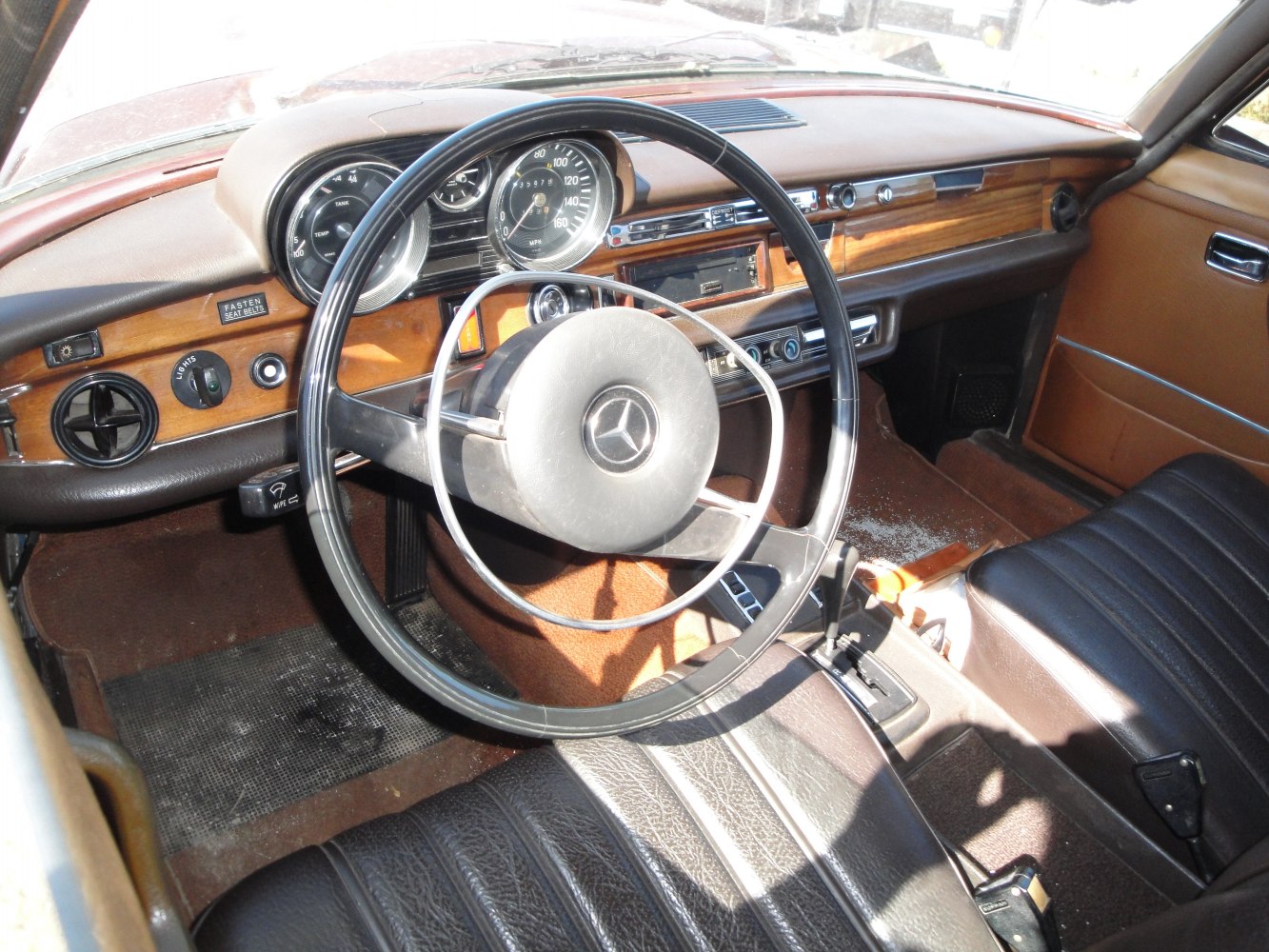

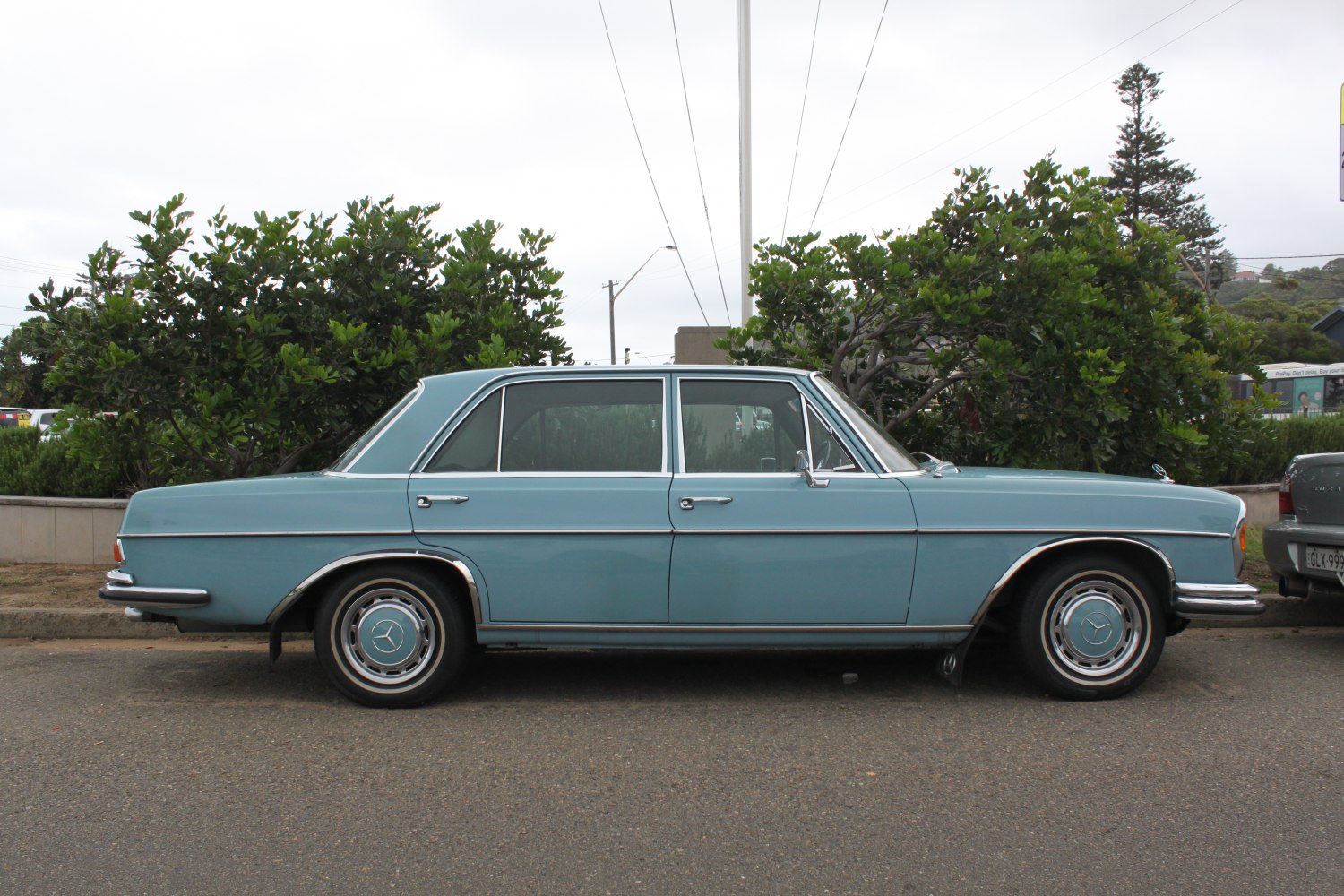

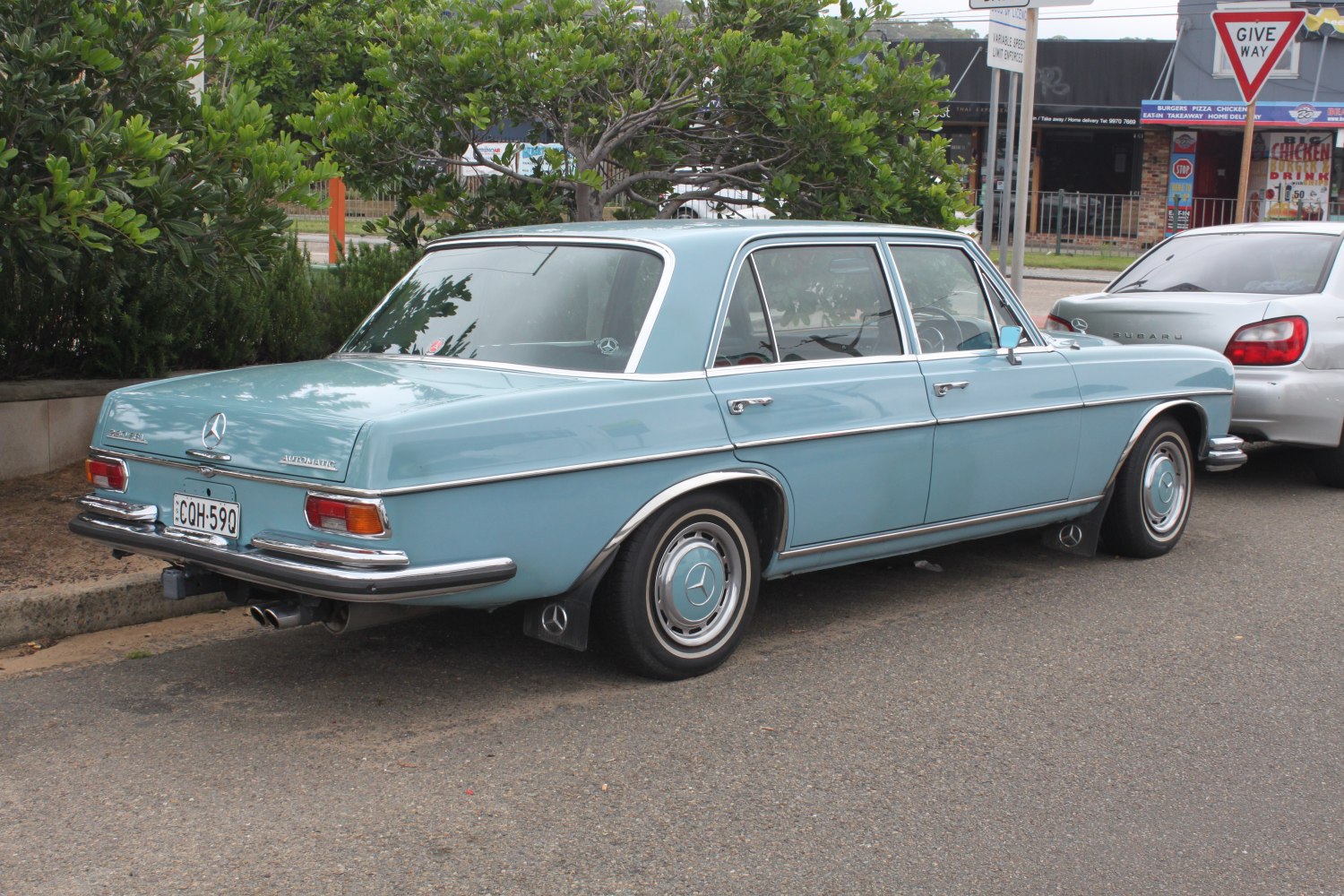

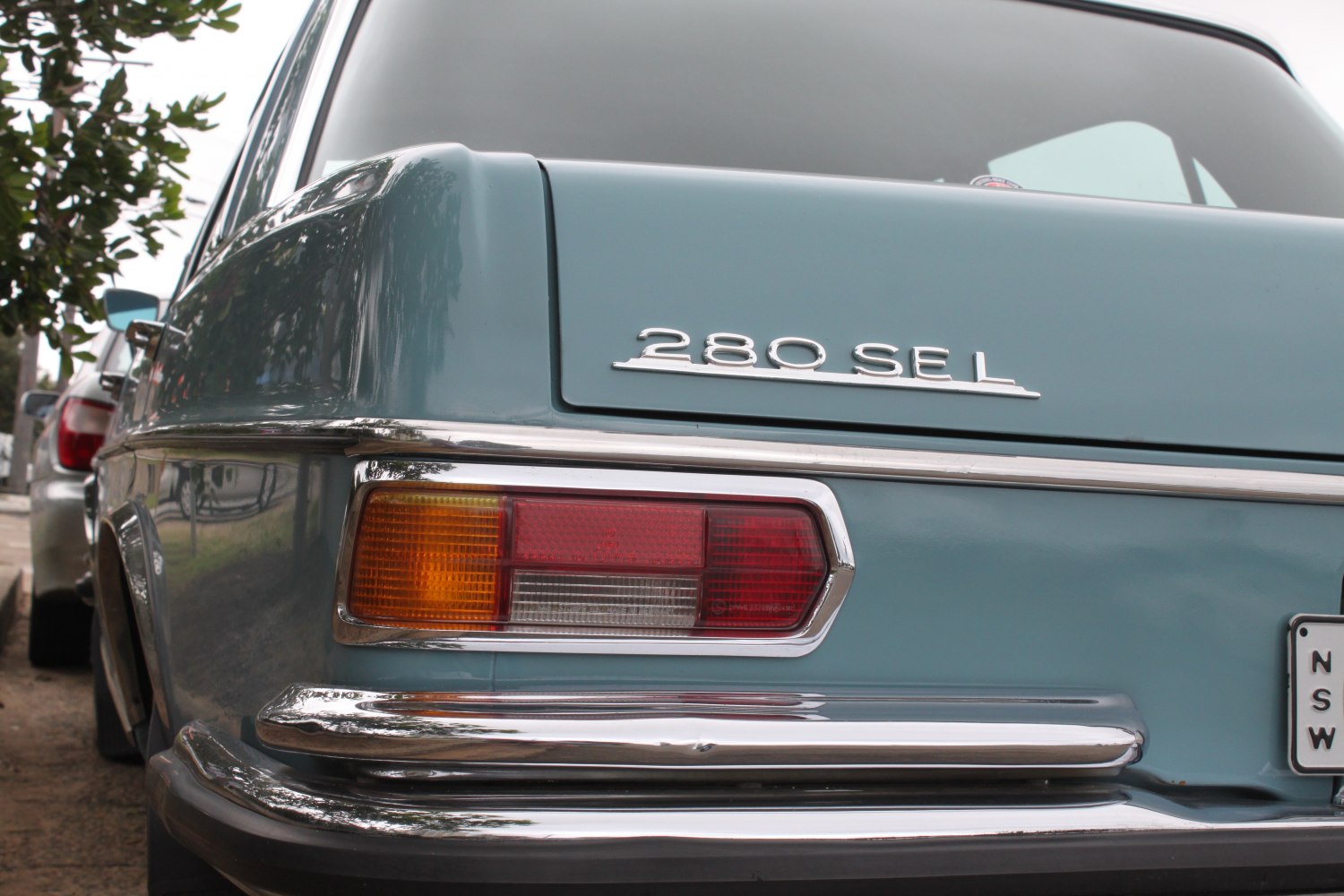

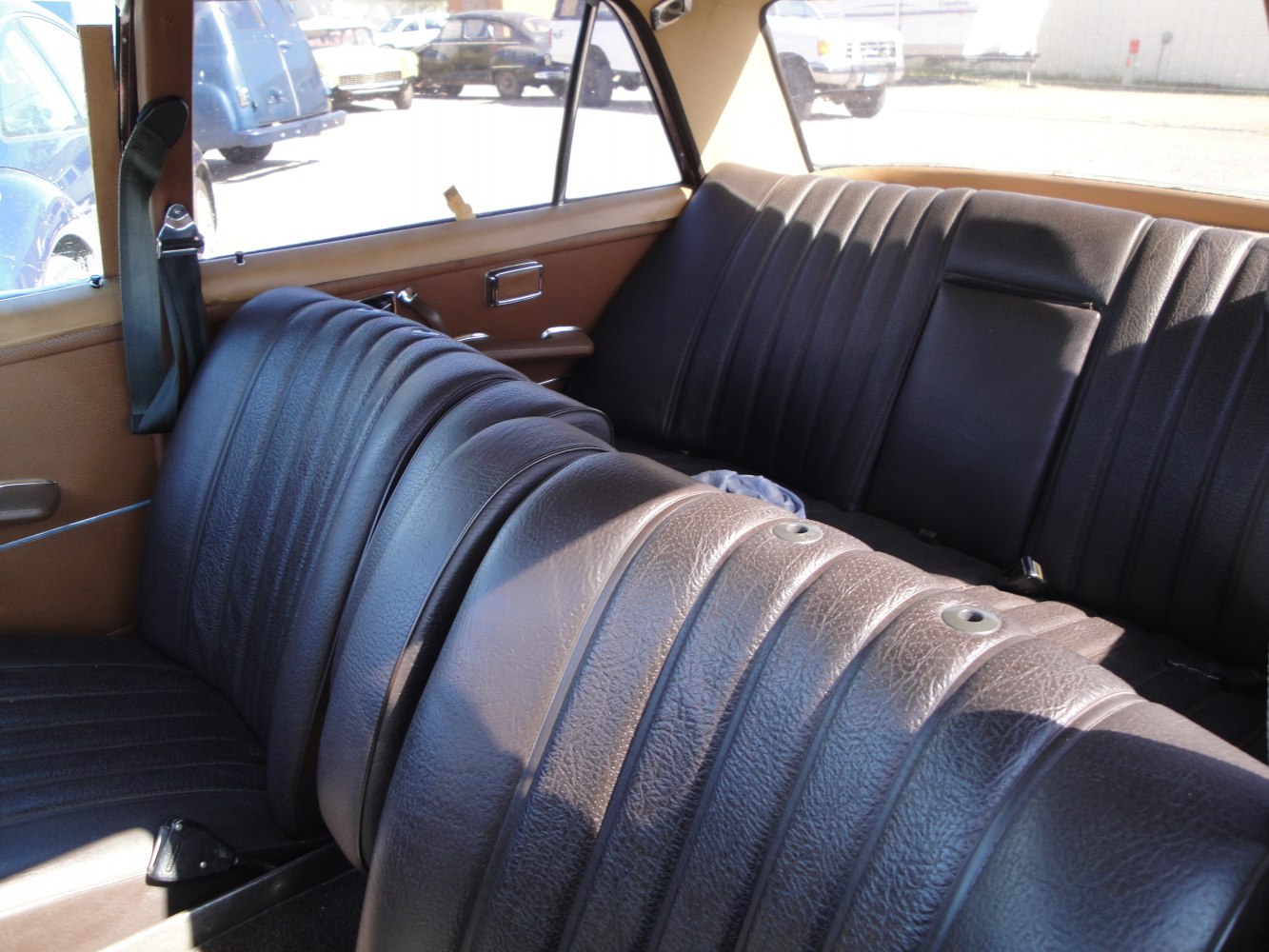

Vehicle photos
1 of 7
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
3 versions · 3 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 280 SEL 3.5 V8 (200 KM) Automatic Selected | Gasoline | 200 KM | 1970–1972 |
| 280 SEL 4.5 V8 (198 KM) Automatic Selected | Gasoline | 198 KM | 1971–1972 |
| 280 SEL 3.5 V8 (200 KM) Selected | Gasoline | 200 KM | 1970–1972 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
280 SEL 3.5 V8 (200 KM) Automatic
Gasoline · 1970–1972
- Engine power
- 200 KM
- Torque
- 286 Nm
- Engine displacement
- 3,499 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.4 s
- Maximum speed
- 205 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W108 W108 SEL- Brand
- Mercedes-Benz
- Model
- W108
- Version
- W108 SEL
- Engine
- 280 SEL 3.5 V8 (200 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1970
- End of production
- 1972
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 9.4 s
- Fuel consumption - Combined cycle
- 13 l/100 km
Engine
- Engine model / code
- M116E35/116.980
- Engine position
- Front, Longitudinal
- Engine displacement
- 3499 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 92 mm
- Piston stroke
- 65.8 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 7.5 l
- Coolant capacity
- 13.2 l
- Power
- 200 KM @ 5800 obr./min
- Torque
- 286 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 82 l
- Curb weight
- 1585 kg
- Gross weight
- 2085 kg
Vehicle dimensions
- Length
- 5000 mm
- Width
- 1810 mm
- Height
- 1440 mm
- Wheelbase
- 2850 mm
- Front track
- 1482 mm
- Rear track
- 1485 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Hydropneumatic element, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Rim size
- 6J x 14
- ABS
- no
Selected engine version
280 SEL 4.5 V8 (198 KM) Automatic
Gasoline · 1971–1972
- Engine power
- 198 KM
- Torque
- 358 Nm
- Engine displacement
- 4,520 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.1 s
- Maximum speed
- 200 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W108 W108 SEL- Brand
- Mercedes-Benz
- Model
- W108
- Version
- W108 SEL
- Engine
- 280 SEL 4.5 V8 (198 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1971
- End of production
- 1972
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 200 km/h
- Acceleration 0-100 km/h
- 10.1 s
- Fuel consumption - Combined cycle
- 15 l/100 km
Engine
- Engine model / code
- M117E45/117.984
- Engine position
- Front, Longitudinal
- Engine displacement
- 4520 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 92 mm
- Piston stroke
- 84.99 mm
- Compression ratio
- 8
- Number of valves per cylinder
- 2
- Power
- 198 KM @ 4500 obr./min
- Torque
- 358 Nm @ 3000 obr./min
Volume and weight
- Fuel tank
- 82 l
- Curb weight
- 1705 kg
- Gross weight
- 2168 kg
Vehicle dimensions
- Length
- 5000 mm
- Width
- 1810 mm
- Height
- 1440 mm
- Wheelbase
- 2850 mm
- Front track
- 1482 mm
- Rear track
- 1485 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 3
- Front suspension
- Double wishbone
- Rear suspension
- Hydropneumatic element, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Rim size
- 6J x 14
- ABS
- no
Selected engine version
280 SEL 3.5 V8 (200 KM)
Gasoline · 1970–1972
- Engine power
- 200 KM
- Torque
- 286 Nm
- Engine displacement
- 3,499 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9 s
- Maximum speed
- 210 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W108 W108 SEL- Brand
- Mercedes-Benz
- Model
- W108
- Version
- W108 SEL
- Engine
- 280 SEL 3.5 V8 (200 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1970
- End of production
- 1972
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 9 s
- Fuel consumption - Combined cycle
- 13 l/100 km
Engine
- Engine model / code
- M116E35/116.980
- Engine position
- Front, Longitudinal
- Engine displacement
- 3499 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 92 mm
- Piston stroke
- 65.8 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 7.5 l
- Coolant capacity
- 13.2 l
- Power
- 200 KM @ 5800 obr./min
- Torque
- 286 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 82 l
- Curb weight
- 1585 kg
- Gross weight
- 2085 kg
Vehicle dimensions
- Length
- 5000 mm
- Width
- 1810 mm
- Height
- 1440 mm
- Wheelbase
- 2850 mm
- Front track
- 1482 mm
- Rear track
- 1485 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Hydropneumatic element, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Rim size
- 6J x 14
- ABS
- no
