Vehicle specifications
Mercedes-Benz W108 W108
Compare all 13 engine versions of the Mercedes-Benz W108 W108, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Mercedes-Benz W108 W108? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

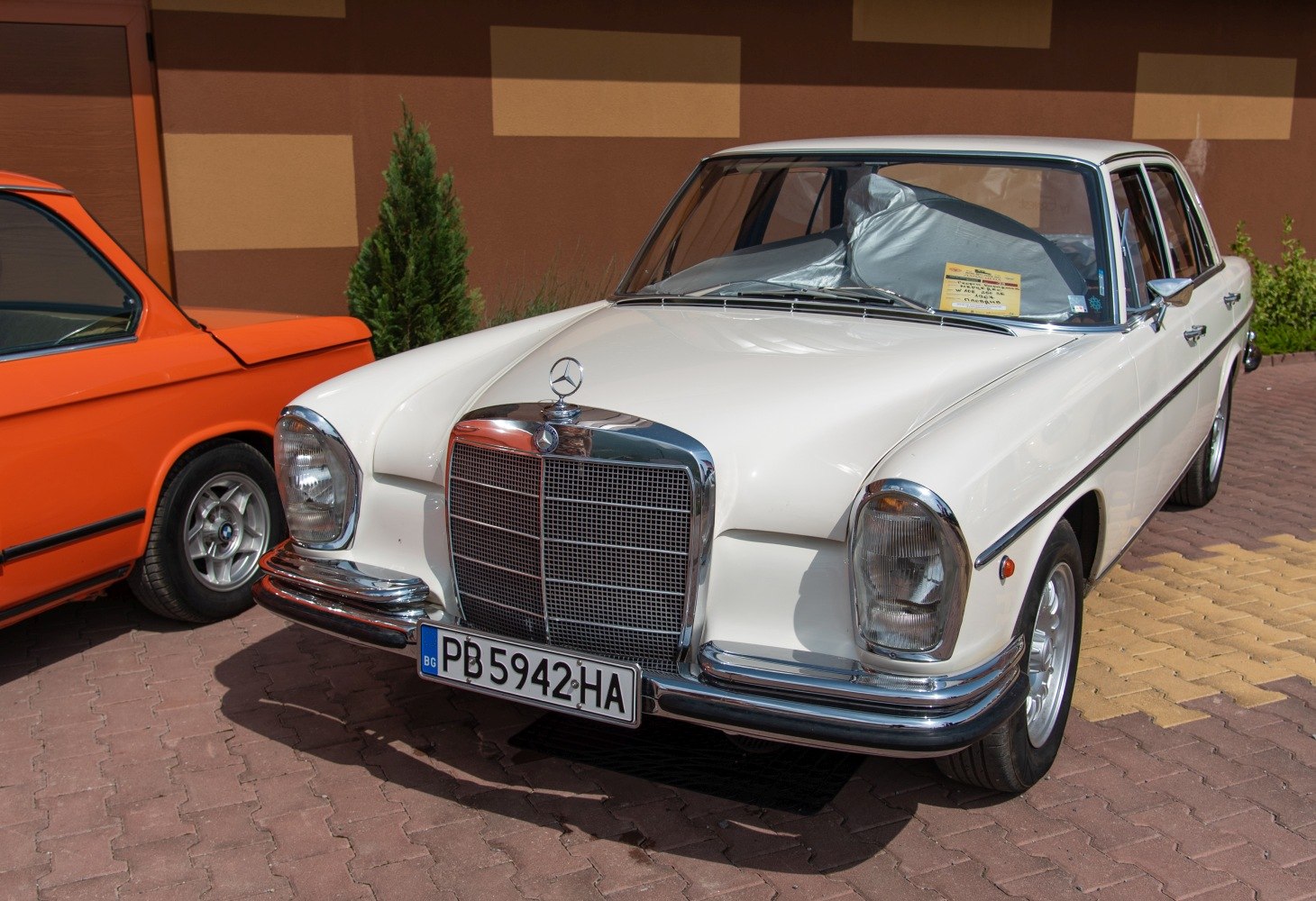

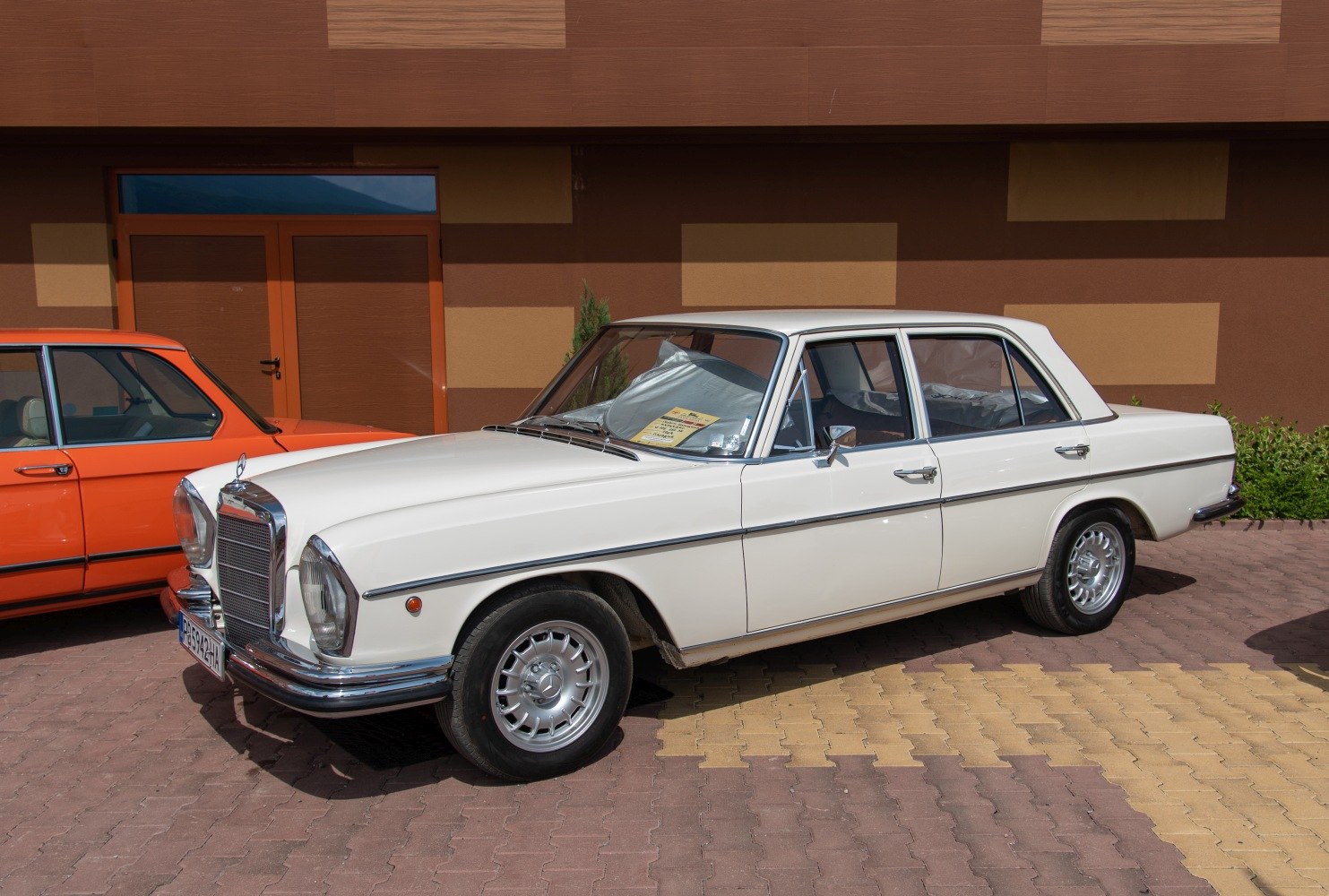

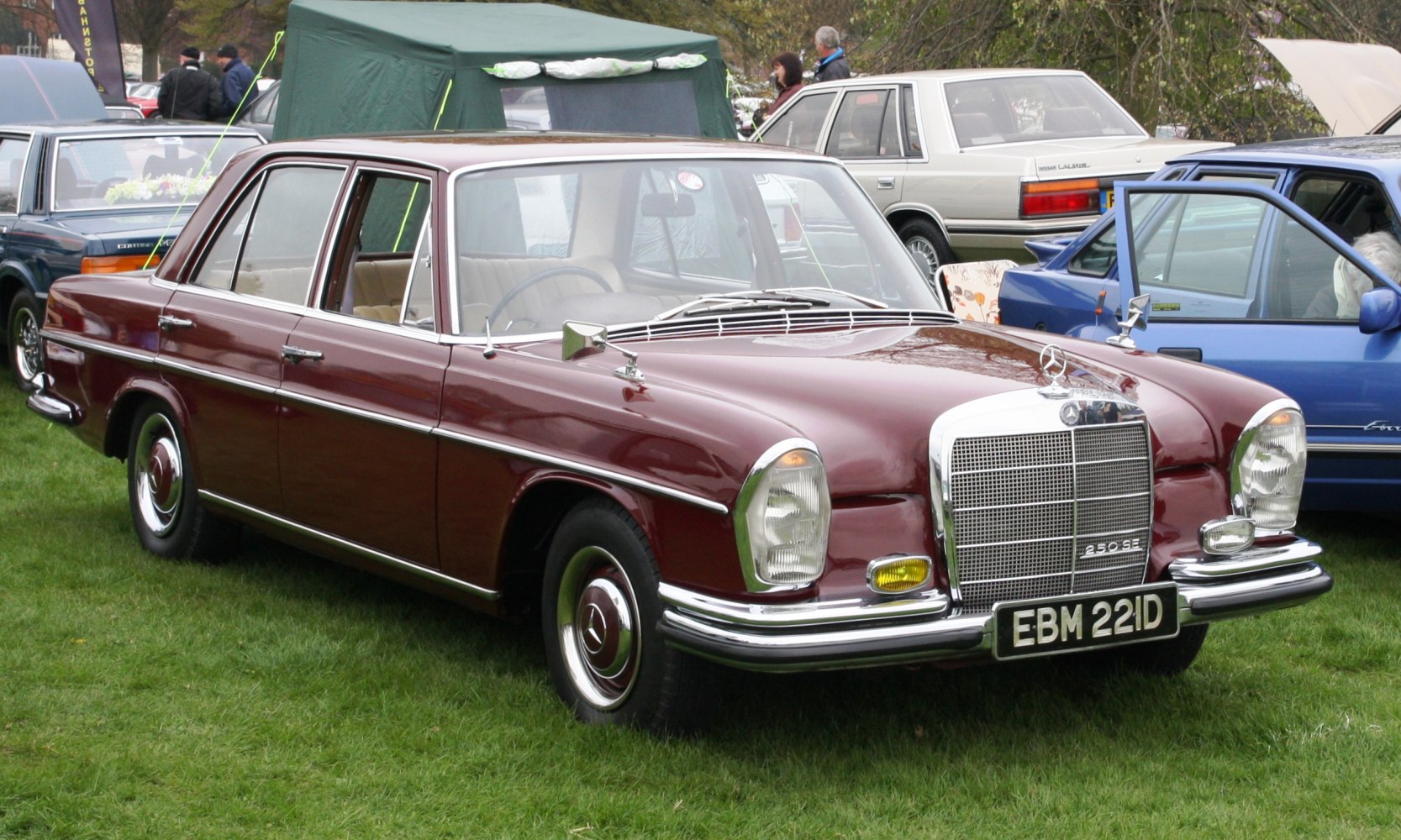

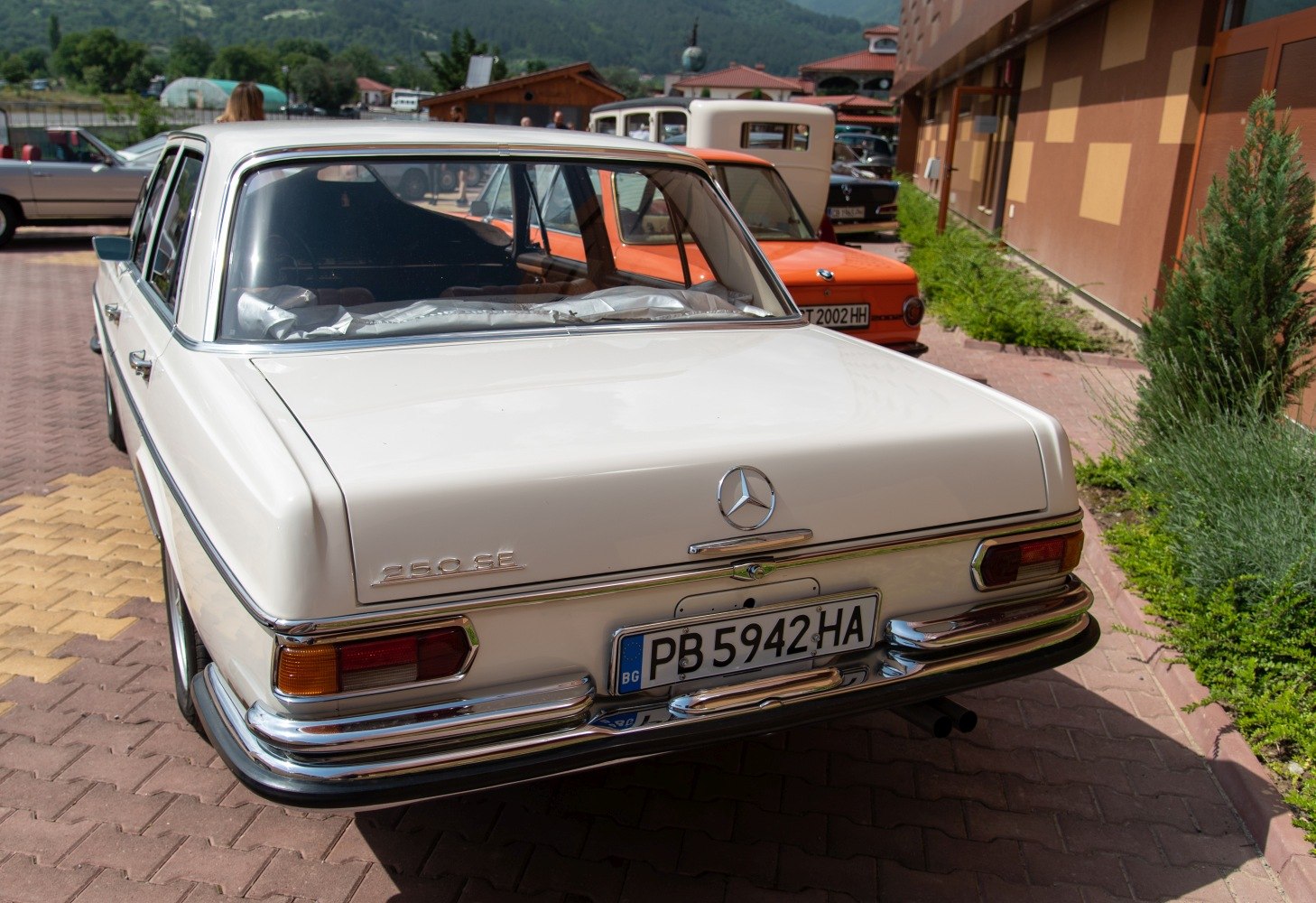

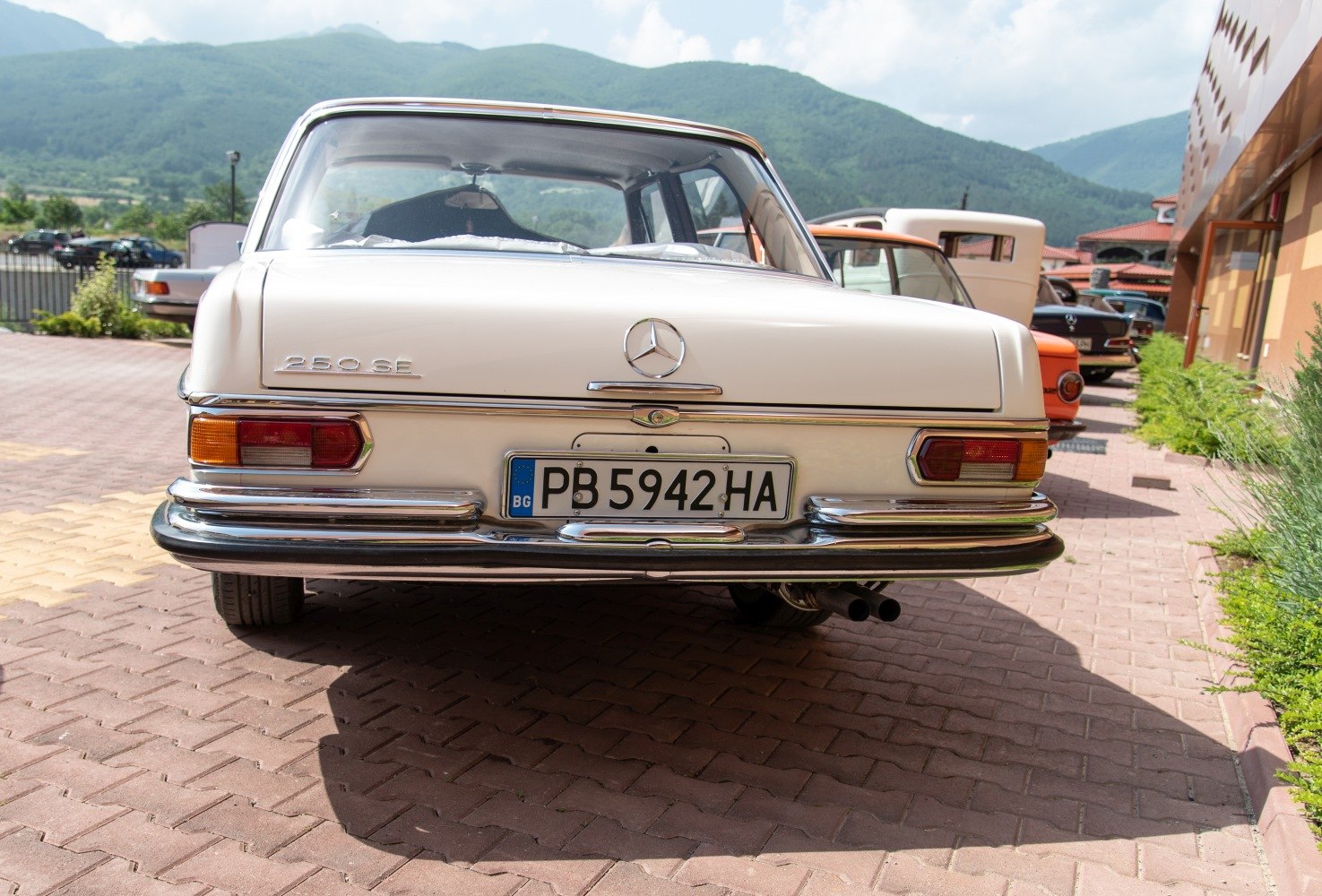

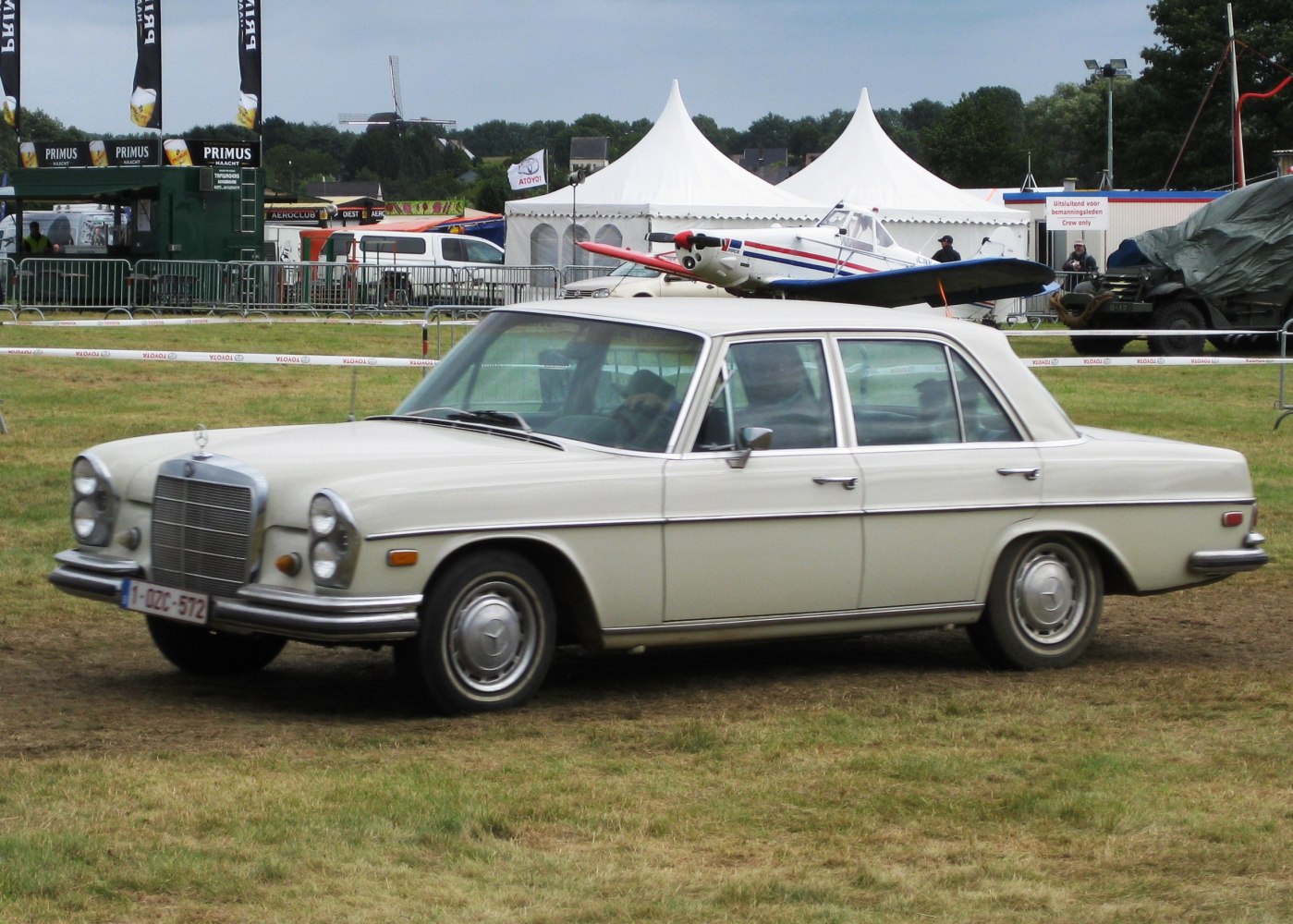

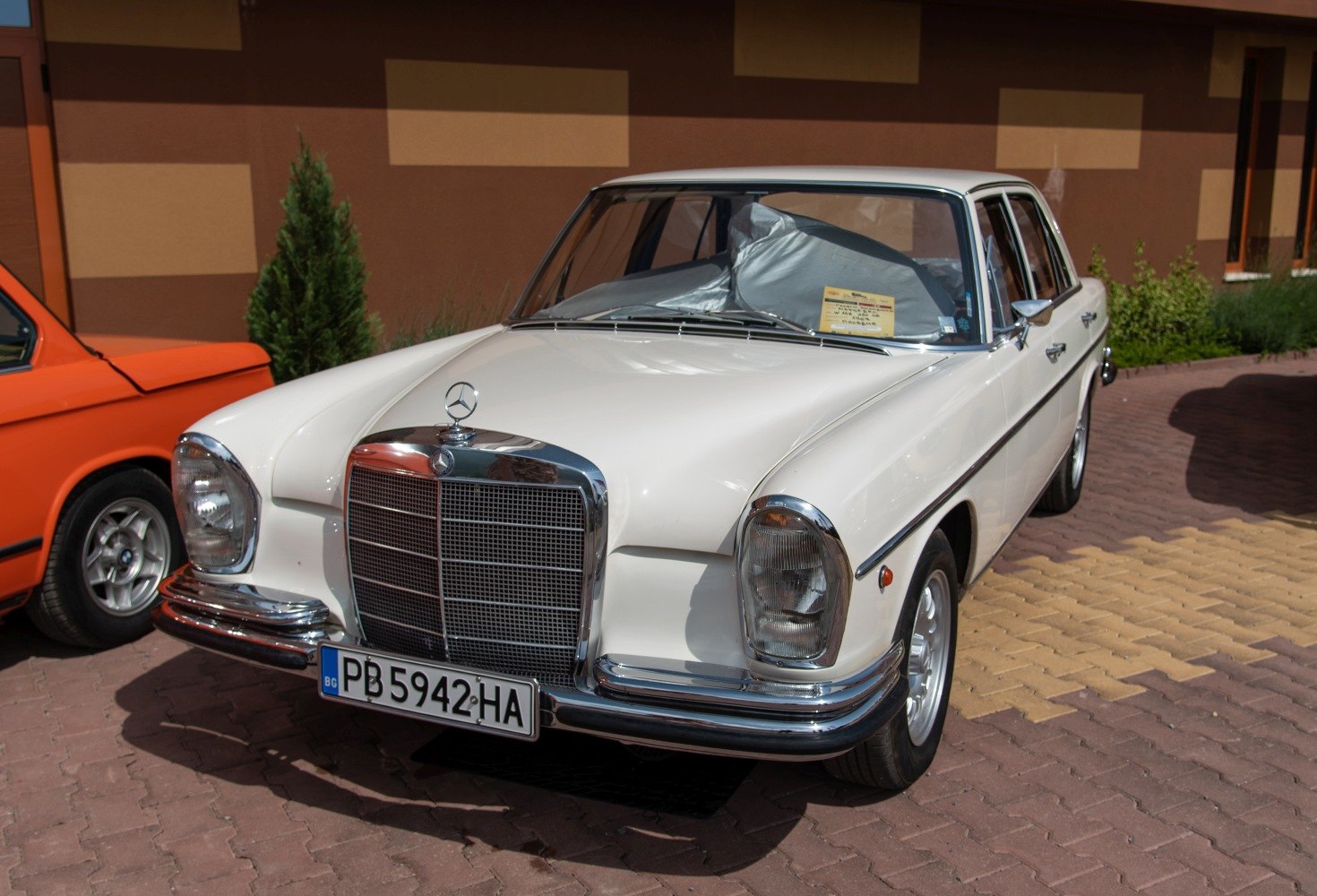

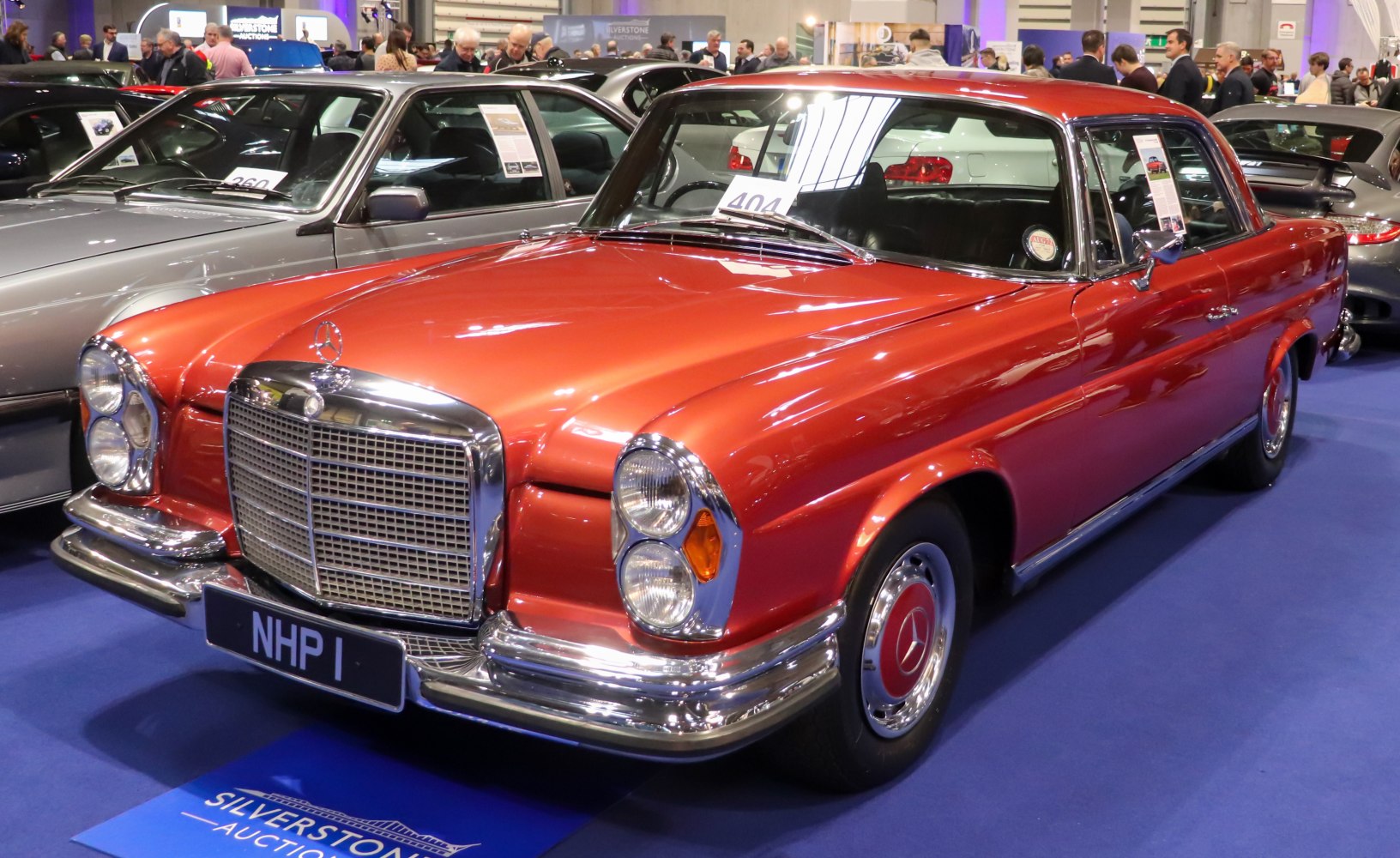

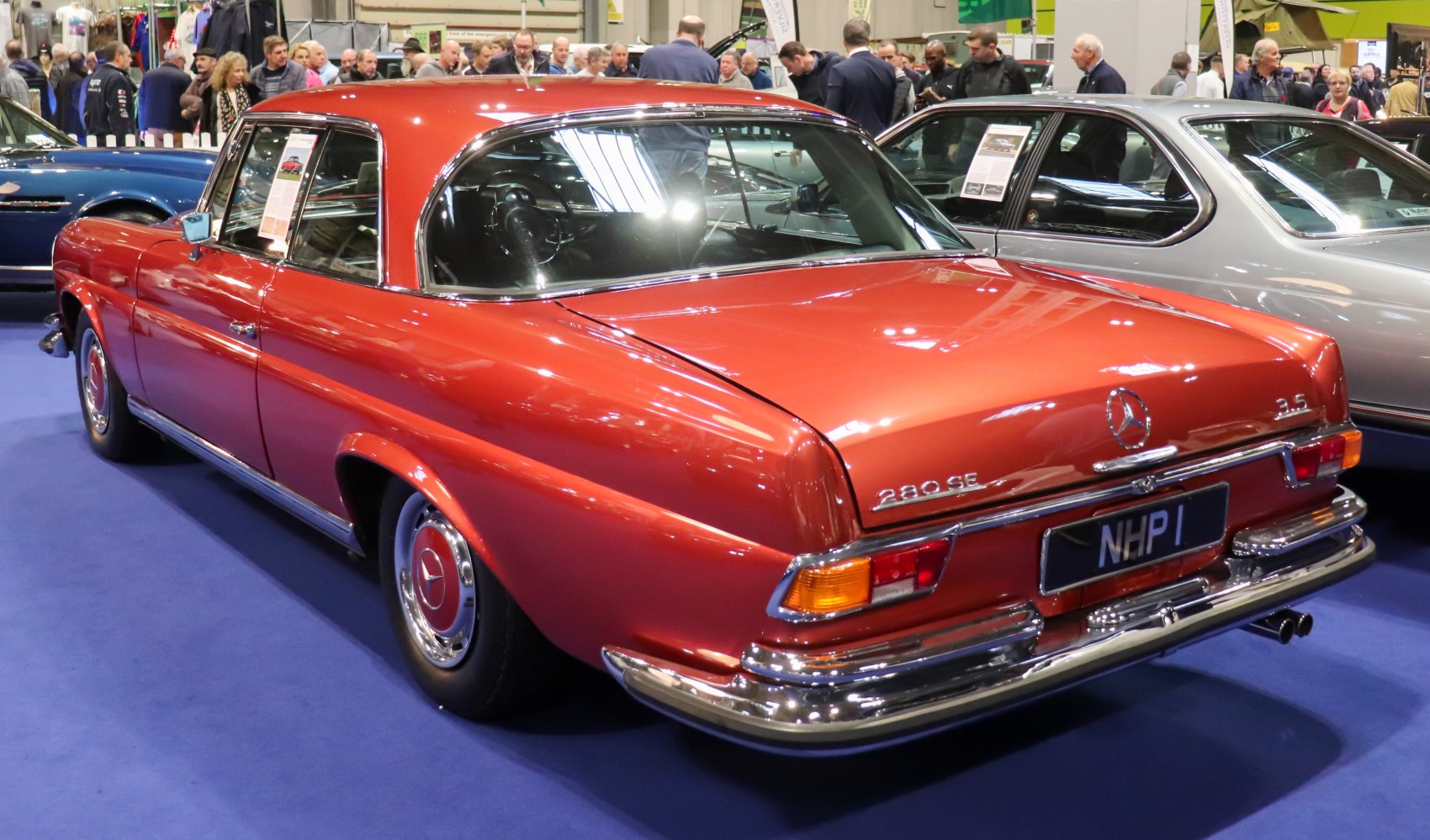

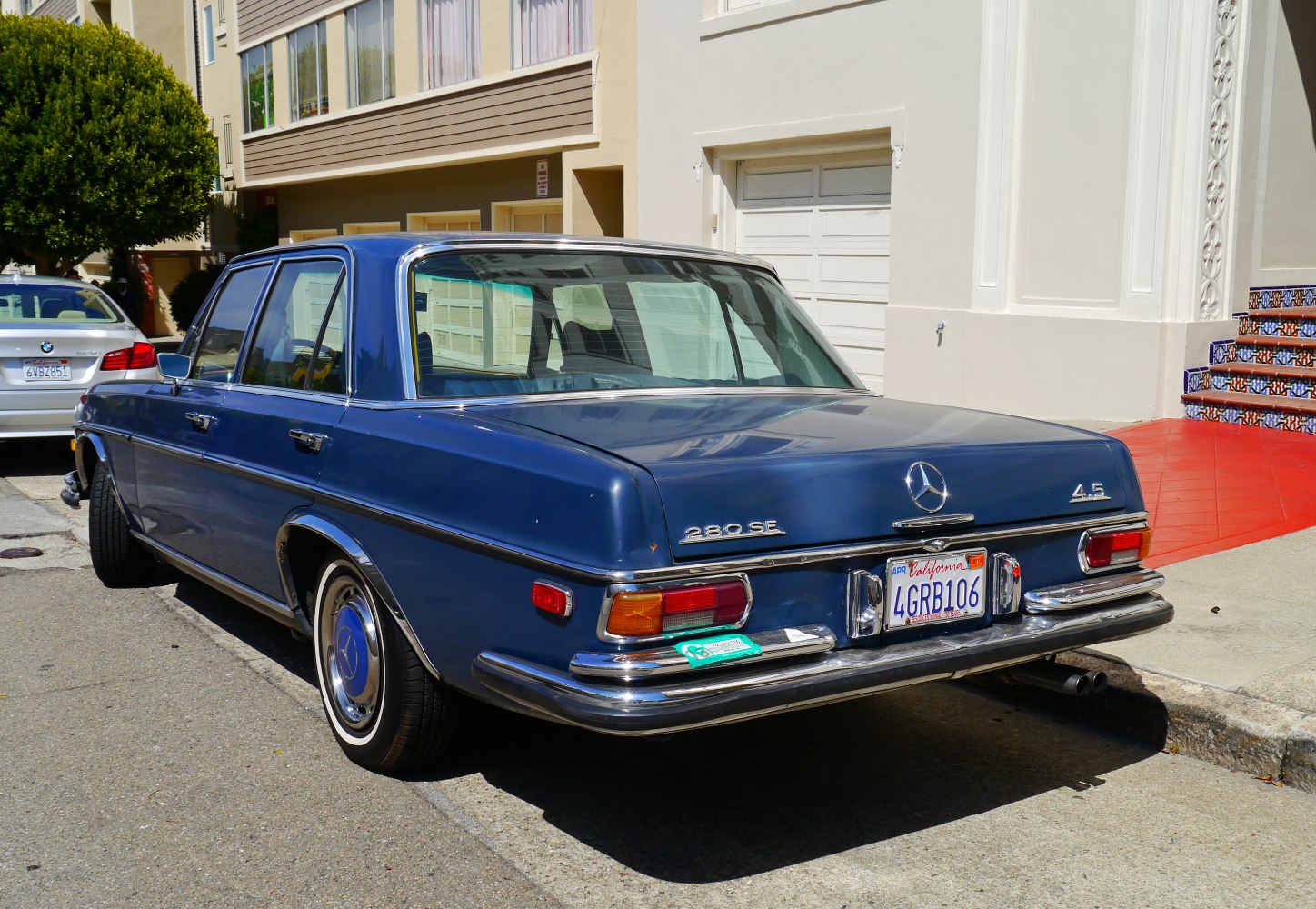

Vehicle photos
1 of 14
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
13 versions · 13 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 250 S (130 KM) Selected | Gasoline | 130 KM | 1965–1969 |
| 250 SE (150 KM) Selected | Gasoline | 150 KM | 1965–1968 |
| 280 S (140 KM) Selected | Gasoline | 140 KM | 1967–1972 |
| 280 SE (160 KM) Selected | Gasoline | 160 KM | 1967–1972 |
| 280 SE 3.5 V8 (200 KM) Selected | Gasoline | 200 KM | 1970–1972 |
| 280 SE 4.5 V8 (198 KM) Automatic Selected | Gasoline | 198 KM | 1971–1972 |
| 300 SEb (170 KM) Selected | Gasoline | 170 KM | 1965–1967 |
| 250 S (130 KM) Automatic Selected | Gasoline | 130 KM | 1965–1969 |
| 250 SE (150 KM) Automatic Selected | Gasoline | 150 KM | 1965–1968 |
| 280 S (140 KM) Automatic Selected | Gasoline | 140 KM | 1967–1972 |
| 280 SE (160 KM) Automatic Selected | Gasoline | 160 KM | 1967–1972 |
| 280 SE 3.5 V8 (200 KM) Automatic Selected | Gasoline | 200 KM | 1970–1972 |
| 300 SEb (170 KM) Automatic Selected | Gasoline | 170 KM | 1965–1967 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
250 S (130 KM)
Gasoline · 1965–1969
- Engine power
- 130 KM
- Torque
- 194 Nm
- Engine displacement
- 2,496 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.8 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W108 W108- Brand
- Mercedes-Benz
- Model
- W108
- Version
- W108
- Engine
- 250 S (130 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1965
- End of production
- 1969
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 12.8 s
- Fuel consumption - Combined cycle
- 11.7 l/100 km
Engine
- Engine model / code
- M108I/108.920
- Engine position
- Front, Longitudinal
- Engine displacement
- 2496 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 82 mm
- Piston stroke
- 78.8 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5.5 l
- Coolant capacity
- 11.4 l
- Power
- 130 KM @ 5400 obr./min
- Torque
- 194 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 82 l
- Curb weight
- 1440 kg
- Gross weight
- 1940 kg
Vehicle dimensions
- Length
- 4900 mm
- Width
- 1810 mm
- Height
- 1440 mm
- Wheelbase
- 2750 mm
- Front track
- 1482 mm
- Rear track
- 1485 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Hydropneumatic element, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Rim size
- 6J x 14
- ABS
- no
Selected engine version
250 SE (150 KM)
Gasoline · 1965–1968
- Engine power
- 150 KM
- Torque
- 216 Nm
- Engine displacement
- 2,496 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.8 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W108 W108- Brand
- Mercedes-Benz
- Model
- W108
- Version
- W108
- Engine
- 250 SE (150 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1965
- End of production
- 1968
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 11.8 s
- Fuel consumption - Combined cycle
- 11.7 l/100 km
Engine
- Engine model / code
- M129I/129.980
- Engine position
- Front, Longitudinal
- Engine displacement
- 2496 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 82 mm
- Piston stroke
- 78.8 mm
- Compression ratio
- 9.3
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5.5 l
- Coolant capacity
- 11.4 l
- Power
- 150 KM @ 5500 obr./min
- Torque
- 216 Nm @ 4200 obr./min
Volume and weight
- Fuel tank
- 82 l
- Curb weight
- 1480 kg
- Gross weight
- 1980 kg
Vehicle dimensions
- Length
- 4900 mm
- Width
- 1810 mm
- Height
- 1440 mm
- Wheelbase
- 2750 mm
- Front track
- 1482 mm
- Rear track
- 1485 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Hydropneumatic element, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Rim size
- 6J x 14
- ABS
- no
Selected engine version
280 S (140 KM)
Gasoline · 1967–1972
- Engine power
- 140 KM
- Torque
- 224 Nm
- Engine displacement
- 2,778 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.5 s
- Maximum speed
- 185 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W108 W108- Brand
- Mercedes-Benz
- Model
- W108
- Version
- W108
- Engine
- 280 S (140 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1967
- End of production
- 1972
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 185 km/h
- Acceleration 0-100 km/h
- 12.5 s
- Fuel consumption - Combined cycle
- 12.3 l/100 km
Engine
- Engine model / code
- M130V28/130.920
- Engine position
- Front, Longitudinal
- Engine displacement
- 2778 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 86.51 mm
- Piston stroke
- 78.8 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 2
- Engine oil capacity
- 6 l
- Coolant capacity
- 10.8 l
- Power
- 140 KM @ 5200 obr./min
- Torque
- 224 Nm @ 3600 obr./min
Volume and weight
- Fuel tank
- 82 l
- Curb weight
- 1470 kg
- Gross weight
- 1970 kg
Vehicle dimensions
- Length
- 4900 mm
- Width
- 1810 mm
- Height
- 1440 mm
- Wheelbase
- 2750 mm
- Front track
- 1482 mm
- Rear track
- 1485 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Hydropneumatic element, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Rim size
- 6J x 14
- ABS
- no
Selected engine version
280 SE (160 KM)
Gasoline · 1967–1972
- Engine power
- 160 KM
- Torque
- 240 Nm
- Engine displacement
- 2,778 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.5 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W108 W108- Brand
- Mercedes-Benz
- Model
- W108
- Version
- W108
- Engine
- 280 SE (160 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1967
- End of production
- 1972
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 10.5 s
- Fuel consumption - Combined cycle
- 12.3 l/100 km
Engine
- Engine model / code
- M130E28/130.980
- Engine position
- Front, Longitudinal
- Engine displacement
- 2778 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 86.5 mm
- Piston stroke
- 78.8 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 6 l
- Coolant capacity
- 10.8 l
- Power
- 160 KM @ 5500 obr./min
- Torque
- 240 Nm @ 4250 obr./min
Volume and weight
- Fuel tank
- 82 l
- Curb weight
- 1495 kg
- Gross weight
- 1995 kg
Vehicle dimensions
- Length
- 4900 mm
- Width
- 1810 mm
- Height
- 1440 mm
- Wheelbase
- 2750 mm
- Front track
- 1482 mm
- Rear track
- 1485 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Hydropneumatic element, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Rim size
- 6J x 14
- ABS
- no
Selected engine version
280 SE 3.5 V8 (200 KM)
Gasoline · 1970–1972
- Engine power
- 200 KM
- Torque
- 286 Nm
- Engine displacement
- 3,499 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9 s
- Maximum speed
- 210 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W108 W108- Brand
- Mercedes-Benz
- Model
- W108
- Version
- W108
- Engine
- 280 SE 3.5 V8 (200 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1970
- End of production
- 1972
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 9 s
- Fuel consumption - Combined cycle
- 13 l/100 km
Engine
- Engine model / code
- M116E35/116.980
- Engine position
- Front, Longitudinal
- Engine displacement
- 3499 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 92 mm
- Piston stroke
- 65.8 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 7.5 l
- Coolant capacity
- 13.2 l
- Power
- 200 KM @ 5800 obr./min
- Torque
- 286 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 82 l
- Curb weight
- 1550 kg
- Gross weight
- 2055 kg
Vehicle dimensions
- Length
- 4900 mm
- Width
- 1810 mm
- Height
- 1440 mm
- Wheelbase
- 2750 mm
- Front track
- 1482 mm
- Rear track
- 1485 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Hydropneumatic element, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Rim size
- 6J x 14
- ABS
- no
Selected engine version
280 SE 4.5 V8 (198 KM) Automatic
Gasoline · 1971–1972
- Engine power
- 198 KM
- Torque
- 358 Nm
- Engine displacement
- 4,520 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.1 s
- Maximum speed
- 200 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W108 W108- Brand
- Mercedes-Benz
- Model
- W108
- Version
- W108
- Engine
- 280 SE 4.5 V8 (198 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1971
- End of production
- 1972
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 200 km/h
- Acceleration 0-100 km/h
- 10.1 s
- Fuel consumption - Combined cycle
- 15 l/100 km
Engine
- Engine model / code
- M117E45/117.984
- Engine position
- Front, Longitudinal
- Engine displacement
- 4520 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 92 mm
- Piston stroke
- 85 mm
- Compression ratio
- 8
- Number of valves per cylinder
- 2
- Power
- 198 KM @ 4500 obr./min
- Torque
- 358 Nm @ 3000 obr./min
Volume and weight
- Fuel tank
- 82 l
- Curb weight
- 1675 kg
- Gross weight
- 2141 kg
Vehicle dimensions
- Length
- 4900 mm
- Width
- 1810 mm
- Height
- 1440 mm
- Wheelbase
- 2750 mm
- Front track
- 1482 mm
- Rear track
- 1485 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 3
- Front suspension
- Double wishbone
- Rear suspension
- Hydropneumatic element, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Rim size
- 6J x 14
- ABS
- no
Selected engine version
300 SEb (170 KM)
Gasoline · 1965–1967
- Engine power
- 170 KM
- Torque
- 249 Nm
- Engine displacement
- 2,996 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.2 s
- Maximum speed
- 190 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W108 W108- Brand
- Mercedes-Benz
- Model
- W108
- Version
- W108
- Engine
- 300 SEb (170 KM)
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1965
- End of production
- 1967
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 190 km/h
- Acceleration 0-100 km/h
- 11.2 s
- Fuel consumption - Combined cycle
- 12.5 l/100 km
Engine
- Engine model / code
- M189VIII/189.989
- Engine position
- Front, Longitudinal
- Engine displacement
- 2996 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 85 mm
- Piston stroke
- 88 mm
- Compression ratio
- 8.8
- Number of valves per cylinder
- 2
- Power
- 170 KM @ 5400 obr./min
- Torque
- 249 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 82 l
- Curb weight
- 1560 kg
- Gross weight
- 2060 kg
Vehicle dimensions
- Length
- 4900 mm
- Width
- 1810 mm
- Height
- 1440 mm
- Wheelbase
- 2750 mm
- Front track
- 1482 mm
- Rear track
- 1485 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Hydropneumatic element, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Rim size
- 6J x 14
- ABS
- no
Selected engine version
250 S (130 KM) Automatic
Gasoline · 1965–1969
- Engine power
- 130 KM
- Torque
- 194 Nm
- Engine displacement
- 2,496 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.9 s
- Maximum speed
- 175 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W108 W108- Brand
- Mercedes-Benz
- Model
- W108
- Version
- W108
- Engine
- 250 S (130 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1965
- End of production
- 1969
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 175 km/h
- Acceleration 0-100 km/h
- 12.9 s
- Fuel consumption - Combined cycle
- 11.7 l/100 km
Engine
- Engine model / code
- M108I/108.920
- Engine position
- Front, Longitudinal
- Engine displacement
- 2496 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 82 mm
- Piston stroke
- 78.8 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5.5 l
- Coolant capacity
- 11.4 l
- Power
- 130 KM @ 5400 obr./min
- Torque
- 194 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 82 l
- Curb weight
- 1440 kg
- Gross weight
- 1940 kg
Vehicle dimensions
- Length
- 4900 mm
- Width
- 1810 mm
- Height
- 1440 mm
- Wheelbase
- 2750 mm
- Front track
- 1482 mm
- Rear track
- 1485 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Hydropneumatic element, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Rim size
- 6J x 14
- ABS
- no
Selected engine version
250 SE (150 KM) Automatic
Gasoline · 1965–1968
- Engine power
- 150 KM
- Torque
- 216 Nm
- Engine displacement
- 2,496 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12 s
- Maximum speed
- 185 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W108 W108- Brand
- Mercedes-Benz
- Model
- W108
- Version
- W108
- Engine
- 250 SE (150 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1965
- End of production
- 1968
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 185 km/h
- Acceleration 0-100 km/h
- 12 s
- Fuel consumption - Combined cycle
- 11.7 l/100 km
Engine
- Engine model / code
- M129I/129.980
- Engine position
- Front, Longitudinal
- Engine displacement
- 2496 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 82 mm
- Piston stroke
- 78.8 mm
- Compression ratio
- 9.3
- Number of valves per cylinder
- 2
- Engine oil capacity
- 5.5 l
- Coolant capacity
- 11.4 l
- Power
- 150 KM @ 5500 obr./min
- Torque
- 216 Nm @ 4200 obr./min
Volume and weight
- Fuel tank
- 82 l
- Curb weight
- 1480 kg
- Gross weight
- 1980 kg
Vehicle dimensions
- Length
- 4900 mm
- Width
- 1810 mm
- Height
- 1440 mm
- Wheelbase
- 2750 mm
- Front track
- 1482 mm
- Rear track
- 1485 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Hydropneumatic element, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Rim size
- 6J x 14
- ABS
- no
Selected engine version
280 S (140 KM) Automatic
Gasoline · 1967–1972
- Engine power
- 140 KM
- Torque
- 224 Nm
- Engine displacement
- 2,778 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.5 s
- Maximum speed
- 180 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W108 W108- Brand
- Mercedes-Benz
- Model
- W108
- Version
- W108
- Engine
- 280 S (140 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1967
- End of production
- 1972
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 180 km/h
- Acceleration 0-100 km/h
- 12.5 s
- Fuel consumption - Combined cycle
- 12.3 l/100 km
Engine
- Engine model / code
- M130V28/130.920
- Engine position
- Front, Longitudinal
- Engine displacement
- 2778 cm³
- Fuel injection system
- Carburetor
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 86.51 mm
- Piston stroke
- 78.8 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 2
- Engine oil capacity
- 6 l
- Coolant capacity
- 10.8 l
- Power
- 140 KM @ 5200 obr./min
- Torque
- 224 Nm @ 3600 obr./min
Volume and weight
- Fuel tank
- 82 l
- Curb weight
- 1470 kg
- Gross weight
- 1970 kg
Vehicle dimensions
- Length
- 4900 mm
- Width
- 1810 mm
- Height
- 1440 mm
- Wheelbase
- 2750 mm
- Front track
- 1482 mm
- Rear track
- 1485 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Hydropneumatic element, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Rim size
- 6J x 14
- ABS
- no
Selected engine version
280 SE (160 KM) Automatic
Gasoline · 1967–1972
- Engine power
- 160 KM
- Torque
- 240 Nm
- Engine displacement
- 2,778 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.2 s
- Maximum speed
- 185 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W108 W108- Brand
- Mercedes-Benz
- Model
- W108
- Version
- W108
- Engine
- 280 SE (160 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1967
- End of production
- 1972
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 185 km/h
- Acceleration 0-100 km/h
- 11.2 s
- Fuel consumption - Combined cycle
- 12.3 l/100 km
Engine
- Engine model / code
- M130E28/130.980
- Engine position
- Front, Longitudinal
- Engine displacement
- 2778 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 86.5 mm
- Piston stroke
- 78.8 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 6 l
- Coolant capacity
- 10.8 l
- Power
- 160 KM @ 5500 obr./min
- Torque
- 240 Nm @ 4250 obr./min
Volume and weight
- Fuel tank
- 82 l
- Curb weight
- 1495 kg
- Gross weight
- 1995 kg
Vehicle dimensions
- Length
- 4900 mm
- Width
- 1810 mm
- Height
- 1440 mm
- Wheelbase
- 2750 mm
- Front track
- 1482 mm
- Rear track
- 1485 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Hydropneumatic element, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Rim size
- 6J x 14
- ABS
- no
Selected engine version
280 SE 3.5 V8 (200 KM) Automatic
Gasoline · 1970–1972
- Engine power
- 200 KM
- Torque
- 286 Nm
- Engine displacement
- 3,499 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.4 s
- Maximum speed
- 205 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W108 W108- Brand
- Mercedes-Benz
- Model
- W108
- Version
- W108
- Engine
- 280 SE 3.5 V8 (200 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1970
- End of production
- 1972
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 9.4 s
- Fuel consumption - Combined cycle
- 13 l/100 km
Engine
- Engine model / code
- M116E35/116.980
- Engine position
- Front, Longitudinal
- Engine displacement
- 3499 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 92 mm
- Piston stroke
- 65.8 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 2
- Engine oil capacity
- 7.5 l
- Coolant capacity
- 13.2 l
- Power
- 200 KM @ 5800 obr./min
- Torque
- 286 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 82 l
- Curb weight
- 1550 kg
- Gross weight
- 2055 kg
Vehicle dimensions
- Length
- 4900 mm
- Width
- 1810 mm
- Height
- 1440 mm
- Wheelbase
- 2750 mm
- Front track
- 1482 mm
- Rear track
- 1485 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Hydropneumatic element, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Rim size
- 6J x 14
- ABS
- no
Selected engine version
300 SEb (170 KM) Automatic
Gasoline · 1965–1967
- Engine power
- 170 KM
- Torque
- 249 Nm
- Engine displacement
- 2,996 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.2 s
- Maximum speed
- 185 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz W108 W108- Brand
- Mercedes-Benz
- Model
- W108
- Version
- W108
- Engine
- 300 SEb (170 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 1965
- End of production
- 1967
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 185 km/h
- Acceleration 0-100 km/h
- 11.2 s
- Fuel consumption - Combined cycle
- 12.5 l/100 km
Engine
- Engine model / code
- M189VIII/189.989
- Engine position
- Front, Longitudinal
- Engine displacement
- 2996 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 6
- Cylinder bore
- 85 mm
- Piston stroke
- 88 mm
- Compression ratio
- 8.8
- Number of valves per cylinder
- 2
- Power
- 170 KM @ 5400 obr./min
- Torque
- 249 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 82 l
- Curb weight
- 1560 kg
- Gross weight
- 2060 kg
Vehicle dimensions
- Length
- 4900 mm
- Width
- 1810 mm
- Height
- 1440 mm
- Wheelbase
- 2750 mm
- Front track
- 1482 mm
- Rear track
- 1485 mm
Drivetrain, Brakes and suspension
- Drive
- Rear-wheel drive
- Number of gears
- 4
- Front suspension
- Double wishbone
- Rear suspension
- Hydropneumatic element, Trailing arm
- Front brakes
- Disc
- Rear brakes
- Disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Rim size
- 6J x 14
- ABS
- no
