Vehicle specifications
Mercedes-Benz Klasa G 6x6 (W463)
Compare all 1 engine versions of the Mercedes-Benz Klasa G Klasa G 6x6 (W463), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Mercedes-Benz Klasa G 6x6 (W463)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

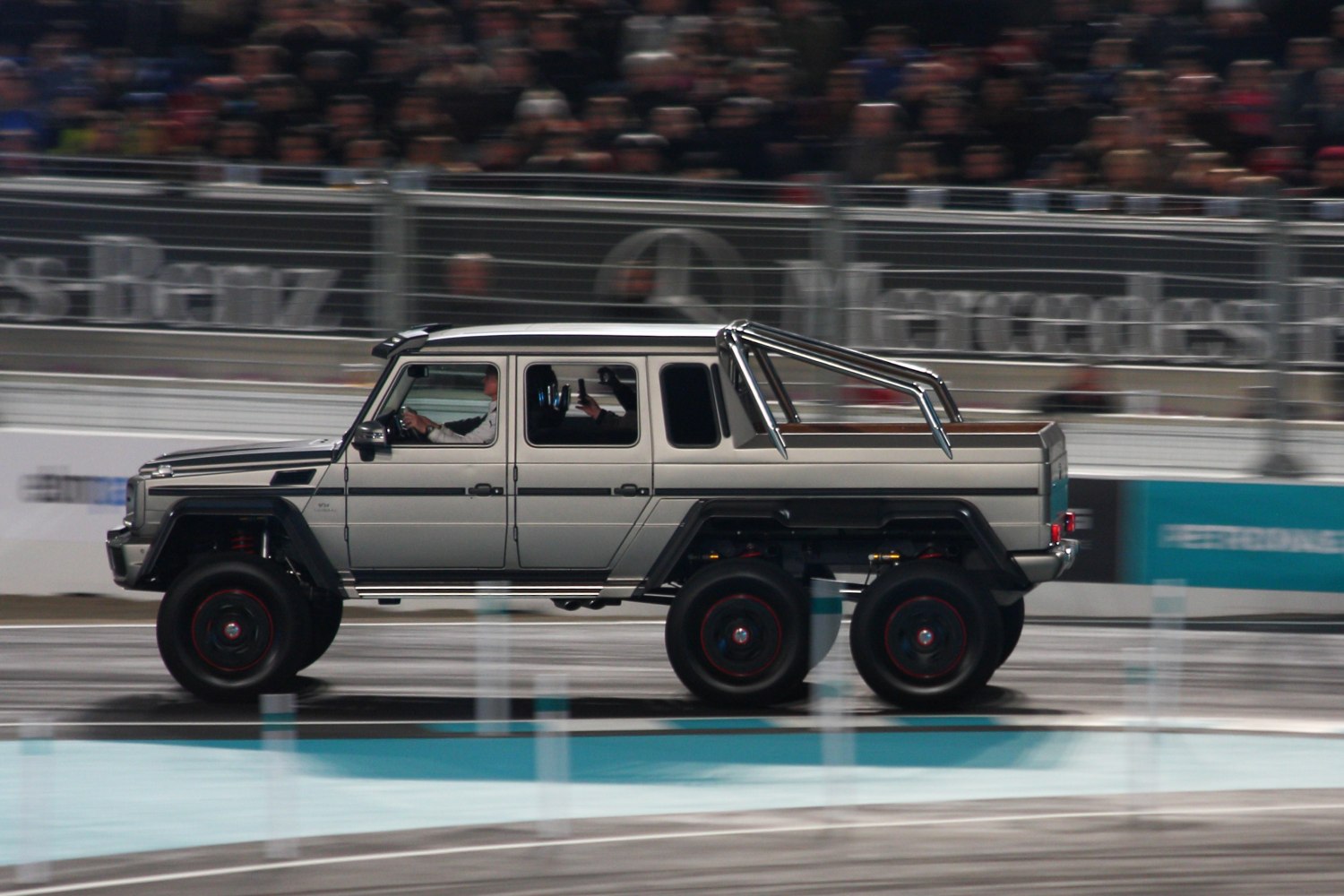

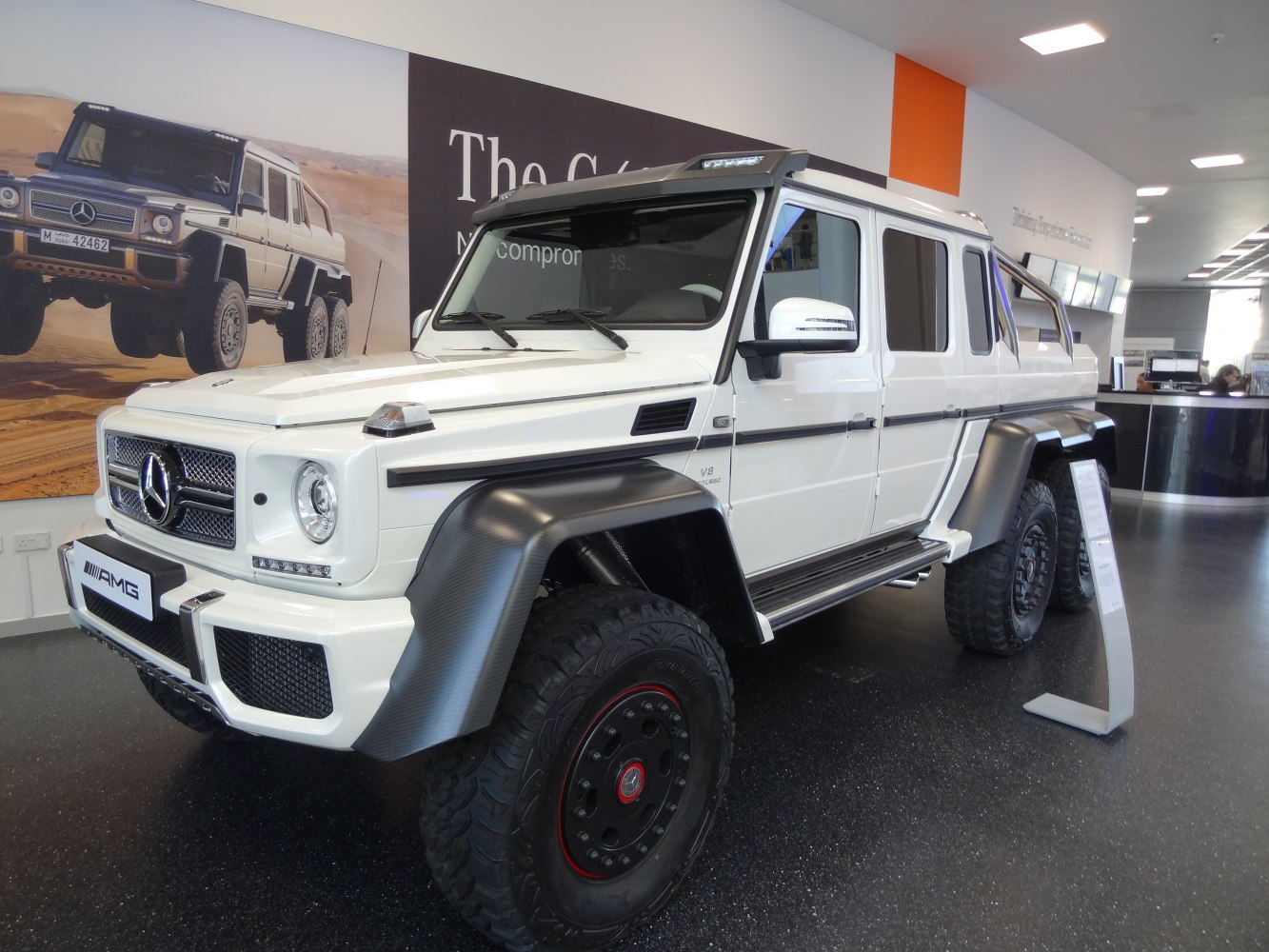

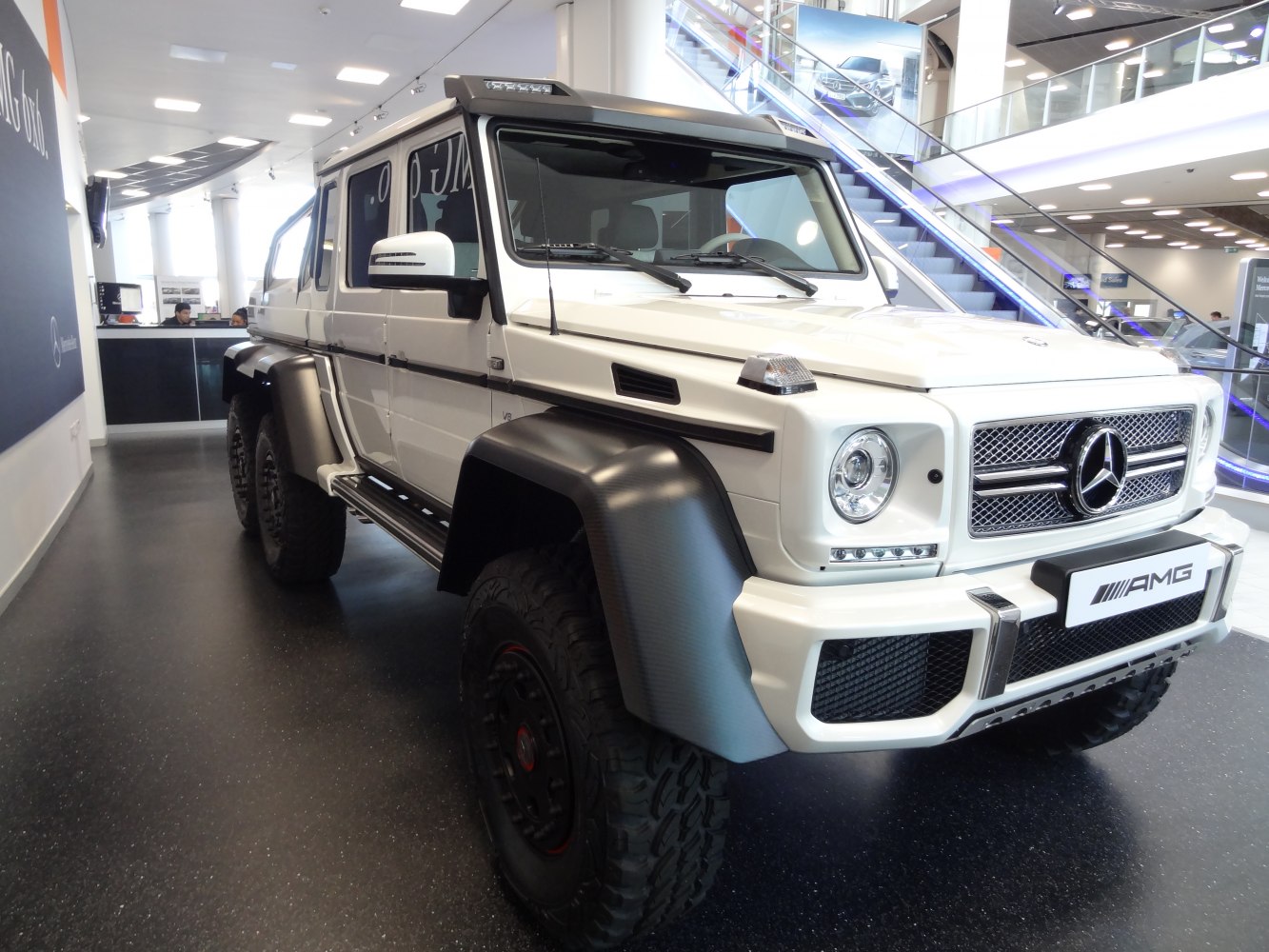

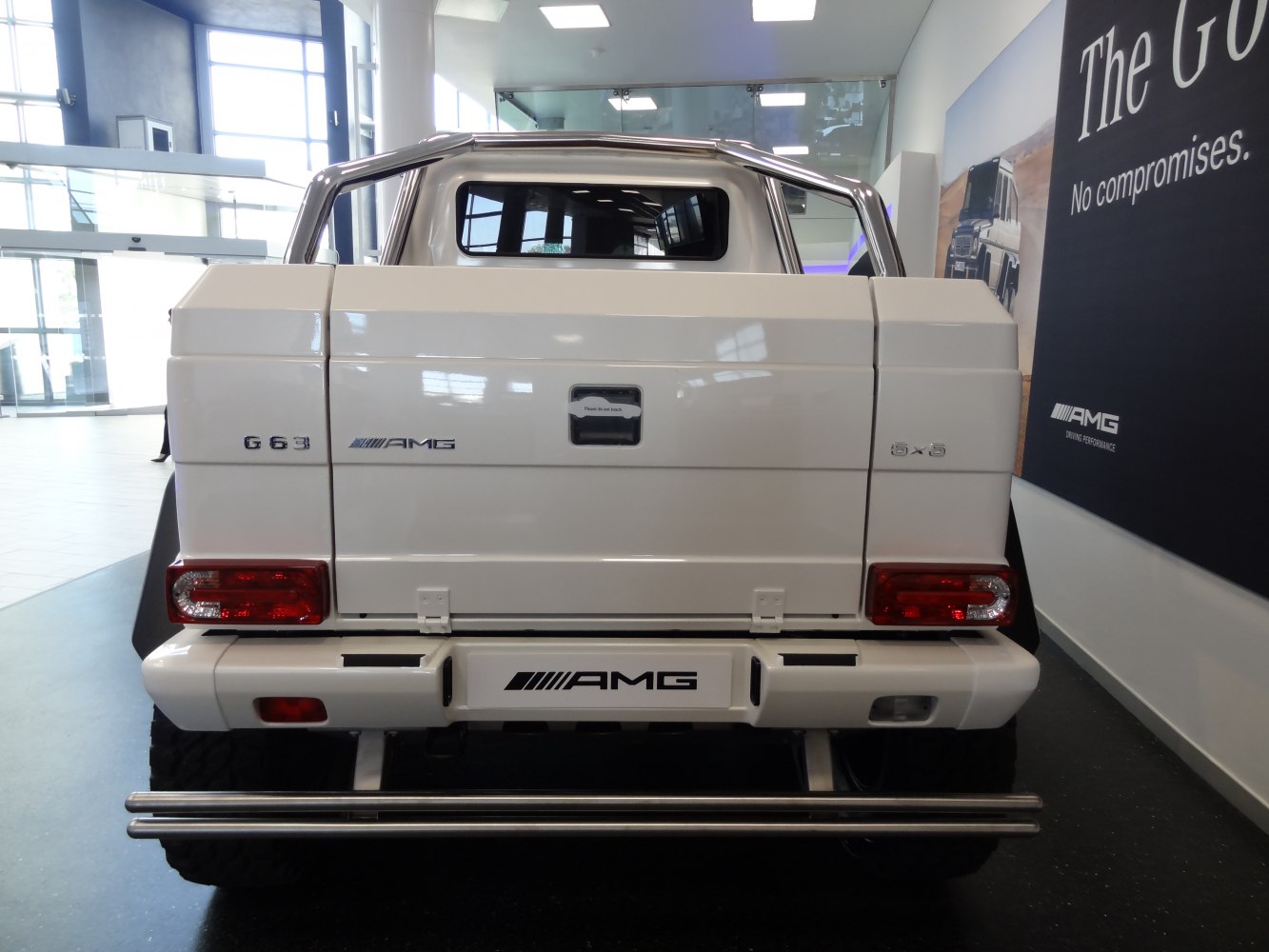

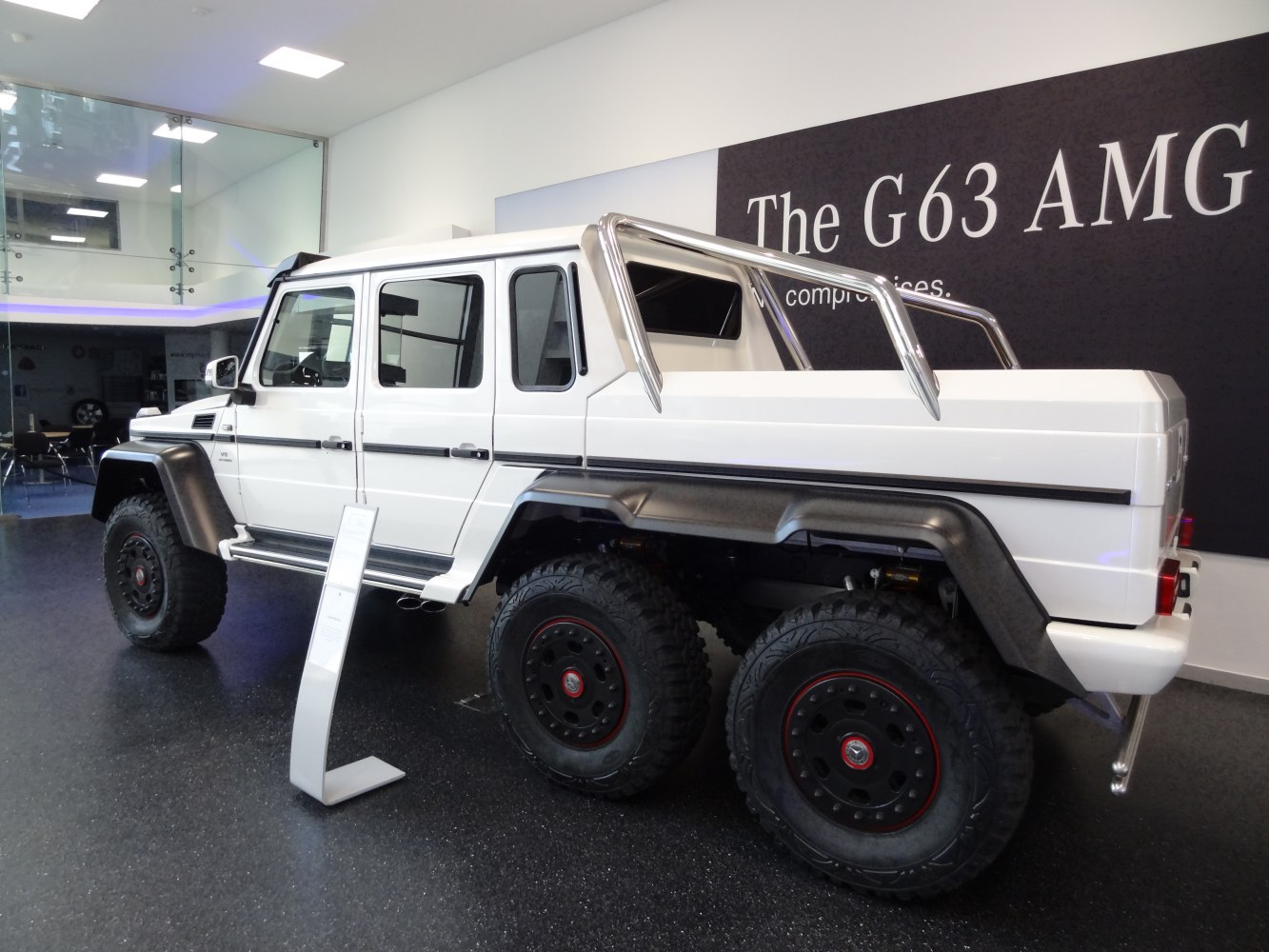

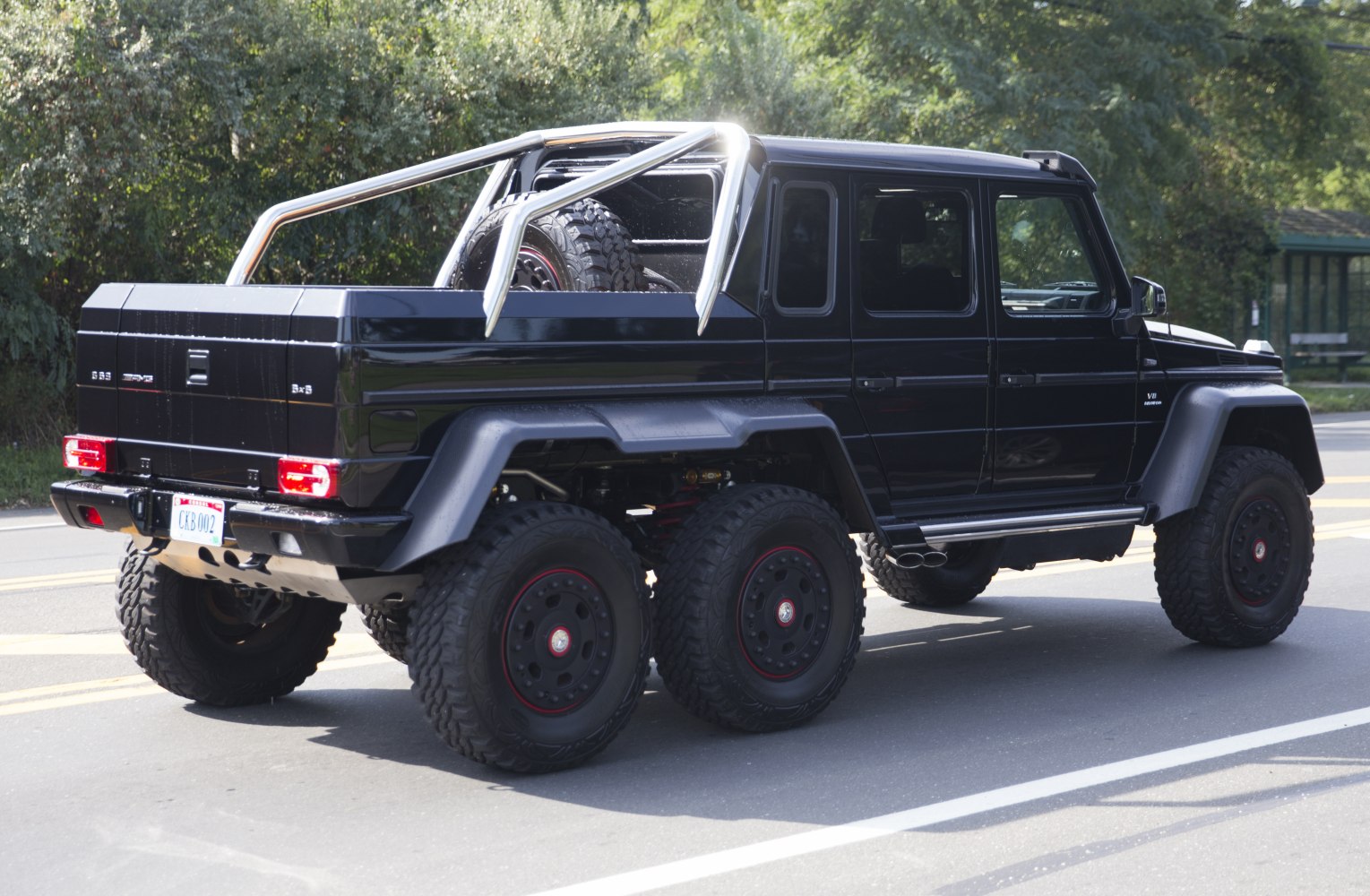

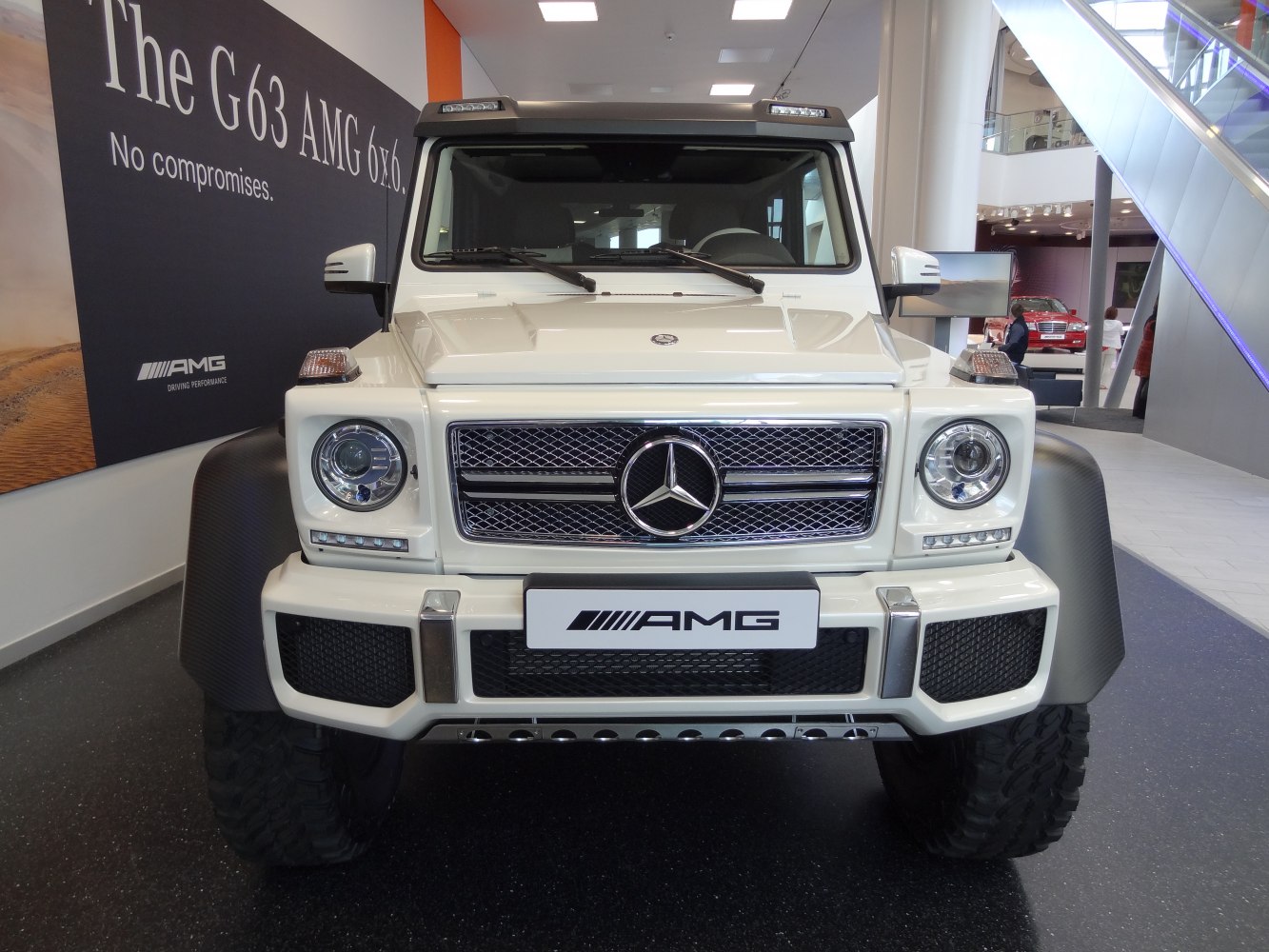

Vehicle photos
1 of 8
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
1 versions · 1 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| AMG G 63 V8 (544 KM) 6x6 7G-TRONIC SPEEDSHIFT PLUS Selected | Gasoline | 544 KM | 2013–2015 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
AMG G 63 V8 (544 KM) 6x6 7G-TRONIC SPEEDSHIFT PLUS
Gasoline · 2013–2015
- Engine power
- 544 KM
- Torque
- 760 Nm
- Engine displacement
- 5,461 cm³
- Fuel type
- Gasoline
- Maximum speed
- 160 km/h
On this page
Check vehicle history
Basic version information
Mercedes-Benz Klasa G Klasa G 6x6 (W463)- Brand
- Mercedes-Benz
- Model
- Klasa G
- Version
- Klasa G 6x6 (W463)
- Engine
- AMG G 63 V8 (544 KM) 6x6 7G-TRONIC SPEEDSHIFT PLUS
- Engine type
- Combustion engine
- Number of doors
- 4
- Start of production
- 2013
- End of production
- 2015
- Body type
- Off-road vehicle, Pick-up
- Number of seats
- 4
- Fuel type
- Gasoline
Performance
- Maximum speed
- 160 km/h
- Fuel consumption measurement standard
- NEDC
- Fuel consumption - Combined cycle
- 11.2-19.6 l/100 km
- CO2 measurement standard
- NEDC
- CO2 emissions
- 295-459 g/km
Engine
- Engine model / code
- M157
- Engine position
- Front, Longitudinal
- Engine displacement
- 5461 cm³
- Fuel injection system
- Direct injection
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 98 mm
- Piston stroke
- 90.5 mm
- Number of valves per cylinder
- 4
- Engine oil capacity
- 9 l
- Power
- 544 KM
- Torque
- 760 Nm
Volume and weight
- Fuel tank
- 159 l
- Wading depth
- 1000 mm
- Curb weight
- 3775 kg
Vehicle dimensions
- Length
- 5875 mm
- Width
- 2110 mm
- Height
- 2210 mm
- Wheelbase
- 4220 mm
- Ground clearance
- 460 mm
- Approach angle
- 52 °
- Departure angle
- 54 °
- Ramp angle
- 22 °
- Climb angle
- 45 °
Drivetrain, Brakes and suspension
- Number of gears
- 7
- Type of automatic gearbox
- G-TRONICSPEEDSHIFTPLUS
- Front suspension
- Coil spring, Solid axle suspension
- Rear suspension
- Solid axle suspension, Coil spring
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Power steering
- Hydraulic power steering
- Tire size
- R37
- Rim size
- 37
- ABS
- yes
