Vehicle specifications
Mercedes-Benz GL (X164)
Compare all 4 engine versions of the Mercedes-Benz GL GL (X164), then open the technical data for the exact drivetrain and production year.

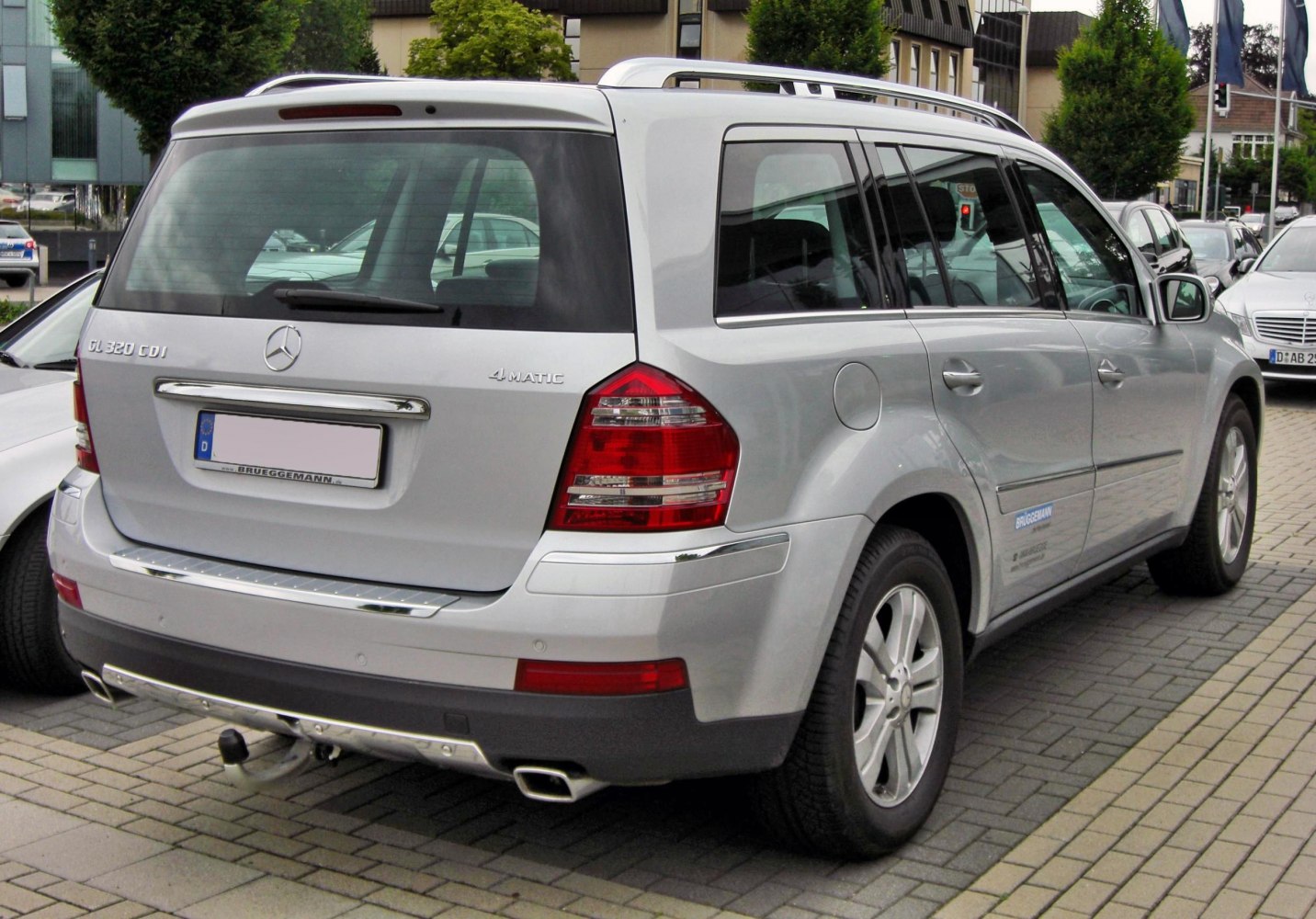

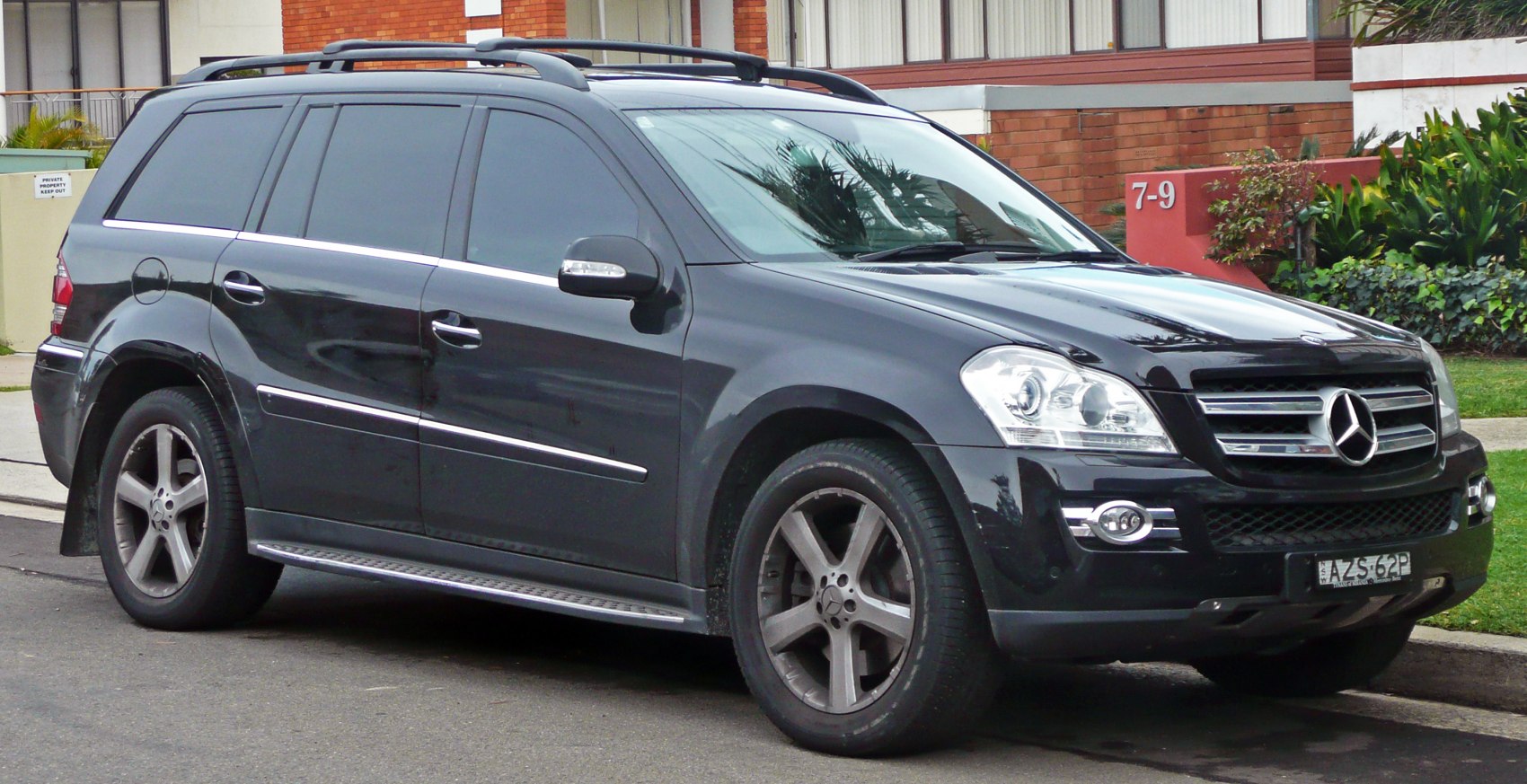

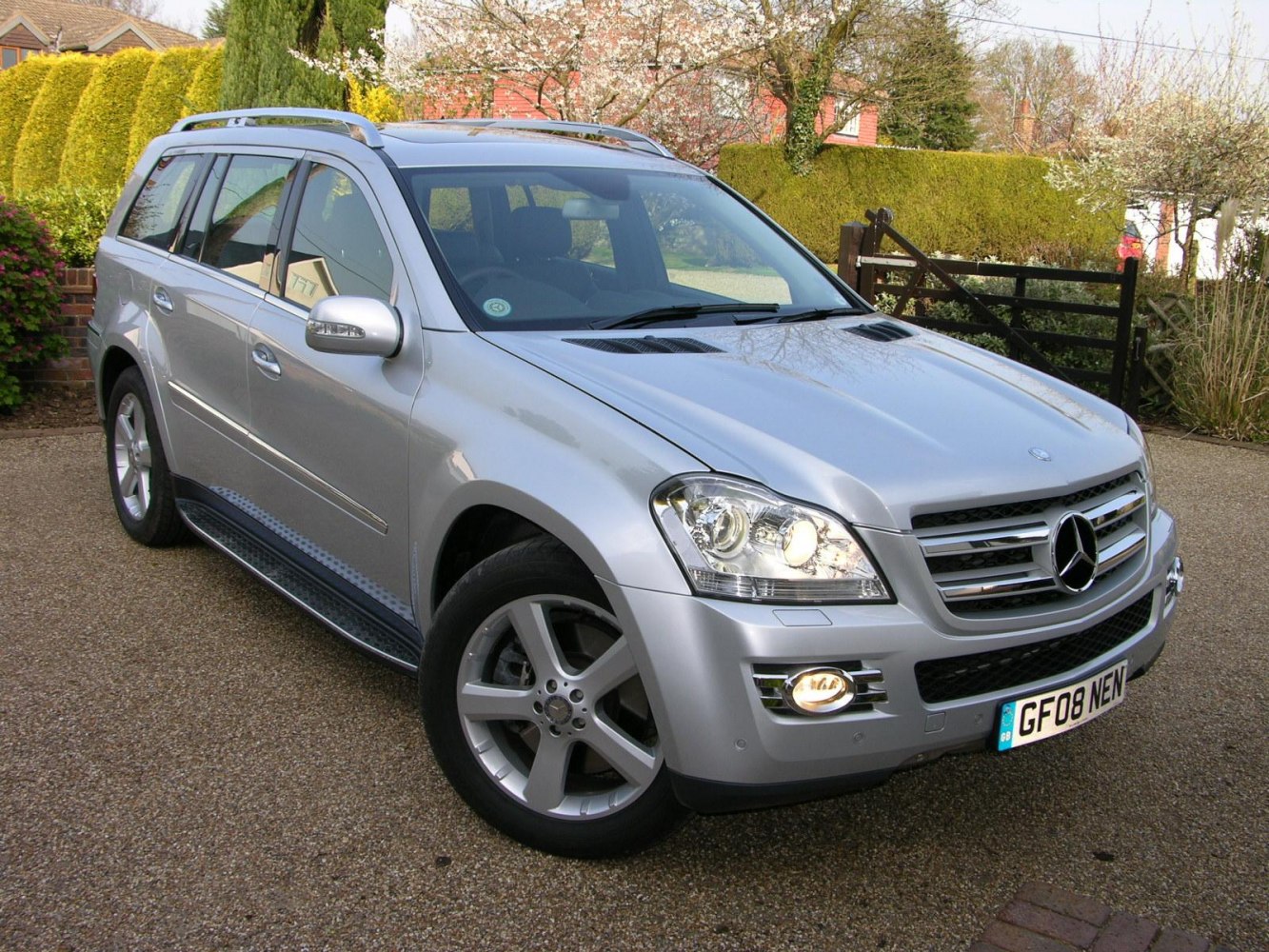

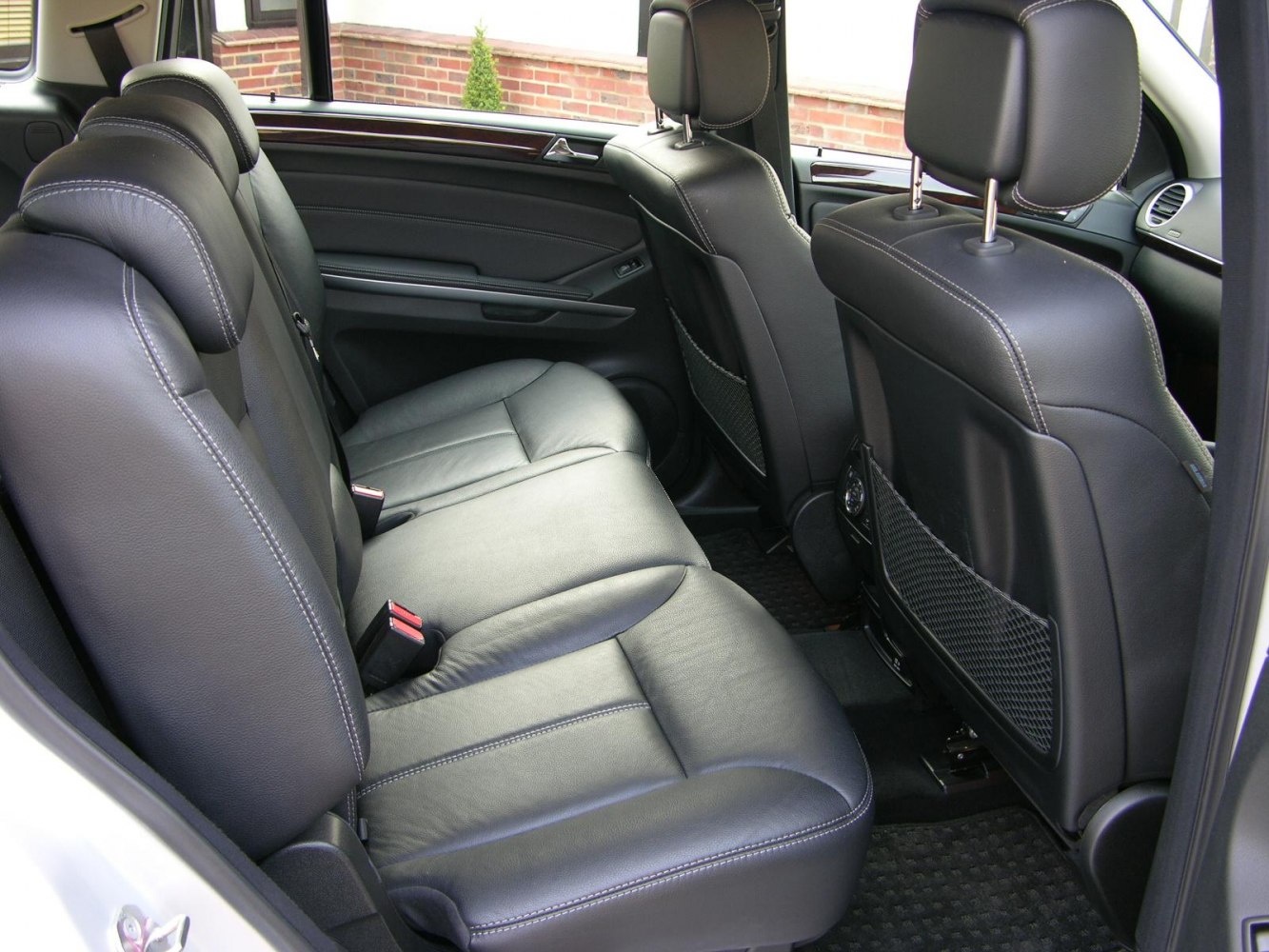

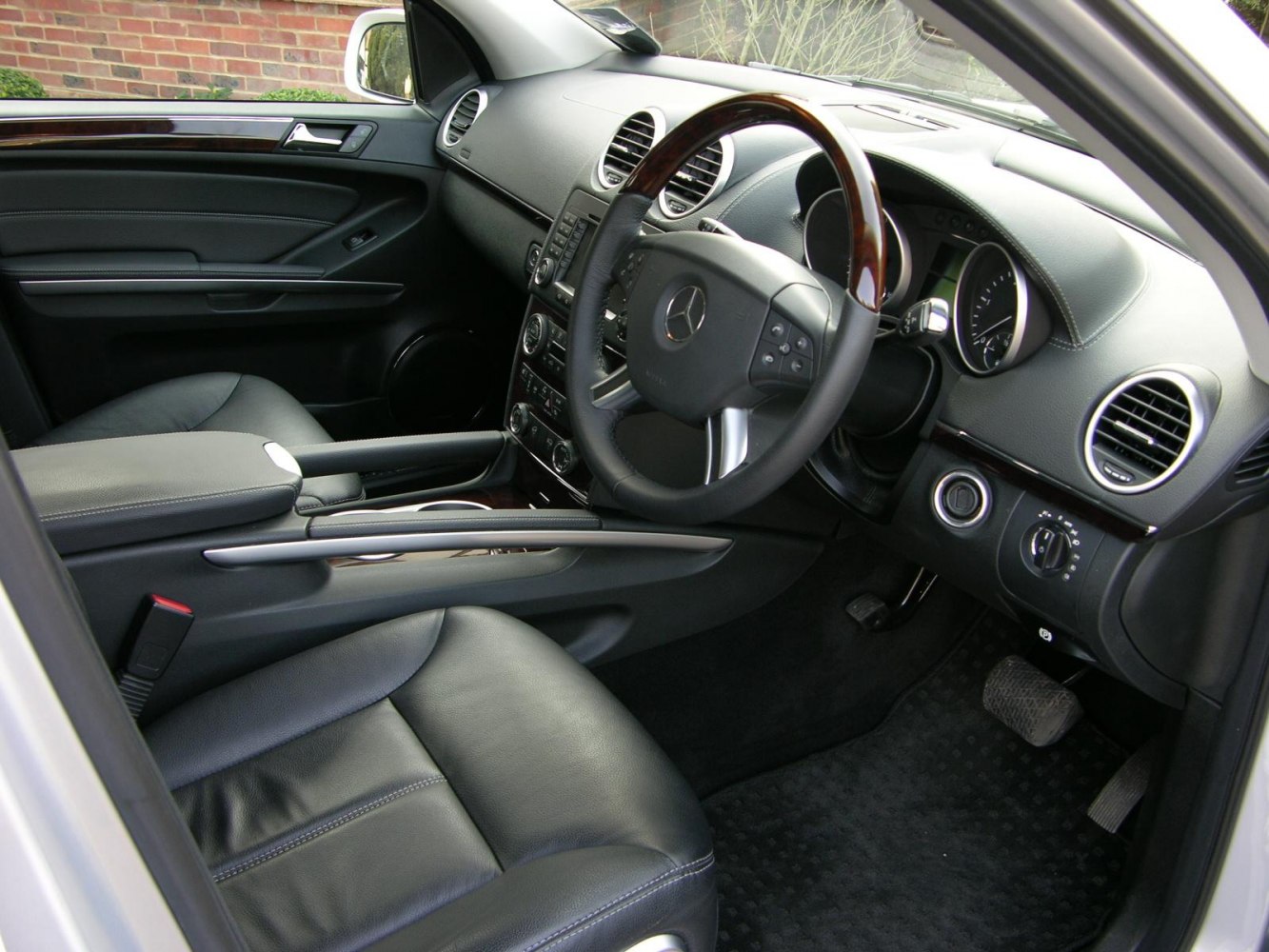

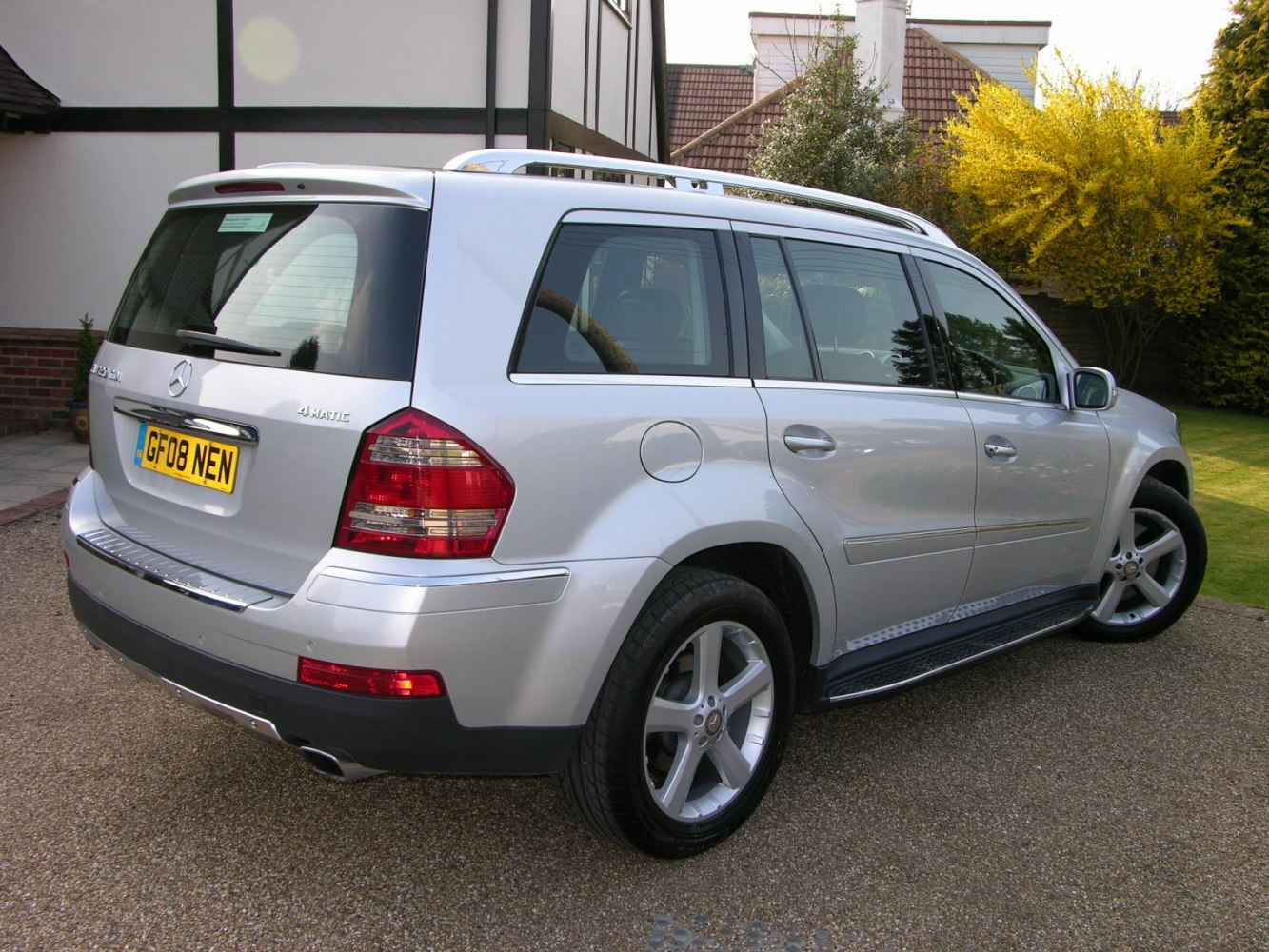

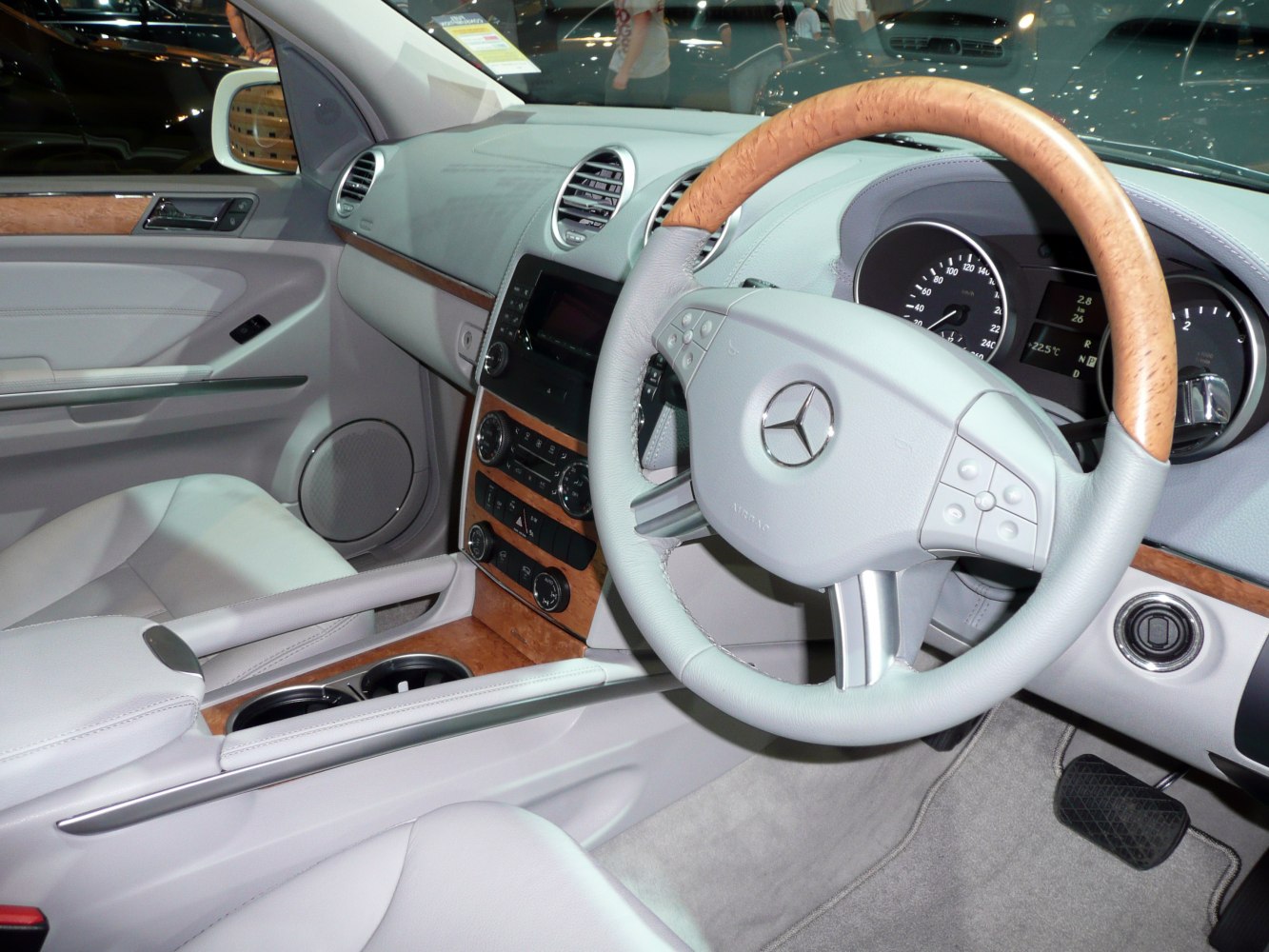

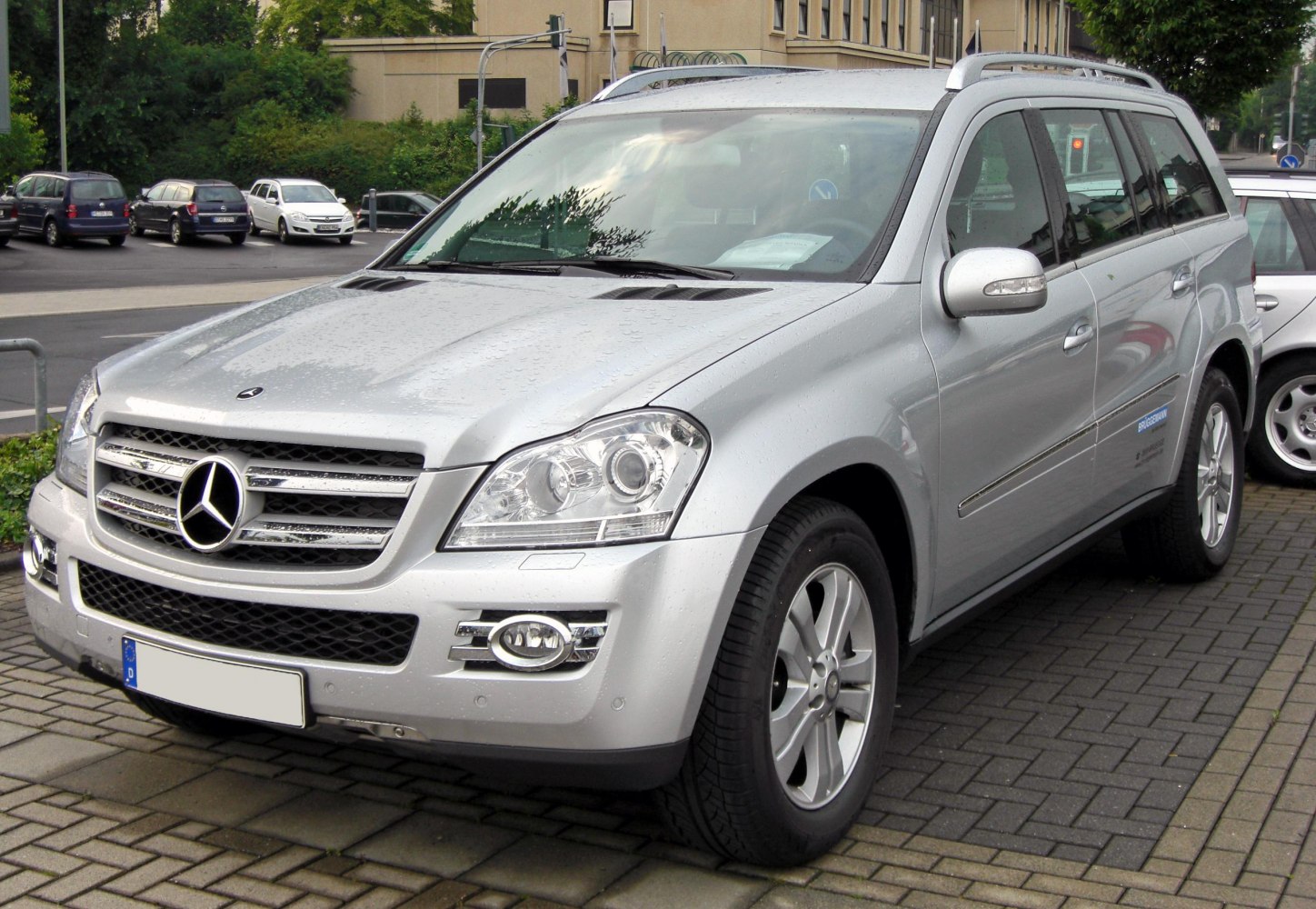

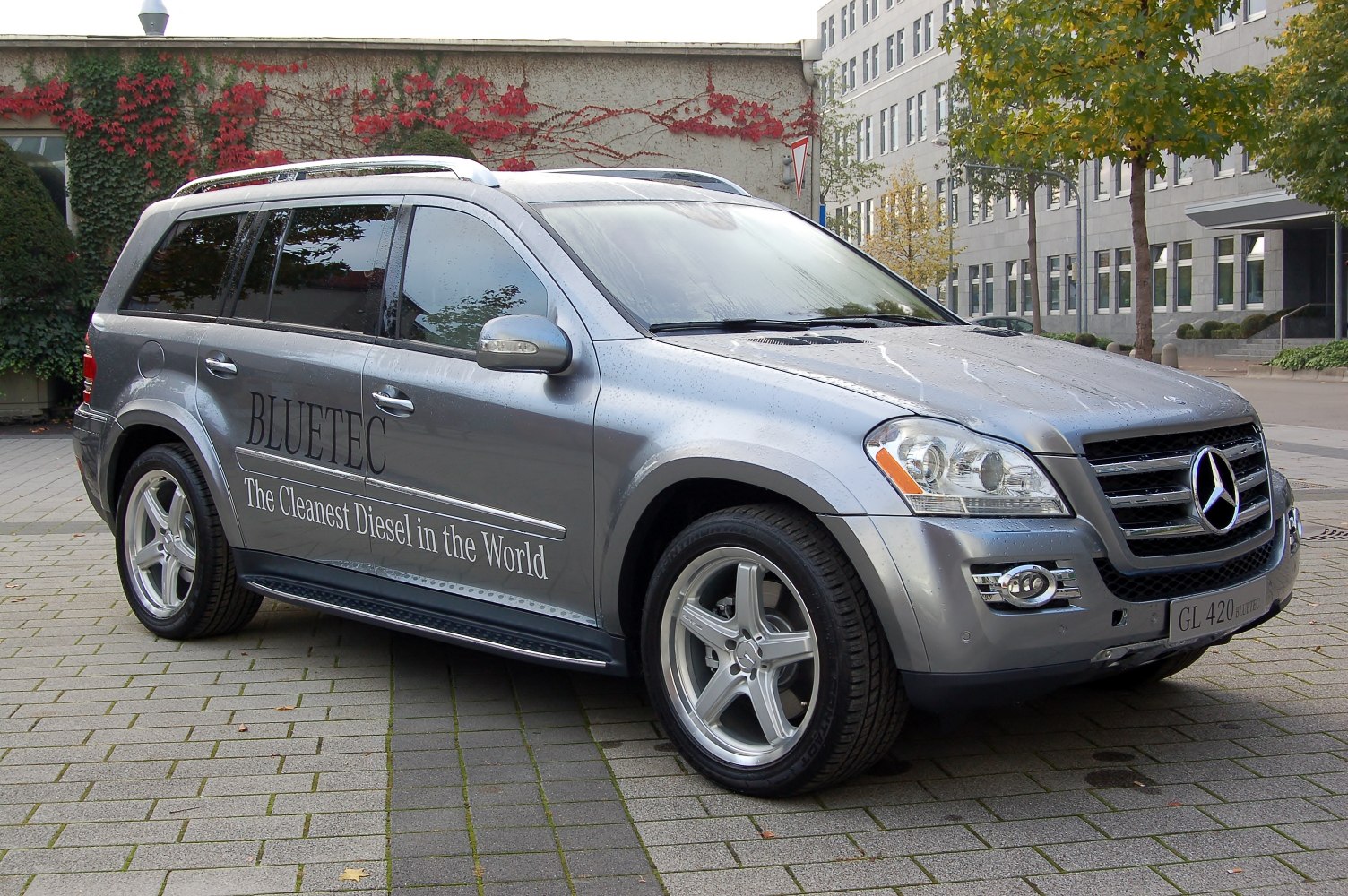

Vehicle photos
1 of 9
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
4 versions · 2 Diesel fuel · 2 Gasoline
| Engine | Fuel | Power | Production |
|---|---|---|---|
| GL 320 CDI (224 KM) 4MATIC G-TRONIC Selected | Diesel fuel | 224 KM | 2006–2008 |
| GL 420 CDI (306 KM) 4MATIC G-TRONIC Selected | Diesel fuel | 306 KM | 2006–2009 |
| GL 450 (340 KM) 4MATIC G-TRONIC Selected | Gasoline | 340 KM | 2006–2008 |
| GL 500 (388 KM) 4MATIC G-TRONIC Selected | Gasoline | 388 KM | 2006–2008 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
GL 320 CDI (224 KM) 4MATIC G-TRONIC
Diesel fuel · 2006–2008
- Engine power
- 224KM
- Torque
- 510Nm
- Engine displacement
- 2,987cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.5s
- Maximum speed
- 210km/h
On this page
Basic version information
Mercedes-Benz GL GL (X164)- Brand
- Mercedes-Benz
- Model
- GL
- Version
- GL (X164)
- Engine
- GL 320 CDI (224 KM) 4MATIC G-TRONIC
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2006
- End of production
- 2008
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 9.5 s
- Fuel consumption - Urban cycle
- 12.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 8 l/100 km
- Fuel consumption - Combined cycle
- 9.8 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 261 g/km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Engine model / code
- OM642.820
- Engine position
- Front, Longitudinal
- Engine displacement
- 2987 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 6
- Cylinder bore
- 83 mm
- Piston stroke
- 92 mm
- Compression ratio
- 18
- Number of valves per cylinder
- 4
- Engine oil capacity
- 8.5 l
- Power
- 224 KM @ 3800 obr./min
- Torque
- 510 Nm @ 1600-2800 obr./min
Volume and weight
- Fuel tank
- 96 l
- Aerodynamic drag coefficient (Cx)
- 0.37
- Minimum trunk capacity
- 620 l
- Maximum trunk capacity
- 2300 l
- Curb weight
- 2375 kg
- Gross weight
- 3150 kg
- Braked trailer load (12% slope start)
- 3500 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 5088 mm
- Width
- 1920 mm
- Height
- 1840 mm
- Wheelbase
- 3075 mm
- Front track
- 1651 mm
- Rear track
- 1654 mm
- Turning circle
- 12.1 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- G-TRONIC
- Front suspension
- Double wishbone
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 265/60 R18
- Rim size
- 18
- ABS
- yes
Selected engine version
GL 420 CDI (306 KM) 4MATIC G-TRONIC
Diesel fuel · 2006–2009
- Engine power
- 306KM
- Torque
- 700Nm
- Engine displacement
- 3,996cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 7.6s
- Maximum speed
- 230km/h
On this page
Basic version information
Mercedes-Benz GL GL (X164)- Brand
- Mercedes-Benz
- Model
- GL
- Version
- GL (X164)
- Engine
- GL 420 CDI (306 KM) 4MATIC G-TRONIC
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2006
- End of production
- 2009
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 230 km/h
- Acceleration 0-100 km/h
- 7.6 s
- Fuel consumption - Urban cycle
- 15.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 9.2 l/100 km
- Fuel consumption - Combined cycle
- 11.6 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 307 g/km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Engine model / code
- OM629.912
- Engine position
- Front, Longitudinal
- Engine displacement
- 3996 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- BiTurbo, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 17
- Number of valves per cylinder
- 4
- Engine oil capacity
- 11.5 l
- Power
- 306 KM @ 3600 obr./min
- Torque
- 700 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 100 l
- Aerodynamic drag coefficient (Cx)
- 0.37
- Minimum trunk capacity
- 620 l
- Maximum trunk capacity
- 2300 l
- Curb weight
- 2475 kg
- Gross weight
- 3250 kg
- Braked trailer load (12% slope start)
- 3500 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 5088 mm
- Width
- 1920 mm
- Height
- 1840 mm
- Wheelbase
- 3075 mm
- Front track
- 1645 mm
- Rear track
- 1648 mm
- Turning circle
- 12.1 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- G-TRONIC
- Front suspension
- Double wishbone
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 275/55 R19
- Rim size
- 19
- ABS
- yes
Selected engine version
GL 450 (340 KM) 4MATIC G-TRONIC
Gasoline · 2006–2008
- Engine power
- 340KM
- Torque
- 460Nm
- Engine displacement
- 4,663cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 7.2s
- Maximum speed
- 235km/h
On this page
Basic version information
Mercedes-Benz GL GL (X164)- Brand
- Mercedes-Benz
- Model
- GL
- Version
- GL (X164)
- Engine
- GL 450 (340 KM) 4MATIC G-TRONIC
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2006
- End of production
- 2008
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 235 km/h
- Acceleration 0-100 km/h
- 7.2 s
- Fuel consumption - Urban cycle
- 18.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 10.4 l/100 km
- Fuel consumption - Combined cycle
- 13.3 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 317 g/km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Engine model / code
- M273.923
- Engine position
- Front, Longitudinal
- Engine displacement
- 4663 cm³
- Maximum engine speed
- 6500 obr./min
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 92.9 mm
- Piston stroke
- 86 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 9 l
- Power
- 340 KM @ 6000 obr./min
- Torque
- 460 Nm @ 2700 obr./min
Volume and weight
- Fuel tank
- 100 l
- Aerodynamic drag coefficient (Cx)
- 0.37
- Minimum trunk capacity
- 620 l
- Maximum trunk capacity
- 2300 l
- Curb weight
- 2355 kg
- Gross weight
- 3150 kg
- Braked trailer load (12% slope start)
- 3500 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 5088 mm
- Width
- 1920 mm
- Height
- 1840 mm
- Wheelbase
- 3075 mm
- Front track
- 1645 mm
- Rear track
- 1648 mm
- Turning circle
- 12.1 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- G-TRONIC
- Front suspension
- Double wishbone
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 275/55 R19
- Rim size
- 19
- ABS
- yes
Selected engine version
GL 500 (388 KM) 4MATIC G-TRONIC
Gasoline · 2006–2008
- Engine power
- 388KM
- Torque
- 530Nm
- Engine displacement
- 5,461cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 5.9s
- Maximum speed
- 210km/h
On this page
Basic version information
Mercedes-Benz GL GL (X164)- Brand
- Mercedes-Benz
- Model
- GL
- Version
- GL (X164)
- Engine
- GL 500 (388 KM) 4MATIC G-TRONIC
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2006
- End of production
- 2008
- Body type
- SUV
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 5.9 s
- Fuel consumption - Urban cycle
- 19.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 12 l/100 km
- Fuel consumption - Combined cycle
- 14.7 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 351 g/km
Vehicle history report
Check this vehicle's history
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Engine
- Engine model / code
- M273.963
- Engine position
- Front, Longitudinal
- Engine displacement
- 5461 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- V-shaped
- Number of cylinders
- 8
- Cylinder bore
- 98 mm
- Piston stroke
- 90.5 mm
- Compression ratio
- 10
- Engine oil capacity
- 9 l
- Power
- 388 KM @ 6000 obr./min
- Torque
- 530 Nm @ 2800-4800 obr./min
Volume and weight
- Fuel tank
- 96 l
- Aerodynamic drag coefficient (Cx)
- 0.54
- Minimum trunk capacity
- 620 l
- Maximum trunk capacity
- 2300 l
- Curb weight
- 2170 kg
- Gross weight
- 2850 kg
- Braked trailer load (12% slope start)
- 2850 kg
- Trailer load without brakes
- 750 kg
Vehicle dimensions
- Length
- 5088 mm
- Width
- 1920 mm
- Height
- 1840 mm
- Wheelbase
- 3075 mm
- Front track
- 1645 mm
- Rear track
- 1648 mm
- Turning circle
- 11.31 m
Drivetrain, Brakes and suspension
- Drive
- All-wheel drive (4x4)
- Number of gears
- 7
- Type of automatic gearbox
- G-TRONIC
- Front suspension
- Double wishbone
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Ventilated disc
- Steering system
- Worm and roller steering
- Power steering
- Hydraulic power steering
- Tire size
- 265/60 R18
- Rim size
- 18
- ABS
- yes
