Specifications Mercedes-Benz GL (X164)

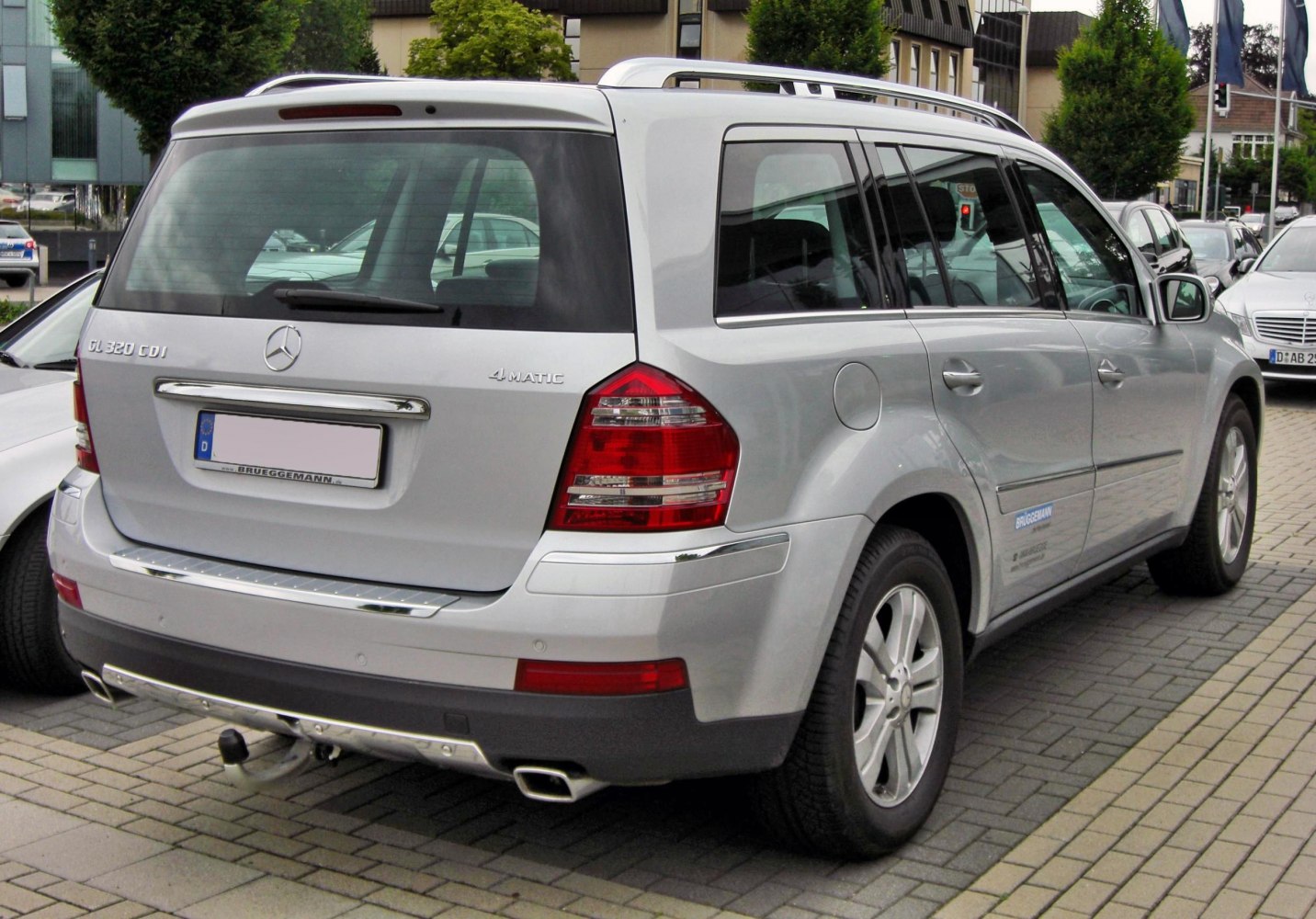

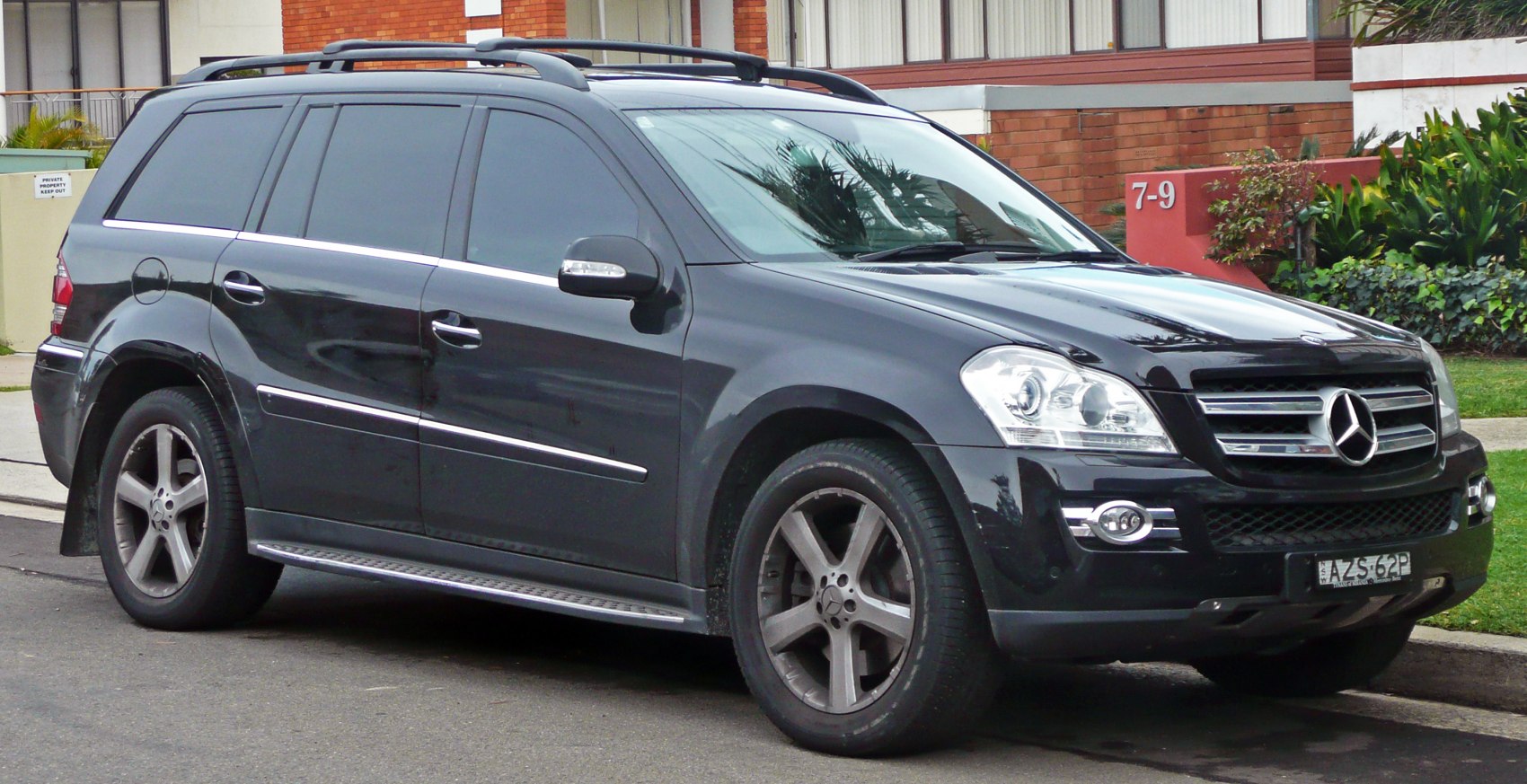

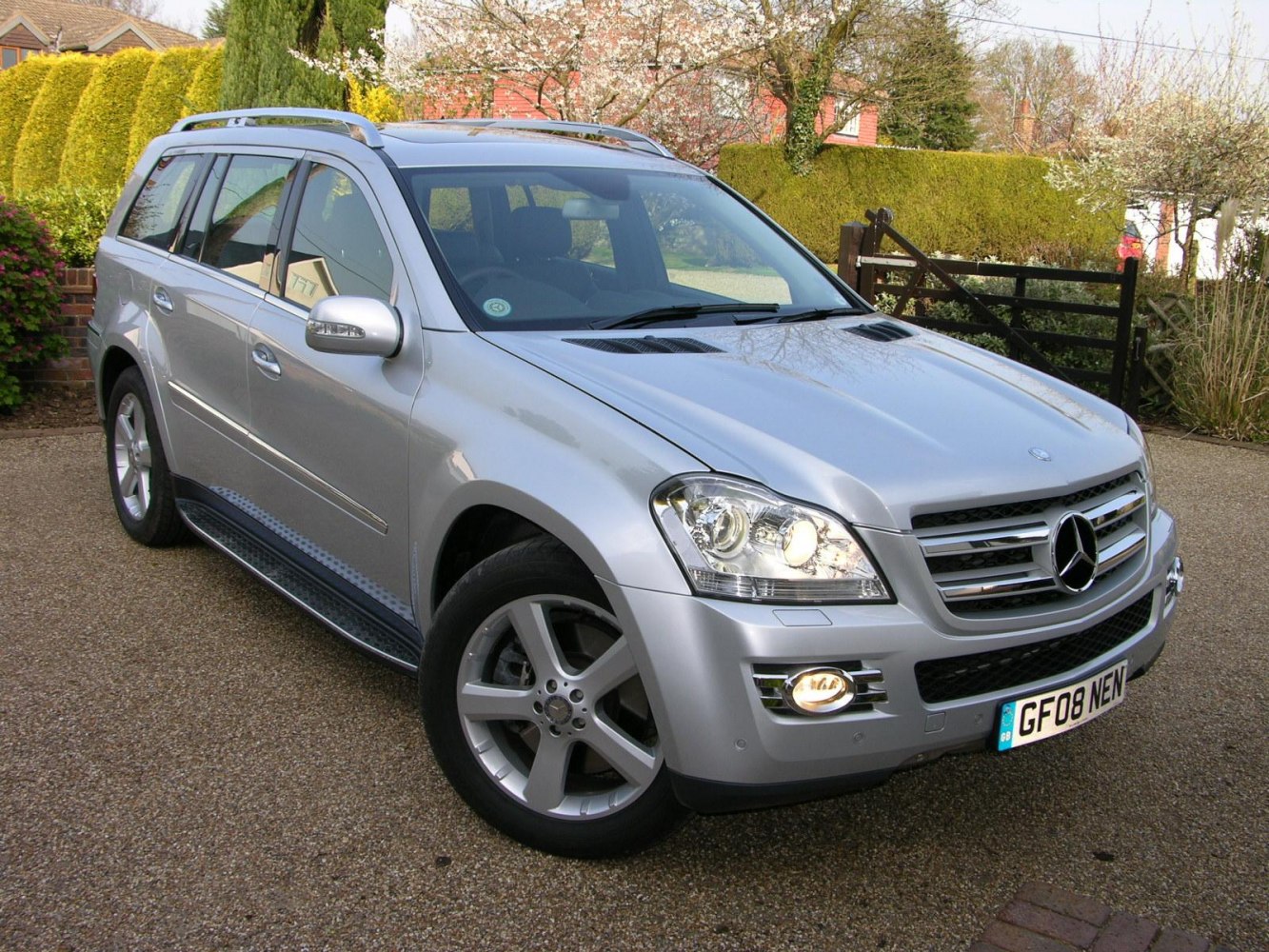

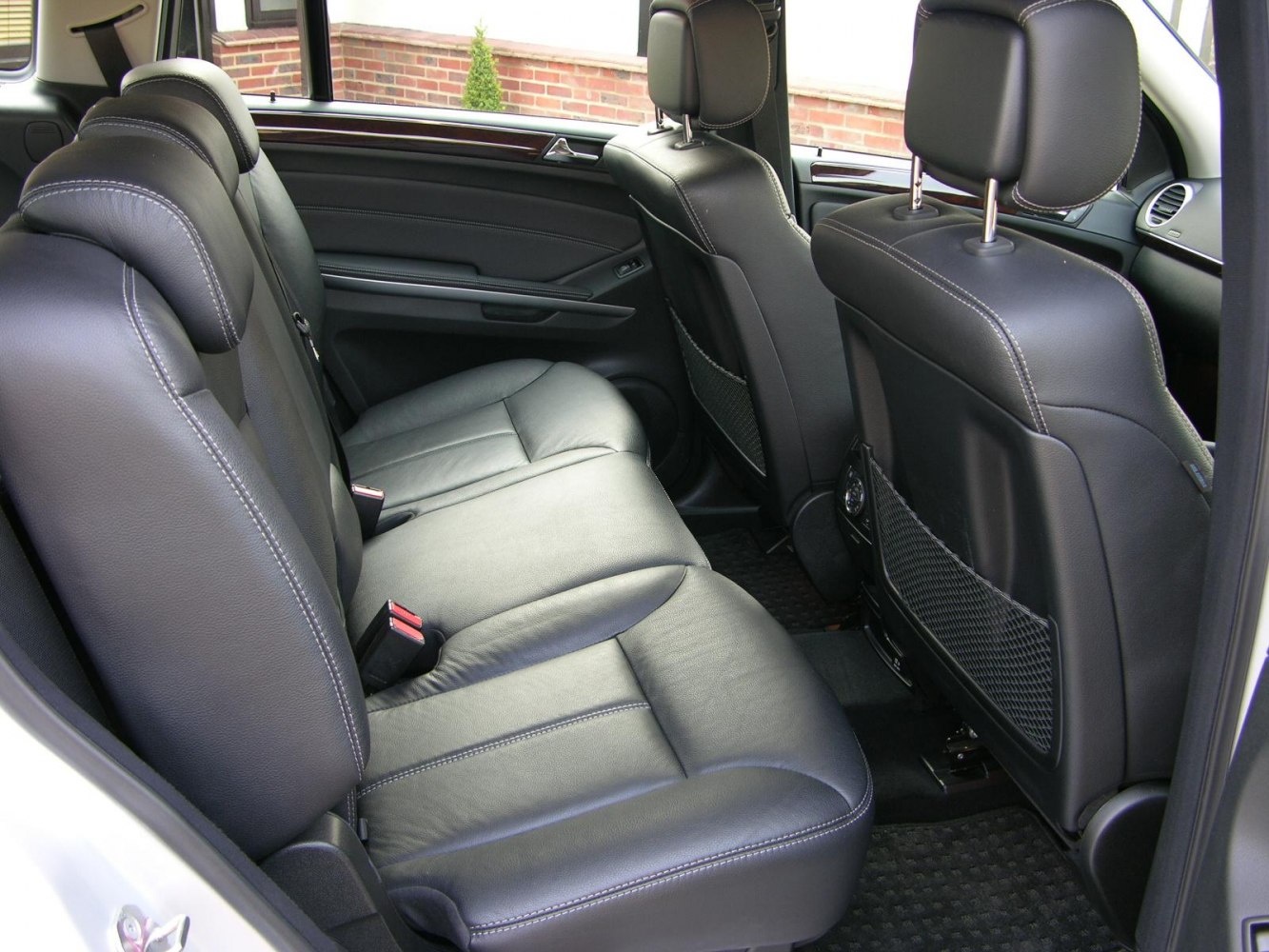

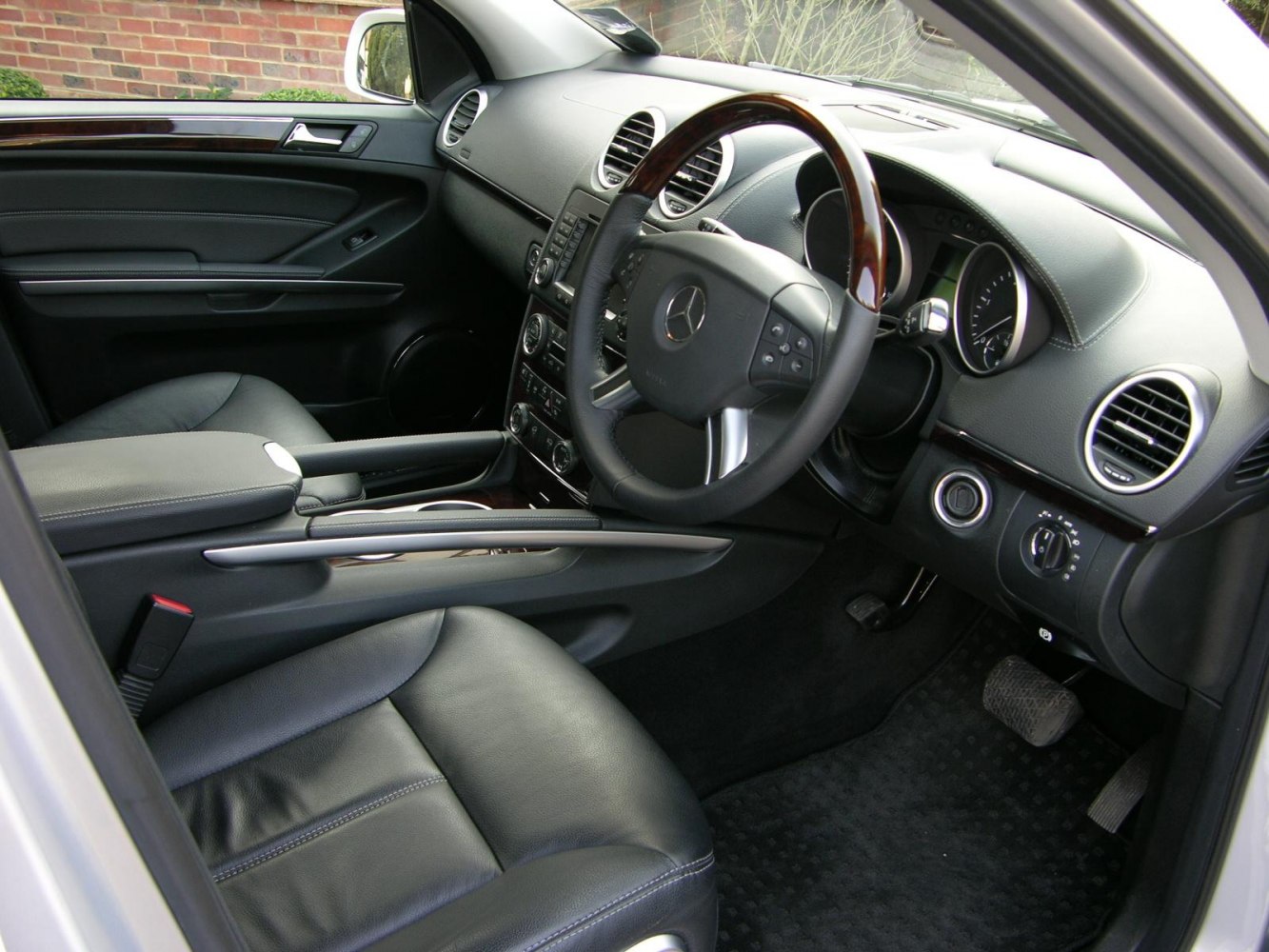

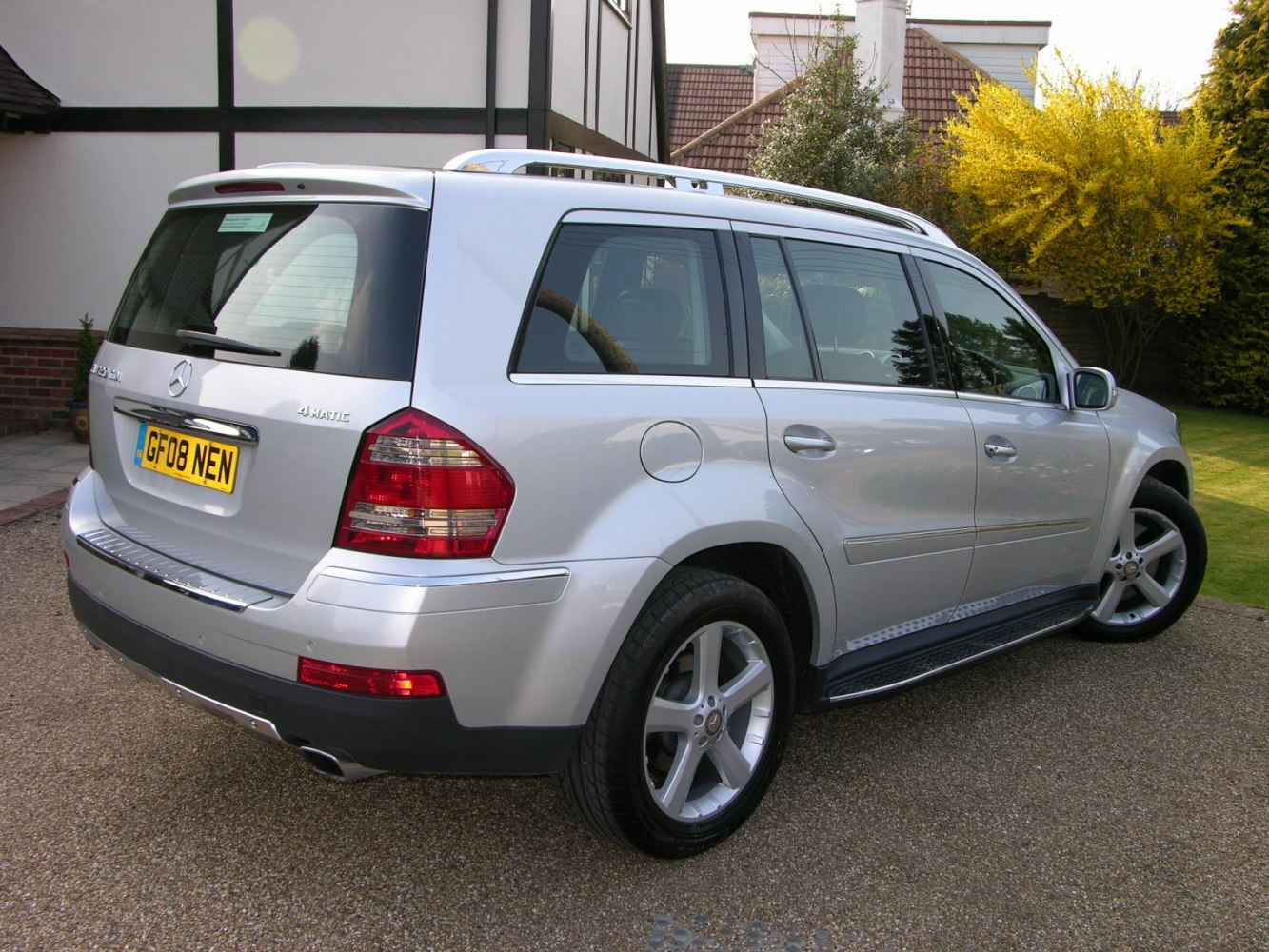

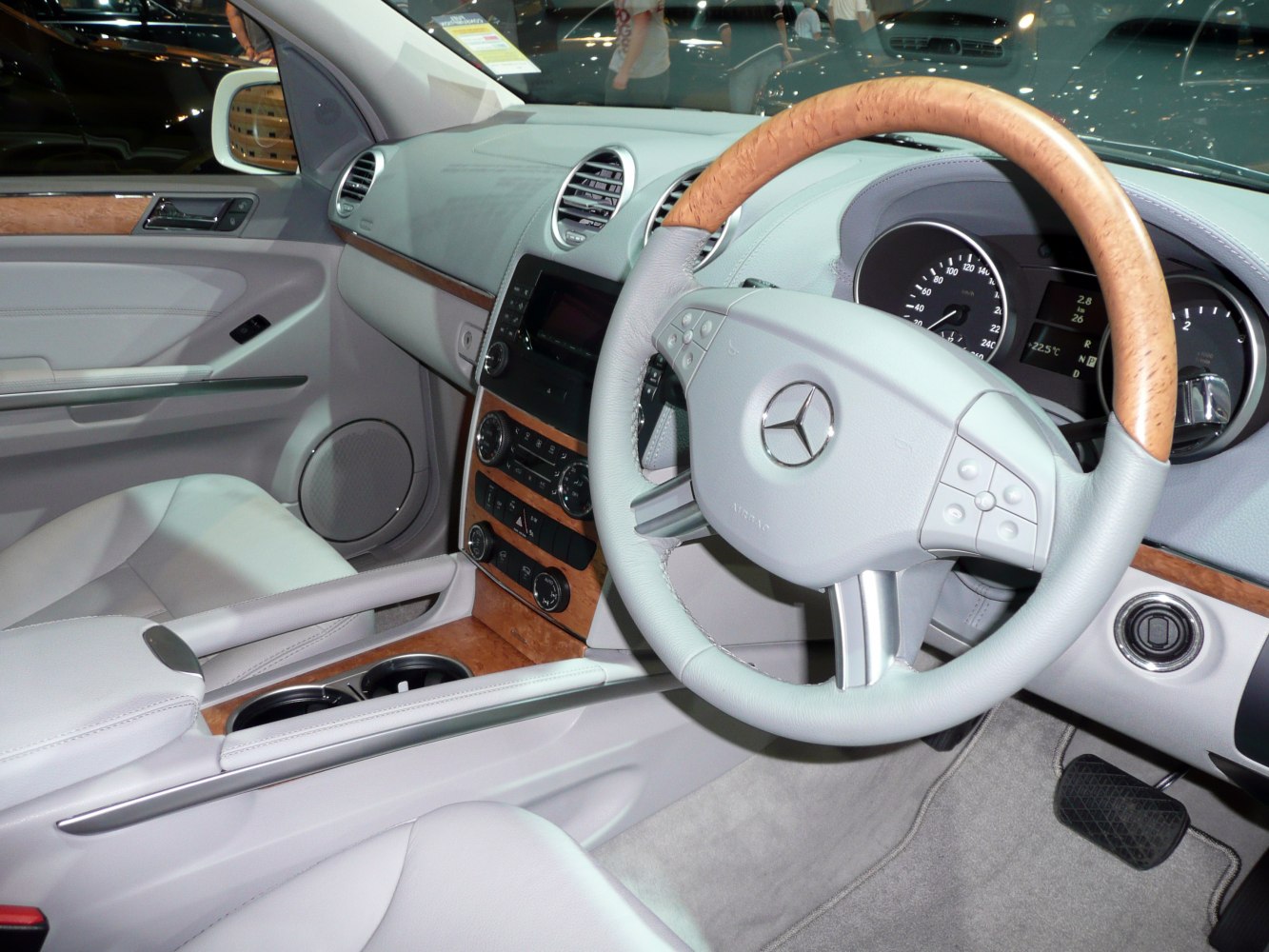

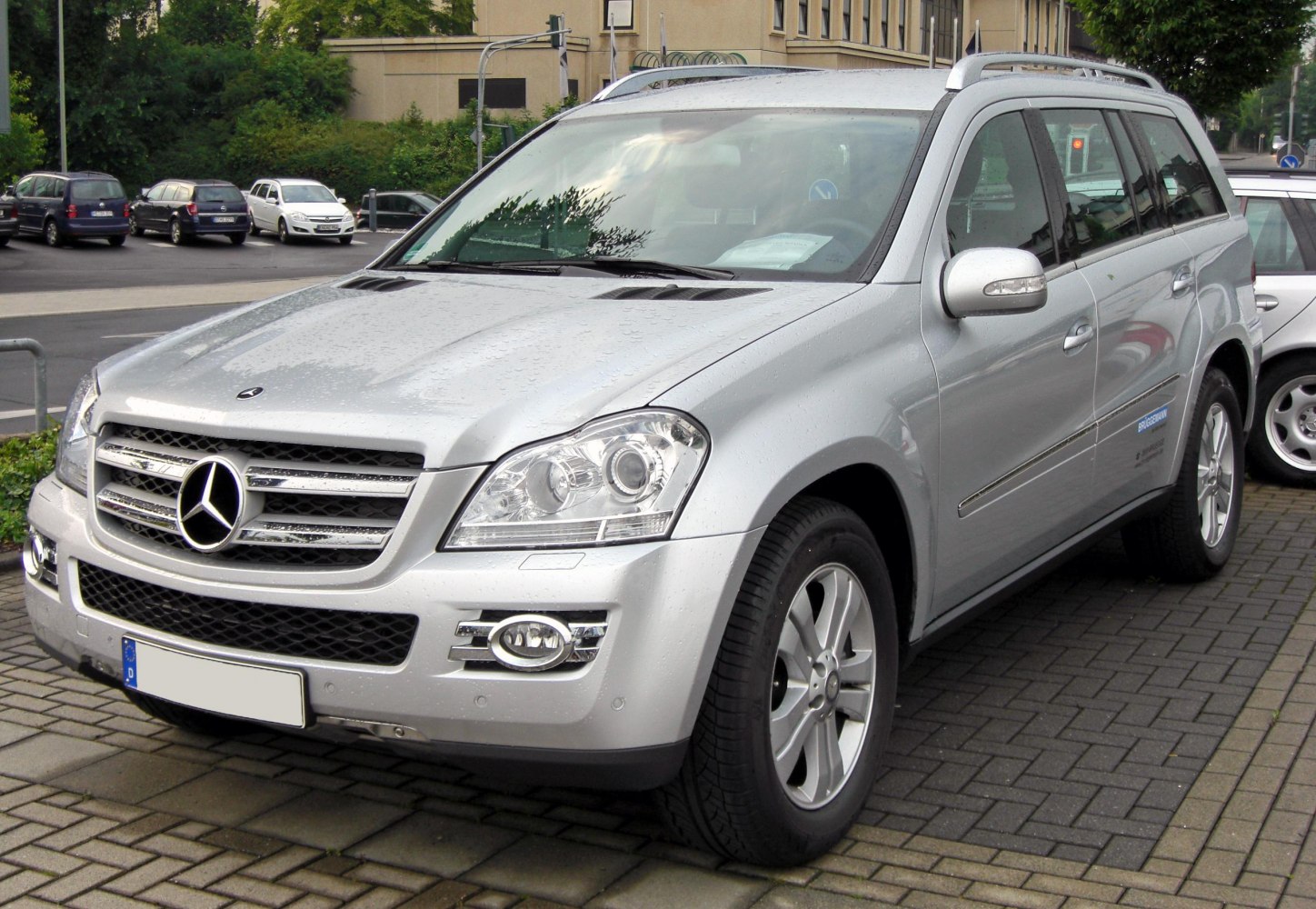

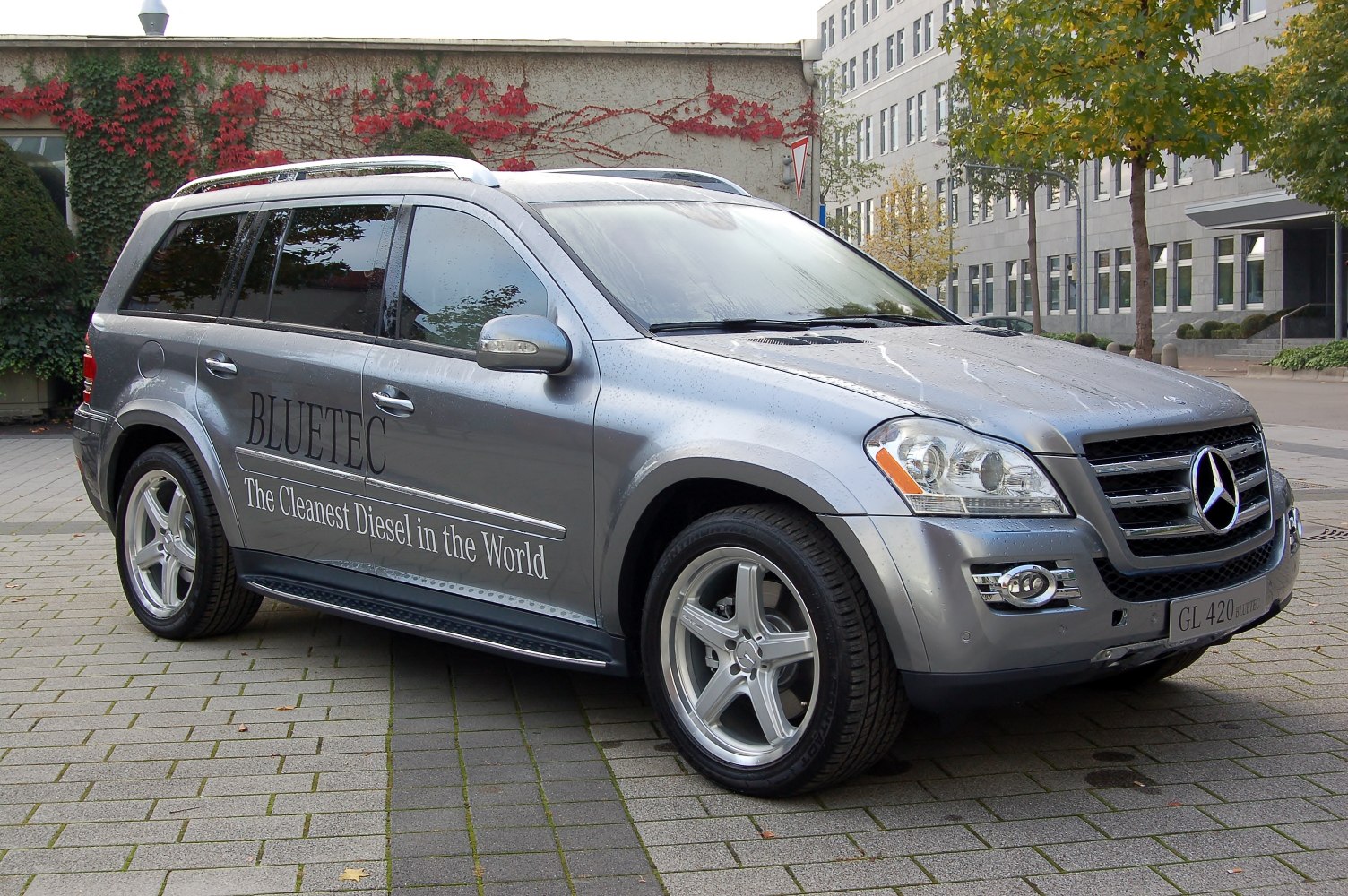

Vehicle photos
Basic information
| Brand | Mercedes-Benz |
|---|---|
| Model | GL |
| Version | GL (X164) |
| Engine power | 224 KM – 388 KM |
| Years of production | 2006 r. – 2009 r. |
| Body type | SUV |
| Number of doors | 5 |
| Number of seats | 5 |
Choose engine version, to see Vehicle specifications
Basic version information
| Brand | Mercedes-Benz |
|---|---|
| Model | GL |
| Version | GL (X164) |
| Engine | GL 320 CDI (224 KM) 4MATIC G-TRONIC |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 9.5 s |
| Fuel consumption - Urban cycle | 12.5 l/100 km |
| Fuel consumption - Extra-urban cycle | 8 l/100 km |
| Fuel consumption - Combined cycle | 9.8 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 261 g/km |
Engine
| Engine model / code | OM642.820 |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 2987 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | V-shaped |
| Number of cylinders | 6 |
| Cylinder bore | 83 mm |
| Piston stroke | 92 mm |
| Compression ratio | 18 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 8.5 l |
Volume and weight
| Fuel tank | 96 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.37 |
| Minimum trunk capacity | 620 l |
| Maximum trunk capacity | 2300 l |
| Curb weight | 2375 kg |
| Gross weight | 3150 kg |
| Braked trailer load (12% slope start) | 3500 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 5088 mm |
|---|---|
| Width | 1920 mm |
| Height | 1840 mm |
| Wheelbase | 3075 mm |
| Front track | 1651 mm |
| Rear track | 1654 mm |
| Turning circle | 12.1 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | G-TRONIC |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Worm and roller steering |
| Power steering | Hydraulic power steering |
| Tire size | 265/60 R18 |
| Rim size | 18 |
Basic version information
| Brand | Mercedes-Benz |
|---|---|
| Model | GL |
| Version | GL (X164) |
| Engine | GL 420 CDI (306 KM) 4MATIC G-TRONIC |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2009 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Diesel fuel |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 230 km/h |
|---|---|
| Acceleration 0-100 km/h | 7.6 s |
| Fuel consumption - Urban cycle | 15.6 l/100 km |
| Fuel consumption - Extra-urban cycle | 9.2 l/100 km |
| Fuel consumption - Combined cycle | 11.6 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 307 g/km |
Engine
| Engine model / code | OM629.912 |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 3996 cm³ |
| Fuel injection system | Diesel common rail |
| Engine type | BiTurbo, Intercooler |
| Valvetrain | DOHC |
| Engine configuration | V-shaped |
| Number of cylinders | 8 |
| Cylinder bore | 86 mm |
| Piston stroke | 86 mm |
| Compression ratio | 17 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 11.5 l |
Volume and weight
| Fuel tank | 100 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.37 |
| Minimum trunk capacity | 620 l |
| Maximum trunk capacity | 2300 l |
| Curb weight | 2475 kg |
| Gross weight | 3250 kg |
| Braked trailer load (12% slope start) | 3500 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 5088 mm |
|---|---|
| Width | 1920 mm |
| Height | 1840 mm |
| Wheelbase | 3075 mm |
| Front track | 1645 mm |
| Rear track | 1648 mm |
| Turning circle | 12.1 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | G-TRONIC |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Worm and roller steering |
| Power steering | Hydraulic power steering |
| Tire size | 275/55 R19 |
| Rim size | 19 |
Basic version information
| Brand | Mercedes-Benz |
|---|---|
| Model | GL |
| Version | GL (X164) |
| Engine | GL 450 (340 KM) 4MATIC G-TRONIC |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 235 km/h |
|---|---|
| Acceleration 0-100 km/h | 7.2 s |
| Fuel consumption - Urban cycle | 18.2 l/100 km |
| Fuel consumption - Extra-urban cycle | 10.4 l/100 km |
| Fuel consumption - Combined cycle | 13.3 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 317 g/km |
Engine
| Engine model / code | M273.923 |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 4663 cm³ |
| Maximum engine speed | 6500 obr./min |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine configuration | V-shaped |
| Number of cylinders | 8 |
| Cylinder bore | 92.9 mm |
| Piston stroke | 86 mm |
| Compression ratio | 10.5 |
| Number of valves per cylinder | 4 |
| Engine oil capacity | 9 l |
Volume and weight
| Fuel tank | 100 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.37 |
| Minimum trunk capacity | 620 l |
| Maximum trunk capacity | 2300 l |
| Curb weight | 2355 kg |
| Gross weight | 3150 kg |
| Braked trailer load (12% slope start) | 3500 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 5088 mm |
|---|---|
| Width | 1920 mm |
| Height | 1840 mm |
| Wheelbase | 3075 mm |
| Front track | 1645 mm |
| Rear track | 1648 mm |
| Turning circle | 12.1 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | G-TRONIC |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Worm and roller steering |
| Power steering | Hydraulic power steering |
| Tire size | 275/55 R19 |
| Rim size | 19 |
Basic version information
| Brand | Mercedes-Benz |
|---|---|
| Model | GL |
| Version | GL (X164) |
| Engine | GL 500 (388 KM) 4MATIC G-TRONIC |
| Engine type | Combustion engine |
| Number of doors | 5 |
| Start of production | 2006 r. |
| End of production | 2008 r. |
| Body type | SUV |
| Number of seats | 5 |
| Fuel type | Gasoline |
HISTORY OF VEHICLE
Buying a car? Check its history before making a decision!
» Click to check the vehicle historyPerformance
| Maximum speed | 210 km/h |
|---|---|
| Acceleration 0-100 km/h | 5.9 s |
| Fuel consumption - Urban cycle | 19.3 l/100 km |
| Fuel consumption - Extra-urban cycle | 12 l/100 km |
| Fuel consumption - Combined cycle | 14.7 l/100 km |
| Emission standard | Euro 4 |
| CO2 emissions | 351 g/km |
Engine
| Engine model / code | M273.963 |
|---|---|
| Engine position | Front, Longitudinal |
| Engine displacement | 5461 cm³ |
| Fuel injection system | Multi-point injection |
| Engine type | Naturally aspirated engine |
| Engine configuration | V-shaped |
| Number of cylinders | 8 |
| Cylinder bore | 98 mm |
| Piston stroke | 90.5 mm |
| Compression ratio | 10 |
| Engine oil capacity | 9 l |
Volume and weight
| Fuel tank | 96 l |
|---|---|
| Aerodynamic drag coefficient (Cx) | 0.54 |
| Minimum trunk capacity | 620 l |
| Maximum trunk capacity | 2300 l |
| Curb weight | 2170 kg |
| Gross weight | 2850 kg |
| Braked trailer load (12% slope start) | 2850 kg |
| Trailer load without brakes | 750 kg |
Vehicle dimensions
| Length | 5088 mm |
|---|---|
| Width | 1920 mm |
| Height | 1840 mm |
| Wheelbase | 3075 mm |
| Front track | 1645 mm |
| Rear track | 1648 mm |
| Turning circle | 11.31 m |
Drivetrain, Brakes and suspension
| Drive | All-wheel drive (4x4) |
|---|---|
| Number of gears | 7 |
| Type of automatic gearbox | G-TRONIC |
| Front suspension | Double wishbone |
| Rear suspension | Independent multi-link suspension |
| Front brakes | Ventilated disc |
| Rear brakes | Ventilated disc |
| ABS | yes |
| Steering system | Worm and roller steering |
| Power steering | Hydraulic power steering |
| Tire size | 265/60 R18 |
| Rim size | 18 |
