Mazda 3 I Hatchback (BK, facelift 2006)
Compare all 8 engine versions of the Mazda 3 3 I Hatchback (BK, facelift 2006), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Mazda 3 I Hatchback (BK, facelift 2006)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

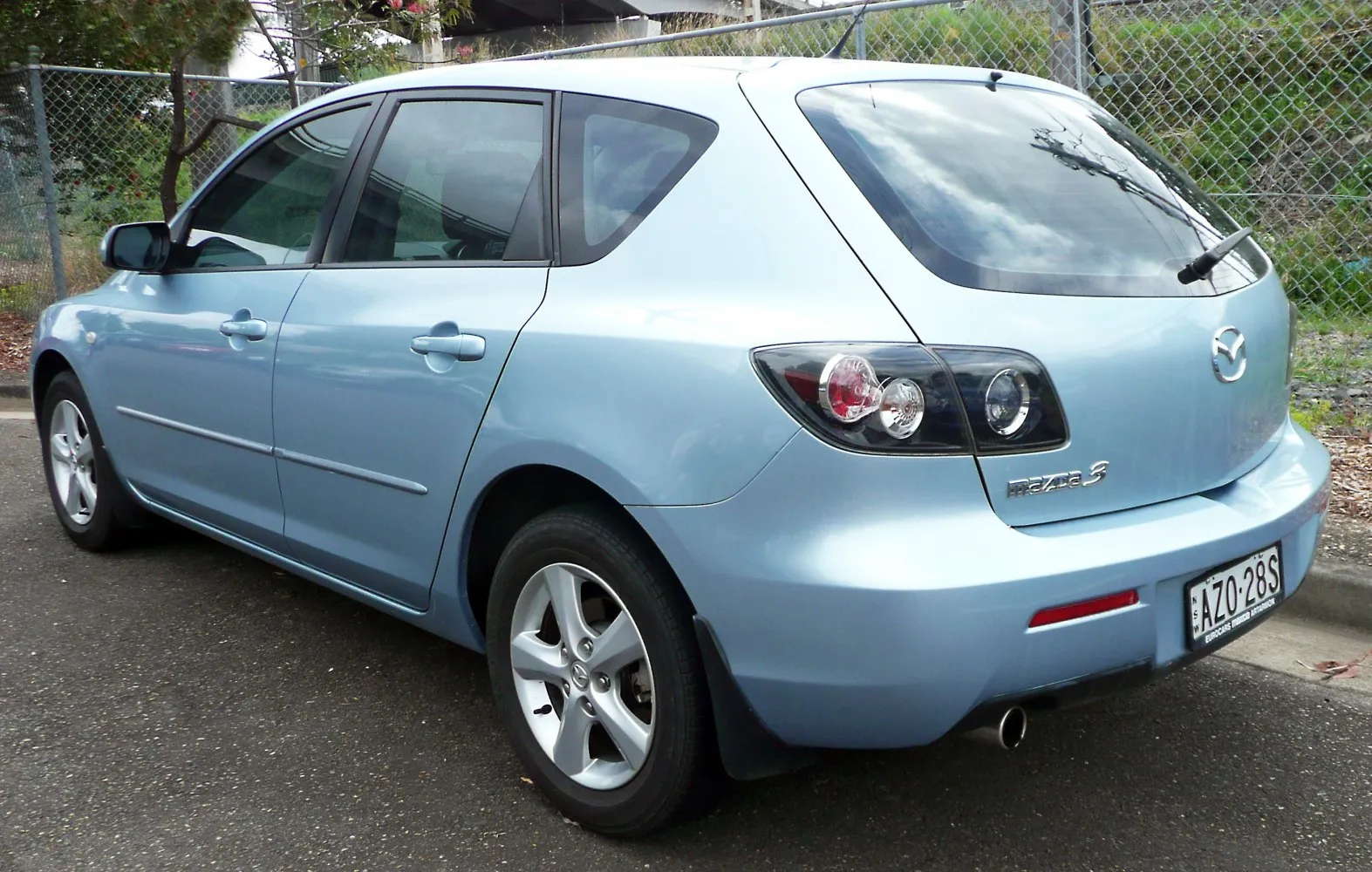

Vehicle photos
1 of 4
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
8 versions · 5 Gasoline · 3 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 2.0i (150 KM) Selected | Gasoline | 150 KM | 2006–2009 |
| MPS 2.3i (260 KM) Selected | Gasoline | 260 KM | 2006–2009 |
| 1.6 CD (109 KM) Selected | Diesel fuel | 109 KM | 2006–2009 |
| 2.0 CD (143 KM) Selected | Diesel fuel | 143 KM | 2007–2009 |
| 1.6 CD (90 KM) Selected | Diesel fuel | 90 KM | 2006–2009 |
| 1.4i (84 KM) Selected | Gasoline | 84 KM | 2006–2009 |
| 1.6i (105 KM) Automatic Selected | Gasoline | 105 KM | 2006–2009 |
| 1.6i (105 KM) Selected | Gasoline | 105 KM | 2006–2009 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
2.0i (150 KM)
Gasoline · 2006–2009
- Engine power
- 150 KM
- Torque
- 187 Nm
- Engine displacement
- 1,999 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 9.1 s
- Maximum speed
- 202 km/h
On this page
Check vehicle history
Basic version information
Mazda 3 3 I Hatchback (BK, facelift 2006)- Brand
- Mazda
- Model
- 3
- Version
- 3 I Hatchback (BK, facelift 2006)
- Engine
- 2.0i (150 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2006
- End of production
- 2009
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 202 km/h
- Acceleration 0-100 km/h
- 9.1 s
- Fuel consumption - Urban cycle
- 10.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.4 l/100 km
- Fuel consumption - Combined cycle
- 7.9 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 189 g/km
Engine
- Engine position
- Front, Transverse
- Engine displacement
- 1999 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 87.5 mm
- Piston stroke
- 83.1 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.3 l
- Coolant capacity
- 7.5 l
- Power
- 150 KM @ 6500 obr./min
- Torque
- 187 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.32
- Minimum trunk capacity
- 300 l
- Maximum trunk capacity
- 635 l
- Curb weight
- 1260 kg
- Gross weight
- 1790 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 550 kg
Vehicle dimensions
- Length
- 4415 mm
- Width
- 1755 mm
- Width with unfolded mirrors
- 1935 mm
- Height
- 1465 mm
- Wheelbase
- 2640 mm
- Front track
- 1530 mm
- Rear track
- 1515 mm
- Ground clearance
- 160 mm
- Turning circle
- 10.4 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Coil spring
- Rear suspension
- Coil spring
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 205/50 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
MPS 2.3i (260 KM)
Gasoline · 2006–2009
- Engine power
- 260 KM
- Torque
- 380 Nm
- Engine displacement
- 2,261 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 6.1 s
- Maximum speed
- 250 km/h
On this page
Check vehicle history
Basic version information
Mazda 3 3 I Hatchback (BK, facelift 2006)- Brand
- Mazda
- Model
- 3
- Version
- 3 I Hatchback (BK, facelift 2006)
- Engine
- MPS 2.3i (260 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2006
- End of production
- 2009
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 250 km/h
- Acceleration 0-100 km/h
- 6.1 s
- Fuel consumption - Urban cycle
- 13.5 l/100 km
- Fuel consumption - Extra-urban cycle
- 7.5 l/100 km
- Fuel consumption - Combined cycle
- 9.7 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 231 g/km
Engine
- Engine model / code
- L3M6
- Engine position
- Front, Transverse
- Engine displacement
- 2261 cm³
- Fuel injection system
- Direct injection
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 87.5 mm
- Piston stroke
- 94 mm
- Compression ratio
- 9.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5.7 l
- Coolant capacity
- 7.5 l
- Power
- 260 KM @ 5500 obr./min
- Torque
- 380 Nm @ 3000 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 290 l
- Maximum trunk capacity
- 1229 l
- Curb weight
- 1410 kg
- Gross weight
- 1910 kg
Vehicle dimensions
- Length
- 4435 mm
- Width
- 1765 mm
- Width with unfolded mirrors
- 1935 mm
- Height
- 1465 mm
- Wheelbase
- 2640 mm
- Front track
- 1535 mm
- Rear track
- 1525 mm
- Ground clearance
- 160 mm
- Turning circle
- 11 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent coil spring suspension
- Rear suspension
- Independent coil spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 215/45 R18
- Rim size
- 18
- ABS
- yes
Selected engine version
1.6 CD (109 KM)
Diesel fuel · 2006–2009
- Engine power
- 109 KM
- Torque
- 240 Nm
- Engine displacement
- 1,560 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.6 s
- Maximum speed
- 182 km/h
On this page
Check vehicle history
Basic version information
Mazda 3 3 I Hatchback (BK, facelift 2006)- Brand
- Mazda
- Model
- 3
- Version
- 3 I Hatchback (BK, facelift 2006)
- Engine
- 1.6 CD (109 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2006
- End of production
- 2009
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 182 km/h
- Acceleration 0-100 km/h
- 11.6 s
- Fuel consumption - Urban cycle
- 6.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.1 l/100 km
- Fuel consumption - Combined cycle
- 4.8 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 128 g/km
Engine
- Engine model / code
- Y6
- Engine position
- Front, Transverse
- Engine displacement
- 1560 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Piston stroke
- 88.3 mm
- Compression ratio
- 18.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.8 l
- Coolant capacity
- 8.5 l
- Power
- 109 KM @ 4000 obr./min
- Torque
- 240 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 300 l
- Maximum trunk capacity
- 635 l
- Curb weight
- 1275 kg
- Gross weight
- 1825 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 600 kg
Vehicle dimensions
- Length
- 4415 mm
- Width
- 1755 mm
- Width with unfolded mirrors
- 1935 mm
- Height
- 1465 mm
- Wheelbase
- 2640 mm
- Front track
- 1530 mm
- Rear track
- 1515 mm
- Ground clearance
- 160 mm
- Turning circle
- 10.4 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
2.0 CD (143 KM)
Diesel fuel · 2007–2009
- Engine power
- 143 KM
- Torque
- 360 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 9.9 s
- Maximum speed
- 203 km/h
On this page
Check vehicle history
Basic version information
Mazda 3 3 I Hatchback (BK, facelift 2006)- Brand
- Mazda
- Model
- 3
- Version
- 3 I Hatchback (BK, facelift 2006)
- Engine
- 2.0 CD (143 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2007
- End of production
- 2009
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 203 km/h
- Acceleration 0-100 km/h
- 9.9 s
- Fuel consumption - Urban cycle
- 7.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.4 l/100 km
- Fuel consumption - Combined cycle
- 6 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 162 g/km
Engine
- Engine model / code
- RF7J
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- SOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 16.7
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.1 l
- Coolant capacity
- 8.8 l
- Power
- 143 KM @ 3500 obr./min
- Torque
- 360 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.30
- Minimum trunk capacity
- 300 l
- Maximum trunk capacity
- 635 l
- Curb weight
- 1410 kg
- Gross weight
- 1945 kg
- Braked trailer load (12% slope start)
- 1500 kg
- Trailer load without brakes
- 600 kg
Vehicle dimensions
- Length
- 4415 mm
- Width
- 1755 mm
- Width with unfolded mirrors
- 1935 mm
- Height
- 1465 mm
- Wheelbase
- 2640 mm
- Front track
- 1530 mm
- Rear track
- 1515 mm
- Ground clearance
- 160 mm
- Turning circle
- 10.4 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 205/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.6 CD (90 KM)
Diesel fuel · 2006–2009
- Engine power
- 90 KM
- Torque
- 215 Nm
- Engine displacement
- 1,560 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 12.2 s
- Maximum speed
- 174 km/h
On this page
Check vehicle history
Basic version information
Mazda 3 3 I Hatchback (BK, facelift 2006)- Brand
- Mazda
- Model
- 3
- Version
- 3 I Hatchback (BK, facelift 2006)
- Engine
- 1.6 CD (90 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2006
- End of production
- 2009
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 174 km/h
- Acceleration 0-100 km/h
- 12.2 s
- Fuel consumption - Urban cycle
- 6 l/100 km
- Fuel consumption - Extra-urban cycle
- 4 l/100 km
- Fuel consumption - Combined cycle
- 4.7 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 125 g/km
Engine
- Engine model / code
- Y406
- Engine position
- Front, Transverse
- Engine displacement
- 1560 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Piston stroke
- 88.3 mm
- Compression ratio
- 18.3
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.8 l
- Coolant capacity
- 8.5 l
- Power
- 90 KM @ 4000 obr./min
- Torque
- 215 Nm @ 1750 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.30
- Minimum trunk capacity
- 300 l
- Maximum trunk capacity
- 635 l
- Curb weight
- 1270 kg
- Gross weight
- 1800 kg
- Braked trailer load (12% slope start)
- 1300 kg
- Trailer load without brakes
- 600 kg
Vehicle dimensions
- Length
- 4415 mm
- Width
- 1755 mm
- Width with unfolded mirrors
- 1935 mm
- Height
- 1465 mm
- Wheelbase
- 2640 mm
- Front track
- 1530 mm
- Rear track
- 1515 mm
- Ground clearance
- 160 mm
- Turning circle
- 10.4 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link coil spring suspension with stabilizer
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 195/65 R15
- Rim size
- 15
- ABS
- yes
Selected engine version
1.4i (84 KM)
Gasoline · 2006–2009
- Engine power
- 84 KM
- Torque
- 122 Nm
- Engine displacement
- 1,349 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 14.5 s
- Maximum speed
- 169 km/h
On this page
Check vehicle history
Basic version information
Mazda 3 3 I Hatchback (BK, facelift 2006)- Brand
- Mazda
- Model
- 3
- Version
- 3 I Hatchback (BK, facelift 2006)
- Engine
- 1.4i (84 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2006
- End of production
- 2009
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 169 km/h
- Acceleration 0-100 km/h
- 14.5 s
- Fuel consumption - Urban cycle
- 8.6 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.5 l/100 km
- Fuel consumption - Combined cycle
- 6.7 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 157 g/km
Engine
- Engine position
- Front, Transverse
- Engine displacement
- 1349 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 74 mm
- Piston stroke
- 78.4 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.9 l
- Coolant capacity
- 6 l
- Power
- 84 KM @ 6000 obr./min
- Torque
- 122 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.30
- Minimum trunk capacity
- 300 l
- Maximum trunk capacity
- 635 l
- Curb weight
- 1190 kg
- Gross weight
- 1715 kg
- Braked trailer load (12% slope start)
- 900 kg
- Trailer load without brakes
- 550 kg
Vehicle dimensions
- Length
- 4415 mm
- Width
- 1755 mm
- Width with unfolded mirrors
- 1935 mm
- Height
- 1465 mm
- Wheelbase
- 2640 mm
- Front track
- 1530 mm
- Rear track
- 1515 mm
- Ground clearance
- 160 mm
- Turning circle
- 10.4 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 195/65 R15
- Rim size
- 15
- ABS
- yes
Selected engine version
1.6i (105 KM) Automatic
Gasoline · 2006–2009
- Engine power
- 105 KM
- Torque
- 145 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 12.6 s
- Maximum speed
- 174 km/h
On this page
Check vehicle history
Basic version information
Mazda 3 3 I Hatchback (BK, facelift 2006)- Brand
- Mazda
- Model
- 3
- Version
- 3 I Hatchback (BK, facelift 2006)
- Engine
- 1.6i (105 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2006
- End of production
- 2009
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 174 km/h
- Acceleration 0-100 km/h
- 12.6 s
- Fuel consumption - Urban cycle
- 10.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.4 l/100 km
- Fuel consumption - Combined cycle
- 7.8 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 183 g/km
Engine
- Engine model / code
- Z601, Z627
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 78 mm
- Piston stroke
- 83.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.9 l
- Coolant capacity
- 6 l
- Power
- 105 KM @ 6000 obr./min
- Torque
- 145 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 300 l
- Maximum trunk capacity
- 635 l
- Curb weight
- 1215 kg
- Gross weight
- 1750 kg
- Braked trailer load (12% slope start)
- 1200 kg
- Trailer load without brakes
- 550 kg
Vehicle dimensions
- Length
- 4415 mm
- Width
- 1755 mm
- Width with unfolded mirrors
- 1935 mm
- Height
- 1465 mm
- Wheelbase
- 2640 mm
- Front track
- 1530 mm
- Rear track
- 1515 mm
- Ground clearance
- 160 mm
- Turning circle
- 10.4 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 205/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.6i (105 KM)
Gasoline · 2006–2009
- Engine power
- 105 KM
- Torque
- 145 Nm
- Engine displacement
- 1,598 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.2 s
- Maximum speed
- 182 km/h
On this page
Check vehicle history
Basic version information
Mazda 3 3 I Hatchback (BK, facelift 2006)- Brand
- Mazda
- Model
- 3
- Version
- 3 I Hatchback (BK, facelift 2006)
- Engine
- 1.6i (105 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2006
- End of production
- 2009
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 182 km/h
- Acceleration 0-100 km/h
- 11.2 s
- Fuel consumption - Urban cycle
- 8.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.7 l/100 km
- Fuel consumption - Combined cycle
- 6.9 l/100 km
- Emission standard
- Euro 4
- CO2 emissions
- 162 g/km
Engine
- Engine model / code
- Z601, Z627
- Engine position
- Front, Transverse
- Engine displacement
- 1598 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 78 mm
- Piston stroke
- 83.6 mm
- Compression ratio
- 10
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.9 l
- Coolant capacity
- 6 l
- Power
- 105 KM @ 6000 obr./min
- Torque
- 145 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 55 l
- Aerodynamic drag coefficient (Cx)
- 0.31
- Minimum trunk capacity
- 300 l
- Maximum trunk capacity
- 635 l
- Curb weight
- 1190 kg
- Gross weight
- 1725 kg
- Braked trailer load (12% slope start)
- 1200 kg
- Trailer load without brakes
- 550 kg
Vehicle dimensions
- Length
- 4415 mm
- Width
- 1755 mm
- Width with unfolded mirrors
- 1935 mm
- Height
- 1465 mm
- Wheelbase
- 2640 mm
- Front track
- 1530 mm
- Rear track
- 1515 mm
- Ground clearance
- 160 mm
- Turning circle
- 10.4 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 205/55 R16
- Rim size
- 16
- ABS
- yes
