Vehicle specifications
Honda Clarity Clarity
Compare all 3 engine versions of the Honda Clarity Clarity, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Honda Clarity Clarity? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.

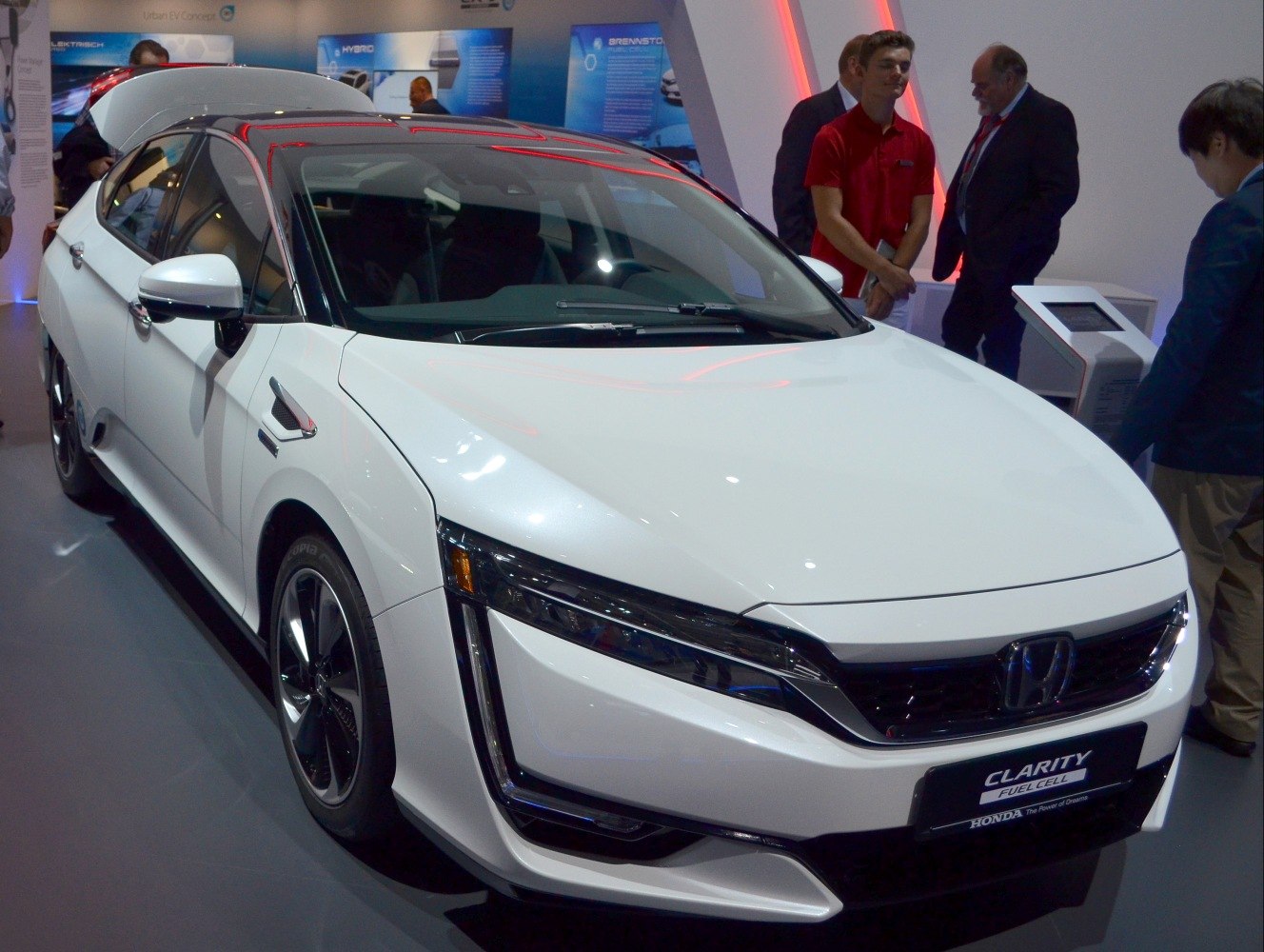

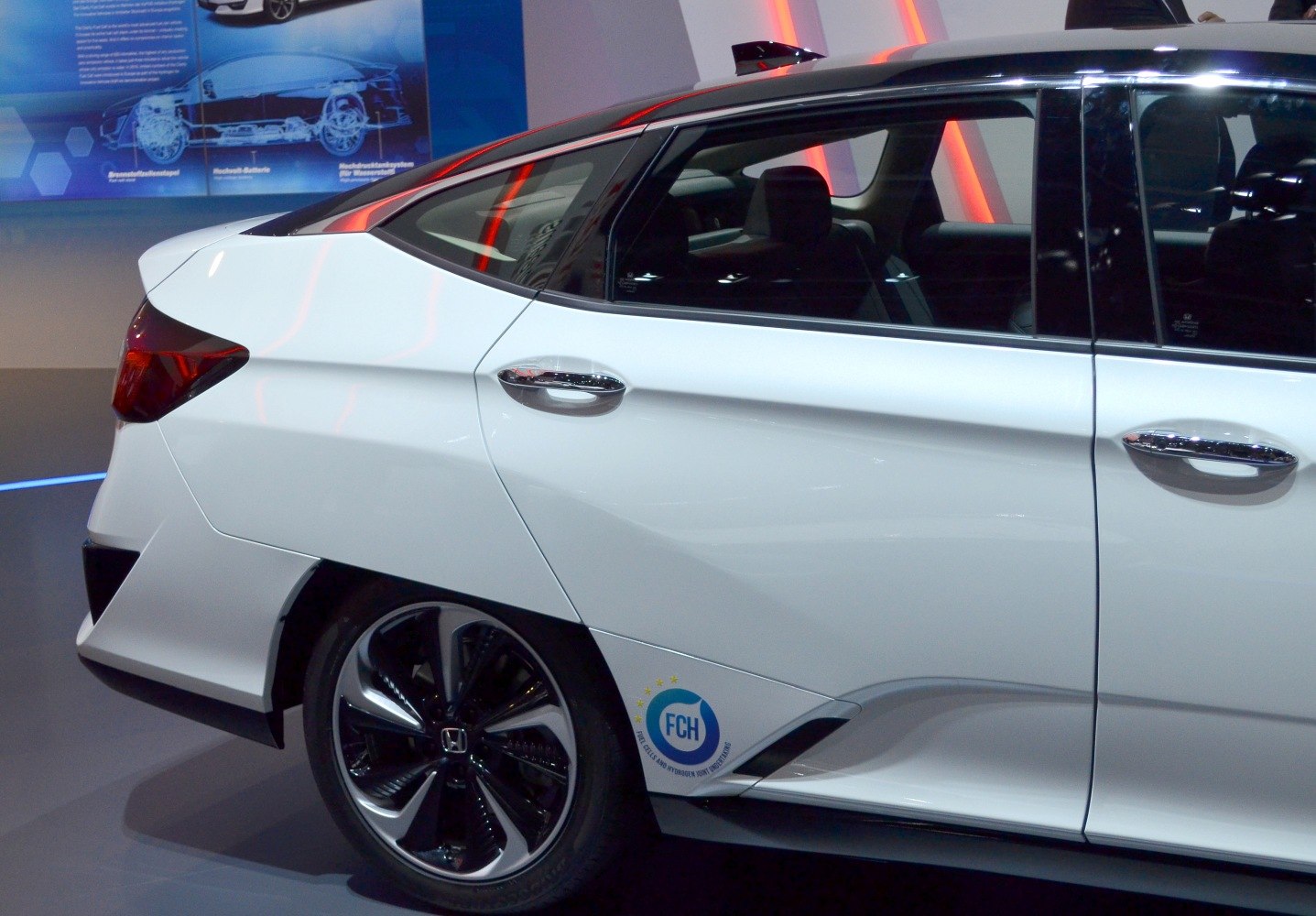

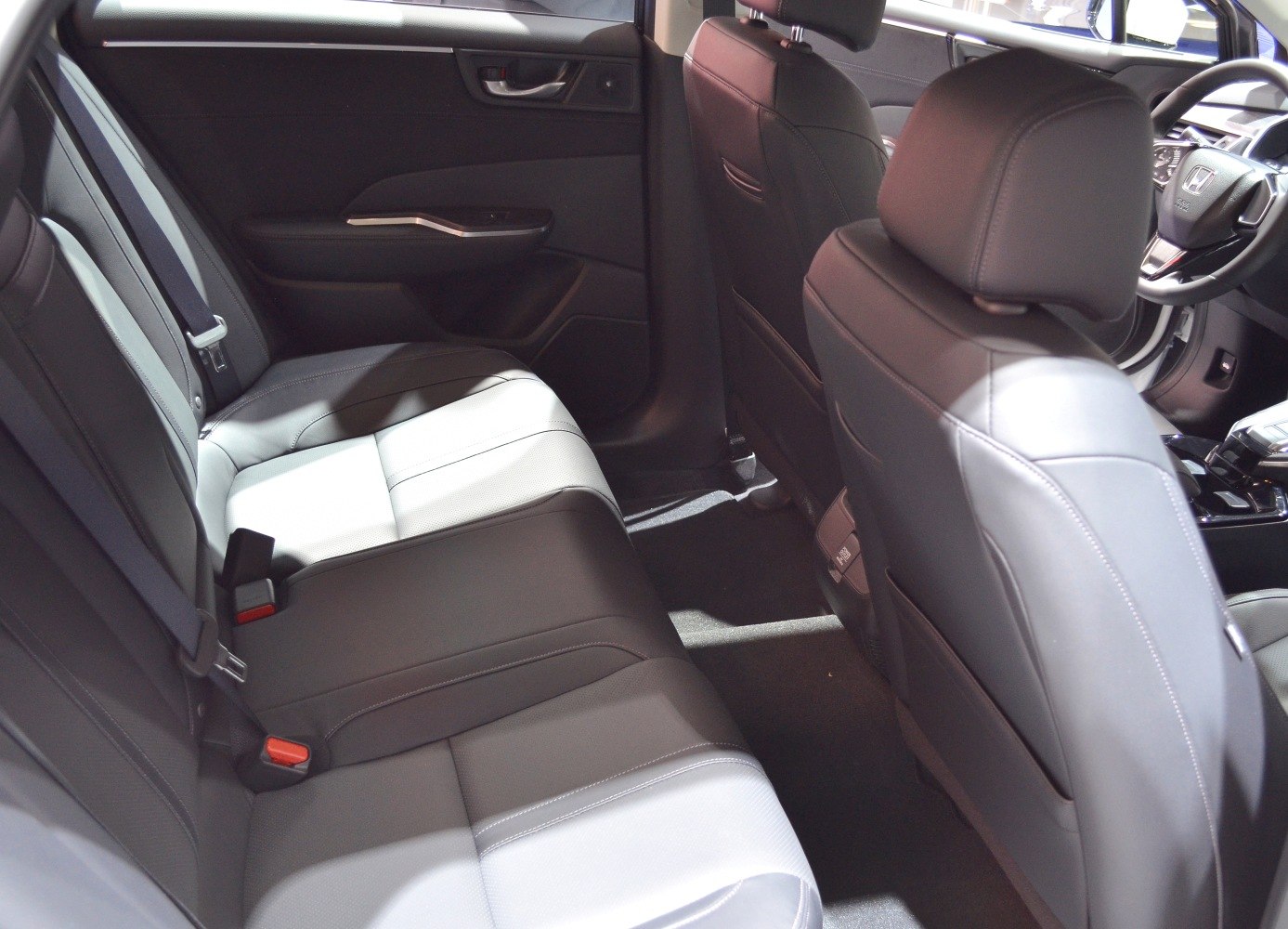

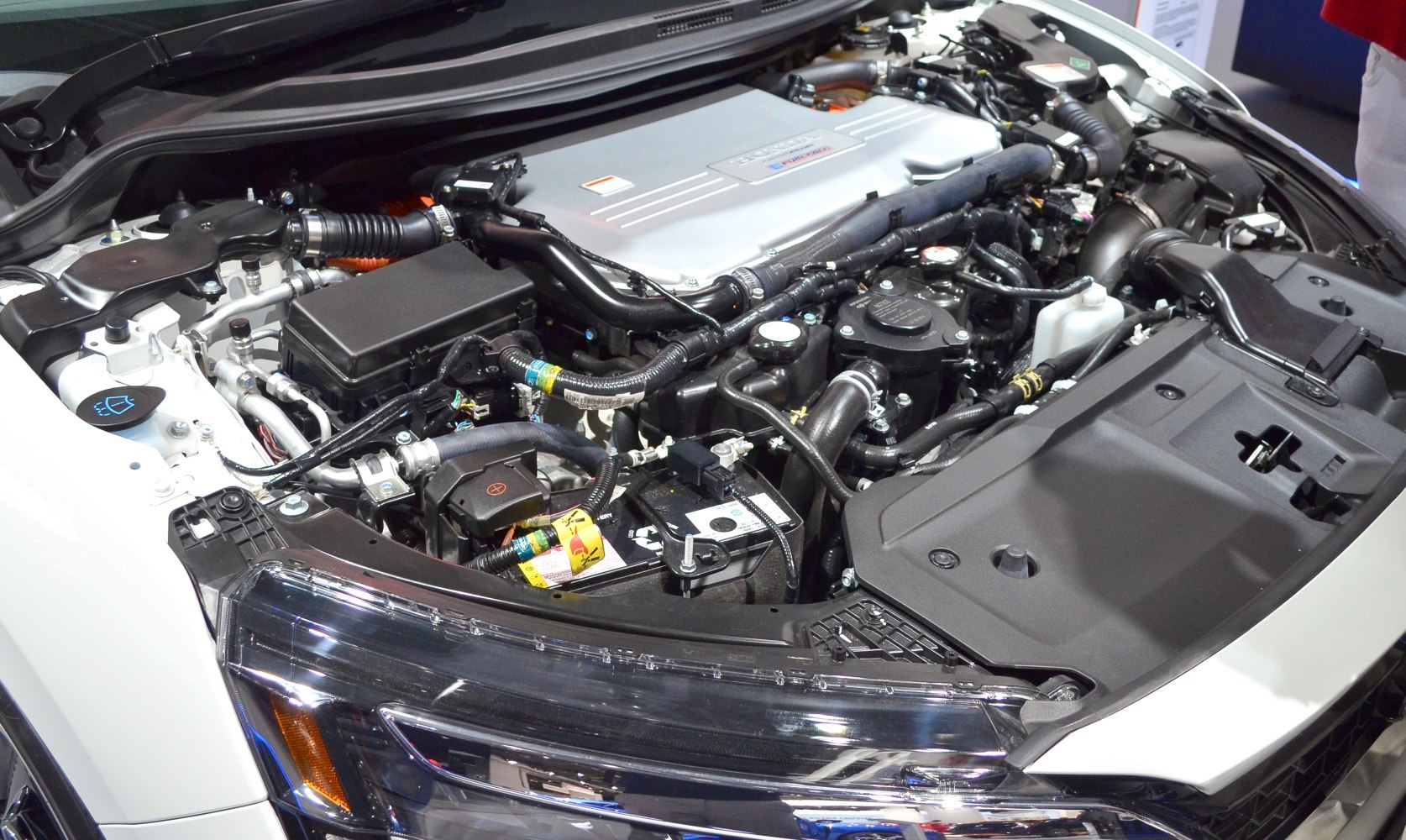

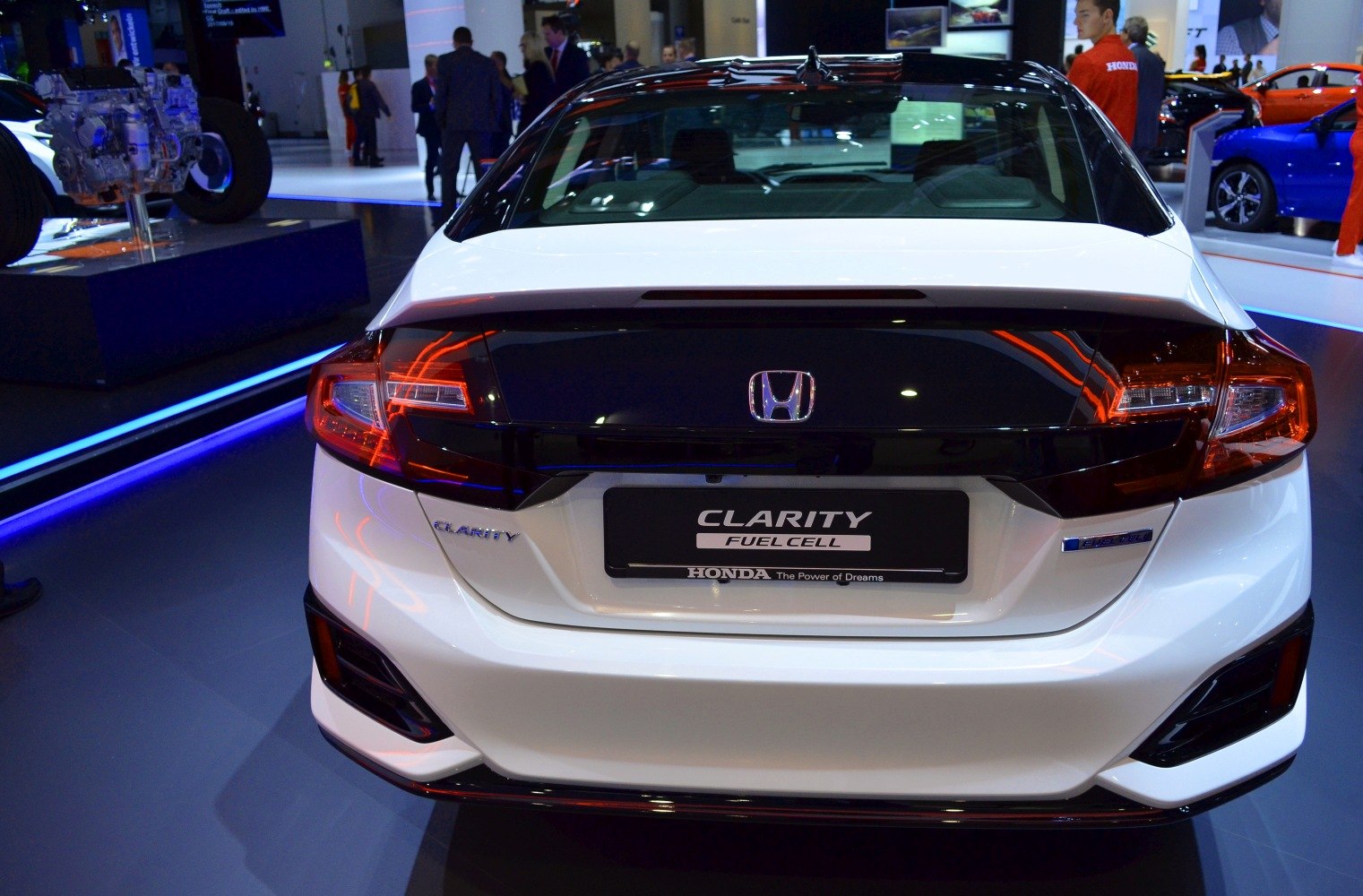

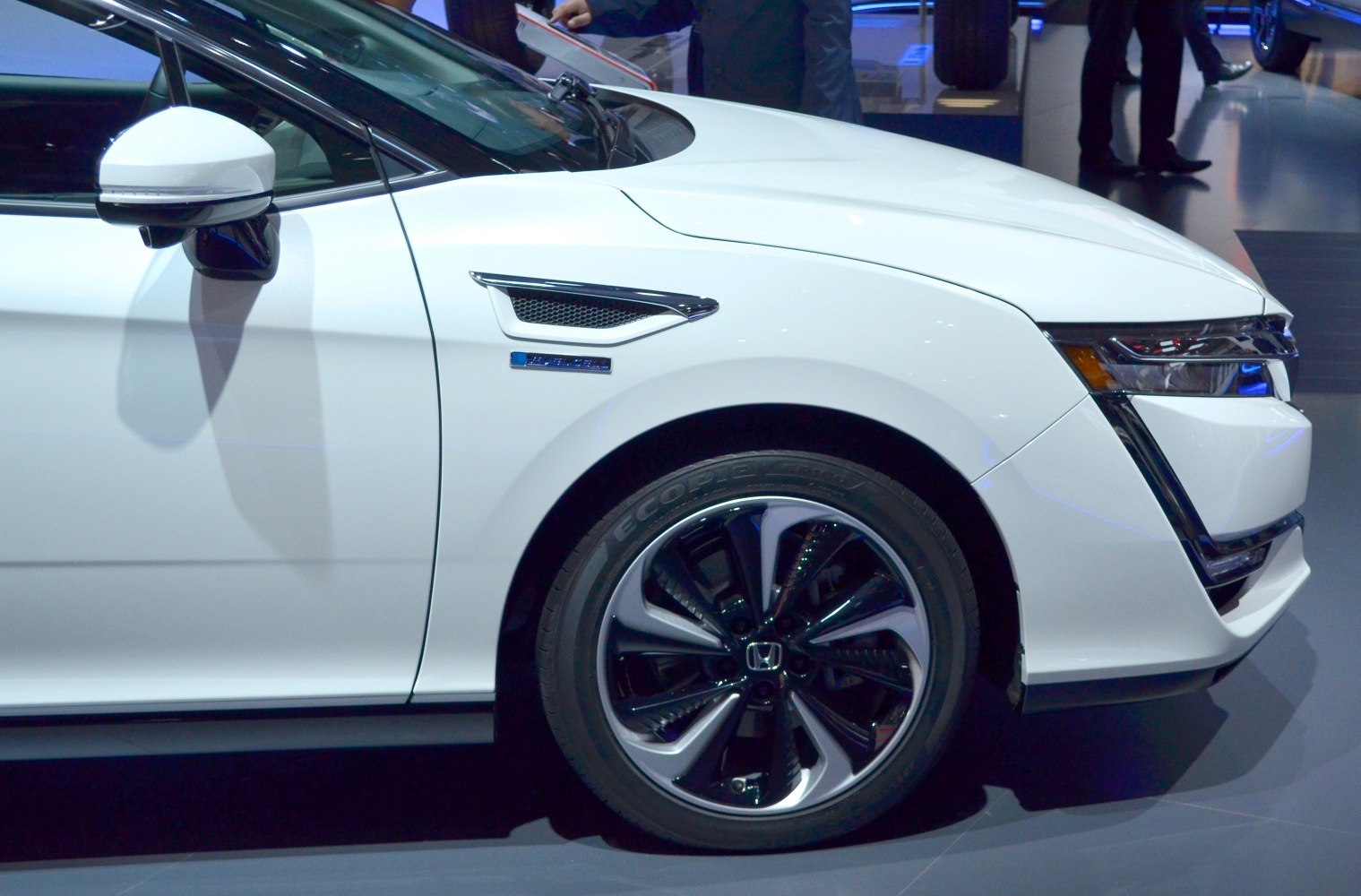

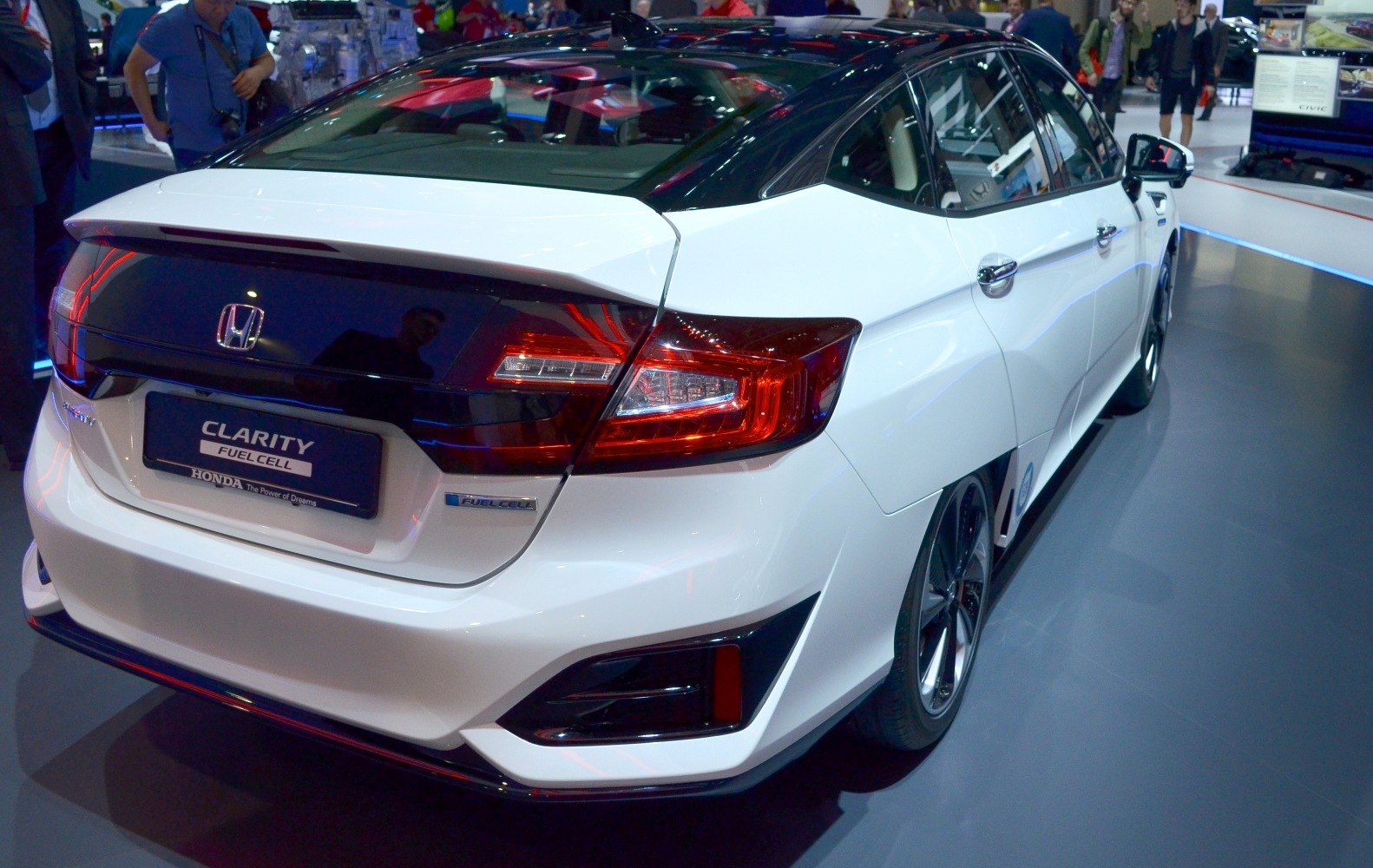

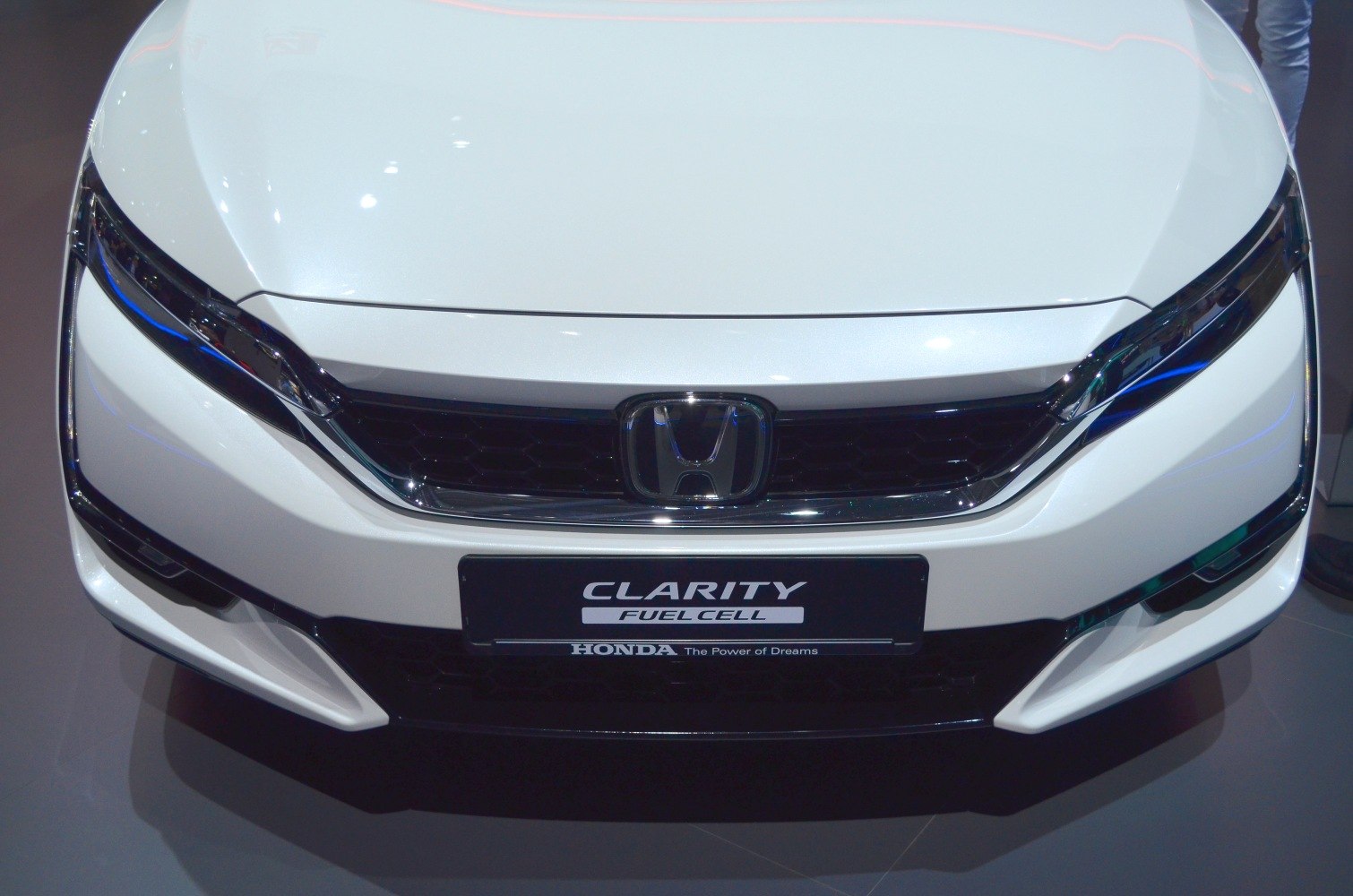

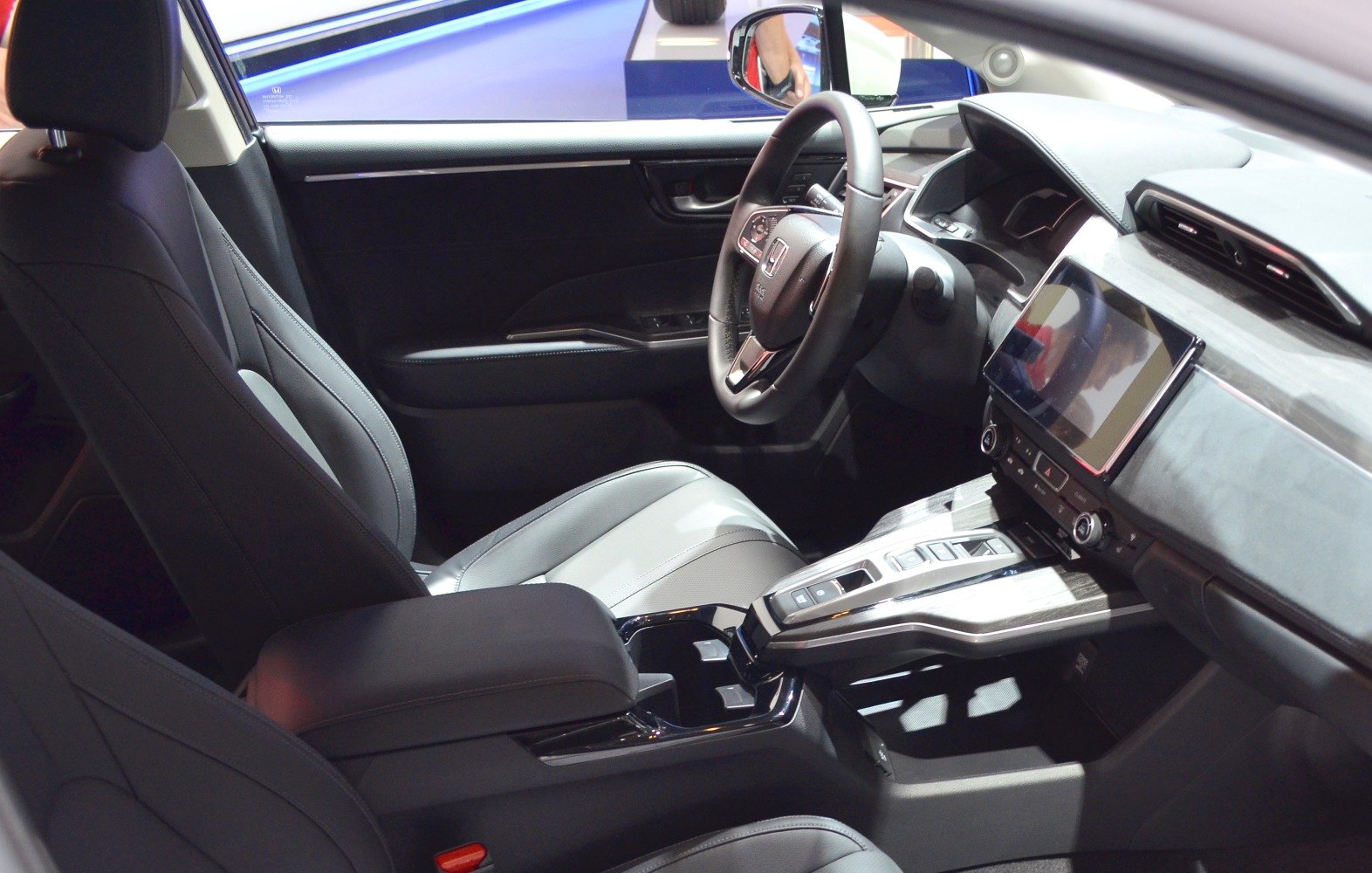

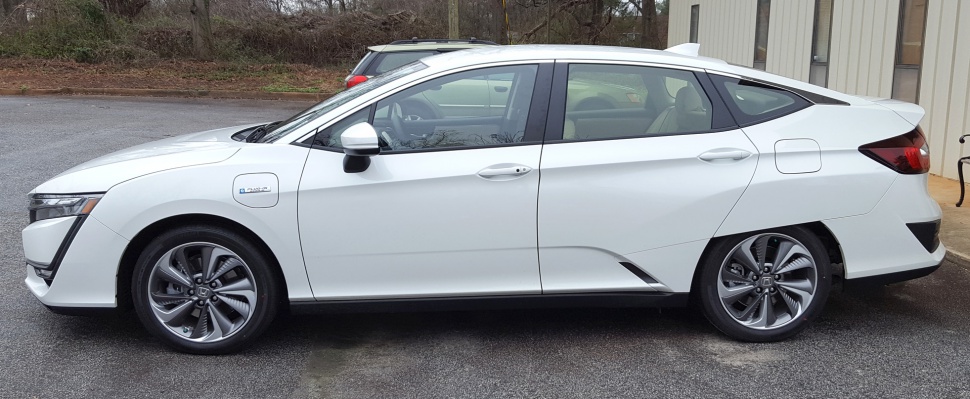

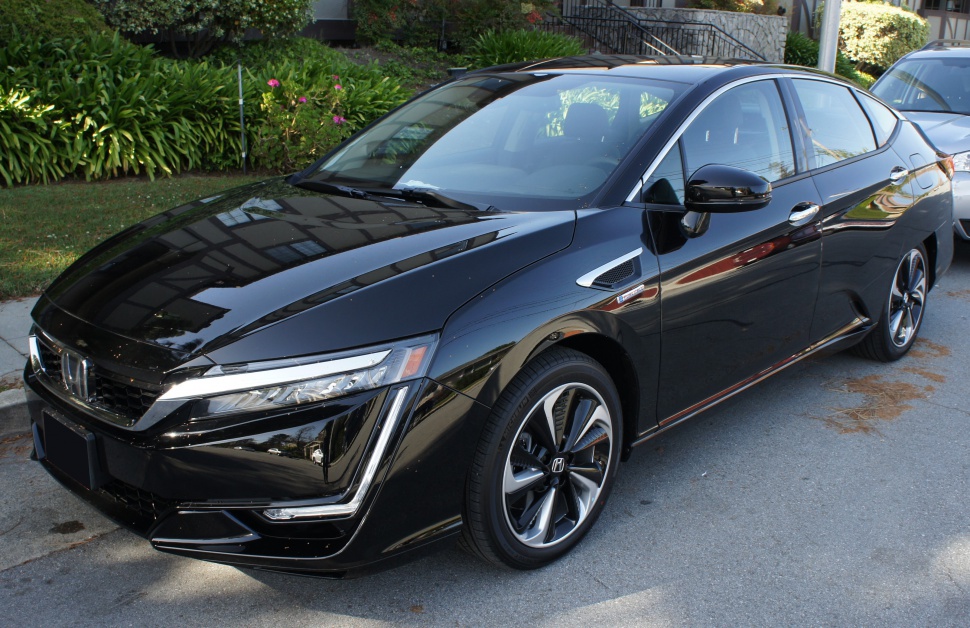

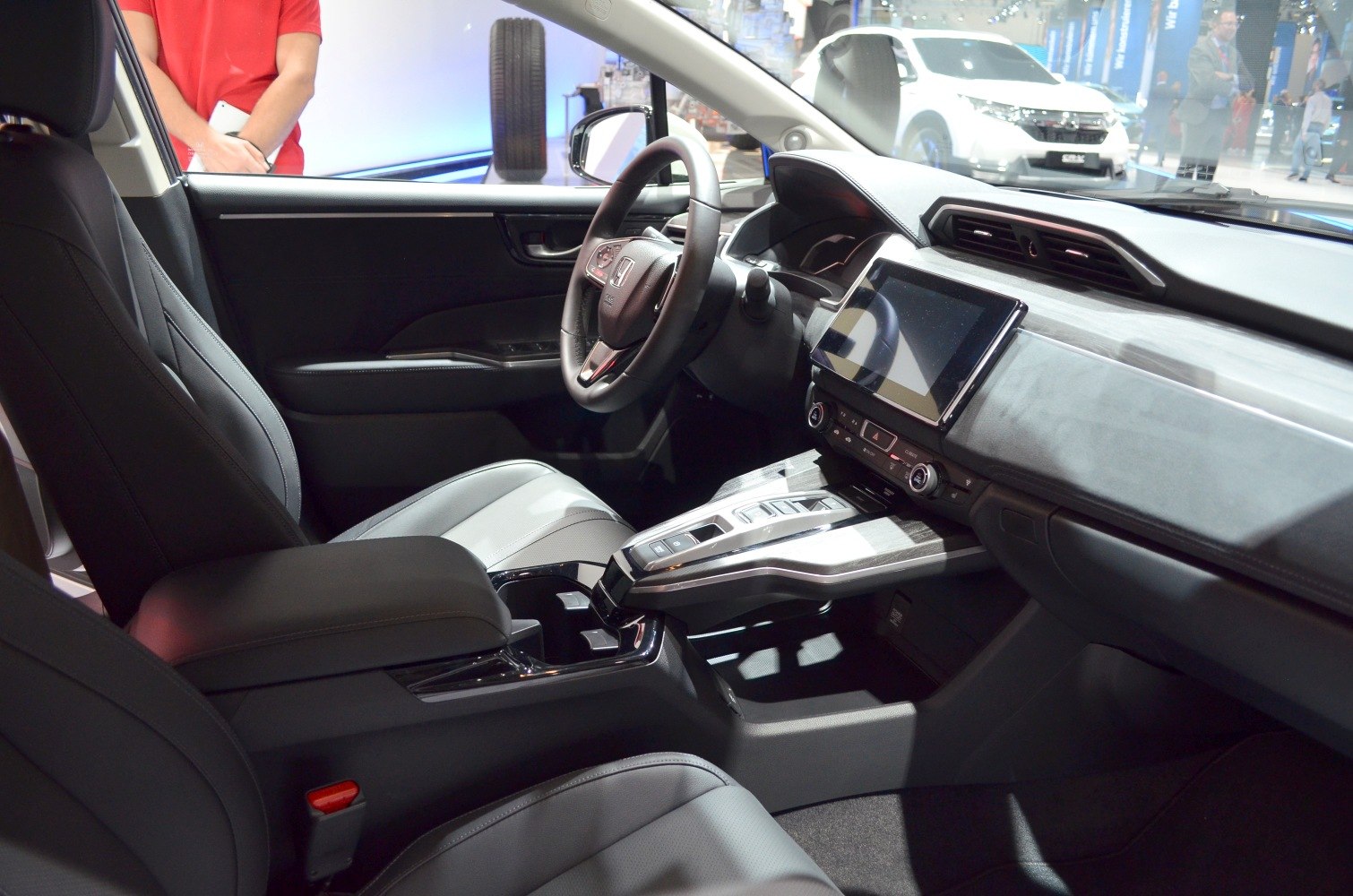

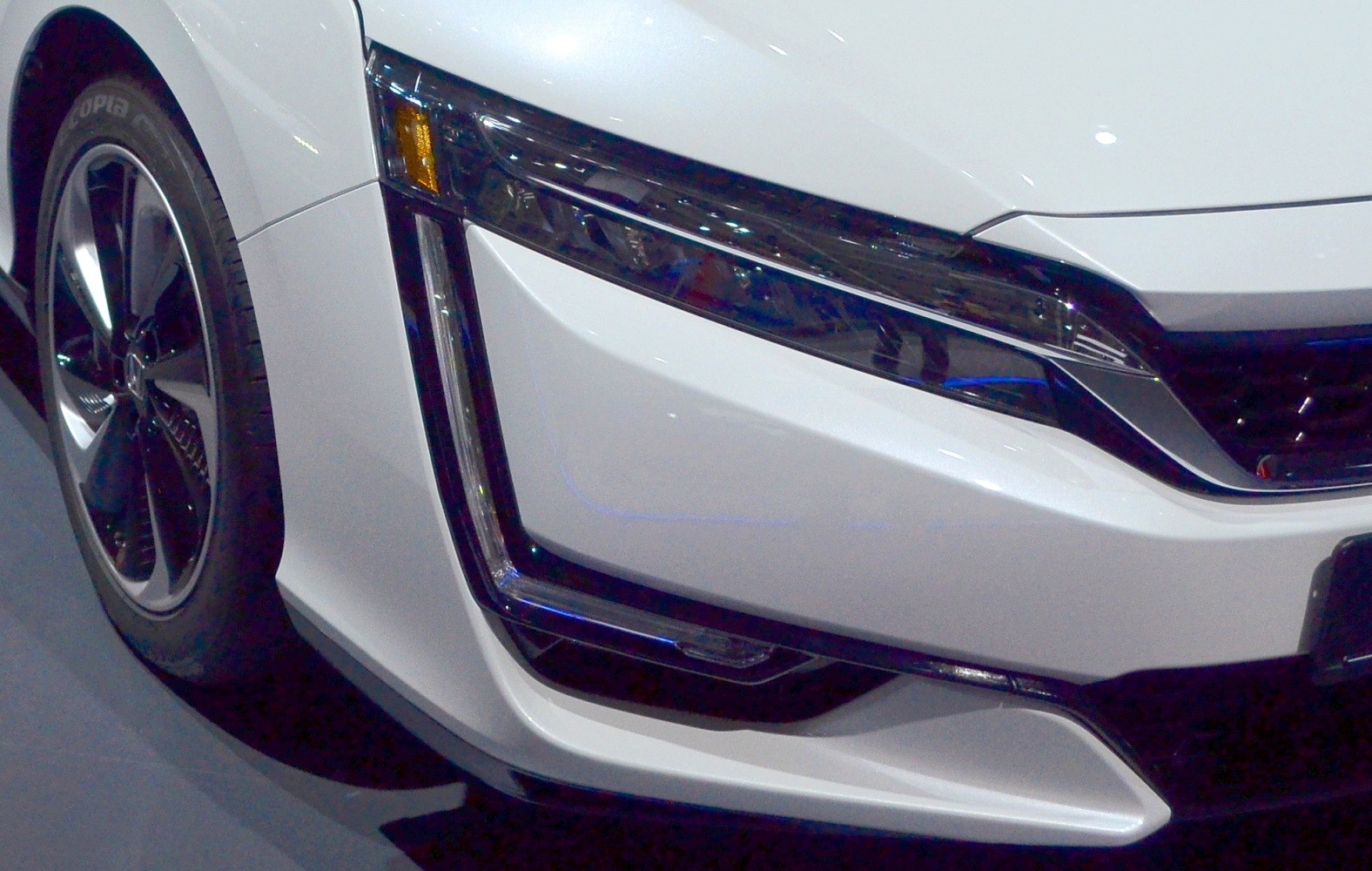

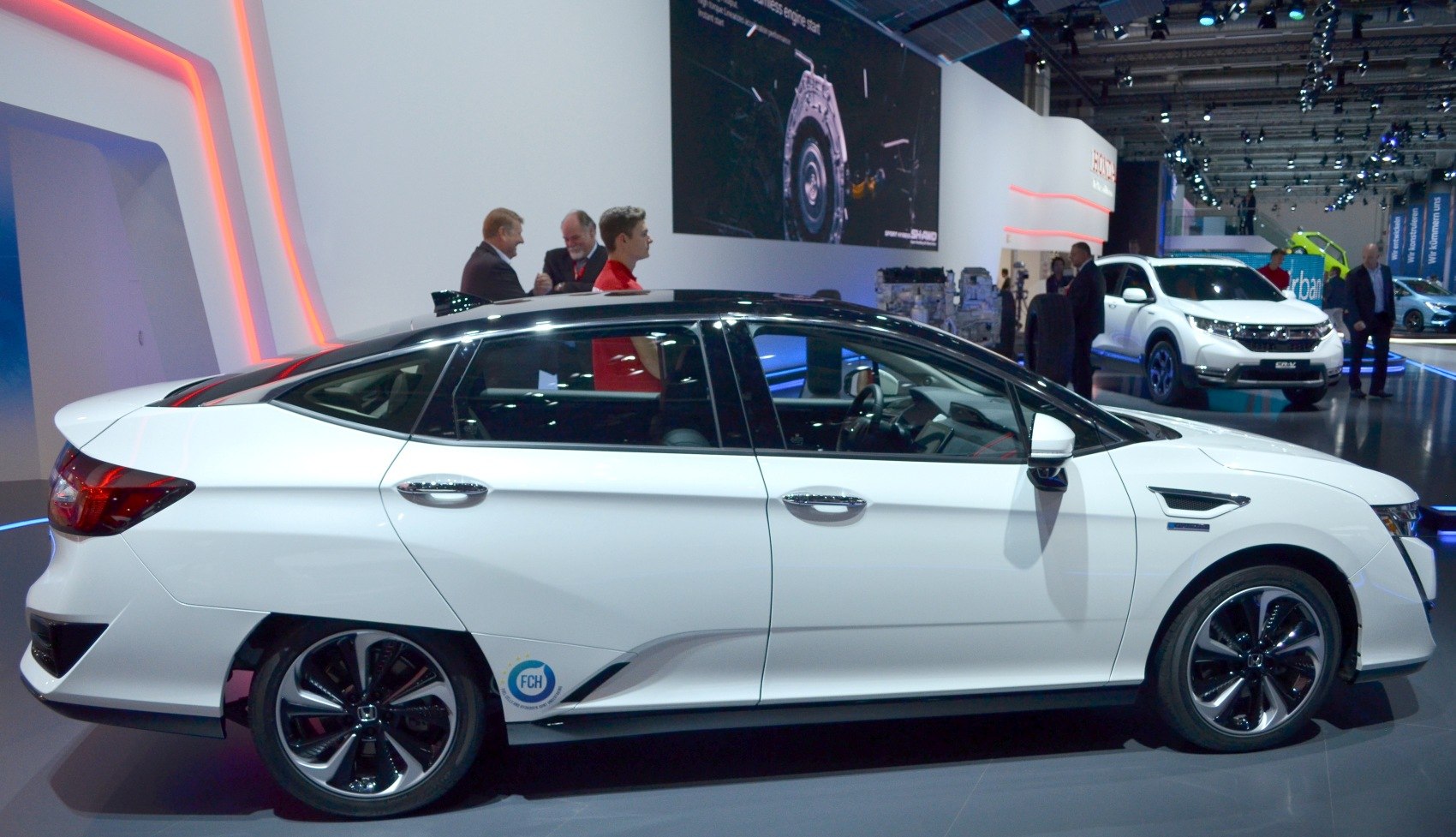

Vehicle photos
1 of 14
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
3 versions · 1 Gasoline / Electricity · 1 Electricity · 1 Hydrogen
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.5 (212 KM) Plug-in Hybrid e-CVT Selected | Gasoline / Electricity | 103 KM | 2017–2021 |
| 25.5 kWh (163 KM) Electric Automatic Selected | Electricity | 2016–2019 | |
| (174 KM) Fuel Cell Automatic Selected | Hydrogen | 2017–2021 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.5 (212 KM) Plug-in Hybrid e-CVT
Gasoline / Electricity · 2017–2021
- Engine power
- 103 KM
- Torque
- 134 Nm
- Engine displacement
- 1,498 cm³
- Fuel type
- Gasoline / Electricity
On this page
Check vehicle history
Basic version information
Honda Clarity Clarity- Brand
- Honda
- Model
- Clarity
- Version
- Clarity
- Engine
- 1.5 (212 KM) Plug-in Hybrid e-CVT
- Engine type
- PHEV (Plug-in Hybrid Electric Vehicle)
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2021
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Gasoline / Electricity
Performance
- Battery gross capacity
- 17 kWh
- All-electric range
- 76 km
- Fuel consumption - Urban cycle
- 5.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.9 l/100 km
- Fuel consumption - Combined cycle
- 5.6 l/100 km
Engine
- Max electric motor power
- 181 KM @ 5000-6000 obr./min
- Electric motor torque
- 315 Nm @ 0-2000 obr./min
- System power
- 212 KM
- Engine model / code
- LEB3
- Engine position
- Front, Transverse
- Engine displacement
- 1498 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC, i-VTEC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 73 mm
- Piston stroke
- 89.5 mm
- Compression ratio
- 13.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.3 l
- Coolant capacity
- 4.97 l
- Power
- 103 KM @ 5500 obr./min
- Torque
- 134 Nm @ 5000 obr./min
Volume and weight
- Fuel tank
- 26 l
- Minimum trunk capacity
- 439 l
- Curb weight
- 1838 kg
Vehicle dimensions
- Length
- 4895 mm
- Width
- 1877 mm
- Height
- 1478 mm
- Wheelbase
- 2751 mm
- Front track
- 1580 mm
- Rear track
- 1587 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Type of automatic gearbox
- e-CVT
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 312 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 309 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 235/45 R18
- Rim size
- 8J x 18
- ABS
- yes
Selected engine version
25.5 kWh (163 KM) Electric Automatic
Electricity · 2016–2019
- Fuel type
- Electricity
On this page
Check vehicle history
Basic version information
Honda Clarity Clarity- Brand
- Honda
- Model
- Clarity
- Version
- Clarity
- Engine
- 25.5 kWh (163 KM) Electric Automatic
- Engine type
- BEV (Battery Electric Vehicle)
- Number of doors
- 4
- Start of production
- 2016
- End of production
- 2019
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Electricity
Performance
- Battery gross capacity
- 25.5 kWh
- All-electric range
- 143 km
Engine
- Max electric motor power
- 163 KM @ 4000-9500 obr./min
- Electric motor torque
- 300 Nm @ 0-3500 obr./min
- System power
- 163 KM @ 4000-9500 obr./min
Volume and weight
- Minimum trunk capacity
- 405 l
- Curb weight
- 1825 kg
Vehicle dimensions
- Length
- 4895 mm
- Width
- 1877 mm
- Height
- 1478 mm
- Wheelbase
- 2751 mm
- Front track
- 1580 mm
- Rear track
- 1587 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 1
- Type of automatic gearbox
- SBW
- Front suspension
- Independent McPherson type
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 235/45 R18
- Rim size
- 8J x 18
- ABS
- yes
Selected engine version
(174 KM) Fuel Cell Automatic
Hydrogen · 2017–2021
- Fuel type
- Hydrogen
On this page
Check vehicle history
Basic version information
Honda Clarity Clarity- Brand
- Honda
- Model
- Clarity
- Version
- Clarity
- Engine
- (174 KM) Fuel Cell Automatic
- Engine type
- FCEV (Fuel Cell Electric Vehicle)
- Number of doors
- 4
- Start of production
- 2017
- End of production
- 2021
- Body type
- Sedan
- Number of seats
- 5
- Fuel type
- Hydrogen
Performance
- All-electric range
- 360 km
- Average energy consumption
- 30.8 kWh/100 km
Engine
- Max electric motor power
- 174 KM @ 4501-9028 obr./min
- Electric motor torque
- 300 Nm @ 0-3500 obr./min
- System power
- 174 KM @ 4501-9028 obr./min
Volume and weight
- Minimum trunk capacity
- 334 l
- Curb weight
- 1875 kg
Vehicle dimensions
- Length
- 4895 mm
- Width
- 1877 mm
- Height
- 1478 mm
- Wheelbase
- 2751 mm
- Front track
- 1580 mm
- Rear track
- 1587 mm
- Turning circle
- 11.7 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 1
- Type of automatic gearbox
- SBW
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Independent multi-link suspension
- Front brakes
- Ventilated disc
- Front brake disc/drum diameter
- 312 mm
- Rear brakes
- Disc
- Rear brake disc/drum diameter
- 309 mm
- Steering system
- Rack-and-pinion
- Power steering
- Electric power steering
- Tire size
- 235/45 R18
- Rim size
- 8J x 18
- ABS
- yes
