Vehicle specifications
Honda Civic VII Hatchback 5D
Compare all 6 engine versions of the Honda Civic Civic VII Hatchback 5D, then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Honda Civic VII Hatchback 5D? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Honda Civic VII Hatchback 5D?
See the places on a 3D model →- VIN number
- Firewall (bulkhead), centre
- Dashboard, visible through the windscreen
- Identification plate
- Suspension strut tower, left side

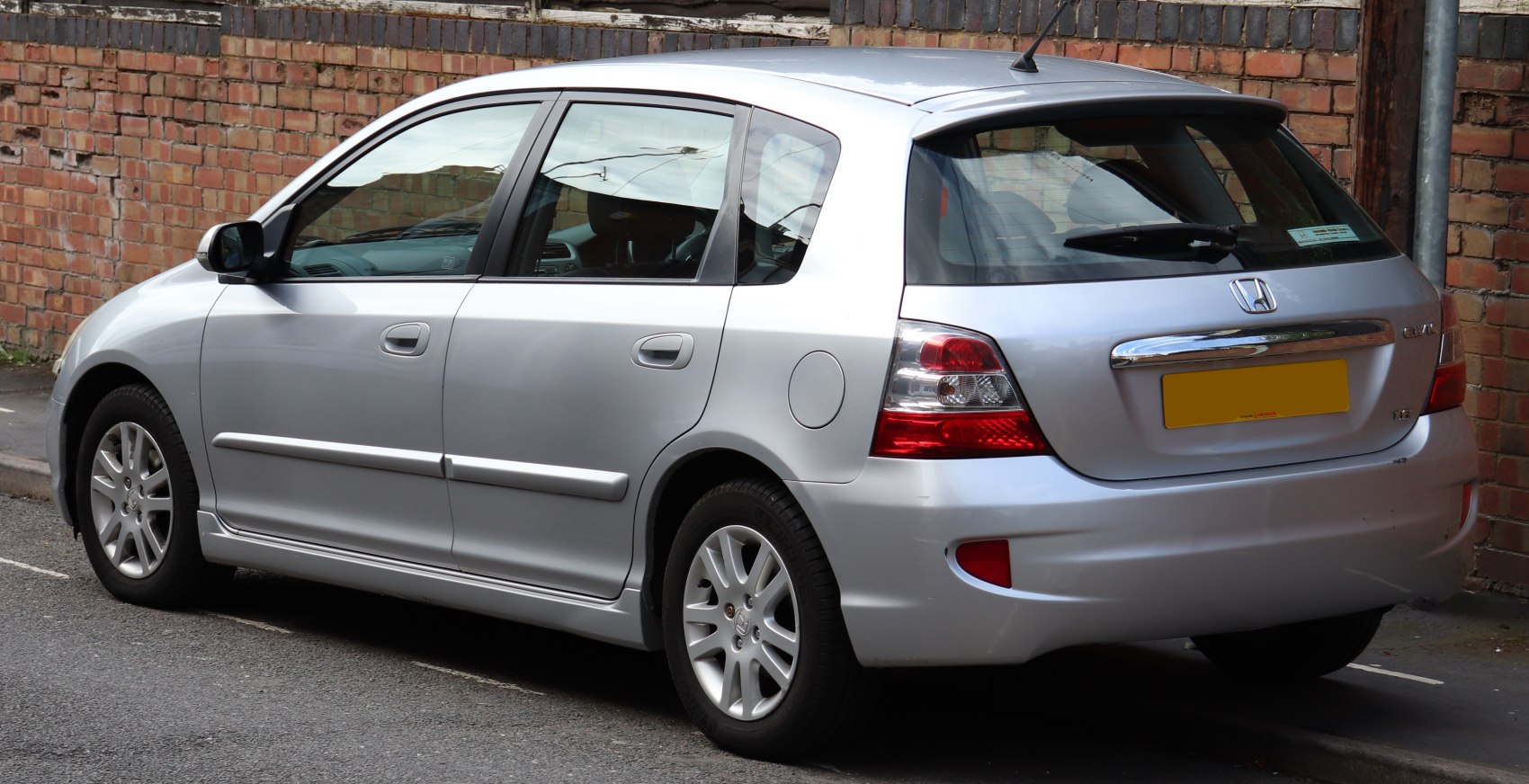

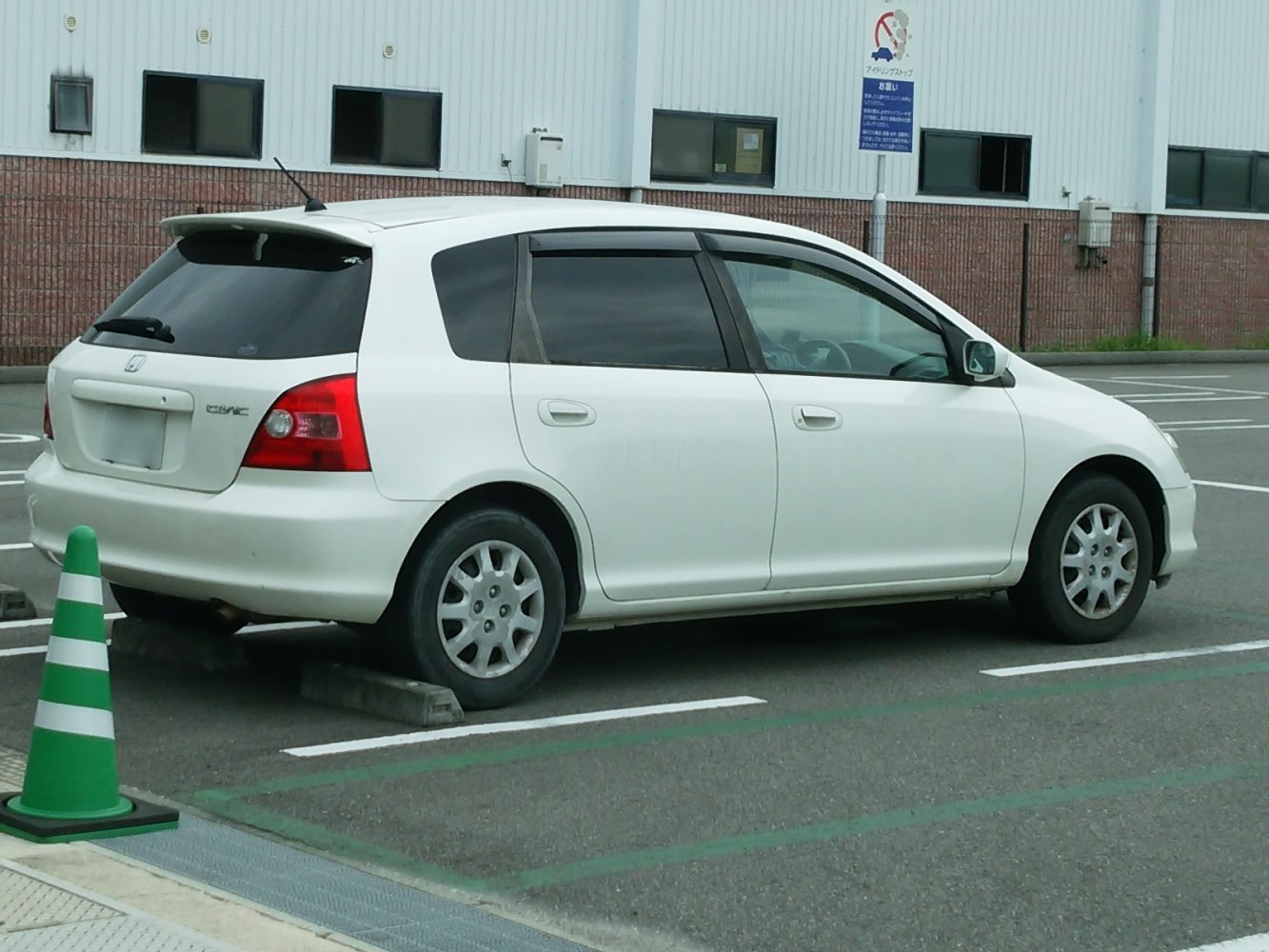

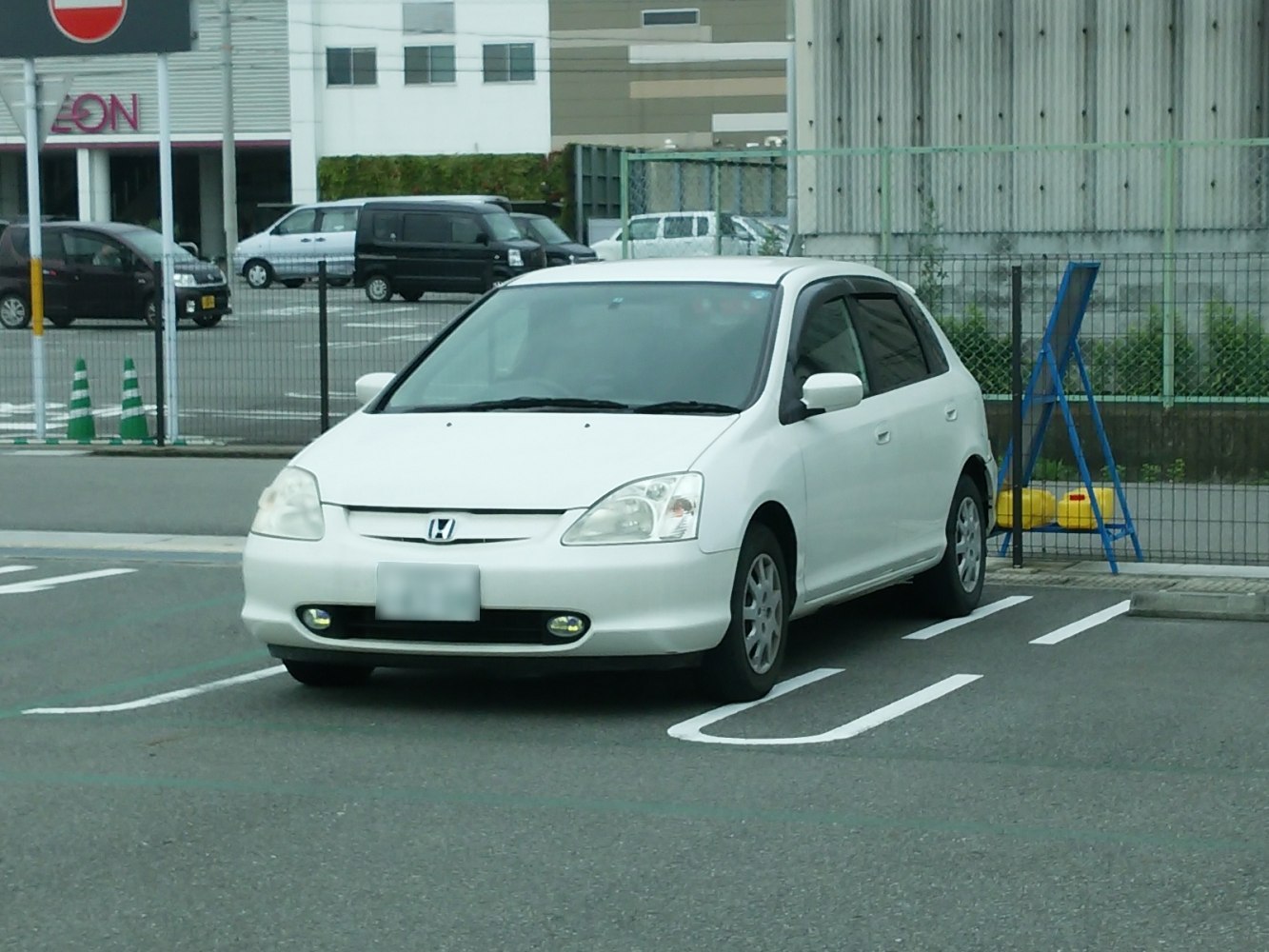

Vehicle photos
1 of 4
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
6 versions · 5 Gasoline · 1 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.4 16V (90 KM) Selected | Gasoline | 90 KM | 2001–2006 |
| 1.6 16V (110 KM) Selected | Gasoline | 110 KM | 2001–2006 |
| 1.7 CTDI (100 KM) Selected | Diesel fuel | 100 KM | 2001–2006 |
| 2.0 i 16V Type S (160 KM) Selected | Gasoline | 160 KM | 2004–2005 |
| 1.6 16V (110 KM) Automatic Selected | Gasoline | 110 KM | 2001–2006 |
| 1.4 16V (90 KM) Automatic Selected | Gasoline | 90 KM | 2001–2006 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.4 16V (90 KM)
Gasoline · 2001–2006
- Engine power
- 90 KM
- Torque
- 120 Nm
- Engine displacement
- 1,396 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.8 s
- Maximum speed
- 176 km/h
On this page
Check vehicle history
Basic version information
Honda Civic Civic VII Hatchback 5D- Brand
- Honda
- Model
- Civic
- Version
- Civic VII Hatchback 5D
- Engine
- 1.4 16V (90 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2001
- End of production
- 2006
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 176 km/h
- Acceleration 0-100 km/h
- 11.8 s
- Fuel consumption - Urban cycle
- 8.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.4 l/100 km
- Fuel consumption - Combined cycle
- 6.4 l/100 km
Engine
- Engine model / code
- D14Z6
- Engine position
- Front, Transverse
- Engine displacement
- 1396 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Piston stroke
- 79 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.2 l
- Coolant capacity
- 4 l
- Power
- 90 KM @ 6400 obr./min
- Torque
- 120 Nm @ 4800 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 370 l
- Maximum trunk capacity
- 1050 l
- Curb weight
- 1130 kg
- Gross weight
- 1620 kg
Vehicle dimensions
- Length
- 4285 mm
- Width
- 1695 mm
- Height
- 1495 mm
- Wheelbase
- 2680 mm
- Front track
- 1468 mm
- Rear track
- 1469 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- With spring struts
- Rear suspension
- Anti-roll bar
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 185/70 R14
- ABS
- yes
Selected engine version
1.6 16V (110 KM)
Gasoline · 2001–2006
- Engine power
- 110 KM
- Torque
- 152 Nm
- Engine displacement
- 1,590 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 10.2 s
- Maximum speed
- 187 km/h
On this page
Check vehicle history
Basic version information
Honda Civic Civic VII Hatchback 5D- Brand
- Honda
- Model
- Civic
- Version
- Civic VII Hatchback 5D
- Engine
- 1.6 16V (110 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2001
- End of production
- 2006
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 187 km/h
- Acceleration 0-100 km/h
- 10.2 s
- Fuel consumption - Urban cycle
- 8.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.5 l/100 km
- Fuel consumption - Combined cycle
- 6.7 l/100 km
Engine
- Engine model / code
- D16V1
- Engine position
- Front, Transverse
- Engine displacement
- 1590 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Piston stroke
- 90 mm
- Compression ratio
- 10.4
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.5 l
- Coolant capacity
- 4 l
- Power
- 110 KM @ 5600 obr./min
- Torque
- 152 Nm @ 4300 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 370 l
- Maximum trunk capacity
- 1050 l
- Curb weight
- 1145 kg
- Gross weight
- 1630 kg
Vehicle dimensions
- Length
- 4285 mm
- Width
- 1695 mm
- Height
- 1495 mm
- Wheelbase
- 2680 mm
- Front track
- 1468 mm
- Rear track
- 1469 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- With spring struts
- Rear suspension
- Anti-roll bar
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 195/60 R15
- Rim size
- 15
- ABS
- yes
Selected engine version
1.7 CTDI (100 KM)
Diesel fuel · 2001–2006
- Engine power
- 100 KM
- Torque
- 220 Nm
- Engine displacement
- 1,687 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 11.5 s
- Maximum speed
- 182 km/h
On this page
Check vehicle history
Basic version information
Honda Civic Civic VII Hatchback 5D- Brand
- Honda
- Model
- Civic
- Version
- Civic VII Hatchback 5D
- Engine
- 1.7 CTDI (100 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2001
- End of production
- 2006
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 182 km/h
- Acceleration 0-100 km/h
- 11.5 s
- Fuel consumption - Urban cycle
- 6.2 l/100 km
- Fuel consumption - Extra-urban cycle
- 4.3 l/100 km
- Fuel consumption - Combined cycle
- 5 l/100 km
Engine
- Engine model / code
- 4EE-2
- Engine position
- Front, Transverse
- Engine displacement
- 1687 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 79 mm
- Piston stroke
- 86 mm
- Compression ratio
- 18.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 5 l
- Coolant capacity
- 5.33 l
- Power
- 100 KM @ 4400 obr./min
- Torque
- 220 Nm @ 1800 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 370 l
- Maximum trunk capacity
- 1050 l
- Curb weight
- 1295 kg
- Gross weight
- 1710 kg
Vehicle dimensions
- Length
- 4285 mm
- Width
- 1695 mm
- Height
- 1495 mm
- Wheelbase
- 2680 mm
- Front track
- 1468 mm
- Rear track
- 1469 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- With spring struts
- Rear suspension
- Anti-roll bar
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 195/60 R15
- ABS
- yes
Selected engine version
2.0 i 16V Type S (160 KM)
Gasoline · 2004–2005
- Engine power
- 160 KM
- Torque
- 191 Nm
- Engine displacement
- 1,998 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.7 s
- Maximum speed
- 210 km/h
On this page
Check vehicle history
Basic version information
Honda Civic Civic VII Hatchback 5D- Brand
- Honda
- Model
- Civic
- Version
- Civic VII Hatchback 5D
- Engine
- 2.0 i 16V Type S (160 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2004
- End of production
- 2005
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 210 km/h
- Acceleration 0-100 km/h
- 8.7 s
- Fuel consumption - Urban cycle
- 10.1 l/100 km
- Fuel consumption - Extra-urban cycle
- 6.1 l/100 km
- Fuel consumption - Combined cycle
- 7.5 l/100 km
Engine
- Engine model / code
- K20A3
- Engine position
- Front, Transverse
- Engine displacement
- 1998 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- DOHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 86 mm
- Piston stroke
- 86 mm
- Compression ratio
- 9.8
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.2 l
- Coolant capacity
- 5 l
- Power
- 160 KM @ 6500 obr./min
- Torque
- 191 Nm @ 4000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 370 l
- Maximum trunk capacity
- 775 l
- Curb weight
- 1286 kg
- Gross weight
- 1755 kg
Vehicle dimensions
- Length
- 4285 mm
- Width
- 1712 mm
- Height
- 1495 mm
- Wheelbase
- 2680 mm
- Front track
- 1470 mm
- Rear track
- 1473 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- With spring struts
- Rear suspension
- Anti-roll bar
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 205/55 R16
- Rim size
- 5.5J x 16
- ABS
- yes
Selected engine version
1.6 16V (110 KM) Automatic
Gasoline · 2001–2006
- Engine power
- 110 KM
- Torque
- 152 Nm
- Engine displacement
- 1,590 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11.7 s
- Maximum speed
- 182 km/h
On this page
Check vehicle history
Basic version information
Honda Civic Civic VII Hatchback 5D- Brand
- Honda
- Model
- Civic
- Version
- Civic VII Hatchback 5D
- Engine
- 1.6 16V (110 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2001
- End of production
- 2006
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 182 km/h
- Acceleration 0-100 km/h
- 11.7 s
- Fuel consumption - Urban cycle
- 8.9 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.8 l/100 km
- Fuel consumption - Combined cycle
- 7.2 l/100 km
Engine
- Engine model / code
- D16V1
- Engine position
- Front, Transverse
- Engine displacement
- 1590 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Piston stroke
- 90 mm
- Compression ratio
- 10.4
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.5 l
- Coolant capacity
- 4 l
- Power
- 110 KM @ 5600 obr./min
- Torque
- 152 Nm @ 4300 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 370 l
- Maximum trunk capacity
- 1050 l
- Curb weight
- 1145 kg
- Gross weight
- 1630 kg
Vehicle dimensions
- Length
- 4285 mm
- Width
- 1695 mm
- Height
- 1495 mm
- Wheelbase
- 2680 mm
- Front track
- 1468 mm
- Rear track
- 1469 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front suspension
- With spring struts
- Rear suspension
- Anti-roll bar
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 195/60 R15
- Rim size
- 15
- ABS
- yes
Selected engine version
1.4 16V (90 KM) Automatic
Gasoline · 2001–2006
- Engine power
- 90 KM
- Torque
- 120 Nm
- Engine displacement
- 1,396 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 14.2 s
- Maximum speed
- 167 km/h
On this page
Check vehicle history
Basic version information
Honda Civic Civic VII Hatchback 5D- Brand
- Honda
- Model
- Civic
- Version
- Civic VII Hatchback 5D
- Engine
- 1.4 16V (90 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2001
- End of production
- 2006
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 167 km/h
- Acceleration 0-100 km/h
- 14.2 s
- Fuel consumption - Urban cycle
- 9.7 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.8 l/100 km
- Fuel consumption - Combined cycle
- 7.2 l/100 km
Engine
- Engine model / code
- D14Z6
- Engine position
- Front, Transverse
- Engine displacement
- 1396 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Valvetrain
- OHC
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 75 mm
- Piston stroke
- 79 mm
- Compression ratio
- 9
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.2 l
- Coolant capacity
- 3.9 l
- Power
- 90 KM @ 6400 obr./min
- Torque
- 120 Nm @ 4800 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 370 l
- Maximum trunk capacity
- 1050 l
- Curb weight
- 1130 kg
- Gross weight
- 1620 kg
Vehicle dimensions
- Length
- 4285 mm
- Width
- 1695 mm
- Height
- 1495 mm
- Wheelbase
- 2680 mm
- Front track
- 1468 mm
- Rear track
- 1469 mm
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 4
- Front suspension
- With spring struts
- Rear suspension
- Anti-roll bar
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 185/70 R14
- Rim size
- 14
- ABS
- yes
