Vehicle specifications
Honda Civic IX Hatchback (facelift 2014)
Compare all 4 engine versions of the Honda Civic Civic IX Hatchback (facelift 2014), then open the technical data for the exact drivetrain and production year.
Vehicle history report
Buying a used Honda Civic IX Hatchback (facelift 2014)? Check the history of the exact car
A VIN report can help confirm the exact engine, equipment, mileage records and reported damage before you buy.
Where can I find the VIN of Honda Civic IX Hatchback (facelift 2014)?
See the places on a 3D model →- VIN number
- Firewall (bulkhead), right side

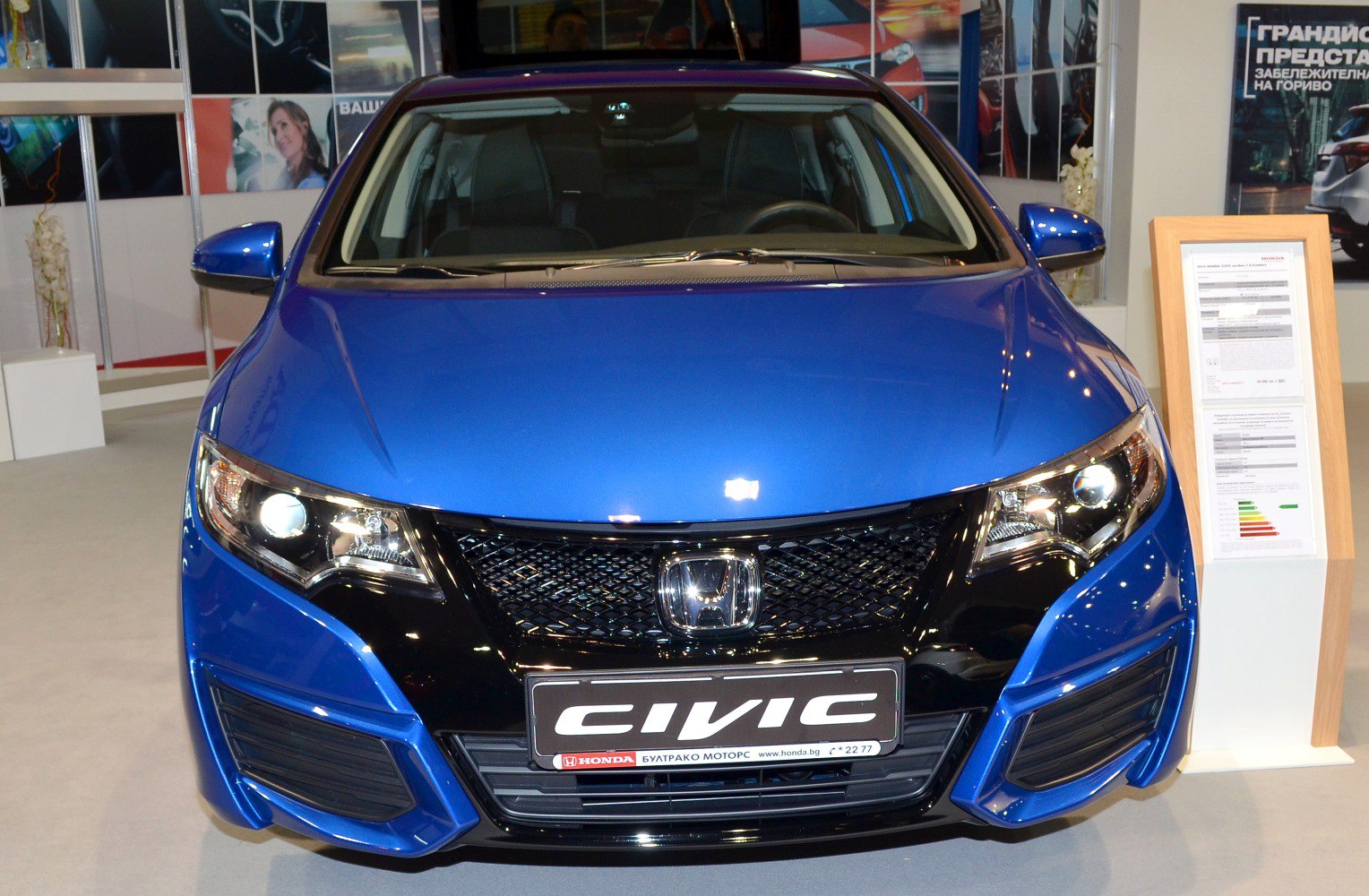

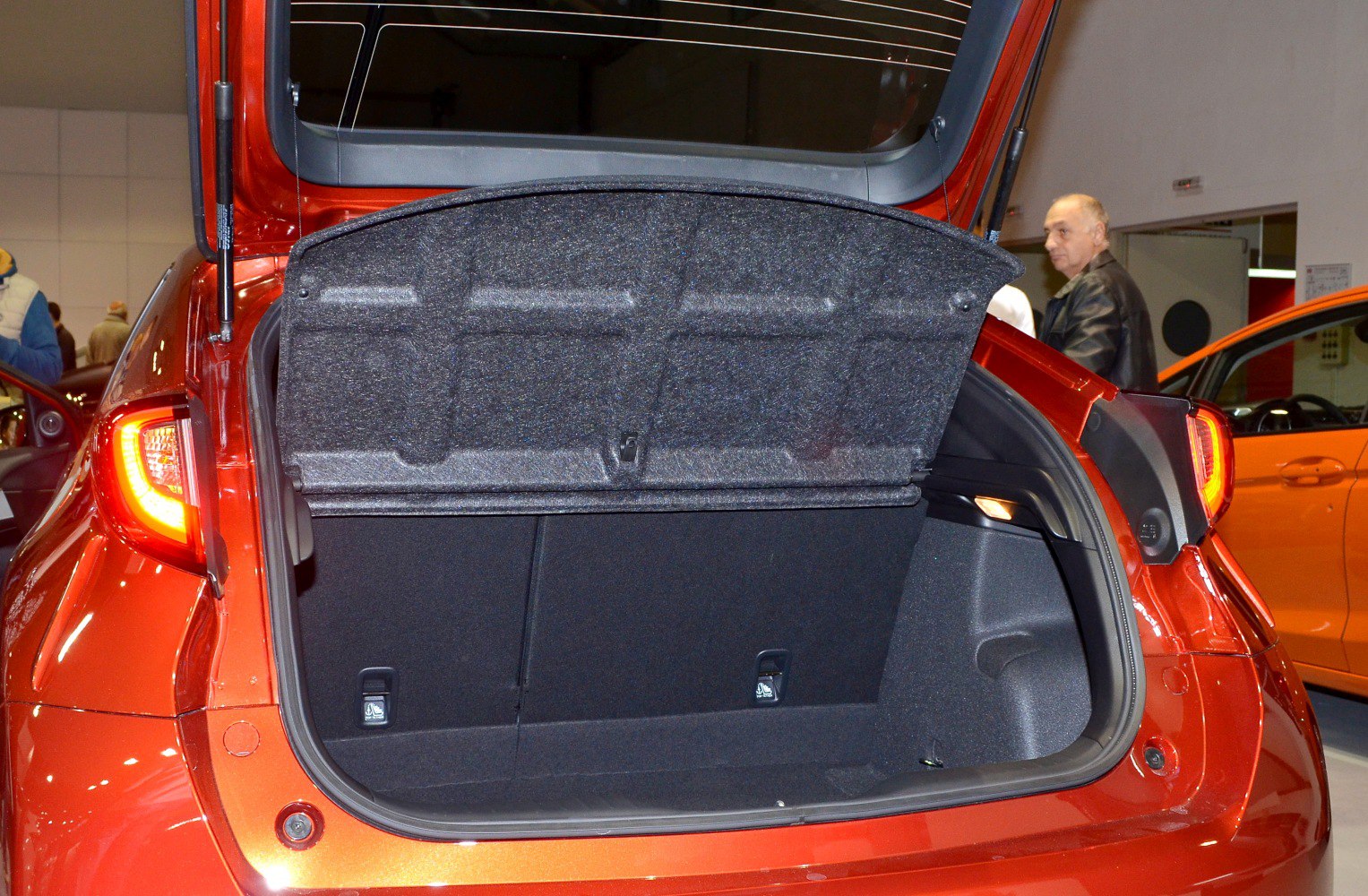

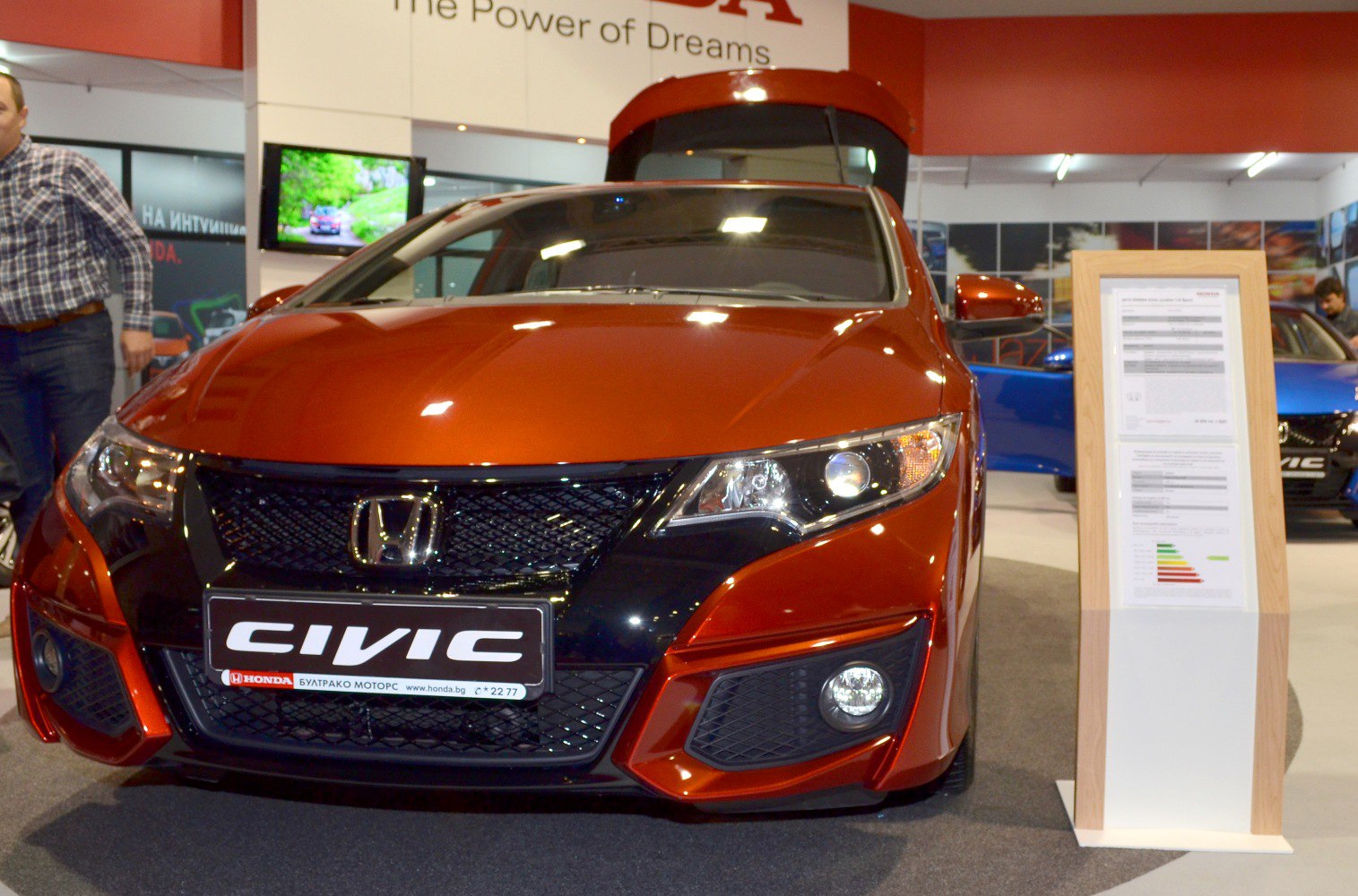

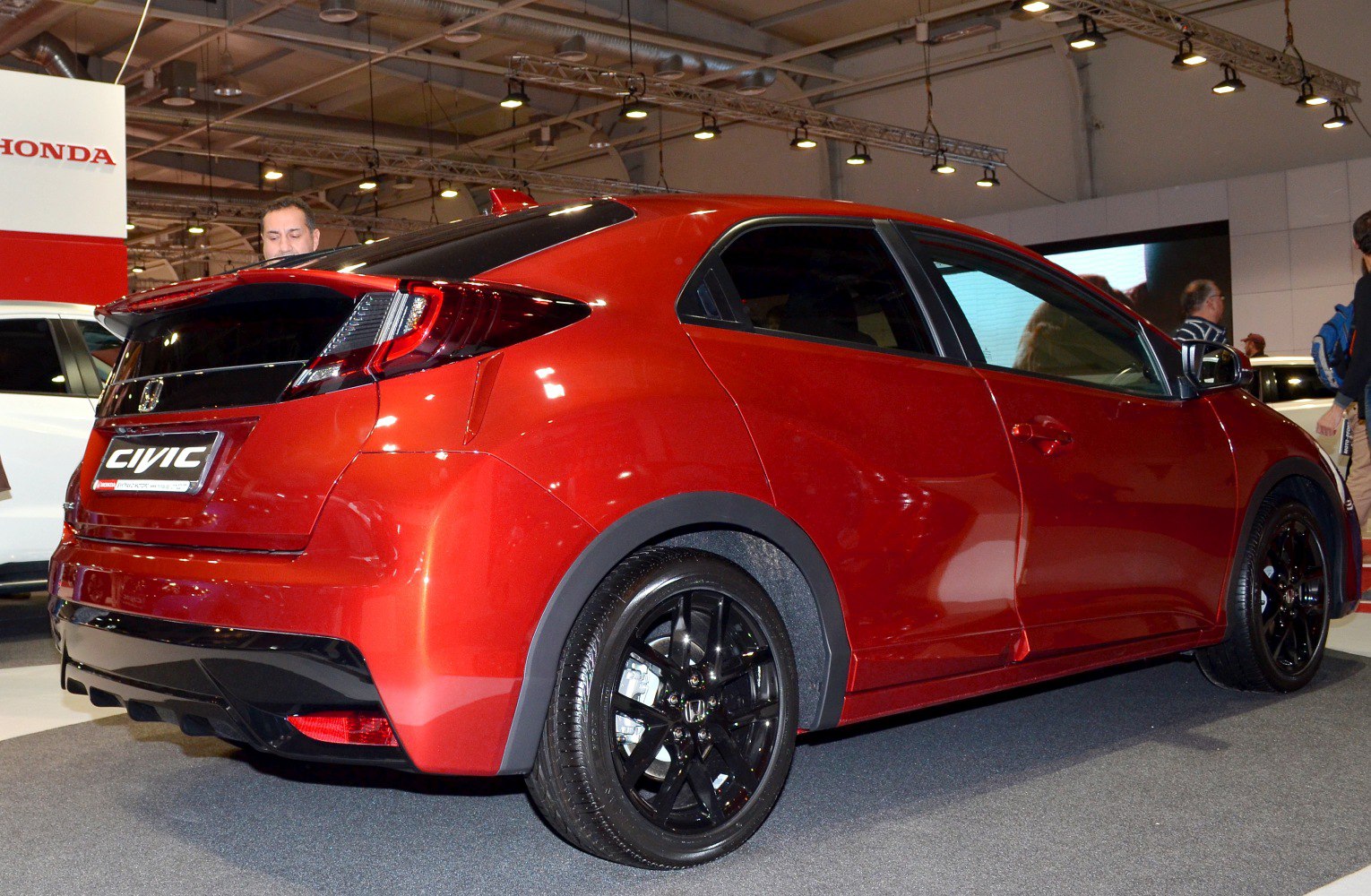

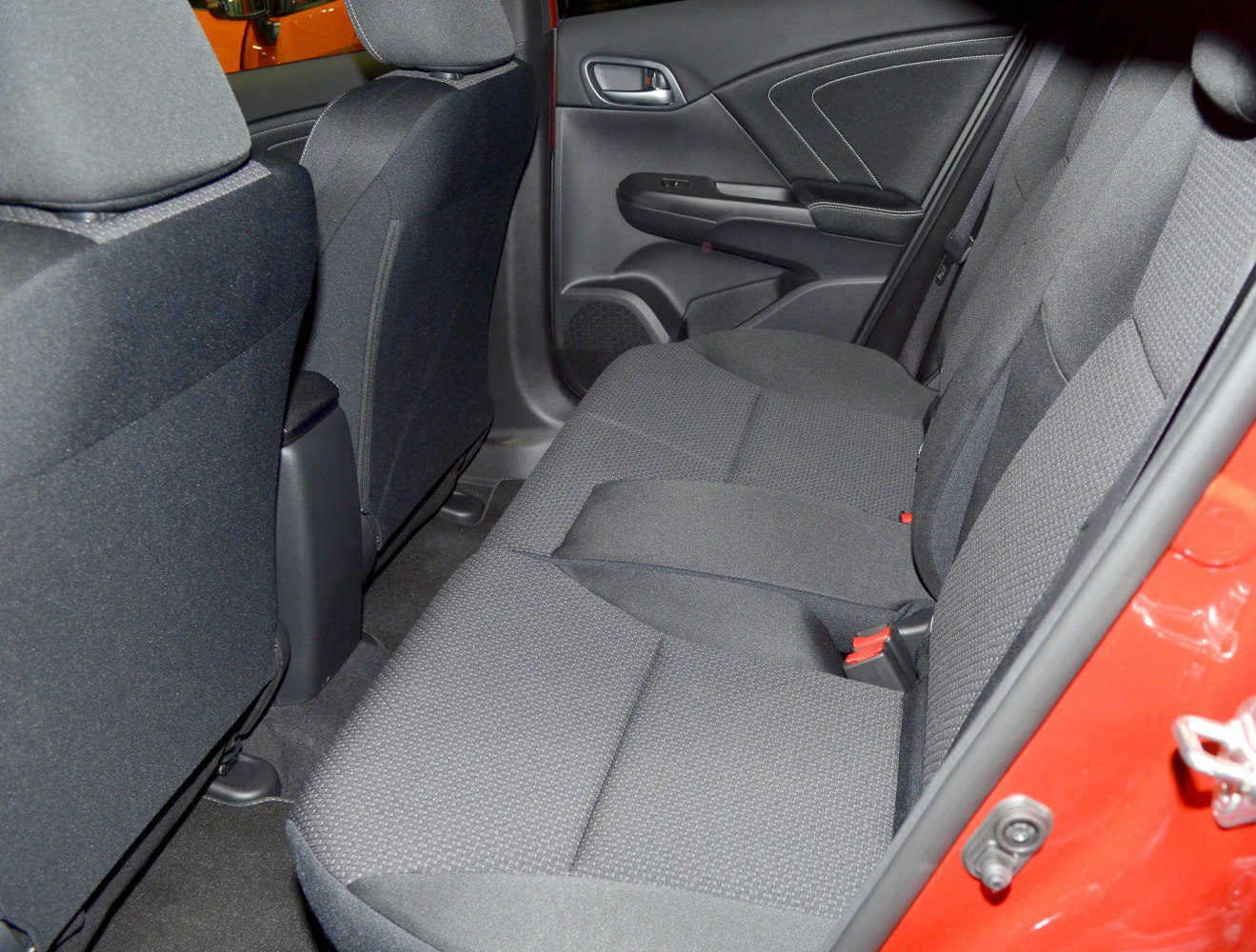

Vehicle photos
1 of 10
View larger
Choose a drivetrain
Engine versions
Select a row to update the key figures and detailed specifications below.
4 versions · 3 Gasoline · 1 Diesel fuel
| Engine | Fuel | Power | Production |
|---|---|---|---|
| 1.4 i-VTEC (100 KM) Selected | Gasoline | 100 KM | 2014–2017 |
| 1.8 i-VTEC (140 KM) Selected | Gasoline | 140 KM | 2014–2017 |
| 1.8 i-VTEC (140 KM) Automatic Selected | Gasoline | 140 KM | 2014–2017 |
| 1.6 i-DTEC (120 KM) Selected | Diesel fuel | 120 KM | 2014–2017 |
No matching engine version
Try a model number, power figure or clear the fuel filter.
Selected engine version
1.4 i-VTEC (100 KM)
Gasoline · 2014–2017
- Engine power
- 100 KM
- Torque
- 127 Nm
- Engine displacement
- 1,339 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 13 s
- Maximum speed
- 177 km/h
On this page
Check vehicle history
Basic version information
Honda Civic Civic IX Hatchback (facelift 2014)- Brand
- Honda
- Model
- Civic
- Version
- Civic IX Hatchback (facelift 2014)
- Engine
- 1.4 i-VTEC (100 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2014
- End of production
- 2017
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 177 km/h
- Acceleration 0-100 km/h
- 13 s
- Fuel consumption - Urban cycle
- 7.3 l/100 km
- Fuel consumption - Extra-urban cycle
- 5 l/100 km
- Fuel consumption - Combined cycle
- 5.9 l/100 km
- Emission standard
- Euro 6
- CO2 emissions
- 135 g/km
Engine
- Engine model / code
- L13A
- Engine position
- Front, Transverse
- Engine displacement
- 1339 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Cylinder bore
- 73 mm
- Piston stroke
- 80 mm
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.6 l
- Coolant capacity
- 4.61 l
- Power
- 100 KM @ 6000 obr./min
- Torque
- 127 Nm @ 4800 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 456 l
- Curb weight
- 1186 kg
Vehicle dimensions
- Length
- 4250 mm
- Width
- 1760 mm
- Height
- 1460 mm
- Wheelbase
- 2635 mm
- Ground clearance
- 150 mm
- Turning circle
- 11 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 205/55 R16
- Rim size
- 16
- ABS
- yes
Selected engine version
1.8 i-VTEC (140 KM)
Gasoline · 2014–2017
- Engine power
- 140 KM
- Torque
- 174 Nm
- Engine displacement
- 1,799 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 8.9 s
- Maximum speed
- 205 km/h
On this page
Check vehicle history
Basic version information
Honda Civic Civic IX Hatchback (facelift 2014)- Brand
- Honda
- Model
- Civic
- Version
- Civic IX Hatchback (facelift 2014)
- Engine
- 1.8 i-VTEC (140 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2014
- End of production
- 2017
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 205 km/h
- Acceleration 0-100 km/h
- 8.9 s
- Fuel consumption - Urban cycle
- 8.8 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.5 l/100 km
- Fuel consumption - Combined cycle
- 6.7 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 155 g/km
Engine
- Engine model / code
- R18Z4
- Engine position
- Front, Transverse
- Engine displacement
- 1799 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.7 l
- Coolant capacity
- 5.57 l
- Power
- 140 KM @ 6300 obr./min
- Torque
- 174 Nm @ 4200 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 456 l
- Curb weight
- 1270 kg
Vehicle dimensions
- Length
- 4250 mm
- Width
- 1760 mm
- Height
- 1460 mm
- Wheelbase
- 2635 mm
- Ground clearance
- 150 mm
- Turning circle
- 11.8 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 225/45 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
1.8 i-VTEC (140 KM) Automatic
Gasoline · 2014–2017
- Engine power
- 140 KM
- Torque
- 174 Nm
- Engine displacement
- 1,799 cm³
- Fuel type
- Gasoline
- Acceleration 0-100 km/h
- 11 s
- Maximum speed
- 197 km/h
On this page
Check vehicle history
Basic version information
Honda Civic Civic IX Hatchback (facelift 2014)- Brand
- Honda
- Model
- Civic
- Version
- Civic IX Hatchback (facelift 2014)
- Engine
- 1.8 i-VTEC (140 KM) Automatic
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2014
- End of production
- 2017
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Gasoline
Performance
- Maximum speed
- 197 km/h
- Acceleration 0-100 km/h
- 11 s
- Fuel consumption - Urban cycle
- 10 l/100 km
- Fuel consumption - Extra-urban cycle
- 5.8 l/100 km
- Fuel consumption - Combined cycle
- 7.3 l/100 km
- Emission standard
- Euro 5
- CO2 emissions
- 169 g/km
Engine
- Engine model / code
- R18Z4
- Engine position
- Front, Transverse
- Engine displacement
- 1799 cm³
- Fuel injection system
- Multi-point injection
- Engine type
- Naturally aspirated engine
- Engine configuration
- Inline
- Number of cylinders
- 4
- Compression ratio
- 10.5
- Number of valves per cylinder
- 4
- Engine oil capacity
- 3.7 l
- Coolant capacity
- 5.57 l
- Power
- 140 KM @ 6300 obr./min
- Torque
- 174 Nm @ 4200 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 456 l
- Curb weight
- 1288 kg
Vehicle dimensions
- Length
- 4250 mm
- Width
- 1760 mm
- Height
- 1460 mm
- Wheelbase
- 2635 mm
- Ground clearance
- 150 mm
- Turning circle
- 11.8 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 5
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 225/45 R17
- Rim size
- 17
- ABS
- yes
Selected engine version
1.6 i-DTEC (120 KM)
Diesel fuel · 2014–2017
- Engine power
- 120 KM
- Torque
- 300 Nm
- Engine displacement
- 1,597 cm³
- Fuel type
- Diesel fuel
- Acceleration 0-100 km/h
- 10.5 s
- Maximum speed
- 207 km/h
On this page
Check vehicle history
Basic version information
Honda Civic Civic IX Hatchback (facelift 2014)- Brand
- Honda
- Model
- Civic
- Version
- Civic IX Hatchback (facelift 2014)
- Engine
- 1.6 i-DTEC (120 KM)
- Engine type
- Combustion engine
- Number of doors
- 5
- Start of production
- 2014
- End of production
- 2017
- Body type
- Hatchback
- Number of seats
- 5
- Fuel type
- Diesel fuel
Performance
- Maximum speed
- 207 km/h
- Acceleration 0-100 km/h
- 10.5 s
- Fuel consumption - Urban cycle
- 4 l/100 km
- Fuel consumption - Extra-urban cycle
- 3.3 l/100 km
- Fuel consumption - Combined cycle
- 3.6 l/100 km
- CO2 emissions
- 94 g/km
Engine
- Engine model / code
- N16A1
- Engine position
- Front, Transverse
- Engine displacement
- 1597 cm³
- Fuel injection system
- Diesel common rail
- Engine type
- Turbocharger, Intercooler
- Engine configuration
- Inline
- Number of cylinders
- 4
- Compression ratio
- 16
- Number of valves per cylinder
- 4
- Engine oil capacity
- 4.7 l
- Coolant capacity
- 5.66 l
- Power
- 120 KM @ 4000 obr./min
- Torque
- 300 Nm @ 2000 obr./min
Volume and weight
- Fuel tank
- 50 l
- Minimum trunk capacity
- 477 l
- Maximum trunk capacity
- 1378 l
- Curb weight
- 1307 kg
Vehicle dimensions
- Length
- 4370 mm
- Width
- 1770 mm
- Height
- 1470 mm
- Wheelbase
- 2595 mm
- Ground clearance
- 140 mm
- Turning circle
- 11 m
Drivetrain, Brakes and suspension
- Drive
- Front-wheel drive
- Number of gears
- 6
- Front suspension
- Independent, McPherson type with coil spring and stabilizer bar
- Rear suspension
- Semi-independent spring suspension
- Front brakes
- Ventilated disc
- Rear brakes
- Disc
- Steering system
- Rack-and-pinion
- Tire size
- 225/40 R17
- Rim size
- 17
- ABS
- yes
